From Tracking Lineage to Enhancing Data Quality and Auditing:

Adding Provenance Support to Data Warehouses with ProvETL

Matheus Vieira

, Thiago de Oliveira

, Leandro Cicco

, Daniel de Oliveira

and Marcos Bedo

Institute of Computing, Fluminense Federal University, Brazil

Information Technology Superintendence, Fluminense Federal University, Brazil

Keywords:

Data Warehousing, ETL, Provenance, Data Quality, Business Intelligence.

Abstract:

Business intelligence processes running over Data Warehouses (BIDW) heavily rely on quality, structured

data to support decision-making and prescriptive analytics. In this study, we discuss the coupling of prove-

nance mechanisms into the BIDW Extract-Transform-Load (ETL) stage to provide lineage tracking and data

auditing, which (i) enhances the debugging of data transformation and (ii) facilitates issuing data account-

ability reports and dashboards. These two features are particularly beneﬁcial for BIDWs tailored to assist

managers and counselors in Universities and other educational institutions, as systematic auditing processes

and accountability delineation depend on data quality and tracking. To validate the usefulness of provenance

in this domain, we introduce the ProvETL tool that extends a BIDW with provenance support, enabling the

monitoring of user activities and data transformations, along with the compilation of an execution summary

for each ETL task. Accordingly, ProvETL offers an additional BIDW analytical layer that allows visualizing

data ﬂows through provenance graphs. The exploration of such graphs provides details on data lineage and the

execution of transformations, spanning from the insertion of input data into BIDW dimensional tables to the ﬁ-

nal BIDW fact tables. We showcased ProvETL capabilities in three real-world scenarios using a BIDW from

our University: personnel admission, public information in paycheck reports, and staff dismissals. The results

indicate that the solution has contributed to spotting poor-quality data in each evaluated scenario. ProvETL

also promptly pinpointed the transformation summary, elapsed time, and the attending user for every data ﬂow,

keeping the provenance collection overhead within milliseconds.

1 INTRODUCTION

Business Intelligence (BI) processes have become

commonplace for decision-making across various

corporate activities and domains. These pro-

cesses are typically integrated with Data Warehouses

(BIDW) (Kimball and Ross, 2011) or even Data

Lakes (Nargesian et al., 2023), especially when deal-

ing with unstructured data. One domain in which

BIDW is particularly useful is the strategic planning

and management of Universities and other educa-

tional institutions (Rudniy, 2022). The challenges in

this context include monitoring courses, student per-

formances, maintenance and personnel costs, and re-

search initiatives. Deans, managers, and board mem-

bers can beneﬁt from accurate reports and consistent

data to make informed decisions on new projects and

social policies.

Typically, required data to support these decisions

(or estimate potential educational impacts) are struc-

tured and stored in relational databases through large-

scale educational information systems. Additional

data are gathered from government sources, press re-

leases, non-governmental organizations, and ad-hoc

spreadsheets. Such heterogeneous data must undergo

conformation and consolidation into the Data Ware-

house through Extract-Transform-Load (ETL) pro-

cesses (Vassiliadis et al., 2002).

The context of this study revolves around an insti-

tutional BIDW of our University, encompassing more

than ﬁve million tuples. The BIDW is a collection of

six Data Marts, each following the star schema and

associated with their respective ETL routines. The

transformation processes are essential to conform and

standardize data from heterogeneous sources, ensur-

ing proper consumption and avoiding inconsistencies.

ETL routines are speciﬁcally designed with the as-

sumption data sources are static, i.e., their schemas

do not change over time. However, changes in the

schema may be usual as data sources are hetero-

Vieira, M., de Oliveira, T., Cicco, L., de Oliveira, D. and Bedo, M.

From Tracking Lineage to Enhancing Data Quality and Auditing: Adding Provenance Support to Data Warehouses with ProvETL.

DOI: 10.5220/0012634500003690

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 26th International Conference on Enterprise Information Systems (ICEIS 2024) - Volume 1, pages 313-320

ISBN: 978-989-758-692-7; ISSN: 2184-4992

313

geneous, requiring the adaptation of existing rou-

tines, which can be error-prone (Rahm and Bernstein,

2006). Those errors may result in loading inconsistent

data into the BIDW, which makes the identiﬁcation of

such inconsistencies a top priority.

Provenance (Freire et al., 2008; Herschel et al.,

2017) presents a natural solution to support users in

tracking the steps of a process, following the data

derivation path, and monitoring relevant metadata

and parameters associated with data transformations.

Provenance data have been employed in workﬂows

from various domains, such as healthcare (Corrigan

et al., 2019). We observe ETL routines are similar to

large-scale workﬂows as they are iterative processes

that face the challenge of feedback loops and involve

multiple data transformations, users, datasets, and pa-

rameters (Silva and others., 2021).

Therefore, in this study, we propose the inte-

gration of provenance capturing and storing mecha-

nisms into the ETL routines of a BIDW. Speciﬁcally,

we introduce a novel strategy for automatically in-

jecting instructions into the ETL transformations to

collect and store both prospective and retrospective

provenance in a dedicated database. This database

serves as a valuable source of information for mon-

itoring, auditing, and correcting issues in the BIDW,

thereby enhancing data quality. Our solution, named

ProvETL, integrates a provenance schema with in-

jection strategies to create a BIDW extension that ad-

dresses the following questions: (i) Which data out-

put was produced after the ETL transformation con-

suming a given input? (ii) Which user executed this

transformation with speciﬁc input data and setup?

(iii) What is the summary for the execution of this

transformation and input data (in terms of an aggre-

gation function, such as COUNT and AVG)? (iv) What

transformation sequence generates this data product?

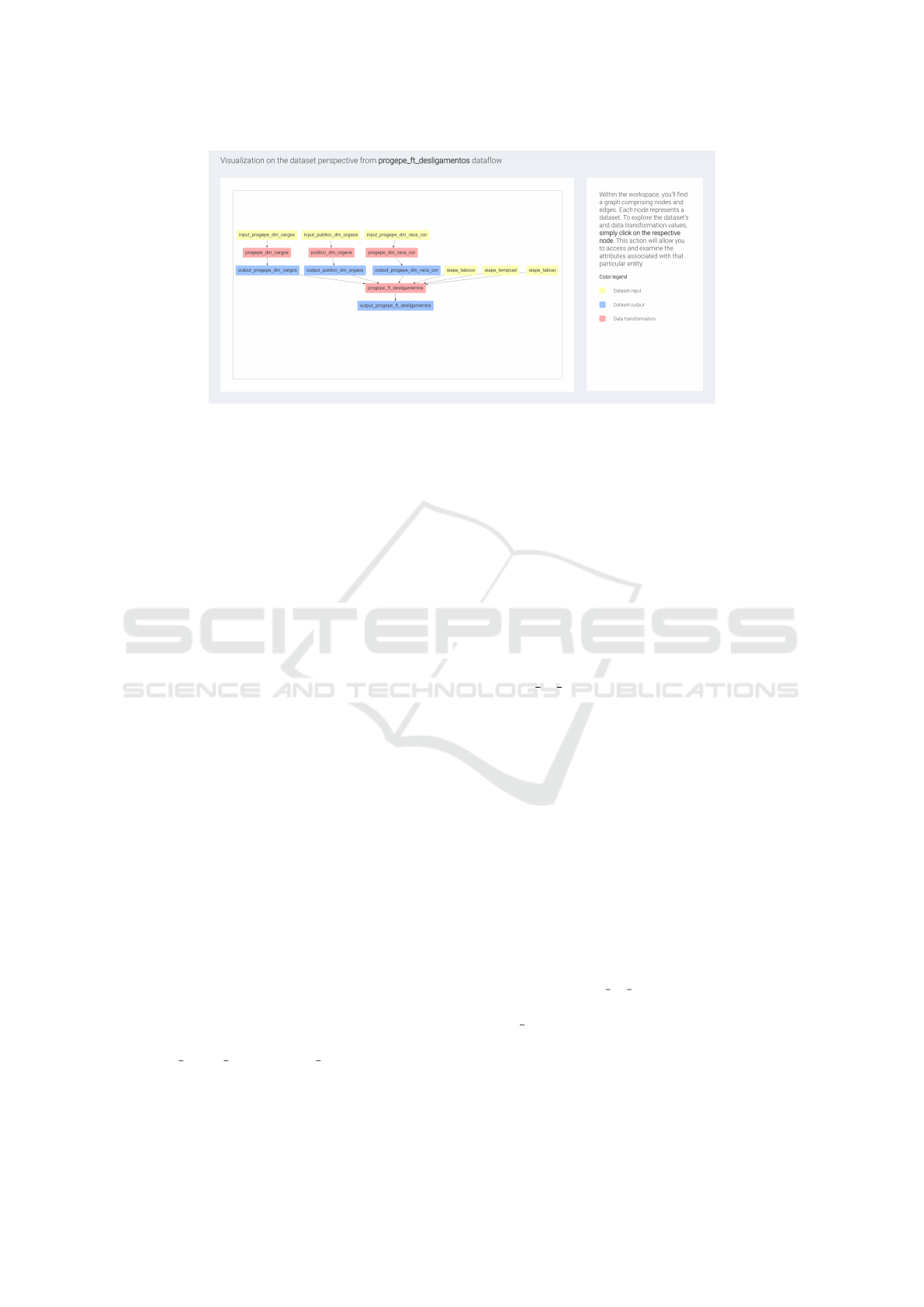

ProvETL also provides a web-based analytical

layer with a provenance graph of the executed ETL

routine, allowing users to interactively explore an-

swers to previous questions by traversing the graph.

To showcase the capabilities of our proposed solu-

tion, we investigated three real-world scenarios re-

lated to personnel admission, public information in

paycheck reports, and staff dismissals from our Uni-

versity BIDW. The results indicate that ProvETL

was effective in (i) detecting poor-quality inputs and

(ii) identifying transformations susceptible to noisy

data with acceptable processing overhead.

The remainder of this paper is divided as follows.

Section 2 discusses the background. Section 3 in-

troduces the material and methods, while Section 4

presents the qualitative and quantitative results. Fi-

nally, Section 5 offers the conclusions.

2 BACKGROUND

Provenance Data. This term denotes metadata that

explains the process of generating a speciﬁc piece of

data. Thus, provenance records data derivation paths

within a particular context for further querying and

exploration, which fosters reproducibility in scientiﬁc

experiments. We apply this concept as a rich source

of information, encompassing the routines, parameter

values, and data transformations executed by users

during the ETL process, i.e., a resource for moni-

toring and assuring the data quality of the BIDW.

The W3C recommendation, PROV (Groth and

Moreau, 2013), deﬁnes a data model for representing

provenance data. It conceptualizes provenance in

terms of Entities, Agents, Activities, and various

relationship types. Here, an entity could represent

a speciﬁc table of the OLTP database. Activities

are actions performed within the ETL routines that

affect entities, such as currency standardization,

with execution times and error messages. Lastly,

an Agent is a user responsible for executing ETL

routines. The speciﬁcation of an ETL pipeline can be

viewed as Prospective Provenance (p-prov), a form of

provenance data that logs the steps carried out during

ETL routines. Another category of provenance is

Retrospective Provenance (r-prov), which captures

details related to the execution process, such as when

transformations are executed.

Provenance Capturing. Capturing provenance is

a process that can take two forms: (i) based on

instrumentation or (ii) instrumentation-free. In the

ﬁrst category, the collection of provenance or the in-

vocation of a provenance system, e.g., YesWorkﬂow

(McPhillips et al., 2015), requires injecting speciﬁc

calls into the script or program where provenance

needs to be captured. While this approach offers the

advantage of capturing only the necessary prove-

nance, it does require some effort from the users.

The latter category captures every action performed

in the script without requiring any modiﬁcation in

the source code. The approaches in this category,

e.g., noWorkﬂow (Murta et al., 2015), present the

advantage of being transparent for the user, but it

may result in collecting a substantial volume of data

with a signiﬁcant portion may be irrelevant for the

user analysis, e.g., registering a ﬁle opening.

Data Warehousing. The BIDW model encompasses

four main layers. The ﬁrst layer represents External

Data Sources, containing all input data that may

provide valuable insights. Data sources include

relational databases (i.e., OLTP databases), JSON

ICEIS 2024 - 26th International Conference on Enterprise Information Systems

314

ﬁles, and spreadsheets. The second layer is the Data

Staging Layer, which stores data already extracted

from external data sources but not yet standardized,

cleaned, and aggregated. It serves as a data prepara-

tion area, where ETL routines transform data before

loading them into the BIDW. The ETL process can

be conducted using off-the-shelf tools or in-house

scripts. The Data Warehouse Layer contains consol-

idated BIDW data (modeled as either a star schema

or a snowﬂake schema) ready for querying (Kimball

and Ross, 2011). The last BIDW layer (Presentation

Layer) contains the tools responsible for consuming

data from the BIDW and supporting decision-making,

typically through analytical dashboards.

Talend ETL Suite. In this study, we adopt the

off-the-shelf ETL tool Talend Studio

following the

already coded ETL routines from the real-world

BIDW we examine in the experiments (our solution

does not depend on the ETL tool). Talend provides

a uniﬁed suite for ETL and data management that

addresses data integration issues and provides data

quality and sharing mechanisms. It enables users

to implement complex ETL routines visually and to

extend transformations based on their speciﬁc needs.

Related Work. Various provenance management so-

lutions are available across different contexts, but

most existing studies focus on supporting scientiﬁc

experiments. Within the context of ETL routines, pro-

pose a provenance model designed for ETL routines

as a vocabulary based on the deprecated Open Prove-

nance Model (OPM) standard (Kwasnikowska et al.,

2015). Despite its advantages, the approach relies on

an outdated provenance standard since OPM was re-

placed by PROV in 2013. (Zheng et al., 2019) intro-

duce a tool named PROVision, which aims to leverage

ﬁne-grained provenance to support ETL and match-

ing computations by extracting content within data

objects. While PROVision represents a step forward,

it primarily focuses on ﬁne-grained provenance. Ad-

ditionally, it requires users to model the ETL routines

using PROVVision, limiting the choice of tools. (Reis

Jr et al., 2019) also propose a provenance architec-

ture for open government data, storing metadata in a

Neo4J graph database. Provenance is implemented

within the UnBGOLD tool, which is designed for

Linked Open Government Data and is unable to han-

dle generic ETL routines.

In this study, we aim to bridge the gap in utilizing

provenance data to enhance data quality within ETL

routines in an agnostic manner, i.e., without depen-

dency on any speciﬁc ETL tool.

https://www.talend.com/

3 MATERIALS AND METHODS

In this section, we introduce the ProvETL tool,

which supports provenance data capturing and stor-

ing during the ETL stage of BIDW systems. The core

idea of ProvETL involves intercepting data trans-

formations performed by ETL routines by injecting

provenance calls within the routines. The calls cap-

ture both r-prov and p-prov and store them in a rela-

tional database for analysis. The intercept-and-inject

strategy takes place during the instrumentation of the

ETL routine. Essentially, it involves adding a script

to the routine to capture provenance data of inter-

est, such as the user who started the ETL routine

and the start/end time of each data transformation.

ProvETL assumes that ETL routines can be imple-

mented in various forms. Therefore, it relies on a

generic provenance-capturing mechanism that avoids

targeting a particular tool, such as Talend, Knime, and

scripts in speciﬁc languages like Python.

Therefore, a ProvETL communication condition

is to make HTTP requests within the ETL routine.

Once provenance data have been captured, an HTTP

request must be made, incorporating the collected

data as the requested content (i.e., body). The

request is then intercepted by a ProvETL server,

which stores the provenance data in a relational

database. This message-passing approach involves

an observable trade-off as it allows the capture of

provenance from generic ETL routines while relying

on a client-server application protocol, which is

subject to bottlenecks on the server side and network

throughput. To minimize performance issues, we

addressed the following functional requirements.

Functional Requirements. The main functional re-

quirements observed prior to the ProvETL construc-

tion are listed in Table 1.

Table 1: Functional requirements.

ID Description

#1 Users may create traceable instances repre-

senting the dataﬂow

#2 Users may deﬁne the transformations that oc-

cur in the dataﬂow

#3 Users may deﬁne the input and output set

schemas for the transformations

#4 The system must deﬁne endpoints to receive

data from the dataﬂow transformations

#5 Users may visualize the dataﬂow on a graph

#6 Users may explicitly search provenance data

Requirement #1 involves providing an endpoint

for creating user-deﬁned dataﬂows. The user needs

to specify a name and description for the dataﬂow,

From Tracking Lineage to Enhancing Data Quality and Auditing: Adding Provenance Support to Data Warehouses with ProvETL

315

which will be displayed later on the ProvETL

web interface. Once the dataﬂow is created, the

system should return an identiﬁer for the subsequent

instrumentation. Requirement #2 involves providing

an endpoint to create the transformations that will be

mapped to a dataﬂow. Requirement #3 ensures the

speciﬁcation of the schema for the input/output data

transformations, including attribute names and their

types. Both the input and output attributes return

internal identiﬁers for subsequent instrumentation.

Requirement #4 is analogous to an API deﬁnition,

created internally by ProvETL during the execution

of transformations to obtain data instances, and is not

directly called by the user. Requirement #5 speciﬁes

the creation of a graphical interface for visualizing

the provenance graph associated with the dataﬂow.

Finally, Requirement #6 deﬁnes an entry point for

querying collected data.

Data Model. ProvETL stores provenance data from

ETL data transformations in a relational DBMS.

However, any physical model can be used for data

storage by mapping the conceptual model proposed

in Figure 1, represented by a simpliﬁed Entity-

Relationship Diagram. The central entity, Dataﬂow,

models the dataﬂow and includes descriptive at-

tributes. The second entity is DataTransformation,

representing all data transformations. One instance

of Dataﬂow may be associated with multiple in-

stances of DataTransformations. The third entity

is DataSetSchema, which represents the structure

of transformed data, both at the input (before the

transformation) and at the output (after the trans-

formation). A DataTransformation can be related

to multiple DataSetSchemas, and this relationship

is categorized as input/output. A DataSetSchema

includes a list of meta-attributes representing the

dataﬂow attributes and their types. Finally, the last

entity is the DataSet, representing the data ﬁles con-

sumed/produced by data transformation, including

the schema and values.

Architecture and Implementation. ProvETL was

designed following a 3-layer pattern in a distributed

architecture: (i) an Interface Layer, (ii) an Applica-

tion Layer, and (iii) a Data Layer – Figure 2. The Web

Portal in the Interface Layer allows users to interact

with provenance data, listing the captured dataﬂows

and the corresponding data transformations deﬁned

in the instrumentation stage. The transformations

within a dataﬂow and its relationships are displayed

as an expandable provenance graph built in the web

interface with the Vis.js library. The REST API

provides endpoints to receive collected provenance

data from external ETL Clients, as previously deﬁned

in the data model (Figure 1). The Application Layer

coordinates the ProvETL logic. This layer was

implemented as a complete application developed

in Java 8 using the Spring Boot framework version

2.7.14. The backend is subdivided into several

modules, following a structure called Package by

Layer: (i) the Controller, responsible for managing

the endpoints, (ii) the Service, in charge of the

enforcing logic rules, (iii) the Repository, responsible

for accessing the data, and (iv) the Entity, responsible

for deﬁning the entities. Finally, the Data Layer

contains the Provenance Database, which manages

all collected provenance data in a persistent form.

ProvETL Setup. This stage involves minimal steps

to implement the automatic intercept-and-inject strat-

egy into ETL routines, which can be implemented in

various ways, including scripts or speciﬁc ETL tools.

The only requirement for integrating ProvETL into

the existing ETL routines implemented in any ETL

tool is the ability to establish an HTTP connection

to make requests and receive conﬁrmations from the

ProvETL server-side. The ﬁrst step for setting up

ProvETL is the identiﬁcation of the current dataﬂow

(See Functional Requirement #1), which is persisted

as one Dataﬂow entity by the system. After creat-

ing the entity following a user-submitted request, the

endpoint provides a dataﬂow identiﬁer. Thereafter,

the transformations (jobs) must be deﬁned, which is

carried out by an HTTP request that also returns one

identiﬁer associated with the created transformation.

Each data transformation deﬁnition includes the input

and output datasets, which enables the instantiation

of DataSetSchema entities. After obtaining the iden-

tiﬁers, we inject the provenance calls in the ETL rou-

tine, sending provenance data by making a series of

HTTP requests, i.e., r-prov data. An additional block

of code is added for each data transformation to col-

lect the current user executing the step in the ETL

routine, the start and end time of the transformation,

and the number of input and output tuples for the pro-

cess. Then, another block of code is used to build the

body of the HTTP request to the ProvETL server-

side. Next, we present a code snippet to be added to

a Python-based script that captures r-prov and con-

siders the transformation summary as the counting of

the involved tuples (data summarization is deﬁned in

terms of SQL aggregation functions, e.g., COUNT, SUM,

MAX, etc.). The endpoint has already been connected

in the deﬁnition of the dataﬂow, i.e., p-prov, so it can

be directly invoked.

current_user = getpass.getuser()

current_time = datetime.now()

ICEIS 2024 - 26th International Conference on Enterprise Information Systems

316

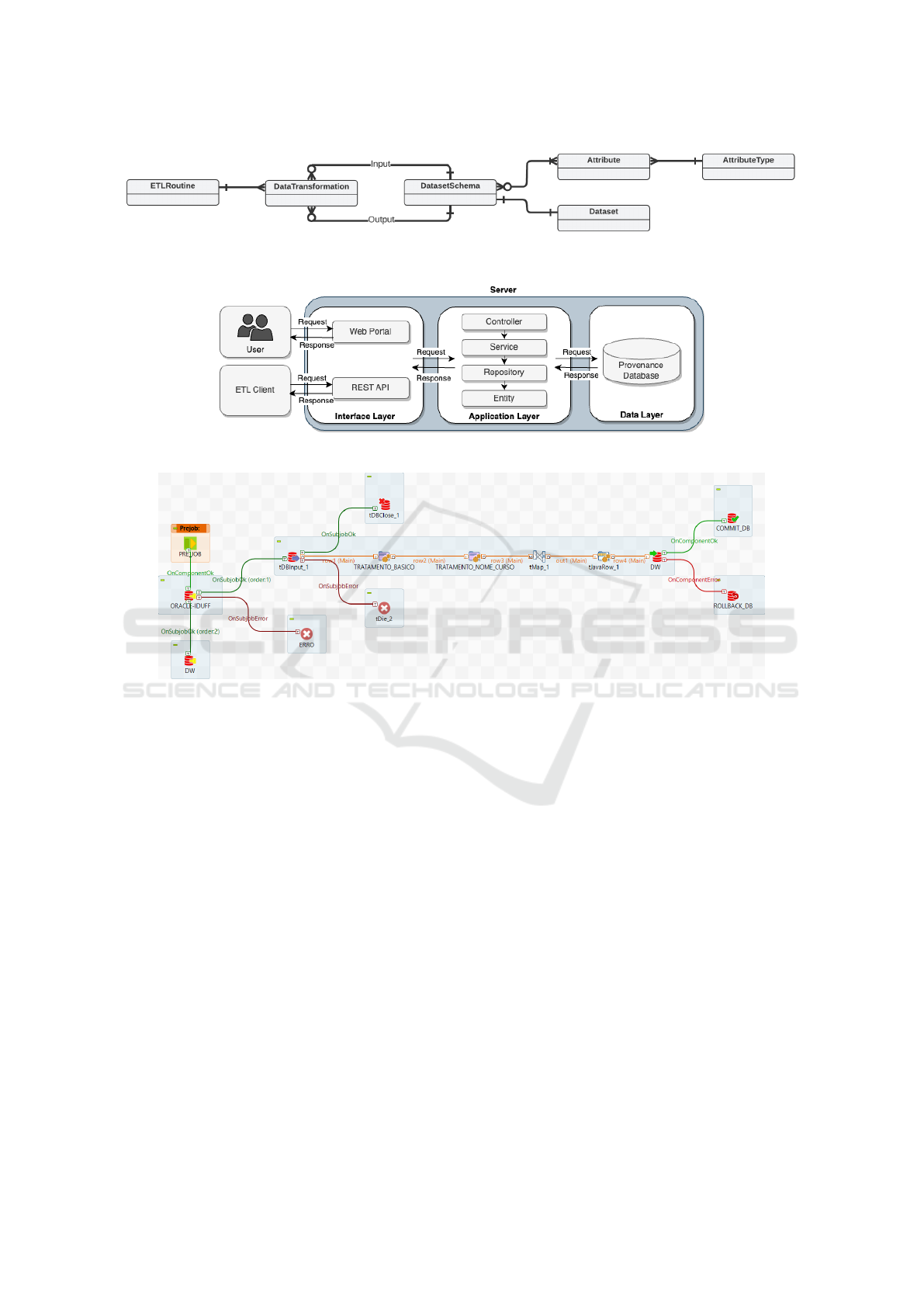

Figure 1: ProvETL Data Model.

Figure 2: ProvETL three-layer architecture.

Figure 3: Example of BIDW Talend job that cleans and anonymizes enrolled students’ data.

#Data summarization

data_in = [1, 2, 3, 4, 5]

payload = {"executedBy": current_user,

"startedAt": current_time,

"numberOfInputTuples": len(data_in)}

#Request building and posting

endp = "dataflows/1/transformations/3"

headers = {’Content-Type’: ’application/json’}

requests.post(endp, data=json.dumps(payload),

headers=headers)

The injected script will execute whenever the ETL

routine runs, sending the r-prov data to ProvETL

server-side. Received requests will be persisted into

the database to be further queried in the graphical in-

terface that presents the provenance graph.

4 ProvETL EVALUATION

We evaluated ProvETL in a practical BIDW of

our University, encompassing six data marts and

more than one million tuples. In particular, in this

section, we discuss three case studies that showcase

ProvETL capabilities in using provenance data for

monitoring the ETL routines, detecting poor quality

data (debugging), and accountability.

Experimental Setup. Our BIDW consumes data

from several relational data sources, unstructured text

ﬁles, and spreadsheets produced by internal and exter-

nal sources. The Data Mart subjects include courses,

students, dropouts, research projects, and staff infor-

mation, with the last Data Mart directly supporting the

dean of the university and the counselors. All com-

ponents of the BIDW undergo a series of ETL rou-

tines implemented as Talend jobs. The BIDW model

allows integration with existing ETL tools, but the

project managers decided on Talend jobs. These jobs

execute as pieces of Java code, and their outputs re-

sult in commits to an Oracle DBMS 12.2. Each ETL

routine writes to a single BIDW table (Dimension or

Fact) to ensure better isolation.

Figure 3 presents an example of an ETL rou-

tine responsible for cleaning and anonymizing under-

graduate students’ data. Each workﬂow component

From Tracking Lineage to Enhancing Data Quality and Auditing: Adding Provenance Support to Data Warehouses with ProvETL

317

Figure 4: The three dataﬂows examined as ProvETL’s case studies.

Figure 5: ProvETL provenance graph for the ﬁrst BIDW case study.

Figure 6: ProvETL provenance graph for the second BIDW case study.

performs a speciﬁc step, such as connecting to the

DBMS, consuming input data, adjusting strings, treat-

ing missing values, and replacing coded terms un-

til loading processed data into the DBMS. To show

the potential of ProvETL in collecting provenance

data from these types of ETL routines, we set up

ProvETL for the case studies, following a similar

step-by-step process discussed in Section 3. The case

studies were selected after discussions with BIDW

analysts, with staff personnel identiﬁed as the most

relevant subject of interest. Figure 4 lists the three

dataﬂows of interest.

We instrumented the three dataﬂows by injecting

provenance instructions directly into the Talend jobs.

We observe there is a native offer to package HTTP

requests as a Talend component, which eases the

ProvETL communication as it relies on being able

to handle HTTP messages to collect provenance data.

ICEIS 2024 - 26th International Conference on Enterprise Information Systems

318

Figure 7: ProvETL provenance graph for the third BIDW case study.

A new component was added to every workﬂow that

deﬁnes an ETL routine so that extra Java code could

be executed. The inserted snippets make calls for

collecting provenance data of interest and integration

with ProvETL endpoints, taking into account the

identiﬁers provided by the proposed API. All evalua-

tions were conducted on a local workstation equipped

with a dual-core Intel i5, 8 GB RAM, and a 500 GB

hard drive running Windows 10.

Case Study 01 – Personnel Admission. The ﬁrst

case study involves collecting provenance data from

all ETL routines that load data into the Fact table

containing measures and metrics associated with re-

cently hired university employees. The table includes

references to Dimension tables, such as entry identi-

ﬁcation, year of admission, employee residence (by

region/state), categorical information like nationality,

gender, race, and position, as well as numerical mea-

sures such as bonuses, workload, and the number of

legal dependents. References to Dimension tables are

inserted by ETL routines before loading the Fact ta-

ble, resulting in several routines associated with the

Dimension tables and one major routine related to the

Fact table that runs after every other ETL transfor-

mation. After mapping the dataﬂow (the ﬁrst entry

in Figure 4) and instrumenting the ETL routines with

code injection, we run a data extraction from seven

data sources – See Figure 5.

This dataﬂow summarizes the number of tuples

by the COUNT aggregation function so the user can

identify inconsistencies in the ETL routines. For

example, in Case Study 01, the provenance data

revealed that 3.22% of the tuples were duplicated

in the dm tipos deficiencia fisica Dimension

table, which stored data regarding types of physical

disabilities.

Case Study 02 – Public Paycheck Reports. The

second case study involves collecting data from

various data sources and populating several Dimen-

sions and one Fact table with public information on

personnel salaries and paychecks. Similar to Case

Study 01, we instantiated a dataﬂow in ProvETL

and deﬁned data of interest in all related ETL

transformations. Subsequently, we proceeded to

instrument Talend jobs with Java components. After

mapping the dataﬂow and ETL routines (second entry

in Figure 4), we executed all the transformations with

code injection over four data sources – See Figure

6. Here, the injected routine responsible for loading

PUBLICO DM ORGAOS data revealed that 3.63% tuples

were duplicated.

Case Study 03 – Former Personnel. Our ﬁnal

case study collects provenance from various data

sources containing information on dismissed and

former personnel. To gather the provenance data,

we instantiated a dataﬂow on ProvETL and deﬁned

the granularity of interest in all connected ETL

transformations. Next, we mapped the dataﬂow

and ETL routines (third entry in Figure 4) and

ran all the transformations over six data sources.

Figure 7 illustrates the dataﬂow for Case Study

03. In the experimental evaluation over six data

sources, all transformations produced no errors and

loaded data into the BIDW. However, the injected

routine responsible for processing the data to load the

Fact table PROGEPE FT DESLIGAMENTOS within this

dataﬂow revealed that 35.5% of the tuples had the

NIVEL CLASSIFICACAO of empty attributes.

Provenance Overhead. Capturing and storing prove-

nance data offers analytical advantages for users to

monitor and debug ETL routines. However, it also

introduces a processing overhead. We measured the

From Tracking Lineage to Enhancing Data Quality and Auditing: Adding Provenance Support to Data Warehouses with ProvETL

319

dm niveis formacao dm tipos deﬁciencia ﬁsica dm raca cor

2,000

4,000

6,000

Data Transformation

Time (ms)

Without Instrumentation With Instrumentation

Figure 8: Average elapsed time to perform ETL routines with and without instrumentation.

overhead imposed by capturing provenance in all of

our instrumented ETL routines in the BIDW data

staging area, i.e., the average elapsed time with and

without instrumentation of the ETL routines. We ob-

served that some data transformations signiﬁcantly

dominated others in terms of elapsed time, mean-

ing they were more costly than other parallel trans-

formations. As the Fact tables in all dataﬂows act

as barriers for parallel ETL executions, we report

only the cost of those dominant data transforma-

tions in Figure 8, i.e., routines dm niveis formacao,

dm tipos deficiencia fisica, and dm raca cor.

Figure 8 presents the average elapsed times after ten

executions for each data transformation. While there

is a large margin for improvement in future work, the

execution time was still within milliseconds, which

was deemed affordable by the BIDW analysts.

5 CONCLUSIONS

In this paper

, we discussed integrating provenance

mechanisms into ETL routines through a provenance-

aware extension to BIDWs, named ProvETL. We

evaluated ProvETL in three real-world scenarios

involving personnel admission, paycheck reports,

and staff dismissals, using data from our Univer-

sity BIDW. We effectively detected quality inputs

and identiﬁed potentially problematic transformations

within acceptable processing overhead.

REFERENCES

Corrigan, D., Curcin, V., et al. (2019). Challenges of de-

ploying computable biomedical knowledge in real-

world applications. In AMIA 2019.

Freire, J., Koop, D., Santos, E., and Silva, C. T. (2008).

This study was funded in part by FAPERJ - G.

SEI E-26/202.806/2019 (247357) and Coordenac¸

ao de

Aperfeic¸oamento de Pessoal de N

ıvel Superior - Brasil

(CAPES) - Finance Code 001.

Provenance for computational tasks: A survey. Com-

puting in Sc. & Eng., 10(3):11–21.

Groth, P. and Moreau, L. (2013). W3C PROV - An

Overview of the PROV Family of Documents.

Herschel, M., Diestelk

amper, R., and Lahmar, H. B. (2017).

A survey on provenance: What for? what form? what

from? The VLDB Journal, 26(6):881–906.

Kimball, R. and Ross, M. (2011). The data warehouse

toolkit: the complete guide to dimensional modeling.

Kwasnikowska, N., Moreau, L., and Bussche, J. V. D.

(2015). A formal account of the open provenance

model. ACM Trans. Web, 9(2).

McPhillips, T. M. et al. (2015). Yesworkﬂow: A

user-oriented, language-independent tool for recov-

ering workﬂow information from scripts. CoRR,

abs/1502.02403.

Murta, L., Braganholo, V., Chirigati, F., Koop, D., and

Freire, J. (2015). noworkﬂow: capturing and analyz-

ing provenance of scripts. In IPAW, pages 71–83.

Nargesian, F., Pu, K. Q., Bashardoost, B. G., Zhu, E., and

Miller, R. J. (2023). Data lake organization. IEEE

Trans. Knowl. Data Eng., 35(1):237–250.

Rahm, E. and Bernstein, P. A. (2006). An online bib-

liography on schema evolution. SIGMOD Rec.,

35(4):30–31.

Reis Jr, C. P., da Silva, W. M., Martins, L. C., Pinheiro, R.,

Victorino, M. C., and Holanda, M. (2019). Enhancing

open government data with data provenance. In Int.

Conf. on Man. of Dig. EcoSystems, pages 142–149.

Rudniy, A. (2022). Data warehouse design for big data in

academia. Computers, Materials & Continua, 71(1).

Silva, R. F. and others. (2021). Workﬂows community sum-

mit: Bringing the scientiﬁc workﬂows research com-

munity together.

Vassiliadis, P., Simitsis, A., and Skiadopoulos, S. (2002).

Conceptual modeling for etl processes. In DOLAP,

DOLAP ’02, page 14–21. ACM.

Zheng, N., Alawini, A., and Ives, Z. G. (2019). Fine-

grained provenance for matching & etl. In ICDE,

pages 184–195.

ICEIS 2024 - 26th International Conference on Enterprise Information Systems

320
