IoTUseCase: A New Concept

for the Modeling of Business Information Systems in the Age of IoT

Gaetanino Paolone

, Romolo Paesani

, Jacopo Camplone

and Paolino Di Felice

2 a

Gruppo SI S.c.a.r.l, 64100 Teramo, Italy

Department of Industrial and Information Engineering and Economics, University of L’Aquila, 67100 L’Aquila, Italy

Keywords:

IoT, Software Engineering, UML, Use Cases, Business Modeling.

Abstract:

Today, Business Information System (BISs) are the pillars of business operations. The integration of traditional

data with data sensed by Internet of Things (IoT) devices can increase remarkably the future of BISs and their

importance for the ﬁrms. Conceptual modeling is a fundamental stage in the development process of BISs,

since it allows to build an abstraction of the reality, which usually is too complex. Browsing into the published

literature, it emerges that so far minimal research has been carried out in the area of conceptual modeling of

BISs in the age of IoT. The present position paper discusses the modeling of BISs in the age of IoT, as an

evolution of the modeling of pre-IoT BISs. The conceptual modeling perspective this paper refers to concerns

the Business Modeling of IoT software systems, in the sense meant by the Rational Uniﬁed Process (RUP). It

is well-known that RUP is a use-case-driven approach, in fact use cases constitute the foundation for the entire

software development process. A new UML stereotype, called IoTUseCase, is introduced, formalized and its

role within the Business Modeling is discussed. Moreover, the study answers two research questions: (RQ1)

Are the electronic devices that collect the data of interest part of the Business model or the System model?

(RQ2) Is there a Uniﬁed Modeling Language (UML) construct that allows modeling the IoT devices?

1 INTRODUCTION

A Business Information System (BIS) is a combina-

tion of software, hardware, and telecommunication

networks devoted to collect and process data in order

to implement the ﬁrm’s core processes. Humans are

also usually considered a component of BISs. BISs

have gained immense popularity in business opera-

tions over the years. The integration of traditional

data with data sensed by Internet of Things (IoT) de-

vices can increase enormously the future of BISs and

their importance for the ﬁrms which make use of the

information technology.

Conceptual modeling is at the center of the devel-

opment of BISs, since it is a fundamental abstraction

of the most relevant aspects in the reality. The story

of conceptual modeling, started in 1970s, looks like

to be endless, since conceptual modeling efforts are

necessary to support new technologies as they emerge

(Storey et al., 2023). The more the daily relevance of

the information technology increases for the human

beings, the more the conceptual modeling emerges as

absolutely vital for the digital world. According to

https://orcid.org/0000-0003-3552-0199

the ﬁndings in (Storey et al., 2023), so far minimal

research has been carried out in this area for the IoT.

The same conclusion is drawn in another very recent

mapping study about the state of the art of conceptual

modeling of IoT systems (Kohan et al., 2023).

The present position paper discusses the concep-

tual modeling of BISs in the age of IoT, as an evolu-

tion of the modeling of pre-IoT BISs. The adopted

perspective comes from ﬁfteen years of dealing with

the conceptual modeling of BISs (mostly business

Web applications for banking). It is our strong be-

lieve that the RUP-oriented approach introduced in

(Paolone et al., 2010) can be extended to the con-

ceptual modeling of BISs in the age of the IoT. Of

course, we are aware that the soundness of such a feel-

ing needs to be veriﬁed against a number of real case

studies, as it was done by Paolone and his colleagues

after the publication at ENASE 2010 of their position

paper (Paolone et al., 2010). In the meantime, any

sort of feedback from the community is welcome.

The conceptual modeling perspective this paper

refers to belongs to the early stage of the development

process of IoT software systems: the Business Mod-

eling, in the sense intended by the RUP (Kruchten,

458

Paolone, G., Paesani, R., Camplone, J. and Di Felice, P.

IoTUseCase: A New Concept for the Modeling of Business Information Systems in the Age of IoT.

DOI: 10.5220/0012681400003687

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 19th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2024), pages 458-465

ISBN: 978-989-758-696-5; ISSN: 2184-4895

2003)

. This point of view offers a high level of ab-

straction because, in the Business Modeling, business

processes are documented in terms of business use

cases. This perspective is independent of the com-

plexity of the architecture of the IoT system as well

as it is independent of the application domain, while it

is mostly focused on assuring a common understand-

ing among all stakeholders of what business processes

need to be supported in the organization.

As recalled above, the RUP is a use-case-

driven approach. A new UML stereotype, called

IoTUseCase, is introduced, formalized and its role

within the Business Modeling is discussed. Hence,

this study addresses two research questions about the

changes that the introduction of the IoT technology (a

disruptive technology in the today’s world) brings to

the software development process:

(RQ1) Are the electronic devices that collect the

data of interest part of the Business Model or the Sys-

tem model?

(RQ2) Is there a Uniﬁed Modeling Language

(UML) construct that allows modeling the IoT de-

vices?

By analysing the similarities and differences of

BISs in the age of IoT against the pre-IoT BISs, we

are able to answer the previous research questions.

The remaining part of the paper is structured as

follows. Section 2 recalls the related work, while Sec-

tion 3 summarizes the Use-Case-centered methodol-

ogy proposed in (Paolone et al., 2010) for the de-

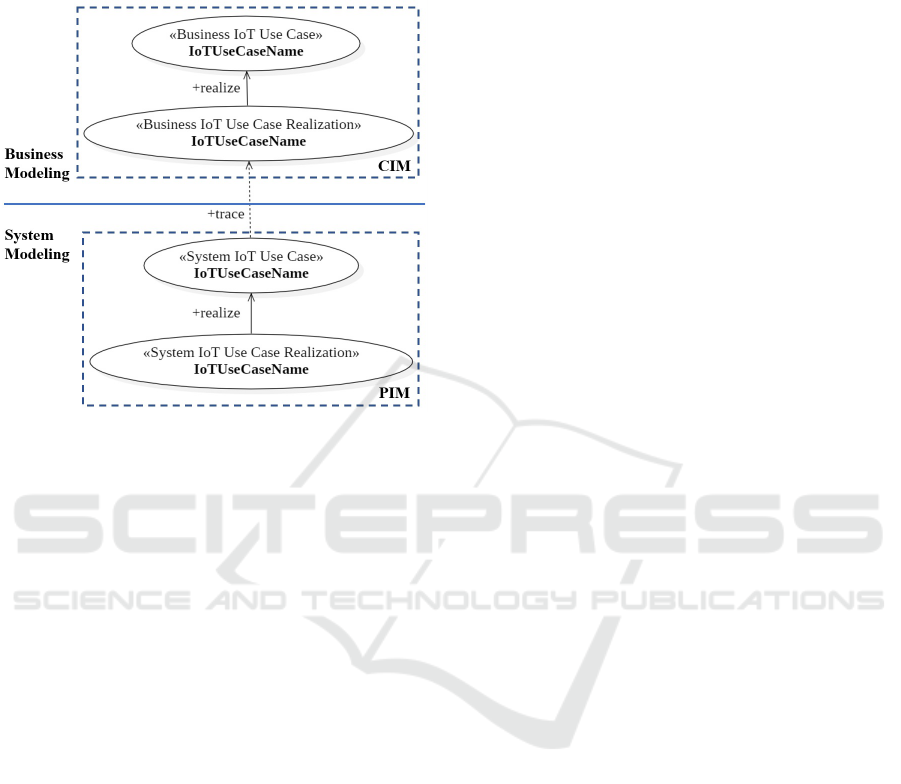

velopment of pre-IoT BISs. Hence, Section 4 pro-

poses an extension of such a previous approach to

deal with BISs in the age of IoT. The IoTUseCase

UML stereotype is the core of the proposal because

it allows to model the behavior of the IoT devices.

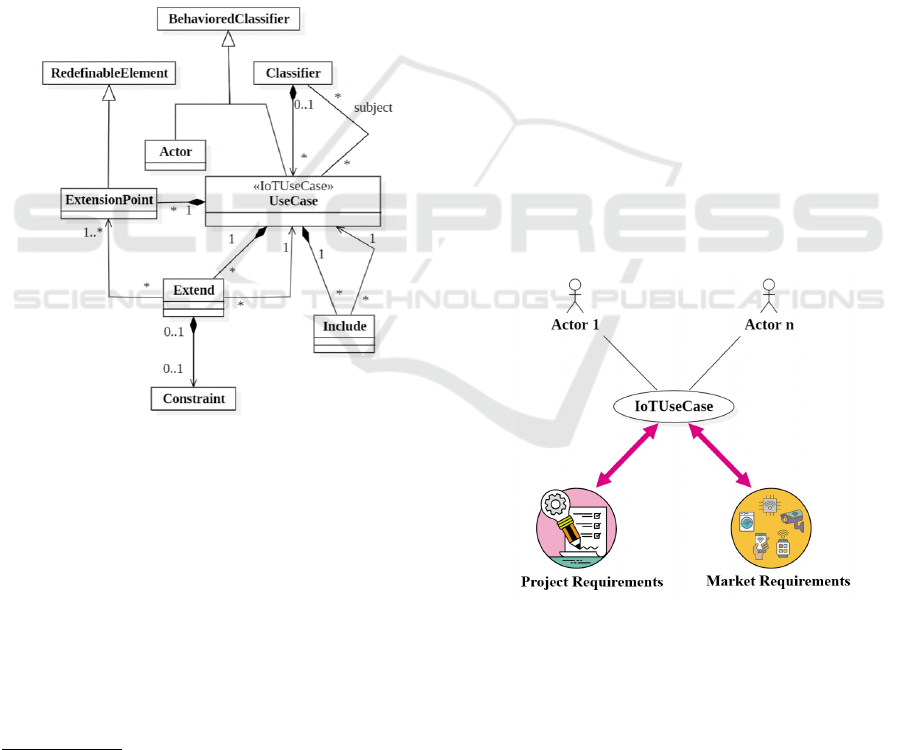

Speciﬁcally, the Abstract syntax (i.e., the UML meta-

model) of the IoTUseCase is proposed and discussed.

An IoTUseCase represents one speciﬁc IoT device.

The answer to the two research questions mentioned

above is given in Section 5. Section 6 ends the paper

and provides an overview of the long-term industrial

research project.

2 RELATED WORK

It has been widely remarked that IoT systems are

complex. To govern such a complexity and get the

maximum possible beneﬁt from them, it is essential

to manage the IoT systems through the IT technol-

ogy. From the literature, it arises that there is an in-

creasing engagement of the scientiﬁc community in

(Storey et al., 2023) lists Business Modeling as one of

the topics belonging to the Conceptual Modeling domain.

conducting researches regarding the formalization of

methods about the development of software for BISs

that include IoT devices (Fahmideh et al., 2022).

The investigation of the existing literature high-

lights that many scholars have approached the devel-

opment of software systems that include the IoT start-

ing from the architecture of this category of systems

(Patel and Cassou, 2015), (Berrouyne et al., 2022),

(Kirchhof et al., 2022), (Fahmideh et al., 2022), (Dias

et al., 2022), (Saidi et al., 2023). Such a commitment

is deﬁnitely complex, as it comprises many hetero-

geneous elements, such as: devices, communication

protocols, computing resources (edge, fog, cloud).

Such a complexity is the main reason why, despite

the rapid growth in IoT research, a general software

engineering approach for the development of IoT sys-

tems is still missing. This concept is expressed, for

example, in (Geller and de Moura Meneses, )−p.81

as follows: “The usage of software engineering prin-

ciples for the implementation of IoT systems is still

being adapted.” A similar message may be found in

(Fahmideh et al., 2022).

Modeling languages have gained increasing rele-

vance in the IoT domain as a conceptual tool for rais-

ing the level of abstraction in system speciﬁcation,

hence improving the productivity of developers and,

at the same time, the quality of the IoT applications.

(Arslan et al., 2023) is an up-to-date survey on mod-

eling languages that have been designed for IoT soft-

ware development. In the study, authors analyze 32

different languages with respect to three categories of

requirements, i.e., language deﬁnition, language fea-

tures, and tool support.

Modeling languages can be either general-purpose

or domain-speciﬁc. UML is the most known and

widely used general-purpose language. Such a feature

limits its suitability for modeling particular domains,

for which Domain Speciﬁc Languages (DSLs) may be

more appropriate. (Kosar et al., 2016; Mernik, 2017;

Thanhofer-Pilisch et al., 2017) present a systematic

mapping study on DSLs.

The UML proﬁle specialization mechanism by

OMG is a more pragmatic approach than the use of

DSLs. Based on this, the UML abstract syntax can be

specialized to the domain of interest by using the ex-

tension mechanisms deﬁned in the Proﬁles package of

UML (OMG, 2017), namely: stereotypes, tagged val-

ues, and constraints. One of the most important bene-

ﬁts of using a UML proﬁle instead of a DSL is that the

developer is able to use the existing UML tools (e.g.,

diagram drawing and code generation) in the devel-

opment process. UML4IoT is an example proposed

for the integration of cyber-physical components into

an IoT-driven manufacturing industry (Thramboulidis

IoTUseCase: A New Concept for the Modeling of Business Information Systems in the Age of IoT

459

and Christoulakis, 2016).

(Prakash and Prakash, 2022) adopts a completely

different approch, characterized by a high level of

abstraction. The position expressed in such a study

is that a problem-driven speciﬁcation of an IoT ap-

plication is highly desirable because it would over-

come most of the problems that arise when a low-

level perspective is adopted. The paper introduces

the notion of Information System of Things as an

extension of pre-IoT ISs and proposes a set of con-

cepts about what it is called a Conceptual Model of

Things (CMoT), necessary for the description of the

IoT system to be developed. An instance of the CMoT

gives rise to a Conceptual Schema of Things, an arti-

fact about the system to be developed shared among

problem/domain experts. Moreover, it sets the ba-

sic guidelines of the system to be implemented, and

thus, it represents the meeting point between system

designers and system implementors.

The perspective we adopted in the present position

paper offers a level of abstraction that is comparable

to that in (Prakash and Prakash, 2022).

3 A USE-CASE-DRIVEN

METHODOLOGY FOR THE

DEVELOPMENT OF BISs

The present position paper relies on the work by

Paolone and his colleagues described in (Paolone

et al., 2010). In that study, they introduced a RUP-

driven methodology for drawing the Business and the

System Model. Use case modeling and realization are

the pillars of their methodology. Their proposal is

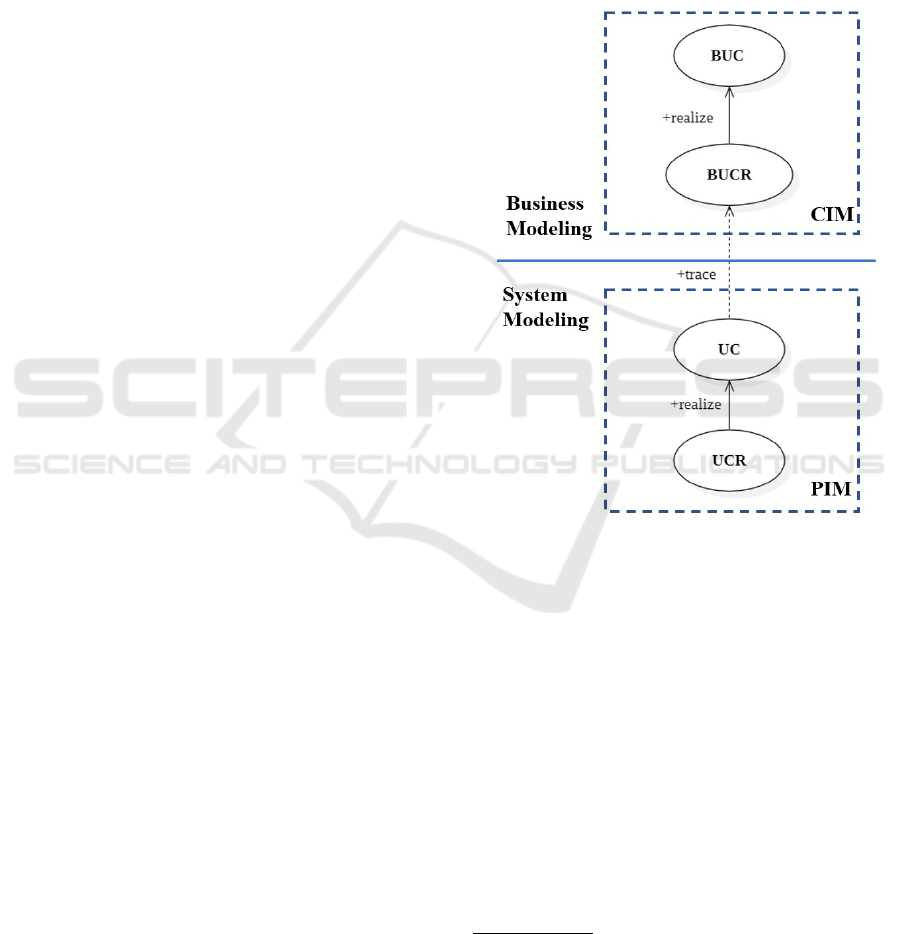

centered around the four distinct layers of Figure 1.

The objective of the ﬁrst two layers is to get a com-

plete representation of the business reality under in-

vestigation; while the objective of the remaining two

layers is representing the software system. In detail,

the ﬁrst layer of Figure 1 concerns the Business Use

Cases (BUCs) analysis, which are then specialized

into Business Use Case Realizations (BUCRs) in the

second layer. Subsequently, a trace operation is car-

ried out to deﬁne the system Use Cases (UCs) (third

layer), which are then specialized into Use Case Re-

alizations (UCRs) (fourth layer). The latter ones can

be implemented by a Java class. In addition, Fig-

ure 1 shows the relationship between the four layers

with the Computation Independent Model (CIM) and

the Platform Independent Model (PIM) widely men-

tioned in the software engineering literature (OMG,

2003).

The journey started in (Paolone et al., 2010) ended

in (Paolone et al., 2020). The latter study describes

an automatic process to develop enterprise Web ap-

plications within the MDA frame of reference. The

pillars of the ﬁnal proposal are, besides the UCs, class

and sequence diagrams, which cover, in sequence, the

structure and the behavior of the system to be de-

veloped, as well as their interactions. The adopted

methodological process provides continuity between

Business Modeling, System Modeling, Design, and

Implementation.

Figure 1: The four methodological layers in (Paolone et al.,

2010).

4 DEVELOPMENT OF BISs IN

THE AGE OF IoT

The extra challenge in the development of BISs in the

age of the IoT, with respect to the pre-IoT case, comes

from the need to take into account one or more IoT

devices. Our proposal consists in modeling the IoT

devices from the point of view of the classes of actors

that use them. In detail, we introduce the IoTUseCase

which is a stereotype of the UML UseCase

con-

struct, in order to model the behavior of these de-

vices

. Each IoTUseCase represents one and only

one IoT device.

Hereinafter, we join the words Use and Case as in

Clause 18 of (OMG, 2017).

“A UseCase is a speciﬁcation of behavior.” (OMG,

2017), p.639.

ENASE 2024 - 19th International Conference on Evaluation of Novel Approaches to Software Engineering

460

From the methodological point of view, we also

propose to bring the IoTUseCase construct, deﬁned

within the Business Modeling, till the implementation

of the system (hardware and software, as well), in the

same way as proposed for the UseCase construct in

(Paolone et al., 2010) and (Paolone et al., 2020).

Stereotypes are speciﬁc metaclasses that allow de-

signers to extend the vocabulary of UML in order to

create new model elements from existing ones but

specialized to a domain. The class diagram of Fig.2

shows a simpliﬁed version of the Abstract syntax (i.e.,

the UML metamodel) of the IoTUseCase

. The dia-

gram is based on the Abstract syntax of the UseCase

construct in Clause 18 of (OMG, 2017), to which

the reader is referred to. Below, we describe the

IoTUseCase by specializing the description of the

UML UseCase construct.

Figure 2: IoTUseCase Abstract Syntax.

The IoTUseCase allows capturing the require-

ments of an IoT system, i.e., what it is supposed to do.

Actors and subjects are two key concepts relatively

to IoTUseCases. In this paper, an IoTUseCase’s

subject represents an IoT device; while Actors rep-

resent IoT users (namely humans or other systems)

that may interact with a subject.

An IoTUseCase

is a kind of BehavioredClassifier (i.e., an abstract

class) that represents a declaration of a set of offered

Behaviors. An IoTUseCase may be owned by a

Classifier.

In the diagram, arrows specify, as usual, navigability

of the associations. Adornments, dot notations, and associ-

ation ends are omitted with just one exception: the subject

association end because its relevance in this study.

The notion of IoT user is detailed in Sec. 5.

Each IoTUseCase speciﬁes some behavior that an

IoT device can perform in collaboration with one or

more Actors of a class. IoTUseCases deﬁne the of-

fered Behaviors of the IoT device without reference

to its internal structure. These Behaviors, involv-

ing interactions between the Actors and the IoT de-

vice, may result in changes to the state of the IoT de-

vice and communications with its environment. An

IoTUseCase can include possible variations of its ba-

sic behavior, including exceptional behavior and er-

ror handling. It is worth mentioning that if UML

modelers adopt the level of abstraction we refer to in

this paper, then they do not have to take care of sev-

eral well-known severe issues of IoT devices, namely,

limited processor capacity, reduced battery power, in-

teroperability, data and network management, and so

on (Dias et al., 2022). This is an objective simpliﬁca-

tion, with respect to the scenario where the modeling

takes place at a lower level of abstraction.

The IoTUseCase can be used both for speciﬁca-

tion of the market requirements on the IoT device

to be selected and for the speciﬁcation of the func-

tionality offered by the available IoT devices. More-

over, the IoTUseCase may also state the requirements

the speciﬁed IoT device poses on its environment by

deﬁning how the Actors should interact with the IoT

device so that it will be able to perform its services.

Fig.3 relates the IoTUseCase to the Actors and the

two categories of requirements.

Figure 3: IoTUseCase, Actors and requirements.

Within the context of Business Modeling, we also

deﬁne the Business IoTUseCase Realization.

So, we propose to proceed with the trace opera-

tion and, within the System Modeling, we deﬁne the

System IoTUseCase and the System IoTUseCase

Realization. The latter will be implemented in the

system to be developed through the chosen IoT device

and a software component that allows the use of such

a device by a class of actors, according to the mean-

IoTUseCase: A New Concept for the Modeling of Business Information Systems in the Age of IoT

461

ing of UML Use Case (Booch et al., 1999): “[...] a use

case is a description of a set of sequences of actions,

including variants, that a system performs to yield an

observable result, which is valuable for an actor.”

Figure 4: Business & System Modeling of BISs in the age

of IoT.

Figure 4 schematizes the mapping between the

phases of Business Modeling and System Modeling

in the age of IoT as an evolution of pre-IoT BISs.

5 DISCUSSION

Below, the answers to the two research questions

listed in Section 1 are given.

(RQ1) Are the electronic devices that collect the

data of interest part of the Business Model or the sys-

tem model?

A fundamental step of Business Modeling consists

in eliciting the business use cases. Before writing the

use cases, it is helpful to come up with the domain

model. The latter forms the foundation of the static

part of the model, while the use cases are the foun-

dation of the dynamic part. The static part describes

structure; the dynamic part describes behavior.

Domain modeling is the task of building a glos-

sary (i.e., a dictionary of terms) about the main con-

cepts and their relationships speciﬁc to the software

project to be developed. The purpose of domain mod-

eling is to make sure that all the stakeholders taking

part on the software project understand the problem

space unambiguously. Referring to a common vocab-

ulary enables clear communication among stakehold-

ers.

Hereafter, we recall brieﬂy the proposal in (Haller

et al., 2013) that allows us to provide an answer to

RQ2. The IoT Domain model in (Haller et al., 2013)

plays an equivalent role of the Conceptual model in

(ISO/IEC, 2018). Both models are generic, abstract

and simple. They introduce the basic concepts about

IoT systems to be known about and describe how the

concepts relate to each other logically. Both models

are introduced by means of a small number of UML

class diagrams where two different types of relation-

ships between classes are used: generalization and as-

sociation.

The IoT Domain model in (Haller et al., 2013)

is abstracted in terms of the following ﬁve core con-

cepts (which are also part of the Conceptual model in

(ISO/IEC, 2018)):

• Augmented Entity (AE): a real-world object (the

Physical Entity – PE) and its digital twin (the Vir-

tual Entity – VE);

• User: either a human or a digital artefact (e.g., a

machine, a device, a service);

• Device: hardware to interact with (a sensor) or

control (an actuator) physical entities. A Device

can be composed of Devices; a Device is a Physi-

cal Entity. Sensors and actuators are Devices;

• Resource: software component that gives access

to information about, or actuation capabilities on,

a Physical Entity;

• Service: exposes Resources through an interface

and make them available (to applications and

other Services).

(Haller et al., 2013) provides details about these

ﬁve core concepts and their relationships. Figure 5

shows a simpliﬁed version of the UML class diagram

of the Domain model.

In light of what just recalled, it follows that de-

vices are a central entity/concept in the development

of BISs in the age of IoT. So, it is correct to state that

they have to be taken into account since the Business

Modeling. This answers to RQ1.

(RQ2) Is there a UML construct that allows mod-

eling the IoT devices?

Designing IoT-based software systems is chal-

lenging, but their modeling using UML is a candidate

to become a resource to overcome this challenge. De-

spite many scholars have already been engaged in a

debate on the role of UML in the modeling of IoT

systems, so far a standard has not been established.

(Geller and de Moura Meneses, ) provides evidence

in this sense by citing 11 articles concerning as many

proposals to facilitate the modeling of IoT systems

via UML. Each of those studies presented an UML

ENASE 2024 - 19th International Conference on Evaluation of Novel Approaches to Software Engineering

462

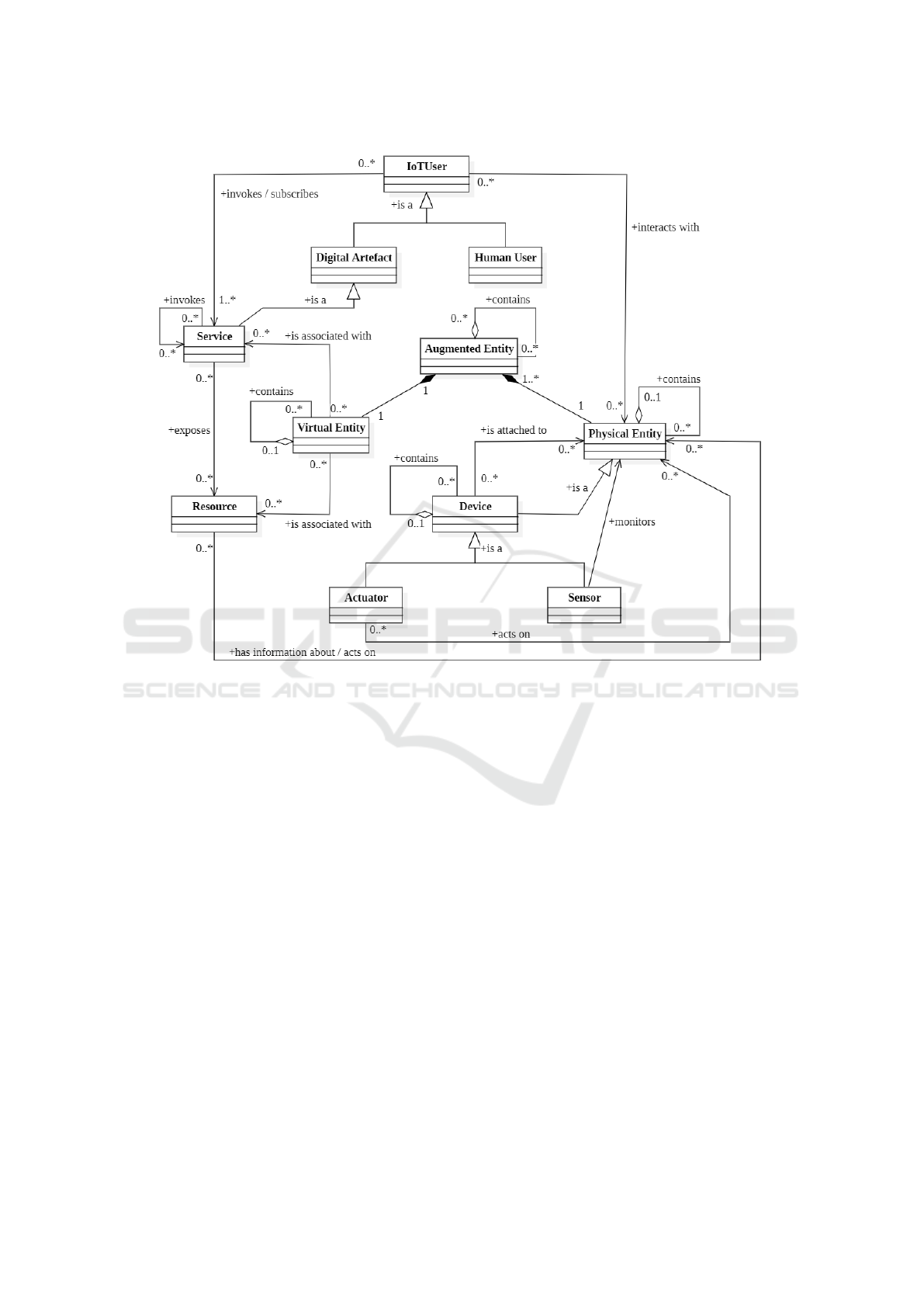

Figure 5: The Domain Model of the IoT.

extension to model IoT systems. Regardless of the

solutions that will be available in the coming years,

one element emerges loud and clear from the litera-

ture, namely that they cannot ignore UML due to the

variety of supported models.

In the previous section, it has been argued that to

carry out the Business Modeling of IoT systems it is

sufﬁcient to introduce the IoTUseCase UML stereo-

type. This answers RQ2.

6 CONCLUSION AND FUTURE

WORK

Nowadays the IoT is a notion that denotes a revolution

in the information technology that is producing dis-

rupting changes at the information system level. In re-

cent years, information systems developers have been

engaged in debate on practical and theoretical issues

on the adaptation of information systems to the IoT

features. Most scholars approached this domain from

the architecture perspective and the infrastructure re-

quired for communication. The present position pa-

per introduced, formalized and discussed the notion

of IoTUseCase (a UML stereotype) at the Business

Modeling.

The future work concerns, in sequence, the activi-

ties listed below:

• initially, it will be deﬁned a frame of reference re-

garding the features of the electronic devices com-

monly used in the development of real-world IoT

applications.

• Subsequently, it will be carried out the analy-

sis and the speciﬁcation (via UML diagrams) of

the requirements and software architecture of the

component (it will also be called IoTUseCase)

which implements the abstract IoTUseCase de-

scribed in previous sections.

• Then, the (Java) implementation of the prototype

of the IoTUseCase software component will be

started.

• Finally, the requirements of few case studies de-

voted to validate the functioning of the aforemen-

tioned software component will be formalised. In

fact, as part of the experimental activities to be im-

IoTUseCase: A New Concept for the Modeling of Business Information Systems in the Age of IoT

463

plemented, the industrial partner involved in the

research described in this position paper will de-

velop case studies that use the IoTUseCase com-

ponent in speciﬁc domains of interest for them.

This step is preparatory to the next step in which

the development will be aimed at adding intelli-

gence to the aforementioned prototype applica-

tions. This extension will be aimed at the de-

velopment of an AIoT (Artiﬁcial Intelligence of

Things) application prototype for the management

of technological plants.

ACKNOWLEDGEMENTS

This research was funded by B2B S.r.l., 64100 Ter-

amo (Italy).

REFERENCES

Arslan, S., Ozkaya, M., and Kardas, G. (2023). Modeling

languages for internet of things (IoT) applications: A

comparative analysis study. Mathematics, 11, 1263.

DOI: https://doi.org/10.3390/math11051263.

Berrouyne, I., Adda, M., Mottu, J.-M., and Tisi, M. (2022).

A Model-Driven Methodology to Accelerate Software

Engineering in the Internet of Things. IEEE Inter-

net of Things Journal, 9(20):19757–19772. DOI:

10.1109/JIOT.2022.3170500.

Booch, G., Rumbaugh, J., and Jacobson, I. (1999). The Uni-

ﬁed Language User Guide. Addison-Wesley Reading,

MA, New York, NY, USA.

Dias, J., Restivo, A., and Ferreira, H. (2022). De-

signing and Constructing Internet-of-Things

Systems: An Overview of the Ecosys-

tem. Internet of Things, 19:100529. DOI:

https://doi.org/10.1016/j.iot.2022.100529.

Fahmideh, M., Ahmad, A., Behnaz, A., Grundy, J., and

Susilo, W. (2022). Software Engineering for Inter-

net of Things: The Practitioners’ Perspective. IEEE

Transactions on Software Engineering, 48(8):2857–

2878. DOI: 10.1109/TSE.2021.3070692.

Geller, M. and de Moura Meneses, A. Modelling IoT Sys-

tems with UML: A Case Study for Monitoring and

Predicting Power Consumption.

Haller, S., Serbanati, A., Bauer, M., and Carrez, F. (2013).

A Domain Model for the Internet of Things. In 2013

IEEE International Conference on Green Computing

and Communications and IEEE Internet of Things and

IEEE Cyber, Physical and Social Computing, Beijing,

China, pages 411–417. DOI: 10.1109/GreenCom-

iThings-CPSCom.2013.87.

ISO/IEC (2018). ISO/IEC 30141:2018, Inter-

net of Things (IoT) - Reference Architecture.

https://standards.iso.org/ittf/PubliclyAvailableStandar

ds/c065695 ISO IEC 30141 2018(E).zip (Accessed

on November 25, 2022).

Kirchhof, J., Rumpe, B., Schmalzing, D., and Wortmann,

A. (2022). Montithings: Model-Driven Develop-

ment and Deployment of Reliable IoT Applications.

Journal of Systems and Software, 183:111087. DOI:

https://doi.org/10.1016/j.jss.2021.111087.

Kohan, S., Johnstone, L., and Cetinkaya, D. (2023). Sur-

vey on the Model-Centered Approaches to Concep-

tual Modeling of IoT Systems. In Frontiers in Com-

puter Science, Section Software, volume Vol.5. DOI:

https://doi.org/10.3389/fcomp.2023.1035225.

Kosar, T., Bohra, S., and Mernik, M. (2016). Domain-

Speciﬁc Languages: A Systematic Mapping Study.

Information and Software Technology, 71:77–91.

DOI: https://doi.org/10.1016/j.infsof.2015.11.001.

Kruchten, P. (2003). The Rational Uniﬁed Process: An

Introduction, 3rd ed. Addison-Wesley Professional;

Addison-Wesley Object Technology Series; Addison-

Wesley, New York, NY, USA.

Mernik, M. (2017). Domain-Speciﬁc Languages: A Sys-

tematic Mapping Study. In Steffen, B. e. a., editor,

SOFSEM 2017: Theory and Practice of Computer

Science, pages 464–472. Springer International Pub-

lishing.

OMG (2003). MDA Guide Version 1.0.1.

OMG (Dec. 2017). OMG Uniﬁed Modeling Lan-

guage (OMG UML), Version 2.5.1. DOI:

https/www.omg.org/spec/UML/.

Paolone, G., Di Felice, P., Liguori, G., Cestra, G., and

Clementini, E. (2010). A business Use Case Driven

Methodology — A Step Forward. In Proceedings

of the 5th International Conference on Evaluation of

Novel Approaches to Software Engineering (ENASE),

22–24 July, Athens, Greece.

Paolone, G., Marinelli, M., Paesani, R., and Di Felice, P.

(2020). Automatic Code Generation of MVC Web

Applications. In Computers, volume 9(3), 56. DOI:

//doi.org/10.3390/computers9030056.

Patel, P. and Cassou, D. (2015). Enabling high-level

application development for the Internet of Things.

Journal of Systems and Software, 103:62–84. DOI:

https://doi.org/10.1016/j.jss.2015.01.027.

Prakash, N. and Prakash, D. (2022). Concepts for Concep-

tual Modelling of an IoT Application. In Proceed-

ings of the 17th Inter. Conference on Evaluation of

Novel Approaches to Software Engineering (ENASE

2022), pages 494–501. INSTICC, SciTePress. DOI:

10.5220/0011082800003176.

Saidi, A., Hadj Kacem, M., Tounsi, I., and Hadj

Kacem, A. (2023). A Formal Approach to

Specify and Verify Internet of Things Architec-

ture. Internet of Things, 24:100972. DOI:

https://doi.org/10.1016/j.iot.2023.100972.

Storey, V., Lukyanenko, R., and Castellanos, A. (2023).

Conceptual Modeling: Topics, Themes, and Technol-

ogy Trends. In ACM Computing Surveys, volume 55

(14s). DOI: https://doi.org/10.1145/3589338.

Thanhofer-Pilisch, J., Lang, A., Vierhauser, M., and

Rabiser, R. (2017). A Systematic Mapping

Study on DSL Evolution. In 2017 43rd Euromi-

cro Conference on Software Engineering and Ad-

ENASE 2024 - 19th International Conference on Evaluation of Novel Approaches to Software Engineering

464

vanced Applications (SEAA), pages 149–156. DOI:

10.1109/SEAA.2017.25.

Thramboulidis, K. and Christoulakis, F. (2016).

UML4IoT—A UML-based Approach to Ex-

ploit IoT in Cyber-Physical Manufacturing Sys-

tems. Computers in Industry, 82:259–272. DOI:

https://doi.org/10.1016/j.compind.2016.05.010.

IoTUseCase: A New Concept for the Modeling of Business Information Systems in the Age of IoT

465
