CacheFlow: Enhancing Data Flow Efﬁciency in Serverless Computing by

Local Caching

Yi-Syuan Ke

∗

, Zhan-Wei Wu

∗

, Chih-Tai Tsai

∗

, Sao-Hsuan Lin

∗

and Jerry Chou

†

Department of Computing Science, National Tsing Hua University, Hsinchu, Taiwan

Keywords:

Cloud Computing, Function as a Service, Serverless Computing, Caching.

Abstract:

In Serverless workﬂows, it is common for various functions to share duplicate ﬁles or for the output of one

function to be the input for the following function. Currently, storing these ﬁles in remote storage is common,

and transferring a large amount of data over the network can be inefﬁcient and time-consuming. However,

the state of the art has not yet optimized this aspect, resulting in time wastage. In this paper, we present

an improved data transfer solution that reduced data transfer time by up to 82.55% in our experiment. This

improvement is achieved by replacing the time spent on remote network access with local disk access time. To

reduce the data transfer route, we implement per-node caching, utilizing disk storage as a local cache space.

1 INTRODUCTION

Serverless computing has become increasingly popu-

lar in cloud computing. It empowers developers to ex-

ecute speciﬁc functions or code snippets in response

to events without the burden of managing servers or

infrastructure. This approach offers users the advan-

tage of liberating themselves from the complexities

of infrastructure management. They can simply de-

ploy their functions to the cloud platform of their

choice. Serverless events are triggered by HTTP re-

quests, data changes, or scheduled tasks. Also, the

auto-scaling mechanism will automatically scale up

or down resources as needed.

Figure 1: Original Data transfer route.

∗

Contributed equally to this work.

†

corresponding author.

FaaS, short for Function-as-a-Service, focuses on

the event-driven computing paradigm. Users only

need to focus on the function code they deploy onto

the cloud platform. Several established FaaS plat-

forms, such as AWS Lambda (Amazon, 2014), Azure

Functions (Microsoft, 2010), and Google Cloud

Functions (Google, 2011), offer users the advantage

of a Pay-as-You-Go model. With FaaS, users are only

charged for the actual compute time consumed by

your functions. There are no upfront expenses or on-

going costs associated with maintaining servers that

sit idle when their functions are not actively running.

In the FaaS paradigm, functions typically follow

a stateless approach, meaning they do not retain data

between executions. As a result, any necessary state

or data management tasks are typically ofﬂoaded to

Figure 2: Optimized Data transfer route.

224

Ke, Y., Wu, Z., Tsai, C., Lin, S. and Chou, J.

CacheFlow: Enhancing Data Flow Efﬁciency in Serverless Computing by Local Caching.

DOI: 10.5220/0012688600003711

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 14th International Conference on Cloud Computing and Services Science (CLOSER 2024), pages 224-230

ISBN: 978-989-758-701-6; ISSN: 2184-5042

external services, such as databases or storage sys-

tems. Consequently, for workﬂows that generate in-

termediate state or data, the common practice is to uti-

lize remote storage solutions like AWS S3 (Amazon,

2006) or MinIO (MINIO, 2016) to store this interme-

diate data (Ana Klimovic, 2018).

We show the above behavior in Figure 1. We

deﬁne the data download route, the route of down-

loading data to runtime from remote storage, and

the data upload route, the route of uploading data

to remote storage from runtime. The data down-

load/upload time represents the execution time of the

deﬁned routes.

However, this approach can lead to several chal-

lenges. Firstly, it incurs a notable amount of time

dedicated to data transfer in both data downloading

and uploading operations since it uses the network as

the transmission method. Additionally, this approach

consumes storage space, in cloud computing usually

cloud storage for maintaining the intermediate data,

which may grow signiﬁcantly over time, the cost of

renting a cloud storage is inescapable.

In this scenario, both remote database I/O

and network condition become potential bottlenecks

(Eric Jonas, 2017; SINGHVI A, 2017). This results

in prolonged data transfer times and an overall in-

crease in latency. Furthermore, as the number of pods

or functions increases, the demand on the network

infrastructure also escalates, leading to a substantial

surge in network requirements.

The primary focus of our research is to optimize

data transfer efﬁciency through the implementation of

data caching mechanisms. To achieve this, we lever-

age the local disk storage available on each node to

establish a local storage. We incorporate the Least

Recently Used (LRU) caching algorithm to effec-

tively cache intermediate data generated throughout

the workﬂow processes in the distributed system.

In Figure 2, we illustrate the new data transfer

route after our optimization. This route is not only

signiﬁcantly quicker than the previous one but also

involves the replacement of a portion of the time

spent on remote network access with local disk ac-

cess. Note that this route is in the case that desired

data is cached in the same node. For data cached

in other nodes, we have components to realize the

caching mechanism as well, we will introduce it in

the latter chapters.

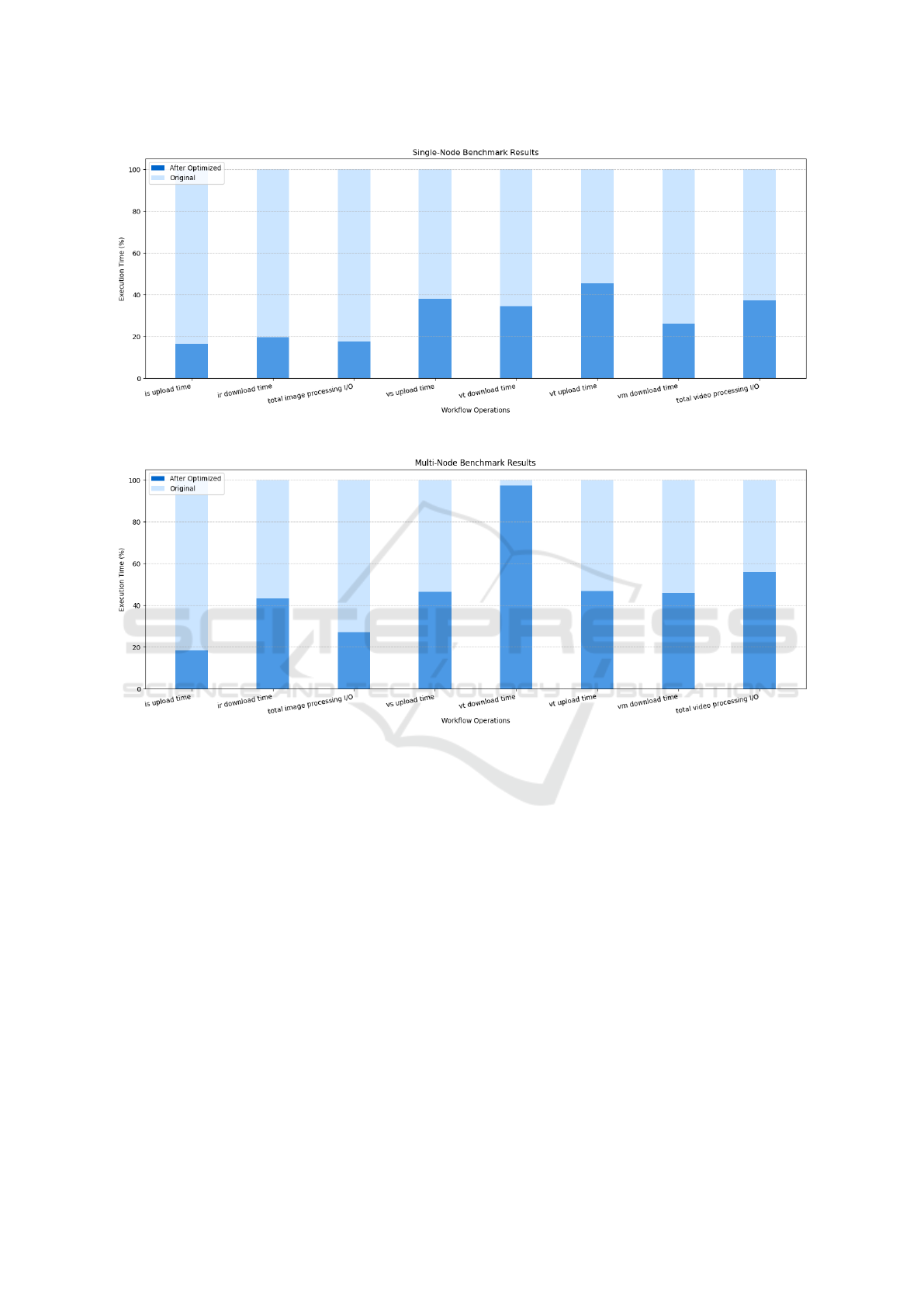

Our experimental result demonstrates a remark-

able reduction in transfer times, with a substantial

at most decrease of 82.55% in our experiment. We

also show that the data transfer speedup is positively

correlated with the disk/network speed ratio, which

means the optimization will be better as the disk per-

Figure 3: Data transfer route for current workﬂows.

formance is enhanced or the network is congested.

2 SERVERLESS WORKFLOW

BACKGROUND

One of the behaviors of serverless computing is using

remote storage as centralized storage. We have found

that for workﬂows requiring remote storage, exist-

ing serverless platforms spend a signiﬁcant amount of

time on data transfer, which is the total time of down-

loading and uploading data. In this kind of workﬂow,

both database I/O and network become bottlenecks,

resulting in extended data transfer times and overall

increased latency.

We benchmark two real-world data-driven work-

ﬂows, image-processing and video-processing. These

workﬂows are common in serverless benchmarks.

They share a common characteristic in serverless

workﬂow: intermediate data is only used between

functions, and only the initial and ﬁnal data need to

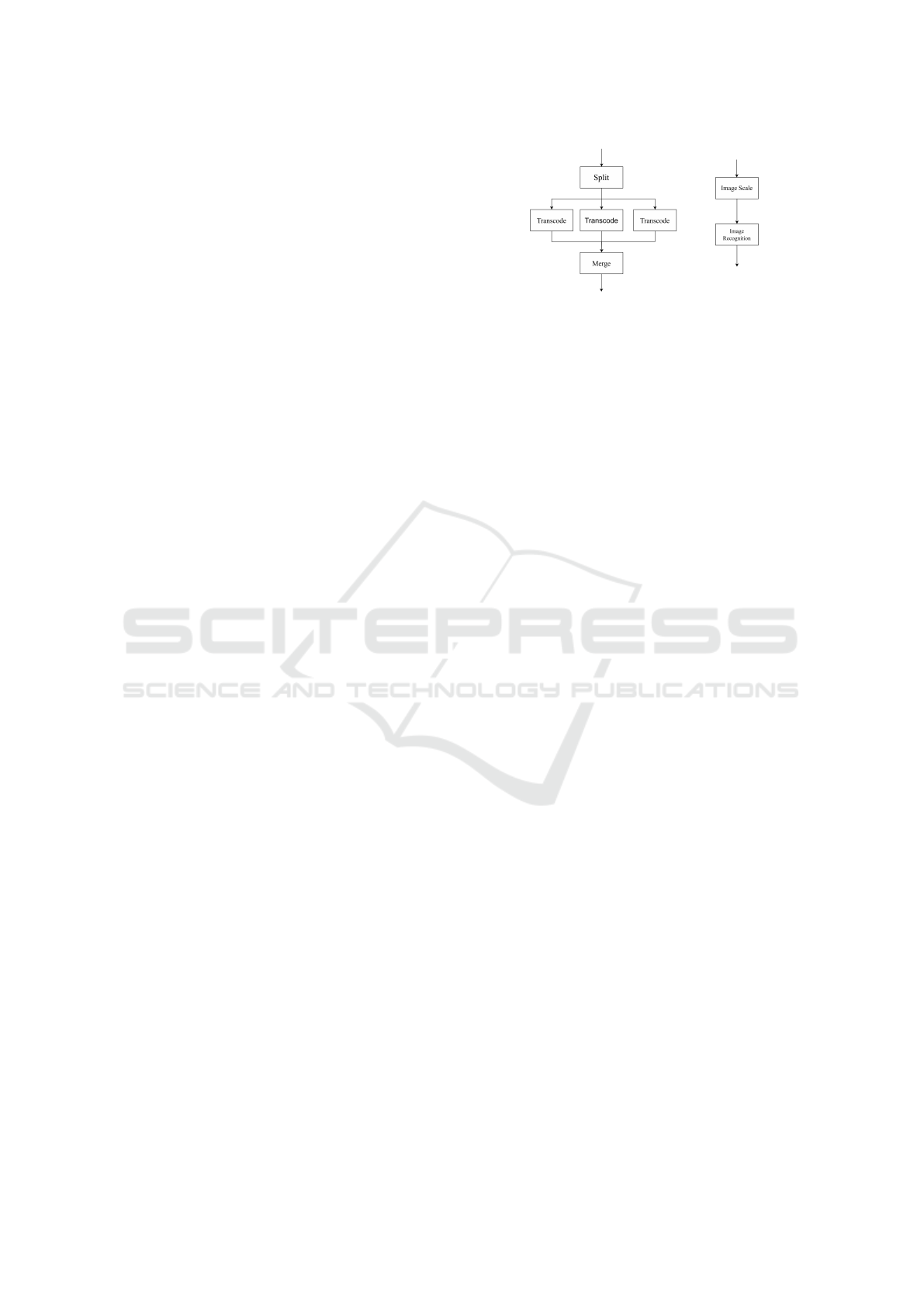

be in remote storage. Figure 3 shows their workﬂow

in DAGs.

2.1 Image Processing

This workﬂow is a classic image recognition work-

ﬂow. It ﬁrst downloads data from the remote storage,

scales it to a speciﬁc size, uses a pre-trained model to

get the result, and uploads it back to the remote stor-

age.

2.2 Video Processing

This use case comes from Alibaba Cloud. It ﬁrst splits

video data into small clips, transcodes them parallelly,

and merges them together. The initial data and results

are downloaded/uploaded from/to the remote storage

(Alibaba, 2021).

CacheFlow: Enhancing Data Flow Efﬁciency in Serverless Computing by Local Caching

225

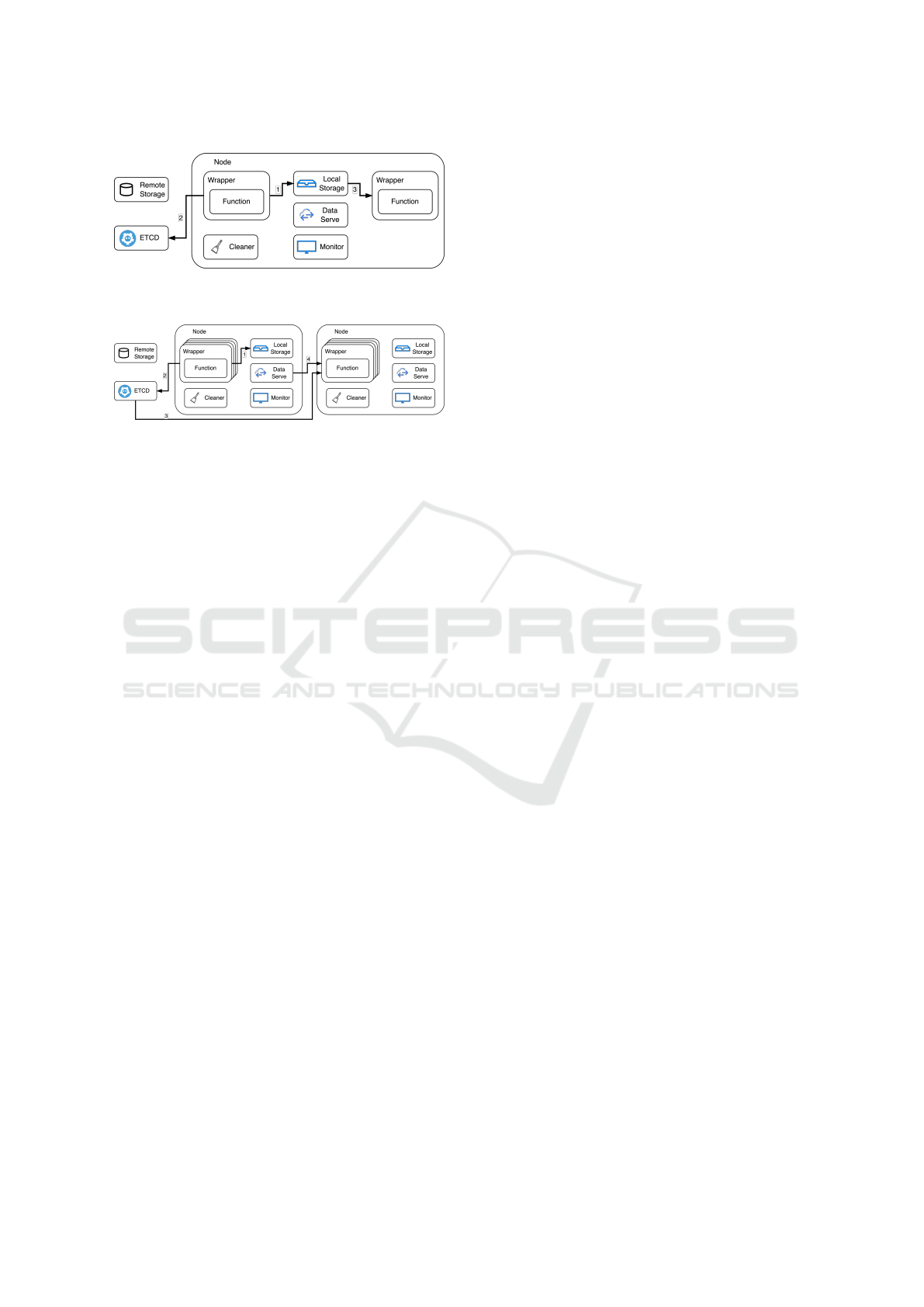

Figure 4: Cache architecture when data exist in local stor-

age.

Figure 5: Cache architecture when data exist in other nodes.

3 ARCHITECTURE

In this section, we introduce our innovative two-

speedup path architecture designed to optimize data

retrieval efﬁciency in a serverless environment.

Figure 4 depicts the initial acceleration pathway,

activated when essential data resides in local storage.

Path 1 optimizes the data retrieval process by seam-

lessly copying it from local storage, subsequently

storing the cached metadata in ETCD through path

2. Ultimately, users can leverage our cache mecha-

nism via path 3 to avoid the associated overhead of

transferring data to remote storage. This function fa-

cilitates direct access to data in local storage, elimi-

nating the necessity for remote downloads.

In cases where the data function required resides

on a different node within the cluster, an alternative

ﬂow is initiated, as depicted in Figure 5. When lo-

cal storage fails to yield the required data in path

1, the system queries ETCD via path 2, which we

use to store the information of the data and its posi-

tion(node IP) to ascertain the node storing the data.

Subsequently, a data retrieval request is dispatched to

the identiﬁed node by the Data Server(path 3 and 4),

ensuring efﬁcient data access across distributed envi-

ronments.

The success of our architecture hinges on the

seamless collaboration of multiple components, en-

suring optimized data retrieval and storage resource

utilization.

3.1 Monitor

The Monitor component tracks changes (creation,

write, removal) in cached data and records these

events within a data structure. When storage space

approaches a predeﬁned threshold, it initiates the re-

moval of the least recently used cached data. This

component plays a crucial role in efﬁciently manag-

ing storage space usage.

3.2 Cleaner

The Cleaner component serves as the secondary cache

eviction mechanism, periodically removing outdated

cached data from the disk. Its purpose is to prevent

outdated data from persisting in local storage, thus

safeguarding node performance.

3.3 Wrapper

The Wrapper provides portability, acting as a bridge

to the MinIO API, allowing users to seamlessly in-

tegrate our caching mechanism with minimal modiﬁ-

cations while ensuring data integrity. In workﬂows,

each pod will have its designated space for storing

data, preventing multiple pods from accessing the

same data to maintain cache coherence. It will use

the hash value created when the data is cached to ver-

ify the cache consistency. It also tells ETCD the loca-

tion of the data, for functions in other nodes to query

to Data Serve in this node.

3.4 Data Serve

The Data Serve component facilitates data access for

pods residing on other nodes within the cluster. In

scenarios where data is cached in local storage but re-

quired by pods deployed on different nodes, this com-

ponent serves as the intermediary. Pods query ETCD

to discover the IP address of the Data Serve, enabling

them to retrieve data via TCP connections.

4 IMPLEMENTATION

4.1 Data Event Monitoring

The current Linux Inotify subsystem lacks support

for recursive watches within sub-directories. Conse-

quently, we have developed our own ﬁle notiﬁcation

system to monitor newly created directories automat-

ically. Each read, write, and other ﬁle-related oper-

ation triggers notiﬁcations to our Monitor, allowing

it to efﬁciently update the least recently used (LRU)

queue with minimal overhead.

CLOSER 2024 - 14th International Conference on Cloud Computing and Services Science

226

4.2 Shared Storage Space Management

To optimize the caching hit rate, it is essential to de-

vise a mechanism that ensures the retention of fre-

quently used data in our shared storage while remov-

ing items that are less likely to be accessed.

Input: f ilepath

Result: Update the least recently used queue

if LRUqueue.exist( f ilepath) then

LRUqueue.updatePosition( f ilepath)

else

LRUqueue.addToFront( f ilepath)

if LRUqueue.size > capacity then

LRUqueue.removeLeastRecentlyUsed()

end

Algorithm 1: Least Recently Used.

Our primary cache eviction method employs the

Least Recently Used (LRU) algorithm, managed with

a doubly linked list. This approach provides amor-

tized O(1) complexity for push and pop operations,

as well as efﬁcient removal of deleted ﬁles in amor-

tized O(1) time by hashing and locating the ﬁle’s po-

sition in the linked list. The capacity here is to re-

serve space to prevent a large amount of data from be-

ing synchronously stored in shared storage. For sec-

ondary cache eviction, the Cleaner component runs

periodically, removing outdated data once a day. This

proactive approach ensures that ﬁles not tracked by

the Monitor can also be efﬁciently cleaned, maintain-

ing optimal storage resource utilization.

4.3 Distrubuted Data

There is another challenge when caching data. In or-

der to achieve load balance, Kubernetes will assign

requests to different nodes through its scheduler. So,

if two functions in the same workﬂow are located on

different nodes, caching data in their local storage can

lead to a ﬁle-missing problem. To address this issue,

we have implemented our data server to transfer data

over the network and utilize ETCD to store ﬁle loca-

tions on each node. However, given that the data is on

different nodes, we need to ensure its integrity. There-

fore, we use a hash algorithm to assist in verifying the

correctness of the ﬁle.

This algorithm veriﬁes the integrity of a ﬁle by

comparing its current hash value with the correct hash

value stored in a designated ﬁle. The correct hash

value is calculated and recorded when the ﬁle is ini-

tially cached in our local storage. If the hash values

do not match during the veriﬁcation process, we will

rerun to conﬁrm the accuracy of the ﬁle.

Input:

correct hash f ile, f ile path, hash value

Output: IsDataCorrupted(Boolean)

calculated hash ←

CALCULATE HASH( f ile path, hash)

with open(correct hash f ile, "r") as f ile:

hash value ← f ile.read()

if hash value == calculated hash then

veri f ySuccess ← True

else

veri f ySuccess ← False

end

Return: veri f ySuccess

Algorithm 2: Hash Veriﬁcation.

4.4 Uniform API

We hope users can utilize our implementation with-

out modifying their code. Therefore, we have ab-

stracted our implementation into the MinIO library.

This allows users to employ the same function code

to achieve our caching mechanism. Another advan-

tage of using the library is that it helps us avoid high

concurrency issues compared to centrally deciding

whether to cache or not.

In our current implementation, pods indepen-

dently determine whether to cache data based on lo-

cal storage usage. This approach helps us avoid large

synchronous requests to a single node.

5 EVALUATION

In the following sections, we will comprehensively

present the performance of our work through real-

world applications, examining its efﬁcacy across both

single-node and multi-node environments. Our pri-

mary objective is to assess its practical effectiveness

in these diverse contexts, providing a thorough analy-

sis of its capabilities and demonstrating its adaptabil-

ity to varied computing scenarios.

We employed two applications, namely image

processing and video processing, to conduct bench-

marking. Our experiments were executed on a Ku-

bernetes cluster using Kubeadm on multiple virtual

machines for the infrastructure, and table 1 shows the

conﬁguration of our virtual machines.

In the image processing application, we integrated

two distinct functions: image scaling (IS) and image

recognition (IR)—within both single-node and multi-

node environments. As illustrated in Figure 6 and Fig-

ure 7, our optimizations resulted in substantial reduc-

CacheFlow: Enhancing Data Flow Efﬁciency in Serverless Computing by Local Caching

227

Figure 6: Single Node benchmark result.

Figure 7: Multi Node benchmark result.

tions in both the upload time for IS and the down-

load time for IR. Notably, these improvements were

achieved due to the successful implementation of a

cache mechanism.

It is noteworthy that both single-node and multi-

node conﬁgurations exhibit great performance, with

single-node slightly faster than multi-node. This su-

periority can be attributed to the absence of inter-node

data transfer and associated mechanisms in the single-

node setup. The overall optimization of data transfer

time across the entire function chain has led to an im-

pressive 82.55% reduction.

Figure 6 and Figure 7 also illustrate the video

processing application, consisting of three key func-

tions: video splitting (VS), video transcoding (VT),

and video merging (VM). As depicted in the ﬁgures,

almost all data transfer times exhibited signiﬁcant re-

ductions, with the most notable optimization reaching

up to 3.84x faster data transfer time. As a result, the

total data transfer time for the entire function chain

decreased by 62.64%.

The illustrated Figure 8 presents the correlation

between acceleration effects and the disk/network

speed ratio. However, it is imperative to emphasize

that the acceleration, despite exhibiting an upward

trend, does not follow a linear proportional relation-

ship. This deviation arises due to the diminishing exe-

cution time, leading to a more pronounced proportion

of overhead.

6 CONCLUSION

In this paper, we introduce a data transfer solution

designed to reduce overall data transfer times sig-

niﬁcantly. We achieve this by implementing a data

caching mechanism that effectively transforms net-

work access times into disk access times, thereby

enhancing the efﬁciency of data transmission. Our

CLOSER 2024 - 14th International Conference on Cloud Computing and Services Science

228

Table 1: VM Conﬁguration.

VM Conﬁguration

Hardware

CPU: Intel(R) Xeon(R) CPU E5-2675 v3 @ 1.80GHz

Cores: 16

Memory: 16GB

Disk: NFS, size=150 GB, speed=573 MB/s

Internet speed: download: 85MB/s, upload: 75MB/s

Software

OS: Ubuntu 20.04.3 LTS (GNU/Linux 5.4.0-163-generic x86 64)

MinIO version: RELEASE.2023-04-28T18-11-17Z

Docker version: 20.10.24

kind version: 0.17.0

knative version: v1.8.1

etcd version: 3.4.27

container runtime: python:3.10-slim

Figure 8: Relation between speedup and disk/network ratio.

experiments demonstrate a remarkable reduction in

transfer times, with a substantial at most decrease of

82.55%.

7 RELATED WORK

The concept of caching has been used in vari-

ous aspects and applications in FaaS. FaaSFlow

(Li, 2022) enhances traditional serverless master-side

workﬂow scheduling by introducing a worker-side en-

gine paired with a per-node local cache. They use

Reddis, an in-memory key-value database, as their lo-

cal storage, while we choose disk as our cache stor-

age. The beneﬁt of using a disk is we will have

larger space to cache more data since our target work-

ﬂows have large data transmission. Plus, the data

we can store on disk is more ﬂexible compared to

key-value pairs. SOCK (Edward Oakes, 2018) ad-

dresses slow Lambda startup by identifying two com-

mon causes: container initialization and package de-

pendencies. It optimizes startup time with a package-

aware caching system to reduce redundant package

imports. FaasCache (Alexander Furest, 2021) con-

sider keep-alive is analogous to caching. By adopt-

ing concepts such as reuse distances and hit-ratio

curves, they present caching-based keep-alive and re-

source provisioning policies to reduce the cold-start

overhead. Faa$T (Francisco Romero, 2021) point

out that recent caching work disregards the widely

different characteristics of FaaS applications. They

present a transparent auto-scaling distributed cache

that scales and pre-warms based on computing de-

mands and data access patterns. Tetris (Jie Li, 2022)

aims to solve extensive memory usage of serverless

inferences through a speciﬁed serverless inference

platform. The platform shares tensors between pods

through memory mapping on a shared tensor storage.

REFERENCES

Alexander Furest, P. S. (2021). Faascache: keeping server-

less computing alive with greedy-dual caching. In

ASPLOS ’21 Proceedings of the 26th ACM Interna-

tional Conference on Architectural Support for Pro-

gramming Languages and Operating Systems.

Alibaba (2021). Use ffmpeg in function compute to

process audio and video ﬁles in function com-

pute. In https://www.alibabacloud.com/help/doc-

detail/146712.htm?spm=a2c63.l28256.b99.313.

5c293c94dPLJV1.

Amazon (2006). Aws s3. In https://aws.amazon.com/tw/s3/.

Amazon (2014). Aws lambda. In

https://aws.amazon.com/tw/lambda/.

Ana Klimovic, e. a. (2018). Understanding ephemeral stor-

age for serverless analytics. In USENIX’18 Annual

Technical Conference.

Edward Oakes, e. a. (2018). Sock: Rapid task provisioning

with serverless-optimized containers. In USENIX’18

Annual Technical Conference.

Eric Jonas, e. a. (2017). Occupy the cloud: distributed com-

CacheFlow: Enhancing Data Flow Efﬁciency in Serverless Computing by Local Caching

229

puting for the 99%. In SOCC’17 In Proceedings of the

2017 Symposium on Cloud Computing.

Francisco Romero, e. a. (2021). Faa$t: A transparent auto-

scaling cache for serverless applications. In SoCC ’21

Proceedings of the ACM Symposium on Cloud Com-

puting.

Google (2011). Google cloud function. In

https://cloud.google.com/functions.

Jie Li, e. a. (2022). Tetris: Memory-efﬁcient serverless in-

ference through tensor sharing. In 2022 USENIX An-

nual Technical Conference (USENIX ATC 22).

Li, Zijun, e. a. (2022). Faasﬂow: Enable efﬁcient workﬂow

execution for function-as-a-service. In ASPLOS ’22

Proceedings of the 27th ACM International Confer-

ence on Architectural Support for Programming Lan-

guages and Operating Systems.

Microsoft (2010). Microsoft azure. In

https://azure.microsoft.com/zh-tw.

MINIO (2016). In https://min.io/.

SINGHVI A, e. a. (2017). Granular computing and network

intensive applications: Friends or foes? In In Proc. of

the 16th ACM Workshop on Hot Topics in Networks,

HotNetsXVI.

CLOSER 2024 - 14th International Conference on Cloud Computing and Services Science

230
