Security and SLA Monitoring for Cloud Services

Elias Seid, Mosammath Nazifa, Sneha Gupta, Oliver Popov and Fredrik Blix

Department of Computer and Systems Sciences, Stockholm University, Sweden

Keywords:

Cloud Database Services, Cybersecurity, IT-Incidents, Availability, Monitoring, SLAs.

Abstract:

The present demand for cloud computing is driven by its scalability and adaptability, making it widely em-

ployed in enterprises. A Service Level Agreement (SLA) is a contractual arrangement between cloud providers

and clients that ensures the stated level of services will be available. In order to evaluate the compliance of

the services to the SLA, it is critical to monitor the availability of the cloud services. Cloud service companies

offer several monitoring tools. However, such assessments are often inﬂuenced by bias, which prompts de-

mands for impartial assessment of service level agreements (SLAs). The objective of this study is to address

the issue of monitoring service availability characteristics, speciﬁcally uptime and downtime, in relation to

SLA. To achieve this, a monitoring tool called SLA Analyser is proposed. The solution comprises a cen-

tralised application that generates and collects data in the primary registry database, along with a compliance

report generator that computes cloud service availability using previously gathered data and compares it to the

SLA availability parameter. An illustrative report is generated based on the gathered and processed data. This

study speciﬁcally addresses the reliable assessment of SLA for both clients and service providers. Moreover,

this study analyses the challenges associated with SLA monitoring and the repercussions of neglecting its

assessment. This approach is particularly essential to organisations that use many cloud services from various

vendors. The SLA Analyser was employed to monitor the availability of the cloud database services. In order

to mitigate ﬁnancial losses and uphold a positive reputation for consumer conﬁdence, it is essential to validate

the SLA.

1 INTRODUCTION

In recent years, Cloud Service has become a popu-

lar topic in the Information and communication tech-

nologies (ICT) domain. The term ”cloud services”

refers to a wide range of services delivered on de-

mand basis over the internet by the vendors to compa-

nies and customers. Many companies and institutions

are moving in various ways to leverage these services.

These cloud services are designed to provide its cus-

tomers, an easy, scalable, cost effective access to re-

sources, without being involved in the maintenance of

internal infrastructure or hardware.

Cloud computing vendors and service providers

manage cloud services. They are accessible to cus-

tomers through provider servers. Service owners and

operators must monitor cloud infrastructure compo-

nents for faults, usage, and uninterrupted business

operations. Data analysis in cloud-based service in-

frastructure relies on logs from system components.

Logs can be used to assess the availability of cloud-

hosted service infrastructures. Information on com-

ponent availability aids organisations in making risk-

based decisions about cloud vendors and components.

A cloud service level agreement (SLA) guarantees

cloud providers meet enterprise-level requirements

and deliver deﬁned deliverables to customers. Quality

of Service (QoS) may be measured in SLAs between

vendors and organisations (customers). The SLA cov-

ers cloud infrastructure availability, deﬁning the ex-

pected uptime and accessibility at the service provider

and end-user level. The vendor must specify penal-

ties, typically ﬁnancial, for non-compliance with

agreed-upon service levels (Hubballi et al., 2019).

The present state of affairs is characterised by

SLA documents that are complex and open to mul-

tiple interpretations. It may provide speciﬁc and lim-

ited deﬁnitions for terms such as availability and secu-

rity. Furthermore, service agreements often place dis-

tinct obligations on consumers to monitor modiﬁca-

tions in service. The purpose of the study conducted

by Badger et al. (2012) was to establish criteria for

assessing agreements and deciding when to reassess

service agreements. According to (Barros et al.,2015)

when there is increased involvement of external ser-

vice vendors, the customer’s control over the quality

Seid, E., Nazifa, M., Gupta, S., Popov, O. and Blix, F.

Security and SLA Monitoring for Cloud Services.

DOI: 10.5220/0012690800003687

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 19th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2024), pages 537-546

ISBN: 978-989-758-696-5; ISSN: 2184-4895

537

of service delivery decreases. Consequently, the cus-

tomer must depend on the quality assurances estab-

lished in accordance with the Service Level Agree-

ments (SLAs).

Cloud computing providers delegate service vio-

lation provision to consumers, which is a major draw-

back (Barros et al.,2015). Cloud consumers strug-

gle to identify SLA breaches due to their subjective

and complex nature. Customers often learn about

cloud application downtime through user complaints

about accessibility. User complaints about service

unavailability negatively impact the customer’s busi-

ness. Many cloud providers offer monitoring tools

that allow clients to evaluate the availability of their

services. However, these solutions are customised

to speciﬁc providers and cannot be modiﬁed to ac-

commodate customer requirements. Furthermore, the

monitoring tools are customised to each provider,

which means that the same platform cannot be used

for numerous cloud providers.

There is a wide range of cloud monitoring tools

accessible on the market. Cloud monitoring solutions

facilitate the management and surveillance of cloud

infrastructure, services, and applications.A plethora

of cloud monitoring technologies are readily avail-

able in the market. Cloud monitoring solutions en-

able the oversight and control of cloud infrastructure,

services, and applications. Several cloud monitoring

systems are accessible, such Monitis, RevealCloud,

and LogicMonitor (Al-hamazani et al., 2014; Ku c,

2023). However, (Dana et al. (2014) state that there

is presently a deﬁciency in SLA-based cloud security

monitoring services and solutions.

Service providers often utilise monitoring tech-

nologies to assess service characteristics and SLAs,

although this can potentially induce bias. An im-

partial review is essential to guarantee compliance.

Currently, consumers depend on suppliers’ statistical

statistics to authenticate SLA compliance. Therefore,

it is crucial for SLA monitoring to be both depend-

able and impartial. This study presents a solution

to the problem by presenting the SLA Analyser tool,

which is designed to monitor the availability of cloud

database services. Furthermore, users of cloud ser-

vices use the cloud to host their applications, services,

and other resources. Customers rely on the prompt

availability of cloud services. Failure to do so could

result in damage to their market reputation and busi-

ness. It is crucial to monitor the availability of cloud

services for both customers and suppliers and validate

SLAs.

To verify service parameters against SLAs, SLAs

must be simple, quantiﬁed, and easily understood

(Frey et al., 2013). Studying SLA tracking is chal-

lenging due to its time-consuming nature and the need

to validate quality metrics against agreed cloud ser-

vice SLAs. This is especially challenging for organ-

isations using multiple cloud services from various

vendors. Thus, the research problem is broad, im-

portant, and difﬁcult. Monitoring cloud service avail-

ability is essential in the ITC domain, despite its com-

monality. SLA Analyser enables cloud providers and

customers to independently monitor service availabil-

ity against SLA documents.

This research aims to monitor the availability of

public cloud infrastructure components’ SLA using

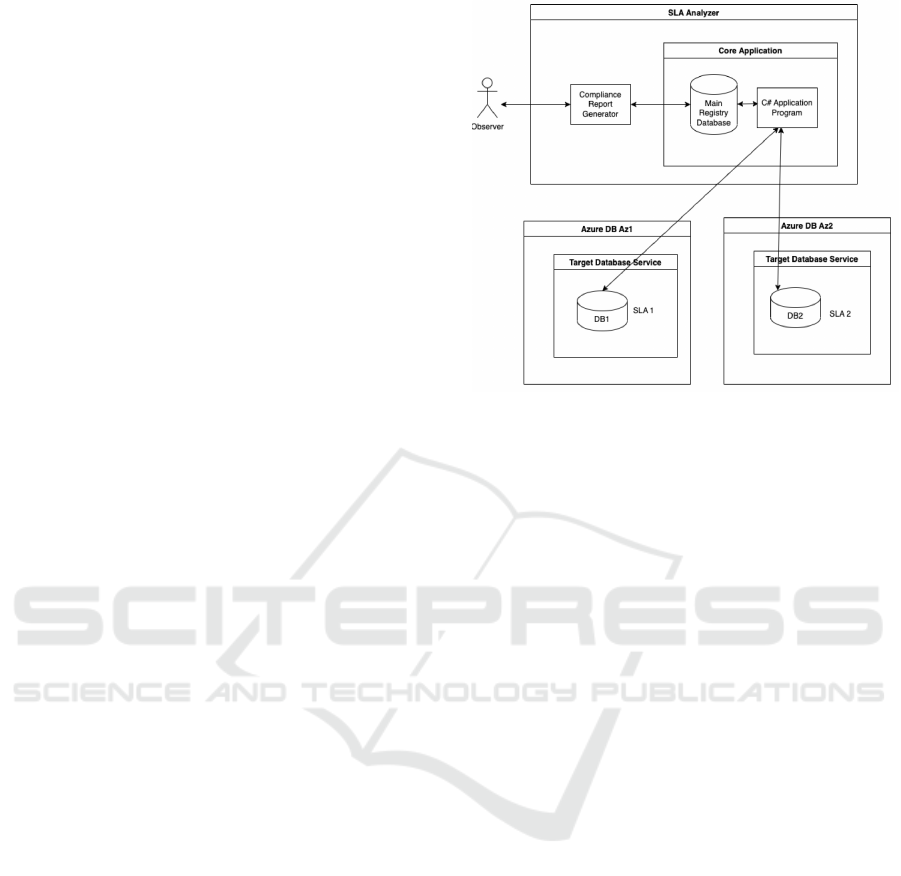

a proposed tool. The proposed tool, SLA Analyzer,

monitors cloud service availability. The tool consists

of a core application that generates and collects data

in the main registry database, and a compliance re-

port generator that calculates cloud service availabil-

ity based on previously collected data and compares it

to the SLA availability parameter. A graphical report

is created from collected and analysed data.

A service’s downtime is when it’s unavailable,

while its uptime is when it’s available for use. The

SLA Analyzer provides cloud service downtime and

uptime data. The data will be used for statistical anal-

ysis to determine the net availability of the cloud ser-

vice. Downtime or uptime ratio determines avail-

ability (Oliveto et al., 1999). Calculated availabil-

ity is compared to agreed-upon parameters in SLA

documents between cloud service providers and cus-

tomers. The study will present a tool known as SLA

Analyzer that will autonomously analyse the param-

eters of cloud service availability. The objective of

this study is to quantify the availability of SLA for

cloud services speciﬁcally related to databases. The

SLA Analyser tool uses data to assess and compute

the availability of database services. The study aims

to address the following research question (RQ)

• RQ1:How can SLA Analyzer be used to inde-

pendently monitor the availability of cloud-based

database-as-a-service (DBaaS) deployments?

The remaining parts of this paper are structured

as follows. Section 2 provides the theoretical basis

for our research, whereas Section 3 describes the ap-

proach and methods used in our study. Section 4 of

the paper presents the SLA Analyser Architecture,

while the ﬁfth section focuses on the Experiment and

result. Section 6 has discussions. Section 7 provides a

conclusion, and also discusses potential areas for fu-

ture research.

ENASE 2024 - 19th International Conference on Evaluation of Novel Approaches to Software Engineering

538

2 RESEARCH BASELINE

As managed services and cloud computing become

more common, SLAs adapt to accommodate new

methodologies. SLAs are used to negotiate com-

putation and performance requirements between ser-

vice providers and users. A service-level agree-

ment should include an overview, service descrip-

tion, exclusions, performance, compensation, stake-

holders, security, risk management, disaster recov-

ery, tracking, reporting, review and change processes,

termination, and signatures. In order to enforce a

service-level agreement, it is crucial to comprehend

the provider’s delivery criteria. If the SLA is not satis-

ﬁed, the client may be entitled to the contract compen-

sation. SLAs monitor service provider performance

using speciﬁc metrics and parameters. Parameters in-

clude availability, uptime, performance, data, secu-

rity, privacy, hardware, and software requirements.

2.1 Cloud Service Availability

The availability and uptime characteristics measure

the duration of services available to customers. In

cloud services, uptime and availability are crucial

characteristics. The availability of an application de-

pends on the functionality of the underlying infras-

tructure. If there is a problem with the infrastructure,

the application may cease to be available. Lack of ac-

cessibility and availability prevents the usage of digi-

tal applications. Key factors depend on the cloud ser-

vice type: SaaS (Software as a service), IaaS (Infras-

tructure as a Service), or PaaS (Platform as a Service).

The study ’Cloud security service level agreement:

Representation and Measurement’ conducted in 2019

found that there is a lack of standardised systems for

deﬁning and enforcing security SLAs in cloud com-

puting (Hubballi et al., 2019).

Cloud service providers (CSPs) are required to of-

fer assurances regarding the security and computa-

tional processes employed for essential applications.

Customers usually engage in negotiations to estab-

lish SLA in order to enforce these responsibilities.

Cloud computing platforms currently employ vari-

ous tools or procedures provided by service providers

to measure and enforce performance-related SLAs.

Nevertheless, these SLAs generally fail to encompass

security-related concerns and obstacles (Hubballi et

al., 2019).

CSPs use security and openness standards such

as the Cloud Control Matrix (CCM) developed by

the Cloud Security Alliance and the NIST’s SP 800-

53. Security problems in cloud computing encompass

the availability of the service, privacy of data, trans-

parency, billing, and prevention of cyberattacks. Se-

curing cloud services to encompass all areas of secu-

rity is tough due to the heterogeneous composition of

the cloud, consisting of many types of computer sys-

tems (Hubballi et al., 2019).

SLAs are commonly used to form and man-

age QoS agreements between clients and service

providers. Kaaniche et al. (2017) found few SLA

management systems that consider cloud security

contexts. Kaaniche et al. (2017) found that opera-

tional performance management is often more sophis-

ticated than security management in many systems.

SLAs should clearly outline security duties such as

conﬁdentiality, integrity, and availability (CIA). Ad-

ditionally, the study suggests considering the dynamic

nature of cloud systems when creating security SLAs

for monitoring. The study showed providers’ difﬁcul-

ties providing reliable services. Current SLAs lack

security management and tools for unbiased service

comparisons. According to the article, there are no

real-time tools to adequately characterise and manage

security SLAs.(Kaaniche et al., 2017)

2.2 Cloud Security

A study on cloud security SLA adoption(Casola et

al., 2015) found that cloud service providers (CSPs)

typically provide opaque security. This implies that

security methods are weak and inﬂexible to negoti-

ation. This implies limited security feature options

for clients. However, security should be considered

with other crucial criteria when selecting a cloud ser-

vice. The European Community has initiated work to

standardise SLAs for cloud computing (Casola et al.,

2015), and subgroups are addressing security chal-

lenges, however security is currently outdated.

(Toeroe and Tam et al., 2012) deﬁne availability as

the percentage of time an application and its services

are available within a certain timeframe. High avail-

ability (HA) is achieved when the service is unavail-

able for less than 5.25 minutes per year, guarantee-

ing at least 99.999 % availability. Achieving higher

availability is a major challenge for cloud providers.

A cloud provider should continuously monitor re-

sources and deployed services to achieve high avail-

ability (Endo et al., 2016).

Availability is a key security component of CIA

(Conﬁdentiality, Integrity, Availability), ensuring sys-

tem availability at agreed-upon times for designated

individuals (Januzaj et al., 2015). We aim to monitor

DBaaS availability in this study. Our unbiased tool

veriﬁes if agreed-upon Database cloud service avail-

ability is satisﬁed by several providers and alerts of

SLA violations throughout the service lifecycle.

Security and SLA Monitoring for Cloud Services

539

3 SLA ANALYSER

The Service Level Agreement Analyser, often known

as the SLA Analyser, is a tool used for monitoring

the availability of a service. This tool consists of two

components: the Core Application and the Compli-

ance Report Generator. The Core application peri-

odically checks for the presence of a target database

service and records the outcome in the main registry

database. The primary registry database is located on

the Core Aapplication. The Core Application estab-

lishes a connection with a speciﬁed database cloud

provider and periodically veriﬁes its availability. The

Core application records the availability status of the

target database service in its main registry database.

The Compliance Report Generator serves as the

second module of the SLA Analyser tool. The Com-

pliance Report Generator(CRG) assesses the accessi-

bility of the target database cloud service by examin-

ing the data gathered in the primary registry database

of the Core Application. CRG calculates the avail-

ability of the target database cloud service by using

the uptime and downtime formula(as it can be seen

sub section 5.1) within a deﬁned time period. CRG

afterwards compares the calculated availability with

the availability parameter stated in the agreed Ser-

vice Level Agreement (SLA) of the target database

cloud service. An analytical assessment is presented

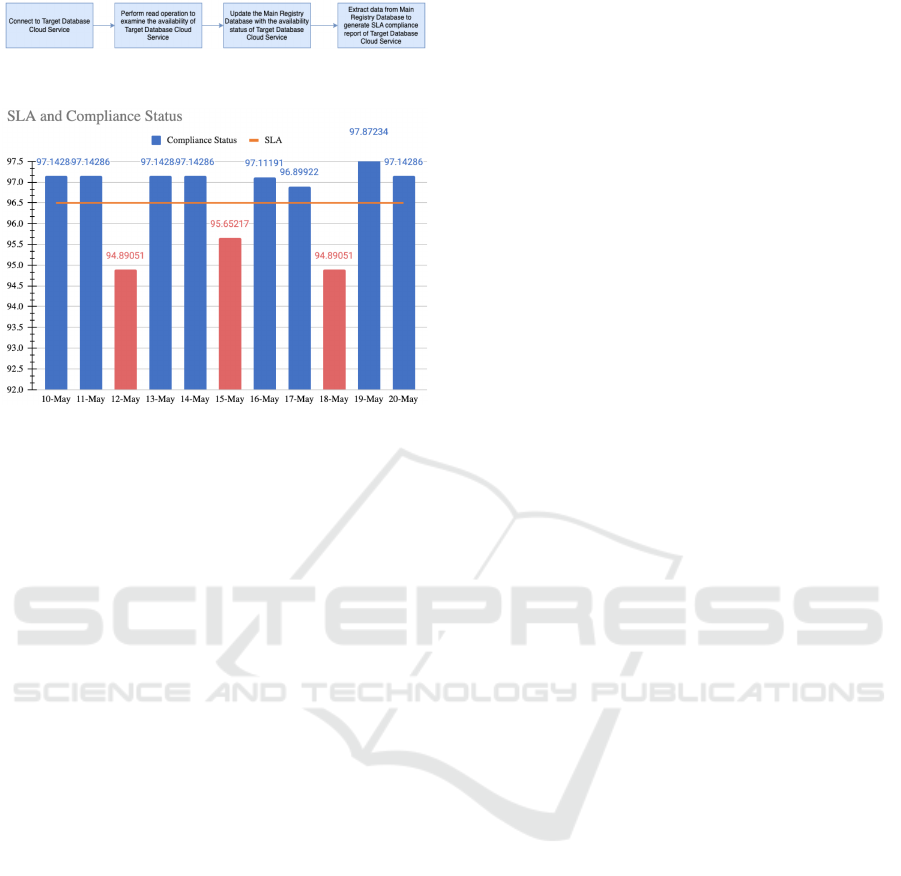

in the form of a visual report. The compliance report

features a graph where the x-axis denotes time and

the y-axis represents availability. The SLA Analyser

tool can check the accessibility of different database

services, irrespective of the cloud service provider.

This study seeks to employ the SLA Analyzer to

autonomously monitor the availability parameter of

the SLA for cloud-based database-as-a-service. The

research aim is accomplished by employing the use

of an experiment-based research strategy. The SLA

Analyser tool is used to monitor two target database

cloud services during the experiment. Upon comple-

tion of the experiment, a report on SLA compliance is

generated. This report can be used to identify any in-

stances where the availability requirements outlined

in the SLA documents for the target database cloud

services have been violated.

3.1 Experimental Architecture

The experimental setup of the study is illustrated in

Figure 1 (SLA Analyser Architecture). The archi-

tecture of the SLA analyser is described as follows.

The core application comprises a C# application pro-

gram and main registry database. The study uses a

C# application program to develop an application that

Figure 1: Architecture of SLA Analyser.

establishes a connection to a certain database cloud

service by employing a database connection string.

The connection string comprises essential parameters

for establishing a connection between the applications

and a database server. The conﬁguration encompasses

the server instance, database name, authentication de-

tails, and additional parameters required for commu-

nication with the database server.

After establishing the connection, the C# Applica-

tion Programme veriﬁes the availability of the target

database cloud service. This check is conducted peri-

odically at a predetermined frequency. The frequency

at which the availability of the cloud service is mon-

itored can be adjusted based on the speciﬁc monitor-

ing needs. The C# Application Programme records

the availability status of the target database service

and writes it into the Main Registry Database. The

Main Registry Database contains tables that store in-

formation pertaining to the cloud service entities that

are being monitored. The database table’s column

names consist of the availability status (Status), times-

tamp (Timestamp), and speciﬁcs of the assessed cloud

database (Slave identity country zone).

The Compliance Report Generator uses the data

from the main registration database of the Core Ap-

plication to determine the availability of the target

database cloud service. The accessibility of the target

database cloud service can be determined by calculat-

ing its uptime and downtime using a certain formula

during a given time period. The computed availabil-

ity is afterwards compared to the availability parame-

ter speciﬁed in the agreed SLA of the target database

cloud service. An analysis is conducted and a graphi-

cal report is produced as a result.

ENASE 2024 - 19th International Conference on Evaluation of Novel Approaches to Software Engineering

540

The target database service refers to the cloud

database that is being monitored by the SLA Anal-

yser tool. Two target Database Services were hosted

on Azure for this experiment, each located in sepa-

rate availability zones. Availability zones (AZs) are

segregated data centres situated in distinct geograph-

ical regions where servers for public cloud services

are established and managed. The knowledge of the

availability zone of a cloud service is crucial, as SLA

for cloud services differs depending on the availabil-

ity zones in which the cloud services are hosted by

the providers. The target Database services were sup-

plied with a predetermined test data-load. The ﬁxed

data-load is read during the read operation performed

by the C# Application Programme. Ensuring consis-

tency throughout the read process is achieved by read-

ing the same data load.

3.2 Experimental Scenarios

The SLA Analyser tool was speciﬁcally created to

undergo testing with predetermined scenarios. These

scenarios guarantee that the SLA Analyser fulﬁls its

objective in accordance with the scope of this study.

Below are four vital scenarios for SLA Analyser:

Scenario 1: SLA Analyser tool shall monitor the

available database cloud service: Database cloud ser-

vices will be monitored using SLA Analyser. To meet

SLA requirements, the analyzer must connect to the

database cloud services and successfully read ﬁxed

data stored there. For each successful read operation,

the target database service stores a ‘available’ item in

the main registry database as shown in Figure 1.

Scenario 2: SLA Analyser tool shall monitor the un-

available database cloud service: Requires SLA Anal-

yser to detect unavailable database cloud services.

SLA Analyser should track difﬁculty to connect or

read ﬁxed data stored on cloud services. To test the

unavailable database scenario, we had to disable the

database server, resulting in a loss of connectivity.

Every failed connection to the target database service

results in a ‘unavailable’ entry in the main registry

database.

Scenario 3: SLA Analyser tool shall monitor more

than one database cloud services: The SLA Anal-

yser tool should connect to many cloud database ser-

vices. Database cloud services can be hosted by many

providers or in different availability zones.

Scenario 4: SLA Analyser tool shall generate

SLA compliance reports for database cloud services:

The Compliance Report Generator of SLA Analyser

should use the dataset from the Core Application’s

main registration database to build availability plots.

This ﬁgure demonstrates SLA compliance for cloud

database services. In addition to functional criteria,

the following availability analysis rules were used to

determine the database cloud service availability sta-

tus:

Rule 1: If the Core Application properly connects

to and reads from the database service, the service can

be marked accessible (Rule1). Rule 2: If the Core

Application can successfully connect to the database

service but fails to conduct a successful read opera-

tion, the database service can be deemed unavailable.

Rule 3: In the event that the Core Application fails to

establish a successful connection to the database ser-

vice, the database service may be designated as un-

available. These rules were generated from standards

for assessing cloud service availability. According to

FISMA (Barker et al.,2003), ’availability’ in cyber se-

curity refers to timely and dependable access and use

of information or services by users. Accessing ser-

vices does not guarantee availability. Rule 2 and Rule

3 were deemed inaccessible based on this understand-

ing. A successful connection and read operation of

the database cloud service by the tool resulted in the

status available state in Rule 1.

4 EXPERIMENT AND RESULT

The SLA Analyser tool is used to monitor the avail-

ability parameter of SLA for cloud-based database-

as-a-service during the study project. The SLA Anal-

yser tool assesses the availability of cloud services

by performing periodic read operations. The evalu-

ation of database cloud services involves conducting

a read operation. The evaluated database cloud ser-

vices were furnished with a test data-load, which was

read during the read operation performed by the SLA

Analyser tool. The main registry database of the SLA

Analyser tool was updated based on the ﬁndings of

the read operation. The primary registry database is

populated with entries in its table that store informa-

tion pertaining to the monitored cloud service entity.

The measured parameters consist of the availability

status (Status), timestamp (Timestamp), and speciﬁcs

of the assessed cloud database (Slave identity country

zone), as depicted in Figure 2 of the Main Registry

database table.

The Slave identity country zone records the name

and availability zone of the cloud services that are

currently underutilised. The availability status values

obtained were categorised as either ’available’ or ’un-

available’. The time at which this data was recorded

was kept as a timestamp in the format of YYYY-MM-

DD hh:mm:ss[.fractional seconds]. The availability

was evaluated every ﬁve minutes for this study. The

Security and SLA Monitoring for Cloud Services

541

frequency was ﬁxed throughout the experiment but

adjustable. Users can vary cloud service availability

monitoring frequency based on their needs and busi-

ness justiﬁcation. Mission-critical cloud customers

can monitor service availability per second or minute,

depending on their needs.

The availability score measures the proportion of

24-hour service availability. Each daily cycle adds

several rows to the main register database based on

monitoring frequency. If the frequency is 5 minutes,

288 rows will be generated. Daily availability was

calculated using uptime and downtime. Uptime is

when a service is available, while downtime is when it

is not. The database cloud service’s SLA availability

metrics were then compared to each day’s availabil-

ity. Table 1 shows Azure DB Az1 data: The proposed

tool collected data. The ﬁrst column shows moni-

toring dates, while the second shows database cloud

service availability requirements, which were 96.5%.

The third column shows SLA Analyser-determined

daily availability. Figure 5 shows a graph of the SLA

compliance report based on the data table.

Table 1: Collected data through proposed tool.

Azure DB

Az1

Resources SLA Compliance

status

May 10th 96.5000 97.14286

May 11th 96.5000 97.14286

May 12th 96.5000 94.89051

May 13th 96.5000 97.14286

May 14th 96.5000 97.14286

May 15th 96.5000 95.65217

May 16th 96.5000 97.11191

May 17th 96.5000 96.89922

May 18th 96.5000 94.89051

May 19th 96.5000 97.87234

May 20th 96.5000 97.14286

4.1 Data Analysis

Following the 11-day data collection period, which

had a time difference of 5 minutes, the collected data

was analysed using a one-sample proportion statisti-

cal test (z-test) in comparison to the SLA. The eval-

uation determines whether the uptime of the cloud

database (DB) services in the sample meets or ex-

ceeds the agreed-upon availability percentage of the

SLA. The test yields valuable information indicat-

ing that the tool’s output is statistically signiﬁcant

within the given dataset. Through statistical analysis,

the comparison between the uptime-downtime and

agreed-upon availability percentages from the tool is

reevaluated and conﬁrmed.

Initially, data was imported into R-studio from a

CSV ﬁle. Afterwards, the availability status has been

transformed from ”available” to ”unavailable” using a

binary conversion of 1 and 0 on the dataset. The steps

for conducting a one-sample proportion test are as fol-

lows: Firstly, compute the sample percentage

(p) by

counting the number of successes in the availability

column and dividing it by the total number of observa-

tions. In step ii, the null hypothesis (H0) and alterna-

tive hypothesis (H1) are deﬁned. The null hypothesis

states that the availability percentage from the SLA is

less than the agreed upon value, while the alternative

hypothesis states that it is equal to or greater than the

agreed upon value. In step iii, the standard error (SE)

is computed for the sample proportion using the given

equation.

SE = sqrt(

(p) ∗ (1 −

(p))/n)

Here, n represents the sample size and

(p) rep-

resents the sample proportion. The test statistics (z

score) value is obtained using the following equation:

Z = (

(p) − p

)/SE)

Out of a span of 11 days, 2 days were chosen at

random for the analysis. The data from May 10th

has been selected and employed in the test. The re-

sult indicates that the null hypothesis cannot be ac-

cepted and the sample proportion is much higher than

the agreed-upon availability percentage of 0.965. The

current service availability exceeds 96.5% as of May

10th, and the SLA has not been violated. The statisti-

cal test conducted on May 10th, as depicted in Figure

3, presents the outcomes of a one-sample proportion

test. The one-sample proportion statistical test was

also conducted using the data from May 12, 2023.

The outcome indicates that the null hypothesis has not

been rejected and the sample proportion is not higher

than 0.965 (the agreed-upon percentage of availabil-

ity). The service was unavailable for 96.5% of the

day on May 12th. The availability has not met the

promised level and the SLA has been violated. The

use of a one-sample proportion statistical test con-

ﬁrms the statistical signiﬁcance of the data gathered

by the SLA Analyser tool.

4.2 Findings: Addressing Our Research

Question

This study monitored database cloud service SLA

availability using SLA Analyser. The SLA Anal-

yser connected to the target database cloud services.

ENASE 2024 - 19th International Conference on Evaluation of Novel Approaches to Software Engineering

542

Figure 2: Workﬂow of SLA analyser.

Figure 3: SLA Compliance Report.

After connecting, the SLA Analyser read the target

database cloud services. SLA Analyser’s primary reg-

istry database was updated with the target database

cloud services’ availability status after the read oper-

ation. SLA compliance reports use primary registra-

tion database data. The compliance report can detect

occasions where target database cloud service SLA

agreements have not satisﬁed availability standards.

The SLA Analyser tool’s operation is explained in

Figure 4

As indicated, the tool was designed using avail-

ability analysis techniques. Database service avail-

ability was set to ”available.” if the database connec-

tion and read operation were successful. The database

service was unavailable if the read operation failed af-

ter connecting to the database. The database service

was unavailable if the database connection was not

made. These criteria assessed target database cloud

service availability. Based on 11-day availability cal-

culations, a SLA compliance report graph was cre-

ated. Monitoring dates are on the x-axis, and avail-

ability scores are on the y-axis. Customers and sell-

ers’ Service Level Agreement (SLA) was used to ver-

ify SLA compliance. The SLA Compliance Report

for Azure DB Az1, the target database service, is

shown in Figure 5.

The experiment had four main scenarios. The

tool met and exceeded all test scenarios and quanti-

ﬁed cloud-based database-as-a-service platform SLA

availability parameters. Scenario 1 assessed the target

database cloud services’ availability by assessing the

tool’s ability to connect to and read from them. Sce-

nario 2 assessed the target database cloud services’

inaccessibility. Database services seldom become un-

available without external involvement. Perhaps they

would descend once or twice a month. We purposely

disabled the database server to test unavailability, cre-

ating a ”unavailable” record. The inability to connect

to the database service caused the tool to throw an ex-

ception, reporting the service as down.

The SLA Analyser was tested by connecting to

two Azure database services in different availabil-

ity zones. Each database service monitored indepen-

dently of experimental results. SLA Analyser moni-

tors many cloud services. Scenario 4 was completed

using the SLA Analyser primary registration database

dataset. The data set was extracted using Excel to de-

termine monitoring day availability using uptime and

downtime. A plan was made based on daily availabil-

ity. The plot used availability metrics from the ap-

proved (SLA) to analyse the database service’s SLA

compliance. Figure 5 shows the SLA Compliance Re-

port.

5 DISCUSSION

The experiment and analysis provide the necessary

data to solve this research challenge. The suggested

SLA monitoring tool improves cloud service avail-

ability and SLA compliance. Companies that want

to stay competitive and provide great customer ser-

vice must prioritise service dependability and SLAs.

This is critical given the shifting Cloud computing

landscape and its impact on corporate processes. Re-

cent research on SLA monitoring and cloud evalua-

tion have stressed the importance of automated meth-

ods and real-time monitoring in this ever-changing

environment.

The suggested tool monitors cloud-based database

services using uptime and downtime. A tool was used

to compare the 11-day service availability and un-

availability record to the SLA availability percentage.

The SLA Compliance Report shows that Azure DB

failed to reach the guaranteed SLA % on May 12th,

15th, and 18th, 2023. Cloud service availability has

dropped to 96.5% in recent days, which is below ex-

pectations. For the remaining days, the tool shows

that services met the Service Level Agreement. The

suggested tool monitored service availability against

SLA. In table 2 and Figure 5, a one-sample % statis-

tical test was used to reevaluate the indicated tool’s

data. Test results show statistical signiﬁcance. By au-

tomatically assessing SLA, the SLA monitoring tool

reduces human monitoring time and effort.

Security and SLA Monitoring for Cloud Services

543

5.1 Novelty of the Proposed Tool

The results are thoroughly compared to existing re-

search on the issue in this section. Undheim et al.

(2011) did a key study on ”Differentiated Availabil-

ity in Cloud Computing SLAs.” The study analysed

cloud SLA availability and sought to simulate cloud

data centres. Their analysis showed that SLAs should

explicitly include key performance indicators (KPIs),

but ours actively monitors those KPIs. This provides

us track how well cloud service providers meet their

availability promises. This helps us understand their

performance and improve their SLA compliance.

In ”Cloud Security Service Level Agreements:

Representation and Measurement,” Hubballi et al.

(2019) deﬁned SLAs and proposed a real-time audit

method employing a trusted third-party auditor. We

focus on monitoring the accessibility of standard ser-

vice level agreements used by cloud providers and

their clients, despite their success in generating and

quantifying them. Our proposed tool ensures SLA

compliance and uses an impartial and autonomous

monitoring mechanism to avoid conﬂicts of interest.

Independent service level agreement evaluations help

build trust and transparency between cloud operators

and clients. This provides constant and precise SLA

compliance.

The 2013 Manuel et al. research, ”Availabil-

ity Management in Cloud Computing Based on the

ISO/IEC 20000 Standard,” addresses cloud comput-

ing availability management. They presented an ISO

20000-based framework for cloud service monitor-

ing and management. The study advances availability

management. Our system monitors cloud database-

as-a-service availability. The proposed approach im-

proves customer satisfaction by easily achieving in-

dustry standards and service level agreements to pro-

mote cloud service reliability.

Furthermore, Ameller et al. (2008) present ”Ser-

vice Level Agreement Monitoring Tool based on mea-

sures derived from ISO/IEC 9126-1-based service ori-

ented quality model.” Their research focuses on ISO

9126-1-compliant monitoring tools. Its main goal

is to evaluate quality metrics. Only cloud-based

database service accessibility and security protocols

are monitored in the course of our study. This aids

them by analysing quality measures. Our programme

provides an all-encompassing approach for database

performance evaluation and improvement. It empha-

sises availability, a key component of cloud architec-

ture.

5.2 Related Work

Existing Tools. Regarding the available tools,

cloud providers frequently provide monitoring tools

like CloudMonitor, ServiceWatch, and SLA Tracker,

which are proven to be useful in monitoring services

within their particular ecosystems. These tools, pro-

vided by certain cloud providers, play a crucial role

in guaranteeing service responsiveness and compli-

ance with Service Level Agreements. Nevertheless,

the proposed tool offers a chance for impartial and au-

tonomous surveillance by guaranteeing the absence of

any potential conﬂicts of interest or undue inﬂuence

in the monitoring procedure. It is especially suitable

for organisations with adaptable cloud environments

due to its inherent ﬂexibility and customisation ca-

pabilities. This solution provides ﬂexibility, enabling

businesses who utilise services from numerous cloud

providers to monitor the availability of their entire

cloud environment using a single integrated platform.

Conversely, the solutions offered by cloud sup-

pliers are designed to be used only with a particu-

lar cloud provider. This thorough monitoring strategy

improves a company’s capacity to effectively manage

its cloud infrastructure. To conclude, the suggested

monitoring solution emphasises real-time monitor-

ing of important performance indicators connected

to cloud providers and clients’ conventional service

level agreements. This detailed monitoring approach

provides businesses with valuable insights by actively

monitoring SLAs and database-as-a-service availabil-

ity. Our experiment helps companies understand how

to deliver reliable cloud services that meet customer

expectations. This technology can help cloud-using

ﬁrms gain deeper insights into their cloud databases.

Availability insights and SLA compliance data can

help people choose the best cloud provider. Real-time

monitoring helps organisations develop service level

agreements faster.

Firms with sensitive data or regulatory compliance

requirements beneﬁt from the proposed tool’s impar-

tial and autonomous monitoring mechanism. Organ-

isations can improve their competitiveness and meet

legal and regulatory requirements by demonstrating

SLA compliance through unbiased monitoring. In

conclusion, the suggested SLA monitoring solution

greatly improves cloud service availability monitor-

ing. By monitoring availability and ensuring ser-

vice level agreements, the app helps cloud service

providers and organisations deliver high-quality cloud

services. This research could improve cloud service

reliability, customer satisfaction, and company suc-

cess in a time when cloud computing is still changing

business.

ENASE 2024 - 19th International Conference on Evaluation of Novel Approaches to Software Engineering

544

5.3 Threats to Validity

To conﬁrm and ensure research accuracy and efﬁcacy,

multiple actions are taken. First, experiment-based

testing was done to evaluate the SLA analyzer’s cor-

rectness in gathering and creating database cloud ser-

vice uptime and downtime statistics. The experiment

tests whether the system can calculate and compare

actual and SLA availability percentages. Determine if

SLA was violated. Results were validated using sta-

tistical analysis. One-sample proportion test reevalu-

ates data and veriﬁes tool results are statistically rel-

evant. The research also compares the suggested tool

to market-available monitoring methods to evaluate

its impact. This study offers impartial and objective

monitoring, a versatile tool that can be adapted to

the customer’s business requirements, and the abil-

ity to monitor many cloud platforms with a single

tool. Finally, a comprehensive literature review com-

pared the new tool to past SLA monitoring research

on cloud service accessibility. The review insight-

fully assesses the research’s value. The proposed in-

strument’s uniqueness is also emphasised. Validity

(internal and external): The study has limitations.

Student accounts initially purchased cloud services

from cloud providers due to resource constraints. Pur-

chase limits for student accounts vary by database

size and choice. An interactive data visualisation tool

like Power BI would have been best for SLA compli-

ance reporting. It was not added into SLA Analyser

because of the cost. Instead, Excel was used. Due

to purchasing constraints, we chose Azure cloud ser-

vices, which were free for students. All research was

done on Azure. Execution is neutral and compatible

with any cloud service. The suggested tool’s proof-

of-concept was conducted in a synthetic experimental

environment. This was the best option for the task

due to time restrictions. The ability to implement and

repeat results may be limited in these scenarios.

6 CONCLUSION

This study evaluated using the SLA Analyzer tool

to automatically monitor cloud-based database-as-a-

service SLA availability. The research goal was at-

tained by experimenting with scenarios. To ensure

SLA compliance, the report emphasised autonomous

cloud service monitoring. The results supported this

study’s goal and provided reliable SLA monitoring re-

sults. The SLA percentage did not always match ser-

vice availability on some days, according to experi-

ments. SLA breach was clear since promised services

were not delivered.

Numerous enterprises and organisations are em-

bracing client interest in cloud services, which the

paper addresses. These entities are having trouble

monitoring service availability. This effort was small-

scale, hence its scientiﬁc impact was limited to moni-

toring cloud service availability. A tool that compares

real service to stated SLA performed it. This study

paved the way for further research on cloud com-

puting SLA management that beneﬁts customers and

providers.

Future Work. A study on ”the Adoption of Secu-

rity Service Level Agreements (SLAs) in the Cloud”

found certain problems. Expressing security require-

ments accurately, measuring security, and monitor-

ing and ensuring security are the primary challenges.

These three reasons hinder cloud and security service

level agreement adoption. The study focuses on mon-

itoring and comparing security availability with the

SLA availability %.

This study lays the framework for future research

to improve the tool by adding parameters beyond

availability to give a more comprehensive cloud ser-

vice monitoring system. Consider studying secrecy

and integrity to improve the research. Future re-

search can also develop a precise way to determine the

Key Performance Indicator (KPI) that precisely re-

ﬂects Service Level Agreement conﬁdentiality and in-

tegrity. Key Performance Indicators help measure and

manage conﬁdentiality and integrity. Furthermore,

this study explored the database-as-a-service concept.

Service level agreement monitoring might be studied

in different cloud service models like infrastructure-

as-a-service and platform-as-a-service. Future re-

search could leverage this study’s ﬁndings to address

limits, improve the tool, and explore containers, IoT

devices, servers, and other cloud service monitoring

aspects.

REFERENCES

Alhamazani, K., Ranjan, R., Mitra, K. et al. An overview

of the commercial cloud monitoring tools research di-

mensions, design issues, and state of the art. Comput-

ing 97, 357–377 (2015)

Badger, M. , Grance, T. , Patt-Corner, R. and Voas, J.

(2012), Cloud Computing Synopsis and Recommen-

dations, Special Publication (NIST SP), National In-

stitute of Standards and Technology, Gaithersburg,

Barker, W. (2003), Guideline for identifying an information

system as a national security system:, , National Insti-

tute of Standards and Technology, Gaithersburg, MD

Ludwig, H., Stamou, K., Mohamed, M., Mandagere, N.,

Langston, B., Alatorre, G., Nakamura, H., Anya, O.,

& Keller, A. (2015). rSLA: Monitoring SLAs in Dy-

Security and SLA Monitoring for Cloud Services

545

namic Service Environments. Lecture Notes in Com-

puter Science, 139–153.

Begic, K. and Tanovic, A. (2012) ‘Improvement of imple-

mentation of ISO-IEC 20000 edition2 standard in IT

systems of telecom operator through comparison with

Itil V3 Best Practices’

Capel, M.; Aporta, O. and Pegalajar-Jim

enez, M. (2020).

Quality of Service in Cloud Computing Environments

with Multitenant DBMS. In Proceedings of the 10th

International Conference on Cloud Computing and

Services Science

Casola, V., De Benedictis, A., Rak, M. (2015). On the

Adoption of Security SLAs in the Cloud. In: Felici,

M., Fern

andez-Gago, C. (eds) Accountability and Se-

curity in the Cloud. A4Cloud 2014. Lecture Notes in

Computer Science(), vol 8937. Springer, Cham

V. Casola, A. De Benedictis and M. Rak, ”Security Moni-

toring in the Cloud: An SLA-Based Approach,” 2015

10th International Conference on Availability, Relia-

bility and Security, Toulouse, France, 2015, pp. 749-

755

erin, C., Coti, C., Delort, P., Diaz, F., Gagnaire, M.,

Gaumer, Q. and Ville, A. (2013) Downtime Statis-

tics of Current Cloud Solutions. International Working

Group on Cloud Computing Resiliency, Tech.Rep.

Petcu, D. (2014, July). A taxonomy for sla-based monitor-

ing of cloud security. In 2014 IEEE 38th Annual Com-

puter Software and Applications Conference (pp. 640-

641). IEEE.

Endo, P. T., Rodrigues, M., Gonc¸alves, G. E., Kelner, J.,

Sadok, D. H., & Curescu, C. (2016). High availability

in clouds: systematic review and research challenges.

Journal of Cloud Computing, 5(1), 1-15.

Al-Shammari, S., & Al-Yasiri, A. (2015, October). Mon-

SLAR: a middleware for monitoring SLA for REST-

FUL services in cloud computing. In 2015 IEEE

9th International Symposium on the Maintenance and

Evolution of Service-Oriented and Cloud-Based Envi-

ronments (MESOCA) (pp. 46-50). IEEE.

Frey, S., Reich, C., & L

uthje, C. (2013, September). Key

performance indicators for cloud computing SLAs. In

The ﬁfth international conference on emerging net-

work intelligence, EMERGING (pp. 60-64).

N. Hubballi, A. K. Patel, A. K. Meena and N. Tripathi,

”Cloud Security Service Level Agreements: Repre-

sentation and Measurement,” IEEE INFOCOM 2019

- IEEE Conference on Computer Communications

Workshops (INFOCOM WKSHPS), Paris, France,

2019, pp. 145-150

Januzaj, Y., Ajdari, J., & Selimi, B. (2015). DBMS as

a Cloud service: Advantages and Disadvantages.

Procedia-Social and Behavioral Sciences, 195, 1851-

1859.

N. Kaaniche, M. Mohamed, M. Laurent and H. Ludwig,

”Security SLA Based Monitoring in Clouds,” 2017

IEEE International Conference on Edge Computing

(EDGE), Honolulu, HI, USA, 2017, pp. 90-97

Kosinski, J., Nawrocki, P., Radziszowski, D., Zielinski,

K., Zielinski, S., Przybylski, G., & Wnek, P. (2008,

March). SLA monitoring and management framework

for telecommunication services. In Fourth Interna-

tional Conference on Networking and Services (icns

2008) (pp. 170-175). IEEE.

Manuel, P. A trust model of cloud computing based on

Quality of Service. Ann Oper Res 233, 281–292

(2015)

F. E. Oliveto, ”An algorithm to partition the operational

availability parts of an optimal provisioning strategy,”

Annual Reliability and Maintainability. Symposium.

1999 Proceedings (Cat. No.99CH36283), Washing-

ton, DC, USA, 1999, pp. 310-316

Sousa, F. R., Moreira, L. O., Santos, G. A., & Machado,

J. C. (2012). Quality of Service for Database in the

Cloud. CLOSER, 12, 595-601.

A. Taha, A. Zakaria, D. Kim and N. Suri, ”Decentral-

ized Runtime Monitoring Approach Relying on the

Ethereum Blockchain Infrastructure,” 2020 IEEE In-

ternational Conference on Cloud Engineering (IC2E),

Sydney, NSW, Australia, 2020, pp. 134-143

A. Undheim, A. Chilwan and P. Heegaard, ”Differenti-

ated Availability in Cloud Computing SLAs,” 2011

IEEE/ACM 12th International Conference on Grid

Computing, Lyon, France, 2011, pp. 129-136,

de Boer, F. S., Giachino, E., de Gouw, S., H

ahnle, R.,

Johnsen, E. B., Laneve, C., ... & Zavattaro, G. (2019).

Analysis of SLA Compliance in the Cloud–An Auto-

mated, Model-based Approach.

Toeroe, M., & Tam, F. (Eds.). (2012). Service availability:

principles and practice. John Wiley & Sons.

Ameller, D., and Franch, X. (2008, February). Service

level agreement monitor (SALMon). In Seventh Inter-

national Conference on Composition-Based Software

Systems (ICCBSS 2008) (pp. 224-227). IEEE.

ENASE 2024 - 19th International Conference on Evaluation of Novel Approaches to Software Engineering

546
