A Monitoring Methodology and Framework to Partition Embedded

Systems Requirements

Behnaz Rezvani

and Cameron Patterson

Bradley Dept. of Electrical and Computer Engineering,

Virginia Tech, Blacksburg VA 24060, U.S.A.

Keywords:

Runtime Veriﬁcation, Monitor, Functional Requirements, Timing Requirements.

Abstract:

The adoption of runtime monitoring has historically been limited to experts, primarily due to the intricate

complexities associated with formal notations and the veriﬁcation process. In response to this limitation, this

paper introduces GROOT, a methodology and framework speciﬁcally designed for the automated synthesis

of runtime veriﬁcation monitors from structured English requirements. GROOT is tailored to address the

challenges of adhering to both functional and timing constraints within complex real-time embedded systems.

It accomplishes this through a dual approach that handles functional and timing requirements separately, al-

lowing customized veriﬁcation processes for each category. To demonstrate GROOT’s practical utility, its

monitors are applied to an autonomous system modeled in Simulink.

1 INTRODUCTION

Real-time embedded systems are used in a wide

range of safety-critical applications such as avionics,

robotics, and autonomous systems, where system per-

formance depends on timely responses. These sys-

tems must meet both functional and timing require-

ments. Common veriﬁcation techniques such as test-

ing can efﬁciently detect straightforward errors. How-

ever, exhaustive and time-consuming test cases are re-

quired to achieve maximum coverage, and yet it is

possible to miss a subtle error in a large and complex

system. Runtime veriﬁcation (RV) is a dynamic ver-

iﬁcation approach that utilizes monitors derived from

formal system requirements to determine whether the

real-time behaviors of a system adhere to its speciﬁ-

cations (Leucker and Schallhart, 2009).

Formal approaches such as metric temporal logic

(MTL) (Koymans, 1990) and TeSSLa (Leucker et al.,

2018) have been developed to address both functional

and timing speciﬁcations. However, the lack of a

standardized speciﬁcation language complicates the

practical application of these methods (Dwyer et al.,

1999). Practitioners are often required to have a deep

understanding of formal methods and domain-speciﬁc

tool notations. In contrast to functional requirements,

https://orcid.org/0000-0002-1947-1764

https://orcid.org/0000-0003-2482-5261

timing requirements often have fewer variations, en-

abling the reuse of monitors and minimizing resource

usage. This could be achieved by applying suitable

formalisms for each type of requirement.

To facilitate RV adoption without formal meth-

ods training, this paper introduces GROOT (Gener-

alized Runtime mOnitOring Tool), a novel methodol-

ogy and framework to automate the synthesis of mon-

itors from structured English speciﬁcations. GROOT

achieves its goals by offering a dual approach for

functional and timing requirements, enabling cus-

tomized veriﬁcation for precise validation of runtime

system behavior. This fully automated process in-

volves translating English properties to formalisms,

converting them to monitor automata, and formally

verifying the monitors.

Embedded systems may combine software pro-

gramming with hardware elements such as FPGAs

to perform dedicated functions. These systems have

a wide range of requirements from high-level sys-

tem functionalities to detailed low-level aspects such

as signal generation and clock timing complexities.

For the functional requirements, the NASA FRET

tool (Giannakopoulou et al., 2020) is used to formal-

ize structured English expressions into linear tempo-

ral logic formulas (LTL) (Pnueli, 1977). For tim-

ing requirements, we introduce TIMESPEC, a struc-

tured English language speciﬁcally designed to cap-

ture metric time constraints. GROOT transforms

Rezvani, B. and Patterson, C.

A Monitoring Methodology and Framework to Partition Embedded Systems Requirements.

DOI: 10.5220/0012696300003687

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 19th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2024), pages 563-570

ISBN: 978-989-758-696-5; ISSN: 2184-4895

563

these natural language statements into deterministic

automata through an automated synthesis process.

The generated monitors are executed outside the soft-

ware/hardware system, treating the application as a

black box. This makes GROOT a versatile and adapt-

able framework for RV. Monitor inputs and violation

handling are managed separately in external modules

to keep monitor structure simple, easing formal anal-

ysis. This framework establishes monitor correctness

through rigorous static formal veriﬁcation. The mon-

itors can aid debugging during development or in-

crease application trust after system deployment.

In this paper, the practical aspects of GROOT

are shown through its application to an autonomous

system modeled in Simulink

(The MathWorks Inc.,

2023). The main contributions are:

• Automated three-step methodology: GROOT em-

ploys a sequential and automated process involv-

ing the translation of English properties into for-

malisms, transformation into monitor automata,

and formal veriﬁcation of these monitors. This

helps to make RV more accessible and under-

standable to practitioners by hiding formal nota-

tions and automating the entire process of monitor

generation and veriﬁcation.

• Dual approach: GROOT uses a novel approach

that separately addresses functional and timing re-

quirements. This separation facilitates the cus-

tomization of monitor synthesis and formal analy-

sis according to the speciﬁc needs of each require-

ment type, thereby enhancing the veriﬁcation’s ef-

fectiveness.

• Application versatility: As standalone entities,

GROOT monitors can either use system resources

or execute on independent resources, offering

ﬂexibility in implementation. The generated mon-

itors can be applied during both the development

phase and post-deployment. This makes GROOT

a valuable tool in various stages of the system de-

velopment life cycle.

2 METHODOLOGY

GROOT aims to make RV more accessible and practi-

cal for a broader range of users, especially those who

are not experts in the ﬁeld. It achieves this by express-

ing system requirements in structured English to mask

the complexities of formal notations. As shown in

Figure 1, the monitor synthesis ﬂow consists of three

steps: formalization, monitor generation, and formal

analysis. To aid practitioners, the entire process is

mostly automated. Veriﬁcation engineers are only re-

Informal

specification

Formalization

Monitor

generation

Monitor

verification

C code

Analysis

results

Automaton

Formal specifications

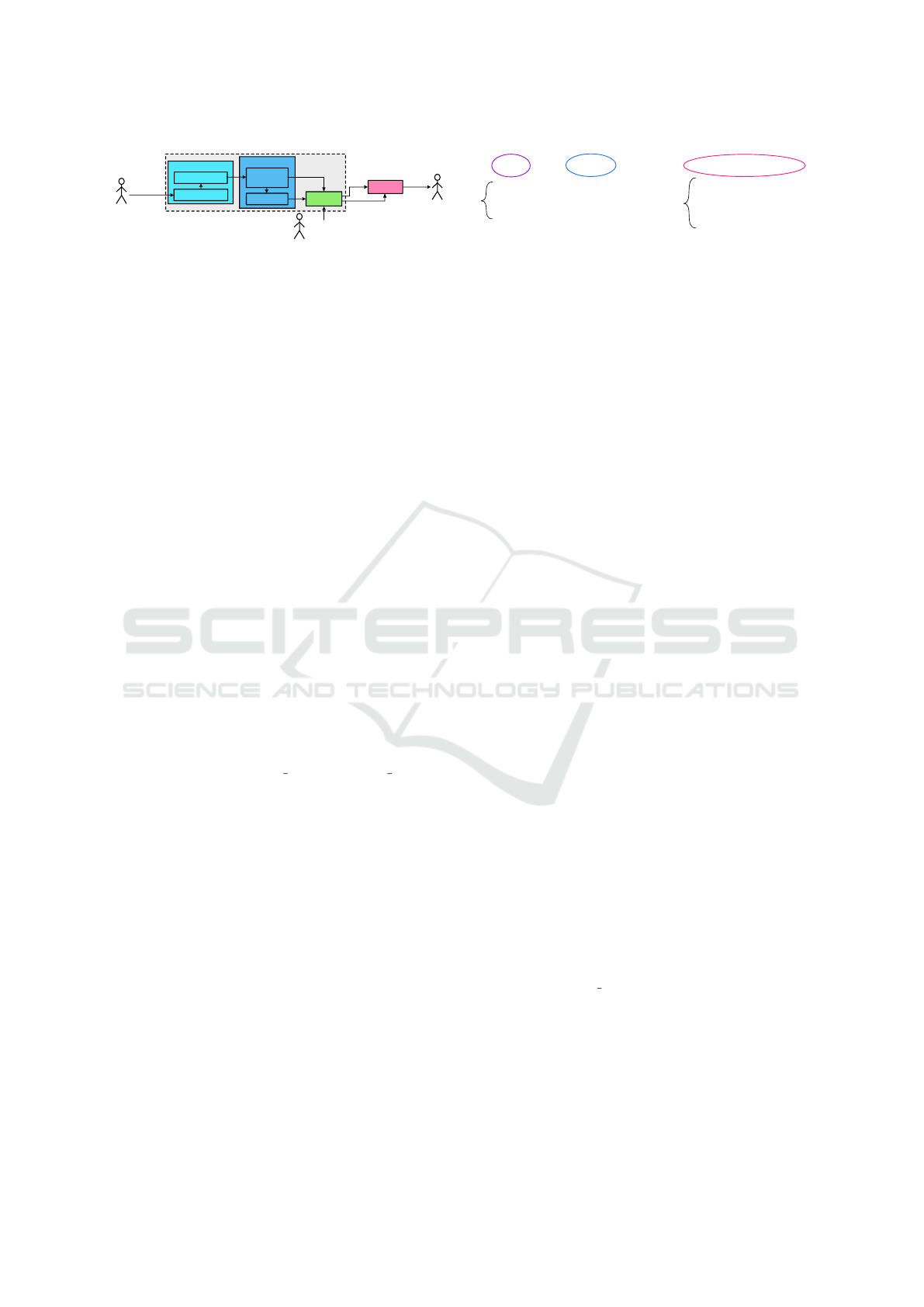

Figure 1: GROOT ﬂow visualization.

quired to provide the initial properties and offer occa-

sional guidance throughout the process to ensure the

generated monitors align with their expectations.

2.1 Formalization

The formalization step forms the foundation for sub-

sequent stages, and its goal is reducing ambiguity

by automating the translation of structured English

properties into formalisms, speciﬁcally automata. It

also provides visual models of automata for an in-

tuitive comprehension of monitor dynamics. In this

phase, various structured English patterns are tailored

for functional and timing requirements. Speciﬁcation

patterns, inherently amenable to automation, make

GROOT an efﬁcient method by signiﬁcantly reducing

the manual effort, ensuring consistent representation

of similar concepts across speciﬁcations and enhanc-

ing the reliability of monitor synthesis.

2.2 Automated Monitor Generation

The generated formal models are automatically trans-

formed into ﬁnite state machines (FSMs) during this

step. FSMs are a familiar abstraction to most com-

puter engineers and fulﬁll GROOT’s objective of

creating clear and understandable monitors. They

are particularly effective in tracking event sequences,

making them well-suited for monitoring system tran-

sitions. The widespread use of FSMs, compared to

other formal languages (Havelund, 2008), reduces

GROOT’s learning curve.

2.3 Monitor Veriﬁcation

Monitors are generated using several transformations

on the speciﬁed requirements. To ensure correct-

ness of these synthesized monitors, GROOT employs

static formal veriﬁcation techniques including model

checking (Baier and Katoen, 2008) and theorem prov-

ing (Harrison et al., 2014). This process checks for

logical errors and design ﬂaws in the ﬁnal translation

using rigorous mathematical methods without modi-

fying the source code. The use of speciﬁcation pat-

terns results in standardization of monitor code struc-

ture and also consistency and predictability in monitor

behavior. Leveraging these patterns, GROOT auto-

mates the generation of formal speciﬁcations essen-

tial for the execution of model checking and theo-

ENASE 2024 - 19th International Conference on Evaluation of Novel Approaches to Software Engineering

564

SUS

Monitor

Property violation annunciation

Main

Input_Handler

Monitor_Inputs

{

EVE1

EVE2

EVE3

Monitor_State

{

state

error

pass

state_duration

Output_Handler

Monitor_State

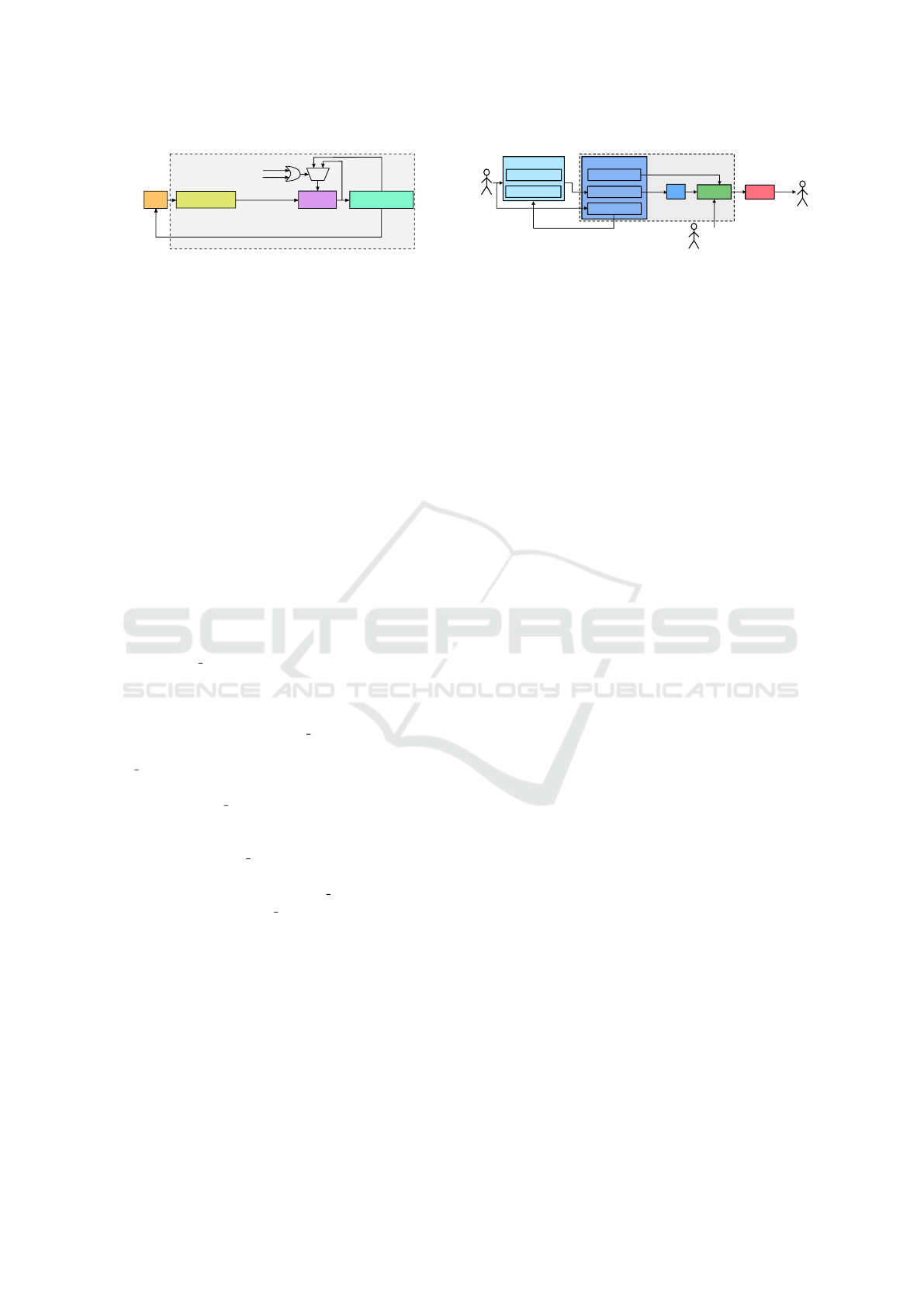

Figure 2: Structure of GROOT monitoring process.

rem proving. Embedding formal analysis ensures that

monitors strictly adhere to state transitions deﬁned in

the abstract automata.

3 MONITOR STRUCTURE

To ensure adequate performance in systems with con-

strained resources, it is crucial to add the monitors

with care. GROOT allows ﬂexible deployment of

monitors on the same or separate hardware to min-

imize overhead and prevent interference with sys-

tem timings. An example would be implementing

monitors directly in digital hardware rather than on

an instruction set processor. Monitors handle inputs

and responses through external entities, which can be

shared and simpliﬁed to reduce resource usage and

better suit formal analysis. Figure 2 illustrates the

monitor structure containing the auto-generated Main

block and its fundamental components.

The Input Handler module acts as an intermedi-

ary between the system under scrutiny (SUS) and

the monitoring framework, translating system data

into Boolean atomic propositions (APs) representing

speciﬁc events. The Monitor Inputs structure cap-

tures these events and is exclusively updated by In-

put Handler. The Monitor component, synced with the

system’s time base, is the core of the monitoring pro-

cess. The Monitor State structure provides a snapshot

of the current state, with error and pass variables in-

dicating violation or successful event sequencing, re-

spectively. The state duration counter keeps track of

self-transitions from the current state. Upon reaching

a verdict, Monitor triggers Output Handler to inform

the SUS and reset Monitor State. The architecture can

adapt to various requirements, with Monitor being the

variable component for different requirements.

4 FRAMEWORK

In our experience, employing a single logic or type of

automaton for both functional and timing speciﬁca-

tions introduces complications that may adversely im-

pact formal analysis outcomes. In GROOT, these two

classes of requirements are handled in different ways,

LTL2C

Spot

Code-Gen

FRETish

Requirement

LTL

Monitor Name,

Variable Types

FRET

LTL Generator

NuSMV Simulator

ESBMC

Parser

LTL Parser

FRETish Parser

Requirement Dict.

Modified

LTL

Modified FRETish Requirement

Files

Analysis

Results

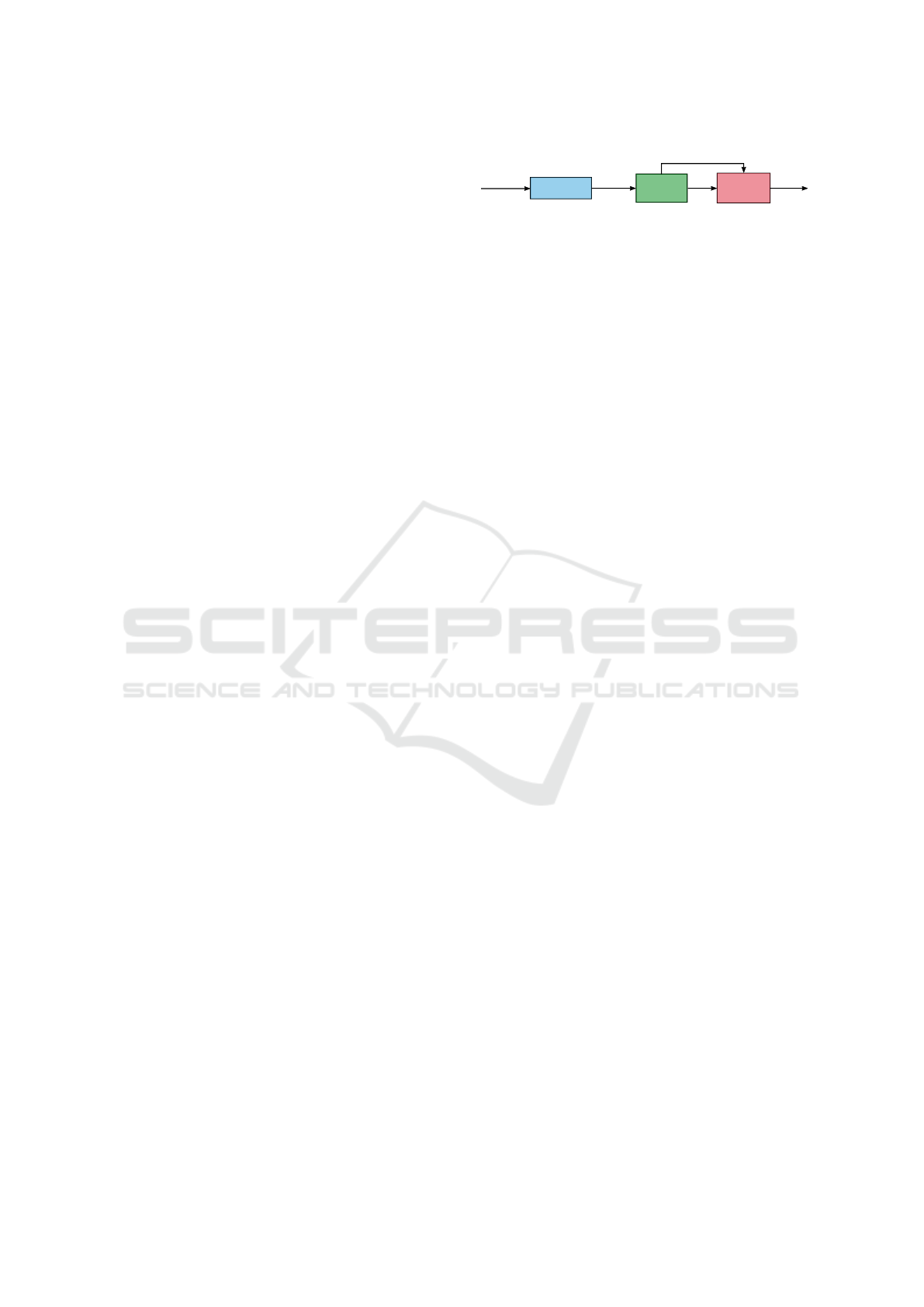

Figure 3: GROOT functional requirements ﬂow.

which is consistent with the conventional practice in

hardware engineering where the documentation and

design of functionality and timing aspects are treated

separately. These two ﬂows are now described.

4.1 Monitor Synthesis for Functional

Requirements

Figure 3 depicts the monitor synthesis process within

the functional requirements branch of GROOT. Simi-

lar to a compiler, there is a front-end and back-end ar-

chitecture. The front-end utilizes NASA’s FRET tool

to capture system speciﬁcations phrased in a struc-

tured English language and transform them into corre-

sponding LTL formulas (formalization step). Subse-

quently, the back-end parses and translates these LTL

formulas into B

uchi automata (BA) (B

uchi, 1990) us-

ing the Spot tool (Duret-Lutz et al., 2016). The gener-

ated automata are then converted to FSMs expressed

in C (monitor generation step). Finally, the ESBMC

model checker (Gadelha et al., 2018) is applied to

conﬁrm that state transitions within the monitors com-

ply with a set of generated assertions (monitor veriﬁ-

cation step).

4.1.1 Synthesis Front-End

One way to improve the accessibility of formal meth-

ods for practitioners is to deﬁne a set of property

patterns tailored to common types of requirements.

NASA’s FRET tool offers the structured English lan-

guage FRETish to conceal the LTL patterns. The

FRETish requirement structure consists of six sequen-

tial ﬁelds: SCOPE, CONDITIONS, COMPONENT,

SHALL, TIMING, and RESPONSES. While COM-

PONENT, SHALL and RESPONSES are mandatory,

the other ﬁelds are optional. FRET also provides re-

quirement visualization using the integrated NuSMV

simulator (Cimatti et al., 2002).

4.1.2 Synthesis Back-End

uchi automata (BA) are commonly used to gener-

ate monitor automata from LTL requirements (Gian-

nakopoulou and Havelund, 2001). To facilitate this

conversion process, the LTL2C module has been de-

veloped and consists of three core elements: (i) the

A Monitoring Methodology and Framework to Partition Embedded Systems Requirements

565

TS2C

Code-Gen

TIMESPEC

requirement

Monitor name,

variable types

Frama-C

C files

Analysis

results

Parser

TIMESPEC parser

Requirement dict.

TA-Gen

TA generator

and visualizer

TA dict.

ACSL contracts

Figure 4: GROOT timing requirements ﬂow.

Spot API, (ii) LTL2C parser, and (iii) Code-Gen. Af-

terwards, LTL2C invokes ESBMC to ensure the mon-

itor implementations adhere to the generated BA.

Spot API. Spot is a robust open-source tool able to

translate LTL formulas into BA, with its maturity, op-

tions and efﬁciency suiting industrial applications. Its

Python interface allows LTL2C to generate and visu-

alize the associated BA.

LTL2C Parser. FRET allows requirements to be

speciﬁed with basic arithmetic/comparison operations

and numeric variables. However, Spot and NuSMV

exclusively handle Boolean APs. To reconcile this,

LTL2C employs a specialized parser, which replaces

arithmetic/comparison operations with Boolean vari-

ables. This parser generates LTL formulas compatible

with Spot and FRETish requirements compatible with

NuSMV, as depicted in Figure 3.

Code Generator. The Code-Gen module translates

the generated automaton into a concrete FSM im-

plemented in C. It also handles undeﬁned behavior,

which directs the FSM to an error state. Human inter-

vention is only required to assign the monitor’s name

and specify the types of monitor’s arguments. This

phase automatically generates the source code and

header ﬁles for Main, Input Handler, Output Handler,

and Monitor. To ease the model checking step, Code-

Gen provides assertions extracted from the produced

BA to scrutinize the ﬁnal monitor for any deviation

from the expected behavior.

Formal Analysis. ESBMC is a model checker de-

signed for validating C and C++ programs against es-

tablished properties such as pointer validity and dead-

lock prevention. It also allows for user-deﬁned as-

sertions. To complete the synthesis process, ESBMC

veriﬁes the generated assertions, ensuring consistent

adherence to correct state and transitions throughout

the monitoring process.

4.2 Monitor Synthesis for Timing

Requirements

The GROOT timing ﬂow deﬁnes TIMESPEC, a struc-

tured English language for articulating timing spec-

TYPE

SIGNAL

of should be

TIMING_CONSTRAINT

active_pulse_width

period

duty_cycle

TL (duration)

≥TL

min

(lower bound)

≤TL

max

(upper bound)

≥TL

min

and ≤TL

max

Source of events:

CLK, RESET

Figure 5: TIMESPEC pulse duration template.

iﬁcations. This language enables engineers to eas-

ily capture timing constraints without needing any

knowledge of formal methods. Similar to functional

requirements, monitor generation and veriﬁcation are

automated, reducing manual effort and error risk.

Figure 4 depicts the monitor synthesis process for

timing properties. It starts with parsing TIMESPEC

statements to extract essential information. This data

is used to generate timed automata (TA) (Alur and

Dill, 1994), which represent the formalized version of

timing requirements (formalization phase). The TA

is transformed into FSMs implemented in C (mon-

itor generation step). Lastly, the Frama-C theorem

prover (Cuoq et al., 2012) checks that the monitor

implementations adhere to predeﬁned set of behav-

ioral properties which establish correct state sequenc-

ing (monitor veriﬁcation step). This paper provides

a brief overview of the GROOT ﬂow for timing re-

quirements, with a more comprehensive explanation

available in (Rezvani and Patterson, 2023).

4.2.1 TIMESPEC

Ensuring metric time constraints is vital in safety-

critical systems, where any violation could lead to

system failure. Timing speciﬁcations are captured

with TIMESPEC requirements. TIMESPEC aids

practitioners by providing a collection of natural lan-

guage templates for common timing constraints.

Pulse Duration Template. In digital systems, cor-

rect functionality relies heavily on signals and clock

timings. Timing requirements often involve pulse

width for signals, which must meet speciﬁc criteria

to trigger intended events. To manage these require-

ments, a template is used to specify pulse duration of

signals or period and duty cycle of clock signals. Fig-

ure 5 shows the pulse duration template and its sup-

ported values. The TYPE ﬁeld deﬁnes the requirement

type, while SIGNAL indicates either a clock signal or

an event. TIMING CONSTRAINT speciﬁes the time

limit, with each time limit (TL/TL

) consisting of a nu-

merical value and time unit. While most TYPEs are in

absolute units like nanoseconds (ns), duty cycle limits

are typically expressed as percentages.

Causality Template. In protocols such as hand-

shaking, events are often causally linked, where one

ENASE 2024 - 19th International Conference on Evaluation of Novel Approaches to Software Engineering

566

ACTION

start

deassert

assert

TIMING_CONSTRAINT

for TL (duration)

after TL

min

(lower bound)

within TL

max

(upper bound)

between TL

min

and TL

max

SIGNAL

Source of events:

CLK, RESET

ACTION

start

deassert

assert

SIGNAL

Source of events:

CLK, RESET

Figure 6: TIMESPEC causality template.

event triggers another within a speciﬁc time frame.

This behavior is addressed with the causality tem-

plate, depicted in Figure 6. The ACTION ﬁeld spec-

iﬁes the type of event (like asserting or deasserting

signals, or starting a clock), and SIGNAL identiﬁes the

events involved. The TIMING CONSTRAINT ﬁeld de-

ﬁnes the time-dependent relationships between these

events.

4.2.2 Synthesis Workﬂow

FRET translates certain timing properties into MTL

formulas, but its effectiveness is limited by partial

support for timing constraints and the lack of a frame-

work for transforming MTL to automata. Acknowl-

edging the importance of TA in capturing system tem-

poral behaviors, GROOT automates the conversion

of TIMESPEC statements into TA with TS2C. This

tool generates C-based monitors via three modules:

(i) TS2C parser, (ii) TA-Gen, and (iii) Code-Gen, also

providing necessary speciﬁcations for formal analysis

of the generated monitors.

TS2C Parser. This module is designed to process

TIMESPEC expressions and extract essential details

from temporal requirements. It creates a dictionary

containing Boolean events (APs), input variables,

types of timing constraints, and corresponding time

values and units. The parser can manage various SIG-

NAL expressions including Booleans, integers, and

logical/arithmetic/comparison operations, allowing a

wide range of temporal behaviors to be captured.

TA Generator. After parsing TIMESPEC require-

ments, TA-Gen maps each statement to a particular

TA. This template-based approach reduces the variety

of TA variations required, thereby providing both ef-

ﬁciency and structural consistency. Each automaton

has a single clock to enhance clarity and ease of anal-

ysis, with transitions determined by Boolean events

or temporal limits. The state duration (sd) parameter

records the time spent in a speciﬁc state, facilitating

detection of deadline violations. TA-Gen also visual-

izes the generated TA to improve comprehension.

Code Generator. Similar to LTL2C, the Code-Gen

unit converts the TA into a C-based FSM. It deﬁnes

monitor period in the header ﬁle to set the monitor in-

vocation frequency, enabling their reuse in environ-

ments with different timebases. Code-Gen also gen-

erates speciﬁcations required for theorem proving.

Formal Analysis. Formal veriﬁcation is essential

to establish monitor trustworthiness, however, tra-

ditional model checkers struggle with the complex-

ity of integer arithmetic in time measurements due

to the state explosion problem (Clarke et al., 2012).

GROOT uses the Frama-C theorem prover along with

formal contracts generated by Code-Gen, which are

formulated in the ANSI/ISO C speciﬁcation language

(ACSL) (Baudin et al., 2008). Each TIMESPEC re-

quirement template includes a set of predeﬁned and

parameterized ACSL speciﬁcations. These speciﬁca-

tions cover various aspects of monitor behavior such

as the validity of pointers or transition veriﬁcation

within the monitor (Rezvani and Patterson, 2023).

5 FRAMEWORK

DEMONSTRATION

Adaptive cruise control (ACC) systems enhance tra-

ditional cruise control (CC) systems by autonomously

regulating a vehicle’s speed to match the driver’s pref-

erence. Unlike conventional CC systems, ACC auto-

matically decelerates to maintain a safe following dis-

tance (D

safe

) when it detects a lead vehicle in the same

lane ahead of the autonomous (ego) car. A critical pa-

rameter in ACC is the headway time (τ

headway

), which

represents the constant time gap maintained between

the ego and lead vehicles. This parameter conﬁrms

that the ego vehicle has sufﬁcient time to react and

decelerate if the lead vehicle suddenly stops. To en-

sure safety, an offset distance (D

offset

) is considered,

and D

safe

can be written as:

safe

= V

ego

× τ

headway

+ D

offset

(1)

Table 1 shows two requirements of the ACC sys-

tem. The ﬁrst requirement, R1, mandates that the rel-

ative distance (D

relative

) between the ego and lead ve-

hicles must not fall below D

safe

throughout the entire

operation. R1 is articulated in FRETish and the asso-

ciated LTL formula is processed by LTL2C. The BA

generated by Spot is depicted in Figure 7. It demon-

strates that upon violation of the condition, the BA

moves to state 1 and remains there. Subsequently,

Code-Gen transforms the BA into C code and gen-

erates assertions, as illustrated in Figure 8. These as-

sertions validate that monitor state transitions comply

with those speciﬁed in the generated BA. ESBMC is

then applied to ensure these assertions hold true.

The second requirement, R2, guarantees that the

ego vehicle’s velocity (V

ego

) adjusts to the set tar-

A Monitoring Methodology and Framework to Partition Embedded Systems Requirements

567

Table 1: ACC system requirements.

R1: Ego vehicle should always have a safe space from lead vehicle.

FRETish ACC shall always satisfy (Drelative >= Dsafe).

LTL (LAST V (Drelative >= Dsafe))

R2: If relative distance is safe, ACC should reach set velocity within 3 seconds.

TIMESPEC If assert (Drelative >= Dsafe), assert (Vego >= Vset n && Vego <= Vset p) within 3 s.

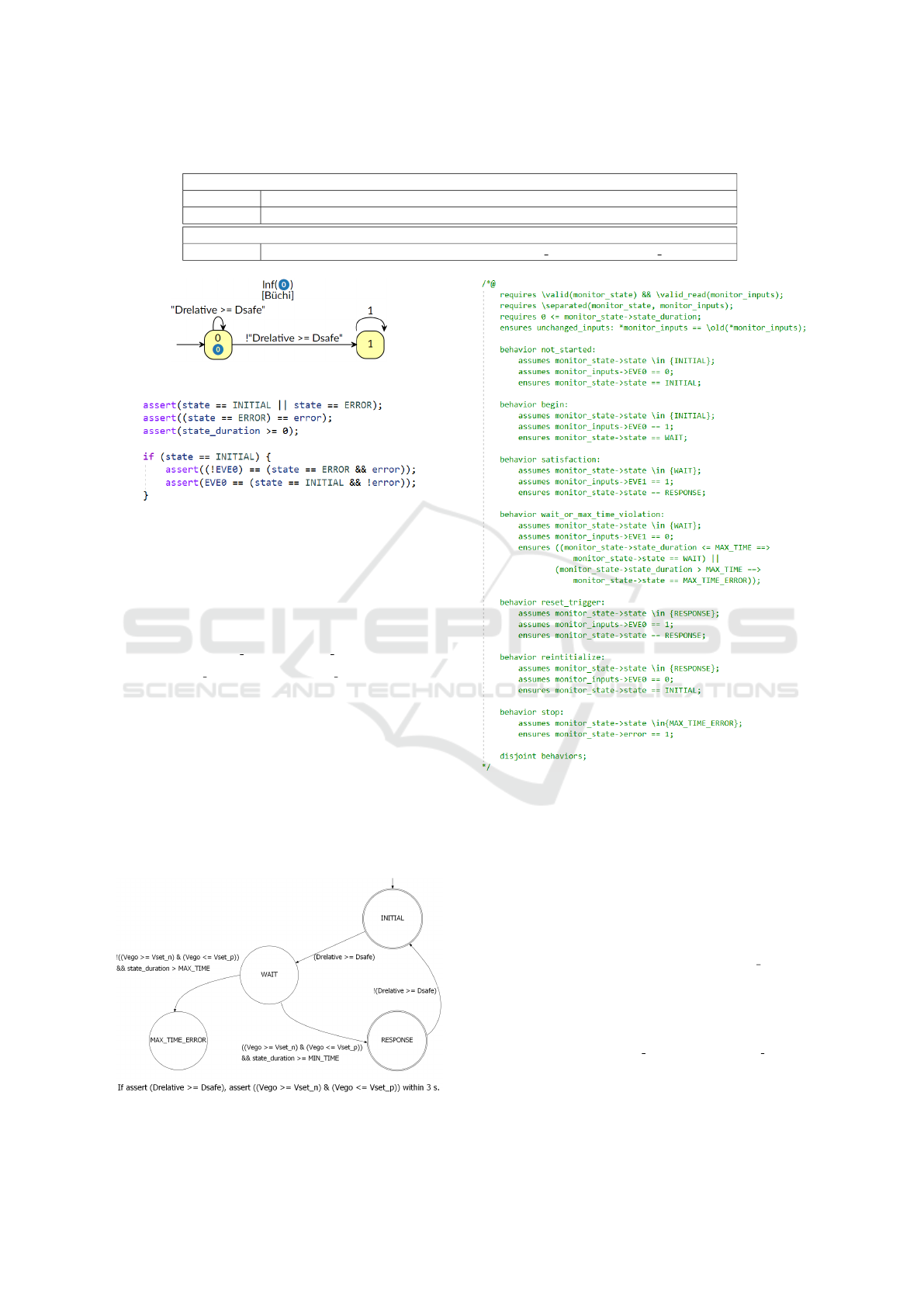

Figure 7: BA built by the Spot tool for R1.

Figure 8: Assertions provided by Code-Gen for R1.

get velocity (V

set

) within a speciﬁc time frame, but

only when the relative distance is considered safe. To

ensure compliance with this requirement, a velocity

threshold (V

) is established to verify that V

ego

re-

mains within an acceptable range, shown as follows.

set n

≤V

ego

≤ V

set p

, (2)

where V

set n

= V

set

−V

and V

set p

= V

set

+ V

This requirement is formalized using a TIME-

SPEC causality template, as detailed in Table 1, and

subsequently processed by TS2C. For a clearer under-

standing of the monitor’s behavior, Figure 9 shows the

TA generated by TA-Gen. Following the transforma-

tion of the TA into C code, Code-Gen ﬁnalizes this

process by generating the ACSL speciﬁcations per-

taining to R2, as illustrated in Figure 10. The Frama-

C theorem prover is invoked to validate that the mon-

itor sequences through the states correctly.

Figure 9: TA built by TA-Gen for R2.

Figure 10: Ascl contracts provided by Code-Gen for R2.

In this paper, a Simulink model of an ACC sys-

tem (The MathWorks Inc., 2024) is used to demon-

strate the GROOT workﬂow which illustrates both

functional and timing requirements. We integrate the

two generated monitors into the ACC model to check

that a safe following distance is maintained and en-

sure the ACC system accelerates in a correct manner.

As shown in (3) and (4), the two events EVE0 and

EVE1 are deﬁned and managed by the Input Handler

module. Table 2 shows the default parameter values

used to determine these two events.

EVE0 : D

relative

>= D

safe

(3)

EVE1 : V

ego

>= V

set n

&& V

ego

<= V

set p

(4)

Simulation results for the R1 monitor are depicted

in Figure 11. Initially, the ego vehicle maintains a safe

following distance (EVE0 = 1). Around t = 12.5 s, an-

ENASE 2024 - 19th International Conference on Evaluation of Novel Approaches to Software Engineering

568

Table 2: ACC model parameters default values.

Parameter Description Value

headway

Headway time 1.5 s

offset

Offset distance 15 m

set

Set velocity 21.5 m/s

Velocity threshold 1 m/s

other vehicle cuts into its lane, causing D

relative

to de-

crease. At t = 16.6 s, D

relative

falls below D

safe

(EVE0

= 0), triggering an error condition. This critical event

is immediately detected by the R1 monitor, which sets

the error ﬂag until D

relative

returns to the safe zone.

In this particular scenario, the monitor’s error signal

could be used to activate an alert system, ensuring the

driver is promptly informed in case the ACC system

fails to respond as expected.

Figure 12 presents the simulation results for the

R2 monitor. Given the simulation time step of 100

ms, monitor period is set to 0.1, and MAX TIME is au-

tomatically calculated as 30, corresponding to time

limit of 3 seconds. At t = 19.1 s, the lead vehicle from

the preceding scenario changes lanes, leading to a no-

ticeable increase in D

relative

(EVE0 = 1). This change

prompts the R2 monitor to check whether V

ego

reaches

the speciﬁed range within the desired time frame. By

t = 22.1 s, the velocity aligns with the target range

(EVE1 = 1), indicating a successful response before

the deadline expires. At this point, the monitor tran-

sitions to the RESPONSE state, and the pass ﬂag is

set to true. The monitor remains in this state as long

as the relative distance is within the safe margin. This

monitoring approach is particularly useful during the

debugging phase, which provides a means to conﬁrm

the ACC system’s ability to safely and promptly re-

sume acceleration after an obstruction clears.

6 RELATED WORK

The RV ﬁeld has developed diverse methodologies,

which primarily focus on the synthesis of monitors

from system speciﬁcations. In a comprehensive sur-

vey, Falcone et al. proﬁle over 60 software monitor-

ing frameworks (Falcone et al., 2021). These tools

predominantly use temporal logic, often a variant of

LTL, to translate system speciﬁcations into moni-

tors, with implementations typically in Java, C, or

C++ (Havelund and Ros¸u, 2004; Navabpour et al.,

2013; Cimatti et al., 2019). Despite the large number

of available tools, a common barrier persists: prac-

titioners are often expected to have a deep under-

standing in formal methods or a speciﬁc tool syntax,

which limits their accessibility. Furthermore, only a

small number support requirements with timing con-

straints (Pinisetty et al., 2017; Rajhans et al., 2021).

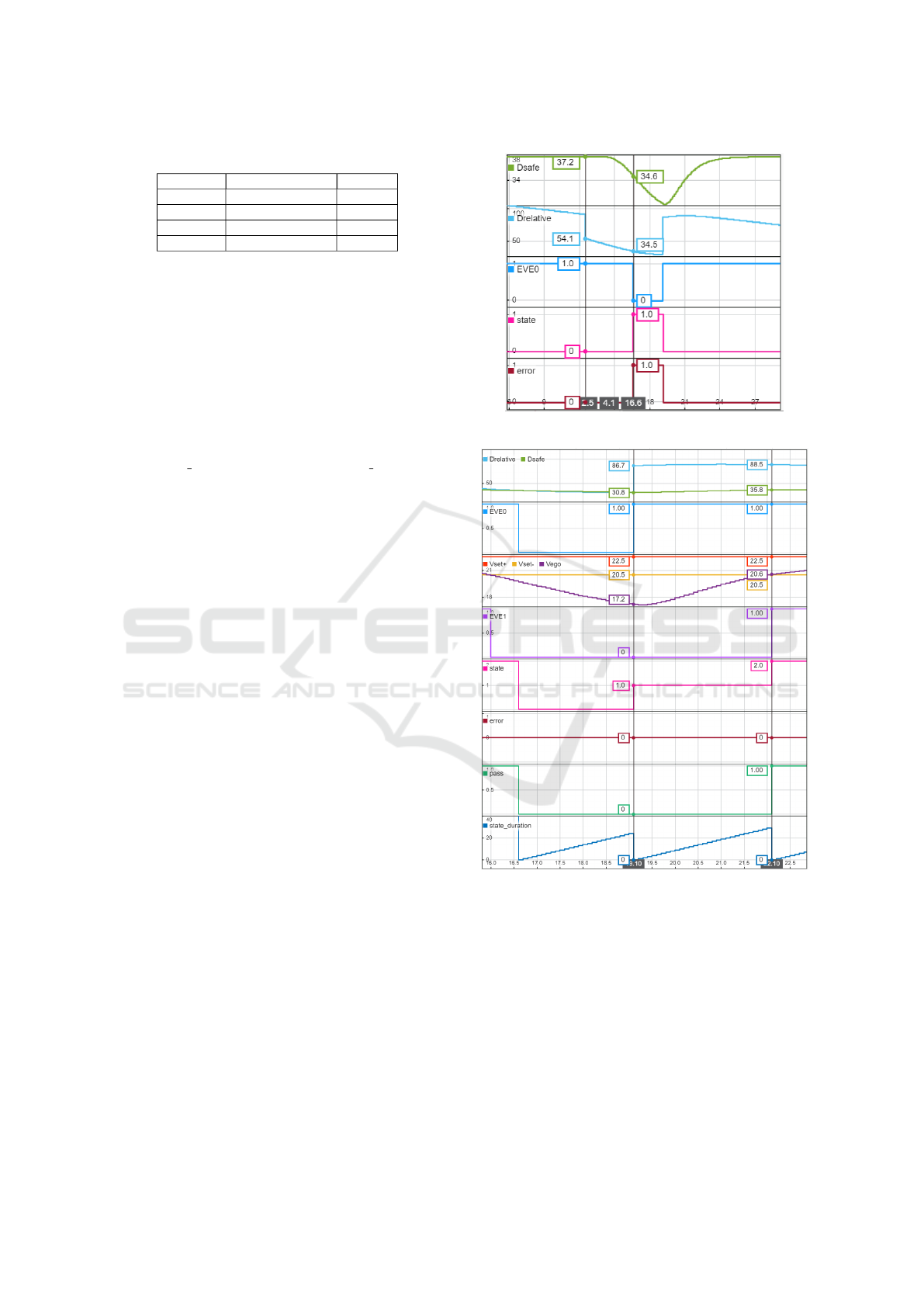

Figure 11: Simulation results for R1 monitor.

Figure 12: Simulation results for R2 monitor.

Certain frameworks address both functional and

timing requirements. For example, RuSTL trans-

lates structured English templates into Python mon-

itors, though its application is primarily conﬁned to

log ﬁles analysis (Khan, 2019). Another example

is a toolchain which converts FRETish requirements

into C monitors using the FRET, OGMA, and Copi-

lot tools (Perez et al., 2022). This approach is based

on analyzing data streams, which is best suited to sce-

narios with large data transfers. In contrast, GROOT

generates automata-based monitors, which have the

virtue of simplicity that assists both formal analysis

A Monitoring Methodology and Framework to Partition Embedded Systems Requirements

569

and comprehensibility by most veriﬁcation engineers.

7 CONCLUSIONS

This paper presents GROOT, a methodology and

framework for automating synthesis and formal veri-

ﬁcation of RV monitors from structured English spec-

iﬁcations, enhancing the accessibility and compre-

hensibility of RV for practitioners. It incorporates a

dual approach for functional and timing requirements.

This framework introduces TIMESPEC, a structured

English dialect to articulate timing constraints. Mon-

itors may be used during development and/or deploy-

ment. This approach bridges the often daunting gap

between formal methods and their practical use for

real-time embedded systems.

Future work will integrate several monitors, cov-

ering both functional and timing aspects, combined

with a “monitor of monitors”. We will also conduct a

comparative analysis of GROOT-generated monitors

with those from alternative methodologies.

ACKNOWLEDGEMENTS

This material is based upon work supported by the

National Science Foundation (NSF) under Grant No.

2123550. Any opinions, ﬁndings, and conclusions

or recommendations expressed in this material are

those of the author(s) and do not necessarily reﬂect

the views of the National Science Foundation.

REFERENCES

Alur, R. and Dill, D. L. (1994). A theory of timed automata.

Theoretical Comput. Sci., 126(2):183–235.

Baier, C. and Katoen, J.-P. (2008). Principles of Model

Checking. The MIT Press, Cambridge, MA, USA.

Baudin, P. et al. (2008). ACSL: ANSI/ISO C speciﬁcation

language.

uchi, J. R. (1990). On a Decision Method in Restricted

Second Order Arithmetic, pages 425–435. Springer.

Cimatti, A. et al. (2002). NuSMV 2: An open source tool

for symbolic model checking. In Comput. Aided Ver-

iﬁcation, pages 359–364, Berlin. Springer.

Cimatti, A. et al. (2019). NuRV: a nuXmv extension for

runtime veriﬁcation. In Int. Conf. on Runtime Veriﬁ-

cation, pages 382–392. Springer.

Clarke, E., Klieber, W., Nov

cek, M., and Zuliani, P.

(2012). Model Checking and the State Explosion

Problem, pages 1–30.

Cuoq, P. et al. (2012). Frama-C: A software analysis per-

spective. In Proc. Int. Conf. Softw. Eng. and Formal

Methods, page 233–247, Berlin. Springer.

Duret-Lutz, A. et al. (2016). Spot 2.0 – a framework for LTL

and ω-automata manipulation. In Proc. Int. Symp. on

ATVA, volume 9938, pages 122–129. Springer.

Dwyer, M. B. et al. (1999). Patterns in property speciﬁca-

tions for ﬁnite-state veriﬁcation. In Proc. Int. Conf.

Softw. Eng., pages 411–420.

Falcone, Y. et al. (2021). A taxonomy for classifying run-

time veriﬁcation tools. Int. J. Softw. Tools for Technol.

Transfer, 23(2):255–284.

Gadelha, M. R. et al. (2018). ESBMC 5.0: An industrial-

strength C model checker. In Proc. ACM/IEEE Int.

Conf. Automated Softw. Eng., page 888–891.

Giannakopoulou, D. and Havelund, K. (2001). Automata-

based veriﬁcation of temporal properties on running

programs. In Proc. Int. Conf. ASE, pages 412–416.

Giannakopoulou, D., Pressburger, T., Mavridou, A., Rhein,

J., Schumann, J., and Shi, N. (2020). Formal require-

ments elicitation with FRET. In REFSQ Workshops.

Harrison, J. et al. (2014). History of Interactive Theorem

Proving, volume 9, pages 135–214.

Havelund, K. (2008). Runtime veriﬁcation of C programs.

In Testing of Software and Communicating Systems,

pages 7–22. Springer.

Havelund, K. and Ros¸u, G. (2004). An overview of the

runtime veriﬁcation tool Java PathExplorer. Formal

methods in system design, 24(2):189–215.

Khan, W. (2019). RuSTL: Runtime veriﬁcation using Sig-

nal Temporal Logic. Master’s thesis, University of

Waterloo. Available at: https://uwspace.uwaterloo.ca/

handle/10012/14552.

Koymans, R. (1990). Specifying real-time properties with

metric temporal logic. Real-Time Syst., 2(4):255–299.

Leucker, M. et al. (2018). TeSSLa: Runtime veriﬁcation

of non-synchronized real-time streams. In Proc. Ann.

ACM SAC, page 1925–1933.

Leucker, M. and Schallhart, C. (2009). A brief account of

runtime veriﬁcation. The Journal of Logic and Alge-

braic Programming, 78(5):293 – 303.

Navabpour, S. et al. (2013). RiTHM: A tool for enabling

time-triggered runtime veriﬁcation for C programs.

ESEC/FSE 2013, page 603–606.

Perez, I. et al. (2022). Automated translation of natural lan-

guage requirements to runtime monitors. In Tools and

Algorithms for the Construction and Anal. of Syst.,

pages 387–395, Cham. Springer.

Pinisetty, S. et al. (2017). Predictive runtime veriﬁcation of

timed properties. J. of Syst. and Softw., 132:353–365.

Pnueli, A. (1977). The temporal logic of programs. In 18th

Annu. SFCS, page 46–57, USA. IEEE.

Rajhans, A. et al. (2021). Speciﬁcation and runtime veriﬁ-

cation of temporal assessments in Simulink. In Run-

time Veriﬁcation, pages 288–296, Cham. Springer.

Rezvani, B. and Patterson, C. (2023). Differentiated mon-

itor generation for real-time systems. In Proc. IC-

SOFT, volume 1, pages 353–360. SciTePress.

The MathWorks Inc. (2023). Simulink: 10.7 (R2023a).

https://www.mathworks.com/products/simulink.html.

The MathWorks Inc. (2024). Adaptive cruise control

with sensor fusion. https://www.mathworks.com/

help/mpc/ref/adaptivecruisecontrolsystem.html.

ENASE 2024 - 19th International Conference on Evaluation of Novel Approaches to Software Engineering

570
