An Intrusion Detection Architecture Based on the Energy

Consumption of Sensors Against Energy Depletion Attacks in

LoRaWAN

André Proto

, Charles C. Miers

and Tereza C. M. B. Carvalho

Laboratory of Sustainability in ICT, University of São Paulo (USP), Brazil

Graduate Program in Applied Computing (PPGCA), Santa Catarina State University (UDESC), Brazil

Keywords: Energy Depletion Attacks, LoRaWAN, Distance Metrics, Intrusion Detection, Lightweight Architecture.

Abstract: LoRaWAN emerges as a promising technology for deploying low-power sensors to tackle industrial and urban

challenges. However, Energy Depletion Attacks (EDAs) presents a substantial threat to sensors operating

within the LoRaWAN framework. Various attacks, including jamming, replay attacks, firmware manipulation,

and application vulnerabilities in Internet of Things systems, have the potential to induce energy depletion.

Some of them are regarded as silent attacks, characterized by the absence or minimal occurrence of network

traffic, rendering their detection challenging. In response to this challenge, our research introduces an

architecture designed to detect EDAs in LoRaWAN sensors. We propose an implementation of a lightweight

and energy-efficient intrusion detection system developed for resource-constrained devices. Our solution

applies distance metrics to detect anomaly behaviours in the energy consumption patterns of sensors. In order

to assess the viability of our proposed methodology, we employ the F1 score as an evaluative metric that

demonstrates the efficiency of its intrusion detection accuracy of EDAs. Thus, our proposal diverges from the

traditional approaches relying on network traffic analysis for intrusion detection, opting instead for a focus

on the analysis of energy consumption data.

1 INTRODUCTION

The LoRaWAN protocol, designed for Low Power

Wide Area Network (LPWAN) applications,

facilitates the wireless connectivity of battery-

operated devices within the Internet of Things (IoT)

(LoRa Alliance, 2020). It finds application in diverse

sectors such as smart cities, agriculture, and industry

(Raza et al., 2017). Employing a star topology for

communication, LPWAN enables direct

communication between sensors and gateways. The

LoRaWAN offers three classes of sensors: A, B, and

C, with class A being the most widely utilized. In this

class, communication must be initiated only by the

sensor, providing advantages such as cost-

effectiveness, minimal energy consumption,

extended communication ranges, compatibility with

heterogeneous devices, and scalability.

https://orcid.org/0000-0002-7250-2451

https://orcid.org/0000-0002-1976-0478

https://orcid.org/0000-0002-0821-0614

In the context of security, Energy Depletion

Attacks (EDAs) have proven effective in disrupting

services within LPWANs (Mikhaylov et al., 2019;

Nguyen et al., 2019). These attacks aim to deplete

sensor batteries, rendering them inoperable by

exhausting their energy reserves. EDAs have the

potential to impact many sensors, leading to severe

damage to the overall IoT system and incurring

substantial maintenance costs. Some attacks exploit

network vulnerabilities to elevate sensor transmission

activity; Furthermore, other types of attacks, which we

call silent EDAs, exploit hardware or software

vulnerabilities to increase sensor processing or

internal component activity (Kuaban et al., 2023).

Existing research on EDAs detection and mitigation

primarily concentrates on specific EDA types,

primarily analysing traffic behaviour, with a

predominant focus on IoT networks like Low-power

and Lossy Networks (LLNs) (Alsirhani et al., 2022;

268

Proto, A., Miers, C. and Carvalho, T.

An Intrusion Detection Architecture Based on the Energy Consumption of Sensors Against Energy Depletion Attacks in LoRaWAN.

DOI: 10.5220/0012703400003705

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 9th International Conference on Internet of Things, Big Data and Security (IoTBDS 2024), pages 268-275

ISBN: 978-989-758-699-6; ISSN: 2184-4976

Jan et al., 2019; Pu, 2019). LLNs employ different

topologies and protocols, such as mesh topology and

the Routing Protocol for LLNs (RPL). Other

researchers just address mitigation strategies for

specific vulnerabilities in LoRaWAN (Sciancalepore

et al., 2021). Detecting zero-day and silent EDAs in

LoRaWAN poses persistent challenges, particularly in

developing a unified solution. Moreover, any

proposed solution must be lightweight to operate

efficiently on resource-constrained devices, which

face limitations in processing, energy, and network

resources.

We propose a lightweight architecture for

detecting EDAs in LoRaWAN, which we call as

LADE. This architecture has been developed to meet

the following requirements:

a) It must detect most EDAs including silent

EDAs.

b) It must be able to work directly on the sensors.

c) It must prioritize energy efficiency, consuming

a minimum of energy from the sensors.

To meet these requirements, the architecture we

propose employs two modules: the Detection Module

(DM) is responsible for monitoring and detecting the

EDAs; the Learning Module (LM) is responsible for

learning steps, where a learning algorithm analyses

energy data and defines the key parameter that

represents expected behaviours. Both DM and LM

are deployed directly in sensors, making our proposal

autonomous. In contrast to previous approaches

(Alsirhani et al., 2022; Jan et al., 2019; Pu, 2019), our

proposal monitors sensor energy consumption,

applying distance metrics to identify anomalies in

such consumption.

The rest of the paper is organized as follows.

Section 2 presents a literature review of security on

LoRaWAN security and intrusion detection of EDAs.

In Section 3, we provide a detailed description of our

proposed architecture. Section 4 presents the

performance evaluation and results. Finally, Section

5 summarizes the conclusions and future work.

2 LITERATURE REVIEW

We provide a brief literature review of security in

LoRaWAN (Subsection 2.1) and discuss the current

intrusion detection of EDAs (Subsection 2.2).

2.1 Security of LoRaWAN

In an initial investigation, Nguyen et al. (2019)

detailed an exhaustive examination of diverse attacks

on LPWANs. This study provided a comprehensive

literature review, encapsulating research endeavours

that explored the impacts of various attacks, including

EDAs. The authors categorized these attacks based on

the network layers, which encompass physical layer

attacks like jamming, link layer attacks such as sleep

cycle manipulation, and application layer attacks such

as vulnerabilities in applications. The findings of this

study illuminate the breadth and diversity of attacks

associated with EDAs.

In a separate investigation, the researchers outlined

LoRaWAN security features in detail (Yang et al.,

2018). These features encompass channel

confidentiality, the network join protocol,

authenticity, and integrity validation. The study also

scrutinized potential attacks on these features,

including replay attacks, eavesdropping, and bit-

flipping. Additionally, Mikhaylov et al., (2019)

undertook an empirical validation of EDAs on a

LoRaWAN device, providing insights into their

potential ramifications. The experimental study

revealed that EDAs aim to augment the transmission

(TX) or reception (RX) of network data in sensors.

This objective is pursued through two primary

methods: firstly, a Denial of Service (DoS) attack,

which results in channel overload, compelling sensors

to transition to higher transmission power; secondly,

the compromise of acknowledgment packets,

compelling sensors to retransmit their packets. The

researchers conducted empirical tests to substantiate

the efficacy of these attack strategies.

In a correlated investigation, delineated by

Neshenko et al. (2019), a thorough analysis of IoT

vulnerabilities was undertaken. Certain vulnerabilities

identified in this study can be leveraged for analogous

purposes, notably in the context of "silent attacks"

aimed at evading detection by maintaining a limited

network footprint. These silent attacks include the

compromised node scenario, wherein an attacker

exploits vulnerabilities to initiate buffer overflows or

attain privileged access. This enables the execution of

malicious code, depleting sensor energy without

generating network activity. Additionally, they

encompass modified firmware attacks, where

malevolent code is employed to compromise the

sensor's lifespan. Moreover, the continuous

advancement of IoT services by both industry and

academia, exemplified by the development of

Application Programming Interfaces (APIs) to

provide diverse functionalities (Tzavaras et al., 2023),

introduces new dimensions to IoT systems. While

these advancements are beneficial for the industry,

they concurrently introduce potential vulnerabilities,

thereby rendering IoT systems susceptible to zero-day

attacks, including EDAs.

An Intrusion Detection Architecture Based on the Energy Consumption of Sensors Against Energy Depletion Attacks in LoRaWAN

269

2.2 Intrusion Detection of EDAs

In the existing literature, predominant attention has

been directed towards the detection of EDAs in

LLNs. For instance, Alsirhani et al. (2022) introduced

the DISAM scheme, specifically tailored to mitigate

the Span DIS attack, a threat that depletes the energy

reserves of legitimate nodes in LLNs. Similarly, Pu

(2019), the authors devised a scheme targeting a

vulnerability in the Routing Protocol for LLNs

(RPL). Their approach involved monitoring the

packet reception count at a sensor. Additionally, (Jan

et al., 2019) presented a lightweight IDS

incorporating supervised machine learning, notably a

Support Vector Machine (SVM), to identify

adversaries attempting to introduce unnecessary data

into the network, thereby detecting potential DoS

attacks. It is noteworthy that these solutions primarily

centre on the analysis of network traffic.

Concurrently, several contributions have explored

the utilization of energy consumption analysis for the

detection of attacks. For instance, Lee et al. (2014)

introduced a lightweight intrusion detection scheme,

employing energy consumption analysis to identify

DoS attacks in networks employing 6LoWPAN. Han

et al. (2013) proposed a intrusion detection scheme,

relying on predictions of sensor energy consumption

to discern various attack types, including flooding

attacks and assaults on routing protocols in cluster-

based Wireless Sensor Networks (WSN).

Additionally, Proto & Carvalho (2020) delved into

the application of three statistical distance metrics

(Sibson, Hellinger, and Euclidean) to detect

anomalies in the sensor energy consumption of a

WSN. They presented a detection algorithm

implemented in the sensors and conducted

simulations, elucidating outcomes pertinent to the

identification of EDAs triggered by flooding.

Collectively, these endeavours underscore the

significance of energy consumption analysis as a

viable approach for detecting diverse attacks,

including those relevant to LoRaWAN and Internet of

Things (IoT) environments.

3 LIGHTWEIGHT

ARCHITECTURE FOR

DETECTING EDAS (LADE)

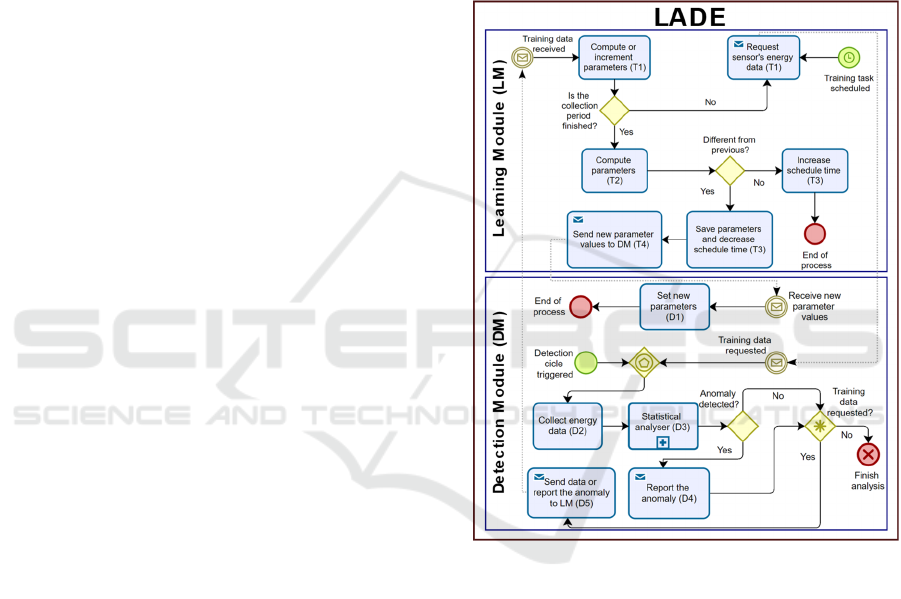

We propose an approach which entails deploying the

Learning and Detection Modules (LM and DM)

directly within the sensors. While it is conceivable to

situate the LM in a network server to alleviate sensor

processing, we emphasize that the network

communication between the two modules could

potentially consume more energy than maintaining

them within the sensors. This is because the energy

expenditure associated with the transmission (TX)

and reception (RX) operations in a sensor surpasses

that incurred solely during processing, as presented in

Section 4. Furthermore, we introduce a

straightforward and resource-efficient learning

algorithm, designed to minimize the demand on

processing resources. The LADE and the integration

between LM and DM are depicted in Figure 1.

Figure 1: The LADE scheme and its modules.

Each module implements a different phase of the

system as described in subsection 3.1. We also

discuss the proposed algorithms in subsection 3.2.

3.1 Phases Description

LADE comprises two defined phases: the learning

phase (Subsection 3.1.1) and the detection phase

(Subsection 3.1.2).

3.1.1 Learning Phase

During this phase, the LM computes a key parameter

used in the detection algorithm of the DM. Upon

system initiation, it performs the first learning cycle

to establish initial parameters. Subsequently, the LM

IoTBDS 2024 - 9th International Conference on Internet of Things, Big Data and Security

270

defines a random interval for the periodic execution

of this task, which dynamically adjusts over time.

This strategy aims to prevent attackers from

discerning the training schedules and attempting to

manipulate the energy consumption pattern. We

define the steps of the learning phase as follows:

a) Request energy data: The LM requests energy

data from DM for a random period (T1).

b) Update parameters: The LM computes the

parameters (T2) using statistical analysis and, if

the results are different from previous ones, then

it sends the new parameters to DM (T4 and D1).

c) Update schedule time: The algorithm updates

the scheduled time of the learning phase based

on the frequency of parameter changes. The less

frequently the learning algorithm changes the

parameters, the longer the scheduled time, and

vice versa. Thus, it increments or decrements

the scheduled time by a random percentage of

the current value (T3).

Note that the learning phase is measured in

minutes, as LoRaWAN applications typically operate

with extended intervals between transmissions to

conserve energy. Besides, it is advisable that the

device stores parameter information in flash memory

whenever possible, aiming to mitigate prolonged

pauses in detection activity during restart operations.

3.1.2 Detection Phase

In this phase the DM is responsible for collecting

energy data and applying the distance metric to detect

anomalies. The steps of the detection phase are

described as follows:

a) Set a key parameter: Receive from LM and set

a key parameter of the detection algorithm (D1).

b) Run the statistical analyser: The DM analyses

energy consumption data (D3) on-the-fly.

c) Report the LM of an intrusion detection: If an

anomaly is detected, then it forwards a report

and the energy consumption data to the

administrator or some system logger. Else, it

takes no action (D4 and D5).

The detection phase only sends messages through

the network in case an intrusion is detected.

Currently, our proposal does not focus on mitigation

attacks, which should be addressed in future works.

3.2 Algorithms Description

For clarity, we describe the detection algorithm in

Subsection 3.2.1 and the learning algorithm in

Subsection 3.2.2.

3.2.1 Lightweight Detection Algorithm

We adopted the methodology proposed by Proto &

Carvalho (2020) as a baseline to meet the

requirements outlined in the Section 1, with some

enhancements. The proposal is solely an exploration

of the application of distance metrics in energy

consumption data. Its algorithm is limited by fixed

parameters, making it less scalable and confined to

WSNs. Such limitations have been addressed through

the incorporation of a learning phase, beyond

improvements on performance and autonomy.

A statistical distance metric quantifies the

distance between two probability distributions. The

algorithm proposed applies a distance metric called

Sibson (Proto & Carvalho, 2020), which is based on

Kullback-Leibler divergence and is defined in (1).

Kullback-Leibler is not symmetric, which means

D(p,q) ≠ D(q,p). Thus, Sibson combines such

divergence to resolve the asymmetry (2).

𝐷

(

𝑝,𝑞

)

=𝑝

(

𝑥

)

𝑙𝑜𝑔



𝑝(𝑥)

𝑞(𝑥)





(1)

𝐷



(

𝑝,𝑞

)

𝐷𝑝,

(𝑝 + 𝑞) + 𝐷𝑞,

(𝑝 + 𝑞)

(2)

We propose the Algorithm 1 to address the

detection phase. The parameter 𝛿 is the threshold that

defines an anomaly, while parameter 𝜆 denotes the

expected value of sensor energy consumption for

every two seconds, playing a crucial role in

probability distribution calculations. In this study, we

opt for the Poisson distribution, as suggested in Proto

& Carvalho (2020). Nevertheless, we transform the

energy data 𝑘 by aggregating samples for each 𝜔

Joules (J), as defined in (3). This data transformation

is essential for converting decimal energy data into

integers and maintaining a restricted range of

samples, thereby ensuring efficient distance

calculations, as empirically observed. Other variables

are defined as follows: N is the window size of an

energy sample; A, B, P

, and P

are arrays designed

to store energy consumption data and their respective

Poisson distribution.

𝑓

(

𝑘

)

𝜔

𝑘 + 1 = 𝑥, 𝑥 ∈ ℕ

(3)

We describe the Algorithm 1 steps as follows:

• Collecting step: the algorithm collects samples

of energy consumption. When the collecting

phase is activated, it collects two sets of samples

with size N before going to the next step. The

system collects an energy sample for every two

seconds. When N-1 consecutive samples are

An Intrusion Detection Architecture Based on the Energy Consumption of Sensors Against Energy Depletion Attacks in LoRaWAN

271

less than

, the task is interrupted, saving

processing and energy of the sensor.

• Pre-processing step: the algorithm converts the

sets of samples into sets of probability

distributions.

• Intrusion detection step: the algorithm applies

the Sibson metric to calculate the distance

between P

and P

. If it is less than 𝛿, the

anomaly is reported.

Data: energy consumption samples

Result: to detect and report an anomaly;

while true do

read energy sample k;

convert k to x using f(k);

if x >

or analyse is true then

while slots A or B is not full do

save x in slot A or B;

if LM did not request data and

the last N-1 samples x <

then

break and go back to the beginning;

end

read energy sample k;

convert k to x using f(k);

end

calculate P

and P

calculate Sibson distance D(P

);

if D(P

) < 𝛿 then

report the anomaly;

end

if LM requested data then

send data or report the anomaly to LM;

end

Algorithm 1: Lightweight detection algorithm of DM.

3.2.2 Learning Algorithm

Initially, LM accounts for computing the best value

for the key parameter 𝜆 previously described. Thus,

we propose Algorithm 2 which implements the LM

scheme presented in Figure 1. The other variables

used by algorithm are described as follows: T

current

and T

schedule

are respectively the current time and the

scheduled time for the learning task; T

collect_period

is the

period in minutes that energy samples must be

collected; 𝜆





and 𝜎



are respectively the median and

standard deviation of sample set with size 2N; 𝜆



and

𝜎 are respectively the expected value and standard

deviation calculated in the last cycle; 𝜆

is the mean of

set E with all calculated 𝜆





and; 𝜎 is the mean of set

F with all calculated 𝜎



We describe the Algorithms 2 steps as follows:

• Collecting step: when the current time T

current

reaches the scheduled time T

schedule

, LM requests

to DM a set of size 2N of energy samples. For

each set, the algorithm calculates the median 𝜆





and standard deviation 𝜎



. This step is repeated

for T

collect_period

minutes.

• Calculation step: the algorithm calculates 𝜆

and

𝜎. Thus, it changes the value of 𝜆 only if 𝜆

greater or less than 𝜆



∓𝜎 calculated previously

in the last cycle. Furthermore, 𝜆 has its value

incremented or decremented by one unit. This

technique serves to prevent unexpected

behaviours or attackers from manipulating the

learning phase by attempting to abruptly

increase the 𝜆 value, thereby avoiding any

consequential manipulation of intrusion

detection outcomes.

• Final step: If 𝜆 changed after calculation, then

send the new value to DM. After that, it

calculates the new T

schedule

value randomly as

described in item c) of Subsection 3.1.1.

Data: energy consumption samples

Result: new value of 𝜆;

while true do

if T

current

= T

schedule

then

while T

collect_period

is not finished do

request sensor energy data;

calculate median value 𝜆





;

calculate standard deviation value 𝜎



;

save 𝜆





in array E and 𝜎



in array F;

end

calculate 𝜆

as the mean of E;

calculate 𝜎 as of mean of F;

if 𝜆 is not defined then

do 𝜆



= 𝜆

, 𝜆=𝑓(𝜆

) and 𝜎 = 𝜎;

else if 𝜆

>(𝜆



+𝜎) then

do 𝜆= 𝜆+1, 𝜆



= 𝜆



+ 𝜎 and 𝜎 = 𝜎

else if 𝜆

<(𝜆



−𝜎) then

do 𝜆=𝜆−1, 𝜆



= 𝜆



−𝜎 and 𝜎 = 𝜎;

end

if 𝜆 is changed then

send new parameters to DM;

decrease T

schedule

by a random value;

else

increase T

schedule

by a random value;

end

Algorithm 2: Learning algorithm of LM.

IoTBDS 2024 - 9th International Conference on Internet of Things, Big Data and Security

272

4 SIMULATION AND RESULTS

In our simulation we adopted the energy consumption

model presented in equation (4). The model defines

four states of energy consumption in a sensor: CPU

state, when it is processing data; SLEEP state, when

it is in low power mode; TX state, when it is sending

some data over the network; and RX state, when it is

receiving some data through the network.

𝐸



=𝐸



+𝐸



+𝐸



+𝐸



(4)

Few simulators fully support LoRaWAN, as it is

a relatively recent technology up to this point. Thus,

initially we implemented the LADE in C language

and used FloRa (Slabicki et al., 2018), a framework

implemented for OMNeT++ simulator, to collect the

variables 𝐸



and 𝐸



of sensors. However, FloRa

does not supply information about 𝐸



and 𝐸



thus we calculated them based on microcontroller

datasheets used in LoRaWAN. We describe the

experimental setup, results, and discussions in

Subsections 4.1, 4.2, and 4.3, respectively.

4.1 Experimental Setup

Our simulation deployed eight LoRaWAN nodes

class A, repeatedly transmitting over 500 bytes of

data at random sleep intervals ranging from 8 to 30

seconds. These nodes transmitted data to a

LoRaWAN gateway connected to the network server

via an IP network. The values for Spreading Factor

(SF), Transmission Power (TP), and bandwidth (BW)

were set to 12, 14dBm, and 125kHz, respectively.

The LoRa protocol was configured to await

acknowledgment (ACK) packages from the network

server after a transmission and to retransmit data up

to 15 times. The sensors’ battery supplied 3.3V and

we referenced the MSP430FR5969 microcontroller

datasheet (Instruments, 2018) for 𝐸



and 𝐸



calculations. The expected energy consumption for

the sensors’ states is detailed in Table 1.

In addition, we set the following variables of the

detection algorithm as fixed values: N=8, 𝜔=0.25,

and 𝛿=0.2, drawing from experiments conducted

by (Proto & Carvalho, 2020) and empirical

considerations. Furthermore, we set T

schedule

= 15 and

collect_period

= 5 (minutes) for the learning algorithm.

Besides that, we proposed to simulate two distinct

types of attacks. The first one involves a jamming

attack, wherein an attacker generates noise to compel

sensors to retransmit data. The second type is a

compromised node attack, wherein an attacker

deploys malicious code to induce a continuous

processing state and to manipulate the LoRa protocol

to request the RX state whenever the sensor is idle.

In summary, we simulated two scenarios:

1) Scenario without attacks: We conducted a 30-

minute simulation without any attacks,

allocating 5 minutes for the initial learning

phase and dedicating the remaining 25 minutes

to the evaluation of intrusion detection. This

scenario aims to assess the false positive rate.

2) Scenario with attacks: We conducted a 25-

minute simulation for both proposed attacks to

evaluate detection accuracy. The simulation

used the same random transmission time

employed in Scenario 1 for consistency,

facilitating meaningful comparisons between

scenarios. Consequently, the DM could

complete the detection cycle up to 48 times,

considering the window time N.

Table 1: Values of energy consumption in Joules/sec.

Node state Expected consumption

CPU state 0.0054384

SLEEP state 0.00000231

TX state 0.14519995

RX state 0.03201

4.2 Results and Discussions

All results presented in this subsection stem from the

mean of the output data from the eight sensors.

Despite this aggregation, the simulation of multiple

sensors is crucial to enable the assessment of varying

frequencies of energy status changes, considering

sensors transmitting data at distinct intervals.

In the first learning cycle of scenario 1, the LM

returned a value of 𝜆=2, and this value was

subsequently utilized as the starting point in scenario

2. Due to the experimental setup, the LM executed

another learning phase only once. In the event of an

anomaly detection, the LM discarded the energy

samples provided by the DM for learning.

Consequently, most sensors did not complete all

collect_period

instances during the 25-minute

simulation. Nevertheless, in Figure 2, we present the

mean, median, and standard deviation of simulations

with and without attacks to assess potential variations

in 𝜆 over time. Despite an increase in energy

consumption in Scenario 2, the median calculated did

not exceed the criteria established by our

methodology. Hence, the value of 𝜆 would remain

unchanged throughout the simulation, even if it

continues for a longer duration.

We evaluate intrusion detection outcomes in the

DM using the F-measure. Employing the proposed

An Intrusion Detection Architecture Based on the Energy Consumption of Sensors Against Energy Depletion Attacks in LoRaWAN

273

simulations, we compute precision, recall, and the F1

score, as presented in Table 2. Thus, we define a

False-Positive (FP) event when the DM completes the

detection cycle and reports an anomaly in a scenario

without an attack. Similarly, a False-Negative

detection (FN) occurs if the DM fails to complete a

detection cycle or do not report an anomaly following

a detection cycle, despite the simulated attack.

Conversely, True-Positive (TP) and True-Negative

(TN) events denote the opposite scenarios,

respectively. Table 3 presents the mean values for

each event in the simulated attacks. The obtained

results revealed a high detection rate with minimal

false positives, underscoring the potential

effectiveness of our proposal against EDAs.

Figure 2: Statistical data of energy samples (Joules).

Table 2: F1-score of simulated attacks.

Type of attack Precision Recall

F1-

score

Jamming attack 0.983 0.884 0.930

Compromised node attack 0.982 0.868 0.921

Table 3: Mean of events in the simulated attacks.

Type of attack FN TP FP TN

Jamming attack

5 38 1 45

Compromised node attack

13 33 1 45

Furthermore, Figure 3 illustrates the battery

lifetime prediction in scenarios without and with

LADE within sensors. To assess energy efficiency,

we depict the battery lifetime of a sensor with LADE

in two scenarios: first, we force the execution of all

detection cycles, but without sending any reports;

second, our system executes all detection cycles and

sends reports in all cycles. Consequently, even in

challenging scenarios, the energy consumption of

LADE in the first scenario is negligible. In the second

scenario, our system consumes only 0.3% more

energy per cycle compared to other simulations,

attributed to the transmission required to report the

anomaly. This level of energy efficiency is

particularly notable, indicating the effective

performance of the system.

Figure 3: Performance comparison of energy efficiency.

Finally, we provide comparisons with LADE and

other contemporary studies in Table 4, concentrating

on diverse aspects relevant to the requirements

delineated in Section 1. It is noteworthy that some of

the works have the potential to detect multiple types

of EDAs, albeit with a predominant focus on

network-based attacks such as flooding or jamming.

However, most of these works exhibit limitations in

detecting silent EDAs. In addition, such proposals

furnish information regarding energy efficiency.

Table 4: Comparison with recent works. Label: Y – Yes, N

– No, P – Possible, NA – Not Available.

Requirements

Recent works

LADE

(Alsirhani et

al., 2022)

(Pu, 2019)

(Jan et al.,

2019)

(Lee et al.,

2014)

(Han et al.,

2013)

Detect more than

one EDA

Y N P Y P Y

Detect silent

EDAs

Y N N N NA NA

Deployed at

sensors

Y Y Y Y Y Y

Energy efficien

Y NA NA NA NA NA

5 CONCLUSIONS

We have introduced a lightweight architecture

designed for the detection of energy depletion attacks

(EDAs) in LoRaWAN networks, denoted as LADE.

Our architecture leverages distance metrics to

identify anomalies in energy consumption samples

within a sensor, incorporating two modules deployed

on the sensor. In addition, the system employs an

autonomous statistical learning algorithm to

determine the optimal parameter for the intrusion

IoTBDS 2024 - 9th International Conference on Internet of Things, Big Data and Security

274

detection task. In our experimental setup, we

achieved promising initial results, showcasing the

high accuracy and energy efficiency of the proposed

system. Furthermore, a comparative analysis with

current research reveals our innovative approach to

detecting both common and silent EDAs. The latter

refers to situations in which an attacker compromises

sensors through vulnerabilities, depleting sensor

energy without generating network traffic.

Despite the obtained results, this work is currently

in progress and requires further refinement.

Primarily, we aim to enhance the learning phase by

incorporating the configuration of additional

parameters such as N, 𝜔, and 𝛿. This modification is

intended to render the system more adaptive to

different scenarios. Secondly, there is a need to

improve the report-sending task of the detection

module to prevent excessive communication in cases

of consecutive anomalies. It is crucial to address the

potential misuse of our current solution by an attacker

to generate additional traffic, leading to the

unnecessary energy waste of sensors. Thus, a solution

must be devised to mitigate this risk. Lastly, we

intend to propose an autonomous mitigation

technique deployed at sensors that is not dependent

on communication with external devices.

ACKNOWLEDGEMENTS

This study was financed in part by the Coordenação

de Aperfeiçoamento de Pessoal de Nível Superior -

Brasil (CAPES) - Finance Code 001. Thanks also to

FAPESP MCTIC/CGI (Research project

2018/23097-3).

REFERENCES

Alsirhani, A., Khan*, M. A., Alomari, A., Maryam, S.,

Younas, A., Iqbal, M., Siqqidi, M. H., & Ali, A. (2022).

Securing Low-Power Blockchain-Enabled IoT Devices

Against Energy Depletion Attack. ACM Transactions

on Internet Technology. https://doi.org/10.1145/351

1903

Han, G., Jiang, J., Shen, W., Shu, L., & Rodrigues, J.

(2013). IDSEP: A novel intrusion detection scheme

based on energy prediction in cluster-based wireless

sensor networks. IET Information Security, 7(2), 97–

105. https://doi.org/10.1049/iet-ifs.2012.0052

Instruments, T. (2018). MSP430FR596x , MSP430FR594x

Mixed-Signal Microcontrollers. https://www.ti.com/lit/

ds/symlink/msp430fr5994.pdf

Jan, S. U., Ahmed, S., Shakhov, V., & Koo, I. (2019).

Toward a Lightweight Intrusion Detection System for

the Internet of Things. IEEE Access, 7, 42450–42471.

https://doi.org/10.1109/ACCESS.2019.2907965

Kuaban, G. S., Gelenbe, E., Czachórski, T., Czekalski, P.,

& Tangka, J. K. (2023). Modelling of the Energy

Depletion Process and Battery Depletion Attacks for

Battery-Powered Internet of Things (IoT) Devices.

Sensors, 23(13). https://doi.org/10.3390/s23136183

Lee, T.-H., Wen, C.-H., Chang, L.-H., Chiang, H.-S., &

Hsieh, M.-C. (2014). A Lightweight Intrusion Detection

Scheme Based on Energy Consumption Analysis in

6LowPAN. Springer, Dordrecht. https://doi.org/10.10

07/978-94-007-7262-5_137

LoRa Alliance. (2020). LoRaWAN 1.0.4 Specification

Package. https://lora-alliance.org/resource_hub/

lorawan-104-specification-package/

Mikhaylov, K., Fujdiak, R., Pouttu, A., Miroslav, V.,

Malina, L., & Mlynek, P. (2019). Energy attack in

Lorawan: Experimental validation. ACM Proceedings

of the 14th ICARS, November 2020. https://doi.org/

10.1145/3339252.3340525

Neshenko, N., Bou-harb, E., Crichigno, J., Kaddoum, G., &

Ghani, N. (2019). Demystifying IoT Security : An

Exhaustive Survey on IoT Vulnerabilities and a First

Empirical Look on Internet-scale IoT Exploitations.

IEEE Communications Surveys & Tutorials.

https://doi.org/10.1109/COMST.2019.2910750

Nguyen, V. L., Lin, P. C., & Hwang, R. H. (2019). Energy

depletion attacks in low power wireless networks. IEEE

Access, 7, 51915–51932. https://doi.org/10.1109/

ACCESS.2019.2911424

Proto, A., & Carvalho, T. C. M. de B. (2020). Applying

distance metrics for anomaly detection of energy-based

attacks in IoT sensors. Brazilian Journal of

Development, 6(11), 92412–92435. https://doi.org/10.3

4117/bjdv6n11-595

Pu, C. (2019). Energy Depletion Attack Against Routing

Protocol in the Internet of Things. 16th IEEE CCNC

2019, https://doi.org/10.1109/CCNC.2019.8651771

Raza, U., Kulkarni, P., & Sooriyabandara, M. (2017). Low

Power Wide Area Networks: An Overview. IEEE

Communications Surveys & Tutorials, 19(2), 855–873.

https://doi.org/10.1109/COMST.2017.2652320

Sciancalepore, S., Tedeschi, P., Riasat, U., & Pietro, R. DI.

(2021). Mitigating Energy Depletion Attacks in IoT via

Random Time-Slotted Channel Access. 2021 IEEE

CNS 2021, 10–18. https://doi.org/10.1109/CNS53

000.2021.9705038

Slabicki, M., Premsankar, G., & Di Francesco, M. (2018).

Adaptive configuration of lora networks for dense IoT

deployments. IEEE/IFIP NOMS 2018: Cognitive

Management in a Cyber World, , 1–9.

https://doi.org/10.1109/NOMS.2018.8406255

Tzavaras, A., Mainas, N., & Petrakis, E. G. M. (2023).

Internet of Things OpenAPI framework for the Web of

Things. Internet of Things, 21(August 2022), 100675.

https://doi.org/10.1016/j.iot.2022.100675

Yang, X., Karampatzakis, E., Doerr, C., & Kuipers, F.

(2018). Security vulnerabilities in LoRaWAN.

Proceedings - ACM/IEEE IoTDI 2018, 129–140.

https://doi.org/10.1109/IoTDI.2018.00022

An Intrusion Detection Architecture Based on the Energy Consumption of Sensors Against Energy Depletion Attacks in LoRaWAN

275
