pyZtrategic: A Zipper-Based Embedding of Strategies and Attribute

Grammars in Python

Emanuel Rodrigues

1 a

, Jos

e Nuno Macedo

1 b

Marcos Viera

2 c

and Jo

ao Saraiva

1 d

HASLab & INESC TEC, University of Minho, Braga, Portugal

Universidad de la Rep

ublica, Montevideo, Uruguay

ﬁ

Keywords:

Attribute Grammars, Strategic Term Rewriting, Software Analysis and Evolution.

Abstract:

This paper presents pyZtrategic: a library that embeds strategic term rewriting and attribute grammars in the

Python programming language. Strategic term rewriting and attribute grammars are two powerful programming

techniques widely used in language engineering: The former relies on strategies to apply term rewrite rules in

deﬁning large-scale language transformations, while the latter is suitable to express context-dependent language

processing algorithms. Thus, pyZtrategic offers Python programmers recursion schemes (strategies) which

apply term rewrite rules in deﬁning large scale language transformations. It also offers attribute grammars to

express context-dependent language processing algorithms. PyZtrategic offers the best of those two worlds,

thus providing powerful abstractions to express software maintenance and evolution tasks.

Moreover, we developed several language engineering problems in pyZtrategic, and we compare it to well

established strategic programming and attribute grammar systems. Our preliminary results show that our library

offers similar expressiveness as such systems, but, unfortunately, it does suffer from the current poor runtime

performance of the Python language.

1 INTRODUCTION

Modern software languages offer powerful mecha-

nisms to improve the productivity of their program-

mers, like powerful type and modular systems, bad

smell detection and refactorings, etc. To design and

implement such mechanisms, we need powerful tech-

niques to analyse, manipulate and evolve such lan-

guages.

Strategic term rewriting (Luttik and Visser,

1997; Visser et al., 1998) and Attribute Grammars

(AG) (Knuth, 1968) have a long history in support-

ing the development of modern software language

analysis, maintenance, refactoring, evolution and op-

timizations. The former relies on recursion schemes,

called strategies, to traverse a tree while applying a

set of rewrite rules, while the latter is suitable to ex-

press static context-dependent language processing

algorithms. The expressiveness and usefulness of such

techniques can be seen by the many language systems

https://orcid.org/0000-0003-4317-1144

https://orcid.org/0000-0002-0282-5060

https://orcid.org/0000-0003-2291-6151

https://orcid.org/0000-0002-5686-7151

supporting both AGs (Gray et al., 1992; Reps and

Teitelbaum, 1984; Kuiper and Saraiva, 1998; Mernik

et al., 1995; Ekman and Hedin, 2007; Dijkstra and

Swierstra, 2005; Van Wyk et al., 2008) and rewriting

strategies (van den Brand et al., 2001; Balland et al.,

2007; L

ammel and Visser, 2002; Cordy, 2004; Sloane

et al., 2010; Visser, 2001). In fact, these systems have

been used to express software maintenance and evolu-

tion of large (real) language/programs, such as smell

detection and program refactoring (L

ammel and Visser,

2002; Macedo et al., 2024).

Most of these powerful systems, however, are large

language engineering systems that support their own

AG or strategic notation. These systems require a con-

siderable development effort to build, to maintain, and

to extend. As a result, most of these systems support

one of the techniques only. A more ﬂexible approach

is obtained when we consider the embedding of such

techniques in a general purpose language. A language

embedding, however, usually relies on advanced mech-

anisms of the host language. In this paper, we present

the pyZtrategic system which embeds both strategic

term rewriting and attribute grammars in the Python

language. PyZtrategic offers the ﬁrst embedding of

these techniques in Python, thus making such powerful

Rodrigues, E., Macedo, J., Viera, M. and Saraiva, J.

pyZtrategic: A Zipper-Based Embedding of Strategies and Attribute Grammars in Python.

DOI: 10.5220/0012704000003687

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 19th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2024), pages 615-624

ISBN: 978-989-758-696-5; ISSN: 2184-4895

615

language engineering techniques available to Python

programmers.

In this paper, we show how our Python strate-

gic term rewriting embedding can be used to express

source code optimisations. Moreover, we use AGs to

express scope rules in the same language and show

how it can be combined with strategies to provide

powerful context dependent tree transformations. Fi-

nally, we compare the expressiveness of pyZtrategic

with the well-known Stratego system (Visser, 2001)

and we benchmark our library against the Ztrategic

library (Macedo et al., 2022): a Haskell combined em-

bedding of strategies and AGs. Our ﬁrst results show

that the expressiveness of our library is similar to Strat-

ego strategic notation. Python is known to be a slow

language (Pereira et al., 2021) and our benchmarks

show this poor performance of the language: pyZ-

trategic is slower than the similar Ztrategic Haskell

library (Macedo et al., 2022; Macedo et al., 2024).

This paper is organised as follows: Section 2

presents a usage example using Stratego and then our

zipper-based embedding of strategic term rewriting.

In Section 3, we show how to combine zipper-based

strategic term rewriting with attribute grammars. In

Section 4 we compare our library against Stratego and

Ztrategic and use it to deﬁne usage examples. Sec-

tion 5 discusses related work, and in Section 6 we

present our conclusions.

2 ZIPPER-BASED STRATEGIC

PROGRAMMING

Both strategic term-rewriting (Luttik and Visser,

1997; L

ammel and Visser, 2002) and attribute gram-

mars (Knuth, 1968) rely on generic (abstract syntax)

tree traversal mechanisms to navigate on trees (Saraiva

and Swierstra, 1999). The former to express large

scale tree transformations (Visser et al., 1998; L

ammel

and Visser, 2003) while the latter to express context-

dependent algorithms (Saraiva, 1999; Saraiva, 2002).

Because most useful large scale transformations rely

on context information, there are several approaches

that combine both techniques, namely the Kiama

framework (Sloane et al., 2010) - an embedding of

strategies and AGs in the Scala language - and the

Ztrategic library (Macedo et al., 2022) - a Haskell-

based embedding of both techniques.

This paper presents the pyZtrategic framework:

a multi paradigm embedding of strategies and AGs

in the Python programming language. This section

discusses the embedding of strategies in Python, while

in Section 3.1 we combine this embedding with AGs.

Before presenting this embedding in detail, let us

add(e, const(0)) → e (1)

add(const(0), e) → e (2)

add(const(a), const(b)) → const(a + b) (3)

sub(e1, e2) → add(e1, neg(e2)) (4)

neg(neg(e)) → e (5)

neg(const(a)) → const(−a) (6)

var(id) | (id, just(e)) ∈ env → e (7)

Figure 1: Optimization Rules.

consider a motivating example we will use throughout

the paper. Consider the (sub)language of Let expres-

sions, as usually expressed in functional languages.

Next, we show an example of a valid let expression.

p = let a = b + 0

c = 2

b = let c = 3 in c + c

in a + 7 - c

In the deﬁnition of p several names are deﬁned in

the same scope. Typically, in let expressions, deﬁning

the same name twice in the same scope is a semantic

error, as well as using a non-deﬁned name. It is also

valid to re-deﬁne names that were deﬁned in an outer

scope. For example, in p the name c is re-deﬁned in a

nested let expression.

Our objective with this example is to deﬁne an

optimizer for such let expressions. This optimizer fol-

lows the rules presented in Figure 1 given in (Kramer

and Van Wyk, 2020). Rules 1 through 6 are relatively

simple, as they consist of matching certain patterns in

an expression and replacing them. For example, rules

1 and 2 deﬁne that the addition of any expression e

with the constant value 0 should be replaced by just

the expression e. In fact, rules 1 to 6 are the perfect

setting to be expressed as a strategic program, as we

will show in the next subsection.

Rule 7, however, requires the knowledge of the

environment env, which contains all deﬁned names

in the scope and its respective values. The rule itself

deﬁnes that any variable id can be replaced by its value

as deﬁned in the environment. Strategic programming,

however, is context-free and, consequently, it does not

provide a natural setting to express such rules. In Sec-

tion 3, we use the same Python zipper-based setting

to embed attribute grammars: a suitable formalism

to deﬁne context-dependent computations. By using

a uniform setting to express both the strategic and

AGs embeddings, we can easily combine the two for-

malisms and get the best of both worlds. As a result,

our multi-paradigm embedding provides an elegant

setting to express context-dependent re-writings such

as required by rule 7.

ENASE 2024 - 19th International Conference on Evaluation of Novel Approaches to Software Engineering

616

2.1 Stratego

In order to present strategic term-rewriting, we start

by presenting a strategic program expressed in the no-

tation used by the well-known Stratego system. The

Stratego system, developed by Eelco Visser, is a widely

used and powerful strategic term rewriting based sys-

tem which is part of the Spoofax Language Designer’s

Workbench (Kats and Visser, 2010). Stratego uses a

domain speciﬁc language (DSL) to express algebraic

data types, re-writing rules, and strategies to apply

such rules. Stratego is based on a traditional architec-

ture: it includes a language processor that translates

the Stratego speciﬁcation into an efﬁcient strategic pro-

gram (expressed in C). Such systems, however, tend

to be large, complex, and thus difﬁcult to maintain

and evolve. In this section, we show an embedding of

strategic term re-writing that does not rely on such a

large language system. Instead, it uses techniques to

embed a DSL - deﬁning a strategic program - directly

into the Python general purpose language.

In order to brieﬂy introduce strategic term re-

writing, we start by expressing our running example

in Stratego (rules 1 to 6). At the end of this section,

we will present an equivalent and very similar solu-

tion, but now fully expressed as an embedded DSL in

Python.

Let us start by deﬁning the abstract syntax of the let

(sub)language via Stratego abstract data type notation.

signature

sorts

Let List Exp

constructors

Let : List * Exp -> Let

NestedLet : STRING * Let * Exp

-> List→

Assign : STRING * Let * Exp

-> List→

Empty : List

Add : Exp * Exp -> Exp

Sub : Exp * Exp -> Exp

Neg : Exp -> Exp

Var : STRING -> Exp

Const : INT -> Exp

We omit here the explanation of these data types,

since they are self-explanatory.

Let us consider now

that we wish to implement the simple arithmetic opti-

mizer for our example. In Stratego we deﬁne the ﬁrst

6 rules shown in Figure 1 as follows.

The reader can also ﬁnd ample documentation about

the Stratego system from its webpage.

rules

Opt : Add(Const(0),x) -> x

Opt : Add(x,Const(0)) -> x

Opt : Add(Const(x),Const(y)) ->

Const(<add> (x, y))→

Opt : Sub(x,y) -> Add(x, Neg(y))

Opt : Neg(Neg(x)) -> x

Opt : Neg(Const(x)) -> Const(<mul> (x

,-1))→

These 6 rules work on a single node of the tree. In

order to express the application of this re-writing while

traversing the tree, we need to use pre-deﬁned Stratego

strategies. Next, we show the strategic solution of

our optimization where expr is applied to the input

tree in an innermost strategy. This strategy performs

a transformation as many times as possible, starting

from the inside nodes.

strategies

main = io-wrap(eval)

eval = innermost(Opt)

As mentioned before, strategic term rewriting does

not provide a natural way to express rule 7. The Strat-

ego system is no exception. In Section 3 we will

provide an elegant solution for rule 7. Next, we show

how to embed strategic term rewriting in Python and

to express rule 1 to 6 directly as a Python program.

2.2 Python Embedding of Strategies

The Stratego system uses standard language engineer-

ing techniques to implement a DSL. Indeed, it imple-

ments a language processor for that DSL. PyZtrategic

uses a different approach: it embeds strategies in the

Python programming language. The idea is that writ-

ing a strategic program in pyZtrategic is similar to

express it in Stratego. The key advantage of pyZtrate-

gic is that we do not have to implement a language

processor from scratch for the strategic DSL.

Next, we show the key ingredients of our embed-

ding, namely the use of algebraic data types, the deﬁni-

tion of type (node) speciﬁc transformations by relying

on pattern matching, and the use of our Python strate-

gic combinator library to perform such speciﬁc trans-

formation while traversing the tree using a reusable

recursion pattern (i.e. strategy).

One of the key ingredients of most strategic term

rewriting systems (Kats and Visser, 2010; L

ammel and

Visser, 2002; Macedo et al., 2022; Sloane et al., 2010)

is the use of algebraic data types to express the abstract

syntax of the language under analysis/transformation.

Algebraic data types are not native in Python. Thus,

we rely on a Python library

that offers algebraic data

https://pypi.org/project/algebraic-data-types/

pyZtrategic: A Zipper-Based Embedding of Strategies and Attribute Grammars in Python

617

types to Python programmers. Using this library, we

are able to express the previous Stratego deﬁnition of

the let language directly in Python.

@adt

class Let:

LET: Case["List", "Exp"]

@adt

class List:

NESTEDLET: Case[str, "Let", "List"]

ASSIGN: Case[str, "Exp", "List"]

EMPTY: Case

@adt

class Exp:

ADD: Case["Exp", "Exp"]

SUB: Case["Exp", "Exp"]

NEG: Case["Exp"]

VAR: Case[str]

CONST: Case[int]

Each data type (or grammar symbol) corresponds

in Python to a class, upon which we apply the @adt

decorator. For each constructor/production, we declare

a ﬁeld with its case annotation. As a result, we are able

to express the abstract syntax very much like Stratego

programmers do.

Having deﬁned the algebraic data type, we can

write p directly as a Python expression:

p = Let.LET(List.ASSIGN("a",

Exp.ADD(Exp.VAR("b"), Exp.CONST(0)),→

List.ASSIGN("c", Exp.CONST(2),

List.NESTEDLET("b",

Let.LET(List.ASSIGN("c",

Exp.CONST(3), List.EMPTY()),

Exp.ADD(Exp.VAR("c"),

Exp.VAR("c"))),

→

List.EMPTY()))),

Exp.SUB(Exp.ADD(Exp.VAR("a"),

Exp.CONST(7)), Exp.VAR("c")))→

The algebraic data type library also offers pattern

matching that we may use to deﬁne a type/node spe-

ciﬁc transformation, in the form of the match function.

Now we deﬁne the ﬁrst 6 rules in Python as follows:

def optAdd(x, y):

# rule 1

if (y == Exp.CONST(0)):

return x

# rule 2

elif (x == Exp.CONST(0)):

return y

# rule 3

elif (lambda a, b: x == Exp.CONST() and

y == Exp.CONST()):→

return Exp.CONST(x.const() +

y.const())→

else:

return st.StrategicError

def optNeg(x):

# rule 5

if (lambda a: x == Exp.NEG()):

return x.neg()

# rule 6

elif (lambda b: x == Exp.CONST()):

return Exp.CONST(-x.neg())

else:

return st.StrategicError

def expr(exp):

x = exp.match(

add=lambda x, y: optAdd(x, y),

neg=lambda x: optNeg(x),

var=lambda x: st.StrategicError,

const=lambda x: st.StrategicError,

#rule4

sub=lambda x, y: Exp.ADD(x,

Exp.NEG(y))→

)

if x is st.StrategicError:

raise x

else:

return x

Functions optAdd and optNeg check for speciﬁc

patterns and apply the optimizations if said patterns

are found. We include comments in the code for bet-

ter readability on where each rule is deﬁned in these

functions. In function expr, we check what the con-

structor of the node is, and apply the corresponding

optimizations for that constructor. For Add nodes, we

call optAdd, and so on.

As the match function requires the pattern match-

ing to be total, we have to return a result for con-

structors which we do not want to modify; for this,

we return the StrategicError value. This is an excep-

tion deﬁned in the pyZtrategic library to signal failure,

and thus we signal it by raising the exception when

we are not interested in modifying a node. Because

StrategicError is an exception, we need an if clause to

disambiguate if the computed value x is an exception

to be raised, or a value to be returned.

As we mentioned, expr works on a single tree node,

only. In order to apply this rule to all possible nodes in

the tree, we need a generic tree traversal mechanism

like the one offered by Stratego strategic combinators

(for example, function innermost).

Having expressed all rewriting rules from 1 to 6

in expr, now we need to use our strategic combina-

tors that navigate in the tree while applying the rules.

These combinators rely on the Zipper data structure:

a generic mechanism to navigate on heterogeneous

trees (Huet, 1997)

. To guarantee that all the pos-

sible optimizations are applied, we use an innermost

Zippers are also implemented as a Python library https:

//pypi.org/project/zipper/

ENASE 2024 - 19th International Conference on Evaluation of Novel Approaches to Software Engineering

618

traversal scheme. Thus, our optimization is expressed

as:

def optR(z):

return st.innermost(lambda x:

st.adhocTP(st.failTP, expr, x),

z).node()

→

The transformation failTP is an always failing

transformation (raises our StrategicError exception)

and the adhocTP combinator joins two transformations

into a single one by trying to apply the rightmost func-

tion, and if it fails, applies the left one. Therefore, the

result of the usage of adhocTP here is a transformation

function that attempts to apply expr when possible,

and in any other cases, it fails due to failTP. The in-

nermost traversal scheme will attempt to apply this

transformation as many times as possible until a ﬁxed

point is reached.

Rule 7 is context dependent and requires ﬁrst

to compute the environment where a name is used.

Rewriting rules relying on context information are not

easily expressed as pure strategic deﬁnitions. The com-

putation and ﬂow of context information, in a (abstract

syntax) tree, is the natural setting for AGs. Thus, we

will return to rule 7 after we extend our Python embed-

ding with AGs.

3 STRATEGIC ATTRIBUTE

GRAMMARS

There are transformations that rely on contextual in-

formation that needs to be collected ﬁrst so that the

transformation can be applied. Rule 7 from Figure 1 is

such a case. This section will explain how to combine

strategies with AGs, showing how to implement rule 7.

3.1 Zipper-Based Attribute Grammars

We show a visual representation of our AG in Fig.2

along with its deﬁnition in Python. In Fig.2, produc-

tions are shown with the parent node above and chil-

dren nodes below, inherited attributes are on their left

and synthesized attributes on their right, and arrows

show how information ﬂows between productions and

their children to compute attributes.

In this AG, the attribute dcli is an accumulator, used

to collect all variables deﬁned in a let. The complete

list is synthesized in the attribute dclo. Our attributes

will be a list of triples containing the variable name,

the level where it’s deﬁned (to distinguish between

declarations of the same name) and the expression

associated with it.

We start with the synthesized attribute dclo. For

example, looking at the diagram, we verify that the

dclo of Let productions is the dclo of its ﬁrst child. On

the other hand, on the EmptyList production, the dclo

is a copy of dcli (presented later in this section).

def dclo(x):

match constructor(x):

case Constructor.CRoot:

return dclo(x.z_dollar(1))

case Constructor.CLet:

return dclo(x.z_dollar(1))

case Constructor.CNestedLet:

return dclo(x.z_dollar(3))

case Constructor.CAssign:

return dclo(x.z_dollar(3))

case Constructor.CEmpty:

return dcli(x)

The attribute lev is used to distinguish declarations

with the same name in different levels. It is omitted

in our diagram due to its simple nature. This attribute

is passed downwards as a copy of the parent node,

with two exceptions: when in a Let subtree whose

parent is a Root, and when visiting a NestedLet. In the

former the level is 0, while in the latter, since we are

descending to a nested block, we increment the level

of the outer one.

def lev(x):

match constructor(x):

case Constructor.CLet:

match constructor(x.up()):

case Constructor.CNestedLet:

return lev(x.up()) + 1

case Constructor.CRoot:

return 0

case _:

return lev(x.up())

Now, let us consider the accumulator attribute dcli.

The function, when visiting nodes of type Let, has to

consider two alternatives: the parent node can be a

Root or a NestedLet. This happens because the rules

to deﬁne its value differ: in the Root node it corre-

sponds to an empty list, while in a nested block, the

accumulator dcli starts as the env of the outer block.

Finally, there are three different cases: when the parent

is a Let node, dcli is a copy of the parent. When the

parent is an Assign, then the Name, level and the as-

sociated Exp are accumulated in the dcli of the parent.

Finally, in the case of NestedLet the Name, level, and

an exception are accumulated in dcli.

def dcli(x):

match constructor(x):

case Constructor.CLet:

match constructor(x.up()):

case Constructor.CRoot:

return []

case Constructor.CNestedLet:

return env(x.up())

case _:

match constructor(x.up()):

pyZtrategic: A Zipper-Based Embedding of Strategies and Attribute Grammars in Python

619

Figure 2: Attribute Grammar Specifying the Scope Rules of Let.

case Constructor.CLet:

return dcli(x.up())

case Constructor.CAssign:

return

[(lexeme_Name(x.up()),

lev(x.up()),

lexeme_Exp(x.up()))] +

dcli(x.up())

→

case Constructor.CNestedLet:

return

[(lexeme_Name(x.up()),

lev(x.up()),

st.StrategicError)] +

dcli(x.up())

→

Finally, we have the env attribute. In most dia-

grams, an occurrence of attribute env is deﬁned as a

copy of the parent. There are two exceptions: in pro-

ductions Root and NestedLet where Let subtrees occur.

In both cases, env gets its value from the synthesized

attribute dclo of the same non-terminal/type. We use

the default rule of the case statement to express similar

AG copy equations.

def env(x):

match constructor(x):

case Constructor.CRoot:

return dclo(x)

case Constructor.CLet:

return dclo(x)

case _:

return env(x.up())

3.2 Strategic Attribute Grammars

As we mention before, rule 7 requires knowledge of

the context to be implemented. This rule states that

an occurrence of a variable can be changed by its

deﬁnition. Therefore, we will need and environment

of all the deﬁned variables, which we have done with

the env attribute. In order for the strategy to expose

the zipper so that it can be used to compute a given

attribute, we will make use of a new adhoc function

called adhocTPZ.

Then, we can deﬁne a function that implements

our rule 7:

def expC(exp, z):

x = exp.match(

add=lambda x, y: st.StrategicError,

sub=lambda x, y: st.StrategicError,

neg=lambda x: st.StrategicError,

var=lambda x: expand((x, lev(z)),

env(z)),→

const=lambda x: st.StrategicError

)

if x is st.StrategicError:

raise x

else:

return x

Note that expC has two arguments, exp which is the

current node to be processed, and z which is the zipper

pointing to our current position. With z now visible,

we can compute the attributes lev and env using it.

We use an auxiliary expand function that looks up the

variable x in the environment produced by env, with

a nesting level not bigger than the value computed by

lev.

Finally, we combine rule 7 with the others previ-

ously deﬁned. For readability, we split rule 7 into a

deﬁnition named exp1, and the combination of exp1

with the ﬁrst 6 rules in exp2. We apply exp2 as many

times as possible using the innermost strategy, and the

resulting function is named optRC.

def optRC(z):

def exp1(y):

return st.adhocTPZ(st.failTP, expC,

y)→

def exp2(x):

return st.adhocTP(exp1, expr, x)

return st.innermost(exp2, z).node()

4 EXPRESSIVENESS AND

PERFORMANCE

In this section, we compare the expressiveness of the

pyZtrategic Python library with the well-known and

established Stratego system. After that, we benchmark

ENASE 2024 - 19th International Conference on Evaluation of Novel Approaches to Software Engineering

620

our embedding, and we compare its runtime perfor-

mance with the Ztrategic library

: a Haskell based

embedding of both techniques (Macedo et al., 2022).

4.1 pyZtrategic versus Stratego

We have presented the Stratego and pyZtrategic solu-

tion for our let optimization problem. The two solu-

tions are similar. However, because Stratego uses a

proper notation to express re-writing rules, it offers

more concise and readable solutions than our embed-

ding. This can be clearly seen in the deﬁnition of

the type-speciﬁc transformation where the lack of a

pre-deﬁned pattern matching mechanism in Python,

makes the solutions longer and harder to read. This is,

however, a well-known disadvantage of using a pure

embedded DSL approach when compared to the use

of proper notation that is processed by (a large and

complex) language processor. The other disadvantage

of using our Python embedding concerns errors report-

ing: while the Stratego processor can produce error

messages in the context of a strategic program, our

Python embedding relies on the (dynamic and more

liberal) type system of Python and, thus, errors are

reported as general Python errors.

There is, however, a key advantage of pyZtrate-

gic: it is a simple library that does not require a

large/complex language processor. A language proces-

sor is always a complex and time-consuming system to

build, maintain and evolve. An embedded DSL, such

as the one deﬁned by pyZtrategic, uses the language

infrastructure of the host language and can easily be

maintained - by using Python tools such as debuggers,

proﬁles, etc - and evolved - which consists in deﬁning

new combinators to the existing Python library.

4.2 pyZtrategic versus Ztrategic

The Ztrategic library in the Haskell programming lan-

guage presents a similar embedding of zippers and

attribute grammars as our Python solution. However,

there are some key differences between the two:

•

While in Python, we need to use a library to pro-

vide support for algebraic data types, Haskell pro-

vides a way to create them by default.

•

The Python ADT library offers a poor pattern

matching mechanism when compared to Haskell,

where we can have more elegant worker functions.

•

The Python programming language offers gener-

ally poor performance when compared to Haskell,

and performance differences are also noticeable

when using both libraries.

https://bitbucket.org/zenunomacedo/ztrategic/

We ran an advanced Software Maintenance and

Evolution course for Master’s Degree students, for

which the students had to develop a parser, optimizer

and pretty-printer for the Unix BC calculator language.

For the optimizer, the students had to use strategic

programming, with freedom to choose either Python

pyZtrategic or Haskell Ztrategic libraries since they

were familiar with both programming languages. Next,

we select two solutions developed by our students us-

ing both libraries, and we compare their number of

lines of code. We believe these solutions to be rep-

resentative of the average usage experience for these

libraries. The results are shown in Table 1.

Note that these solutions are not strictly similar.

For example, the Python solution uses the Lark pars-

ing toolkit to build a parser, while the Haskell solu-

tion uses parser combinators. The Haskell solution

implements 52 optimizations, while the Python solu-

tion implements 29 optimizations. Nevertheless, as

expected, these results illustrate that Python imple-

mentations tend to be more verbose when compared

to their Haskell counterpart.

Table 1: Number of Lines of Code - Python vs Haskell.

Python Haskell

Data Type Declarations 219 32

Parser 90 78

Pretty-Printer 49 42

Strategy 6 3

Optimizations 208 76

Next, we will compare the performance of the

pyZtrategic library with Ztrategic and Kiama, a Scala

lightweight language processing library for attribute

grammars and strategy-based term rewriting.

4.3 Let Optimization

We implemented the let optimizer presented in this

paper in both pyZtrategic, Ztrategic and Kiama, as all

libraries provide Attribute Grammars and strategies.

In Figure 3 we show the performance of optimizing

several Let inputs of different sizes in terms of runtime

and memory usage. Let size, as seen in the X axis of

the ﬁgure, refers to the number of nested let blocks

present in the input. As we can see in the ﬁgure, our

pyZtrategic implementation presents the poorest run-

time performance of the three. We expect bad runtime

performance for Python implementations when com-

pared to other, more efﬁcient languages, which both

Haskell and Scala qualify as.

pyZtrategic: A Zipper-Based Embedding of Strategies and Attribute Grammars in Python

621

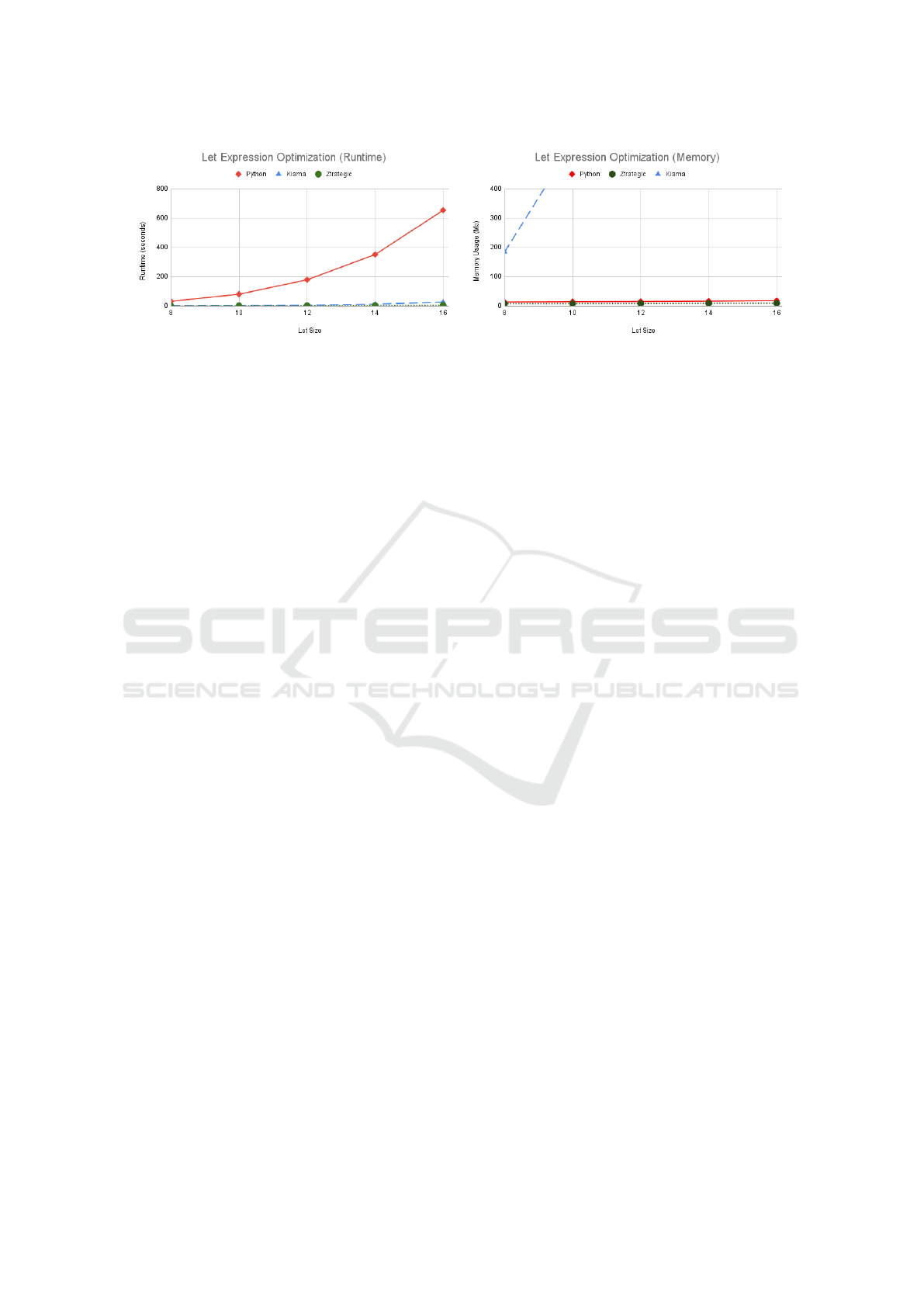

Figure 3: Let Optimization: Python versus Ztrategic versus Kiama.

4.4 Repmin

The repmin problem is a well-known one. The goal of

it is to transform a binary tree of integers into a new

one with the same shape, but where all leaves are re-

placed by the minimum leaf value of the original tree.

We solve the repmin problem using a strategy to com-

pute the minimum value of the tree, and then another

strategy to propagate the computed value throughout

the tree.

In Figure 4 we show our implementation results.

The Repmin size refers to the number of nodes the

input tree contains. Again, Ztrategic outperforms both

pyZtrategic and Kiama, who behave similarly in terms

of runtime. The memory consumption is similar, ex-

cept for Kiama, who presents by far the poorest perfor-

mance.

5 RELATED WORK

The Ztrategic (Macedo et al., 2022; Macedo et al.,

2024) library is an embedded library for combining

Attribute Grammars and strategic programming in

the Haskell language. It is built on top of the Zip-

perAG (Martins et al., 2013) library, which provides

support for Attribute Grammars. The work presented

in this paper is inspired by Ztrategic and ZipperAG,

and it also showcases that these techniques are valid

in languages other than Haskell. The Ztrategic library

and our Python pyZtrategic counterpart are inspired by

Strafunski (L

ammel and Visser, 2002). There is, how-

ever, a key difference between these libraries: while

Strafunski accesses the data structure directly, pyZ-

trategic and Ztrategic operate on zippers. As a conse-

quence, in both zipper-based libraries, the program-

mer can easily access attributes from strategic func-

tions and strategic functions from attribute equations.

Accessing attributes, and thus performing context-

dependent transformations/refactorings, are not possi-

ble in Strafunski.

The Stratego program transformation language

(now part of the Spoofax Language Workbench (Kats

and Visser, 2010)) supports the deﬁnition of rewrite

rules and programmable rewriting strategies, and it

is able to construct new rewrite rules at runtime, to

propagate contextual information for concerns such as

lexical scope. It is argued in (Kramer and Van Wyk,

2020) that contextual information is better speciﬁed

through the usage of inherited attributes for issues

such as scoping, name-binding, and type-checking.

We present this same usage of inherited attributes in

our attribute grammar examples.

Kiama was developed by Sloane (Sloane et al.,

2010; Kats et al., 2009): an embedding of strategic

term rewriting and AGs in the Scala programming lan-

guage. While our approach expresses both attribute

computations and strategic term rewriting as pure func-

tions, Kiama caches attribute values in a global cache,

in order to reuse attribute values computed in the orig-

inal tree that are not affected by the rewriting. Such

global caching, however, induces an overhead in order

to keep it updated, for example, attribute values associ-

ated with subtrees discarded by the rewriting process

need to be purged from the cache (Sloane et al., 2014).

In our setting, which is inspired in a purely functional

setting, we only compute attributes in the desired re-

written tree (as is the case of the let example shown in

section 3.1).

Inﬂuenced by Kiama, Kramer and Van

Wyk (Kramer and Van Wyk, 2020) present strategy

attributes, which is an integration of strategic term

rewriting into attribute grammars. Strategic rewriting

rules can use the attributes of a tree to reference

contextual information during rewriting, much like we

present in our work. They present several practical

applications, namely the evaluation of

-calculus,

a regular expression matching via Brzozowski

derivatives, and the normalization of for-loops. All

these examples can be directly expressed in our

setting. They also present an application to optimize

translation of strategies. Because our techniques

ENASE 2024 - 19th International Conference on Evaluation of Novel Approaches to Software Engineering

622

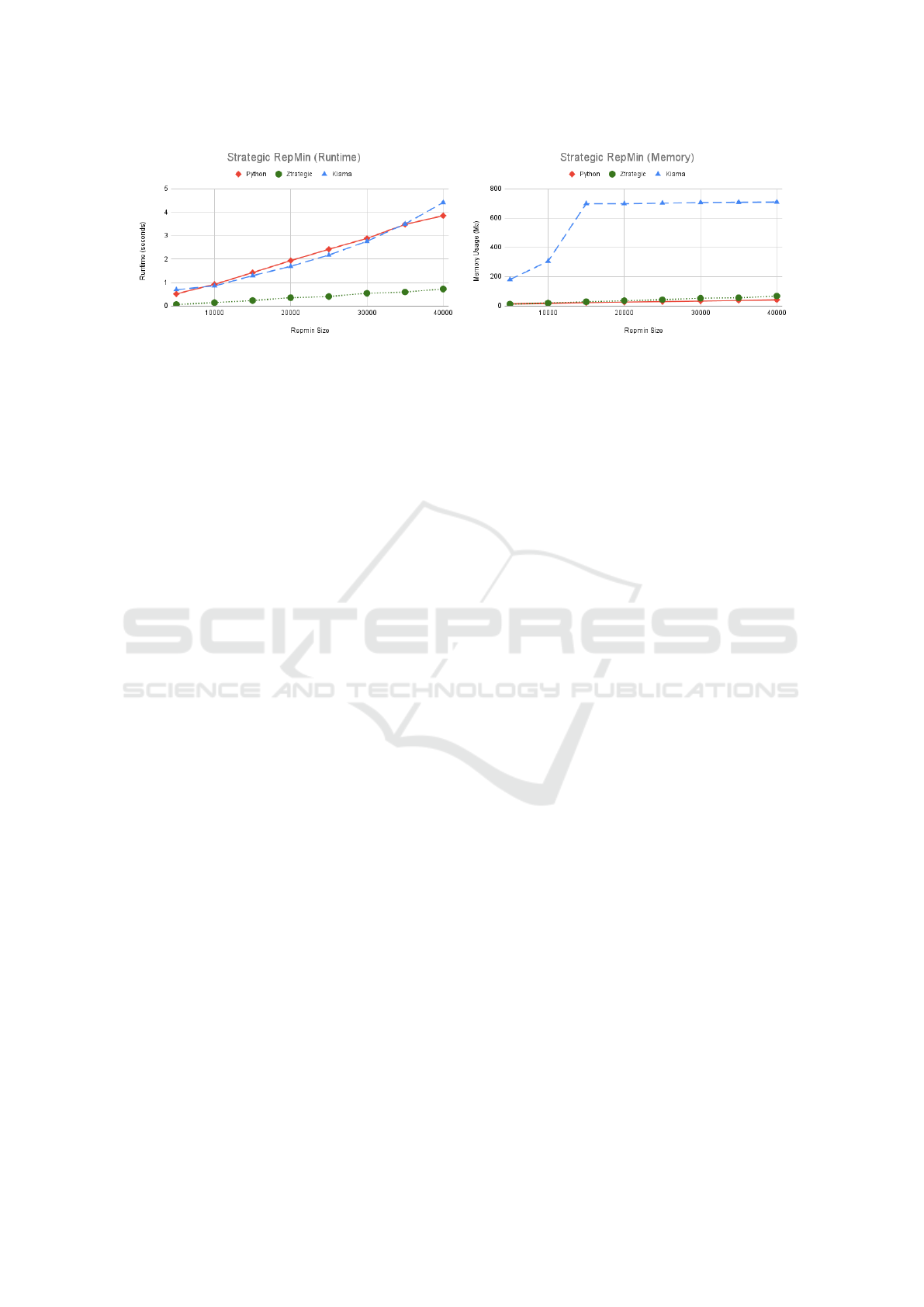

Figure 4: Strategic Repmin: Python versus Ztrategic versus Kiama.

rely on a shallow embedding, we are unable to

express strategy optimizations without relying on

meta-programming techniques (Sheard and Jones,

2002). Nevertheless, pyZtrategic embedding result

in a very simple and concise Python libraries that

are easier to extend and maintain, specially when

compared with the complexity of extending a full

language system such as Silver (Van Wyk et al., 2008).

JastAdd is a reference attribute grammar based

system (Ekman and Hedin, 2007). It supports most

of AG extensions, including reference and circular

AGs (S

oderberg and Hedin, 2013). It also supports

tree rewriting, with rewrite rules that can reference

attributes. JastAdd, however, provides no support for

strategic programming, that is to say, there is no mech-

anism to control how the rewrite rules are applied.

6 CONCLUSIONS

This paper presented pyZtrategic: a Python library that

supports the combined embedding of strategic term

rewriting and attribute grammars in Python. This is the

ﬁrst library offering the power of strategic term rewrit-

ing and attribute grammars to Python programming.

This library has been used to support an advanced MSc

course on software maintenance and evolution, namely

in developing source code analysis and transformation

tools.

We showed several examples of using pyZtrate-

gic and comparing its expressiveness and performance

with other similar systems, namely Stratego and Ztrate-

gic. Our ﬁrst results show that pyZtrategic offers

the expressiveness of the other libraries, while be-

ing its runtime performance affected by the current

poor performance of the Python language. PyZtrate-

gic, however, is implemented as a pure embedded DSL

in Python and, consequently, is immediately affected

by any development in such host language. Thus, we

expect a signiﬁcant increase on the pyZtrategic perfor-

mance when new Python compilers are widely avail-

able, such as the recently presented high-performance

Codon compiler (Shajii et al., 2023).

ACKNOWLEDGEMENTS

This work is ﬁnanced by National Funds through

the Portuguese funding agency, FCT - Funda

c¸

para a Ci

encia e a Tecnologia, within project

LA/P/0063/2020. DOI 10.54499/LA/P/0063/2020.

The second author is also sponsored by FCT grant

2021.08184.BD.

REFERENCES

Balland, E., Brauner, P., Kopetz, R., Moreau, P.-E., and

Reilles, A. (2007). Tom: Piggybacking rewriting on

java. In Baader, F., editor, Term Rewriting and Appli-

cations, pages 36–47. Springer Berlin Heidelberg.

Cordy, J. R. (2004). Txl - a language for programming

language tools and applications. Electronic Notes in

Theoretical Computer Science, 110:3–31.

Dijkstra, A. and Swierstra, S. D. (2005). Typing Haskell

with an attribute grammar. In Vene, V. and Uustalu,

T., editors, Advanced Functional Programming, pages

1–72. Springer Berlin Heidelberg.

Ekman, T. and Hedin, G. (2007). The JastAdd extensible

Java compiler. SIGPLAN Not., 42(10):1–18.

Gray, R. W., Levi, S. P., Heuring, V. P., Sloane, A. M.,

and Waite, W. M. (1992). Eli: A complete, ﬂexi-

ble compiler construction system. Commun. ACM,

35(2):121–130.

Huet, G. (1997). The Zipper. Journal of Functional Pro-

gramming, 7(5):549–554.

Kats, L. C. and Visser, E. (2010). The Spoofax Language

Workbench: Rules for declarative speciﬁcation of lan-

guages and ides. In Proc. of the ACM Int. Conf. on

Object Oriented Programming Systems Languages and

Applications, OOPSLA ’10, page 444–463. ACM.

Kats, L. C. L., Sloane, A. M., and Visser, E. (2009). Deco-

rated attribute grammars: Attribute evaluation meets

strategic programming. In Proceedings of the 18th

pyZtrategic: A Zipper-Based Embedding of Strategies and Attribute Grammars in Python

623

International Conference on Compiler Construction,

CC ’09, page 142–157. Springer-Verlag.

Knuth, D. E. (1968). Semantics of context-free languages.

Mathematical systems theory, 2(2):127–145.

Kramer, L. and Van Wyk, E. (2020). Strategic tree rewriting

in attribute grammars. In Proceedings of the 13th ACM

SIGPLAN International Conference on Software Lan-

guage Engineering, SLE 2020, page 210–229. ACM.

Kuiper, M. and Saraiva, J. (1998). Lrc - A Generator for

Incremental Language-Oriented Tools. In Koskimies,

K., editor, 7th International Conference on Compiler

Construction, CC/ETAPS’98, volume 1383 of LNCS,

pages 298–301. Springer-Verlag.

ammel, R. and Visser, J. (2002). Typed combinators for

generic traversal. In Krishnamurthi, S. and Ramakrish-

nan, C. R., editors, Practical Aspects of Declarative

Languages, pages 137–154. Springer.

ammel, R. and Visser, J. (2003). A strafunski application

letter. In Proceedings of the 5th International Sympo-

sium on Practical Aspects of Declarative Languages,

PADL ’03, page 357–375. Springer-Verlag.

Luttik, S. P. and Visser, E. (1997). Speciﬁcation of rewrit-

ing strategies. In Proceedings of the 2nd International

Conference on Theory and Practice of Algebraic Spec-

iﬁcations, Algebraic’97, page 9, Swindon, GBR. BCS

Learning & Development Ltd.

Macedo, J. N., Rodrigues, E., Viera, M., and Saraiva,

J. (2024). Zipper-based embedding of strategic at-

tribute grammars. Journal of Systems and Software,

211:111975.

Macedo, J. N., Viera, M., and Saraiva, J. (2022). Zipping

strategies and attribute grammars. In 16th International

Symposium on Functional and Logic Programming,

FLOPS 2022, page 112–132. Springer-Verlag.

Martins, P., Fernandes, J. P., and Saraiva, J. (2013). Zipper-

based attribute grammars and their extensions. In

Du Bois, A. R. and Trinder, P., editors, Programming

Languages, pages 135–149. Springer Berlin Heidel-

berg.

Mernik, M., Korbar, N., and

Zumer, V. (1995). Lisa: A tool

for automatic language implementation. SIGPLAN

Not., 30(4):71–79.

Pereira, R., Couto, M., Ribeiro, F., Rua, R., Cunha, J., Fer-

nandes, J. P., and Saraiva, J. (2021). Ranking pro-

gramming languages by energy efﬁciency. Science of

Computer Programming, 205:102609.

Reps, T. and Teitelbaum, T. (1984). The synthesizer genera-

tor. SIGPLAN Not., 19(5):42–48.

Saraiva, J. (1999). Purely Functional Implementation of

Attribute Grammars. PhD thesis, Utrecht University,

The Netherlands.

Saraiva, J. (2002). Component-based programming for

higher-order attribute grammars. In Proceedings of

the ACM SIGPLAN/SIGSOFT Conference on Genera-

tive Programming and Component Engineering, GPCE

2002, pages 268–282.

Saraiva, J. and Swierstra, D. (1999). Generic Attribute

Grammars. In Parigot, D. and Mernik, M., editors,

Second Workshop on Attribute Grammars and their

Applications, WAGA’99, pages 185–204, Amsterdam,

The Netherlands. INRIA Rocquencourt.

Shajii, A., Ramirez, G., Smajlovi

c, H., Ray, J., Berger, B.,

Amarasinghe, S., and Numanagi

c, I. (2023). Codon: A

compiler for high-performance pythonic applications

and dsls. In Proceedings of the 32nd ACM SIGPLAN

International Conference on Compiler Construction,

CC 2023, page 191–202, New York, NY, USA. Asso-

ciation for Computing Machinery.

Sheard, T. and Jones, S. P. (2002). Template Meta-

Programming for Haskell. In Proceedings of the 2002

ACM SIGPLAN Workshop on Haskell, Haskell ’02,

page 1–16, New York, NY, USA. Association for Com-

puting Machinery.

Sloane, A. M., Kats, L. C. L., and Visser, E. (2010). A

pure object-oriented embedding of attribute grammars.

Electronic Notes in Theoretical Computer Science,

253(7):205–219.

Sloane, A. M., Roberts, M., and Hamey, L. G. C. (2014).

Respect your parents: How attribution and rewriting

can get along. In Combemale, B., Pearce, D. J., Barais,

O., and Vinju, J. J., editors, Software Language Engi-

neering, pages 191–210, Cham. Springer International

Publishing.

oderberg, E. and Hedin, G. (2013). Circular higher-order

reference attribute grammars. In Erwig, M., Paige,

R. F., and Van Wyk, E., editors, Software Language

Engineering, pages 302–321, Cham. Springer Interna-

tional Publishing.

van den Brand, M. G. J., Deursen, A. v., Heering, J., Jong,

H. A. d., Jonge, M. d., Kuipers, T., Klint, P., Moonen,

L., Olivier, P. A., Scheerder, J., Vinju, J. J., Visser, E.,

and Visser, J. (2001). The asf+sdf meta-environment:

A component-based language development environ-

ment. In Proceedings of the 10th International Confer-

ence on Compiler Construction, CC ’01, page 365–370.

Springer-Verlag.

Van Wyk, E., Bodin, D., Gao, J., and Krishnan, L. (2008).

Silver: an Extensible Attribute Grammar System.

Electronic Notes in Theoretical Computer Science,

203(2):103–116.

Visser, E. (2001). Stratego: A language for program trans-

formation based on rewriting strategies. In Proceed-

ings of the 12th International Conference on Rewriting

Techniques and Applications, RTA ’01, page 357–362.

Springer-Verlag.

Visser, E., Benaissa, Z.-e.-A., and Tolmach, A. (1998). Build-

ing program optimizers with rewriting strategies. In

Proceedings of the Third ACM SIGPLAN International

Conference on Functional Programming, ICFP ’98,

page 13–26, New York, NY, USA. Association for

Computing Machinery.

ENASE 2024 - 19th International Conference on Evaluation of Novel Approaches to Software Engineering

624
