XA4AS: Adaptive Security for Multi-Stage Attacks

Elias Seid, Oliver Popov and Fredrik Blix

Department of Computer and Systems Sciences, Stockholm University, Sweden

Keywords:

Security Engineering, Control Theory, Adaptive Systems, Security Solution, Multiple Failure,

Cyber-Physical Systems.

Abstract:

Identifying potential system threats that deﬁne security requirements is vital to designing secure cyber systems.

Furthermore, the high frequency of attacks poses an enormous obstacle in analysing cyber-physical systems

(CPS). The paper argues for the idea that any security solution for cyber-physical systems (CPS) should be

adaptive and tailored to the speciﬁc types of threats and their frequency. Speciﬁcally, the solution should

consistently monitor its surroundings in order to protect itself from a cyber-attack by adjusting its defensive

measures. Understanding cyberattacks and their potential consequences on both internal and external assets

in cyberspace is essential for preserving cyber security. The importance appears in the work of the Swedish

Civil Contingencies Agency (MSB), which collects IT incident reports from vital service providers required

by the NIS directive of the European Union and Swedish government agencies. The proposed solution is the

Adaptive security framework, which aims to simplify the development of analytical models for implementing

model predictive control and adaptive security solutions in the ﬁeld of CPS. This study analyses security

attacks and corresponding security measures for Swedish government agencies and organisations under the

European Union’s NIS mandate. A thorough analysis of adaptive security was conducted on 254 security

incident reports provided by vital service providers. As a result, an overall total of ﬁve security measures were

identiﬁed.

1 INTRODUCTION

The conﬂuence of digital technology has led to sub-

stantial tangible consequences arising from mishaps

in the virtual realm. A recent study conducted by Van

den Berg et al. (2022) differentiates between the im-

mediate and indirect consequences of cyber attacks.

The direct impact on cyberinfrastructure relates to the

potential ramiﬁcations of actions that could lead to

unauthorised entry, modiﬁcation, or removal of dig-

ital assets. The immediate effect is comparable to

classiﬁers that evaluate the operational and informa-

tional consequences (Pursiainen, C. et al., 2018). The

indirect impact refers to the consequences of an event

that takes place outside of the digital domain (Van den

Berg et al., 2022). Furthermore, the investigation un-

dertaken in citation (Wang, E.K. et al., 2010) evalu-

ated both the primary and secondary consequences of

cyber incidents.

The organisation, stakeholders, government, and

society might face signiﬁcant repercussions as a re-

sult of data fraud, destruction, or compromise. When

evaluating cyberattacks on critical service providers,

it is imperative to take into account these conse-

quences (Uzunov, A.V. et al 2012). The main sec-

ondary impacts on an institution typically involve ﬁ-

nancial consequences. Organisational risk assess-

ments employ anticipated ﬁnancial and economic

damages to evaluate the probability and consequences

of certain situations. The commercial and ﬁnancial

consequences are major when a loss of competitive

advantage occurs as a result of the disclosure of sen-

sitive information or a disruption. A comprehensive

investigation was carried out to determine the typi-

cal expenses associated with cyber incidents across

several industry sectors, with a speciﬁc emphasis on

identifying the most severe categories. Financial loss

is considered a factor in their cyber risk model (Gop-

stein, A. et al., 2020; Mancuso, V.F.et al., 2014 ).

Most software systems today are cyber-physical

system components. CPSs include robots, mobile de-

vices, and humans. CPS constituents are autonomous

but work together to achieve system requirements.

Healthcare, government, and ﬁnancial services soft-

ware systems are often CPS (Griffor et al., 2017;

Boyes, 2018). Smart things have diverse, dynamic,

and ﬂexible sensor networks. These networks have

distributed intelligent devices that can be easily at-

284

Seid, E., Popov, O. and Blix, F.

XA4AS: Adaptive Security for Multi-Stage Attacks.

DOI: 10.5220/0012707400003705

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 9th International Conference on Internet of Things, Big Data and Security (IoTBDS 2024), pages 284-293

ISBN: 978-989-758-699-6; ISSN: 2184-4976

tached to physical objects. These devices measure

temperature, sound, vibration, pressure, and motion.

They can also send data to remote software systems.

In the last ten years, different sectors in society

have undergone a rapid process of digitalization. A

notable trend is the transfer of vital information re-

sources and organisational procedures from physi-

cal to digital platforms. The introduction of inno-

vative socio-technical solutions has resulted in sev-

eral beneﬁts by dramatically enhancing operational

efﬁciency in both corporate and governmental organ-

isations, thus transforming the way information and

processes are managed. Nevertheless, technology

has also introduced new and unique challenges. The

growing dependence on systems and networks has re-

sulted in heightened susceptibility for crucial service

providers, such as government agencies and health-

care institutions, to incidents that disrupt their opera-

tions (Urbach, N. et al., 2019).

CPS security breaches have cost large corpora-

tions millions of dollars in monetary losses. Fur-

thermore, these expenses are rising (Ponemon et al.,

2015). The complexity of CPS, including people, pro-

cedures, technology, and infrastructure, contributes to

the occurrence of breaches. The inclusion of diverse

components in a system might increase security con-

cerns and attack potential, unlike homogenous soft-

ware systems. Breach causes include trusted insiders,

malware, SQL injections, compromised devices, and

other factors. CPS are vulnerable to multistage at-

tacks due of the increasing frequency of attacks. At-

tackers can execute more dangerous attacks by inte-

grating atomic attack procedures with diverse compo-

nents (Shostack, 2014).

Designing a security solution for CPS is more

complex than for software systems, as it involves

considering both individual components (e.g., sens-

ing, communication, processing) and their interac-

tion with the physical environment (Banerjee,2012).

Adversaries can target vulnerable and risky CPS ele-

ments. This is because components like sensors op-

erate in an unprotected environment without adequate

security measures. Not considering various attacks

during CPS design can make them vulnerable to ex-

ploitation. This phenomena is due to the low risks

and potential for signiﬁcant returns. Recent techno-

logical breakthroughs like cloud computing, AI, and

the Internet of Things have created new vulnerabili-

ties and cybersecurity challenges. Progress highlights

the need to address cyber threats to essential service

providers and the potential consequences of attacks.

Adaptive Security. Service providers that are critical

and employ CPS are required to operate in dynamic

environments and effectively accomplish many objec-

tives. Upon detecting a failure, particularly when a

goal is not accomplished due to external disruptions

like high trafﬁc or unpredictable user actions, a new

conﬁguration is executed. Nevertheless, devising a

strategy to alleviate the consequences of alterations

presents a major challenge (K. Angelopoulos et al.,

2014). The main challenge arises from the undesired

interference of multiple parameters in the conﬁgura-

tion space, each with its own distinct objectives. The

execution of the adaptation process may potentially

lead to the restoration of security goal satisfaction.

However, it also bears the risk of failure or exacer-

bation of security objectives.

A considerable amount of research on cyberat-

tacks relies on sources such as media reports, open-

source intelligence, and expert interviews [Ponemon,

L. et al., 2015; Shostack, et al., 2014; Markopoulou,

D. et al., 2021; Calderaro, et al., 2022; Hsieh, et

al., 200516). At the same time, the European Union

Agency of Cybersecurity (ENISA) has determined

that publicly reported incidents only account for a

small portion of the overall total. This suggests that

a considerable number of incidents go unnoticed or

unreported. The lack of research dedicated to study-

ing the nature and impact of attacks targeting impor-

tant service providers might be seen as harmful from

multiple perspectives. As stated by sources [9,18], it

has been suggested that this pattern could potentially

affect the ability of businesses to accurately evaluate

risk. This is because of a restricted comprehension of

the likelihood and attributes of possible attacks (Pa-

pakonstantinou et al., 2022; Osei-Kyei, et al., 2021).

The little investigation on the adverse effects of cy-

ber attacks impedes researchers’ understanding of the

organisational and social ramiﬁcations of these crim-

inal acts (Caldarulo, M et al., 2022;Agraﬁotis et al.,

2018 ). The objective of this study is to look into the

following research question (RQ).

RQ1. How can adaptive security solutions be inte-

grated into into current critical infrastructure

systems to enhance the overall cybersecurity

posture?

The remaining parts of this paper are organised as

follows. Section 2 establishes the theoretical founda-

tion of our research, whereas Section 3 introduces the

XA4AS framework. The fourth section of the paper

presents case studies, while the ﬁfth section is dedi-

cated to the experiment and its results. Section 6 has

discussions. Section 7 offers a conclusion and consid-

ers potential areas for further study.

XA4AS: Adaptive Security for Multi-Stage Attacks

285

2 RESEARCH BASELINE

2.1 Digitising Critical Service Providers

Digitalization linked physical and digital domains,

speeding up and connecting society. Technology has

heightened social instability, uncertainty, complex-

ity, and ambiguity (Urbach, 2019). Due to its com-

plexity, modern society has become a risk society

requiring advanced risk management (Kaiya, 2014).

Beck suggests that digitization and globalisation may

have led to transboundary disasters, impacting emer-

gency response (Boin, A, 2019). Disasters can im-

pact geography, time, and society (Boin, A, 2019).

Recent socio-technical advancements, including in-

creased system and software dependence and compli-

cated supply networks, have led to increased occur-

rences (Kaiya, 2014). Due to key infrastructure dis-

ruptions, modern society must adapt to mitigate cross-

border crisis risks (Boin, A, 2019).

Protecting critical information systems and net-

works from damage and disruption has been a policy

goal since the 21st century to avoid incidents from

worsening. To maintain IT-dependent service conti-

nuity and integrity, strategic goals such societal re-

silience and robustness enable quick recovery and en-

durance of events. According to( Harry, 2018), pre-

cise measurements are necessary as more information

and operations shift to technology. This aligns with

the need to secure cyberspace and address risks to na-

tional security (Pursiainen, 2018).

Cyberattacks on society services and infrastruc-

ture create complicated and unforeseen risks. Thus,

interdisciplinary approaches are necessary to address

these difﬁculties. Researchers propose a comprehen-

sive method to address all dangers, including society

safety and security (Syafrizal, 2021). Sweden nor-

mally considers all hazards in its policy. Swedish

Civil Contingencies Agency (MSB) incorporates hos-

tile threats into national risk assessments (Mitnick,

K.D, 2011). As the EU highlights cyber threats to

its internal market, merging becomes more apparent

(Calderaro, 2022). (Shevchenko, 2023) found that the

EU’s cyber governance thinking is more inﬂuenced by

reality than other governing organisations. The inte-

gration of physical and digital worlds has accelerated

society’s pace and interconnectedness due to digital-

ization.

The integration of technology has led to increas-

ing social instability, uncertainty, complexity, and

ambiguity (Urbach, 2019). Today’s complex soci-

ety necessitates advanced risk management (Kaiya,

H, A, 2014). Digitalization and globalisation may

have led to trans-boundary crises, as suggested by

Beck and the impact of digitalization on emergency

management (Boin, 2019). Crisis can have repercus-

sions across time, place, and culture. Modern socio-

technical advancements, such as reliance on diverse

systems and software, and complicated supply net-

works, have led to increased occurrences (Kaiya, H,

A, 2014). Modern civilization must adapt to lessen

transboundary crisis risks due to infrastructure inter-

ruptions (Boin, 2019).

2.2 Security Attack Event Monitoring

The accelerated progress of cyber advancements has

led to a dearth of agreement about understanding of

cyberattacks and their impact on society (Simmons,

C et al.,2014). The current analysis employs the cy-

berattack deﬁnition proposed by (Derbyshire, et al.,

2018), which spans a broad spectrum of ”offensive

actions”. an inﬂuence on the digital framework of

a company. Offensive action involves both proac-

tive attacks, like DDoS attacks, and reactive attacks,

such cyber-exploitation, which entails unauthorised

acquisition of information (Wang, E.K et al., 2010).

Cyberattacks on the cyberinfrastructure might aim at

compromising processes, hardware, and users. Mul-

tiple cyberattack strategies exist, including syntactic

attacks that utilise malware and semantic attacks that

employ social engineering techniques, with the aim of

gaining unauthorised access to speciﬁc cyber systems.

This section presents the Asfalia framework that

supports the monitoring of security attack events for

CPSs, and the framework spans the three realms of a

CPS. Moreover, the framework supports cross-realm

analysis and monitoring, which spins off security

events across realms. Our models focus on realm-

speciﬁc adversaries, meaning that they span the three

realms of a CPS (cyber, physical infrastructure, and

social). We also analysed the interdependent rela-

tionships among realm-speciﬁc attack models. The

AM depends on the VM model in revealing realm-

speciﬁc vulnerabilities, and vulnerabilities captured

by (the VM ) spin off and provides inputs to the next

realm (AM). Thus, a suitable attack mechanism is se-

lected by taking advantage of the weaknesses of the

VM. More detailed information can be found in (Seid,

2023).

2.3 Model Predictive Control

We present a receding horizon model predictive con-

trol (MPC) approach (E.Camacho et al.,2004; J. Ma-

ciejowski et al., 2002) that effectively addresses the

management of multiple conﬂicting goals through the

use of multiple control parameters. When the con-

IoTBDS 2024 - 9th International Conference on Internet of Things, Big Data and Security

286

troller is enhanced with a Kalman Filter (KF) (L.

Ljung et al., 2010), it has the capability to acquire

knowledge in real-time and adjust the controller ac-

cording to the behaviour of the system. This allows

the controller to overcome inherent inaccuracies aris-

ing from dynamics that are not accounted for in model

(2), as well as unknown disturbances affecting the

system.

(MPC) is a control technique that employs an opti-

misation problem to determine a set of control param-

eters (actuators), denoted as u(·), in order to achieve

a desired set of goals, denoted as y◦(·), for a set of

indicators, denoted as y(·), over a prediction hori-

zon H. The control parameters u* are determined at

each control instant t by minimising a cost function

J(t), while adhering to speciﬁed constraints. The opti-

misation problem involves making predictions about

the future behaviour of the system using the dynamic

model (2).

As a result, a derived solution refers to a planned

arrangement of forthcoming control parameter values

∗

= U

∗

+ 1, .......U

∗

+ H − 1 across the anticipated

time horizon. Effective planning is particularly cru-

cial in situations where there is a delay in the occur-

rence of changes in control parameters.

The receding horizon principle applies only the

ﬁrst computed value u

∗

to the system, u(t)=u

∗

. Cre-

ating perfect models for real-world systems is impos-

sible due to their dynamic behaviour. Therefore, plan

corrections are necessary at each step and the horizon

is reduced by one unit. The plan may fail due to exter-

nal disturbances such as system workload changes. In

essence, the plan would have been followed if a per-

fect model and no disturbances were present, which

is not feasible. At the next control instant, a new plan

is created based on the updated measured values of

indicators to overcome this obstacle. This accounts

for modelling uncertainties and unanticipated system

behaviours (2). The model has been incorporated into

our framework for adaptive security strategies and is

integrated within our architecture, as detailed in the

subsequent section.

3 XA4AS FRAMEWORK

The methodology we employ consists of two distinct

stages: the design time phase and the runtime phase.

In the initial stage, the necessary models for the syn-

thesis and tuning of the MPC controller are obtained.

As a result, in the subsequent stage, the controller

is implemented within our adaptation framework and

modiﬁes the control parameters of the target system

as necessary. We developed this framework and it has

been published in our prior work (pending review, au-

thors withheld).

Developing a comprehensive behavioural model

for highly complex systems such as CPS, charac-

terised by numerous complicated and diverse states,

presents a signiﬁcant challenge (Cailliau and van

Lamsweerde et al., 2017). In order to comprehend

how attackers achieve their objectives by compromis-

ing security concerns such as conﬁdentiality, integrity,

availability, and accountability, it is necessary to anal-

yse the behaviour of the threat environment within

the system and how adversaries can exploit vulner-

abilities. Once the design phase has been ﬁnalised

and the system has been successfully implemented,

the XA4AS framework, which is focused on control-

based security goals, can be effectively deployed to

serve as the mechanism for adaptation. The ﬁgure

presented as Figure 5 illustrates the ﬁve primary com-

ponents of XA4AS. More detailed information can be

found in (Seid,E et al., 2024)

4 CASE STUDY: SECURITY

INCIDENT OBTAINED FROM

CRITICAL SERVICE

PROVIDERS

The data source used in the present study comprises

IT-incident reports that were submitted to MSB.

Therefore, it can be regarded as an unorthodox ex-

amination of the written information, predominantly

relying on sources that rely on documents as their

primary basis of information. In addition, this study

employed a secondary dataset comprised of written

IT-incident reports that were submitted to MSB by

various Swedish government departments and organ-

isations, in accordance with the standards outlined

in the European Union’s NIS-directive. In Sweden

and other countries, organisations have the option to

retain information. The Swedish legislation govern-

ing public access to information and conﬁdentiality,

namely the Public Access to Information and Secrecy

Act (SFS 2009:400) and the Protective Security Act

(SFS 2018:585), imposes restrictions on the sharing

of information within public administration, includ-

ing government agencies.

Private corporations have the choice to retain in-

formation regarding attacks and their implications as

a means to protect their valuable resources or uphold

favourable connections with stakeholders. An inher-

ent drawback of this strategy is that the secondary

data used as the data source were not explicitly gath-

ered for the aim of this study. This constraint restricts

XA4AS: Adaptive Security for Multi-Stage Attacks

287

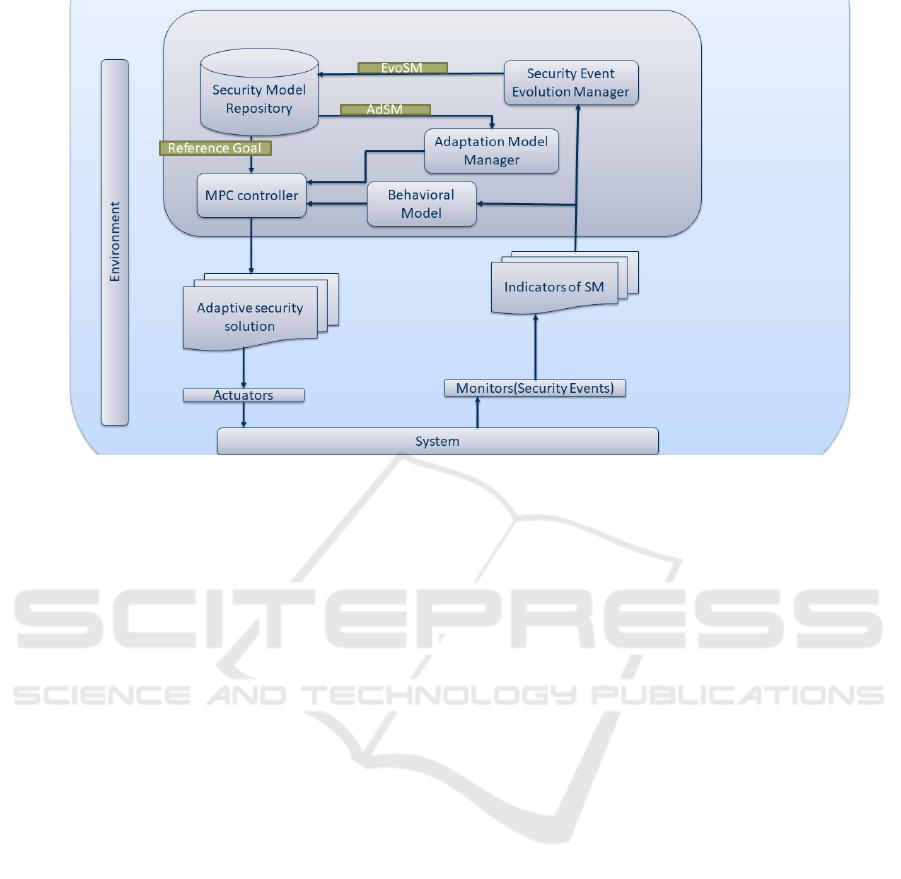

Figure 1: XA4AS.

the analysis. The conclusions that can be drawn rely

on the attributes and excellence of the data acquired

from the speciﬁc structure of MSB’s IT-incident re-

ports. Another limitation includes the dependence on

recorded incidences as the foundation. To analyse the

cyber threat landscape, it is important to consider that

the ﬁndings drawn are heavily inﬂuenced by the re-

porting choices and methodologies employed by busi-

nesses.

4.1 Classiﬁcation of Security Events

The data treatment procedure had four steps. Ini-

tially, all IT incidents recorded between 1 April 2019

and 1 April 2023 were analysed, focusing on harm-

ful events. Rest were removed from the dataset. The

IT-incident reports were categorised by vulnerability,

attack mechanism, security events, and attack target

in the second stage, and the results were quantiﬁed.

Incidents lacking sufﬁcient information for classiﬁ-

cation were classed as unknown. The third stage of

data treatment involves summarising quantities within

each category for frequency comparison. From April

2019 until 2023, (MSB) received 1332 IT-incident re-

ports from major service providers. Only 256 reports

were ﬁled by NIS organisations, while the rest 1076

came from government agencies. The collection in-

cluded 254 reports with detailed accounts of inten-

tional and malevolent behaviours.

The remaining instances were attributed to vari-

ous factors, such as technician and user errors, system

failures, natural events, and unknown variables. Ad-

ditionally, cyberattack frequency has remained steady

from April 2019 to 2023. The period from 1 April

2019 to 2020 had a signiﬁcant rise in reported cyber-

attacks, totaling 73 occurrences. Between 2022 and

2023, 67 cyberattacks were documented. From 2020

to 2021, cyberattacks increased signiﬁcantly, with 61

documented cases. From April 2021 to 2022, cyber

assaults targeting critical service providers were rare.

Only 53 instances were reported.

5 SECURITY ATTACK ANALYSIS

USING ASFALIA FRAMEWORK

This section presents an analysis of security attacks

for critical service providers using the Asfalia frame-

work. The framework facilitates the monitoring of se-

curity breach incidents and encompasses all three do-

mains of a Cyber-Physical System (CPS).Moreover,

the framework facilitates evaluation and monitoring

of many domains, allowing for the detection of se-

curity incidents that occur across various domains.

Our models explicitly focus on adversaries that are

present in speciﬁc domains, which include the three

domains of a CPS (cyber, physical infrastructure, and

social). We developed this framework and it has been

published in our prior work (pending review, authors

withheld).

Attack patterns are classiﬁed into two distinct cat-

egories: The initial classiﬁcation of cyberattack is

domain-based, wherein speciﬁc domains or networks

are targeted. The second category is mechanism-

IoTBDS 2024 - 9th International Conference on Internet of Things, Big Data and Security

288

based harm, which aims to exploit ﬂaws in differ-

ent systems or procedures. As an illustration, ’so-

cial engineering’ falls into the domain-based attack

category, whereas ’collect and analyse’ falls into the

mechanism-based attack category. A total of 18 cyber

security incidents have been categorised as cyber at-

tacks, depending on the manner of attack, while seven

of them have been categorised as domain-based cyber

attacks. The reports were classiﬁed into two main cat-

egories related to cybersecurity and cyberattacks. A

study was conducted on ﬁve major cyber incidents to

analyse the tendencies of cyber security attacks. The

occurrences were identiﬁed and categorised based on

a domain-speciﬁc attack. Among the 254 reported cy-

ber security incidents, Asfalia has detected 7 vulner-

abilities and 5 major incidents. Furthermore, all six

targets that were subjected to cyberattacks have been

captured.

5.1 Security Attack Analysis of DDoS

Attack-Mechanism Model (AM). This model cap-

tures design strategies, different attack pattern mech-

anisms. More importantly, it builds attack mecha-

nisms by employing goal models, domain assump-

tions, attack mechanisms, and task operationalisa-

tion artifacts. Each attack pattern captures knowledge

about how speciﬁc parts of an attack are designed

and executed, providing the adversary’s perspective

on the problem and the solution, and gives guidance

on ways to mitigate the attack’s effectiveness. AM

model depends on VM model since it prepares its at-

tacking mechanism based on the threat explored in

VM model as shown in Figure 5. However, threats

can be reﬁned not only linearly but also iteratively.

The second sub-attack mechanism consists of three

sequential steps. Prior to initiating an attack, the at-

tacker must acquire a comprehensive understanding

of the targeted system. After that, they launch a spe-

ciﬁc operation within the system. Finally, they inves-

tigate whether the target condition reveals a deadlock

condition.

Event Model (EM). This model captures events that

are derived from behavioural models (BM). From the

perspective of the event log, these events can be cat-

egorised into observable and non-observable events.

Speciﬁcally, our focus is directed towards events that

can be directly perceived or witnessed. Security

events are generated from the behavioural model, also

referred to as the BM model. For instance, the occur-

rence of distributed denial of service (DDoS) attacks

has been captured, with one speciﬁc event identiﬁed

as E1: the initiation of the exploratory phase. E2: “An

action was triggered and initiated”, and E3: “A denial

of service occurred”

5.2 Security Attack Analysis of

Installed Malware

Attack-Mechanism Model (AM). (1) Cross zone

scripting, (2) exploit systems susceptible to the at-

tack, (3) ﬁnd the insertion point for the payload, and

(4) craft and inject the payload. Tasks: (1) Lever-

age knowledge of common local zone functionality,

(2) ﬁnd weakness in the functionality used by both

privileged and unprivileged users, (3) make the mali-

ciously vulnerable functionality to be used by the vic-

tim, (4) leverage cross-site scripting vulnerability to

inject payload, and domain assumption: insufﬁcient

input validation by the system.

Event Model (EM). This model captures the security

events E1: Internet and local zone enabled, E2: en-

able functionality failed, E3: internet and local zone

disabled, E4: weakness found, E5: weakness failed,

E6: victim-injected payload, and E7: payload in-

jected.

5.3 Security Attack Analysis of

Installed Web Compromise (XSS

Through HTTP Query String)

Seven attack mechanisms were captured, namely, (1)

XSS through HTTP query string; (2) use a browser or

an automated tool; (3) attempt variations in input pa-

rameters; (4) exploit vulnerabilities; (5) steal session

IDs, credentials, page contents; (6) content spooﬁng;

and (7) forceful browsing. Tasks: 10 speciﬁc tasks

have been captured, namely: (1) use spidering tool

to follow and record all links, (2) use a proxy tool to

record all links visited, (3) use a browser to manu-

ally explore and analyse the website, (4) use a list of

XSS probe strings to inject in the parameter of known

URLs; (5) use a proxy tool to record the results of

the manual input of XSS probes in known URls, (6)

develop malicious JavaScript that is injected through

vectors and send information to the attacker, (7) de-

velop malicious JavaScript that is injected through

vectors and take and cause the browser to execute

it, (8) develop malicious JavaScript that is injected

through vectors and perform actions on the same web-

site, (9) develop malicious JavaScript that is injected

through vectors, and (10) cause the browser to execute

requests to other websites .

Event Model (EM). This model captures the security

events E1: links recorded, E2: website explored, E3:

visited links recorded, E4: known URLs injected, E5:

results of manual input of XSS probes recorded: E6:

XA4AS: Adaptive Security for Multi-Stage Attacks

289

information sent, E7: attacker’s command executed

by the browser, E8: action performed on the same

website, E9: request executed to other website, and

E8: invalid information exposed to the user.

5.4 Design-Time

Our methodology originates by extracting diverse se-

curity goals and security methods associated with the

target system. Once all goals have been clariﬁed,

ASm are allocated to those that meet the criteria. Con-

sidered the most crucial and prone to failure. An ASM

deﬁnes a desired target, denoted as R i, for the con-

troller’s output.

The assault pattern referred to as ”Forced Dead-

lock” can be described using the following be-

havioural annotations: (G2, G3#, and G4#). The an-

notations specify that the sub-attack mechanism ”Get

familiar with system” should be accomplished ﬁrst,

followed by the instances of ”Trigger an action” and

”Explore if the target condition has a deadlock condi-

tion.”

Interleaving refers to the process of combining

or alternating two or more things in a speciﬁc or-

der or sequence. The formal behavioural annotation

for the action of triggering an action is represented

as (T2#DA1). This annotation signiﬁes the simulta-

neous fulﬁlment of the target host providing an API

to the user and the subsequent triggering of the ﬁrst

action, followed by the initiation of a second action.

The formal behavioural annotation for the sub-attack,

which investigates the presence of a deadlock state

in the target situation, is denoted as (T3#DA2). This

annotation indicates the consecutive execution of two

actions: ﬁrstly, examining the programme for a dead-

lock situation, and secondly, presuming that the target

programme does indeed have a deadlock condition.

Table 1: Reference Security Goal.

CRq Reference

ASm1 R1=80

ASm2 R2=75

ASm3 R3=100

ASm4 R4=90

ASm5 R5=90

ASm6 R6=100

In this situation, the initial EvoSm operation is

started, leading to a change in the reference objec-

tive from 80% to 70%, as can be seen in Table 4. The

second EvoSm operation is triggered when there is a

failure in T2, leading to the restoration of the thresh-

old to its prior value. T2 and T3 have the potential to

undergo multiple iterations sequentially, as they await

each other’s completion.

The reference security targets have been modi-

ﬁed to a lower level, namely reduced from 90% to

80% and from 80% to 60%, respectively.If ASm4

and ASm5 encounter a failure lasting more than three

days, the reference security aim will be temporarily

loosened for a period of one week.

If goal G1 fails more than three times per week

in the context of ASm6, the restriction is continually

adjusted to four times per week. If ASm4 encounters

a failure lasting more than three consecutive days, the

adaptation mechanism will then ignore it for a period

of three days. The Analytic Hierarchy Process (AHP)

is used to assign weights to each indication based on

their levels of relevance. Generally, security objec-

tives that are considered critical are prioritised over

those that are non-critical. The weights are associated

with the elements of matrix Q in the cost function.

The controller use the optimisation function to deter-

mine a state of balance for each aim, devoting more

resources towards achieving the goals that are more

important. The weights of the control parameters are

set through empirical elicitation, with lower weights

allocated to the parameters that require less frequent

tweaking. The values of matrix P in the cost function

represent weights.

Our security analysis for XSS throught HTTP,

DDoS, has found that Disable scripting languages

such as JavaScript in browser is a more cost-effective

solution than Regularly patch all software. Addition-

ally, the previous method also provides the beneﬁt of

immediate efﬁcacy. The priority for the indicators and

the weights for control parameters were determined

using elicitation, as shown in table 3 and table 4, re-

spectively.

The remaining security goals to be identiﬁed per-

tain to the adaptive security mechanism (ADSM). The

attainment of these objectives imposes constraints on

the process of adaptation itself. Model Predictive

Control (MPC) uses an Adaptive Horizon Determina-

tion Strategy (ADSM) to establish the receding hori-

zon of the controller. This approach establishes the

speciﬁc time period towards which the adaptation

plan should be focused on in the future. The term

”ADSM” may also denote the degree to which con-

trol parameters are allowed to ﬂuctuate.

In the end, it is important to construct a numeri-

cal model. In order to replicate the MERS system in

the absence of natural laws, we conducted a complete

simulation with regular modiﬁcations to control pa-

rameters, while also documenting the input and out-

put data. We employ Matlab and the System Iden-

tiﬁcation toolkit to ascertain the analytical model of

the system. While it is not possible to simulate the

IoTBDS 2024 - 9th International Conference on Internet of Things, Big Data and Security

290

system with complete accuracy, the model can be en-

hanced upon deployment by incorporating a learning

mechanism that operates during runtime.

Table 2: EvoSm Operations.

CRq EvoSm Execution

ASm1 Relax(ASm1,ASm1’ 70),

Strengthen(ASm1,ASm1’ 80)

ASm2 Relax (ASm2, ASm2’ 60)

ASm3 Relax (ASm3, ASm3’ 90)

ASm4 Relax (ASm4, ASm4’ 80)

ASm5 Wait( 3 days)

ASm6 Replace (ASm6, ASm6’ 3)

6 DISCUSSION

The cyberattack is mechanism-based. There have

been 18 cyber attacks, depending on the technique

used, and seven domain-based cyber attacks. The

reports were divided into cybersecurity and cyber-

attack categories. Five major cyber incidents were

studied to determine cyber security attack trends. A

domain-speciﬁc attack recognised and categorised the

instances. From 254 reported instances, Asfalia de-

tected 7 vulnerabilities and 5 critical cyber security

events. Additionally, all ﬁve cyberattack targets were

successfully captured.

The framework also includes 24 attack mecha-

nisms, 32 tasks, 23 behavioural annotations, 10 do-

main assumptions, and 35 security events. According

to their behaviours, the experiment’s security issues

can be characterised as password recovery exploita-

tion, authentication abuse, buffer overﬂows, cross-

site scripting, phishing, and brute force assaults. Our

technique aids security analysts in incident analysis

and critical service provider security solution devel-

opment.

The Adaptation manager of XA4AS framework

only classiﬁed 15% of reported security incidents as

critical. Essential aspect of XA4AS is its ability to

adapt to non-linear system behaviours. The simu-

lator employs nonlinear interactions between inputs

and outputs for more realistic behaviour. In actual-

ity, most systems have nonlinear input-output interac-

tions. To be effective, the adaptation process must

address model faults. In Model Predictive Control

(MPC), the Kalman Filter (KF) enhances model cor-

rection during system operation, resulting in more

precise predictions. In the security model scenario,

a linear model predicted system behaviour. This

may not always be possible. Custom models or so-

phisticated system identiﬁcation approaches can man-

age non-linear systems (L. Ljung, 2010). Non-linear

model predictive control (MPC) formulations by F.

Allgower, in 2000 are also relevant.

Our investigation shows that building the secu-

rity model bottom-up in the framework works. Based

on domain task speciﬁcations, differentiation occurs.

This identiﬁes domain-speciﬁc attacks. We prioritise

cyber, physical infrastructure, and social aspects of

CPS for essential service providers in our models. We

also analysed attack model interconnectivity across

domains. The VM method detects domain-speciﬁc

vulnerabilities. Once vulnerabilities are found by

VM, attack (AM) uses them to identify an acceptable

attack method. This option exploits well-documented

VM vulnerabilities. XA4AS analytical models re-

quire simulations or historical data. This is a major

system defect. System designers face a hurdle be-

cause there are no methods to simulate a model that

generates data that closely reﬂects the actual system.

This is because CPS lacks exclusive methods. Secu-

rity engineering approaches and MPC conﬁguration

optimisation guidelines are our future study.

7 CONCLUSION

This study builds on our previous research on moni-

toring security attack events and assessing attack pat-

terns, focusing on the Asfalia framework. Another

goal is to include Model Predictive Control (MPC)

into cyber-physical system adaptive security mecha-

nisms. Thus, we provide XA4AS (Extended Asfalia

(Framework) for Adaptive Security of Cyber-Physical

Systems). Facilitating the creation of analytical mod-

els for model predictive control and adaptive security

solutions in CPS is the goal of this approach.

The proposed model predicts system behaviour

with signiﬁcant precision. XA4AS can quickly adapt

to environmental changes and create adaptable solu-

tions. The approach was assessed using 254 critical

service provider security incident reports. According

to our case study, Swedish service providers’ IT in-

cident reports to MSB show that denial-of-service at-

tacks and disruptions have the biggest impact on oper-

ations and information. Many of the 254 cyberattacks

analysed had no obvious direct or indirect effects. So-

cial engineering attacks often have little immediate

impact. While social engineering for initial access

and user attacks is declining, it remains widespread.

Malware infestation is rare. A few dangerous IT inci-

dents endangered critical service providers’ informa-

tion resources.

The analysis shows that control-theoretic concepts

can create effective cyber-physical system adaptabil-

XA4AS: Adaptive Security for Multi-Stage Attacks

291

ity strategies, often outperforming human skill. Our

approach aids security analysts in event analysis and

CPS security solution development. (VM) detects and

captures adversaries and vulnerabilities, then analy-

ses the attack’s target using a domain-speciﬁc tech-

nique. The Attack Model (AM) is created by build-

ing a model based on the adversaries provided in the

VM. The behavioural model (BM) annotates system

behaviours of the VM and AM. EM events are derived

from behavioural models. The models above help the

XA4AS Security Evolution Manager and Adaptation

Manager. Our approach needs more case studies in

order to demonstrate its efﬁcacy.

REFERENCES

Van den Berg, B.; Kuipers, S. Vulnerabilities and Cy-

berspace: A New Kind of Crises. In Oxford Re-

search Encyclopedia of Politics; Universiteit Lei-

den—LUMC: Leiden, The Netherlands, 202

Pursiainen, C. Critical infrastructure resilience: A Nordic

model in the making? Int. J. Disaster Risk Reduct.

2018, 27, 632–641.

Wang, E.K.; Ye, Y.; Xu, X.; Yiu, S.-M.; Hui, L.C.K.; Chow,

K.-P. Security issues and challenges for cyber phys-

ical system. In Proceedings of the 2010 IEEE/ACM

Int’l Conference on Green Computing and Commu-

nications & Int’l Conference on Cyber, Physical and

Social Computing, Hangzhou, China, 18–20 Decem-

ber 2010; pp. 733–738.

Uzunov, A.V.; Ferncez, E.B.; Falkner, K. Engineering secu-

rity into distributed systems: A survey of methodolo-

gies. J. UCS 2012, 18, 2920–3006.

Gopstein, A.; Gopstein, A.; Nguyen, C.; Byrnett, D.S.;

Worthington, K.; Villarreal, C. Framework and

Roadmap for Smart Grid Interoperability Standards

Regional Roundtables Summary Report; US Depart-

ment of Commerce, National Institute of Standards

and Technology: Gaithersburg, MD, USA, 2020.

Mancuso, V.F.; Strang, A.J.; Funke, G.J. ; Finomore, V.S.

Human factors of cyber attacks: A framework for

human-centered research. In Proceedings of the Hu-

man Factors and Ergonomics Society Annual Meet-

ing, Chicago, IL, USA, 27–31 October 2014; SAGE

Publications: Los Angeles, CA, USA, 2014; Volume

58, pp. 437–441.

Urbach, N.; Roeglinger, M. Introduction to Digitalization

Cases: How Organizations Rethink Their Business

for the Digital Age; Springer: Berlin/Heidelberg, Ger-

many, 2019

Ponemon, L. Cost of Data Breach Study: Global Analysis;

Technical Report; Poneomon Institute: Traverse City,

MI, USA, 2015.

Shostack, A. Threat Modeling: Designing for Security;

John Wiley & Sons: Hoboken, NJ, USA , 2014.

Griffor, E. R., Greer, C., Wollman, D. A., Burns, M. J.,

et al. (2017). Framework for cyber-physical systems:

Volume 1, overview.

Boyes, H., Hallaq, B., Cunningham, J., and Watson, T.

(2018). The industrial internet of things (iiot): An

analysis framework

Banerjee, A., Venkatasubramanian, K. K., Mukherjee, T.,

and Gupta, S. K. S. (2012). Ensuring safety, security,

and sustainability of mission-critical cyber–physical

systems. Proceedings of the IEEE, 100(1):283–299.

K. Angelopoulos, V. E. S. Souza, and J. Mylopoulos.

Dealing with multiple failures in zanshin: a control-

theoretic approach. In SEAMS 14, pages 165–174.

ACM, 2014.

Markopoulou, D.; Papakonstantinou, V. The regulatory

framework for the protection of critical infrastructures

against cyberthreats: Identifying shortcomings and

addressing future challenges: The case of the health

sector in particular. Comput. Law Secur. Rev. 2021,

41, 105502.

Calderaro, A.; Blumfelde, S. Artiﬁcial intelligence and EU

security: The false promise of digital sovereignty. Eur.

Secur. 2022, 31, 415–434. .

Hsieh, H.F.; Shannon, S.E. Three approaches to qualita-

tive content analysis. Qual. Health Res. 2005, 15,

1277–1288

Papakonstantinou, V. Cybersecurity as praxis and as a state:

The EU law path towards acknowledgement of a new

right to cybersecurity? Comput. Law Secur. Rev.

2022, 44, 105653

Osei-Kyei, R.; Tam, V.; Ma, M.; Mashiri, F. Critical review

of the threats affecting the building of critical infras-

tructure resilience. Int. J. Disaster Risk Reduct. 2021,

60, 102316

Caldarulo, M.; Welch, E.W.; Feeney, M.K. Determinants of

cyber-incidents among small and medium US cities.

Gov. Inf. Q. 2022, 39, 101703.

Agraﬁotis, I.; Nurse, J.R.; Goldsmith, M.; Creese, S.; Up-

ton, D. A taxonomy of cyber-harms: Deﬁning the

impacts of cyber-attacks and understanding how they

propagate. J. Cybersecur. 2018, 4, tyy006

Kaiya, H.; Kono, S.; Ogata, S.; Okubo, T.; Yoshioka,

N.; Washizaki, H.; Kaijiri, K. Security requirements

analysis using knowledge in capec. In Advanced In-

formation Systems Engineering Workshops; Springer:

Berlin/Heidelberg, Germany, 2014; pp. 343–348.

Boin, A. The transboundary crisis: Why we are unprepared

and the road ahead. J. Contingencies Crisis Manag.

2019, 27, 94–99.

Harry, C.; Gallagher, N. Classifying cyber events. J. Inf.

Warf. 2018, 17, 17–31.

Syafrizal, M.; Selamat, S.R.; Zakaria, N.A. AVOIDITALS:

Enhanced Cyber-attack Taxonomy in Securing Infor-

mation Technology Infrastructure. Int. J. Comput. Sci.

Netw. Secur. 2021, 21, 1–12.

Mitnick, K.D.; Simon, W.L. The Art of Deception: Con-

trolling the Human Element of Security; John Wiley

& Sons: Hoboken, NJ, USA, 2011

Shevchenko, P.V.; Jang, J.; Malavasi, M.; Peters, G.W.;

Sofronov, G.; Tr

uck, S. The nature of losses from

cyber-related events: Risk categories and business

sectors. J. Cyberse-Curity 2023, 9, tyac016

Simmons, C.; Ellis, C.; Shiva, S.; Dasgupta, D.;Wu, Q.

AVOIDIT: A Cyber Attack Taxonomy. In Proceedings

IoTBDS 2024 - 9th International Conference on Internet of Things, Big Data and Security

292

of the 9th Annual Symposium on Information Assur-

ance, Kyoto, Japan, 4–6 June 2014; pp. 12–22.

Derbyshire, R.; Green, B.; Prince, D.; Mauthe, A.; Hutchi-

son, D. An analysis of cyber security attack tax-

onomies. In Proceedings of the IEEE European Sym-

posium on Security and Privacy Workshops (Eu-

roS&PW), London, UK, 24–26 April 2018; pp.

153–161.

Fernandez-Buglioni, E. Security Patterns in Practice: De-

signing Secure Architectures Using Software Patterns;

John Wiley & Sons: Hoboken, NJ, USA, 2013.

V. Souza, A. Lapouchnian, and J. Mylopoulos.

Requirements-driven qualitative adaptation. On

the Move to Meaningful Internet Systems: OTM

2012, volume 7565 of Lecture Notes in Computer

Science, pages 342–361. Springer Berlin Heidelberg,

2012.

L. Ljung. Approaches to identiﬁcation of nonlinear sys-

tems. In Control Conference (CCC), 2010 29th Chi-

nese, pages 1–5, July 2010.

V. E. S. Souza, A. Lapouchnian, W. N. Robinson, and

J. Mylopoulos. Awareness requirements for adaptive

systems. In 2011 ICSE Symposium on Software En-

gineering for Adaptive and Self-Managing Systems,

SEAMS, pages 60–69, 2011.

E. Camacho and C. Bordons. Model Predictive Control.

Springer London, 2004.

J. Maciejowski. Predictive Control: With Constraints. Pren-

tice Hall, 2002.

Cailliau, A.van Lamsweerde, Runtime monitoring and res-

olution of probabilistic obstacles to system goals. In

Software Engineering for Adaptive and Self- Manag-

ing Systems (SEAMS), 2017 IEEE/ACM

XA4AS: Adaptive Security for Multi-Stage Attacks

293
