Towards a General Metric for Energy Efﬁciency in Cloud Computing

Data Centres: A Proposal for Extending of the ISO/IEC 30134-4

Carlos Juiz

1 a

, Belen Bermejo

1 b

, Alejandro Fern

andez-Montes

2 c

and Dami

an Fern

andez-Cerero

2 d

Department of Computer Science, Universitat de les Illes Balears, Palma, Spain

Department of Computer Languages and Systems, University of Seville, Spain

Keywords:

Server Consolidation, Management, Energy Efﬁciency Metrics, ISO/IEC 30134-4.

Abstract:

For some years now, energy efﬁciency has been one of the concerns of cloud system administrators. To im-

prove energy efﬁciency, in recent years standards such as ISO/IEC 30134-4 and ISO/IEC 21836 have emerged.

Both standards are focused on the evaluation of physical servers, taking into account the power consumed and

the maximum peak of performance, under running a SPEC benchmark. In this way, the server consolidation

through virtualization is not considered in these standards, being the consolidation of servers as one of the

most applied techniques to improve energy efﬁciency in cloud data centres. This work proposes an extension

of the methodology proposed in these standards to measure energy efﬁciency in consolidated servers. As a

result, it has been demonstrated through real experimentation that the proposed generical methodology con-

siders the consolidation of servers in any type of virtualization environment. This methodology helps system

administrators to manage cloud data centres and servers more efﬁciently.

1 INTRODUCTION

Currently, IT represents around 15% of the world-

wide emissions of greenhouse gas emissions. There

are a large number of contributors to these emissions,

but the main contributors to these emissions are cloud

data centres. Besides, the use of IT and data centres is

increasing day by day since the population is demand-

ing more services through the Internet and cloud. For

this reason, the performance demand for data centres

is increasing day by day.

Nevertheless, increasing the demand of data cen-

tres implies an increment in the power consumption

of data centres and, particularly, the servers that com-

pose them. Speciﬁcally, the physicals servers are the

most power-demanding devices, demanding 50% of

the power of the whole cloud data centre. On this

point, it is important to highlight that the reduction

in power consumption in cloud data centres can be

achieved by lowering the server’s performance. How-

ever, if users’ services or applications consume more

https://orcid.org/0000-0001-6517-5395

https://orcid.org/0000-0002-9283-2378

https://orcid.org/0000-0002-2998-4950

https://orcid.org/0000-0002-9403-111X

time to be performed due to lowering the server’s

performance, the servers will consume more energy.

Then, cloud data centres aim to maximize energy efﬁ-

ciency without interfering with performance, ﬁnding

a trade-off between them.

1.1 Server Consolidation

To achieve better energy efﬁciency in cloud data cen-

tres, the Green IT techniques appeared several years

ago, the server consolidation is one of the most im-

portant techniques with this aim (Juiz and Bermejo,

2020). The server consolidation is based on allo-

cating the maximum workload possible in the mini-

mum number of physical servers. Then, by group-

ing the workload, under-used physical servers can be

switched off, saving in power consumption.

1.2 ISO/IEC 30134-4

The ISO/IEC 30134-4 is a standard that speciﬁes data

centre energy effectiveness KPIs to help cloud data

centre operators measure and improve speciﬁc as-

pects of energy effectiveness. Speciﬁcally, this stan-

dard provides a metric, called ITEEsv, reﬂecting the

energy effectiveness capability of servers (ISO/IEC,

Juiz, C., Bermejo, B., Fernández-Montes, A. and Fernández-Cerero, D.

Towards a General Metric for Energy Efﬁciency in Cloud Computing Data Centres: A Proposal for Extending of the ISO/IEC 30134-4.

DOI: 10.5220/0012707600003711

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 14th International Conference on Cloud Computing and Services Science (CLOSER 2024), pages 239-247

ISBN: 978-989-758-701-6; ISSN: 2184-5042

239

2017). ITEEsv deﬁnes the method to obtain average

energy efﬁciency for servers. Also, the scope of this

metric is reduced to physical servers. It is not consid-

ering the server consolidation. Moreover, this metric

is calculated based on a SPEC benchmark. Then, this

standard does not consider other current benchmarks

or workloads, such as CPU or micro-services-based

workloads. Besides, the consolidation is not consid-

ered in any case in this standard. Consequently, there

is no standard considering server consolidation to bal-

ance energy efﬁciency and performance degradation.

1.3 ISO/IEC 21836

The ISO/IEC 30134 series speciﬁes data centre en-

ergy efﬁciency KPIs to help data centre operators

measure and improve speciﬁc aspects of data cen-

tre energy effectiveness. ISO/IEC 30134-4 in par-

ticular deﬁnes a method to measure the peak capac-

ity and utilization of servers operating in a data cen-

tre using operator-selected benchmarks. However, it

does not provide a method for comparing individual

server energy efﬁciency across data centres, as stated

in ISO/IEC 30134-4. The standard ISO/IEC 21836

provides a server energy efﬁciency metric (SEEM) to

measure and report the energy effectiveness of spe-

ciﬁc server designs and conﬁgurations.

Since the ISO/IEC 30134-4 does not provide a

method for comparing individual server energy efﬁ-

ciency across data centres, the ISO/IEC 21836 ap-

pears to ﬁll the mentioned gap (ISO/IEC, 2020). Even

though the ISO/IEC 21836 provides a methodology

to measure energy efﬁciency in data centres, it is not

devoted to virtualization. That is, this standard does

not consider the server consolidation server. Then, it

lacks one of the main features of current data centres.

2 SERVERS ENERGY

EFFICIENCY METRICS

2.1 Energy-Delay Product (EDP)

The Energy-Delay Product (EDP) considers the total

energy consumption of cores and the amount of time

for executing applications (Gonzalez and Horowitz,

1996). Then, the EDP is calculated as the product

of the energy consumption and the response time.

It is important to note that the EDP, originally, was

created for microprocessors. But it can be also ap-

plied to servers, where the energy consumption corre-

sponds to the energy consumed by the physical server

performing a workload; and the response time corre-

sponds to the needed time to execute the work.

2.2 CiS

Index

The CiS

is a metric aiming to quantify the “good-

ness” of a consolidation conﬁguration (Juiz and

Bermejo, 2020). That is, it measures the trade-off be-

tween the energy consumption and the performance

degradation of a physical server which is consolidat-

ing a set of virtual machines (or containers) (Juiz and

Bermejo, 2024).

Since the trade-off is based on the comparison be-

tween a physical server and the same physical server

with virtual machines consolidated, the CiS

is calcu-

lated as Eq. 1 shows.

CiS

= SP

· SP

(1)

Where the SP

is the speed-up of the performance

of consolidating a server, and the SP

is the ratio of

the energy consumption of the physical server and the

consolidated one.

Considering this deﬁnition, the CiS

metric can be

applied to any type of server, any type of workload

nature, and any virtualization platform.

2.3 ITEEsv Index

ITEEsv is a metric that describes the maximum per-

formance per kW of all servers or a group of servers in

the data centre based upon a speciﬁcation or potential

performance of these servers (ISO/IEC, 2017). Then,

the server energy effectiveness is a combination of the

capacity to do work per unit energy (capability), the

amount of time the server is doing work (utilization),

and the ability of the server to reduce the energy use

when the workload is reduced (power management).

The ITTEsv metric is calculated as Eq. 2 shows.

IT EE

v =

∑

i=1

SMPE

∑

i=1

SMPO

(2)

Where SMPE

is the maximum performance of

a server i, and, SMPO

is the maximum power con-

sumption of a server i. For this metric, the maximum

performance is obtained from a speciﬁc benchmark

execution, which is based on transactional workload,

being the throughput of the performance metric.

2.4 Relation Between Metrics

In this work, some statements regarding the metrics

should be considered:

• The metric of ITTEsv is to provide the rela-

tionship between the maximum performance and

the maximum power consumption of a physical

server. In any case, the virtualization is not con-

sidered in this metric.

CLOSER 2024 - 14th International Conference on Cloud Computing and Services Science

240

• The ITTEsv considers a transactional-based

workload. Then, if the server workload has a

different nature, the metric calculation should be

modiﬁed. For example, if the workload is CPU-

based and the maximum performance is measured

in time units, the maximum performance should

be calculated as

∑

i=1

SMPE

(time and throughput

are inverse). Besides, for this metric, the max-

imum power consumption is expressed in kilo-

watts.

• As the ITEEsv shows, it does not consider en-

ergy consumption. It just considers the power

consumed by a speciﬁc scenario of the physical

servers. Considering only the maximum power

consumption (or the power consumption) is not

realistic at all. For this, considering the energy

consumption would be more suitable.

• If we want to use the ITEEsv to compare the phys-

ical server and the consolidated one, it is neces-

sary to use the following algebra, where “c” cor-

responds to the consolidated server and “p” corre-

sponds to the physical one (see Eq. 3).

IT EE

power

· power

(3)

• The EDP metric considers energy consumption.

Nevertheless, in the same manner, as ITEEsv, the

EDP considers the state of the energy consump-

tion and the performance of a system in a speciﬁc

time and conditions. For this reason, the EDP is

not suitable for comparing different scenarios for

server consolidation. If we would like to compare

different scenarios of server consolidation, the use

of the CIS

provides the relation with EDP (see

Eq. 4).

CiS

= S

· S

· power

EDP

(4)

3 THEORETICAL VIEW OF THE

METRICS

To evaluate the EDP, the CiS

, and the ITEEsv metrics

in a theoretical manner, we proceed to take into ac-

count the index and metrics requirements deﬁnitions

from (Potts, 2012), and then, apply them to our set of

metrics (Juiz and Bermejo, 2020).

These requirements are: quantiﬁability, sensitiv-

ity, linearity, reliability, efﬁciency, and improvement

oriented. It is important to highlight that in this pa-

per, a change in the system’s state is a variation in the

number of consolidated virtual machines/containers.

After performing this analysis, we can state that

all the metrics meet the requirements for being a suit-

able metric. Nevertheless, from the semantic point of

view, the ITEEsv and EDP metrics do not reﬂect the

reality of performance and energy trade-offs in server

consolidation. Consequently, the CiS

index is the

most suitable metric for this aim.

4 CURRENT METHODOLOGY:

EVALUATION OF ITEESV

METRIC

In this section, we attempt to demonstrate if the

ITEEsv is suitable for server consolidation from the

empirical point of view.

4.1 Experimental Setup

The experiment methodology is based on the compar-

ison of CPU-intensive workloads (Juiz et al., 2023),

in this case, the Sysbench benchmark (Casalicchio,

2019). Besides, the workload is distributed in a bal-

anced manner over N physical machines against the

same workload distributed over N virtual machines or

containers consolidated in a single physical machine

(see Figure 1). The comparison is done in terms of

the ITEEsv metric.

Figure 1: Workload execution comparison.

In this work, they take the system under test (SUT)

as a black box, applying benchmarking and moni-

toring as performance engineering techniques ((Jain,

1991), (Molero et al., 2004)). The SUT executes the

workload, and its performance and power consump-

tion are monitored during the execution. We selected

the response time as a performance metric. Also, the

experiment setup is as follows:

• Server: Dell Power Edge T430. Number of CPUs

16, 8GB RAM size, and Ubuntu Server 16.04 as

OS.

Towards a General Metric for Energy Efﬁciency in Cloud Computing Data Centres: A Proposal for Extending of the ISO/IEC 30134-4

241

Table 1: ITEEsv value for physical machines.

N R (s) 1/R (max perf) Power (KW) Energy (W·s) ITEEsv

1 24,2532 0,04123 0,0937 2272,6218 0,440020

2 9,2707 0,1078 0,1871 1735,4101 0,576233

3 5,2972 0,1887 0,2804 1485,7390 0,673066

4 3,5626 0,2806 0,3712 1322,5724 0,756102

5 2,6253 0,3809 0,4635 1216,8265 0,821810

6 2,0386 0,4905 0,5560 1133,6161 0,882133

7 1,5668 0,6382 0,6509 1019,9209 0,980468

8 1,3093 0,7637 0,7441 974,3433 1,026332

9 1,1296 0,8852 0,8374 945,9438 1,057145

• Power meter: we measured the power consump-

tion of the SUT with a Chroma 66200 device.

• Virtual Machine Monitor: Kernel-based Virtual-

ization (KVM) (Type-I), Virtual Box (Type-II),

and Docker (container-based).

• Virtual Machines and containers: Ubuntu 16.04,

1GB of RAM, and the same number of physical

CPUs, in any case.

4.2 ITEEsv for Physical Machines

In Table 1 we can observe the behaviour of N

parallel physical machines executing a workload in

a distributed manner. When the number of dis-

tributed physical machines, the mean response time

decreases. Then, the performance is increasing. Be-

sides, when the number of distributed physical ma-

chines increases, the power consumption increases in

the same manner.

Since the performance is measured in time units

instead of throughput, the ITEEsv metric was calcu-

lated considering the maximum performance as the

inverse of the mean response time.

Then, when the number of physical machines in-

creases, the performance also increases, as a result,

the ITEEsv value grows among the number of physi-

cal machines.

4.3 ITEEsv for Consolidated Virtual

Servers

4.3.1 Type-I Hypervisor

In Table 2, we depict the behaviour of the mean re-

sponse time of N virtual machines consolidated in one

physical machine. In this case, the consolidation is

done by a Type-I hypervisor, achieving less overhead

than other solutions (Bermejo and Juiz, 2022). In this

case, the workload is distributed among the virtual

machines, with the portion of the load to be executed

being smaller as the number of consolidated machines

increases.

As the number of consolidated machines in-

creases, performance increases. On the other hand,

Table 2: ITTEsv for Type-1 consolidation.

N R (s) 1/R (s

−1

) Power (KW) Energy (W·s) ITEEsv

1 25,42600 0,0393 0,1113 2831,4139 0,353180

2 19,2885 0,0518 0,1118 2156,6086 0,463691

3 15,8380 0,0631 0,1126 1784,7842 0,560292

4 13,9777 0,0715 0,1111 1554,0182 0,643493

5 12,5415 0,0797 0,1112 1395,0098 0,716841

6 5,1560 0,1939 0,1089 561,8493 1,779837

7 5,0785 0,1969 0,1048 532,6507 1,877403

8 2,8964 0,3452 0,1044 302,4701 3,3061

9 2,2928 0,4361 0,0977 224,0304 4,4636

the power consumed by the physical machine remains

stable, since there is always a single physical machine

to consolidate the virtual machines.

In the ITEEsv we can see how its value increases

as the degree of parallelism increases. However, its

behaviour is different from the ITEEsv calculated for

the physical machine (without consolidation). In this

case, practically only the value of performance varies,

with the value of the power consumed being constant.

In this way, the value of the ITEEsv increases (to a

greater extent than in the case of the physical ma-

chine) as the degree of consolidation increases.

At this point, it is important to answer the follow-

ing question: could we use the ITEEsv metric to com-

pare different consolidation conﬁgurations of virtual

machines?

Considering the ITEEsv metric deﬁnition, it

shows the relationship between the maximum per-

formance and the maximum peak power consumed.

If the aim is to compare the physical server with

the consolidated one, it is necessary to divide the

ITEEsv(type-I) by the ITEEsv(physical server).

In Figure 2 we can observe the relationship

between the ITEEsv of physical and consolidated

servers, and each one separately. For each number of

physical machines and consolidated virtual machines,

the ITEEsv value is depicted. Regarding the ITEEsv

relationship, we only see how the consolidated server

behaves concerning the physical server, for a given

conﬁguration.

When N > 6, the ITEEsv of the consolidated

server is greater than the ITEEsv of the physical

server, that is, the ITEEsv of the consolidated server

is greater than that of the physical server. This means

that, in these cases, the consolidated server consumes

less electrical power than the physical server.

In addition, when N ≤ 6 the ITEEsv of the phys-

ical server is lesser than the ITEEsv of the consoli-

dated server. This is because the performance of the

physical server is much better than the performance

of the consolidated server, for a speciﬁc case.

Regarding the ratio between the ITEEsv, from Ta-

ble 3 we can extract what relationship there is be-

tween a degree of parallelism represented in physical

or virtual machines. However, the ITEEsv does not

CLOSER 2024 - 14th International Conference on Cloud Computing and Services Science

242

provide information on whether it is more suitable to

consolidate the workload on virtual machines or not.

This is because the ITEEsv does not consider the en-

ergy, and only takes into account the maximum peak

power and performance but does not take into account

the entire workload execution time.

Figure 2: Relationship between ITEEsv of physical and vir-

tual machines.

Table 3: ITEEsv ratio.

N ITEEsv(PM) ITEEsv(T-1) Ratio

1 0,4400 0,3531 0,8026

2 0,5762 0,4636 0,8046

3 0,6730 0,5602 0,8324

4 0,7561 0,6434 0,8510

5 0,8218 0,7168 0,8722

6 0,8821 1,7798 2,0176

7 0,9804 1,8774 1,9148

8 1,0263 3,3061 3,2212

9 1,0571 4,4636 4,2223

4.3.2 Type-II Hypervisor

Table 4 shows the behaviour of a physical machine

with N consolidated virtual machines using a Type-

II hypervisor. Also, the workload is distributed and

executed proportionally. In this way, the workload is

distributed among all the consolidated machines, with

the portion of the load to be executed being smaller as

the number of consolidated machines increases.

As the number of consolidated machines in-

creases, performance also grows. Nevertheless, the

power consumed by the physical machines remains

stable, due to there is always a single physical ma-

chine allocating all the consolidated virtual machines.

4.3.3 Type-I and Type-II Hypervisor

Comparison

Once we obtain the values of the ITEEsv for Type-I

and Type-II hypervisors, it is important to determine

Table 4: ITTEsv for Type-II consolidation.

N R (s) 1/R (s-1) Power (KW) ITEEsv

1 26,2150 0,0381 0,0934 0,4082

2 10,0690 0,0993 0,0938 1,0581

3 5,8810 0,1700 0,0937 1,8134

4 3,9040 0,2561 0,0930 2,7535

5 2,8750 0,3478 0,0929 3,7407

6 2,3030 0,4342 0,0930 4,6647

7 1,7330 0,5770 0,0929 6,2108

8 1,4780 0,6765 0,0935 7,2329

9 1,2840 0,7788 0,0930 8,3661

Table 5: Comparison between ITEEsv in Type-I and Type-

II hypervisors.

Type-I Type-II

N R (s) 1/R (s

−1

) Power(KW) ITEEsv R (s) 1/R (s

−1

) Power (KW) ITEEsv

1 25,4260 0,0393 0,1113 0,3531 26,2150 0,0381 0,0934 0,4082

2 19,2885 0,0518 0,1118 0,4636 10,0690 0,0993 0,0938 1,0581

3 15,8380 0,0631 0,1126 0,5602 5,8810 0,1700 0,0937 1,8134

4 13,9777 0,0715 0,1111 0,6434 3,9040 0,2561 0,0930 2,7535

5 12,5415 0,0797 0,1112 0,7168 2,8750 0,3478 0,0929 3,7407

6 5,1560 0,1939 0,1089 1,7798 2,3030 0,4342 0,0930 4,6647

7 5,0785 0,1969 0,1048 1,8774 1,7330 0,5770 0,0929 6,2108

8 2,8964 0,3452 0,1044 3,3061 1,4780 0,6765 0,0935 7,2329

9 2,2928 0,4361 0,0977 4,4636 1,2840 0,7788 0,0930 8,3661

if the ITEEsv metric could be used to compare both

hypervisors. That is, to answer the following ques-

tion: Could we determine which hypervisor is more

suitable to consolidate using the ITEEsv metric?

Table 5 shows the data for Type-1 and Type-II

hypervisors: response time, maximum performance

(1/R), power consumption, and the ITEEsv, calcu-

lated from the maximum performance and power con-

sumption.

Regarding the response time, we can observe that

the Type-II hypervisor is lower than that of Type-1.

Therefore, the performance of Type II is better than

the performance of Type I. From the power consump-

tion point of view, the server with a Type-I hypervisor

consumes more than the server with a Type-II hyper-

visor. Then, under these conditions, the ITEEsv of

the server with Type-II hypervisor is higher than the

ITEEsv of the server with Type-I.

If we want to compare the consolidated server

with Type-I and with Type-II, we could only use the

ITEEsv metric to compare with the given number of

consolidated virtual machines. As in the previous

case, this comparison would be made without con-

sidering energy consumption, disregarding the tem-

poral behavior of power consumption. In this way, we

could not determine the suitability of one hypervisor

or another to consolidate virtual machines.

As a conclusion, the ITEEsv metric is not suitable

for the comparison between Type-I and Type-II con-

solidation.

Towards a General Metric for Energy Efﬁciency in Cloud Computing Data Centres: A Proposal for Extending of the ISO/IEC 30134-4

243

Table 6: ITEEsv for container consolidation.

N R 1/R Power (KW) ITEEsv

1 247,6244 0,0040 0,0965 0,0418

2 95,0726 0,0105 0,0963 0,1091

3 53,7403 0,0186 0,0965 0,1927

4 32,6270 0,0306 0,0964 0,3177

5 23,9344 0,0417 0,0970 0,4306

6 18,5042 0,0540 0,0980 0,5512

7 10,6251 0,0941 0,0984 0,9561

8 8,7577 0,1141 0,0980 1,1643

9 6,5180 0,1534 0,0970 1,5812

4.3.4 Container-Based Hypervisor

Consolidation

In previous sections, we considered the Type-I and

Type-II hypervisors for server consolidation. How-

ever, since the containers are used as a lightweight al-

ternative to consolidate servers, it is important to con-

sider them in this paper.

In Table 6, the performance, the power consump-

tion, and the ITEEsv metric are shown in container

consolidation. As the number of containers increases,

the mean response time decreases. As a consequence,

the performance increases due to the workload being

divided among the number of containers increases. In

any case, the performance of containers is worse than

Type-I and Type-II consolidation due to the overhead

(Bermejo and Juiz, 2022).

Regarding the power consumption, we can ob-

serve that its value remains constant among the dif-

ferent numbers of containers. Moreover, considering

the maximum performance and the maximum power

consumption, the ITEEsv metric is also shown in Ta-

ble 5.

To compare the ITEEsv from the three different

ways to consolidate we can observe the results de-

picted in Figure 3. Since the containers have the worst

performance, the ITEEsv values are smaller than the

Type-I and Type-II. In addition, Type-I’s performance

is worse than the Type-II’s performance. Then, the

ITEEsv of Type-II is higher than the Type-I ITEEsv

value, for any number of consolidated virtual ma-

chines or containers.

In the same manner, if we want to compare the

consolidated server with Type-I, Type-II, and contain-

ers, we could only use the ITEEsv metric to compare

with the given number of consolidated virtual ma-

chines. As in the use of virtual machines, this com-

parison would be made without considering energy

consumption, disregarding the temporal behaviour of

power consumption. In this way, we could not de-

termine the suitability of one hypervisor or another

to consolidate virtual machines or containers. There-

Figure 3: ITEEsv of Type-I, Type-II and containers.

fore, the ITEEsv metric is not suitable for the compar-

ison between Type-I, Type-II, and container consoli-

dation.

5 PROPOSED METHODOLOGY

In this section, we proposed a generic methodology to

measure the energy efﬁciency in server consolidation

based on the CiS

metric (Juiz and Bermejo, 2020).

As (Juiz and Bermejo, 2020) states, the CiS

metric

quantiﬁes the performance-energy trade-off of server

consolidation, helping system administrators to de-

cide about the servers’ efﬁciency through benchmark-

ing.

The general methodology is composed of the fol-

lowing phases. It is important to highlight that the

workload execution in physical and virtual machines

(or containers), was done following the architecture

depicted in Figure 1.

• Phase 1: Set up the physical machines. In this

stage, the physical machine should be set up with

the corresponding workload.

• Phase 2: execution in physical machines with

monitoring. After the set-up, the workload di-

vision starts with its execution. In parallel, the

monitoring system starts to recover data from the

performance and the power consumption. All of

these data should be stored to be used in the last

stage of this methodology.

• Phase 3: Set up the virtual machines or contain-

ers in the same physical machine. At this point,

we will use the same physical machine as the pre-

vious one. However, deploying a set of virtual

CLOSER 2024 - 14th International Conference on Cloud Computing and Services Science

244

machines or containers is necessary to execute the

workload.

• Phase 4: execution in virtual machines or contain-

ers with monitoring. After the set-up, the work-

load division starts with its execution in the virtual

machines or containers. In parallel, the monitor-

ing system starts to recover data from the perfor-

mance and the power consumption. It is impor-

tant to highlight that the performance is measured

from the virtual machines or containers, but the

power consumption is monitored from the physi-

cal machine. All of these data should be stored to

be used in the last stage of this methodology.

• Phase 5: C iS

calculation and compassion. After

the workload execution in the physical machines

and the consolidated one, the CiS

index is calcu-

lated as Eq. 5 shows.

CiS

(5)

In this stage, the CiS

can be calculated using the

EDP metric as Eq. 6 depicts.

CiS

EDP

(6)

For any number of consolidated machines, a CiS

in-

dex is obtained. Moreover, the CiS

index can be rep-

resented graphically as Figure 4a shows. Also, it is

important to note that the CiS

index has a reference

diagonal aiming to represent the ideal case for consol-

idation: the linearity of performance and energy (Juiz

and Bermejo, 2020). If the value CiS

index is on the

diagonal, it means that this consolidation conﬁgura-

tion is the ideal one.

Nevertheless, the values in the green area indicate

that the consolidation is efﬁcient. On the contrary,

the CiS

values in the red area are not efﬁcient for

server consolidation. Also, the position in the area in-

ﬂuences the efﬁciency or the inefﬁciency of the C iS

value. For example, in Figure 4b, there are four rep-

resented points. Considering the reference diagonal,

the point 2 is more efﬁcient than the point 1. How-

ever, the point 4 is more inefﬁcient than the point 3.

5.1 Application of the Methodology to

Virtual Machines

After proposing the methodology, it is important to

evaluate it using the same physical servers, virtual

machines, and containers as the previous ITEEsv

evaluation.

For the case of virtual machines, in Figure 5 the

CiS

values are depicted for the Type-I and Type-II

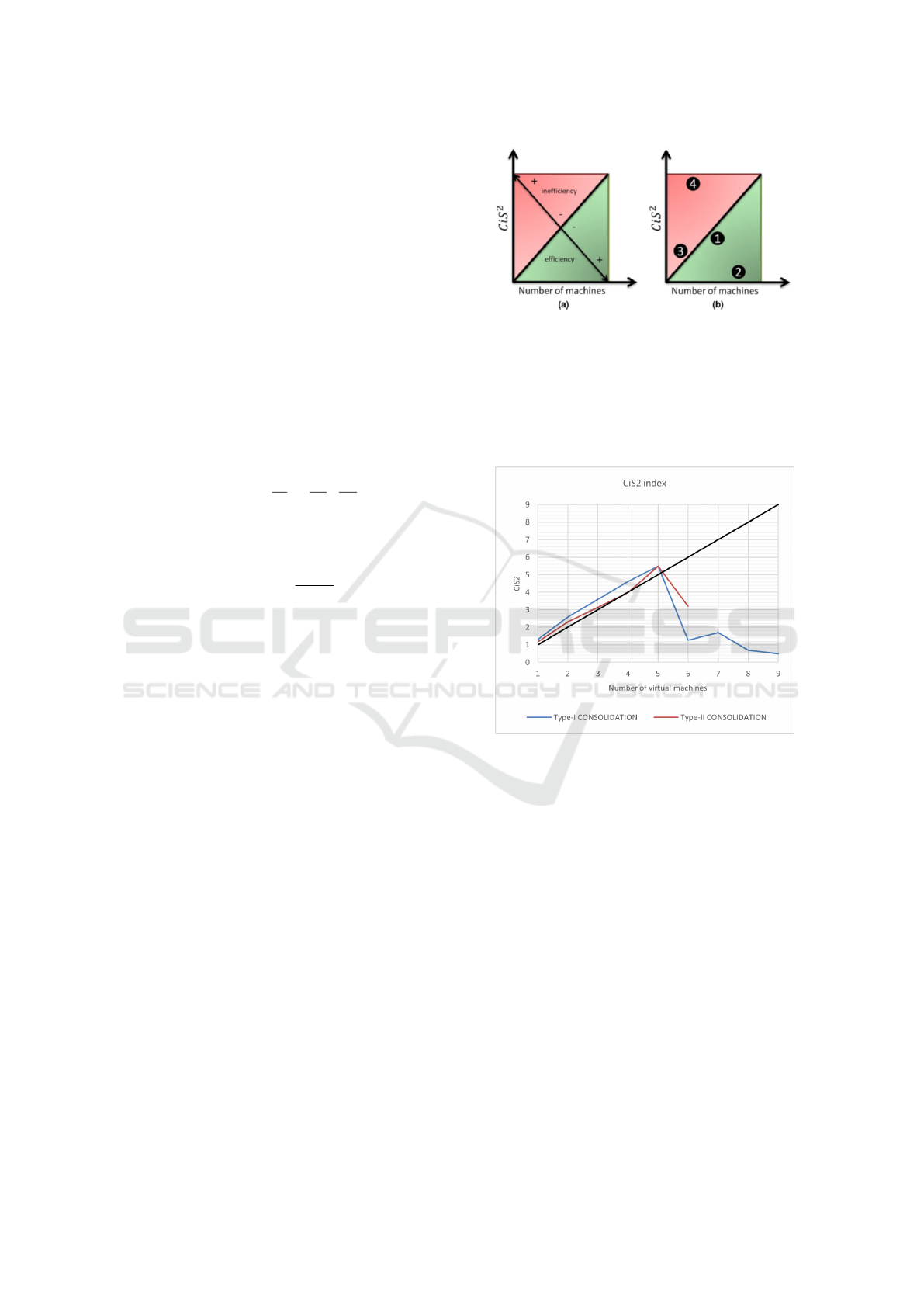

Figure 4: CiS

index graphical representation.

hypervisor. We can observe that for every number of

consolidated virtual machines, there is a correspond-

ing value of the CiS

index. For example, 6 consoli-

dated virtual machines are more efﬁcient in terms of

performance and energy efﬁciency using Type-I hy-

pervisor.

Figure 5: CiS

index for virtual machines.

5.2 Application of the Methodology to

Containers

Moreover, it is important to consider server consoli-

dation using containers. In Figure 6 we can observe

the value of the CiS

index for any number of consol-

idated containers in a physical machine. In this case,

we can observe that the container consolidation is not

efﬁcient, since all the CiS

values are in the inefﬁcient

area.

6 DISCUSSION

Once the evaluation of the ITEEsv metric has been

carried out and an alternative methodology has been

proposed using the existing CiS

metric, we can ob-

serve a series of phenomena to take into account.

Towards a General Metric for Energy Efﬁciency in Cloud Computing Data Centres: A Proposal for Extending of the ISO/IEC 30134-4

245

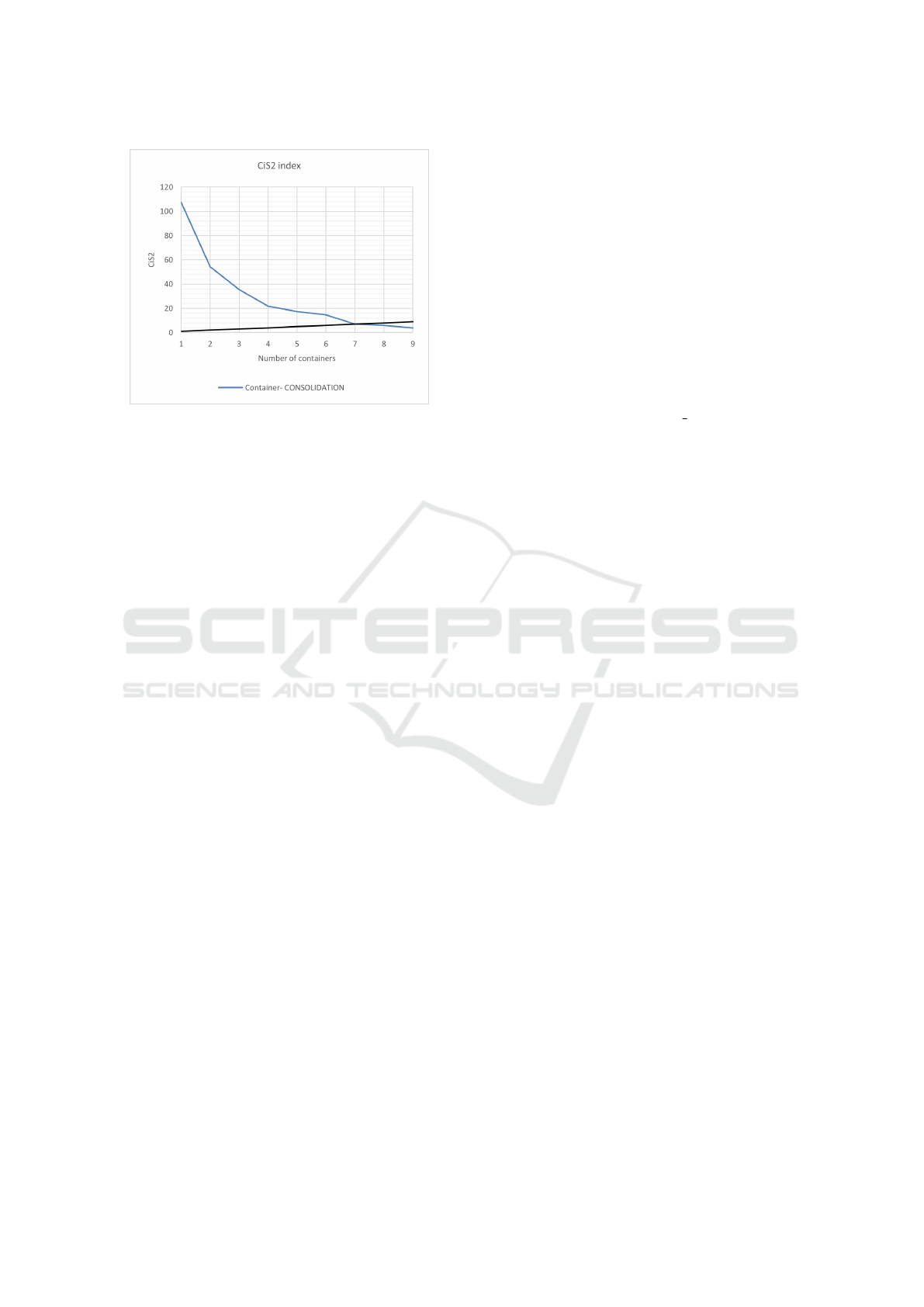

Figure 6: CiS

index for containers.

The ﬁrst is related to the advantages provided by

the proposed methodology. This is not restricted by

the use of any load (such as those of SPEC) but can

be applied to any work scenario. Even the type of

virtualization technology used is irrelevant. This is

because in this methodology the server is considered

as a black box.

The second fact is related to the application of the

methodology. Deploying virtual machines and con-

tainers has a higher cost than just working with phys-

ical machines. However, to deploy the scenario re-

quired to apply this methodology, it can be easily au-

tomated with current tools.

The last refers to the distribution of the load that

uses the proposed methodology. As has been seen,

it is necessary to use a load that can be distributed

among the N physical and virtual servers. However,

dividing the load is not a trivial task, and in this case,

it would be necessary to correctly select said load.

To conclude, we could say that although the de-

ployment of the proposed methodology requires some

investment, the truth is that by taking into account the

consolidation of virtual machines and containers, a

current need would be satisﬁed.

7 CONCLUSIONS AND FUTURE

WORK

Throughout this work, the current standards (ISO/IEC

30134-4 and ISO/IEC 21836) have been evaluated

to determine their suitability for the consolidation of

servers. It has been proven through real experimen-

tation that both standards are not suitable for server

consolidation.

As a result, a generic methodology based on the

calculation of the CiS

metric has been proposed to

cover this knowledge gap. In this way, the generic

methodology could be applied to any server consoli-

dation scenario.

As a line of future work, the formal standardiza-

tion of the proposed methodology stands out.

ACKNOWLEDGEMENTS

This research work is part of the

TED2021-132695B-I00 project, ﬁnanced by

MCIN/AEI/10.13039/501100011033 and by the

European Union ”NextGenerationEU”/PRTR.

This research is part of the project PID2021-

122208OB-I00, PROYEXCEL

00286 funded by

MCIN / AEI / 10.13039 / 501100011033 and by An-

dalusian Regional Government.

REFERENCES

Bermejo, B. and Juiz, C. (2022). A general method

for evaluating the overhead when consolidating

servers: performance degradation in virtual machines

and containers. The Journal of Supercomputing,

78(9):11345–11372.

Casalicchio, E. (2019). A study on performance measures

for auto-scaling cpu-intensive containerized applica-

tions. Cluster Computing, 22(3):995–1006.

Gonzalez, R. and Horowitz, M. (1996). Energy dissipation

in general purpose microprocessors. IEEE Journal of

solid-state circuits, 31(9):1277–1284.

ISO/IEC (2017). Iso/iec 30134-4:2017 information tech-

nology — data centres — key performance indicators

— part 4: It equipment energy efﬁciency for servers

(iteesv).

ISO/IEC (2020). Iso/iec 21836:2020 information technol-

ogy – data centres – server energy effectiveness met-

ric.

Jain, R. (1991). The art of computer systems performance

analysis: techniques for experimental design, mea-

surement, simulation, and modeling, volume 1. Wiley

New York.

Juiz, C. and Bermejo, B. (2020). The c i s 2: a new metric

for performance and energy trade-off in consolidated

servers. Cluster Computing, 23(4):2769–2788.

Juiz, C. and Bermejo, B. (2024). On the scalability of

the speedup considering the overhead of consolidat-

ing virtual machines in servers for data centers. The

Journal of Supercomputing, pages 1–49.

Juiz, C., Capo, B., Bermejo, B., Fern

andez-Montes, A., and

Fern

andez-Cerero, D. (2023). A case study of transac-

tional workload running in virtual machines: The per-

formance evaluation of a ﬂight seats availability ser-

vice. IEEE Access.

CLOSER 2024 - 14th International Conference on Cloud Computing and Services Science

246

Molero, X., Juiz, C., and Rode

no, M. (2004). Evalu-

aci

on y modelado del rendimiento de los sistemas in-

form

aticos. Pearson Educaci

on London.

Potts, P. J. (2012). Glossary of analytical and metrological

terms from the international vocabulary of metrology

(2008). Geostandards and Geoanalytical Research,

36(3):231–246.

Towards a General Metric for Energy Efﬁciency in Cloud Computing Data Centres: A Proposal for Extending of the ISO/IEC 30134-4

247
