HydroLab: A Versatile Hydroelectric Power Lab for Security Research

and Education

Sebastian Obermeier

1 a

, Giorgio Tresoldi

2 b

, Bernhard Tellenbach

2 c

and Vincent Lenders

2 d

Hochschule Luzern Informatik, Campus Zug-Rotkreuz, Suurstofﬁ 1, 6343 Risch-Rotkreuz, Switzerland

Cyber-Defence Campus, armasuisse Science and Technology, Feuerwerkerstrasse 39, 3603 Thun, Switzerland

Keywords:

Industrial Cyber Security, Substation Automation Systems, Cyber Security Testing Laboratory, Hydrolab.

Abstract:

We present our experiences with designing, building and operating a lab for critical infrastructure consisting

of a hydroelectric power plant for power generation and a substation automation system for the transfer of

energy. The lab is unique in that it serves a double purpose, providing opportunities for both education and

research. The paper outlines the architecture, hardware and software components of the lab and validates its

effectiveness through classroom teaching and participation in two hackathons. The lab’s ability to combine

real-world applications with hands-on learning makes it an essential resource for students and researchers

interested in critical infrastructure systems. The presented lab can aid in advancing the understanding and

development of these systems for cyber security purposes.

1 INTRODUCTION

In order to make the national infrastructure more re-

silient, it is crucial for future engineers to receive ed-

ucation in cyber security and to conduct research on

energy systems, especially on power generation and

the automation of substations, which are responsible

for the distribution of energy.

To enhance the learning experience and prepare

students and professional engineers for real-world

scenarios, we have designed and built a cyber secu-

rity lab for critical infrastructure that can be used at

the same time for education and research. The lab

utilizes actual elements to simulate a hydroelectric

power plant and a substation. This hands-on approach

allows for a more practical and accurate understand-

ing of the subject, as opposed to solely relying on sim-

ulated environments.

The main idea of the lab is to implement a mod-

ularized approach for cyber security controls within

critical infrastructure environments. It has several

components that resemble an end-to-end power sce-

nario, ranging from power generation to transmission.

https://orcid.org/0000-0003-2802-7427

https://orcid.org/0000-0001-5148-6803

https://orcid.org/0000-0002-5008-1107

https://orcid.org/0000-0002-2289-3722

1.1 Contributions

Beyond a previous contribution (Obermeier et al.,

2023), which focuses on recovery concepts for sub-

station automation labs, the main contributions of this

paper are:

• It presents the design, architecture and compo-

nents for a novel cyber security focused energy

lab that includes a hydroelectric and a substation

automation system. The lab is built with real au-

tomation hardware and integrated by professional

electrical engineers to ensure a maximum degree

of realism.

• It shows which training scenarios and exercises

have been integrated, including the setup of state-

of-the-art intrusion detection systems as learning

module.

• It evaluates the system through the use in two

hackathons and through classroom lectures, thus

showing the feasibility for both, education and re-

search.

2 RELATED WORK

Lab approaches for education and research exist, e.g.,

(Holm et al., 2015) has conducted a meta study on in-

622

Obermeier, S., Tresoldi, G., Tellenbach, B. and Lenders, V.

HydroLab: A Versatile Hydroelectric Power Lab for Security Research and Education.

DOI: 10.5220/0012713800003767

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 21st International Conference on Security and Cryptography (SECRYPT 2024), pages 622-627

ISBN: 978-989-758-709-2; ISSN: 2184-7711

dustrial control system lab setups. (Frank et al., 2017)

suggests a design life cycle concept for the creation

and also maintenance of testbeds. Our evaluation con-

ﬁrms that maintenance should not be underestimated

and resources should be planned.

In contrast to generic approaches like (Sauer

et al., 2019), which has developed a low cost indus-

trial testbed for research and education focusing on

generic automation systems, our approach focuses on

a real-world substation environment including real-

world devices and software.

Another testlab is described in (Ruhe and Roesch,

2019), whereas (R

osch et al., 2020) is a movable ex-

tension to focus on cyber security aspects. However,

the approach differs from our testlab as it is an all-

in-one solution while our focus is on a modular ap-

proach.

A literature survey for critical infrastructure cy-

ber training has been conducted by (Chowdhury and

Gkioulos, 2021).

Concerning power systems, (Yang et al., 2015)

presents an IEC 61850 based testbed for research pur-

poses including cyber security tests. This testbed,

however, does not include IEC 60870–5–104 commu-

nication towards a central SCADA system, which we

have included in our lab. The investigation of (Yang

et al., 2015) in 2015 revealed that several of the used

Intelligent Electronic Device (IED)s exhibit vulnera-

bilities. This problem has not been completely solved

until today - during a hackathon, we discovered three

previously unknown vulnerabilities in our testbed of

fully patched state-of-the-art IED.

In case of low budget, (Gunathilaka et al., 2016)

has created a software-based smart grid testbed. How-

ever, our experiments show that the use of real-world

hardware in testbeds is crucial, especially for cyber

security research as the behavior of hardware under

various attacks is difﬁcult to assess and simulate.

The National Institute of Standards and Technol-

ogy (NIST) recommends an industrial control sys-

tem cyber security lab setup in (Candell et al., 2015).

Their publication covers the lab setup and different

scenarios which can be acted out on the proposed in-

frastructure.

3 DESIGN GOALS

The design goals of our energy laboratory are to cre-

ate a mobile, miniaturized environment of a substa-

tion automation system that is realistic and extensi-

ble. The lab should be multi-purpose and capable of

supporting multiple users simultaneously. One impor-

tant aspect of the lab should be vulnerability research,

allowing for the identiﬁcation and analysis of poten-

tial weaknesses in the used energy systems. The lab

should also be able to serve as a demonstration tool,

showcasing the capabilities and features of various

energy systems to decision makers and other stake-

holders. To provide a comprehensive understanding

of energy security, the lab should combine both, vul-

nerable components and the latest secure hardware

and software, in order to allow users to ﬁnd known

weaknesses but also perform research on state-of-the-

art systems.

Additionally, the lab should have automated re-

covery capabilities to ensure that it can quickly re-

turn to normal operation after any disruptions or at-

tacks conducted by the users. Visual components, in

our case a water tank, should demonstrate the results

of successful attack scenarios that can be simulated

within the lab. Overall, the energy laboratory should

be designed to support a range of security awareness

and training objectives, providing a valuable resource

for engineers and decision makers working to secure

energy systems.

4 LAB STRUCTURE

The lab consists of two parts, a Power generation

system that is implemented through a hydroelectric

power plant, and a Power transmission system that is

implemented through a substation automation system.

While the Power generation part is a basic simula-

tion environment with known security vulnerabilities,

the Power transmission part, which is represented by

the substation automation system, is a state-of-the-art

system that is fully updated.

Figure 1: Picture of the hydro lab.

HydroLab: A Versatile Hydroelectric Power Lab for Security Research and Education

623

Figure 2: Schematics of the hydro lab.

4.1 Hydroelectric Power Plant

The hydroelectric part of the energy laboratory offers

an introduction to Operational Technology (OT) and

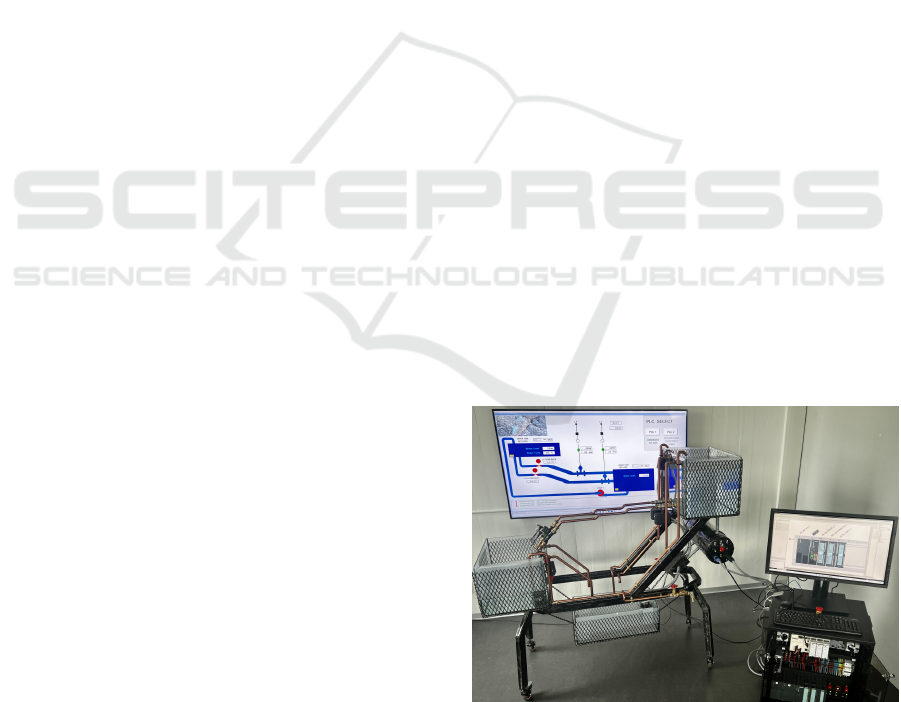

a picture is shown in Figure 1. It consists of a model

of a hydroelectric power station where water is stored

in a elevated reservoir. Upon release, the water trav-

els through pipes, turns a turbine, and generates elec-

tricity. When excess energy is available, the water is

pumped back up to the reservoir.

The physical setup using water tanks allows to ex-

perience the consequences of an attack, e.g. the over-

ﬂowing of one of the water tanks.

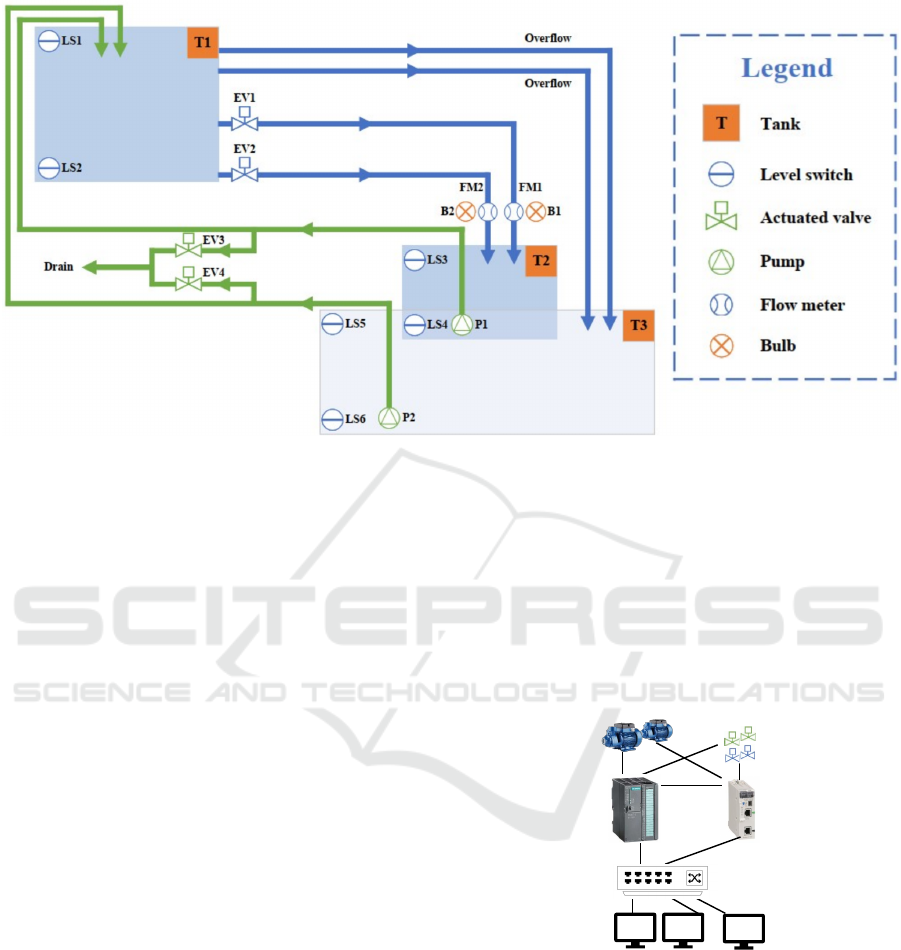

The schematics are illustrated in Figure 2. The

model includes three tanks which represent the lower

(T2) and higher elevation reservoirs (T1) plus an over-

ﬂow tank (T3).

The water in the higher reservoir can be released

by two separate electric gate valves (EV1 & EV2).

Water then ﬂows to the lower tank (T2) through

ﬂowmeters (FM1 & FM2), which simulate the turbine

through lighting bulbs (B1 & B2). The water can be

pumped from the lower tank (and from the overﬂow

tank) to the upper tank using a pumps (P1 & P2). Both

tanks are equipped with level sensors (LS3 & LS5)

to sense overﬂows. To avoid that water spills on the

ground during cyber attacks, we have added separate

overﬂow pipes.

4.1.1 Architecture

The overall architecture is illustrated in Figure 3. The

sensors and actuators are connected to a Siemens S7-

300 (PLC1 in the image) and a Schneider Electric

Modicon M340 (PLC2) which are programmed with

the same logic. Both PLCs are used to control two

pumps that control the water ﬂow. Both PLCs, as

well as the engineering workstation (Engg), the HMI

(based on Allen-Bradley FactoryTalk) and the substa-

tion automation system (SAS) are connected through

a Siemens SCALANCE XB208 Network switch.

PLC 2

PLC 1

HMI

Engg

Pump 1 & 2

Sensors &

Actuators

SAS

Network

Switch

Figure 3: Hydro lab architecture.

The system is designed to support two distinct

communication protocols to provide participants with

an opportunity to experience diverse implementations

while comprehending a single physical process. The

used protocols are Modbus for the M340 PLC and

S7comm for the S7-300.

The substation automation system (SAS) is con-

nected through the network switch, as illustrated in

the bottom right corner of Figure 3.

SECRYPT 2024 - 21st International Conference on Security and Cryptography

624

DOMOT / NCC

DOMPROD (Substation)

Hitachi / ABB

Switch Box

Process Level

Hitachi / ABB

RED670

Bay/Unit Level

Switch

Local SCADA

+ Tools

Station Level

XPG Gateway

FortiGate

Firewall

Simulated

WAN (IPSec)

Communication

Central

SCADA

Dispatching

XPG Gateway

FortiGate

Firewall

Omicron

StationGuard

Omicron

CMC 256

Figure 4: Conceptual Overview of the Substation System.

4.2 Substation Automation System

The goal of the substation automation system is to

create a complex, realistic system that mimicks a real-

world installation. It does not contain a physical vi-

sualization, but utilizes an accurate conﬁguration and

system. It is secure-by-design through the use of lat-

est standards, ﬁrewalls, segmentation, IDS, etc. It in-

volves recovery and reset options into deﬁned states

according to (Obermeier et al., 2023). Therefore, the

system allows for reproducible, complex, and realistic

exercises.

Figure 4 illustrates an overview of our substa-

tion system. The left blue box denotes the substa-

tion (DOMPROD), while the right box symbolizes

the network control center (DOMOT/NCC). The left-

most red box illustrates the process level, simulated

through an ABB Switch Box, which is capable of

replicating the states of circuit breakers, switchgears

and other ﬁeld components. The RED670 IED on

Bay Level is employed for the protection, monitor-

ing, and control of overhead lines and cables. The

Omicron CMC256 is connected to the RED670 to

simulate overcurrents, which may arise from light-

ning strikes on power lines. The managed switch,

equipped with a monitoring port, mirrors all trafﬁc to

the Omicron StationGuard IDS on the station level.

That level also accommodates the local SCADA sys-

tem, as well as supplementary tools. The Fortigate

Firewall safeguards the substation from the wide area

communication network, which is simulated through

IPSec as VPN technology. The counterpart symbol-

izes the network control center, inclusive of the cen-

tral SCADA system.

4.2.1 Architecture

The lab network layout is illustrated in Figure 5. Each

computer icon represents a virtual machine. The

Omicron CMC 256 is not included in this ﬁgure be-

cause it is not connected to the network but directly to

the IED.

While we have virtualized the IT hardware, the

industrial components are bound to their dedicated

hardware.

5 EVALUATION AND

LESSONS-LEARNED

To evaluate the lab, we created two scenarios: a class-

room setting and a hackathon experience. To answer

the question whether it is possible to master a com-

plex, multi-component technology, we have utilized

lab exercises. To examine the extent to which partici-

pants are able to apply their knowledge independently

and perform research, we have utilized a hackathon

setting. Furthermore, we evaluated the potential of

combining vulnerable components for early success

(e.g. known vulnerabilities through the use of weak

protocols) with more sophisticated state-of-the-art se-

curity challenges.

5.1 Evaluation in Classroom

The use of a substation laboratory in a classroom set-

ting allows students to apply theoretical concepts to

real-world situations, leading to a deeper understand-

ing of the system. Furthermore, the hands-on experi-

ence in the lab also improves problem-solving skills,

as students are able to experiment and test different

solutions.

Concretely, we have implemented several exercises in

our lab:

Protection of the Power Grid. In this exercise, stu-

dents focus on the general operation of the power grid

and start with learning about the different protection

functions and their use in power networks. In the

practical part, they we will use the Omicron CMC256

to test the protection functions and evaluate the re-

closing feature that can automatically re-establish a

power grid.

Operation. Students learn about how to switch, rec-

ognize alarms, and set parameters. In the practical

portion, focus is on the IEC61850 protocol and how

Layer 2 Messages are used. Tools for monitoring

OT protocols and how to interpret the data are intro-

duced as well. Additionally, the use and monitoring

of IEC60870-5-104/101 is covered.

Cyber Security Maturity Assessment. In this exer-

cise, students focus on evaluating the cyber security

maturity and creating a catalog of cyber measures.

First, they analyze the IP concept and network dia-

gram, create a maturity table and risk assessment fol-

lowing the NIST framework (Barrett, 2018).

HydroLab: A Versatile Hydroelectric Power Lab for Security Research and Education

625

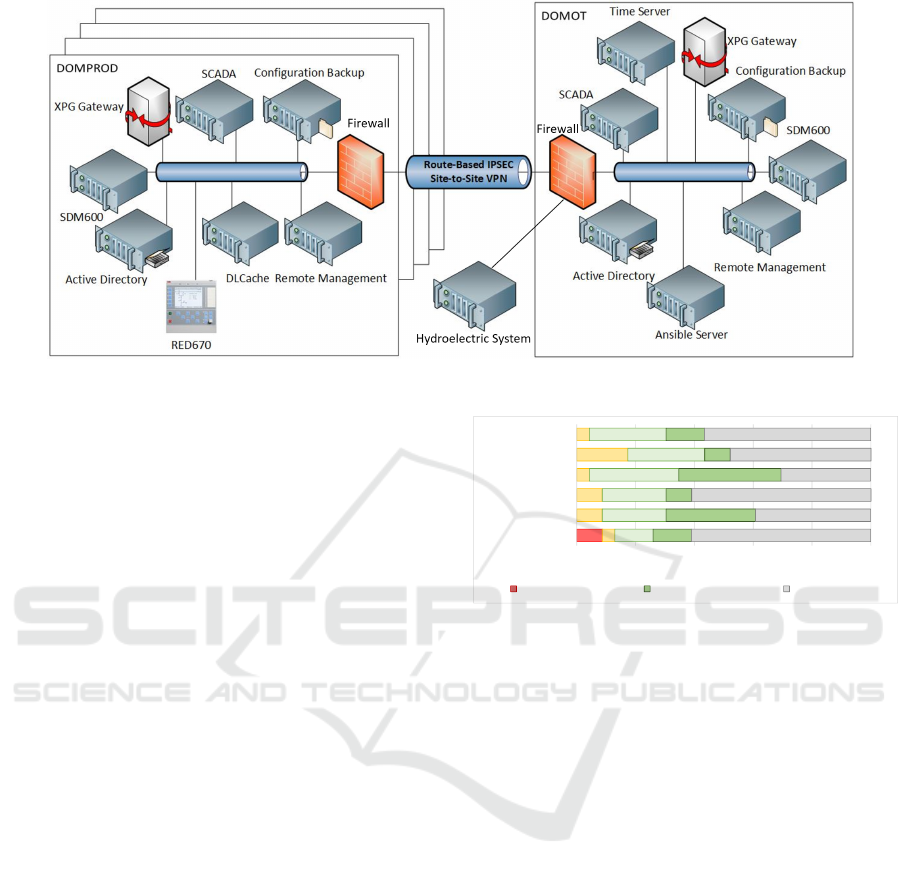

Figure 5: Network Layout of the Substation System.

Cyber Measures. A catalog of cyber measures is

created in this exercise including a revision of the net-

work segmentation. In the practical portion, the de-

ﬁned measures in the network are implemented, in-

cluding a proper segmentation. Additionally, the con-

ﬁguration of the affected components is improved and

veriﬁed.

IDS. After evaluating different concepts of IDS and

methods integration, students integrate the Omicron

StationGuard IDS practically and test its detection ca-

pabilities by executing the following attacks: Packet

Injection, DoS, and Password Brute Force.

After the classroom has been completed, which

consisted of 6 days with 6 lectures each, we have con-

ducted a survey among the 15 participating students.

We have received feedback from 8 participants. All

students reported that the lab was worth their time

and effort. Some students felt that the workload was

high, due to the required preparation and reading be-

fore and after the lab sessions. Three students would

like to have even more exercises. Despite this, the

results of the lab indicate that the students learned a

signiﬁcant amount from the experience. Overall, the

lab was deemed completely satisfactory by seven par-

ticipants.

Anecdotal evidence also supports the beneﬁts of a

substation laboratory in the classroom. For example,

students who have participated in laboratory sessions

in a substation setting have reported a greater under-

standing of the material and a higher level of engage-

ment in the class. One student went on to a career

as a cyber security engineer for a utility. His em-

ployer reported that the on-boarding was exception-

ally short. In addition, students who participated later

in the hackathon and had experience in a substation

lab demonstrated higher levels of success and were

8,7%

17,4%

13,0%

21,7%

30,4%

26,1%

13,0%

30,4%

8,7%

34,8%

8,7%

13,0%

60,9%

39,1%

60,9%

30,4%

47,8%

56,5%

0% 20% 40% 60% 80% 100%

Hydro-Model

IDS

Firewall

ABB IED

XPG Gateway

Siemens IED

1 = Not useful at all 5 = Extremely useful 0 = Not stated

Figure 6: Usefulness of the Infrastructure.

better able to apply their knowledge to the competi-

tion.

5.2 Evaluation at Hackathons

The complete lab was evaluated through two 4-5 day

hackathons, which took place in September 2022 and

2023, respectively, with more than 30 participants

from various private, military and governmental or-

ganizations. The participants were split up into cross-

functional teams, each with different focal points in

the area of attack, digital forensics & intrusion detec-

tion, and reverse engineering.

The laboratory was used throughout the

hackathons, allowing its participants to identify

different vectors of attack on industrial control sys-

tems and carry out attacks themselves in the different

parts of the laboratory. The participants appreciated

the opportunity to be able to work on a concrete

system resembling a real world setup.

To evaluate its usefullness, we created a survey of

24 quantitative and qualitative questions. 23 partici-

pants of the ICS Hackathon completed the survey.

Figure 6 shows the results of the perceived useful-

ness of the provided infrastructure: ”Please indicate

below on a scale from 1 (not useful at all) to 5 (ex-

SECRYPT 2024 - 21st International Conference on Security and Cryptography

626

tremely useful) how you would rate the usefulness

of the infrastructures provided at the hackathon?”.

In general, the mean index MD of the satisfaction

rate was high, with the exception of the hydroelectric

model as this part has not been used by many par-

ticipants. Note that we have employed an additional

standalone Siemens Siprotec device in the hackathon,

which is not part of the regular setup.

Another result of the hackathon was the discovery

and reporting following a responsible disclosure pro-

cess of three vulnerabilities (CVE-2022-4778, CVE-

2022-4779, CVE-2022-4780), which were discovered

through analysis of the Gateway Applicance and its

ﬁrmware. CVE-2022-4778 concerns a path traver-

sal vulnerability in the gateway that allows authen-

ticated users to get unauthorized access to ﬁles on the

server’s ﬁlesystem. CVE-2022-4780 concerns hard-

coded crendentials in the gateway. The identiﬁed vul-

nerabilities show that the use of state-of-the-art hard-

ware for cyber security research is essential because

it provides a more realistic and accurate representa-

tion of the actual devices and systems being targeted

by potential cyber attacks, unlike simulated devices

which may not accurately reﬂect real-world scenarios

and vulnerabilities.

An additional result of the hackathons was a test

suite for IDS in substation environments developed by

the defense team. The authors plan to report about it

in a separate paper.

6 SUMMARY AND CONCLUSION

We have presented the design and use of a lab dedi-

cated to cyber security in critical infrastructures that

models a hydroelectric power plant to produce energy

and a substation automation system to transfer it. The

lab is unique in its double use for both teaching and

research purposes. The lab features a combination

of old and new devices and systems to cater to both

basic and advanced research and teaching needs, en-

abling hackathons with a broad audience. Going for-

ward, we will focus on the integration of additional

critical infrastructure components, e.g., for building

automation, to enable an even more holistic research

and learning experience.

REFERENCES

Barrett, M. (2018). Framework for improving critical in-

frastructure cybersecurity version 1.1.

Candell, R., Zimmerman, T., and Stouffer, K. (2015). An

industrial control system cybersecurity performance

testbed. National Institute of Standards and Technol-

ogy. NISTIR, 8089.

Chowdhury, N. and Gkioulos, V. (2021). Cyber security

training for critical infrastructure protection: A litera-

ture review. Computer Science Review, 40:100361.

Frank, M., Leitner, M., and Pahi, T. (2017). Design con-

siderations for cyber security testbeds: A case study

on a cyber security testbed for education. In 2017

IEEE 15th Intl Conf on Dependable, Autonomic and

Secure Computing, 15th Intl Conf on Pervasive Intel-

ligence and Computing, 3rd Intl Conf on Big Data

Intelligence and Computing and Cyber Science and

Technology, pages 38–46.

Gunathilaka, P., Mashima, D., and Chen, B. (2016). Soft-

grid: A software-based smart grid testbed for evaluat-

ing substation cybersecurity solutions. In Proceedings

of the 2nd ACM Workshop on Cyber-Physical Systems

Security and Privacy, CPS-SPC ’16, page 113–124,

New York, NY, USA. Association for Computing Ma-

chinery.

Holm, H., Karresand, M., Vidstr

om, A., and Westring, E.

(2015). A survey of industrial control system testbeds.

In Buchegger, S. and Dam, M., editors, Secure IT Sys-

tems, Lecture Notes in Computer Science, pages 11–

26. Springer International Publishing.

Obermeier, S., J

osler, T., Renggli, S., Untern

ahrer, M., and

ammerli, B. M. (2023). Automating recovery in

mixed operation technology/it critical infrastructures.

IEEE Secur. Priv., 21(5):43–54.

Ruhe, S. and Roesch, D. (2019). Design of a cyber-physical

energy laboratory. In International ETG-Congress

2019; ETG Symposium, pages 1–6.

osch, D., Bartusiak, A., and Ruhe, S. (2020). Portable cy-

bersecurity training and research platform for power

grids - testbed report. In The 15th International Con-

ference on Critical Information Infrastructures Secu-

rity 2020 (CRITIS), 2-3 September 2020, Bristol, UK.

Sauer, F., Niedermaier, M., Kießling, S., and Merli, D.

(2019). LICSTER - A low-cost ICS security testbed

for education and research. CoRR, abs/1910.00303.

Yang, Y., Jiang, H. T., McLaughlin, K., Gao, L., Yuan,

Y., Huang, W., and Sezer, S. (2015). Cybersecurity

test-bed for iec 61850 based smart substations. In

2015 IEEE Power & Energy Society General Meeting,

pages 1–5.

HydroLab: A Versatile Hydroelectric Power Lab for Security Research and Education

627
