Belfort Birth Records Transcription: Preprocessing, and Structured

Data Generation

Wissam AlKendi

1 a

, Franck Gechter

1,4 b

, Laurent Heyberger

2 c

and Christophe Guyeux

3 d

CIAD, UMR 7533, UTBM, F-90010 Belfort, France

FEMTO-ST Institute/RECITS, UMR 6174 CNRS, UTBM, F-90010 Belfort, France

FEMTO-ST Institute/DISC, UMR 6174 CNRS, Universit

e de Franche-Comt

e, F-90016 Belfort, France

LORIA, UMR 7503, SIMBIOT Team, F-54506 Vandoeuvre-l

es-Nancy, France

Keywords:

Belfort Civil Registers, Segmentation, Handwritten Text Recognition, Preprocessing, Text Skew.

Abstract:

Historical documents are invaluable windows into the past. They play a critical role in shaping our perception

of the world and its rich tapestry of stories. This paper presents techniques to facilitate the transcription of the

French Belfort Civil Registers of Births, which are valuable historical resources spanning from 1807 to 1919.

The methodology focuses on preprocessing steps such as binarization, skew correction, and text line segmen-

tation, tailored to address the challenges posed by these documents including various text styles, marginal

annotations, and a hybrid mix of printed and handwritten text. The paper also introduces this archive as a new

database by developing a structured strategy for the components of the documents using XML tags, ensuring

accurate formatting and alignment of transcriptions with image components at both the paragraph and text

line levels for further enhancements to handwritten text recognition models. The results of the preprocessing

phase show an accuracy rate of 96%, facilitating the preservation and study of this rich cultural heritage.

1 INTRODUCTION

Handwritten text recognition (HTR) has recently

emerged as one of the most signiﬁcant areas of the

pattern recognition ﬁeld. Numerous researchers have

developed methods to transcribe a variety of docu-

ments, such as historical archives (Philips and Tabrizi,

2020), books, letters, and general forms using spatial

(ofﬂine) (Wang et al., 2021) or temporal (online) (Gan

et al., 2020) processes. Transcription is the process

of automatically translating handwritten text within a

digital image into a machine text representation, often

resulting in a more accessible format. This process

includes applying various approaches, such as pre-

processing methods, where the image is prepared for

analysis (e.g., noise reduction, normalization), as well

as deep learning techniques for recognizing handwrit-

ing text. Finally, post-processing methods are used

to ﬁne-tune the output, correct errors, and improve

readability (Chacko and P., 2010). Figure 1 illustrates

https://orcid.org/0000-0003-4239-9964

https://orcid.org/0000-0002-1172-603X

https://orcid.org/0000-0002-3434-5395

https://orcid.org/0000-0003-0195-4378

the essential preprocessing tasks, crucial for preparing

the image for analysis before employing deep learn-

ing techniques for text recognition.

Nowadays, systems can analyze document lay-

outs (Diem et al., 2011) and recognize text at several

levels, including characters, text lines, paragraphs,

and entire documents. Furthermore, these systems

can distinguish distinct handwriting styles written in

a variety of languages (Carbune et al., 2020).

Despite signiﬁcant advancements in recognizing

modern handwritten text, there are still many chal-

lenges that need to be addressed in transcribing his-

torical documents. These documents often feature

unique characteristics such as angular and spiky let-

ters, ornate ﬂourishes, and overlapping words and

text lines in various handwriting styles (Bugeja et al.,

2020). Additionally, the reproduction quality of these

documents signiﬁcantly increases the time required

for the preprocessing phase (Nikolaidou et al., 2022).

The historical signiﬁcance of Belfort’s records

stems from the city’s distinctive demographic history

in the nineteenth century. Following France’s de-

feat to Prussia in 1871 and Germany’s absorption of

Alsace-Lorraine, Belfort witnessed a rapid population

AlKendi, W., Gechter, F., Heyberger, L. and Guyeux, C.

Belfort Birth Records Transcription: Preprocessing, and Structured Data Generation.

DOI: 10.5220/0012715600003720

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 4th International Conference on Image Processing and Vision Engineering (IMPROVE 2024), pages 32-43

ISBN: 978-989-758-693-4; ISSN: 2795-4943

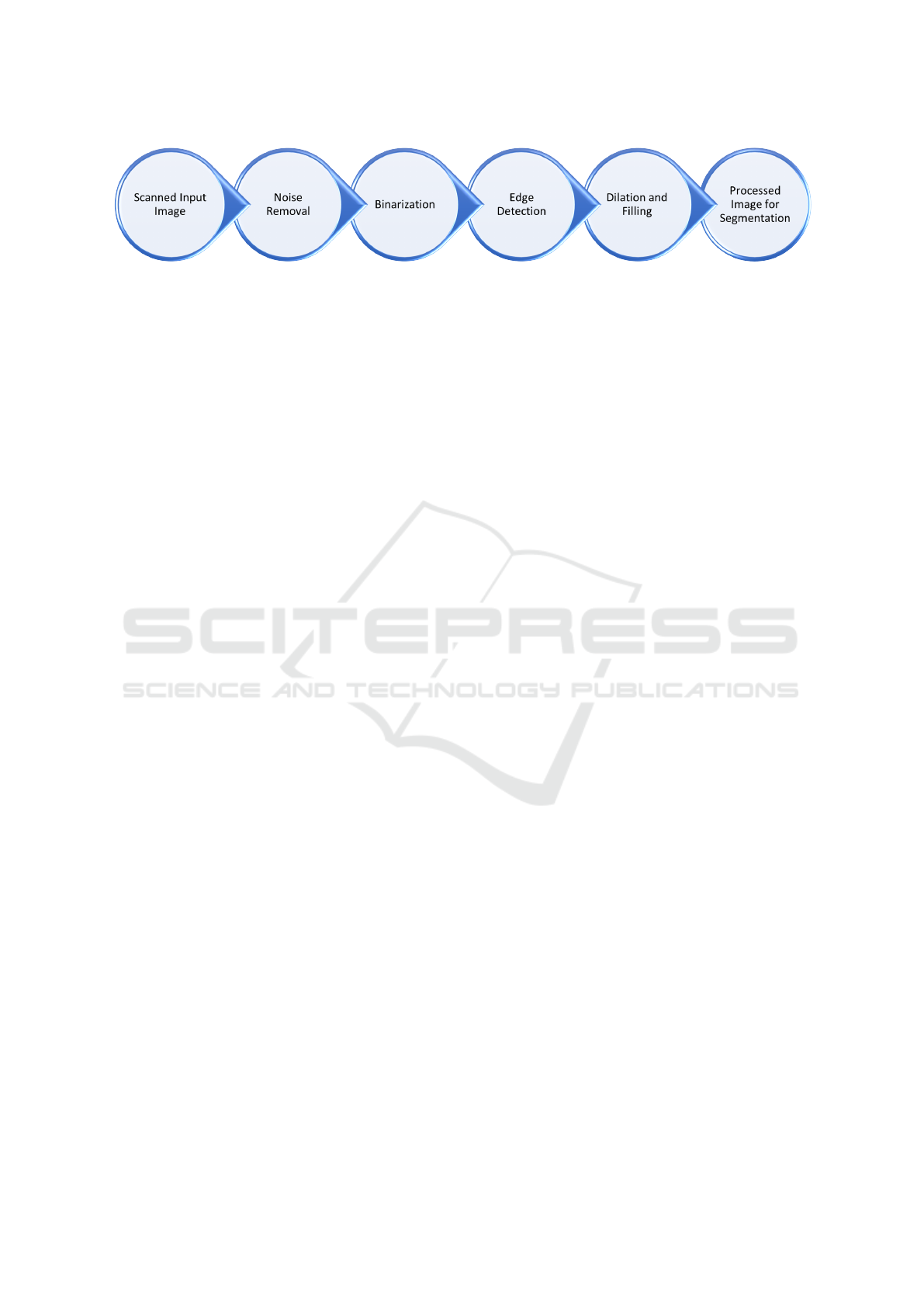

Figure 1: Preprocessing components: the essential preprocessing steps involved in the transcription of handwritten text within

digital images.

increase. This growth was primarily driven by the

entry of Alsatians, particularly those from Mulhouse,

who decided to remain in French territory or relocated

to Belfort to work in the expanding textile and me-

chanical industries established thereafter 1871 (Del-

salle, 2009). This metropolis consequently serves as

a unique observatory for three fundamental changes:

urban expansion, migration, and the sexualization of

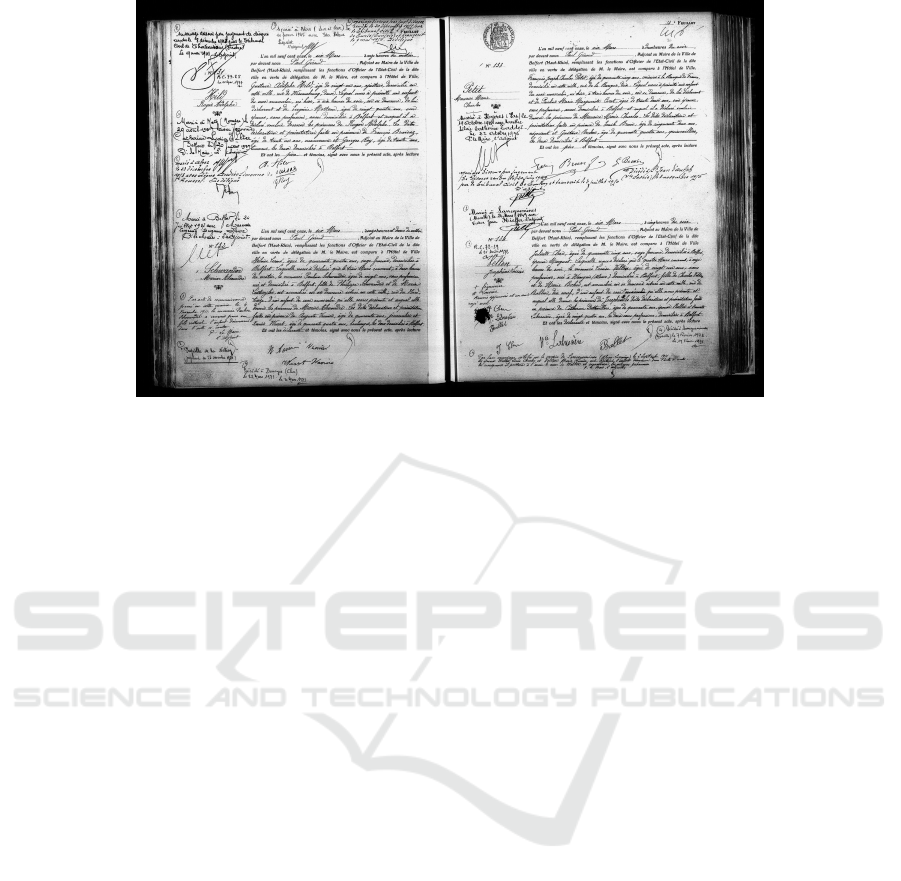

social relations. Figure 2 shows a visual represen-

tation of a sample page from these civil registers of

birth.

The study of birth records provides us with a

wealth of historical insights on a wide range of top-

ics. These include the duties and practices of mid-

wives, changes in cohabitation and the age of parents

when they have their ﬁrst child, instances of out-of-

wedlock births, child recognition patterns, and the se-

lection of witnesses for ofﬁcial declarations. These

records also revealed information about child nam-

ing conventions and the prevalence of home versus

hospital births. Each of these components offers a

distinct perspective on the societal and cultural dy-

namics of the time. To successfully examine and ad-

dress these historical concerns, it is critical to cre-

ate a comprehensive knowledge database that will al-

low for their study and resolution. This procedure

entails transcribing archive contents using two meth-

ods. The ﬁrst method is human-powered transcribing.

However, this method is costly and time-consuming.

The second is automatic transcribing, which employs

computer science techniques.

This paper aims to address the preprocessing

phase challenges associated with transcribing the

Belfort birth records, with a focus on improving data

quality, segmenting documents, and developing struc-

tured data representations to improve the preservation

and accessibility of historical birth records. Hand-

written text recognition of such documents poses a

signiﬁcant challenge, particularly in the context of

mixed handwritten and printed text. Despite signiﬁ-

cant advancements in Optical Character Recognition

(OCR) techniques in recent years, these techniques

have not adequately addressed the challenges asso-

ciated with transcribing these documents. The dis-

tinctive characteristics of these records necessitate a

unique approach for accurate transcription. This en-

tails exploring novel strategies and methodologies to

overcome the impediments and ensure the accuracy

and efﬁcacy of the transcription process.

The remainder of the paper is organized as fol-

lows: Section 2 presents a summary of recent achieve-

ments in the ﬁeld. In Section 3, we detail the char-

acteristics and challenges associated with the Belfort

Civil Registers of Births. Section 4 is devoted to pro-

viding a summary of the experimental results. Finally,

in Section 5, the conclusion is drawn with suggestions

for future research directions.

2 A STATE-OF-THE-ART

OVERVIEW

Several studies have been published to improve the

image processing ﬁeld and address the challenges pre-

sented by the preprocessing phase, including bina-

rization/thresholding, noise removal, and contrast en-

hancement methods. This phase is frequently em-

ployed in many important areas, as demonstrated

in (Hussain et al., 2023; Al-Khalidi et al., 2019)).

In a study by (Philips and Tabrizi, 2020), the au-

thors surveyed this primary phase in the historical

document transcription process, which includes steps

such as binarization, skew correction, and segmen-

tation processes. Their ﬁndings emphasized the vi-

tal importance of transcription accuracy as a require-

ment for meaningful information retrieval in archival

texts. Furthermore, in (Binmakhashen and Mah-

moud, 2019), authors conducted a rigorous examina-

tion of several document layout analysis (DLA) tech-

niques to detect and annotate the physical structure

of documents. The investigation focused on the many

stages of DLA algorithms, such as preprocessing, lay-

out analysis approaches, postprocessing, and perfor-

mance evaluation. This research lays the groundwork

for the development of a universal algorithm capable

of handling all types of document layouts.

Several key steps of the preprocessing phase are

outlined below.

Belfort Birth Records Transcription: Preprocessing, and Structured Data Generation

Figure 2: Sample of Belfort Civil Registers of Births.

2.1 Noise Removal

This step involves removing unnecessary pixels from

the digital image that could impact the original infor-

mation. The noise might arise from the image sen-

sor and electronic components of a scanner or digital

camera.

(Ganchimeg, 2015) presented a hybrid binariza-

tion approach for improving the quality of histori-

cal and ancient documents. They combined global

and local thresholding techniques while keeping min-

imal computational and temporal costs. Further-

more, the study demonstrates that identifying the

characteristics of noise patterns is critical for choos-

ing appropriate methods for their removal. Fur-

thermore, (Chakraborty and Blumenstein, 2016) pre-

sented a survey on removing marginal noise from his-

torical handwritten document images, such as Aus-

tralian Archives, which poses unique layout complex-

ities. The survey is intended to assist researchers in

determining the best methods based on the type of

marginal noise in their datasets, as well as to highlight

the limitations of existing approaches, paving the way

for the development of more general and robust solu-

tions.

Many effective algorithms have been proposed to

denoise images by enhancing sparse representation

in the transform domain through grouping similar 2-

D image fragments into 3-D data arrays. One no-

table example is the Block-Matching and 3D Filtering

(BM3D) algorithm, which could be applied before the

binarization step to effectively enhance the outcomes

of the prerequisite process (Montr

esor et al., 2019;

Dabov et al., 2007).

2.2 Binarization

This step entails transforming digital photos into bi-

nary images consisting of two collections of pixels in

black and white (0 and 1) (Mustafa and Kader, 2018).

Binarization is useful for dividing an image into fore-

ground text and background.

(Tensmeyer and Martinez, 2020) focused on his-

torical document image binarization, establishing a

standard benchmark that played a critical role in driv-

ing research on the subject. The work covers a vari-

ety of additional approaches and techniques, includ-

ing statistical models, pixel categorization with learn-

ing algorithms, and parameter tuning. Additionally, it

discusses evaluation metrics and datasets.

2.3 Edges Detection

This step entails recognizing the edges or boundaries

of the text within the image by connecting all con-

tinuous points that have the same color or intensity,

utilizing techniques such as Laplacian, Sobel, Canny,

and Prewitt edge detection (Ahmed, 2018).

2.4 Skew Detection and Correction

Skew describes the misalignment of text within a dig-

ital image. In other words, it speciﬁes the number

of rotations required to align the text horizontally or

vertically. To achieve this goal, several skew detec-

tion and correction approaches have been proposed,

including Hough transformations and clustering.

They are detailed in (Biswas et al., 2023), in which

the authors discussed various methods for detecting

IMPROVE 2024 - 4th International Conference on Image Processing and Vision Engineering

skew angles in the text images, including Hough

Transform, Projection Proﬁle-based methods (PP),

Nearest Neighbor clustering (NN), and Cross Corre-

lation.

2.5 Segmentation

This stage involves breaking the handwritten text im-

age into letters, words, lines, and paragraphs, fre-

quently using the image’s pixel properties. The seg-

mentation process has been carried out using a variety

of methodologies, including threshold methods, edge-

based methods, region-based methods, watershed-

based methods, and clustering methods. The segmen-

tation stage is regarded as one of the most important

procedures that can considerably increase the accu-

racy of HTR models.

(Singh et al., 2022) describe different classical

and learning-based line segmentation approaches for

Handwritten Text Recognition (HTR) in historical

manuscripts. The study suggests that connected com-

ponents and graph-based techniques are beneﬁcial so-

lutions for situations such as overlapping lines and

touching characters in historical manuscripts. Addi-

tionally, in (Pach and Bilski, 2016), the authors ap-

plied a binarization algorithm based on Gaussian ﬁl-

tering to address the non-uniform luminance within

selected pages from the Latin Theologica Miscel-

lanea documents. Additionally, they utilized a Hough

Transform Mapping technique to better handle the

diverse conditions of handwritten manuscripts, in-

cluding cases with overlapping characters. Fur-

thermore, (Plateau-Holleville et al., 2021) employed

a modular analytic pipeline that utilizes cutting-

edge image processing and machine learning algo-

rithms to automate data extraction from the proposed

French vital records. This pipeline includes docu-

ment preprocessing and text segmentation, utilizing

histograms and the EAST method to locate text boxes,

with the objective of aiding in the manual annotation

of the training dataset. The results reveal that the

EAST approach is effective for identifying text boxes

in such documents.

On the other hand, (Saabni et al., 2014) com-

puted an Energy Map for both binary and grayscale

images to minimize the non-text areas by extract-

ing connected components along the text lines. Ad-

ditionally, they employed a seam carving technique

to ﬁnd seams (paths of least energy) in the com-

puted energy map, which aids in identifying the text

lines. The study also introduced a new benchmark

dataset comprising historical documents in various

languages. Similarly, (Louloudis et al., 2009; Pa-

pavassiliou et al., 2010; Alaei et al., 2011) pro-

posed valuable methodologies on text line segmen-

tation. While (Chakraborty and Blumenstein, 2016)

acknowledges that the literature on page segmenta-

tion for historical handwritten documents is limited

compared to non-historical documents, suggesting a

research gap in the ﬁeld.

3 METHODOLOGY

3.1 Belfort Civil Registers of Births

The birth records in the Belfort commune’s civil

registries include 39,627 records written in French,

each scanned at 300 dpi. These records were cho-

sen for their consistency, as they include Gregorian

birth dates beginning in 1807 and are accessible un-

til 1919 due to legal limits. Originally, these regis-

ters were handwritten entries but were changed to a

partially printed version with certain areas left vacant

for recording precise data about the newborn’s state-

ment. The timing of the changeover to the hybrid

preprinted/manuscript format varied between com-

munes.

In Belfort, the shift happened in 1885, affecting

around 57.5% of the 39,627 documented declarations.

The archive can be accessed online up to 1902 using

the following link: https://archives.belfort.fr/search/

form/e5a0c07e-9607-42b0-9772-f19d7bfa180e (ac-

cessed on January 20, 2024). Furthermore, we have

acquired permission from the municipal archives to

examine data up to 1919.

3.2 Records Structure

These records provide crucial information such as the

child’s name, parents’ names, and witnesses, among

other details. Figure 3 depicts a sample record from

civil registers. Table 1 outlines the structure and con-

tent of a record within the archive.

3.3 Automatic Transcription Challenges

The transcription of records in the Belfort archives

presents a variety of challenges, as outlined below.

3.3.1 Document Layout

The Belfort birth documents use two unique docu-

ment layouts. The ﬁrst type has double pages, each

containing a single complete record, whereas the sec-

ond type has double pages accommodating two com-

plete records per page. Nonetheless, certain pages

Belfort Birth Records Transcription: Preprocessing, and Structured Data Generation

Table 1: The structure and contents of a record in the Belfort Civil Registers of Births as presented in (AlKendi et al., 2024).

Structure Content

Head margin

Registration number.

First and last name of the person born.

Main text

Time and date of declaration.

Surname, ﬁrst name and position of the ofﬁcial registering.

Surname, ﬁrst name, age, profession and address of declarant.

Sex of the newborn.

Time and date of birth.

First and last name of the father (if different of the declarant).

Surname, ﬁrst name, status (married or other), profession (sometimes) and address

(sometimes) of the mother.

Surnames of the newborn.

Surnames, ﬁrst names, ages, professions and addresses (city) of the 2 witnesses.

Mention of absence of signature or illiteracy of the declarant (very rarely).

Margins

(annotations)

Mention of ofﬁcial recognition of paternity/maternity (by father or/and mother): surname,

name of the declarant, date of recognition (by marriage or declaration).

Mention of marriage: date of marriage, wedding location, surname and name of spouse.

Mention of divorce: date of divorce, divorce location.

Mention of death: date and place of death, date of the declaration of death.

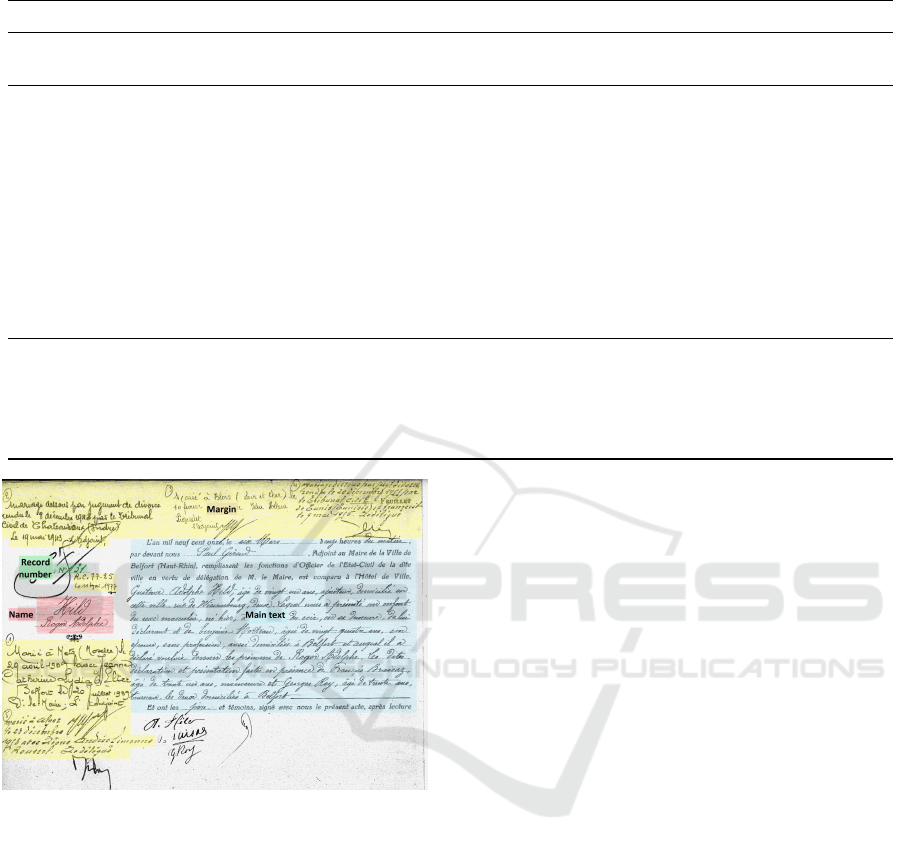

Figure 3: A record from the Belfort Civil Registers of Birth

with annotations indicating different sections. The main

body of the text, which contains detailed information, is

highlighted in blue. Annotations in the margins are high-

lighted in yellow. The record number, a unique identiﬁer

for the record, is highlighted in green. The record name is

highlighted in red. Both the record number and name rep-

resent the header margin of the record.

may contain entries that start on one page and con-

tinue to the next.

3.3.2 Reading Order

It is critical to understand the order in which text areas

are to be read, including both the primary text and any

marginal annotations. The record should be read in

the following order: the record number ﬁrst, followed

by the name, the main content, and any marginal notes

last. This arrangement requires reading from left to

right and top to bottom.

3.3.3 Hybrid Format

Some registers incorporate entries with both printed

and handwritten texts, as depicted in Figure 2. These

handwritten portions might vary greatly in style, leg-

ibility, and ink density, necessitating a smooth tran-

sition between OCR and handwriting recognition

modes during transcription. Furthermore, the spa-

tial arrangement of printed and handwritten text can

be complex, with handwritten comments appearing in

margins, between printed lines, or even superimposed

on the printed content.

3.3.4 Marginal Annotations

These mentions are about the individual’s birth but in-

serted thereafter, often in different handwriting styles

and using different scriptural instruments. They are

also positioned differently in comparison to the main

text of the declaration.

3.3.5 Text Styles

The registers show a variety of handwritten tech-

niques, including angular and spiky letters, varying

character sizes, and intricate ﬂourishes, resulting in

instances where words and text lines overlap within

the script.

IMPROVE 2024 - 4th International Conference on Image Processing and Vision Engineering

3.3.6 Skewness

Skewness is the misalignment of handwritten text

caused by the way it was written by writers. Many

lines within the main paragraphs and margins show

text skew anomalies, including vertical text (rotated

90 degrees). Efﬁcient methods are required for ad-

justing image skewness, regardless of the degree of

rotation.

3.3.7 Deterioration

The images show text deterioration caused by fading

ink and page smearing, including ink spots and yel-

lowing of the pages.

3.4 Preprocessing Methods

Several methods and ﬁlters have been applied to the

images to remove noise and enhance the visibility of

the text for effective edge detection and automatic ex-

traction. The suggested methodology segments text

images into two levels: text paragraphs and lines.

To achieve this, a manual document layout analysis

methodology is employed to identify the major com-

ponents of the records (record number, name, primary

content, margins) on the pages. The process involves

determining the coordinates of these major compo-

nents using a custom interface tool, while the coor-

dinates of the text lines within them are determined

automatically. The key steps of the preprocessing

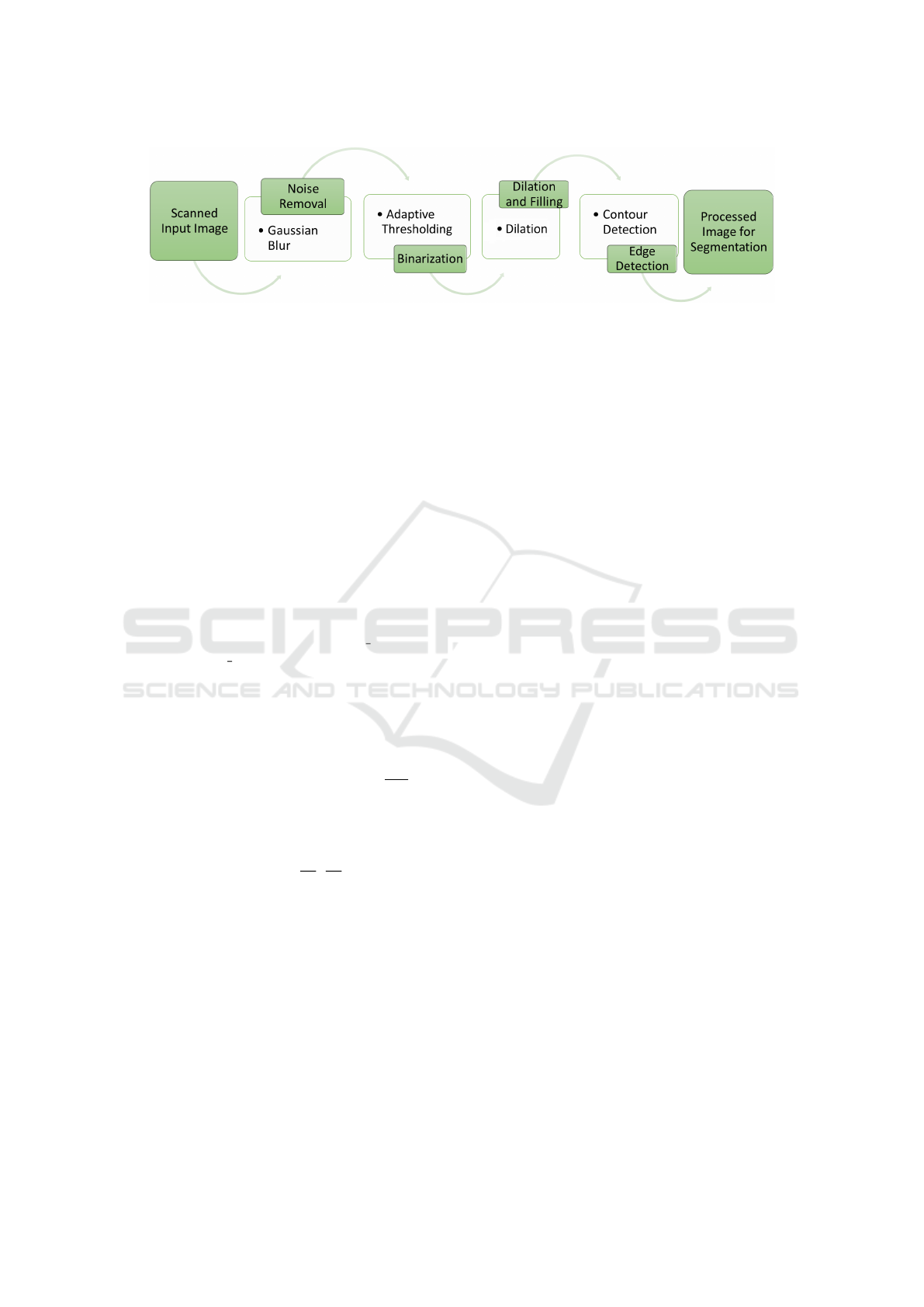

phase are outlined below. Figure 4 shows the general

pipeline of methods applied to the images.

• Grayscale Conversion: The original images are

converted to grayscale, which simpliﬁes subse-

quent processing and lowers computer complex-

ity.

• Gaussian Blur: A Gaussian blur (GB) is applied

to the grayscale images to minimize noise and

improve feature recognition. Equation 1 repre-

sents the Gaussian blur operation applied to the

grayscale images.

GB(x, y) =

2πσ

exp

−

2σ

−

2σ

∗ gray(x,y).

(1)

where σ

and σ

represent the kernel sizes, and σ

is the standard deviation.

• Adaptive Thresholding: Adaptive thresholding is

utilized to generate a binary image that highlights

the edges and features of interest. Equation 2 de-

picts the adaptive thresholding process performed,

yielding binary images. The Gaussian approach is

used with a ﬁxed block size to generate the adap-

tive threshold value T (x, y) based on the image’s

local characteristics, eliminating any overlapping

between lines if it exists.

thresh(x, y) =

(

255, if GB(x, y) ≤ T (x,y)

0, if GB(x, y) > T (x,y)

T (x, y) = mean(x, y) − 2 × stddev(x, y).

(2)

where mean(x, y) is the mean pixel value of

the local neighborhood centered at (x, y), and

stddev(x, y) is the standard deviation of pixel val-

ues in the same local neighborhood.

• Morphological Operations: Dilation operations

are conducted to reﬁne the detected edges by ex-

panding the boundaries of the text, making bright

regions brighter and dark regions darker. These

processes enhance and manipulate the structure

of the edges observed in the preceding stage, in-

creasing their clarity and signiﬁcance. Equation 3

represents the dilation operation applied to the im-

ages using a horizontal kernel of size 1x205. This

operation is employed to identify the core of the

text line. It computes the maximum value among

neighboring pixels along the horizontal direction.

Image dilation(x, y) =

204

max

i=0

(thresh(x, y + i)). (3)

where (x, y) is the position of the pixel within the

images, and i is the horizontal offset within the

kernel.

• Contour Detection: This technique identiﬁes and

extracts contours from the ﬁltered images. The

parameters have been conﬁgured to obtain only

the external contours or outlines of the text lines.

It also simpliﬁes and compresses contours by ex-

cluding unnecessary points, hence saving mem-

ory. This process returns a list of contours as well

as a hierarchical representation of those contours.

These contours are then examined and ﬁltered us-

ing thresholds that represent the width and height

of the text lines in the paragraphs.

• Skew Correction: A skew correction process is

applied to the text line images in various steps,

including the utilization of ﬁlters, the Canny

edge detection algorithm, and the Hough Line

Transform. First, we used the Numpy func-

tion ’np.arctan2’ to determine the slopes of the

detected text lines. These slopes provide in-

formation about the lines’ orientation, allowing

us to identify the main horizontal line. We

Belfort Birth Records Transcription: Preprocessing, and Structured Data Generation

Figure 4: Preprocessing components: the essential preprocessing steps involved in the transcription of process of Belfort Civil

Registers of Births.

next computed the median angle using the ac-

quired slopes and converted it to degrees. Sec-

ondly, we determined the center of the text line

image and generated a rotation matrix using

cv2.getRotationMatrix2D as depicted in Equa-

tion 6. This matrix is crucial for the subsequent

rotation operation. Additionally, we identiﬁed the

most frequent color in the text line image’s bor-

der region to ﬁll empty spaces in the background

after skew correction. This is done by counting

the occurrences of each unique integer value in

the pixel values and selecting the maximum count

to effectively ﬁnd the most common color. Fi-

nally, this process applies an afﬁne transformation

to the text line image using the calculated matrix

M. The ﬂag parameters (cv2.INTER CUBIC and

cv2.BORDER CONSTANT) are used to specify

the interpolation method for cubic interpolation

and the border value parameter for a smooth ro-

tation of the image around its center. This results

in a more accurate representation of text line im-

ages.

Angle = median (arctan 2(∆y, ∆x)) ×

180

(4)

where ∆x and ∆y represent differences in the y and

x coordinates of line endpoints, respectively.

Center =





(5)

where N

and N

are the dimensions of the image.

M = cv2.getRotationMatrix2D (Center, Angle, 1).

(6)

where 1 indicates that there is no scaling applied

in the transformation.

Figure 5 illustrates example of the skew correction

step applied to text line image.

The parameter and threshold settings are automati-

cally adjusted based on the characteristics of the input

images. Figure 6 shows examples of the preprocess-

ing phase.

3.5 Structured Data Generation

Based on our previous research (AlKendi et al.,

2024), there is a strong need for a new deep learn-

ing technique speciﬁcally designed for transcribing

the French Belfort Civil Registers of Births, given

the numerous challenges it presents. This phase in-

volves manually transcribing a portion of the archive

pages to create a training dataset for the deep learning

model. Additionally, it entails the development of an

accurate methodology for linking the identiﬁed image

regains to the transcribed text. This will signiﬁcantly

improve the labeling process for future development

attempts.

3.5.1 Manual Transcription

The transcribed records feature a diverse range of

writing styles and span various historical periods.

During the manual transcription process, several tags

were employed to ensure the proper structuring and

identiﬁcation of the record components. Table 2

presents the various types of tags utilized in the man-

ual transcription process. So far, a total of 207 .txt

ﬁles representing 637 records have been successfully

transcribed. Each .txt ﬁle may consist of 4 or fewer

records. Additionally, the ﬁles contain 709 margin

texts. The overall number of text lines in all the record

components is 13,913, and the total number of words

is 120,131 words and 745,582 characters. Figure 7

provides an example of transcriptions with tags.

3.5.2 XML File Generator

An XML ﬁle generator tool has been developed to

prepare the transcribed records for input into the deep

learning model. This is achieved by linking each com-

ponent within the images to its corresponding tran-

scription at both the paragraph and text line levels

based on the added tags. Each .xml ﬁle contains infor-

mation for double pages, encompassing four records.

The XML ﬁles have been designed to include the fol-

lowing properties:

IMPROVE 2024 - 4th International Conference on Image Processing and Vision Engineering

(a)

(b)

Figure 5: Examples of the skew correction steps applied to a text line image from Belfort Civil Registers of Births: (a) Original

text line image. (b) Result After skew correction.

(a) (b)

(e) (f)

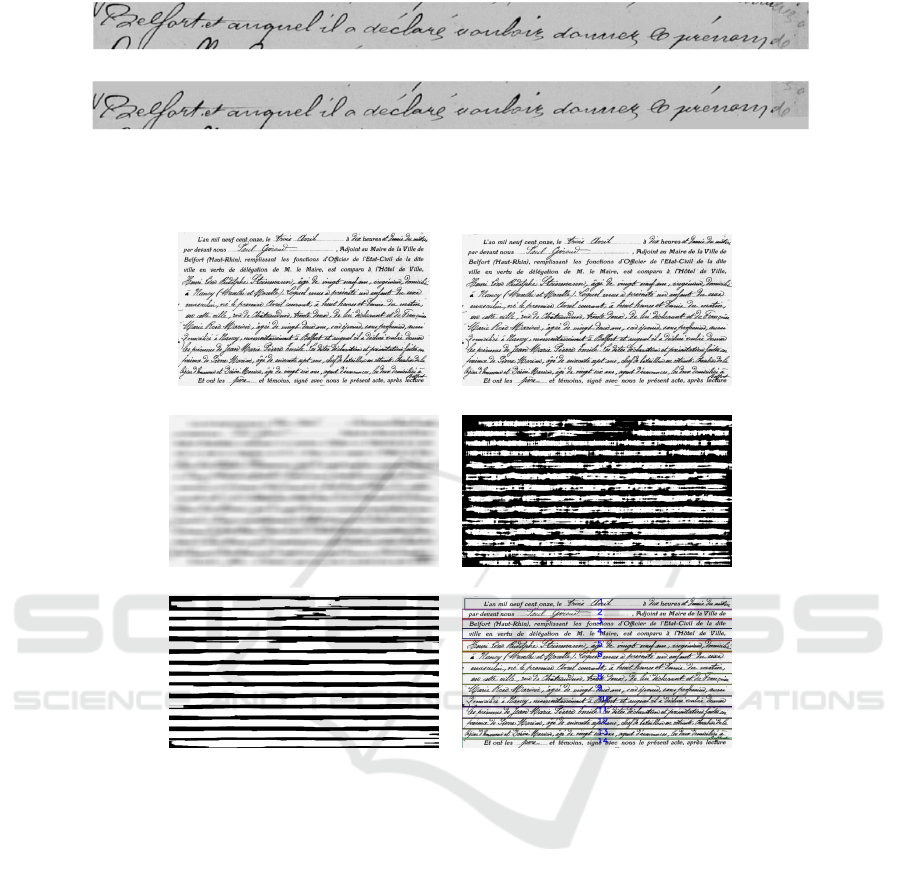

Figure 6: Examples of the preprocessing steps applied to a record from Belfort Civil Registers of Births: (a) Original record.

(b) After grayscale conversion. (c) With Gaussian blur. (d) After adaptive thresholding. (e) Following morphological opera-

tions. (f) Result after contour detection for text line extraction.

• Image Information: This section includes details

such as the image name, type (single or double

page), image height, and image width.

• Reading Order: As illustrated in Section 3.3.2,

this section identiﬁes the reading order and pro-

vides a unique index number for each record,

specifying the type of components within the

reading order (title number, title name, paragraph,

margin).

• Record Title and Name: This part of the XML

ﬁle contains information about the record’s title

and name, including their coordinates within the

image and the corresponding transcribed text.

• Paragraphs and Margins: This section contains

details about the paragraphs and margins within

the record. It includes their coordinates within the

image and the corresponding transcribed text. Ad-

ditionally, information about the text lines within

the paragraphs and margins is provided, including

a unique ID, coordinates within the image, and the

corresponding transcribed text.

4 RESULTS

4.1 Text Line Segmentation

A two-phase automatic segmentation process is de-

signed to segment the components of an image into

text lines. The ﬁrst phase involves applying a seg-

mentation tool to the main paragraphs and margins,

achieving an accuracy of 92% for the main paragraphs

Belfort Birth Records Transcription: Preprocessing, and Structured Data Generation

Table 2: The set of tags utilized in the manual transcription process.

Tag Description

<begin> Begin of the record.

<text>...<\text> Main text of the record.

<margin>...<\margin> Margins text.

<ptext>...<\ptext> Printed text.

<striped>...<\striped> Striped text.

<unreadable>...<\unreadable> Unreadable text.

<added above>...<\added above> Small text added above the text line.

<added below>...<\added below> Small text added below the text line.

<page> Start new page.

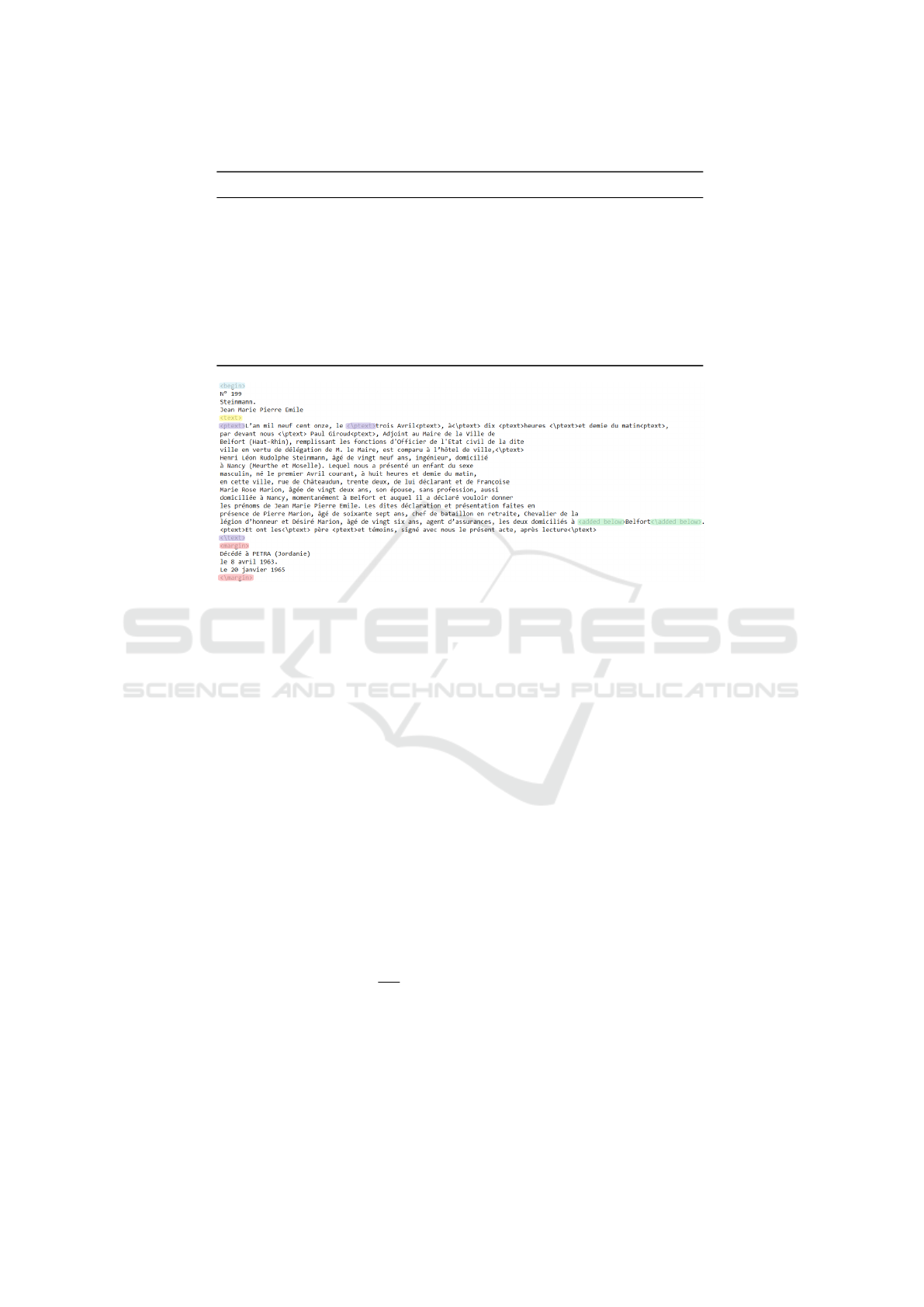

Figure 7: Examples of the tags utilized in the manual transcription process of Belfort Civil Registers of Births.

and 77% for the margins respectively. However, in

certain cases where text lines heavily overlap, such as

in cursive writing styles, the tool incorrectly detects

multiple lines as a single text line. To address this

issue, a second phase has been introduced to reﬁne

the results of the ﬁrst phase. This reﬁnement exam-

ines the height of segmented lines and, if it exceeds

a predetermined threshold, applies a secondary phase

to split the lines horizontally, increasing the accuracy

to achieve 96% for the main paragraphs and 84% for

the margins respectively.

To assess the accuracy of our tool, we employ the

Detection Rate as an evaluation metric. This metric

quantiﬁes the tool’s ability to accurately identify and

segment individual lines and compares the number of

detected lines with the number of lines in the ground

truth. Additionally, manual visual veriﬁcation is con-

ducted to ensure the quality of results.

The Detection Rate is deﬁned as follows:

Line Detection Accuracy (LDA) =

T P

(7)

where T P represents True Positives, indicating the

correctly detected lines by our tool, and GT repre-

sents the Total Number of Lines in the Ground Truth

dataset.

To determine optimal parameters for our speciﬁc

dataset, automatic determination has been performed

based on the total number of text lines in the transcrip-

tion. Table 3 presents the ﬁnal parameters values that

enhance the tool’s effectiveness across different writ-

ing styles. Moreover, Table 4 shows the parameters

values used in the text lines skew correction step.

Additionally, a 5-pixel padding has been added

above and below the height of segmented text lines

when establishing their coordinates. This padding im-

proves the visibility and accuracy of segmentation,

particularly for various writing styles.

Figure 8 illustrates the accuracy achieved through

the text line segmentation process applied to the

Belfort Civil Registers of Births.

An accuracy comparison was conducted to eval-

uate the effectiveness of the suggested segmentation

tool compared to online artiﬁcial intelligence com-

mercial systems such as DOCSUMO, Ocelus, and

Transkribus, which offer free document recognition

trials. The experiment was conducted on the para-

graph image displayed in Figure 3 in terms of text

line segmentation. Table 5 depicts the accuracy rates

of the aforementioned systems.

4.2 Results of XML File Generation

An automatic veriﬁcation tool has been developed to

verify and correct the formatting of our manual tran-

scriptions. This tool ensures that the tags are em-

IMPROVE 2024 - 4th International Conference on Image Processing and Vision Engineering

Table 3: Parameters values used in the text lines segmentation step.

Step Parameter Value

Gaussian Blur Kernel Size (101, 51)

Gaussian Blur SigmaX (Standard Deviation in X) 61

Adaptive Threshold Maximum Value 255

Adaptive Threshold Adaptive Method ADAPTIVE THRESH GAUSSIAN C

Adaptive Threshold Threshold Type THRESH BINARY INV

Adaptive Threshold Block Size 71

Adaptive Threshold Constant from Mean 2

Dilation Kernel Size (1, 205)

Dilation Iterations 1

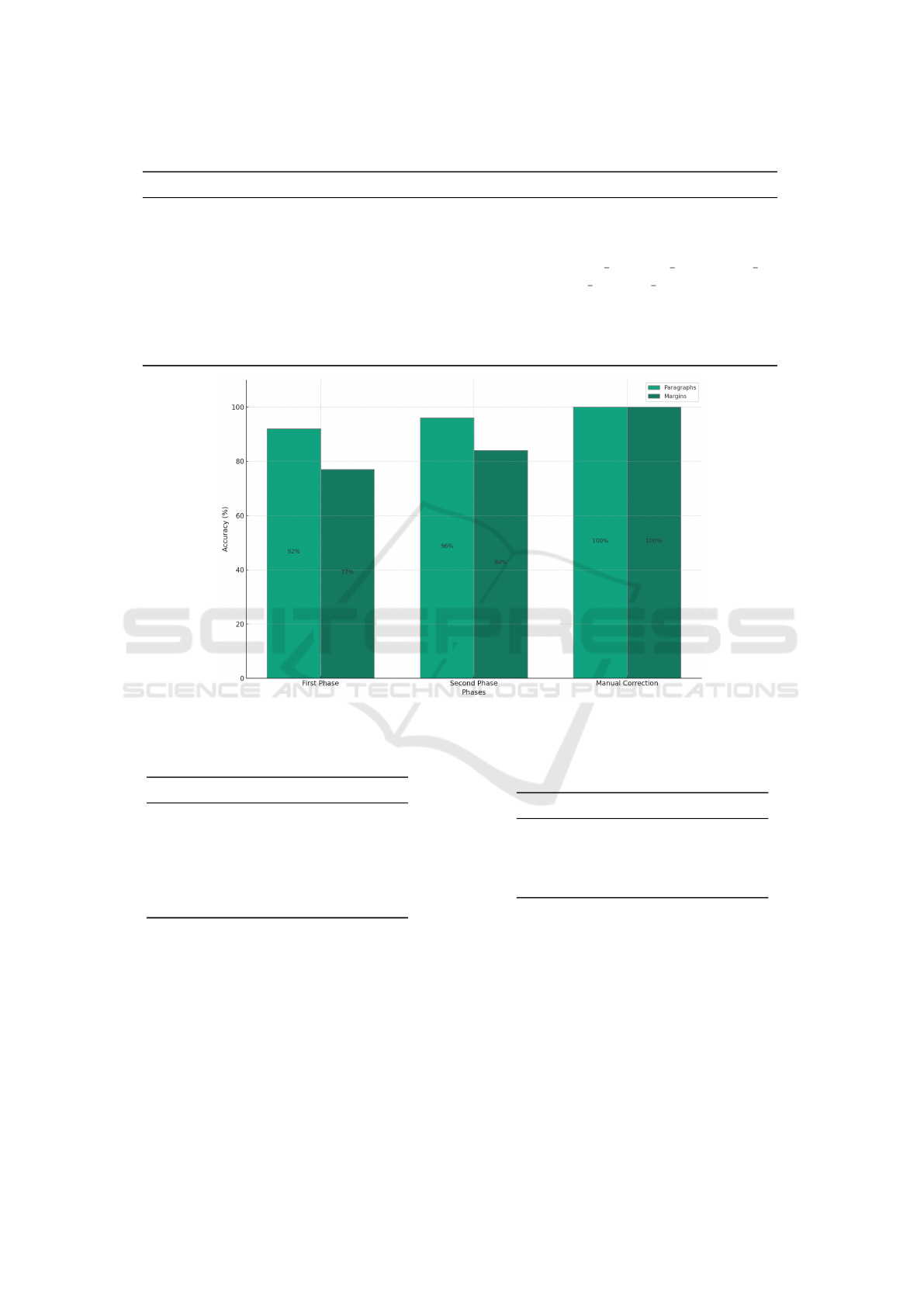

Figure 8: Accuracy percentages of text line segmentation process across the various phases.

Table 4: Parameters values used in the text lines skew cor-

rection step.

Parameter Value

Gaussian Blur Kernel Size (5, 5)

Canny Edge Threshold1 50

Canny Edge Threshold2 150

HoughLinesP Threshold 100

HoughLinesP MinLineLength 100

HoughLinesP MaxLineGap 55

ployed correctly within the transcriptions, maintain-

ing accurate alignment between the image compo-

nents and the corresponding transcriptions when we

generate the .xml ﬁles.

We have processed .txt ﬁles that encompass com-

plete transcriptions, resulting in the creation of 90

.xml ﬁles. Each .xml ﬁle contains complete tran-

scripts (four records), totaling 360 records. An exam-

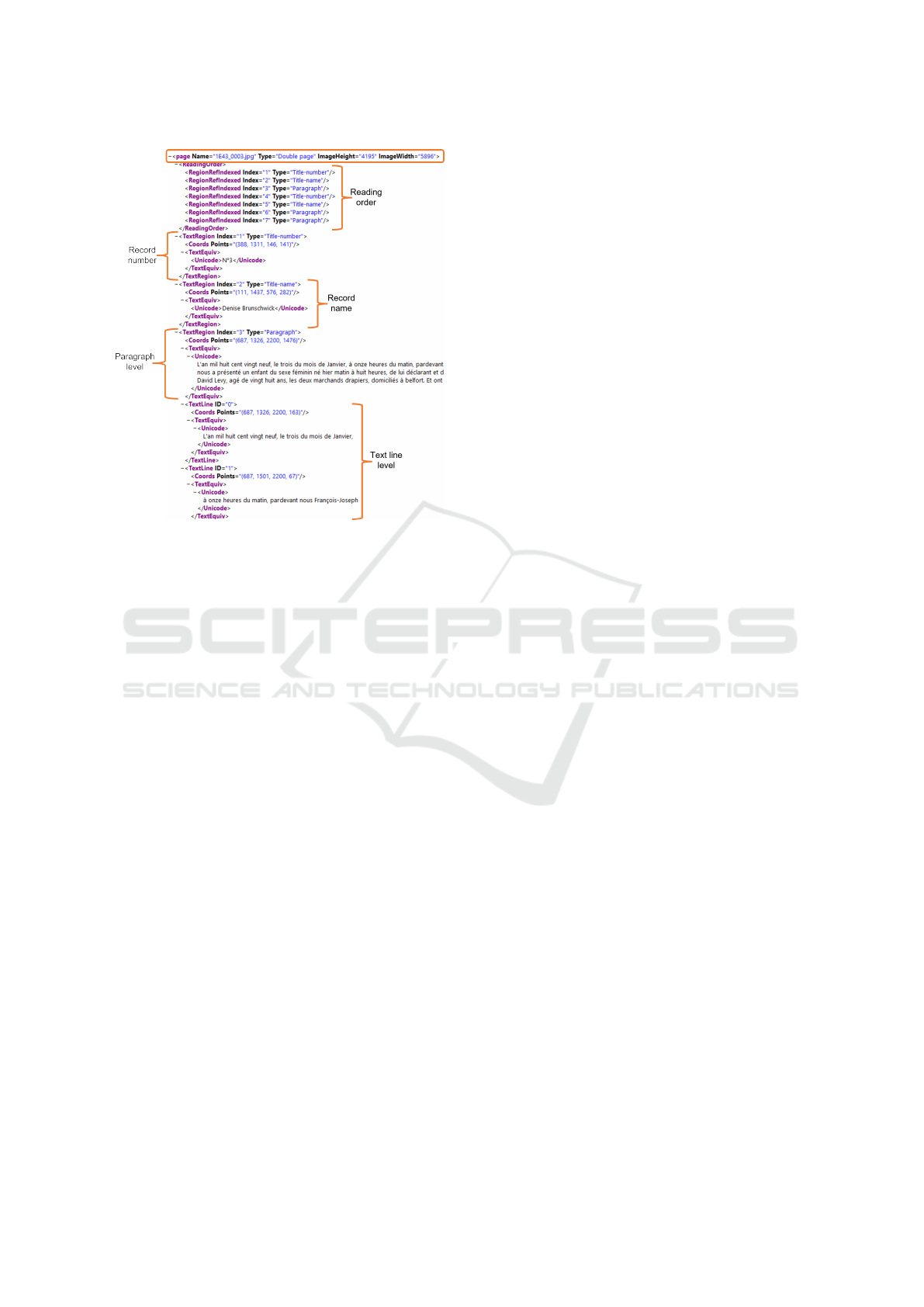

ple of one such XML ﬁle is presented in Figure 9. It

is important to note that our manual transcription pro-

Table 5: Accuracy comparison of Belfort Civil Registers of

Birth segmentation process with commercial systems. The

links of these systems were accessed on February 3, 2024.

System Accuracy (%)

DOCSUMO (URL) 97

Ocelus (URL) 99

Transkribus (URL) 97

Our method 96

cess is still ongoing as we work towards completing

the remaining paragraphs within the .txt ﬁles. This

ongoing effort will enable us to generate additional

.xml ﬁles in the future.

5 CONCLUSIONS

This paper has presented a comprehensive approach

to digitizing and transcribing the Belfort Civil Reg-

isters of Births. The methodology involves a va-

Belfort Birth Records Transcription: Preprocessing, and Structured Data Generation

Figure 9: Examples of the Structured Data Files for Belfort

Civil Registers of Births.

riety of preprocessing steps, including binarization,

skew correction, and segmentation. Despite the nu-

merous impediments posed by these historical docu-

ments, such as different text styles, marginal annota-

tions, and the hybrid nature of the texts (printed and

handwritten text), we have developed distinctive so-

lutions that successfully carried out the segmentation

process. The creation of an automatic veriﬁcation tool

and the XML ﬁle generator ensures that transcriptions

are properly formatted and aligned with their corre-

sponding image components. Our results show a high

level of accuracy in text line segmentation, which is

critical for the effective structuring of these valuable

historical documents

In conclusion, the work presented in this paper

makes a signiﬁcant contribution to the ﬁeld of hand-

written text recognition, particularly in the context

of historical documents, by introducing a new valu-

able structured dataset. However, employing artiﬁcial

intelligence techniques in the preprocessing phase

could further reﬁne accuracy, especially in the seg-

mentation process. Future research will focus on de-

veloping an automatic document layout analysis tool

and a deep learning model to transcribe the remaining

records automatically, with the ultimate goal of facil-

itating the recognition and study of this rich cultural

heritage.

REFERENCES

Ahmed, A. S. (2018). Comparative study among sobel, pre-

witt and canny edge detection operators used in image

processing. J. Theor. Appl. Inf. Technol, 96(19):6517–

6525.

Al-Khalidi, F. Q., Alkindy, B., and Abbas, T. (2019). Ex-

tract the breast cancer in mammogram images. Tech-

nology, 10(02):96–105.

Alaei, A., Pal, U., and Nagabhushan, P. (2011). A new

scheme for unconstrained handwritten text-line seg-

mentation. Pattern Recognition, 44(4):917–928.

AlKendi, W., Gechter, F., Heyberger, L., and Guyeux, C.

(2024). Advancements and challenges in handwritten

text recognition: A comprehensive survey. Journal of

Imaging, 10(1):18.

Binmakhashen, G. M. and Mahmoud, S. A. (2019). Docu-

ment layout analysis: a comprehensive survey. ACM

Computing Surveys (CSUR), 52(6):1–36.

Biswas, B., Bhattacharya, U., and Chaudhuri, B. B. (2023).

Document image skew detection and correction: A

survey.

Bugeja, M., Dingli, A., and Seychell, D. (2020). An

overview of handwritten character recognition sys-

tems for historical documents. Rediscovering Her-

itage Through Technology: A Collection of Innovative

Research Case Studies That Are Reworking The Way

We Experience Heritage, pages 3–23.

Carbune, V., Gonnet, P., Deselaers, T., Rowley, H. A.,

Daryin, A., Calvo, M., Wang, L.-L., Keysers, D.,

Feuz, S., and Gervais, P. (2020). Fast multi-language

lstm-based online handwriting recognition. Interna-

tional Journal on Document Analysis and Recognition

(IJDAR), 23(2):89–102.

Chacko, B. P. and P., B. A. (2010). Pre and post processing

approaches in edge detection for character recogni-

tion. In 2010 12th International Conference on Fron-

tiers in Handwriting Recognition, pages 676–681.

Chakraborty, A. and Blumenstein, M. (2016). Marginal

noise reduction in historical handwritten documents–

a survey. In 2016 12th IAPR Workshop on Document

Analysis Systems (DAS), pages 323–328. IEEE.

Dabov, K., Foi, A., Katkovnik, V., and Egiazarian, K.

(2007). Image denoising by sparse 3-d transform-

domain collaborative ﬁltering. IEEE Transactions on

image processing, 16(8):2080–2095.

Delsalle, P. (2009). Histoires de familles. Les registres

paroissiaux et d’

etat civil, du Moyen

Age

a nos jours:

emographie et g

ealogie (Family History: Parish

and Civil Status Registers, from the Middle Ages to the

Present Day: Demography and Genealogy). Presses

universitaires de Franche-Comt

e, Besanc¸on.

Diem, M., Kleber, F., and Sablatnig, R. (2011). Text clas-

siﬁcation and document layout analysis of paper frag-

ments. In 2011 International Conference on Docu-

ment Analysis and Recognition, pages 854–858.

Gan, J., Wang, W., and Lu, K. (2020). In-air handwritten

chinese text recognition with temporal convolutional

recurrent network. Pattern Recognition, 97:107025.

IMPROVE 2024 - 4th International Conference on Image Processing and Vision Engineering

Ganchimeg, G. (2015). History document image back-

ground noise and removal methods. International

Journal of Knowledge Content Development & Tech-

nology, 5(2):11–24.

Hussain, S. A.-K., Al-Nayyef, H., Al Kindy, B., and Qassir,

S. A. (2023). Human earprint detection based on ant

colony algorithm. International Journal of Intelligent

Systems and Applications in Engineering, 11(2):513–

517.

Louloudis, G., Gatos, B., Pratikakis, I., and Halatsis, C.

(2009). Text line and word segmentation of hand-

written documents. Pattern recognition, 42(12):3169–

3183.

Montr

esor, S., Memmolo, P., Bianco, V., Ferraro, P., and

Picart, P. (2019). Comparative study of multi-look

processing for phase map de-noising in digital fres-

nel holographic interferometry. J. Opt. Soc. Am. A,

36(2):A59–A66.

Mustafa, W. A. and Kader, M. M. M. A. (2018). Binariza-

tion of document images: A comprehensive review. In

Journal of Physics: Conference Series, volume 1019,

page 012023. IOP Publishing.

Nikolaidou, K., Seuret, M., Mokayed, H., and Liwicki,

M. (2022). A survey of historical document image

datasets. International Journal on Document Analysis

and Recognition (IJDAR), 25(4):305–338.

Pach, J. L. and Bilski, P. (2016). A robust binarization

and text line detection in historical handwritten doc-

uments analysis. International Journal of Computing,

15(3):154–161.

Papavassiliou, V., Stafylakis, T., Katsouros, V., and

Carayannis, G. (2010). Handwritten document image

segmentation into text lines and words. Pattern recog-

nition, 43(1):369–377.

Philips, J. and Tabrizi, N. (2020). Historical document pro-

cessing: Historical document processing: A survey of

techniques, tools, and trends. ArXiv, abs/2002.06300.

Plateau-Holleville, C., Bonnot, E., Gechter, F., and Hey-

berger, L. (2021). French vital records data gathering

and analysis through image processing and machine

learning algorithms. Journal of Data Mining and Dig-

ital Humanities, 2021.

Saabni, R., Asi, A., and El-Sana, J. (2014). Text line extrac-

tion for historical document images. Pattern Recogni-

tion Letters, 35:23–33.

Singh, H., Kaur, N., and Kaur, H. (2022). Analysis of line

segmentation methods for historical manuscripts. In

2022 2nd International Conference on Advance Com-

puting and Innovative Technologies in Engineering

(ICACITE), pages 2043–2045. IEEE.

Tensmeyer, C. and Martinez, T. (2020). Historical docu-

ment image binarization: A review. SN Computer Sci-

ence, 1(3):173.

Wang, Y., Xiao, W., and Li, S. (2021). Ofﬂine handwritten

text recognition using deep learning: A review. Jour-

nal of Physics: Conference Series, 1848(1):012015.

Belfort Birth Records Transcription: Preprocessing, and Structured Data Generation
