Higher Order Leakage Assessment and Neural Network-based Attack on

CRYSTALS-Kyber

Buvana Ganesh, Mosabbah Mushir Ahmed and Alieeldin Mady

Qualcomm Inc., Cork, Ireland

Keywords:

Side Channel Attacks, CRYSTALS-Kyber, Leakage Assessment, Deep Learning, Higher Order Masking.

Abstract:

To enable the secure deployment of CRYSTALS-Kyber as the National Institute of Standards and Technol-

ogy (NIST) post-quantum cryptography (PQC) standard for key encapsulation mechanisms (KEM), several

attacks have emerged for both the algorithm and its implementations. In this work, a thorough higher order

test vector leakage assessment has been performed on open source implementations of CRYSTALS-Kyber.

With the traces obtained using the ChipWhisperer framework, the leakage is determined and a template Side

Channel Attacks (SCA) is performed with deep learning to successfully uncover the secret key from the ﬁrst-

order masked implementation of CRYSTALS-Kyber. Overall, this work performs a comprehensive leakage

assessment and neural network-based SCAs on the masked implementation of CRYSTALS-Kyber.

1 INTRODUCTION

Key Encapsulation Mechanisms are essential for gen-

erating a shared secret key between parties, to estab-

lish secure peer-to-peer transactions. As the ﬁnal-

ized candidate for KEMs in the PQC standardization

(PQC, 2023), CRYSTALS-Kyber (Bos et al., 2018)

has strong mathematical security, while being com-

pact in size. There are open-source implementations

(Heinz et al., 2022; Kannwischer et al., 2020) avail-

able for CRYSTALS-Kyber that are embedded device

compatible. These implementations are built for spe-

ciﬁc requisites concerning both security and perfor-

mance, with a notable emphasis on resilience against

side-channel attacks (SCA).

SCAs (Kocher et al., 1999) exploit physically

measured information, such as power consumption,

electromagnetic radiation, sound emissions, and exe-

cution time, during cryptographic operations on hard-

ware. In CRYSTALS-Kyber, a successful SCA (Ravi

et al., 2022) implies the shared key recovery using

power and electromagnetic analysis, as the secret key

can be derived from the shared key, which is the mes-

sage and subsequently extract the long-term secret

key.

Before performing a full-scale SCA, a leakage as-

sessment is conducted to detect potential side chan-

nel leakage from the device running the algorithm,

as it requires fewer traces and complexity compared

to an attack. The assessment points out weaknesses

in the algorithm which can be used as target for the

attack, if it also involves critical security parameters

like the secret key. While there are works demon-

strating leakage assessment for the unmasked imple-

mentation, no signiﬁcant study has been conducted

for the masked implementation to immediately deter-

mine the leakage in mkm4 (Heinz et al., 2022). To

rectify this, our work demonstrates a leakage assess-

ment with higher order Test Vector Leakage Assess-

ment (TVLA) (Schneider and Moradi, 2015), as it

predicts leakage better than basic t-tests on higher or-

der masking.

In the unmasked implementation, the poly tomsg

component has been found to be one of the viable

sources of leakage, as it converts the shared key from

polynomial to the message domain as a part of decap-

sulation in pqm4 (Kannwischer et al., 2020). Several

attacks (Chang et al., 2022; Mujdei et al., 2022; Ravi

et al., 2020b) have been performed on this component

for message and secret key recovery. To protect the at-

tacked components from SCA, masking is one of the

most used countermeasures. But currently there are

also attacks against the masked components (Back-

lund et al., 2022; Ngo et al., 2021). In our work, we

perform the leakage assessment and then use template

attacks, that are enhanced by Deep Learning (DL)

(Picek et al., 2023) to attack the message decoding

component.

The motivation for this work is to understand

the implementation of CRYSTALS-Kyber, develop a

Ganesh, B., Ahmed, M. and Mady, A.

Higher Order Leakage Assessment and Neural Network-based Attack on CRYSTALS-Kyber.

DOI: 10.5220/0012715700003767

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 21st International Conference on Security and Cryptography (SECRYPT 2024), pages 373-380

ISBN: 978-989-758-709-2; ISSN: 2184-7711

373

comprehensive methodology for leakage assessment

and deploy a set of experiments that can exploit the

leakage. The use of Recurrent Neural Networks

(RNN) for SCAs is explored, as RNNs are sensitive

to the order of the data supplied. This allows to un-

cover dependencies distributed across different points

in time, making it potent against implementations of

higher-order masking schemes with multivariate leak-

ages.

1.1 Contribution

Our work demonstrates that the masked message de-

coding function is leaky under second order t-tests for

ﬁxed vs random keys, and is exploitable even with the

ﬁrst order masking. The rationale in this work is to

ﬁnd a source of leakage before launching an attack on

the masked implementation. The part of the leakage

in masked message decoding is used to launch a side-

channel attack. The main contributions of the paper

are given as follow:

• Performed Welch’s t-tests on multiple compo-

nents of the unmasked and masked implementa-

tions of CRYSTALS-Kyber.

• Performed second order t-tests on the leaky com-

ponents of the ﬁrst order masked implementation

(Heinz et al., 2022), which has not been done be-

fore in literature.

• Performed a template SCA using NN on the

masked implementation of Kyber speciﬁcally fo-

cused on the masked poly tomsg step in the de-

cryption using multi-layer perceptrons and recur-

rent NNs.

After ﬁnding an exploitable vulnerability, an NN-

based side-channel attack is executed, speciﬁcally tar-

geting the masked poly tomsg step in the decryption

process of the Kyber algorithm. The multi-layer per-

ceptron (MLP) model retrieves 99% of the secret key

from just the attack phase. The model is evaluated

based on validation accuracy and key retrieval. The

performance of the model was achieved through be-

spoke pre-processing and the error correcting code.

Our MLP model is similar to the model in (Back-

lund et al., 2022), where the attack was performed on

masked and shufﬂed Kyber, which is not open source.

We target mkm4, that needed additional implemen-

tation, such as ﬁnding speciﬁc triggers according to

the leakage from the TVLA. Compared to the attack

in (Backlund et al., 2022), our method has less pre-

processing, from removing their cut-and-join tech-

nique.

The paper is outlined as discussed in this section.

Sec. 2 discusses the preliminaries required for the rest

of the paper including the CRYSTALS-Kyber algo-

rithm, masking, t-tests and the device set-up for the

experiments performed. The results of the TVLA ex-

periments are provided in Sec. 3 and further proceed

to perform attacks in Sec. 4. Finally, Sec. 5 concludes

and provides some possible future works.

1.2 Related Work

The initial phase preceding any attack involves identi-

fying potential vulnerabilities through statistical anal-

ysis, and Welch’s t-test serves as a valuable tool for

this purpose. While there exists a considerable num-

ber of studies on attacks targeting CRYSTALS-Kyber,

it is noteworthy that, until recently, TVLA on Ky-

ber have been sparingly explored. The pioneering

works of (Rajendran et al., 2023; Ravi et al., 2020b;

Sim et al., 2022) are among the few that have delved

into TVLA speciﬁcally on the poly tomsg operation

of Kyber. Two widely adopted implementations that

have become standard for cryptographic attacks are

pqm4 (Kannwischer et al., 2020) and mkm4 (Heinz

et al., 2022).

Numerous attacks on CRYSTALS-Kyber have

been conducted using the ofﬁcial pqm4 implementa-

tion (Ravi et al., 2022; Ravi et al., 2020b). Following

this, there were several attacks focusing on different

components of the implementation like the compari-

son operation plaintext-checking (PC) oracle (Rajen-

dran et al., 2023), but mostly surrounding the mes-

sage encoding (Sim et al., 2020), the number theo-

retic transform (Bock et al., 2024; Primas et al., 2017;

Yang et al., 2023) and the poly

tomsg components

(Chang et al., 2022). Tab. 1 refers to some relevant

attacks on Kyber, especially focusing on the compo-

nents of Decapsulation.

The landscape of side-channel attacks has wit-

nessed a notable evolution with the integration of

NNs, as evidenced in recent literature, as illustrated

in (Picek et al., 2023). While there exist pre-trained

models for AES and RSA, limited availability is noted

for other cryptographic schemes. After the release

of the masked implementation mkm4 (Heinz et al.,

2022), many attacks leveraged various NN architec-

tures, including multi-layer perceptrons (MLP), con-

volutional neural networks (CNN), and RNN attack-

ing mkm4.

Ngo et al. introduced proﬁled attacks with NNs in

their work on Saber KEM (Ngo et al., 2021) and ex-

tended this approach to generic KEMs in (Ngo et al.,

2022; Dubrova et al., 2023). Tab. 2 covers relevant at-

tacks on ﬁrst-order masking and some of these attacks

use NNs to accomplish the attack.

SECRYPT 2024 - 21st International Conference on Security and Cryptography

374

Table 1: Side Channel Attacks on CRYSTALS-Kyber.

Paper Target Method used

(Ravi et al., 2020b) poly tomsg Chosen Ciphertext – 2560 traces

(Sim et al., 2020) Barrett reduction Chosen Ciphertexts - Clustering

(Chang et al., 2022) poly tomsg Template matching – 900 traces

(Mujdei et al., 2022) Polynomial Multiplication Hamming weight - 3329

guesses

(Primas et al., 2017) poly frommsg Hamming weight - 500 traces

(Rajendran et al., 2023) re encrypt - PC oracle Template matching - 5520 & 72 traces

(Yang et al., 2023) KeyGen Multiplication Template matching – 900 traces

Table 2: Attacks on ﬁrst order masking and use of AI.

Paper Target Method used

(Bock et al., 2024) Polynomial Multiplication Template attack - no DL

(Backlund et al., 2022) masked poly tomsg MLP- Hamming distance

(Ngo et al., 2021) Saber - poly A2A MLP & ECC- Hamming weight

(Ueno et al., 2022) masked AES NN Classiﬁcation

2 PRELIMINARIES

2.1 CRYSTALS-Kyber

Deﬁne the ring R = Z and R

= R/qR = Z

and

with the ring-embedding σ : K → K

, with

discrete Gaussian and normal distribution used for

sampling the vectors. Let {0, 1} be I. Con-

sider the functions in message encoding and de-

coding and reduce the key and ciphertext sizes

in R

, Compress(·,d) : Z

→ {0, ...,2

− 1} and

Decompress(·, d) : {0,...,2

− 1} → Z

. These func-

tions constitute the poly frommsg and poly tomsg

in the implementations, and follow invertibility with

negligible error.

Algorithm 1: Kyber PKE - Key Generation.

Input: seeds ρ,σ ∈ I

256

1: Sample A ∼ R

k×k

using seed ρ

2: Sample (s, e) ∼ I

× I

, using seed σ

3: t

comp

:= Compress(As + e,d

)

4: return pk := (t

comp

,ρ), sk := s

The Fujisaki-Okamoto (FO) transform is used

to upgrade the security of the underlying public

key encryption (PKE) in CRYSTALS-Kyber (Bos

et al., 2018) from the weaker indistinguishability un-

der Chosen Plaintext Attacks, to the stronger adap-

tive Chosen Ciphertext Attacks for KEM, by remov-

ing ciphertext malleability in the PKE. The modiﬁed

FO transform re-encrypts the decrypted message and

compares the resulting ciphertext against the received

one.

Algorithm 2: Kyber PKE - Encryption.

Input: pk, m ∈ I

256

, τ ∈ I

256

1: t := Decompress(t

comp

)

2: Sample A ∼ R

k×k

, for seed ρ

3: Sample (r, e

) ∼ I

× I

× I, for seed τ

4: u

comp

:= Compress(A

r + e

)

5: v

comp

:= Compress(t

r + e

+ ⌊

⌉m,d

)

6: return c := (u

comp

)

Algorithm 3: Kyber PKE - Decryption.

Input: c = (u

comp

), s

1: u := Decompress(u

comp

)

2: v := Decompress(v

comp

)

3: return m := Compress(v − s

u,1)

The pqm4 library serves as a benchmarking and

testing framework that targets the ARM Cortex-M4

family of microcontrollers and supports all versions

of Kyber. The masking countermeasure, introduced

in (Chari et al., 1999), serves as a strategy to conceal

side channel leakage for dividing data into multiple

shares that can be processed independently, yet when

combined, represent the ﬁnal processed data, so that

no individual share reveals any information about the

masked secret. Previous research has demonstrated

that, through DL, individual secret shares can be ex-

tracted and subsequently combined (Backlund et al.,

2022; Ueno et al., 2022). The mkm4 library is built

upon the M4 implementation of pqm4. The mask-

ing is available for the functions that were attacked in

pqm4 like message encode and decode, polynomial

multiplication and polynomial comparison. mkm4

only supports Kyber 768, which we use from both the

Higher Order Leakage Assessment and Neural Network-based Attack on CRYSTALS-Kyber

375

libraries for our attacks. Alg. 3 presents only the Ky-

ber PKE, as given in (Bos et al., 2018) as it covers the

necessary background for our attack.

In the decryption and eventually the decapsula-

tion function, one of the important components is the

decoding function wherein the polynomial gets con-

verted into the message again, where the message is

the shared secret, which are of interest to attack.

2.2 Welch’s t-test and TVLA

The Welch’s t-test (Welch, 1947) is useful when deal-

ing with unequal sample sizes or variances, enables

the comparison of means between the two groups. For

SCAs, this helps point out any leakage between the

two sets that can be considered for exploitation. Con-

sider having n

samples from set A and n

samples

from set B. For TVLA typically, set A contains ﬁxed

traces, i.e., traces obtained for a function where the

keys are ﬁxed and the inputs are random, and set B

contains random traces where keys and messages are

random. For each group j = A,B, let µ

represent the

sample mean in group j, and s

denote the sample

variance.

|t| =

|µ

− µ

(1)

In the context of masked implementations of any

order, the detection of leakage necessitates higher-

order TVLA, as articulated in (Schneider and Moradi,

2015). Various techniques can be employed for this

purpose, including applying the t-test with higher-

order central moments and, the χ

test, among oth-

ers. An essential adaptation involves replacing vari-

ance with the order of the moment, aligning with the

order of the mask, which may include measures such

as skewness and kurtosis. This nuanced approach is

imperative for unveiling and addressing potential vul-

nerabilities in masked implementations, contributing

to a comprehensive evaluation of security in crypto-

graphic systems.

3 LEAKAGE ASSESSMENT

First, the leakage assessment is performed with stan-

dard t-test and the second order t-test on both the

implementations of CRYSTALS-Kyber (Heinz et al.,

2022; Kannwischer et al., 2020) to observe the be-

haviour of the components. Here, key generation or

encapsulation procedures are not considered because

based on the history of attacks (Ravi et al., 2022),

most attacks tend to focus on the decapsulation al-

gorithm to retrieve the secret key, either directly or

through the shared secret, i.e., the message. It is worth

noting that higher order TVLA has not been employed

to assess leakage in masked implementations for PQC

so far and our work rectiﬁes this.

3.1 Device Set-up

All experiments were conducted on a Ryzen-7 lap-

top equipped with 16GB of RAM and approximately

50GB of virtual RAM. The power consumption-based

attacks were facilitated using ChipWhisperer Lite, a

well-established tool in the ﬁeld (O’Flynn and Chen,

2014). This tool captures traces of power consump-

tion by monitoring clock cycles. The experiments tar-

get an ARM Cortex-M4 processor, speciﬁcally utiliz-

ing either the STM32F303 or STM32F415, which is

commonly employed for trace collection. The F4 se-

ries, notable for its inclusion of a True Random Num-

ber Generator, is also utilized.

3.2 TVLA

The critical security parameters for Kyber include the

secret key or the shared secret, representing the sen-

sitive core of cryptographic systems. The construc-

tion of PQC algorithms can also vary across different

implementations, urging the adaptation of standards

to accommodate these nuances. For each of the ex-

periments, 1000 traces were considered per operation

to perform TVLA. Though it would typically require

more traces for considering a signiﬁcant leakage, but

a noticeable leakage is observed with such a low trace

numbers also. The public key distinguisher method

proposed in (Saarinen, 2022), with the as encryption,

aims at assessing whether the public key leaks more

data than expected during encryption. This experi-

mental study with pqm4 revealed no discernible leak-

age for the t-test calculated as in 2.2. This signiﬁes the

resilience of the implementation against unintended

information disclosure through the public key during

the encryption process.

Random vs Mismatch Traces: For assuring the se-

curity of the plaintext-checking oracle, with decap-

sulation of pqm4, random vs mismatch traces were

used to understand how the oracle reacts to improper

decapsulations. From the setup in Sec. 2.2, set A con-

tains valid ciphertexts, while set B comprises cipher-

texts encapsulated with a deliberately mismatched

public key, pk

′

̸= pk. The subtraction and the com-

parison operations of decapsulation exhibit leakage

when analyzing such random vs mismatched cipher-

texts with TVLA, but it is not signiﬁcant enough. It

should be noted that the masking of the comparison

operation has made it harder to attack this part of the

SECRYPT 2024 - 21st International Conference on Security and Cryptography

376

algorithm.

Fixed vs Random Traces: For evaluating decryp-

tion, traces within set A are generated using a ﬁxed

keypair, whereas set B employs random and unique

keypairs for each trace. The creation of ciphertexts

involves random messages paired with matching key-

pairs, strategically targeting different components of

the decryption process. The leakage found for this

variety is not too evident for all operations in decap-

sulation but present for the poly tomsg component in

pqm4. Though other operations were tested as well,

polynomial multiplication showed less than 5% leak-

age and the rest of the functions did not show any

immediately.

As shown in Fig. 2, the leakage is not enough

for performing attacks on the function, as it indicates

leakage of a single bit uniformly, which may not be

exploitable. Given the apparent leakage in the un-

masked implementation, the test is replicated with the

masked implementation to gauge the area of leakage.

The standard ﬁxed vs random TVLA is performed in

the masked mkm4 library, and the leakage is evident

for the masked counterpart of the decoding function,

masked

poly tomsg in the beginning of the traces.

3.3 Higher Order TVLA

In literature for the leakage assessments done on Ky-

ber (Rajendran et al., 2023; Ravi et al., 2020b; Sim

et al., 2020; Sim et al., 2022), the ﬁrst-order t-tests

have revealed leakage on the poly tomsg component,

corresponding to the message decoding process. It

is necessary to conﬁrm whether the problem persists

speciﬁcally within the masked poly tomsg operation

in mkm4.

Though there are different methods like the χ

test

or F-test or bi-variate analysis , our approach involves

central moments (Schneider and Moradi, 2015). For

the higher order TVLA, the mean and standard devi-

ation in the equation in 2.2 are replaced with higher

order central moments. For second order TVLA, the

mean µ is substituted with CM

and the variance s

with CM

−CM

, where CM

is the second order cen-

tral moment and CM

is the fourth order central mo-

ment.

|t| =

|CM

−CM

(2)

For the ﬁxed vs random TVLA, the set A con-

tains traces of the target operation for the encapsu-

lations with a ﬁxed key and set B for random keys.

The aim is to enhance and conﬁrm the ﬁndings of

the previous ﬁrst order TVLA but with 1000 traces

for practical considerations. The captured traces were

each of length 280, 000 for the masked poly tomsg

operation. A subset of 44,000 points in the begin-

ning of the trace can clearly be identiﬁed as leaky in

Fig. 3. This approach facilitated a more manageable

yet insightful examination, revealing critical insights

into the nature and extent of the leakage within the

masked poly tomsg operation. The results indicate

that the masked implementation exhibits a reduced

susceptibility to leakage for the speciﬁc component

under examination.

4 ATTACK

The target for performing the attack is the

masked poly tomsg operation in mkm4 as per

in Fig. 3. For neural networks, the two phases are

training and prediction, that require the training

dataset and the test dataset. First the training data

is collected and pre-processed. The cleaned data is

then segmented and ordered to make the NN optimal

with speed and efﬁciency, then fed into the NN of

choice to be trained. Once the model is trained, the

saved model is used to make predictions on the test

data. The model is adjusted and retrained based on

the prediction results.

Moving to the attack phase, traces were collected

speciﬁcally for chosen ciphertexts. The conceptual-

ization of the approach for the attack originated with

Saber and has been extended to Kyber, as detailed in

(Backlund et al., 2022). Their attack focuses on a

custom masked and shufﬂed version of CRYSTALS-

Kyber, but only masking is used as countermeasure

in this work, as there is no ofﬁcial code for the shuf-

ﬂed component available open source. The ECT is

strategically employed to extract the secret key from

the message guesses associated with different cipher-

texts.

4.1 Proﬁling Phase

For the mkm4 implementation, 50000 traces are cap-

tured for the masked poly tomsg of the decapsulation

for detailed analysis, for ciphertexts known to the at-

tacker. The trace length is set to the ﬁrst 53000 out of

280,000 points to utilize the source of the leakage as

seen in Fig. 3.

4.1.1 Pre-Processing

First, N traces associated with the

masked poly tomsg operation are gathered with

the ChipWhisperer. The traces are split into ﬁve

Higher Order Leakage Assessment and Neural Network-based Attack on CRYSTALS-Kyber

377

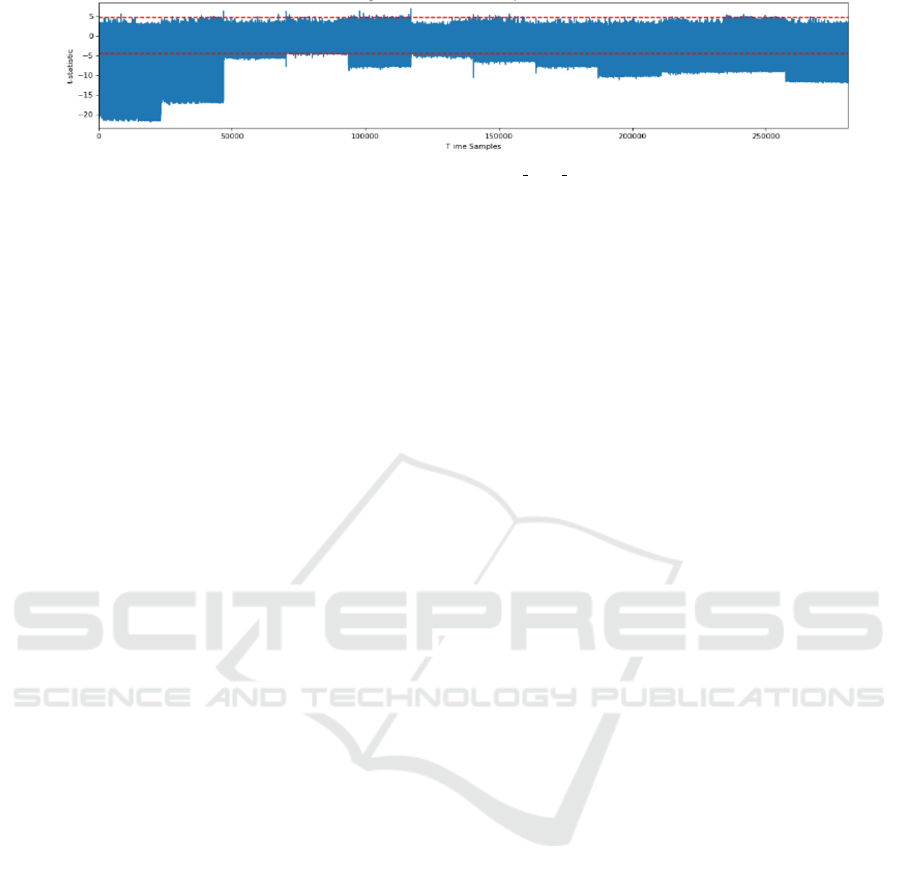

Figure 1: First Order TVLA on poly tomsg with pqm4.

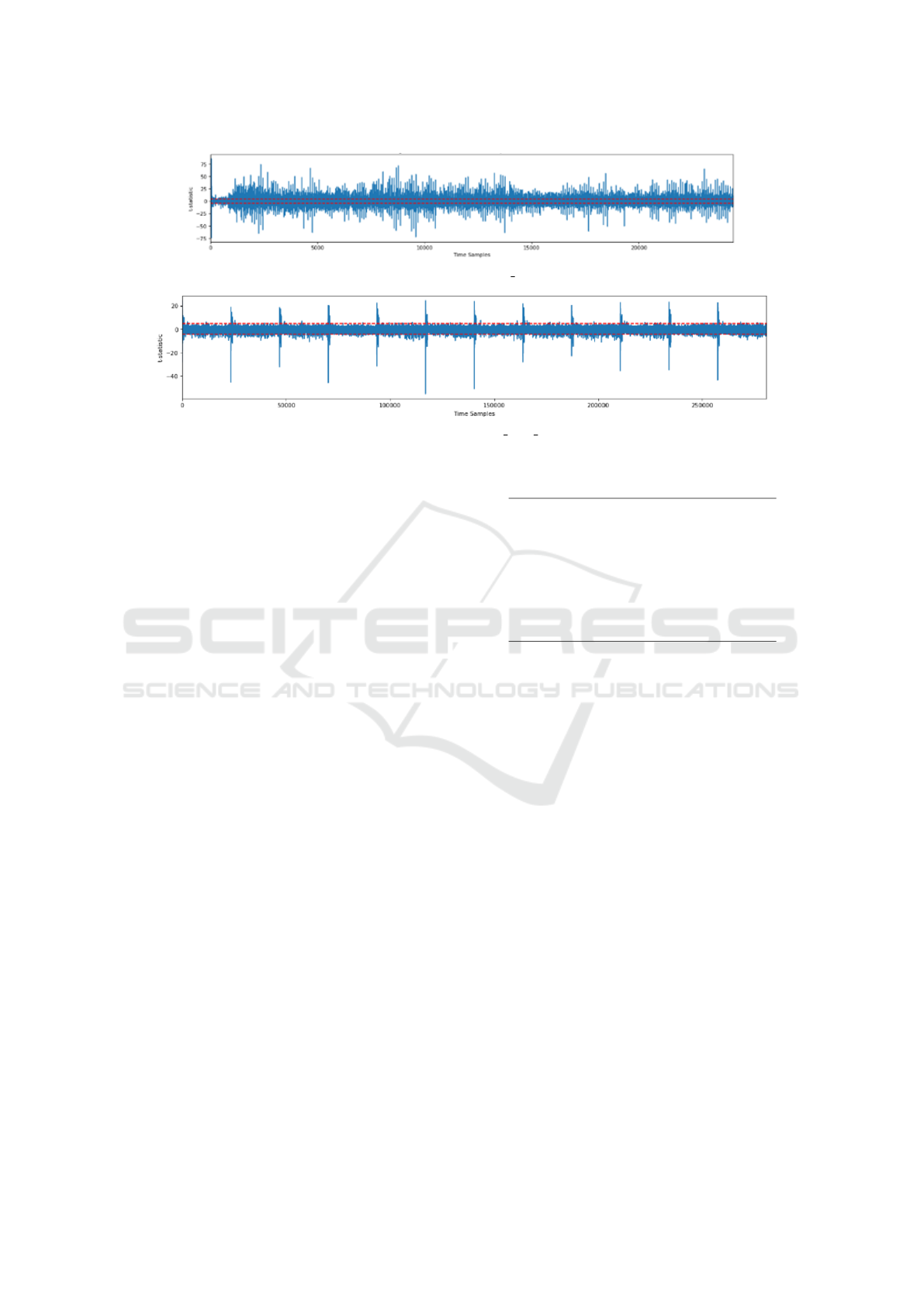

Figure 2: First Order TVLA on masked poly tomsg with mkm4.

equal sets. The dataset is carefully prepared for

training, with the trace shape set at (10000,53000).

Synchronization is crucial in this process, and a

segment length of 225 is chosen. Then, the mean

of the end segments for all traces is calculated, and

correlations are identiﬁed for consistency, resulting

in a reﬁned trace shape of (10000, 57600). This is

done to ensure a consistent shape for all the traces

and eliminate outliers. The subsequent steps involve

cutting and shaping the traces, so that they can be

split bitwise for better learning in the DL architecture.

Then a uniﬁed dataset of 50000 traces is created,

combining individual datasets into one to increase the

amount of training data. The ﬁnal trace shape is

(256 ∗ 50000,3 ∗ 225) where the 53000 is split into

256 bit parts (Or 8 bytes). It was decided to keep

the three consecutive bit information together as the

slicing them would increase the complexity or reduce

performance. Standardization and normalization pro-

cedures are applied to each trace before the model

training phase.

4.1.2 Deep Learning Architecture

We consider a similar architecture to (Backlund et al.,

2022) but the algorithm was modiﬁed to better ﬁt the

mkm4 library. Additionally, the Long Short-Term

Memory (LSTM) model, a type of RNN is used as

it is known for its proﬁciency in handling temporal

data. Recognizing the importance of trace order and

message bit sequencing in key recovery, LSTM is em-

ployed in conjunction with batch normalization for

standardized traces. The model architecture incorpo-

rates ReLU activation for the middle layers and sig-

moid for the output layer. The architecture for the

RNN is given in Tab. 3. The network can be ad-

justed with different activation functions and NN lay-

Table 3: Neural Network Architecture.

Layer type Output shape

Batch Normalization 1 input size

LSTM 512

Batch Normalization 2 32

ReLU 128

Dense 1 16

Batch Normalization 3 16

Sigmoid 16

Dense 2 8

ers. There are many factors and metrics like loss, ac-

curacy, etc., that can be calculated in different meth-

ods. Setting up different permutations of all such fac-

tors is called hyperparametrization and it is very use-

ful in improving the accuracy of a model.

The optimization is carried out using the N-Adam

optimizer and RMSprop, with a loss function based

on binary cross-entropy. The model undergoes train-

ing for 100 epochs, with a batch size set at 128, culmi-

nating in a comprehensive evaluation of the proposed

attack methodology. The architecture in the paper for

RNN, in Table 3, is performed in combination with

Dense layers and the activation functions are chosen

according to the number of labels to be predicted.

4.2 Attack Phase

The attack phase consists of two parts, ﬁrst, train-

ing the traces and second, using the model to predict

the secret key. Constructing the Chosen Ciphertexts

(CCT) required for the attack involves the creation of

sparse ciphertexts, speciﬁcally for a ciphertext (u, v)

with a size of 768 bytes as seen in the encryption part

of Alg. 3. The computation of m = v − su constructs

the message m from the ciphertext and the secret key

s. This forms the basis for the construction of CCTs,

SECRYPT 2024 - 21st International Conference on Security and Cryptography

378

Figure 3: Second Order TVLA on masked poly tomsg in mkm4.

wherein the chosen values are determined using Ham-

ming distances with a rotational parameter for cipher-

text rotations through shifting (Ravi et al., 2020a).

The enumeration of CCTs is executed in collabo-

ration with the ECT. This tool is very helpful in round-

ing coefﬁcients that are close enough to the original

value in the predicted secret key. The initial step

involves generating an error dictionary based on the

code distances observed in the chosen ciphertexts.

Subsequently, the recovered messages undergo three

iterations of error correction through this error dictio-

nary to identify and rectify errors. If no errors are de-

tected after three passes, the corresponding coefﬁcient

is deemed enumerable. In conclusion, these coefﬁ-

cients are systematically enumerated over q = 3329,

facilitating the recovery of the correct secret key co-

efﬁcient.

4.3 Results

The neural networks were trained with both the

trimmed and untrimmed data, but as one can expect,

the bitwise trimmed data performs better than the

untrimmed data. In current setup, the attacks have

not yielded success with the RNN architecture, even

though RNN is built to perform better on time-series

data. The training phase witnessed a decline in loss

rates, indicative of challenges in convergence, and

highlighted the dependency on signiﬁcantly larger

datasets compared to MLP. Despite these setbacks,

RNN exhibits a notable advantage in terms of reduced

prediction runtime. Moreover, the model exhibits en-

hancements through hyperparameter tuning, indicat-

ing the potential for optimization with further explo-

ration.

Increasing the number of traces or the number

of layers makes the attack more cumbersome com-

pared to the MLP-based approach, therefore making

the MLP approach better, compared to the more so-

phisticated RNN. For MLP, the convergence was ap-

proximately 90% for validation accuracy for the MLP,

but not more than 70% for the RNN, even with dif-

ferent permutations of layers. The MLP architecture

demonstrates impressive capabilities by successfully

retrieving 99% of the coefﬁcients, in 65 hours. How-

ever, it’s noteworthy that the comprehensive key re-

covery necessitates the combination of results from

different models.

5 CONCLUSION

In this study, the security of the CRYSTALS-Kyber

implementations is examined thoroughly. The nov-

elty of the work comes from the execution of higher

order TVLA and using recurrent neural network

(RNN) SCA to attack the masked Kyber implemen-

tation mkm4 using ChipWhisperer. Vulnerabilities in

the mkm4 implementation are successfully identiﬁed

with higher order leakage. This proves that methods

other than ﬁrst order t-tests are needed to attest the se-

curity of cryptographic implementations. Though the

NTT component did not display any leakage through

t-tests, some works (Mujdei et al., 2022) have ex-

ploited the vulnerability to perform attacks, due to in-

herent mathematical properties. The inadequacy of t-

tests in directly correlating with successful key recov-

ery is hinted at by related works (Ravi et al., 2022),

underscoring the need for a more nuanced approach.

In navigating the landscape of modern cryptographic

challenges, it becomes imperative to explore modern

solutions, such as the integration of DL to introduce

noise into the system instead of measures like mask-

ing. This line of inquiry addresses the intricacies of

cryptographic systems and underscores the evolving

nature of cyber security solutions.

REFERENCES

(2023). Nist post-quantum cryptography: Post-quantum

cryptography standardization.

Backlund, L., Ngo, K., G

artner, J., and Dubrova, E. (2022).

Secret key recovery attacks on masked and shufﬂed

implementations of crystals-kyber and saber. IACR

Cryptol. ePrint Arch.

Bock, E. A., Banegas, G., Brzuska, C., Chmielewski, L.,

Puniamurthy, K., and Sorf, M. (2024). Breaking dpa-

protected kyber via the pair-pointwise multiplication.

In Applied Cryptography and Network Security - 22nd

Higher Order Leakage Assessment and Neural Network-based Attack on CRYSTALS-Kyber

379

ACNS 2024, Proceedings, Part II, Lecture Notes in

Computer Science.

Bos, J., Ducas, L., Kiltz, E., Lepoint, T., Lyubashevsky, V.,

Schanck, J. M., Schwabe, P., Seiler, G., and Stehle,

D. (2018). CRYSTALS - Kyber: A CCA-Secure

Module-Lattice-Based KEM. In 2018 IEEE European

Symposium on Security and Privacy.

Chang, Y., Yan, Y., Zhu, C., and Guo, P. (2022). Template

attack of lwe/lwr-based schemes with cyclic message

rotation. Entropy.

Chari, S., Jutla, C. S., Rao, J. R., and Rohatgi, P. (1999). To-

wards sound approaches to counteract power-analysis

attacks. In Advances in Cryptology - CRYPTO ’99,

Proceedings, Lecture Notes in Computer Science.

Springer.

Dubrova, E., Ngo, K., G

artner, J., and Wang, R. (2023).

Breaking a ﬁfth-order masked implementation of

crystals-kyber by copy-paste. In Proceedings of the

10th ACM Asia Public-Key Cryptography Workshop,

APKC 2023, Melbourne, VIC, Australia, July 10-14,

2023. ACM.

Heinz, D., Kannwischer, M. J., Land, G., P

oppelmann, T.,

Schwabe, P., and Sprenkels, A. (2022). First-order

masked kyber on ARM cortex-m4. IACR Cryptol.

ePrint Arch.

Kannwischer, M. J., Petri, R., Rijneveld, J., Schwabe,

P., and Stoffelen, K. (2020). PQM4: Post-quantum

crypto library for the ARM Cortex-M4.

Kocher, P. C., Jaffe, J., and Jun, B. (1999). Differential

power analysis. In Advances in Cryptology - CRYPTO

’99, Proceedings, Lecture Notes in Computer Science.

Springer.

Mujdei, C., Wouters, L., Karmakar, A., Beckers, A., Mera,

J. M. B., and Verbauwhede, I. (2022). Side-channel

analysis of lattice-based post-quantum cryptography:

Exploiting polynomial multiplication. ACM Trans.

Embed. Comput. Syst.

Ngo, K., Dubrova, E., and Johansson, T. (2021). Break-

ing masked and shufﬂed CCA secure saber KEM by

power analysis. In ASHES@CCS: 5th Workshop on

Attacks and Solutions in Hardware Security. ACM.

Ngo, K., Wang, R., Dubrova, E., and Paulsrud, N. (2022).

Side-channel attacks on lattice-based kems are not

prevented by higher-order masking. IACR Cryptol.

ePrint Arch.

O’Flynn, C. and Chen, Z. D. (2014). Chipwhisperer: An

open-source platform for hardware embedded security

research. In Constructive Side-Channel Analysis and

Secure Design - 5th International Workshop, Lecture

Notes in Computer Science. Springer.

Picek, S., Perin, G., Mariot, L., Wu, L., and Batina, L.

(2023). Sok: Deep learning-based physical side-

channel analysis. ACM Comput. Surv., (11).

Primas, R., Pessl, P., and Mangard, S. (2017). Single-trace

side-channel attacks on masked lattice-based encryp-

tion. In Cryptographic Hardware and Embedded Sys-

tems - CHES Proceedings, Lecture Notes in Computer

Science. Springer.

Rajendran, G., Ravi, P., D’Anvers, J., Bhasin, S., and Chat-

topadhyay, A. (2023). Pushing the limits of generic

side-channel attacks on lwe-based kems - parallel PC

oracle attacks on kyber KEM and beyond. IACR

Trans. Cryptogr. Hardw. Embed. Syst., (2).

Ravi, P., Bhasin, S., Roy, S. S., and Chattopadhyay, A.

(2020a). On exploiting message leakage in (few)

NIST PQC candidates for practical message recovery

and key recovery attacks. IACR Cryptol. ePrint Arch.

Ravi, P., Chattopadhyay, A., and Baksi, A. (2022). Side-

channel and fault-injection attacks over lattice-based

post-quantum schemes (kyber, dilithium): Survey and

new results. IACR Cryptol. ePrint Arch.

Ravi, P., Roy, S. S., Chattopadhyay, A., and Bhasin, S.

(2020b). Generic side-channel attacks on cca-secure

lattice-based PKE and kems. IACR Trans. Cryptogr.

Hardw. Embed. Syst., (3).

Saarinen, M. O. (2022). Wip: Applicability of ISO stan-

dard side-channel leakage tests to NIST post-quantum

cryptography. In IEEE International Symposium on

Hardware Oriented Security and Trust, HOST. IEEE.

Schneider, T. and Moradi, A. (2015). Leakage assessment

methodology - A clear roadmap for side-channel eval-

uations. In Cryptographic Hardware and Embedded

Systems - CHES Proceedings, Lecture Notes in Com-

puter Science. Springer.

Sim, B., Kwon, J., Lee, J., Kim, I., Lee, T., Han, J., Yoon,

H. J., Cho, J., and Han, D. (2020). Single-trace attacks

on message encoding in lattice-based kems. IEEE Ac-

cess.

Sim, B., Park, A., and Han, D. (2022). Chosen-ciphertext

clustering attack on CRYSTALS-KYBER using the

side-channel leakage of barrett reduction. IEEE In-

ternet Things J., (21).

Ueno, R., Xagawa, K., Tanaka, Y., Ito, A., Takahashi,

J., and Homma, N. (2022). Curse of re-encryption:

A generic power/em analysis on post-quantum kems.

IACR Trans. Cryptogr. Hardw. Embed. Syst., (1).

Welch, B. L. (1947). The generalization of ‘student’s’ prob-

lem when several different population varlances are

involved. Biometrika, (1-2).

Yang, B., Ravi, P., Zhang, F., Shen, A., and Bhasin, S.

(2023). Stamp-single trace attack on M-LWE point-

wise multiplication in kyber. IACR Cryptol. ePrint

Arch.

SECRYPT 2024 - 21st International Conference on Security and Cryptography

380
