DREAM-ON GYM: A Deep Reinforcement Learning Environment for

Next-Gen Optical Networks

Nicol

as Jara

1 a

, Hermann Pempelfort

1 b

, Erick Viera

, Juan Pablo Sanchez

, Gabriel Espa

and Danilo Borquez-Paredes

2 c

Department of Electronics Engineering, Universidad Tecnica Federico Santa Maria, Valpara

ıso, Chile

Faculty of Engineering and Sciences, Universidad Adolfo Ib

nez, Vi

na del Mar, Chile

Keywords:

Optical Networks, Framework, Deep Reinforcement Learning, Simulation Technique.

Abstract:

A novel open-source toolkit for a straightforward implementation of deep reinforcement learning (DRL) tech-

niques to address any resource allocation problem in current and future optical network architectures is pre-

sented. The tool follows OpenAI GYMNASIUM guidelines, presenting a versatile framework adaptable to

any optical network architecture. Our tool is compatible with the Stable Baseline library, allowing the use of

any agent available in the literature or created by the software user. For the training and testing process, we

adapted the Flex Net Sim Simulator to be compatible with our toolkit. Using three agents from the Stable

Baselines library, we exemplify our framework performance to demonstrate the tool’s overall architecture and

assess its functionality. Results demonstrate how easily and consistently our tool can solve optical network re-

source allocation challenges using just a few lines of code applying Deep Reinforcement Learning techniques

and ad-hoc heuristics algorithms.

1 INTRODUCTION

Deep Reinforcement learning (DRL) has recently

emerged as a powerful machine learning paradigm

that can be used in diverse real-world scenarios. Re-

cent studies suggest that reinforcement learning could

soon become an essential tool in various industries,

including manufacturing, energy, healthcare, and ﬁ-

nance (Naeem et al., 2020). In particular, DRL has

been successfully applied to the ﬁeld of telecommu-

nication architectures such as optical networks (ON),

where it can be used to build various solutions such

as classiﬁcation techniques based on data gathering,

routing decision protocols, and trafﬁc scheduling al-

gorithms, among others (Zhang et al., 2020). These

applications can help optical networks operate more

efﬁciently by improving the quality of their services

and reducing their overall deployment and operation

costs.

Optical networks handle massive data volumes,

and optimizing data routing is crucial (Klinkowski

et al., 2018). Reinforcement learning, a trial-and-

https://orcid.org/0000-0003-2495-8929

https://orcid.org/0000-0002-6896-5787

https://orcid.org/0000-0001-6590-2329

error machine learning technique, offers a solu-

tion where traditional methods falter in ﬁnding efﬁ-

cient routes. Traditional optimization struggles with

the complex constraints of optical networks (Naeem

et al., 2020), but reinforcement learning can discover

more effective and innovative solutions.

The main challenge facing the application of DRL

to optical networking is the complexity of the prob-

lem domain. Since optical networks consist of a com-

plex set of interconnected components, each with its

functions and limitations, it is difﬁcult for the system

to make consistent decisions concerning trafﬁc rout-

ing through the worldwide network. To overcome this

challenge, researchers have developed many models

that can be used to approximate the effects of differ-

ent network components and test various resource al-

location strategies (Chen et al., 2019; El Sheikh et al.,

2021; Morales et al., 2021). Using these models, it

is possible to identify possible bottlenecks in the net-

work and ways of improving network trafﬁc perfor-

mance and quality.

In optical networks, reinforcement learning can

improve resource allocation for two main purposes.

The ﬁrst is to design efﬁcient routing strategies that

consider the current allocation of resources within

the network and the anticipated changes in demand

Jara, N., Pempelfort, H., Viera, E., Sanchez, J., España, G. and Borquez-Paredes, D.

DREAM-ON GYM: A Deep Reinforcement Learning Environment for Next-Gen Optical Networks.

DOI: 10.5220/0012715900003758

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 14th International Conference on Simulation and Modeling Methodologies, Technologies and Applications (SIMULTECH 2024), pages 215-222

ISBN: 978-989-758-708-5; ISSN: 2184-2841

215

that may occur in the future. The second is to de-

velop and implement a dynamic resource allocation

scheme that can respond to real-time changes in the

network environment to maximize network perfor-

mance. For example, a reinforcement learning al-

gorithm could design new routing strategies for bet-

ter use of the link resources (e.g., wavelengths, fre-

quency spectrum, ﬁber cores, spectral bands), ensur-

ing a certain quality level and enabling available ca-

pacity to handle future increases in trafﬁc demand. It

is also possible to implement dynamic resource allo-

cation schemes that adjust the allocation of resources

to different parts of the network based on real-time

measurements of trafﬁc patterns and current resource

availability.

The main beneﬁt of using reinforcement learning

in optical networks is that it allows these systems to

make optimal decisions based on current conditions

and predicted changes to the network environment.

An advantage of this approach is that it allows the

network to respond quickly and efﬁciently to new sit-

uations without reprogramming or re-conﬁguring to

perform a new function. Another advantage of us-

ing reinforcement learning in optical networks is that

it enables these systems to make decisions based on

previous experiences rather than human input or in-

tervention. This advantage makes it highly resistant

to human error, making it much more reliable than a

human-operated system.

Using reinforcement learning in optical networks

presents a signiﬁcant drawback: the high implemen-

tation and maintenance costs. Operators must in-

vest time and resources into training the system to

adapt to changing network conditions. This com-

plexity increases operational costs and the difﬁculty

of implementation. Setting up these models is time-

consuming, with a steep learning curve, often requir-

ing development from scratch. Moreover, numer-

ous parameters must be conﬁgured for training and

evaluation, varying depending on the problem con-

text, necessitating expertise in optical communica-

tions and machine learning techniques. To our knowl-

edge, one toolkit intends to accelerate the implemen-

tation of Deep Reinforcement Learning for Optical

Networks (Natalino and Monti, 2020), called Optical-

RL-GYM. This toolkit provides a hierarchical appli-

cation for static and elastic optical network resource

allocation problems. However, the same hierarchical

architecture makes adapting the software to new opti-

cal networks difﬁcult and may be hard to learn due to

a lack of documentation.

For this reasons, we developed DREAM-ON

GYM, a Deep Reinforcement LEarning frAMework

for Optical Networks

. Following the principles

established by the OpenAI GYMNASIUM (Towers

et al., 2023), we propose a straightforward and ver-

satile framework for solving many current and future

optical network architecture resource allocation prob-

lems, such as routing, spectrum or wavelength allo-

cation, spectrum band or ﬁber core selection. Even

more, it can be adapted for any other optical architec-

ture context. This tool reduces the time and complex-

ity of using Deep Reinforcement Learning in Optical

Network architectures, providing easy-to-use func-

tions and modules. The framework is compatible with

the Stable Baselines library (Hill et al., 2018), allow-

ing the use of any agents available in the literature,

even though any operator can create their agents or

include any ad-hoc heuristic algorithm solutions if

needed. Finally, for the training and testing evalua-

tions, we adapted the Flex Net Sim Simulator (Falc

et al., 2021) to perform with our tool appropriately,

harvesting its straightforward and fast performance

for simulating optical communications infrastructure.

The remainder of the paper is as follows: the soft-

ware architecture of our tool is presented in Section 2.

The Flex Net Sim simulator is succinctly explained in

Section 3. In Section 4, we exemplify the use, sim-

pleness, and versatility of our tool. Finally, Section 5

presents further conclusions and ﬁnal comments.

2 DREAM-ON GYM TOOLKIT

Deep Reinforcement learning is an area of artiﬁ-

cial intelligence concerned with developing computer

programs that can learn to perform tasks without be-

ing explicitly programmed to do so. The ultimate

goal of reinforcement learning is to help machines be-

come more intelligent and learn to do things indepen-

dently without having to be instructed or programmed

by humans. Although reinforcement learning is still

in its infancy, it is beginning to gain signiﬁcant trac-

tion in the computer engineering and computer sci-

ence ﬁelds.

DRL systems are made of two main interacting

entities: agent and environment. The agent performs

a speciﬁc action following a strategy (or policy) that

modiﬁes the environment’s state. In return, the envi-

ronment computes a goodness score, called a reward,

that assesses the selected action’s quality. Maximiz-

ing the cumulative reward, the agent learns the best

way to perform a particular task in the environment.

The framework consists of a customized gym en-

vironment compatible with elastic optical networks

Code available at: https://gitlab.com/IRO-Team/

dream-on-gym-v2.0

SIMULTECH 2024 - 14th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

216

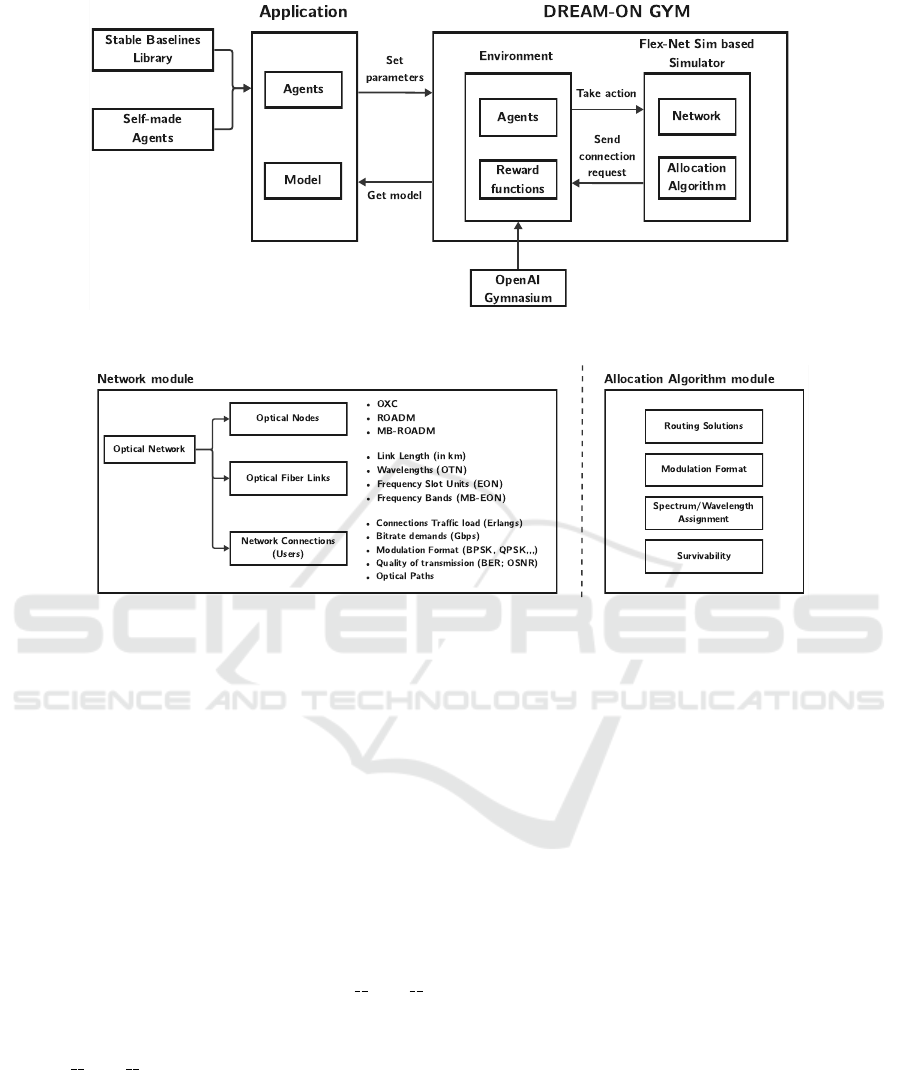

Figure 1: DREAM-ON GYM architecture.

Figure 2: Networks and Allocation Algorithm modules on our DREAM-ON GYM Architecture.

(EON) and multiband elastic optical networks (MB-

EON), which can be used for different optical archi-

tectures. Figure 1 shows the architecture of the im-

plemented framework. The application created by

the user must select an agent and set the network pa-

rameters, such as topology, routes, and bitrates. Af-

ter that, the environment is initialized, and the agent

starts training. The simulation component of the

framework sends connection requests to the environ-

ment composed of the triplet (source, destination,

bitrate). In contrast, the environment decides where

to assign this request through the agent. After train-

ing, the framework returns a model to the application

that will be used to allocate resources in this network.

Within the framework are overwritten init ,

step, and reset methods, which are mandatory for

any gym environment.

• The init method is responsible for initializ-

ing the environment. To meet the dynamism re-

quired by the environment, a particular elastic or

multiband optical network simulation module in-

spired by Flex Net Sim (Falc

on et al., 2021) was

created, which is initialized here. This module

works with three ﬁles: topology, routes, and bi-

trates. The topology ﬁle contains the connection

information of the network nodes and links. The

routes ﬁle contains the existing routes between

each pair of network nodes, which can be more

than one. The bitrate ﬁle contains information on

the bands, modulation formats, and bitrates that

the simulator can use. The module generates a

connection request between any network nodes,

using a uniform distribution, and with a bitrate ob-

tained from a JSON ﬁle associated with a modu-

lation format and the number of slots. The param-

eters normally set in this simulator are the number

of connections and arrival and departure rates. In

addition, a resource allocation function must be

set, coded, and passed as a parameter to the simu-

lator.

• The step method is responsible for processing the

connection requests one by one. In this way, each

connection is worked separately and sent to the

agent set before training.

• Finally, the reset method allows restarting the

episodes.

Figure 2 shows the structure of the Network and

Allocation Algorithm modules, reﬂecting optical net-

work architectures, their users (network connections),

and the standard problems to be solved with a network

operation perspective.

DREAM-ON GYM: A Deep Reinforcement Learning Environment for Next-Gen Optical Networks

217

1 env = gy m na s iu m . make (" rlonenv - v0 " )

2 obs , i n f o = env . reset ()

4 # set s p a ce

5 env . act i on _s p ac e = g ym n as i um . sp a c es .

Mu l t i Di sc r e t e (np . a rray ( [ 4 ] ) )

6 env . obs er va t i o n _ s p a c e = g ym n as i um .

spa c e s . Mu l t i Di sc r e t e ( [ 1 00] *

2720)

8 # Set r e war d fu nc t io n a n d s tat e s

9 env . set R e w ar dF u n c ( r e war d )

10 env . set S ta te F un c ( state )

12 # Set t op o lo g y and c o nn e c t io n ro ute s

13 env . ini t E n v i ro me n t ( NETWORK , P A THS )

15 # Co n n e ct i on s sett i ng s and warm - up

time

16 env . get S im ul a to r () . g o al Co n n e c t io ns =

100

17 env . get S im ul a to r () . setMu (1)

18 env . get S im ul a to r () . se t La m bd a (10 0 0 )

19 env . get S im ul a to r () . se t La m bd a ( FF )

20 env . get S im ul a to r () . init ()

22 # Train p roc e ss

23 env . s tart ()

24 env . get S im ul a to r () . se t A l lo c a t or (

ag e n t _ a lg or i t h m )

26 p ol i cy _ a r gs = d i c t ( n e t_ a rc h = 5*[128] ,

ac t i v at io n _ f n =th . nn . R e L U )

27 mo d e l = TR P O ( MLP_TRPO , env , v er b ose

=0 , t ens o rb o a rd _ log , policy ,

gamma )

28 mo d e l . l e a rn ( timesteps , log )

30 # Save tr a i ne d mo d e l

31 mo d e l . save ( ’ M O DEL ’)

Listing 1: DREAM-ON GYM code example.

The Network module holds the network archi-

tecture, considering the optical nodes, optical ﬁber

links, and network connections. These components

must reﬂect the optical architecture considered in the

study. We included three possible architectures: Op-

tical Transport Networks (OTN), Elastic Optical Net-

works (EON), and Multiband Elastic Optical Net-

works (MB-EON). In considering Optical Transport

Networks (OTN), the nodes perform as OXC (Optical

Cross Connect), and each link capacity is composed

of 80 wavelengths of 50 GHz each wavelength, cor-

responding to the standard communications on the C

frequency band. The Elastic Optical Networks con-

sider nodes with ROADM (Reconﬁgurable Optical

Add-Drop Multiplexing) and Wavelength Selective

Switches (WSS), including optical ﬁber links with

344 frequency slot units (FSU) of 12,5 GHz each for

the C-Band. Last, we consider the MB-EON architec-

ture, with MB-compatible optical nodes such as MB-

ROADM (Multiband-ROADM), and the capacity of

the links is composed of several frequency bands cor-

responding to the C, L, S, and E Bands with 344, 480,

760, and 1136 FSU each.

The Allocation Algorithm module comprises the

algorithms to solve the standard problems to be found

in optical communications, such as the routes to be

selected by each network connection (Routing), the

appropriate modulation format for each network con-

nection considering the Quality of Transmissions and

their path distances (Modulation Format), a piece of

frequency spectrum on each link belonging to each

path (Wavelength/Spectrum Assignment), or includ-

ing fault tolerance capabilities to the network (Sur-

vivability). This module connects with the Controller

module on the Simulator, which will be explained in

the following section. Remark that, in this module,

the solutions can be obtained by the DRL agents or

any ad-hoc heuristic procedure in the literature.

Listing 1 exempliﬁes the few lines of code re-

quired to execute our tool. We will refrain from show-

ing Python dependencies and some functions needed,

such as reward and state functions, but they can be

found in the available Gitlab code.

The OpenAI gymnasium framework is called in

the ﬁrst two lines, and the environment is reset. From

lines 5 to 6, the environment action and observation

space is set. In lines 9 and 10, the reward and state

functions are chosen. Line 13 sets the network topolo-

gies and the possible paths to be chosen. From lines

16 to 20, the connection settings are conﬁgured, such

as the number of total connection arrivals, interarrival

(λ), and service rate (µ). We perform a warm-up time

execution on line 19 (Function called FF), executing

the common First-Fit algorithm. The warm-up time is

when the simulation will run before collecting results,

allowing the queues (and other aspects in the simula-

tion) to get into conditions typical of normal running

conditions in the system you are simulating.

The training process is executed from lines 23 to

27, in which the environment is started, and the search

for network resources such as paths, wavelengths,

and slot units is done using the agent

lgorithm (see

GitLab code example) using one of the Stable base-

line agents (in this case using TRPO). Based on Q-

learning or policy learning, the agents are responsi-

ble for observing the environment and taking action to

improve the cumulative reward. These agents can be

obtained using the Stable Baseline library

or created

by the developer if needed. All the learning processes

https://stable-baselines.readthedocs.io/en/master/

SIMULTECH 2024 - 14th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

218

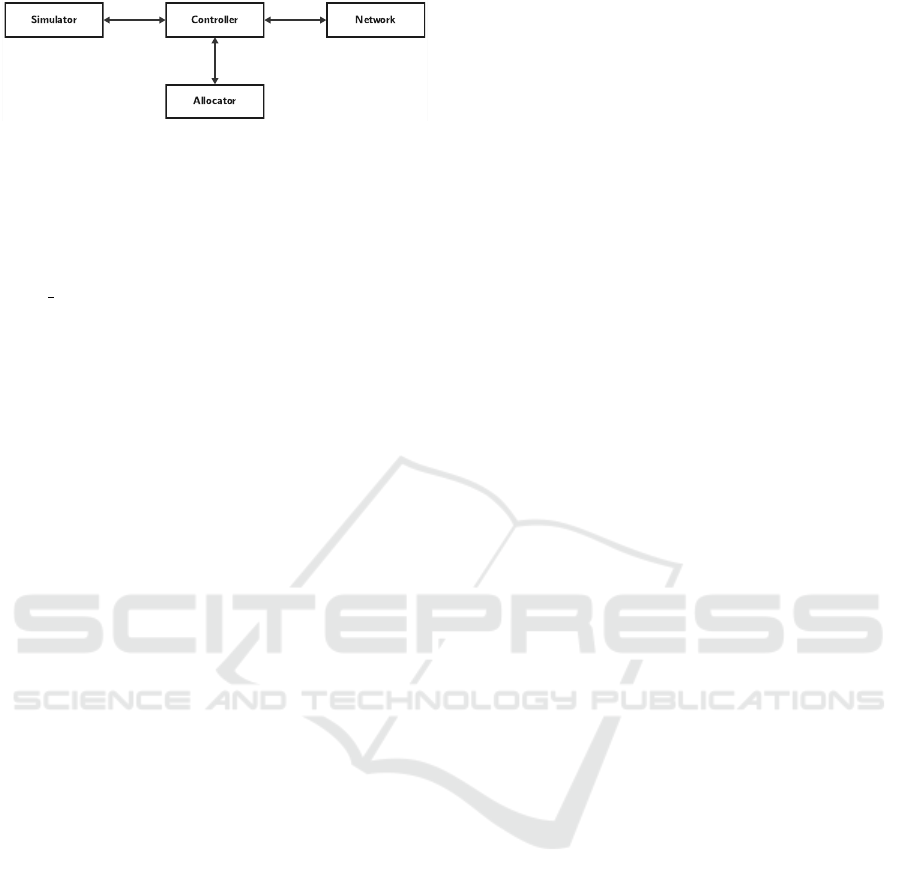

Figure 3: Flex Net Sim Simulator.

are saved on line 28.

Finally, the trained model can be stored on line 31

for further use.

In summary, the user must create the re-

source allocation function (in the example called

agent algorithm, choose the agent, and load the pre-

viously mentioned JSON ﬁles to use the framework.

The user must also code the state and the reward func-

tion, yet we provide a standard example on the Git-

lab code. The environment is trained using the opti-

cal networks environments provided and the agents of

choice, and ﬁnally, the model can be saved for further

evaluation.

3 SIMULATION TOOL

The tool presented in this article uses the core of

the Flex Net Sim simulator (Zitkovich et al., 2023)

through its ﬂexible optical networks option. This core

is in charge of generating the connection and discon-

nection requests that will be processed by the agent

and will ﬁnally end up in an assignment or a blocking

to the network. As presented in Figure 3, Flex Net

Sim is a very versatile simulator whose architecture is

composed of four components: Network, Controller,

Simulator, and Allocator, shown in Figure 3.

The Network component conﬁgures all the net-

work resources and comprises three Classes: Link,

Node, and Network. The Link class contains the sta-

tus of each link, including slot occupancy. The Node

class is a glue between the links that form the net-

work. Finally, the Network class manages the net-

work resources, generating the optical network graph.

In this way, the Network component contains the state

of the simulated network.

The Controller component is in charge of manag-

ing the allocation of resources over the network. The

purpose of this component is to allocate or de-allocate

network resources. It comprises a class with the same

name as the component (Controller), which contains

two essential methods: Allocate and Unallocate re-

sources. These methods call for the different methods

of the Network component to carry out the connec-

tions. In turn, this component maintains the status of

the active network connections. The main difference

between this component and the Network component

is that the Network component manages the state of

the network links. Still, these states are not associated

with a connection. On the other hand, the Controller

component maintains the identiﬁer of each connec-

tion, associating it with a network state. In this way,

when it is necessary to release a connection, the Con-

troller component gives the order in which network

slots must be released.

The Simulator component contains all the random

and event-driven logic. Here are initialized random

variables related to the arrival and departure of con-

nections and the choice of the bitrate of each incom-

ing connection. At the same time, this component

stores a list of events that are updated with each new

connection arrival. These events can be one of the

two types: Arrival and Departure. Arrival events cor-

respond to the arrival of a connection request to the

network, while departure events correspond to the re-

lease of network resources by a connection. The sim-

ulator component communicates with the Controller

component, sending it a triplet (src, dst, b) with the

information of a new connection, where src corre-

sponds to the source node, dst is the destination node,

and b is the bitrate required by this connection. The

Controller component is in charge of asking the Allo-

cator component how to allocate these resources.

Thus, in general terms, the simulation works as

follows: The Simulator component generates a new

connection request and sends it to the Controller com-

ponent so that it is in charge of assigning it. The Con-

troller component takes the request and sends it to the

Allocator component, which checks where this con-

nection can be allocated in the network. The Alloca-

tor component communicates with the agent, which

processes the request and responds to the Alloca-

tor component, indicating the links and slots where

this connection should be allocated. The Allocator

component takes the information and passes it to the

Controller component, which sends it to the Network

component (saving the connection information). The

Network component assigns the slots in their respec-

tive links, delivering a conﬁrmation code to the Con-

troller component, which sends this information to the

Simulator component, which follows with the next

event.

4 EXAMPLES AND

APPLICATIONS

This section illustrates our framework’s straightfor-

ward usage and versatility for creating DRL models

for Optical Networks by comparing several agent de-

cisions on dynamic elastic optical networks. This

DREAM-ON GYM: A Deep Reinforcement Learning Environment for Next-Gen Optical Networks

219

Table 1: Simulation parameters.

Parameter Value

Network Topology UKNet

Network connections 420

Candidate routes 5

Bit rate (Gbps) 10, 40, 100, 400, 1000

Number of episodes 200

Training Steps 1000 per episode

Agents PP0, A2C and DQN

Neural Network Layers 2

Neural Network neurons 64

Learning rate 3 · 10

−4

Reward function 1, -1

11 12

Figure 4: UKNet Network Topology, with 21 nodes, 78

links, and 420 node pair source-destination.

example focuses on the Routing, Modulation for-

mat, and Spectrum Assignment problem (RMSA).

The agents choose a path among ﬁve precomputed

shortest paths and choose a modulation format ac-

cording to the bitrate demanded (10, 40, 100, 400,

or 1000 Gbps). The bitrate is set to the connections

randomly with a uniform distribution (using the same

seed for replicability of the different exercises). On

the other hand, the search for a portion of a contigu-

ous frequency spectrum on the chosen path (spectrum

assignment) is performed by using the First-Fit algo-

rithm. In this example, the environment is set as a list

of arrays, each representing an optical network ﬁber

link. The components of each array represent a fre-

quency slot unit available (or not) to be used by the

network connections. In this sense, the agents will

choose for each connection requesting transmission a

subset of links composing the source-destination path

and a portion of the FSUs within the link arrays. Re-

mark that this is just an example, and the operator ad-

justs the environment to represent optical network op-

eration.

Table 1 presents the main parameters set on the

framework in this example. We train three differ-

ent agents, PPO (Schulman et al., 2017), A2C (Mnih

et al., 2016) and DQN (Fan et al., 2020) provided

by the Stable Baseline library on the UKNet net-

work topology (21 nodes, 78 links, and 420 node

pair source-destination). The learning rate was set

to 3 · 10

−4

, using the standard conﬁguration of the

agents with two layers with 64 neurons each. We per-

form 10

training steps, comprising 200 episodes with

1000 training steps each.

The reward function was set using the standard

values in the literature (Morales et al., 2021), return-

ing a value equal to 1 when the action is success-

ful and −1 when rejected. Figure 5 illustrates the

cumulative reward obtained by the PP0, A2C, and

DQN agents solving the routing, modulation format,

and spectrum assignment problem on the UKNet net-

work topology. In the ﬁgure, we can see that DQN

starts with a slow learning curve. However, after 50

episodes, it improves, reaching results similar to those

of A2C and PPO agents. On the other hand, A2C

reaches a steady cumulative reward of around 250

within a few episodes.

Figure 6 complements the episode blocking prob-

ability performed by the PP0, A2C, and DQN agents,

solving the routing, modulation format and spectrum

assignment problem on the UKNet network topol-

ogy. Similarly, we can see that A2C quickly obtains

a steady value episode blocking probability. Mean-

while, DQN takes more training to obtain results sim-

ilar to those of A2C and PPO agents.

Figure 7 presents in-depth charts showing the

routes the same three agents decide during the train-

ing process in percentage. Figure 7a shows the path

usage distribution when 10.000 training steps are per-

formed, and Figure 7b shows the same path usage dis-

tribution for 100.000 training steps. The training de-

cisions changing over time can be seen in these two

ﬁgures. PP0 and DQN choose a path that is more dis-

tributed at the beginning. Meanwhile, A2C prioritizes

its decision on the shortest path (Path 1). In the end, at

100.000 training steps, the three agents prioritize the

shortest path.

The previous exercise shows merely a simple ex-

ample of all the possible studies that can be done

within our tool. For example, the previous example

demands hyperparameter tunning to be competitive

with the best-performing solutions in the literature.

Our toolkit is compatible with all optimization pro-

cesses and hyperparameter tuning available for Deep

Reinforcement Learning, such as setting different hy-

perparameters such as neurons, layers, learning rates,

or any other hyperparameter needed. Our framework

is compatible with hyperparameter tuning software

such as Optuna software (Akiba et al., 2019). The op-

erator can perform many different agents, create their

SIMULTECH 2024 - 14th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

220

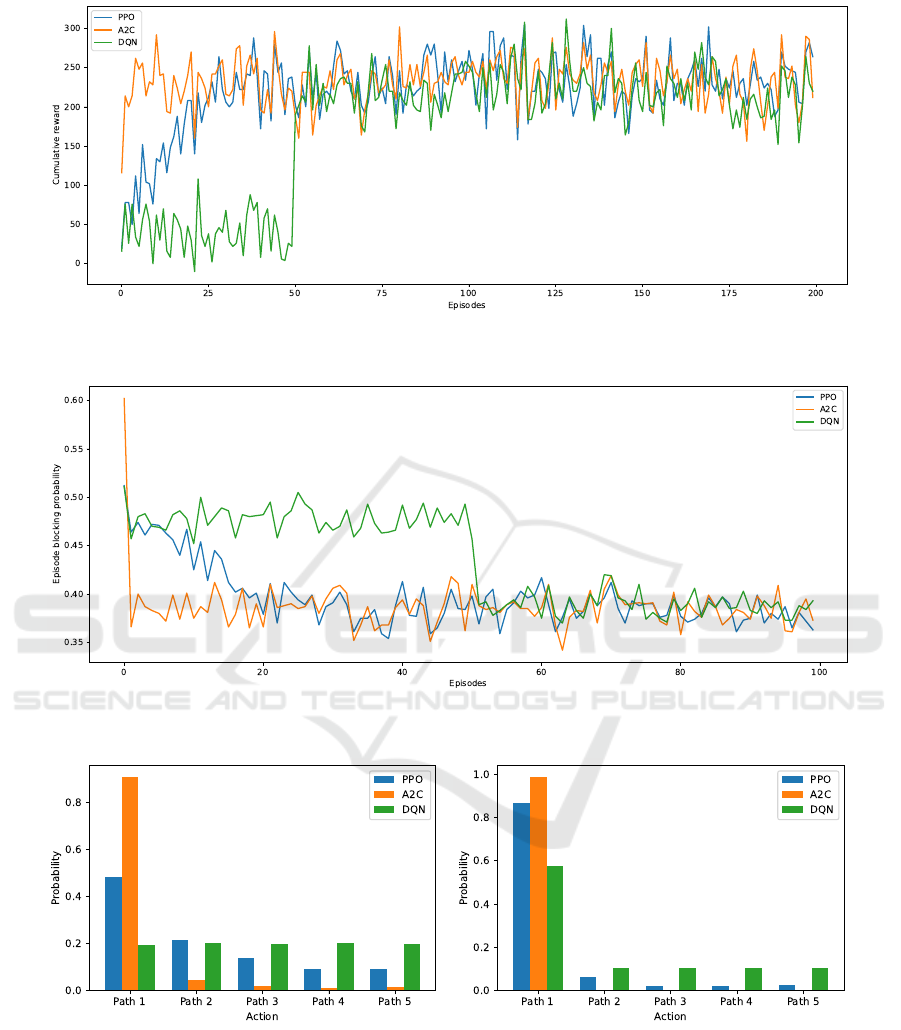

Figure 5: Training results showing cumulative reward for PP0, A2C, and DQN agents for the routing problem on the UKNet

network topology using 200 episodes of 1000 training steps each.

Figure 6: Training results the episode blocking probability for PP0, A2C, and DQN agents for the routing problem on the

UKNet network topology using 100 episodes of 1000 training steps each.

(a) Path usage distribution for 10.000 training steps (b) Path usage distribution for 100.000 training steps

Figure 7: Path usage distribution obtained by training PP0, A2C and DQN Agents for the routing problem on the UKNet

network topology for (a) 10.000 training steps and (b) 100.000 training steps.

own reward functions, and reduce action space tech-

niques and invalid action masking, among other opti-

mization processes for DRL.

In addition, our tool can perform Interpretable

and Explainable (XAI) artiﬁcial intelligence methods,

such as applying highly interpretable agents based on

Linear Regression, Decision Tree, Logistic regres-

sion, or Random Forest methods or applying Imi-

tation Learning to best-performing neural networks

techniques. This may allow understanding of the

DREAM-ON GYM: A Deep Reinforcement Learning Environment for Next-Gen Optical Networks

221

agent’s decision to create new and non-trivial routing

and spectrum assignment protocols for optical net-

works.

5 CONCLUSIONS AND FINAL

REMARKS

We present a new Deep Reinforcement Learning

Framework for Optical Networks called DREAM-ON

GYM. The framework allows the implementation of

deep reinforcement learning in a straightforward and

versatile manner to solve resource allocation prob-

lems in optical network architectures, such as routing,

spectrum or wavelength allocation, and band or core

selection in multiband or multicore architectures. To

this end, we provide a set of functions and modules al-

lowing agents and environments to interact to train the

models. The application relies on adapting the Flex

Net Sim Simulator to train and evaluate the agents.

This way, we reduce the time and complexity of im-

plementing and evaluating DRL for Optical Network

problems.

We exemplify the usability of our framework by

choosing a path with three different agents in an elas-

tic optical network. With this example, we demon-

strated the easy-to-use tool showing the difference in

the performance of the three agents. In addition, by

creating an app, we can make an application for a sim-

ple evaluation and training for a given optical network

context.

In future works, we will use the framework to

allow interpretability and generalization of the mod-

els while training and evaluating DRL in optical net-

works and adding new capabilities to the framework,

such as compatibility for survivability problems.

ACKNOWLEDGEMENTS

Financial support from FONDECYT Iniciaci

11220650 is gratefully acknowledged.

REFERENCES

Akiba, T., Sano, S., Yanase, T., Ohta, T., and Koyama, M.

(2019). Optuna: A next-generation hyperparameter

optimization framework. In Proceedings of the 25th

ACM SIGKDD international conference on knowl-

edge discovery & data mining, pages 2623–2631.

Chen, X., Li, B., Proietti, R., Lu, H., Zhu, Z., and Yoo, S. B.

(2019). Deeprmsa: A deep reinforcement learning

framework for routing, modulation and spectrum as-

signment in elastic optical networks. Journal of Light-

wave Technology, 37(16):4155–4163.

El Sheikh, N. E. D., Paz, E., Pinto, J., and Beghelli, A.

(2021). Multi-band provisioning in dynamic elastic

optical networks: a comparative study of a heuristic

and a deep reinforcement learning approach. In 2021

International Conference on Optical Network Design

and Modeling (ONDM), pages 1–3. IEEE.

Falc

on, F., Espa

na, G., and B

orquez-Paredes, D. (2021).

Flex net sim: A lightly manual.

Fan, J., Wang, Z., Xie, Y., and Yang, Z. (2020). A the-

oretical analysis of deep q-learning. In Learning for

Dynamics and Control, pages 486–489. PMLR.

Hill, A., Rafﬁn, A., Ernestus, M., Gleave, A., Kanervisto,

A., Traore, R., Dhariwal, P., Hesse, C., Klimov, O.,

Nichol, A., Plappert, M., Radford, A., Schulman,

J., Sidor, S., and Wu, Y. (2018). Stable baselines.

https://github.com/hill-a/stable-baselines.

Klinkowski, M., Lechowicz, P., and Walkowiak, K. (2018).

Survey of resource allocation schemes and algo-

rithms in spectrally-spatially ﬂexible optical network-

ing. Optical Switching and Networking, 27(September

2017):58–78.

Mnih, V., Badia, A. P., Mirza, M., Graves, A., Lillicrap, T.,

Harley, T., Silver, D., and Kavukcuoglu, K. (2016).

Asynchronous methods for deep reinforcement learn-

ing. In International conference on machine learning,

pages 1928–1937. PMLR.

Morales, P., Franco, P., Lozada, A., Jara, N., Calder

on,

F., Pinto-R

ıos, J., and Leiva, A. (2021). Multi-band

environments for optical reinforcement learning gym

for resource allocation in elastic optical networks. In

2021 International Conference on Optical Network

Design and Modeling (ONDM), pages 1–6. IEEE.

Naeem, M., Rizvi, S. T. H., and Coronato, A. (2020). A gen-

tle introduction to reinforcement learning and its ap-

plication in different ﬁelds. IEEE Access, 8:209320–

209344.

Natalino, C. and Monti, P. (2020). The optical rl-gym:

An open-source toolkit for applying reinforcement

learning in optical networksf. In 2020 22nd Interna-

tional Conference on Transparent Optical Networks

(ICTON), pages 1–5. IEEE.

Schulman, J., Wolski, F., Dhariwal, P., Radford, A., and

Klimov, O. (2017). Proximal policy optimization al-

gorithms. arXiv preprint arXiv:1707.06347.

Towers, M., Terry, J. K., Kwiatkowski, A., Balis, J. U.,

Cola, G. d., Deleu, T., Goul

ao, M., Kallinteris, A.,

KG, A., Krimmel, M., Perez-Vicente, R., Pierr

e, A.,

Schulhoff, S., Tai, J. J., Shen, A. T. J., and Younis,

O. G. (2023). Gymnasium.

Zhang, Y., Xin, J., Li, X., and Huang, S. (2020). Overview

on routing and resource allocation based machine

learning in optical networks. Optical Fiber Technol-

ogy, 60:102355.

Zitkovich, M., Saavedra, G., and B

orquez-Paredes, D.

(2023). Event-oriented simulation module for dy-

namic elastic optical networks with space division

multiplexing. In Proceedings of the 13th International

Conference on Simulation and Modeling Methodolo-

gies, Technologies and Applications (SIMULTECH),

volume 1, pages 295–302.

SIMULTECH 2024 - 14th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

222
