On Maintainability and Microservice Dependencies: How Do Changes

Propagate?

Tomas Cerny

1 a

, Md Showkat Hossain Chy

2 b

, Amr S. Abdelfattah

2 c

, Jacopo Soldani

3 d

and

Justus Bogner

4 e

Systems and Industrial Engineering, University of Arizona, 1127 East James E Rogers Way, Tucson,

85721, Arizona, U.S.A.

Computer Science Department, Baylor University, 1420 S 5th St, Waco, 76798, Texas, U.S.A.

University of Pisa, Lungarno Antonio Pacinotti, 43, 56126 Pisa PI, Italy

Vrije Universiteit Amsterdam, De Boelelaan 1105, 1081 HV Amsterdam, Netherlands

Keywords:

Microservices, Maintainability, Dependencies.

Abstract:

Modern software systems evolve rapidly, especially when boosted by continuous integration and delivery.

While many tools exist to help manage the maintainability of monolithic systems, gaps remain in assessing

changes in decentralized systems, such as those based on microservices. Microservices fuel cloud-native

systems, the mainstream direction for most enterprise solutions, which drives motivation for a broader

understanding of how changes propagate through such systems. This position paper elaborates on the role

of dependencies when dealing with evolution challenges in microservices aiming to support maintainability.

It highlights the importance of dependency management in the context of maintainability deterioration.

Our proposed perspective reﬁnes the approach to maintainability assurance by focusing on the systematic

management of dependencies as a more direct method for addressing and understanding change propagation

pathways, compared to traditional methods that often only address symptoms like anti-patterns, smells,

metrics, or high-level concepts.

1 INTRODUCTION

The evolution of software engineering practices

over the past few decades has been fundamentally

driven by the quest for more maintainable, robust,

and adaptable systems. This journey, marked by

signiﬁcant milestones, has transitioned from the

era of structural programming to the adoption of

modular design principles, profoundly inﬂuencing

how software is conceptualized, developed, and

maintained. These advancements, as documented

in pioneering works (Parnas, 1972; Parnas et al.,

1985), have laid a solid foundation for the software

engineering discipline, emphasizing the importance

of structure and modularity in achieving maintainable

software systems.

https://orcid.org/0000-0002-5882-5502

https://orcid.org/0009-0006-6978-399X

https://orcid.org/0000-0001-7702-0059

https://orcid.org/0000-0002-2435-3543

https://orcid.org/0000-0001-5788-0991

In parallel, the advent of design patterns, as

elegantly described by Gamma et al. (Gamma

et al., 1993), and the philosophical underpinnings

of software construction articulated by Dijkstra

(Dijkstra, 1982), have further enriched our

understanding of software maintainability. These

contributions have not only advanced our conceptual

framework for software design but have also

provided practical tools and methodologies for

enhancing software reusability, understandability,

and, consequently, its maintainability. The ISO

25010 standard (iso, 2023) codiﬁes these insights by

deﬁning maintainability as the degree of effectiveness

and efﬁciency with which a system can be modiﬁed

to correct faults, improve performance, or adapt to

changing environments. This standard underscores

the critical attributes of modularity, reusability,

analysability, modiﬁability, and testability, framing

them as essential for the long-term health and

evolution of software systems.

The complexity of modern software systems,

coupled with the accelerating pace of technological

Cerny, T., Chy, M., Abdelfattah, A., Soldani, J. and Bogner, J.

On Maintainability and Microservice Dependencies: How Do Changes Propagate?.

DOI: 10.5220/0012725200003711

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 14th International Conference on Cloud Computing and Services Science (CLOSER 2024), pages 277-286

ISBN: 978-989-758-701-6; ISSN: 2184-5042

277

innovation, necessitated a paradigm shift towards

more dynamic and ﬂexible architectural models.

This shift was epitomized by the emergence of

service-oriented architecture (SOA) (Cerny et al.,

2018), which introduced a new way of thinking

about software as a collection of independently

deployable services. SOA paved the way for the

modularization of functionality, allowing systems to

be composed of loosely coupled services that can be

developed, deployed, and maintained independently.

This architectural style represented a signiﬁcant leap

forward, enabling greater agility and scalability in

software development and deployment processes.

Building upon the foundations laid by SOA,

the microservice architecture emerged as a natural

evolution, driven by the need for even more granular

modularity and scalability. Microservices take the

principles of SOA to the next level, advocating for

small, self-contained services that are built around

business capabilities and independently deployable

by fully automated deployment machinery (Cerny

et al., 2018). This approach has facilitated the

development of complex, scalable, and resilient

systems that can rapidly evolve in response to

changing business requirements. The widespread

adoption of microservices (ado, 2023) is a testament

to their effectiveness in addressing the challenges of

modern software development, including the need for

continuous integration and delivery, scalability, and

system resilience.

However, the transition to microservice

architectures has not been without challenges.

While microservices offer signiﬁcant advantages in

terms of scalability and ﬂexibility, they also introduce

complexity, particularly in terms of managing the

dependencies between services. As systems become

more distributed, the interconnections between

microservices become more intricate, posing new

challenges for maintainability. This complexity is

further compounded by the diversity of technologies,

frameworks, and languages used across different

microservices, making system-wide changes more

difﬁcult to implement and manage. Moreover, in a

microservice ecosystem, each service is typically

owned by a separate team, operating with a high

degree of independence.

This position paper questions how the

interdependencies between system components

inﬂuence the overall architecture’s maintainability

when modiﬁcations are introduced. It navigates

through the complexities of microservice systems,

spotlighting the essential role of dependency

management in preserving system integrity amidst

evolution. We call for a reevaluation of traditional

microservice analysis techniques, suggesting

a move towards methodologies that probe the

underlying reasons for changes. The discourse pivots

towards identifying microservice dependencies as

a critical focal point for assessing change impacts,

proposing their meticulous management as a key

to enhancing system resilience and maintainability.

By focusing on the strategic management of

inter-service dependencies, our goal is to foster the

development of sophisticated tools and frameworks.

These innovations are intended to enhance impact

analysis and support continuous architectural quality

improvement, thereby empowering developers and

architects to more effectively navigate the intricacies

of microservice ecosystems and achieve higher levels

of system resilience and maintainability.

The rest of this manuscript is organized as follows.

Section 2 presents established approaches aiding

maintenance or detecting degradation in software

applications. Section 3 argues the importance

of dependencies and reasons about the symptoms

and causes. Section 4 considers different types

of dependencies and their management to drive

change impact and improve maintenance. Section 5

concludes the paper with open-ended questions.

2 BACKGROUND AND RELATED

WORK

The foundational principles of modular design,

encapsulation, and separation of concerns

signiﬁcantly enhance software maintainability.

Parnas’s early contributions (Parnas, 1972) and

further studies (Parnas et al., 1985) have shown

that clearly deﬁned module responsibilities and

interfaces simplify maintenance and comprehension.

The concept of separation of concerns by Dijkstra

(Dijkstra, 1982) and the focus on encapsulation by

Gamma et al. (Gamma et al., 1993) underpin a

design philosophy that enhances modiﬁability and

minimizes error risk during system evolution.

However, ensuring software quality encompasses

more than these design principles. It involves

adherence to coding standards (Bass et al., 2021),

application of best development practices (Gamma

et al., 1993), proper assignment of responsibilities

(Larman et al., 1998), and effective dependency

management. Together with comprehensive

documentation, version control, and thorough

testing, these practices form the core of exemplary

design and development.

As software systems grow in complexity, the

signiﬁcance of architecture in maintainability

CLOSER 2024 - 14th International Conference on Cloud Computing and Services Science

278

becomes more pronounced. Effective architecture

facilitates easy modiﬁcations and guards against

quality degradation. Yet, the drive for rapid

feature development often undermines long-term

architectural integrity, leading to technical and

architectural debt (Besker et al., 2018; Martini et al.,

2018; Das et al., 2022; Azadi et al., 2019; Fontana

et al., 2016; Haendler et al., 2017), where quick ﬁxes

harm future maintainability and scalability.

Strategic approaches are essential for addressing

architectural degradation, as systematic literature

reviews have identiﬁed (Baabad et al., 2020). These

include detecting architectural smells, enforcing

architectural rules, and mitigating architectural

degradation. Yet, existing research primarily

targets monolithic systems, overlooking the unique

challenges posed by microservices.

Microservices introduce complexities such as

multiple moving parts, a disconnected codebase,

scattered concerns, and autonomously operating

development teams, as highlighted by Conway’s law

(Conway, 1968). Despite the advantages of loosely

coupled components, unavoidable dependencies can

lead to co-changes and ripple effects (Bogner

et al., 2021), making decentralized systems more

susceptible to architectural degradation.

In a decentralized microservices architecture,

the modular design’s beneﬁts are challenged by

the complexity of managing independent yet

interdependent components. This independence

complicates measuring changes and managing

dependencies, potentially causing costly ripple

effects across multiple teams. While microservices

operate as distinct applications, they collectively

form a single system, necessitating a system-level

management approach. Many issues become

apparent only when viewed from this holistic

perspective, rather than through analyzing individual

components in isolation.

The concept of architecture recovery or

Systematic Architecture Reconstruction (SAR),

as mentioned in the literature (Baabad et al., 2020),

is pivotal for microservices’ success, offering a

system-centered analysis approach (Bogner et al.,

2021). However, implementing SAR effectively

is daunting, requiring signiﬁcant, ongoing effort

(Rademacher et al., 2020). While static analysis

(Walker et al., 2020) may aid in approximating

this reconstruction, a deep understanding of the

interconnections between components is essential for

identifying dependencies and relationships.

Microservices have speciﬁc smells (Cerny et al.,

2023) that can manifest across microservices (e.g.,

cyclic dependency); their detection could use known

anti-patterns that could manifest through SAR or by

accessing codebases through simple rules (Tighilt

et al., 2023). Yet metrics for microservices are in

their infancy. We can emphasize works looking into

structural coupling (Panichella et al., 2021), logical

coupling (d Aragona et al., 2023), team collaboration

dependency (Lenarduzzi and Sievi-Korte, 2018), etc.

However, we could question if these are the essential

dependency causes or just symptoms of such cases.

While existing approaches provide a

foundation for maintaining software quality

within monolithic and decentralized systems

alike, the unique challenges posed by

microservice architectures—such as decentralized

management, scattered concerns, and complex

dependencies—remain inadequately addressed.

Our position paper proposes a new perspective,

emphasizing the critical role of dependency

management in navigating the evolution of

microservices. By highlighting this gap, we

aim to spur further research and development of

tools and methodologies that speciﬁcally cater to the

nuanced demands of microservice ecosystems.

3 THE ROLE OF

DEPENDENCIES: SYMPTOMS

AND CAUSES

When reasoning about how microservices

interconnect, we can easily think of what is obvious -

“explicit” inter-service calls. Such calls align the path

for dependencies, which are obvious to developers.

However, what about other dependencies that are

less obvious? For instance, as demonstrated by

Walker et al. (Walker et al., 2021), data dependencies

could be considered. In their work, they construct

the canonical data model from across microservices

based on similar data entities (names or structures).

Such dependencies (Figure 1) might exist due to the

same data microservices exchange or as a legacy of

their monolith migration.

Architectural Degradation Detection Strategies

Metrics-

Based Detection

Smell Detection and

Prioritization

Architectural

Recovery

Architectural Rule

Violations

Maintainability

Modularity Reusability Analyzability Modifiability Testability

Dependency

Explicit Implicit

Figure 1: Types of Dependencies.

On Maintainability and Microservice Dependencies: How Do Changes Propagate?

279

However, there are other “implicit” dependencies

that developers might miss when reviewing change

impact. For example, dependencies sourcing from

implicit invocation involve events through message

systems. We can also consider another perspective

for such dependencies that involve policies and rules

applicable to the entire system. These could be,

for instance, compliance with the General Data

Protection Regulation (GDPR) or access rights that

can not be modularized and reused because it would

violate the principles of cloud-native systems and

introduce bottlenecks. As a result, we are left

with the option of a scattered concern and thus

to restate and customize the policy speciﬁcally to

a given microservice while scattering the concern

across multiple components and then dealing with

ﬁnding each of these when the policy changes.

There are other implicit dependency types, and likely,

these will be missed by developers assessing change

impact propagation to other microservices. Careful

dependency management could guide developers on

potential implications.

Dependencies in microservices, deﬁned as the

reliance of one module on another for proper

functioning, often lead to challenges like co-change

requirements and ripple effects. These challenges are

not the root causes but rather symptoms of underlying

dependencies. Researchers are thus motivated to

explore beyond traditional dependency models to

address these symptomatic challenges directly.

The distinction between the causes, affected

artifacts, and symptoms of dependencies can be

nuanced. For example, version control commits often

tied to data dependencies between microservices

result in logical coupling (d Aragona et al., 2023),

a symptom of such dependencies. Likewise, team

collaboration issues may stem from shared resource

dependencies (Lenarduzzi and Sievi-Korte, 2018).

Software architecture reconstruction (SAR)

aimed at change impact analysis typically uncovers

only control dependencies through dynamic analysis,

which might be obvious to developers. Manual SAR

can be overwhelming, pushing towards evident paths,

yet static analysis presents broader opportunities.

It can, for instance, uncover code clones across

microservices, indicating potential change pathways.

These clones, whether syntactic or semantic,

highlight the need to navigate polyglot diversity,

despite the absence of signiﬁcant data on polyglot

prevalence in cloud-native systems.

Beyond clones, static analysis aids in identifying

data dependencies to gauge change impacts on

interconnected components. Addressing policies

and rules introduces additional complexity due to

the lack of a uniform method for their analysis,

necessitating strategies like rule annotation or

employing rule engines like Drools for a standardized

expression. Static analysis also extends to identifying

technology dependencies, where changes in one

component might necessitate adjustments elsewhere.

A comprehensive resource dependency check would

include shared libraries, conﬁguration ﬁles, data

sources, and cloud-native infrastructure elements

such as API gateways and service discovery.

The complexity of addressing both functional

and non-functional requirements, which dictate the

responsibilities of system components and necessitate

modiﬁcations in the source code, often surpasses the

capabilities of conventional automation techniques.

This challenge, however, ﬁnds a promising solution

in the model-driven development (MDE) approach,

as highlighted by Terzi

c et al. (Terzi

c et al.,

2018). Despite its potential to streamline these

processes, the adoption of MDE has not yet become

a widespread practice within the industry, signaling a

gap between its theoretical beneﬁts and its practical

implementation.

4 ARCHITECTURE

DEGRADATION MITIGATION

STRATEGIES IN THE

CONTEXT OF DEPENDENCIES

To mitigate architectural degradation, four key

strategies are identiﬁed: metrics-based detection,

smell detection and prioritization, architectural

recovery, and addressing architectural rule violations

(Baabad et al., 2020). As depicted in Figure 2,

these strategies offer a comprehensive approach to

mitigating architectural degradation, emphasizing the

importance of a nuanced understanding of system

dependencies.

4.1 Metrics-Based Strategies

Metrics-based detection in source code offers

insights into software quality and maintainability,

assessing effectiveness and architectural instability

throughout its evolution. Key metrics focus on

instability, modularity, coupling, and cohesion.

High code churn signals potential instability and

architectural concerns. Modularity metrics, such

as the average number of modiﬁed components

per commit (ANMCC), Index of Package Changing

Impact (IPCI), and Index of Package Goal Focus

(IPGF), indicate degradation risks (Li et al.,

CLOSER 2024 - 14th International Conference on Cloud Computing and Services Science

280

Architectural Degradation Detection Strategies

Metrics-

Based Detection

Smell Detection and

Prioritization

Architectural

Recovery

Architectural Rule

Violations

Maintainability

Modularity Reusability Analyzability Modifiability Testability

Dependency

Explicit Implicit

Figure 2: Architecture degradation strategies in the context of dependencies.

2014). Cyclomatic Complexity (CC) reveals code

complexity and potential maintenance challenges,

while high duplication levels highlight modularity

issues, complicating consistent updates and risking

inconsistent behavior.

When considering code metrics in the context

of cloud-native systems, we must account for the

decentralized codebase or at least for self-contained

code modules that do not have direct connections

across microservice components, which opens gaps.

When we use remote calls as the dependency

indicator, it is likely not enough to get a reliable

perspective because there are other dependencies

across microservices, as we suggested in the previous

section.

At the same time, we may argue that practitioners

do not pay attention to such non-obvious or

non-tracked dependencies. In explicit dependencies,

the source code explicitly states and traces the

relationship. For example, when one method calls

another, the code clearly states what is being called,

making it explicit. Implicit dependencies lack direct

connections or textual context that would lead a

developer to recognize them. It is similar to implicit

innovation when components do not directly invoke

other components (i.e., message queue). As Garland

and Shaw (Garlan and Shaw, 1993) suggest, the

implicit invocation is highly scalable and makes

components reusable, but we also lose execution

control and need data exchange encapsulated within

an event.

Recognizing various types of dependencies

(apart from the explicit ones) across microservice

components would open new pathways to re-apply

known metrics with better reliability measures

towards the overall decentralized system rather

than using the individual microservice perspectives

without details on their inter-dependencies. One

could question such dependencies qualitatively when

two microservices are dependent and what weights

can be expressed on different types of dependencies.

Certainly, different dependency types will present

different weights but also other properties alongside

their quantities. All these could be used when

reasoning about system evolution and the change

impact propagation across components and speciﬁc

artifacts to drive reviewers.

Highlights

• Emphasizing dependency management as

key to addressing architectural degradation in

microservices.

4.2 Smell Detection Strategies

Smell detection and prioritization have been the

practice for many years, and most research would

point to tools like SonarQube or alternative tools for

the detection of anti-patterns. A smell is typically

an indicator of a deeper problem, not knowing what

the speciﬁc cause is, so it can be seen as a symptom.

Anti-pattern is a manifestation of a speciﬁc problem.

While most tools are designed to operate within

monolithic repository systems, challenges arise

when dealing with multiple repositories. Multiple

disjoint repositories make it difﬁcult to detect

microservice anti-patterns (Cerny et al., 2023) that

span across multiple components. Basic approaches

use dependency graphs (Al Maruf et al., 2022; Walker

et al., 2020), call graphs or syntax trees; however, also

plain rule-based marching checking has been (Tighilt

et al., 2023). If we consider the approaches using

service dependency graphs, we can generalize such

graphs as an intermediate system representation and a

product of architectural recovery; thus, the strategies

presented in (Baabad et al., 2020) blend. It is obvious

that the greater the intermediate system representation

we can get, the better analysis can be performed.

Thus, by recognizing and tracking all dependencies

across code and artifacts in microservices, more

reliable results can be provided to reviewers.

The second question to raise with regards to

intermediate system representation is whether it

can ﬁt various frameworks and platforms; however,

tools like Oracle’s GraalVM show such direction is

possible, and other approaches (Schiewe et al., 2022)

indicate this applied to cloud system development

frameworks as well.

On Maintainability and Microservice Dependencies: How Do Changes Propagate?

281

Still, the major question is whether smells and

anti-patterns are the proper strategies to use. While

it has been established as an approach to use, we

must notice that smells are symptoms. Moreover,

anti-patterns are only identiﬁed and described for

a limited number of problems after they reoccur

multiple times with negative consequences. They

seem to be a result of identiﬁed degradation that

is generalizable. Unless we detect them in a new

system version, they will be a very discrete indicator

of degradation.

On the other hand, dependencies are apparent

at a much lower level and do not need a prior

description of combined rules or graph glyphs in

code. Proper identiﬁcation and management of

dependencies would likely indicate a problem even

without knowing there is an anti-pattern but not

vice versa. If we compare the changed system

versions, the impact can be more quantiﬁed than

using a collection of anti-patterns that will always

be limited. Likely, with proper details of different

types of dependencies, more anti-patterns could be

identiﬁed, and vice-versa, known anti-patterns could

be marched to dependency graphs.

Highlights

• Highlighting the need for advanced metrics

and analysis tools tailored to the microservice

architecture’s unique challenges.

4.3 Architecture Reconstruction

Strategies

Architecture reconstruction and recovery in

microservice environments are pivotal for

maintaining system integrity and comprehending the

evolution of the system architecture over time. The

distributed nature of microservices complicates this

process, necessitating the analysis of dependencies

and interactions across multiple services and

infrastructure components. The task of architecture

reconstruction in microservice environments involves

not just the mapping of services and their interactions

but also understanding the underlying dependencies

and the rationale behind architectural decisions.

Recent advancements focus on automating the

extraction and analysis of architectural information,

combining both static codebases and dynamic

runtime behaviors (Alshuqayran et al., 2018).

The architecture reconstruction/recovery direction

(Walker et al., 2021), as mentioned with smell

and anti-pattern detection section, can be used for

question answering or as a documentation of the

system; there are typically multiple system views

extracted to enable human experts to reason about

the system. Alternatively, direct questions about the

system can be asked and answered. However, our

experience is that while we can recover individual

views, we do so with explicit dependencies or control

ﬂows. There are no clues of how individual pieces

depend on each other and why. It is important

to augment these views, models, or representations

that result from the reconstruction with dependencies

that would enable stronger analysis on top of the

reconstruction process.

Highlights

• Highlighting the need for advanced strategies

in detecting smells and identifying anti-patterns

tailored to microservice dynamics.

4.4 Architectural Rule Violation

Detection Strategies

Architectural rule violations highlight deviations

from the intended architecture, guiding developers to

adhere to speciﬁc design principles. For instance, a

common rule might enforce that service layers only

communicate through deﬁned interfaces, preventing

direct data layer access from the UI layer. Prioritizing

these rules by severity helps developers focus on the

most critical architectural integrity issues.

The effectiveness of these rules depends on

their ability to comprehensively capture the system’s

architectural dependencies. If certain dependencies

are overlooked, the rules’ capacity to enforce the

architecture weakens. Thus, keeping track of all

system dependencies is essential for the rules to

remain expressive and powerful.

Additionally, managing architectural rules

requires attention similar to system code, as these

rules can become outdated as the architecture

evolves. This necessitates a maintenance strategy for

the rules themselves, ensuring they are kept current

and reﬂective of the system’s architectural standards

and practices.

Highlights

• Emphasizing the need for innovative methods

in architecture reconstruction and detecting rule

violations to preserve system integrity.

4.5 Implications

Concerning the dependencies, the established

strategies to detect architectural degradation seem

CLOSER 2024 - 14th International Conference on Cloud Computing and Services Science

282

to be positioned at a higher level of abstraction.

Moreover, these strategies are difﬁcult to apply in

a highly decentralized system with independent

services. For instance, to perform proper architecture

reconstruction, we need to access and review each

microservice codebase and manual approach of

the topic, given the pace with which we evolve

these systems. Similar efforts are needed to assess

the violation of architectural rules. While an

approximation can be provided by static analysis

approaches, we still need to deal with platform

diversity, and tooling support is in its infancy.

As opposed to presented strategies, dependencies

are at the lower level and more fundamental elements

to build new tools on top of. They open new

pathways to identify issues, causes, and alternate

anti-patterns without their prior cataloging. They

can be used with architectural rules but will not

leave the burden of required maintenance if used as

a sole indicator of degradation. Moreover, using

augmented intermediate system representation with

identiﬁed and tracked dependencies, current metrics

could be utilized on the overall system rather than just

its components.

5 MAINTANABILITY IN THE

CONTEXT OF MICROSERVICE

DEPENDENCIES

Maintainability within microservice architectures

emphasizes the facility to modify, extend, or “changes

software system with minimal effort”, aiming

to minimize error introduction during changes.

Essential to this concept is change impact analysis,

which primarily serves to detect and assess the

potential effects of modiﬁcations, rather than merely

limiting their ripple effect. This analysis is vital for

understanding the implications of modiﬁcations on

system maintainability, particularly in microservices

where dependencies are intricate.

Dependencies serve as a precise indicator of

how changes may inﬂuence maintainability, offering

insights into the speciﬁc areas of the system

affected. This precision aids in identifying the root

causes of potential maintainability issues, enabling

decision-makers to weigh the beneﬁts of changes

against their impacts. Unlike composite metrics and

smells, dependencies elucidate the direct relationship

between changes and their effects, guiding the

consideration of alternative designs or strategies to

mitigate adverse outcomes.

Bass et al. and ISO 25010 deﬁne maintainability

through attributes such as modularity, reusability,

analysability, modiﬁability, and testability ((Bass

et al., 2021)). In the realm of microservices, adept

management of dependencies is crucial for bolstering

these attributes, highlighting the importance of

comprehensive change impact analysis to sustain

system integrity and ﬂexibility. As illustrated in

Figure 3, understanding the quality attributes for

maintainability as outlined by ISO 25010 is crucial.

Modularity, a key maintainability attribute, entails

dividing a complex system into smaller, independent,

and interchangeable components, aiming for minimal

impact on other components when one is changed.

In the context of microservices, this translates to

designing each service to handle a speciﬁc function,

allowing them to operate cohesively within the larger

system. Although modularity seeks to enhance

maintainability, reusability, and clarity, achieving

it in cloud-native systems is challenging due to

the interconnected nature of microservices and

the distribution of global policies and knowledge

(e.g., role-based access control) across the system.

This necessitates careful tracking of dependencies

to manage scattered modularity effectively. One

proposed solution is to centralize shared logic in

importable libraries, though this approach may

conﬂict with cloud-native principles like those

outlined in the Twelve-Factor App methodology.

Modularity. Dependency tracing is crucial due

to complex inter-service interactions and policy

dispersion in microservices.

Reusability is the practice of designing software

components to be used multiple times across

different system parts or various projects, aiming to

save development time and resources by utilizing

existing, validated components. This concept,

fundamental to software engineering, enhances

efﬁciency and reduces redundancy. While modularity

lays the groundwork for reusability, the evolution

towards service-oriented architectures initially

ampliﬁed its application. However, the shift towards

scalable, self-contained microservices introduces

complications, such as latency and bottlenecks,

which challenge the straightforward application of

reusability principles. Against this backdrop, the

serverless approach offers a promising pathway to

circumvent the limitations posed by microservices.

Distinguished from traditional server-centric models,

the serverless approach focuses on executing

backend services on an as-used basis without

requiring the application developers to manage

server infrastructure. This paradigm allows for the

creation and deployment of functions that execute

On Maintainability and Microservice Dependencies: How Do Changes Propagate?

283

Architectural Degradation Detection Strategies

Metrics-

Based Detection

Smell Detection and

Prioritization

Architectural

Recovery

Architectural Rule

Violations

Maintainability

Modularity Reusability Analyzability Modifiability Testability

Dependency

Explicit Implicit

Figure 3: Quality attribute for maintainability according to ISO 25010.

in response to events, facilitating the reuse of these

functions across different parts of a system or even

across projects. By abstracting away the underlying

infrastructure management, the serverless approach

mitigates common microservice challenges, making

it an effective strategy for achieving reusability in the

context of modern software development demands.

Reusability. Scalability and independence

in microservices challenge reusability, pointing

towards serverless solutions.

Analysability indicates the ease with which

software can be analyzed or examined for various

purposes, such as understanding its structure,

identifying potential issues, debugging, and making

improvements. An analyzable system facilitates

effective inspection, diagnosis, and comprehension

by developers and other stakeholders. Microservices

lead us to decentralization, and with the separation

of duty, developers manage their realm but do not

have the system’s big picture. While most currently

adopted approaches push for tracing, it is greatly

dependent on developers’ consistency in proper

logging and willingness to sacriﬁce performance.

Static analysis can give a fast approximation of the

system, but tools lack microservices.

Analysability. The decentralized nature of

microservices necessitates improved tracing and

static analysis for effective system comprehension.

Modiﬁability is the ease with which a system

can be modiﬁed or adapted to meet changing

requirements. It is a crucial quality attribute as

software evolves to accommodate new features,

address bugs, and respond to changing user needs.

A highly modiﬁable system allows developers to

make modiﬁcations efﬁciently, minimizing the risk of

introducing errors and reducing the time and effort

required for updates. In this perspective, we see

the greater potential of dependency management,

which is proper change impact analysis can reduce

the negative effect of improper design. However, to

enable such analysis, the system must be analyzed

ﬁrst, pointing to the importance of the prior concept.

Modiﬁability. Robust dependency management

facilitates efﬁcient and error-minimizing

modiﬁcations in microservices.

Testability is the ease with which a software

system can be tested to ensure that it meets its

speciﬁed requirements and behaves as intended. A

highly testable system is designed in a way that

facilitates the creation, execution, and maintenance

of tests. While not directly related, it brings a

great discussion. First, tests are expensive, and

static analysis might provide answers with much

less resource demands. Tests need maintenance,

and there are dependencies between tests and the

system, so there are dependencies between system

changes and tests. That said, system change might

not require a complete system test, but with properly

managed dependencies between tests and modular

system design, speciﬁc tests could be triggered to run

to minimize resource usage. Moreover, changes in

the system could indicate which speciﬁc tests need

to be changed, which would be especially useful for

end-to-end testing.

Testability. Dependency-aware testing strategies

are key to optimizing test maintenance and

resource use in microservices.

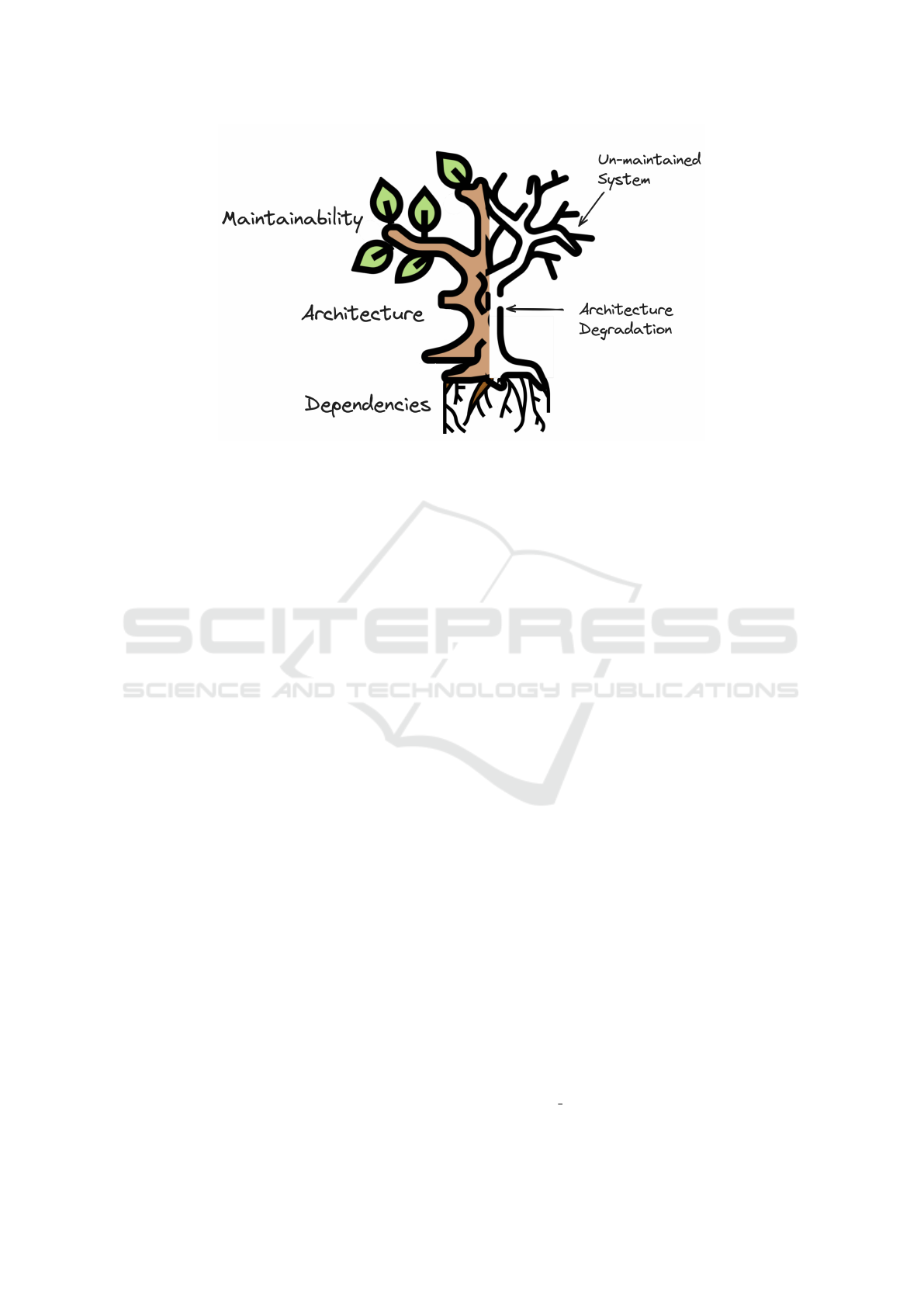

Figure 4 illustrates the concept of architectural

degradation and its inﬂuence on system

maintainability. The roots represent system

dependencies, essential for nourishing and

stabilizing the architecture, shown as the tree’s

trunk. As the trunk branches out, signifying the

system’s architecture, the leaves depict the aspect

of maintainability. The barren branches indicate an

unmaintained system, suggesting that neglecting the

underlying dependencies leads to the deterioration

of the system’s structural integrity. This visual

metaphor emphasizes that maintaining the system’s

architecture depends on the careful management of

its dependencies, which, if mishandled, can lead to

CLOSER 2024 - 14th International Conference on Cloud Computing and Services Science

284

Figure 4: Visualizing root cause of architectural degradation.

architectural degradation and a consequent decline in

maintainability.

6 CONCLUSIONS

In this paper, we have highlighted the importance of

dependency management in microservice systems

when dealing with maintainability. While evolving

systems must be managed to mitigate architectural

degradation and various approaches exist for

mono-repo systems, there is still a gap in strategies

that would meet the needs of microservices. We

highlight the potential of dependency management

in microservices to aid change impact analysis and

discuss the perspective within the context of currently

recognized strategies. Using managed dependencies

as an instrument to assess changes in decentralized

systems could aid developers in their efforts and

help them reach better outcomes more effectively.

However, with this perspective, more research is

necessary.

Further research is essential to bridge the current

gaps in dependency management strategies for

microservices, aiming to devise solutions that are

both scalable and adaptable to the rapid pace of

technological advancements. Pursuing these research

directions will not only address the immediate

challenges faced by developers but also lay the

groundwork for more resilient and maintainable

microservice architectures in the future.

ACKNOWLEDGEMENTS

This work is based upon work supported by

the National Science Foundation under Grant No.

2409933.

REFERENCES

(2023). Iso 25000 portal. https://iso25000.com/index.php/e

n/iso-25000-standards/iso-25010/57-maintainability.

Accessed: 2023-12-20.

(2023). Microservices adoption in 2020. https://www.or

eilly.com/radar/microservices-adoption-in-2020/.

Accessed: 2023-12-20.

Al Maruf, A., Bakhtin, A., Cerny, T., and Taibi, D.

(2022). Using microservice telemetry data for system

dynamic analysis. In 2022 IEEE International

Conference on Service-Oriented System Engineering

(SOSE), pages 29–38. IEEE.

Alshuqayran, N., Ali, N., and Evans, R. (2018). Towards

micro service architecture recovery: An empirical

study. In 2018 IEEE International Conference on

Software Architecture (ICSA), pages 47–4709.

Azadi, U., Fontana, F. A., and Taibi, D. (2019).

Architectural smells detected by tools: A catalogue

proposal. In Proceedings of the Scientiﬁc Workshop

Proceedings of XP2016, XP ’16 Workshops. IEEE

Press.

Baabad, A., Zulzalil, H. B., Hassan, S., and Baharom, S. B.

(2020). Software architecture degradation in open

source software: A systematic literature review. IEEE

Access, 8:173681–173709.

Bass, L., Clements, P., and Kazman, R. (2021).

Software Architecture in Practice: Software Architect

Practice c4. Addison-Wesley.

On Maintainability and Microservice Dependencies: How Do Changes Propagate?

285

Besker, T., Martini, A., and Bosch, J. (2018). Technical

debt cripples software developer productivity: A

longitudinal study on developers’ daily software

development work. In Proceedings of the 2018

International Conference on Technical Debt,

TechDebt ’18, page 105–114, New York, NY,

USA. Association for Computing Machinery.

Bogner, J., Fritzsch, J., Wagner, S., and Zimmermann,

A. (2021). Industry practices and challenges for the

evolvability assurance of microservices. Empirical

Software Engineering, 26(5):104.

Cerny, T., Abdelfattah, A. S., Maruf, A. A., Janes, A., and

Taibi, D. (2023). Catalog and detection techniques of

microservice anti-patterns and bad smells: A tertiary

study. Journal of Systems and Software, 206:111829.

Cerny, T., Donahoo, M. J., and Trnka, M. (2018).

Contextual understanding of microservice

architecture: current and future directions. ACM

SIGAPP Applied Computing Review, 17(4):29–45.

Conway, M. E. (1968). How do committees invent.

Datamation, 14(4):28–31.

d Aragona, D. A., Pascarella, L., Janes, A., Lenarduzzi,

V., Penaloza, R., and Taibi, D. (2023). On the

empirical evidence of microservice logical coupling.

a registered report.

Das, D., Maruf, A. A., Islam, R., Lambaria, N., Kim, S.,

Abdelfattah, A. S., Cerny, T., Frajtak, K., Bures, M.,

and Tisnovsky, P. (2022). Technical debt resulting

from architectural degradation and code smells: A

systematic mapping study. SIGAPP Appl. Comput.

Rev., 21(4):20–36.

Dijkstra, E. W. (1982). On the Role of Scientiﬁc Thought,

pages 60–66. Springer New York, New York, NY.

Fontana, F. A., Roveda, R., Vittori, S., Metelli, A.,

Saldarini, S., and Mazzei, F. (2016). On evaluating

the impact of the refactoring of architectural problems

on software quality. In Proceedings of the

Scientiﬁc Workshop Proceedings of XP2016, XP ’16

Workshops, New York, NY, USA. Association for

Computing Machinery.

Gamma, E., Helm, R., Johnson, R., and Vlissides,

J. (1993). Design patterns: Abstraction

and reuse of object-oriented design. In

ECOOP’93—Object-Oriented Programming: 7th

European Conference Kaiserslautern, Germany, July

26–30, 1993 Proceedings 7, pages 406–431. Springer.

Garlan, D. and Shaw, M. (1993). An introduction

to software architecture. In Advances in software

engineering and knowledge engineering, pages 1–39.

World Scientiﬁc.

Haendler, T., Sobernig, S., and Strembeck, M. (2017).

Towards triaging code-smell candidates via runtime

scenarios and method-call dependencies. In

Proceedings of the XP2017 Scientiﬁc Workshops, XP

’17, New York, NY, USA. Association for Computing

Machinery.

Larman, C. et al. (1998). Applying UML and patterns,

volume 2. Prentice Hall Upper Saddle River.

Lenarduzzi, V. and Sievi-Korte, O. (2018). On the negative

impact of team independence in microservices

software development. In Proceedings of the

19th International Conference on Agile Software

Development: Companion, pages 1–4.

Li, Z., Liang, P., Avgeriou, P., Guelﬁ, N., and Ampatzoglou,

A. (2014). An empirical investigation of modularity

metrics for indicating architectural technical debt. In

Proceedings of the 10th International ACM Sigsoft

Conference on Quality of Software Architectures,

QoSA ’14, page 119–128, New York, NY, USA.

Association for Computing Machinery.

Martini, A., Sikander, E., and Madlani, N. (2018).

A semi-automated framework for the identiﬁcation

and estimation of architectural technical debt: A

comparative case-study on the modularization of a

software component. Information and Software

Technology, 93:264–279.

Panichella, S., Rahman, M. I., and Taibi, D. (2021).

Structural coupling for microservices. arXiv preprint

arXiv:2103.04674.

Parnas, D., Clements, P., and Weiss, D. (1985).

The modular structure of complex systems.

IEEE Transactions on Software Engineering,

SE-11(3):259–266.

Parnas, D. L. (1972). On the criteria to be used in

decomposing systems into modules. Commun. ACM,

15(12):1053–1058.

Rademacher, F., Sachweh, S., and Z

undorf, A. (2020).

A modeling method for systematic architecture

reconstruction of microservice-based software

systems. In Enterprise, Business-Process and

Information Systems Modeling, pages 311–326,

Cham. Springer International Publishing.

Schiewe, M., Curtis, J., Bushong, V., and Cerny,

T. (2022). Advancing static code analysis with

language-agnostic component identiﬁcation. IEEE

Access, 10:30743–30761.

Terzi

c, B., Dimitrieski, V., Kordi

c (Aleksi

c), S., and

Lukovi

c, I. (2018). A model-driven approach

to microservice software architecture establishment.

pages 73–80.

Tighilt, R., Abdellatif, M., Trabelsi, I., Madern, L., Moha,

N., and Gu

eneuc, Y.-G. (2023). On the maintenance

support for microservice-based systems through

the speciﬁcation and the detection of microservice

antipatterns. Journal of Systems and Software,

204:111755.

Walker, A., Das, D., and Cerny, T. (2020). Automated

code-smell detection in microservices through static

analysis: A case study. Applied Sciences,

10(21):7800.

Walker, A., Laird, I., and Cerny, T. (2021). On automatic

software architecture reconstruction of microservice

applications. Information Science and Applications:

Proceedings of ICISA 2020, 739:223.

CLOSER 2024 - 14th International Conference on Cloud Computing and Services Science

286
