Improving Edge-AI Image Classiﬁcation Through the Use of

Better Building Blocks

Lucas Mohimont

, Lilian Hollard

and Luiz Angelo Steffenel

Universit

e de Reims Champagne-Ardenne, CEA, LRC DIGIT, LICIIS, Reims, France

Keywords:

Deep Learning, Image Classiﬁcation, Blocks, Benchmark, Edge AI.

Abstract:

Traditional CNN architectures for classiﬁcation, while successful, suffer from limitations due to diminishing

spatial resolution and vanishing gradients. The emergence of modular ”building blocks” offered a new ap-

proach, allowing complex feature extraction through stacked layers. Despite the popularity of models like

VGG, their high parameter count restricts their use in resource-constrained environments like Edge AI. This

work investigates efﬁcient building blocks as alternatives to VGG blocks, comparing the performance of di-

verse blocks from well-known models alongside our proposal block. Extensive experiments across various

datasets demonstrate that our proposed block surpasses established blocks like Inception v1 in terms of ac-

curacy while requiring signiﬁcantly fewer resources regarding computational cost (GFLOPs) and memory

footprint (number of parameters). This showcases its potential for real-world applications in Edge AI.

1 INTRODUCTION

Edge computing has gained popularity thanks to high-

performance devices integrating microcontrollers and

multicore computing units GPUs on a single board.

This has allowed the emergence of AI Edge Comput-

ing, a research ﬁeld that brings AI capabilities closer

to the network’s edge. Among the most known Edge-

AI devices, NVIDIA Jetson is a notable example of

this technology, offering high performances for many

computing-intensive tasks such as computer vision,

all while keeping energy consumption low. Despite

these advances, the edge nodes’ performance is not

comparable to high-end servers. For this reason, Edge

AI applications must be designed with resource con-

straints in mind.

In (De Lucia et al., 2022), three different strategies

are proposed to deploy AI models at the Edge. The

ﬁrst relies on framework design, which adapts the AI

models to the new environment, mainly through data

or functional decomposition, using Federated Learn-

ing (McMahan et al., 2017), for example. Another

strategy, model adaption, implies using data com-

pression techniques and ﬁltering the model through

quantization and pruning. Finally, these authors pro-

https://orcid.org/0000-0001-8006-6656

https://orcid.org/0000-0001-6906-561X

https://orcid.org/0000-0003-3670-4088

pose using process acceleration to rewrite the models

according to the available device features (presence

of tensor operation support, multicore processing).

Overall, these strategies require some modiﬁcation

before deploying a model to the Edge. In this paper,

we propose a different strategy, namely the choice of

better models (or convolutional blocks, in our case),

to achieve higher performances with less cost. This

strategy may bring important cost reductions and pre-

vent a continuity gap between model training on high-

end servers (ideal for faster training and prototyping)

and model deployment for inference at the Edge.

In this work, we target image classiﬁcation, one

of the basic operations in machine learning. Early

Convolutional Neural Networks (CNN) use a suc-

cession of convolution and pooling layers before the

fully connected classiﬁcation. This includes the ﬁrst

CNN, LeNet in 1989 (LeCun et al., 1989), but also

early models like AlexNet (Krizhevsky et al., 2012),

VGG (Simonyan and Zisserman, 2015), or ZFNet

(Zeiler and Fergus, 2014). For instance, the tradi-

tional building block of Convolutional Neural Net-

works (CNNs) often comprises (i) a convolutional

layer with padding, (ii) a non-linearity like ReLU,

and (iii) a pooling layer for dimensionality reduction.

While this approach is effective, it suffers from sig-

niﬁcant spatial resolution loss and a cumulative van-

ishing gradient problem, which limits the number of

successive convolutional layers.

Mohimont, L., Hollard, L. and Steffenel, L.

Improving Edge-AI Image Classiﬁcation Through the Use of Better Building Blocks.

DOI: 10.5220/0012728000003711

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 14th International Conference on Cloud Computing and Services Science (CLOSER 2024), pages 303-310

ISBN: 978-989-758-701-6; ISSN: 2184-5042

303

Over the years, the design of neural network archi-

tectures evolved from a focus on individual neurons

to larger-scale abstractions. Indeed, the rise of deep

learning ushered in a new era, where researchers be-

gan leveraging ”building blocks” - pre-deﬁned modu-

lar units composed of stacked layers capable of cap-

turing more complex features.

The VGG network (Simonyan and Zisserman,

2015) stands as a pioneering example of exploiting

modularity by utilizing multiple convolutional blocks.

Contrary to earlier models such as AlexNet, the con-

volutional layers in VGG are grouped in nonlin-

ear transformations that leave the dimensionality un-

changed, followed by a resolution-reduction step, as

depicted in Figure 1.

Figure 1: Comparison between AlexNet and VGG.

This modular design philosophy readily translates

into modern deep learning frameworks, as loops and

subroutines facilitate the implementation of repeti-

tive structures, further promoting the adoption of such

building blocks in architecture design. Hence, mod-

ern CNN architectures are composed of blocks per-

forming many different operations, such as classical

or factorized convolutions with different kernel sizes,

tensor addition or concatenation, and parallelism.

Despite its age, VGG remains a reference in

the domain of image classiﬁcation, as its sequen-

tial architecture is easy to understand and imple-

ment. Nonetheless, the traditional VGG implemen-

tation induces an important number of parameters,

which penalizes its usage in resource-constrained en-

vironments such as the case of Edge AI.

For this reason, in this paper, we aim to iden-

tify more efﬁcient blocks instead of VGG blocks.

Using a VGG-like architecture as a framework, we

compare the performances of different blocks used in

well-known classiﬁcation models such as MobileNet

(Howard et al., 2017), ResNet (He et al., 2016), In-

ception (Szegedy et al., 2014), SqueezeNet (Iandola

et al., 2016), GhostNet (Han et al., 2020). We also

include blocks from other models for object detection

YOLO v8 (Jiang et al., 2022; Jocher et al., 2023) or

segmentation CGNet (Wu et al., 2019), and propose

our block based on a simpliﬁed Inception block.

The remainder of this paper is organized as fol-

lows: Section 2 presents the main blocks considered

for this work and their characteristics. Section 3 de-

scribed the datasets and benchmark parameters used

in the comparison. Section 4 presents the perfor-

mance benchmarks and analyses the obtained results.

Finally, Section 5 discusses the impact of the experi-

ments in the context of Edge AI and draws some fu-

ture work directions.

2 DEEP LEARNING ”BUILDING”

BLOCKS

Early CNNs only used a succession of convolution

and pooling layers before the fully connected classi-

ﬁcation. This includes the ﬁrst CNN, LeNet in 1989

(LeCun et al., 1989), and early CNN of the deep learn-

ing era like AlexNet (Krizhevsky et al., 2012), VGG

(Simonyan and Zisserman, 2015), ZFNet (Simonyan

and Zisserman, 2015), etc. Those models were sim-

ple because they are sequential but prone to problems

such as the vanishing gradient problem. Since 2012,

deep learning has become the state-of-the-art in com-

puter vision, and research in deep learning is still very

active.

Modern CNNs use a succession of complex com-

ponents that we call blocks. Blocks are made of dif-

ferent operations, such as classical or factorized con-

volutions with different kernel sizes, tensor addition

or concatenation, parallelism, etc. Some of these

blocks are far more sophisticated than the original

VGG blocks, making interesting alternatives to op-

timize image classiﬁcation models’ performance and

memory footprint. Therefore, this work uses selected

blocks from well-known models to replace VGG’s

original blocks.

Our baseline reference are the blocks from VGG

(Simonyan and Zisserman, 2015), implemented with

only two or three sequential convolutional layers with

3x3 ﬁlters and ReLU activation.

More recent models implement blocks that have

at least two paths. The ﬁrst to propose a two paths

block is ResNet (He et al., 2016) with the residual

unit. ResNet blocks are like VGG blocks with two

layers and a skip connection. The skip connection is

the sum of the input of the block and the output of the

CLOSER 2024 - 14th International Conference on Cloud Computing and Services Science

304

last convolutional layer.

Concatenation can also be used instead of addi-

tion. This is used in many blocks such as the Incep-

tion models, GhostNet (Han et al., 2020), SqueezeNet

(Iandola et al., 2016), the C2F block of YOLOv8

model (Jiang et al., 2022; Jocher et al., 2023), or

the Context-Guided block of the CGNet (Wu et al.,

2019) segmentation models. We have selected the

main block of those models for this study.

Hence, the Inception V1 block, used in

GoogLeNet (Szegedy et al., 2014), processes

the features in a parallel manner with three convolu-

tional layers with ﬁlters of size 1x1, 3x3, and 5x5.

The output of each layer is concatenated with the

output of a pooling layer to be used in the next block.

Point-wise convolution is used before each layer to

reduce the number of channels.

The GhostNet block is based on the principle of

redundant features in a CNN. Simple transformations

can be used to increase the number of channels. This

is simply done by concatenating the feature maps with

a transformed version of the same features. In the

GhostNet module, it is done with depth-wise convo-

lution (each ﬁlter is only applied to one channel). An-

other well-known model, SqueezeNet (Iandola et al.,

2016), uses a similar approach to GhostNet with two

paths with 1x1 and 3x3 convolutions.

GhostNet and SqueezeNet were designed to be

lightweight when compared to heavier models such

as VGG and GoogLeNet. Other lightweight models

include the MobileNet and YOLO families.

Another simple block used in this work is the main

component of MobileNet V1 (Howard et al., 2017),

a single Depthwise Separable Convolution layer. On

the other hand, MobileNet V2 (Sandler et al., 2019)

and V3 (Howard et al., 2019) are two more modern

versions popular for their efﬁciency and good per-

formance. They used the same inverted bottleneck

residual block: the number of channels is increased

with 1x1 convolutions; this is the expanding or pro-

jection step, which will be processed by depthwise

ﬁlters. Then, another 1x1 layer will squeeze back the

number of channels. In both models, the block also

used the skip connection of ResNet. However, Mo-

bileNet V3 adds another component called Squeeze-

and-Excitation (Hu et al., 2019). This fully connected

network assigns a dynamic weight to each channel of

the feature maps. It is really small because it only uses

the output of a global pooling as input. This is one of

the most straightforward ways to generate dynamic

weights. This can be interpreted as a basic channel-

wise attention (Vaswani et al., 2017).

So far, we have discussed blocks designed for

classiﬁcation networks. However, many blocks were

designed for other tasks, such as object detection or

segmentation, even though they perform some form

of internal classiﬁcation. Therefore, we have selected

two components from the YOLOv8 object detection

and the CGNet segmentation model.

It is difﬁcult to ﬁnd the original motivation for the

design of the C2F module used in YOLO v8 (Ter-

ven and Cordova-Esparza, 2023). It is a succession

of residual bottleneck blocks wired in the same man-

ner as the Dense block of the DenseNet (Huang et al.,

2018) model: each feature map is concatenated be-

fore the ﬁnal convolutional layer. To be more efﬁ-

cient, the ﬁrst bottlenecks are only applied to half of

the input features. Despite their apparent complexity,

the YOLO models are efﬁcient for real-time detection

on edge devices.

Similarly, CGNet was developed as a lightweight

alternative to bigger segmentation models such as

DeepLabV3 (Chen et al., 2017) or HRNet (Wang

et al., 2020). It uses a succession of Context-

Guided blocks to avoid too many down-sampling

steps. Those blocks have two paths that are com-

bined with a convolutional 1x1 layer. The ﬁrst path

uses Separable Depthwise Convolution, and the sec-

ond uses a similar layer with a bigger dilation rate. In

this manner, the block can compare the features at dif-

ferent scales. It also uses skip connection and the pre-

viously mentioned squeeze-and-excitation technique

to create a deep network.

2.1 Proposed Block

In this section, we propose a new block, inspired

by many existing blocks proposed in the literature.

This block was ﬁrst designed by our team in the con-

text of image segmentation for grape disease detec-

tion (Mohimont, 2023). Indeed, a PSPNet model was

used to segment grape bunches infected by gray mold.

This PSPNet model uses a Pyramid Pooling Module

(PPM) (Zhao et al., 2017) that is the main inspiration

for our proposed block.

The PPM block applies many pooling layers to

the feature maps with different window size, resulting

in a pyramid of pooled features. Point-wise convo-

lution and up-sampling are then used to concatenate

every feature maps. In this manner it is also similar

to the Inception block. The core idea of the PPM is

to increase the receptive ﬁeld size to get a better con-

text, preventing some mistakes for object segmenta-

tion. For examples, the pixels of a car are often colo-

cated with pixels from roads and pedestrian crossing.

In our proposed block, we use a pooling pyramid

with three successive 2x2 max-pooling layers. Our

assumption is that pooling is the cheapest way to in-

Improving Edge-AI Image Classiﬁcation Through the Use of Better Building Blocks

305

Figure 2: Structure of our proposed block.

crease the receptive ﬁeld because it does not need pa-

rameters or a large window size. More importantly,

every CNN, since ResNet, have been using at least

two paths inside their main convolutional module.

The simplest way is to put a residual connection but

you can also use many layer in parallel like Incep-

tion. A simple residual block will act as features re-

ﬁnement, it improves the input feature in an iterative

manner (Jastrzebski et al., 2018). And adding par-

allel processing with different kernel can also help

to get bigger receptive ﬁeld. In both case, the ﬁnal

features were computed from features with different

scales. Increasing the receptive ﬁeld is generally done

by stacking multiple layers. In our proposed block we

uses three successive max-pooling layers to anticipate

the bigger receptive ﬁeld of the next layers and gain

more contextual information.

The proposed block is a therefore simpliﬁed In-

ception block based on the Spatial Pyramid Pooling

Fusion module used in YOLO. The ﬁrst step is the

classical succession of Convolution 3x3 with batch

normalization and ReLU activation. Then, max-

pooling is applied three times in a cascade manner

to the feature maps. The four sets of feature maps

are then concatenated to be processed by a depth-wise

separable convolutional layer before the skip connec-

tion. In this manner, it is less expensive than Inception

because the Max-Pooling layers do not use parame-

ters and because they are applied depth-wise. Figure

2 shows a precise illustration of the proposed block.

Table 1: Characteristics of the datasets.

Dataset


size

Training

samples

Validation

samples

Classes

MNIST 28x28x1 60,000 10,000 10

Fashion MNIST 28x28x1 60,000 10,000 10

CIFAR-10 32x32x3 50,000 10,000 10

CIFAR-100 32x32x3 50,000 10,000 100

Tiny ImageNet 64x64x3 100,000 10,000 200

ImageNette 160x160x3 9,469 3,925 10

ImageWoof 160x160x3 9,025 3,929 10

3 BENCHMARK DESCRIPTION

To compare the performance of the different blocks,

we chose to train the models using different datasets

from the literature. Indeed, one of the objectives

of this work is to study the correlation between the

model accuracy on small benchmarks with low res-

olution and the accuracy of the same model with

higher-resolution data.

We have selected seven datasets created for model

benchmarking: MNIST (Lecun et al., 1998), Fashion

MNIST (Xiao et al., 2017), CIFAR-10 and CIFAR-

100 (Krizhevsky, ), Tiny ImageNet (Tavanaei, 2020;

Tin, ), ImageNette and ImageWoof (Howard, 2020).

The details of each dataset are shown in Table 1.

Widely known, the two MNIST datasets are used

in our experiments as a baseline to check the imple-

mentations (absence of bugs). Indeed, high accuracy

levels superior to 90% are expected for both datasets,

as the complexity of the datasets offers almost no

challenge to the blocks.

Similarly, we use CIFAR datasets because they are

the smallest color image datasets available. MNIST

and CIFAR are standard for the early development of

new models but shall not be considered a reference

for real applications.

The Tiny ImageNet, with 64x64 pixels images,

was selected as an intermediate step between low-

resolution and higher-resolution data found in real ap-

plications. Indeed, this resolution shall offer sufﬁcient

information to start favoring more recent blocks.

Finally, for higher resolution datasets, we used

the 160p versions of ImageNette and ImageWoof

(Howard, 2020). These datasets comprise ten classes

selected from the ImageNet-1k benchmark (Deng

et al., 2009). Results obtained with these datasets are

more valuable to our analysis because they represent

real images.

3.1 Benchmark Setting

Our objective is not to achieve the best accuracy for

each model but to compare their performances sim-

ilarly. For this reason, we used a simple VGG-like

CLOSER 2024 - 14th International Conference on Cloud Computing and Services Science

306

Figure 3: VGG-like architecture used in the experiments.

architecture, as shown in Figure 3. This architecture

is then adapted by replacing the convolutional layers

(blocks represented in blue in Figure 3) with other

blocks proposed in the literature. In this manner, we

can compare different blocks in a fast way. Another

advantage of this strategy is that it enables quick pro-

totyping of new models on edge devices.

The training parameters are similar for all vari-

ants, with a maximum of 500 epochs and an early

stopping after 20 epochs of stagnation of valida-

tion loss. The classical cross entropy loss is used

as the objective function, with the Adam optimizer

(Kingma and Ba, 2017). Also, accuracy is used as

the primary metric because every class has the same

number of samples.

4 RESULTS

4.1 MNIST Datasets

Table 2 shows the training and validation accuracy

for each model. Both C2F and the proposed pool-

ing block reach the best accuracy of 99.6% on the

original MNIST dataset. However, this simple test is

insigniﬁcant because every other model also reaches

high accuracy. The differences are slightly wider on

the Fashion MNIST dataset, with accuracies going

from 89.3% for the MobileNet V1 to 92.7% for the

Inception V1 block.

Table 2: Results on the MNIST datasets.

Block MNIST Fashion MNIST

Split Train Val Train Val

VGG 99,7 99,2 96,5 92,2

MobileNet V1 99,9 99,1 92,6 89,3

MobileNet V2 99,8 99,1 94,8 91,6

MobileNet V3 99,9 99,3 94,5 91,6

ResNet V1 99,9 99,4 94,8 91,3

Inception V1 99,9 99,4 96,4 92,7

SqueezeNet 99,8 99,1 94,7 92

GhostNet 99,5 98,4 94,2 91,1

CGNet 1 99,4 97,3 91,9

C2F 1 99,6 94,2 90,1

Pooling block 1 99,6 94,5 91,4

4.2 CIFAR Datasets

The subsequent results shown in Table 3 concern the

CIFAR datasets. These tests bring more interesting

insights as the performances among different block

models are much more evident despite the relatively

similar image size to MNIST and Fashion MNIST.

From our experiments, the Inception V1 module per-

forms best on both datasets with 74.9% and 38.8%,

while our proposed block only reaches 46.5% on

CIFAR-10 and 15.7% on CIFAR-100. Our interpreta-

tion is that a pooling-based block will perform poorly

on tiny images (32x32) because the loss of informa-

tion will be too signiﬁcant. This is also true for the

C2F block because it was designed for object detec-

tion in high-resolution images.

We can also make two observations. First, an orig-

inal VGG block still reaches good accuracy for both

MNIST and CIFAR datasets. Secondly, our pool-

ing module was not affected by the low resolution of

the MNIST datasets. This is easily comprehensible

because both MNIST datasets contain well-deﬁned

segmented shapes with a black background, while

CIFAR datasets use complex objects at 32x32 size.

Hence, the difﬁculty gap between the MNIST and CI-

FAR datasets is wide: almost any model can reach

good accuracy on the handwritten digits classiﬁcation

task, but classifying objects at such low resolution is,

by deﬁnition, ambiguous.

4.3 Tiny ImageNet

The performances for the Tiny ImageNet dataset are

shown in Table 4. Those images are still low-

resolution, but their size is four times bigger than CI-

FAR, with 64x64 pixels. In this context, our Pooling

block reaches the best accuracy with 32% compared

to 28.3% obtained by MobileNet V3 or C2F. This re-

sult indicates that the image size reaches a sufﬁcient

Improving Edge-AI Image Classiﬁcation Through the Use of Better Building Blocks

307

Table 3: Results on CIFAR datasets.

Block CIFAR-10 CIFAR-100

Split Train Val Train Val

VGG 84 73.3 50.3 37.2

MobileNet V1 72.3 66.1 38.4 31.6

MobileNet V2 82.2 71.3 52.4 38.2

MobileNet V3 80.1 71.7 46.9 36.3

ResNet V1 84.3 74 50.8 36.6

Inception V1 83.7 74.9 50.2 38.8

SqueezeNet 78.1 70.5 46.9 36.8

GhostNet 76.4 69.4 45.4 38.2

CGNet 90.9 72 43.2 34.9

C2F 35.8 35.5 11.2 10.8

Pooling block 48 46.5 16.2 15.7

Table 4: Results on average-size images (Tiny ImageNet).

Split Train Val

VGG 28,7 23

MobileNet V1 23,8 20,1

MobileNet V2 34,1 27,9

MobileNet V3 35,9 28,3

ResNet V1 33,8 25

Inception V1 25,7 18,3

SqueezeNet 22,5 18,7

GhostNet 29,2 24,6

CGNet 36,1 26,1

C2F 42,7 28,3

Pooling block 41,6 32

size to be explored by our Pooling block.

Please note that images like MNIST, CIFAR, or

Tiny ImageNet do not represent actual images found

in real applications. We recommend the usage of

those datasets for speciﬁc Tiny-ML applications (for

example, face expression detection from 48x48p im-

ages (Shao and Cheng, 2021)).

4.4 ImageNette and ImageWoof

Finally, this section compares the blocks with larger

images obtained from ImageNette and ImageWoof

datasets. These two datasets are less commonly used

than MNIST and CIFAR because they were proposed

in 2019 by FastAI without a research publication.

Nonetheless, we argue that these datasets are more

representative for benchmarking on high-resolution

images (we have selected the 160p version for fast

training, but there is also the 320p and full size avail-

able). Both datasets use classes from the ImageNet-

1k benchmark, aiming to propose challenging classi-

ﬁcation benchmarks. Indeed, ImageWoof is the most

difﬁcult because it only uses classes of dog breeds.

Table 5: Results on larger images (ImageNette, Image-

Woof).

Block ImageNette ImageWoof

Split Train Val Train Val

VGG 86 70,5 58,8 45,8

MobileNet V1 88,6 71,4 65,2 48,6

MobileNet V2 82,7 71,1 67 50,6

MobileNet V3 79,7 64,8 54,6 39,4

ResNet V1 85 71,6 70,9 49

Inception V1 88,8 75,6 75,4 61,5

SqueezeNet 82,6 69,3 51 42

GhostNet 79,3 68,9 58,9 47,1

CGNet 93,4 73 67,9 49,9

C2F 90,8 73,2 92,8 63,7

Pooling block 92,5 78,5 95,1 66,4

Figure 4: Accuracy and computation needs for each model.

In the experiments summarized in Table 5, our

pooling block obtained the higher accuracy, with

78.5% for ImageNette and 66.4% for ImageWoof. In-

ception V1 is the second best on ImageNette with

75.6% and C2F on ImageWoof with 63.7%.

4.5 Image Classiﬁcation for the Edge

The previous sections demonstrate the interest in re-

cent blocks, especially with larger images. However,

a higher accuracy is not enough when optimizing for

the Edge. Indeed, resource-constrained environments

such as those found on the Edge need to balance ac-

curacy, computing power, and memory footprint.

Figure 4 compares the achieved accuracy and the

required computing power in GFLOPs (billions of

ﬂoating-point operations) when classifying a 160p

image. For example, the Inception V1 model needs

3 GFLOPs for one inference, while our pooling mod-

ule only needs half of this with 1.46 GFLOPs (close

to the 1.5 GFLOPs of C2F).

A small correlation of 0.31R² was found between

the accuracy of the models and the computation re-

quirement. This is expected because the architecture

is as important as the number of ﬁlters. For exam-

ple, GhostNet reaches a better average accuracy of

58% compared to MobileNet V1, which achieves only

CLOSER 2024 - 14th International Conference on Cloud Computing and Services Science

308

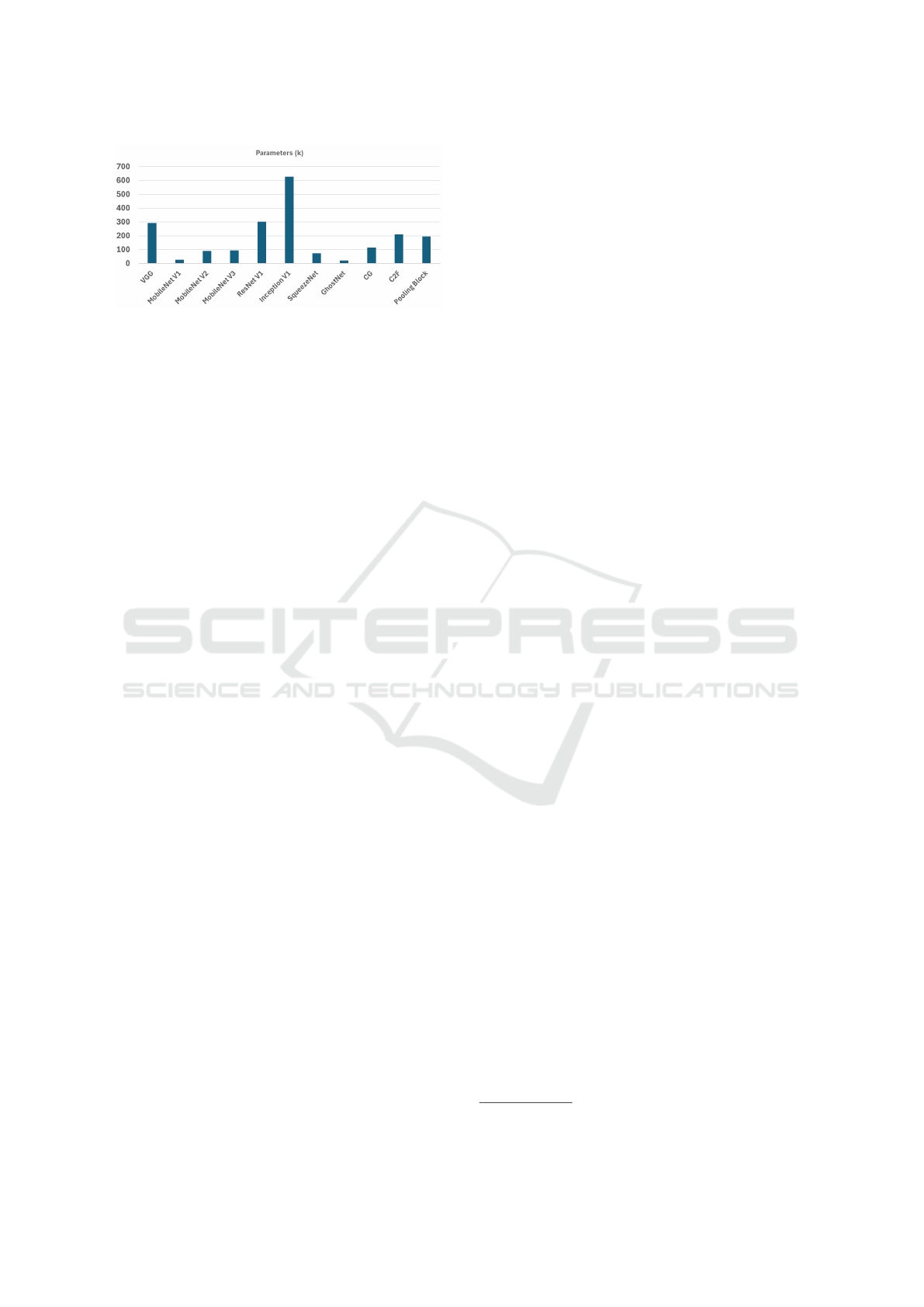

Figure 5: Number of parameters for each model.

52%. Nonetheless, both models need a similar com-

putation of about 0.6 GFLOPs.

Another element to consider is memory consump-

tion. As the number of parameters increases, the

model grows in complexity, requiring more mem-

ory to house intermediate calculations and activation

states. With the notable exception of Inception V1,

most recent modules have a limited memory footprint,

as shown in Figure 5.

Compared to Inception V1, which obtained the

second better accuracy on the classiﬁcation of 160p

images, our pooling block shows several advantages.

First, it only needs a third of the parameters, with

197k compared to over 600k for Inception V1. This

is the advantage of using parameter-free layers like

Max-Pooling instead of convolutional layers. An-

other advantage is that our module also acts as a bot-

tleneck because the number of features is squeezed

back after the concatenation, thus avoiding increasing

parameters in the next convolutional layer.

5 CONCLUSIONS

In this work, we compare different convolutional

blocks used in recent image classiﬁcation models

and a new Pooling-based Inception block. System-

atic benchmarking was performed on seven datasets

(MNIST, Fashion-MNIST, CIFAR-10, CIFAR-100,

Tiny-ImageNet, ImageNette, and ImageWoof).

In a controlled setting with a VGG-like architec-

ture, our proposed block is more accurate on medium-

size images (Tiny-ImageNet, ImageNette, and Im-

ageWoof) than other classical blocks such as ResNet

or Inception V1. We also found that the MNIST

and CIFAR datasets are not representative enough to

benchmark models designed for high-resolution im-

ages. Furthermore, our proposed block model needs

less computation and memory than Inception V1.

These results reinforce the interest in comparing

the models’ accuracy and other parameters that may

impact the usage of the models, especially in the

case of Edge or IoT devices. Choosing an efﬁcient

model also brings side-beneﬁts for Edge-AI applica-

tions, such as reducing the energy requirements and

freeing processing cores for accessory tasks (for ex-

ample, interfacing with a GPS for precise location).

We are aware that the chosen VGG-like architec-

ture limits our current results. Our immediate fu-

ture works include, therefore: (1) the creation of a

new model based on our Pooling block to be trained

on the ImageNet-1K dataset; (2) the optimization of

the Pooling block with reparametrization techniques

(Vasu et al., 2023; Ding et al., 2021); and (3) the de-

ployment of the future model on edge applications.

ACKNOWLEDGEMENTS

This work was supported by Chips Joint Undertaking

(Chips JU) in EdgeAI “Edge AI Technologies for Op-

timised Performance Embedded Processing” project,

grant agreement No 101097300.

We also thank the ROMEO Computing Center

of Universit

e de Reims Champagne-Ardenne, whose

Nvidia DGX-1 server allowed us to accelerate the

training steps and compare several model approaches.

REFERENCES

Chen, L.-C., Papandreou, G., Schroff, F., and Adam, H.

(2017). Rethinking atrous convolution for semantic

image segmentation. arXiv:1706.05587 [cs].

De Lucia, G., Lapegna, M., and Romano, D. (2022). To-

wards explainable ai for hyperspectral image classiﬁ-

cation in edge computing environments. Computers

and Electrical Engineering, 103:108381.

Deng, J., Dong, W., Socher, R., Li, L.-J., Li, K., and Fei-

Fei, L. (2009). Imagenet: A large-scale hierarchical

image database. In 2009 IEEE Conference on Com-

puter Vision and Pattern Recognition, page 248–255.

Ding, X., Zhang, X., Ma, N., Han, J., Ding, G., and Sun,

J. (2021). Repvgg: Making vgg-style convnets great

again. arXiv:2101.03697 [cs].

Han, K., Wang, Y., Tian, Q., Guo, J., Xu, C., and Xu, C.

(2020). Ghostnet: More features from cheap opera-

tions. arXiv:1911.11907 [cs].

He, K., Zhang, X., Ren, S., and Sun, J. (2016). Deep resid-

ual learning for image recognition. In 2016 IEEE Con-

ference on Computer Vision and Pattern Recognition

(CVPR), pages 770–778.

Howard, A., Sandler, M., Chu, G., Chen, L.-C., Chen, B.,

Tan, M., Wang, W., Zhu, Y., Pang, R., Vasudevan, V.,

Le, Q. V., and Adam, H. (2019). Searching for mo-

bilenetv3. arXiv:1905.02244.

https://romeo.univ-reims.fr

Improving Edge-AI Image Classiﬁcation Through the Use of Better Building Blocks

309

Howard, A. G., Zhu, M., Chen, B., Kalenichenko,

D., Wang, W., Weyand, T., Andreetto, M., and

Adam, H. (2017). Mobilenets: Efﬁcient convolu-

tional neural networks for mobile vision applications.

arXiv:1704.04861 [cs].

Howard, J. (2020). Imagenette and imagewood. Online:

https://github.com/fastai/imagenette/.

Hu, J., Shen, L., Albanie, S., Sun, G., and Wu, E. (2019).

Squeeze-and-excitation networks. arXiv:1709.01507.

Huang, G., Liu, Z., van der Maaten, L., and Weinberger,

K. Q. (2018). Densely connected convolutional net-

works. arXiv:1608.06993 [cs].

Iandola, F. N., Han, S., Moskewicz, M. W., Ashraf, K.,

Dally, W. J., and Keutzer, K. (2016). Squeezenet:

Alexnet-level accuracy with 50x fewer parameters and

¡0.5mb model size. arXiv:1602.07360 [cs].

Jastrzebski, S., Arpit, D., Ballas, N., Verma, V., Che, T., and

Bengio, Y. (2018). Residual connections encourage

iterative inference.

Jiang, P., Ergu, D., Liu, F., Cai, Y., and Ma, B. (2022). A re-

view of yolo algorithm developments. Procedia Com-

puter Science, 199:1066–1073.

Jocher, G., Chaurasia, A., and Qiu, J. (2023). Ultralytics

yolov8. https://github.com/ultralytics/ultralytics.

Kingma, D. P. and Ba, J. (2017). Adam: A method for

stochastic optimization. arXiv:1412.6980 [cs].

Krizhevsky, A. Learning multiple layers of features from

tiny images.

Krizhevsky, A., Sutskever, I., and Hinton, G. E. (2012). Im-

agenet classiﬁcation with deep convolutional neural

networks. In Advances in Neural Information Pro-

cessing Systems, volume 25. Curran Associates, Inc.

LeCun, Y., Boser, B., Denker, J. S., Henderson, D., Howard,

R. E., Hubbard, W., and Jackel, L. D. (1989). Back-

propagation applied to handwritten zip code recogni-

tion. Neural Computation, 1(4):541–551.

Lecun, Y., Bottou, L., Bengio, Y., and Haffner, P. (1998).

Gradient-based learning applied to document recogni-

tion. Proceedings of the IEEE, 86(11):2278–2324.

McMahan, B., Moore, E., Ramage, D., Hampson, S., and

y Arcas, B. A. (2017). Communication-efﬁcient learn-

ing of deep networks from decentralized data. In Ar-

tiﬁcial intelligence and statistics, pages 1273–1282.

PMLR.

Mohimont, L. (2023). Deep learning for post-harvest grape

diseases detection. In Workshop Proceedings of the

19th International Conference on Intelligent Environ-

ments (IE2023), volume 32, page 157. IOS Press.

Sandler, M., Howard, A., Zhu, M., Zhmoginov, A., and

Chen, L.-C. (2019). Mobilenetv2: Inverted residuals

and linear bottlenecks. arXiv:1801.04381 [cs].

Shao, J. and Cheng, Q. (2021). E-fcnn for tiny fa-

cial expression recognition. Applied Intelligence,

51(1):549–559.

Simonyan, K. and Zisserman, A. (2015). Very deep con-

volutional networks for large-scale image recognition.

arXiv:1409.1556 [cs].

Szegedy, C., Liu, W., Jia, Y., Sermanet, P., Reed, S.,

Anguelov, D., Erhan, D., Vanhoucke, V., and Rabi-

novich, A. (2014). Going deeper with convolutions.

arXiv:1409.4842 [cs].

Tavanaei, A. (2020). Embedded encoder-decoder

in convolutional networks towards explainable ai.

arXiv:2007.06712 [cs].

Terven, J. and Cordova-Esparza, D. (2023). A com-

prehensive review of yolo architectures in com-

puter vision: From yolov1 to yolov8 and yolo-

nas. Machine Learning and Knowledge Extraction,

5(4):1680–1716. arXiv:2304.00501 [cs].

Vasu, P. K. A., Gabriel, J., Zhu, J., Tuzel, O., and Ranjan,

A. (2023). Mobileone: An improved one millisecond

mobile backbone. arXiv:2206.04040 [cs].

Vaswani, A., Shazeer, N., Parmar, N., Uszkoreit, J., Jones,

L., Gomez, A. N., Kaiser, L. u., and Polosukhin,

I. (2017). Attention is all you need. In Guyon,

I., Luxburg, U. V., Bengio, S., Wallach, H., Fer-

gus, R., Vishwanathan, S., and Garnett, R., editors,

Advances in Neural Information Processing Systems,

volume 30. Curran Associates, Inc.

Wang, J., Sun, K., Cheng, T., Jiang, B., Deng, C., Zhao, Y.,

Liu, D., Mu, Y., Tan, M., Wang, X., Liu, W., and Xiao,

B. (2020). Deep high-resolution representation learn-

ing for visual recognition. arXiv:1908.07919 [cs].

Wu, T., Tang, S., Zhang, R., and Zhang, Y. (2019). Cgnet:

A light-weight context guided network for semantic

segmentation. arXiv:1811.08201 [cs].

Xiao, H., Rasul, K., and Vollgraf, R. (2017). Fashion-

mnist: a novel image dataset for benchmarking ma-

chine learning algorithms. arXiv:1708.07747.

Zeiler, M. D. and Fergus, R. (2014). Visualizing and un-

derstanding convolutional networks. In Fleet, D., Pa-

jdla, T., Schiele, B., and Tuytelaars, T., editors, Com-

puter Vision – ECCV 2014, Lecture Notes in Com-

puter Science, page 818–833, Cham. Springer Inter-

national Publishing.

Zhao, H., Shi, J., Qi, X., Wang, X., and Jia, J. (2017).

Pyramid scene parsing network. (arXiv:1612.01105).

arXiv:1612.01105 [cs].

CLOSER 2024 - 14th International Conference on Cloud Computing and Services Science

310
