Implementation of Composable Enterprise in an Evolutionary Way

Through Holistic Business-IT Delivery of Business Initiatives:

Real Industry Use Case

Ivka Ivas

Faculty of Electrical Engineering and Computing, University of Zagreb, Croatia

Keywords: Enterprise Architecture, Composable Enterprise, Business Composability, Business-IT Alignment, Business

Capability Map, Value Stream, Holistic Value Delivery, EA Model.

Abstract: Service composability, introduced by service-oriented architecture (SOA), is a design principle that

encourages the design of reusable services that themselves also consist of reusable services. In domain

driven design (DDD), which inspired microservice architectures, the scope of composable service design is

interpreted as a software solution domain, while the problem domain lies in the detached business world.

This results in IT solutions that are often redundant at the enterprise level or tend to be composable only

within a specific enterprise IT ecosystem as a result of the design without understanding the business

domain or how the new solution fits into the overall delivery and enterprise architecture. On the other hand,

it is not uncommon for company´s "business", motivated by revenue increase, to push frequent deliveries of

business changes, putting pressure on company´s IT to implement quick fix solutions that only solve

immediate business problems. All this leads to inconsistent and redundant software systems that increase the

complexity of the organization and result in higher maintenance costs and less flexibility in implementing

future changes. As a solution, this paper proposes Composable Enterprise, a business-IT approach for

architecting the enterprise that introduces Business Composability and a holistic understanding of the

enterprise. Business Composability is a business-IT-aligned service abstraction that starts with the notion of

first applying service composability to business assets (business capabilities) to achieve the scale and pace

required to realize business changes. The purpose of this paper is to provide a methodology for

implementing Composable Enterprise in large, complex organisations, not as a massive, enterprise-wide

rationalization and consolidation initiative, but in an evolutionary way through the joint and holistic

business-IT delivery of business initiatives. The application of the proposed methodology is illustrated using

a real-industry use case.

1 INTRODUCTION

In large organisations IT has traditionally been seen

as a servant of the "business", existing to fulfil

business needs, with the "business" deciding on the

why, what and when and IT on the how. This mindset

led to late involvement of IT in the process of

business initiative delivery, resulting in quick fix

solutions implemented only to meet immediate needs

of a particular business initiative. Which led to

increased complexity, higher maintenance costs,

higher costs of future investments and less flexibility

to implement future changes. Earlier IT engagement

or a longer cycle time allowing IT to take enough

time for a "proper" design does not solve the problem.

When designed without understanding of the business

domain and without holistic understanding on how

the new solution fits into the overall delivery and

enterprise architecture (EA), solutions that are

designed to be modular and composable only from IT

perspective tend to be redundant at the enterprise

level or composable only within a specific IT

ecosystem. Which also leads to increased complexity,

higher costs, and less flexibility to implement

business changes. Widely adopted agile practices do

not help either, sometimes even the opposite, as agile

practices encourage frequent deliveries of business

changes, which puts pressure on IT to implement

quick solutions. The root cause of this situation is a

cultural split to "business" and IT, both existing as

two separate words pursuing their own interests. The

goal of enterprise IT is to lower costs, which can be

achieved through reusability, modularity, and

Ivas, I.

Implementation of Composable Enterprise in an Evolutionary Way Through Holistic Business-IT Delivery of Business Initiatives: Real Industry Use Case.

DOI: 10.5220/0012728400003690

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 26th International Conference on Enterprise Information Systems (ICEIS 2024) - Volume 1, pages 397-408

ISBN: 978-989-758-692-7; ISSN: 2184-4992

397

composability. Where enterprise "business" has

interest in higher revenues for which they need

frequent deliveries of business changes. And in large

complex organisations this cannot be a separate, two-

world journey, as digital products, and services that

those organisations deliver to their customers are

highly dependent on and intertangled with the

underlying IT (Orlikowski, 2010).

The objective of this paper is to reconcile these

two worlds in large, complex organizations with

Composable Enterprise mindset. Composable

Enterprise is a new paradigm introduced by Gartner

that enables flexibility of business change through

composability and modularity that starts with

business assets and is achieved as a joined business-

IT venture (Panetta, 2020). This purpose of this paper

is to propose a methodology for implementing

Composable Enterprise in an evolutionary way

through holistic business-IT delivery of business

initiatives and to illustrate the implementation of the

methodology using a real industry use case. The

paper is the continuation of the announced research

on strategy realisation through implementation of

Composable Enterprise as part of the BASE

framework (Business Architecture-based EA

Framework for Strategic Alignment of the Enterprise)

(Ivas, 2023). As authors works as enterprise architect

in real industry, application of the proposed

methodology for implementing Composable

Enterprise will be carried out as part of her regular

business-support EA work.

2 BACKGROUND AND RELATED

WORK

This section will provide theoretical background on

terms and definitions related to SOA, microservices

and Composable Enterprise. Section also presents

results of focused literature research on development

method for implementing Composable Enterprise in

an evolutionary way.

2.1 About SOA and Microservices

The roots of Service Oriented Architecture (SOA) go

back to 90s (Krafzig, 2010) in time when "Software

crisis" from the previous decades was considered to

be over. "Software crisis" is a phenomenon that

emerged in 60s and referred to poor software

performance that was causing failed software projects

(Dijkstra, 1972, Randell, 1996). New programming

languages as Smalltalk, C++ and later Java were seen

as remedy for these ills from the past, as they

introduced structured programming, modularity, and

Object Orientation (OO). OO paradigm introduced

abstraction with focus on the "what" instead of the

"how", with caller invoking the exposed interfaces to

use the service without worrying about the service

internal "how" details (Jana, 2006). This sorted out

isolated application, but the focus than shifted to end-

to-end process chains and application landscapes

supporting them which introduced integration of

application landscapes as the next big challenge of IT

industry. As solution for this, SOA developed in three

phases. In the first phase, the aim was to solve the

problem of point-to-point integration of distributed

applications with middleware technologies such as

CORBA (Krafzig, 2010), which proved to be

unreliable and complicated to use and caused

unmanageable middleware complexity. The second

phase therefore introduced Enterprise Application

Integration (EAI) solutions (Linthicum, 2000).

Although EAI was introduced to reduce complexity,

it is now considered a disaster because it enriched the

middleware with auxiliary technical services, as

centralized data transformation or transaction

monitoring, which further increased application

landscape complexity. As a final solution, in the third

phase, service-oriented architectures (SOA) were

developed as a continuous improvement process at

company level. SOA introduced a holistic view of

enterprise IT architecture and the idea of enterprise

consisting of composable services (provided as

modules of enterprise monolith applications) that are

accessed via standardised web interfaces and used as

building blocks for business processes (Krafzig,

2010). Introducing service composability design

principle, SOA envisioned composable services as

reusable modular services consisting of other reusable

modular services. SOA also introduced service

orchestration with Enterprise service bus (ESB), a

central service integration unit providing capabilities

as integration, routing, orchestration, message

transformation or service monitoring. The ESB

approach led to centralization of business logic,

making the ESB as a central enterprise monolith a

bottleneck and a major pain point for many

organizations (Shadija et al., 2017). The promised

remedy came in the form of microservice

architecture. Microservice architecture, initially

introduced as a concept in 2011 (Dragoni et al.,

2017), is a distributed application consisting of

independently developed, deployed, and managed

fine-grained services that communicate via

lightweight protocols as REST (Shadija et al., 2017).

Microservice architecture introduced service

ICEIS 2024 - 26th International Conference on Enterprise Information Systems

398

choreography, meaning that instead of central

orchestration unit as in SOA, microservices

themselves take responsibility for interacting with the

environment, i.e., in a microservice architecture

business processes are embedded into the services

(Cerny, 2017). This limited flexibility in design,

adjustment, and visibility of end-to-end business

processes, as well as difficulty of managing

microservice architectures, as a large unorganised set

of fine-grained, headless services, made unrealistic

the implicit expectation that microservice

architectures would be sufficient to meet all the needs

of large complex organizations (Xiao et al., 2016).

Furthermore, following Domain driven design

(DDD), microservices should be defined within a so-

called bounded context, a boundary of a model within

a specific domain. The purpose of this concept was to

encourage a design that focuses on delivering

business functionality rather than just focusing on

code reuse and decomposition (Evans, 2003).

However, very fuzzy definition of DDD´s bounded

context and the separation of business problem space

and solution space led to interpretion that DDD

domains (or subdomains) belong to "business" and its

problem space, while engineers define the bounded

context as the solution space-boundery of the

software they design (Tune, 2020). The next chapter

will introduce Composable Enterprise as a new

remedy for illnesses of large complex organisations,

aiming to bring bunded context of IT solution space

close to the business problem space and DDD

domains (or business capabilities).

2.2 Composable Enterprise

The term Composable Enterprise was introduced by

consultancy company Gartner in 2020, which defined

it as "an organization that can innovate and adapt to

changing business needs through the assembly and

combination of packaged business capabilities"

(Gaughan et al., 2020). Composable Enterprise is an

enterprise envisioned as modular and highly

adaptable to business changes. This is achieved

through Composable Business, an enterprise business

made up of a combination of easy interchangeable

and pluggable "lego-like" components. As

Composable Enterprise embraces the API economy, a

business model built around delivering enterprise

services to customers through APIs (Basole, 2019),

pluggability in Composable Enterprise is enabled

through APIs exposed by its composable

components. The key principles of Composable

Business include ensuring holistic system view at the

business level (and not just at the technology level)

and applying modularity to business assets to achieve

flexibility for implementing business change (Dessus,

2021). Modularity, defined as the extent to which a

system may be divided into smaller components, is an

important concept for reducing enterprise complexity

by breaking enterprise to independent parts, hiding

the complexity of each part behind abstraction and

API interfaces (Baldwin and Clark, 2000).

Modularity in Composable Enterprise is achieved

through enterprise business capabilities, which are

referred to as Packaged Business Capabilities (PBC)

in Composable Enterprise. Business Capability Map

(BCM), as a set of all enterprise business capabilities

(PBCs), is envisioned as a tool for achieving Business

Composability, a business-IT aligned service

abstraction that starts from the notion of first applying

service composability to business assets (or PBCs), to

achieve the scale and pace needed for implementing

business changes. Where PBCs would serve as

building blocks both for composing the enterprise and

encapsulating software components (Panetta, 2020).

Furthermore, Gartner defines three building blocks of

Composable Business: composable thinking,

composable business architecture and composable

technologies. Composable thinking promotes the idea

that everything can be composable by encouraging

the creative use of design principles throughout the

enterprise to enable more flexible adaptable way to

meet ever changing customer needs. Composable

business architecture, with use of business

capabilities delivering composable business processes

(Heinig, 2022), ensures that the organization and its

business are built as flexible and resilient. Where

composable technology enables flexible information

systems to support business which is achieved with

modular system architectures (Panetta, 2020). An IT

architecture that emerged to support building

composable technologies in Composable Enterprise is

so-called MACH architecture (MACH Technology,

n.d.). MACH is a set of design principles that

encourages building information systems as a set of

pluggable, scalable, and replaceable IT components.

MACH architectures promote the following concepts:

• Microservices-based: developing microservices

as independently developed, deployed, and

managed components

• API-first: hiding internal complexity, and

exposing functionalities through APIs that enable

pluggability of PBCs

• Cloud-native SaaS: leveraging hosting, elastic

scaling, and automatic updating of cloud

deployment models

• Headless: the core of composable concept are

headless, easy interchangeable components. At

Implementation of Composable Enterprise in an Evolutionary Way Through Holistic Business-IT Delivery of Business Initiatives: Real

Industry Use Case

399

IT level, this means that developed components

should be loosely coupled, reusable modules that

are agnostic to programming languages or

frameworks and preferably oihave decoupled

front-end and back-end.

A PBC solution should provide at least API-first and

Headless, meaning that the underlying technical

components that enable PBC should be loosely

coupled reusable modules with internal complexity

being hidden behind a generic public API. To found

theoretical background on Composable Enterprise

and development method for implementing

Composable Enterprise, author searched the literature

with selection criterion "is composable enterprise

mentioned as a concept". Table 1 lists the results of

focused literature review (Brocke et al. 2009) which

was carried out by searching the term "composable

enterprise" on Google Scholar, Web of Science and

ResearchGate, along with filtering relevant references

in the found articles. As listed in table 1, Composable

Enterprise is still very novel in scientific research

with only a few scientific articles found dealing with

the topic (Sunyaev et al., 2023, Scheer, 2023, Ćorić

and Mabić, 2023, van Schalkwyk and Isaacs, 2023,

Wang and Gao, 2022). As the search on academic

papers resulted in just a few results, the professional

literature was also searched using the same search

term "composable enterprise" on Google. This search

returned 37.900 results proving that Composable

Enterprise is a very important technology trend.

These results showed the mismatch between the

academic work on enterprise architecture and

practical enterprise architecture, as identified by

Gampfer et al. (2018).

Table 1: Overview of the most relevant literature on Composable Enterprise.

Title Reference Commen

Future of applications:

delivering the composable

enterprise. ID: G00465932

Gaughan et al.

(2020)

Professional Gartner´s paper that elaborates on necessity of modernising application

portfolio to become modular, flexible, and composable in order to support delivering

business strategy at the pace of business change. No development method for

implementing Composable Enterprise

rovided.

Gartner Keynote: The Future

of Business is Composable

Panetta (2020) Professional Gartner´s paper that elaborates on the concept of Composable

Enterprise and Composable Business. No development method for implementing

Composable Enterprise

rovided.

Method of Building

Enterprise Business

Capability Based on the

Variable-Scale Data Analysis

Theor

Wang and Gao

(2022)

Scientific paper that mentions Composable Enterprise as a new architecture based on

enterprise business capabilities. No development method for implementing

Composable Enterprise provided.

Composable architecture: the

latest trend in EA helping

companies adap

grow.

Bhatnagar

(2022)

Professional paper that provides theoretical background on Composable Enterprise

providing high-level method to engage in composable architecture.

Composable business

processes – The journey

towards a composable

enterprise

Heinig (2022) Professional paper that elaborates on composability of business processes assembled

with business capabilities as building blocks. No development method for

implementing Composable Enterprise provided.

Is composable enterprise the

key to digital transformation?

Ćorić and

Mabić (2023)

Conference article providing theoretical background on Composable Enterprise in

the context of digital transformation. No development method for implementing

Composable Enterprise

rovided.

The Composable Enterprise:

Agile, Flexible, Innovative:

A Gamechanger for

Organisations

Scheer (2023) A set of scientific articles on Composable Enterprise published as a book. Provides

background information on the concept of Composable Enterprise with development

method for implementing Composable Enterprise, but as an enterprise-wide

rearchitecting approach.

The Future of Enterprise

Information Systems.

Sunyaev et al.

(2023)

Scientific paper that envisions enterprise processes made up of composable,

interchangeable building blocks supported by corresponding enterprise information

systems which enables "business to reassemble features dynamically and rearrange

them as needed depending on external or internal factors". No development method

implementing Composable Enterprise

rovided.

Achieving Scale Through

Composable and Lean

Digital Twins.

van Schalkwyk

and Isaacs

(2023).

Scientific paper that mentions Composable Enterprise as an important topic for

enterprises to adopt Digital Twins (concept of using the power of technology to

make revolutionary improvements for the society). No development method for

implementing Composable Enterprise

rovided.

The fundamentals of MACH

MACH

Technology

(n.d.).

Professional material that explains the MACH architecture as a set of design

principles for implementing flexible, composable technology to support Composable

Business. No development method for implementing Composable Enterprise

rovided.

ICEIS 2024 - 26th International Conference on Enterprise Information Systems

400

The most comprehensive work found on the topic

was the book "The Composable Enterprise: Agile,

Flexible, Innovative: A Gamechanger for Organisa-

tions" (2023) by August-Wilhelm Scheer, in which the

author proposes a Composable Enterprise development

method for rearchitecting the whole enterprise. While

this is a very valuable conceptual idea, this is unlikely

to be implemented in large, complex organisations as

such an enterprise-wide activity would require huge

investment and would hinder regular business

operations and delivery of new business changes. The

purpose of this paper is to propose a different more

cost-effective evolutionary approach with continuous

implementation of Composable Enterprise as part of

delivery of business initiatives.

Since most of the papers found only provide the

theoretical background introduced by Gartner

(Gaughan et al., 2020, Panetta, 2020), and none of

them provide a development method for

implementing Composable Enterprise in an

evolutionary way, the author concludes that such a

method has not been researched before

3 METHODLOGY

A prerequisite for implementation of the

methodology explained below is the existence of

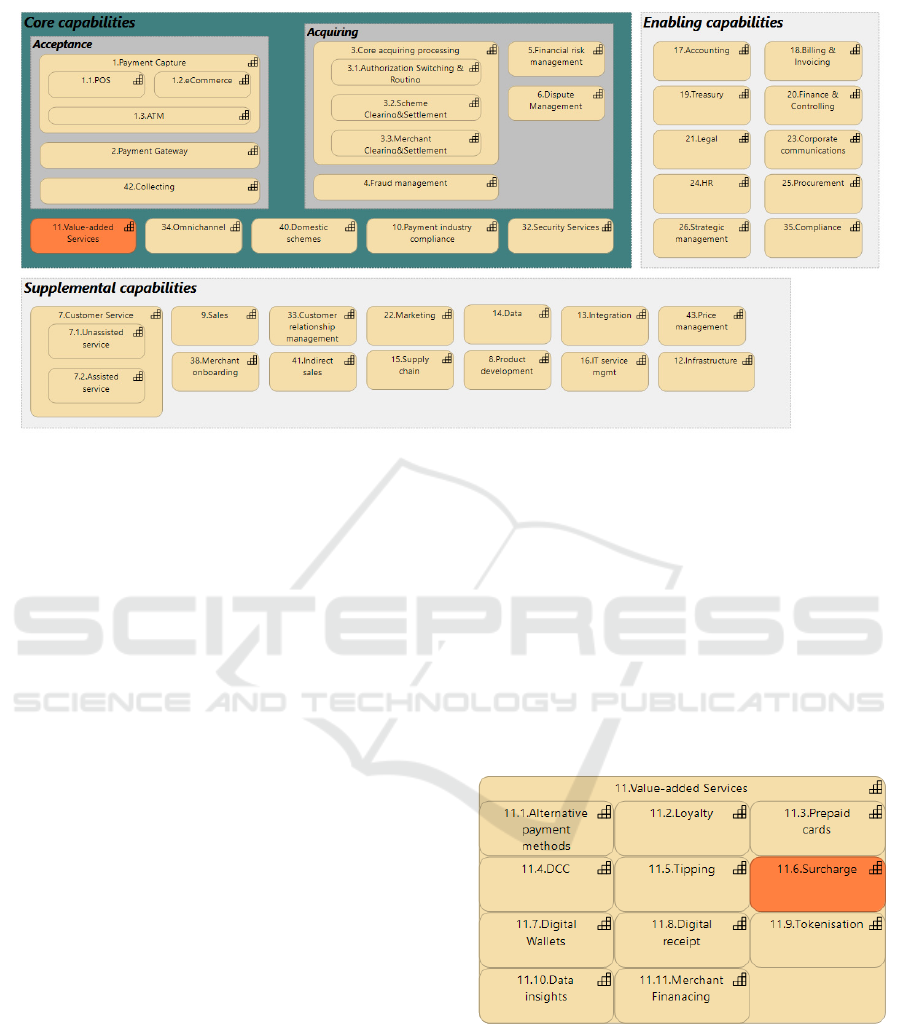

some "good enough" version of BCM, a map of

enterprise business capabilities (e.g., figure 2), and

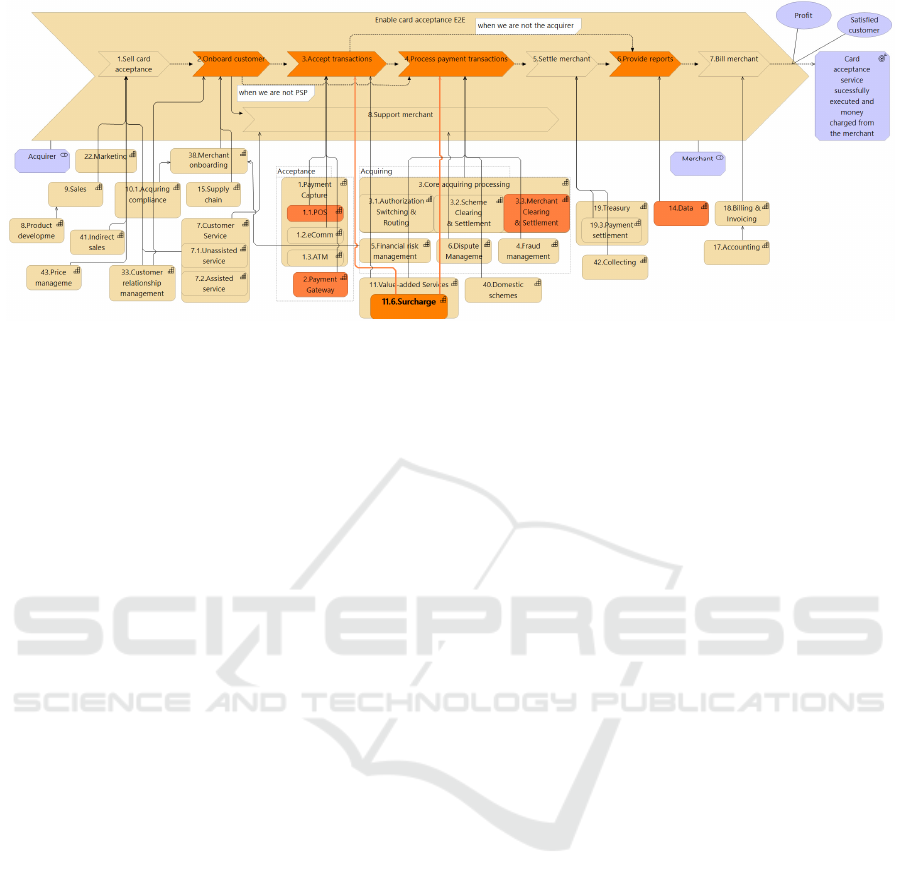

Holistic value delivery value stream (e.g., figure 4).

Holistic value delivery is an enterprise value stream

that illustrates all end-to-end critical steps that

enterprise must undertake to deliver value to its

customers, with the steps enabled by BCM business

capabilities (Ivas, 2023). Methodology for

implementing Composable Enterprise is as follows:

1. Understand business drivers and objectives. The

first step is to understand the business background

of the initiatives, i.e., the rationale, objective, and

scope from the business point of view.

2. Understand holistic scope of the initiative. The

second step is about understanding which value

streams steps and business capabilities from the

Holistic value delivery are being affected by the

initiative and how.

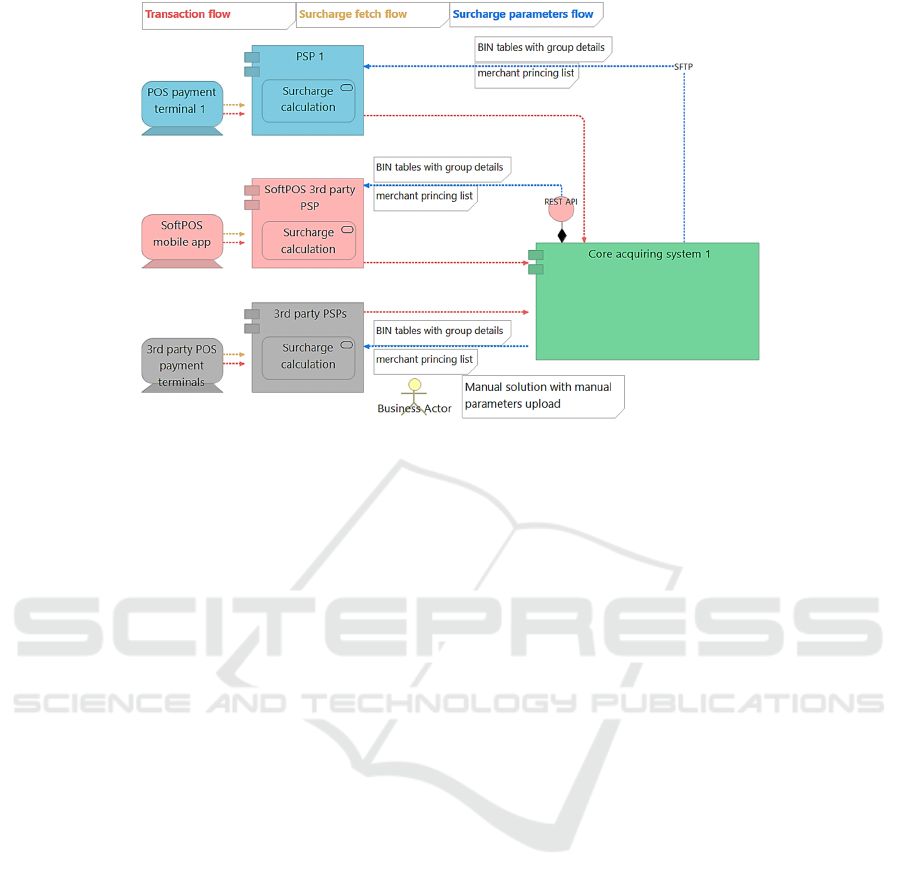

3. Understand current situation. Understand and

sketch current solution (architecture) in scope.

4. Understand situation and needs at enterprise

level. Identify if there are any components that

can be reused or optimised by this solution at

enterprise level, or if there are some other future

initiatives with the same need.

5. Design as API -first Headless PBC (preferably

according to MACH). If there is a need to

implement a new service, you should preferably

design it according to MACH principles.

Otherwise, deliver business change by designing

new or optimising existing monolith modules by

API-first and Headless MACH principles.

6. Implement business-IT aligned PBC solution and

consolidate. Implement business-IT agreed

solution and, consolidate into the new solution

any old solutions which implements the same

functionality (business capability).

Diagramming tool that will be used for creating

research artifacts is Archi, an open-source EA tool

supporting ArchiMate EA language (The Open

Group, 2022). The following section explains the

metamodel of the EA model used as part of the

proposed methodology.

3.1

Model

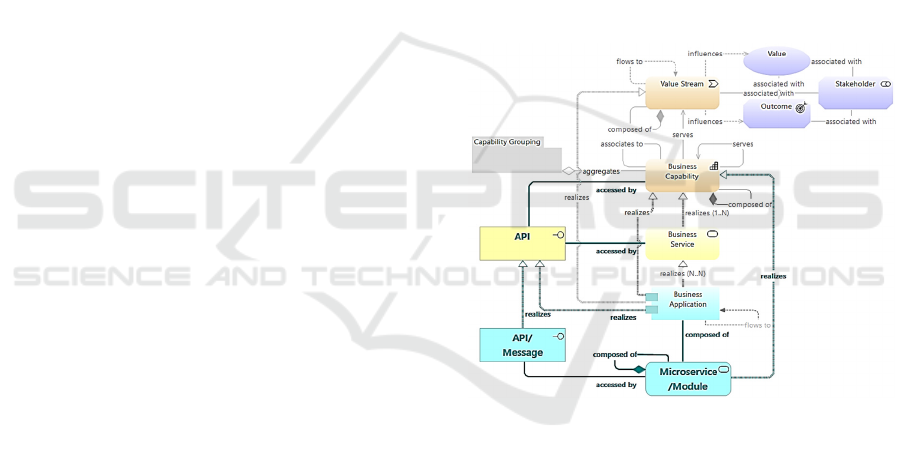

Figure 1: Metamodel of the EA model, newly added

elements, and relationships in green.

Figure 1 shows extended metamodel of the EA model

proposed in Ivas (2023). New elements added to the

EA model to support the Composable Enterprise are

API, API/Message and Microservice/Module. As

listed in tables 2 and 3, to support this model

extension, ArchiMate notation is used, as follows:

• element API/message added using ArchiMate´s

Application Interface element

• element Microservice/Module added using

ArchiMate´s Application service element

• element API added using ArchiMate´s Business

service element

• accessed by relationship added between Business

capability and API using ArchiMate´s associate

relationship

Implementation of Composable Enterprise in an Evolutionary Way Through Holistic Business-IT Delivery of Business Initiatives: Real

Industry Use Case

401

• accessed by relationship added between

Microservice/Module and API/message using

ArchiMate´s associate relationship

• composed of relationship added between

Business Application and Microservice/Module

using ArchiMate´s associate relationship.

Table 2: Definitions of the newly added EA model

elements.

Element Definition ArchiMate

Notation

API API interface exposed

by business capability to

leverage API economy.

API/message Application interface in

the form of API or

message (message

stream).

Microservice/

Module

A functionality

implemented as

microservice or module

of a monolith.

Table 3: EA model elements relationships.

Source Relationship

type

Target Description

Business

capability

accessed by API ArchiMate´s associate

relationship.

Microser.

/Module

realizes Business

capability

Business capability as

bounded context of

microservice /module

enables

implementation of

Business

Composability.

Relationship

supported by

ArchiMate.

Business

application

composed

Microser.

/Module

ArchiMate´s associate

relationship used.

Microser.

/Module

composed

Microser.

/Module

To implement service

composability

principle in IT.

Relationship

supported by

ArchiMate.

Microser.

/Module

accessed by API/

Message

ArchiMate´s associate

relationship used.

API/

Message

realizes API Relationship

supported by

ArchiMate.

Business

application

realizes API Relationship

supported by

ArchiMate.

4 RESULTS

The company used to implement the proposed

method acts as an acquirer, a financial institution

licensed to process credit and debit cards on behalf of

merchants. In this company author works as

enterprise architect and part of her regular work is

supporting initiative gate approval process with early

scoping of business initiatives. Early initiative

scoping serves as an input for investment

determination and initiative funding. One of those

initiatives was "generic surcharge". The high-level

scoping and design of the solution were carried out in

collaboration between the author as EA, an author´s

EA colleague (both belonging to IT part of the

company), the surcharge product owner and the

delivery manager (representing company´s

"business"). For step 5, IT solution architects were

consulted to help estimate and design the most cost-

effective solution.

The results of applying proposed methodology are

presented below. All data in presented diagrams are

anonymised.

Step 1: Understand Business Drivers and Objectives.

Over the last 30 years payment processing industry

has experienced a radical transformation that resulted

with so called "Race to Zero". "Race to Zero" refers

to the commoditization of payment processing

services, where processing fees have fallen to almost

zero due to increasingly competitive marketplace

(Fitzgerald, 2023). Payment processors (acquirers)

must therefore find other ways to generate revenue,

for example by offering so-called value-added

services. One of the value-added services offered by

researched company is the surcharge, a service

offered by acquirers to merchants who would like to

additionally charge cardholders for the Merchant

Service Charge (MSC) fee they pay to the acquirer

for acquiring service. Surcharge as a feature is

prohibited by EU legislation, meaning that surcharge

can be used only for transactions made by Business

Cards issued in the EU and all cards issued outside of

the EU. Surcharge feature is available/allowed on the

following card schemes: Mastercard, Visa, JCB,

CUP, DI/DC, and Amex. Surcharge is identified

during the purchase, after the card is read and prior to

the authorisation with surcharge eligible check being

based on the BIN-range of the card. The scope of

initiative is Finland, Norway and Denmark, Sweden

is out of scope due to local regulations. The

company´s rationale for building centralised generic

surcharge service is as follows:

ICEIS 2024 - 26th International Conference on Enterprise Information Systems

402

Figure 2: Acquiring high-level business capability map (surcharge is part of 11.Value added services).

• The Competition and Consumer Authority has

made it clear that the current company´s

surcharge setup for external PSPs is not

compliant and have strongly urged company to

replace it, with very high risk that they will soon

mandate it out of service. The generic surcharge

service will modernize company´s setup and

eliminate the manual processes in the current

setup (which is the reason why current setup is

not compliant).

• By doing this build, company protects the

revenue from its current external PSPs, enables

easy onboarding of additional external PSPs, and

makes it significantly easier for internal PSPs to

enable surcharge.

• Non-financial benefits are:

o License to play in hospitality: surcharge is

seen as a prerequisite for having a viable

proposition for hospitality.

o Brand value: surcharge is an industry

standard feature – not having it may hurt

company´s brand.

• Financial benefits (quantifiable and non-

quantifiable):

o Revenue Protection: external PSPs are live on

current setup. Approving this build will

protect that revenue.

o Incremental Revenue: additional PSPs can be

added, both internal and external.

o Running Cost and Error Efficiency: with

current setup 3 days of manual work is

required monthly, which is also an error-

prone process.

o Price Erosion Protection: surcharge is an

important negotiation tool to maintain or

increase company´s margins.

o Cheaper enablement of surcharge on internal

PSPs: company´s internal PSPs will have a

more efficient way for surcharge enablement.

The information for this step is provided by P. Sand,

surcharge product owner, and M. W. Lund, delivery

manager.

Figure 3: Decomposition of 11.Value-added services (from

the full business capability map).

Step 2: Understand Holistic Scope of the Initiative.

In business capability map, surcharge capability

(11.6.Surcharge) belongs to 11.Value added services

(figures 2 and 3). As illustrated in company’s Holistic

value delivery (figure 4), 11.6.Surcharge business

Implementation of Composable Enterprise in an Evolutionary Way Through Holistic Business-IT Delivery of Business Initiatives: Real

Industry Use Case

403

Figure 4: In orange affected by holistic surcharge product end-to-end delivery.

capability directly supports value stream steps

3.Accept transactions and 4.Process payment

transactions. However, holistically scoping surcharge

product delivery means taking into consideration all

dependencies of the whole end-to-end value delivery

process. Which means that the scope of the initiative

are also the following value stream steps:

• 2.Onboard Customer

PSP or payment gateway (business capability

2.Payment gateway) is a system that routes payment

transactions received by payment terminal to core

acquiring systems. Internal and external PSPs will

have to integrate towards the new generic surcharge

API, first by getting registered on the API

Marketplace (self-service portal) and fetching the API

keys and then by adjusting their code to utilise the

new API. Existing process of merchant onboarding is

not affected.

• 3.Accept Transactions

The operational call for surcharge lookup should be

redirected to the new surcharge service, instead of

existing implementations in internal and external

PSPs. PSPs in scope are "PSP 1", "SoftPOS 3rd party

PSP" and "3rd party PSPs" (2.Payment gateway

business capability) that will fetch surcharge lookup

for "POS payment terminal 1", "SoftPOS mobile app"

and "3rd party POS payments terminals" (1.1.POS

business capability). POS (point of sales) systems are

used to support transactions in physical stores.

• 4.Process payment transactions

3.3.Merchant clearing & settlement system must feed

the new surcharge solution with additional parameter

mapping to support generic service. The system that

supports this and which falls within the direct scope

of the initiative is the "Core Acquiring System 1".

• 6.Provide reports

New "Generic surcharge service" should provide

additional lookup statistics and error metrics.

Step 3: Understand Current Situation.

Figure 5 illustrates the current solution with several

functional redundancies of surcharge calculation

capability as follows:

1. "Surcharge calculation" implemented in "PSP 1"

available only for "POS payment terminal 1"

(physical POS terminal).

2. "Surcharge calculation" implemented in

"SoftPOS 3

party PSP" available only for

"SoftPOS mobile app" (mobile phone terminal

application)

3. "Surcharge calculation" implemented in "3

party PSPs" available only for "3

party POS

payment terminals".

All solutions are only available within their

ecosystems, which means that decision to make the

surcharge product available on some other type of

internal or external POS terminal (to support physical

stores) or eComm (to support online web shop

transactions) requires their PSPs to develop their own

surcharge solution. In addition, the current setup

requires changes in both internal PSP, 3rd party PSPs

and internal core acquiring system if the data

exchange format changes. Furthermore, the second

solution with "SoftPOS 3rd party PSP" is the recent

implementation of functionality with the new "REST

API" interface being built to serve only "SoftPOS 3

party PSP". This means that there are now two

interfaces for the same surcharge parameters data

flow that need to be maintained. "SoftPOS" solution

exemplifies traditional delivery where business

initiatives tend to solve their own immediate needs

without considering how the new solution fits to the

overall enterprise architecture. Furthermore,

company´s internal system "PSP 1" is a legacy

monolith in which "surcharge calculation" is

ICEIS 2024 - 26th International Conference on Enterprise Information Systems

404

Figure 5: Current situation illustrating functional redundancies of Surcharge functionality.

implemented as a module. However, there are

"surcharge calculation" services within the 3rd party

PSPs (whose implementation is a black box for the

company). Although these 3rd party solutions might

be implemented as reusable and composable

microservices inside their own 3

party ecosystems,

it does not change the fact that surcharge solution at

enterprise level is inconsistent and redundant. This

confirms Aleatrati Khosroshahi (2016) who states

that without holistic high-level as-is overview,

organisations tend to introduce new services to fulfil

immediate business needs which leads to increased

complexity (Aleatrati Khosroshahi, 2016).

Step 4: Understand Situation and Needs at Enterprise

Level.

There is a need from a company´s "eComm PSP" to

use this solution. It is also discovered that there is

another POS terminal product that would like to have

this solution available both for "Acquiring core

platform 1" and "Acquiring core platform 2", which

means that generic solution must be designed in such

a way that any core acquiring platform can easily

plug in and feed the new surcharge solution with

needed parameters.

Step 5: Design as API-first Headless PBC Solution

(Preferably According to MACH).

As illustrated in figure 6, acquiring and PSP agnostic

target solution is designed according to following

MACH design principles:

• Microservices-based: the solution is envisioned

as an independent, self-contained microservice.

Figure 6 illustrates "Generic surcharge

microservice" which would provide needed

surcharge calculation functionality exposed for

internal and external PSPs to consume. Service

would calculate surcharge based on parameters

received from core acquiring systems. Also, as

figure 6 illustrates, following proposed

metamodel (figure 1) "Generic surcharge

microservice" is part of a business application

"Value added services". According to proposed

metamodel, microservices should always be

grouped in a business application to enable their

governance from the enterprise level (as

microservices alone are too small and there are

too many of them to be govern separately). In

this case, newly introduced business application

"Value added services" would also be used as a

placeholder for the grouping of all future value-

added service microservices.

• API-first: generic surcharge functionality would

be exposed through generic "REST API" API

application interface that would realise business

"API" interface (figure 6). "REST API" would be

designed with generic input and output

parameters, without any internal identifiers

exposed to the outside world. As showed in the

figure 6, what "business" sees is the "API"

interface of surcharge capability

(11.6.Surcharge), which is publicly available and

documented on company´s API marketplace, for

PSPs (internal or external) to configure and use.

Implementation of Composable Enterprise in an Evolutionary Way Through Holistic Business-IT Delivery of Business Initiatives: Real

Industry Use Case

405

Furthermore, inbound "Surcharge parameters

API" is also designed as generic, meaning that

any core acquiring system can easily use it to

share surcharge parameters without worrying

about internal complexity of the "Generic

surcharge microservice". This makes solution

both PSP and acquiring agnostic.

• Cloud-native SaaS: it is recommended to deploy

the solution to one of the company's cloud

providers to leverage cloud deployment model,

providing storage, hosting, elastic scaling, and

automatic updating.

• Headless: Front-end presentation exposed via

API interface with generic contract makes

internal back-end logic black box for its internal

and external PSPs and core acquiring systems.

As mentioned above, this initiative is part of the

early gate approval process, which means that earlier

steps were used to provide inputs for the cost

estimation of the initiative. An external team with

experience with microservice and cloud technologies,

but without previous experience with company´s

systems in scope, was asked to provide the cost

estimate and timeframe for the implementation of the

planned MACH solution (figure 6). This team's

estimate was rejected as the estimated

implementation and maintenance costs were too high

and the timeframe offered was unacceptable (as

important pre-sales enabler for hospitality, initiative

was promised to be delivered as soon as possible).

This is why a joined business-IT trade-off decision

was made to go instead for a more cost-effective

solution with a shorter time-to-market by adjusting

the existing surcharge solution in "PSP 1" developed

by an internal team (figure 5). Also, the internal "PSP

1" team already had experience with the company's

API marketplace. Figure 7 shows chosen target

solution, which is, like the MACH solution (figure 6),

both acquiring and PSP agnostic. Although this is not

a long-term solution, as "PSP 1" as a legacy platform

is likely to be replaced in the future, none of the

internal and external PSPs or core acquiring platforms

should be affected by a possible migration, as they

only see the front-end presentation exposed via

generic APIs. This chosen trade-off solution confirms

Ford et al. (2022) who state that cost-effective time-

to-market composable solutions could also be

achieved using modular monoliths.

Step 6: Implement Business-IT Aligned PBC Solution

and Consolidate.

After implementing the new trade-off solution (figure

7), plan is to first migrate "3rd party PSPs" and then

also "SoftPOS 3rd party PSP".

5 DISCUSSIONS

As exemplified in the previous chapter, business

initiatives often lead to inconsistent and redundant

software systems when executed in a traditional way

with IT serving to fulfil immediate business needs

and

when IT designs business-detached solutions

Figure 6: Target composable solution designed according to MACH principles.

ICEIS 2024 - 26th International Conference on Enterprise Information Systems

406

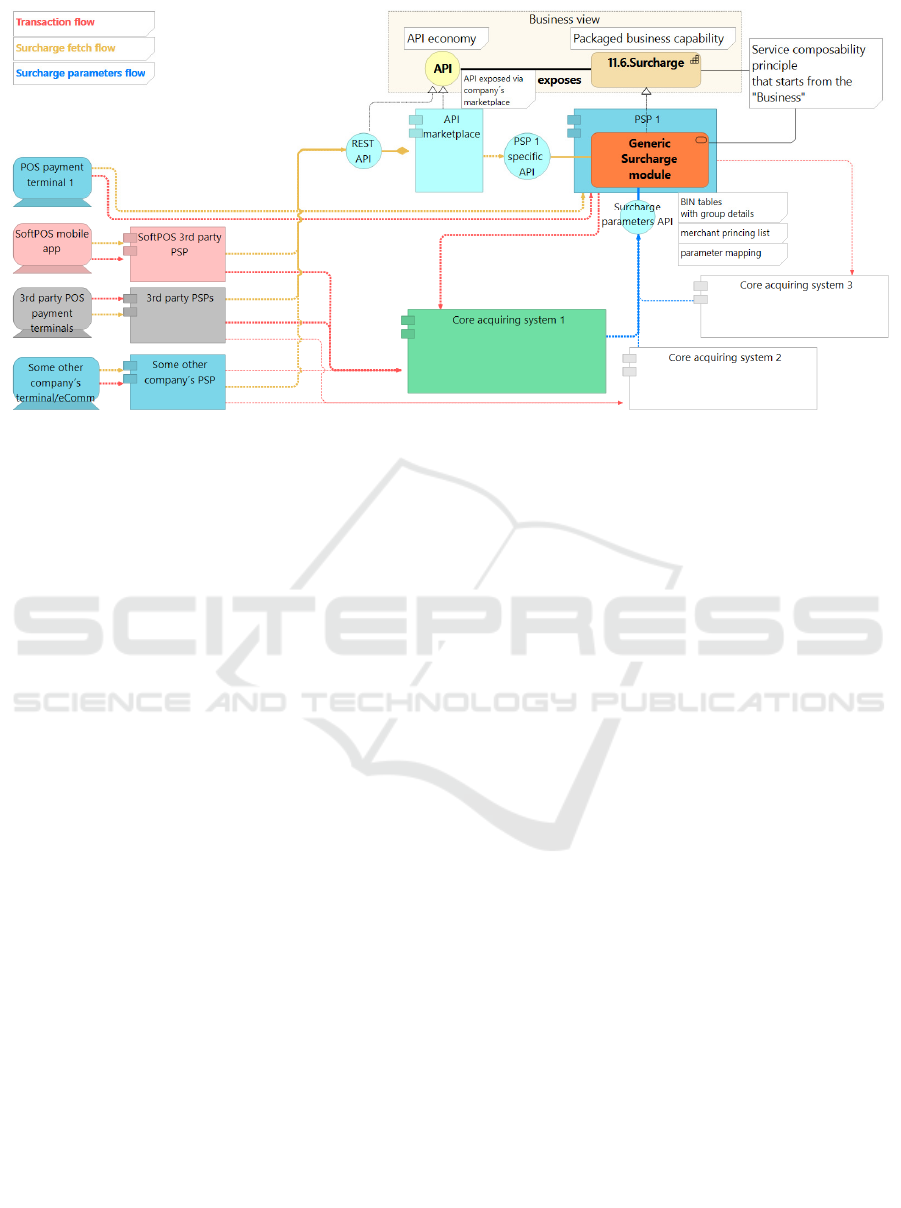

Figure 7: Trade-off composable solution implemented as a module of a monolith.

considering only domain of a specific ecosystem,

without a holistic understanding of how solution fits

into the overall delivery and enterprise architecture.

Which increases the enterprise complexity and leads

to higher maintenance costs, higher costs for future

investments and less flexibility in implementing

future changes. As solution, Composable Enterprise

brings together "business" and IT introducing the

mindset of composability at the enterprise level as a

joint business-IT venture to enable ease of business

changes with lower costs. Composable Enterprise is

based on a holistic understanding of the enterprise

and Business Composability, a service abstraction

that starts from the notion of first applying service

composability to business assets (business

capabilities) to achieve the scale and pace needed for

implementing business changes. Instead of massive

enterprise-wide rationalization and consolidation

initiative, this paper proposes implementation of

Composable Enterprise in an evolutionary way

through joined and holistic business-IT delivery of

business initiatives. To support this thinking, paper

has proposed methodology that has been

implemented in a real industry where author works as

an enterprise architect supporting "business" with

early holistic scoping of business initiatives. The

implementation of the proposed methodology has

shown that "perfectly designed" IT solutions are not

always the most suitable options when considered

from all socio-techno-economic perspectives,

illustrating how the same business-IT aligned

objectives can also be achieved with modular

monoliths. Future work on Composable Enterprise

will incorporate value streams to explore how

enterprise composability can be considered as part of

business process design.

REFERENCES

Aleatrati Khosroshahi, P., Beese, J., Matthes, F., & Winter,

R. (2016). Causes and Consequences of Application

Portfolio Complexity–An Exploratory Study. In The

Practice of Enterprise Modeling: 9th IFIP WG 8.1.

Working Conference, PoEM 2016, Skövde, Sweden,

November 8-10, 2016, Proceedings 9 (pp. 11-25).

Springer International Publishing.

Baldwin, C. Y., & Clark, K. B. (2000). Design rules: The

power of modularity (Vol. 1). MIT press.

Basole, R. C. (2019). On the evolution of service

ecosystems: A study of the emerging API economy.

Handbook of Service Science, Volume II, 479-495.

Bhatnagar, R. (2021). Composable architecture: The latest

trend in EA helping companies adapt and grow.

Architecture & Governance magazine

Brocke, J. V., Simons, A., Niehaves, B., Niehaves, B.,

Reimer, K., Plattfaut, R., & Cleven, A. (2009).

Reconstructing the giant: On the importance of rigour

in documenting the literature search process.

Cerny, T., Donahoo, M. J., & Pechanec, J. (2017,

September). Disambiguation and comparison of soa,

microservices and self-contained systems. In

Proceedings of the International Conference on

research in adaptive and convergent systems (pp. 228-

235).

Ćorić, I., & Mabić, C. M. (2023, August). Is composable

enterprise the key to digital transformation? 6th

international scientific conference on digital economy

DIEC, Tuzla, BiH

Implementation of Composable Enterprise in an Evolutionary Way Through Holistic Business-IT Delivery of Business Initiatives: Real

Industry Use Case

407

Dessus, C., 2021, Business Composability,

https://www.slideshare.net/chdessus/business-

composability (Accessed on 15/02/2024).

Dijkstra, E. W. (1972). The humble programmer.

Communications of the ACM, 15(10), 859-866.

Dragoni, N., Giallorenzo, S., Lafuente, A. L., Mazzara, M.,

Montesi, F., Mustafin, R., & Safina, L. (2017).

Microservices: yesterday, today, and tomorrow. Present

and ulterior software engineering, 195-216.

Evans, E. J. (2003). Domain-driven design: tackling

complexity in the heart of software. Addison-Wesley

Professional.

Fitzgerald, N. (2023). Payment Processing Race to Zero.

https://www.linkedin.com/pulse/payment-processing-

race-zero-noah-fitzgerald/ (Accessed on 13/02/2024).

Ford, N., Parsons, R., Kua, P., & Sadalage, P. (2022). Building

evolutionary architectures. " O'Reilly Media, Inc.".

Gampfer, F., Jürgens, A., Müller, M., & Buchkremer, R.

(2018). Past, current and future trends in enterprise

architecture—A view beyond the horizon. Computers in

Industry, 100, 70-84.

Gaughan, D., Natis, Y., Alvarez, G., & O’Neill, M. (2020).

Future of applications: delivering the composable

enterprise. ID: G00465932

Heinig, M. (2022) Composable business processes – The

journey towards a composable enterprise.

https://www.linkedin.com/ pulse/composable-business-

processes-future-enterprises-modu lar-heinig (Accessed

on 18/02/2024).

Ivas, I. (2023). Introduction to BASE Enterprise

Architecture Framework for Holistic Strategic

Alignment of the Complex Enterprise. In ICEIS (2) (pp.

575-588).

Jana, D. (2006). Service oriented architectures–a new

paradigm. CSI Communications, 12-14.

Krafzig, D. (2010). Serviceorientierte Architekturen (SOA).

Informationsverarbeitung in Versicherungsunte-

rnehmen, 163-174.

Linthicum, D. S. (2000). Enterprise application integration.

Addison-Wesley Professional.

MACH Technology, https://machalliance.org/mach-

technology (Accessed on 2024/02/15)

Panetta, K. (2020). Gartner Keynote: The Future of

Business is Composable. https://www.gartner.com/

smarterwithgartner/gartner-keynote-the-future-of-busin

ess-is-composable (Accessed on 12/02/2024).

Randell, B. (1996). The 1968/69 NATO software

engineering reports. History of software engineering,

37.

Orlikowski, W. J. (2010). The sociomateriality of

organisational life: considering technology in

management research. Cambridge journal of

economics, 34(1), 125-141.

Scheer, A. W. (2023). The Composable Enterprise: Agile,

Flexible, Innovative: A Gamechanger for

Organisations, Digitisation and Business Software.

Springer Nature.

Shadija, D., Rezai, M., & Hill, R. (2017, September).

Towards an understanding of microservices. In 2017

23rd International Conference on Automation and

Computing (ICAC) (pp. 1-6). IEEE.

Sunyaev, A., Dehling, T., Strahringer, S., Da Xu, L.,

Heinig, M., Perscheid, M., ... & Rossi, M. (2023). The

Future of Enterprise Information Systems. Business &

Information Systems Engineering, 65(6), 731-751.

The Open Group. (2022). ArchiMate® 3.2 Specification.

https://pubs.opengroup.org/architecture/archimate32-

doc/

Tune, N. (2020). "Domain, Subdomain, Bounded Context,

Problem/Solution Space in DDD: Clearly Defined"

https://medium.com/nick-tune-tech-strategy-

blog/domains-subdomain-problem-solution-space-in-

ddd-clearly-defined-

e0b49c7b586c#:~:text=In%20DDD%2C%20a%20subd

omain%20is,most%20domains%20are%20a%20subdo

main (Accessed on 18/02/2024).

van Schalkwyk, P., & Isaacs, D. (2023). Achieving Scale

Through Composable and Lean Digital Twins. In The

Digital Twin (pp. 153-180). Cham: Springer

International Publishing.

Wang, A., & Gao, X. (2022, July). Method of Building

Enterprise Business Capability Based on the Variable-

Scale Data Analysis Theory. In International

Conference on Logistics, Informatics and Service

Sciences (pp. 267-278). Singapore: Springer Nature

Singapore.

Xiao, Z., Wijegunaratne, I., & Qiang, X. (2016,

November). Reflections on SOA and Microservices. In

2016 4th International Conference on Enterprise

Systems (ES) (pp. 60-67). IEEE.

ICEIS 2024 - 26th International Conference on Enterprise Information Systems

408
