An Approach for Privacy-Preserving Mobile Malware Detection

Through Federated Machine Learning

Giovanni Ciaramella

1,2 a

, Fabio Martinelli

2 b

, Francesco Mercaldo

3,2 c

Christian Peluso

2 d

and Antonella Santone

3 e

IMT School for Advanced Studies Lucca, Lucca, Italy

Institute for Informatics and Telematics, National Research Council of Italy (CNR), Pisa, Italy

University of Molise, Campobasso, Italy

Keywords:

Deep Learning, Federated Machine Learning, Mobile, Malware, Security.

Abstract:

Considering the diffusion of smart devices and IoT devices, mobile malware detection represents a task of

fundamental importance, considering the inefﬁcacy of signature-based antimalware free and commercial soft-

ware, which can detect a threat only if its signature is present in the antimalware repository. In the last few

years, many methods have been proposed by academia to identify so-called zero-day malware through ma-

chine learning: these techniques typically extract a series of features from the mobile device to send to a server

where the detection model is located. Typically, these features include network traces or installed applications,

among other information that may compromise user privacy. In this context, Federated learning is emerging

with privacy advantages because the raw data never leaves the local device. In this paper, we propose a method

to integrate federated machine learning in malware detection.Malicious software typically aims to extract sen-

sitive and private data, and mobile devices emerge as particularly enticing targets from the perspective of

attackers. In the experimental analysis, comprising a pool of 10 clients from which 7 are uniformly sampled

at each round, we demonstrate the efﬁcacy of the proposed method by achieving an accuracy of 0.940.

1 INTRODUCTION

Over the years due to the large amount of personal

data employed by technological devices, governments

in each continent introduced several regulations to

preserve the users’ privacy. The European Union

(EU), in May 2018, introduced the GDPR (General

Data Protection Regulation)

to protect personal data

from possible abuse. In detail, the latter allows for di-

rect identiﬁcation of a natural person, like name and

surname, while from the digital point-of-view, per-

sonal data includes IP addresses, biometric data, and

location information. The rules imposed by the EU

https://orcid.org/0009-0002-9512-0621

https://orcid.org/0000-0002-6721-9395

https://orcid.org/0000-0002-9425-1657

https://orcid.org/0009-0001-2972-4374

https://orcid.org/0000-0002-2634-4456

https://gdpr-info.eu/

are very stringent, as reported by Statista

, in 2023,

the European Commission imposed 465 ﬁnes (2.1 bil-

lion euros) due to violations of GDPR. One of the

problems related to technological progress is the us-

age of personal data employed by a large amount of

Internet of Things (IoT) devices, which are widely

adopted in different ﬁelds. An IoT device is any phys-

ical object connected to the internet, capable of send-

ing and receiving data for monitoring, control, or au-

tomation purposes, and the number of them is bound

to grow. The alarming aspect of IoT devices is the po-

tential for attacks and the resulting theft of personal

data. In 2016, Google introduced Federated Learn-

ing (FL)

as a concept to securely manage personal

data. In essence, FL offers a solution to tackle pri-

vacy concerns linked with centralized machine learn-

ing methods (Mercaldo et al., 2022b; Huang et al.,

https://www.statista.com/chart/30053/gdpr-data-

protection-ﬁnes-timeline/

https://blog.research.google/2017/04/federated-

learning-collaborative.html?m=1

Ciaramella, G., Martinelli, F., Mercaldo, F., Peluso, C. and Santone, A.

An Approach for Privacy-Preserving Mobile Malware Detection Through Federated Machine Learning.

DOI: 10.5220/0012730600003690

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 26th International Conference on Enterprise Information Systems (ICEIS 2024) - Volume 1, pages 553-563

ISBN: 978-989-758-692-7; ISSN: 2184-4992

553

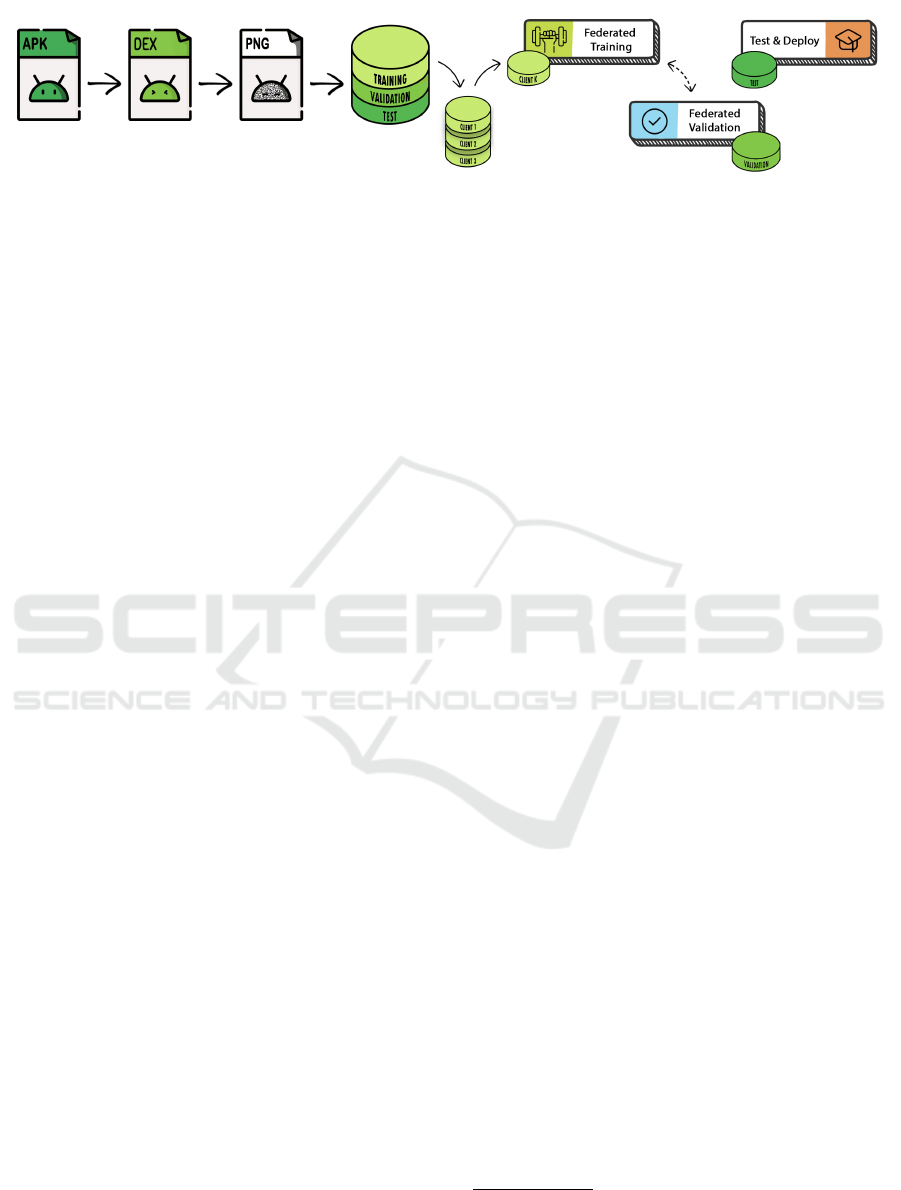

Figure 1: The proposed method aimed to identify malware using Federated Learning to preserve users’ privacy.

2024). These methods involve aggregating and stor-

ing sensitive user data in a central server. By train-

ing machine learning models directly on decentral-

ized devices, while keeping user data local, FL en-

ables collaborative model training without compro-

mising data privacy.

A potential threat is a “data breach” which targets the

personal data of numerous users by exploiting vari-

ous techniques, such as malware. To identify the lat-

ter, different methods have been introduced over the

years. By the early 2010s, researchers started to em-

ploy artiﬁcial intelligence (AI) in the malware detec-

tion ﬁeld. In detail, researchers in AI are divided into

two main ﬁelds: Machine Learning and Deep Learn-

ing (Rathore et al., 2018) (Liu et al., 2020). Recently,

thanks to the introduction of FL, researchers started to

use that also to classify malware in different IoT en-

vironments (Lin and Huang, 2020) (Rey et al., 2022).

In this paper, we propose a method to identify mal-

ware mobile ﬁeld precisely in the Android environ-

ment leveraging Federated Learning to be compliant

with the user’s privacy. Speciﬁcally, to construct the

dataset for training our model, we obtained grayscale

images by converting the .dex ﬁles obtained after re-

verse engineering from the .apk (Android Package)

ﬁles. Once the dataset was built, we started training

the model using the MobileNetV3 architecture, which

aimed to be the best mobile vision model.

The paper proceeds as follows: the steps of the

method employed are introduced in Section 2, Section

3 presents the results of the experimental analysis; in

Section 4 we report the current state-of-art literature

about the usage of Federated Learning in the malware

detection, and, ﬁnally, in the last section, conclusion

and future research plan are presented.

2 A METHOD FOR

PRIVACY-PRESERVING

MOBILE MALWARE

DETECTION

This section furnishes an overview of the method

proposed to identify malware employing Federated

Learning. Figure 1 shows the steps performed in the

proposed method. In detail, the latter exhibits several

steps springing from the image creation via the con-

version of Android applications. Subsequently, we

built a proper distribution among the various clients

of the simulation dataset employing the images ob-

tained. As a ﬁnal step, we trained a model employing

Federated Learning using an architecture reachable

in literature. These aspects will be elaborated upon

in detail, as they form the foundation upon which

the malware classiﬁer can learn without compromis-

ing user privacy, enabling access to data never before

available and thereby enhancing the capabilities that

AI can achieve.

2.1 Image Generation

In the Android environment, once the source code

is developed, the SDK (Software Development Kit)

tool is invoked to compile any data and resource ﬁles

into an APK (Android Package)

. The code compiled

and contained in the Android Package turns out not

to be of understanding to humans as converted into

bytecode. To obtain the source code to generate the

image, in this paper, we employed APK Tool

that

helps to disassemble the application under analysis

and obtain ﬁles into a format that can be edited/read

by humans. The ﬁles related to the code are saved

using the .dex extension. The Dalvik Executable

code allows developers and security researchers to

understand how an application works at a lower level,

https://developer.android.com/guide/

components/fundamentals

https://apktool.org/

ICEIS 2024 - 26th International Conference on Enterprise Information Systems

554

enabling them to make modiﬁcations or extract in-

formation from the application. To obtain the dataset

to perform the experiments, we extract the dex ﬁle

from the apk ﬁle of the application under analysis

and convert it into a grayscale image (Iadarola et al.,

2021b), (Iadarola et al., 2021a).

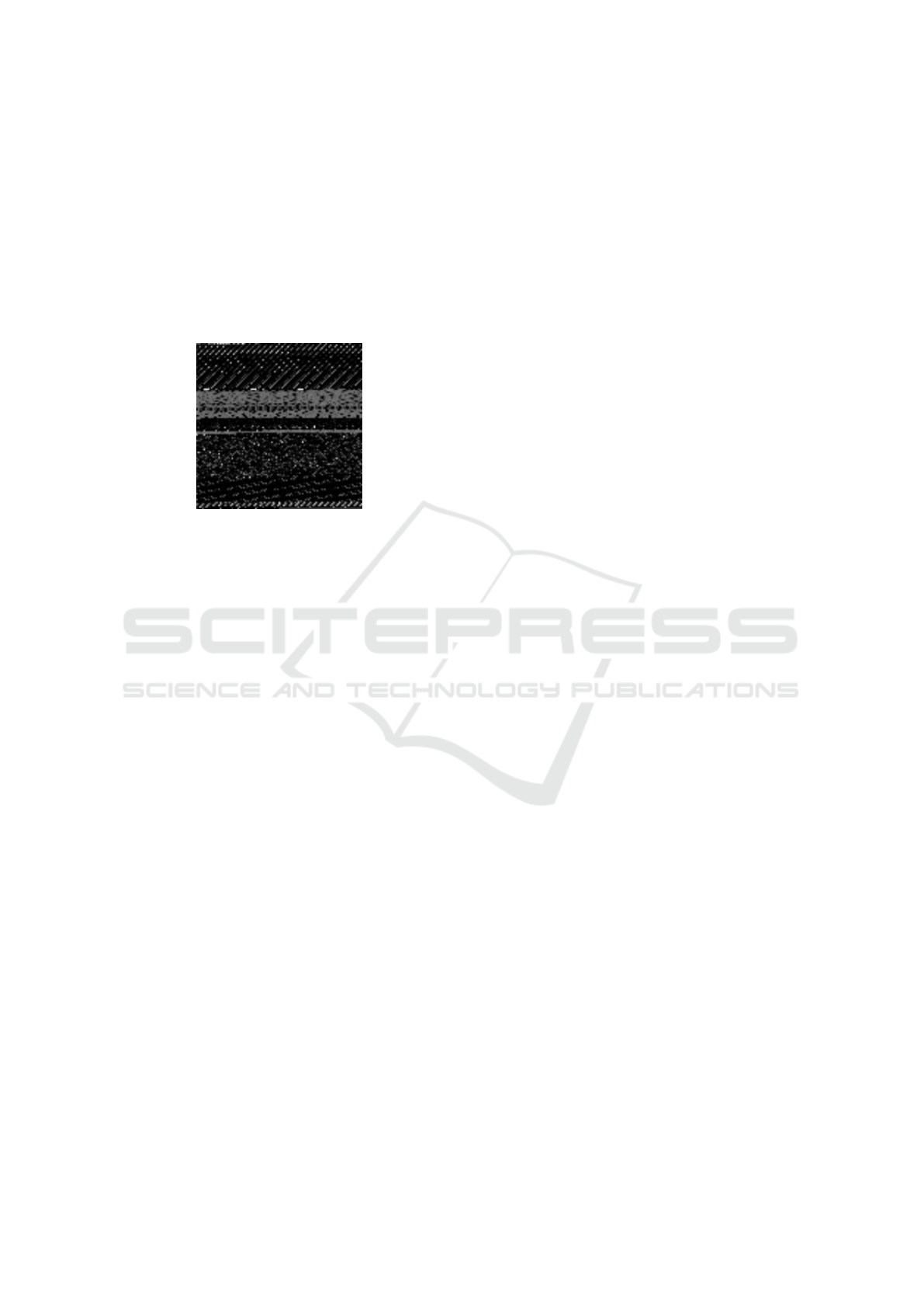

Figure 2 reports an example of

aa9fb22d1f22ceb6edda1677db0e29e3 APK

ﬁle belongs to the Fusob ransomware converted into

an image.

Figure 2: An example of an image ob-

tained from the Android malware with the

aa9fb22d1f22ceb6edda1677db0e29e3 hash belonging

to the Fusob ransomware.

2.2 Dataset

The next step was to obtain a balanced dataset to reach

good outcomes. In this research paper, we employed

a dataset composed of images retrieved from six mal-

ware families Airpush, Downgin, FakeInst, Fusob,

Jisut, and Mecor, together with trusted applications.

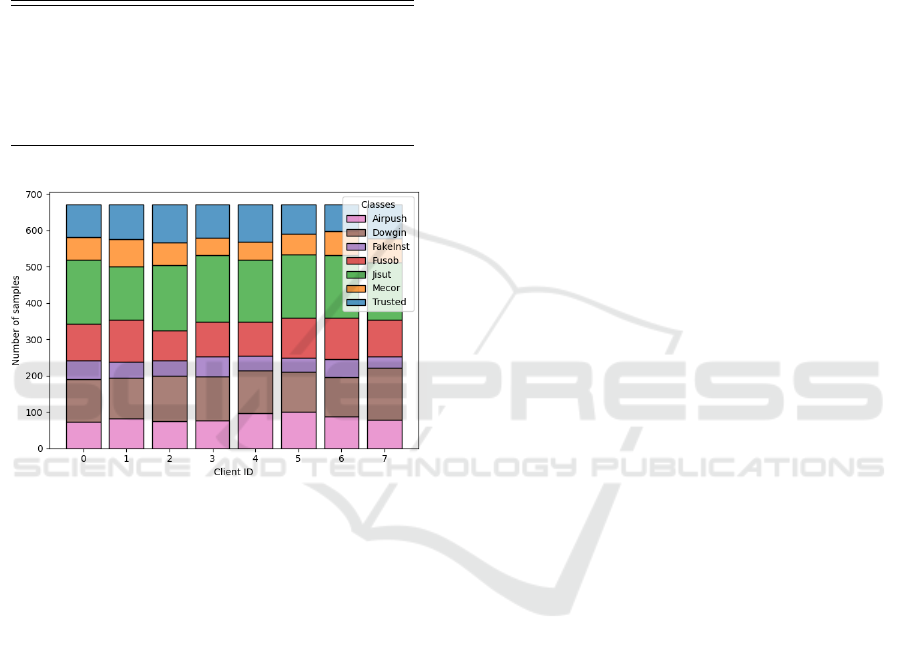

Employing Federated Learning is crucial to under-

stand how to distribute the data. In detail, we express

our distributions in probabilities P

6= P

, for differ-

ent nodes i and j. Using the Bayesian Rule, we can

rewrite these probabilities starting from speciﬁc data

and its label P

(x, y) as P

(y|x)P

(x) and P

(x|y)P

(y),

the latter allows us to characterize the typologies more

precisely (Kairouz et al., 2021):

• Feature distribution skew: the marginal distri-

butions P

(x) may vary across collaborators, even

if P(y|x) is shared — programmers’ formats can

differ or they could provision a peculiar setup be-

fore inserting the payload, so the application can

differ even if the probability of being a member of

a speciﬁc malware family is the same;

• Label distribution skew: the marginal distribu-

tions P

(y) can change for the edges, even if P(x|y)

is the same — clients are tied to particular geo-

regions; WeChat or Alipay are used mainly in

Asian countries, certain phishing or ransomware

behave only in the English-speaking world;

• Quantity skew: each node can hold vastly dif-

ferent amounts of data — users that make heavier

use of the smartphone will accumulate more apk

ﬁles.

Malware classiﬁcation hinges on each of the

aforementioned disparities, as demonstrated in the re-

spective examples. The nature of the application is

not synthetic, intended as a process in which the data

are constructed starting from a sampling process, such

as Monte Carlo or Gibbs. The data have been assem-

bled by scavenging .apk ﬁles from the web, select-

ing all the applications with certiﬁed malicious code

inside. This fact is signiﬁcant for distinguishing our

distribution from a function that could generate data

directly for each client. In conclusion, the nature of

the problem, coupled with the volume of accumulated

data, renders it impossible to address in an environ-

ment with a highly non-identically independently dis-

tributed dataset (non-IID).

2.3 Federated Learning

In the last few years, the concept of Federated Learn-

ing has taken hold. The idea introduced with this tech-

nique is to allow the participation of several devices

in the process of AI model development, making it

more accessible, transparent, and accountable, with-

out compromising the privacy of the collaborators.

The main idea at the bottom of Federated Learning is

that each user can participate in collaborative training.

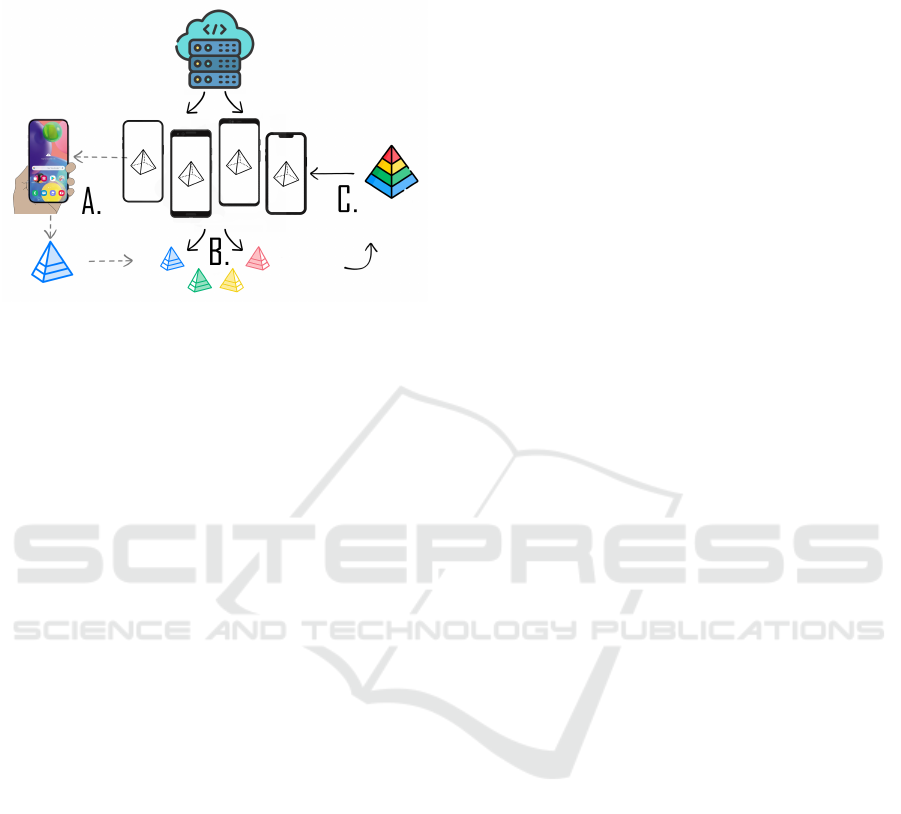

In our simulation, each smartphone acts as an edge

node, contributing to the collective defense against

malware threats. At the heart of this system lies a

central command center, orchestrating the FL process

and fostering collaboration among the smartphones.

Instead of consolidating all data in one central repos-

itory, the command center dispatches model param-

eters to each smartphone, enabling them to conduct

local model training using their unique datasets of ob-

served malware behaviors. Through iterative rounds

of training, composed in turn of multiple local epochs,

smartphones enhance the model’s ability to detect and

mitigate emerging malware threats, leveraging the di-

verse insights gleaned from their respective datasets.

Personal information remains safeguarded within the

conﬁnes of individual devices, with only anonymized

model updates transmitted to the central command

center for aggregation. As the federated learning pro-

gresses, the central command center aggregates these

reﬁned updates, synthesizing a collective understand-

ing. The group intelligence forms the basis for en-

hancing the model’s efﬁcacy in detecting malware

threats. Finally, the central command center dissemi-

nates the reﬁned model back to smartphones, empow-

An Approach for Privacy-Preserving Mobile Malware Detection Through Federated Machine Learning

555

ering them with enhanced classiﬁcation capabilities,

as illustrated in Figure 3.

Figure 3: The server deploys a model, each client generates

private data (step A) on which the local models ﬁt (step B)

and ﬁnally, the specialized models are aggregated to reﬁne

the global model (step C). The loop is closed by distributing

back the enhanced model.

2.4 Experiments and Data Analysis

After acquiring the dataset and introducing the

method to preserve client privacy, the next step was

to train and test the model. In addition to those two

phases, we also employed the validation. The lat-

ter allowed us to evaluate the performances of the

model. The model underwent training utilizing the

MobileNetV3 (Howard et al., 2019) architecture. Be-

fore this version, Google presented other two ver-

sions: MobileNet (Howard et al., 2017) and Mo-

bileNetV2 (Sandler et al., 2018). The ﬁrst introduced

depthwise and pointwise convolution, which simulta-

neously address spatial and feature generation mech-

anisms, thereby reducing the computation needed. In

contrast, MobileNetV2 adopted linear bottleneck and

inverted residual structures. The former inﬂuences the

latter, as the previous layer dimensions were wide-

narrow-wide, whereas inverted convolutions reversed

this trend, impacting network performance. To mit-

igate this, the linear bottleneck prevents activation in

the ﬁnal convolution layer. MnasNet further enhanced

MobileNet architectures by incorporating lightweight

attention modules based on squeeze and excitation

into the bottleneck structure of the ﬁnal block. Mo-

bileNetV3 builds upon these advancements by in-

troducing the hard-swish activation function, which

combines the Rectiﬁed Linear Unit (RELU) with a

sigmoid function to optimize properties near zero.

Additionally, we employed two different techniques

to optimize hyperparameters, namely, Grid Search

and Random Search. The ﬁrst one enables the deﬁni-

tion of all possible combinations and was utilized to

explore various parameter combinations for reﬁning

the modiﬁed model on the CIFAR-10 dataset, serv-

ing as a preparatory phase for the latter. Instead, in

Random Search, a predeﬁned search space is speci-

ﬁed, and the hyperparameters are randomly selected.

In certain scenarios, Random Search can be more ef-

ﬁcient than Grid Search in large environments due to

its avoidance of complete exploration of all possible

combinations. This is the reason why it was employed

to search for the expansive federated context.

3 EXPERIMENTAL RESULTS

In this section, we illustrate the results retrieved after

the test phase. In detail, in Section 3.1 are reported the

outcomes obtained after using the Grid Search tech-

nique, while in Section 3.2 the results acquired after

the Random Search are shown. The experiments re-

ported in this section were conducted on two different

computers. Speciﬁcally, the machine on which the

Grid and Random Searches were executed features

an Intel(R) Xeon(R) Gold 6140M CPU @ 2.30GHz

with 16 Cores and 36 threads, along with 64 GB

of RAM. For the training phase, a different machine

was utilized, equipped with an Intel Core i5-11400 @

2.60GHz, 6 Cores, and 12 threads, complemented by

32 GB of RAM and an NVIDIA GeForce RTX 3060

with 12 GB of VRAM.

The population of clients from which updates are

gathered can be quite large. In our simulation, we

limit this to M, and for each round t, we uniformly

and randomly select S

(t)

clients. In practice, the se-

quence of active clients, or the cohort size, is typically

inﬂuenced by complex circumstances beyond the con-

trol of the orchestrating server. For example, mobile

devices might only participate when idle, connected

to speciﬁc unmetered networks, and charging (Wang

et al., 2021).

In this paper, we employed a dataset composed of

images generated from Android applications. In de-

tail, these applications belong to six different malware

families with a total of 7,386 malicious samples di-

vided into 1,170 Airpush, 763 Downgin, 2,129 Fake-

Inst, 1,275 Fusob, 550 Jisut, and 1,509 Mecor, and

1,060 trusted applications (Mercaldo et al., 2022a;

Iadarola et al., 2021b). Once the dataset was ac-

quired, we partitioned it into training, validation, and

testing, adhering to a split proportion of 65-15-20,

as reported in Table 1. This allocation ensures that

65% of the data is dedicated to training the model,

15% for validating its performance during training,

and the remaining 20% for ﬁnal evaluation, thereby

ICEIS 2024 - 26th International Conference on Enterprise Information Systems

556

maintaining a balanced distribution for robust model

assessment. The training data is distributed among

the clients to start the federated simulation. The dy-

namics of this process are independent and identically

distributed (IID), as illustrated by the example distri-

bution across M = 7 clients in Figure 4.

Table 1: Number of samples per class of malware and rela-

tive subdivision.

Class Name # Training # Validation # Test

Airpush 749 187 234

Dowgin 489 122 152

FakeInst 1364 340 425

Fusob 816 204 255

Jisut 352 88 110

Mecor 960 240 299

Trusted 678 170 212

Total 5408 1351 1687

Figure 4: The classes follow the most suitable distribution,

being identically distributed on each local dataset.

Concluding the dataset-building phase, we trained

the MobileNetV3 architecture, obtaining the results

discussed in the following sections. In addition, to

clarity, reproducibility, and comparative analysis, in

the experiment conducted, we utilized the loss func-

tion “Categorical Focal Cross Entropy” (Lin et al.,

2018). The latter was used to push the training to fo-

cus on miss represented classes, especially consider-

ing the dataset’s particular imbalance:

L(p

) = δ · (1 − p

)

· CrossEntropy(y

true

, y

pred

) (1)

In Equation 1, it is possible to identify the parame-

ter δ as the weight factor for the classes and γ as a

parameter that focuses on the misclassiﬁed samples,

encouraging the gradient to concentrate on the minor

classes. Thus, setting γ = 0 reduces the function to a

classical Categorical Cross Entropy; categorical since

the labels are provided in a one-hot encoding repre-

sentation.

In our setup, we employ two optimizers: one des-

ignated for the server (

) and another replicated for

each client (

), along with their respective models.

While it’s possible to customize the optimizer for the

server and clients separately, we opted for Stochastic

Gradient Descent with Momentum (SGDM) for both.

Consequently, we have the learning rates η

and η

as well as the momentums β

and β

. The client’s op-

timizer operates at each local epoch (τ), whereas the

server optimizer only engages when it needs to aggre-

gate the collaborators’ updates occurring at the end of

each round (T ).

The de facto standard algorithm, thus more com-

monly preferred, for the cross-device setting is Feder-

ated Average (FedAvg). Where each client performs

multiple updates in a single round. This way, the ag-

gregated gradient will retain more information, and

the server could require fewer rounds to converge,

thus saving communication costs.

With the introduction of schedulers, we used sym-

bols to represent their variables: υ denotes the mini-

mum learning rate, while ν signiﬁes the decay steps

with the CosineDecay() scheduler. Conversely, φ

and ϕ correspond to the decay steps and rate with the

InverseTimeDecay() scheduler.

3.1 Grid Search

To discover the optimal parameter combination, we

initiated a Grid Search, followed by selecting the re-

sultant parameters to standardize the model’s capac-

ity across all layers. This step served as a preparatory

phase for the subsequent Random Search.

For clarity, we instantiated the MobileNetV3 model

and utilized TensorFlow’s Keras method to save its

weights. Each weight was associated with a layer

name, which we used to reload them into the mod-

iﬁed architecture. Speciﬁcally, each layer retained

the same name, except for the custom ones. Subse-

quently, we iterated through each layer of the newly

created model to set the trainable ﬂag to True exclu-

sively for the GroupNorm layers. This approach al-

lowed us to freeze and preserve the training of the

original architecture, acknowledging the efforts in-

vested by Google in the ImageNet dataset, which is

composed of wider images, like those in our dataset.

This type of search aims to investigate the weight pa-

rameters over a lower bound of epochs, ensuring that

extensive training results in a well-ﬁtted architecture.

Therefore, all results presented pertain to the train-

ing of the CIFAR-10 dataset limited to 100 epochs

and optimized with the Root Mean Square Propaga-

tion (RMSProp) algorithm. The stopping criterion is

applied when the validation loss value has decreased

by a threshold of ε = 1e − 3 for 5 successive epochs.

To visualize the relationships among the selected

An Approach for Privacy-Preserving Mobile Malware Detection Through Federated Machine Learning

557

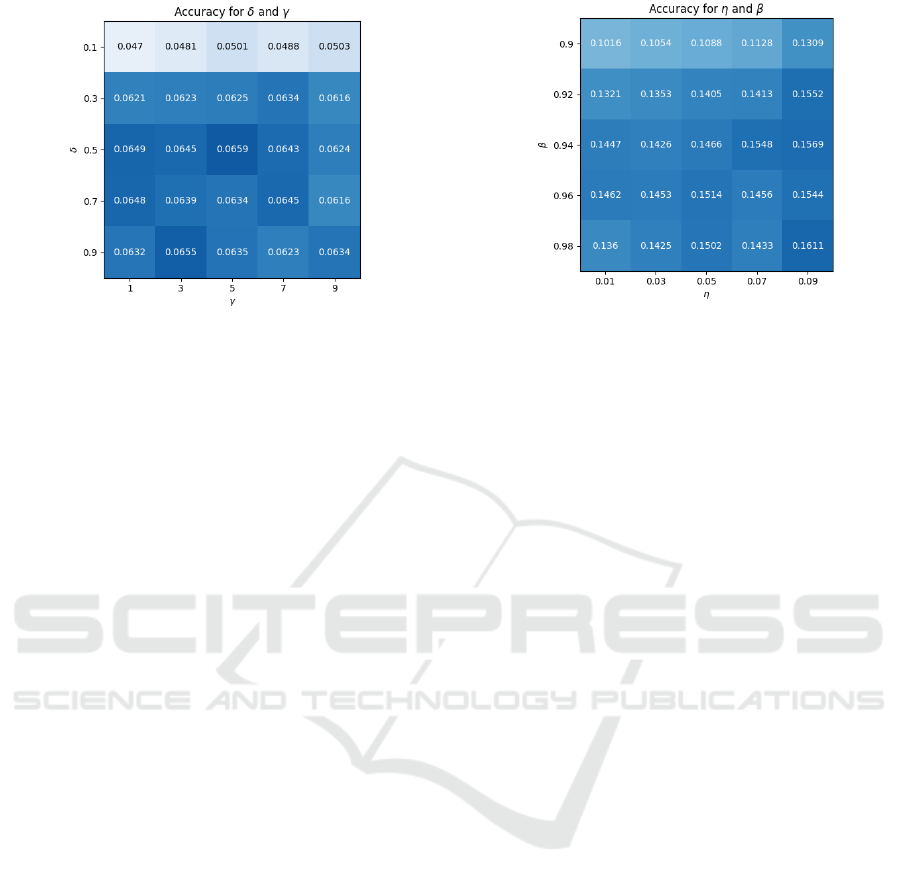

Figure 5: Combination of γ and δ to achieve best perfor-

mances in terms of accuracy.

hyperparameters, we utilized a confusion matrix. In

detail, in Figure 5, we illustrate the relationship be-

tween the δ and γ parameters that dictate the weight-

ing factor for the classes and the focus on relatively

easy-to-classify samples. It is possible to denote that

the accuracy increases when the parameters are pro-

portionate; indeed, the combination of γ = 5 and

δ = 0.5 achieves the highest score. It’s noteworthy to

recall that with γ = 0, we have the standard CrossEn-

tropy loss, and the Focal version becomes unstable

without the weighting factor δ. These observations

are conﬁrmed by our experiments, which show the

peak of accuracy when the parameters are properly

tuned.

In addition, Figure 6 illustrates that utilizing higher

learning rates and momentums enabled the model to

better understand the dataset. We observe that in-

creasing the values of η and β parameters signiﬁ-

cantly improves classiﬁcation performance with this

model and dataset. One possible explanation could

be that the embedding created by MobileNetV3 ef-

fectively represents the images, thereby necessitating

only minor adjustments to the weights of the dense

layers.

3.2 Random Search

Built the model, the next step was to proceed to the

hyperparameter search phase in the federated environ-

ment. Given its broader scope, this required thorough

preparation. In this subsection, the search phase is de-

scribed step by step.

In detail, all the experiments were conducted with

consistent parameters: the same number of epochs (τ

== 1), rounds (T == 15), number of distributed clients

(M == 10), number of sampled clients (S

(t)

== 7),

training batch size (32), and validation/test batch size

(128).

Figure 6: The η and β parameters signiﬁcantly contribute to

the accuracy results.

When retraining or reﬁtting the best combination, the

operations remained consistent as well, with the same

number of epochs (τ == 3), rounds (T == 12), training

batch size (32), and validation/test batch size (128).

The dimensions of distributed and sampled clients

were kept equal.

Each of the random searches has the results reported

in Table 2. We conclude the section by describing

the thought process involved in searching for hyper-

parameters:

1. On top of the discussed architecture, we append

a funneling-style neural network (NN) built with

successive layers, each one half the size of the pre-

vious layer, starting from 64 neurons. Everything

except the last part of the NN is kept frozen, al-

lowing us to utilize MobileNetV3 as an embed-

ding capable of expressing the images in com-

pressed vectors. Starting with simplicity, we uti-

lize the standard SGD optimizer with momentum.

2. Since the complexity of the funneling-style neu-

ral network (NN) is not necessary, we halved the

number of neurons, hoping that reducing the size

of the layers would decrease complexity and fa-

cilitate the training phase.

3. The additional Feed Forward dense NN layer was

not beneﬁcial; instead, it slowed down the conver-

gence rate. In our ﬁnal attempt, we experimented

with just a single additional layer. Moreover,

we noted that the client momentum parameter β

positively inﬂuenced the learning rate η

, speed-

ing up the descent towards local minima when

successive directions were similar. Consequently,

we kept β

≈ 1 and directed our attention towards

optimizing η

4. The server should receive all updates from the

clients, so we kept the parameters η

and β

their default values. However, realizing that a

ICEIS 2024 - 26th International Conference on Enterprise Information Systems

558

Table 2: Here is the loss and accuracy corresponding to the training and validation datasets, along with the elapsed time of all

the runs. These results represent the best values per random search, as we have reported the identiﬁers of each simulation out

of the total conducted.

ID/Total L(

(

(TR)

)

) A(

(

(TR)

)

) L(

(

(VA)

)

) A(

(

(VA)

)

) Time

34/78 0.732 0.769 0.771 0.764 16988 s

117/117 0.872 0.722 0.874 0.748 29367 s

2/60 0.698 0.795 0.728 0.800 16104 s

15/36 0.638 0.801 0.573 0.833 6214 s

2/48 0.605 0.814 0.567 0.838 8693 s

10/72 0.604 0.809 0.574 0.817 14767 s

60/72 0.627 0.804 0.546 0.824 12726 s

ﬁxed η

was constraining the convergence rate,

we employed a scheduler to regulate the rate

of convergence, particularly in the initial stages

where the learning rate might be sufﬁciently large

to overshoot a satisfactory minimum. We opted

for the CosineDecay() function as the chosen

scheduler.

5. Following theoretical considerations, a value of

η ∼ 0 does not permit convergence as T → ∞,

while a value of η ∼ 1 may cause oscillations near

the minimum. Therefore, we increased the decay-

ing step and its initial value but decreased the min-

imum.

6. The scheduler previously used decreased the

learning rate with a sinusoidal curve, pro-

viding less control over the initial phase.

Hence, we opted for another scheduler, the

InverseTimeDecay(), which allows for decreas-

ing the learning rate with a ﬁxed step and rate.

Another beneﬁt of this scheduler is that it can act

as a stopping criterion when α = 0 is reached.

7. We have reﬁned the search by selecting the best

parameters from the last round. As observed, a

higher initial learning rate can lead to faster con-

vergence towards the minima, and subsequently

decaying it with a smaller step can reﬁne the gra-

dient descent process.

3.3 Fine Tuning and Results

To identify the best parameters, we conducted several

experiments. In this subsection, we present the out-

comes obtained.

To accomplish the grid search, as outlined in Section

3.1, and thus prepare the model for deployment in the

federated environment, we ﬁne-tuned the customized

architecture on the CIFAR-10 dataset for 400 epochs.

This experiment yielded an accuracy of 0.423 and a

loss of 0.369 on the test set. However, these results

did not achieve satisfactory accuracy. The underlying

reason for these values lies in the frozen architecture,

Table 3: Here are all the hyperparameters chosen for the

reﬁtting phase.

Sched. ITD

0.99

1 η

9e-2

φ 100 ϕ

ϕ 0.1

γ 5 δ

δ 0.5

which imposes strict control over the convergence ca-

pabilities.

Building upon the insights gained from the model dur-

ing both the grid search and the hyperparameters de-

rived from the random search, as listed in Table 3, we

commenced the training phase and subsequent anal-

ysis of the results. The training phase consisted of

τ = 3 local epochs and T = 30 rounds, utilizing the

FedAvg algorithm and the Inverse Time Decay (ITD)

scheduler, with a population of M = 10 clients and a

cohort size S

(t)

= 7.

The rate of convergence of the model through the

federated learning rounds is plotted in Figure 7. In

the latter ﬁgure, both losses (during the training and

validation phases) decrease almost simultaneously. In

Table 4, the outcomes obtained are reported. These

results demonstrate that the model can accurately

classify data distributed across the federated commu-

nity. Upon examination of the performance metrics,

we note that the variant with Group Normalization

achieves a better loss value for both the training and

test sets, albeit with a slightly lower accuracy. This

could be attributed to the Categorical Focal Cross En-

tropy, which considered some samples to be relatively

easy to classify, thus reducing their importance during

training, similar to how it is used to compute samples

within the test set.

In addition, the obtained results were also pre-

sented alongside the classiﬁcation accuracy for each

detected malware family, depicted in a confusion ma-

trix reported in Figure 8. As observed, the model

demonstrates robust recognition capabilities across

most families, except Dowgin and Trusted samples.

The model’s predictions were met with perplexity due

to dataset imbalances or similarities among these two

An Approach for Privacy-Preserving Mobile Malware Detection Through Federated Machine Learning

559

Table 4: As we can discern from the table, the results appear promising. The MobileNetV3 architecture yields a simple

yet effective embedding of the images, facilitating convergence in both classical and federated learning strategies. In this

scenario, both Batch Normalization and Group Normalization produce comparable results. However, when training capacities

vary among nodes, the utilization of BN may adversely affect global training capabilities due to ﬂuctuations in batch sizes.

Model L(

(

(TR)

)

) A(

(

(TR)

)

) L(

(

(VA)

)

) A(

(

(VA)

)

) L(

(

(TS)

)

) A(

(

(TS)

)

Centralized w. BN 0.032 0.933 0.041 0.933 0.035 0.930

Centralized w. GN 0.025 0.918 0.050 0.880 0.044 0.875

Federated w. BN 0.023 0.938 0.037 0.930 0.040 0.940

Federated w. GN 0.010 0.961 0.037 0.910 0.036 0.923

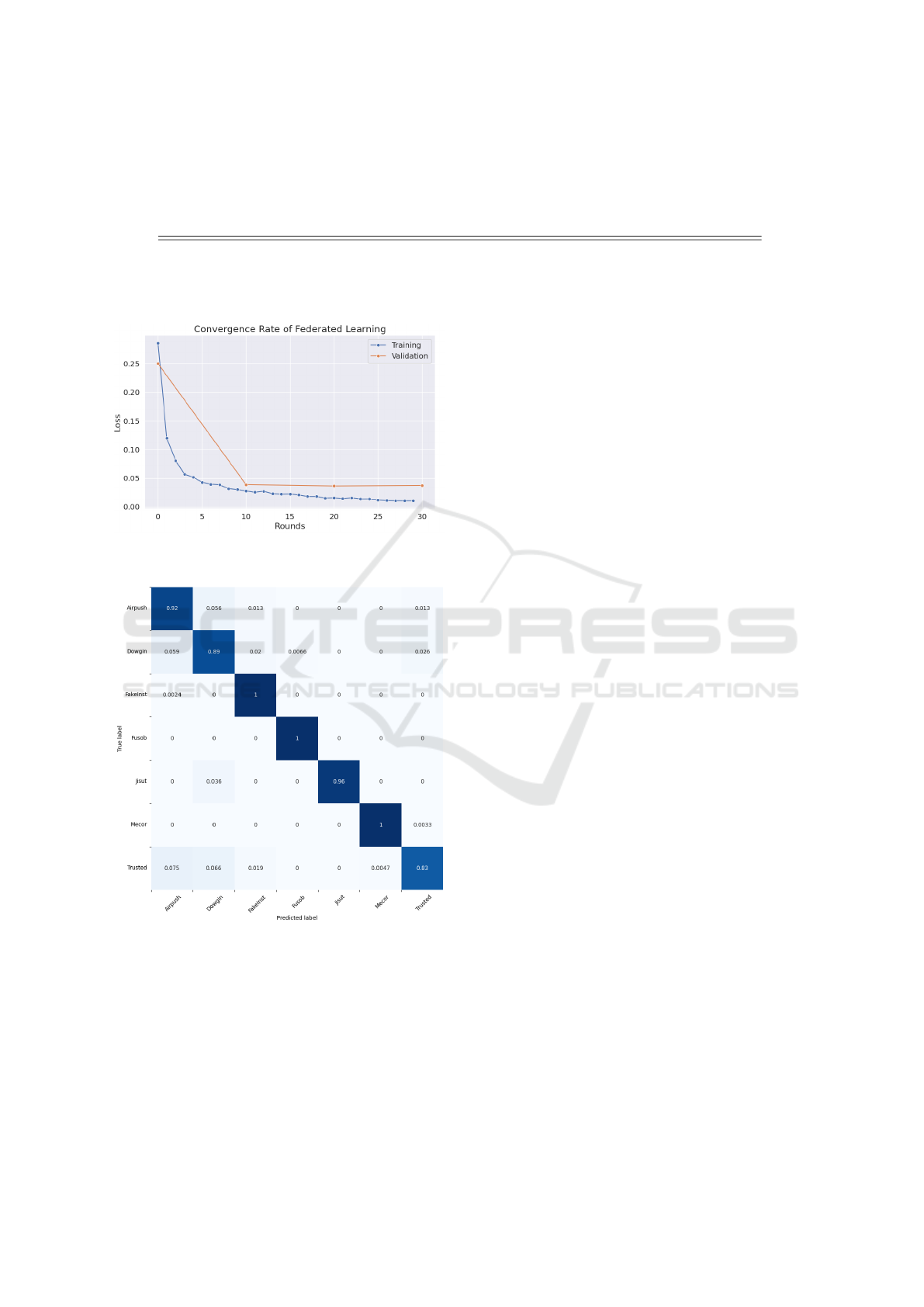

Figure 7: Loss trend during the training and validation

phases.

Figure 8: Confusion matrix obtained with the classiﬁcation

of the test set.

converted applications.

4 RELATED WORK

Federated Learning usage is catching on in different

ﬁelds thanks to the possibility of creating collabora-

tive model training without compromising data pri-

vacy. In 2016, Google introduced FL in the literature

for the ﬁrst time to improve language prediction in

Gboard. Recently, it has also been employed in other

ﬁelds like malware detection. In detail, we furnish an

overview of different work conducted in malware de-

tection using Machine Learning and Deep Learning in

Section 4.1, while in Section 4.2 a resume about the

usage of Federated Learning is provided.

4.1 Malware Detection

Authors in (Kim et al., 2018) proposed a framework

able to identify malware in the Android environment

using 200 diverse features. This article represents the

ﬁrst attempt to apply multimodal neural networks in

malware detection. After training the models, they

achieved outstanding results, attaining an accuracy

rate of 98%. This outcome was realized using a vast

dataset comprising over 30,000 images sourced from

both malware samples and trusted Android applica-

tions.

Researchers in (Li et al., 2018) presented an approach

to identify dangerous applications through permis-

sions. In the Android ecosystem, permissions are re-

quired to execute particular actions or access speciﬁc

resources on the device. In SIGPID Li et al. em-

ployed machine learning reached an accuracy, preci-

sion, recall, and F-Measure of 90%.

Thanks to advances in technology, the quantum topic

is gaining momentum nowadays. In (Mercaldo et al.,

2022a), authors presented for the ﬁrst time the us-

age of quantum machine learning in the malware de-

tection ﬁeld. In detail, they proposed a comparison

between several state-of-the-art architectures and two

quantum models (i.e., a hybrid quantum model, and

a fully quantum neural network) using a dataset com-

posed of almost 9,000 images of malicious and legit-

imate Android applications.

4.2 Federated Learning

Authors in (G

alvez et al., 2020) presented “LiM”

a framework based on Federated Learning able to

classify malware. G

alvez et al. employed a semi-

ICEIS 2024 - 26th International Conference on Enterprise Information Systems

560

supervised classiﬁcation on a dataset composed of

50,000 apps. As a result, they achieved an F1 score of

95% on the cloud server, while clients obtained just

one false positive over 100 apps.

Federated Learning is used in several areas of cyber-

security. Authors in (Khramtsova et al., 2020) pre-

sented an FL approach to identify malicious URLs

within a managed security service provider context,

with consideration of different data characteristics

and customer infrastructure sizes.

Non-identicalness remains an open problem, and

most research fails to address this issue adequately

when discussing Federated Learning. However, au-

thors in (Jiang et al., 2022) have developed a multi-

dimensional model comprising a CNN and a Graph

Neural Network (GNN), aggregated using the custom

algorithm FedAdapt, which dynamically adapts to the

best contributor nodes. This method could address

variance concerns by initializing sub-optimal weights

for the global model and then adapting them locally.

Their approach differs from ours in that they address

the limitations of CNN by leveraging the capabilities

and simplicity of the GNN. In contrast, we propose

the use of Group Normalization to address the limita-

tions of FL.

Researchers in (Abdel-Basset et al., 2022) proposed

for the ﬁrst time the usage of agnostic Federated

Learning. These techniques aim to be more versatile

and scalable, making them suitable for a wide range

of applications and settings, including those with lim-

ited resources or varying data privacy requirements.

In the framework proposed, they obtained the images

by converting the bytecode from malware applica-

tions. Different from them, we focused our article on

the FL applied to the Android environment.

Another approach to addressing the limitations of fed-

erated learning involves evaluating contributions from

edge nodes. If a contribution effectively improves the

global model, it is chosen, thereby enhancing the ﬁnal

distributed model. This idea is explored in (Chaud-

huri et al., 2023), where the DW-FedAvg algorithm

dynamically weights the effectiveness of gradient up-

dates proposed by clients. While this approach can

contribute to the learning rate of federated learning

methodologies in non-iid situations, we opt for the Fe-

dAvg algorithm, which minimizes the need for addi-

tional communications between the server and clients,

involving a learning rate scheduler client side in order

to better control the rate of convergence.

In (Fang et al., 2023), researchers introduced a novel

framework called “FEDroid,” leveraging Federated

Learning principles. To obtain a constantly updated

framework, Fang et al. innovatively employed genetic

evolution. This approach simulated the evolutionary

dynamics of malware, facilitating the generation of

diverse Android malware variants from conventional

samples. To train the model they employed a litera-

ture dataset named Drebin. Unlike them, we used a

dataset built by the authors composed of images ob-

tained from the Dalvik Executable code retrieved after

the reverse engineering of the Android Package.

5 CONCLUSIONS AND FUTURE

WORK

In conclusion, our work aligns well with the exist-

ing landscape of federated projects focusing on mal-

ware classiﬁcation. However, some avenues for fur-

ther development could enhance the realism of our

work, bridging the gap between simulations and the

deployment of the federated classiﬁer.

The dataset used for this problem is relatively small,

especially considering the distributed nature of the

FL environment. As new clients join, the dataset

shards become smaller, presenting challenges for lo-

cal convergence. As a future endeavor, we aim to ex-

plore larger datasets tailored to the problem domain

or investigate synthetic data generation methods ca-

pable of accurately reproducing malware characteris-

tics. This would enable us to experiment with Latent

Dirichlet Allocation (LDA) to better understand the

signiﬁcance of clustered data and to increase the label

distribution skew, without making prior assumptions.

Moreover, the data preparation process, which in-

cludes decompilation, conversion, and labeling of ap-

plications, could be automated within a client-side

application. Such automation would streamline the

initial steps of a decentralized malware classiﬁer.

It’s essential to eliminate the need for specialized

tools, such as Grad-CAM, from the malware analyst’s

toolkit. Alternatively, we could integrate these tools

to forward malicious code to an automated malware

analyst, such as a Large Language Model (LLM).

This approach would enhance the interpretability of

the proposed method and make it accessible to non-

expert users.

Additionally, it’s imperative to analyze data commu-

nication, model deployment, and update protocols in

a distributed environment to assess trafﬁc load and

performance overhead on the client side. This com-

prehensive evaluation will help us ascertain the possi-

bilities and limitations of the proposed methodology.

An Approach for Privacy-Preserving Mobile Malware Detection Through Federated Machine Learning

561

ACKNOWLEDGEMENTS

This work has been partially supported by EU DUCA,

EU CyberSecPro, SYNAPSE, PTR 22-24 P2.01 (Cy-

bersecurity), and SERICS (PE00000014) under the

MUR National Recovery and Resilience Plan funded

by the EU - NextGenerationEU projects.

REFERENCES

Abdel-Basset, M., Hawash, H., Sallam, K. M., Elgendi, I.,

Munasinghe, K., and Jamalipour, A. (2022). Efﬁcient

and lightweight convolutional networks for iot mal-

ware detection: A federated learning approach. IEEE

Internet of Things Journal, 10(8):7164–7173.

Chaudhuri, A., Nandi, A., and Pradhan, B. (2023). A Dy-

namic Weighted Federated Learning for Android Mal-

ware Classiﬁcation, page 147–159. Springer Nature

Singapore.

Fang, W., He, J., Li, W., Lan, X., Chen, Y., Li, T., Huang, J.,

and Zhang, L. (2023). Comprehensive android mal-

ware detection based on federated learning architec-

ture. IEEE Transactions on Information Forensics and

Security.

alvez, R., Moonsamy, V., and Diaz, C. (2020). Less

is more: A privacy-respecting android malware

classiﬁer using federated learning. arXiv preprint

arXiv:2007.08319.

Howard, A., Sandler, M., Chu, G., Chen, L.-C., Chen, B.,

Tan, M., Wang, W., Zhu, Y., Pang, R., Vasudevan, V.,

Le, Q. V., and Adam, H. (2019). Searching for mo-

bilenetv3.

Howard, A. G., Zhu, M., Chen, B., Kalenichenko, D.,

Wang, W., Weyand, T., Andreetto, M., and Adam,

H. (2017). Mobilenets: Efﬁcient convolutional neu-

ral networks for mobile vision applications. arXiv

preprint arXiv:1704.04861.

Huang, P., Li, C., He, P., Xiao, H., Ping, Y., Feng, P., Tian,

S., Chen, H., Mercaldo, F., Santone, A., et al. (2024).

Mamlformer: Priori-experience guiding transformer

network via manifold adversarial multi-modal learn-

ing for laryngeal histopathological grading. Informa-

tion Fusion, page 102333.

Iadarola, G., Casolare, R., Martinelli, F., Mercaldo, F.,

Peluso, C., and Santone, A. (2021a). A semi-

automated explainability-driven approach for mal-

ware analysis through deep learning. In 2021 Interna-

tional Joint Conference on Neural Networks (IJCNN),

pages 1–8.

Iadarola, G., Martinelli, F., Mercaldo, F., and Santone,

A. (2021b). Towards an interpretable deep learning

model for mobile malware detection and family iden-

tiﬁcation. Computers & Security, 105:102198.

Jiang, C., Yin, K., Xia, C., and Huang, W. (2022). Fedhgc-

droid: An adaptive multi-dimensional federated learn-

ing for privacy-preserving android malware classiﬁca-

tion. Entropy, 24.

Kairouz, P., McMahan, H. B., Avent, B., Bellet, A., Ben-

nis, M., Bhagoji, A. N., Bonawitz, K., Charles, Z.,

Cormode, G., Cummings, R., D’Oliveira, R. G. L.,

Eichner, H., Rouayheb, S. E., Evans, D., Gardner, J.,

Garrett, Z., Gasc

on, A., Ghazi, B., Gibbons, P. B.,

Gruteser, M., Harchaoui, Z., He, C., He, L., Huo, Z.,

Hutchinson, B., Hsu, J., Jaggi, M., Javidi, T., Joshi,

G., Khodak, M., Kone

y, J., Korolova, A., Koushan-

far, F., Koyejo, S., Lepoint, T., Liu, Y., Mittal, P.,

Mohri, M., Nock, R.,

Ozg

ur, A., Pagh, R., Raykova,

M., Qi, H., Ramage, D., Raskar, R., Song, D., Song,

W., Stich, S. U., Sun, Z., Suresh, A. T., Tram

er, F.,

Vepakomma, P., Wang, J., Xiong, L., Xu, Z., Yang,

Q., Yu, F. X., Yu, H., and Zhao, S. (2021). Advances

and open problems in federated learning.

Khramtsova, E., Hammerschmidt, C., Lagraa, S., and State,

R. (2020). Federated learning for cyber security:

Soc collaboration for malicious url detection. In

2020 IEEE 40th International Conference on Dis-

tributed Computing Systems (ICDCS), pages 1316–

1321. IEEE.

Kim, T., Kang, B., Rho, M., Sezer, S., and Im, E. G.

(2018). A multimodal deep learning method for an-

droid malware detection using various features. IEEE

Transactions on Information Forensics and Security,

14(3):773–788.

Li, J., Sun, L., Yan, Q., Li, Z., Srisa-An, W., and

Ye, H. (2018). Signiﬁcant permission identiﬁcation

for machine-learning-based android malware detec-

tion. IEEE Transactions on Industrial Informatics,

14(7):3216–3225.

Lin, K.-Y. and Huang, W.-R. (2020). Using federated learn-

ing on malware classiﬁcation. In 2020 22nd interna-

tional conference on advanced communication tech-

nology (ICACT), pages 585–589. IEEE.

Lin, T.-Y., Goyal, P., Girshick, R., He, K., and Doll

ar, P.

(2018). Focal loss for dense object detection.

Liu, K., Xu, S., Xu, G., Zhang, M., Sun, D., and Liu, H.

(2020). A review of android malware detection ap-

proaches based on machine learning. IEEE Access,

8:124579–124607.

Mercaldo, F., Ciaramella, G., Iadarola, G., Storto, M., Mar-

tinelli, F., and Santone, A. (2022a). Towards ex-

plainable quantum machine learning for mobile mal-

ware detection and classiﬁcation. Applied Sciences,

12(23):12025.

Mercaldo, F., Zhou, X., Huang, P., Martinelli, F., and San-

tone, A. (2022b). Machine learning for uterine cervix

screening. In 2022 IEEE 22nd International Confer-

ence on Bioinformatics and Bioengineering (BIBE),

pages 71–74. IEEE.

Rathore, H., Agarwal, S., Sahay, S. K., and Sewak, M.

(2018). Malware detection using machine learning

and deep learning. In Big Data Analytics: 6th Interna-

tional Conference, BDA 2018, Warangal, India, De-

cember 18–21, 2018, Proceedings 6, pages 402–411.

Springer.

Rey, V., S

anchez, P. M. S., Celdr

an, A. H., and Bovet, G.

(2022). Federated learning for malware detection in

iot devices. Computer Networks, 204:108693.

ICEIS 2024 - 26th International Conference on Enterprise Information Systems

562

Sandler, M., Howard, A., Zhu, M., Zhmoginov, A., and

Chen, L.-C. (2018). Mobilenetv2: Inverted residu-

als and linear bottlenecks. In Proceedings of the IEEE

conference on computer vision and pattern recogni-

tion, pages 4510–4520.

Wang, J., Charles, Z., Xu, Z., Joshi, G., McMahan, H. B.,

y Arcas, B. A., Al-Shedivat, M., Andrew, G., Aves-

timehr, S., Daly, K., Data, D., Diggavi, S., Eichner,

H., Gadhikar, A., Garrett, Z., Girgis, A. M., Hanzely,

F., Hard, A., He, C., Horvath, S., Huo, Z., Ingerman,

A., Jaggi, M., Javidi, T., Kairouz, P., Kale, S., Karim-

ireddy, S. P., Konecny, J., Koyejo, S., Li, T., Liu, L.,

Mohri, M., Qi, H., Reddi, S. J., Richtarik, P., Singhal,

K., Smith, V., Soltanolkotabi, M., Song, W., Suresh,

A. T., Stich, S. U., Talwalkar, A., Wang, H., Wood-

worth, B., Wu, S., Yu, F. X., Yuan, H., Zaheer, M.,

Zhang, M., Zhang, T., Zheng, C., Zhu, C., and Zhu,

W. (2021). A ﬁeld guide to federated optimization.

An Approach for Privacy-Preserving Mobile Malware Detection Through Federated Machine Learning

563
