Studying Trustworthiness of Neural-Symbolic Models for Enterprise

Model Classification via Post-Hoc Explanation

Alexander Smirnov

, Anton Agafonov

and Nikolay Shilov

SPC RAS, 14

Line, 39, St. Petersburg, Russia

Keywords: Neuro-Symbolic Artificial Intelligence, Deep Neural Networks, Machine Learning, Concept Extraction,

Post-Hoc Explanation, Trust Assessment, Enterprise Model Classification.

Abstract: Neural network-based enterprise modelling support is becoming popular. However, in practical enterprise

modelling scenarios, the quantity of accessible data proves inadequate for efficient training of deep neural

networks. A strategy to solve this problem can involve integrating symbolic knowledge to neural networks.

In previous publications, it was shown that this strategy is useful, but the trust issue was not considered. The

paper is aimed to analyse if the trained neural-symbolic models just “learn” the samples better or rely on the

meaningful indicators for enterprise model classification. The post-hoc explanation (specifically, the concept

extraction) has been used as the studying technique. The experimental results showed that embedding

symbolic knowledge does not only improve the learning capabilities but also increases the trustworthiness of

the trained machine learning models for enterprise model classification.

1 INTRODUCTION

Recently, the application areas of machine learning

methods based on artificial neural networks (ANN)

have significantly extended. Nevertheless, the

efficient application of ANNs is still highly

dependent on training data that is required in

significant volumes. Thereby absence of large

volumes of training data is still a significant

constraining factor for their application in a number

of areas (Anaby-Tavor et al., 2020; Nguyen et al.,

2022). On the other side, once defined symbolic

knowledge can be tailored to new problems without

the necessity of training on extensive datasets.

Consequently, the fusion of symbolic knowledge and

ANNs (sub-symbolic knowledge) can be considered

as a promising research direction. The result of such

a fusion is referred to as neural-symbolic artificial

intelligence (Garcez & Lamb, 2020).

One of the areas that can benefit from sub-

symbolic and symbolic knowledge fusion is

enterprise modelling assistance. Application of

machine learning techniques to enterprise modelling

assistance has been addressed recently (Shilov et al.,

https://orcid.org/0000-0001-8364-073X

https://orcid.org/0000-0002-7960-8929

https://orcid.org/0000-0002-9264-9127

2021, 2023) demonstrating the potential efficiency of

the enterprise modeller assistance based on the ANN

paradigm. The assistance can include both suggestion

and verification of node and relationship types and

labels implementing such functions as auto-

completion and error corrections. It was also shown

that efficient assistance can only be achieved if the

ANN-based models take into account the modelling

context, e.g., class of the model (such as concept

model, process model, etc.), its target users (engineers

or top managers), and others.

In the previous publication (Smirnov et al., 2023)

the authors analysed the application of the symbolic

artificial intelligence to the enterprise model

classification problem. It was demonstrated that its

usage indeed improved the ANN-based model trained

on a limited dataset. However, the publication did not

consider the trust issue. It was not researched if the

trained models just “learned” the samples or relied on

the meaningful model class indicators. The research

question to be answered in this work is “If the neural-

symbolic machine learning model is more

trustworthy than the pure ANN model?”. For this

purpose, an approach from the area of explanation of

Smirnov, A., Agafonov, A. and Shilov, N.

Studying Trustworthiness of Neural-Symbolic Models for Enterprise Model Classiﬁcation via Post-Hoc Explanation.

DOI: 10.5220/0012730700003690

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 26th International Conference on Enterprise Information Systems (ICEIS 2024) - Volume 1, pages 873-880

ISBN: 978-989-758-692-7; ISSN: 2184-4992

873

trained ANNs (namely, post-hoc ANN explanation)

has been used to understand if the ANNs rely on

meaningful enterprise model class indicators.

The paper is structured as follows. Section 2

describes the state-of-the-art in the areas of symbolic

and sub-symbolic knowledge integration and post-

hoc ANN explainability. It is followed by the

presentation of the data used and the research

methodology. Section 4 presents the experimentation

results and their discussion. The concluding remarks

are given in Section 5.

2 STATE OF THE ART REVIEW

The section briefly considers approaches and

architectures used for integration of symbolic and

neural knowledge as well as techniques of post-hoc

ANN explanations.

2.1 Approaches for Embedding

Symbolic Knowledge into ANNs

Embedding of symbolic knowledge into ANNs can be

achieved using various techniques. The paper

(Ultsch, 1994) defined four distinct approaches:

neural approximative reasoning, neural unification,

introspection, and integrated knowledge acquisition.

The approaches address different tasks and their

choice is normally defined by the task being solved.

• The neural approximative reasoning combines

methods in the area of approximate inference

generation in intelligent systems (Guest &

Martin, 2023) mostly aimed at building ANNs

approximating existing rules.

• The integrated knowledge acquisition aims to

extract knowledge from a limited set of

examples (usually generated by an expert) and

then to re-formulate discovered patterns into

rules (Mishra & Samuel, 2021).

• The neural unification aims training ANNs to

learn logical statement sequences leading to the

original statement confirmation or refutation

for generalizing argument selection strategies

when proving assertions (Picco et al., 2021).

• The introspection assumes ANNs to monitor

steps performed during logical inference thus

learning to avoid erroneous pathways and to

come to reasoning results faster

(Prabhushankar & AlRegib, 2022).

Thus, the most appropriate approaches for

embedding symbolic knowledge into ANN-based

classifier are the neural approximative reasoning and

integrated knowledge acquisition.

2.2 Symbolic and Neural Knowledge

Integration Architectures

The symbolic and neural knowledge integration

architectures are classified based on the “location” of

symbolic rules in an ANN (Wermter & Sun, 2000):

• The Unified architecture suggests to encode

symbolic knowledge within the neural

netowrk. In this case, two ways are possible:

(i) encoding symbolic knowledge in separate

ANN fragments (Arabshahi et al., 2018; Pitz &

Shavlik, 1995; Xie et al., 2019), or (ii) by

network’s non-overlapping fragments (Hu et

al., 2016; Prem et al., n.d.).

• The Transformation architecture assumes

mechanisms translating neural knowledge into

symbolic and/or back, e.g., extraction of rules

from an ANN (Shavlik, 1994).

• Hybrid modular architecture suggests to

encode symbolic knowledge into modules that

are separate from ANN. This can be done in

three ways: (i) Loosely coupled architecture:

one-way interoperability (Dash et al., 2021; Li

et al., 2022); (ii) Tightly coupled architecture:

two-way interoperability (Xu et al., 2018; Yang

et al., 2020); and (iii) Fully integrated

architecture: two-way interoperability via

several interfaces (Lai et al., 2020).

In contrast to the approaches (sec. 2.1), the

architectures are not tailored to specific use cases but

should be selected based on the unique problem under

consideration. It can be noticed that when symbolic

knowledge is stored within dynamic modules such as,

for example, evolving ontologies, a hybrid modular

architecture is preferable (the symbolic knowledge

can be updated without affecting the neural

knowledge). Conversely, when dealing with static

knowledge, unified and transformational

architectures might seem to be appealing due to their

adaptability and the amount of techniques available.

As a result, in (Smirnov et al., 2023) the loosely

coupled hybrid modular architecture was selected to

maintain the autonomy of symbolic knowledge with

provisions for its extension and update.

2.3 Post-Hoc Approaches to the

Explainability of ANNs

Post-hoc techniques (Confalonieri et al., 2019, 2020,

2021; Panigutti et al., 2020) are designed to explain

ICEIS 2024 - 26th International Conference on Enterprise Information Systems

874

pre-existing models that have been trained without

explicit provisions for interpretability. These

approaches have the potential to be employed with

any existing ANN. The majority of post-hoc methods

involve approximating the ANN using a more

understandable model (e.g., a decision tree).

An alternative approach for post-hoc explaining

ANN’s predictions involves establishing a link

between knowledge or concepts, typically

represented in an ontology, and the activation of

ANN’s layers (Agafonov & Ponomarev, 2022; de

Sousa Ribeiro & Leite, 2021). This correspondence

process, referred to as “concept extraction”, entails

training a mapping ANN. The mapping network takes

the output of specific neurons from the main network

being explained and produces the probability that the

sample processed by the main network corresponds to

the specified ontology concept. Frequently, these

mapping networks can attain a significantly high level

of predictive accuracy, facilitating the dependable

extraction of a set of concepts from a given sample.

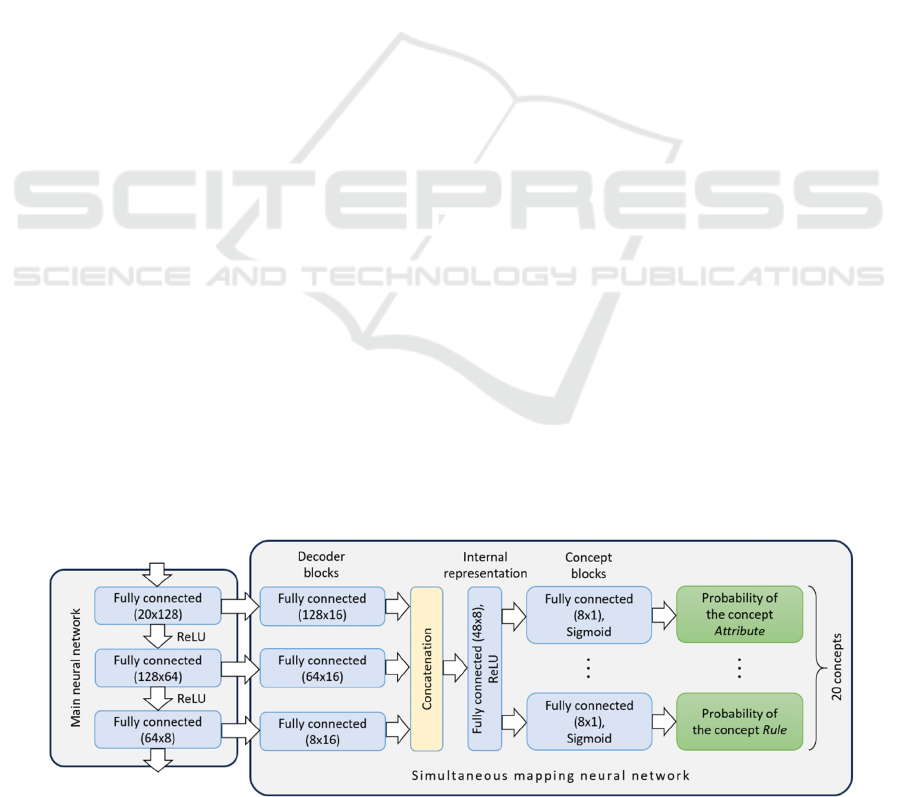

In (Agafonov & Ponomarev, 2023), a library was

presented that includes a number of concept

extraction approaches based on the construction of

mapping networks. In particular, an algorithm was

implemented that simultaneously extracts all

concepts using a single ANN. This approach uses all

activations from the main network as input to the

proposed mapping network. The proposed

architecture of such a mapping network includes

outputs corresponding to specific concepts.

In this paper, we consider how the concept

extraction approach can be used to assess the

reliability of networks in which symbolic knowledge

has already been integrated. In particular, the scenario

of using this approach is considered in the absence of

an explicit ontological connection between the

concepts of the subject area.

3 RESEARCH APPROACH

3.1 Problem and Dataset

The considered problem is enterprise model

classification. The class of an enterprise model is

determined by the quantity and types of the model’s

nodes (the detailed dataset description can be found

in (Smirnov et al., 2023). The dataset comprising 112

models (insufficient for conventional ANN training)

of 8 unbalanced classes (Table 1).

Among the 36 node types in the dataset, the

analysis focuses only on 20 meaningful ones,

including: Attribute, Cause, Component, Concept,

Constraint, External Process, Feature, Goal,

Individual, Information Set, IS Requirement, IS

Technical Component, Opportunity, Organizational

Table 1: Enterprise model classes in the dataset.

Enterprise model class Number of

samples

Business Process Model 43

Goal and Goal & Business Rule Model 13

Business Rule and Business Rule &

Process Model

Actors and Resources Model 12

Concepts Model 10

Technical Components and

Requirements Model

4EM General Model 7

Product-Service-Model 4

Unit, Problem, Process, Unspecific/Product/Service,

Resource, Role, Rule. The mean node count per

model is 27.3.

3.2 Methodology

3.2.1 Classification of Enterprise Models

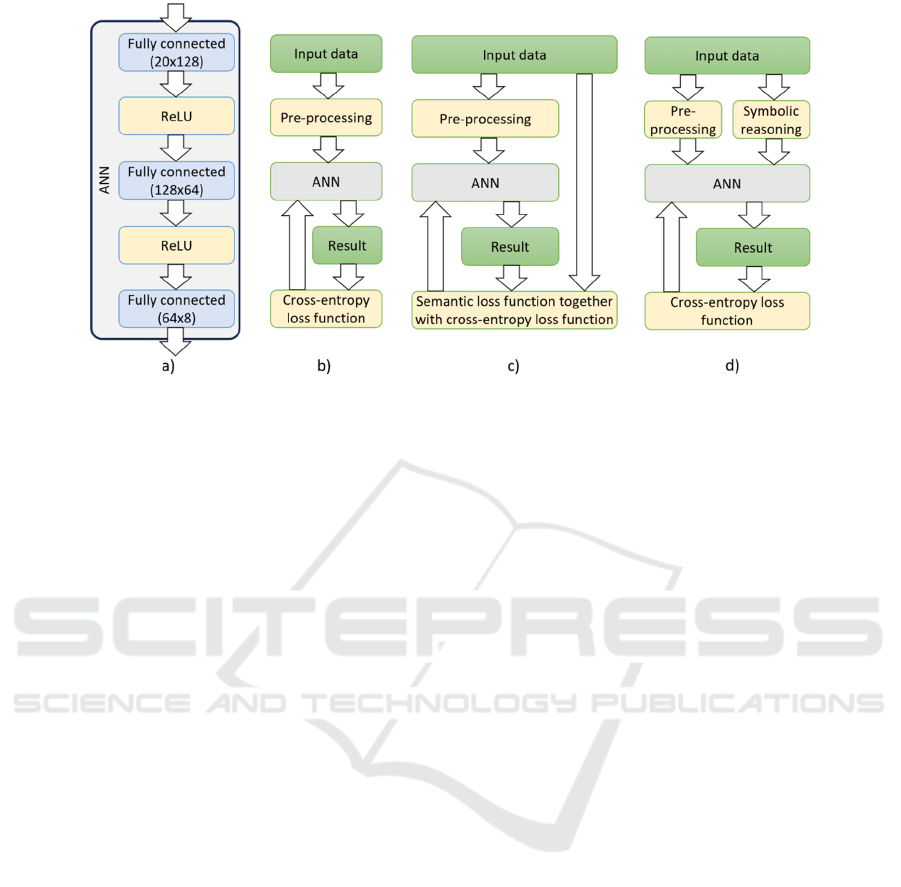

The experiment reported in (Smirnov et al., 2023)

was based on the usage of the ANN shown in Figure

1(a). It is aimed at classification of enterprise models

based the presence and quantities of nodes of certain

types in the model without accounting for the graph

topology. It has three fully connected layers followed

by the rectified linear unit (ReLU) activation

function. The input data is presented as a vector of the

size 20, with each element presenting a distinct node

type. Intermediate layers have sizes 128 and 64

neurons respectively. The output data is the vector of

size 8, with each value corresponding to enterprise

model classes. The highest value position in the 8-

number vector identifies the model class.

Pre-processing involves two steps. Initially, the

quantity of nodes for each of the 20 types within an

enterprise model is computed. This vector is

normalized by dividing it by the highest node count,

resulting in values ranging between 0 and 1.

Training is done with the learning rate of 10

-3

chosen after conducting multiple experiments with

various learning rate values. The Adam optimizer

(Kingma & Ba, 2014) is employed due to its superior

performance in most scenarios, faster computational

speed, and minimal parameter tuning requirements.

Early stopping is implemented to stop training when

the test set accuracy fails to improve for 20

consecutive epochs.

Studying Trustworthiness of Neural-Symbolic Models for Enterprise Model Classiﬁcation via Post-Hoc Explanation

875

Figure 1: Studied ANN-based machine learning models (based on (Smirnov et al., 2023).

Classification model evaluation employs a 5-fold

cross-validation approach, which assumes

partitioning the dataset into 5 subsets of similar sizes,

with 5 experiments conducted where each subset

serves as the test set once, while the remaining

subsets are merged to form the training set.

The following approaches to network training

were considered:

Basic ANN training. In the initial experiment, a

normal ANN is employed for classification, with the

Cross Entropy function being used as the loss

function, as illustrated in Figure 1 (b).

Embedding symbolic knowledge using the

semantic loss function. The semantic loss function

proposed in (Xu et al., 2018) is combined with cross

entropy loss via calculating the weighted sum (Figure

1(c)):

L = CELoss + λ ∙ SLoss, (1)

where CELoss and SLoss represent the cross-entropy

loss and the semantic loss respectively, λ > 0 is a

hyperparameter the balances the constituents of the

total loss function, representing the weight of the

semantic loss. The initial semantic loss weight is 0.5.

Each successive epoch the weight of the semantic loss

is reduced by the value inverse to the total number of

epochs. At each iteration, the final semantic loss

weight is determined as the maximum between zero

and the current semantic loss weight. The semantic

loss function facilitates the integration of logical

constraints into the ANN output vectors, leveraging

such knowledge to enhance the training process.

These constraints entail specifications where an

enterprise model can be classified into a particular

class if it has a node of a specific type. For example:

"if the model includes a Rule node, it can only belong

to one of the following classes: 4EM General Model,

Goal Model and Goal & Business Rule Model, or

Business Rule Model and Business Rule & Process

Model". 20 rules have been defined for all 20 node

types. The remaining training parameters were held

as in the previous experiment.

Embedding symbolic knowledge using

symbolic pre-processing. The third experiment

included extension with extra inputs derived from the

application of rules to the original input data, as

illustrated in Figure 1(d). These rules align with those

described in the previous experiment. The additional

8 inputs correspond to potential model classes

(assigned a value of 1 if the class is viable, and -1

otherwise). Consequently, the initial layer of the

ANN was expanded to the size of 28 nodes instead of

the original 20. All other training parameters

remained unaltered.

To conduct the experiment, 5 launches of the

cross-validation procedure for each of the above

approaches have been carried out. According to the

results of each cross-validation, the mean accuracy

value for all folds was saved along with the accuracy

values of the best network (with the lowest loss value

on the test set).

The results of training the main models reported

in (Smirnov et al., 2023) showed that symbolic

knowledge can indeed notably enhance the results of

regular ANN for classifying enterprise models with

small amount of training data. The most substantial

enhancement was observed for the model

incorporating symbolic data pre-processing: mean

achieved accuracy was 0.973 vs. 0.929 achieved

using regular ANN). At the same time, the usage of

the semantic loss function did not yield any

significant improvement (accuracy of 0.920).

ICEIS 2024 - 26th International Conference on Enterprise Information Systems

876

3.2.2 Trustworthiness Assessment Using a

Concept Extraction Approach

In the presence of trained networks for classifying

enterprise models, it becomes possible to interpret

their predictions using a post-hoc approaches to

explanation. In particular, the concept extraction

approach would allow to identify the types of nodes

of a specific enterprise model, the presence or

absence of which influenced the classification result.

In other words, it will be possible to understand if the

machine learning model relies on the node types as

the significant sign of the enterprise model class and

does not just learn the enterprise models in the

training set.

As noted earlier, the extraction of concepts (node

types) is carried out using mapping networks, which

provide links between the internal representation of

the sample by the main classification network and

each of the concepts. The quality indicators of

mapping networks can be used to compare the

classification networks of enterprise models in terms

of consistency of their internal representations with

symbolic knowledge. Thus, the more consistent the

internal representations are, the higher the

trustworthiness of the network and its reliability.

The process of extracting concepts is carried out

using the simultaneous extraction approach

implemented in the RevelioNN library (Agafonov &

Ponomarev, 2023). The simultaneous mapping

network receives as input the values of the produced

(when the sample is inferred) activation of all fully

connected layers of the main network classifying

enterprise models, and its outputs are the probabilities

of each of the concepts (node types).

The following values of the architecture

parameters of the simultaneous mapping network

were set (Figure 2):

• 16 output neurons in decoder blocks;

• 8 output neurons in the internal representation

block;

• Concept blocks are represented by layers

containing 8 neurons at the input and 1 neuron

at the output;

• 20 concept blocks (in our case, it is determined

by the number of possible types of nodes of the

enterprise model).

Each mapping network was trained three times for

each already trained best classification network (with

the lowest loss value on the test set). Thus, the number

of mapping networks was 15 for each approach

described in sec. 3.2.1.

The number of learning epochs was limited to

1000, and the patience value for the early stopping

was 200. The Adam optimizer with a learning rate of

0.001 was used.

To assess the quality of mapping networks, the

prediction accuracy of each of the concepts (node

types) was calculated, as well as the mean prediction

accuracy of all node types.

4 RESULTS AND DISCUSSION

The results of the carried out experiment are

illustrated in Figures 3-5 and Table 2. The vertical

line segments in the figures indicate the variation of

the indicated value between different experiment

launches.

Figure 3 shows the distribution of the mean

accuracy of enterprise model classification networks

based on the results of all launches of the cross-

validation procedure. It can be seen that the best

classification quality (accuracy about 0.98) is typical

for the approach using symbolic pre-processing (no

variation between different launches). The reason for

this can be the strong correlation between the

additional inputs in this scenario and the anticipated

outcome, which positively impacts the efficiency of

the machine learning model. The classification

accuracy in basic network training turns out to be

Figure 2: Simultaneous mapping network structure.

Studying Trustworthiness of Neural-Symbolic Models for Enterprise Model Classiﬁcation via Post-Hoc Explanation

877

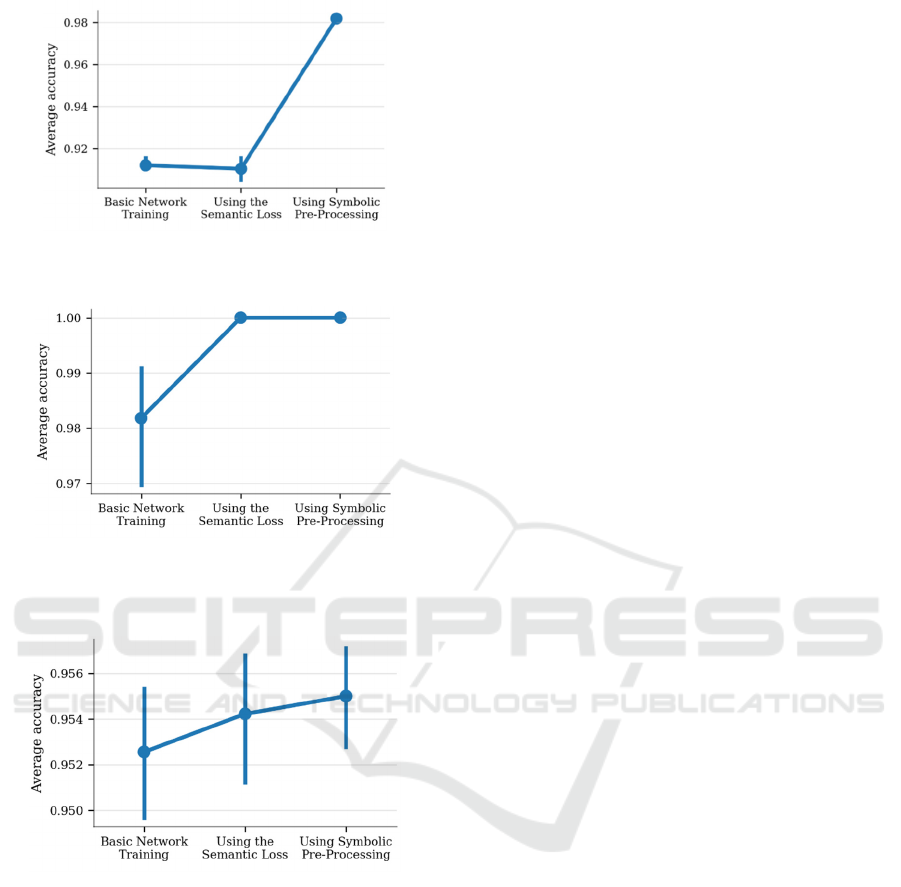

Figure 3: Distribution of the mean classification accuracy

for all networks.

Figure 4: Distribution of the mean classification accuracy

for networks with the lowest loss value at each cross-

validation.

Figure 5: Distribution of the mean accuracy of concept

extraction.

significantly lower, as well as when using semantic

loss. It is also worth noting that in the case of using

symbolic pre-processing, there is practically no

quality variation.

An interesting observation can be done, if only the

networks with the lowest loss value on the test set (the

“best” ones) obtained during each cross-validation

are considered. It turns out that when using the

semantic loss function and the symbolic pre-

processing approach (those with symbolic

knowledge), the mean classification accuracy is 1.0

and there is no variation (see Figure 4). While the

classical approach to ANN training produces a lower

accuracy with a significant variation in its values. It

can be concluded that embedding of symbolic

knowledge makes it possible to achieve better

prediction results (though not always) with a higher

stability.

Figure 5 shows the distribution of the mean

accuracy of extraction of all types of nodes by

mapping networks. Since 15 instances of mapping

networks were trained for each approach to training

the classification network, the results can be

considered fairly representative. It can be noted that

although numerically the values are quite close to

each other, the greatest accuracy is achieved when

extracting concepts from a network using symbolic

pre-processing.

Table 2 shows the characteristics of the

distribution of the accuracy of extracting concepts

(each of the node types) by mapping networks. As

noted earlier, the mean prediction accuracy of the

entire set of concepts turns out to be approximately

comparable when for each of the approaches to the

classification network training. However, if consider

the best accuracy values for each node type are

considered, one can see that networks trained by

different approaches may be more preferable for

extracting some types of nodes. From this point of

view, none of the approaches under consideration is

clearly better than the other. But when considering the

best accuracy for each node type and for each

approach, it can be noted that the largest number of

concepts extracted with the highest accuracy

(indicated with bold) is extracted from a classification

network that uses symbolic pre-processing (15 out of

20). Thus, it can be concluded that its internal

representations are best aligned with symbolic

knowledge, and, consequently, it inspires more trust.

5 CONCLUSION

The research question stated in the paper is “If the

neural-symbolic machine learning model is more

trustworthy than the pure ANN?”

In order to answer the question, a state-of-the-art

analysis in the corresponding areas has been

performed and several experiments have been carried

out. Enterprise model classification based on the

contained node types has been used as the use case

for the experiments.

Three ANN-based architectures have been

analysed: regular ANN without any symbolic

knowledge, usage of the semantic loss function, and

data pre-processing using symbolic rules. Earlier

obtained results showed that embedding symbolic

ICEIS 2024 - 26th International Conference on Enterprise Information Systems

878

Table 2: Characteristics of the distribution of the accuracy of extraction of concepts.

Approach

Node type

Basic Network

Training

Using the Semantic

Loss Function

Using Symbolic

Pre-Processing

Mean SD Mean SD Mean SD

Rule 0.9422 0.0320 0.9378 0.0330 0.9511 0.0330

Goal 0.9244 0.0295 0.9422 0.0266 0.9467 0.0246

Organizational Unit 0.9711 0.0117 0.9667 0.0218 0.9711 0.0117

Process 0.9600 0.0187 0.9622 0.0172 0.9333 0.0000

Resource 0.9622 0.0117 0.9644 0.0086 0.9644 0.0086

IS Technical Component 0.9933 0.0187 0.9867 0.0276 0.9978 0.0086

IS Requirement 0.9711 0.0117 0.9711 0.0117 0.9711 0.0117

Unspecific / Product / Service 1.0000 0.0000 0.9978 0.0086 1.0000 0.0000

Feature 1.0000 0.0000 0.9978 0.0086 1.0000 0.0000

Concept 0.9022 0.0295 0.9178 0.0248 0.9289 0.0172

Attribute 0.9556 0.0163 0.9578 0.0153 0.9667 0.0000

Information Set 0.9200 0.0303 0.9222 0.0499 0.8800 0.0246

External Process 0.7533 0.0676 0.7733 0.0491 0.7711 0.0486

Problem 0.9667 0.0126 0.9644 0.0266 0.9889 0.0163

Cause 0.9933 0.0138 0.9978 0.0086 1.0000 0.0000

Role 0.9333 0.0000 0.9311 0.0086 0.9289 0.0172

Constraint 0.9667 0.0000 0.9667 0.0000 0.9667 0.0000

Component 1.0000 0.0000 1.0000 0.0000 1.0000 0.0000

Opportunity 1.0000 0.0000 1.0000 0.0000 1.0000 0.0000

Individual 0.9356 0.0086 0.9333 0.0000 0.9333 0.0000

Mean accuracy 0.9526 0.9546 0.9550

Number of concepts extracted with the highest accuracy 9 8 15

knowledge as data pre-processing rules gives a

significant advantage in terms of the enterprise model

classification accuracy.

In this paper the problem of trustworthiness of

different ANN-based architectures has been analysed

via post-hoc explanation (specifically, the concept

extraction). This technique is aimed at searching for

certain concepts within the ANN-based models,

showing that the neural model indeed relies at these

concepts as indicators for the classification instead of

just learning the samples. The obtained results

showed that the accuracy of concept extraction for the

models with symbolic knowledge is higher than for

the model without such knowledge, though the

difference between the latter and the model with

semantic loss is relatively small. Thus, it can be

concluded that embedding semantic knowledge into

ANN-based models increases their trustworthiness

since they become more oriented to usage of proper

features (node types in this particular experiment) for

generating the output (enterprise model class).

Future research directions will be concentrated on

exploring more use cases and larger datasets.

ACKNOWLEDGEMENTS

The research is funded by the Russian Science

Foundation (project 22-11-00214).

REFERENCES

Agafonov, A., & Ponomarev, A. (2022). Localization of

Ontology Concepts in Deep Convolutional Neural

Networks. 2022 IEEE International Multi-Conference

on Engineering, Computer and Information Sciences

(SIBIRCON), 160–165. https://doi.org/10.1109/SIBI

RCON56155.2022.10016932

Agafonov, A., & Ponomarev, A. (2023). RevelioNN:

Retrospective Extraction of Visual and Logical Insights

for Ontology-Based Interpretation of Neural Networks.

Conference of Open Innovation Association, FRUCT, 3–

9. https://doi.org/10.23919/fruct60429.2023.10328156

Anaby-Tavor, A., Carmeli, B., Goldbraich, E., Kantor, A.,

Kour, G., Shlomov, S., Tepper, N., & Zwerdling, N.

(2020). Do Not Have Enough Data? Deep Learning to

the Rescue! Proceedings of the AAAI Conference on

Artificial Intelligence, 34(05), 7383–7390.

https://doi.org/10.1609/aaai.v34i05.6233

Studying Trustworthiness of Neural-Symbolic Models for Enterprise Model Classiﬁcation via Post-Hoc Explanation

879

Arabshahi, F., Singh, S., & Anandkumar, A. (2018).

Combining Symbolic Expressions and Black-box

Function Evaluations in Neural Programs.

Confalonieri, R., Prado, F. M. del, Agramunt, S.,

Malagarriga, D., Faggion, D., Weyde, T., & Besold, T.

R. (2019). An Ontology-based Approach to Explaining

Artificial Neural Networks. ArXiv, 1906.08362(January).

http://arxiv.org/abs/1906.08362

Confalonieri, R., Weyde, T., Besold, T. R., & Moscoso del

Prado Martín, F. (2021). Using ontologies to enhance

human understandability of global post-hoc explanations

of black-box models. Artificial Intelligence, 296.

https://doi.org/10.1016/j.artint.2021.103471

Confalonieri, R., Weyde, T., Besold, T. R., & Moscoso Del

Prado Martín, F. (2020). Trepan reloaded: A knowledge-

driven approach to explaining black-box models.

Frontiers in Artificial Intelligence and Applications, 325,

2457–2464. https://doi.org/10.3233/FAIA200378

Dash, T., Srinivasan, A., & Vig, L. (2021). Incorporating

symbolic domain knowledge into graph neural networks.

Machine Learning, 110(7), 1609–1636.

https://doi.org/10.1007/s10994-021-05966-z

de Sousa Ribeiro, M., & Leite, J. (2021). Aligning Artificial

Neural Networks and Ontologies towards Explainable

AI. 35th AAAI Conference on Artificial Intelligence,

AAAI 2021, 6A(6), 4932–4940. https://doi.org/

10.1609/aaai.v35i6.16626

Garcez, A. d’Avila, & Lamb, L. C. (2020). Neurosymbolic

AI: The 3rd Wave.

Guest, O., & Martin, A. E. (2023). On Logical Inference over

Brains, Behaviour, and Artificial Neural Networks.

Computational Brain & Behavior. https://doi.org/10.10

07/s42113-022-00166-x

Hu, Z., Ma, X., Liu, Z., Hovy, E., & Xing, E. (2016).

Harnessing Deep Neural Networks with Logic Rules.

Kingma, D. P., & Ba, J. (2014). Adam: A Method for

Stochastic Optimization.

Lai, P., Phan, N., Hu, H., Badeti, A., Newman, D., & Dou, D.

(2020). Ontology-based Interpretable Machine Learning

for Textual Data. 2020 International Joint Conference on

Neural Networks (IJCNN), 1–10. https://doi.org/10.11

09/IJCNN48605.2020.9206753

Li, Y., Ouyang, S., & Zhang, Y. (2022). Combining deep

learning and ontology reasoning for remote sensing

image semantic segmentation. Knowledge-Based

Systems, 243, 108469. https://doi.org/10.1016/j.knos

ys.2022.108469

Mishra, N., & Samuel, J. M. (2021). Towards Integrating

Data Mining With Knowledge-Based System for

Diagnosis of Human Eye Diseases. In Handbook of

Research on Disease Prediction Through Data Analytics

and Machine Learning (pp. 470–485). IGI Global.

https://doi.org/10.4018/978-1-7998-2742-9.ch024

Nguyen, D. T., Nam, S. H., Batchuluun, G., Owais, M., &

Park, K. R. (2022). An Ensemble Classification Method

for Brain Tumor Images Using Small Training Data.

Mathematics, 10(23), 4566. https://doi.org/10.3390/math

10234566

Panigutti, C., Perotti, A., & Pedreschi, D. (2020). Doctor XAI

An ontology-based approach to black-box sequential

data classification explanations. FAT* 2020 -

Proceedings of the 2020 Conference on Fairness,

Accountability, and Transparency, 629–639.

https://doi.org/10.1145/3351095.3372855

Picco, G., Lam, H. T., Sbodio, M. L., & Garcia, V. L. (2021).

Neural Unification for Logic Reasoning over Natural

Language.

Pitz, D. W., & Shavlik, J. W. (1995). Dynamically adding

symbolically meaningful nodes to knowledge-based

neural networks. Knowledge-Based Systems, 8(6), 301–

311. https://doi.org/10.1016/0950-7051(96)81915-0

Prabhushankar, M., & AlRegib, G. (2022). Introspective

Learning : A Two-Stage Approach for Inference in

Neural Networks.

Prem, E., Mackinger, M., Dorffner, G., Porenta, G., &

Sochor, H. (n.d.). Concept support as a method for

programming neural networks with symbolic

knowledge. In GWAI-92: Advances in Artificial

Intelligence (pp. 166–175). Springer-Verlag.

https://doi.org/10.1007/BFb0019002

Shavlik, J. W. (1994). Combining symbolic and neural

learning. Machine Learning, 14(3), 321–331.

https://doi.org/10.1007/BF00993982

Shilov, N., Othman, W., Fellmann, M., & Sandkuhl, K.

(2021). Machine Learning-Based Enterprise Modeling

Assistance: Approach and Potentials. Lecture Notes in

Business Information Processing, 432, 19–33.

https://doi.org/10.1007/978-3-030-91279-6_2

Shilov, N., Othman, W., Fellmann, M., & Sandkuhl, K.

(2023). Machine learning for enterprise modeling

assistance: an investigation of the potential and proof of

concept. Software and Systems Modeling.

https://doi.org/10.1007/s10270-022-01077-y

Smirnov, A., Shilov, N., & Ponomarev, A. (2023).

Facilitating Enterprise Model Classification via

Embedding Symbolic Knowledge into Neural Network

Models. Communications in Computer and Information

Science, 1875, 269–279. https://doi.org/10.1007/978-3-

031-39059-3_18

Ultsch, A. (1994). The Integration of Neural Networks with

Symbolic Knowledge Processing. In New Approaches in

Classification and Data Analysis (pp. 445–454).

https://doi.org/10.1007/978-3-642-51175-2_51

Wermter, S., & Sun, R. (2000). An Overview of Hybrid

Neural Systems. Lecture Notes in Artificial Intelligence

(Subseries of Lecture Notes in Computer Science), 1778,

1–13. https://doi.org/10.1007/10719871_1

Xie, Y., Xu, Z., Kankanhalli, M. S., Meel, K. S., & Soh, H.

(2019). Embedding Symbolic Knowledge into Deep

Networks. Advances in Neural Information Processing

Systems, 32.

Xu, J., Zhang, Z., Friedman, T., Liang, Y., & Broeck, G.

(2018). A Semantic Loss Function for Deep Learning

with Symbolic Knowledge. Proceedings of Machine

Learning Research, 80, 5502–5511.

Yang, Z., Ishay, A., & Lee, J. (2020). NeurASP: Embracing

Neural Networks into Answer Set Programming.

Proceedings of the Twenty-Ninth International Joint

Conference on Artificial Intelligence, 1755–1762.

https://doi.org/10.24963/ijcai.2020/243

ICEIS 2024 - 26th International Conference on Enterprise Information Systems

880
