Exploring Applicability of LLM-Powered Autonomous Agents to

Solve Real-Life Problems:

Microsoft Entra ID Administration Agent (MEAN)

Roberto Rodriguez

and Nestori Syynimaa

1,2 b

Microsoft Security Research (MSecR), U.S.A.

Faculty of Information Technology, University of Jyväskylä, Jyväskylä, Finland

Keywords: LLM, Autonomous Agent, ChatGPT, Powershell, Entra ID.

Abstract: Microsoft Entra ID is Microsoft’s identity and access management solution used by many public and private

sector organisations globally. In March 2023, Microsoft retired two PowerShell modules which have enabled

automation of administrative tasks, such as user management. The replacement module is based on Microsoft

Graph API, and its effective usage would require administrators to learn software development skills. In this

paper, we will report the results of work-in-progress research on exploring the applicability of LLM-powered

autonomous agents to solve real-life problems. We describe the design and proof-of-concept implementation

of MEAN, an agent that performs Entra ID administrative tasks using Microsoft Graph API based on natural

language prompts. The results show that LLM-powered autonomous agents can perform at least simple Entra

ID administrative tasks. This indicates that the agents could ease the administrative burden by removing the

need to learn software development skills.

1 INTRODUCTION

1.1 Microsoft Entra ID

Microsoft Entra ID (MEID) is Microsoft’s cloud-

based identity and access management (IAM)

solution (Microsoft, 2023c), formerly known as

Azure Active Directory (Azure AD). MEID is widely

used globally in public and private sector

organisations (see Syynimaa, 2022).

Administrators can administer Entra ID via web-

based interfaces like the Entra ID portal. The portals

are suitable for changing Entra ID-wide settings and

performing manual tasks involving a small number of

individual targets, such as users or groups. However,

portals do not scale, which forces administrators to

rely on automation solutions. For instance,

administrators may need to quickly disable thousands

of users during a cyber security attack to prevent

further damage. This is not possible using the Entra

ID portal.

https://orcid.org/0009-0004-0045-865X

https://orcid.org/0000-0002-6848-094X

PowerShell is a task automation solution

consisting of a scripting language and a command-

line shell (Microsoft, 2023d). Microsoft has provided

PowerShell modules for administering Entra ID. The

first module, MSOnline, was published in the early

2010s, and the next one, AzureAD, was published

later in the 2010s. Both were built to help

administrators perform their duties, like managing

Entra ID users and licenses. However, these modules

are now set to be deprecated in March 2024 (Bash,

2023). The reason for this is that the underlying

Application Programming Interfaces (APIs) the

modules are using are deprecated at the same time.

The only supported API after that is Microsoft Graph

(MSGraph) API (Microsoft, 2023b).

Microsoft offers a replacement module for

administrators called “Microsoft Graph PowerShell

SDK” (Microsoft, 2023a). The module is an API

wrapper for the MSGraph API, created automatically

from the MSGraph API schema (Microsoft, 2023a).

This is problematic for administrators as the module

is not built to help them perform their tasks but allows

Rodriguez, R. and Syynimaa, N.

Exploring Applicability of LLM-Powered Autonomous Agents to Solve Real-life Problems: Microsoft Entra ID Administration Agent (MEAN).

DOI: 10.5220/0012735700003690

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 26th International Conference on Enterprise Information Systems (ICEIS 2024) - Volume 1, pages 881-887

ISBN: 978-989-758-692-7; ISSN: 2184-4992

881

them to call the MSGraph API directly from

PowerShell. Even the name of the module contains

the acronym SDK, which refers to Software

Development Kit. According to the global skills and

competency framework for the digital world (SFIA),

software development skills are not part of the system

administrator role skill set (SFIA, 2023). Mastering

the new module would require learning software

development, especially MSGraph API.

1.2 Large Language Model

The large Language Model (LLM) is a special case of

the Pre-trained Language Model (PLM). The

challenge with PLMs is that they are unable to

perform unseen tasks without task-specific training

(Kalyan, 2024). Generative Pre-trained Transformers

(GPTs) are using Natural Language Processing

(NLP) for task-agnostic pre-training (Brown et al.,

2020). Still, task-specific examples or datasets are

required on top of general training to perform the

desired task (Brown et al., 2020).

The public and scientific interest in LLMs has

significantly increased after OpenAI published

ChatGPT (OpenAI, 2024) for the general public in

November 2022. For instance, ChatGPT articles

published in arXiv have risen from zero in December

2022 to over 300 by May 2023 (Liu et al., 2023).

ChatGPT has been used successfully to generate

software code (Liu et al., 2023) and to teach software

development skills (Hellas et al., 2023). However,

there have also been some challenges. For instance,

the quality of the generated code cannot be

guaranteed (Liu et al., 2023), and the judgements

made may not be grounded in reality (Faggioli et al.,

2023). This is often referred to as hallucination

(Händler, 2023). Moreover, as an LLM, ChatGPT

still lacks domain-specific knowledge (Faggioli et al.,

2023).

1.3 Autonomous Agents

LLMs have been found to struggle with maintaining

consistent logic across chains of reasoning (Händler,

2023). Autonomous LLM-powered agents can break

user-prompted goals into smaller tasks (Händler,

2023). These tasks can be assigned to specialised

agents utilising contextual resources such as tools

(Händler, 2023). The balance between the autonomy

of LLM-powered agents and the alignment of human

users is illustrated in Figure 1. In other words, the

agent should be self-organising if the user needs to

perform tasks that demand active participation (L2).

Figure 1: The interplay between agent autonomy and

human users alignment (Händler, 2023, p. 90).

LLM-powered agents have demonstrated their

performance in language understanding and

interactive decision-making. However, usually, they

have only been able to reason or generate an action

plan based on human interaction. To overcome this,

Yao et al. (2023) introduced a ReAct paradigm that

combines reasoning and action within a closed-loop

system that interacts with the external world. The

autonomous LLM-powered agent and its

collaboration with the user and outside tool is

illustrated in Figure 2 using BPMN 2.0 notation. As

the agent’s reasoning is based on access to external

real-life entities, its problem-solving trajectory is

“more grounded, fact-driven, and trustworthy” (Yao

et al., 2023, p. 6). In other words, the agent is less

prone to hallucinate.

Figure 2: Autonomous LLM-powered Agent.

UserAutonomous AgentTool

Reasoning

and Planning

Act

Actions

Results

ResponsePrompt

ICEIS 2024 - 26th International Conference on Enterprise Information Systems

882

1.4 Research Questions

Our research sought to answer the following research

question:

How can we implement an autonomous LLM-

powered agent to help administrators perform

Entra ID administrative tasks?

1.5 Structure of the Paper

The rest of the paper is structured as follows. The

building process of the Microsoft Entra id

Administration ageNt (MEAN) is described in the

next section. The last section, discussion, concludes

the paper.

2 BUILDING THE MEAN

This paper reports a Design Science Research (DSR)

study (see vom Brocke, Hevner, & Maedche, 2020),

and we’ll follow the DSR process guidelines by

Peffers et al. (2007) in this section. Following Onggo

(2012), the resulting agent is illustrated using BPMN

2.0 notation.

2.1 Motivation

The problem and motivation for the research were

explained in the Introduction section. To sum up,

Microsoft is deprecating existing Entra ID

PowerShell modules, and the replacement module

requires learning new skills that are not part of

administrators’ skillset.

2.2 Objectives

The solution's objective is to build an agent that helps

administrators perform their tasks without needing to

learn software development skills.

2.3 Design and Development – Round 1

Jupyter Notebooks (Jupyter, 2024) was selected as a

development platform for the agent because it

supports Python, giving easy access to ChatGPT-4

API. ChatGPT-4 supports function calling, which

allows agents to call external APIs (OpenAI, 2023).

The available functions and parameters can be sent to

ChatGPT with the user prompt. The functions and

parameters should be in the format that ChatGPT can

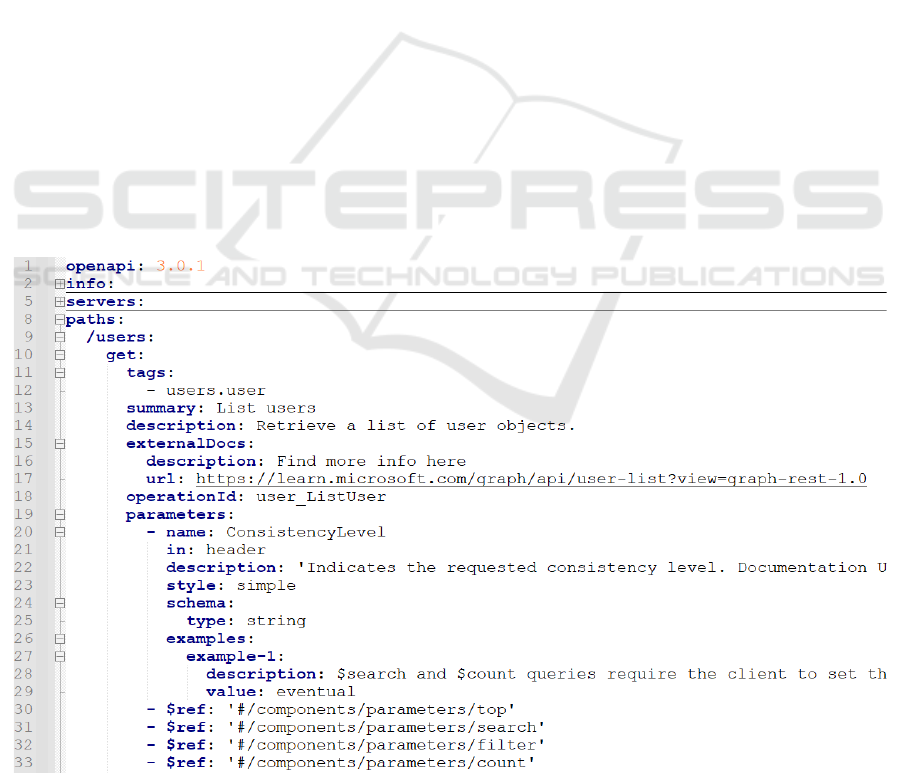

interpret. The MSGraph API documentation (see

Microsoft, 2024a) is not structured enough for

ChatGPT. However, ChatGPT supports OpenAPI

specification (see OpenAPI, 2021). Microsoft

publishes MSGraph API documentation in OpenAPI

format (see Microsoft, 2024a), allowing it to be used

with ChatGPT as-is.

The agent design is illustrated in Figure 3. The

user sends the OpenAPI specification along with a

prompt to the agent. Agent interprets (reasons) the

input and plans the next steps based on the user

prompt and the given OpenAPI specification. The

agent starts to execute the plan by calling MSGraph

API. The response from the API call is returned to the

reasoning and planning process. When the plan is

completed, the response is returned to the user.

The source code of the proof-of-concept (PoC)

agent that implements the design is available on

GitHub (see Rodriguez, 2023a). The PoC uses the

MSGraph API users endpoint, which provides

functionality for searching, creating, updating, and

deleting users.

2.4 Demonstration – Round 1

The output of running the PoC agent is also available

on GitHub (see Rodriguez, 2023a). The output shows

the result of a simple query to find a username based

on a given object ID.

After receiving the input from the user, the agent

starts building a plan. First, it makes an observation

of which API it could use to get the requested

information. This leads to a thought that the agent is

ready to execute the API call. Next, the agent starts

acting on the plan and executes the request_get tool

to make the actual API call. From the response, the

agent makes an observation that the name of the user

is “Example User”. This leads to a thought that user

information is successfully retrieved and the plan is

successfully executed. The agent makes a final

observation that the name of the user whose id was

given is “Example User”. This leads to a thought that

the plan is finished and the information the user asked

for is retrieved.

However, the agent was not able to perform more

complex tasks. When asked to list all users whose

password has been reset over six months ago, the

agent answered I'm sorry, but this API does not

provide the functionality to filter users based on the

time their password was reset. The API returns only

a subset of properties for users by default (see Table

1). All other attributes, such as

lastPasswordChangeDateTime, would require using

the $select query parameter. To us, it seemed that the

agent was only aware of the common properties, not

all available properties.

Exploring Applicability of LLM-Powered Autonomous Agents to Solve Real-life Problems: Microsoft Entra ID Administration Agent

(MEAN)

883

Table 1: Common properties of users (Microsoft, 2024b).

Propert

Description

id The unique identifier for

the user.

usinessPhones The user's phone numbers.

displayName The name displayed in the

address book for the user.

ivenName The first name of the user.

obTitle The user's

ob title.

mail The user's email address.

mobilePhone The user's cellphone

number.

officeLocation The user's physical office

location.

preferredLanguage The user's language of

reference.

surname The last name of the user.

userPrincipalName The user's principal name.

Moreover, the agent seemed to be capable of

showing only the 16 first users (sorted by

userPrincipalName property). However, the API

returns by default 100 users and allows returning up

to 1000 users per request using $top query parameter.

Again, it seemed that the agent was not aware of this

parameter.

2.5 Design and Development – Round 2

After the first design and development round, the

agent seemed to work only partly as intended. It was

able to perform simple tasks but didn’t seem to

understand the API correctly.

The original MS Graph API Open API

specification YAML file had 28021 rows in total.

Validating the file with the OpenAPI online validator

(see APIDevTools, 2022) crashed the browser. The

first lines of the file (see Figure 4) show that the file

Figure 3: MEAN Design.

UserAutonomous Agent

MS Graph

Reasoning and

Planning

Response

Prompt

Finished?

Yes

No Call MS Graph API

Request

OpenAPI specification

and user prompt

ICEIS 2024 - 26th International Conference on Enterprise Information Systems

884

is using a lot of internal $ref clauses. Changing the

setting of the online validator to skip circular

references threw an error message “Circular $ref

pointer found”. For the same reason, in the first

development round, we had to use dereference=False

option when calling reduce_openapi_spec function

(see Rodriguez, 2023b). That effectively did not

follow any $ref clauses and thus removed crucial

information about the API. Moreover,

reduce_openapi_spec ignored all query parameters

that were not marked as required (see Langchain,

2023, step 3).

To fix the aforementioned issues, the MS Graph

Open API specification was manually modified to

remove unnecessary circular references and to change

the type of all query parameters to required (see

Syynimaa, 2024).

2.6 Demonstration – Round 2

The output of running the PoC agent to list

lastPasswordChangeDateTime and jobTitle

properties of users is available on GitHub (see

Rodriguez & Syynimaa, 2024b). The output shows

that the agent now understands the API better, i.e.,

how to use $select query parameter. This time, the

API threw an error indicating that $select query

parameter was specified more than once, which the

agent observed correctly. The resulting thought was

that it should use just one $select parameter and

comma to separate the values. Next observation was

the returned user information and the resulting

thought that the data was successfully retrieved, and

it could now be returned.

The process seems the same as you would expect

from a natural person to execute a similar task.

Instead of a natural person, the user could ask the

autonomous LLM-powered agent to retrieve the

needed information.

2.7 Evaluation

The conventional way to perform administrative

tasks, such as finding a user with the given ID, would

be to use an MSGraph PowerShell module. This

would require the administrator using the module to

know which API calls and corresponding PowerShell

cmdlets they should use.

The designed agent allowed a user to complete a

task that used MSGraph API without a need to learn

software development skills. As such, the agent fulfils

the set objectives. However, due to limitations of the

current LangChain implementation, especially the

reduce_openapi_spec function, do not allow the

agent to release the full potential of ChatGPT. Even

the source code of the function says “This is a quick

and dirty representation ofr OpenAPI specs”

(Langchain, 2023).

Figure 4: Excerpt of OpenAPI-MSGraph-v1.0-Users.yml file.

Exploring Applicability of LLM-Powered Autonomous Agents to Solve Real-life Problems: Microsoft Entra ID Administration Agent

(MEAN)

885

2.8 Communication

The process and output of building the agent are

reported in this research paper. The source code and

Jyputer notebook are published on GitHub (see

Rodriguez & Syynimaa, 2024a) and are freely

available for anybody to download.

3 DISCUSSION

3.1 Implications to Practice

We demonstrated that an LLM-powered autonomous

agent can help administrators perform tasks that

would otherwise require software development skills.

This allows administrators to focus on daily activities

instead of learning software development skills.

Moreover, this greatly improves administrators’

efficiency in performing administrative tasks,

especially in stressful situations like during cyber-

attacks. However, due to limitations in the

components used in the MEAN implementation, it is

not mature enough to perform the day-to-day tasks

expected from administrators.

3.2 Implications to Science

In this paper, we designed and implemented a PoC of

an autonomous agent capable of completing tasks by

invoking MSGraph API based on the user’s natural

language input. This proves that, despite the

abovementioned challenges, LLM-powered

autonomous agents can perform simple Entra ID

administrative tasks. As such, the study supports the

findings of previous studies (Nascimento, Alencar, &

Cowan, 2023; Topsakal & Akinci, 2023).

3.3 Limitations

This study focused on performing tasks using a

specific external tool, MSGraph API. Other APIs may

yield different results.

3.4 Directions for Future Research

An interesting avenue for future research would be to

study could agents be used to call PowerShell

commands instead of back-end APIs. PowerShell

module metadata, e.g., function descriptions and

parameter details, can be extracted programmatically.

This could lead to a more generalised solution which

is not limited to cloud services and could also allow

using agents to perform tasks on local computers.

REFERENCES

APIDevTools. (2022). Swagger/OpenAPI online validator.

Retrieved from https://apitools.dev/swagger-parser/on

line/

Bash, Kristopher. (2023). Important: Azure AD Graph

Retirement and Powershell Module Deprecation.

Retrieved from https://techcommunity.microsoft.com/

t5/microsoft-entra-blog/important-azure-ad-graph-

retirement-and-powershell-module/ba-p/3848270

Brown, Tom B., Mann, Benjamin, Ryder, Nick, Subbiah,

Melanie, Kaplan, Jared, Dhariwal, Prafulla, Amodei,

Dario. (2020). Language models are few-shot learners.

Paper presented at the Proceedings of the 34th

International Conference on Neural Information

Processing Systems, Vancouver, BC, Canada.

Faggioli, Guglielmo, Dietz, Laura, Clarke, Charles L. A.,

Demartini, Gianluca, Hagen, Matthias, Hauff, Claudia,

Wachsmuth, Henning. (2023). Perspectives on Large

Language Models for Relevance Judgment. Paper

presented at the Proceedings of the 2023 ACM SIGIR

International Conference on Theory of Information

Retrieval, Taipei, Taiwan.

Hellas, Arto, Leinonen, Juho, Sarsa, Sami, Koutcheme,

Charles, Kujanpää, Lilja, & Sorva, Juha. (2023).

Exploring the Responses of Large Language Models to

Beginner Programmers’ Help Requests. Paper

presented at the Proceedings of the 2023 ACM

Conference on International Computing Education

Research - Volume 1, Chicago, IL, USA.

Händler, Thorsten. (2023). A Taxonomy for Autonomous

LLM-Powered Multi-Agent Architectures. Paper

presented at the Proceedings of the 15th International

Joint Conference on Knowledge Discovery,

Knowledge Engineering and Knowledge Management

- KMIS.

Jupyter. (2024). Project Jupyter's origins and governance.

Retrieved from https://jupyter.org/about

Kalyan, Katikapalli Subramanyam. (2024). A survey of

GPT-3 family large language models including

ChatGPT and GPT-4. Natural Language Processing

Journal, 6, 100048. doi:10.1016/j.nlp.2023.100048

Langchain. (2023). Source code for langchain_community.

agent_toolkits.openapi.spec. Retrieved from https://

api.python.langchain.com/en/latest/_modules/langchai

n_community/agent_toolkits/openapi/spec.html

Liu, Yiheng, Han, Tianle, Ma, Siyuan, Zhang, Jiayue,

Yang, Yuanyuan, Tian, Jiaming, Ge, Bao. (2023).

Summary of ChatGPT-Related research and

perspective towards the future of large language

models. Meta-Radiology, 1(2), 100017. doi:10.1016/

j.metrad.2023.100017

Microsoft. (2023a). Microsoft Graph PowerShell overview.

Retrieved from https://learn.microsoft.com/en-

us/powershell/microsoftgraph/overview

ICEIS 2024 - 26th International Conference on Enterprise Information Systems

886

Microsoft. (2023b). Use the Microsoft Graph API.

Retrieved from https://learn.microsoft.com/en-

us/graph/use-the-api

Microsoft. (2023c). What is Microsoft Entra ID? Retrieved

from https://learn.microsoft.com/en-us/entra/funda

mentals/whatis

Microsoft. (2023d). What is PowerShell? Retrieved from

https://learn.microsoft.com/en-

us/powershell/scripting/overview

Microsoft. (2024a). Microsoft Graph REST API v1.0

endpoint reference. Retrieved from https://learn.

microsoft.com/en-us/graph/api/overview?view=graph-

rest-1.0

Microsoft. (2024b). Working with users in Microsoft

Graph. Retrieved from https://learn.microsoft.com/en-

us/graph/api/resources/users?view=graph-rest-1.0

Nascimento, N., Alencar, P., & Cowan, D. (2023, 25-29

Sept. 2023). Self-Adaptive Large Language Model

(LLM)-Based Multiagent Systems. Paper presented at

the 2023 IEEE International Conference on Autonomic

Computing and Self-Organizing Systems Companion

(ACSOS-C).

Onggo, Bhakti S. S. (2012). BPMN pattern for agent-based

simulation model representation. Paper presented at the

Proceedings of the Winter Simulation Conference,

Berlin, Germany.

OpenAI. (2023). Function calling. Retrieved from https://

platform.openai.com/docs/guides/function-calling

OpenAI. (2024). Introduction to ChatGPT. Retrieved from

https://openai.com/blog/chatgpt

OpenAPI. (2021). OpenAPI Specificaiton v3.1.0. Retrieved

from https://spec.openapis.org/oas/v3.1.0

Peffers, Ken, Tuunanen, Tuure, Rothenberger, Marcus A,

& Chatterjee, Samir. (2007). A Design Science

Research Methodology for Information Systems

Research. Journal of management information systems,

45-77.

Rodriguez, Roberto. (2023a). A MS Graph API (Users)

Agent. Retrieved from https://github.com/OTRF/

MEAN/blob/c9fb26610abf6be759ca3ce2abd82a48823

49d9d/notebooks/OAI-MSGraph-Users-Agent.ipynb

Rodriguez, Roberto. (2023b). OpenAPI Spec -

reduce_openapi_spec - maximum recursion depth

exceeded. Retrieved from https://github.com/langc

hain-ai/langchain/issues/12163

Rodriguez, Roberto, & Syynimaa, Nestori. (2024a). Github.

MEAN: Microsoft Entra ID Administration LLM-

based Autonomous Agent. Retrieved from

https://aka.ms/MEAN

Rodriguez, Roberto, & Syynimaa, Nestori. (2024b).

Microsoft Entrai ID Administration Agent (MEAN).

Retrieved from https://github.com/OTRF/MEAN/blob/

ecf7c4c2f462d9c5f4dad974774c5499e5bf0c5d/notebo

oks/OAI-MSGraph-Users-Agent.ipynb

SFIA. (2023). SFIA 8 - illustrative skills profiles. Retrieved

from https://sfia-online.org/en/tools-and-resources/

standard-industry-skills-profiles/sfia-8-skills-for-role-

families-job-titles

Syynimaa, Nestori. (2022). Exploring Azure Active

Directory Attack Surface: Enumerating Authentication

Methods with Open-Source Intelligence Tools. Paper

presented at the 24th International Conference on

Enterprise Information Systems.

Syynimaa, Nestori. (2024). OpenAPI-MSGraph-v1.0-

Users_dereferenced.yml. Retrieved from https://

github.com/OTRF/MEAN/blob/ecf7c4c2f462d9c5f4d

ad974774c5499e5bf0c5d/notebooks/openapi-specs/Op

enAPI-MSGraph-v1.0-Users_dereferenced.yml

Topsakal, Oguzhan, & Akinci, Tahir Cetin. (2023).

Creating large language model applications utilizing

langchain: A primer on developing llm apps fast. Paper

presented at the Proceedings of the International

Conference on Applied Engineering and Natural

Sciences, Konya, Turkey.

vom Brocke, Jan, Hevner, Alan, & Maedche, Alexander.

(2020). Introduction to Design Science Research. In J.

vom Brocke, A. Hevner, & A. Maedche (Eds.), Design

Science Research. Cases (pp. 1-13). Cham: Springer

International Publishing.

Yao, Shunyu, Zhao, Jeffrey, Yu, Dian, Du, Nan, Shafran,

Izhak, Narasimhan, Karthik, & Cao, Yuan. (2023).

ReAct: Synergizing Reasoning and Acting in Language

Models. Paper presented at the The Eleventh

International Conference on Learning Representations

(ICLR 2023), Kigali, Rwanda. https://openreview.net/

pdf?id=WE_vluYUL-X

Exploring Applicability of LLM-Powered Autonomous Agents to Solve Real-life Problems: Microsoft Entra ID Administration Agent

(MEAN)

887
