Creating an Academic Prometheus in Brazil: Weaving Check50, Autolab

and MOSS into a Uniﬁed Autograder

Kevin Monteiro do Nascimento Ponciano

1 a

, Abrantes Ara

ujo Silva Filho

1 b

Jean-R

emi Bourguet

1 c

and Elias de Oliveira

2 d

Department of Computer Science, Vila Velha University, Vila Velha, Brazil

Postgraduate Program of Informatics (PPGI), Federal University of Esp

ırito Santo, Vit

oria, Brazil

Keywords:

Autograder, Programming Activities, Criteria-Based Evaluation, Virtual Environments, Plagiarism Detection.

Abstract:

The evaluation of programming exercises submitted by a large volume of students presents an ongoing chal-

lenge for educators. As the number of students engaging in programming courses continues to rise, the burden

of assessing their work becomes increasingly demanding. To address this challenge, automated systems known

as autograders have been developed to streamline the evaluation process. Autograders recognize solutions and

assign scores based on predeﬁned criteria, thereby assisting teachers in efﬁciently assessing student programs.

In this paper, we propose the creation of a comprehensive autograding platform in a Brazilian university by

leveraging open-source technologies pioneered by prestigious universities such as Harvard, Carnegie Mellon,

and Stanford. Job processing servers, interface components, and anti-plagiarism modules are integrated to

provide educators with an evaluation tool, ensuring efﬁciency in grading processes and fostering enriched

learning experiences. Through data analysis of the students’ submissions, we aim to emphasize the platform’s

effectiveness and pinpoint areas for future enhancements to better cater to the needs of educators and students.

1 INTRODUCTION

With the rapid evolution of technology in recent

times, there has been a signiﬁcant increase in the

demand for higher education courses related to the

IT market. Fields such as Computer Science, Com-

puter Engineering, and Information Systems are ex-

periencing heightened interest, leading many univer-

sities to open new slots and accommodate larger class

sizes. To meet this demand, a single professor of-

ten ﬁnds themselves responsible for multiple classes

in IT-related undergraduate programs. On the other

hand, when examining teaching methodologies, it be-

comes apparent that the majority of programming

subjects follow a standard pattern. This involves ex-

plaining an algorithm, the theory behind it, and then

instructing students to recreate the algorithm in a spe-

ciﬁc programming language (Bergin et al., 1996).

However, challenges arise when the professor

needs to assess each student’s programming activ-

https://orcid.org/0009-0001-2393-7424

https://orcid.org/0009-0008-0121-7566

https://orcid.org/0000-0003-3686-1104

https://orcid.org/0000-0003-2066-7980

ity, including evaluating compilation errors, syntax,

adherence to instructions, and the overall quality of

the code. Although it is the professor’s responsibil-

ity to evaluate these activities, the process becomes

overwhelming and exhausting as they spend numer-

ous hours analyzing variations of the same algorithm.

Fatigue can lead to overlooking errors or successes

during this correction period. Swift feedback is cru-

cial for students to understand their mistakes and learn

how to improve. Given the number of students, lim-

ited class hours, and a packed curriculum, it becomes

challenging for the professor to pinpoint these areas

for all students (Au, 2011). If this assessment is done

manually, it is very challenging to provide detailed

evaluation with quick feedback for a large volume of

students (Breslow et al., 2013).

Based on emerging trends such as the integration

of adaptive learning technologies, utilization of artiﬁ-

cial intelligence and machine learning, and focus on

remote and online learning, new systems have been

developed for the automatic recognition of potential

solutions and mapping these solutions to scores as-

signed automatically based on criteria established by

teachers. These automated systems are generally re-

ferred to as “Autograders” — see for example the

Ponciano, K., Filho, A., Bourguet, J. and de Oliveira, E.

Creating an Academic Prometheus in Brazil: Weaving Check50, Autolab and MOSS into a Uniﬁed Autograder.

DOI: 10.5220/0012736700003693

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 16th International Conference on Computer Supported Education (CSEDU 2024) - Volume 2, pages 439-450

ISBN: 978-989-758-697-2; ISSN: 2184-5026

439

proposal in Nordquist (2007). One of the objectives

of this work is to develop an autograder for the Vila

Velha University (UVV) capable of assisting teachers

in the standardized and detailed evaluation of student

programs.

Another serious issue found in student programs

is plagiarism materialized by the act of copying code.

Even if a course has a clear and rigorous academic in-

tegrity policy, students often copy program code from

each other (and/or copy code from the internet), sub-

mitting the copied program as if it were their own cre-

ation. Plagiarism is a serious problem because it pre-

vents the teacher from knowing if the class is learning

the material and which aspects of the content were

challenging for students and need reinforcement in

class. It is also very difﬁcult for the teacher to man-

ually inspect all codes of all students and determine

if a program is original or plagiarized, as the number

of unique pairs that may contain plagiarism increases

quadratically (Heres and Hage, 2017). It is essential

for the teacher to be able to identify and appreciate

original solutions produced by students and penalize

the plagiarism of program codes. Automatic methods

for measuring similarity between program codes have

been used for many years to help humans detect pla-

giarism (Clough et al., 2003), and there are already

approaches to identify similarities between speciﬁc

programming codes (e.g., C (Sharrock et al., 2019),

SQL (Hu et al., 2022)) or graphs produced in concep-

tual modeling (e.g., ERD (Del Pino Lino and Rocha,

2018), UML (Ionita et al., 2013)). There are already

speciﬁc systems for detecting plagiarism in program

code that provide the teacher with a visually and eas-

ily interpretable report indicating the likelihood of

plagiarism in student codes (John and Boateng, 2021).

Therefore, another objective of this work is to inte-

grate automated plagiarism detection tools into the

autograder that will be produced to assist the teacher.

Many prestigious universities, including Harvard

University and Carnegie Mellon University, have de-

veloped their own tools for code self-correction in

their Computer Science courses, offering open-source

solutions to construct comprehensive and tailored au-

tograding systems. This paper introduces the cre-

ation of a self-correction platform leveraging open-

source technologies such as “check50”

(Sharp et al.,

2020), developed by Harvard University, serving as

a framework for assessing correctness of code, “Au-

tolab”

(Milojicic, 2011), a project originating from

Carnegie Mellon University, employed as the fron-

tend component, “gradelab50”

, a tool to grade a stu-

https://github.com/cs50/check50

https://github.com/autolab/Autolab

https://pypi.org/project/gradelab50/

dent’s submission based on check50’s json report and

a given grading scheme, and “MOSS”

(Schleimer

et al., 2003), created at Stanford University, as the

anti-plagiarism module within the system. This paper

delves into the collaborative integration of these tools,

offering insights into the development and functional-

ity of a versatile and adaptable autograding solution.

The remainder of the paper is structured as fol-

lows: In Section 2, we will present some related

works. In Section 3, we will introduce the compo-

nents we integrated. In Section 4, we will describe

the architecture system of our proposal. In Section 5,

we will present some student feedback about the au-

tograder. Finally, in Section 6, we will conclude and

outline some perspectives.

2 RELATED WORK

The landscape of autograders, tools designed to auto-

mate the grading and evaluation of student program-

ming assignments, encompasses a diverse array of so-

lutions and methodologies.

Barlow et al. (2021) present a survey of the most

popular currently available autograders, reﬂecting the

growing interest and adoption of automated grading

systems in educational settings.

One prominent example is AutoGrader, a frame-

work developed by Helmick (2007) at Miami Univer-

sity for the automatic evaluation of student program-

ming assignments written in Java. Notably, Auto-

Grader supports static code analysis through tools like

PMD, enabling the detection of inefﬁciencies, bugs,

and suboptimal coding practices. While initially tai-

lored for Java, the underlying principles of automated

grading are adaptable to multiple programming lan-

guages.

OverCode, introduced by Glassman et al. (2015),

presents a novel approach to visualizing and exploring

large sets of programming solutions. Through a com-

bination of static and dynamic analysis, OverCode

clusters similar solutions, providing educators with

insights into students’ problem-solving approaches.

Anticipating common mistakes made by novice

programmers, Hogg and Jump (2022) develop test

suites integrated with autograders to provide under-

standable failure messages, enhancing the learning

experience.

Sridhara et al. (2016) employ fuzz testing to iden-

tify behavioral discrepancies between student solu-

tions and reference implementations, enhancing the

robustness of autograding systems.

http://theory.stanford.edu/

∼

aiken/moss/

CSEDU 2024 - 16th International Conference on Computer Supported Education

440

Integrating autograders with Learning Manage-

ment Systems (LMS) or Massive Open Online Course

(MOOC) platforms has been explored in various

works (Danutama and Liem, 2013; Norouzi and

Hausen, 2018; Sharrock et al., 2019; Calder

on et al.,

2020; Ureel II and Wallace, 2019).

While traditional autograders primarily evaluate

based on passed tests, Liu et al. (2019) propose ap-

proaches to handle semantically different execution

paths between student submissions and reference im-

plementations, addressing nuanced evaluation scenar-

ios.

The issue of plagiarism detection within auto-

graders has also received attention (zu Eissen and

Stein, 2006; Ali et al., 2011; Apriyani et al., 2020),

with methodologies ranging from text-based detec-

tion to code similarity analysis, contributing to aca-

demic integrity in programming education.

Furthermore, autograders have found applications

beyond traditional coursework, including competitive

programming (Ariﬁn and Perdana, 2019), large-scale

programming classes (Sharrock et al., 2019), and pro-

gram repairs (Gulwani et al., 2018), block-based cod-

ing assignments (Damle et al., 2023) or exam envi-

ronment (Ju et al., 2018), illustrating their versatility

and utility across diverse educational contexts.

Recognized beneﬁts of autograders include im-

proved student-tutor interactions, enhanced course

quality, increased learning success, and improved

code quality (Norouzi and Hausen, 2018; Marwan

et al., 2020; Hagerer et al., 2021), underlining their

positive impact on programming education.

Autograders are also able to capture the formative

steps that were involved in the development of the ﬁ-

nal submission (Acu

na and Bansal, 2022), providing

valuable insights into the iterative learning process

undertaken by students.

Recent research efforts have focused on reﬁn-

ing autograder functionalities, such as implementing

penalty schemes to encourage reﬂective feedback en-

gagement (Leinonen et al., 2022) and advocating pol-

icy changes in submission formats (Butler and Her-

man, 2023). Additionally, developments like real-

time actionable feedback on code style (Choudhury

et al., 2016) further augment the pedagogical value of

autograders.

In summary, the evolution and proliferation of

autograders have signiﬁcantly transformed program-

ming education, offering scalable, efﬁcient, and in-

sightful assessment mechanisms.

3 COMPONENTS INTEGRATION

The choice of Autolab, check50, gradelab50, and

MOSS is due to their specialized functions for educa-

tion. Autolab simpliﬁes everything with its simple in-

terface, offering fast feedback and assisting in course

and assessment organization. check50 allows for the

quick creation of checks to assess the correctness of

student code, and is supported by an active commu-

nity. gradelab50 is used to grade a student’s submis-

sion based on check50’s json report and a given grad-

ing scheme, and outputs a json report in a format that

can be used by Autolab. Finally, MOSS helps detect

plagiarism for free and accurately, ensuring honesty

in submissions.

3.1 Check50 Integration

check50 is a tool for checking student code in-

troduced in 2012 in CS50 at Harvard

that pro-

vides a simple, functional framework for writing

checks (Sharp et al., 2020). check50 allows teach-

ers to automatically grade code on correctness and to

provide automatic feedback while students are cod-

ing. It is a correctness-testing tool made available to

both students and teachers, automatically runs a suite

of tests against students’ code to evaluate the correct-

ness of each submission.

As a result, check50 has allowed us to provide

students with immediate feedback on their progress

as they complete an assignment while also facilitat-

ing automatic and consistent grading, allowing teach-

ing staff to spend more time giving tailored, qualita-

tive feedback. check50 consists of a tool divided into

two parts. The ﬁrst part encompasses the source code

of the tool, which incorporates veriﬁcation methods,

reading input ﬁles, formatting text outputs, as well

as APIs and other elements that ensure the full func-

tioning of the library. The second part consists of

validators (checks), which allow educators, follow-

ing a standard structure, to develop speciﬁc problems.

These include validation steps, customization of feed-

back for approved or rejected steps, and the creation

of a model code that check50 uses to determine the

correctness of the code submitted by the student.

A great advantage of check50 is its modularity, al-

lowing a complete separation between the tool and

its validators. This enables any educator to use pre-

existing validators, developed by the community, or

create their own validators. These can be executed

both online, with the validators hosted on GitHub, and

locally, in a check50 installation.

https://www.edx.org/cs50

Creating an Academic Prometheus in Brazil: Weaving Check50, Autolab and MOSS into a Uniﬁed Autograder

441

Creating validators can be done locally or through

repositories on GitHub, without the need to be on the

same machine where check50 is installed. To build a

basic validator, only a .yaml ﬁle named .cs50.yml

is required, which deﬁnes the name of the validation,

the command to be executed, the expected output, and

the required exit code as described in Listing 1. Note

that for more complex validations, it is recommended

to use Python in a ﬁle named __init__.py.

 

check50 :

c h ec k s :

o l a : # d e f i n e a c heck named o l a

− r u n : p y th o n 3 o l a . py # r u n s o l a . py

s t d o u t : Ol

a ! # e x p e c t Ol

a ! i n

s t d o u t

e x i t : 0 # e x p e c t e x i t c o d e 0

o l a s : # d e f i n e a c h e c k named o l a s

− r u n : p y th o n 3 o l a s . py # r u n s o l a s . py

s t d i n : 2 # i n s e r t 2 i n t o

s t d i n

s t d o u t : o l a o l a # o l a o l a i n

s t d o u t

e x i t : 0 # e x p e c t e x i t c o d e

 

Listing 1: Simple checks.

The Listing 2 illustrates advanced checks, initially

verifying the compilation of the ola.c ﬁle. Subse-

quently, upon successful compilation, it proceeds to

validate whether the ﬁle appropriately outputs the ex-

pected message.

 

i m po rt c h e ck 5 0

i m po rt c h e ck 5 0 . c

@check50 . c h e c k ( )

d e f e x i s t s ( ) :

” ” ”O a r q u i v o o l a . c e x i s t e ?” ””

ch e c k 50 . e x i s t s ( ” o l a . c ” )

@check50 . c h e c k ( e x i s t s )

d e f c o m pi l e s ( ) :

” ” ” V e r i f i c a s e o a r q u i v o o l a . c c o mp i l a : ” ” ”

ch e c k 50 . c . CFLAGS= { ' ggdb ' : Tr ue , ' lm ' : True , '

s t d ' : ' c17 ' , ' Wall ' : Tru e , ' W pe da nt ic ' : T ru e }

ch e c k 50 . c . c om p i le ( ” o l a . c ” , e xe na me =” o l a ” ,

cc =” gcc ” , m a x l o g l i n e s =50 , l c s 5 0 = Tr u e )

@check50 . c h e c k ( c o m p i l e s )

d e f uvv ( ) :

” ” ” Re sp ond e c o r r e t a m e n t e ao nome UVV? ” ” ”

ch e c k 50 . r u n ( ” . / o l a ” ) . s t d i n ( ”UVV” ) . s t d o u t ( ”

Ola , UVV! ” ) . e x i t ( )

@check50 . c h e c k ( c o m p i l e s )

d e f k e v in ( ) :

” ” ” Re sp ond e c o r r e t a m e n t e ao nome Ke vin ? ” ” ”

ch e c k 50 . r u n ( ” . / o l a ” ) . s t d i n ( ” Ke vin ” ) . s t d o u t ( ”

a , Ke vi n ! ” ) . e x i t ( )

 

Listing 2: Advanced checks.

Additionally, it is possible to conﬁgure check50 in

detail through the .cs50.yml ﬁle as described in List-

ing 3, specifying which ﬁles will be submitted to the

tests and which will be excluded, as well as including

test dependencies, such as external libraries that will

be installed during the execution of check50.

 

check 5 0 :

f i l e s : &c h e c k 5 0 f i l e s

− ! e x c l u d e ”

”

− ! r e q u i r e o l a . c

 

Listing 3: Test details.

To locally execute a test, use the command:

check50 --dev path/to/check/ -o json on the

ﬁles speciﬁed in the .cs50.yml. It will generate a

JSON ﬁle with both successful and failed tests, as de-

scribed in Listing 4.

 

{

” s l u g ” : ” . . / a u t o g r a d e r / . che c k5 0 / ” ,

” r e s u l t s ” : [

{

” name ” : ” e x i s t e ” ,

” d e s c r i p t i o n ” : ” o l a . c e x i s t e ? ” ,

” p a s s ed ” : t r u e ,

” l o g ” : [

” c h ec ki n g t h a t o l a . c e x i s t s . . . ” ] ,

” c a us e ” : n u l l ,

” d a t a ” : { } ,

” de p e n d e n c y ” : n u l l

} ,

{

” name ” : ” c o m p i l a ” ,

” d e s c r i p t i o n ” : ” o l a . c c o m p i la ? ” ,

” p a s s ed ” : t r u e ,

” l o g ” : [

” ru n n i n g gc c o l a . c −o o l a . . . ” ] ,

” c a us e ” : n u l l ,

” d a t a ” : { } ,

” de p e n d e n c y ” : ” e x i s t e ”

} ,

{

” name ” : ” r e s p o s t a ” ,

” d e s c r i p t i o n ” : ” c o r r e t o ? ” ,

” p a s s ed ” : t r u e ,

” l o g ” : [

” ru n n i n g . / o l a . . . ” ,

” c h ec ki n g f o r o u t p u t Ol

a ! . . . ,

” c h ec ki n g e x i t e d w i th 0 . . . ” ] ,

” c a us e ” : n u l l ,

” d a t a ” : { } ,

” de p e n d e n c y ” : ” c o m p i l a ”

}

] ,

” v e r s i o n ” : ” 3 . 3 . 7 ”

}

 

Listing 4: JSON ﬁle results.

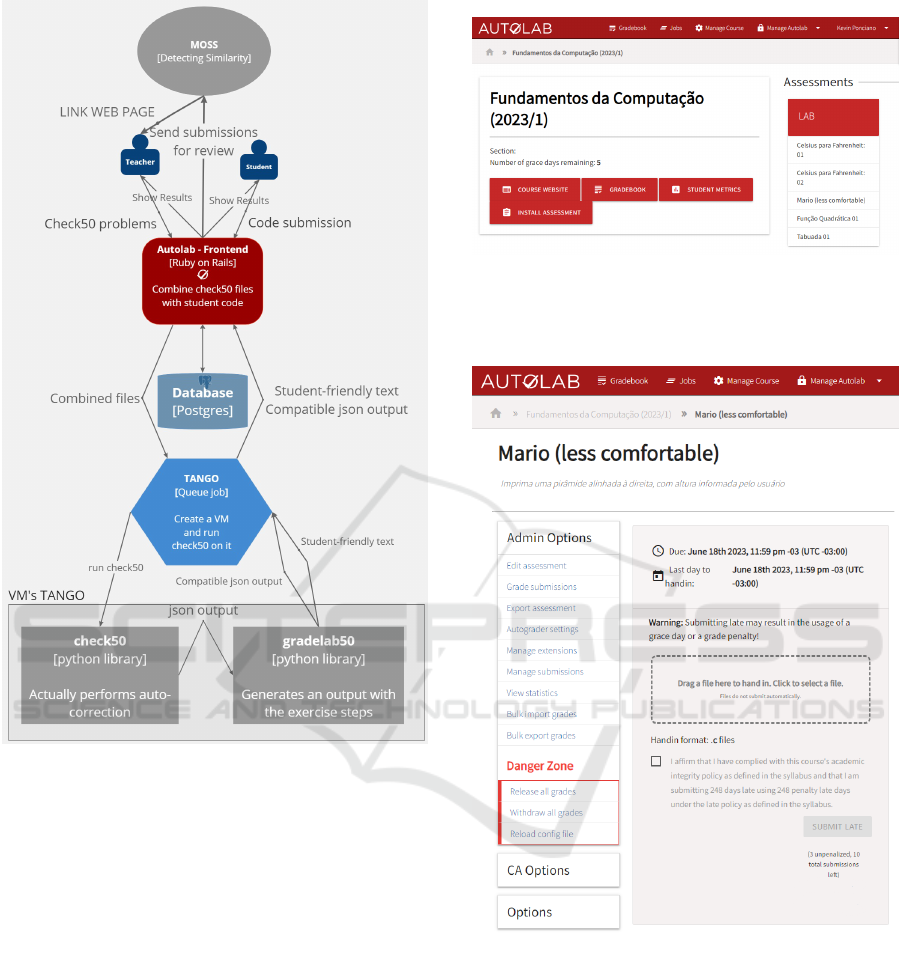

3.2 Autolab Integration

Autolab is an open source course management and

autograding service started at Carnegie Mellon by

Professor David O’Hallaron (see Milojicic (2011)).

Many courses from other schools including Univer-

sity of Washington, Peking University, Cornell Uni-

CSEDU 2024 - 16th International Conference on Computer Supported Education

442

versity, among others use the service. Autolab con-

sists of two main components: a Ruby on Rails

web app, and Tango, a Python job processing server.

The web app offers a full suite of course manage-

ment tools including scoreboards, conﬁgurable as-

signments, PDF and code handouts, grade sheets, and

plagiarism detection. The job processing server ac-

cepts job requests to run students’ code along with an

instructor written autograding script within a virtual

machine.

After receiving the submitted ﬁles, the Autolab

frontend forwards them to Tango, a backend system,

through HTTP requests. Tango, in turn, inserts these

ﬁles into a job queue, preparing them for evaluation.

The assignment of jobs to available containers or vir-

tual machines is done via SSH, ensuring that each

submission is processed in an isolated and secure en-

vironment. This system allows Tango to efﬁciently

direct jobs through the evaluation process. Tango has

the ability to direct jobs to appropriate VM instances

based on the corresponding course. For example, jobs

for course CS1 are exclusively directed to the CS1

VM instance, ensuring that the evaluation takes place

in the most suitable environment.

After a job is completed, the feedback is trans-

ferred back to Tango via SSH. This feedback is then

forwarded to the Autolab frontend through HTTP re-

quests. The frontend is responsible for presenting the

comments to users, either through the browser or CLI.

Additionally, the system can update grades on the stu-

dent’s report card, if necessary, and store comments in

the database for future access.

3.3 MOSS Integration

MOSS (for a Measure Of Software Similarity) is an

automatic system for determining the similarity of

programs introduced in 1994 at Stanford (Schleimer

et al., 2003). The main application of MOSS is actu-

ally used to detect plagiarism in programming classes.

The algorithm behind MOSS is a signiﬁcant improve-

ment over other cheating detection algorithms. It

saves teachers and teaching staff a lot of time by

pointing out the parts of programs that are worth a

more detailed examination.

The tool is developed to identify similarities be-

tween codes, but it does not have the ability to auto-

matically determine if one code is a copy of another.

The responsibility to analyze the similarities detected

by MOSS falls on the educator. The developers sug-

gest using MOSS as a resource to assess the amount

of similarity between codes, helping to identify un-

usual correspondences that may require further inves-

tigation.

The implementation of MOSS is facilitated by a

bash conﬁguration script, which allows users to sub-

mit their code for analysis by the MOSS server, sim-

plifying the submission process. Users can specify

the programming language of the tested codes using

the -l option. This allows for a more accurate anal-

ysis, as MOSS supports various languages. In List-

ing 5, Lisp programs are compared for example.

 

moss − l l i s p f o o . l i s p b a r . l i s p

 

Listing 5: Moss example use.

Moreover, the -d option signiﬁes that submissions

are structured by directory, considering ﬁles within

the same directory as components of a uniﬁed pro-

gram, as presented in Listing 6. This comparison in-

volves programs composed of both .c and .h ﬁles.

 

moss −d f oo /

. c f oo /

. h b a r /

. c b a r /

. h

 

Listing 6: Moss example use.

A crucial aspect in similarity analysis is to avoid

considering as plagiarism the code that is common to

all students, such as the code provided by the instruc-

tor. This is done through the -b option, which speci-

ﬁes a base ﬁle, excluding from the report the code also

present in this ﬁle. To adjust the system’s sensitiv-

ity, the -m option sets the maximum number of times

a code snippet can appear before being disregarded,

helping to differentiate between legitimate sharing

and potential plagiarism. Finally, the -n option sets

the number of corresponding ﬁles to be shown in the

results. Using these options provides users with sig-

niﬁcant ﬂexibility in the use of MOSS, allowing for

adjustments as needed to obtain more precise and rel-

evant similarity analyses, facilitating the identiﬁca-

tion of unusual correspondences that may require fur-

ther investigation.

The similarity scores produced by MOSS are use-

ful for judging the relative amount of matching be-

tween different pairs of programs and for more easily

seeing which pairs of programs stick out with unusual

amounts of matching. But the scores are certainly not

a proof of plagiarism.

4 SYSTEM ARCHITECTURE

In order to use check50, Autolab and MOSS together,

some modiﬁcations were necessary. In Figure 1, we

illustrate the system architecture diagram detailing

the components of our Brazilian Autograder solution.

Students initiate the evaluation process by submit-

ting their code, engaging in an interactive assessment

Creating an Academic Prometheus in Brazil: Weaving Check50, Autolab and MOSS into a Uniﬁed Autograder

443

Figure 1: System architecture diagram.

facilitated by Autolab. Autolab acts as the interme-

diary, for combining check50 ﬁles with student code

to create a consolidated ﬁles database. Tango then

orchestrates the creation of a Virtual Machine (VM)

and executes check50 within it, showcasing the back-

end processing of code submissions. This pivotal step

ensures the execution of automated tests on student

submissions within a controlled environment. The

process concludes with two concurrent outcomes: the

Tango JSON output from the VM and the operation

of check50 and gradelab50. These components are

responsible for executing auto-correction and gener-

ating outputs detailing the exercise steps. Addition-

ally, teachers have the option to submit assignments

for review, enabling plagiarism detection or similar-

ity checking and maintaining academic integrity and

originality in student work.

The course home page of our autograder is de-

picted in Figure 2.

Figure 2: Course home page.

Figure 3 illustrates the submission page of our au-

tograder.

Figure 3: Submission page.

In the VMs created by Tango, it is possible to per-

form any type of self-assessment in numerous pro-

gramming languages, as long as the test output ad-

heres to the required JSON format for Autolab to in-

terpret and render on the frontend whether the test

passed, failed, the grade for each step, and any nec-

essary hints.

We ﬁrst modiﬁed the Dockerﬁle of Tango’s VMs

to install check50. Then, we modiﬁed the Makeﬁles

that Autolab executes to start the autograder. There-

fore, in addition to running a simple Python test, for

example, it can also run check50.

CSEDU 2024 - 16th International Conference on Computer Supported Education

444

 

a l l :

t a r x vf a u t o g r a d e . t a r

cp − r c r e d i t . py s r c

( cd s r c ; p y th o n3 d r i v e r . py ; )

c l e a n :

rm − r f

\˜ s r c

 

Listing 7: Default Makeﬁle.

 

a l l :

t a r x vf a u t o g r a d e . t a r

− c h e c k 5 0 −− d ev / s r c / −o j s o n

c l e a n :

rm − r f

\˜ s r c

 

Listing 8: Modiﬁed Makeﬁle with check50.

In the Makeﬁle presented in Listing 7, the systems

extracts the necessary ﬁles to perform the test, copies

the ﬁle submitted by the student to the src folder, and

then executes the Python code responsible for auto-

correction.

In the second Makeﬁle presented in Listing 8, the

systems simply extracts the folder already structured

with the necessary ﬁles to perform the auto-correction

following the check50 standard, and then executes

check50.

Consequently, Autolab performs self-corrections

for each code submitted by the student using check50.

However, at this stage, we encountered a conﬂict be-

tween the two components. Autolab expects the test

to return a JSON with the problems passed in the eval-

uation with their respective grades, while check50 re-

turns a completely different JSON and without the

necessary grades for Autolab to register them on the

student’s report card.

To bridge this gap and tackle this incompatibil-

ity, we used grade50, developed by Professor Patrick

Totzke

from the University of Liverpool. grade50

reads the JSON report produced by check50 and,

based on parameters established in a .yaml ﬁle, gen-

erates a textual output. This output can be formatted

either in a .jinja2 template ﬁle or in a JSON format.

Listing 9 deﬁnes a scoring schema for two main

categories: ”Compilation” and ”Correctness”. Each

category contains speciﬁc checks, with points as-

signed per test. Custom comments are deﬁned for

each possible outcome, providing clear and targeted

feedback to students.

https://github.com/pazz/grade50

 

− name : ” Com p ila c¸

a o ”

c h e c k s :

− name : ” e x i s t e ”

p o i n t s : 20

f a i l c om m e n t : ”FALHOU ( 0 / 2 0 p o n t o s ) :

Ar q u i vo o l a . c n

a o e nc o n t r a d o . ”

pa s s c o m m en t : ”PASSOU ( 2 0 / 2 0 p o n t os ) :

O a r qu i v o o l a . c e x i s t e . ”

− name : ” co m p i l a ”

p o i n t s : 30

f a i l c om m e n t : ”FALHOU ( 0 / 3 0 p o n t o s ) :

Ar q u i vo n

a o c o m p i l a . ”

pa s s c o m m en t : ”PASSOU ( 3 0 / 3 0 p o n t os ) :

S u c e s s o : a r q u i v o c o m p i l a d o . ”

− name : ” C o r r e t u d e ”

c h e c k s :

− name : ” r e s p o s t a ”

p o i n t s : 50

f a i l c om m e n t : ”FALHOU ( 0 / 5 0 p o n t o s ) :

O o u t p u t n

a o e s t

a c o r r e t o . ”

pa s s c o m m en t : ”PASSOU ( 5 0 / 5 0 p o n t os ) :

O o u t p u t e s t

a c o r r e t o . ”

 

Listing 9: Scoring schema.

The output generated by grade50 follows the tem-

plate of the .jinja2 ﬁle. It provides a summary of

the points obtained per test group, followed by de-

tails on speciﬁc comments for each group. This struc-

ture facilitates the understanding of results by stu-

dents and teachers, highlighting areas of success and

areas needing improvement.

grade50 greatly improves check50’s capabilities

by incorporating a quantitative aspect to code eval-

uation, thereby enriching the learning experience

through comprehensive insights into student perfor-

mance. However, the output of grade50 also differs

from the JSON expected by Autolab. With the au-

thorization of Professor Patrick Totzke, we modiﬁed

grade50 into a component that we called gradelab50

to produce an output exactly in the format expected

by Autolab as presented in Figure 4.

After these minor changes, check50 performs

self-assessments of student submissions, gradelab50

retrieves the output generated by check50, scores

the submissions according to the successfully passed

steps, and Autolab records the grades on the students’

report card and provides the feedback generated by

gradelab50 to the students.

Autolab streamlines MOSS usage by incorporat-

ing it directly into its platform, replacing command-

line instructions with a user-friendly interface. Within

this interface, users only need to specify certain con-

ﬁgurations, such as ﬁle compression status, ﬁle lan-

guage, and the base ﬁle selection. Once these options

are deﬁned, ﬁles can be uploaded via the web browser

for analysis and submission as depicted in Figure 5.

Autolab’s backend manages the execution of the

pre-indexed MOSS script on the server. Upon com-

Creating an Academic Prometheus in Brazil: Weaving Check50, Autolab and MOSS into a Uniﬁed Autograder

445

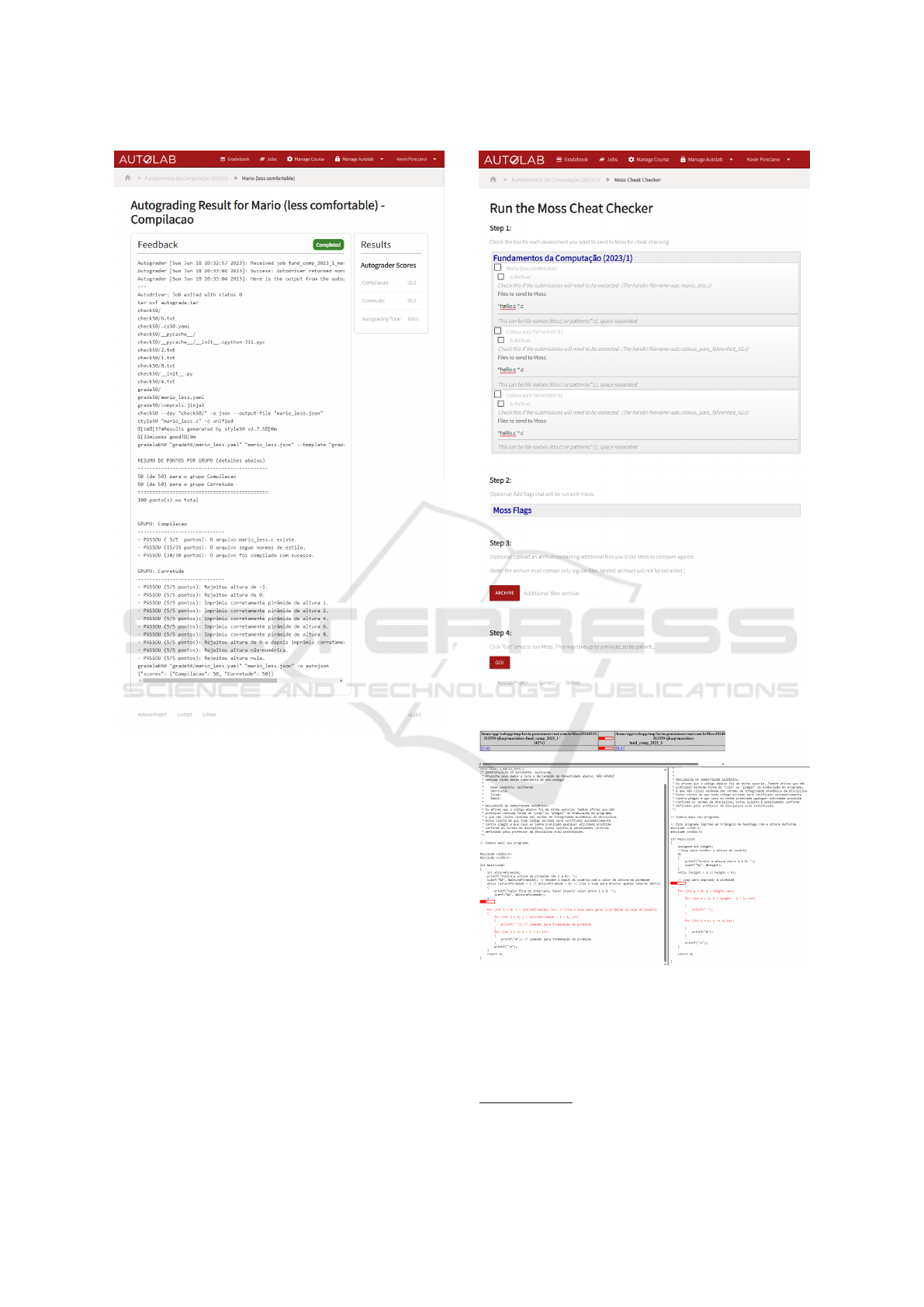

Figure 4: Correction Feedback Page.

pletion of the script, users are directed to the MOSS

webpage, where they can review the submitted ﬁles

and identify potential instances of plagiarism among

students as shown in Figure 6.

5 BENEFITS AND DRAWBACKS

In Fall 2023, 1,144 submissions were made by 82 stu-

dents (average of 14 submissions/student), marking

an unprecedented volume of submissions. This con-

trasts with the period when teachers were required

to manually execute and correct student work. The

tasks performed by the students were basically of two

broad types: simple exercises, so that students could

develop fundamental programming skills, and PSETs

(Problem Sets), so that students could develop com-

putational thinking skills and train the ability to solve

problems. The exercises were developed by the sub-

ject teachers, and the PSETs were adapted from Har-

Figure 5: Graphical User Interface of Autolab with MOSS.

Figure 6: MOSS webpage.

vard Course CS50x

The PSETs were translated into Brazilian Por-

tuguese and some were adapted to reﬂect the reality

https://cs50.harvard.edu/x/2023/

CSEDU 2024 - 16th International Conference on Computer Supported Education

446

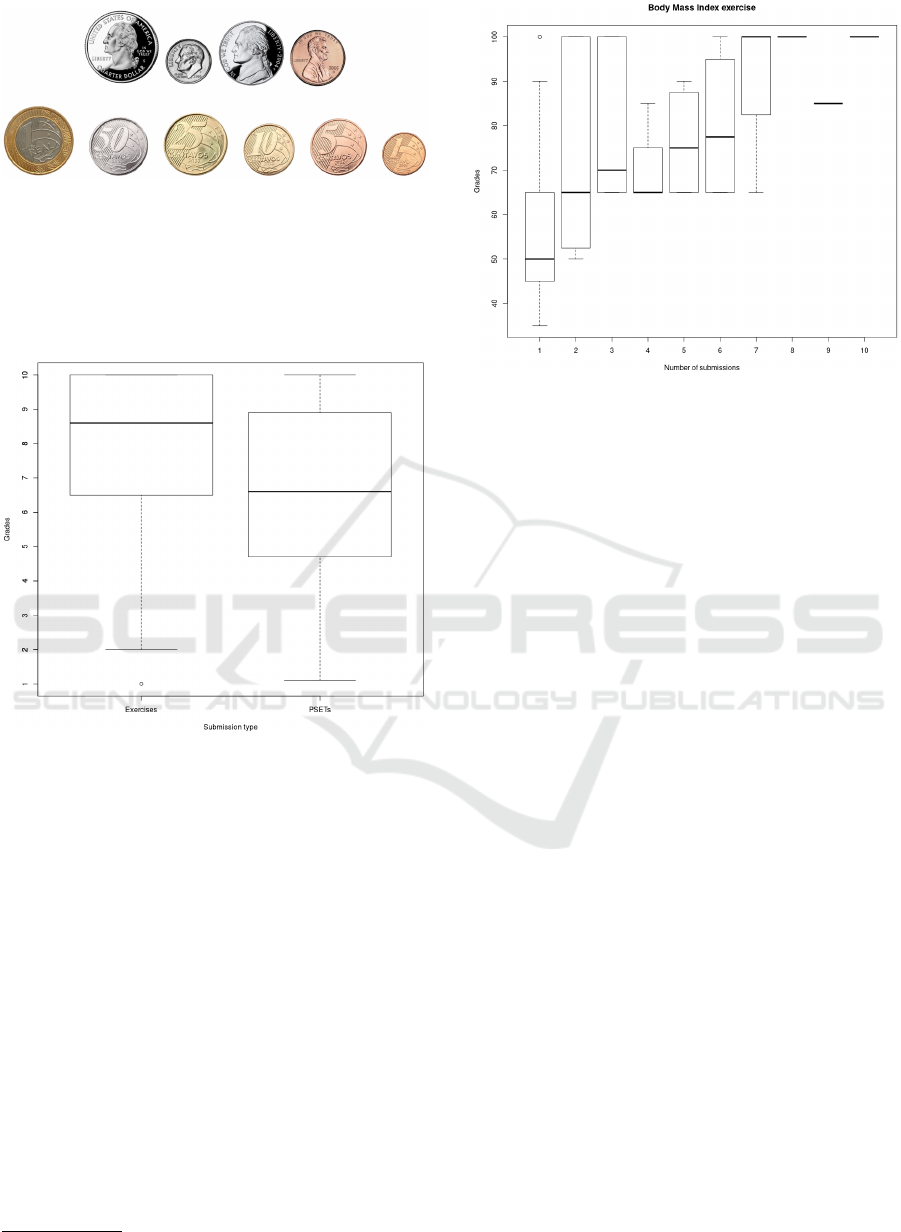

Figure 7: American (above) x Brazilian (below) coins.

in Brazil. For example, in the original PSET Cash

American coins were used, and in the translated and

adapted PSET, Brazilian coins were used, as shown in

Figure 7. All check50 “checks” have been rewritten

to reﬂect the adapted version of the PSETs.

Figure 8: Grades by submission type.

As expected, students’ grades (on a scale from 0

to 10) were better in the simple exercises and lower

in the PSETS, as depicted in Figure 8, considering all

submissions and all exercises and PSETs.

When we analyzed a speciﬁc programming exer-

cise, for example, the calculation of body mass index,

we noticed that, as expected, students’ grades were

higher according to the number of submissions they

make to Autolab, as described in Figure 9.

At the moment we did not limit the number of

submissions that a student could make: he could sub-

mit as many times as he wanted, until he got a good

grade. The student realized the ﬁrst submission, re-

ceived feedback from Autolab, debugged his program

and submited it again, until he succeeded.

Our autograder solution has helped our teachers to

improve the consistency and the efﬁciency of grading

student’s assignments. Furthermore, the autograder

allowed teachers to spend more time on qualitative

https://cs50.harvard.edu/x/2023/psets/1/cash/

Figure 9: Grades by number of submissions.

feedback for students.

Another clear beneﬁt was that, by reducing the

need for manual code correction, teachers were able

to take advantage of the time saved to enhance pro-

gramming exercises and develop new exercises de-

signed to assess speciﬁc student skills.

Students in our CS1 course have also taken advan-

tage of the instantaneous feedback on code’s correct-

ness provided by check50, and students’ motivation

level has increased with informal and friendly com-

petition through the anonymous grade scoreboard.

The interface provided by Autolab, which allows

the teacher to make notes directly on the student’s

code, was cited by the students themselves as one of

the system’s most useful features.

In general, our platform allowed teachers and stu-

dents to optimize their time and make better use of

interaction periods.

However, some problems occurred. We have

found that some students have begun to use our au-

tograder as a debug tool, in a kind of trial and error

coding, instead of thinking about the problem and cre-

ating a solution. These students were unable to estab-

lish healthy habits for planning, compiling, running

and debugging their programs. Despite being real

problems, they are pedagogically manageable during

ofﬁce hours or other direct meetings with students.

Another limitation we faced pertained to the anal-

ysis of student data. Although Autolab provides

several tools for reporting and simple data analysis,

including monitoring of low performance students,

there is no easy way to export data in a format more

suitable to our needs. The analysis of the grades we

show was actually based on manual data collection

and veriﬁcation, a process that is slow and prone to

errors. In future work, one of our priorities will be to

Creating an Academic Prometheus in Brazil: Weaving Check50, Autolab and MOSS into a Uniﬁed Autograder

447

gain a deeper understanding of how Autolab stores all

data and to develop routines for retrieving data that

are best suited to our needs.

6 CONCLUSIONS

One of the crucial aspects in the teaching-learning

process of computer science disciplines is the learning

assessment phase and the evaluation of codes written

by students. Ideally, this assessment should be stan-

dardized and detailed, with students receiving prompt

feedback on what is correct and/or incorrect. How-

ever, teachers face a signiﬁcant challenge in achiev-

ing standardized and detailed evaluation with quick

feedback in classes (in-person or virtual) with a large

number of students. The main issue is the time it takes

for the professor to provide feedback to the students.

In this paper, we have discussed the development

and integration of a comprehensive autograding sys-

tem tailored for programming assignments in educa-

tional settings. To mitigate these challenges, we pro-

posed the integration of automated tools, including

check50, Autolab, and MOSS, to streamline the grad-

ing process and enhance the overall learning experi-

ence. Our approach leverages open-source technolo-

gies and existing frameworks developed by renowned

institutions, such as Harvard University and Carnegie

Mellon University. By combining these tools into a

cohesive autograding platform, we aimed to provide

educators with efﬁcient means to assess student pro-

grams, detect plagiarism, and deliver timely feedback.

Our evaluation of the system’s performance show-

cased signiﬁcant improvements in grading efﬁciency

and consistency, as evidenced by the substantial in-

crease in the number of submissions processed within

a semester. Generally, the feedbacks provided by an

autograder prior to students’ submission of each as-

signment compel students to spend more time debug-

ging and allow the students to obtain higher correct-

ness scores (Norouzi and Hausen, 2018; Sharp et al.,

2020).

Future work may also involve further reﬁning the

integration of supplementary features, such as peer-

review by students (Silva et al., 2020a), or incorpo-

rating intelligent tutoring systems based on Item Re-

sponse Theory (Silva et al., 2020d,c,b). These en-

hancements aim to augment the pedagogical efﬁcacy

of a more comprehensive and multi-functional auto-

grader.

REFERENCES

Acu

na, R. and Bansal, A. (2022). Using programming auto-

grader formative data to understand student growth. In

IEEE Frontiers in Education Conference, FIE 2022,

Uppsala, Sweden, October 8-11, 2022, pages 1–8.

IEEE.

Ali, A. M. E. T., Abdulla, H. M. D., and Sn

asel, V.

(2011). Overview and comparison of plagiarism de-

tection tools. In Sn

asel, V., Pokorn

y, J., and Richta,

K., editors, Proceedings of the Dateso 2011: Annual

International Workshop on DAtabases, TExts, Speciﬁ-

cations and Objects, Pisek, Czech Republic, April 20,

2011, volume 706 of CEUR Workshop Proceedings,

pages 161–172. CEUR-WS.org.

Apriyani, N., Atmadja, A. R., Fuadi, R. S., and Ger-

hana, Y. A. (2020). The detector of plagiarism

in autograder for php programming languages. In

ICONISTECH-1 2019: Selected Papers from the 1st

International Conference on Islam, Science and Tech-

nology, ICONISTECH-1 2019, 11-12 July 2019, Ban-

dung, Indonesia, page 205. European Alliance for In-

novation.

Ariﬁn, J. and Perdana, R. S. (2019). Ugrade: Auto-

grader for competitive programming using contestant

pc as worker. In 2019 International Conference on

Data and Software Engineering (ICoDSE), pages 1–

6. IEEE.

Au, W. (2011). Teaching under the new taylorism: high-

stakes testing and the standardization of the 21st cen-

tury curriculum. Journal of Curriculum Studies, 43:25

– 45.

Barlow, M., Cazalas, I., Robinson, C., and Cazalas, J.

(2021). Mocside: an open-source and scalable on-

line ide and auto-grader for introductory programming

courses. Journal of Computing Sciences in Colleges,

37(5):11–20.

Bergin, J., Roberts, J., Pattis, R., and Stehlik, M. (1996).

Karel++: A Gentle Introduction to the Art of Object-

Oriented Programming. John Wiley & Sons, Inc.,

USA, 1st edition.

Breslow, L., Pritchard, D. E., DeBoer, J., Stump, G. S., Ho,

A. D., and Seaton, D. T. (2013). Studying learning

in the worldwide classroom research into edx’s ﬁrst

mooc. Research & Practice in Assessment, 8:13–25.

Butler, L. and Herman, G. L. (2023). First try, no (auto-

grader) warm up: Motivating quality coding submis-

sions. In 2023 ASEE Annual Conference & Exposi-

tion.

Calder

on, D., Petersen, E., and Rodas, O. (2020). Salp: A

scalable autograder system for learning programming-

a work in progress. In 2020 IEEE Integrated STEM

Education Conference (ISEC), pages 1–4. IEEE.

Choudhury, R. R., Yin, H., and Fox, A. (2016). Scale-driven

automatic hint generation for coding style. In Mi-

carelli, A., Stamper, J. C., and Panourgia, K., editors,

Intelligent Tutoring Systems - 13th International Con-

ference, ITS 2016, Zagreb, Croatia, June 7-10, 2016.

Proceedings, volume 9684 of Lecture Notes in Com-

puter Science, pages 122–132. Springer.

CSEDU 2024 - 16th International Conference on Computer Supported Education

448

Clough, P. et al. (2003). Old and new challenges in auto-

matic plagiarism detection. National plagiarism advi-

sory service, 41:391–407.

Damle, P., Bull, G., Watts, J., and Nguyen, N. R. (2023).

Automated structural evaluation of block-based cod-

ing assignments. In Doyle, M., Stephenson, B., Dorn,

B., Soh, L., and Battestilli, L., editors, Proceedings

of the 54th ACM Technical Symposium on Computer

Science Education, Volume 2, SIGCSE 2023, Toronto,

ON, Canada, March 15-18, 2023, page 1300. ACM.

Danutama, K. and Liem, I. (2013). Scalable autograder and

lms integration. Procedia Technology, 11:388–395.

Del Pino Lino, A. and Rocha, A. (2018). Automatic evalu-

ation of erd in e-learning environments. In 2018 13th

Iberian Conference on Information Systems and Tech-

nologies (CISTI), pages 1–5.

Glassman, E. L., Scott, J., Singh, R., Guo, P. J., and Miller,

R. C. (2015). Overcode: Visualizing variation in

student solutions to programming problems at scale.

ACM Trans. Comput. Hum. Interact., 22(2):7:1–7:35.

Gulwani, S., Radi

cek, I., and Zuleger, F. (2018). Auto-

mated clustering and program repair for introductory

programming assignments. ACM SIGPLAN Notices,

53(4):465–480.

Hagerer, G., Lahesoo, L., Ansch

utz, M., Krusche, S., and

Groh, G. (2021). An analysis of programming course

evaluations before and after the introduction of an au-

tograder. In 19th International Conference on In-

formation Technology Based Higher Education and

Training, ITHET 2021, Sydney, Australia, November

4-6, 2021, pages 1–9. IEEE.

Helmick, M. T. (2007). Interface-based programming as-

signments and automatic grading of java programs. In

Hughes, J. M., Peiris, D. R., and Tymann, P. T., edi-

tors, Proceedings of the 12th Annual SIGCSE Confer-

ence on Innovation and Technology in Computer Sci-

ence Education, ITiCSE 2007, Dundee, Scotland, UK,

June 25-27, 2007, pages 63–67. ACM.

Heres, D. and Hage, J. (2017). A quantitative comparison

of program plagiarism detection tools. In Proceed-

ings of the 6th Computer Science Education Research

Conference, page 73–82, New York, NY, USA. Asso-

ciation for Computing Machinery.

Hogg, C. and Jump, M. (2022). Designing autograders

for novice programmers. In Merkle, L., Doyle, M.,

Sheard, J., Soh, L., and Dorn, B., editors, SIGCSE

2022: The 53rd ACM Technical Symposium on Com-

puter Science Education, Providence, RI, USA, March

3-5, 2022, Volume 2, page 1200. ACM.

Hu, Y., Miao, Z., Leong, Z., Lim, H., Zheng, Z., Roy, S.,

Stephens-Martinez, K., and Yang, J. (2022). I-rex:

An interactive relational query debugger for SQL. In

Merkle, L., Doyle, M., Sheard, J., Soh, L., and Dorn,

B., editors, SIGCSE 2022: The 53rd ACM Technical

Symposium on Computer Science Education, Provi-

dence, RI, USA, March 3-5, 2022, Volume 2, page

1180. ACM.

Ionita, A. D., Cernian, A., and Florea, S. (2013). Automated

UML model comparison for quality assurance in soft-

ware engineering education. eLearning & Software

for Education.

John, S. and Boateng, G. (2021). ”i didn’t copy his code”:

Code plagiarism detection with visual proof. In Roll,

I., McNamara, D. S., Sosnovsky, S. A., Luckin, R.,

and Dimitrova, V., editors, Artiﬁcial Intelligence in

Education - 22nd International Conference, AIED

2021, Utrecht, The Netherlands, June 14-18, 2021,

Proceedings, Part II, volume 12749 of Lecture Notes

in Computer Science, pages 208–212. Springer.

Ju, A., Mehne, B., Halle, A., and Fox, A. (2018). In-class

coding-based summative assessments: tools, chal-

lenges, and experience. In Polycarpou, I., Read, J. C.,

Andreou, P., and Armoni, M., editors, Proceedings of

the 23rd Annual ACM Conference on Innovation and

Technology in Computer Science Education, ITiCSE

2018, Larnaca, Cyprus, July 02-04, 2018, pages 75–

80. ACM.

Leinonen, J., Denny, P., and Whalley, J. (2022). A compar-

ison of immediate and scheduled feedback in intro-

ductory programming projects. In Merkle, L., Doyle,

M., Sheard, J., Soh, L., and Dorn, B., editors, SIGCSE

2022: The 53rd ACM Technical Symposium on Com-

puter Science Education, Providence, RI, USA, March

3-5, 2022, Volume 1, pages 885–891. ACM.

Liu, X., Wang, S., Wang, P., and Wu, D. (2019). Auto-

matic grading of programming assignments: an ap-

proach based on formal semantics. In Beecham, S.

and Damian, D. E., editors, Proceedings of the 41st

International Conference on Software Engineering:

Software Engineering Education and Training, ICSE

(SEET) 2019, Montreal, QC, Canada, May 25-31,

2019, pages 126–137. IEEE / ACM.

Marwan, S., Gao, G., Fisk, S. R., Price, T. W., and Barnes,

T. (2020). Adaptive immediate feedback can improve

novice programming engagement and intention to per-

sist in computer science. In Robins, A. V., Moskal,

A., Ko, A. J., and McCauley, R., editors, ICER 2020:

International Computing Education Research Con-

ference, Virtual Event, New Zealand, August 10-12,

2020, pages 194–203. ACM.

Milojicic, D. S. (2011). Autograding in the Cloud: Inter-

view with David O’Hallaron. IEEE Internet Comput.,

15(1):9–12.

Nordquist, P. (2007). Providing accurate and timely feed-

back by automatically grading student programming

labs. In Arabnia, H. R. and Clincy, V. A., editors,

Proceedings of the 2007 International Conference on

Frontiers in Education: Computer Science & Com-

puter Engineering, FECS 2007, June 25-28, 2007, Las

Vegas, Nevada, USA, pages 41–46. CSREA Press.

Norouzi, N. and Hausen, R. (2018). Quantitative evalua-

tion of student engagement in a large-scale introduc-

tion to programming course using a cloud-based auto-

matic grading system. In IEEE Frontiers in Education

Conference, FIE 2018, San Jose, CA, USA, October

3-6, 2018, pages 1–5. IEEE.

Schleimer, S., Wilkerson, D. S., and Aiken, A. (2003). Win-

nowing: Local algorithms for document ﬁngerprint-

ing. In Halevy, A. Y., Ives, Z. G., and Doan, A.,

editors, Proceedings of the 2003 ACM SIGMOD In-

ternational Conference on Management of Data, San

Creating an Academic Prometheus in Brazil: Weaving Check50, Autolab and MOSS into a Uniﬁed Autograder

449

Diego, California, USA, June 9-12, 2003, pages 76–

85. ACM.

Sharp, C., van Assema, J., Yu, B., Zidane, K., and Malan,

D. J. (2020). An open-source, api-based framework

for assessing the correctness of code in CS50. In Gian-

nakos, M. N., Sindre, G., Luxton-Reilly, A., and Div-

itini, M., editors, Proceedings of the 2020 ACM Con-

ference on Innovation and Technology in Computer

Science Education, ITiCSE 2020, Trondheim, Norway,

June 15-19, 2020, pages 487–492. ACM.

Sharrock, R., Bonfert-Taylor, P., Hiron, M., Blockelet, M.,

Miller, C., Goudzwaard, M., and Hamonic, E. (2019).

Teaching C programming interactively at scale using

taskgrader: an open-source autograder tool. In Pro-

ceedings of the Sixth ACM Conference on Learning

@ Scale, L@S 2019, Chicago, IL, USA, June 24-25,

2019, pages 56:1–56:2. ACM.

Silva, W., Alves, J., Brito, J. O., Bourguet, J., and

de Oliveira, E. (2020a). An easy-to-read visual ap-

proach to deal with peer reviews and self-assessments

in virtual learning environments. In ICBDE ’20: The

3rd International Conference on Big Data and Edu-

cation, London, UK, April 1-3, 2020, pages 73–79.

ACM.

Silva, W., Spalenza, M., Bourguet, J., and de Oliveira, E.

(2020b). Lukewarm starts for computerized adap-

tive testing based on clustering and IRT. In Lane,

H. C., Zvacek, S., and Uhomoibhi, J., editors, Com-

puter Supported Education - 12th International Con-

ference, CSEDU 2020, Virtual Event, May 2-4, 2020,

Revised Selected Papers, volume 1473 of Communi-

cations in Computer and Information Science, pages

287–301. Springer.

Silva, W., Spalenza, M., Bourguet, J., and de Oliveira, E.

(2020c). Recommendation ﬁltering

a la carte for in-

telligent tutoring systems. In Boratto, L., Faralli, S.,

Marras, M., and Stilo, G., editors, Bias and Social As-

pects in Search and Recommendation - First Interna-

tional Workshop, BIAS 2020, Lisbon, Portugal, April

14, 2020, Proceedings, volume 1245 of Communica-

tions in Computer and Information Science, pages 58–

65. Springer.

Silva, W., Spalenza, M., Bourguet, J., and de Oliveira, E.

(2020d). Towards a tailored hybrid recommendation-

based system for computerized adaptive testing

through clustering and IRT. In Lane, H. C., Zvacek,

S., and Uhomoibhi, J., editors, Proceedings of the 12th

International Conference on Computer Supported Ed-

ucation, CSEDU 2020, Prague, Czech Republic, May

2-4, 2020, Volume 1, pages 260–268. SCITEPRESS.

Sridhara, S., Hou, B., Lu, J., and DeNero, J. (2016). Fuzz

testing projects in massive courses. In Haywood, J.,

Aleven, V., Kay, J., and Roll, I., editors, Proceedings

of the Third ACM Conference on Learning @ Scale,

L@S 2016, Edinburgh, Scotland, UK, April 25 - 26,

2016, pages 361–367. ACM.

Ureel II, L. C. and Wallace, C. (2019). Automated critique

of early programming antipatterns. In Hawthorne,

E. K., P

erez-Qui

nones, M. A., Heckman, S., and

Zhang, J., editors, Proceedings of the 50th ACM Tech-

nical Symposium on Computer Science Education,

SIGCSE 2019, Minneapolis, MN, USA, February 27

- March 02, 2019, pages 738–744. ACM.

zu Eissen, S. M. and Stein, B. (2006). Intrinsic plagiarism

detection. In Lalmas, M., MacFarlane, A., R

uger,

S. M., Tombros, A., Tsikrika, T., and Yavlinsky, A.,

editors, Advances in Information Retrieval, 28th Eu-

ropean Conference on IR Research, ECIR 2006, Lon-

don, UK, April 10-12, 2006, Proceedings, volume

3936 of Lecture Notes in Computer Science, pages

565–569. Springer.

CSEDU 2024 - 16th International Conference on Computer Supported Education

450
