Automatic Generation of Problem-Solving Assessment Items

Through Domain Model Variations

Inga M. Saatz

Fachbereich Informatik, University of Applied Sciences and Arts Dortmund, Emil-Figge Strasse 42, Dortmund, Germany

Keywords: Item Generation, Problem-Solving, Domain Model, Assessment.

Abstract: In computer science education, variations in the application contexts in modelling and programming tasks

enhance the development of problem-solving skills. This results in a demand for a vast training and testing

corpus of open questions with varying domain models usable in online and offline assessments. This paper

proposes a two-step workflow for the automatic generation of items with varied domain models. First,

experiences are provided about using the generated test corpora in formative assessments in computer science

courses in higher education, especially for problem-based questions.

1 INTRODUCTION

In an online assessment, an interaction between

learners during the examinations could not be

sufficiently excluded, mainly if web-based test tools

by a learning management system are used or

programming tasks should be done within the

examination. One solution is the provision of

individual assessment tasks for each student of

similar difficulty levels. This individualised approach

requires the development and quality assurance of a

vast pool of test items before the examination.

In computer science education, however, students

learn problem-solving skills, such as analysing and

modelling real-life scenarios, implementing the

models in computer programs, and testing the

implemented programs. Subsequently, students show

their ability to understand and apply their knowledge

in the context of practical problems by using different

domains (Ferreira et al., 2018).

This leads to the research question of how to

develop items for measuring problem-solving skills

in computer science education using models for

multiple domains, which would effectively prevent

students from cheating in online examinations.

However, support for varying domain models in

automatic item generation is missing, especially for

items addressing problem-solving skills.

https://orcid.org/0000-0002-7371-806X

This paper proposes a two-step workflow for the

automatic generation of items with varied domain

models applicable to higher education in computer

science.

This paper is structured as follows: The second

paragraph outlines the related work, whereas the

following paragraph presents the proposed two-step

workflow. The fourth paragraph discusses the first

experiences using the proposed item generation

workflow, followed by a discussion section. The

paper concludes with a summary and an outlook.

2 RELATED WORK

Closed question types are most frequently used in

automatic item generation, such as single- and

multiple-choice, free-text, and fill-in-the-blank

questions. In contrast, open-ended questions are less

used in educational assessments (Circi, Hicks, Sikali,

2023). All these question types consist of a reading

passage with a context description followed by the

question to be answered. Furthermore, closed

question types contain items, distractors, and the

correct answers (Gierl et al. 2021). In mathematical

and engineering education, various numerical values

might be sufficient to create different items. In

computer science, however, the automatic generation

of variations in the task’s domain model description

830

Saatz, I.

Automatic Generation of Problem-Solving Assessment Items Through Domain Model Variations.

DOI: 10.5220/0012753100003693

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 16th International Conference on Computer Supported Education (CSEDU 2024) - Volume 1, pages 830-835

ISBN: 978-989-758-697-2; ISSN: 2184-5026

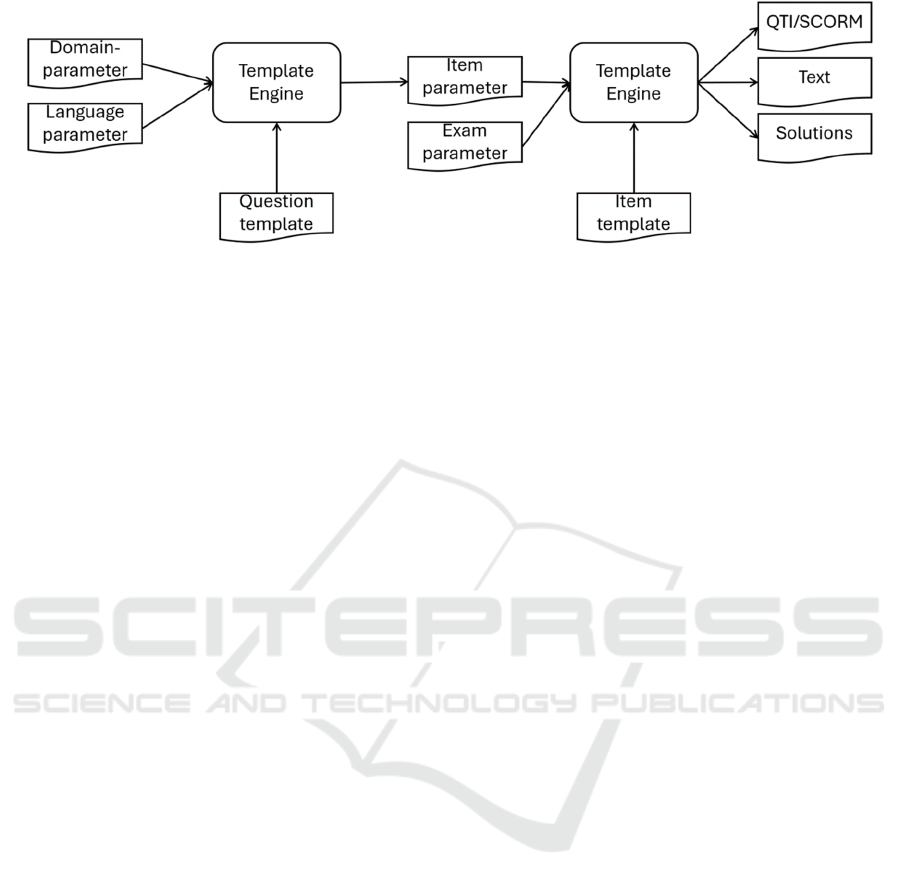

Figure 1: Automatic item generation workflow.

is necessary for programming and modelling tasks,

especially to address problem-solving skills.

Foulonneau and Ras (Foulonneau and Ras, 2013)

generated test questions from Semantic resources in

the Semantic Web for educational purposes. This

approach could generate tasks for testing factual and

contextual knowledge using the content data

described by the corresponding Resource Description

Framework (RDF). This leads to question types with

content variations, for example, in questions for

naming the capitals of different countries. However,

typical computer science modelling and

programming tasks focus on describing structures and

metadata of the content data and not the content itself.

The corresponding domain model contains entity and

condition descriptions, such as ‘A [country] must

have one [capital]’. Therefore, modelling and

programming tasks are more related to the higher skill

levels of application and analysis in Bloom’s revised

taxonomy (Anderson, Krathwohl, 2001).

Furthermore, modifications of the domain model

affect the task description text. Xiao et al. (Xiao et al.,

2018), for example, reported on automatically

generated multiple-choice tasks for language learning

by selecting appropriate prepositions in the stem and

distractors generation. They created a feature list and

syntax tree for the example sentences to identify the

blank’s position and to classify the task’s difficulty.

However, a domain model modification affects the

whole task description text. For example, when

replacing the words in brackets in the condition

example above with the words ‘woman’ and ‘child’,

the obligation (‘must’) does not fit. It should be

changed to an optional condition to fit better into real-

world scenarios. Furthermore, the change of verbs

and nouns in a sentence may imply changes to the

word forms, too, especially in languages relying on

grammatical cases, such as German. Thus, a

particular language model is needed to provide

correct grammar and sentence structure.

In a literature review, Setianwan, Hidayah, and

Kusumawardami found three kinds of evaluation

methods (expert-based, student-based, and

mathematical model-based evaluation) for automatic

item datasets (Setianwan, Hidayah, and

Kusumawardami, 2022). In expert-based evaluation,

the item datasets are evaluated, for example,

regarding objectivity, answerability, and correctness.

3 TASK GENERATION FOR

PROGRAMMING EDUCATION

3.1 Workflow for the Automatic Item

Generation

The proposed approach separates content, domain,

and layout information to generate multiple question

types based on various domain models. This resulted

in a two-step item generation workflow depicted in

Figure 1.

In the first step of the workflow, question

templates are rendered with domain parameters by a

template engine. Question templates comprise all

content data needed for creating a question-type item.

This includes, for example, the reading passages,

context description, question text, selection items,

solution texts, and links to figures to be embedded in

questions or solutions. Furthermore, language

declination parameters for the domain models could

be provided. In this example, the language parameters

could be used to adapt the indefinite articles

according to the starting character of the domain

parameter. A rule-based extension of the templating

engine is used to declinate articles, nouns, and

adjectives in German text passages. Through this

templating approach, long and complex sentences

could be used in the item texts. The output of the first

step of the generation workflow is a JSON file with

item parameters, one for each domain model.

Automatic Generation of Problem-Solving Assessment Items Through Domain Model Variations

831

In the workflow’s second step, the item template is

rendered with the item and examination parameters.

The examination parameters comprise the assessment-

specific data, such as date, course, duration, and

participant data (if necessary). The created output

depends on the used item template and the purpose of

the items. For an online assessment, for example, the

QTI (Question and Test Interoperability specification)

item template creates an import file for the learning

management system. Text item templates are used to

generate LaTex files for a paper-based assessment.

Furthermore, separate solution resources could be

generated to support the faculty staff in evaluating the

student solutions to the individualised assessment

tasks. Generated solution hints could consist of lists of

keywords. These lists are used to check student

problem-based solutions automatically.

3.2 Example 1: Modelling Item

One area of problem-based assessment tasks in

computer science education is modelling tasks

according to described scenarios. As an example, the

question text of a task regarding formulating a

database query looks like as follows:

Consider the entities [Word1] and [Word2]

and the condition

‘A [Word1] [Obligation] have

[Cardinality] [Word2]’.

Implement corresponding relational model

in SQL with appropriate attributes and

constraints.

In this case, the domain parameter file contains a set

of domain parameters for each domain model, as

shown in Table 1.

Table 1: Examples of domain parameters.

word1 word2 o

ation cardinalit

countr

ital must one

mothe

chil

coul

man

The first item in Table 1 calls for creating one

relational table with a constraint, which checks the

presence of a capital name. The second item in Table

1 is modelled by creating two relational tables, one of

which references the other. The resulting (simplified)

keyword lists are depicted in Table 2.

Table 2: Example of solution hints.

Word2 Modelling Keyword lists

capital one table CREATE TABLE country

capital NOT NULL

child two tables CREATE TABLE mother

CREATE TABLE child

mother REFERENCES

Through this two-step rendering process,

structurally identical items are generated. The

difficulty level of each item is similar, depending on

the domain parameters used. Structural variations

between the items could be achieved by varying the

corresponding question templates.

3.3 Example 2: Programming Item

In computer science education, programming tasks

are used to test problem-solving skills. Fill-in-the-

blank question types could be used to test knowledge

about the programming syntax while providing parts

of the problem solution, as shown in the following

item template example.

Given are the relational tables

[mother](id, name) and

[child](id,[child]name,[mother]).

Fill in the gap in the SQL Statement to

select the [name]s of the [child]ren

and the corresponding [mother].

SELECT [child]name, [mother] FROM

[child] WHERE _______;

Asking to formulate an SQL Statement would address

a higher level of problem-solving skills in this

example. Therefore, an open (free-text) question type

is more appropriate for testing programming

problem-solving and programming skills. However,

the description of scenarios with domain parameters

increases the complexity of the question templates to

ensure the readability of the resulting item templates.

For instance, the domain parameter [child] occurs in

singular, plural, and a combined variation.

Furthermore, conditions such as ‘name starts with the

letter L’ must apply to all domain models.

The generation of solution hints has to consider

different problem-solution approaches. Student

solutions to this example question may contain

aliases, permutated attribute lists, or alternative

condition formulation, such as:

SELECT c.childname, m.name

FROM child c NATURAL JOIN mother m

SELECT childname, mother

FROM child

WHERE mother IN (SELECT id FROM mother)

However, using keyword lists was insufficient for a

fully automated evaluation of student solutions. For

this example, a parser for SQL could be used to

automatically evaluate the correctness of student

solutions, as the author proposed (Saatz 2017).

AIG 2024 - Special Session on Automatic Item Generation

832

3.4 Example 3: Programming Item

Item generation for imperative or object-oriented

programming tasks is even more challenging as the

solution requires a sequence of decisions. The

following generated item, taken from an examination,

measures the skills in programming in imperative

(PL/SQL) programming languages.

Consider the following relation:

[enrolment] ([modulid],

[studentnumber], [status],

[enrolmentdate])

It should be ensured that a [enrolment]

to a [module] can only be [deleted] if

the [status] is "[enrolled]" and the

[deletion] is done within [14 days]

after the [enrolment date].

Implement this rule in Oracle and

provide test cases to validate it. Pay

attention to structured programming. In

case of failure, meaningful error

messages should be displayed.

In contrast to the second example task, this example

question describes a real-world scenario calling for

implementing a rule in an imperative database

program. However, the question does not state what

kind of database program (stored function, stored

procedure or trigger) has to be implemented or how

the implemented program has to be tested. To test the

database program, the students must formulate data

manipulation statements. Further constraints, for

example, structured programming and meaningful

error messages, are added to the question text to

ensure similar difficulty levels for evaluation

purposes. Although solution hints for such

programming tasks could be created according to the

domain model, the generated solutions do not cover

all possible structural solution variations.

4 FIRST EXPERIENCES

Since 2021, the author has used the two-step

workflow for the automatic generation of items with

varying domain models. The generated items have

been used in formative assessments of a database

course since 2021 at the author's university. In each

year, 148+/-6 students participate in the formal

assessment. In the first examination in 2021, question

templates were used, each covering sequenced tasks

in declarative (SQL) and imperative (PL/SQL)

programming languages. In 2021, 5 question

templates covering a whole examination were used

together with 18 domain models. Thus, 90 assessment

items were assigned individually to the participants in

an open-book examination. Each question template

contained problem-solving tasks, such as

implementing a database scheme, queries, and views

and implementing and testing a database program.

However, solutions to generated items according to at

least two question models seemed to have been

exchanged between the participants during the

examination due to similarities in the student

solutions.

Therefore, since 2022, the learning management

system has been used to assign randomly generated

test items from 13 item pools to the students. In this

examination, modelling items comprise the creation

of installation scripts with more constraints for up to

three relations, structurally comparable to example 1.

The items testing the skills in declarative

programming have had a higher difficulty level than

provided by example 2 due to more complex

solutions containing join and set operations, nested

queries, or the definition of views. The imperative

programming items are comparable to the given

example 3 above. Due to the limitations of the

Learning Management System, assigning each

student individual tasks as intended was impossible.

Therefore, 18 domain models were combined with six

up to nine question templates for each task assigned

randomly to the examinees. Thus, each participant got

items according to varying domain models in this

examination. The assessments comprised up to 35%

of closed questions (single- and multiple-choice) and

open free-text questions problem-based questions.

However, using generated assignment tasks with

individual assigned domain models does not prevent

students from exchanging solutions during the online

examination. Two malpractice cases occurred where

students submitted the exact solution to open

questions corresponding to another domain model or

template. Typical student errors could explain some

other instances of similarities between solutions.

Differences in the difficulty level did not appear,

apart from two cases of readability issues due to

grammatical flaws in the reading text.

The assurance of the item template’s quality is

essential for successfully generating items using the

proposed two-step workflow. Overall, reviewing the

question templates is more demanding than reading

plain text, as descriptions in question templates are

more abstract. Therefore, an expert-based evaluation

has been carried out on the test corpora instead of a

student-based or model-based evaluation. The model-

based and the student-based evaluation methods are

not applicable due to the absence of a mathematical

model when varying the domain context. In this

Automatic Generation of Problem-Solving Assessment Items Through Domain Model Variations

833

expert-based evaluation, the templates and the

generated documents must be read carefully to spot

any semantic, syntax, or language errors. After that,

the expert must decide whether to change one of the

parameter lists (semantic), the templates (semantic,

syntax, language), or the corresponding word

conjugation list (language).

5 DISCUSSION

Overall, the detection rate seems lower than in online-

supervised examinations performed simultaneously

at the author's faculty. Therefore, randomly assigning

automatically generated items with varying domain

models indicates a way of keeping students from

exchanging solutions in online assessment.

The usage of automatic item generation in

educational assessments promises reduced cost, time

and effort in creating items for large item pools (Circi,

Hicks, Sikali, 2023). This central promise of rapid

item development for large item pools could be

proven by applying the proposed two-step workflow

for the automatic generation of items. Four challenges

according to automatic item generation have been

identified (Setianwan, Hidayah, and

Kusumawardami, 2022):

- Generate various types of question types.

- Handle long and complex sentences.

- Dataset availability for non-English languages.

- Capability to control question difficulty.

The proposed two-step workflow contributes to all

these challenges. Item templates were developed for

single- and multiple-choice, fill-in-the-gaps, and free-

text questions with or without integrated images.

Extending to further question types or changing the

learning management system is possible by

developing new item templates. An item template is

developed by parametrising a corresponding QTI file.

The development of further domain models

requires the addition of domain parameters and their

corresponding German language parameters. The

language parameters are used to generate long and

complex sentences to describe question scenarios and

contexts based on different domain models.

Through artificial intelligence-powered tools,

evaluating the generated test corpora regarding

syntactical and language errors and even translating

them to other languages might be possible. However,

reviewing templates, domain-related parameters, and

semantic correctness might remain expert-based, as

understanding the structures, learning goals, and real-

world contexts is necessary to check the correctness

and readability.

The advantage of using question templates

combined with various domain models is that it eases

the effort of creating examinations of similar

difficulty levels. Therefore, the question template

determines the item’s difficulty level. However, the

used domain model might also influence the item’s

difficulty level. Chen et al. examined the effect of

randomly chosen numerical parameters on the

difficulty of generated questions (Chen et al., 2019).

Their findings indicate only a limited impact of the

parameters on the difficulty level in 5% of the

examined AIGs. However, parameters defining

domain models might have a more significant effect,

as the students might be more accustomed to one

domain model than another, which influences the

readability of the task descriptions. Therefore, the

influences of the parameter choices on the difficulty

level of the generated tasks have to be examined

further. However, constructing a similarity measure

for automatically generated problem-solving tasks

with different domain models is an area of interest in

further research. Providing all structural solutions of

open problem-solving tasks, such as programming

tasks, for an automatically generated question item is

even more challenging.

6 CONCLUSION AND OUTLOOK

A two-step workflow for automatic item generation

can provide items with domain model variations for

problem-solving exercises in computer science

assessments. The generated corpora are useable in

formative assessments in computer science

education, providing individual assignment tasks to

the students. To maintain and extend the corpora,

additional templates and domain models should be

developed for each examination period in the future.

One drawback of the proposed two-step workflow

is that the information used to generate an item is

scattered throughout various resources. Therefore, a

database application should be used to maintain

items, templates, and parameters more efficiently.

Furthermore, the influence of domain models on the

item’s difficulty level has to be explored in more

detail. Even more challenging is generating feedback

for problem-based items, such as programming tasks,

with various correct solutions. One possible solution

might be integrating an artificial intelligence-

powered tool in the proposed workflow to ensure the

generated items' readability and to generate more

specific feedback according to typical student errors.

AIG 2024 - Special Session on Automatic Item Generation

834

ACKNOWLEDGEMENT

The author thanks Melanie Beutel for assistance with

developing item templates for the learning

management system ILIAS.

REFERENCES

Anderson, L.W., Krathwohl, D.R. (2001). A Taxonomy for

Learning, Teaching, and Assessing: a Revision of

Bloom’s Taxonomy of Educational Objectives.

Longman, New York.

Circi, R., Hicks, J., Sikali, E. (2023). Automatic item

generation: foundations and machine learning-based

approaches for assessments. In Frontiers in Education.

8:858273. doi: 10.3389/feduc.2023.858273

Chen, B., Zilles, C., West, M., Bretl, T. (2019). Effect of

Discrete and Continuous Parameter Variation on

Difficulty in Automatic Item Generation. In AIED

20219, LNAI 11625, pp. 71-83. Springer Nature

Switzerland AG.

D. J. Ferreira, A. P. Ambrósio, T. Nogueira, M. R. D.

Ullmann and T. F. N. Melo, "Students’ Perceptions of

Applying Real-world Problem Solving in Computer

Science Education : Case Study in Interaction Design,"

2018 IEEE Frontiers in Education Conference (FIE),

San Jose, CA, USA, 2018, pp. 1-8, doi:

10.1109/FIE.2018.8658458

Foulonneau, M., Ras, E. (2013). Using Educational Domain

Models for Automatic Item Generation Beyond Factual

Knowledge Assessment. In EC-TEL 2013, LNCS 8095,

pp. 442-447. Springer-Verlag Berlin Heidelberg.

Gierl, M. J., Lai, H., & Tanygin, V. (2021). Advanced

methods in automatic item generation. Taylor &

Francis eBooks. Routledge.

https://doi.org/10.4324/9781003025634

Gierl, M. J., Matovinovic, D., Lai, H. (2019). Creating

Content for Educational Testing Using a Workflow

That Supports Automatic Item Generation. In EAI

International Conference on Technology, Innovation,

Entrepreneurship and Education, Lecture Notes in

Electrical Engineering 532. Springer Nature

Switzerland AG.

Grammarly (2024). Grammar checker. Available at:

www.grammarly.com/grammar-check (Last Accessed:

28.02.2024).

Setianwan, H., Hidayah, I., Kusumawardani, S. (2022).

Automatic Item Generation with Reading Passages: A

Systematic Literatur Review. In: 8

International

Conference on Education and Technology (ICET).

IEEE.

Saatz, I. (2017). Wo steckt nur der Fehler in der SQL-

Anfrage? Semantische Prüfung von Lösungen.

3. Workshop Automatische Bewertung von

Programmieraufgaben (ABP 2017), Potsdam,

Germany. Available at: https://ceur-ws.org/Vol-

2015/ABP2017_paper_06.pdf (Last Accessed:

20.03.2024).

Xiao, W., Wang, M., Zhang, C., Tan, Y., Chen, Z. (2018).

Automatic Generation of Multiple-Choice Items for

Prepositions Based on Word2vec. In ICPCSEE 2018,

CCIS 902, pp. 81-95. Springer Nature Singapore Pte

Ltd.

Automatic Generation of Problem-Solving Assessment Items Through Domain Model Variations

835
