Optimizing Intensive Database Tasks Through Caching Proxy

Mechanisms

Ionut

-Alex Moise

and Alexandra B

aicoianu

2 a

Faculty of Mathematics and Computer Science, Transilvania University of Bras

ov, Bras

ov, Romania

Faculty of Mathematics and Computer Science, Department of Mathematics and Computer Science, Transilvania

University of Bras

ov, Bras

ov, Romania

Keywords:

Web, Caching, Proxy, Buffering, Optimization, Squid, Database.

Abstract:

Web caching is essential for the World Wide Web, saving processing power, bandwidth, and reducing latency.

Many proxy caching solutions focus on buffering data from the main server, neglecting cacheable information

meant for server writes. Existing systems addressing this issue are often intrusive, requiring modiﬁcations

to the main application for integration. We identify opportunities for enhancement in conventional caching

proxies. This paper explores, designs, and implements a potential prototype for such an application. Our

focus is on harnessing a faster bulk-data-write approach compared to single-data-write within the context of

relational databases. If a (upload) request matches a speciﬁed cacheable URL, then the data will be extracted

and buffered on the local disk for later bulk-write. In contrast with already existing caching proxies, Squid,

for example, in a similar uploading scenario, the request would simply get redirected, leaving out potential

gains such as minimized processing power, lower server load, and bandwidth. After prototyping and test-

ing the suggested application against Squid, concerning data uploads with 1,100, 1.000, . . . , 100.000 requests,

we consistently observed query execution improvements ranging from 5 to 9 times. This enhancement was

achieved through buffering and bulk-writing the data, the extent of which depended on the speciﬁc test condi-

tions.

1 INTRODUCTION

The wide use of the internet by people around the

world has posed scalability challenges for many busi-

nesses and service providers (Datta et al., 2003).

Long response times or even inaccessibility is a factor

that affects the revenues of web-centric companies,

leading to lower earnings (Wessels, 2001), (Datta

et al., 2003). Web caches have been shown to solve

some of the scalability problems. They helped bring

down latencies, bandwidth usage and save processing

power (Ma et al., 2015), (Wessels, 2001), (Datta et al.,

2003).

There are generally a few widely used approaches

to caching the data: browser cache, proxy cache and

server cache (Ma et al., 2015), (Wessels, 2001), (Ali

et al., 2011), (Zulfa et al., 2020). The browser cache is

the closest one to the user. It can save, in the memory

of the local computer, static data like images, videos,

CSS and JS code, etc. (Datta et al., 2003). A proxy

cache is a dedicated server that sits between one or

https://orcid.org/0000-0002-1264-3404

more clients and one or more servers. Compared to

the browser cache, which is tied to a single machine,

a proxy cache can be placed anywhere on the web,

at different levels: ISP (local, regional, national) or

right in front of the primary server (Datta et al., 2003).

Lastly, there is the option to cache your data on the

computer that is running the web server/database, ei-

ther by using your own/a third-party solution or indi-

rectly through the caching system of your operating

system or database.

Research in the ﬁeld primarily targets cache re-

placement algorithms and prefetching. Crucially,

caching solutions must decide what objects to re-

tain and which to evict due to limited memory space.

Managing the resources incorrectly and keeping un-

used objects cached for long enough, results in what’s

known as cache pollution (Ali et al., 2011), (Mertz

and Nunes, 2017), (Seshadri et al., 2015). Some

of the most popular caching policies include: LFU

(least frequently used), LRU (least recently used),

GDS (greedy dual size), GDS-Frequency and many

more (Ali et al., 2011), (Zulfa et al., 2020), (Ioannou

Moise, I. and B

aicoianu, A.

Optimizing Intensive Database Tasks Through Caching Proxy Mechanisms.

DOI: 10.5220/0012754600003753

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 19th International Conference on Software Technologies (ICSOFT 2024), pages 367-374

ISBN: 978-989-758-706-1; ISSN: 2184-2833

367

and Weber, 2016), some of them also using machine

learning to enhance the already used ones (Ali et al.,

2012).

The effectiveness of caching is typically measured

in hit rate or byte hit rate. Hit rates are determined as

the percent of requests that could be satisﬁed directly

by the cache, while byte hit rate represents the per-

cent of the data (numbered in bytes) that were already

cached before answering the request (Nanda et al.,

2015), (Ma et al., 2018).

The majority of the developed solutions for web

caching are dedicated towards storing data generated

by a server. Few of them offer a solution for buffering

the incoming information that is meant to be stored

by the SQL/NoSQL database. Indeed, Redis, Mem-

cached, Apache Kafka, RabbitMQ and others offer

the possibility to achieve this goal, but it is done intru-

sively, meaning that the underlying main server needs

to suffer modiﬁcations to accommodate these solu-

tions. This paper approaches the implementation of

RcSys (Resource Caching System), a proxy / surro-

gate server speciﬁcally engineered to cache both in-

coming (upload) and fetched data in order to allevi-

ate the load across the network and database server.

The application uses multi-threading for request pro-

cessing and data buffering, implementing a one-tiered

cache replacement policy. Fundamental to our solu-

tion is the conﬁguration ﬁle, where the administra-

tor can customize important aspects of the proxy like

maximum allocated disk memory, thread pool size,

cacheable paths (with support for regex), data valida-

tion, and more. After describing the architecture, we

will compare RcSys to Squid and observe the opti-

mization gains that it can bring.

The structure of the paper is divided into ﬁve

sections, the Introduction being followed by a short

presentation of Squid-cache in Materials and Meth-

ods. The Proposed System Architecture section is

the longest section, focusing on our main engineering

choices and their beneﬁts. In Strengths and Short-

comings of the Solution section are highlighted the

conducted tests for comparing RcSys and Squid, how

the performance-related data was collected, and what

beneﬁts RcSys offers, but also the downsides. In the

Conclusions section, we present this study’s ﬁndings

and the beneﬁts it has yielded.

2 MATERIALS AND METHODS

Before delving into the construction and testing of

the proposed solution, it is imperative to provide an

overview of its counterpart. This would be Squid,

https://www.squid-cache.org/, a proxy server solution

that is most often used as a caching proxy. It is a pop-

ular application used for caching and managing both

static and dynamic content generated as a response

by a web server for a user’s request, supporting proto-

cols such as HTTP, HTTPS, FTP, and more. To save

bandwidth, speed up load times, and conserve com-

puting power, hundreds of Internet providers employ

Squid in addition to thousands of standalone websites,

as stated in the ofﬁcial documentation.

Squid is a battle-hardened application. It pro-

vides a powerful conﬁguration ﬁle with the ability

to create very complex distributed caching infrastruc-

tures. It can deploy on multiple computers and create

a caching hierarchy consisting of Parents, Kids and

Coordinators, all communicating with each other for

better buffering and cache management to save band-

width, processing power and lower latencies. Be-

sides that, Squid also offers administrators the pos-

sibility to conﬁgure both Memory and Disk caches

independently, each with its own replacement policy

like LRU, heap GDSF, heap LFUDA, and heap LRU.

Trying to match the power that Squid provides

would be a very tedious and long process. Thus, we

will try to optimize only a small chunk of it. Our fo-

cus falls on how Squid handles requests that upload

data. As of now, Squid will redirect those to the main

server. This approach may be improved. Instead of

redirecting the request, we could extract the data (if its

URL is marked as cacheable in the conﬁguration ﬁle)

and store it locally into a buffer till the caching time

expires, sending it all at once afterward. This way, if

the data is meant to be written in a relational database,

the time it takes to execute for a single, multiple rows

insertion query is far lower than overall multiple sin-

gle rows insertions. The following sections will ex-

plore the concept further and present a viable solu-

tion.

3 THE PROPOSED SYSTEM

ARCHITECTURE

The proposed application, referred to as RcSys (Re-

source Caching System), functions as a caching proxy

for handling both user upload and download requests.

Before a detailed technical examination of the sys-

tem’s architecture, a general schematic overview of

its operational ﬂow will be presented.

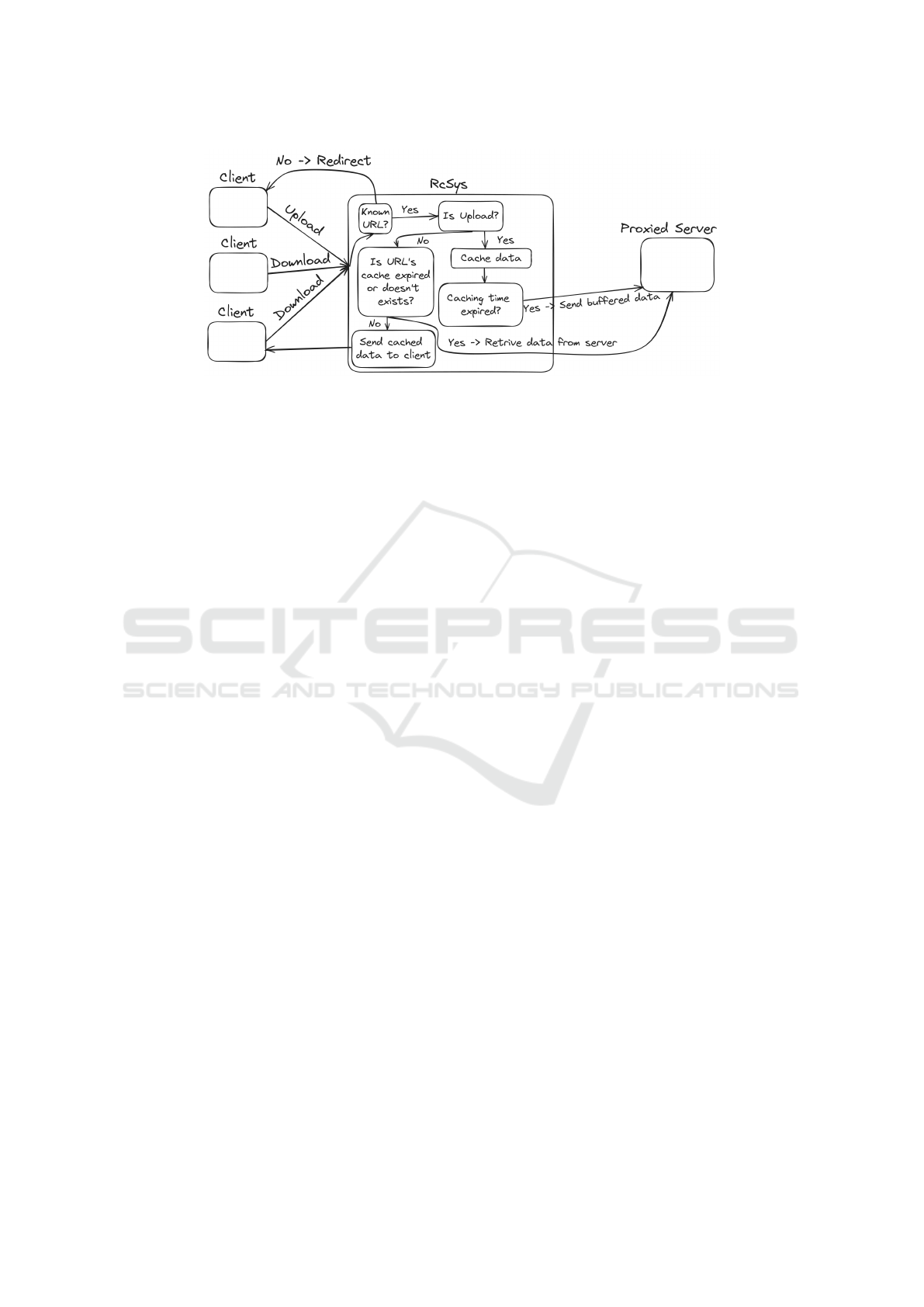

The diagram from Figure 1 illustrates three pri-

mary actors: clients, the RcSys server, and the main

server. All communication between these compo-

nents occurs through HTTP(S). The interaction com-

mences as a client initiates a request over the inter-

net, either for uploading (e.g., sending emails, cre-

ICSOFT 2024 - 19th International Conference on Software Technologies

368

Figure 1: RcSys ﬂow.

ating posts) or downloading (e.g., reading messages,

shopping). Upon reaching RcSys, a rapid evaluation

occurs to determine if the requested resource should

be cached. This decision relies on details outlined in

a conﬁguration ﬁle created by the administrator, spec-

ifying the paths designated for caching.

If the requested URL is not known, then it gets

redirected to the main server. If it is known and is

of type upload, it will be stored in a buffer and later,

when the speciﬁed amount of caching time expires,

it will be written to the main server (along with the

other data that share the same URL). If the accessed

resource is of type download, the system ﬁrst checks

whether it exists or is expired (if so, it calls for the

updated version to the main server) and then replies

to the client.

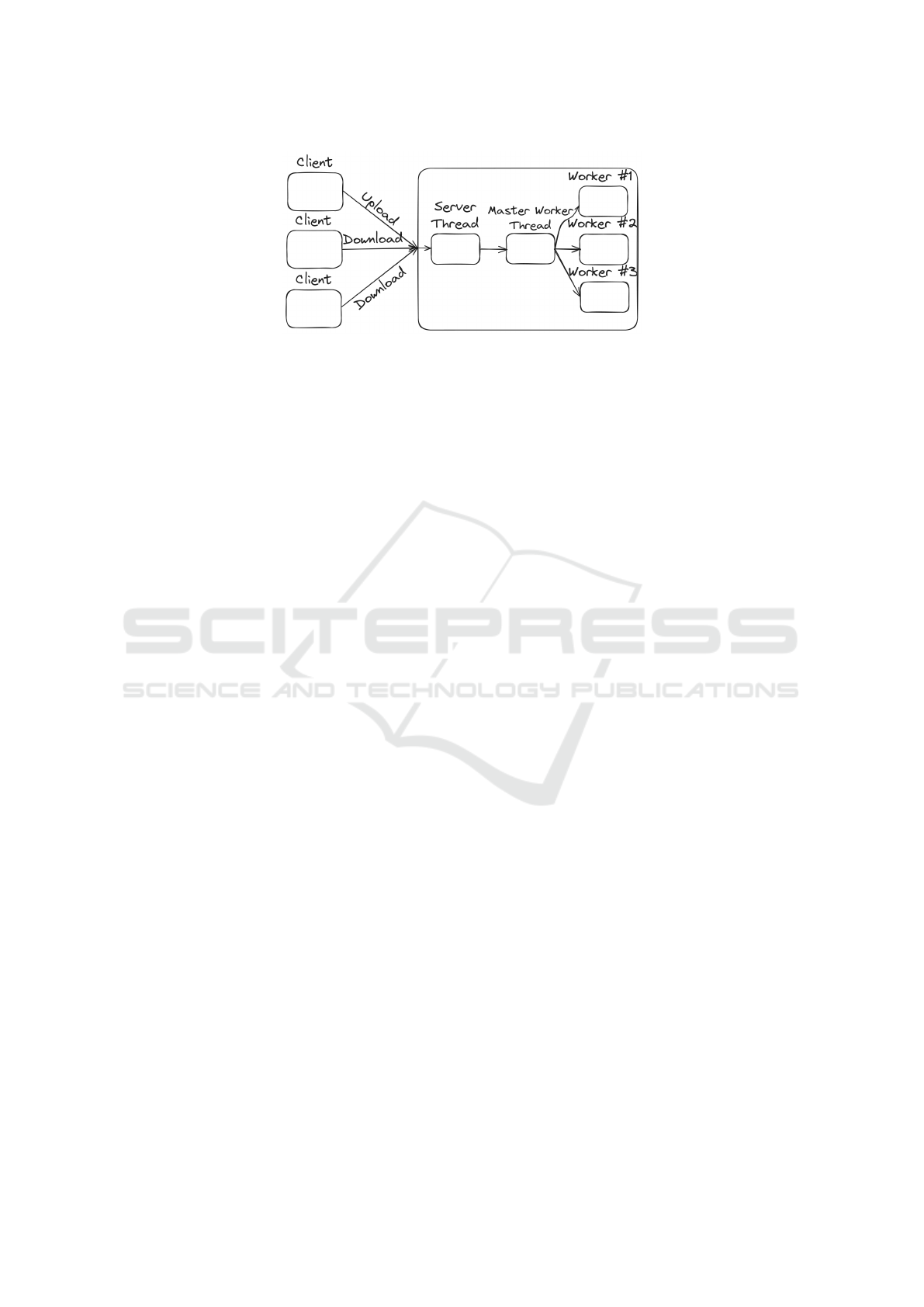

3.1 Multi-Thread Request Processing

Regarding the architecture of RcSys, a notable tech-

nical aspect involves request processing. It em-

ploys a dedicated Server thread for managing the web

server and accepting connections, along with a pool of

Worker threads controlled by a master thread. Upon a

new connection, it becomes a task in a shared queue

between Server and Worker. The master thread re-

trieves and assigns tasks to workers. Simultaneously,

new connections can be established and added to the

queue.

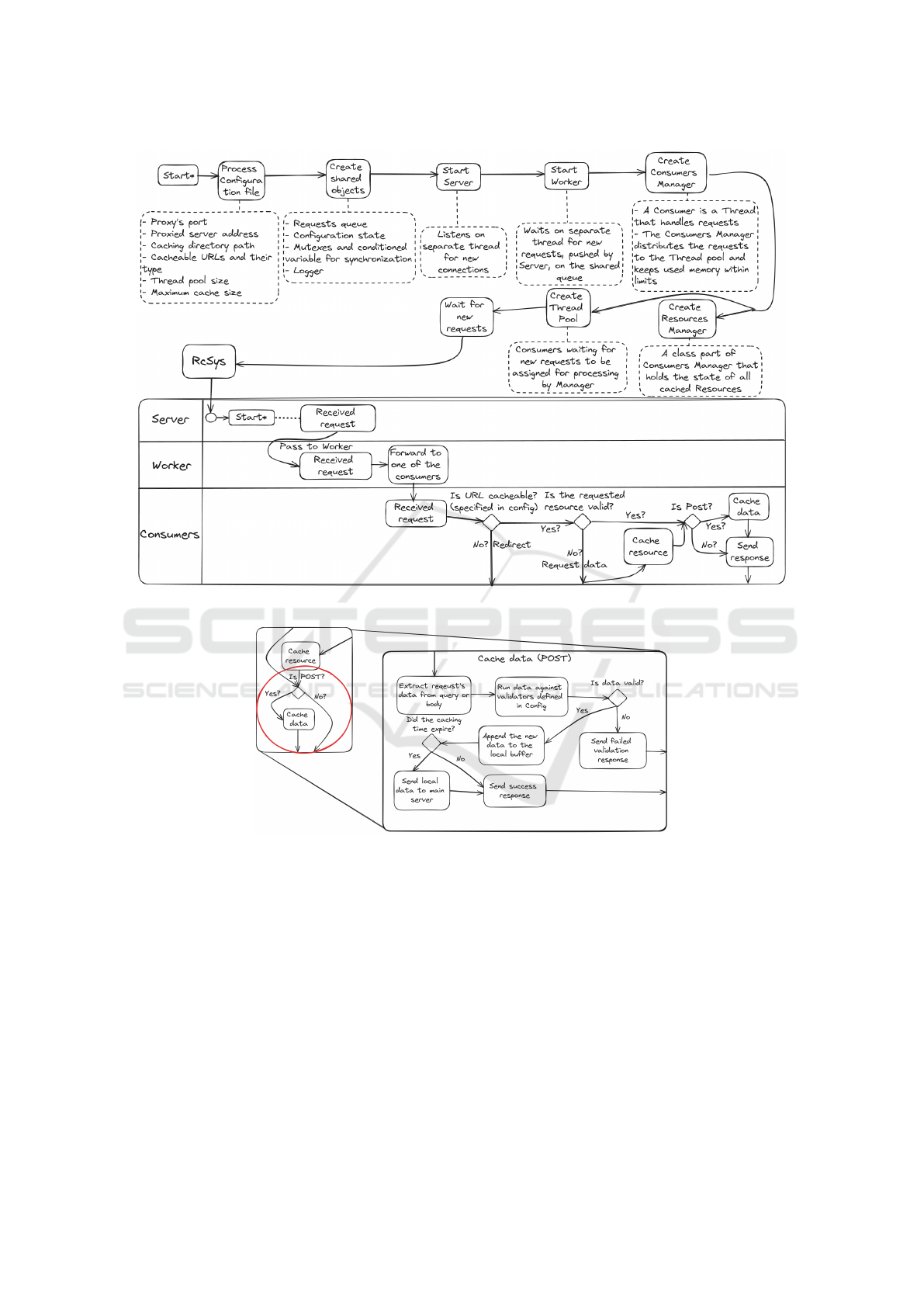

The diagram from Figure 2 offers a more detailed

view of the system’s functionality. Upon the appli-

cation’s initiation, a conﬁguration ﬁle undergoes pro-

cessing, and its supplied information is stored within

an IConﬁguration object for convenient access. This

ﬁle encompasses various details, including the desired

thread pool size. Concurrently, the creation of the

Worker results in the instantiation of X threads, as

dictated by the conﬁguration. The requests are dis-

tributed for processing among the worker threads in a

Round-robin fashion (Balharith and Alhaidari, 2019).

An index of the next thread for receiving a new task

is kept in the Master Worker state. If a new request

arrives, the thread that is pointed at by the index will

be assigned to serve it and the index is incremented,

therefor the next one will be handled by a different

worker.

3.2 One-Tiered Cache Replacement

Policy

The main means by which RcSys stores the cached

data is disk, be it HDD or SSD. Although it may not

be as fast to access and retrieve information as RAM,

disk has its own advantages, and the fact that it is

“disk-only” is not entirely true.

Caching data into RAM comes with a lot of care-

ful managing and designing. If your process ends up

leaking memory or not allocating/deallocating it ef-

ﬁciently, it can use all the computer’s memory and

slow the entire system’s performance or even crash.

RAM is also a much smaller sized resource on com-

modity computers that can be used as servers, be-

ing signiﬁcantly more expensive than the disk. A

16 − 32 − 64 − 128. . . GB RAM machine could also

store way less cached data than a 2-4TB non-volatile

memory option.

Despite its inherent drawbacks, the decision to uti-

lize the disk as a storage medium is justiﬁed by the

support provided by the operating system in man-

aging ﬁle access. Therefore, the characterization of

it being a “disk-only solution” is not entirely accu-

rate. To facilitate access to memory for software ap-

plications, the OS allocates pages of memory. Those

pages represent virtual memory addresses that are

later translated to physical addresses when a request

to the memory controller is made to get the stored

data. The OS also uses the main memory of a com-

puter to load accessed disk ﬁles into and minimize the

Optimizing Intensive Database Tasks Through Caching Proxy Mechanisms

369

Figure 2: RcSys thread pool.

IO operations that would be performed. It maps the

ﬁle opened for reading and writing from the disk to

the RAM and takes care of evicting them if the mem-

ory is full. This way, the user can manipulate the ﬁle’s

data and the system does not have to issue a write to

disk every time a new letter is typed. Instead, it marks

the memory pages as “dirty” and updates the ﬁle later.

Managing resources this way increases the machines’

general performance (Love, 2010).

RcSys’s architecture takes advantage of the OS

ﬁle caching behavior to simplify the proposed solu-

tion and to also beneﬁt from the performance gains

that come along with writing and reading from RAM.

Disk’s higher memory availability does not mean

that it is inﬁnite. It might as well get full if enough

data requires caching. To deal with this problem, a

simple cache eviction policy was implemented, that

would delete ﬁles from disk according to LRU. The

least recently accessed ﬁle for either reading or writ-

ing will be erased to make space for a new one. The

conﬁguration ﬁle also speciﬁes the maximum size of

disk memory that can be used for caching. The archi-

tecture, however, does not guarantee that the quan-

tum won’t be exceeded. Instead, when a new re-

quest comes in, before processing it, we evaluate

whether the maximum cache size was exceeded. If

so, cached resources from the disk will get deleted

in a LRU manner until the used space is below the

maximum one. This means that if the incoming re-

quest has to write new ﬁles on disk, the memory limit

could be again surpassed till another request arrives,

and the cycle repeats. The OS also implements a

variation of the LRU for deleting unused pages, see

https://www.kernel.org/doc/.

3.3 Use Cases

As a caching proxy, RcSys aligns with established use

cases observed in existing solutions. Its deployment

serves purposes such as conserving processing power

and bandwidth for a web server. By caching non-

real-time critical content, RcSys alleviates the prox-

ied server’s burden, including items like blog posts,

images, messages, entire web pages, etc. Moreover,

it enhances the user experience by positioning itself

in proximity to the user and handling requests that do

not necessitate database queries or data regeneration,

thereby minimizing overhead.

An additional advantage that sets it apart from

alternative solutions is its capability to temporarily

store data intended for server writes and subsequently

perform bulk writes. This feature substantially re-

duces the processing load on the main server and

database, further enhancing efﬁciency.

3.4 A Final Overview of System’s Flow

For providing a comprehensive overview and con-

necting all the components comprising the architec-

ture, a sequence diagram has been crafted, see Figure

3. In this diagram, we explain some of the most im-

portant objects’ states and their role in RcSys, as well

as showing the path that a user’s request takes once in

the system.

If we delve into the details, particularly in the con-

text of caching incoming data, the process unfolds as

follows in 4.

4 STRENGTHS AND

SHORTCOMINGS OF THE

SOLUTION

In order to compare the overall performance of the

proposed application, we chose to test it against

Squid-Cache, both being a caching proxy. Before go-

ing forward, we must make a big disclaimer. RcSys is

nowhere near as powerful and well-rounded as Squid,

nor is it production ready. It is just an experimental

application built to explore new architectures and ca-

pabilities that a caching proxy can bring.

The proxied application utilized in our research

serves as a conceptual, abstract representation—a pat-

ICSOFT 2024 - 19th International Conference on Software Technologies

370

Figure 3: RcSys ﬂow chart.

Figure 4: RcSys ﬂow chart zoomed in on POST cache.

tern mirroring the structure typical of a conventional

web server. Developed in Golang, the choice of this

language stems from our desire for a swift prototype

creation process, minimizing unnecessary code ver-

bosity. Golang’s net/http https://pkg.go.dev/net/http

handles the requests along Gorm, https://gorm.io/, an

ORM library popular among Go developers, for inter-

acting with a PostgreSQL database. The database’s

schema is modest, consisting of four entities (4c0fk,

4c2fk, 10c0fk, 10c2fk), modeled in such a way as

to cover some real-world operations. The names

are self-explanatory, each entity consisting of several

string ﬁelds equal to the digits previous to the “c”

character and some foreign keys equal to the digit pre-

vious to “fk”. For example, entity 4c0fk has 4 string

columns and 0 foreign keys, while entity 10c2fk has

10 string columns and 2 foreign keys (mapped to en-

tity 4c0fk and entity 10c0fk, same as for entity 4c2fk).

We aimed to explore fundamental database use

cases by conducting tests for different results on ta-

bles of various sizes, ranging from small to large, and

considering scenarios with and without foreign keys.

Foreign keys are important in a relational database,

impacting a query’s performance. For each foreign

key that the database must insert, it must perform

a look up in the referenced table to ensure that the

newly created row is valid and does not point to a non-

existing record.

Optimizing Intensive Database Tasks Through Caching Proxy Mechanisms

371

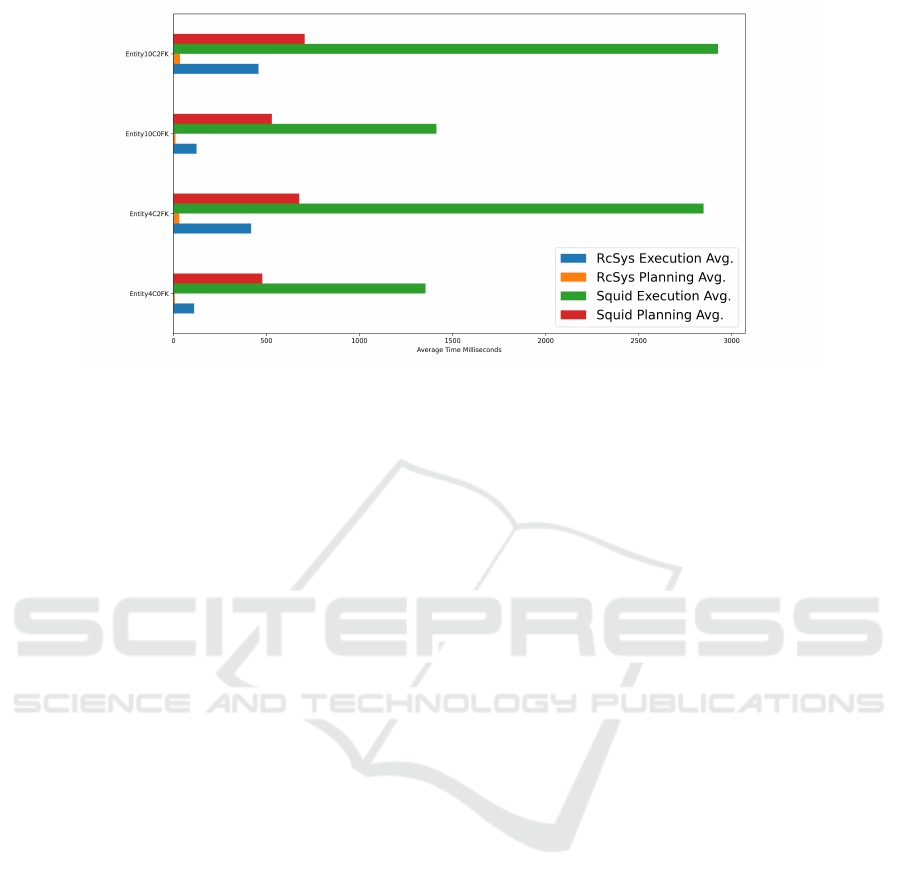

Figure 5: Overall performance gains RcSys vs Squid.

The application that simulates clients sending re-

quests to the web server was also built with Golang

for the same fast-prototyping reason. It deﬁnes basic

functions for getting as well as posting data for sev-

eral times in order to create metrics and compare the

proxies.

The set of tests simulated basic POST operations,

with the requests being proxied by both RcSys and

Squid. As already mentioned, Squid does not pos-

sess the ability to cache the uploaded data in order to

send it later to the proxied server all at once. There-

fore, every such operation was redirected to the main

server. Both applications went through the same tests,

with the same data (different strings with the same

size). For each entity (4c0fk, 4c2fk, 10c0fk, 10c2fk),

a client sent 1, 100, 1000, 5000, 10000, 25000, 50000

and 100000 POST HTTP requests to create a new

record in the database. The data was collected and an-

alyzed for each batch of tests (1, 100, . . .). Although a

single client is performing the requests, each of them

may as well come from different users. The conﬁg-

uration and architecture of the proxy itself does not

speciﬁcally allocate one buffer per user’s cacheable

URL, but it’s rather shared between multiple agents.

Implementing the proposed idea by this paper, that

there is room for load optimizations through bulk

data-writes, custom solutions may be built to fulﬁl

speciﬁc needs like data validation and authorization,

as required by certain contexts, before buffering takes

place.

In order to obtain accurate results of the execution

time, PostgreSQL provides us with a query preﬁx EX-

PLAIN ANALYZE, see https://www.postgresql.org/

docs/. Running a simple query like “INSERT INTO

... VALUES ...” and preﬁxing it with “EXPLAIN AN-

ALYZE =>EXPLAIN ANALYZE INSERT INTO ...

VALUES ... ” results in both executing the query and

outputting different real information about the exe-

cution process. From among the returned data, we

extracted two performance metrics, namely the “Ex-

ecution time” (the actual time that it took to exe-

cute the query) and “Planning time” (the actual time

that it took to plan the query execution), expressed in

milliseconds. The information that EXPLAIN ANA-

LYZE provides differs for each type of query. For ex-

ample, if the inserted data links through foreign keys

to other tables, a trigger will be executed to check

if the referenced row exists. This “Trigger time” is

summed up in the “Execution time” parameter.

Figure 5 compiles and summarizes the re-

sults of all conducted experiments. There

were 8 tests for each entity, consisting of

1, 100, 1.000, 5.000, . . . 100.000 requests per round,

identically for both RcSys and Squid. The output of a

test represents the overall Execution Time and Plan-

ning time that PostgreSQL needed in order to write

the new data, with respect to the number of requests.

Figure 5 displays, on the X axis, the average time

for all 8 experiments relative to the corresponding

entity. Observing the graphic, it becomes evident that

proxying a web server with RcSys outperforms Squid

signiﬁcantly in handling upload requests. Saving

multiple rows of data is faster than saving only one

at a time and can drastically reduce the load on the

database. The chart illustrates that the Execution

time average, through RcSys, is always at least 5

times faster than Squid or even 9 times, in best-case

scenarios. When taking a look at the Planning time,

the gains range from anywhere between 14 to 52

times in favor of RcSys. Moreover, picking any of

the entities for a comparison of the two proxies, if

we sum up both the Planning and Execution times

ICSOFT 2024 - 19th International Conference on Software Technologies

372

for RcSys, it never exceeds the amount of time that

the database server needs to plan up all the queries

redirected by Squid. Some of the details extracted

from the chart are also present in Table 3.

MySQL’s ofﬁcial documentation breaks down the

cost of an INSERT statement in proportions as fol-

lows, see https://dev.mysql.com/doc/refman/8.0/en/

insert-optimization.html:

• Connecting (3)

• Sending query to server (2)

• Parsing query (2)

• Inserting row (1 x size row)

• Inserting indexes (1 x number of indexes)

• Closing (1)

Judging by MySQL’s provided information, it is

deductible that writing data to a database server in

bulk rather than query by query signiﬁcantly reduces

the load across the network. Instead of performing

thousands of costly connections, closings, and data

transfers between computers, we narrow it down to

only a slightly larger parsing and inserting job, which

weighs down less. If, for example, we sum up all

the costs necessary for sending one thousand individ-

ual queries (that would insert one thousand rows) to a

database, according to MySQL, it would yield 10000

units of costs. Buffering the data (through, let’s say,

RcSys), a larger packet consisting of all the informa-

tion carried in the one thousand requests scenario will

be sent, reducing to a total of ≈ 2000 units of cost.

Although MySQL’s information reveals important

aspects in the optimization process through bulk data

writes, Figure 5 does not illustrate them. That is

simply because our main way of measuring perfor-

mance is with the query preﬁx “EXPLAIN ANA-

LYZE” provided by PostgreSQL. This method only

takes into account the actual elapsed time for plan-

ning and executing the query. It does not add up

information regarding connection establishment and

closing, post-execution triggers, or any other over-

heads imposed by networking and external factors.

Approaching the problem this way, the experiments

were run in a laboratory-like environment, avoiding

the uncertainty and variables that large-scale com-

puter networks come with. Thus, extrapolating our

solution to real-world contexts, the gains may be even

higher since the proposed approach eliminates cer-

tain cost factors, as described in MySQL’s documen-

tation and the given example. It means that bulk data

writes provide an efﬁciency advantage on their own,

as presented in Figure 5, excluding networking im-

posed limitations. Still, there remains an overhead

that comes along with measuring performance with

“EXPLAIN ANALYZE”, sometimes called the Ob-

server effect, in this case increasing the actual time

needed to run the queries. Since all the tests were per-

formed using the same query preﬁx, we consider its

drawbacks negligible in the bigger picture.

The raw data collected from the tests and used to

compute the averages in Figure 5 is presented in Ta-

bles 1 and 2. Each cell sums up all the Execution

and Planning times as reported by PostgreSQL for

the count of requests indicated by the head of the ta-

ble, with respect to RcSys or Squid separately. Note

that the tables don’t include the information yielded

by the experiments with 5000 and 25000 requests due

to space reasons. Observing the data, we can con-

clude that there is no such scenario where bulk-writes

don’t outperform inserting one row per query, given

one of the entities and several requests. The query

planner has an especially hard time regarding granu-

lar writes. It takes so much time to plan 100000 in-

dividual insert queries (3310.1 ms), as seen in the Ta-

ble 2 for the 10c2fk entity, that it becomes less costly

to actually both plan and execute bulk-writes for the

same amount of data (165.85 ms + 2121.5 ms, also

see Table 1). Extracting additional information about

the gains is possible from the raw data, such as the

average time improvement for each test, as indicated

in Table 3. Besides its advantage in caching upload

requests, RcSys lacks many features and critical func-

tionalities that Squid has, see Table 4.

5 CONCLUSIONS

The paper has proposed an innovative enhancement

designed to bring added value to conventional caching

proxy solutions. Through the implementation and

testing of the proposed architecture, it was evident

that there is a signiﬁcant improvement opportunity

in reducing bandwidth consumption and optimizing

data upload speeds, especially in contexts utilizing

relational databases. The strategy of locally extract-

ing and storing data from upload-type requests on

the caching server’s disk or memory, followed by

later bulk-write, showcased marked enhancements in

overall database write performance. While typical

web caching proxies would redirect those types of

requests, RcSys obtained by buffering them between

5.20 and 9.12 times SQL query execution speedups

and between 14.17 and 52.11 times SQL query plan-

ning speedups.

Optimizing Intensive Database Tasks Through Caching Proxy Mechanisms

373

Table 1: Raw execution tests data RcSys vs Squid in ms.

Entity 1 100 1.000 10.000 50.000 100.000

4c0fk

RcSys 0.055 1.831 9.64 48.106 254.99 514.69

Squid 0.055 8.249 65.345 633.505 3174.3 6413.4

4c2fk

RcSys 0.313 2.348 20.379 198.445 984.092 1956.51

Squid 0.313 11.431 131.999 1314.13 6791.7 13395.5

10c0fk

RcSys 0.299 0.758 6.368 59.859 296.108 578.355

Squid 0.299 6.11 57.113 730.357 3446.2 6458.6

10c2fk

RcSys 0.281 2.781 45.473 211.247 1058.82 2121.50

Squid 0.281 13.23 142.361 1396.49 6979.6 13692.9

Table 2: Raw planning tests data RcSys vs Squid in ms.

Entity 1 100 1.000 10.000 50.000 100.000

4c0fk

RcSys 0.019 0.101 0.318 4.621 17.75 41.99

Squid 0.019 2.988 25.141 225.035 1112.1 2265.0

4c2fk

RcSys 0.024 0.124 1.095 17.235 70.487 150.85

Squid 0.024 2.639 30.298 311.137 1611.1 3182.5

10c0fk

RcSys 0.026 0.052 0.32 7.581 26.919 52.237

Squid 0.026 2.365 21.413 272.29 1280.3 2427.8

10c2fk

RcSys 0.022 0.464 4.161 20.39 79.134 165.84

Squid 0.022 3.134 33.755 335.182 1679.7 3310.1

Table 3: RcSys vs Squid performance gains.

Average query speedups Test 4c0fk Test 10c0fk Test 4c2fk Test 10c2fk

Execution Speedup x9.12 x9.48 x5.93 x5.20

Planning Speedup x52.11 x40.18 x19.13 x14.17

Table 4: RcSys vs Squid features comparison.

Feature RcSys Squid

Security No HTTPS (SSL/TLS) or Authentication HTTPS and Authentication

Protocols supported Only HTTP HTTP, HTTPS, FTP and more

Distributed cache No

Yes, with complex hierarchy of

parents, kids and coordinators

Cache replacement policies LRU

LRU, heap GDSF,

heap LFUDA, heap LRU

Caching options Only disk Disk and Memory

Conﬁguration Minimal Very robust

REFERENCES

Ali, W., Shamsuddin, S. M., and Ismail, A. S. (2011). A sur-

vey of web caching and prefetching a survey of web

caching and prefetching. International Journal of Ad-

vances in Soft Computing and its Applications, 3.

Ali, W., Shamsuddin, S. M., and Ismail, A. S. (2012). In-

telligent web proxy caching approaches based on ma-

chine learning techniques. Decision Support Systems,

53(3):565–579.

Balharith, T. and Alhaidari, F. (2019). Round robin schedul-

ing algorithm in cpu and cloud computing: A review.

In 2019 2nd International Conference on Computer

Applications & Information Security (ICCAIS), pages

1–7.

Datta, A., Dutta, K., Thomas, H., and VanderMeer, D.

(2003). World wide wait: A study of internet scalabil-

ity and cache-based approaches to alleviate it. Man-

agement Science, 49(10):1425–1444.

Ioannou, A. and Weber, S. (2016). A survey of caching

policies and forwarding mechanisms in information-

centric networking. IEEE Communications Surveys

& Tutorials, 18(4):2847–2886.

Love, R. (2010). Linux kernel development. Pearson Edu-

cation.

Ma, T., Hao, Y., Shen, W., Tian, Y., and Al-Rodhaan, M.

(2018). An improved web cache replacement algo-

rithm based on weighting and cost. IEEE Access,

6:27010–27017.

Ma, Y., Liu, X., Zhang, S., Xiang, R., Liu, Y., and Xie,

T. (2015). Measurement and analysis of mobile web

cache performance. In Proceedings of the 24th Inter-

national Conference on World Wide Web, pages 691–

701.

Mertz, J. and Nunes, I. (2017). Understanding application-

level caching in web applications: A comprehensive

introduction and survey of state-of-the-art approaches.

ACM Comput. Surv., 50(6).

Nanda, P., Singh, S., and Saini, G. (2015). A review of web

caching techniques and caching algorithms for effec-

tive and improved caching. International Journal of

Computer Applications, 128:41–45.

Seshadri, V., Yedkar, S., Xin, H., Mutlu, O., Gibbons, P. B.,

Kozuch, M. A., and Mowry, T. C. (2015). Mitigating

prefetcher-caused pollution using informed caching

policies for prefetched blocks. ACM Trans. Archit.

Code Optim., 11(4).

Wessels, D. (2001). Web Caching. O’Reilly Series.

O’Reilly & Associates.

Zulfa, M., Hartanto, R., and Permanasari, A. (2020).

Caching strategy for web application – a systematic

literature review. International Journal of Web Infor-

mation Systems, 16:545–569.

ICSOFT 2024 - 19th International Conference on Software Technologies

374
