A Layering Approach with Role-based Workflow Modelling for

the Enterprise Workflow

Yevheniia Yehorova

and Marina Waldén

Faculty of Science and Engineering, Information Technology, Åbo Akademi University, Tuomiokirkontori, Turku, Finland

Keywords: Business Process Modelling, Role-based Workflow, Formal Modelling, Stepwise Refinement, Layering,

Modelling, Simulation.

Abstract: Fast and high-quality workflow management is one of the most important tasks in all domains. Workflow

modelling has become a common technique that facilitates and supports the business process or rather its

automation. Modelling a workflow always depends on the roles that perform tasks. A formal approach is

essential for high-quality system modelling. Besides, visualisation tools are required to represent models and

work with them. In this paper, we propose an approach for modelling processes for efficient workflow

enterprise management. To make this modelling more fluent and flexible, it should be parallelised based on

roles. The core of our approach is the Role-based Workflow method. The Role-based modelling is

accomplished using a layered development method based on stepwise refinement. Our approach combines

straightforward stepwise modelling with the possibility of a quick assessment of the situation at any stage of

the workflow by using the UPPAAL tool for modelling and verification. In this paper, we visualise our

approach with a healthcare case study.

1 INTRODUCTION

Assurance of high-quality processes and productivity

in any business or enterprise requires highly efficient

workflow organisation and management. In this

paper, we are looking at workflow design that is

driven by a need to provide more efficient business

processes and reduce the risk of human errors

(Omarov, 2021).

Business process management is the discipline of

managing processes as the means for improving

business performance outcomes and operational

agility. The business process indicates how humans,

machines, and systems operationally achieve a goal

(Margaria, 2013) by solving “interacting tasks”

(ANSI/EIA632A, 2021). As a rule, one business

process includes several workflows.

According to the standard, “a workflow consists

of a sequence of concatenated steps, where each step

follows the precedent without delay or gap and ends

just before the subsequent step may begin”

(ISO12052, 2017).

https://orcid.org/0009-0008-5526-4448

https://orcid.org/0000-0001-8703-3179

Thus, a workflow is an entire mechanism that

gives a virtual representation of the actual work. At

the core of any workflow are specialists who perform

each role and solve each task in their daily activities.

Role-based workflow modelling allows fast

visualisation and testing of solutions. Additionally,

the workflow process based on roles is agile and

adaptable to changes.

Optimization-based design in the early stages of

architectural design is regarded as an efficient and

performance-driven approach (Wang, 2022). The

role-based modeling of workflows has been proposed

within access control in management systems

(Djatcha, 2022). However, an alternative perspective

can be explored by shifting the attention from the

rights associated with each role to its characteristics,

parameters, and tasks.

Because of the workflow complexity, it is

appropriate to model it using stepwise refinement that

transforms an abstract specification into a

deterministic system. New features suggested by the

requirements are stepwise added to the specification

266

Yehorova, Y. and Waldén, M.

A Layering Approach with Role-based Workﬂow Modelling for the Enterprise Workﬂow.

DOI: 10.5220/0012754900003758

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 14th International Conference on Simulation and Modeling Methodologies, Technologies and Applications (SIMULTECH 2024), pages 266-273

ISBN: 978-989-758-708-5; ISSN: 2184-2841

to avoid handling all the concrete implementation

issues at once. (Snook & Waldén, 2006).

This paper proposes a layered approach for the

Role-based Workflow modelling method (Liang &

Bai, 2006) (Chengjun, 2009) that allows a stepwise

refinement of the workflow structure. The objective

is to design the structure by using the refinement

process to make the characteristics, tasks, and

resources of each role at different Business Process

Management levels more detailed. To facilitate the

development and validation of our model, we rely on

the UPPAAL tool (Behrmann, 2006) which is a

modelling and verification tool for analysing

concurrent processes and their interactions.

We show the advantages of our method with a

healthcare case study where medical staff, patients,

and systems form the roles. Using our layered

approach strengthened by the UPPAAL tool support

we can demonstrate how to improve task execution,

as well as allocate resources in a hospital, and hence,

how to provide better coverage of patient service.

All UPPAAL models discussed in the paper are made

available (Yehorova, 2024).

2 BUSINESS PROCESS

MANAGEMENT

Business Process Modelling (BPM) is used to

accurately represent and optimize organizational

processes. Process modelling helps to build

communication between stakeholders both inside and

outside the organization (Alomari, 2018).

BPM allows us to depict the architecture of the

organization and the processes in it. Moreover,

process models can be developed from different

views. Enterprise architecture is an area concerning

the organizations, compositions, connections, and

relationships of individual elements of an enterprise.

These elements can be very different: people,

processes, systems, task data, etc. (ISO/IEC/IEEE

42010, 2022)(ISO 15704, 2019).

Researchers argue that existing modelling

notation is not capable of covering all points of view,

nor all subject areas (Alomari, 2018). There are three

levels of abstraction: strategic, tactical, and

operational. Multiple levels of abstraction are based

on Anthony's model (Joseph Kim-Keung, 2015). This

model is the basis for classifying processes.

The operational level is the level where many

varying roles each with a separate workflow perform

specific tasks. System have not been used as a role in

the modelling in the same way as humans.

Roles at the operational level will be internal and

external. Internal roles are those who perform tasks in

the workflow. External roles are those that will

influence the transitions between roles, as well as the

choice of the model itself. Graphical visualisation at

this level depends on the tasks, roles, and needs of

each role.

3 ROLE-BASED WORKFLOW

The Workflow Management Coalition includes the

concept of roles, represented as a competency or a set

of responsibilities. It is a logical abstraction that

depends on the abilities of the participants. It is based

on the actions of the roles, not the roles themselves.

A role is a set of resources with certain technical

capabilities (Liang & Bai, 2006). It does not support

dynamic changes in those elements. Using BPM

strategies and levels, the roles and their tasks should

first be defined before they are used in role-based

workflow modelling. In our paper, the roles are

defined according to their missions.

Researchers have analysed that a role-based

workflow system can better cope with a changing

workflow than an activity-based system (Chengjun,

2009). The role-based workflow modelling approach

that is presented in our article relies on roles as the

trigger and leader for modelling.

The role-based workflow can be considered as a

technique or methodology in the field of BPM. Role-

based workflows are designed to organize, optimize,

and automate processes and tasks. The role-based

workflow defines the responsibility of roles and the

sequence of activities for each role within specific

business processes. This allows the work of various

departments to be planned. Role-based workflows

typically involve using technology to automate

repetitive tasks and visualise the status and progress

of tasks and processes.

4 STEPWISE DEVELOPMENT

A role-based workflow can best be modelled as a

parallel system. These systems are often complex

consisting of different entities and require a stepwise

approach to development.

4.1 Refinement

Refinement refers to the process of improving an

existing product, project, or system. Stepwise

A Layering Approach with Role-based Workﬂow Modelling for the Enterprise Workﬂow

267

refinement (Back & Sere, 1990) is one of the main

methods for developing high-quality systems that

need to be correct by construction. The behaviour of

parallel systems in this approach is described with

events in the form of guarded commands. An event

can be chosen for execution if its guard evaluates to

true. The parallel execution of two events means that

they can be executed in either order and still perform

the same result.

In stepwise refinement, an abstract specification

of a system is transformed by correctness-preserving

steps into an executable program that has the same

behaviour as the original specification. In each

refinement step, we can add new variables and new

events to introduce new features to the system, while

the old behaviour should not be modified, s.c.,

superposition refinement (Katz, 1993). New invariant

properties that this new feature should satisfy are also

given. To be able to prove that a system is a correct

superposition refinement of another more abstract

system the following proof obligations have to be

satisfied (Back & Sere, 1990)(Snook & Waldén,

2006):

1. New variables can be introduced that

satisfy the new invariant.

2. Assignments to the new variables that

preserve the new invariant can be introduced

preserving the old behaviour. Moreover, the guards of

the refined events can be strengthened.

3. Each new event in the refined specification

should only concern the new variables and should

preserve the new invariant.

4. The new events in the refined specification

should not take over the execution, but their guards

should eventually become false. Hence, the refined

system should still allow the old behaviour.

5. Whenever an event in the abstract

specification is enabled, then either the refined event

or one of the new events should be enabled.

By discharging these proof obligations for each

refinement step in the system development we have

proven the correctness of the system with respect to

its abstract specification. This means that the refined

system should satisfy its invariant concerning the new

behaviour, preserve the behaviour of the abstract

system, and not introduce deadlocks, nor infinite

loops that could suppress the old behaviour.

4.2 Layered Development

Layered Development is a software development

methodology that involves structuring a system into

distinct layers (or levels), where each layer is a

specific component that performs specific functions

and has a clearly defined set of responsibilities as,

e.g., data management. Since each layer in a parallel

system is responsible for a specific set of features, it

interacts with the other layers to provide a complete

solution. A layer can only interact with certain other

layers, which makes the system as a whole easier to

understand, maintain, and develop in a reliable and

efficient way.

Superposition refinement using layers (Waldén,

1998) is a special form of Layered Development. The

new features are introduced via new variables and

new events that modify these variables following the

refinement rules above. The layers together with the

original, abstract system constitute the final, refined

system.

4.3 Model-Checking Tool UPPAAL

In order for our approach to be more feasible we need

tool support. We decided to use the UPPAAL tool

(UPPAAL, 2001) to model the actions and the

relationships of the roles in the system.

UPPAAL is a model-checking tool with a

graphical simulator that can be used for the

modelling, verification, and validation of real-time

systems (UPPAAL, 2001). A system developed

within this tool consists of one or several processes,

composed in parallel, and is modeled as networks of

timed automata. In this paper, channels are used for

binary synchronisation. With UPPAAL the system

can be modeled with a number of refinement steps

and the correctness of the system can be proved.

Moreover, both reachability and safety properties can

be verified, allowing to specify system properties

using a formal language. The UPPAAL simulator is

used for imitation of the general workflow

(Behrmann, 2006).

5 LAYERED ROLE-BASED

WORKFLOW DESIGN

APPROACH

We propose a layered, role-based workflow approach

for design at the BPM levels. Our approach is carried

out step by step applying refinement from an abstract

model to a detailed one.

During the first stage, the BPM level for which the

simulation takes place is determined. In this paper, we

focus on the operational level where there are both

internal and external roles.

At the second stage, the internal and external roles

are determined. The role could be a person or a

SIMULTECH 2024 - 14th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

268

system. Let us assume that we will have an external

role OutR, and internal roles InR1 and InR2, where

InR1 is the role person, and InR2 is the role system.

For each role, we define their types and properties.

The main idea of our approach is to stepwise add

more details to a model by specifying and adding

more variables, events, and states to it. We use roles

(see Section 3) as the basis of a hierarchical model,

where the characteristics of the roles are modelled by

variables and their tasks are described by transitions

and states. There are internal roles that perform the

workflow and external roles that affect the workflow.

These roles will then be refined into new roles with

new characteristics and tasks in the form of new

variables, transitions, and states. Relationships

between roles are modelled as synchronization of

events.

The roles are then developed in a layered manner

in the third stage. How the layer is added to a role,

depends on the role's type, attributes, and main

characteristics. Our example contains three role

types: "external person", "internal person", and

"internal system". To simplify the terminology, the

external role can be named customer, client, or user,

and the internal role can be named staff if it is a

person, and tool if it is a system. Systems are most

often used to automate processes or support decision-

making depending on what the staff needs. Thus, the

system could be linked to or used instead of the staff.

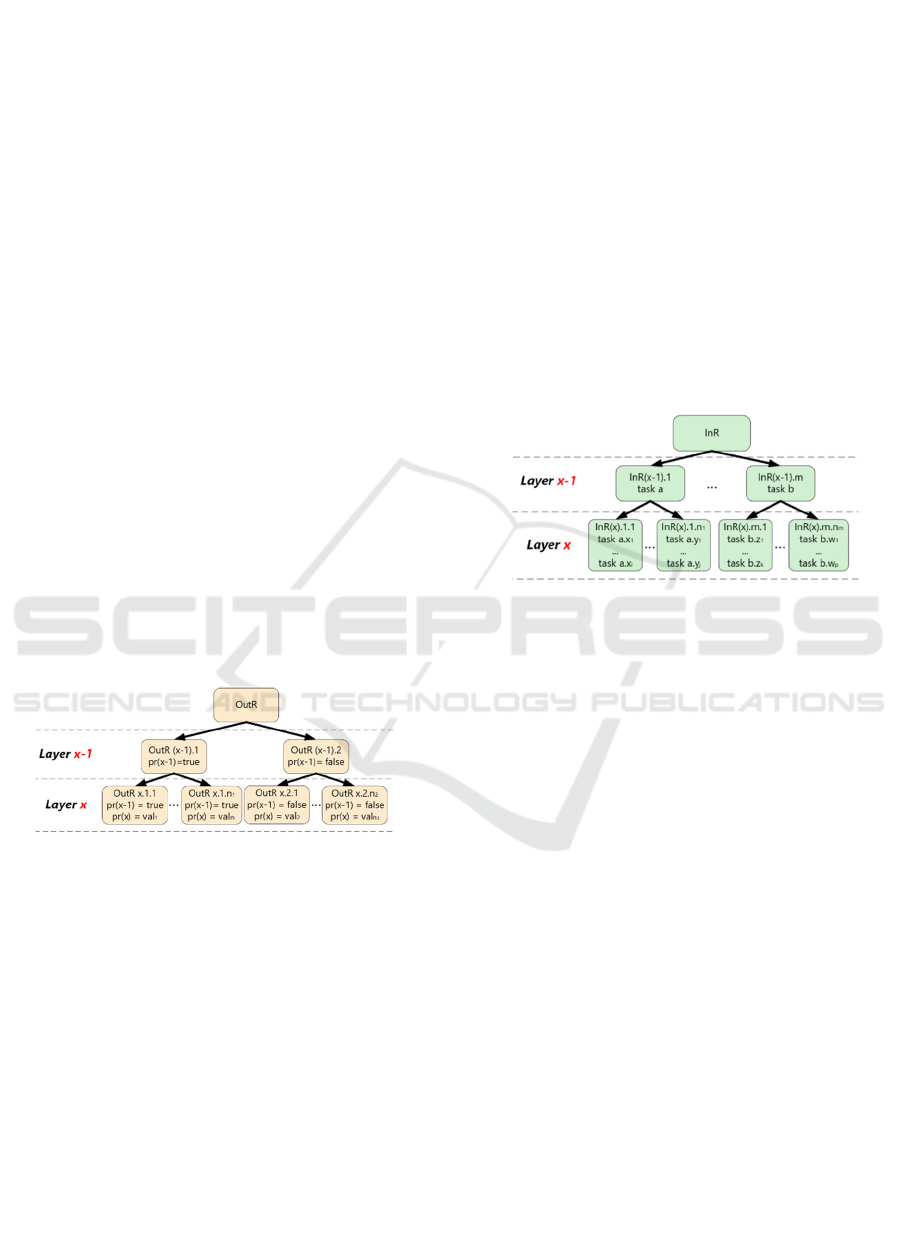

Figure 1: The refinement process of an external role.

External roles are refined by adding parameters

called properties. New roles are created by adding

new properties to them in the new layer. The new

properties are added to the roles in addition to the

previous ones. External roles could be related to each

role of the staff. Consequently, when adding layers to

an external role, it will have new roles with the same

base property and different new properties. Figure 1

shows the refinement process of an external role,

where:

x is the number of layers,

𝑛



is the number of refined roles on Layer x,

pr(x) is the new property on Layer x, and

𝑣𝑎𝑙



is the value of pr(x) of roles OutRx.1.i and

OutRx.2.i.

In the abstract specification, we have one role

OutR. On Layer (x-1) a new property pr(x-1) of type

Boolean has been introduced, and as a result, on

Layer (x-1), we have refined OutR to two new person

roles: OutR(x-1).1 with property (pr(x-1) = true) and

OutR(x-1).2 with property (pr(x-1) = false). In the

next layer, Layer x, property pr(x) with type Val ⊆

Int has been introduced. On Layer x, we have refined

both the roles on Layer x-1 to

𝑛



and

𝑛



new roles,

respectively, depending on the size of Val.

For example, let us assume that our external role

in the abstract specification is Client and that we want

to refine it considering the property age_group. Then

the first layer consists of the refined roles

Client_child, Client_adult, and Client_elderly. The

layer has three new roles because the property

age_group has three values.

Figure 2: The refinement process of an internal role.

Internal roles are refined by tasks. New roles are

created by adding new tasks or refining tasks of the

previous role. Internal roles could be related to any

external and internal roles. Figure 2 shows the

refinement process of an internal role, where

x is the number of layers,

m is the number of refined roles on Layer (x-1),

𝑛



is the number of refined roles on Layer x,

a, b are the task numbers on Layer (x-1),

a.v,a.y,b.z,b.w are the task numbers on Layer x,

i is the number of tasks of task a.v,

j is the number of tasks of task a.y,

k is the number of tasks of task b.z, and

p is the number of tasks of task b.w.

In the abstract specification, we have one role InR

that has been refined to m different roles with separate

tasks on Layer (x-1). As a result, we have m new roles

with the new tasks a, b, etc. on Layer (x-1). These

roles model different persons who work in parallel

and whose tasks can be performed in parallel. Each

role InR(x-1).i of Layer (x-1) has been refined into 𝑛



new roles on Layer x, where every role can have a list

of new tasks. For example, role InR(x-1).1 is refined

by roles InR(x).1.1, ..., InR(x).1.

𝑛



on Layer x with a

list of i new tasks a.v

,...,a.v

A Layering Approach with Role-based Workﬂow Modelling for the Enterprise Workﬂow

269

For example, let us assume that the internal role is

staff layered according to its tasks. If the abstract

specification has the role hotel_staff then it can be

refined to the roles receptionist, other_staff etc., on

the first layer. The layer contains these new roles

because they have separate special tasks.

The fourth stage includes the unification and

coordination of all stratified roles into a single

system. Each role requires careful coordination with

the others, resulting in a unified architectural

structure. Within this architecture, workflows for

each role remain separate, but they all need to be

consistent with each other. Hence, during the merging

process, the separate layers in the workflow of one

role may be changed to better align with the other

roles. Layers can be combined or excluded if

redundancy is detected.

This process of merging and coordinating roles

within the business process results in updated layers.

This not only helps to streamline the workflow but

also creates the conditions for a culture of adaptation

and clear division of roles while ensuring consistency

across all layers to achieve high performance and

organisational excellence.

6 CASE STUDY - HEALTHCARE

SYSTEM

A healthcare system is a good example for role-based

workflow modelling, since methods, techniques, and

tools from the field of logistics and industry are

suitable for managing operations, inventory, and

resources in healthcare. The quality of medical care

is one of the main objectives of healthcare.

Unfortunately, the quality of patient care depends on

a number of factors that are not all directly related to

medicine. For example, the geographical features of

the country or the region, staffing, and workload of

medical personnel. Here the question arises, what to

do if there is a critical shortage of personnel? Since

the workload and fatigue of medical staff affect the

quality of care, the need for effective resource

management, primarily time and people, emerges.

In the hospital context, a layered architecture can

be used to design a role-based workflow focused on

the basic role. This workflow can be integrated with

existing clinical workflows and systems. In this

section, we will deploy our layered development

method on the healthcare case study.

6.1 Overview of Development Using

Our Approach

As the first stage of our layered development

approach, we select the level to be the operational

BPM level. It allows us to use external and internal

roles in our case study.

At the second stage, the internal and external roles

are determined. The external role is Patient as a user

or customer of medical service. The internal roles are

Hospital staff as the role person and System as the role

system.

In the third stage, roles are further developed in a

layered manner using refinement. Let us start with the

role Patient. The abstract specification consists of one

external role Patient. The degree of urgency of

patient care needs to be determined as the first

property of the role Patient. Therefore, in Layer 1 the

property degree of urgency (Emerg) of type Boolean

is defined. As a result, we have two new roles Patient

with emergency (Emerg=1) and Patient without

emergency (Emerg=0) in Layer 1. In Layer 2 we add

the degree of hidden urgency, i.e. hidden emergency

(HidEmerg) as an additional property of Boolean

type. Using the decision table technique (Copeland,

2004) we select only relevant cases (see Table 1). In

the case of a patient with an emergency (Emerg=1),

the hidden emergency value is not relevant

(HidEmerg=~), while for a patient without an

emergency (Emerg=0), both values of hidden

emergency are important. Hence, in Layer 2, we have

three new roles (see Figure 3):

■ Patient with an emergency

(Emerg=1 & HidEmerg=~),

■ Patient with a hidden emergency

(Emerg=0 & HidEmerg=1),

■ Patient without any emergency

(Emerg=0 & HidEmerg=0).

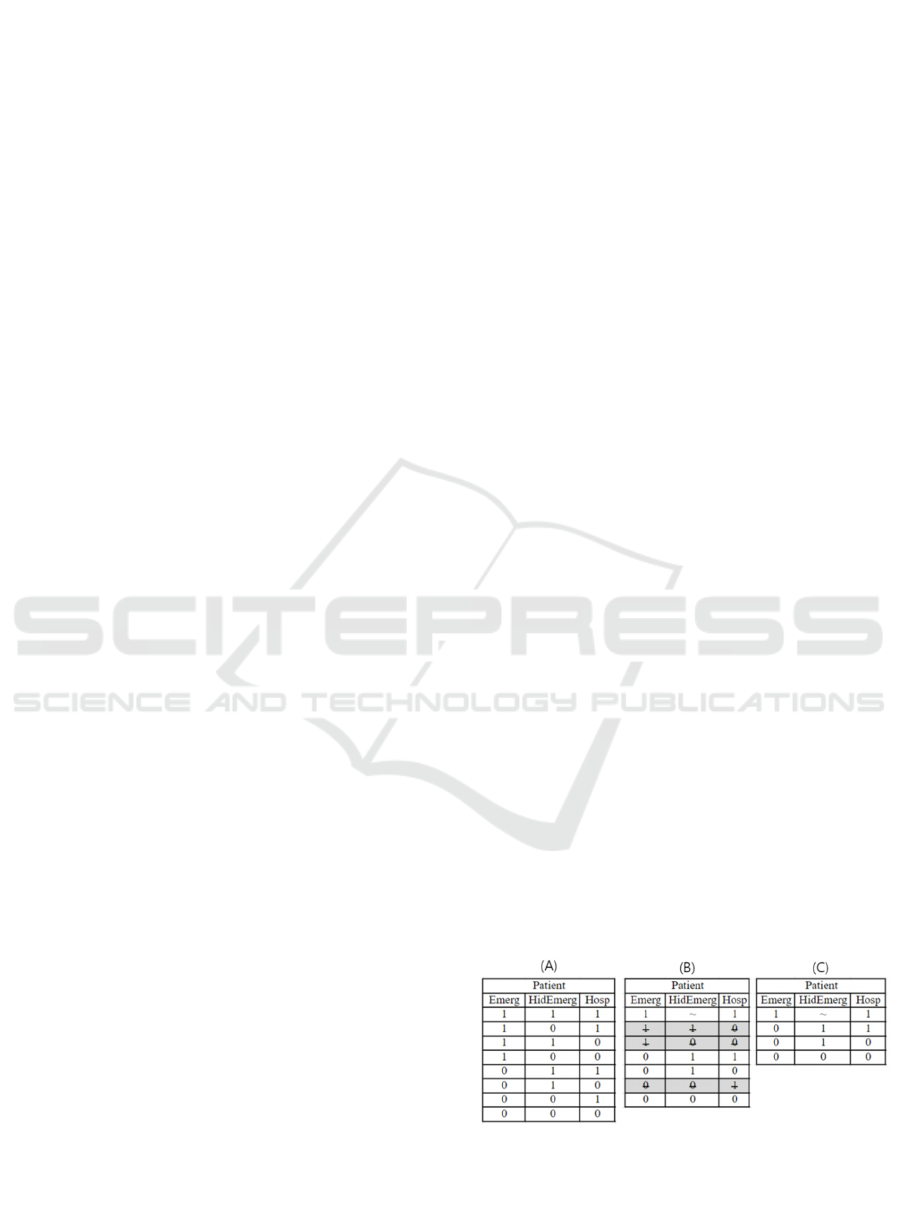

Table 1: (A) Decision Table of all possible conditions of

role Patient. (B) Intermediate table. (C) A collapsed

Decision Table conditions of role Patient.

In Layer 3 we introduce the third Boolean property

which is needed for hospitalization (Hosp). We

proceed from the relevant cases of Layer 2 that can be

found in Table 1(C). For a patient with an emergency,

hospital care is always required. Hence, the cases

SIMULTECH 2024 - 14th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

270

without hospital care (Hosp=0) are ignored (see

Table 1(B)). On the other hand, for a patient with a

hidden emergency, hospital care is optional, while a

patient without any emergency is considered not to

need hospital care. Due to this, we have four new

roles in Layer 3 (see Figure 3):

■ Patient with an emergency needing care

(Emerg=1 & HidEmerg=~ & Hosp=1)

■ Patient with a hidden emergency needing care

(

Emerg=0 & HidEmerg=1 & Hosp=1

■ Patient with a hidden emergency not needing

care (

Emerg=0 & HidEmerg=1 & Hosp=0

■ Patient without any emergency

(

Emerg=0 & HidEmerg=0 & Hosp=0

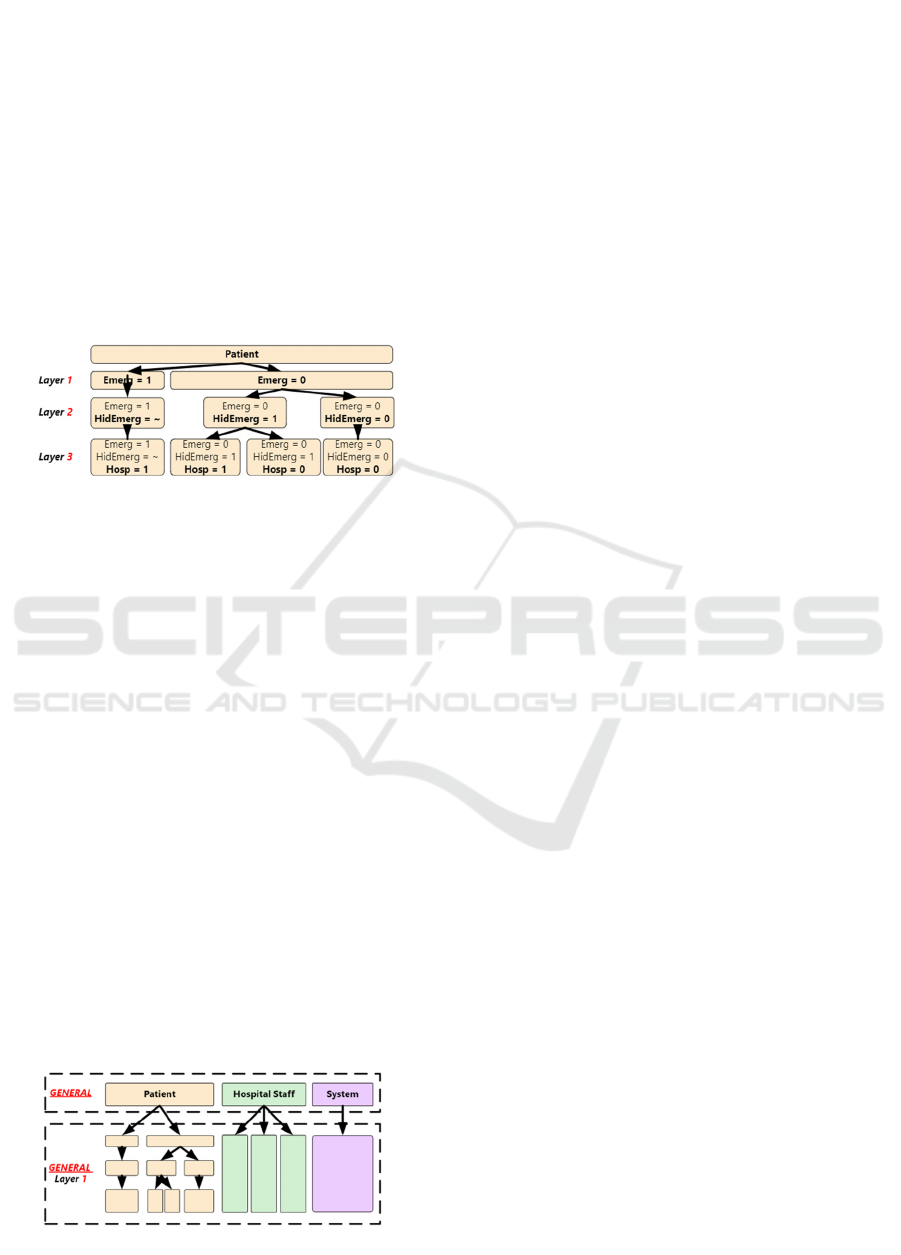

Figure 3: The refinement of the external role Patient.

The next step is the refinement of the internal

roles Hospital Staff and System. In the abstract

specification, we have one general role Hospital

Staff. New internal roles are created by tasks.

Considering the large number of possible categories

of hospital staff and their tasks we are facing a

challenge in selecting tasks for layering. Since

internal roles are usually related to external roles,

layers for internal roles could be added separately for

a single role or in accordance with the needs of

external roles. Three main tasks for Hospital Staff

were defined based on the roles of Patient: (1)

registration and administration support, (2)

preliminary examination, and (3) comprehensive

physical examination. Therefore, we have three new

roles: Registrator, Medical Staff, and Medical

Practitioners.

In the same way as above, the internal role System

is refined by tasks. These tasks could be defined

according to their roles among the hospital staff,

Registrator, Medical Staff, and Medical Practitioner.

In the implementation (Yehorova, 2024) we only

consider Registrator-focused system.

Figure 4: New layers after merging and coordinating roles.

The fourth stage of our approach includes the

unification and coordination of all roles into one role-

based workflow. The roles Hospital Staff and System

have one layer, while role Patient has three layers.

During the merging process, the separate layers in the

workflow of one role may be changed to better align

with the other roles (see Section 4). In our case study,

three layers of role Patient are combined into one to

match one single layer of Hospital Staff and System.

The result of this process of merging and

coordinating roles is the workflow with updated

layers (see Figure 4).

6.2 Development and Simulation in

UPPAAL

This paper focuses on the parallel workflow process

for different roles, the third and fourth stages of our

method. The UPPAAL tool has been used for the

simulation of the general workflow. In the abstract

model, only one patient can be in the process at one

time to highlight potential problems and inaccuracies

in the process itself, as well as to provide an

opportunity to optimize steps and take into account

the characteristics and needs of the patient. Here we

only present the abstract specification and one

refinement step, Layer 1.

Due to the lack of space all UPPAAL models

discussed in the paper could be found via the link to

our model (Yehorova, 2024).

6.2.1 Abstract Specification

Following the scheme in Figure 4 the abstract

specification is defined as three roles: Patient,

Hospital Staff, and System. Each role is represented

by a separate template. The Patient template for the

abstract specification contains three locations:

entrance, hospital_staff, and exit. The initial location

is entrance, corresponding to a patient arriving at the

hospital. Hospital_Staff also contains three locations:

new_patient, hospital_staff, and exit_patient. Here

the initial location is new_patient for the patient's

arrival. System contains two locations: systemON and

systemOFF, where the latter is the initial location.

When a Patient arrives at the hospital the process

starts with a notification patient_arrived! sent from

Patient to Hospital_staff. After arriving, the patient is

processed by the hospital staff in location

hospital_staff. Since the patient has arrived

(arrival_notification==true), but their data have not

yet been checked (check_data==false) the only

allowed transition is through the channel

patient_in_process, where Hospital_staff sends the

A Layering Approach with Role-based Workﬂow Modelling for the Enterprise Workﬂow

271

request to Patient. This indicates that the patient has

not yet been checked during this visit. Hospital_staff

checks the patient (check_patient=true) and updates

the patient data (check_data=true).

Next, the hospital staff inputs the patient’s data

and parameters into the system. Only after the

patient’s data and patient are checked by the hospital

staff using the system, the patient is moved (channel

patient_process_finished) to location exit.

6.2.2 The First Layer

To cover all critical paths of the workflow model each

defined role of the patient should be taken into

account as defined in Table I (С). The path depends

on the selected patient's health condition. When the

workflow model is refined new roles are introduced

and added as locations. Hence, the location

hospital_staff is refined by three new locations:

registrator, med_practitioners, and other_med_staff.

When a patient arrives at the hospital he/she is at

the entrance location as in the abstract specification.

The process starts by deciding the patient's condition

(emergency or no-emergency). In Table I(C) the first

case is emergency, where the patient needs

hospitalisation by default. In this case, a request is

sent to the hospital staff. An emergency patient skips

registration and directly arrives at location

other_med_staff. When the emergency patient has

arrived (emergency==true) and been processed by

other_med_staff (param==true) he/she directly

moves on to the physicians (location med_

practitioners). Finally, the physicians admit the

patient (channel hospitalisation_of_patient) to

hospital care by specialists (location

other_med_staff).

The second case (in Table I(C)) concerns a patient

with a hidden emergency who needs hospital care.

The process starts with the patient notifying the

hospital staff. After arriving, the patient is processed

by the registrar (in location Registrator), since the

patient arrived without an emergency

(emergency==false). The registrar checks the patient

data (data==true) and inputs the data into the system

(System) authorised for registrars only. When the

patient's data has been checked by the registrar and

the system (data==true and sys_data_check==true),

the patient moves to another person on the medical

staff (location other_med_staff). This person checks

the patient's parameters (param=true) which could

indicate possible earlier hidden emergencies. The

presence or absence of a hidden emergency can be

selected once after the parameters have been checked

(param==true and check_hidden_em==false). If it is

decided after the check-up that the patient has a

hidden emergency (hidden_emergency==true and

check_hidden_em==true) the patient is directed to

physicians (location med_practitioners) that carry out

additional examinations (examination=true) (channel

examination_of_patient) and decide in this case that

the patient needs hospital care (hospitalisation=true),

and allow parameters to be checked again

(param=false). The patient ends up in the care of a

specialist (location other_med_staff).

In the other cases (in Table 1(C)) it is selected that

no hospital care is needed (channel no_need_

hospitalisation). Medical practitioners end the patient

process (channel finish_patient_process) and the

patient exits the hospital (location exit in template

Patient).

6.3 Verification and Validation

The case study shows an example of our approach on

layered development, where we covered different

workflows in the hospital depending on the patient's

condition. The abstract specification presents the

overall picture of the interaction between hospital

staff, patients, and systems. The first layer, Layer 1,

covers four different scenarios for processing

patients, depending on whether they are medically

urgent and possibly require hospitalisation or not.

The layered development can be proved to be a

correct superposition refinement with respect to the

abstract specification. This is the case since Layer 1

introduces new external roles for Patient with new

characteristics modelled by new variables. These

variables and transitions have been added in a

controlled manner so that the proof obligations (1)-

(5) are satisfied (see Section 4).

Only the new variables are initialised (1) and

assigned new values in the transitions (2)-(3) in this

layer. The old behaviour remains the same. The

guards of the transitions have been strengthened by

more precise conditions. The new transitions disable

their own guards (4), and hence, they do not start

looping. Moreover, the guards of the transitions are

constructed so that some transition is always enabled

until the exit locations have been reached (5) to

guarantee the progress of the model.

The UPPAAL tool has been used to model and

analyse the workflows. This allows not only to create

formal models and check the correctness of the

workflows but also to simulate them. For the case

study, all scenarios in Table I(С) have been explored

to validate the model.

Modelling using our layered development method

can identify problems and improve workflows. This

SIMULTECH 2024 - 14th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

272

is the basis for continuous improvement of

workflows, innovation, and response to changes in

patient needs and healthcare requirements. Our

approach could be used as a tool to coordinate the

activities of the hospital staff and optimise the use of

hospital resources.

7 CONCLUSIONS

The key to clear resource allocation strategies is using

well-coordinated workflow models. The model may

include all possible results alternatives. In this paper,

we propose a new workflow modelling method based

on a role-based approach and layered development.

We use UPPAAL as our tool support, which allows a

concise description and provides means for the

analysis of complex systems.

This approach can be applied at any of the BPM

levels. The proposed modelling approach consists of

four stages for developing models. The first two

stages are aimed at defining the subject area, levels of

responsibility, and managers’ goals, the third stage

constitutes the layered development, and the fourth

concerns dividing and developing the roles.

The case study shows that the proposed approach

allows a structured development of a model stepwise

adding details for each role in the workflow. With

UPPAAL as our tool support, we can validate our

workflow model and achieve increased reliability of

the modelling. In conclusion, our proposed

development method could provide a powerful tool

for analysing and optimising work processes in

various industries, which can lead to improved

productivity and competitiveness of enterprises.

In the future, we want to elaborate more on how

decision support systems could be considered as a

role. Moreover, the positive results in this paper open

up new prospects for further research in the field of

BPM combined with computer science.

ACKNOWLEDGEMENTS

This work has received funding from the Finnish

National Agency for Education (EDUFI) via the

scholarship OPH-5532-2022, as well as from the

Finnish Society of Sciences and Letters.

REFERENCES

Alomari, A., April, A., Monsalve, C., & Gawanmeh, A.

(2018). Integrating a Decision Tree Perspective at the

Operational Level of BPM+. Computer Systems

Science and Engineering, 33, 219–227.

ANSI/EIA 632—Processes for Engineering a System | SE

Goldmine.

Back, R. J. R., & Sere, K. (1990). Stepwise refinement of

parallel algorithms. Science of Computer

Programming, 13(2–3), 133–180.

Behrmann, G., David, A., & Larsen, K. G. (2004). A

Tutorial on Uppaal., Formal Methods for the Design of

Real-Time Systems (Vol. 3185, pp. 200–236). Springer

Berlin Heidelberg.

Chengjun, W. (2009). The Research on the Role-Based

Dynamic Workflow Model. 2009 Second International

Symposium on Knowledge Acquisition and Modeling,

2, 358–360.

Copeland, L. (2004). A Practitioner’s Guide to Software

Test Design. Artech House.

Djatcha, R. A. D. (2022). A formal approach for role-based

modeling of business collaboration processes [Ph.D.

thesis, Université de Douala (Cameroun)].

ISO 12052:2017. ISO.

ISO 15704:2019. ISO.

ISO/IEC/IEEE 42010:2022. ISO.

Joseph Kim-Keung, H. (2015). A review of frameworks for

classification of information systems, notably on the

Anthony’s Triangle. European Academic Research

Vol. III, Issue 1.

Katz, S. (1993). A superimposition control construct for

distributed systems. ACM Transactions on

Programming Languages and Systems, 15(2), 337–356.

Liang, Z., & Bai, S. (2006). Role-Based Workflow

Modeling. 2006 IEEE International Conference on

Systems, Man and Cybernetics, 6, 4845–4849.

Margaria, T., Boßelmann, S., & Kujath, B. (2013). Simple

Modeling of Executable Role-Based Workflows: An

Application in the Healthcare Domain. Journal of

Integrated Design and Process Science, 17(3), 25–45.

Omarov, B., Abdrakhmanov, R., Koishiyeva, T., Bayaly,

A., Amirtayev, K., Madaliyeva, G., & Torebay, N.

(2021). Smart Hospital: Automation of Business

Processes in Medical Centers. 2021 International

Conference on Computational Intelligence and

Knowledge Economy (ICCIKE), 106–111.

Snook, C., & Waldén, M. (2006). Refinement of

Statemachines Using Event B Semantics. In J. Julliand

& O. Kouchnarenko (Eds.), B 2007: Formal

Specification and Development in B (pp. 171–185).

Springer.

UPPAAL. https://uppaal.org/

Waldén, M. (1998). Layering distributed algorithms within

the B-method. In D. Bert (Ed.), B’98: Recent Advances

in the Development and Use of the B Method (pp. 243–

260). Springer

Wang, L. (2022). Workflow for applying optimization-

based design exploration to early-stage architectural

design—Case study based on EvoMass. International

Journal of Architectural Computing, 20, 41–60.

Yehorova, Ye. (2024). UPPAAL-models of the healthcare

case. https://goo.su/j9XKf

A Layering Approach with Role-based Workﬂow Modelling for the Enterprise Workﬂow

273
