Efﬁcient and Secure Multiparty Querying over Federated Graph

Databases

Nouf Aljuaid

1,2

, Alexei Lisitsa

and Sven Schewe

Department of Information Technology, Taif University, Saudi Arabia

Department of Computer Science, University of Liverpool, Liverpool, U.K.

Keywords:

Graph Databases, SMPC, Federated Databases, Secure Data Processing.

Abstract:

We present a system for efﬁcient privacy-preserving multi-party querying (PPMQ) over federated graph

databases. This framework offers a customisable and adaptable approach to privacy preservation using two

different security protocols. The ﬁrst protocol utilises standard secure multiparty computation (SMPC) proto-

cols on the client side, enabling computations to be conducted on data without exposing the data itself. The

second protocol is implemented on the server side using a combination of an SMPC protocol to prevent ex-

posing the data to the clients and the use of encrypted hashing to prevent exposing the data to the server. We

have conducted experiments to compare the efﬁciency of our PPMQ system with Neo4j Fabric, the off-the-

shelf solution for querying federated graph databases, and with two previous systems, SMPQ and Conclave

for secure multiparty querying. The results demonstrated that the execution times and overheads of PPMQ are

comparable to those using Neo4j Fabric. Notably, our results reveal that the execution times and overheads of

PPMQ outperform both SMPQ and Conclave, showcasing the better efﬁciency of our approach in preserving

privacy within federated graph databases.

1 INTRODUCTION

Given the signiﬁcance of data security, it is unsurpris-

ing that numerous techniques have been proposed and

designed to enhance it. Secure multi-party compu-

tation (SMPC) stands out as a particularly intriguing

example of a method developed for this purpose. Ac-

cording to (Cramer et al., 2015), SMPC is a crypto-

graphic technique that enables a group of individuals

to collaborate on computations while keeping their

private data secret. It offers several advantages, in-

cluding full data privacy, where no third parties can

access the data regardless of their level of trustwor-

thiness. Additionally, it eliminates the need to com-

promise between data usability and privacy, enabling

data processing with high accuracy.

Nowadays, SMPC has a wide range of practical

applications, including, but not limited to, detect-

ing ﬁnancial fraud (Sangers et al., 2019), aggregat-

ing model features from private datasets, and predict-

ing heart disease(van Egmond et al., 2021). More-

over, SMPC can address trust-related concerns in var-

ious scenarios, such as secure elections (Alwen et al.,

2015), auctions (Aly and Van Vyve, 2016), and secret

sharing (Evans et al., 2018).

Until now, in the context of data processing,

SMPC has primarily been utilised to safeguard re-

lational databases (Volgushev et al., 2019; Poddar

et al., 2020; Bater et al., 2016). More recently,

applications of SMPC for other types of databases

with different data models have been considered.

This includes the system targeting graphs databases

like GOOSE (Ciucanu and Lafourcade, 2020), which

employs SMPC at the backend, while queries re-

main one-party only, and SMPQ (Al-Juaid et al.,

2022) which implements multi-party queries. Com-

pared to relational databases, graph databases pro-

vide a more ﬂexible data model that is more efﬁcient

for some types of queries, such as traversal queries

(Salehnia, 2017). The graph model employed by

graph databases has proven advantageous in numer-

ous scenarios, and these databases have had a wide

variety of uses, including on social media platforms,

such as Instagram, Twitter, and Facebook (Ciucanu

and Lafourcade, 2020).

While SMPC applied to multi-party queries has

shown promise, serious challenges remain, such as

low performance. For example, our SMPQ system

reported in (Al-Juaid et al., 2022) adopts the previ-

ously developed Conclave system (Volgushev et al.,

Aljuaid, N., Lisitsa, A. and Schewe, S.

Efﬁcient and Secure Multiparty Querying over Federated Graph Databases.

DOI: 10.5220/0012757100003756

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 13th International Conference on Data Science, Technology and Applications (DATA 2024), pages 39-50

ISBN: 978-989-758-707-8; ISSN: 2184-285X

2019) for graph databases and optimizes processing,

but still, signiﬁcant overheads remain.

1.1 Our Contributions

We have developed a privacy-preserving multi-party

query system (PPMQ) that leverages the Neo4j Fabric

functionality extended with the Awesome Procedures

on Cypher (APOC) library (Gu et al., pear), (Need-

ham and Hodler, 2019).

In PPMQ, we altered and improved the architec-

ture of our previous SMPQ model introduced in (Al-

Juaid et al., 2022) by eliminating the Conclave layer,

connecting directly to the JIFF server (Albab et al.,

2019) to reduce the overheads. This system can han-

dle a larger number of queries than SMPQ.

The system provides the user with two different

security protocols. The ﬁrst protocol involves using

traditional SMPC protocols on the client side, en-

abling computations to be performed on the data with-

out revealing it.

The second protocol, a novel approach imple-

mented on the server side, utilises traditional SMPC

protocols and involves hashing the data and masking

it with a Difﬁe-Hellman (DH) key exchanged among

all clients. This protects the data against access by the

server. The choice between the two protocols is deter-

mined based on the computations the parties want to

perform within the query itself.

We measured the execution times of both proto-

cols to compare the performance of the PPMQ system

with Neo4j Fabric (without encryption or SMPC) as

well as with two existing SMPC-based systems: Con-

clave(Volgushev et al., 2019) and SMPQ (Al-Juaid

et al., 2022).

The remainder of this paper is organised as fol-

lows: Section 2 presents the background to this work,

followed by a review of related literature (Section 3).

Next, our approach is outlined in Section 4. Follow-

ing this, Section 5 presents the evaluation of the sys-

tem and the experimental setup, followed by the re-

sults of our experiments. Finally, the paper concludes

in Section 6, and we offer directions for future work.

2 BACKGROUND

2.1 Secure Multi-Party Computation

(SMPC)

SMPC enables a group of parties to jointly compute

a function while ensuring the conﬁdentiality of their

individual inputs. Imagine a scenario where several

parties, denoted as P, each possess private data X that

they want to use for a computation represented by

function F. If these parties don’t fully trust each other,

they may choose to involve a trusted third party, de-

noted as Z, to perform the computation. In this setup,

parties provide their data to Z, who computes F and

returns the respective part of the result, Y , to each

party.

However, SMPC offers an alternative approach.

It enables parties to collaboratively compute F while

preserving the privacy and security of their data. Re-

gardless of the number of parties involved, each with

their own private data, SMPC ensures that the compu-

tation of F is conducted conﬁdentially. This guaran-

tees that the outcome remains identical to what would

be obtained if a trusted third party Z were to perform

the computation.

We refer the reader to (Evans et al., 2018) for an

overview of SMPC and related standard security def-

initions.

2.2 Neo4j and Cypher Query Language

In this work, Neo4j served as the implementation for

graph databases (Guia et al., 2017). The graph data

model employed in Neo4j comprises a collection of

nodes and relationships. Nodes signify individual en-

tities, with connections between them depicted using

arrows (Miller, 2013). Each node in the graph may be

assigned properties to describe the entity it represents.

Moreover, labels can be attached to nodes, enhancing

the ease of conducting efﬁcient searches within the

graph. Neo4j incorporates the Cypher query language

for managing data within graph databases (Francis

et al., 2018).

In our system implementation, we make use of

Neo4j Fabric functionality (Gu et al., pear) along

with the APOC library (Needham and Hodler, 2019).

Neo4j Fabric operates on the principle of executing

Cypher queries that simultaneously target multiple

Neo4j graph databases, making it an ideal solution for

federated databases.

In general, a federated database denotes a type

of database management system that integrates mul-

tiple autonomous database systems into a single fed-

erated database. Similarly, a federated graph collab-

oratively integrates multiple sharded graphs, enabling

the querying of all these graphs as a single big graph

database (Azevedo et al., 2020). There are three main

challenges in federated computation: privacy, efﬁ-

ciency, and effectiveness. Privacy involves maintain-

ing the conﬁdentiality of each owner’s private data

while facilitating collaborative computing. Efﬁciency

is inﬂuenced by additional communication and com-

DATA 2024 - 13th International Conference on Data Science, Technology and Applications

putation. Effectiveness pertains to conducting accu-

rate analysis in the presence of multiple distributed

datasets (Tong et al., 2023).

The APOC library contains more than 450 proce-

dures and functions designed to assist in various com-

mon tasks, including data integration, cleaning, con-

version, and general-purpose helper functions. Fig-

ure 1 illustrates an example general Cypher query in-

volving two parties with two databases extended us-

ing Neo4j Fabric and the intersection procedure from

the APOC library.

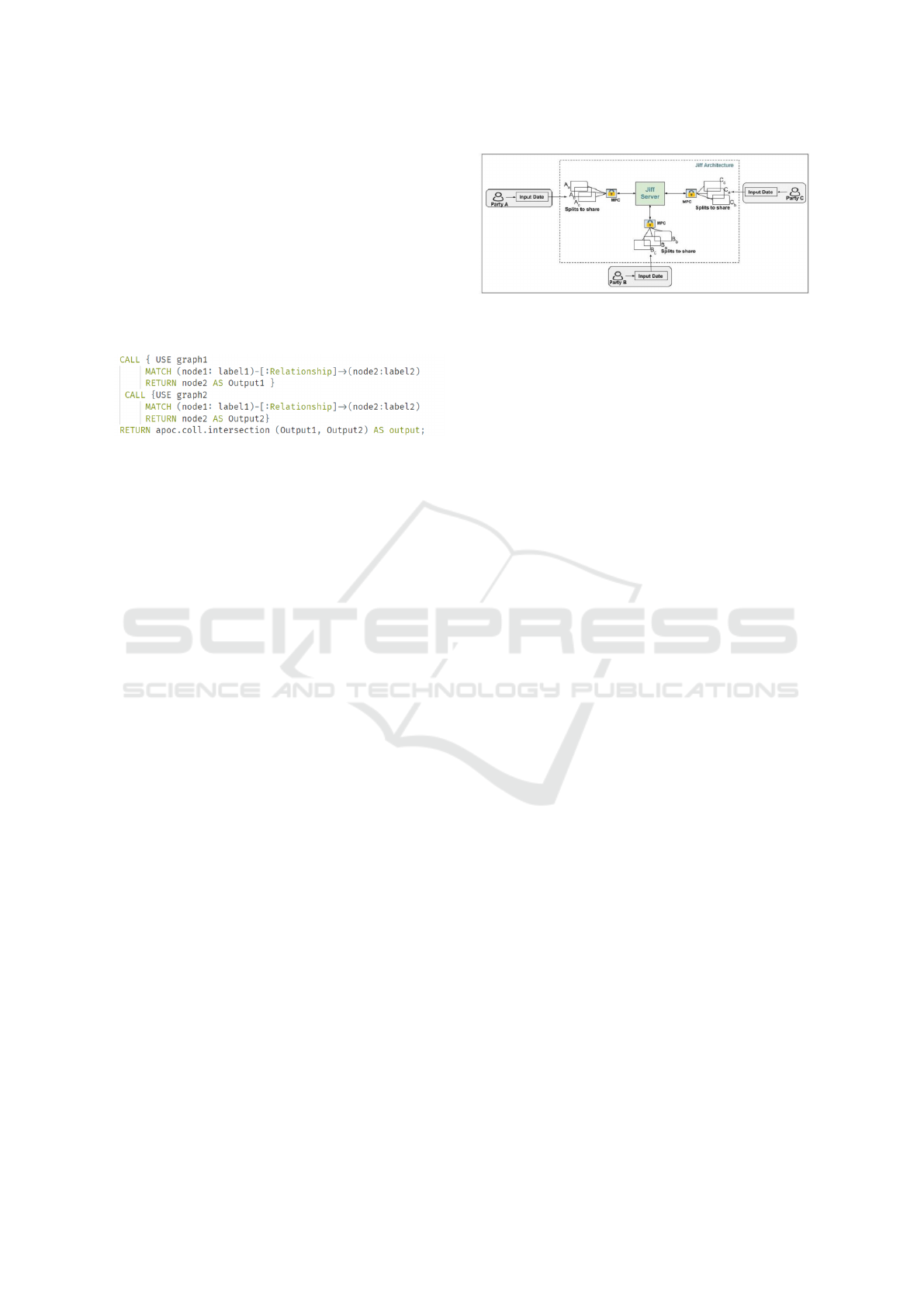

Figure 1: Example of a general Cypher query utilising two

parties with two databases.

3 RELATED WORK

3.1 Implementation of SMPC

Until recently, SMPC was primarily a subject of

theoretical exploration. However, in recent times,

there has been a notable effort to apply it in real-

world applications (Evans et al., 2018). Examples of

SMPC implementations used in various contexts in-

clude JIFF (Albab et al., 2019), Oblivm (Liu et al.,

2015), GraphSC (Nayak et al., 2015), and Sharemind

(Bogdanov et al., 2008).

JIFF (Albab et al., 2019) is a JavaScript li-

brary designed for scenarios involving distributed

data among multiple entities, facilitating SMPC. It

employs a server to manage encrypted messages

exchanged between participants, operating under a

semi-honest security model. JIFF utilises Shamir’s

secret sharing method (Shamir, 1979) for secure com-

putation. In SMPC, the private information of each

participant is divided into shares, and distributed

among multiple parties. These shares individually

hold no meaning but can be collectively combined to

reconstruct the original secret.

When JIFF operates as a server, each party acts

as a client. Throughout the computation process, in-

put data from participants is divided into shares and

encrypted using the public keys of the parties. Each

party possesses shares from others, including their

own. The computation is performed on these shares,

and the output is displayed to all participants without

disclosing the underlying data involved in the calcu-

lation. The architecture of JIFF is illustrated in Fig-

ure 2. In the Shamir secret sharing scheme (Shamir,

Figure 2: JIFF architecture and components.

1979), two operations are employed: share generation

and reconstruction. During share generation, shares

are created from a given secret input, where the secret

is divided into several shares and distributed among n

parties. The reconstruction process deﬁnes the min-

imum number of parties required to reconstruct the

original secret input.

ObliVM (Liu et al., 2015) is a secure computation

framework using ObliVM-lang, akin to Java. It em-

ploys a two-party garbled circuit protocol, supports

arbitrary-sized integers, ﬁxed-size integers, and an ef-

ﬁcient Oblivious RAM (ORAM) scheme. The au-

thors demonstrate efﬁcient complex arithmetic, like

Karatsuba multiplication, in ObliVM-lang.

GraphSC is a secure computation framework

leveraging ObliVM for graph parallelism. It relies on

ObliVM (Liu et al., 2015) and enables secure two-

party computation where one party garbles and the

other evaluates data. Performance evaluations show

GraphSC processes data roughly ten times faster than

ObliVM.

Sharemind is a high-speed, secure computation

framework using a three-party hybrid protocol and ad-

ditive secret-sharing scheme. Its roles include clients,

servers, and outputs. Sharemind operates within a ﬁ-

nite ring, processing data securely while ensuring pri-

vacy and scalability.

In this work, we will utilise JIFF (Albab et al.,

2019) as the backend for our PPMQ system to imple-

ment SMPC protocols.

3.2 SMPC for Data Processing

There have been recent efforts to integrate SMPC with

databases to enhance data security. For instance, (Vol-

gushev et al., 2019) proposes Conclave, a query com-

piler used with relational databases. This compiler

converts queries into a combination of data-parallel,

local cleartext processing, and small SMPC steps.

The system rewrites queries to reduce the cost of

SMPC processing and improve scalability. They rec-

ommend forwarding the modiﬁed query to JIFF (Al-

bab et al., 2019), which serves as the backend SMPC

system.

Efﬁcient and Secure Multiparty Querying over Federated Graph Databases

In (Poddar et al., 2020), the Senate system is in-

troduced, enabling collaborative execution of analyti-

cal SQL queries while preserving data conﬁdentiality.

Unlike previous systems, the Senate offers protection

against malicious parties rather than just semi-honest

modes.

Additionally, in (Liagouris et al., 2021), the au-

thors proposed Secrecy, a relational SMPC frame-

work based on replicated secret sharing. It partitions

data into three shares where each party handles two

shares to execute query segments securely.

Furthermore, (Bater et al., 2016) presents SM-

CQL, a system converting SQL queries into secure

multiparty computations. Users submit queries to an

honest broker, acting as a trusted third party, respon-

sible for processing queries securely and delivering

results.

In another study by (Bater et al., 2020), they used

SMCQL to develop the Secure Approximate Query

Evaluator (SAQE) system, enhancing SQL query se-

curity. SAQE follows a two-stage approach: plan-

ning and execution. The client optimizes and exe-

cutes query plans, while query execution occurs on

the server among data owners, using SMPC protocols.

They collaborate to execute queries across databases

and share results with the client.

Bater et al. expanded on the SMCQL system and

developed a system called Shrinkwrap (Bater et al.,

2018), using two-party secure computations. While

improving SMCQL’s efﬁciency, it’s important to note

that some information is disclosed in the process.

In (Wang and Yi, 2021), the authors introduce Se-

cure Yannakakis, a modiﬁed version of the classical

Yannakakis algorithm tailored for secure two-party

computation. This protocol enables parties to assess

free-connex join-aggregate queries while safeguard-

ing data conﬁdentiality. Results demonstrate a no-

table efﬁciency enhancement compared to the current

method relying on Yao’s garbled circuit.

VaultDB, outlined in (Rogers et al., 2022), is a

framework for secure SQL query computation over

private data from diverse sources. It utilises the EMP

toolkit as its SMPC backend. The authors evaluated

it with a dataset from a Clinical Research Network,

covering data from almost 13 million patients. Their

results highlight the efﬁciency and scalability of the

system in distributed clinical research analyses while

maintaining patient record privacy.

Scape (Han et al., 2022) is a scalable collaborative

analytics system for private databases with malicious

security. It enables secure sharing among three non-

colluding computing parties, allowing users to exe-

cute various SQL queries. Benchmark results show

Scape is up to 25 times faster than the Secrecy frame-

work (Liagouris et al., 2021).

Sequre, outlined in (Smajlovi

c et al., 2023), is a

Python-based framework for SMPC in bioinformat-

ics. It prioritises high performance and incorporates

automatic compile-time optimizations to boost efﬁ-

ciency and speed. Through secret-sharing, Sequre

enables secure computation of biomedical data while

ensuring faster query execution and analysis tasks.

Hu-Fu (Tong et al., 2022) is a system designed for

secure and efﬁcient spatial queries within a data fed-

eration. It minimizes secure operations and enhances

query processing performance compared to existing

solutions while ensuring robust security across vari-

ous spatial databases.

Contrastingly, in (He et al., 2015) and (Ciucanu

and Lafourcade, 2020), the authors explore SMPC’s

application for single-party querying. They introduce

the SDB system, a cloud-based relational database

involving two parties: the data owner (DO) and the

server provider (SP). Sensitive data is split into two

shares: one held by the DO (item key) and the other

by the SP (ciphertext). SMPC (secret sharing) is used

between the DO and the SP. When a user submits

an SQL query, the SDB proxy in the DO segment

transforms sensitive column queries into correspond-

ing User-Deﬁned Functions (UDFs) at the SP. These

altered queries are then sent to the SP, and the en-

crypted results are returned to the SDB proxy for de-

cryption before being provided to the user.

The GOOSE framework, detailed in (Ciucanu

and Lafourcade, 2020), shares similarities with SDB

and primarily focuses on securing outsourced data

within a Resource Description Framework (RDF)

graph database using SMPC secret sharing. Graph

data is divided into three components, encrypted, and

distributed across the cloud. All components are

multi-party, preventing any single party from access-

ing the complete graph, query, or outcomes. Data

transmissions between parties are encrypted using the

AES algorithm.

Initially, multi-party query security in graph

databases was outlined in the SMPQ (Al-Juaid et al.,

2022) framework. Subsequent advancements trans-

formed SMPQ into a fully automatic solution, ex-

panding its query-handling capabilities with signiﬁ-

cantly improved performance (Al-Juaid et al., 2023).

Notably, this system is built upon the Conclave sys-

tem, utilizing the SMPC protocol to secure relational

databases.

We introduce PPMQ, a system designed to secure

multiparty queries on graph databases. The PPMQ

model is inspired by SMPQ, in which we altered the

architecture by eliminating the Conclave layer and

connecting directly to the JIFF server(Albab et al.,

DATA 2024 - 13th International Conference on Data Science, Technology and Applications

2019) to reduce the overheads. We implemented

PPMQ using JavaScript and built it on top of the JIFF

library, serving as an implementation of SMPC proto-

cols.

Table 1 provides a comparative analysis between

our proposed PPMQ system and all mentioned above

systems.

4 DESIGN OF THE PPMQ

FRAMEWORK

In this section, we ﬁrst introduce the entities in-

volved in the PPMQ framework and then provide an

overview of how it works.

4.1 Involved Entities

The architecture of our PPMQ system is illustrated in

Figure 3. The system involves the following entities:

1. Data Owners. It enables multiple data owners,

denoted by P

, P

,. . . , P

, to jointly execute a sin-

gle query on the union of their own separate and

private databases, once they reach an agreement.

2. Neo4j Databases. The different data owners

make their respective Neo4j databases available

for the system, to execute the sub-query for each

party using their Neo4j database.

3. JIFF Server. This entity represents a server that

provides SMPC protocols like secret sharing to be

used in joint querying.

4.2 Security Guarantees and

Assumption

PPMQ is designed on top of the JIFF library, which

follows a semi-honest security model. Parties agree

via out-of-band mechanisms on the query to run, and

all parties faithfully execute the protocol. In the semi-

honest security model, parties adhere to the proto-

col but may attempt to learn private information by

analysing their messages or colluding with other par-

ties. The security of PPMQ is built upon the robust-

ness of the underlying cryptographic primitives em-

ployed by JIFF, encompassing secure encryption al-

gorithms, key exchange protocols, and cryptographic

hash functions.

4.3 Query Agreement

The PPMQ system allows for joint querying by two

or more parties. After determining the number of par-

ties involved in performing the query using the SMPC

protocol, they should agree on a computation ID. In

our current system, this computation ID (ComID) can

be considered an agreement to apply the query us-

ing their respective databases (Albab et al., 2019).

In a further enhancement of the system, we will use

the threshold shared signatures method (Tang et al.,

2023).

4.4 PPMQ Overview

The PPMQ system works by providing users with the

ability to execute queries using two different security

protocols. One option is to use traditional SMPC pro-

tocols on the client side, allowing computations to be

performed on the data without exposing it. The sec-

ond protocol is implemented on the server side using

SMPC protocols and involves hashing the data to use

the hashed value. This protects the data against access

by the server, assuming that hashing is not reversible,

contributing to the security of the data. The choice

between the two protocols is determined based on the

computations the parties want to perform within the

query itself. If the query involves performing arith-

metic operations, including secure addition, multipli-

cation, division, comparison, or sorting, it will be

done on the client side. However, if the purpose of

the computation in the query is to ﬁnd the intersection

among the parties’ private data, this computation will

be carried out using the second protocol on the server

side. The types of queries covered include those in-

volving arithmetic operations such as secure addition,

multiplication, division, comparison, or sorting. Ad-

ditionally, queries aimed at ﬁnding the intersection

among the parties’ private data are handled using the

second protocol on the server side. Furthermore, as

part of our ongoing development efforts, we intend to

extend the coverage to include graph traversal queries

over multiple parties databases.

4.4.1 Protocol 1: Client-Based

To apply traditional SMPC protocols on the client

side, leveraging the functionality provided by JIFF,

the sub-query results obtained from each party are

transmitted to the JIFF server. At the JIFF server, the

SMPC protocol (Secret Sharing) is employed to di-

vide the data into shares. Subsequently, JIFF utilises

a server to store and route encrypted messages ex-

changed among the participating parties for computa-

tion purposes. JIFF’s functionality encompasses per-

forming arithmetic operations, including secure ad-

dition, multiplication, and division of two or more

secret-shared numbers. This capability enables par-

ties to collaboratively compute a joint function with-

out disclosing their respective inputs. Furthermore,

Efﬁcient and Secure Multiparty Querying over Federated Graph Databases

Table 1: SMPC for data processing.

Framework

Parties

supported

SMPC

Framework

backend

Trust

Party

No.Data

owners

Data Model

Query

language/API

Available

implementation

Development

language

Conclave (Volgushev et al., 2019) >= 2 Secret Sharing JIFF Yes >= 2 Relational DB SQL/LINQ Yes Python

Congregation >= 2 Secret Sharing JIFF No >= 2 Relational DB SQL Yes Python

SMCQL (Bater et al., 2016) 2 Garbled Circuits/ ORAM ObliVM No 2 Relational DB SQL Yes Java

Senate (Poddar et al., 2020) 2 Garbled Circuits N/A No 2 Relational DB SQL No -

SAQE (Bater et al., 2020) 2 Garbled Circuits ObliVM No 2 Relational DB SQL No -

Shrinkwarp (Bater et al., 2018) 2 Garbled Circuits/ ORAM ObliVM No 2 Relational DB SQL No -

Secrecy (Liagouris et al., 2021) 3 Repl.Secret Sharing N/A No 3 Relational DB SQL No C

SecureYannakakis (Wang and Yi, 2021) 2 Garbled Circuits N/A No 2 Relational DB SQL Yes C++

VaultDB (Rogers et al., 2022) 2 Garbled Circuits EMP-Toolkit No 2 Relational DB SQL No C++

Scape (Han et al., 2022) 3 Repl.Secret Sharing Frigate No 3 Relational DB SQL No -

Sequre (Smajlovi

c et al., 2023) 3 Secret Sharing N/A Yes 3 Relational DB SQL Yes Python/C++

Hu-Fu (Tong et al., 2022) >= 2 N/A N/A Yes n Relational DB SQL Yes Java

SMPQ (Al-Juaid et al., 2022) >= 2 Secret Sharing Conclave/JIFF No >= 2 GraphDB Cypher No Python

SDB (Wong et al., 2014; He et al., 2015)

N/A Secret Sharing N/A No 1 Relational DB SQL No -

GOOSE (Ciucanu and Lafourcade, 2020)

N/A Secret Sharing N/A No 1 GraphDB SPARQL Yes Python

PPMQ >= 2 Secret Sharing JIFF No >= 2 GraphDB Cypher No JavaScript

*Both

and

use SMPC as backend over a database; they do not support multi-party user queries

JIFF supports comparison operations, allowing par-

ties to determine the relative magnitude of their in-

puts, as well as sorting operations, permitting parties

to establish the order of their inputs without revealing

the actual values. Additionally, we have developed

a custom function for identifying the intersection be-

tween two or more secret-shared strings, further ex-

tending the functionality of JIFF. Algorithm 1 illus-

trates the phases involved in client-based query pro-

tocol.

To illustrate how this works, consider a scenario

with three parties aiming to execute one of the queries

from the subsection 5.2 speciﬁcally, Q2, which is a

query to count the number of students who scored

7 and are common across all databases. The syntax

for the joint query will be as follows:

CALL {USE db1

MATCH (n:Prof) -[:Guide]-> (m:Student)

where m.Score= 7

RETURN count(m) as db1}

CALL {USE db2

MATCH (n:Prof) -[:Guide]-> (m:Student)

where m.Score= 7

RETURN count(m) as db2}

CALL {USE db3

MATCH (n:Prof) -[:Guide]-> (m:Student)

where m.Score= 7

RETURN count(m) as db3}

RETURN apoc.coll.sum (db1,db2,db3 ) AS cnt

In this example, each party executes a sub-query

to count students with a score of 7 in its respective

database. The results (db1, db2, db3) are transmit-

ted to the server as shares. These shares are then

distributed among the parties to compute intermedi-

ate results. Subsequently, based on these intermediate

results, the ﬁnal result of the joint query Q is deter-

mined.

Algorithm 1: Client-Based Query Execution.

Require: Q: Joint query

Require: P: Set of parties P

, P

, . . . , P

for sharing

computations.

Require: ComID: Shared computation ID as proof

of agreement.

Require: P

: Unique ID for each P when connect-

ing to the server.

Require: R(Q

): Result of subquery Q

Connect to the System

1. Decide the number of parties (P

) involved in

the computation.

2. Use shared ComID to agree on the computa-

tion.

Preprocessing Phase

1. Each P

submits Q to the system.

2. Parse Q into Q

based on P

for each P

3. Execute Q

on each P

’s Neo4j database.

Computation Phase

1. Each P

sends R(Q

) to the server as shares.

2. Distribute shares among P

, where each P

re-

ceives one share from others.

3. Each P

computes the intermediate result using

a subset of these shares.

Reconstruction Phase

1. Each P

sends the intermediate result to P

i+1

2. Given these results, ﬁnd the ﬁnal result of Q.

4.4.2 Protocol 2: Server-Based

Due to the potential lack of information when per-

forming the intersection on the client side, each party

receives shares from the other parties (without know-

ing the source) and identiﬁes duplicate names as the

intersection. To solve this issue, we propose an alter-

native protocol that performs the intersection on the

server side while incorporating an additional method

to enhance the security of the information against po-

DATA 2024 - 13th International Conference on Data Science, Technology and Applications

tential server access. In our current version of PPMQ,

this protocol supports performing only the intersec-

tion operation. As an enhancement to the system, we

intend to use this protocol to study how to perform

traversal queries, paradigmatic for graph databases,

between multiple parties while preserving the privacy

of their data. Algorithm 2 outlines the phases of query

execution on the server side.

Algorithm 2: Server-Based Query Execution.

Require: Q: Joint query

Require: P: Set of parties P

, P

, . . . , P

for sharing

computations.

Require: ComID: Shared computation ID as proof

of agreement.

Require: P

: Unique ID for each P when connect-

ing to the server.

Require: Dh: Key generated and exchanged using

the DH algorithm.

Require: R(Q

): Result of subquery Q

Connect to the System

1. Decide how many parties (P

) are involved in the

computation.

2. Use shared ComID to agree on the computation.

3. After (P

) connects to the system, generate Dh

and exchange it between P

using the JIFF server.

Preprocessing Phase

1. Each P

submits Q to the system.

2. Parse Q into Q

based on P

for each P

3. Execute Q

on each P

’s Neo4j database.

4. Each P

hashs R(Q

) then, XORed using ex-

changed Dh.

Computation Phase

1. Each (P

) sends the newly hashed R(Q

) to the

server as shares.

2. The server computes the intersection on the

hashed results received from (P

3. The result of the computation is distributed to

each (P

Reconstruction Phase

1. Each P

performs XOR on the result using Dh.

2. The ﬁnal result of Q is determined from these

XORed results.

To illustrate how this works, let’s consider an ex-

ample scenario involving two parties. They want to

run a query to ﬁnd the names of people who appear

in both of their databases and were born in 1977.

The syntax for the joint query will be as follows:

CALL{

USE db1

MATCH (m:Person) WHERE m.born= 1977

RETURN DISTINCT(m.name) AS out1

}

CALL{

USE db2

MATCH (m:Person)

WHERE m.born >= 1977 and m.born<=1980

RETURN DISTINCT(mm.name) AS out2

}

RETURN apoc.coll.intersection

(out1,out2)

In this example, each party executes a sub-query

to identify distinct names based on certain conditions.

The results (out 1, out 2) are sent as shares to a server,

which computes the intersection of these results with-

out revealing underlying data. The ﬁnal result of the

joint query Q is determined, representing the shared

names between them, which is returned to the partic-

ipating parties for privacy-preserving data collabora-

tion.

4.5 Query Workﬂow

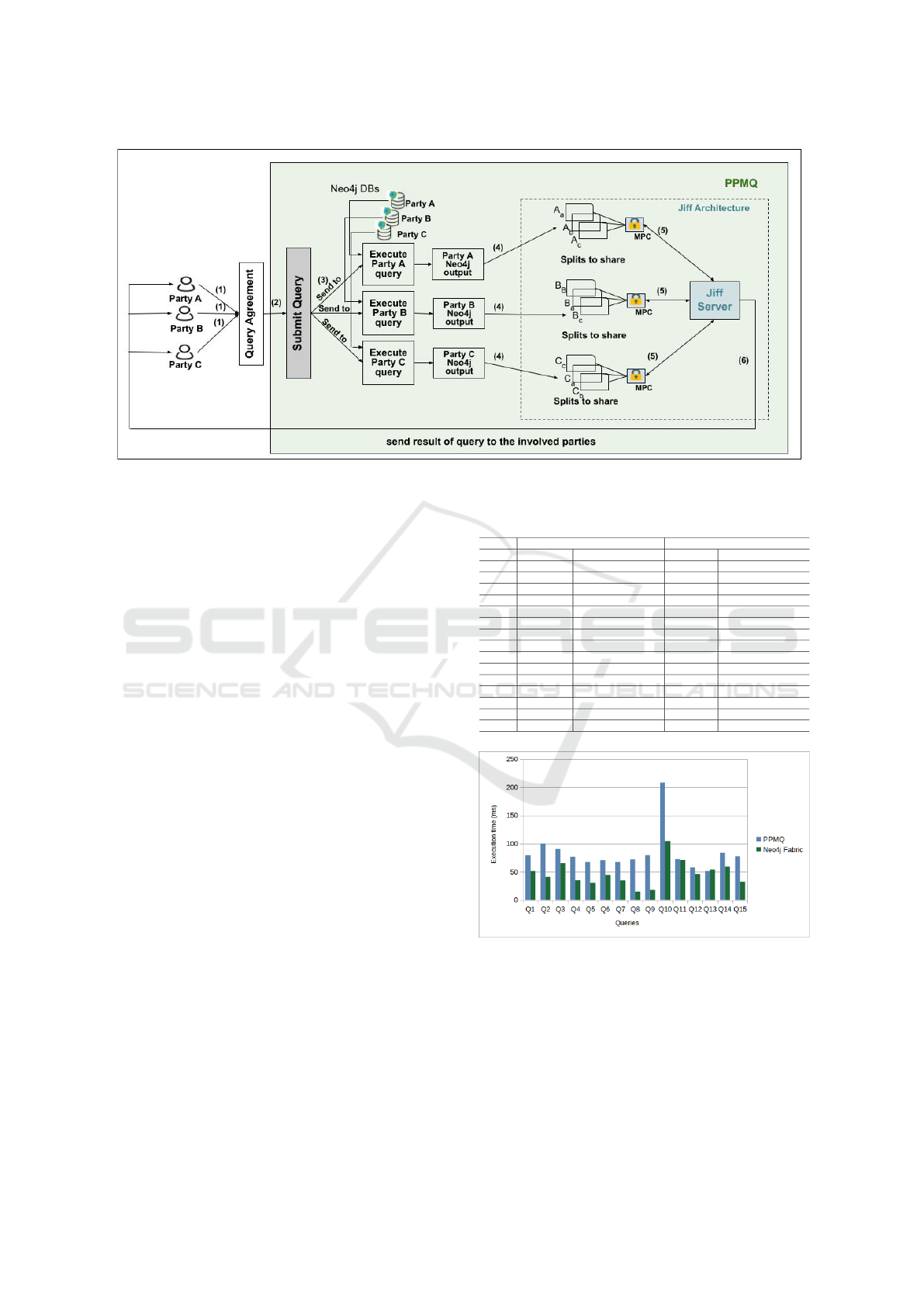

Figure 3 outlines the query ﬂow in the PPMQ system.

Multiple data owners (P

to P

) collaboratively exe-

cute a joint query on separate graph databases. In step

(1), they agree on a joint query and establish a shared

computation ID. Moving to step (2), parties submit

the query, which is then translated into sub-queries

depending on parties IDs. In step (3), each party ex-

ecutes their sub-query on their Neo4j database. The

sub-query could be the same across all parties, or it

can be an arbitrary sub-query. From step(1) to step

(3), the same steps will be on both the client and

server sides.

4.5.1 Query Workﬂow: Client Side

In step (4), sub-query results are sent to the JIFF

server, utilising SMPC protocols. Privacy is ensured

as results are passed as shares utilise Shamir’s secret

sharing method (Shamir, 1979). In step (5), shares

are distributed among parties to perform a secure op-

eration and compute the ﬁnal query results. Finally,

in step (6), the exclusive outcome is revealed to the

parties who initiated the query, maintaining the conﬁ-

dentiality of the underlying data.

4.5.2 Query Workﬂow: Server Side

In Step (4), a random key (Dh) is generated using DH

key exchange between the parties (Maurer and Wolf,

1998). Then, in Step (5), when the query results are

obtained and before being passed to the JIFF server,

each party hashes their result using SHA-256. This

is followed by XORing the hashed value using Dh.

Moving on to Step (6), within the JIFF server, SMPC

divides each party’s private data into smaller shares

Efﬁcient and Secure Multiparty Querying over Federated Graph Databases

but does not distribute them among various parties.

Instead, the server performs the computation to ﬁnd

the intersection. Finally, in Step (7), the ﬁnal result is

revealed to the parties who initiated the query.

5 SYSTEM EVALUATION

We evaluate our proposed system, PPMQ, and inves-

tigate its efﬁciency. The goal of the experiments is to

answer the following questions: We evaluate the ef-

ﬁciency of our proposed system, PPMQ, addressing

the following questions:

• RQ1. How effective is our system in ensuring se-

cure multiparty queries, and what is its efﬁciency

in terms of performance?

• RQ2. Does the data size impact the system’s efﬁ-

ciency?

• RQ3. How does PPMQ’s performance compare

to existing systems like Neo4j Fabric, Conclave,

and SMPQ?

5.1 Data Sets

To validate our proposed PPMQ system and assess its

efﬁciency, we executed 15 queries using four distinct

datasets. These datasets were sourced from three dif-

ferent parties, each using separate Neo4j databases.

The ﬁrst dataset, created by us, contains data from

professors and students, featuring 58 nodes and 29

edges. This dataset serves as a small-scale exam-

ple for testing purposes. The second dataset is de-

rived from an open Neo4j database example called

the ’Movie’ dataset (Neo4j, 2007). We modiﬁed the

nodes by adding and removing some, establishing

varying party sizes. The graph within this dataset con-

sists of 563 nodes with 785 edges, enabling a more

comprehensive evaluation. The third dataset, named

the ’POLE’ dataset, is a large-scale dataset provid-

ing open crime data for Manchester, UK, spanning

August 2017 (Hunger, 2020). It encompasses 61,521

nodes with 105,840 relationships. Finally, we devel-

oped the ’Car Location’ dataset exclusively using nu-

merical data. Across all the databases in this dataset,

a total of 100 nodes are interconnected by 63 rela-

tionships. This dataset was speciﬁcally designed to

facilitate a comparison between our system and the

Conclave system, given that the latter is designed for

handling solely numerical data.

For clariﬁcation, we used the ﬁrst dataset to ex-

ecute queries Q1 to Q4, while the Movie dataset was

used for queries Q5 to Q8. Additionally, queries Q9 to

Q11 were executed using the POLE dataset, while the

ﬁnal set of queries, Q12 to Q15, was conducted using

the last dataset. Table 2 provides further details about

each dataset, including node and relationship counts

for each database owned by distinct data owners.

Table 2: Details regarding the four datasets employed for

conducting the experiments.

Data sets Database No. of Nodes No. of Relationships

Prof-student

DB1 32 16

DB2 10 5

DB3 16 8

Movie

DB1 203 269

DB2 172 254

DB3 188 262

POLE

DB1 61521 105840

DB2 61521 105840

DB3 61521 105840

Car-Location

DB1 44 31

DB2 24 15

DB3 32 17

5.2 Queries

Below is the list of the 15 queries used to validate our

system

• Q1. Count how many students there are in com-

mon between all DBs.

• Q2. Count the number of students who scored 7

and are common across all databases.

• Q3: Find the names of the common students

across all the databases with scores of 9 or above.

• Q4. Find names of the common students across

all databases with scores of 7.

• Q5. Count the number of movies with the actor

Tom Hanks that are common across all databases.

• Q6. Find the names of the movies that are

common across all databases with the actor Tom

Hanks.

• Q7. Find the names of all actors who were born

in 1974.

• Q8. Finds the sum of all nodes in the movie DB

for all parties.

• Q9. Find the total number of robbery crimes

across all databases for the year 2017 in Manch-

ester.

• Q10. Determine the location with the highest fre-

quency of recorded burglaries in common across

all databases.

• Q11. Find which crime Inspector Morse investi-

gated is listed in all databases.

all Cypher queries can be found in the Appendix avail-

able at https://doi.org/10.5281/zenodo.11048030

DATA 2024 - 13th International Conference on Data Science, Technology and Applications

Figure 3: PPMQ architecture and components.

• Q12. Find the number of cars present at each spe-

ciﬁc location.

• Q13. Find the total count of cars with ID=1 across

all the databases.

• Q14. Combine two databases by utilising the

node id of the professors whose students have a

grade equal to or higher than 9.0 in either of the

databases.

• Q15. Retrieve information from two databases by

selecting the scores of all students enrolled in the

Math course from both databases.

The experiments were conducted on a desktop

PC running Windows 11 with an Intel Core i7 pro-

cessor clocked at 1.5 GHz and 16.00 GB of RAM,

utilizing a local database for each party. Execution

times, representing the duration for all parties to ob-

tain query results, were measured using the perfor-

mance.now() function in JavaScript, providing high-

resolution timestamps in milliseconds. We executed

10 iterations for each query. Table 3 presents mean

running times and standard deviation for all queries

executed on PPMQ and on Neo4j Fabric, the popular

framework for federated graph databases which does

not use any SMPC protocols. The results show com-

parable execution times and overheads for PPMQ and

Neo4j Fabric (around double). Notably, even when

executing Q9-Q11 with a large dataset, the perfor-

mance remains acceptable, ranging from 79 to 208

ms. The evaluation covered a range of queries to as-

sess the performance of our system across different

query types, addressing RQ1. Furthermore, we ex-

plored the impact of data size on system efﬁciency us-

ing the large-scale ’POLE’ dataset, addressing RQ2.

Table 3: Execution times for Q1– Q15 when using PPMQ

and Neo4j Fabric.

PPMQ system Neo4j Fabric

Query Mean (ms) Standard Deviation Mean(ms) Standard Deviation

Q1 79.4 19.2 51.5 19.3

Q2 99.7 59.3 36.5 11.3

Q3 90.26 49.5 65.4 15.63

Q4 76.5 17.4 35.3 15.8

Q5 67.3 16.1 24.2 13.5

Q6 70.86 17.6 44.6 14.8

Q7 67.3 17.1 35 10.5

Q8 72.5 23.9 14.5 3.74

Q9 79.5 29.7 18 9.8

Q10 208.5 58.6 104.7 40.6

Q11 72.5 27.5 71.3 20.5

Q12 57.7 13.3 46 7.8

Q13 51.6 14.4 54.1 13.5

Q14 83.6 22.4 59.2 13.1

Q15 77.6 14.1 32.4 12.2

Figure 4: Execution times for Q1– Q15 when using PPMQ

and Neo4j Fabric.

5.3 Comparison with Prior Work

In this subsection, we aim to compare our sys-

tem, PPMQ, with two existing systems that leverage

SMPC for data processing. The ﬁrst system is Con-

clave (Volgushev et al., 2019), which uses SMPC to

secure the relational database and serves as the back-

Efﬁcient and Secure Multiparty Querying over Federated Graph Databases

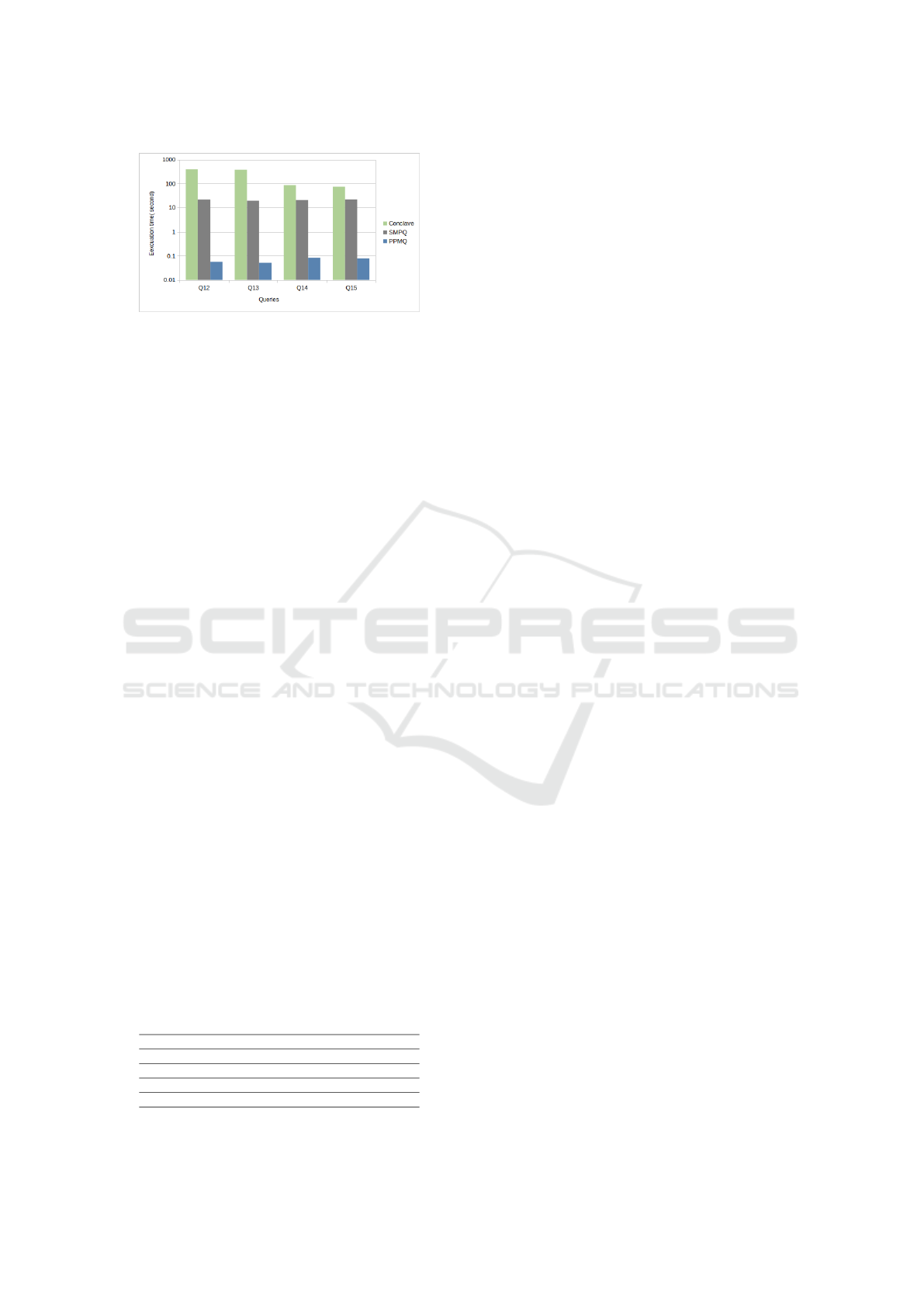

Figure 5: Execution times for Q9– Q12 when using Con-

clave, SMPQ, and PPMQ.

end for the second system, SMPQ (Al-Juaid et al.,

2022) which focuses on secure multiparty queries in

graph databases. To ensure a fair comparison, we exe-

cuted the same queries used in our experiments using

their SQL equivalents.

Subsequently, we compared PPMQ with SMPQ

(Al-Juaid et al., 2022), which is built atop the Con-

clave system for secure multiparty queries on a graph

database. However, when attempting to compare

our system with Conclave, we encountered a limita-

tion: Conclave only supports numerical data. Conse-

quently, executing queries Q1-Q11 was not possible.

To address this restriction, we utilized the ’Car loca-

tion’ dataset, which exclusively consists of numerical

data, to perform queries Q12-Q15.

Running these queries in the Conclave system re-

sulted in execution times ranging from approximately

402 to 74 seconds. Subsequently, executing the same

queries in the SMPQ system reduced the time to 22

to 19 seconds. This performance improvement was

achieved by eliminating the sorting function used in

the Conclave system after obtaining the query result.

Notably, PPMQ demonstrated a signiﬁcant ad-

vancement in query execution time compared to both

Conclave and SMPQ. The removal of the Conclave

layer allowed PPMQ to streamline the query execu-

tion process, eliminating unnecessary computational

steps and reducing overall latency. As a result, PPMQ

achieved execution times of less than a second for the

same set of queries, showcasing its efﬁciency and ef-

fectiveness in secure multiparty query processing. Ta-

ble 4 and Figure 5 illustrate the comparison of execu-

tion times when running the mentioned queries using

Conclave, SMPQ, and PPMQ, thus providing insights

into addressing research question RQ3.

Table 4: Comparison of execution times.

Query Conclave(sec) SMPQ(sec) PPMQ(sec)

Q12 402.3 22.05 0.057

Q13 382.3 19.36 0.051

Q14 86.88 20.89 0.083

Q15 74.1 22.28 0.077

6 CONCLUSION

We have developed a framework for securing multi-

party queries over federated graph databases based on

SMPC protocols. Our system has been implemented

using the JIFF server as a backend for SMPC proto-

cols. Furthermore, we have expanded the system to

automatically parse queries based on the party ID, en-

abling the execution of the correct sub-query. How-

ever, certain Cypher query language features, such as

correlated queries, were not tested in the current sys-

tem, as they were beyond the scope of this paper. In

future work, we plan to extend the system to handle

traversal queries between multiple private databases

using SMPC protocols.

REFERENCES

Al-Juaid, N., Lisitsa, A., and Schewe, S. (2022). Smpg:

Secure multi party computation on graph databases.

In ICISSP, pages 463–471.

Al-Juaid, N., Lisitsa, A., and Schewe, S. (2023). Secure

joint querying over federated graph databases utilis-

ing smpc protocols. In Proceedings of the 9th Inter-

national Conference on Information Systems Security

and Privacy - Volume 1: ICISSP,, pages 210–217. IN-

STICC, SciTePress.

Albab, K. D., Issa, R., Lapets, A., Flockhart, P., Qin, L.,

and Globus-Harris, I. (2019). Tutorial: Deploying se-

cure multi-party computation on the web using JIFF.

In 2019 IEEE Cybersecurity Development (SecDev),

pages 3–3. IEEE.

Alwen, J., Ostrovsky, R., Zhou, H., and Zikas, V. (2015).

Incoercible multi-party computation and universally

composable receipt-free voting. In Advances in

Cryptology–CRYPTO 2015: 35th Annual Cryptology

Conference,, volume 9216, pages 763–780. Springer

Berlin Heidelberg.

Aly, A. and Van Vyve, M. (2016). Practically efﬁcient

secure single-commodity multi-market auctions. In

International Conference on Financial Cryptography

and Data Security, pages 110–129. Springer.

Azevedo, L. G., de Souza Soares, E. F., Souza, R., and

Moreno, M. F. (2020). Modern federated database

systems: An overview. ICEIS (1), pages 276–283.

Bater, J., Elliott, G., Eggen, C., Goel, S., Kho, A., and

Rogers, J. (2016). SMCQL: secure querying for fed-

erated databases. arXiv preprint arXiv:1606.06808.

Bater, J., He, X., Ehrich, W., Machanavajjhala, A., and

Rogers, J. (2018). Shrinkwrap: efﬁcient sql query pro-

cessing in differentially private data federations. Pro-

ceedings of the VLDB Endowment, 12(3):307–320.

Bater, J., Park, Y., He, X., Wang, X., and Rogers, J.

(2020). SAQE: practical privacy-preserving approx-

imate query processing for data federations. Proceed-

ings of the VLDB Endowment, 13(12):2691–2705.

DATA 2024 - 13th International Conference on Data Science, Technology and Applications

Bogdanov, D., Laur, S., and Willemson, J. (2008). Share-

mind: A framework for fast privacy-preserving com-

putations. In Computer Security-ESORICS 2008:

13th European Symposium on Research in Computer

Security, M

alaga, Spain, October 6-8, 2008. Proceed-

ings 13, pages 192–206. Springer.

Ciucanu, R. and Lafourcade, P. (2020). GOOSE: A se-

cure framework for graph outsourcing and sparql eval-

uation. In 34th Annual IFIP WG 11.3 Conference

on Data and Applications Security and Privacy (DB-

Sec’20). Accept

a para

ıtre.

Cramer, R., Damg

ard, I. B., and Nielsen, J. B. (2015). Se-

cure multiparty computation. Cambridge University

Press.

Evans, D., Kolesnikov, V., and Rosulek, M. (2018). A prag-

matic introduction to secure multi-party computation.

Found. Trends Priv. Secur., 2:70–246.

Francis, N., Green, A., Guagliardo, P., Libkin, L., Lin-

daaker, T., Marsault, V., Plantikow, S., Rydberg, M.,

Selmer, P., and Taylor, A. (2018). Cypher: An evolv-

ing query language for property graphs. In Proceed-

ings of the 2018 International Conference on Manage-

ment of Data, pages 1433–1445.

Gu, Z., Corcoglioniti, F., Lanti, D., Mosca, A., Xiao, G.,

Xiong, J., and Calvanese, D. (to appear). A systematic

overview of data federation systems. Semantic Web.

Guia, J., Soares, V. G., and Bernardino, J. (2017). Graph

databases: Neo4j analysis. In ICEIS (1), pages 351–

356.

Han, F., Zhang, L., Feng, H., Liu, W., and Li, X. (2022).

Scape: Scalable collaborative analytics system on pri-

vate database with malicious security. In 2022 IEEE

38th International Conference on Data Engineering

(ICDE), pages 1740–1753. IEEE.

He, Z., Wong, W. K., Kao, B., Cheung, D., Li, R., Yiu, S.,

and Lo, E. (2015). SDB: A secure query processing

system with data interoperability. Proc. VLDB En-

dow., 8:1876–1879.

Hunger, M. (2020). neo4j-graph-examples/pole. https://gi

thub.com/neo4j-graph-examples/pole/. Accessed:

2023-12-28.

Liagouris, J., Kalavri, V., Faisal, M., and Varia, M. (2021).

Secrecy: Secure collaborative analytics on secret-

shared data. arXiv preprint arXiv:2102.01048.

Liu, C., Wang, X. S., Nayak, K., Huang, Y., and Shi, E.

(2015). ObliVM: A programming framework for se-

cure computation. In 2015 IEEE Symposium on Secu-

rity and Privacy, pages 359–376.

Maurer, U. and Wolf, S. (1998). Difﬁe-hellman, deci-

sion difﬁe-hellman, and discrete logarithms. In Pro-

ceedings. 1998 IEEE International Symposium on In-

formation Theory (Cat. No. 98CH36252), page 327.

IEEE.

Miller, J. J. (2013). Graph database applications and con-

cepts with Neo4j. In Proceedings of the Southern

Association for Information Systems Conference, At-

lanta, GA, USA, volume 2324.

Nayak, K., Wang, X. S., Ioannidis, S., Weinsberg, U., Taft,

N., and Shi, E. (2015). Graphsc: Parallel secure com-

putation made easy. In 2015 IEEE Symposium on Se-

curity and Privacy, pages 377–394. IEEE.

Needham, M. and Hodler, A. E. (2019). Graph algo-

rithms: practical examples in Apache Spark and

Neo4j. O’Reilly Media.

Neo4j (2007). built-in examples: Movie-graph. https://neo4

j.com/developer/example-data/#built-in-examples/.

Accessed: 2023-12-28.

Poddar, R., Kalra, S., Yanai, A., Deng, R., Popa, R. A.,

and Hellerstein, J. M. (2020). Senate: A maliciously-

secure mpc platform for collaborative analytics. arXiv

e-prints, pages arXiv–2010.

Rogers, J., Adetoro, E., Bater, J., Canter, T., Fu, D., Hamil-

ton, A., Hassan, A., Martinez, A., Michalski, E.,

Mitrovic, V., et al. (2022). Vaultdb: A real-world pi-

lot of secure multi-party computation within a clinical

research network. arXiv preprint arXiv:2203.00146.

Salehnia, A. (2017). Comparisons of relational databases

with big data: a teaching approach. South Dakota

State University Brookings, SD 57007, pages 1–8.

Sangers, A., van Heesch, M., Attema, T., Veugen, T., Wig-

german, M., Veldsink, J., Bloemen, O., and Worm, D.

(2019). Secure multiparty pagerank algorithm for col-

laborative fraud detection. In Financial Cryptography

and Data Security: 23rd International Conference,

FC 2019, Frigate Bay, St. Kitts and Nevis, February

18–22, 2019, Revised Selected Papers 23, pages 605–

623. Springer.

Shamir, A. (1979). How to share a secret. Communications

of the ACM, 22(11):612–613.

Smajlovi

c, H., Shajii, A., Berger, B., Cho, H., and Nu-

managi

c, I. (2023). Sequre: a high-performance

framework for secure multiparty computation enables

biomedical data sharing. Genome Biology, 24(1):1–

18.

Tang, G., Pang, B., Chen, L., and Zhang, Z. (2023). Ef-

ﬁcient lattice-based threshold signatures with func-

tional interchangeability. IEEE Transactions on In-

formation Forensics and Security, 18:4173–4187.

Tong, Y., Pan, X., Zeng, Y., Shi, Y., Xue, C., Zhou, Z.,

Zhang, X., Chen, L., Xu, Y., Xu, K., et al. (2022).

Hu-fu: Efﬁcient and secure spatial queries over data

federation. Proceedings of the VLDB Endowment,

15(6):1159.

Tong, Y., Zeng, Y., Zhou, Z., Liu, B., Shi, Y., Li, S., Xu,

K., and Lv, W. (2023). Federated computing: Query,

learning, and beyond. IEEE Data Eng. Bull., 46(1):9–

26.

van Egmond, M. B., Spini, G., van der Galien, O., IJpma,

A., Veugen, T., Kraaij, W., Sangers, A., Rooijakkers,

T., Langenkamp, P., Kamphorst, B., et al. (2021).

Privacy-preserving dataset combination and lasso re-

gression for healthcare predictions. BMC medical in-

formatics and decision making, 21(1):1–16.

Volgushev, N., Schwarzkopf, M., Getchell, B., Varia, M.,

Lapets, A., and Bestavros, A. (2019). Conclave: se-

cure multi-party computation on big data. In Pro-

ceedings of the Fourteenth EuroSys Conference 2019,

pages 1–18.

Efﬁcient and Secure Multiparty Querying over Federated Graph Databases

Wang, Y. and Yi, K. (2021). Secure yannakakis: Join-

aggregate queries over private data. In Proceedings

of the 2021 International Conference on Management

of Data, SIGMOD ’21, page 1969–1981, New York,

NY, USA. Association for Computing Machinery.

Wong, W. K., Kao, B., Cheung, D. W. L., Li, R., and

Yiu, S. M. (2014). Secure query processing with

data interoperability in a cloud database environment.

In Proceedings of the 2014 ACM SIGMOD inter-

national conference on Management of data, pages

1395–1406.

DATA 2024 - 13th International Conference on Data Science, Technology and Applications
