Coupling Agent-Based Simulations and VR Universes:

the Case of GAMA and Unity

Alexis Drogoul

1,2 a

, Patrick Taillandier

1,2 b

, Arthur Brugière

1,2 c

, Louis Martinez

, Léon Sillano

Baptiste Lesquoy

1,2

and Huynh Quang Nghi

2,3

ACROSS IJL, IRD / Thuyloi University, 175 Tay Son, Hanoi, Vietnam

UMMISCO, IRD / Sorbonne Université, 32 Avenue Henri Varagnat, 93100 Bondy Cedex, France

CICT, Can Tho University, 3/2 Street, Ninh Kieu district, Can Tho, Vietnam

Keywords: Agent-Based Modelling, Virtual Reality, Immersive Simulations, Participatory Simulations.

Abstract: Agent-based models (ABMs) and video games, including those taking advantage of virtual reality (VR), have

undergone a remarkable parallel evolution, achieving impressive levels of complexity and sophistication. This

paper argues that while ABMs prioritize scientific analysis and understanding and VR aims for immersive

entertainment, they both simulate artificial worlds and can benefit from closer integration. Coupling both

approaches indeed opens interesting possibilities for research and development in various fields, and in

particular education, at the heart of the SIMPLE project, an EU-funded project on the development of digital

tools for awareness raising on environmental issues. However, existing tools often present limitations,

including technical complexity, limited functionalities, and lack of interoperability. To address these

challenges, we introduce a novel framework for linking GAMA, a popular ABM platform, with Unity, a

widely used game engine. This framework enables seamless data exchange, real-time visualization, and user

interaction within VR environments, allowing researchers to leverage the strengths of both ABMs and VR for

more impactful and engaging simulations. We demonstrate the capabilities of our framework through two

prototypes built to highlight its potential in representing and interacting with complex socio-environmental

system models. We conclude by emphasizing the importance of continued collaboration between the ABM

and VR communities to develop robust, user-friendly tools, paving the way for a new era of collaborative

research and immersive experiences in simulations.

1 INTRODUCTION

The fields of agent-based modelling (ABM) and

video games, including virtual reality (VR), have

developed in parallel. Both simulate artificial worlds

with rules and agents, but they are used for different

purposes. ABMs are used for scientific analysis,

while video games aim to provide immersive

entertainment. This paper argues that there are

fundamental similarities between these two fields and

that closer integration can unlock new potential for

education and training. This however requires tools

that are easy to use and reliable (Berger & Mahdavi

2020).

https://orcid.org/0000-0002-9685-9199

https://orcid.org/0000-0003-2939-4827

https://orcid.org/0000-0001-7220-449X

1.1 Convergence of Technology and

Purpose

ABMs have emerged as powerful tools for exploring

complex systems across diverse disciplines, ranging

from social sciences and economics to ecology and

urban planning (Drogoul et al. 2002). By modeling

individual agents and their interactions within a

simulated environment, ABMs offer unparalleled

insights into emergent phenomena that arise from the

collective behavior of the components of any system.

Video games, on the other hand, have matured into

intricate virtual worlds capable of captivating users

with rich narratives, engaging gameplay, and

increasingly immersive experiences (Ivory 2015).

Drogoul, A., Taillandier, P., Br ugière, A., Martinez, L., Sillano, L., Lesquoy, B. and Nghi, H.

Coupling Agent-Based Simulations and VR Universes: the Case of GAMA and Unity.

DOI: 10.5220/0012757600003758

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 14th International Conference on Simulation and Modeling Methodologies, Technologies and Applications (SIMULTECH 2024), pages 57-68

ISBN: 978-989-758-708-5; ISSN: 2184-2841

VR, the latest frontier in gaming and training, further

transcends the screen, transporting users directly into

the heart of the simulated world, fostering

unprecedented levels of presence and interaction

(Bown et al. 2017).

This parallel evolution is not merely coincidental;

a closer examination reveals convergences between

ABMs and the developments in gaming. Both rely on

simulation engines that govern the behavior of agents

and the evolution of a simulated world. Both utilize

advanced graphics technologies to render realistic

environments and more and more engaging visuals.

And, especially in advanced ABM platforms like

GAMA (Taillandier et al. 2019b), both employ user

interfaces that allow users to interact with the virtual

space and its virtual inhabitants (Guyot et al. 2006).

Furthermore, the lines between research and

entertainment are increasingly blurring (Conesa et al.

2022). ABMs are being employed to inform and

enhance game design, leading to more realistic and

engaging virtual experiences. Conversely, game

engines like Unity (e.g. (Craighead et al. 2008)) or

Unreal are being adopted by researchers to build

sophisticated immersive research environments for

the purpose of serious gaming or participatory

simulations (Gazis & Katsiri 2023). This cross-

pollination of technologies is further accelerating the

convergence between these two fields.

1.2 The Potential of ABM-VR

Integration

The potential benefits of integrating ABMs with VR

platforms are far-reaching and transformative. By

leveraging the strengths of both approaches,

researchers can:

- Gain deeper insights into complex systems (Juřík

et al. 2023), by immersing themselves in the

simulated world alongside the agents, observing

their interactions and behaviors firsthand. This

allows for a more intuitive and visceral

understanding of the system's dynamics.

- Conduct more realistic and controlled

experiments (Lin et al. 1999): Design virtual

experiments that closely mimic real-world

scenarios, allowing for the exploration of

different hypotheses and the testing of

interventions in a risk-free environment.

- Enhance engagement and understanding for

diverse audiences: Communicate research

findings and complex concepts through

immersive and interactive experiences, thereby

https://project-simple.eu

making them more accessible and engaging for a

broader audience.

- Revolutionize education and training (Richards

2008; Brasil 2011): Develop virtual learning

environments that offer interactive and

personalized learning experiences, fostering

deeper engagement and understanding of

complex subjects.

These applications are far from theoretical.

Researchers are already utilizing ABM-VR

integration in a variety of domains, including:

• Social science: Studying collective behavior,

crowd dynamics (Shendarkar et al. 2008; Liu et

al. 2014).

• Urban planning: Experiencing the impact of

different urban design decisions on the built

environment and its inhabitants (Zhang et al.

2009; Yu et al. 2014).

• Ecology: Exploring the interactions between

different species and the impact of human

intervention on ecosystems (Cho & Park 2023).

• Healthcare: Training medical professionals in a

safe and controlled virtual environment (Possik

et al. 2021; Possik et al. 2022).

• Education: Learning about history, science, and

other complex subjects through interactive and

immersive experiences (Lin et al. 1999; Popovici

et al. 2004; Bosse et al. 2014).

1.3 Education to Sustainable

Development using ABMs and VR:

the SIMPLE Project

Education, the final point, is at the heart of the

SIMPLE project

, funded by the European Union as

part of the EU-ASEAN Green Partnership, which

aims to explore the relevance of educational virtual

environments for raising teenagers' awareness of

sustainable development and environmental issues. It

is based on the idea that integrating ABM-VR into the

curricula can transform the learning experience on

these large-scale, complex issues, which are not

generally amenable to experiential learning.

In the project, on one hand, ABMs are used for

integrating the knowledge and concepts from various

disciplines, something required for representing the

evolution of socio-environmental issues as complex

as the subsidence of coastal areas, the loss of

biodiversity of forests, the leakage of plastics in the

ocean or the importance of agro-ecological practices

for sustainable agriculture. On the other, interactive

SIMULTECH 2024 - 14th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

VR simulations, based on scientific models, can offer

immersive and engaging ways for young people to

explore complex topics, fostering deeper

understanding through virtual experiences and

encouraging a new generation of critical thinkers and

problem solvers (Sancar et al. 2023).

SIMPLE will support the design, implementation,

and experimentation in classrooms of at least six

ABM-backed virtual universes in Vietnam, Thailand,

Lao and Cambodia from 2024 to 2026, on topics co-

constructed by the partners of the project, local

research institutions and educational communities.

1.4 The Challenges of a Seamless

Integration Between ABM and VR

Despite the undeniable potential, integrating ABM

and VR platforms still presents significant challenges.

Existing approaches (Louloudi & Klügl 2012; Huang

et al. 2018; Adinolf et al. 2019) often suffer from

technical complexity, limited functionalities, and lack

of interoperability between ABM platforms and game

engines. Furthermore, the literature on the subject is

quite scarce. For instance, (Ospina-Bhorquez et al.

2021) provides a systematic mapping of the literature

exploring synergies between multi-agent systems

(MAS) and virtual reality environments. Although

MAS is a broader field of application than ABM, it is

interesting to note that (1) they only found 82 articles

of interest; (2) the vast majority of papers focus on

applications rather than frameworks or platforms

(indeed, this review is mainly organized in terms of

application domains, most of which, interestingly,

relate to simulation domains such as urban traffic,

crowd simulation, or robot control).

For example, in (Louloudi & Klügl 2012), the

general framework for coupling an agent-based

platform (SeSaM) with a 3-dimensional rendering

tool (Horde3D) ultimately addresses only the issue of

visualizing simulations and not that of mapping

interactions between agents and player(s) in the two

environments. In (Huang et al 2018), which

addresses, in the context of urban design, the issue of

coupling not only visualization but also behavior,

agent-based paradigms are ported within Unity, with

the authors using the C# scripting engine to write an

agent-based model. This is also the path chosen by

other authors, in particular (Conesa et al. 2022), also

in Unity, by considering the GameObjects offered by

Unity as autonomous agents, (Olivier et al. 2014),

dedicated to crowd simulation, or (Kamalasanan et al.

2022), dedicated to cycling in realistic traffics. In

contrast to these approaches, which are more akin to

porting than coupling, (Possik et al. 2022) represents

one of the most successful attempts at operational

coupling, based on three pieces of software: Unity

(VR) and AnyLogic (ABM), as well as Papyrus, the

latter serving to orchestrate the whole. All three are

linked using the HLA platform, originally designed to

facilitate the design of distributed, modular

simulations. However, this work, which is based on

truly interesting elements, has not necessarily been

designed, for the time being, to be reusable. The

software complexity of the whole package is

furthermore considerable and making it available or

reusing it in contexts other than the propagation of

Covid19 in a hospital, for which it was designed, does

not seem to be one of the authors' objectives.

In this paper, we introduce the SIMPLE platform,

a framework for easily linking GAMA, a leading

ABM platform, with Unity, a widely used game

engine, which addresses the limitations of existing

approaches by:

• Providing a software solution that's independent

of the application domain: neither GAMA nor

Unity are tied to specific domains, so the

SIMPLE platform isn't either, instead relying on

the use of operational abstractions.

• Providing a user-friendly interface and a

modeler-friendly access to VR: the SIMPLE

platform simplifies the process of coupling

GAMA and Unity, allowing researchers with

diverse backgrounds to leverage the framework.

• Enabling seamless and flexible data exchange: it

facilitates the real-time transfer of data between

the ABM and VR environments, ensuring

accurate and consistent visualization of the

simulated system, and offers tools to monitor

these exchanges.

• Supporting user interaction: it allows to describe

VR input into ABMs, allowing players in the

virtual universes to interact with the simulated

worlds and influence the behavior of agents in

the ABM in real-time.

This framework represents a significant step

forward in bridging the gap between ABMs and VR.

It empowers researchers to create immersive and

interactive virtual environments that enhance

understanding, facilitate experimentation, and engage

diverse audiences.

2 FLEXIBLE COUPLING

BETWEEN GAMA AND UNITY

GAMA has always been at the forefront of agent-

based modeling platforms in terms of visualization

Coupling Agent-Based Simulations and VR Universes: the Case of GAMA and Unity

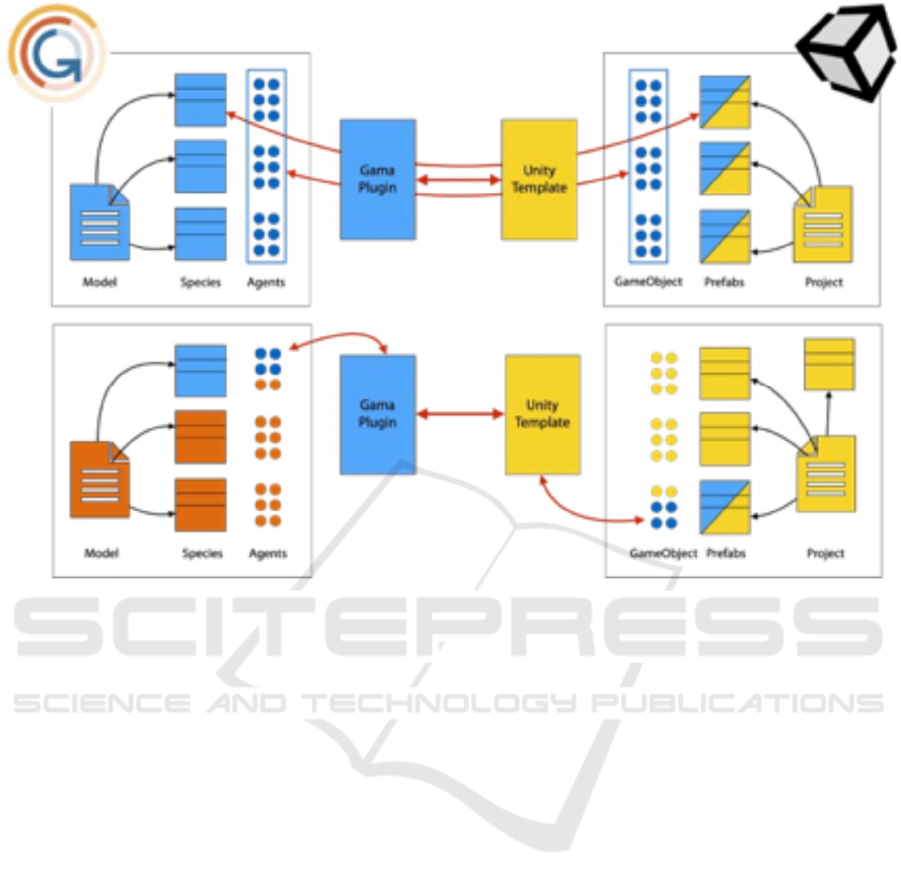

Figure 1: Coupling is based on the definition of a plugin (on the GAMA side) and a model (on the Unity side). This

combination allows a wide range of configurations, from bijection (top) to incomplete projection (bottom), to the simple

exchange of data between the platforms.

(Grignard and Drogoul, 2017) and interaction

between users and simulations. Offering early on the

possibility of multiplying viewpoints on a model,

either via multiple 2D and 3D displays, or via specific

devices (Brugière et al. 2019), the platform has

earned itself a fine reputation in the field of

participatory simulations (Taillandier et al. 2019a).

At the heart of GAMA lies the concept of “agent”,

an instance of a "species," which acts analogously to

classes in object-oriented programming, serving as a

blueprint for individual agents within the simulation,

defining their behaviors, attributes, and interactions.

Similarly, Unity's fundamental building block is the

"GameObject," a versatile entity representing any

visual or interactive element within the game engine,

which can be instantiated from a "prefab". Prefabs are

pre-configured sets of GameObject components that

can be easily replicated and customized, allowing

developers to create large numbers of visually

consistent agents with minimal effort.

Built on this conceptual similarity, the coupling

between GAMA and Unity aims to seamlessly

translate the GAMA concepts into Unity's

environment, enabling the creation of immersive and

interactive virtual worlds powered by agent-based

modelling. However, the translation process requires

careful consideration of the diverse nature of agents

and the desired level of integration between the

model(s) and the virtual universes built on top of

them. We have identified three potential modes of

coupling (Fig. 1), of course not exhaustive:

- Bijection: In this mode, each GAMA agent is

directly translated into a corresponding Unity

GameObject. The GAMA species acts as a

template for a prefab, which in turns defines

GameObjects’ behaviors and attributes (but not

their visual appearance). This approach offers the

highest level of fidelity, allowing for complete

control, in GAMA, over the individual

representation of agents within the virtual world,

using Unity as an interface of the simulation.

- Projection: A more flexible approach, required

by some models. Instead of translating every

GAMA agent into a GameObject, only a subset

deemed essential for visual representation or

interaction is converted. Other agents may not be

explicitly represented visually but remain active

in the simulation, contributing to background

dynamics and influencing other agent behaviors.

SIMULTECH 2024 - 14th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

This approach optimizes performance while still

maintaining the core functioning of the model.

- Background: In this mode, GAMA acts as a

background simulation engine, driving the

underlying dynamics and behaviors of the virtual

universe without having any direct visual

representation in Unity. This is suitable for

situations where the virtual universe relies on the

model for data and computations, and where the

influence of the agents on the environment or

other agents needs to be accounted for.

As can be seen above, SIMPLE platform’s

coupling between GAMA and Unity extends beyond

simply translating agents into game objects. The

framework also enables the exchange of data and

information between the two platforms, allowing for

real-time updates and dynamic interactions within the

virtual environment and a great flexibility in how the

two worlds communicate.

2.1 On the ABM Side: A Dedicated

GAMA Plugin

We have developed a plugin for GAMA to provide a

connection with Unity or Unity-based products. This

plugin extends a GAMA simulation by enabling the

connection of external clients, like players using VR

headsets. This connection can be used in two modes

of operation: direct or indirect. The direct mode

establishes a direct connection between a VR headset

and GAMA but does not allow more than one player

to be connected. The indirect mode requires the use

of another piece of software (the GAMA Server

Middleware, available and documented at

https://github.com/project-SIMPLE), but enables

multiple players to be connected simultaneously. The

middleware also provides additional monitoring and

management tools of the connections. Both methods

use the same GAMA Server API, which not only

enables messages to be sent in both directions, but

also allows clients to control a simulation by directly

executing code defined in its model. Configuring it is

easy, with just a few highly configurable species of

agents to add to establish the connection.

The first species of agents introduced by the

plugin, abstract_unity_player, offers an optional

representation of the players in the model. It allows to

track and visualize them (if their representation in the

model makes any sense) but also to provide them with

behaviours or capacities of interaction with other

agents in the simulation. A second species, a key

element of the plugin, is abstract_unity_linker. It

allows the creation of agents that connect GAMA and

a game running on Unity. More precisely, it oversees

creating player agents when a player connects,

sending the elements needed to initialize the virtual

world (world size, geometries, etc.) and, at each

simulation step, synchronizing the information

defined by the modeler between the two worlds (for

instance, the location and orientation of agents, etc.).

The last species allows to instantiate a new type of

experiment (unity) that automatically creates and

initializes a corresponding abstract_unity_linker

agent based on the parameters entered by the modeler.

These species form the basis of the components

injected by the plugin into GAMA. They can be used

directly, like any agent, when creating models to

support VR games. However, as one of the most

likely use cases for SIMPLE is to connect existing

models to VR games, we have designed a wizard for

this purpose. This allows modelers to enter various

parameters and generates a derived model in which

all these components are correctly initialized,

enabling for instance the exploration of simulations

of the source model using a VR headset almost

instantly and without any special knowledge of Unity.

2.2 On the VR Side: A Dedicated Unity

Template

Another significant development in the SIMPLE

platform is the Unity template that offers prefab

managers to handle the connection with GAMA, as

well as pre-configured Unity projects with plugins

providing different properties (physics-aware

movements, etc.). It also provides three scenes to

facilitate game construction and support the

interaction using the controllers of the VR headset:

- Start Scene: a simple main menu that allows to

load two other scenes - the IP Menu Scene and the

Main Scene. This menu also allows defining

whether the middleware will be used to connect to

GAMA or not.

- IP Scene: allows the user to change the address

used to connect to the computer running the

middleware or GAMA.

- Main Scene: main scene composed by default of

the following GameObjects:

o Directional light: default light for Unity

scenes. This type of light corresponds to a

large, distant source originating from outside

the range of the world.

o Player: predefined GameObject with First

Person View and movement for VR. This

package offers different types of player

settings. For instance, in games requiring

large-scale decision-making, the package

Coupling Agent-Based Simulations and VR Universes: the Case of GAMA and Unity

provides a type of player who can fly over

the game space

o Connection Manager: main interface with

GAMA, sets Unity connection settings to

GAMA in this package.

o Game Manager: main coupling interface

with GAMA. It defines all aspects of the

game, such as how to represent the agents in

the game or how to convert space

coordinates from GAMA to Unity.

o Debug Overlay (can be disabled): used to

show messages from GAMA in the headsets

for debugging purposes.

The software package has been designed to

provide a high degree of configurability and ease in

replacement of components, with the aim of

accommodating a diverse array of use cases. Beyond

accommodating various player types, the package

allows for the explicit definition of player interactions

with the simulation from the game. This is achieved

through two main modes of interaction: triggering

actions through an agent (which can be any agent

within the simulation, not exclusively the player

agent), or sending GAML code directly executed by

GAMA. The package also facilitates processing

messages received from GAMA in JSON format. It

manages the deserialization of messages and

subsequently initiates actions as per the

communicated instructions. Messages can range from

simple function calls to more intricate transmissions,

such as the dissemination of the positional

information of all agents within the simulation.

Moreover, this package encompasses two editor-

level tools, both based on the connection with

GAMA. The first one facilitates the importation of

geometries from GAMA in either two or three

dimensions and their translation to GameObjects.

This feature allows to retrieve geographic data,

initially read by GAMA (such as shapefiles or other

geographical data), while maintaining the same

coordinate system. Then, users can manipulate the

visual representation of these geometries within the

Unity environment. The second one operates in the

reverse direction, exporting GameObjects from Unity

to GAMA and saving them as shapefiles (in 2D). This

feature facilitates the connection between virtual

worlds developed in Unity and GAMA simulations.

2.3 Using ABM and VR Extensions

Together

The tools we developed were designed to enable

modelers to quickly build a first prototype VR version

of an existing GAMA model with minimal

knowledge about Unity and VR technologies. The

tools have been developed for GAMA 1.9.3

(https://gama-platform.org/download) and Unity

2022.3.5f1 (https://unity.com/download). They

require GAMA to install the Unity plugin and Unity

to use the dedicated template project, both of which

are available on SIMPLE’s GitHub repository

(https://github.com/project-SIMPLE). For the sake of

this section, we'll assume that the modeler has already

developed a GAMA model and wishes to implement

a VR headset interaction with this model. Three steps

are needed to create a Unity environment from an

existing GAMA model:

1. Generation of a GAMA model extending the

base model with VR capabilities.

2. Development of the virtual universe in Unity.

3. Implementation of specific actions that VR

players can execute in the GAMA simulation.

2.3.1 Step 1. Generation of the GAMA

Model for Connection to Unity

Upon installation, the Unity template for GAMA

automatically generates a new GAMA model that

extends the base model and allows its connection to a

VR headset. To set this up, the user needs to make a

few choices. The first concerns the number of

expected players in the simulation. It is thus possible

to define a minimum number of players to launch the

simulation and a maximum number who will be able

to connect to it. The user also needs to choose the

initial experiment for the extended model, pick how

the player will be shown, and specify any displays not

to be used from the initial experiment. The next step

is to select the agent species whose coordinates will

be sent to Unity at each time step.

Another choice to make is to define the agent

species whose geometries will be sent to Unity at

initialization. The aim here is to send geometries that

will not be modified during the simulation, such as

the buildings or roads in a traffic model. For each of

these species, it is possible to define whether they will

be in Unity 2D or 3D, their colour, an associated tag,

whether they will have a collider and whether it will

be possible to interact with them.

2.3.2 Step 2. Development of a Virtual

Universe Under Unity

Once the basic model is generated in GAMA, the next

step consists in developing the virtual universe. The

modeler can do this by using the three scenes

available in the SIMPLE template and parametrizing

the main scene accordingly. If the modeler keeps the

default First Person View-type player, the sole

SIMULTECH 2024 - 14th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

parameterization required concerns the Game

manager. Specifically, for each species dispatched

from GAMA, the modeler must specify their

representation within the Unity environment. This

involves determining the appropriate prefab,

establishing the scaling factor, deciding on the

application of rotation or translation, and addressing

related considerations. The Game manager thus

serves as the central locus for configuring the visual

representation and spatial attributes of each agent

species within the Unity interface.

2.3.3 Step 3. Definition of Specific

Interactions

The last, optional, step consists of defining specific

interactions between Unity and GAMA. The default

SIMPLE template for Unity already provides

illustrative instances of interactions, such as

modifying the lighting through button presses on

controllers and enabling GAMA actions triggered

when a player selects an object with a ray interactor.

To make it easier, it is possible to use these

existing examples and adapt them to newer

interaction with the extended model. For instance, in

a traffic model, it is possible to define in GAMA

(within the plugin’s Unity Linker library) an action to

close a road, with the road name as an argument. It

will then just be necessary in the script linked to the

Game Manager in Unity to specify the name of this

action when a road is selected with the name of the

road’s GameObject as an argument. It is of course

possible to go further in the parameterization of

actions by adding actions linked to default Unity’s

interfaces (as the OpenXR’s XRI Default Input

Actions) which will also trigger specific actions in

GAMA from controller’s interaction.

3 VALIDATIONS

While the two first virtual universes planned in the

SIMPLE project are still in pre-production, we have

begun to validate crucial aspects of the platform with

the design of two prototypes that extend existing

agent-based models and explore different interactions

with users in virtual worlds linked to simulations.

3.1 RÁC VR: A VR Extension to a

Serious Game Based on an ABM

RÁC is a multiplayer game designed to raise

awareness of the issue of domestic waste pollution

and its impact on an irrigation system in Vietnam. It

also aims to foster social dialogue between the

various stakeholders involved in this pollution. The

game follows the evolution of waste management and

agricultural production in the fictitious territory of a

rural commune. This commune is divided into four

villages, each facing specific problems due to its

upstream or downstream location. The game is played

by four groups of two or three players (8 to 12 players

in total, see Fig. 2). Each group represents a village

chief and makes decisions on actions that will have a

local impact to achieve a common goal for all four

villages: maintaining the so-called EcoLabel

certification. This fictitious label, which refers

directly to the VietGap quality label, is presented as

necessary for farmers to be able to sell their produce

to supermarkets. To retain EcoLabel certification, the

commune must achieve a minimum level of

agricultural production and a limited level of soil and

water pollution on its fictitious territory, meaning that

each village must meet these requirements

individually so that EcoLabel certification can be

guaranteed, collectively, for the commune. All

players are then invited not only to improve the

Figure 2: Left shows a game session of the card version of the Rác model, right shows some in-game images of the VR

adaptation of the model.

Coupling Agent-Based Simulations and VR Universes: the Case of GAMA and Unity

situation in their village, but also to coordinate their

actions to influence and promote agricultural

productivity at commune level. The game is based on

two materials:

• Cards: each group receives a complete deck of

cards. Each card represents an action linked to

waste management or agricultural production,

with a QR code.

• A GAMA computer simulation: this simulates

the evolution of the territory, allowing players to

observe the consequences of their actions.

RÁC was played in two contexts: with high-

school students and with farmers and village leaders.

The first series of games with students, which mainly

served to test the game, showed the importance of the

emergence of leaders among the players to ensure the

coordination of decisions taken and therefore the

effectiveness of the chosen policy. The second series

of experiments with farmers and village chiefs, in

addition to taking part in the debate on waste

management in their territory, highlighted discussion

regimes and depicted specific circulations of power

within different categories of actors.

The VR version (Fig. 2 right) is based on the same

principles as RÁC, but with an emphasis on raising

awareness of pollution issues among young people.

This version uses four Meta Quest 3 headsets directly

connected to GAMA. The idea was to add an

immersion phase in the villages to make players more

aware of the impact of pollution, and to force them to

discuss their own perceptions of this pollution. More

specifically, before each decision-making phase,

during which groups of players choose which actions

to take, a village exploration phase is added. During

this phase, one of the players in each group will put

on the VR headset to explore “their” fictional village.

If this village is not directly linked to the territory

simulated in GAMA, its characteristics are consistent

with it. GAMA will send information on pollution

and agricultural production to each VR headset at the

start of the VR phase, representing the situation of

each player's village. These levels of pollution (solid

and water) and production will be represented in the

VR headset (solid waste, color of water, color of

plants) allowing the player to observe directly by

immersion the impact of decisions taken at village

level. The challenge for the immersed player will then

be to describe to the other players what he or she has

seen, so that they can then make the right decisions:

typically, if the player observes and describes a high

level of waste, the other players may take actions

linked with solid waste management. Conversely, a

map representing the village to explore is displayed

on the GAMA screen, along with the players'

positions, which allows players without VR headsets

to give advice on the direction to follow to reach

interesting points to explore (e.g. fields, river, etc.).

In this prototype, we are therefore in the case of

”Background coupling”, where the simulated

environment (the commune) is different from the one

seen by the players in the VR headset. Only

information on pollution and production levels is sent

by GAMA, and Unity only sends the player's position

back to GAMA so that other players can follow what's

happening for the VR headset-equipped player.

In the context of this prototype where the link

between GAMA and the VR headsets is very simple

and where only some information passes, the only

thing to define was the information sent by GAMA at

a given moment in the simulation. This information

includes three values: solid pollution, water pollution

and agricultural production. From the moment the

headset receives this information, the exploration

phase of the village in VR can begin. A timer is

present in the Unity application to limit exploration

time. Once this timer ends, the headset sends a

message to GAMA to specify that the VR exploration

phase is over for the player. In this prototype, there is

therefore no species of agents sent at each simulation

step to the headset or geometries used to define the

environment. There is also no interaction in the

headset that impacts the simulation in GAMA.

3.2 Hoankiem VR: A Transposition of

a Tangible ABM Interface into VR

The Hoan Kiem Air model was designed to open

discussions on the introduction of pedestrian zones in

terms of traffic and air pollution. Many cities have

seen the emergence of pedestrian zones in recent

years. If the interest of such zones is multiple, they

can also have negative impacts due to the deferral of

traffic in terms of congestion and therefore air

pollution. The Hoan Kiem Air model thus makes it

possible to simulate traffic and pollution emitted by

vehicles in the Hoan Kiem district of Hanoi, Vietnam.

In this district, the surroundings of the central lake are

closed to traffic every weekend and the local

authorities have been considering extending the

pedestrian zone for several years. The Hoan Kiem Air

model allows to simulate these different scenarios

(without pedestrian zone, with current pedestrian

zone or with extended pedestrian zone) and to see

their impact on traffic and pollution. The heart of the

model is based on the traffic plugin included in

GAMA (Saval et al. 2023), which enables to simulate

road traffic made up of different types of vehicles

SIMULTECH 2024 - 14th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

(cars, motorcycles, etc.) to be finely represented at the

scale of a district or city.

To facilitate discussions around the simulations,

Hoan Kiem Air also includes a 3D physical model of

the district onto which the simulation is projected.

The use of a tangible interface makes it possible to

better grasp the spaces, give more reality to the

outcomes and facilitate exchanges by placing the

stakeholders all around the physical model (Fig. 3

left). Finally, an Android application (running on a

tablet) directly connected to GAMA allows users to

control the parameters (scenario for pedestrian zones,

number of vehicles, etc.) and by this to quickly test

different configurations.

The VR version of Hoan Kiem Air (Fig. 3 right)

allows us to go further in the possibilities of

interaction with the simulation by also providing a

playful aspect intended for a younger audience. It thus

allows a player equipped with a VR headset to

close/open roads themselves and directly see the

impact (both positive or negative) of their choices on

traffic and pollution, materialized by buildings’ color

and a score. The challenge is therefore for the player

to have the best possible scores by judiciously

choosing the roads to close. In practice, the game has

the main advantage of showing that it can be complex

to limit pollution only by closing roads due to the

deferral of traffic.

In the VR headset, the player can observe the

entire district from above: the player can see all the

buildings, roads and vehicles already present in the

GAMA simulation. Likewise, in the GAMA

simulation, other people can observe the player's

position, his orientation (where he is looking) as well

as the roads he has decided to close. In this prototype,

we are therefore in the case of “Bijective coupling”,

where all the information in the GAMA simulation is

displayed in the headset.

To be more precise, 2 species are sent from

GAMA to the VR headset at each simulation step (i.e.

they are part of the list of species to be sent to Unity

from the simulation defined in the GAMA model):

cars and motorcycles. We chose 2 prefabs in Unity for

each of these species, representing a typical car and a

typical motorcycle in Hanoi. To accommodate the

limited capabilities of the headsets and ensure the

display of a substantial number of agents while

maintaining a smooth framerate, low-polygon assets

were employed for rendering these two types of

objects. In addition, roads and buildings rendered in

the VR headset are sent by the GAMA model at

initialization. As the aim was to enable roads to be

closed, we made them interactable by specifying, in

the GAMA model, that they have a collider in VR.

Finally, we specified in Unity the GAMA action to be

called when a specific road is closed (defined in the

Unity Linker of the GAMA plugin).

4 CONCLUSION

In this article, we introduced the SIMPLE platform,

which bridges the gap between GAMA, a popular

agent-based modelling platform, and Unity, the well-

known game engine. We first gave an overview of the

relationships between the concepts used in GAMA

and Unity, and then presented how we link these

concepts between the two platforms and how their

coupling can be achieved via SIMPLE. Examples

from two prototypes (RAC and HoanKiem Air) are

presented and discussed.

4.1 Limitations

While SIMPLE offers a valuable bridge between

GAMA and Unity, limitations remain that hinder the

Figure 3: Left: presentation of Hoan Kiem Air at the French Embassy in Hanoi; right: some in-game images of the VR

adaptation. The colors of buildings show the level of pollution. Roads are displayed in red when closed, black when opened

and green when selected.

Coupling Agent-Based Simulations and VR Universes: the Case of GAMA and Unity

full potential of their integration. These limitations

primarily revolve around two key areas: a reliance on

manual steps and the lack of a dedicated process to

simplify the workflow for modelers.

The current manual configuration for coupling

GAMA species with Unity GameObjects can be

tedious and prone to errors. Manually mapping

attributes, defining behaviors, and setting up

interaction mechanics is time-consuming and can

discourage adoption, particularly for users less

familiar with both platforms. Automating as many of

these steps as possible, potentially through code

generation or drag-and-drop interfaces, would

significantly improve accessibility and efficiency.

The lack of wizards is a particularly critical

missing element. Providing guided workflows

tailored to specific use cases would greatly benefit

modelers. These wizards could handle common

configurations, suggest relevant Unity components,

and automate repetitive tasks, allowing modelers to

focus on the core logic and design of their

simulations.

4.2 Developments

Addressing these limitations through enhanced

automation and user-friendly tools is crucial. This

will involve:

- Providing a GAMA runtime endpoint directly in

the Unity extension: Allowing Unity to make

requests to GAMA and directly compile

experiments able to be linked to Unity.

- Developing intelligent mapping tools:

Automatically identifying corresponding

attributes and behaviors between GAMA species

and Unity GameObjects, minimizing manual

configuration.

- Implementing context-aware wizards: Providing

step-by-step guidance based on the model being

developed, offering relevant options and best

practices.

- Exploring plug-and-play components: Building

libraries of pre-configured Unity components

designed to work seamlessly with specific GAMA

species functionalities.

By overcoming these limitations, the SIMPLE

platform will evolve into a truly streamlined and

accessible tool for coupling GAMA and Unity. This

will not only simplify the modelers’ workflow, but

also encourage wider adoption and unlock the

potential of this integration for research, education,

and virtual world creation. An important point will be

to support each major release of both development

environments, which will be achieved through the

first point in the list above (i.e. by integrating the

corresponding version of GAMA into each version of

the Unity extensions).

4.3 Future Developments

While addressing the limitations of SIMPLE

represents a critical step, the future of GAMA-Unity

coupling holds even more exciting possibilities. Here,

generative AI (Becker et al. 2023; Qin & Hui 2023;

Chamola et al. 2023) emerges as a promising tool to

ease the way we bridge these two platforms and we

have already begun to explore it in a series of research

works.

Generative AI can significantly reduce the

reliance on manual configurations, currently a major

bottleneck in the coupling process. Imagine

intelligent algorithms automatically mapping GAMA

species attributes to Unity components, suggesting

optimal configurations for behaviors and interactions,

and even generating code snippets for custom

functionalities. This level of automation would

streamline the workflow, allowing modelers to focus

on the bigger picture without getting bogged down in

technical details.

Generative AI can also unlock dynamic content

creation within virtual environments (Ratican et al.

2023). Imagine a system that automatically generates

diverse and unique Unity assets, such as buildings,

landscapes, and even characters, based on the

underlying GAMA simulation parameters or natural

language prompts used for the aspects of agents. This

would support fast prototyping of complete virtual

worlds, offering an unparalleled way to test ideas and

offering modelers without a graphics expertise the

possibility to deploy appealing virtual worlds within

minutes.

By embracing the power of generative AI on top

of the existing coupling mechanisms, with intelligent

automation and dynamic content creation, we aim at

transforming the SIMPLE platform into a truly

transformative tool for research, education, and --

why not -- entertainment.

ACKNOWLEDGEMENTS

This publication was produced with the financial

support of the European Union. Its contents are the

sole responsibility of the authors and do not

necessarily reflect the views of the European Union.

SIMULTECH 2024 - 14th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

REFERENCES

Adinolf, S., Wyeth, P., Brown, R., & Altizer, R. (2019,

December). Towards designing agent based virtual

reality applications for cybersecurity training. In

Proceedings of the 31st Australian Conference on

Human-Computer-Interaction (pp. 452-456).

Becker, B. A., Denny, P., Finnie-Ansley, J., Luxton-Reilly,

A., Prather, J., & Santos, E. A. (2023, March).

Programming is hard-or at least it used to be:

Educational opportunities and challenges of ai code

generation. In Proceedings of the 54th ACM Technical

Symposium on Computer Science Education V. 1 (pp.

500-506).

Berger, C., & Mahdavi, A. (2020). Review of current trends

in agent-based modeling of building occupants for

energy and indoor-environmental performance

analysis. Building and Environment, 173, 106726.

Bosse, T., De Man, J., & Gerritsen, C. (2014, August).

Agent-based simulation as a tool for the design of a

virtual training environment. In 2014 IEEE/WIC/ACM

International Joint Conferences on Web Intelligence

(WI) and Intelligent Agent Technologies (IAT) (Vol. 3,

pp. 40-47). IEEE.

Bown, J., White, E., & Boopalan, A. (2017). Looking for

the ultimate display: A brief history of virtual reality. In

Boundaries of self and reality online (pp. 239-259).

Academic Press.

Brasil, I. S., Neto, F. M. M., Chagas, J. F. S., de Lima, R.

M., Souza, D. F. L., Bonates, M. F., & Dantas, A.

(2011). An intelligent agent-based virtual game for oil

drilling operators training. In 2011 XIII Symposium on

Virtual Reality (pp. 9-17). IEEE.

Brugière, A., Pham, M. D., Chapuis, K., Drogoul, A.,

Gaudou, B., Grignard, A., ... & Tri, N. H. (2019).

Experimenting the impact of pedestrianisation on urban

pollution using tangible agent-based simulations:

application to Hoan Kiem district, Hanoi, Vietnam. In

International Workshop on Complex Systems

Modelling & Simulation (pp. 43-77).

Chamola, V., Bansal, G., Das, T. K., Hassija, V., Reddy, N.

S. S., Wang, J., ... & Niyato, D. (2023). Beyond Reality:

The Pivotal Role of Generative AI in the Metaverse.

arXiv preprint arXiv:2308.06272.

Cho, Y., & Park, K. S. (2023). Designing Immersive Virtual

Reality Simulation for Environmental Science

Education. Electronics, 12(2), 315.

Conesa, J., Camba, J. D., Aranda, J. Á., & Contero, M.

(2022). An agent-based paradigm for virtual modeling.

Expert Systems with Applications, 192, 116393.

Craighead J., J. Burke & R. Murphy, "Using the unity game

engine to develop sarge: a case study," in 2008

Simulation Workshop at the International Conference

on Intelligent Robots and Systems, 2008.

Drogoul, A., Vanbergue, D., & Meurisse, T. (2002). Multi-

agent based simulation: Where are the agents?. In

International Workshop on Multi-Agent Systems and

Agent-Based Simulation (pp. 1-15). Berlin, Heidelberg:

Springer Berlin Heidelberg.

Gazis, A., & Katsiri, E. (2023). Serious Games in Digital

Gaming: A Comprehensive Review of Applications,

Game Engines and Advancements. WSEAS

Transactions on Computer Research, 11, 10-22.

Grignard, A., & Drogoul, A. (2017, February). Agent-

Based Visualization: A Real-Time Visualization Tool

Applied Both to Data and Simulation Outputs. In AAAI

Workshops.

Guyot, P., Drogoul, A., & Honiden, S. (2006). Power and

negotiation: Lessons from agent-based participatory

simulations. In Fifth International Joint Conference on

Autonomous Agents and Multiagent Systems, AAMAS

(pp. 27-33).

Huang, X., White, M., & Burry, M. (2018). Design

Globally, Immerse Locally. Learning, Adapting and

Prototyping–CAADRIA, Beijing, 1, 473-482.

Ivory, J. D. (2015). A brief history of video games. in “The

video game debate: Unravelling the physical, social,

and psychological effects of digital games”, 1-21.

Routledge.

Juřík, V., Uhlík, O., Snopková, D., Kvarda, O., Apeltauer,

T., & Apeltauer, J. (2023). Analysis of the use of

behavioral data from virtual reality for calibration of

agent-based evacuation models. Heliyon, 9(3).

Kamalasanan V., A. Mukbil, M. Sester and J. P. Müller

(2022). Mixed Reality Agent-Based Framework for

Pedestrian-Cyclist Interaction, 2022 IEEE International

Symposium on Mixed and Augmented Reality Adjunct

(ISMAR-Adjunct), Singapore, Singapore, 2022, pp.

363-368, doi: 10.1109/ISMAR-Adjunct57072.20

22.00079.

Lin, F., Su, C. J., & Tseng, M. M. (1999). An agent-based

approach to developing intelligent virtual reality-based

training systems. In Proceedings 11th International

Conference on Tools with Artificial Intelligence (pp.

253-260). IEEE.

Liu, Y., Lather, J., & Messner, J. (2014). Virtual reality to

support the integrated design process: A retrofit case

study. In Computing in civil and building engineering

(2014) (pp. 801-808).

Louloudi, A., & Klügl, F. (2012, May). A New Framework

For Coupling Agent-Based Simulation And Immersive

Visualisation. In ECMS (pp. 51-57).

Olivier et al. (2014) "A virtual reality platform to study

crowd behaviors." Transportation Research Procedia 2

114-122.

Ospina-Bohórquez A., Rodríguez-González S. and

Vergara-Rodríguez D. (2021). On the Synergy between

Virtual Reality and Multi-Agent Systems.

Sustainability, 13, 4326. https://doi.org/

10.3390/su13084326

Popovici, D. M., Buche, C., Querrec, R., & Harrouet, F.

(2004, November). An interactive agent-based learning

environment for children. In 2004 International

Conference on Cyberworlds (pp. 233-240). IEEE.

Possik, J., Asgary, A., Solis, A. O., Zacharewicz, G.,

Shafiee, M. A., Najafabadi, M. M., ... & Wu, J. (2022).

An agent-based modeling and virtual reality application

using distributed simulation: Case of a COVID-19

Coupling Agent-Based Simulations and VR Universes: the Case of GAMA and Unity

intensive care unit. IEEE Transactions on Engineering

Management.

Possik, J., Gorecki, S., Asgary, A., Solis, A. O.,

Zacharewicz, G., Tofighi, M., ... & Nadri, N. (2021,

September). A distributed simulation approach to

integrate anylogic and unity for virtual reality

applications: case of covid-19 modelling and training in

a dialysis unit. In 2021 IEEE/ACM 25th International

Symposium on Distributed Simulation and Real Time

Applications (DS-RT) (pp. 1-7). IEEE.

Qin H.X. and P. Hui (2023) Empowering the Metaverse

with Generative AI: Survey and Future Directions.

IEEE 43rd International Conference on Distributed

Computing Systems Workshops (ICDCSW), Hong

Kong, Hong Kong, 2023, pp. 85-90, doi:

10.1109/ICDCSW60045.2023.00022.

Ratican, J., Hutson, J., & Wright, A. (2023). A proposed

meta-reality immersive development pipeline:

Generative ai models and extended reality (xr) content

for the metaverse. Journal of Intelligent Learning

Systems and Applications, 15.

Richards, D., Szilas, N., Kavakli, M., & Dras, M. (2008).

Impacts of visualisation, interaction and immersion on

learning using an agent-based training simulation.

International Transactions on Systems Science and

Applications, 4(1), 43-60.

Sancar, R., Atal, D., & Ateş, H. (2023). The Use of Virtual

Reality in Education for Sustainable Development. In

Designing Context-Rich Learning by Extending Reality

(pp. 298-318). IGI Global.

Saval, A., Minh, D. P., Chapuis, K., Tranouez, P., Caron,

C., Daudé, É., & Taillandier, P. (2023). Dealing with

mixed and non-normative traffic. An agent-based

simulation with the GAMA platform. Plos one, 18(3),

e0281658.

Shendarkar, A., Vasudevan, K., Lee, S., & Son, Y. J.

(2008). Crowd simulation for emergency response

using BDI agents based on immersive virtual reality.

Simulation Modelling Practice and Theory, 16(9),

1415-1429.

Taillandier, P., Gaudou, B., Grignard, A., Huynh, Q. N.,

Marilleau, N., Caillou, P., ... & Drogoul, A. (2019b).

Building, composing and experimenting complex

spatial models with the GAMA platform.

GeoInformatica, 23, 299-322.

Taillandier, P., Grignard, A., Marilleau, N., Philippon, D.,

Huynh, Q. N., Gaudou, B., & Drogoul, A. (2019a).

Participatory modeling and simulation with the gama

platform. Journal of Artificial Societies and Social

Simulation, 22(2), 1-19.

Yu, Y., El Kamel, A., Gong, G., & Li, F. (2014). Multi-

agent based modeling and simulation of microscopic

traffic in virtual reality system. Simulation Modelling

Practice and Theory, 45, 62-79.

Zhang, L., Fontaine, C. M., Murray-rust, D., Rounsevell,

M., & Li, W. (2009). Integrating VR, GIS and agent

based model to simulate regional residential demand

changes. In 2009 2nd IEEE International Conference on

Computer Science and Information Technology (pp.

388-392). IEEE.

SIMULTECH 2024 - 14th International Conference on Simulation and Modeling Methodologies, Technologies and Applications
