Methodological Approach to Model and Validate CPS

Perla Tannoury and Ahmed Hammad

FEMTO-ST Institute, CNRS, University of Bourgogne Franche-Comt

e Besanc¸on, France

Keywords:

CPS, Speciﬁcations, Validation Techniques, System Engineering, Semi-Formal Modeling, Veriﬁcation.

Abstract:

As Cyber-Physical Systems (CPS) become increasingly complex and critical, ensuring high-quality speciﬁca-

tions is crucial. However, the process is often challenging due to the need for expertise and lack of guidance.

To address this, we propose a methodological framework and tools for CPS speciﬁcation and validation. Our

approach utilizes semi-formal modeling and incorporates SysML and AcTRL technologies. By applying val-

idation strategies early in the development process, we aim to reduce the costs of correcting errors. This

comprehensive approach offers vital support to designers navigating CPS complexities.

1 INTRODUCTION

In recent years, Cyber-Physical Systems (CPS) have

become increasingly complex, integrating diverse

components and technologies (Walia et al., 2024; Yu

et al., 2023). These systems exhibit intricate behav-

iors, challenging conventional analysis and predic-

tion methods. Their complexity stems from the dy-

namic interplay among components, enabling real-

time sensing, processing, and actuation, often result-

ing in unpredictable behaviors.

Moreover, the criticality of CPS, particularly those

involving human safety or signiﬁcant ﬁnancial risks

(Hossain et al., 2024; Barroso et al., 2023; Tri-

pathi et al., 2021), underscores the necessity for

stringent quality standards. To exacerbate the chal-

lenge, the competitive global market demands cost-

effectiveness and time efﬁciency from CPS develop-

ers.

Addressing the intricacies of CPS development re-

quires a systematic approach to meet diverse require-

ments and constraints such as cost, time, quality, and

operation. System Engineering (SE) has emerged as

a framework to formalize and manage the design of

complex CPS and products (Wade et al., 2015).

Advocating for a Model-Based Systems Engineer-

ing (MBSE) paradigm, INCOSE (Friedenthal et al.,

2007) suggests employing semi-formal graphical lan-

guages, like a UML proﬁle, to model CPS soft-

ware and hardware components (Ordinez et al., 2020;

Chatterjee and Reza, 2020).

Model-Driven Engineering (MDE) has signiﬁ-

cantly advanced CPS development by focusing on ab-

stract concerns rather than immediate practical imple-

mentation (Mohamed et al., 2021a; Mohamed et al.,

2021b). Specifying a CPS involves deﬁning its re-

quirements, structures, and behaviors, categorized

into functional and non-functional aspects. Func-

tional requirements specify the system’s functions,

while non-functional requirements encompass perfor-

mance, reliability, and security considerations.

Various methodologies, such as SysReo (Tan-

noury et al., 2022; Tannoury, 2022; Tannoury et al.,

2023), ModelPlex (Mitsch and Platzer, 2016), and

INTO-CPS (Thule et al., 2019) have been proposed to

validate complex system designs. However, validat-

ing heterogeneous complex CPS requires a compre-

hensive approach that addresses both functional and

non-functional requirements. This approach should

facilitate automated validation through formal ver-

iﬁcation and simulation, grounded in requirements

modeling and ensuring traceability of the system’s

structure and behavior.

In this paper, we propose a comprehensive ap-

proach to facilitate CPS design, incorporating tools

for specifying and validating these systems. Our

method emphasizes semi-formal modeling of system

requirements and integrates environments tailored for

veriﬁcation and simulation. By applying validation

approaches early in the system development process,

we aim to mitigate the costs associated with correct-

ing speciﬁcation and design errors. This integrated

approach not only streamlines the design process but

also enhances the overall robustness of CPS by identi-

fying and addressing potential issues at an early stage.

Additionally, our methodology seeks to foster collab-

Tannoury, P. and Hammad, A.

Methodological Approach to Model and Validate CPS.

DOI: 10.5220/0012758800003758

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 14th International Conference on Simulation and Modeling Methodologies, Technologies and Applications (SIMULTECH 2024), pages 281-288

ISBN: 978-989-758-708-5; ISSN: 2184-2841

281

oration and knowledge sharing among diverse stake-

holders involved in the CPS design process, promot-

ing a more holistic and efﬁcient development life-

cycle.

The paper is structured as follows. Section 2 out-

lines the validation approach, while Section 3 elab-

orates on validation through simulation. Section 4

delves into the validation method via formal veriﬁ-

cation. Finally, Section 5 concludes the paper.

2 VALIDATION APPROACH

2.1 Introduction

Ensuring early validation of complex CPS requires

a tailored approach, integrating simulation for non-

functional and veriﬁcation for functional require-

ments. Our methodology initiates validation from

project outset, merging audit and simulation into

speciﬁcation. We endorse SysML for speciﬁcation,

employing system engineering techniques to trans-

form SysML into simulation and/or veriﬁcation en-

vironments. This paper motivates language selection

before detailing our approach.

2.2 Presentation of the Approach

Our validation approach begins with meticulous mod-

eling of Cyber-Physical Systems (CPS). We start by

identifying and classifying requirements into func-

tional and non-functional categories using SysML.

This phase establishes clear relationships among re-

quirements, forming a solid foundation.

Moving to the next phase, we model the CPS’s

structure and behavior using SysML diagrams such

as blocks, internal blocks, parametric structures, se-

quence, and activity diagrams. Critical traceability

links and veriﬁcation connections between require-

ments and model elements are established, ensuring

a comprehensive representation.

These initial phases constitute the modeling stage,

focusing on creating accurate representations. We

then use model-driven engineering techniques to

transform SysML diagrams into simulation or veri-

ﬁcation environments tailored to functional and non-

functional requirements.

Finally, we employ simulation environments like

VHDL-AMS (Haase et al., 2003) and Modelica (Ot-

ter and Elmqvist, 2001)), alongside veriﬁcation tools

like Model-checker CPN-Tools (Jensen et al., 2007)

and SPIN (Holzmann, 1997), to compare design mod-

els with requirement models. This ensures alignment,

enhancing the overall robustness and reliability of the

CPS. Figure 1 outlines the sequential steps of our ap-

proach, from requirement identiﬁcation to simulation

and veriﬁcation.

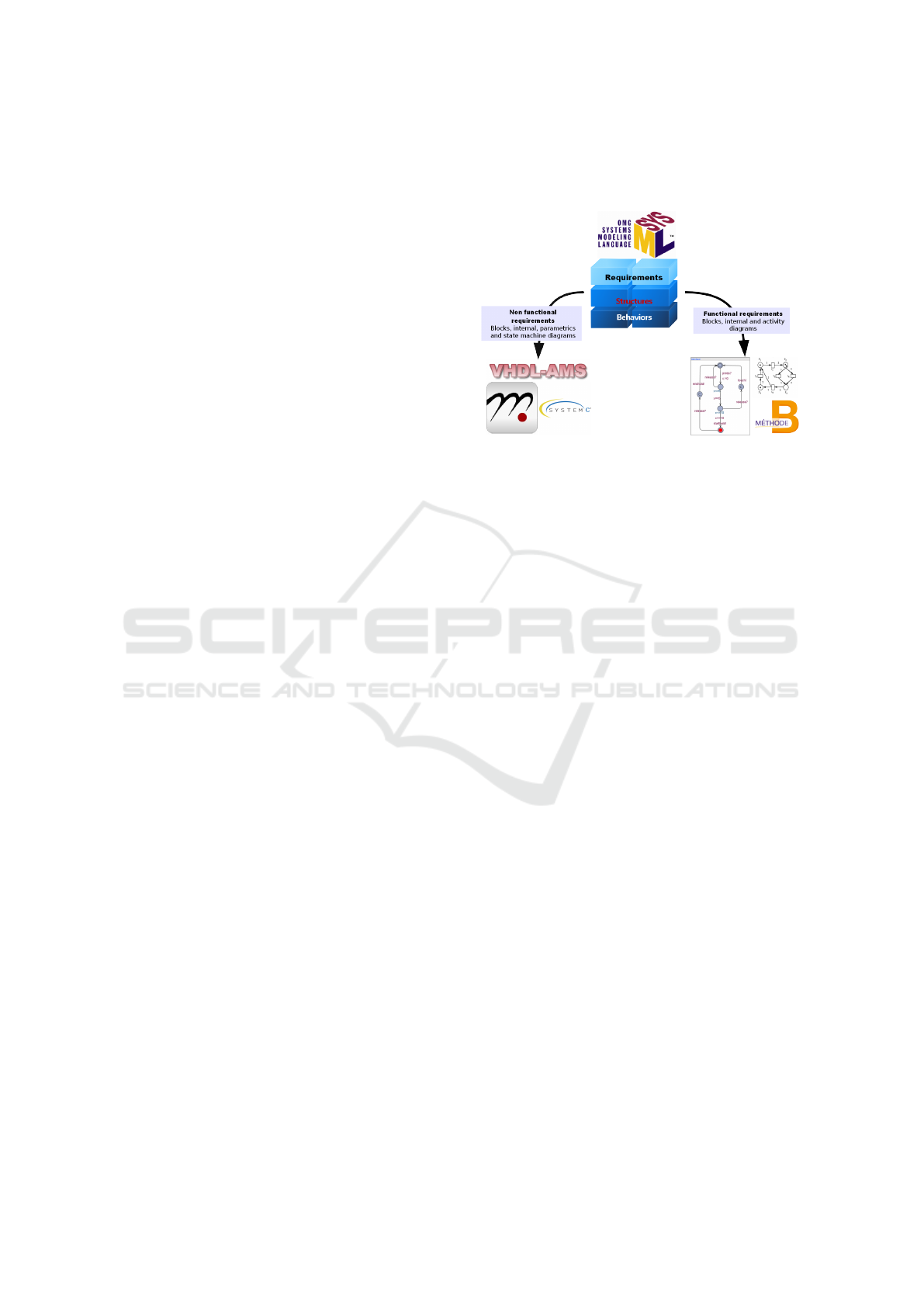

Figure 1: Speciﬁcation and validation methodology.

3 VALIDATION APPROACH BY

SIMULATION

3.1 Context and Motivations

In this section, we explore the integration of SysML

with VHDL-AMS and Modelica, as illustrated in Fig-

ure 1. Emphasizing simulation’s role, we use it to vi-

sualize system designs comprehensively and preempt

integration challenges. By testing virtual prototypes,

developers can validate requirements and identify po-

tential issues, enhancing the validation process’s efﬁ-

cacy.

The design and validation of complex CPS pose

scientiﬁc and industrial challenges due to the integra-

tion of heterogeneous components from various do-

mains. Non-functional requirements, such as safety

and reliability, are formalized using temporal logic

languages, while quantitative constraints, like energy

consumption and performance, are expressed through

mathematical equations (Wang et al., 2012).

Validating non-functional requirements, espe-

cially those expressed by partial differential equa-

tions, presents challenges in formal veriﬁcation.

Computer simulation offers a pragmatic alterna-

tive, effectively modeling physical constraints and

complex phenomena within computer-based environ-

ments.

By providing insights into complex physical pro-

cesses, simulation serves as a cost-effective means

to explore CPS development intricacies and under-

stand system behavior in controlled virtual settings.

SysML, with its parametric diagram feature, facil-

SIMULTECH 2024 - 14th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

282

itates seamless integration with simulation environ-

ments (Gauthier, 2013).

Our approach leverages SysML for CPS speciﬁca-

tion, transforming models into simulation languages.

Continuously reﬁning this integration, we explore the

potential synergy of SysML with SystemC (Gauthier,

2013), positioning our approach as a robust frame-

work for modeling, analysis, and simulation in CPS

development.

3.2 Joint Use of SysML and

VHDL-AMS

3.2.1 Introduction

Modeling is crucial for managing complexity and en-

suring system security and compliance with deﬁned

requirements. This challenge is particularly evident

in Systems on Chip (SoCs) and embedded systems,

where the gap between software and hardware is nar-

rowing (Prevostini and Zamsa, 2007). Collaboration

among development teams and clients is essential to

deﬁne needs, clarify requirements, and ensure speci-

ﬁcations meet expectations.

System engineering methods rely on modeling,

veriﬁcation, and simulation to validate requirements

and enhance the quality and reliability of critical sys-

tems. Graphical modeling languages, such as SysML,

serve as powerful tools for modeling complex Cyber-

Physical Systems (CPS) (Holt and Perry, 2008). Our

proposed methodology, illustrated in Figure 2, com-

bines SysML with VHDL-AMS and PSL (P

echeux

et al., 2005).

SysML, an extension of UML2, offers a simple

and effective vocabulary for system engineering (Holt

and Perry, 2008). It allows for concrete system rep-

resentations and speciﬁcation implementation in var-

ious development environments, ensuring coherence

between modeling and implementation.

For software, commonly used languages include

Java or C++, while Hardware Description Languages

(HDLs) are used for material description (Arnold

et al., 2005; Harris and Harris, 2022). VHDL, Sys-

temC, and Verilog are among the most commonly

used HDLs (Christen and Bakalar, 1999; Palnitkar,

2003).

Simulation is crucial for systems integrating ana-

log and digital technology. VHDL-AMS addresses

this by allowing modeling of abstracted objects and

treatment of values in continuous time (Christen and

Bakalar, 1999).

The Property Speciﬁcation Language (PSL) en-

ables writing complex temporal logic properties for

circuit veriﬁcation, including structured language

with formally deﬁned semantics, model-checking,

and parallel analysis of HDL functional simulation

properties.

SYSML

Requirements

non-functional functional

Strucutral models (BDD, parametric,...)

Behavioral (State machine, activity,...)

VHDL-AMS Model

Model transformation

Test

Test generation

Simulation

PSL

Verification

Simulation

formalization of requirements

Figure 2: SysML, VHDL-AMS and PSL.

3.2.2 Case Studies

In the ANR Smart Surface project, dedicated to de-

veloping a Smart Surface based on autonomous dis-

tributed micro-robotic systems for robust and adap-

tive micromanipulation, an effective synergy between

SysML and VHDL-AMS was discovered. This was

evident in the study conducted by Giorgetti, showcas-

ing a convergence of concepts between SysML and

VHDL-AMS (Giorgetti et al., 2010).

In another context, within the SyVAD project sit-

uated in the Franche-Comt

e region in France, the pri-

mary objective is to control the boundary layer using

distributed generators of inclined jets for a variable-

speed automobile under normal conditions. The re-

search focused on analyzing the airﬂow around the

Ahmed body, a simpliﬁed yet extensively studied car

geometry (Ahmed et al., 1984). This body serves as

a fundamental model for comprehending ﬂuid ﬂow

around cars, and it has been widely utilized in nu-

merical simulations aimed at minimizing drag (Bou-

quet et al., 2012). These projects exemplify the versa-

tile application of SysML in conjunction with VHDL-

AMS and the signiﬁcance of their integration in di-

verse research initiatives, illustrating their adaptabil-

ity across different domains within the ﬁeld of Cyber-

Physical Systems.

Methodological Approach to Model and Validate CPS

283

4 VALIDATION METHOD BY

FORMAL VERIFICATION

4.1 Introduction

This section focuses on formally verifying complex

Cyber-Physical Systems (CPS) through the combined

use of SysML and Hierarchical Colored Petri Net

models (HCPN) (Huber et al., 1991).

In the development cycle of complex CPS, ver-

iﬁcation is crucial for ensuring adherence to speci-

ﬁed requirements. While SysML is effective for de-

scribing complex systems, it lacks built-in veriﬁca-

tion mechanisms. To address this, integrating SysML

with formal languages enhances the veriﬁcation pro-

cess, leveraging SysML’s robust speciﬁcation capabil-

ities while ensuring alignment with essential require-

ments. This integrated approach enables a compre-

hensive assessment of complex CPS, upholding the

highest standards of compliance and reliability.

4.2 Veriﬁcation Process

We present our proposed approach to specify and ver-

ify complex systems. The initial step involves spec-

ifying the system and its requirements. This phase

encompasses describing the requirements, structure,

and behavior of the system while accounting for the

veriﬁcation process. Requirements speciﬁcation re-

lies on the SysML requirements diagram. Functional

requirements, particularly those intended for veriﬁca-

tion on activity diagrams, need to be formalized using

AcTRL (Activity Temporal Requirement Language)

(Rahim et al., 2014). The formalization of require-

ments aims to eliminate any ambiguity regarding their

semantics to enable formal veriﬁcation. Additionally,

the speciﬁcation of system behavior and structure is

SysML-based. Speciﬁcally, the block deﬁnition dia-

gram is used to depict the system’s structure, while

the activity diagram is employed to delineate its be-

haviors.

The second step in the approach involves con-

sidering the relationships between requirements and

model elements to identify the diagrams relevant for

the veriﬁcation phase. This traceability serves as a

guide for the veriﬁcation of requirements on the de-

sign templates. Subsequently, the SysML diagrams

under consideration are transformed into formal spec-

iﬁcations to articulate their execution semantics and

facilitate the use of formal veriﬁcation tools. How-

ever, formulating such a transformation is challenging

and necessitates a comprehensive understanding of

both the source and target domains to identify struc-

tural and semantic equivalences between the elements

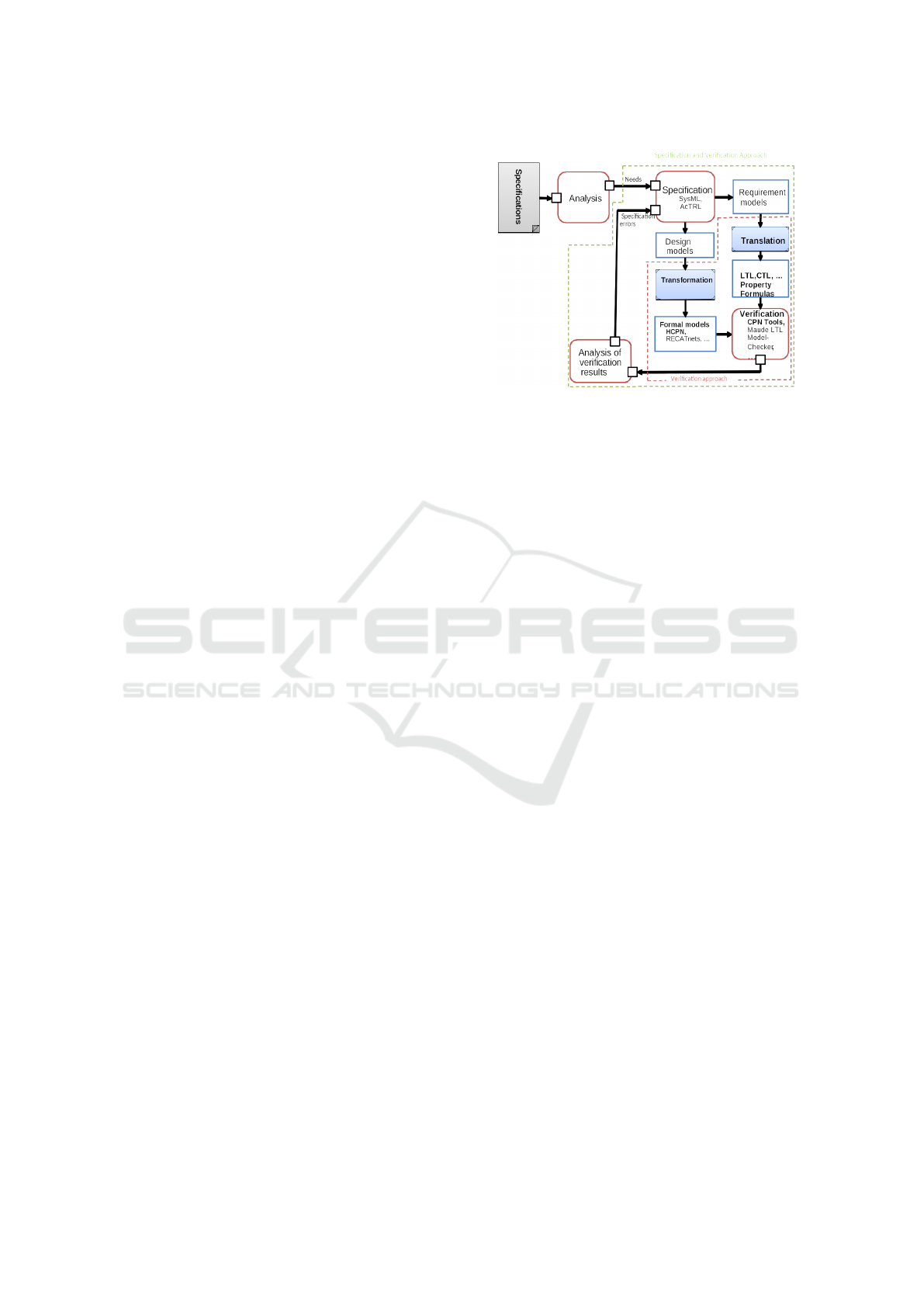

Figure 3: Speciﬁcation and veriﬁcation approach.

in each domain.

Given their resemblance to activity diagrams, Hi-

erarchical Colored Petri Nets (HCPN) were chosen.

Temporal logic languages were used to articulate the

requirements.

Once the translation into formal speciﬁcations is

done, the SysML requirements veriﬁcation is started

based on the Model-Checking technique. The veri-

ﬁcation based on the Model-Checking is completely

automatic and allows to check the satisfaction of the

properties written in temporal logic. It also provides

counterexamples when the formula tested is not sat-

isﬁed. This is the scenario (execution trace) that led

to the error. These counter-examples are very useful

because they provide important indications for model

correction under veriﬁcation.

The interpretation of the results of the veriﬁcation

on the high level speciﬁcation (SysML speciﬁcation)

is the last step in this speciﬁcation and veriﬁcation

process. This step of interpreting audit results relies

on human expertise. It must be able to detect the ori-

gin of the error in the SysML speciﬁcation (error in

the model requirements or in the design models). This

approach is described in Figure 3.

4.3 Formalization of the Requirements

Our proposal for the formalization of the require-

ments concerning behaviors modeled by activity dia-

grams consists in the deﬁnition of the language Ac-

TRL (Rahim et al., 2014). This language was de-

signed for use by SysML practitioners. It allows to

formalize, while remaining at a level of abstraction

close to SysML, the requirements described by nat-

ural texts, in expressing them as temporal properties

concerning the elements of the activity diagrams. In

the SysML requirements diagram, the designer can

bind a requirement R to the activity A, by a ”Verify”

SIMULTECH 2024 - 14th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

284

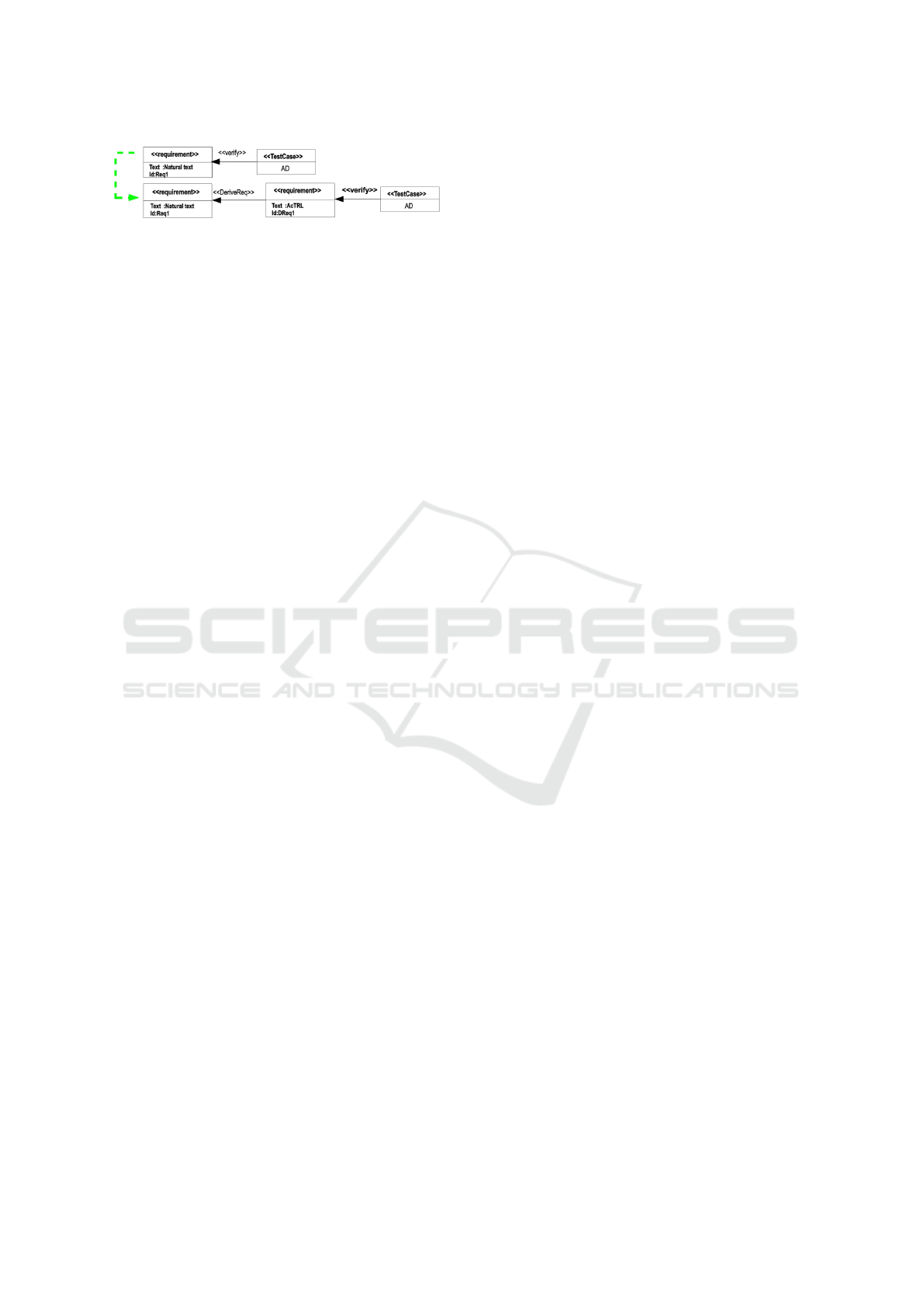

Figure 4: Representation of the requirements expressed in

AcTRL.

relationship to express that the activity A satisfy the

requirement R. If this requirement is functional and

concerns a behavior of the system modeled by an ac-

tivity diagram, it can surely be expressed according

to the states of the elements of SysML activities. So,

a possible formalization (at the SysML level) of the

requirements related to the activities consists in ex-

pressing them according to the states of the elements

of the activity diagram. It’s starting from this idea, the

proposed AcTRL language. This language is there-

fore intended for SysML designers to describe the re-

quirements written in natural language in a language

more formal but close to SysML. It only concerns the

requirements related to SysML activities. It makes it

possible to express a requirement as a property con-

cerning the elements of the activity on which this re-

quirement will be veriﬁed. To deﬁne this language,

the approach is rooted in establishing a high-level rep-

resentation of the operational semantics of a SysML

activity. This representation conceptualizes all poten-

tial states resulting from the execution of the activity,

resembling a system of states/transitions. Following

this deﬁnition, predicates are established to character-

ize the states of elements within the activity diagram

and articulate their properties. OCL (Object Con-

straint Language) (OMG, 2012) is used to express ob-

ject and object node properties within this framework.

Subsequently, the language is enriched with time op-

erators leveraging the system of speciﬁcation patterns

outlined in prior literature (Dwyer et al., 1999).

For traceability reasons, the requirements ex-

pressed in AcTRL language are represented in the

SysML requirements diagram and linked to the re-

quirements expressed in natural language. This is

illustrated in Figure 4. It is observed that follow-

ing the formalization of the Req1 requirement, which

is linked by a ”Verify” relation to a SysML element

stereotyped as ”test case” representing a SysML ac-

tivity, another requirement DReq1 expressed in Ac-

TRL is generated. The latter is linked to the require-

ment Req1 by the ”DeriveReq” relation, while the

”Verify” relation is established between the require-

ment DReq1 expressed in AcTRL and the element

”Test Case”.

4.4 Transformation in Formal

Speciﬁcations

Our approach is based on translating the activity di-

agrams into Hierarchical Colored Petri Nets (HCPN)

(An et al., 2018). Before detailing this transformation,

we present the HCPN.

4.4.1 Hierarchical Colored Petri Nets

The HCPN are a class of high-level Petri nets pro-

posed for compositional modeling of systems. An

HCPN model is constructed from several colored

Petri nets connected to each other. In HCPNs, the

substitution transition concept makes reference to a

colored Petri net called subnet. The latter is described

in a separate page and gives a more detailed descrip-

tion of the part of the system modeled by the substi-

tution transition. The notion of substitution transition

is used to structure the HCPN in several pages (sev-

eral subnets). A substitution transition has places at

the entrance and places at the exit called places sock-

ets. The relationship between a substitution transition

and its subnet is given by the speciﬁcation that links

the subnetwork places with the sockets of the substi-

tution transition.

4.4.2 PNML (Petri Net Markup Language)

PNML (Petri Net Markup Language) is a standard-

ized format for Petri nets, speciﬁed in ISO/IEC 15909

(Billington et al., 2003). It aims to enable interoper-

ability among Petri net-based tools. In our approach,

we propose using PNML as an intermediate format

for translating activity diagrams into Petri nets. This

choice leverages PNML’s tool-independence and the

availability of meta-models within the PNML frame-

work (Hillah et al., 2010).

4.4.3 CPN and Tools

The CPN tool, developed by the CPN Group at the

University of Aarhus, is widely used for analyzing

and verifying Petri nets (Jensen et al., 2007). It sup-

ports editing, simulation, and veriﬁcation of ordinary

and colored Petri nets, as well as HCPN. CPN Tools

includes a simulator, state space analysis, and in-

tegrates a model-checker for ASK-CTL (Billington

et al., 2003).

4.4.4 Transformation of Activity Diagrams in

HCPN

Various translations of activity diagrams to Petri nets

have been proposed (Foures et al., 2011; Vladimiri-

ovich et al., 2015), each with speciﬁc goals. In this

Methodological Approach to Model and Validate CPS

285

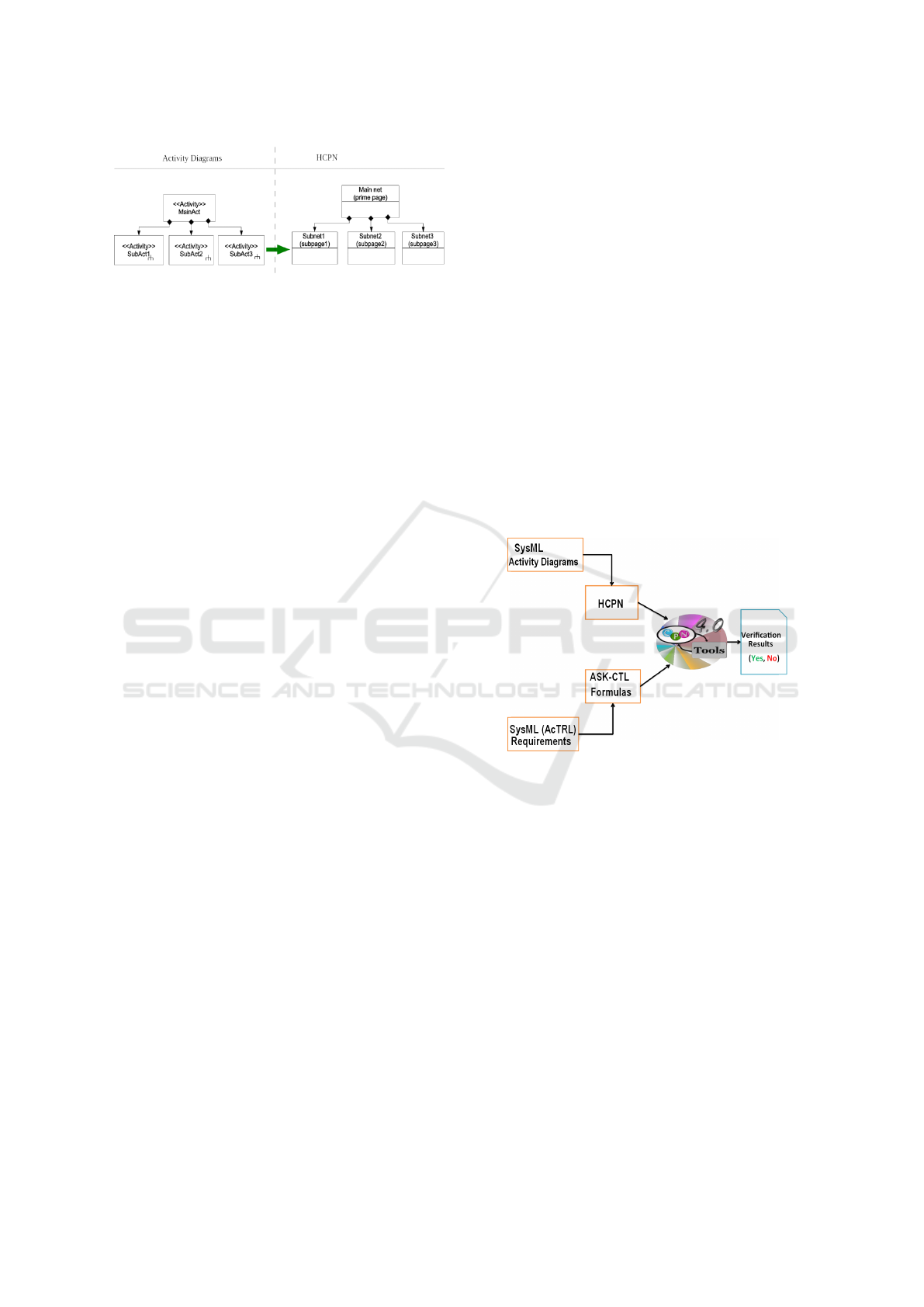

Figure 5: Translation of the structure.

work, we aim to check requirements on activity dia-

grams by automatically translating them into a formal

speciﬁcation based on HCPNs.

Our approach considers the composition of activ-

ities, including activity call actions, to preserve the

structure and semantics of the activity diagrams in the

resulting HCPN models. The translation involves two

steps: an M2M transformation using ATL to convert

the activity diagram into a PNML Petri net, followed

by an M2T transformation generating an HCPN in

CPN Tools format from the PNML representation.

To maintain the composite structure of activity

diagrams, each sub-activity is translated into a sub-

network of the HCPN, represented on separate pages.

The main activity of the diagram corresponds to the

primary page of the HCPN, as illustrated in Figure 5.

4.4.5 Translation of Requirements into

Temporal Logic Formulas

The AcTRL language enables high-level speciﬁca-

tion of requirements for veriﬁcation by different ap-

proaches, depending on the veriﬁcation tools used.

To verify SysML requirements expressed in AcTRL

on the HCPN translated from an activity diagram, the

requirements are translated into temporal logic lan-

guage. As the CPN Tools tool is chosen for veriﬁ-

cation, the requirements expressed in AcTRL must

be translated into the ASK-CTL temporal logic. The

ASK-CTL logic is a variant of the CTL logic, sup-

ported by the CPN Tools tool.

The passage from AcTRL to ASK-CTL is carried

out in two stages. The ﬁrst step is based on the library

proposed in (Dwyer et al., 1999) to switch from Ac-

TRL to CTL. The second step is based on the equiv-

alences between CTL and ASK-CTL to switch from

CTL to ASK-CTL. The interpretation of the AcTRL

predicate expressions on the RdPHC is deﬁned ac-

cording to the translation of the HCPN activity dia-

grams.

4.5 Veriﬁcation of the SysML

Requirements

Once the SysML speciﬁcations (SysML activity di-

agram and requirements) are translated into formal

speciﬁcations (CPN Tools CPN and ASK-CTL For-

mulas), the veriﬁcation step can be initiated using the

tool CPN Tools. As part of our approach, Figure 6

illustrates the veriﬁcation of SysML requirements on

activity diagrams using the CPN Tools tool. The veri-

ﬁcation process for ASK-CTL formulas with the CPN

Tools tool involves the following steps:

• Generation of the state space,

• Invoking the ASK-CTL library with the following

command: use (ogpathˆ ”ASKCTL / ASKCTL-

loader.sml”)

• Opening the ﬁle containing the ASK-CTL formu-

las,

• Evaluation of ASK-CTL formulas.

Figure 6: Veriﬁcation of the SysML requirements via CPN

Tools.

5 CONCLUSION

In this paper, we introduce a methodology to spec-

ify and validate complex CPS, leveraging SysML and

emphasizing precise requirement descriptions and the

utilization of relationships between SysML model el-

ements. SysML, well-suited for heterogeneous com-

plex CPS, facilitates hierarchical block modeling of

hardware and software, and enables graphical repre-

sentation of mathematical equations deﬁning physical

behaviors.

However, despite the various advantages of

SysML, it remains a semi-formal language lacking di-

rect execution or simulation capabilities, making val-

idation challenging. This approach aims to integrate

SIMULTECH 2024 - 14th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

286

requirement traceability and Model Driven Engineer-

ing (MDE) techniques to transform SysML models

into simulation (e.g., Modelica, VHDL-AMS, Sys-

temC) and veriﬁcation (e.g., SPIN (Holzmann, 1997))

formats.

Functional and non-functional requirements in

complex CPS systems vary in nature. Non-functional

requirements are often validated through simula-

tion, achieved by converting SysML diagrams, such

as the parametric diagram, into simulation environ-

ments. On the other hand, functional requirements

undergo validation through formal veriﬁcation. We

propose a temporal language, closely aligned with

the SysML environment to specify functional require-

ments, which can be expressed on SysML diagrams

and subsequently transformed along with SysML

models into veriﬁcation environments.

When developing a new methodological ap-

proach, the construction of software tools to support

it is crucial. The aim is to provide researchers with

a methodological guide for the speciﬁcation, design,

and development of their systems.

The ﬁrst step in our methodology is the require-

ment speciﬁcation step. The role of this step is to de-

ﬁne and model the requirements after the needs anal-

ysis described in the loads. In engineering, the val-

idation of the requirements and their evolution over

the whole life cycle of a hardware project, software,

or mixed software allows the development of a com-

mon understanding of all stakeholders of the system

to develop. Requirements accurately measure system

or software compliance in relation to needs or con-

straints. To enrich our approach, SysML requirements

will be brieﬂy analyzed. The ﬁrst step involves for-

malizing them to express them precisely and remove

any ambiguity. Formalizing requirements is essential

for veriﬁcation. The formal language AcTRL is pro-

posed to formalize requirements related by the “Ver-

ify” relationship with activity diagrams. Extending

this language to incorporate other categories of re-

quirements would be beneﬁcial. This step can also be

used to validate and/or formally verify operations on

requirements, including reﬁnement. The SysML ”Re-

ﬁne” relationship details a requirement by another

or by a modeling element, enabling traceability be-

tween requirements and model elements. The formal

veriﬁcation of reﬁnement of SysML requirements is

not addressed in the literature. Investing in this area

will propose a process to verify the correctness of the

“Reﬁne” relationship. Generalizing this approach to

other relationships like Derive, Contains, Satisfy is

necessary.

REFERENCES

Ahmed, S. R., Ramm, G., and Faltin, G. (1984). Some

salient features of the time-averaged ground vehicle

wake. SAE transactions, pages 473–503.

An, Y., Wu, N., Zhao, X., Li, X., and Chen, P. (2018). Hier-

archical colored petri nets for modeling and analysis

of transit signal priority control systems. Applied Sci-

ences, 8(1):141.

Arnold, K., Gosling, J., and Holmes, D. (2005). The

Java programming language. Addison Wesley Pro-

fessional.

Barroso, S., Bustos, P., and Nunez, P. (2023). Towards a

cyber-physical system for sustainable and smart build-

ing: a use case for optimising water consumption on

a smartcampus. Journal of Ambient Intelligence and

Humanized Computing, 14(5):6379–6399.

Billington, J., Christensen, S., Van Hee, K., Kindler, E.,

Kummer, O., Petrucci, L., Post, R., Stehno, C., and

Weber, M. (2003). The petri net markup language:

Concepts, technology, and tools. In Applications and

Theory of Petri Nets 2003: 24th International Con-

ference, ICATPN 2003 Eindhoven, The Netherlands,

June 23–27, 2003 Proceedings 24, pages 483–505.

Springer.

Bouquet, F., Gauthier, J.-M., Hammad, A., and Peureux, F.

(2012). Transformation of sysml structure diagrams

to vhdl-ams. In 2012 Second Workshop on Design,

Control and Software Implementation for Distributed

MEMS, pages 74–81. IEEE.

Chatterjee, A. and Reza, H. (2020). Toward modeling and

veriﬁcation of uncertainty in cyber-physical systems.

In 2020 IEEE International Conference on Electro In-

formation Technology (EIT), pages 568–576. IEEE.

Christen, E. and Bakalar, K. (1999). Vhdl-ams: a hardware

description language for analog processing. IEEE

Transactions on Circuits and Systems II: Analog and

Digital Signal Processing, 46(10):67.

Dwyer, M. B., Avrunin, G. S., and Corbett, J. C. (1999).

Patterns in property speciﬁcations for ﬁnite-state veri-

ﬁcation. In Proceedings of the 21st international con-

ference on Software engineering, pages 411–420.

Foures, D., Albert, V., and Pascal, J.-C. (2011). Activitydia-

gram2petrinet: transformation-based model in accor-

dance with the omg sysml speciﬁcations. In Eurosis,

The 2011 European Simulation and Modelling Con-

ference, pages p429–p433.

Friedenthal, S., Griego, R., and Sampson, M. (2007). Incose

model based systems engineering (mbse) initiative. In

INCOSE 2007 symposium, volume 11. sn.

Gauthier, J.-M. (2013). Test generation for rtes from sysml

models: Context, motivations and research proposal.

In 2013 IEEE Sixth International Conference on Soft-

ware Testing, Veriﬁcation and Validation, pages 503–

504. IEEE.

Giorgetti, A., Hammad, A., and Tatibou

et, B. (2010). Using

sysml for smart surface modeling. In 2010 First Work-

shop on Hardware and Software Implementation and

Control of Distributed MEMS, pages 100–107. IEEE.

Methodological Approach to Model and Validate CPS

287

Haase, J., Bastian, J., and Reitz, S. (2003). Vhdl-ams in

mems design ﬂow. System Speciﬁcation & Design

Languages: Best of FDL’02, pages 51–60.

Harris, D. M. and Harris, S. L. (2022). Hardware descrip-

tion languages. Digital Design and Computer Archi-

tecture, pages 170–235.

Hillah, L.-M., Kordon, F., Petrucci, L., and Treves, N.

(2010). Pnml framework: an extendable reference

implementation of the petri net markup language. In

Applications and Theory of Petri Nets: 31st Interna-

tional Conference, PETRI NETS 2010, Braga, Portu-

gal, June 21-25, 2010. Proceedings 31, pages 318–

327. Springer.

Holt, J. and Perry, S. (2008). SysML for systems engineer-

ing, volume 7. IET.

Holzmann, G. J. (1997). The model checker spin. IEEE

Transactions on software engineering, 23(5):279–

295.

Hossain, M. M., Kashem, M. A., Nayan, N. M., and

Chowdhury, M. A. (2024). A medical cyber-physical

system for predicting maternal health in developing

countries using machine learning. Healthcare Analyt-

ics, 5:100285.

Huber, P., Jensen, K., and Shapiro, R. M. (1991). Hierar-

chies in coloured petri nets. In Advances in Petri Nets

1990 10, pages 313–341. Springer.

Jensen, K., Kristensen, L. M., and Wells, L. (2007).

Coloured petri nets and cpn tools for modelling and

validation of concurrent systems. International Jour-

nal on Software Tools for Technology Transfer, 9:213–

254.

Mitsch, S. and Platzer, A. (2016). Modelplex: Veriﬁed

runtime validation of veriﬁed cyber-physical system

models. Formal Methods in System Design, 49:33–

74.

Mohamed, M., Kardas, G., and Challenger, M. (2021a).

Model-driven engineering tools and languages for

cyber-physical systems–a systematic literature review.

IEEE Access, pages 1–1.

Mohamed, M. A., Kardas, G., and Challenger, M. (2021b).

A systematic literature review on model-driven engi-

neering for cyber-physical systems. arXiv preprint

arXiv:2103.08644.

OMG, O. (2012). Object constraint language (ocl), version

2.3. 1.

Ordinez, L., Eggly, G., Micheletto, M., and Santos,

R. (2020). Using uml for learning how to de-

sign and model cyber-physical systems. IEEE Re-

vista Iberoamericana de Tecnologias del Aprendizaje,

15(1):50–60.

Otter, M. and Elmqvist, H. (2001). Model-

ica overview. URl: https://www. model-

ica. org/education/educationalmaterial/lecture-

material/english/ModelicaOverview. pdf.

Palnitkar, S. (2003). Verilog HDL: a guide to digital design

and synthesis, volume 1. Prentice Hall Professional.

echeux, F., Lallement, C., and Vachoux, A. (2005). Vhdl-

ams and verilog-ams as alternative hardware descrip-

tion languages for efﬁcient modeling of multidisci-

pline systems. IEEE transactions on Computer-Aided

design of integrated Circuits and Systems, 24(2):204–

225.

Prevostini, M. and Zamsa, E. (2007). Sysml proﬁle for soc

design and systemc transformation. ALaRI, Faculty of

Informatics University of Lugano via G. Bufﬁ, 13(5).

Rahim, M., Boukala-Ioualalen, M., and Hammad, A.

(2014). Petri nets based approach for modular veri-

ﬁcation of sysml requirements on activity diagrams.

In PNSE@ Petri Nets, pages 233–248.

Tannoury, P. (2022). An incremental model-based design

methodology to develop cps with sysml/ocl/reo. In

Journ

ees du GDR GPL.

Tannoury, P., Chouali, S., and Hammad, A. (2022). Model

driven approach to design an automotive cps with sys-

reo language. In Proceedings of the 20th ACM In-

ternational Symposium on Mobility Management and

Wireless Access, pages 97–104.

Tannoury, P., Chouali, S., and Hammad, A. (2023). Joint

use of sysml and reo to specify and verify the compati-

bility of cps components. In International Conference

on Formal Aspects of Component Software, pages 84–

102. Springer.

Thule, C., Lausdahl, K., Gomes, C., Meisl, G., and Larsen,

P. G. (2019). Maestro: the into-cps co-simulation

framework. Simulation Modelling Practice and The-

ory, 92:45–61.

Tripathi, D., Singh, L. K., Tripathi, A. K., and Chaturvedi,

A. (2021). Model based security veriﬁcation of cyber-

physical system based on petrinet: A case study of

nuclear power plant. Annals of Nuclear Energy,

159:108306.

Vladimiriovich, M. A., Alexandrovich, V. A., and Ole-

govich, R. D. (2015). Automatic translation uml ac-

tivity diagrams to petri net. In 2015 International

Siberian Conference on Control and Communications

(SIBCON), pages 1–4. IEEE.

Wade, J., Cohen, R., Blackburn, M., Hole, E., and

Bowen, N. (2015). Systems engineering of cyber-

physical systems education program. In Proceedings

of the WESE’15: Workshop on Embedded and Cyber-

Physical Systems Education, pages 1–8.

Walia, G. S., Kumar, D., Sanger, J., and Sahana, S. (2024).

Cyber physical system and enabling technologies:

Opportunity, challenges, and applications. Security

and Risk Analysis for Intelligent Cloud Computing,

pages 128–143.

Wang, S., Yan, C., and Xiao, F. (2012). Quantitative energy

performance assessment methods for existing build-

ings. Energy and buildings, 55:873–888.

Yu, Z., Gao, H., Cong, X., Wu, N., and Song, H. H. (2023).

A survey on cyber-physical systems security. IEEE

Internet of Things Journal.

SIMULTECH 2024 - 14th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

288
