Automating Compliance for Improving TLS Security Postures: An

Assessment of Public Administration Endpoints

Riccardo Germenia

1,2 a

, Salvatore Manfredi

2 b

, Matteo Rizzi

1,2 c

, Giada Sciarretta

2 d

Alessandro Tomasi

2 e

and Silvio Ranise

2,3 f

Department of Information Engineering and Computer Science, University of Trento, Via Sommarive 9, Trento, Italy

Center for Cybersecurity, Fondazione Bruno Kessler, Via Sommarive 18, Trento, Italy

Department of Mathematics, University of Trento, Via Sommarive 14, Trento, Italy

Keywords:

Compliance Analysis, National Guidelines, Auditable Dataset, TLS Deployments.

Abstract:

System administrators tasked with conﬁguring TLS servers must make numerous decisions - e.g., selecting

the appropriate ciphers, signature algorithms, and TLS extensions - and it may not be obvious, even to security

experts, which decisions may expose them to attacks. To address this issue, raise awareness, and establish a

security threshold, numerous cybersecurity agencies around the world issue technical guidelines for the use

and conﬁguration of TLS. In this paper we carry out an assessment of the TLS security posture of European

and US based endpoints in relation to their respective national cybersecurity guidelines. Our results show

that a surprisingly high amount of the analyzed websites have a low compliance level when compared to their

respective national guideline. We attempt to identify potential causes by presenting a series of observations that

may underlie the lack of compliance. The analysis is conducted by employing a TLS analyzer we developed to

automate the compliance analysis and the application of the suggested changes, assisting system administrators

during this important yet complex task. Our tool and the dataset containing the machine-readable requirements

for automating conformity assessment are publicly available, thus making the process auditable and the assets

extensible.

1 INTRODUCTION

Transport Layer Security (TLS) provides conﬁden-

tiality and integrity between communicating entities.

It is mainly used to secure online trafﬁc by prevent-

ing eavesdropping and tampering. Administrators in

charge of conﬁguring TLS servers have many choices

to make - e.g., choose the right ciphers, signature al-

gorithms and TLS extensions - and it may not be ob-

vious even to experts which choices may lead to ex-

posing vulnerabilities. As an example, the conﬁden-

tiality of more than 170,000 websites (Shodan Search

Engine, 2024) can still be compromised using Heart-

bleed, an attack discovered in 2014 that exploits an

insecure implementation of the Heartbeat TLS exten-

https://orcid.org/0009-0009-9283-8030

https://orcid.org/0000-0001-9645-6034

https://orcid.org/0000-0002-5288-3031

https://orcid.org/0000-0001-7567-4526

https://orcid.org/0000-0002-3518-9400

https://orcid.org/0000-0001-7269-9285

sion (Synopsys, Inc, 2014).

Based on RFCs and IANA public registries for

standards and parameters (IANA, 2005b; IANA,

2005a), authorities such as the European Commis-

sion, the White House Ofﬁce of Management and

Budget, and cybersecurity agencies such as US NIST

and Italian AgID issue guidelines to deﬁne how a

deployment should be conﬁgured to avoid insecure

conﬁgurations. These guidelines are documents that

establish a level of security by listing requirements.

Theoretically, each guideline can specify a require-

ment for every conﬁgurable element of a webserver

- e.g., for the NIST guideline, TLS version 1.2 MUST

be supported - by taking into account published stan-

dards, deprecated features, and known attacks. The

following is an example of a human-readable require-

ment extracted from NIST SP 800-52 Rev. 2 (National

Institute of Standards and Technology (NIST), 2019):

450

Germenia, R., Manfredi, S., Rizzi, M., Sciarretta, G., Tomasi, A. and Ranise, S.

Automating Compliance for Improving TLS Security Postures: An Assessment of Public Administration Endpoints.

DOI: 10.5220/0012764700003767

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 21st International Conference on Security and Cryptography (SECRYPT 2024), pages 450-458

ISBN: 978-989-758-709-2; ISSN: 2184-7711

Table 1: TLS protocol compliance across guidelines (dataset excerpt).

NIST (user-facing) BSI (federal) BSI (user-facing) ANSSI AgID

TLS 1.0 Not recommended Must not Not recommended Must not Not recommended

TLS 1.1 Not recommended Must not Not recommended Must not Not recommended

TLS 1.2 Not recommended Must Recommended Optional Must

TLS 1.3 Must Recommended Recommended Recommended Must

Servers that support citizen or business-facing ap-

plications [...] shall be conﬁgured to negotiate TLS

1.2 and should be conﬁgured to negotiate TLS 1.3.

The use of TLS versions 1.1 and 1.0 is generally

discouraged, but these versions may be conﬁgured

when necessary to enable interaction with citizens

and businesses. [...] These servers shall not allow

the use of SSL 2.0 or SSL 3.0.

Despite raising the security bar and being able

to prevent known attacks, allowing system adminis-

trators to improve the security posture of their ser-

vices, compliance with these recommendations is not

required but strongly suggested. Non-compliance

with these guidelines may result in a reduction of the

minimum security level recommended by technical

agencies, ﬁnes (European Parliament, 2016; Ofﬁce

of Management and Budget, 2017), or even exclu-

sion from international payment systems (i.e., PCI-

DSS (PCI, 2018)).

While the existence of technical guidelines can

help raise awareness and set a minimum security

level, their use is nontrivial as a system administra-

tor must examine each element covered by the set of

requirements, understand the language and the way

the requirement is written and (if clear) verify that

its value matches the expected value. The situation

worsens when a service needs to be provided across

multiple countries. Since each national authority in-

dependently sets different requirements for each con-

ﬁgurable element, a given conﬁguration may render a

system fully-compliant with one state guideline while

falling below a desired threshold in another.

System administrators could likely beneﬁt from

automated assistance in their decision-making, dur-

ing the process of conﬁguring a service to be com-

pliant against a given guideline. To accomplish this,

we collected a set of compliance requirements - from

different national cybersecurity agencies - to build a

machine-readable knowledge base which can be used

to streamline the process of conﬁguring a compliant

webserver. Moreover, we have developed a Com-

pliance Analyzer Module that allows to automate the

veriﬁcation process. We validated its functioning by

assessing the security posture of European and US

based public administration endpoints.

Our contributions can be summarized as follows:

• publication of an auditable dataset of techni-

cal requirements extracted from national security

guidelines issued by NIST (United States), BSI

(Germany), ANSSI (France) and AgID (Italy),

which references Mozilla;

• implementation of a compliance module for TL-

SAssistant

that employs the extracted technical

guidelines to automate the compliance analysis

and provide actionable hints on how to attain the

desired compliance; and

• an assessment of the TLS compliance level of Eu-

ropean and US based webservers respect to their

national cybersecurity guidelines. We also pro-

vide observations to investigate the reason for any

observed lack of compliance.

Plan of the Paper. Section 2 provides a brief de-

scription of the methodology we designed to com-

pare a webserver posture against single and multiple

guidelines, illustrating a set of use cases and how to

handle requirements conﬂicts. Section 3 outlines the

methodology employed to determine the choice of the

endpoints, as well as providing a description of a clas-

siﬁcation system utilized for organizing the resulting

data. The experimental results, accompanied by a se-

ries of observations that attempt to provide insight

into the potential reason for the obtained data, are de-

tailed in Section 4. Section 5 presents related work

and Section 6 concludes the paper and highlights fu-

ture work.

2 GUIDELINES AND

COMPLIANCE ON TLS

With the aim of helping system administrators make

their services compliant with agencies’ guidelines,

we published an auditable dataset (TLS

Compl Dset)

containing requirements that must be managed to en-

sure compliance. These requirements were gathered,

TLSAssistant is an open-source modular framework

capable of identifying a wide range of TLS vulnerabilities.

Its actionable report can assist the user in correctly and eas-

ily ﬁxing their conﬁgurations. Its source code is available

on https://github.com/stfbk/tlsassistant

Automating Compliance for Improving TLS Security Postures: An Assessment of Public Administration Endpoints

451

Table 2: Compare-to-one methodology.

Requirement level

Compare-to-one

Element detected Element missing

MUST Do nothing ERROR: enable

MUST NOT ERROR: disable Do nothing

RECOMMENDED Do nothing ALERT: enable

NOT RECOMMENDED ALERT: disable Do nothing

OPTIONAL Do nothing Do nothing

Not explicitly mentioned Guideline-dependant Do nothing

translated, standardized, and organized taking infor-

mation from ﬁve guidelines

published by NIST (Na-

tional Institute of Standards and Technology (NIST),

2019), BSI (Bundesamt f

ur Sicherheit in der Infor-

mationstechnik (BSI), 2024), ANSSI (ANSSI, 2020),

AgID (Agenzia per l’Italia Digitale, 2020), and

Mozilla (Mozilla Foundation, 2023).

The dataset

provides information on the source document, re-

quirement level

, any additional indications speciﬁed

by the agencies, and a set of notes explaining the rea-

soning behind each type of extraction, for each avail-

able category (e.g., cipher suites and TLS extensions).

TLS Compl Dset is made available on (tls, 2024)

to facilitate veriﬁcation of its contents, enabling inde-

pendent and transparent validation, as well as receiv-

ing suggestions for enhancing the data.

When taking into consideration a single guideline

(compare-to-one), the act of evaluating if a deploy-

ment is compliant with a given set of requirements

can be performed by scrolling through each require-

ment and acting accordingly to the requirement level.

Table 2 brieﬂy depicts the proposed methodology.

The ﬁrst column indicates the requirement level an

agency assigns to a given element - e.g., the presence

of a speciﬁc extension, the availability of a given pro-

tocol or cipher and the next two columns describe how

to behave if a given element is detected or missing, re-

spectively, in the target conﬁguration.

As an example, let us focus on protocol compli-

ance. If a system administrator wants to make a de-

ployment compliant with BSI (federal) (see the third

column in Table 1), and supposing that the webserver

currently offers both TLS 1.1 and 1.3, our methodol-

ogy would guide the system administrator towards:

The guidelines have been chosen for their heterogene-

ity as they employ different languages, data structuring and

keywords (Manfredi, 2023). Other national security guide-

lines exist (e.g., from the Netherlands National Communi-

cations Security Agency - NLNCSA) and may be covered

in future work.

Although not being published by a national cyberse-

curity agency, the Mozilla guidelines were chosen because

they are explicitly included in the AgID guidelines.

Standardized using RFC 2119 (Bradner, 1997) set of

keywords.

MUST NOT

RECOMMENDED

MUST

NOT RECOMMENDED

OPTIONAL

(a) Security wins.

MUST NOT

MUST

NOT RECOMMENDED

OPTIONAL

RECOMMENDED

(b) Legacy wins.

Figure 1: Deﬁned partial orders.

• disabling TLS 1.1 as it MUST NOT be available in

any circumstance;

• enabling TLS 1.2 as it MUST be available;

• keep TLS 1.3 enabled as it is RECOMMENDED.

Comparing multiple guidelines (compare-to-

many) is not obvious as RFC 2119 (Bradner, 1997)

does not provide any relation among the require-

ment levels, thus making it impossible to directly

compare two of them without deﬁning a consistent

methodology.

Indiscriminately considering any RECOMMENDED

requirement stronger than a NOT RECOMMENDED one

(i.e. RECOMMENDED ≻ NOT RECOMMENDED) may lead to

overly strict conﬁgurations, whereas doing the oppo-

site (i.e. NOT RECOMMENDED ≻ RECOMMENDED) would

result in conﬁgurations containing unsecure or depre-

cated features. For this reason, we deﬁne two posets

to allow a conﬁguration to reﬂect custom preferences,

leaving the system administrator the choice to use one

of the following comparison approaches:

Security Wins. the user opts for a more restric-

tive conﬁguration with the intention of maximiz-

ing the security, potentially reducing the service

availability to legacy systems. This approach

favors NOT RECOMMENDED requirements over the

RECOMMENDED ones;

A poset P = (S, ≺) consists of a set S and a binary re-

lation ≺ that orders certain pairs of elements - i.e., a partial

order.

SECRYPT 2024 - 21st International Conference on Security and Cryptography

452

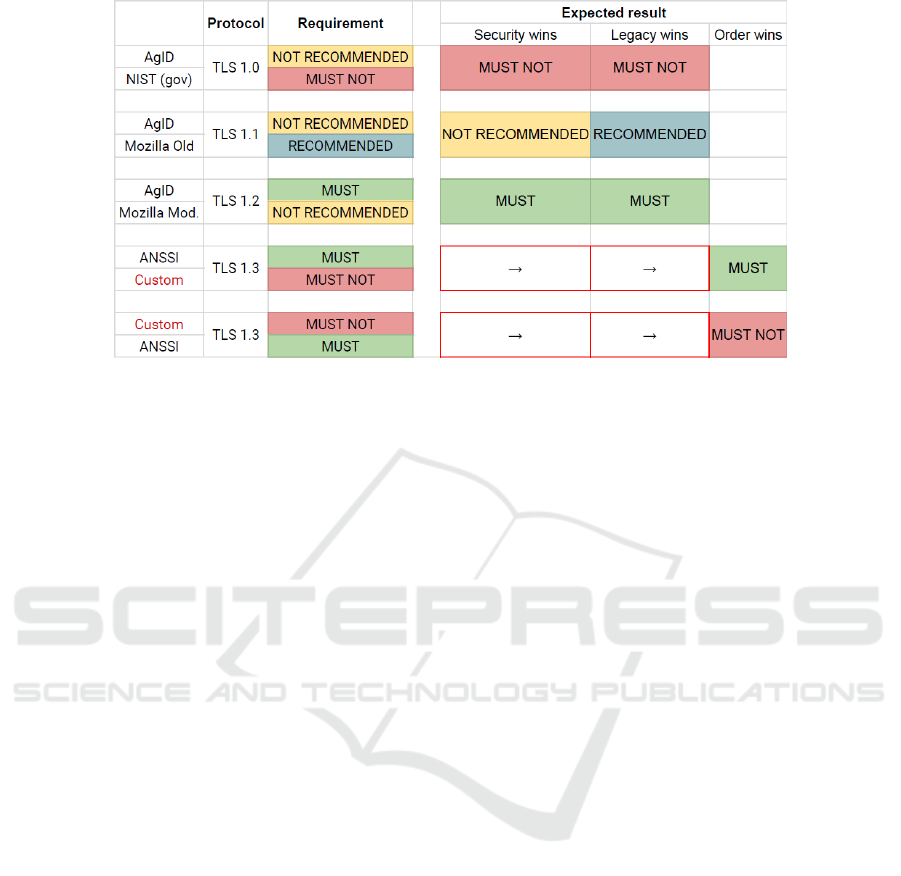

Figure 2: Comparison approaches.

Legacy Wins. the user chooses a conﬁguration that

is more ﬂexible in order to allow access to the

service for the greatest number of systems, even

those that are not modern. This approach fa-

vors RECOMMENDED requirements over the NOT

RECOMMENDED ones.

The orders can also be represented using Hasse

diagrams (see Figure 1), graphical representations in

which every comparable element of the set is con-

nected to another using a segment that indicates a re-

lation. Hasse diagrams have an implied upward orien-

tation: if x ≺ y, x appears below y in the drawing. For

example, in the Hasse diagram representing the Se-

curity wins approach, OPTIONAL appears lower than

RECOMMENDED because OPTIONAL ≺ RECOMMENDED.

In both orders, OPTIONAL is the least element as

it precedes all other elements. This means that, when

compared to any element with a higher position, the

OPTIONAL recommendation is ignored. Meanwhile,

MUST and MUST NOT are the maximal elements, as

they succeed all other elements.

MUST and MUST NOT are not part of the deﬁned or-

dering as they are both absolute requirements, thus

they cannot be compared in an objective way, and

consequently lack a segment that connects them in

Figure 1. With the guidelines taken into consideration

here, no requirement evaluation can result in a MUST

vs. MUST NOT comparison. However, to make our

methodology future-proof and help to manage differ-

ent scenarios, we introduce the concept of a custom

guideline: this may be used to compare an organiza-

tion’s security policy, or to narrow an existing guide-

line by taking into account additional threat assump-

tions. Then, to provide a consistent way to manage

multiple guidelines taking into account any possible

comparison, we propose the following approach:

Order Wins. the user explicitly chooses which au-

thority should take precedence when comparing

their set of recommendations. By doing so, the

ﬁrst authority’s decisions on MUST and MUST NOT

requirements directly reﬂects on the ﬁnal output,

ignoring the second authority choice.

Its usage with different requirements is shown in

Figure 2. Taking as example TLS 1.3, its MUST re-

quirement level would lose against a MUST NOT if

placed second but will win if placed ﬁrst.

In case of an element not mentioned in the guide-

line, we extend the approach illustrated in Table 2

and consider any missing requirement level as an

OPTIONAL. By doing so, the element not covered by

the guideline cannot overcome the deﬁned one, but it

is still taken into consideration for speciﬁc edge cases:

for example when a given element appears in a con-

ﬁguration (compare-to-many scenario) but is not cov-

ered by both guidelines.

3 EXPERIMENTAL EVALUATION

The following sections describe the TLS compliance

evaluation of European and U.S. public administra-

tions. The objective is to capture a snapshot of the

current adherence to various agencies’ indications and

attempt to extract some observations based on the re-

sulting data. We detail: (i) the process of homoge-

neously selecting target websites, belonging to differ-

ent states and (ii) a description of the classiﬁcation

system utilized for organizing the resulting data.

Automating Compliance for Improving TLS Security Postures: An Assessment of Public Administration Endpoints

453

Table 3: Fulﬁlled requirements across public administration websites.

Requirements category

DE - 16 hosts, BSI FR - 11 hosts, ANSSI IT - 14 hosts, AgID US - 15 hosts, NIST

NC NR C NC NR C NC NR C NC NR C

Protocol 0 1 15 2 0 9 0 6 8 3 12 0

CipherSuite 0 0 16 0 9 2 0 0 14 13

(d)

1 1

CipherSuitesTLS1.3 0 0 16 0 0 11 0 0 14 12 0 3

Extension 0 0 16 0 11 0 1 0 13 15 0 0

Groups 0 0 16 2 0 9 0 9 5 0 0 15

Signature 0 0 16 11

(a)

0 0 N/A N/A N/A 15

(a)

0 0

Hash 0 0 16 10

(b)

0 1 N/A N/A N/A 15

(b)

0 0

CertiﬁcateSignature 0 0 16 0 0 11 - - - 0 0 15

KeyLengths 14

(c)

0 2 0 0 11 0 0 14 0 0 15

Certiﬁcate 1 0 15 N/A N/A N/A N/A N/A N/A 0 0 15

CertiﬁcateExtensions 4 0 12 2 0 9 N/A N/A N/A 15 0 0

Misc 0 0 16 N/A N/A N/A 0 4 10 0 0 15

3.1 Target Selection

To ﬁnd targets for our evaluation, we focused on a

common feature that all countries mentioned have:

government departments or ministries. This allows

us to focus on the highest levels of the government

hierarchy, which we may infer are the most crucial lo-

cations to protect and the most vulnerable endpoints

(due to their high visibility). We assumed that a

ministry or government department website would be

more likely to adhere with compliance regulations in

comparison to a small city.

France. For each entry in the ofﬁcial government

website (Government of France, 2024) of each

ministry head, we obtained the corresponding

ministry and obtained a total of eleven ofﬁcial

websites.

Germany. We found sixteen ofﬁcial websites for the

German Federation by accessing the “List of Fed-

eral Ministries” page (Domestic Protocol Ofﬁce

of the Federal Government, 2023) on the website

of the Domestic Protocol Ofﬁce for the Bundesre-

publik Deutschland.

Italy. A search for the term “Ministero” in the “Enti”

segment of the Open Data AGID dataset (Agen-

zia per l’Italia Digitale, 2024) returned fourteen

results.

US. A lookup for “Department” in the usa.gov di-

rectory of federal agencies and departments (US-

AGov, 2024) yielded ﬁfteen results.

3.2 Websites Analysis and Data

Elaboration

To carry out a bulk analysis and capture a snapshot

of the compliance status at the time of execution, we

run the Compliance Analyzer Module (which we have

built in TLSAssistant) on the list of 56 chose websites

associated to the corresponding guideline - e.g., Ital-

ian websites compared to AgID guidelines, German

to BSI ones - using the compare-to-one submodule.

We classiﬁed the resulting data into three distinct

compliance categories, inspired by the notion of com-

pliance and the posets introduced in Section 2. For

each of the twelve conﬁgurable element categories

(e.g., protocols and signature algorithms), a website

would be labeled as:

Not compliant (NC). if at least one of the absolute

requirements (MUST and MUST NOT) is not met.

This choice is driven by the requirement listed as

absolute (i.e., cannot be affected by technical lim-

itations or user choices), and a direct neglection

can be considered an issue.

Not recommended (NR). if all the absolute require-

ments are met but any of the NOT RECOMMENDED

ones is not. This choice is driven by the idea

that the system administrator may have decided

to relax a requirement for technical reasons (e.g.,

legacy hardware or software).

Compliant (C). if all absolute requirements (MUST

and MUST NOT) and all NOT RECOMMENDED re-

quirements are satisﬁed.

We show the full set of categorized data from obser-

vations in Table 3.

4 EXPERIMENTAL FINDINGS

AND INTERPRETATION

The availability of security guidelines can pave the

way towards achieving a uniﬁed security posture.

However, the analyzed guidelines do not specify the

precise manner in which accomplish particular ob-

jectives; this aspect, which appears frequently in the

SECRYPT 2024 - 21st International Conference on Security and Cryptography

454

literature (Manfredi et al., 2022; Acar et al., 2016;

Gorski et al., 2018; Krombholz et al., 2017; Tiefenau

et al., 2020; Li et al., 2019), should not be overlooked

as it places a signiﬁcant burden on the shoulders of

system administrators.

The resulting data

(see in Table 3) show that

only a subset of these recommendations are effec-

tively adhered to, while others appear to be more

difﬁcult to apply for reasons that can only be de-

duced. Most of the veriﬁed websites (75%) fall into

the Not compliant, leaving few sites in the Not rec-

ommended category (∼21%) and only two websites

(∼4%) in the Compliant one. This is likely to hap-

pen because the absolute requirements demand more

impactful changes (especially in the MUST NOT case)

and thus, after managing them, the handling of NOT

RECOMMENDED requirements is relatively easy to ad-

dress. By considering the outlier data, we can also

provide the following observations:

Missing Signature Algorithms Compliance

(ANSSI and NIST). The websites denoted by the

symbol (a) (see Table 3) have been determined to

be “Not compliant” due to the discovery, through

careful review, that they offer rsa pkcs as signature

algorithm. According to ANSSI TLS guideline

v1.2 (ANSSI, 2020), the use of these algorithms is

labeled as MUST NOT starting from 2020. While,

NIST guidelines (National Institute of Standards and

Technology (NIST), 2019) classiﬁed their use as NOT

RECOMMENDED prior to 31 Dec 2023 and MUST NOT as

of January 1, 2024.

A possible cause for this non-compliance with the

guidelines is the inclusion of those signature algo-

rithms in the list of those that are enabled by default

in OpenSSL. Subsequently, a system administrator

running a deployment with default values may inad-

vertently provide them, thereby rendering the system

non-compliant. As the available hash algorithms de-

pend on the choice of signature algorithms selected,

the two categories are intertwined (as represented by

the symbol (b)).

Missing Keylenghts Compliance (BSI). The web-

sites denoted by the symbol (c) are deemed “Not

compliant” due to the use of DH2048 and RSA2048

keylength mechanisms. These two mechanisms were

change from RECOMMENDED to MUST NOT in January 1,

2023 and 2024 respectively.

We surmise this issue may be due at least in part

to the content of a guideline specifying a switch-over

from a certain date, but the published guideline itself

not being published in a new version.

Missing Compliance Categories (AgID). AgID

The replication package - that can be employed to re-

peat the analysis - can be found in (Germenia et al., 2024).

guidelines are less speciﬁc than their counterparts, so

websites run by the Italian public administration do

not face signiﬁcant issues. Furthermore, AgID guide-

lines do not cover certiﬁcate management. If com-

pared to the NIST guidelines, Italian websites would

be equally problematic since they use the same de-

fault values that render “Not compliant” the websites

indicated in Table 3 with (a) and (b).

Missing Cipher Suite Compliance (NIST). We de-

termined that fourteen of the ﬁfteen websites based

in the United States are deemed “Not compliant” (de-

noted by the symbol (d) in Table 3) because they offer

the CHACHA20 POLY1305 cipher suite. This is a

peculiar issue because the NIST guidelines (National

Institute of Standards and Technology (NIST), 2019)

instructs that all cipher suites not explicitly listed in

the document MUST NOT be considered; therefore,

the utilization of CHACHA20 POLY1305 is prohib-

ited by default.

Similar to items (a) and (b), the availability of

these cipher suites may be attributed to the use of a

default OpenSSL conﬁguration.

5 RELATED WORK

There exist multiple TLS analyzers that also perform

a compliance evaluation. However, their functioning

is limited to a single guideline and the reports often

lack clarity as they do not specify which changes are

mandatory (e.g., MUST) and which offer some degree

of freedom (e.g., RECOMMENDED). In addition, none of

the presented tools offer actionable hints on how to

attain the desired compliance. A brief comparison of

covered guidelines and features is shown in Table 4.

• sslyze (Diquet, 2023): is an open source down-

loadable tool that can be used to check if a server

uses strong encryption settings and if it is vulner-

able to a subset of known TLS attacks. Since ver-

sion 5.0.0, published in November 2021, sslyze

is able to check a server’s conﬁguration against

Mozilla recommended conﬁgurations (Mozilla

Foundation, 2023). Its output shows a list of bul-

lets containing the simple list of unmet require-

ments. It only covers one of the four identiﬁed

use cases (i.e. compare-to-one) and only evaluates

compliance against the Mozilla guideline.

• TLS Proﬁler (Fett, 2023): is an analysis tool

able to compare a server’s conﬁguration against

Mozilla’s proﬁles. While being based on sslyze,

TLS Proﬁler implementation predates the former

as its development started on September 2019.

The tool, which can both be downloaded or used

Automating Compliance for Improving TLS Security Postures: An Assessment of Public Administration Endpoints

455

Table 4: Comparison between TLS compliance analyzers.

Analyzers

sslyze

TLS Proﬁler

testssl.sh fork

TLS-Scanner

Immuniweb

Observatory

Inspector

TLSAssistant

Guidelines

AgID ✓

ANSSI ✓

BSI ✓ ✓ ✓

Mozilla ✓ ✓ ✓ ✓

NIST ✓ ✓ ✓ ✓

Features

Open source ✓ ✓ ✓ ✓ ✓ ✓

Machine-readable report ✓ ✓ ✓ ✓

Checks with latest guidelines ✓ ✓ ✓ ✓ ✓ ✓ ✓

Conﬁguration ﬁle analyzer ✓

Custom guidelines support ✓

Actionable mitigations ✓

as a webapp, outputs a set of bullet points high-

lighting the differences between the current and

the target Mozilla proﬁle. The list is similar to the

output generated by sslyze, but each divergent set-

ting is shown separately from its class - e.g., even

if cipher suites are usually conﬁgured in batch,

TLS Proﬁles shows a bullet point for each one.

Despite the difference in the output format, this

tool shares the same limitations as sslyze.

• testssl.sh: is an open source command-line tool

able to analyze a wide set of TLS vulnerabilities.

An GitHub issue opened in March 2016 suggested

the addition of a compliance check against NIST

SP 800-52. The proposed changes are currently

available in a fork of the tool created by David

Cooper inside the branch “nist” (Cooper, 2021).

• TLS-Scanner: is a research tool developed by

Ruhr-Universit

at Bochum to assist in evaluating

TLS deploymentsS (Ruhr University Bochum and

GmbH, 2023). With the release of version 4.2.0

in June 2022, TLS-Scanner gained the capabil-

ity to compare a webserver conﬁguration against

NIST and BSI-issued guidelines, SP 800-52r2 and

TR02102-2, respectively. At the time of writing,

the default compliance analysis only consist of a

counter that shows the number of passed, skipped

and failed checks:

--|Guideline BSI TR-02102-2

Passed: 16

Skipped: 0

Failed: 8

Uncertain: 0

--|Guideline NIST SP 800-52r2

Passed: 24

Skipped: 5

Failed: 10

Uncertain: 0

Without a way to understand which tests have

failed, it is impossible for a system administra-

tor to understand which requirement has not been

met and, consequently, how to ﬁx it. However, it

is possible to obtain the list of performed checks

together with their results and related require-

ment level (e.g., MUST, OPTIONAL) by using the

ALL/DETAIL reporting levels.

• Immuniweb SSL Security Test: is an online

test suite (Immuniweb, 2024) able to perform,

among other security-related analysis, PCI-DSS

3.2.1 (PCI, 2018) and NIST compliance checks.

It reports if the target webserver has major com-

pliance issues and labels each detected cipher and

protocol, saying if it is part of a good conﬁgura-

tion or a source of misconﬁguration or weakness.

It does not explain how to ﬁx the detected miscon-

ﬁgurations, but it is more detailed than the analyz-

ers described above.

• Observatory (Mozilla Foundation, 2024): is

a project by Mozilla designed to help system

administrators to safely conﬁgure their deploy-

ments. In particular, the “TLS Observatory” tab

exploits the Immuniweb engine and shows a sum-

mary containing the closeness to a Mozilla proﬁle

Compatibility Level, another name for the TLS

proﬁles deﬁned in (Mozilla Foundation, 2023).

However, if the conﬁguration widely differs from

a proﬁle, the tool returns “Non-compliant” as a re-

sult. This makes it impossible to understand how

much the detected conﬁguration actually differs

from the target ones and, consequently, does not

provide any hint on how to close the gap.

• TLS Checklist Inspector (achelos GmbH,

2023): is an online analyzer that evaluates if an

existing webserver is conﬁgured according to BSI

TR-03116-4. Its output reports the entire list of

SECRYPT 2024 - 21st International Conference on Security and Cryptography

456

evaluated requirements and signals whether they

are met or not. While it does not explain how to

achieve compliance, its user interface is very clear

and a potential checklist of the changes to be per-

formed may be created after a quick glance.

6 CONCLUSIONS AND FUTURE

WORK

During the process of conﬁguring TLS, system ad-

ministrators make several decisions to create a work-

ing deployment, decisions whose outcome is some-

times not obvious even to experts. To set a state-wide

security threshold, many cybersecurity agencies issue

technical guidelines to deﬁne the use and conﬁgura-

tion of TLS. These guidelines can help to raise aware-

ness and act as reference points, but understanding

how to change an existing deployment can be difﬁ-

cult. In order to evaluate the existing compliance sta-

tus of public administration webservers based in Eu-

rope and the United States, we conducted an initial

study checking the compliance of 56 websites against

their guidelines of reference.

The results of the study indicate that compliance

with the requirements outlined in the guidelines is

not straightforward; instead, it is notably affected by

speciﬁc technological constraints, time constraints,

and third-party modiﬁcations (e.g., updates to TLS li-

braries). The analysis was performed by employing

a Compliance Analyzer Module built for TLSAssis-

tant to mechanize the compliance analysis.

As future work, we plan to enhance the compli-

ance analysis by providing more ﬁne-grained action-

able reports covering edge cases. For example, by

adding contextual comments to inform system admin-

istrators that while a speciﬁc element may not guar-

antee strict compliance, certain exceptions may have

security justiﬁcation.

To further improve the Compliance Analyzer

Module analysis capabilities, we also plan to expand

the TLS Compl Dset by integrating technical require-

ments issued by other security agencies. Thanks to

the GitHub deployment, this process can be crowd-

sourced and transparently audited by anybody.

We also plan to explore the possibility to cre-

ate a custom language to formally deﬁne machine-

readable requirements and to share the methodology

with the relevant standards bodies – in particular the

TLS working group in the IETF – to gather real-world

feedback about its applicability and ways in which it

can be used going forward.

Finally, we plan to extend the Compliance An-

alyzer Module to allow the generation of compliant

TLS conﬁgurations starting with the simple selection

of a guideline. Through this process, a system ad-

ministrator will be able to produce a functional con-

ﬁguration ﬁle that can be used for the deployment of

a webserver that directly adheres to regulatory stan-

dards.

ACKNOWLEDGEMENTS

This work has been partially supported by the joint

laboratory between FBK and the Italian Government

Printing Ofﬁce and Mint, and by project SERICS

(PE00000014) under the MUR National Recovery

and Resilience Plan funded by the European Union

- NextGenerationEU.

AVAILABILITY

All referenced materials are accessible via the com-

panion website (Germenia et al., 2024).

REFERENCES

(2024). TLS Compliance Dataset. https://github.com/stfbk/

tls-compliance-dataset.

Acar, Y., Backes, M., Fahl, S., Kim, D., Mazurek, M. L.,

and Stransky, C. (2016). You Get Where You’re Look-

ing for: The Impact of Information Sources on Code

Security. In 2016 IEEE Symposium on Security and

Privacy (SP), pages 289–305, San Jose. IEEE.

achelos GmbH (2023). TLS Checklist Inspector. https://

www.tls-check.de/en.

Agenzia per l’Italia Digitale (2020). Racco-

mandazioni per l’adozione di TLS. https:

//cert-agid.gov.it/wp-content/uploads/2020/11/

AgID-RACCSECTLS-01.pdf.

Agenzia per l’Italia Digitale (2024). Enti - Dataset - Open-

data IPA. https://indicepa.gov.it/ipa-dati/dataset/enti.

[Online; accessed 2024-03-04].

ANSSI (2020). Recommandations de s

ecurit

e relatives

a TLS. https://www.ssi.gouv.fr/uploads/2017/07/

anssi-guide-recommandations

de securite relatives

a tls-v1.2.pdf.

Bradner, S. O. (1997). Key words for use in RFCs to Indi-

cate Requirement Levels. RFC 2119.

Bundesamt f

ur Sicherheit in der Informationstechnik

(BSI) (2024). Technical Guideline TR-02102 Cryp-

tographic Mechanisms. https://www.bsi.bund.de/

EN/Themen/Unternehmen-und-Organisationen/

Standards-und-Zertiﬁzierung/

Technische-Richtlinien/TR-nach-Thema-sortiert/

tr02102/tr02102 node.html.

Automating Compliance for Improving TLS Security Postures: An Assessment of Public Administration Endpoints

457

Cooper, D. (2021). Test for conformance to NIST SP 800-

52. https://github.com/drwetter/testssl.sh/issues/333.

Diquet, A. (2023). SSLyze. https://github.com/nabla-c0d3/

sslyze.

Domestic Protocol Ofﬁce of the Federal Gov-

ernment (2023). List of federal ministries.

https://www.protokoll-inland.de/Webs/PI/EN/

rank-and-titles/ofﬁcial-order/federal-ministries/

list-of-federal-ministries-node.html. [Online;

accessed 2024-03-04].

European Parliament (2016). Regulation (EU) 2016/679.

https://eur-lex.europa.eu/legal-content/EN/TXT/

?uri=CELEX%3A32016R0679.

Fett, D. (2023). TLS Proﬁler. https://github.com/danielfett/

tlsproﬁler.

Germenia, R., Manfredi, S., Rizzi, M., Sciarretta, G.,

Tomasi, A., and Ranise, S. (2024). Automating Com-

pliance for Improving TLS Security Postures - An As-

sessment of Public Administration Endpoints. https:

//st.fbk.eu/complementary/SECRYPT2024.

Gorski, P. L., Iacono, L. L., Wermke, D., Stransky, C.,

oller, S., Acar, Y., and Fahl, S. (2018). Developers

Deserve Security Warnings, Too: On the Effect of In-

tegrated Security Advice on Cryptographic API Mis-

use. In Fourteenth Symposium on Usable Privacy and

Security (SOUPS 2018), pages 265–281, Baltimore,

MD. USENIX Association.

Government of France (2024). Composition du Gouverne-

ment | gouvernement.fr. https://www.gouvernement.

fr/composition-du-gouvernement. [Online; accessed

2024-03-04].

IANA (2005a). Transport Layer Security (TLS) ex-

tensions. https://www.iana.org/assignments/

tls-extensiontype-values/.

IANA (2005b). Transport Layer Security (TLS) parameters.

https://www.iana.org/assignments/tls-parameters/.

Immuniweb (2024). SSL Security Test. https://www.

immuniweb.com/ssl/.

Krombholz, K., Mayer, W., Schmiedecker, M., and Weippl,

E. (2017). I Have No Idea What I’m Doing” - On the

Usability of Deploying HTTPS. In 26th USENIX Se-

curity Symposium (USENIX Security 17), pages 1339–

1356, Vancouver, BC. USENIX Association.

Li, F., Rogers, L., Mathur, A., Malkin, N., and Chetty,

M. (2019). Keepers of the Machines: Examining

How System Administrators Manage Software Up-

dates For Multiple Machines. In Fifteenth Symposium

on Usable Privacy and Security (SOUPS 2019), Santa

Clara, CA. USENIX Association.

Manfredi, S. (2023). Automated Assistance for Actionable

Security: Security and Compliance of TLS Conﬁgu-

rations. https://iris.unige.it/handle/11567/1112295.

Manfredi, S., Ceccato, M., Sciarretta, G., and Ranise, S.

(2022). Empirical Validation on the Usability of Se-

curity Reports for Patching TLS Misconﬁgurations:

User- and Case-Studies on Actionable Mitigations.

In Journal of Wireless Mobile Networks, Ubiquitous

Computing, and Dependable Applications 13, pages

56–86.

Mozilla Foundation (2023). Security/Server Side TLS.

https://wiki.mozilla.org/Security/Server

Side TLS.

Mozilla Foundation (2024). Mozilla Observatory. https:

//observatory.mozilla.org. [Online; accessed 2024-03-

05].

National Institute of Standards and Technology (NIST)

(2019). Guidelines for the Selection, Conﬁgura-

tion, and Use of Transport Layer Security (TLS)

Implementations. https://nvlpubs.nist.gov/nistpubs/

SpecialPublications/NIST.SP.800-52r2.pdf.

Ofﬁce of Management and Budget (2017). The HTTPS-

Only Standard. https://https.cio.gov.

PCI (2018). Recommendation for Key Man-

agement, Part 1: General (Revision 3).

https://docs-prv.pcisecuritystandards.org/PCI%

20DSS/Standard/PCI DSS v3-2-1.pdf.

Ruhr University Bochum, P. U. and GmbH, H. (2023).

TLS-Scanner. https://github.com/tls-attacker/

TLS-Scanner.

Shodan Search Engine (2024). vuln:CVE-2014-

0160. https://www.shodan.io/search?query=vuln%

3ACVE-2014-0160. [Online; accessed 2024-03-06].

Synopsys, Inc (2014). The Heartbleed Bug. https://

heartbleed.com.

Tiefenau, C., H

aring, M., Krombholz, K., and von

Zezschwitz, E. (2020). Security, Availability, and

Multiple Information Sources: Exploring Update Be-

havior of System Administrators. In Sixteenth Sympo-

sium on Usable Privacy and Security (SOUPS 2020),

pages 239–258. USENIX Association.

USAGov (2024). Department - USAGov Fed-

eral Directory Search in English Search Re-

sults. https://search.usa.gov/search?afﬁliate=

usagov en az&query=Department. [Online; ac-

cessed 2024-03-04].

SECRYPT 2024 - 21st International Conference on Security and Cryptography

458
