Securing Patient Data in IoT Devices: A Blockchain-NFT Approach for

Privacy, Security, and Authentication

Farha Masroor

, Adarsh Gopalakrishnan

and Neena Goveas

CSIS Department, BITS Pilani Goa Campus, Goa, India

Keywords:

Healthcare Management, IoT, Blockchain, Security, Microcontrollers, Non-Fungible Tokens (NFT),

Zero-Trust Type Architecture (ZTA).

Abstract:

The Internet of Things (IoT) is poised to revolutionize healthcare by enabling remote patient monitoring

and data access from any device. However, ensuring secure and ﬂexible access control on IoT device-based

systems remains a challenge, especially when handling multiple users with varying privileges at different

points in time. Most of the current proprietary IoT products have a data pipeline where the measured data is

sent to cloud-based servers before any access is possible. This creates data privacy issues, access problems

or devices not working when Internet connectivity is not perfect. An ideal solution for an IoT-based system

is one in which data can be stored and accessed on device in real-time with additional cloud-based storage

and access for later use. To address these challenges, we propose a Blockchain-based Non-Fungible Token

(NFT) based mechanism for IoT systems. Our system uses Blockchain technology to provide untameable NFT

access keys, ensuring only authorized individuals can access patient data on a given IoT device. We conducted

an experimental study using ESP32 microcontroller, Beaglebone Black boards, and Raspberry Pi devices to

evaluate the effectiveness of our approach. Our results show that this approach is suitable for deployment on

resource-constrained devices, with minimal computational requirements and negligible delays. Additionally,

we implemented a Zero-trust type of architecture where no implicit trust is granted to any user or device,

regardless of prior successful authentication and authorization validation. We ﬁnd that the delays due to the

additional processing of NFTs are negligible even within such constraints. Our ﬁndings demonstrate that

utilizing NFTs for access control of patient data on resource-constrained IoT devices is feasible and offers a

secure and scalable solution for developing cost-effective and safe IoT systems for healthcare.

1 INTRODUCTION

IoT-based devices are crucial for pervasive healthcare

systems (Hwang and Lee, 2020), but they face chal-

lenges ensuring secure data sharing. Researchers (Is-

lam et al., 2020), (Sharma et al., 2021) show that

IoT devices embedded with sensors in wearable de-

vices or within our environment can revolutionize

healthcare. However, securing and sharing sensitive

healthcare data remains a key concern. Blockchain

is proposed as a solution to ensure secure access

and management of medical records (Li and Dun,

2020). Blockchain, with its immutability and consen-

sus mechanism (Cunha et al., 2021), has the potential

to provide a trusted environment.

In this paper, we propose a Blockchain NFT-IoT

https://orcid.org/0009-0008-1314-4923

https://orcid.org/0009-0007-0083-5891

https://orcid.org/0000-0002-5395-4962

system that addresses the above challenges and prior-

itizes safe access to patient data.

This paper is structured as follows: in Section 2,

we provide an overview of existing work. Section

3 explores fundamental Blockchain concepts. Fol-

lowing this, in Section 4, we discuss our mecha-

nism for securing healthcare data in IoT devices us-

ing Blockchain-NFT. Section 5 elaborates on an ap-

plication example. In Section 6, details about the

dataset used in our study are provided. In Section 7

we present the results. Lastly, Section 8 summarizes

our conclusions and outlines future work.

2 RELATED WORK

Researchers have explored enhancing IoT security

with Blockchain solutions. Kotz et al. in (Kotz and

Peters, 2017) highlighted challenges in IoT technol-

704

Masroor, F., Gopalakrishnan, A. and Goveas, N.

Securing Patient Data in IoT Devices: A Blockchain-NFT Approach for Privacy, Security, and Authentication.

DOI: 10.5220/0012764800003767

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 21st International Conference on Security and Cryptography (SECRYPT 2024), pages 704-709

ISBN: 978-989-758-709-2; ISSN: 2184-7711

ogy like secure ownership and managing access for

multiple users. Dorri et al. proposed a Blockchain-

based method for secure smart homes, but it may be

impractical for widespread use (Dorri et al., 2017).

An NFT-based approach was introduced for IoT ac-

cess control by Sharma et al. (Sharma and Goveas,

2023), validated on ESP32 and Raspberry Pi devices.

Ali et al. noted Blockchain’s potential in decentraliz-

ing IoT data management (Ali et al., 2018).

Saeed et. al. discussed signiﬁcant challenges

in medical care data, such as integrity, manipula-

tion, and fraud, highlighting Blockchain as a solu-

tion (Saeed et al., 2022). Abbas et al. reviewed 53

articles from 2016 to 2021 on Blockchain in health-

care, highlighting advantages like data integrity, par-

ticipant anonymity, and improved drug supply chain

management (Abbas et al., 2022). Atlam et al. (Atlam

et al., 2020) demonstrated Blockchain’s potential for

secure identity management. Alamri et al. reviewed

Blockchain for IoT, focusing on privacy and access

control challenges in (Alamri et al., 2019).

3 CORE CONCEPTS OF

BLOCKCHAIN

For this work, we have used the Solana Blockchain

as it provides many features that are user-friendly and

suitable for an IoT implementation

3.1 Solana Blockchain

Solana is a Blockchain platform that has been de-

signed to provide a decentralized infrastructure for

decentralized applications (dApps). It strives to of-

fer a secure, fast, and scalable environment for dApps.

Solana implements a unique combination of technolo-

gies including a Proof of History (PoH) consensus

mechanism based on proof-of-stake (PoS) that helps

to enhance scalability and efﬁciency.

For our prototype, Solana is great to build on due

to its unique NFT Programs, low Transaction Costs,

scalability, developer-Friendly Environment and De-

vnet which allows developers to test applications in a

simulated environment, ensuring a secure and reliable

system.

3.2 Solana Wallet

A Solana wallet is a digital wallet used for securely

storing, sending, and receiving the native SOL tokens

on the Solana Blockchain. It incorporates a private

key, which is an exclusive sequence of characters uti-

lized to authenticate transactions on the blockchain,

guaranteeing their security and validity. Solana Wal-

lets can be created and managed using various tools,

such as browser extensions, mobile apps, and desk-

top software. Solﬂare and Phantom are some popular

Solana wallets. Solana wallet is important for inter-

acting with the Solana Blockchain and participating

in decentralized ﬁnance (DeFi) applications and other

blockchain-based services.

Token Metadata program: The Token Metadata

Program (TMP) on the Solana blockchain is crucial

for managing NFTs. It stores and manages meta-

data associated with NFTs, including their name, de-

scription, image or media ﬁles, external URLs, and

other relevant attributes. This program facilitates the

creation, storage, and retrieval of metadata, enhanc-

ing the usability and value of NFTs on the Solana

blockchain.

Solana NFTs: Solana NFTs are created through

Mint Accounts, each with unique attributes and con-

ﬁgured with a supply of 1, ensuring only one token

is issued and cannot be divided. These NFTs lack

mint authority, making them non-fungible and pre-

venting the creation of additional tokens. Solana’s To-

ken Metadata program includes Master Edition NFTs,

the original NFTs, and Print Edition NFTs, used to

manage and create copies of a speciﬁc NFT.

Master Edition NFTs are the original NFTs, cre-

ated with speciﬁc attributes and containing metadata

describing the original digital asset. They are unique

and distinct, with the Mint Account associated with

the Master Edition having the authority to mint new

instances or editions based on it. The Master Edi-

tion account can also enable users to create multi-

ple copies of the NFTs, with an attribute called ”Max

Supply” deﬁning the upper limit of copies that can be

created.

Print Edition NFTs are derived from Master Edi-

tion NFTs, serving as the primary copies of the orig-

inal digital asset. They inherit some metadata and

properties from the Master Edition but are distinct

NFTs. The Master Edition NFT speciﬁes the at-

tributes of the printed editions, such as the number

of copies that can be created and any restrictions on

the copies. Printed Edition NFTs are directly linked

to and derived from Master Edition NFTs, providing

a way to create copies of the original asset.

4 SYSTEM MODEL OVERVIEW

4.1 Prototype of Our IoT System

Software developed for IoT systems needs to be

used on and with resource-constrained devices. To

Securing Patient Data in IoT Devices: A Blockchain-NFT Approach for Privacy, Security, and Authentication

705

showcase our system’s functionality, we’ve selected

popular boards: ESP32 microcontroller, Beaglebone

blackboard, and the Raspberry Pi 3.

4.1.1 Conﬁguring a Web Server on ESP32

Microcontroller

To prepare our ESP32, we ﬁrst conﬁgure the ESP32

board and install the ESP32 Espressif package into

our Arduino IDE (url, 2024a). Next, we incorporate

the source code for conﬁguring the website server on

the ESP32 microcontroller. The WiFi module estab-

lishes a connection to any WiFi hotspot, enabling the

server to test. Upon setup completion, the server pro-

vides an IP address that serves as the API endpoint for

our web platform.

4.1.2 Conﬁguring a Web Server for Raspberry

Pi and Beaglebone Black Boards

To set up a web server on a Raspberry Pi and Beagle-

bone black, we utilize the Python Flask framework

(url, 2024b).To start, we install the Raspbian or De-

bian Linux-based OS, along with Python and the web

framework named Flask, on both Beaglebone and the

Raspberry Pi. Then, we develop a Flask-based web

app and initiate it, by running the command ”python3

app.py.” To test the web server, we would access it

from a browser on a different device, using the IP

address of the Raspberry Pi or Beaglebone. Further-

more, we customize the web server as required by uti-

lizing Flask’s settings and options.

4.1.3 NFT and Edition Management for User

Access on Our Web Platform

Our web platform is designed with a Next.js inter-

face, allowing integration of users with their wallets

through the @solana/web3.js package. In addition to

granting access to all devices and storing the Mas-

ter Edition NFTs, the advertisement wallet is also in

charge of creating these NFTs. The software platform

generates NFTs using an industry-standard json struc-

ture, and the metadata includes the device’s MAC

address. This MAC Address is added to the NFT’s

characteristics array for additional trust that the Non-

Fungible tokens in the user’s hands match the selected

device. The platform uploads NFT to a decentralized

database such as Arweave using Sugar CLI, an inter-

face for the command line developed by the Meta-

plex Foundation, and mints NFT using the Metaplex

JS SDK. Users may easily access and manage NFTs

related to their devices by minting Edition NFTs from

the admin wallet using the Metaplex JS SDK, which

facilitates efﬁcient NFT administration and distribu-

tion.

Figure 1: Time taken for NFT search Across Different Data

Structures with Varying Search Space sizes (n).

4.2 Deployment of the Prototype

It is necessary for users to link their Solana Wallet

to the website. Once the link has been made, users

may choose which device to utilize. Once a device

and operation are chosen, the web platform veriﬁes

the presence of the accurate NFT in the wallet of the

user and the NFT Metadata for the MAC Address is

checked, matching it with the MAC Address of the

device. In our prototype, both the devices and patient

data are resources and require permission to access.

After these checks, the user can access the device and

the patient data on it.

(a) Search space = 1000. (b) Search space = 10,000.

Figure 2: Combination of the Devices and the Data Struc-

tures.

The admin wallet has the authority to mint a

printed edition NFT of the master edition for every

user in the system. Next, a URL link is produced and

forwarded to the selected non-admin user. The non-

admin user sees an option of renting the NFT. The

NFT is added to their wallet after approval. This is

the initial stage of getting access to the system’s re-

sources.

5 HEALTHCARE DEVICE AND

ACCESS SYSTEM DESIGN

Using the system model outlined in 4, the resource-

constrained devices, web application, Solana Wallet

integration, NFT management, and device access con-

trol mechanisms work together to enable users to con-

nect, manage, and interact with IoT devices through

the web platform. This includes aspects such as

SECRYPT 2024 - 21st International Conference on Security and Cryptography

706

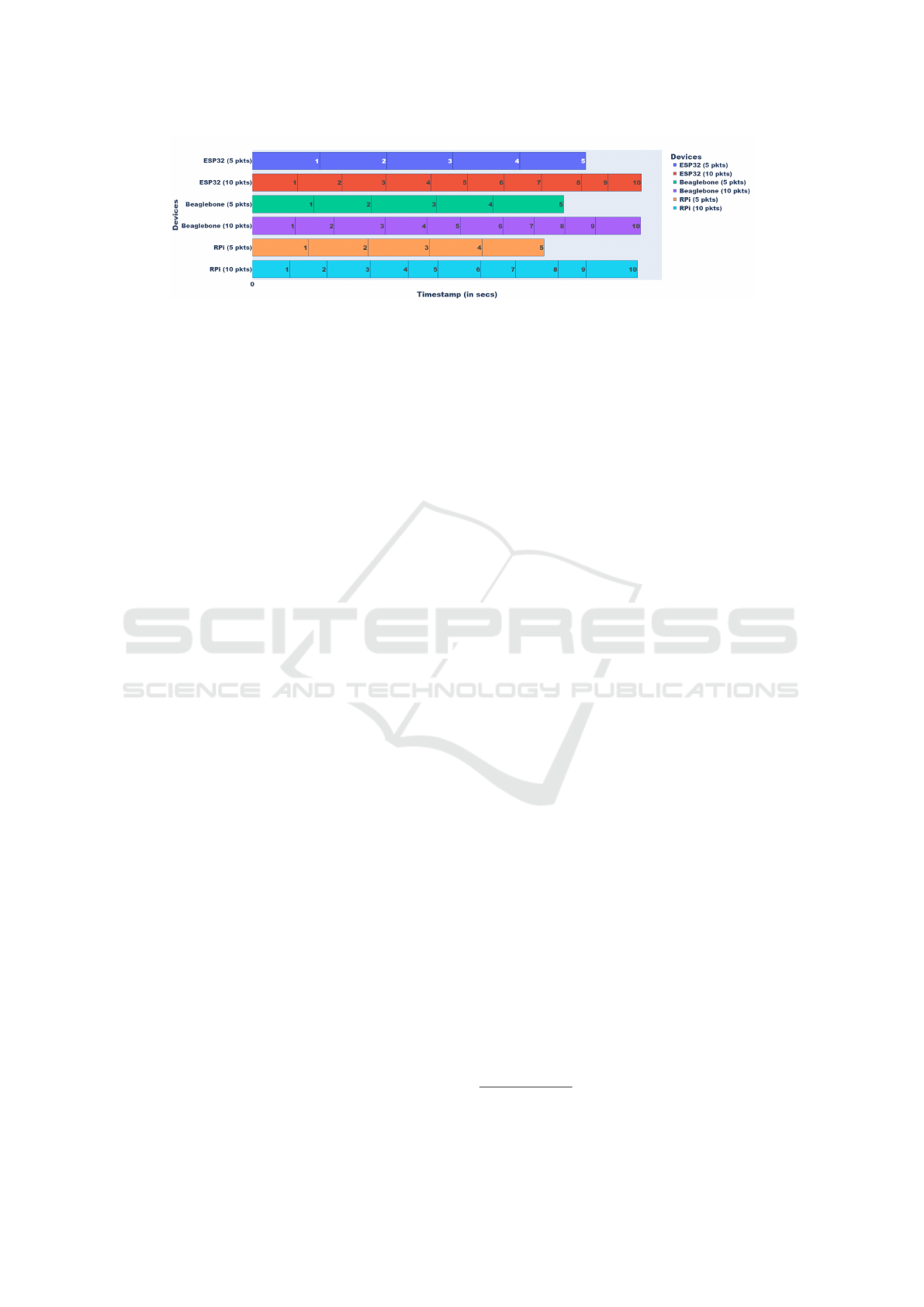

Figure 3: Pattern Analysis of Request-Response in Different Packet Sizes at Each Timestamp.

how devices are identiﬁed, NFTs minting and man-

agement, access control is implementation, and how

users interact with the system through the web inter-

face, including device connections, NFT creation, and

deployment.

Patients are required to link their Solana Wallet to

the web platform. Once connected, they can select

the IoT device where they want to store their data.

In our prototype deployment, we had three resource-

constrained IoT devices. After selecting a device, the

platform validates the presence of the correct NFT for

that device in the patient’s wallet. Upon successful

validation, the patient can proceed to store their health

data on the IoT Device. Each IoT device functions as

a server, and each patient has their NFTs for identiﬁ-

cation, stored in their wallet. An NFT used and stored

is of length 32 to 64 bytes as a public key.

Subsequently, medical professionals who need ac-

cess to the patient’s data can visit the web platform

and connect their wallets to the application. The ap-

plication retrieves their public key to determine which

NFTs the medical professional owns. If the medical

professional requires access to a speciﬁc device, the

platform checks for the presence of the correspond-

ing NFT. However, to access the patient’s data, the

medical professional must also possess the NFT spe-

ciﬁc to that patient, which is unique for each patient.

The requirement of both NFTs for access adds an ex-

tra layer of security, as possession of only the device

NFT is insufﬁcient to access patient data.

If the medical professional has both NFTs, they

can access the device and the patient’s data stored on

the device. If this authentication process needs to be

completed only once, we call it a One-Time Veriﬁ-

cation architecture (OTV). Subsequently, the medical

professional can access the data anytime and for any

number of sessions without repeating the NFT veriﬁ-

cation process.

Additionally, another Zero-Trust type of Architec-

ture has been implemented to enhance data security

and reliability. Under this architecture, when a med-

ical professional gains access to a device and a pa-

tient’s data, the device is checked for authentication

at the beginning of each session. Anytime, even dur-

ing the session, if the medical professional requests

patient data again, the NFT veriﬁcation process ex-

ecutes. Any log out and log back in is treated as a

fresh session and they must undergo the patient NFT

veriﬁcation process each time to access the data. This

ensures that access is continuously authenticated and

veriﬁed, enhancing the security of the system.

6 DATASET USED FOR TESTING

OUR PROTOTYPE

We utilized ECG data from the MIT-BIH Arrhythmia

database available on PhysioNet

. The dataset com-

prises 48 records, each containing CSV ﬁles and ref-

erence annotation ﬁles (Khincha et al., 2020).

For our system, we utilized 5 minutes of one pa-

tient record and stored it as a data input on the device.

In real life, sensors connected to the patient would

collect the data, which would then be transferred to

the devices for storage. Here we fed the selected sam-

ple data into the device for storage.

7 RESULTS

This section presents the results from our experiments

and demonstrations NFT stored is of length 32 to 64

bytes, so storing and searching through them could be

time-consuming on the devices selected for a larger

number of records. We initiated our study by experi-

menting with different data structures and varying the

search space size (n) that is the number of records 10,

100, 1000 up to 1000000 and obtained the time re-

quired for the search. The data structures included

hash tables, arrays, and linked lists for storing the

NFT token objects.

Figure 1 illustrates that the hash table exhibits

signiﬁcantly faster performance compared to arrays

and linked lists. The search time remains relatively

https://www.kaggle.com/datasets/mondejar/mitbih-

database?resource=download

Securing Patient Data in IoT Devices: A Blockchain-NFT Approach for Privacy, Security, and Authentication

707

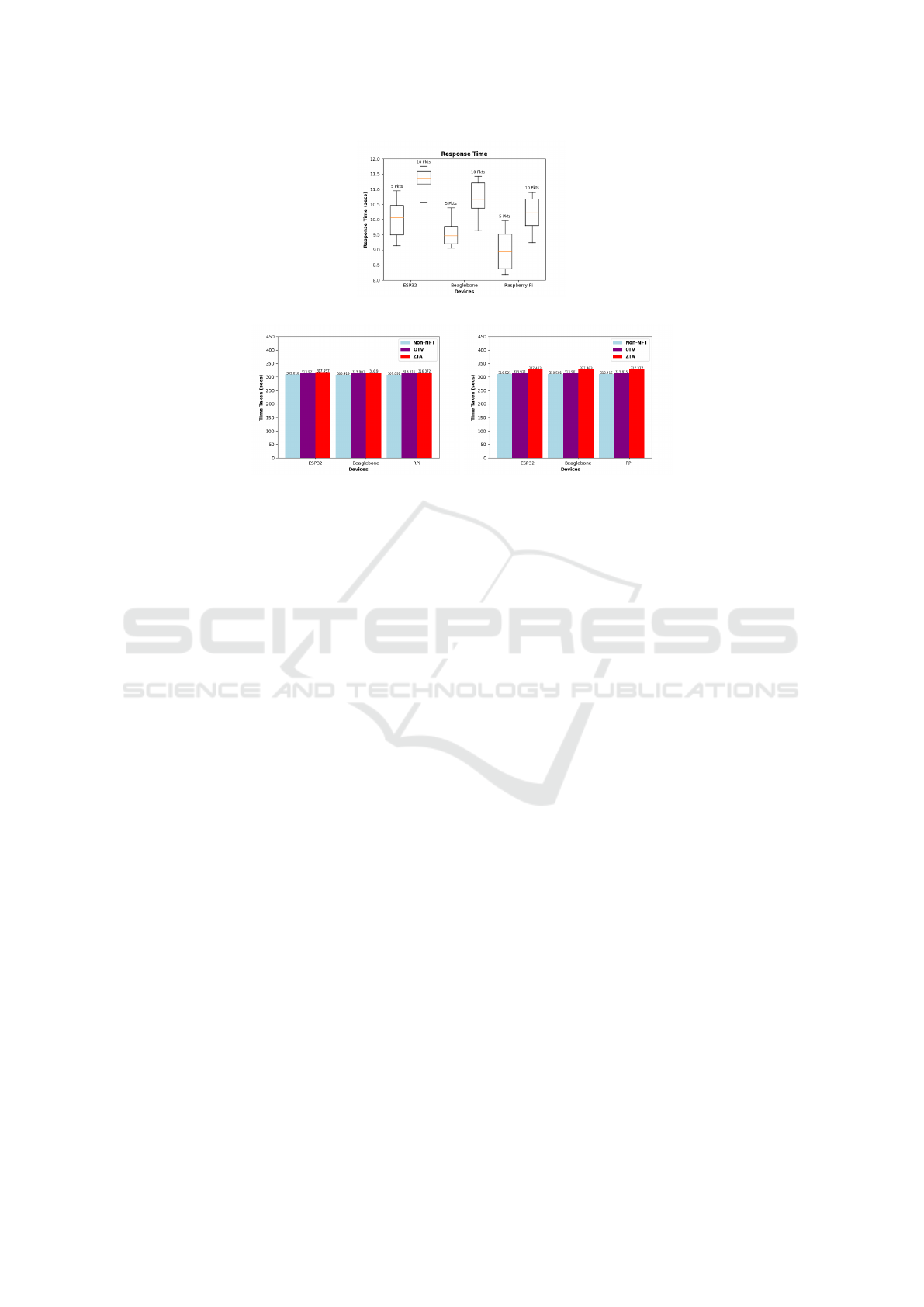

Figure 4: Response Time with varying Packet Sizes and Devices.

(a) With 5 packets. (b) With 10 packets.

Figure 5: Comparison plots of Architectures with varying Devices.

constant regardless of the search space (n), reﬂecting

its O(1) access time. Conversely, arrays and linked

lists show increasing search times with larger search

spaces (n), with linked lists exhibiting the slowest per-

formance due to their non-contiguous memory alloca-

tion.

We used a search space (n) of 1000 and 10,000.

The experiment involved three resource-constrained

devices (Raspberry Pi, Beaglebone, ESP32) and a lap-

top, combined with three different data structures (ar-

rays, linked lists, hash tables). Each device and data

structure handles objects differently, making it impor-

tant to determine the most suitable data structure for

storing objects like NFTs. Figure 2a illustrates the

experiment with ESP32, Raspberry Pi, and Beagle-

bone, considering the memory constraints of ESP32,

which cannot efﬁciently handle more than 1000 ob-

jects. In Figure 2b, we increased the search space to

10,000 and included a laptop along with Raspberry Pi

and Beaglebone, using the same data structure com-

binations. This increase in search space allows us

to observe noticeable delays and compare the behav-

ior of the combinations with small and large search

spaces. However, In our analysis depicted in Figure

2, we found that hash tables combined with a local

machine exhibited the minimum delay and processed

faster regardless of the search space (n) value. Ad-

ditionally, we observed that using hash tables with

any of the four devices for searching objects resulted

in only slight differences. Conversely, linked lists

and arrays were not optimal choices for storing and

searching NFTs if the requirements of the prototype

include time efﬁciency.

We studied the time delays of sending and re-

ceiving data between patient devices to the devices

of medical professional. Initially, we segmented an

ECG dataset, as illustrated in Section 6, and converted

the CSV ﬁles to JSON format for storage on the de-

vices. Subsequently, we created packets of two differ-

ent sizes: 5 (each of 1 minute length) and 10 (each of

30 seconds length), by dividing the sample 5 minute

ECG data.

The Gantt chart of the time delay of this process

is shown in ﬁgure 3. The ﬁgure shows the timestamps

indicating when each packet was sent and when it was

received by the medical professional. This shows that

variations in packet sizes and devices used.

We calculated the response time by averaging

multiple requests and responses and plotted boxplots

showing the minimum and maximum values for vary-

ing packet sizes with all three devices. Figure 4

demonstrates that Raspberry Pi has the shortest re-

sponse time compared to other devices for both packet

sizes

Once the comparison of packet sizes, devices,

and data structures along with the search space was

completed, we implemented our Blockchain-NFT-

IoT system with One-Time Veriﬁcation Architecture

(OTV) and Zero-Trust type of Architecture (ZTA).

We then compared both architectures with the non-

NFT approach, where no security measures were im-

plemented ﬁgure 5. We have used a hash table as the

data structure for storing NFTs and have compared all

three architectures with the three devices. The ﬁgure

in Figure 5 indicates that Non-NFT has a shorter re-

sponse time than OTV and ZTA for both the packet

SECRYPT 2024 - 21st International Conference on Security and Cryptography

708

size, as expected. However, the delays seen here are

minimal due to the small search space (n) of 1000. If

the search space (n) is increased to 10,000, delays will

be larger for Rpi and Beaglebone. The delay differ-

ence between OTV and ZTA is not signiﬁcantly high,

making ZTA a feasible option.

8 CONCLUSION AND FUTURE

WORK

In this work, we present an implementation of the

Blockchain-NFT-IoT system on resource-constrained

devices. We focused on evaluating and understand-

ing the performance of different data structures, de-

vices, and architectures in the context of a health-

care application involving the storage and transmis-

sion of ECG data. We found that even with resource-

constrained devices like the ESP32, we can imple-

ment our proposed architecture. A Raspberry Pi can

be used is there is a need for reduced response times

for data transfer. Our implementation of One-Time

Veriﬁcation Architecture (OTV) and Zero-Trust type

of Architecture (ZTA) demonstrated that the delays

are not signiﬁcant and they can be effectively used in

resource-constrained devices thus ensuring data secu-

rity in healthcare IoT environments.

This research is a ﬁrst step in the design of secure

IoT systems that are cost-effective and can provide

real-time solutions even with poor connectivity. This

can be of value when designing safe access mecha-

nisms for healthcare and other sensitive data.

Future research directions could explore scaling

these experiments to larger datasets experimenting

with more devices and types of users and further en-

hancing security measures to meet the evolving needs

of healthcare IoT applications.

REFERENCES

(2024a). Esp32 web server using arduino

ide. https://randomnerdtutorials.com/

esp32-http-get-post-arduino/. Accessed: (2024).

(2024b). Raspberry pi and beaglebone web server using

ﬂask. https://pythonbasics.org/ﬂask-rest-api/. Ac-

cessed: (2024).

Abbas, A. F., Qureshi, N. A., Khan, N., Chandio, R., and

Ali, J. (2022). The blockchain technologies in health-

care: Prospects, obstacles, and future recommenda-

tions; lessons learned from digitalization. Interna-

tional Journal of Online & Biomedical Engineering,

18(9).

Alamri, M., Jhanjhi, N., and Humayun, M. (2019).

Blockchain for internet of things (iot) research issues

challenges & future directions: A review. Int. J. Com-

put. Sci. Netw. Secur, 19(1):244–258.

Ali, M. S., Vecchio, M., Pincheira, M., Dolui, K., An-

tonelli, F., and Rehmani, M. H. (2018). Applications

of blockchains in the internet of things: A comprehen-

sive survey. IEEE Communications Surveys & Tutori-

als, 21(2):1676–1717.

Atlam, H. F., Azad, M. A., Alzahrani, A. G., and Wills, G.

(2020). A review of blockchain in internet of things

and ai. Big Data and Cognitive Computing, 4(4):28.

Cunha, P. R. d., Soja, P., and Themistocleous, M. (2021).

Blockchain for development: a guiding framework.

Dorri, A., Kanhere, S. S., Jurdak, R., and Gauravaram, P.

(2017). Blockchain for iot security and privacy: The

case study of a smart home. In 2017 IEEE interna-

tional conference on pervasive computing and com-

munications workshops (PerCom workshops), pages

618–623. IEEE.

Hwang, Y.-W. and Lee, I.-Y. (2020). A study on cp-abe-

based medical data sharing system with key abuse pre-

vention and veriﬁable outsourcing in the iomt environ-

ment. Sensors, 20(17):4934.

Islam, M. M., Rahaman, A., and Islam, M. R. (2020). De-

velopment of smart healthcare monitoring system in

iot environment. SN computer science, 1:1–11.

Khincha, R., Krishnan, S., Parveen, R., and Goveas, N.

(2020). Ecg signal analysis on an embedded device

for sleep apnea detection. In International Confer-

ence on Image and Signal Processing, pages 377–384.

Springer.

Kotz, D. and Peters, T. (2017). Challenges to ensuring hu-

man safety throughout the life-cycle of smart environ-

ments. In Proceedings of the 1st ACM Workshop on

the Internet of Safe Things, pages 1–7.

Li, J. and Dun, W. (2020). Range query in blockchain-based

data sharing model for electronic medical records. In

Journal of Physics: Conference Series, volume 1634,

page 012035. IOP Publishing.

Saeed, H., Malik, H., Bashir, U., Ahmad, A., Riaz, S.,

Ilyas, M., Bukhari, W. A., and Khan, M. I. A. (2022).

Blockchain technology in healthcare: A systematic re-

view. Plos one, 17(4):e0266462.

Sharma, N., Mangla, M., Mohanty, S. N., Gupta, D., Tiwari,

P., Shorfuzzaman, M., and Rawashdeh, M. (2021). A

smart ontology-based iot framework for remote pa-

tient monitoring. Biomedical Signal Processing and

Control, 68:102717.

Sharma, R. K. and Goveas, N. (2023). Use of blockchain

in securing iot systems with resource constrained de-

vices. In 2023 IEEE 20th International Conference

on Software Architecture Companion (ICSA-C), pages

216–223. IEEE.

Securing Patient Data in IoT Devices: A Blockchain-NFT Approach for Privacy, Security, and Authentication

709
