Logging Hypercalls to Learn About the Behavior of Hyper-V

Lukas Beierlieb

1 a

, Nicolas Bellmann

, Lukas Ifﬂ

ander

2 b

and Samuel Kounev

1 c

Institute of Computer Science, University of W

urzburg, W

urzburg, Germany

Faculty of Informatics, University of Applied Sciences, Dresden, Germany

ﬁ

Keywords:

Hypervisor, Hyper-V, Hypercall, Logging, Monitoring.

Abstract:

Hypervisors such as Xen, VMware ESXi, or Microsoft Hyper-V provide virtual machines used in data cen-

ters and cloud computing, making them a popular attack target. One potential attack vector is the hypercall

interface, which exposes privileged operations as hypercalls. We present a hypercall logger for the Hyper-V

hypercall interface that logs the inputs, outputs, and sequence of hypercalls. The logs should improve the testa-

bility of the hypercall interface by helping to construct test cases for the hypercall handlers. Related works

in hypercall monitoring analyze less detailed hypercall invocation data with intrusion detection systems. Our

logger extends the WinDbg debugger by adding additional commands to set software breakpoints on the hyper-

call handler entry and exit within a debugging session with the Hyper-V hypervisor. The evaluation conﬁrmed

that the logs are correct and that the breakpoints slow hypercall execution by 100,000 to 200,000. A case

study with the hypercall handler logger helps create test cases for evaluation and demonstrates the logger’s

suitability.

1 INTRODUCTION

Virtual Machines (VMs) are computers whose virtual

hardware is provided by a software layer called Hy-

pervisor (HV). The HV runs on physical hardware

and uses its resources to create the virtual hardware

for the VMs, consisting of Virtual Processors (VPs),

memory, and other devices. VMs are unaware of

this partitioning and behave like running alone on

the hardware, allowing multiple VMs to run on the

same physical hardware. The concept behind this

abstraction is known as virtualization. The ﬁelds

of application for HVs and their VMs range from

data centers and Cloud Computing (CC) to malware

analysis and Virtualization-Based Security (VBS) and

beyond (Portnoy, 2023; Hoopes, 2009; Microsoft,

2023b)

For each of the above applications, the HV needs

to protect the virtual environments from interfering

with each other. This interference may be unintended

(heavy workload on one VM affecting another VM),

or caused intentionally by an attacker. Attackers gain

access to a VM, e.g., by renting one in CC, and then

exploit it to attack the HV or other VMs with Denial

https://orcid.org/0000-0003-2512-9292

https://orcid.org/0000-0002-8506-2758

https://orcid.org/0000-0001-9742-2063

of Service, Sensitive Data Disclosure, Privilege Esca-

lation, or Arbitrary Code Execution (Liu et al., 2019).

While VMs have multiple interfaces to the HV, we

focus on the hypercall interface, a call-based interface

that allows VMs to request services from the HV as

hypercalls. Hypercalls are similar to system calls at

the Operating System (OS) level. As system calls, hy-

percalls run at the highest privilege level with direct

access to physical hardware, turning them into a pow-

erful attack vector (Milenkoski et al., 2014; VMware,

2007).

We decided to research Microsoft Hyper-V for the

following reasons: Hyper-V is widely available be-

cause it is part of Windows since Windows 8 and

Windows Server since Windows Server 2008. Addi-

tionally, Hyper-V supports VBS and makes it usable

for VMs via hypercalls, bringing VBS into the scope

of our work as an additional attack target. Finally,

we chose Hyper-V because, so far, only one critical

vulnerability concerning the hypercall interface has

been found (Common Vulnerabilities and Exposures

(CVE)-2013-3898), which is remarkably few for such

complex software (Portnoy, 2023; Microsoft, 2022c).

To facilitate the search for vulnerabilities, we

developed a Hypercall Handler Logger (HHL) for

Hyper-V, which logs the inputs, outputs, and sequence

of hypercall handler calls during VM execution. The

HHL logs should improve the testability of the hyper-

Beierlieb, L., Bellmann, N., Ifﬂänder, L. and Kounev, S.

Logging Hypercalls to Learn About the Behavior of Hyper-V.

DOI: 10.5220/0012768100003753

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 19th International Conference on Software Technologies (ICSOFT 2024), pages 411-418

ISBN: 978-989-758-706-1; ISSN: 2184-2833

411

call interface by helping to construct test cases for the

handlers and the hypercalls.

Security researchers beneﬁt from the HHL in mul-

tiple ways. They can use the logged inputs and out-

puts to trace the handlers’ main execution paths and

investigate how they can inﬂuence execution to get

to places they previously identiﬁed as critical; focus

on handlers having little or no occurrence during VM

execution and, therefore, may have been less tested or

forgotten to adjust during updates; or try to cause a

Denial of Service (DoS) by invoking hypercalls mul-

tiple times or in a different order based on the logged

inputs and sequence. The reliability testing commu-

nity evaluates the ability of the system to fulﬁll its in-

tended functions under given conditions over a speci-

ﬁed amount of time (IEEE, 1990). The software aging

community analyzes the ongoing degradation of soft-

ware performance and reliability over time (Cotroneo

et al., 2014). Both require inputs that lead to success-

ful hypercall execution. The HHL provides these in-

puts for hypercalls successfully executed during VM

execution.

The remainder of this paper is structured as fol-

lows. Section 2 reviews related work on hypercall

logging. Section 3 gives an overview about Hyper-

V’s hypercall interface before Section 4 describes the

HHL design. Section 5 presents logging results and

evaluates the runtime overhead. Finally, Section 6

summarizes the paper and gives an outlook on future

research opportunities.

2 RELATED WORK

This section discusses related work on hypercall log-

ging to illustrate the state-of-the-art. It brieﬂy ex-

plains each paper and how they differ from our work,

which aims to develop an HHL for the Hyper-V hy-

percall interface to improve its testability. In the fol-

lowing, we consider the hypercall logging part of

hypercall monitoring in Intrusion Detection Systems

(IDSs). Monitoring refers to the ongoing supervision

of processes to determine if they run as intended. Pa-

pers on hypercall monitoring in IDSs often incorpo-

rate a hypercall logger to collect data suitable for anal-

ysis. (NIST, 2023)

These loggers are comparable to our HHL, with

the following differences: First, they have a different

purpose; they create logs to detect attacks while we

provide them to construct test cases. Second, they are

all based on the open-source Xen HV while we work

with the closed-source Hyper-V HV.

Mostafavi and Kabiri (2018) suggested an IDS to

detect repetitive and irregular-order hypercall attacks

from guest VMs to the Xen HV. In a repetitive hyper-

call attack, the attacker invokes a speciﬁc hypercall

repeatedly to waste hardware resources. Irregular-

order hypercall attacks, in turn, refer to the calling of

successive hypercalls in an unintended order to con-

fuse the HV and cause a temporary stall or crash.

Shi et al. (2016) introduced an IDS under Hyper-

visor Introspection (HVI) to detect abnormal hyper-

call sequences with hypercalls that usually do not oc-

cur or do not occur in this order, indicating an attack.

In addition to the previous paper, they consider the

host VM. Their approach relies on nested virtual-

ization, where the IDS resides in the host VM of the

outer HV to protect it from attacks.

Wu et al. (2014) proposed an IDS named

Detector to identify covert channels between VMs.

Covert channels are hidden communication channels

through which attackers can leak information. They

arise from the shared physical resources that the HV

manages, such as Central Processing Units (CPUs),

cache, or memory. Cache-based covert channels en-

code sensitive data, e.g., in cache access latencies,

which are measurable on other VMs.

Le (2009) proposed and implemented two ap-

proaches to protect against hypercall attacks on Xen:

authenticated hypercalls and Hypercall Access Table

(HAT). The ﬁrst approach protects hypercalls with a

Message Authentication Code (MAC). The HAT ap-

proach checks only the call site of the hypercall in the

HV. It initially scans the guest OS for call sites, stores

them per hypercall and VM in the HAT, a database in

the HV, and checks incoming hypercalls against it.

3 HYPER-V HYPERCALL

INTERFACE DETAILS

Hyper-V consists of a Type 1 HV, which runs directly

on the physical hardware, and a virtualization stack,

which runs as part of Windows or Windows Server

in a privileged management VM called the root par-

tition, parent, or host. They implement a microker-

nel architecture in which the HV performs only the

virtualization tasks that require the highest privileges.

All others reside in the lower-privileged root parti-

tion, reducing critical HV attack surface. The root

partition has fewer rights than the HV but more than

the other VMs, called child partitions or guests. For

example, the root partition can invoke administrative

hypercalls to create, delete, and modify child parti-

tions so that the virtualization stack can manage the

child partitions. Hyper-V distinguishes between en-

lightened and unenlightened child partitions, depend-

ing on whether the OS inside is aware of virtual-

ICSOFT 2024 - 19th International Conference on Software Technologies

412

ization (often called para-virtualization) (Microsoft,

2022c,a).

In the following, we discuss the Hyper-V hyper-

call interface for enlightened partitions. Part of the

information is stated in the Hyper-V Top-Level Func-

tional Speciﬁcation (TLFS) (Microsoft, 2022c), the

rest is reverse-engineered from the Hyper-V binary.

When invoking hypercalls, the caller passes a Hy-

percall Input Value (HIV) to the HV and receives a

Hypercall Result Value (HRV) after the hypercall ex-

ecution. The exchange of these values happens via

General-Purpose Registers (GPRs). For call-speciﬁc

inputs and outputs, there is choice between a register-

and memory-based calling convention. Hypercalls

in Hyper-V fall into four groups: simple hypercall,

rep hypercall, extended hypercall, and Virtual Trust

Level (VTL) call and return (Microsoft, 2022c).

Basic Workﬂow. First, the caller inside the partition

speciﬁes the hypercall input, consisting of an HIV,

which deﬁnes the hypercall to invoke and other hy-

percall properties, and optionally further call-speciﬁc

input. The caller triggers a VM exit to the HV. He ex-

ecutes a designated instruction, VMCALL on Virtual-

ization Technology for x86 (VT-x) and VMMCALL

on AMD-Virtualization (AMD-V). The HV abstracts

the different VM exit instructions by providing the

correct one to the caller on a memory page in the

Guest Physical Address (GPA) space, called the hy-

percall page. The VP running the hypercall must be in

kernel mode at the time of the VM exit since Hyper-V

only allows programs in kernel mode to invoke hyper-

calls (Microsoft, 2022c).

After the VM exit, the HV takes over the execu-

tion and starts general pre-processing. It evaluates the

reason for the VM exit in the VM Exit handler to call

the appropriate handler. In our case, the reason for

the exit was the VMCALL, so execution passes to the

VMCALL handler, who performs tests (e.g., valid-

ity of HIV, calling from kernel mode) and prepares

the call for the hypercall handler. Towards the end,

the execution splits into extended hypercall, VTL call

and return, register-based, and memory-based call-

ing. The register-based and memory-based callings

split further into simple and rep hypercall. Finally,

the VMCALL handler calls the hypercall handler via

the Hypercall Handler Table (HHT)—an HV-internal

data structure that stores constant hypercall-speciﬁc

data. It contains an entry for each hypercall with a

pointer to the handler. The handlers implement the

hypercall-speciﬁc functionality. When ﬁnished, each

handler returns a value to report its execution status.

It is either 0 if the execution was successful, or corre-

sponds to a deﬁned error code (Microsoft, 2022c).

After the hypercall handler, the VMCALL handler

takes over again and starts post-processing. It pre-

pares the potential output of handlers for transfer to

the caller and creates the HRV, which provides the

caller with feedback about the hypercall execution in

the HV. Finally, the VM Exit handler passes control

back to the caller.

Hypercall Input Value. The HIV is a 64-bit value

parameterizing the hypercall properties. Relevant

for the logger are the 16-bit call code identifying

the call, a bit ﬂag indicating the calling conven-

tion (register/memory), one byte specifying variable

header size, and rep count a start index for rep hy-

percalls. The RCX register transfers the value (Mi-

crosoft, 2022c).

Hypercall Result Value. The HRV is a 64-bit value

giving the status of the hypercall execution. Similar to

the return value of the hypercall handler, it indicates

the overall call execution status. A value of reps com-

pleted exists for rep hypercalls. The HV returns the

HRV in RAX (Microsoft, 2022c).

Hypercalls with input and output values besides the

HIV and HRV allow the caller to choose between a

The register-based concept is faster but only works for

calls with a limited input or output size. In basic form,

hypercalls with no call-speciﬁc output and two or

fewer input are supported, with inputs stored in RDX

and R8. The XMM Fast Hypercall extension allows

using the 128-bit registers XMM0 to XMM5. Thus,

the possible input size is 112 bytes. Additionally, it

allows the return of output values in the XMM regis-

ters that don’t carry input values (Microsoft, 2022c).

With the memory-based calling convention, the

transfer occurs via two memory pages; one for the

input, one for the output. The caller-provided mem-

ory pages are 4 KiB in size, sufﬁcient for the in-

put and output of every hypercall. The caller stores

their addresses in the registers RDX and R8, respec-

tively (Microsoft, 2022c).

Simple vs. Rep Hypercalls. Simple hypercalls be-

have as described so far; they get called, perform their

task, and return. Rep hypercalls, in contrast, facilitate

multiple executions of the same operation with a sin-

gle call, comparable to a series of simple hypercalls.

The input next to the HIV consists of a list of input

list elements and possibly an input parameter header.

The input list elements are the inputs for the individ-

ual operation runs, processed in list order. The header

contains data that is the same for all list elements. The

output comprises an HRV and a list of output list el-

ements if the operation generates one. The transmis-

sion of input and output remains the same (Microsoft,

2022c).

Logging Hypercalls to Learn About the Behavior of Hyper-V

413

The rep count in the HIV reports the number of

repetitions to the HV, which equals the number of in-

put list elements. The rep start index, also part of the

HIV, indicates the index of the ﬁrst unprocessed el-

ement in the input list because the HV tries to limit

the execution time of hypercalls in the HV to 50 µs or

less before returning control to the calling VP. At this

point, some input list elements may still be open, and

the rep start index tells the HV which element to con-

tinue with when execution resumes. The purpose of

the timeout is to prevent the hypercall execution from

blocking, e.g., the handling of pending interrupts or

the scheduling of other VPs for too long. The HV up-

dates the index, not the caller. The caller doesn’t no-

tice the interruption because the HV doesn’t advance

the Instruction Pointer Register (RIP) of the VP, so

the RIP continues to point to the VMCALL instruc-

tion. Accordingly, a resume of the VP leads to a new

VM exit with an increased rep start index. Hyper-V

refers to this concept as hypercall continuation. Reps

complete in the HRV reports the number of completed

repetitions to the caller (Microsoft, 2022c).

VTL Call and Return. These calls belong to VBS.

With a VTL call, it is possible to switch to the next

higher VTL, with a VTL return, to the next lower.

They undergo individual pre- and post-processing just

before and after the handler because not the caller de-

ﬁnes the HIV but the code on the hypercall page, there

is no output, not even an HRV, and the calling conven-

tion is register-based and demands an input of HIV

and a 64-bit control input (Microsoft, 2022c).

Hypercall Handler Table. The HHT is a table in the

HV that stores constant data about hypercalls. It con-

tains an entry for each hypercall indexed according to

the call code. The ﬁrst element of an HHT entry is

a function pointer to the hypercall handler. The sec-

ond element is the call code of the hypercall. The

third element is the Hypercall Control Vector (HCV)

and contains ﬂags for program control. The follow-

ing four elements specify the input and output size in

bytes, excluding HIV and HRV. Simple hypercalls

can have input and output parameters, i.e., for simple

hypercalls, ﬁelds one and three of the four size ﬁelds

are relevant. Rep hypercall can have an input param-

eter header and an input and output list. The input

parameter header size is in the ﬁeld where the input

parameter size is in the simple hypercall. The input

list size results from ﬁeld two’s input list element size

multiplied by the rep count in the HIV. Analogously,

the output list size arises from ﬁeld four. The statis-

tical hypercall group number organizes the hypercalls

into groups for which the HV records the number of

executions. Padding aligns the HHT entry to a multi-

ple of eight.

4 LOGGING APPROACH

This section describes the design of our HHL for

Hyper-V, which should log the inputs, outputs, and

sequence of hypercall handler calls during VM exe-

cution. We designed the HHL with WinDbg, as this

seems to be the only option for us to create the logger

with reasonable effort. For example, inserting hooks,

as a related paper does with the open-source Xen HV,

is not as easy with closed-source software. WinDbg is

a debugger for Windows OSs, which can also debug

the Hyper-V HV (Microsoft, 2018).

The description of the HHL design proceeds step-

by-step. First, we deal with hypercall input logging,

output logging, then call sequence logging.

Logging of Hypercall Handler Input. First, we need

to localize the hypercall handlers in the virtual ad-

dress space of the HV at runtime. Searching for the

handler’s name is not an option because Microsoft

does not publish debug symbols for the HV (ERNW,

2019; Microsoft, 2022b).

Our approach to locating hypercall handlers is the

HHT, which stores a function pointer to the handler

for each hypercall. The HHT resides at the beginning

of the CONST segment. We get the beginning of the

segments from their section headers. These are part of

the Portable Executable (PE) format, which describes

the structure of Windows executables. The executable

in PE format starts at the image base. The section

headers are behind the DOS header, DOS stub, and

NT headers. Starting from the NT headers, we obtain

the base address of the section headers by adding the

ﬁeld offset and the size of the optional header. The

ﬁeld offset results from the NT header structure.

The HHT holds one entry for each hypercall, in-

dexed by the call code and with a size of 24 bytes.

The function pointer to the hypercall handler is the

ﬁrst element of the entry and has 64 bits or 8 bytes as

a memory address on a 64-bit architecture. The mem-

ory on the x86-64 architecture is byte accessible, i.e.,

one address per byte of data. Thus, we ﬁnd the func-

tion pointer per hypercall by reading the ﬁrst 8 bytes

at the address CONST base + 24 · call code (Intel,

2023). The VirtualAddress ﬁeld in the section header

may change when Microsoft releases a new version

of the Hyper-V HV as a new build of the HV executa-

bles but remains constant between restarts of the HV.

However, this doesn’t apply to the image base, which

changes with every restart due to Address Space Lay-

out Randomization (ASLR). WinDbg provides func-

tions to determine the image base at runtime (Scar-

gall, 2020; Microsoft, 2021b).

Logging can be enabled by placing a Breakpoint

(BP) on the begin of the handler. During kernel or

ICSOFT 2024 - 19th International Conference on Software Technologies

414

HV debugging, only 32 BPs are available, which is

insufﬁcient to log all hypercall handlers simultane-

ously (Microsoft, 2023a).

Next, we must log the input after a handler call

has triggered a BP. Reverse engineering of the HV

code showed that the handlers of different hypercall

types return different parameters. We extracted them

from the code to understand the input. For logging, it

is necessary to know the number of parameters, their

order, data types, and meanings. We require mean-

ing and order because the handlers receive pointers to

input and output areas whose size comes from other

parameters, e.g., the size of the input list of a rep hy-

percall depends on the rep count.

We apply the knowledge gained about the param-

eters to read the handlers’ input and write it to a log

ﬁle with a timestamp and the call code. The remaining

section covers our ﬁndings on the parameters, divided

into the three hypercall types. The hypercall type re-

sults from the HCV in the HHT entry of the hypercall.

The HCV of a simple hypercall is 0 or 2, i.e., no

ﬂags or only the Variable-Sized Input ﬂag at the 2nd-

bit position is active. The ﬁrst parameter is a pointer

to the hypercall input parameters. Reading the hy-

percall input parameters via the pointer requires their

size, which stands in the HHT. The second parame-

ter is a pointer to the hypercall output parameters. It

doesn’t provide data to the handler but tells it where

to store its output. We record the output parameters

for output logging to know where the output is after

the handler execution. The variable header size is the

optional third parameter of the handler for calls with

variable-sized input.

Rep hypercalls have an HCV of 1 or 3; the Rep

Hypercall ﬂag at the 1st-bit position is mandatory, and

the Variable-Sized Input ﬂag at the 2nd-bit position is

optional. The ﬁrst handler parameter is a pointer to

the input parameter header and input list. The size

of the inputs derives from the HHT, rep count, and,

if applicable, variable header size. The rep count is

the second handler parameter, encoded in 12 bits of

the HIV. The rep start index is the third handler pa-

rameter, also stored in the HIV. The last two param-

eters are output parameters specifying the address to

return the output list and reps complete. As with sim-

ple hypercall handlers, we keep the output parameters

for output logging. The variable header size is an op-

tional parameter.

VTL calls and VTL returns have a set VTL Call

and Return ﬂag at the 4th-bit position of the HCV,

yielding an HCV value of 4. The ﬁrst parameter is a

pointer to the HV-internal data structure of the calling

VP. It is a large and complex structure of unknown

size and composition. Therefore, we cannot log and

interpret its contents but instead log the pointer, which

acts as a kind of runtime ID of the VP since the ad-

dresses of the VP structures do not change at runtime

and thus can reveal patterns. The second parameter

is a ﬂag that speciﬁes whether the caller is running in

a 32-bit or 64-bit mode. The third parameter is the

control input.

Logging of Hypercall Handler Output. For output

logging, we need BPs that trigger once handler execu-

tion is complete. We achieve this by placing a BP on

the return address of the handler. The return address

of a function is the memory address of the ﬁrst in-

struction the processor executes after the function re-

turns. The calling function stores it on the stack, and

a Return (RET) instruction within the called function

loads it into the RIP at the end of the function. So,

the return address is a single address that executes af-

ter each handler execution and is accessible within the

handler; in comparison, the addresses of the handler’s

RET instructions, which mark the end of the handler,

are unknown and require as many BPs as there are

RET instructions.

Output logging with BPs on the return addresses

of the hypercall handlers involves two challenges.

Firstly, the return addresses lie outside the handlers,

where all ﬁnished hypercalls pass execution to. Calls

not supposed to be logged would mistakenly activate

the output BPs. For this reason, we add the output

BP during input logging and turn it into a one-shot

BP, which triggers once and then removes itself. In

other words, we insert the BP on each handler call,

and the BP triggers and removes itself when the exe-

cution reaches the return address. During input log-

ging, we are in the handler and can access the return

address on the stack.

Secondly, the hardware can have more than one

Logical Processor (LP), and the HV offers more than

one VP. The VPs run on the LPs, which operate in

parallel on the HV code. LPs running in parallel trig-

ger the output BP set by another LP if they perform

a hypercall with the same pre-processing and reach

the return address earlier. Moreover, they overwrite

each other’s output BP if they run hypercalls with the

same return address, and we want to log them. We

prevent this by making the output BP LP-dependent,

i.e., only triggers when the respective LP passes the

address. LPs can execute the same hypercall for dif-

ferent VPs simultaneously. Therefore, the HHL needs

LP contexts to store the output parameters per hyper-

call and assign them to the LP during output logging.

The hypercall execution of a VP runs on a single LP,

as there are no context switches between VPs during

hypercall execution in the HV (Microsoft, 2022c). If

this were not the case, the output BP would lose its

Logging Hypercalls to Learn About the Behavior of Hyper-V

415

assignment to the VP after a context switch since the

BP remains, but the LP now runs a different VP. In

addition, the HHL would need VP contexts.

Each LP can place an output BP. Hence, with out-

put logging, we can no longer set 32 software BPs

to track 32 hypercall handlers, but only 32 minus the

number of LPs.

We log the handler output on BP triggering in step

two. We take the output parameters stored during in-

put logging to read the hypercall output. Furthermore,

we read the return value of type HV STATUS, which

each handler returns to indicate its execution status.

The result goes to the log ﬁle with a timestamp.

The VTL call and return handlers have no out-

put parameters and, thus, don’t require consideration.

Handlers of simple hypercalls have one output param-

eter: the pointer to the hypercall output parameters.

Reading them requires their size, given in the HHT as

the size of output parameters. Handlers of rep hyper-

calls have two output parameters: the pointer to the

output list and the pointer to reps complete. The out-

put list size results from multiplying the rep count and

the size of the output list element in the HHT.

Logging of Hypercall Handler Call Sequenc.e This

goal includes recording a timestamp, the call code,

the partition ID, and the VP index to track the tempo-

ral order of handler calls per VM and VP. The HV

guarantees that the partition IDs are unique until an

HV restart (Microsoft, 2022c).

The assignment between root VP and LP is con-

stant, i.e., a root VP always runs on the same LP.

Guest partitions can have, at most, as many VPs as

there are LPs. Unless the system administrator con-

ﬁgures a ﬁxed assignment, their VPs can be scheduled

on any LP (Microsoft, 2012, 2020).

The location of the partition ID in the Hyper-V

HV appears in the handler of hypercall 0x46 HvGet-

PartitionId, which returns the ID of the partition that

issued the hypercall. Accordingly, we could deduce

that the partition ID in the HV can be obtained at

runtime as [GS Base + 0x103A0] + 0x2380. This

query is build-dependent, i.e., only valid until Mi-

crosoft changes the HV-internal data structures. This

happens frequently, but determining the new value is

not elaborate.

Hyper-V models the VP state with a set of reg-

isters that it stores internally and loads into the LP

on a context switch if there is a physical counter-

part. The VP index is in the VP register HvRegis-

terVpIndex with register name 0x00090003. It has no

physical counterpart, hence the HV-deﬁned Model-

Speciﬁc Register (MSR). For MSR access, the HV

code maps the address of the MSR to the name of the

VP register and the register name to the HV-internal

VP structure. We found the implementation part that

maps 0x00090003 to the HV-internal VP structure

by searching for 90003h and 40000002h and trac-

ing the execution path. We veriﬁed it by placing a

software BP that triggered when we ran Read From

Model Speciﬁc Register (RDMSR) 0x40000002 in

WinDbg while debugging the root partition’s ker-

nel (Microsoft, 2022c).

Then, we found a function that receives the

VP register name via the GPR ECX. It loads the

address of the running VP’s HV-internal structure

(gs:10398h) into RDI. Then, it evaluates the register

name to access the VP structure. The ﬁrst name tested

is 0x00090000 (HvX64RegisterVpRuntime (Mi-

crosoft, 2022c)): the function subtracts 0x90000 from

the name and branches with Jump if Zero (JZ) if the

result is 0. Afterward, the test for 0x00090003 fol-

lows: the function reduces the name by another three

and checks again with a JZ to 0. Consequently, we

end up in the lower right block, where the upper Move

(MOV) instruction retrieves the index of the running

VP from its VP structure.

Reverse engineering the handler of the HvRegis-

terVpIndex hypercall, we determined we can query

the VP index in the HV at runtime using the HV-

internal VP structure at [GS Base + 0x10398] +

0x394. This request is again build-dependent, but de-

terminable with reasonable effort.

The approach enables us to comprehend the rela-

tionship between 32 hypercall (limited by BPs). Un-

fortunately, Hyper-V has 271 hypercalls, 69 are re-

served, i.e., they only block call codes for possible

future calls. Their function pointers in the HHT point

to a default handler implementation, which returns a

value indicating an invalid call code.

As an alternative, we considered logging the call

sequence on HHT access of the pre-processing when

it reads the HHT entry. It only requires one soft-

ware BP. However, a test has shown that the trafﬁc

at this site is so high that frequently occurring hyper-

calls suppress infrequent ones.

Implementation. The whole approach is imple-

mented as a DbgExtEng extension for WinDbg, ex-

posing the four debugger commands: hhl log, hhl -

log entry, hhl log exit, and hhl convert. However,

the user should only enter hhl log and hhl convert;

hhl log entry and hhl log exit are for internal pur-

poses. (Microsoft, 2021a)

The code is available on GitHub

https://github.com/DescartesResearch/HyperV-hyperc

all-logger

ICSOFT 2024 - 19th International Conference on Software Technologies

416

Child Partition

Ring 3

Ring 0

Injection Driver

Root Partition

Ring 3

Ring 0

Injection Driver

Windows 11 Pro

HHL

(Debugger

Extension

for WinDbg)

Ring 3

Ring 0

Control Machine

Test Machine

Hyper-V HV

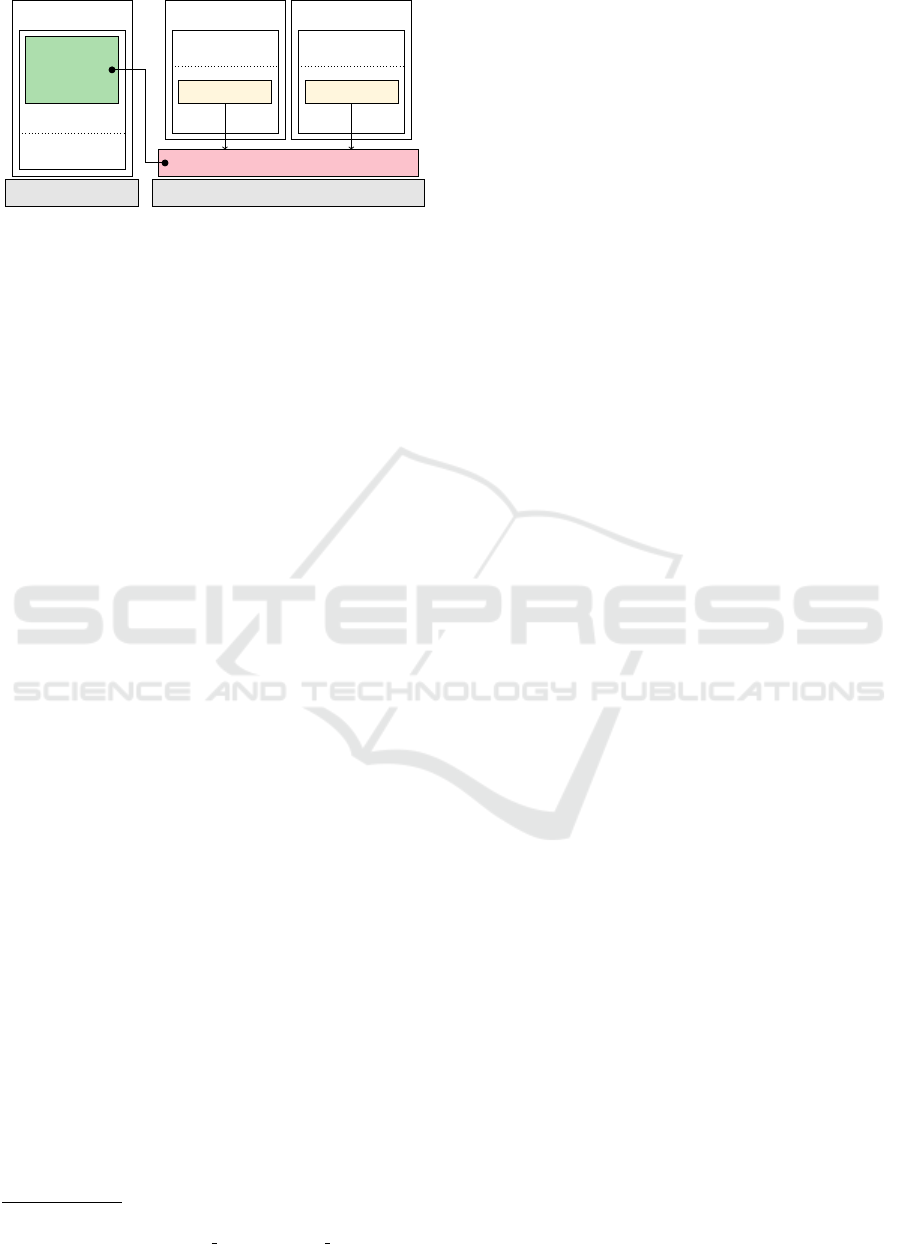

Figure 1: HHL Testbed.

5 EVALUATION

Figure 1 shows the testbed for the evaluation of the

HHL. It consists of a control machine and a test ma-

chine. The HHL is part of a WinDbg instance that

runs on the control machine and maintains a connec-

tion to the HV on the test machine. From there, the

HHL logs the hypercall handler calls in the HV trig-

gered by hypercalls from the root/child partitions. In

the case study, these hypercalls originate from the VM

execution. For the performance measurements, a ker-

nel injection driver issues them from Ring 0 of the

root or child partition. The connection between the

control machine and the test machine for HV debug-

ging exists via a network.

We turned off Secure Boot in the BIOS of the test

machine to enable network debugging for the Hyper-

V HV. VBS demands Secure Boot. It is possible

to bypass this requirement in the Windows Registry.

However, we don’t know how this affects VBS and

decided not to activate it in the root partition. We can

use VBS within the guest partition by selecting Se-

cure Boot in the guest VM settings, but only in the

case study, as we need to turn on TESTSIGNING to

run the injection driver, which is only possible with-

out Secure Boot. TESTSIGNING is permanently ac-

tive on the root partition.

Case Study. Which hypercalls occur during the boot

and desktop idle of the root and a guest partition?

This is an exciting question and was one of the ini-

tial motivations to create the HHL. The logging re-

sults

list the 74 hypercalls occurring in the four sce-

narios, marked by an “x” in the columns of the sce-

narios where they occur. DIdle is short for desk-

top idle. The hypercall names originate from the

HvGdk.h header ﬁle (Ionescu, 2020), as it is more

up-to-date than the TLFS (Microsoft, 2022c). The

case study ran in the testbed described in Section 5

under the following conditions. The boot process be-

https://github.com/DescartesResearch/HyperV-hyperc

all-logger/blob/main/logging results/logging results.pdf

gins when the computer starts and ends when the lo-

gin screen appears. The recording of hypercalls dur-

ing desktop idle lasts 2 minutes. The BP hit limit is

1 to record each handler call only once. It should en-

sure that the test machine doesn’t hang up and that

the HHL captures all hypercalls, not just the most fre-

quent ones. This was necessary because calls like

HvCallUpdatePerformanceStateCountersForLp were

called much more frequently than the rest. Having

detailed information about the exact rates of different

hypercalls during idle would be very interesting; un-

fortunately, the rates are considerably too high for the

BP-based HHL to keep up. This is a limitation regard-

ing the utilized technology. On the other hand, for

the targeted security-, stress-, and dependability test-

ing, the appearing input and output values are usually

worth more than the “natural” rate of occurrence of

the calls.

Performance Measurements. We examine the in-

ﬂuence of the logging overhead by issuing hypercalls

with and without HHL. The test hypercall is 0x46 Hv-

GetPartitionId. We refrain from analyzing different

hypercalls, callers, and input and output sizes since

the overhead caused by the BP events is so dominant

that all other factors play a subordinate role.

Each test run issues 1,000 hypercalls with a delay

of 0.1 s. The delay is necessary for the WinDbg BPs

to work. Without delay or with a delay that is too

short, WinDbg will eventually stop triggering BPs,

and the HHL will miss the handler entry or exit. In

addition, a shorter or longer delay increases the likeli-

hood that the BPs will get stuck during repeated exe-

cution. In such a case, a BP constantly triggers and

prevents execution from continuing, even in single

steps. The 0.1 s is an empirical value for hypercall

0x46, with which we could execute the test runs with-

out the errors mentioned. The test run without HHL

also has a 0.1 s delay to ensure identical conditions.

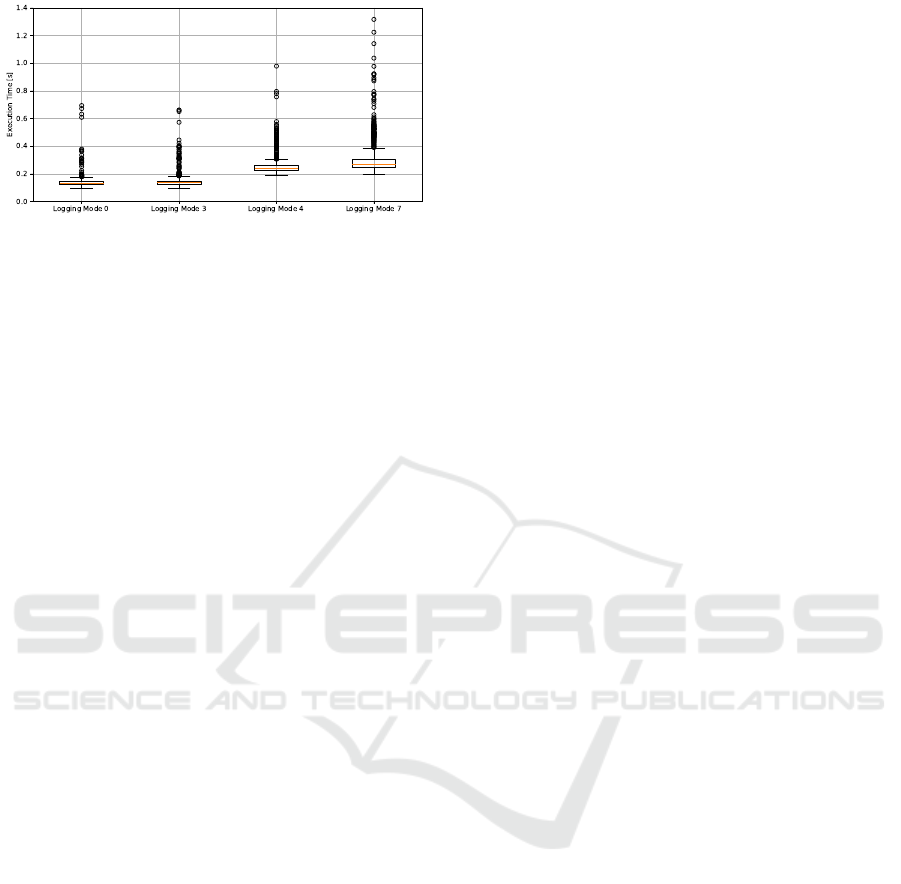

Figure 2 contains the box plots for the test runs

with HHL in logging modes 0, 3, 4, and 7. Logging

mode 0 is the bare minimum. It logs the LP ID, the

call code, and the handler entry timestamp with a BP

on the handler entry. Logging mode 3 involves han-

dler input and call sequence logging, mode 4 handler

output logging, and mode 7 handler input, output, and

call sequences logging. We skipped logging modes 1,

2, 5, and 6 as the hypercall execution times of 0 and 3

or 4 and 7 hardly differ, so examining their interme-

diate states 1 and 2 or 5 and 6 provides little informa-

tion.

The median execution time without logging was

1.2µs, the highest outlier was 4.7µs - around 100.000x

faster than modes with one breakpoint and 200.000x

faster than modes with two.

Logging Hypercalls to Learn About the Behavior of Hyper-V

417

Figure 2: Execution Time of Hypercall 0x46 with HHL.

6 CONCLUSION

The paper presented an HHL for the Hyper-V hyper-

call interface that logs the inputs, outputs, and se-

quence of hypercall handler calls during VM execu-

tion, with the aim of improving the testability of the

hypercall interface.

The most evident follow-up work is to use the

HHL for its intended purpose: support in creating test

cases for the handlers and the hypercalls. In addition,

the HHL provides the foundation for logging other

properties of the handlers, the hypercall interface, or

the Hyper-V HV, e.g., global handler variables, test

results during pre- or post-processing, or MSR ac-

cess. We omitted extended hypercalls and hypercall

0x6. Therefore, a possible future task is to add them.

An alternative to the WinDbg BP approach could

be hooking, which we excluded in this work due to

its complexity. For example, one could modify the

HV code with WinDbg and apply a system call hook-

ing technique, which overwrites the function pointer

to the hypercall handler in the HHT with a pointer to a

function that performs input logging, calls the original

handler, and ﬁnally logs the output. It would be con-

siderably faster and more reliable than the WinDbg

BP approach.

REFERENCES

Cotroneo, D., Natella, R., Pietrantuono, R., and Russo, S.

(2014). A Survey of Software Aging and Rejuvena-

tion Studies. J. Emerg. Technol. Comput. Syst., 10(1).

ERNW (2019). Work Package 6: Virtual Secure Mode.

Hoopes, J. (2009). Virtualization for Security: Includ-

ing Sandboxing, Disaster Recovery, High Availability,

Forensic Analysis, and Honeypotting. Elsevier Sci-

ence.

IEEE (1990). IEEE Standard Glossary of Software Engi-

neering Terminology. IEEE Std 610.12-1990, pages

1–84.

Intel (2023). Intel 64 and IA-32 Architectures Software De-

veloper’s Manual.

Ionescu, A. (2020). hvgdk.h. https://github.com/ionescu

007/hdk/blob/master/hvgdk.h.

Le, C. H. H. (2009). Protecting Xen hypercalls: Intrusion

Detection/ Prevention in a Virtualization Environ-

ment. Master Thesis, University of British Columbia.

Liu, C., Singhal, A., Chandramouli, R., and Wijesekera, D.

(2019). Determining the Forensic Data Requirements

for Investigating Hypervisor Attacks. In Advances in

Digital Forensics XV, volume 569 of IFIP Advances

in Information and Communication Technology, pages

253–272. Springer, Cham.

Microsoft (2012). Hypervisor Top Level Functional Speci-

ﬁcation v3.0a.

Microsoft (2018). First Steps in Hyper-V Research.

https://msrc-blog.microsoft.com/2018/12/10/ﬁrst-ste

ps-in-hyper-v-research/.

Microsoft (2020). Hyper-V Host CPU Resource Manage-

ment. https://learn.microsoft.com/en-us/windows-se

rver/virtualization/hyper-v/manage/manage-hyper-v-

minroot-2016.

Microsoft (2021a). Debugger Engine Introduction.

https://learn.microsoft.com/en-us/windows-hardware

/drivers/debugger/introduction.

Microsoft (2021b). Modules. https://learn.microsoft.com/

en-us/windows-hardware/drivers/debugger/modules.

Microsoft (2022a). Hyper-V Architecture. https:

//docs.microsoft.com/en-us/virtualization/hyper-v-on

-windows/reference/hyper-v-architecture.

Microsoft (2022b). Hyper-V symbols for debugging.

https://learn.microsoft.com/en-us/virtualization/com

munity/team-blog/2018/20180425-hyper-v-symbols-

for-debugging.

Microsoft (2022c). Hypervisor Top Level Functional Spec-

iﬁcation.

Microsoft (2023a). Methods of Controlling Breakpoints. ht

tps://learn.microsoft.com/en-us/windows-hardware/d

rivers/debugger/methods-of-controlling-breakpoints.

Microsoft (2023b). Virtualization-based Security (VBS).

https://learn.microsoft.com/en-us/windows-hardware

/design/device-experiences/oem-vbs.

Milenkoski, A., Payne, B. D., Antunes, N., Vieira, M., and

Kounev, S. (2014). Experience Report: An Analysis

of Hypercall Handler Vulnerabilities. 2014 IEEE 25th

International Symposium on Software Reliability En-

gineering, pages 100–111.

Mostafavi, M. and Kabiri, P. (2018). Detection of repetitive

and irregular hypercall attacks from guest virtual ma-

chines to Xen hypervisor. Iran Journal of Computer

Science, 1:89–97.

NIST (2023). Glossary. https://csrc.nist.gov/glossary.

Portnoy, M. (2023). Virtualization Essentials. Sybex, Indi-

anapolis, 3rd edition.

Scargall, S. (2020). Programming Persistent Memory: A

Comprehensive Guide for Developers. Springer Na-

ture, Berkeley, CA.

Shi, J., Yang, Y., and Tang, C. (2016). Hardware assisted

hypervisor introspection. SpringerPlus, 5.

VMware (2007). Understanding Full Virtualization, Par-

avirtualization, and Hardware Assist.

Wu, J., Ding, L., Wu, Y., Min-Allah, N., Khan, S. U., and

Wang, Y. (2014). C2detector: a covert channel de-

tection framework in cloud computing. Security and

Communication Networks, 7(3):544–557.

ICSOFT 2024 - 19th International Conference on Software Technologies

418
