A Formal Analysis of

CIE Level 2 Multi-Factor Authentication via SMS OTP

Roberto Van Eeden

, Matteo Paier

1,2 a

and Marino Miculan

1,3 b

University of Udine, Dept. of Mathematics, Computer Science and Physics, Italy

IMT School for Advanced Studies, Lucca, Italy

Ca’ Foscari University of Venice, Dept. of Environmental Sciences, Informatics and Statistics, Italy

Keywords:

Formal Methods, Security Protocols, Digital Identity, Identity Management.

Abstract:

We analyze the security of Level 2 multi-factor authentication (MFA) based on SMS One-Time Passcode

(OTP) of Italian Electronic Identity Card (CIE). We propose a novel threat model encompassing password

compromise, network disruptions, user errors, and malware attacks. The combinations of the adversary’s

attack capabilites yield a plethora of possible attack scenarios, which we systematically generate, formalise

and verify in ProVerif. Our analysis reveals that CIE MFA based on SMS OTP is vulnerable to attacks with

read access to the mobile device or keyboard, or to phishing, but event to mere read access to the user’s

computer screen. To address the latter vulnerability, we propose a minor modiﬁcation of the protocol.

The threat model we introduce paves the way for the analysis of other CIE MFA protocols.

1 INTRODUCTION

The Italian electronic identity card (carta d’identit

elettronica, CIE, (Italian Ministry of the Interior,

2024)) is the ofﬁcial Italian digital identity token re-

placing paper identity cards since 2016. CIE, offering

robust digital online authentication and legally valid

electronic signatures, is envisioned to become the pri-

mary tool for accessing public services like education,

healthcare, and tax ofﬁces. Its compliance with the

EU’s eIDAS regulation (EU Parliament and Council,

2014) enables cross-border use within the European

market, e.g. for accessing foreign services or execut-

ing internationally binding transactions.

Given its critical importance, CIE provides var-

ious multi-factor authentication protocols. While

Level 1 authentication requires the knowledge of the

user’s credentials only, Level 2 authentication re-

quires also to prove the possession of a previously

registered mobile device. This is veriﬁed during the

authentication process, either through a dedicated ap-

plication (CieID) or by receiving an One-Time Pass-

code (OTP) via SMS. The latter is the sole practical

way for users without access to a smartphone — a sit-

uation quite common especially among the elderly.

https://orcid.org/0009-0000-7588-7169

https://orcid.org/0000-0003-0755-3444

This paper analyzes the security of CIE’s Level

2 multi-factor authentication mechanisms, focusing

particularly on the SMS OTP method (L2SMS).

To this end, we propose a threat model for CIE

encompassing the core threats outlined in NIST SP

800-63B relevant to MFA protocols (NIST, 2020).

These threats include compromised passwords (the

very reason MFA exists), network disruptions (de-

layed or dropped messages), overall security of TLS

channels, human error induced by phishing attacks,

malware compromising user devices. In particular,

we characterize the system as a set of input and output

interfaces, following (Jacomme and Kremer, 2021);

then, an attack scenario is deﬁned by the control the

attacker may gain on these interfaces. Depending on

the attacker’s capabilities, we obtain hundreds of dif-

ferent attack scenarios.

In order to analyse the security of L2SMS, we

have systematically and automatically generated the

formalisation of all these scenarios in the applied π-

calculus, a formal language designed for represent-

ing security protocols in the Dolev-Yao model. Then,

these formalisations have been thoroughly analysed

with ProVerif, a protocol veriﬁcation tool in the sym-

bolic Dolev-Yao model (Blanchet et al., 2016).

This analysis reveals L2SMS’s vulnerability to at-

tacks gaining read access to the mobile device or the

PC keyboard (e.g., using a keylogger or planting a

Van Eeden, R., Paier, M. and Miculan, M.

A Formal Analysis of CIE Level 2 Multi-Factor Authentication via SMS OTP.

DOI: 10.5220/0012768300003767

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 21st International Conference on Security and Cryptography (SECRYPT 2024), pages 483-491

ISBN: 978-989-758-709-2; ISSN: 2184-7711

483

malware in the PC), or through phishing. Even the

mere access to the user’s computer screen allows an

attacker to gain unauthorized Level 2 access to ser-

vices knowing only Level 1 credentials. Leveraging

the attack trace found by ProVerif in this latter case,

we propose a minor modiﬁcation to strengthen the

protocol’s security. Formal analysis of the modiﬁed

protocol conﬁrms its effectiveness in addressing the

read-screen vulnerability.

The results of this work can provide useful indi-

cations for improving the CIE platform and services.

Moreover, the threat model we introduce in this paper

paves the way for further in-depth analysis of other

CIE MFA protocols. Finally, this methodology can

be applied to other similar digital identity cards.

This paper is organized as follows. In Section 2

we recall CIE main components according to an

interface-based model, and the Level 2 authentica-

tion protocol via SMS OTP. In Section 3 we deﬁne

the threat model for CIE, discuss the formalization in

ProVerif of the various attack scenarios, and analyse

the veriﬁcation results. To address the screen-reading

vulnerability, in Section 4 we propose a slight correc-

tion to the protocol. Finally, in Section 5 we draw

some conclusions, recall related work, and give direc-

tions for future work.

2 CIE ARCHITECTURE AND SMS

OTP AUTHENTICATION

CIE authentication uses the Security Assertion

Markup Language (SAML) 2.0 open standard (Lock-

hart and Campbell, 2008) for exchanging authentica-

tion and authorization identities between security do-

mains. The main parties involved are the CIE Iden-

tity Provider (IdP) and federated public administra-

tion Service Providers (SPs). The IdP authenticates

users and generates security assertions.

Informally, when a user logs in to a SP using CIE,

the SP: (1) generates a random operation ID; (2) gen-

erates a signed SAML Authn request for the login op-

eration (including the required security level); and (3)

redirects to the CIE IdP service with the Authn re-

quest as a parameter. The CIE IdP authenticates the

user at the level required by the SP and, after conﬁr-

mation, generates a matching signed SAML authenti-

cation assertion that the SP can validate.

All messages between the IdP server and the de-

vices involved in the login process are exchanged over

TLS (unless otherwise noted).

The CIE identity provider offers three distinct au-

thentication levels for secure online access:

Mobile In/Out

Computer

CIE IdP Server

Keyboard In

Display Out

TLS In/Out

SM In/Out

Mobile In/Out

CIE Smartcard

Mobile

User

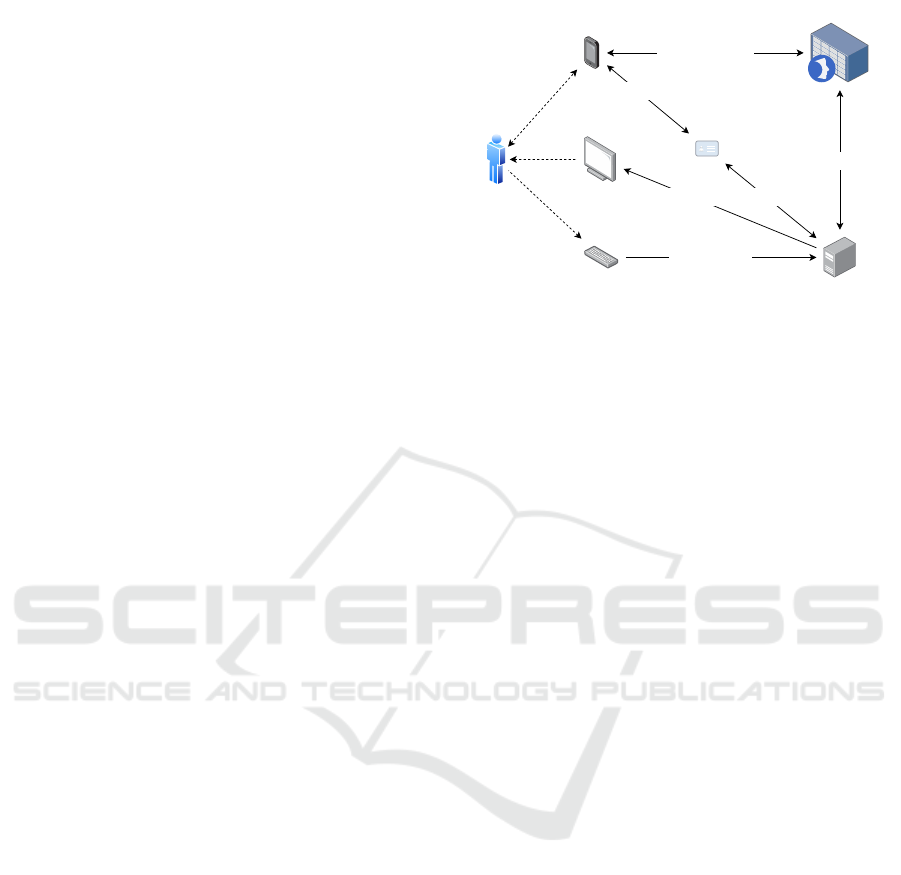

Figure 1: CIE system interface model.

Level 1 (Single Factor). Basic username and pass-

word login;

Level 2 (Two Factor). Authentication by means of

an one-time passcode (OTP) received via SMS, or

via the CieID app on a registered device. In the

second case, the second factor PIN must be en-

tered after receiving a push notiﬁcation or scan-

ning a QR code;

Level 3 (Two Factor with Smartcard). Authentica-

tion using the physical CIE smartcard and PIN.

Two options exist: using a dedicated USB NFC

card reader to interact with the smartcard or using

the CieID app on an NFC-enabled smartphone.

For optimal security, most service providers en-

force Level 2 or 3 multi-factor authentication, reserv-

ing Level 1 for low-risk scenarios with limited per-

sonal data involvement.

Following the approach used in (Jacomme and

Kremer, 2021), our analysis adopts a model where

devices, computers, servers, etc., are represented as

abstract sets of interfaces facilitating data input and

output. Each interface can be compromised indepen-

dently from the others, yielding many different attack

scenarios. The interface model for CIE is shown in

Figure 1, which we describe next.

The PC used by the user (here the computer) is

modelled by the following interfaces:

Display. Represents the user-facing screen, capable

only of data output;

Keyboard. Represents user’s input to the computer;

TLS. Represents encrypted communications with re-

mote entities like the IdP server. This interface of-

fers both input and output at once, because we as-

sume that attackers cannot compromise only one

direction (incoming or outgoing) of TLS sessions;

SM. Represents bidirectional communication with

the CIE smartcard via secure messaging (SM).

SECRYPT 2024 - 21st International Conference on Security and Cryptography

484

While the NFC reader connects through USB, SM

communication itself is encrypted and authenti-

cated. We consider the possibility of attackers

compromising the USB interface without affect-

ing SM sessions, necessitating its modelling as a

separate, potentially compromised interface.

For mobile devices, the diverse interfaces involved

in CIE authentication (SMS, TLS, NFC communica-

tion with the smart card, etc.) are condensed into a

single interface with both input and output capabili-

ties, as in (Jacomme and Kremer, 2021). This simpli-

ﬁes comparisons between different attack strategies

required to compromise the various protocols.

The Smartcard has two interfaces: the SM In/Out

with the PC, and the NFC In/Out with the mobile de-

vice. Although in the following we will not consider

authentication schemata using the smartcard, we in-

clude it in the model for sake of completeness.

The IdP server is represented by the TLS inter-

faces for communicating with the user’s computer,

and the interfaces (SMS or TLS) to communicate with

the mobile device.

Level 2 Authentication via SMS OTP. In this pa-

per we focus on the two-factor authentication scheme

L2SMS, which requires both knowledge of login cre-

dentials and ownership of the SIM card linked to the

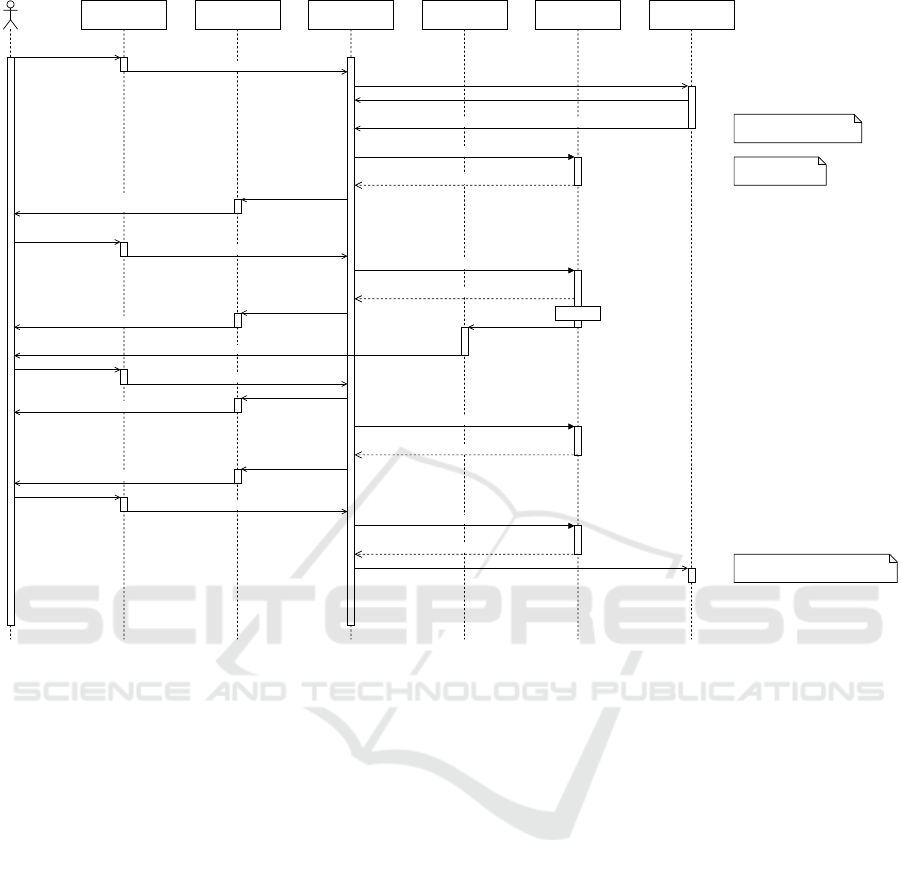

account. The sequence diagram is shown in Figure 2.

The user initiates the process by entering their

username and password, which are sent to the IdP

server over a TLS channel. Upon veriﬁcation, the

IdP server generates a unique OTP code, tied to the

speciﬁc login operation, and sends it via SMS to the

registered phone number. The user reads the OTP

code from the mobile device, and enters it on their

computer, which shows it on the computer screen and

transmits it to the IdP server for comparison. If the

codes match, the IdP server successfully completes

the two-factor authentication process.

3 FORMAL ANALYSIS OF L2SMS

In this section we analyse the L2SMS protocol un-

der various threat scenarios: the user’s password is

compromised, attackers possess varying levels of con-

trol over user devices via malware, and phishing at-

tempts might be successful. By simulating these

threats, the analysis comprehensively evaluates the ef-

fectiveness of this multi-factor approach in safeguard-

ing user accounts. The formal analysis has been con-

ducted within the symbolic Dolev-Yao model, as im-

plemented by ProVerif (Blanchet et al., 2016). The

formalization is available at (Van Eeden et al., 2024).

3.1 Threat Model

In this subsection we consider various ways in which

the attacker can compromise the interfaces of the CIE

architecture, following (Jacomme and Kremer, 2021).

A system compromise by an attacker can be rep-

resented by the level of control that the attacker has

acquired over the system’s interfaces, potentially in-

ﬂuencing data ﬂow through inputs and outputs. This

inﬂuence can be partial, in the sense that the attacker

may be able to only read from or write to speciﬁc

data streams within an interface, like its inputs or out-

puts. In a secure system, the attacker does not have

access to any interface, neither in writing nor in read-

ing. Conversely, in a fully compromised system, the

attacker possesses read-write access on all interfaces.

We observe that in general, gaining write access to

a system interface is more difﬁcult than simply read-

ing data: writing to an interface requires higher priv-

ileges or the exploitation of speciﬁc vulnerabilities,

whereas reading data demands less elevated permis-

sions. As a consequence, while vulnerabilities grant-

ing write-only access do exist, they are uncommon,

and do not apply to the CIE: in our model, once an

attacker gains write access, it has also read access to

the interface. This aligns with the general principle

that passive attacks are easier than active attacks.

In the light of these observations, the control that

an attacker can gain over a given interface can be clas-

siﬁed into these levels:

• in:RO: attacker has acquired read-only access to

data ﬂowing into the interface;

• in:RW: attacker has acquired read-write access to

data ﬂowing into the interface;

• out:RO: attacker has acquired read-only access to

data ﬂowing out the interface;

• out:RW: attacker has acquired read-write access

to data ﬂowing out the interface.

We can denote by A

d:a

the level of control exercised

by an attacker over the interface if , where:

• d ∈ {in, out,io} represents the direction which the

attacker gains control over: the input (in) or the

output (out). We use io as a shorthand to denote

both directions;

• a ∈ {RO,RW} represents the access control ac-

quired by the attacker: read-only (RO) or read-

write (RW).

Then, a threat scenario S where the attacker ac-

quires access control levels d

,...,d

on inter-

faces if

,. . . ,if

respectively, is represented by the set

S = {A

,. . . ,A

A Formal Analysis of CIE Level 2 Multi-Factor Authentication via SMS OTP

485

Computer CIE IdP Server

new OTP

SP Server

SPInfo = <SPName,

SPLogo>

SP Server

SAMLRequest = <opId, level,

SPName, ...>

SAMLResponse

SAMLResponse = <authData,

sign(hash(authData), CIEServerKey), ...>

confirm login

confirm login to {SPName}?

Mobile+SIM

OTP

status, session, SPName

request OTP

Keyboard Screen

username, password

request OTP

confirm login to {SPName}?

confirm login

OTP

session, CONFIRM LOGIN

SAMLResponse

username, password

status

OTP

request username, password

for level {level}

username, password

SAMLRequest, sign(hash(SAMLRequest), SPServerKey)

...

opId, level, SPInfo

SAMLRequest, sign(hash(SAMLRequest), SPServerKey)

request username, password

for level {level} login to {SPName}

SP Server

OTP

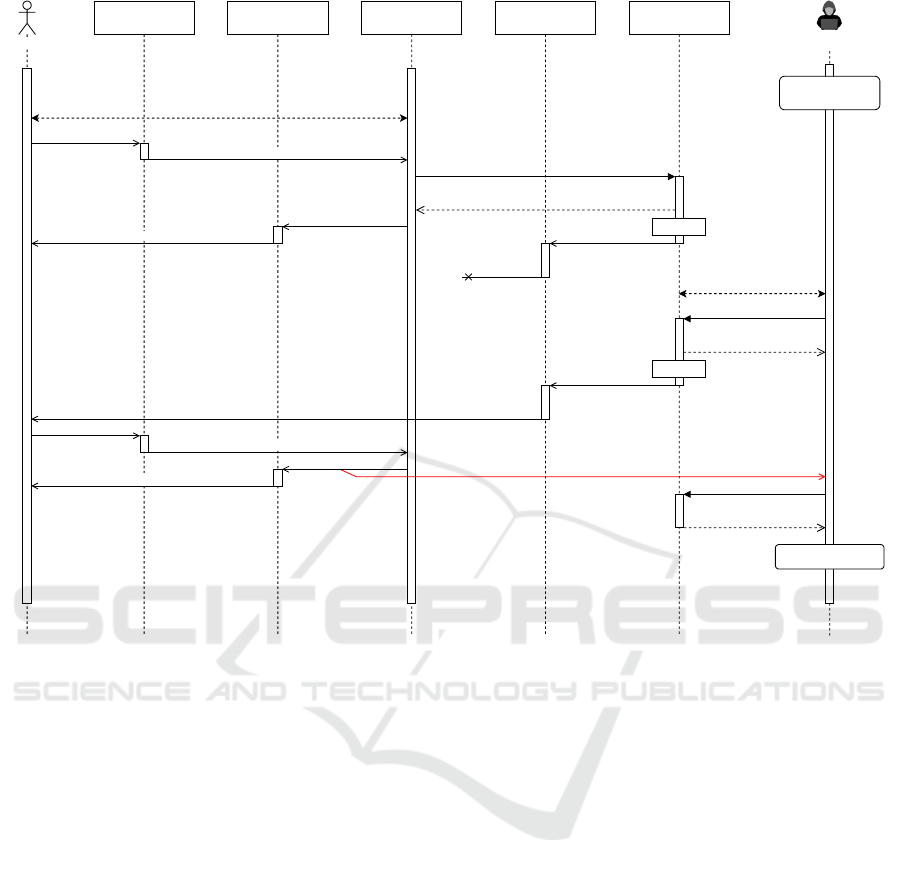

Figure 2: Sequence diagram of L2SMS, the CIE level 2 authentication via SMS OTP protocol.

As an example, {A

displ

out:RW

mobile

in:RO

} represents the

scenario where the attacker can both read and display

arbitrary content on the computer screen, and read

messages received by the mobile device.

In principle, all combinations of read-only/read-

write access on the various interfaces are possible;

for our CIE model, this would yield a plethora of

over 2,000 attack scenarios of different granularity

and severity. Actually, we can reduce this complexity

by observing that acquiring control over an interface’s

output is generally more challenging than controlling

its input, due to the different execution privileges re-

quired for each action. For example, reading inputs

from a USB keyboard often only requires user-mode

code execution, while intercepting or modifying data

sent over USB by another program requires elevated

privileges (e.g., admin access) or the exploitation of

speciﬁc vulnerabilities in the target system.

In the light of this observation, the control ac-

cess levels can be ordered according their strength

(and hardness to achieve): out:RW is stronger than

both out:RO and in:RW; both out:RO and in:RW are

stronger than in:RO, which is stronger than no control

access at all. This deﬁnes a preorder ⪯ on the set of

control access levels: ℓ

⪯ ℓ

means that achieving the

access level ℓ

implies achieving also the access level

ℓ

. Overall, the order between levels is as follows,

where ⊤ represents no access.

out:RW

io:RW

in:RW

out:RO

io:RO

in:RO

⊤

≺

where ℓ

= ℓ

means ℓ

⪯ ℓ

and ℓ

⪯ ℓ

, and ℓ

≺ ℓ

means ℓ

⪯ ℓ

and ℓ

̸= ℓ

This order can be extended to scenarios in the nat-

ural way: S

⪯ S

if and only if, for all A

ℓ

∈ S

there exists A

ℓ

∈ S

such that ℓ

⪯ ℓ

. The order is

strict, denoted as S

≺ S

, when S

⪯ S

and S

̸= S

Clearly, we have the following properties:

• If the protocol is secure in scenario S , then it is

secure in every scenario S

′

such that S ⪯ S

′

• Conversely, if a protocol is vulnerable in scenario

S , then it is vulnerable in every scenario S

′

⪯ S .

SECRYPT 2024 - 21st International Conference on Security and Cryptography

486

These properties enable efﬁcient analysis by reducing

the scope of scenarios. If an attack is found in a given

scenario, we can skip analysing stronger ones. Con-

versely, a veriﬁed secure protocol in a scenario does

not require checking in weaker ones. This reduces the

number of scenarios to analyse to less than 270.

A particular case is that of TLS channels, used by

all CIE protocols to securely communicate with the

servers. The formalisation of TLS is out of the scope

of this paper (see e.g. (Bhargavan et al., 2017)). Here

we adopt a simpliﬁed model assuming the essence of

TLS (secrecy, authentication, and order protection)

while permitting message blocking or delays by at-

tackers. The only meaningful access levels for TLS

are io:RO and io:RW, because once an attacker gains

access to one direction of a TLS channel, it can access

also the other one. Furthermore, we consider also the

possibility that the attacker can initiate TLS sessions

with legitimate servers, and impersonate an IdP server

for unsuspecting clients.

Phishing. Human errors and social engineering tac-

tics remain signiﬁcant threats to multi-factor authen-

tication systems, even with robust protocols. Hence,

evaluating the resilience of CIE’s multi-factor authen-

tication against incorrect user actions is crucial.

Phishing attacks are modelled similarly to (Ja-

comme and Kremer, 2021), but we exclude the possi-

bility of omitting ﬁngerprint comparisons because the

CIE authentication process never visually displays the

ﬁngerprint of the device attempting login—and hence

ﬁngerprint comparisons is not an option.

With phishing attacks growing more sophisticated

and diverse, employing a wider range of tools like

SMS, calls, websites, etc., untrained users become in-

creasingly vulnerable. They may unknowingly grant

access to malicious replicas of services or reveal sen-

sitive information like OTP codes. This risk is mod-

elled in simulated phishing scenarios by allowing the

attacker to control the targeted server, i.e., the server

that the user will initiate authentication with.

To minimize phishing risks the CieID app shows

a three-second warning message urging users to com-

pare the displayed URL with the ofﬁcial CIE IdP

URL. However, the possibility of users disregarding

this warning remains a concern. Even with this safe-

guard, advanced techniques like IDN homograph at-

tacks can deceive users into believing a fraudulent

page is genuine (Holgers et al., 2006). However, these

countermeasures do not apply to Level 2 authentica-

tion via SMS OTP, which is always available anyway.

Formally, the presence of a phishing attack is de-

noted by including the special attack symbol PH in

the attack scenario.

3.2 Formalization in ProVerif

In this subsection we brieﬂy describe the formaliza-

tion of the L2SMS protocol and the interface model,

in ProVerif, a state-of-the-art tool for the veriﬁcation

of security protocols. For an introduction to this tool,

we refer the reader to (Blanchet et al., 2016).

Within a system, each interface can be mod-

elled as a pair of private channels, one for input

and one for output (Jacomme and Kremer, 2021).

To simulate an attacker gaining read-only access

to such an interface, we expose on a publicly ac-

cessible channel all message names that are trans-

mitted through the corresponding private channels,

during the execution of the protocol. Formally,

let iface represent a secret interface channel and

public represent a public channel accessible to the

attacker. Granting the attacker read-only access to

the interface is equivalent to transforming each in-

stance of out(iface, message) into out(public,

message); out(iface, message) and each in-

stance of in(iface, message) into in(iface,

message); out(public, message). In contrast,

granting the attacker read-write access to the channel

involves divulging the private channel name itself to

the attacker, effectively handing over complete con-

trol of the communication channel.

The secure and authenticated communication via

TLS channels is modelled using a specialized func-

tion TLS(id, id):channel. To ensure legitimacy,

only authorized parties can access this function to ob-

tain unique channel names. When establishing a TLS

connection, one of the participating hosts generates a

fresh session name, attaching it to all subsequent mes-

sages to prevent mixing data across different sessions.

However, as ProVerif’s private channels are typ-

ically synchronous, this model would not allow the

attacker to block or delay messages. To address this

limitation, each TLS channel is extended with the in-

terleaving concurrency semantics using the “parallel”

operator from the π-calculus, allowing the attacker to

manipulate the execution order of processes, thus sim-

ulating message interception or delays.

Moreover, in order to grant the attacker the abil-

ity to always initiate TLS sessions with the Identity

Provider (IdP) server, a dedicated TLS manager pro-

cess publicly discloses the channel names where one

of the two parties involved is under attacker control.

To simulate phishing attacks, the model retrieves

the target server URL from a publicly accessible

channel. This represents potentially compromised on-

line sources susceptible to manipulation. Normally,

a diligent human user would compare the obtained

URL with the legitimate IdP server’s known address.

A Formal Analysis of CIE Level 2 Multi-Factor Authentication via SMS OTP

487

However, in scenarios simulating phishing attacks,

the model assumes that the human victim to the de-

ception bypasses this veriﬁcation step.

The main property under consideration is the in-

jective correspondence between accesses made by a

speciﬁc device to the account and the login attempts

initiated by the user on that device: each successful

access on the device must match a distinct login at-

tempt initiated by the user on the same device.

The L2SMS protocol has been tested under every

possible combination of malware and human threat

scenarios. Overall, these combinations lead to 270

possible scenarios. The ProVerif code corresponding

to each of these scenarios is automatically generate

by means of the m4 macro processor (Kernighan and

Ritchie, 1977). A set of preprocessor deﬁnitions has

been associated with each level of malware interface

access and human threat; the necessary checks and

reveals are automatically generated based on the sup-

plied deﬁnitions. A Python script iterates over the set

of all possible combinations of scenarios, and invokes

m4 and ProVerif as necessary.

To avoid unnecessary computations, we skip the

veriﬁcation of instances where the result is entirely

implied by weaker or stronger scenarios. Namely,

we skip scenarios where the results are already deter-

mined by others with either more attacker capabilities

(stronger control of the system) or increased user vul-

nerabilities (exposed to additional threats).

3.3 Results

While the L2SMS protocol offers an additional layer

of protection against unauthorized access compared

to relying solely on passwords, its security raises

some concerns. Table 1 shows the results of our for-

mal analysis of the L2SMS authentication schema;

the corresponding ProVerif formalizations are avail-

able at (Van Eeden et al., 2024).

While brute-force attacks using stolen creden-

tials might be deterred, L2SMS falls short against

more sophisticated techniques. Even relatively sim-

ple malware like USB keyloggers can compromise

the system if they can intercept the one-time pass-

codes (OTPs) sent via SMS. Any attacker capable of

capturing these codes essentially holds the key to by-

passing L2SMS authentication, rendering it ineffec-

tive against such threats.

As an example, an attack trace for the A

displ

out:RO

sce-

nario (corresponding to, e.g., the presence of a screen

capturing software) has been found by ProVerif; a se-

quence diagram describing this attack is shown in Fig-

ure 3. In this case, an attacker may initiate a login

attempt shortly after the user; to proceed with the le-

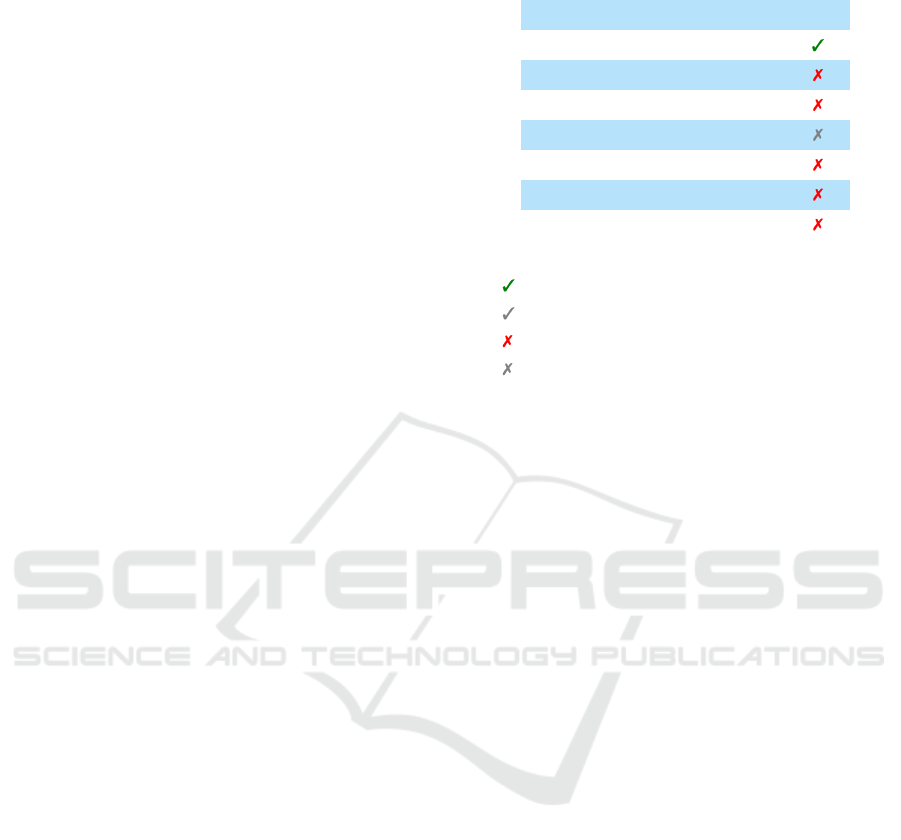

Table 1: Analysis results under different threat scenarios.

Threat Scenario L2SMS

mobile

in:RO

displ

out:RO

displ

out:RW

usb

in:RO

tls

io:RO

Results:

• correctness proven

• correctness proven in a stronger scenario

• attack found

• attack found in a weaker scenario

Scenarios:

• PH: Phishing

• A

d:a

: Attacker control over a system interface, where:

– if is the name of the system interface

– d represents control over interface’s inputs (in), out-

puts (out) or inputs and outputs (io)

– a represents the access control over the interface:

read-only (RO) or read-write (RW)

gitimate login attempt, the user may enter the OTP

code relative to the malicious login attempt (mistak-

ing it for the code relative to the legitimate login at-

tempt), causing it to be reproduced on the computer

display as it is typed (the OTP input ﬁeld is not hid-

den). An attacker with A

displ

out:RO

access and knowing

only the credentials for level 1 access, would then be

able to obtain a copy of the OTP code and success-

fully authenticate as the user at level 2.

Due to the time-sensitive nature of the attack (i.e.

there is a limited time window between OTP display

and transmission to the IdP server), an attacker could

achieve greater success by also manipulating message

delivery. This manipulation could involve delaying or

entirely dropping the message by, e.g., disrupting the

network connection utilized by the computer.

Additionally, the choice of SMS communication

introduces inherent weaknesses compared to the TLS

channels employed by other protocols. This exposes

L2SMS to a wider range of potential attacks. SIM

swapping attacks, where an attacker gains control of a

victim’s phone number by transferring it to a different

SIM card, pose a signiﬁcant risk. Moreover, on older

UMTS and GSM networks L2SMS might be suscepti-

ble to SS7 attacks exploiting vulnerabilities in the sig-

nalling system and even weaker encryption schemes

SECRYPT 2024 - 21st International Conference on Security and Cryptography

488

Computer

OTP'

User

CIE IdP Server

new OTP

username, password

(se0) username, password

(se0) status

Mobile+SIM

OTP

request OTP

(complete auth request,

establish login session se0)

(complete auth request,

establish login session se1)

(se1) OTP'

(se1) status, session

(se1) username, password

(se1) status

OTP'

Attacker

Attacker authenticated

Knows: username,

password

OTP

Screen

OTP'

Keyboard

OTP'

username, password

request OTP

OTP'

(Display OUT RO)

Figure 3: Overview of the L2SMS attack in scenario A

displ

out:RO

of the attack trace found by ProVerif.

employed in these networks (Ullah et al., 2020).

Interestingly, according to our model, the imple-

mentation of L2SMS does not offer an advantage

when dealing with malware controlling the computer

display. This stems from the fact that, while not re-

quiring users to scan codes displayed on the computer

screen (relying solely on SMS communication with

the mobile device), the OTP is shown to the user via

the display channel. This makes it vulnerable to at-

tacks exploiting compromised computer displays.

Despite the generally stronger security guarantees

offered by other level 2 protocols, users currently lack

the option to disable L2SMS logins even after regis-

tering other CieID authenticator devices. This means

that even if users opt for more secure protocols, a

compromised L2SMS remains a potential backdoor

for attackers. Furthermore, the process of associating

new devices for L2APP itself relies on an authentica-

tion scheme essentially equivalent to L2SMS, raising

concerns about its overall effectiveness as an upgrade.

The most concerning aspect of L2SMS is its po-

tential to undermine the security beneﬁts of other

protocols. If an attacker successfully compromises

L2SMS, they gain access to the account regardless of

whether other, more robust protocols are also imple-

mented. This essentially negates the added security

assurances those protocols provide, exposing the en-

tire system to increased risk.

4 PROTOCOL IMPROVEMENT

In this section we propose an improvement of the

L2SMS protocol that addresses the vulnerability on

the display channel, discovered in the previous analy-

sis. We call this improved version L2SMS*.

It is important to notice that while MFA using

SMS OTP offers an additional layer of security com-

pared to no MFA at all, it has some inherent weak-

nesses. If the communication channel between the

user and the service provider is not properly secured

with TLS, attackers could potentially intercept the

SMS code during transmission, rendering MFA use-

less. Similarly, malware or physical access to the

user’s mobile phone could allow attackers to steal

the incoming SMS code even before the user sees it.

Finally, keyloggers installed on the user’s computer

A Formal Analysis of CIE Level 2 Multi-Factor Authentication via SMS OTP

489

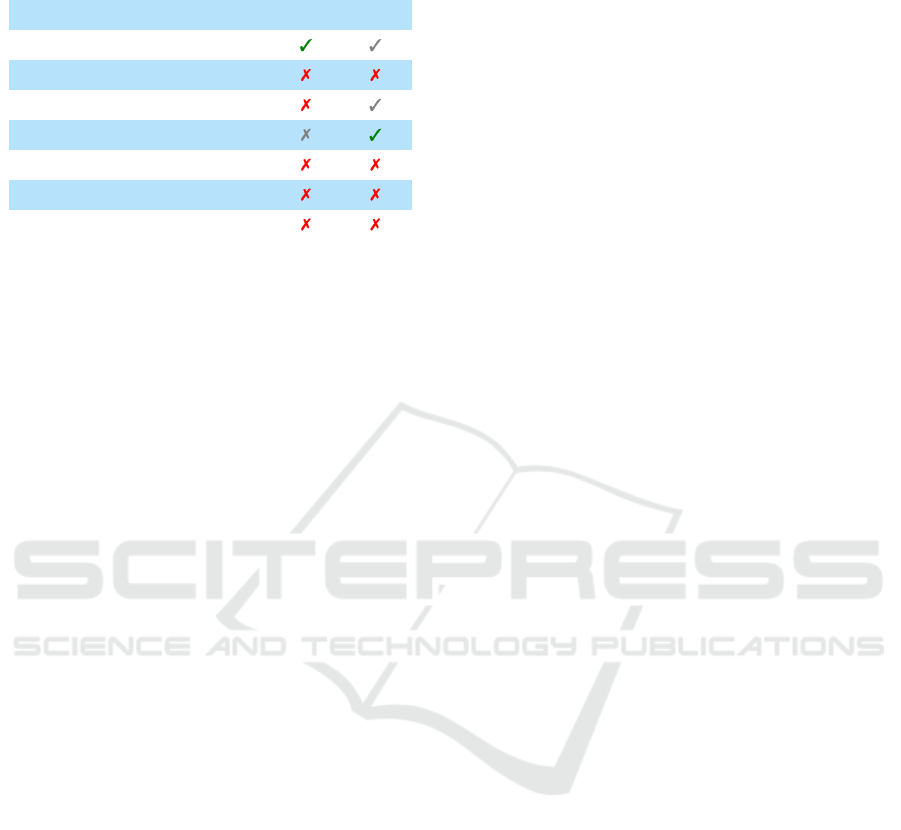

Table 2: Comparison with the improved protocol. See Ta-

ble 1 for the legend.

Threat Scenario L2SMS L2SMS*

mobile

in:RO

displ

out:RO

displ

out:RW

usb

in:RO

tls

io:RO

could capture any information typed, including the

SMS code entered for authentication.

However, all these weaknesses are not easily ex-

ploited. Communication channels can be secured by

correctly setting up TLS communications (e.g., cer-

tiﬁcates are properly veriﬁed); SMS transmission se-

curity depends on the telecommunication operator,

and hence it is outside our control; hardware keylog-

ger require physical access to the user’s PC, and the

implantation of software keyloggers requires admin-

level access to the system.

Therefore, in securing L2SMS we prioritize the

display channel. The attack shown in Figure 3 reveals

that L2SMS is vulnerable because the computer dis-

plays the OTP code on the user’s screen. This exposes

the OTP code to attackers with read-only screen ac-

cess, e.g. using screen sharing software or performing

“shoulder surﬁng”, allowing these attackers to steal

the code and gain unauthorized access.

To address this vulnerability, we propose a simple

variant of L2SMS, called L2SMS*, without the step

where the OTP code is shown on the user’s screen.

More formally, L2SMS* is obtained from L2SMS by

omitting the unnecessary OTP display output after the

user keyboard input.

The veriﬁcation of this protocol yields the results

presented in Table 2. Consistent with expectations,

the previously identiﬁed vulnerability has been effec-

tively mitigated: an attacker with read-only or read-

write access to the display channel cannot gain unau-

thorized access. Additionally, no further concerns

have been identiﬁed up to our model. Therefore, the

veriﬁcation process yields a positive outcome.

From an implementation point of view, there are

serveral strategies to prevent attackers from observing

the OTP as the user types it. One approach is to com-

pletely avoid providing any feedback during the input

process. This means the user will not see any charac-

ters displayed on the screen, offering no clues to the

attacker. Another option is to echo asterisks or bul-

lets instead of the actual digits as they are typed. This

provides some basic user conﬁrmation while keeping

the actual code hidden from potential observers.

5 CONCLUSIONS

In this work we have studied the CIE architecture

and its multi-factor authentication protocol based on

SMS. First we have given an interface architecture for

the CIE authentication process. Over this architecture

we have deﬁned a new threat model which takes into

account threats such platform compromised by mal-

ware (at various degrees), wrong user behaviour (e.g.,

by phishing), and message delay or dropping. Then,

we have carried out a systematic and extensive secu-

rity analysis of the level 2 CIE multi-factor authenti-

cation via SMS OTP (L2SMS) under a multitude of

attack scenarios. This analysis, carried out using the

ProVerif tool, has shed light on potential weaknesses

within the speciﬁc protocol. In particular, we have

found that L2SMS is vulnerable to an attacker with

mere read-only access to the user’s computer display.

From the generated attack trace, we have suggested

a viable improvement of the protocol, L2SMS*, to

strengthen the security of the system. The formal

analysis of the improved protocol shows that the vul-

nerability has been successfully tackled.

Our exploration has provided valuable insights

and paves the way for further in-depth analysis of the

remaining protocols within the system. Moreover, the

methodology we have followed in this work can be

applied to the analysis of other digital identity tools.

Related Work. Multi-factor authentication (MFA)

protocols play a crucial role in securing online iden-

tities and transactions. A signiﬁcant body of research

has explored various aspects of MFA security.

(Jacomme and Kremer, 2021) present an exten-

sive formal analysis of MFA protocols, with an au-

tomated, systematic generation of all combinations of

threat scenarios and using ProVerif for automated pro-

tocol analysis. Their work highlights the importance

of rigorous veriﬁcation to identify potential vulnera-

bilities. Our approach builds upon this foundation by

proposing an interface-based threat model speciﬁcally

tailored to CIE’s architecture.

The survey by (Sharif et al., 2022) examines tech-

nological trends in electronic identity schemes com-

pliant with the eIDAS regulation. It emphasizes the

growing adoption of hardware security tokens as a

second authentication factor, aligning with the strong

security posture of CIE’s Level 3 authentication. Our

work focuses on the Level 2 protocols, which are

more widely used in current applications.

SECRYPT 2024 - 21st International Conference on Security and Cryptography

490

The survey by (Sinigaglia et al., 2020) examines

the adoption of MFA for online banking in practice.

In particular, they report that the usage of out-of-band

authentication via SMS has been deprecated by the

guidelines provided by security organizations (e.g.,

(NIST, 2020)), since many attacks have targeted this

authentication method to acquire sensitive data for

MFA. Our analysis of L2SMS vulnerabilities con-

ﬁrms this trend, and contributes to a broader under-

standing of potential security risks associated with

SMS-based MFA in real-world deployments.

Future Work. We are currently working on formal-

izing and verifying all the other multi-factor proto-

cols available for level 2 and level 3 CIE authenti-

cation. Looking forward, several promising research

directions emerge. Firstly, we would like to evaluate

the resistance of smartphone-based login protocols to-

wards attacks, considering the unique security models

of popular mobile platforms. Secondly, we would like

to assess the vulnerability of available CIE smartcards

to side-channel attacks, where unintended informa-

tion leakage occurs. Finally, verifying the adherence

to security best practices of the implementation of of-

ﬁcial CIE authentication, to minimize potential attack

vectors, can be a interesting research topic. By pur-

suing this research, we can continue to strengthen the

security and reliability of CIE multi-factor authentica-

tion, safeguarding sensitive user data and transactions

in the digital realm.

On a different direction, the interface-access threat

model could be applied to other contexts. A par-

ticularly intriguing case is that of containers, since

they have already a well-deﬁned notion of interface

through which they can interact. We plan to integrate

the interface-access threat model to formal models of

container compositions, such as (Burco et al., 2020).

ACKNOWLEDGEMENTS

This research has been partially supported by the De-

partment Strategic Project of the University of Udine

within the Project on Artiﬁcial Intelligence (2020-

25), and the project SERICS (PE00000014) under the

NRRP MUR program funded by the EU-NGEU.

We have contacted the Italian National Cyberse-

curity Authority (ACN https://www.acn.gov.it) about

the results of this research. Moreover, during our

analysis we discovered an Insecure Direct Object Ref-

erence vulnerability that allowed for second-factor

bypass (level 1 downgrade attack) during CIE authen-

tication. We want to thank the ACN for promptly

patching the system after receiving our report.

REFERENCES

Bhargavan, K., Blanchet, B., and Kobeissi, N. (2017). Ver-

iﬁed models and reference implementations for the

TLS 1.3 standard candidate. In 2017 IEEE Sympo-

sium on Security and Privacy (S&P), pages 483–502.

Blanchet, B. et al. (2016). Modeling and verifying security

protocols with the applied pi calculus and ProVerif.

Foundations and Trends® in Privacy and Security,

1(1-2):1–135.

Burco, F., Miculan, M., and Peressotti, M. (2020). Towards

a formal model for composable container systems. In

Proceedings of the 35th Annual ACM Symposium on

Applied Computing, pages 173–175.

EU Parliament and Council (2014). Regulation (EU) no

910/2014. https://eur-lex.europa.eu/legal-content/EN/

TXT/?uri=uriserv:OJ.L .2014.257.01.0073.01.ENG.

Holgers, T., Watson, D. E., and Gribble, S. D. (2006). Cut-

ting through the confusion: A measurement study of

homograph attacks. In USENIX Annual Technical

Conference, pages 261–266.

Italian Ministry of the Interior (2024). Carta d’identit

elettronica ofﬁcial website. https://www.cartaidentita.

interno.gov.it/en/home/.

Jacomme, C. and Kremer, S. (2021). An extensive for-

mal analysis of multi-factor authentication protocols.

ACM Transactions on Privacy and Security (TOPS),

24(2):1–34.

Kernighan, B. and Ritchie, D. (1977). The m4 macro pro-

cessor. Technical report, Bell Laboratories, NJ.

Lockhart, H. and Campbell, B. (2008). Security assertion

markup language (SAML) v2.0 technical overview.

OASIS Committee Draft, 2:94–106.

NIST (2020). Digital identity guidelines: Authentication

and lifecycle management. Special Publication 800-

63B. https://doi.org/10.6028/NIST.SP.800-63b.

Sharif, A., Ranzi, M., Carbone, R., Sciarretta, G., and

Ranise, S. (2022). SoK: A survey on technologi-

cal trends for (pre) notiﬁed eIDAS electronic identity

schemes. In Proceedings of the 17th International

Conference on Availability, Reliability and Security,

pages 1–10.

Sinigaglia, F., Carbone, R., Costa, G., and Zannone, N.

(2020). A survey on multi-factor authentication for

online banking in the wild. Computers & Security,

95:101745.

Ullah, K., Rashid, I., Afzal, H., Iqbal, M. M. W., Ban-

gash, Y. A., and Abbas, H. (2020). Ss7 vulnerabili-

ties—a survey and implementation of machine learn-

ing vs rule based ﬁltering for detection of ss7 network

attacks. IEEE Communications Surveys & Tutorials,

22(2):1337–1371.

Van Eeden, R., Paier, M., and Miculan, M. (2024). Analysis

of CIE Level 2 SMS OTP authentication protocol in

ProVerif. Available at https://doi.org/10.5281/zenodo.

10657295.

A Formal Analysis of CIE Level 2 Multi-Factor Authentication via SMS OTP

491
