Using NetLogo to Simulate Large Production Plants: Simulation

Performance: A Case Study

M. Umlauft

and M. Schranz

Lakeside Labs GmbH, Klagenfurt, Austria

Keywords:

Netlogo, Simulation Performance, Agent-Based Modeling, Flexible Job-Shop Scheduling.

Abstract:

NetLogo is a well-known agent-based modeling and simulation platform. While it is very popular in education,

it is still often perceived as having bad performance for large models, which is due to performance related

issues in early implementations. We show that over time, a quite large number of scientiﬁc papers have been

published using NetLogo and measure its performance on a common laptop a researcher or student might have

as a personal machine. We use a NetLogo model with about 2500 lines of code and up to 10000 agents to

perform our measurements and show that even with such an underpowered machine, with current versions of

NetLogo it is quite possible to run simulations of larger models in reasonable simulation time.

1 INTRODUCTION

The agent-based simulation platform Net-

Logo (Wilensky, 1999) is one of the most widely used

tools for the simulation of self-organized systems.

It is open source with a good documentation and

regular updates with on average two versions per

year since 2002

. The mature code base is actively

maintained, offers many extensions including a

Python interface and comes with a vast collection of

models in a library. NetLogo is well known for its

usage in education, but also got popular as a research

tool for agent-based modeling and complex systems

especially because of its ease of use that made it a

low-entry tool for researchers who “are not profes-

sional programmers” (Tisue and Wilensky, 2004)

– this was one of the explicitly stated goals of the

NetLogo developers. While highly accessible, older

versions had performance problems for large models,

which often required re-implementation in more

high-performing computer languages (eg. C++). In

the last decade, though, performance has been greatly

improved; in 2017 and 2019 respectively, (Railsback

et al., 2017; Railsback and Grimm, 2019) showed

that newer versions of NetLogo have the ability to

https://orcid.org/0000-0002-0118-2817

https://orcid.org/0000-0002-0714-6569

The versions of NetLogo: https://ccl.northwestern.

edu/netlogo/oldversions.shtml

perform simulations of several thousand agents in

large spaces within feasible computation time.

Execution speed, sophisticated and highly opti-

mized algorithms and having most of the code com-

piled instead of interpreted in current versions, makes

the platform now feasible to execute thousands of

model runs (Railsback et al., 2017). The increased us-

age of NetLogo as the simulation platform of choice

for agent-based simulation is reﬂected in the number

of research papers which exceed 3,000 in the last 10

years

The results of Railsback et al. (Railsback et al.,

2017) motivated us to the test the performance of

current versions of NetLogo using our implemented

framework SwarmFabSim (Umlauft et al., 2022) as a

test case. SwarmFabSim is designed for simulations

of bottom-up swarm intelligence algorithms in large

production plant environments. The original use-case

of SwarmFabSim is the simulation of a Semiconduc-

tor production plant, based on the requirements of

a leading semiconductor manufacturer, namely, Inﬁ-

neon Technologies

. In particular, we consider the so-

called front end of line processing where the wafers

are processed to create ICs. Typical process steps

include lithography, doping, oxidation, etching, and

measuring (Geng, 2018). There are between 400 and

1200 different stations that need to be scheduled in

such a production plant (fab). They typically produce

https://ccl.northwestern.edu/netlogo/references.shtml

https://www.inﬁneon.com

Umlauft, M. and Schranz, M.

Using NetLogo to Simulate Large Production Plants: Simulation Performance: A Case Study.

DOI: 10.5220/0012768800003758

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 14th International Conference on Simulation and Modeling Methodologies, Technologies and Applications (SIMULTECH 2024), pages 297-304

ISBN: 978-989-758-708-5; ISSN: 2184-2841

297

more than 1500 different products in around 300 dif-

ferent process steps.

Our paper does not focus on general techniques

of speeding up simulation time, such as using parallel

runs, instead, we showcase the performance of cur-

rent Netlogo implementations by using the example

of a large framework simulating Semiconductor fabs.

We measure the simulation runtime without visual-

izations for several large models comprising of about

2500 lines of code, using a conceptual, but realisti-

cally sized fab scenario. The simulations are run on a

typical laptop a researcher or student might have ac-

cess to. The paper is organized as follows:

• Related work is shown in Section 2.

• We then describe why we deem Netlogo a suit-

able platform for our ABM simulation and de-

scribe our framework, the architecture, the used

algorithm and log ﬁle output for our performance

test.

• We then show our test setup and the performance

analysis of simulation time on a common laptop

in Section 4.

• The paper is concluded in Section 5.

2 RELATED WORK

In research and in industry, there exist typical tools

for discrete event process ﬂow simulation of a fab

speciﬁc to the application type. The semiconductor

industry uses, e.g., AutoMod / AutoSched AP

or D-

Simlab/D-Simcon

. The level of detail to simulate

ﬂexible job-shop scheduling is very high, and they

do not support ABM. Beside semiconductor-speciﬁc

simulation tools, there exist tools developed not for a

certain application domain. A ranked list of discrete

simulation software platforms for commercial use can

be found in Dias et al. (Dias et al., 2016).

Employing Agent-Based Modeling (ABM) for

swarm algorithms is more suitable than utilizing sys-

tem dynamics simulation (stock and ﬂow) or contin-

uous simulation using differential equations (Umlauft

et al., 2022). In ABM, a swarm is composed of in-

dividual members that can be represented as agents.

These agents follow local rules, interact with other

agents and their environment. There is a set of spe-

ciﬁc guidelines given by Wilensky and Rand, when

to use ABM. The reader is referred to their publica-

tion in (Wilensky and Rand, 2015) as this topic is

out of the scope of this paper. Numerous authors

https://automod.de/autosched-ap/

http://www.d-simlab.com/

have already demonstrated the conceptual application

of ABM to job-shop production simulation. For in-

stance (Zhang et al., 2019) illustrate this concept in

their work. Furthermore, speciﬁc implementations

utilizing multi-agent systems in manufacturing sys-

tems have been explored, as exempliﬁed in the study

of (Shukla, 2018).

For ABM simulation many tools and platforms

exist for the simulation of the job-shop scheduling

problem. A comprehensive overview is given in e.g.,

CoMSES Net / OpenABM

and (Abar et al., 2017)

for various application domains. We selected a list of

most commonly used ABM simulation tools:

Anylogic is a commercially available platform that

supports various modeling modes including sys-

tem dynamics, process-centric discrete event

modeling, and ABM. Besides manufacturing,

other industries like supply chain, transportation

and logistics have it commonly in use

MARS is a C# framework and stands for Multi-

Agent Research and Simulation. Developed as

an academic project at the Department of Com-

puter Science at Hamburg University of Applied

Sciences in Germany at

MARS provides tools

for multi-agent research and simulation.

Mason is a collaboration between George Mason

University (USA) and Università degli Studi di

Salerno (Italy). It serves as an ABM simulation

core developed in Java, providing a framework for

creating custom simulations. Mason includes sup-

port for both, 2D and 3D visualization tools. As

of the time of writing this paper, it continuous to

receive active support and development

Mesa is a is an open-source modular framework for

ABM simulation developed in Python. Its pri-

mary objective is to serve as a Python 3-based

alternative to NetLogo, Repast, or Mason. The

Python-based architecture enables seamless inte-

gration with the corresponding data analysis tools.

Mesa has been under development since 2015,

and as of the time of writing this paper, contin-

uous to receive active support

Repast is a family of three distinct open source ABM

toolkits built on Java, C++, and Python. With over

15 years of development, these toolkits offer ro-

bust capabilities for ABM simulation

https://www.comses.net/resources/

modeling-frameworks/

https://www.anylogic.com/

https://www.mars-group.org/

https://cs.gmu.edu/~eclab/projects/mason/

https://mesa.readthedocs.io/en/latest/

https://repast.github.io/

SIMULTECH 2024 - 14th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

298

In this publication we decided to use Net-

Logo (Wilensky, 1999) for ABM simulation, an open-

source tool based on the language Logo. As already

mentioned in the introduction of this paper, the code

base has been consistently maintained for more than

20 years, the platform is well documented and offers

many extensions to other libraries and tools that were

extensively tested.

In the literature we can ﬁnd several examples

where researchers used NetLogo for production pro-

cesses. One example is shown in (Gwiazda et al.,

2020) where the authors implement a multiple ant

colony approach that solves the job shop problem.

The authors in (Habib Zahmani and Atmani, 2021)

offer a specialized framework, demonstrating the cre-

ation of a NetLogo simulation tailored for job shop

problems with predeﬁned job and machine values. In

addressing the algorithmic aspect, they employ a ge-

netic algorithm to uncover optimal allocations of dis-

patching rules. The connection of ABM in NetLogo

with Matlab was performed in (Alves et al., 2018)to

exchange scheduling solutions. Their hybrid algorith-

mic approach addresses the job shop scheduling prob-

lem by combining optimization techniques with dy-

namically negotiating agents.

Speciﬁcally concerning the performance of Net-

Logo, the literature lacks comprehensive tests and

simulation runs to conduct evaluations in this re-

gard. The research conducted by Railsback et al.

(Railsback et al., 2017; Railsback and Grimm, 2019)

demonstrated that newer versions of NetLogo pos-

sess the capability to performs simulations involv-

ing several thousand agents within large spaces, all

within reasonable computation times. Additionally to

that, (Railsback et al., 2017) offers strategies to op-

timize the coding strategy in NetLogo, e.g., how to

enhance the efﬁciency of agent ﬁltering statements

by utilizing global agentsets, and how to use the Be-

haviorSpace for experiments to achieve an improved

performance in simulation experiments. Beside the

most cited work of (Railsback et al., 2017), in (An-

telmi et al., 2022) NetLogo exceeds the expectations

in all evaluated models (incl. Flocking and Forest-

Fire), demonstrating strong efﬁciency and scalability.

According to their results and discussion, NetLogo

achieves moderate to low execution times and effec-

tively manages intensive workloads, despite not be-

ing explicitly designed for simulating complex mod-

els. The study compares NetLogo with several ABM

simulation tools including Repast and MASON.

3 SIMULATING WITH NetLogo

NetLogo (Wilensky, 1999) is a free simulation and

modeling platform for agent-based simulation main-

tained by Northwestern University, Chicago. It is well

documented, actively maintained with a mature code

base, and offers many extensions. It supports mo-

bile agents, an environment consisting of intelligent

patches (basically stationary agents), links to connect

agents, and communications between agents and/or

patches. It offers an interactive user interface which

makes it easy to rapidly prototype and visualize agent-

based models.

NetLogo is a time-based simulator using a discrete

scale of time ticks. Simulation is typically started

with a procedure traditionally called “setup”, which

is run once at the beginning to initialize the simu-

lation. The main simulation loop is implemented in

a procedure traditionally called “go” which is then

called once per tick. From there, all other procedures

are then called to perform the necessary computations

to simulate the model. Therefore, simulation perfor-

mance is dominated by the code in “go” and all pro-

cedures called by it. Since NetLogo is a time-based

simulator, unlike in event-based simulation, ticks –

and therefore the “go” procedure – are also executed

if there is no actual change in simulation status, eg. if

agents just wait and “do nothing” for a certain number

of ticks.

To investigate a model, at least a subset of its

parameter-space needs to be simulated, and since

swarm intelligence algorithms are typically stochas-

tic, the researcher has to perform multiple replications

for each chosen input parameter combination. To fa-

cilitate this type of mass simulation, NetLogo offers a

tool called “BehaviorSpace” which lets the researcher

conﬁgure the parameters and the number of desired

replications in an easy fashion. The results are written

into log ﬁles which can later be statistically evaluated

with other tools, like R or Excel. Depending on the

setup, one or multiple lines can be written into a log

ﬁle at every time tick or at the end of every simulation

run. Logging method and writing speed greatly inﬂu-

ences simulation performance; logging several lines

per tick onto a traditional magnetic harddrive is much

more time-costly than logging one line per simulation

run onto an SSD (solid-state-drive).

Also, computational effort can easily explode

when many different parameter combinations are to

be evaluated; in general, if you want to simulate an ex-

periment with x parameters of y different values each

at r replications, you need to perform n = r ∗ x

simu-

lation runs.

Using NetLogo to Simulate Large Production Plants: Simulation Performance: A Case Study

299

NetLogo BehaviorSpace supports the use of mul-

tiple CPUs and CPU cores to parallelize simulation

runs (one run per core), so large multiprocessor ma-

chines can be used to tackle mass simulations. In

cases where the number of runs would still be too

large, NetLogo also supports ﬁnding the interesting

sections of the parameter space with a tool called “Be-

haviorSearch”, which searches the parameter space

with genetic algorithms (Wilensky and Rand, 2015).

3.1 SwarmFabSim: A Framework

Created in NetLogo

SwarmFabSim is a simulation framework imple-

mented in NetLogo (compatible with versions 6.1 and

up) intended to simulate the fabrication of products

in a large factory. In particular, SwarmFabSim is

intended to simulate bottom-up swarm intelligence

algorithms optimizing front-end-of-line (FEOL) pro-

duction of semiconductors, but the implementation is

abstract enough to be applied to other production fa-

cilities using the job-shop principle as well.

SwarmFabSim supports an arbitrary number of

machines M

of machine type m which can per-

form process P

and lots l

of product type t to

be produced. The product type t is deﬁned by a

recipe R

which contains all necessary process steps

,... to produce a lot of this type in or-

der. Machines and lots are modelled as agents; the

number of which are only limited by the available

memory and CPU power of the simulation server.

The framework supports running the machines either

in dispatching or scheduling mode. In dispatching

mode, all machines of type m in a workcenter W

,. ..} share a common queue Q

while in

scheduling mode each machine M

has its own queue

Currently, we support two classes of machines -

single lot oriented machines, which process one lot

after the other and batch machines, which (can) pro-

cess several lots of the same product type t at once. Of

each class of machine, there can be several different

machine types m; iow. there can be several differ-

ent types of single step and several different types of

batch machines to model all the different types of ma-

chines in a fab – each with their own parameters, like

processing time, or batch size. A further important

constraint for batch machines is that batch machines

will wait for a time W T for a batch in the queue to ﬁll

up. E.g., if a batch machine M

has a batch size of

4, and there is already a lot l

in its queue Q

, it will

wait for more lots l

...l

of product type t to arrive

to ﬁll the batch. If the machine is idle, it will either

wait until enough lots have arrived in the queue for the

batch to be ﬁlled completely or for the waiting timer

W T to expire. At which point it will immediately start

processing, even if the batch is not completely ﬁlled.

The fab and load conﬁguration, such as the num-

ber of machines and their parameters and the number

of lots and their recipes are speciﬁed in conﬁg ﬁles.

SwarmFabSim comes with several swarm intelligence

algorithms and the framework architecture (for details

see Section 3.2) supports easy extension with addi-

tional algorithms. All machines in the simulation will

use the same algorithm and scheduling mode during

one simulation run.

Figure 1: The SwarmFabSim User Interface.

Typically, SwarmFabSim will be used in “head-

less mode” (without live visualisation) via Behav-

iorSpace (see Section 3 above), but it can be started

in interactive mode from the user interface shown in

Figure 1 for demonstration purposes and prototyping

/ debugging.

The source code of SwarmFabSim is available as

open-source from our GitHub repository

3.2 Architecture

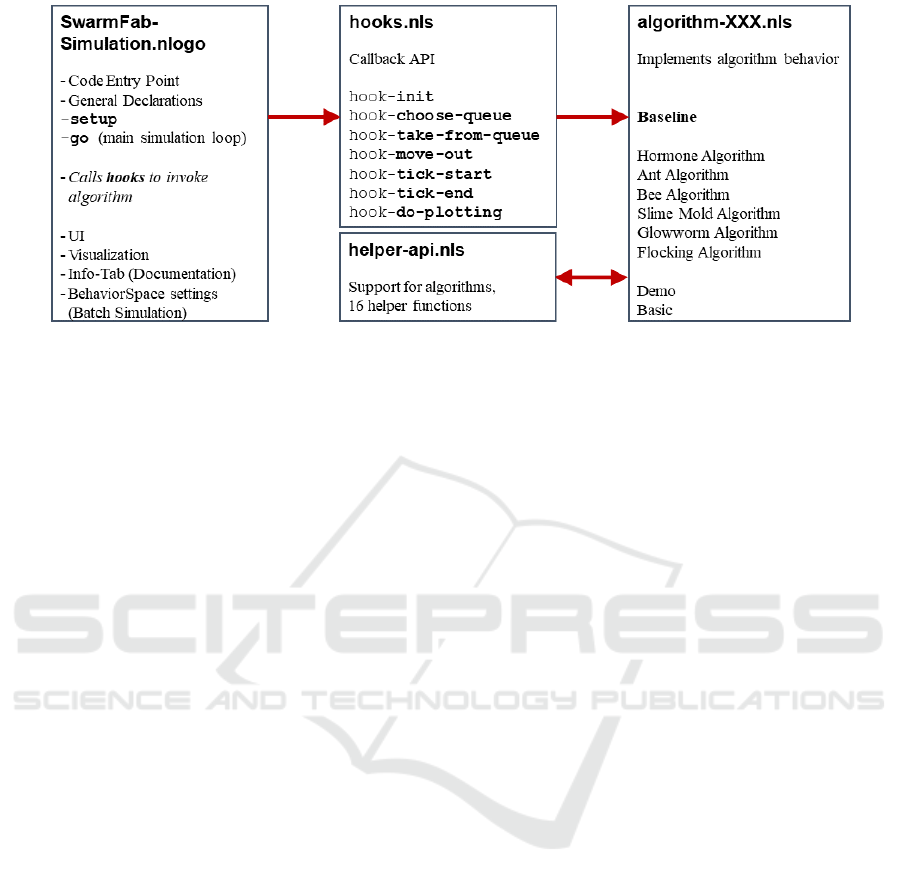

Figure 2 shows the architecture of the Swarm-

FabSim framework. The main software entry

point and user interface are contained in the ﬁle

SwarmFabSimulation.nlogo. This ﬁle contains the

setup procedure that initializes the simulation and

the go procedure that contains the main simulation

loop and is run once per tick.

The setup procedure calls other procedures to

read and parse the conﬁg ﬁles, set up the parame-

https://swarmfabsim.github.io

SIMULTECH 2024 - 14th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

300

Figure 2: Simulation Framework Architecture.

ters of the simulation, and initializes the swarm in-

telligence algorithm via the init callback of the

API (application programming interface) contained in

hooks.nls. This action is only performed once at the

beginning of a simulation run.

The go procedure calls the selected swarm intel-

ligence algorithm via the other API functions, using

the callback pattern. For each tick, the go procedure

will

• ﬁrst call the tick-start callback. With this pro-

cedure, the algorithm can do regular, time-based

updates, like, e.g., propagate hormone values or

decrease pheromone values.

• Then, any “free” lots – that is any lots not cur-

rently assigned to a queue or being processed in a

machine – will be moved to an appropriate queue.

In case of the dispatching strategy, where all ma-

chines of the same type share a queue, the lot is

simply moved to the shared queue of the work-

center of machines of the type implied by the next

step in the lot’s recipe. In case of scheduling,

where every machine has its own, separate queue,

this decision is taken by the swarm intelligence

algorithm. Therefore, the go procedure will call

the choose-queue hook which will in turn call

the choose-queue procedure of the swarm intel-

ligence algorithm.

• Any idle machines are then called via the take-

from-queue hook which will in turn call the al-

gorithm to make the decision which lot(s) to take

from the queue

• before all non-empty machines are then called to

process their respective lot(s) for one tick. For any

lot(s) that get ﬁnished during this tick, the move-

out hook will be called. In this procedure, the

algorithm can take actions like, e.g., updating a

pheromone value. At this point, the lot becomes

“free” again.

• Next, the tick-end callback will be invoked. Like

with tick-start, the algorithm can do regular,

time-based updates. Typically, algorithms use

only either the tick-start or the tick-end call-

back.

• Global queue length statistics will be updated

next via the calculate-queue-length-stats

procedure and

• ﬁnally, visualization updates will be plotted if vi-

sualization is enabled (typically only in interactive

mode).

3.3 The Baseline Algorithm

SwarmFabSim provides this algorithm as a base-

line for performance comparisons. Baseline is a

memoryless/stateless algorithm that uses only the

choose-queue and the take-from-queue callbacks.

In general, the Baseline algorithm works differently

depending on the class of machine – single lot ori-

ented or batch:

choose-queue on single lot oriented machines

shortest queue.

choose-queue on batch machines the objective is to

quickly ﬁll any existing semi-ﬁlled batch in a

queue. Therefore, it will assign a lot of type

t to the queue with the least amount of lots of

this type missing to ﬁll a batch of type t. If the

respective machine is currently idle and waiting

for the WT timer to expire, it will start immedi-

ately when the batch is ﬁlled. If the machine is

currently processing, this approach increases the

chance of this batch being ﬁlled by the time the

machine becomes idle. Even if the batch is never

Using NetLogo to Simulate Large Production Plants: Simulation Performance: A Case Study

301

completely ﬁlled and the machine has to wait for

the W T timeout to expire, it will still run at a

higher percentage of ﬁll. If there are no semi-

ﬁlled batches of the current lot type, Baseline

chooses the queue with the least overall length (re-

gardless of lot type) to start the new batch.

take-from-queue on single lot oriented machines

FIFO.

take-from-queue on batch machines if there is a

full batch of a type t (or ﬁlls up during the W T

timeout), this batch is taken. If there are several

full batches in the queue, one is chosen at random.

3.4 Log File Output

When SwarmFabSim is run from BehaviorSpace, it

produces four different types of result log ﬁles, which

are all in a plain text, comma-separated value format:

*-table.csv this is the standard Netlogo log ﬁle. It

logs a line for every tick; in our conﬁguration it

writes the following values: the run number, the

chosen swarm algorithm, the chosen allocation

strategy, whether a conﬁg ﬁle was used and its ﬁle

name, whether debugging and visualization mode

were turned on, the tick number, and the average,

max, and min queue length in the system at this

tick. As this ﬁle logs one line for each tick, its

inﬂuence on simulation performance can be no-

ticeable, especially if the medium on which the

log ﬁles reside is slow.

*-lmvs.csv this is a custom log ﬁle that tracks lot

movements between machines in detail and logs

a line for every tick and lot movement. It logs the

run number, the current tick, the mode of move-

ment (lot got put into a queue, moved into a ma-

chine, moved out from a a machine), the lot type,

the unique lot number, the position of the recipe

pointer (how far advanced along the recipe the lot

is), the machine type, the unique machine id and

a slot number in case of a batch machine. Due to

the high level of detail in this log ﬁle it can be-

come quite large. Since it logs a line for every

lot movement that occurred at every tick, so po-

tentially many lines for each tick, writing this log

ﬁle has the biggest inﬂuence on simulation perfor-

mance.

*-kpi.csv this is a custom log ﬁle that is written once

at the end of every simulation run. It logs the

run number, the average ﬂow factor, tardiness, and

machine utilization, plus the total makespan (the

simulation duration in ticks). Since this ﬁle logs

only one line at the end of each simulation run, its

inﬂuence on simulation performance is low.

*-lots.csv this is a custom log ﬁle that is written once

per run and lot at the end of every simulation run.

It logs the run number, the lot type, the unique

lot number, the total queuing time, raw processing

time, and total processing time for the lot, plus the

overall ﬂow factor and tardiness for this lot. While

this ﬁle is written only once at the end of the sim-

ulation run, it can potentially become quite big if

the number of lots is very large. Since this ﬁle is

only logged to once at the end of each simulation

run, its inﬂuence on simulation performance is not

very large despite the potentially large ﬁle size.

Since the *-table.csv and *-lmvs.csv log ﬁles have

the most impact on simulation performance, simu-

lations should be performed on machines with fast

drives to store these ﬁles so as not to slow down sim-

ulation unnecessarily. A lot of performance can also

be gained by not logging to ﬁles whose information

you are not going to analyze; eg. if you do not need

the detailed lot movement information in *-lmvs.csv,

disabling this log ﬁle will speed up simulation.

4 EVALUATION

Our paper does not focus on general techniques of

speeding up simulations, such as turning off visual-

ization, using a large multi-processor server with a

fast SSD disk, sampling the parameter space before

starting detailed simulations, or making sure that no

unnecessary calculations are repeatedly performed in

the “go” procedure. Instead, we showcase the per-

formance of current Netlogo implementations by us-

ing the example of our implemented SwarmFabSim

framework, using typical models and one of our al-

gorithms. We measure the runtime of one run with-

out visualizations for several typical large models on

a typical laptop a researcher would have access to.

4.1 Scenario Conﬁguration

We designed our test scenario inspired by both, the

aforementioned real-world data of between 400 and

1200 different stations in a fab which produces prod-

ucts in around 300 different process steps and on the

SMT2020 testbed (Kopp et al., 2020). The SMT2020

datasets contain up to 105 workcenters (machine

types) and recipes for up to 10 products that are be-

tween 242 and 583 steps in length.

Our test scenario uses a fab of 100 workcen-

ters (machine types) of between 4 and 12 machines

each and 10 product types that have recipes of 250

to 350 steps in length. We then load this fab with

100, 1000, 5000, and 10K lots (divided among the

SIMULTECH 2024 - 14th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

302

10 product types). Monthly production is often a

keenly guarded secret of a fab; the best overview of

production across semiconductor fabs to our knowl-

edge is given in (Wikipedia, 2024), where most fabs

listed have monthly production capacities of less than

100000 wafers, which – using the industry standard

of 25 wafers per lot – amounts to 4000 lots.

For each lot type, we generate an average of 1/10

of the total lot number ±10% each; iow. for the sce-

nario with 100 lots in total, each of the 10 lot types

will have between 9 and 11 lots, for the scenario with

1000 lots in total, each lot type will have between 90

and 110 lots, etc.

We use the parameters shown in Table 1 to create

the machines for the fab. N(µ,σ

) for the raw process

time denotes a Normal Distribution from which neg-

ative values have been capped as process time cannot

be negative. U(a,b) for the batch sizes denotes a uni-

form distribution.

Table 1: Parameters used to create the machines.

Machine Parameter Value

Raw process time (RPT) N(µ ,σ

) with µ =

1.16, σ

= 0.32

Probability batch machine 50%

Batch size batch machines U(2,8)

Waiting time batch machines 15%(RPT )

4.2 Results

We intentionally used a common laptop that might be

available to any researcher for our measurements to

show that, despite the common perception that Net-

Logo is supposedly too slow to do larger simulatin

studies, current versions of NetLogo work well even

on weaker hardware. This type of setup might be used

by a single scientist or student to do quite large studies

on their own, personal machine, without immediately

requiring the use of an institute’s simulation server (to

which access might be limited).

We tested using NetLogo in headless mode the

reset-timer and timer commands on an ASUS

UX305LA Laptop from 2016, running Windows 10

with an Intel CORE i7 CPU with 4 cores, running at

2.4 GHz, 8 GB of RAM, and an SSD harddrive. We

used only one of the available cores; the results are

averaged over 3 runs each.

We compare the performance for the following

major releases of Netlogo: 6.2.0 from December

2020, 6.3.0 from September 2022, and 6.4.0 from

November 2023 as shown in Table 2.

As can be seen, there is a is an increase in simula-

tion time of almost 20% from version 6.2.0 to version

Table 2: Simulation Performance in seconds, over NetLogo

versions and number of lots.

Netlogo Version 6.2.0 6.3.0 6.4.0

Number of lots

100 51 61 60

1000 122 144 142

5000 690 816 782

6.3.0. Analysis of the release notes of these respec-

tive NetLogo versions reveals that in version 6.3.0 the

bundled version of Java was upgraded from version 8

to version 17, which is the current long-term-support

release of the Java runtime. As no other changes

that would cause such a large loss in performance

are listed in the release notes (eg. no large changes

to the architecture or core language), the authors as-

sume that the measured performance loss is due to

the upgrade of the Java version. Experimenters who

do not need the new features of versions 6.3.0 and

6.4.0 (see release notes

whose simulations are very

large and time-intensive might want to consider stay-

ing with version 6.2.0 instead.

We also tested a very large scenario with 10000

lots (equivalent to 250000 wafers) on NetLogo ver-

sion 6.4.0 which ﬁnished on average in 2101 seconds;

iow. a good half of an hour. Tests with logging turned

off (apart from recording the runtime at the end of

each run) for the 1000 lot scenario on NetLogo ver-

sion 6.2.0 ﬁnished on average in 95 seconds versus

122 seconds with full logging, giving a speedup of

22% on an SSD drive.

5 CONCLUSION

While NetLogo is popular in education and has

gained popularity as a simulation tool in research, it is

still often conceived as not well performing for large

models. This is due to performance related issues in

early implementations. We measured simulation per-

formance of a quite large NetLogo model on a com-

mon laptop a researcher or student might have as a

personal machine and show that even with such an

underpowered machine, with current versions of Net-

Logo it is quite possible to run simulations of larger

models in reasonable simulation time. Our measure-

ments did show an approximately 20% increase in

simulation time from version 6.2.0 to version 6.3.0

and beyond which is probably due to the upgrade of

the underlying Java distribution from version 8 to ver-

sion 17 mentioned in the NetLogo release notes. For

http://ccl.northwestern.edu/netlogo/docs/versions.

html

Using NetLogo to Simulate Large Production Plants: Simulation Performance: A Case Study

303

time-intensive simulations which do not require the

newly introduced features of or depend on any bug-

ﬁxes in NetLogo version 6.3.0 and up, staying with

version 6.2.0 might be worth considering.

ACKNOWLEDGEMENT

This work was performed in the course of project

SwarmIn supported by FFG under contract number

894072.

REFERENCES

Abar, S., Theodoropoulos, G. K., Lemarinier, P., and

O’Hare, G. M. (2017). Agent based modelling and

simulation tools: A review of the state-of-art software.

Computer Science Review, 24:13–33.

Alves, F., Varela, M. L. R., Rocha, A. M. A., Pereira, A. I.,

Barbosa, J., and Leitão, P. (2018). Hybrid system

for simultaneous job shop scheduling and layout opti-

mization based on multi-agents and genetic algorithm.

In International Conference on Hybrid Intelligent Sys-

tems, pages 387–397. Springer.

Antelmi, A., Cordasco, G., D’Ambrosio, G., De Vinco,

D., and Spagnuolo, C. (2022). Experimenting with

agent-based model simulation tools. Applied Sciences,

13(1):13.

Dias, L. M., Vieira, A. A., Pereira, G. A., and Oliveira,

J. A. (2016). Discrete simulation software ranking—a

top list of the worldwide most popular and used tools.

In 2016 Winter Simulation Conference, pages 1060–

1071. IEEE.

Geng, H., editor (2018). Semiconductor Manufacturing

Handbook. McGraw-Hill Education.

Gwiazda, A., Bana

s, W., S˛ekala, A., Topolska, S., and

Hryniewicz, P. (2020). Modelling of production pro-

cess using multiple ant colony approach. Interna-

tional Journal of Modern Manufacturing Technolo-

gies, XII(1):201–213.

Habib Zahmani, M. and Atmani, B. (2021). Multiple dis-

patching rules allocation in real time using data min-

ing, genetic algorithms, and simulation. Journal of

Scheduling, 24(2):175–196.

Kopp, D., Hassoun, M., Kalir, A., and Mönch, L. (2020).

SMT2020 – A semiconductor manufacturing testbed.

IEEE Transactions on Semiconductor Manufacturing,

33(4):522–531.

Railsback, S., Ayllón, D., Berger, U., Grimm, V., Lytinen,

S., Sheppard, C., and Thiele, J. C. (2017). Improving

execution speed of models implemented in netlogo.

Journal of Artiﬁcial Societies and Social Simulation

(JASSS).

Railsback, S. F. and Grimm, V. (2019). Agent-based and

individual-based modeling: a practical introduction.

Princeton university press, "2nd" edition.

Shukla, O. J. (2018). Agent Based Production Scheduling

in Job Shop Manufacturing System. . . . PhD thesis,

MNIT Jaipur.

Tisue, S. and Wilensky, U. (2004). Netlogo: Design and

implementation of a multi-agent modeling environ-

ment. In Proceedings of the Agent 2004 Confer-

ence on Social Dynamics: Interaction, Reﬂexivity and

Emergence, volume 2004, pages 7–9, Chicago, IL.

Umlauft, M., Schranz, M., and Elmenreich, W. (2022).

Simulation of swarm intelligence for ﬂexible job-shop

scheduling with swarmfabsim: Case studies with arti-

ﬁcial hormones and an ant algorithm. In International

Conference on Simulation and Modeling Methodolo-

gies, Technologies and Applications, pages 133–155.

Springer.

Wikipedia (2024). List of semiconductor fabrica-

tion plants. https://en.wikipedia.org/wiki/List_of_

semiconductor_fabrication_plants. last visited:

March 1st, 2024.

Wilensky, U. (1999). Netlogo. http://ccl.northwestern.edu/

netlogo/.

Wilensky, U. and Rand, W. (2015). An Introduction to

Agent-Based Modeling: Modeling Natural, Social,

and Engineered Complex Systems with NetLogo. MIT

Press.

Zhang, T., Xie, S., and Rose, O. (2019). Agent-based sim-

ulation of job shop production. Simul. Notes Eur.,

29(3):141–148.

SIMULTECH 2024 - 14th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

304
