Privacy-Preserving Anomaly Detection Through Sampled, Synthetic

Data Generation

Fatema Rashid and Ali Miri

Department of Computer Science, Toronto Metropolitan University, Toronto, Canada

Keywords:

GAN, Anomaly Detection, SMOTE, over Sampling Techniques, Under Sampling Techniques, Neural

Network Classiﬁer, Synthetic Data, TGAN.

Abstract:

Anomaly detection techniques have been used successfully in various applications such as in security, ﬁ-

nancial, and medical domains. These techniques, and in particular those using advanced machine learning

techniques require a high level of expertise, and the use of large volumes of data and increasing compu-

tational complexity. Outsourcing the expertise and the operational needs can provide an attractive option

to many organizations. However data collected and used can include sensitive and conﬁdential information

which may require privacy protection due to legal, business or ethical considerations. We propose a novel

and robust scheme that offers a ﬂexible solution to users and organizations with varying computational and

communication capabilities. Our solution would allow organizations to use semi-trusted third party cloud ser-

vice providers services, while ensuring that these organizations can achieve their privacy requirement needs

through the generation of synthetic data within with their computational/communication capabilities. We will

demonstrate that not only does our scheme work for commonly used balanced data sets, but it is also suitable

and it provides accurate results when applied to highly imbalanced data sets with extreme ﬂuctuations in the

high and low percentages of anomalies.

1 INTRODUCTION

Anomaly detection is the process of identifying ab-

normal items or events in datasets, which are different

from the rest of the data, i.e. the normal data (Mu-

nir et al., 2019). The research in anomaly detection

has been very active, due to its many potential ap-

plications in security, ﬁnancial, and medical domains

to name a few. Great advances have been reported

in recent years, in particular by using state-of-the-art

Machine Learning (ML) algorithms. However, there

are still many open challenges remaining, some due to

the inherent nature of anomaly detection, and others

due to the setup and the application of anomaly detec-

tion in these domains. For example, many anomalies

are associated with (previously) unknown behaviours,

structures or distributions. Most ML-based work in

the literature has focused on labeled data, i.e. super-

vised learning, whereas in practice it is often impracti-

cal and expensive to work with these types of datasets.

It is a standard assumption that the number of anoma-

lies is less than the normal data, although the ratio

and frequency of appearance can vary greatly depend-

ing on the application and the type of anomaly. This

potentially highly imbalanced data source can chal-

lenge the effectiveness of classical machine learning

schemes which can show great accuracy in identify-

ing normal data, while at the same time have poor

accuracy in identifying abnormal ones. Data sources

used by anomaly detection algorithm may provide

rich data with many attributes. However, these at-

tributes may be dependent/correlated, or provide ir-

relevant or noise-like information, i.e. the ‘curse of

dimensionality’. In a very recent survey by Pang et

el (Pang et al., 2022), it has been suggested that deep

learning can provide an essential role in addressing

some of the common challenges listed below, and de-

scribed again for completeness:

• Low anomaly detection recall rate: In most of

data sets, anomalies are sparse and are of different

types. This may result in the detection algorithm

labeling normal instances as anomalies (false pos-

itives) or failing to detect some of the anomalies

(false negatives). It is a challenge to reduce the

false positive rate and yield high true positivity for

a detection algorithm.

• Anomaly detection in high-dimensional and/or

not-independent data: Anomalies show differ-

738

Rashid, F. and Miri, A.

Privacy-Preserving Anomaly Detection Through Sampled, Synthetic Data Generation.

DOI: 10.5220/0012787100003767

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 21st International Conference on Security and Cryptography (SECRYPT 2024), pages 738-747

ISBN: 978-989-758-709-2; ISSN: 2184-7711

ent behavior and characteristics when they move

from low dimension to high dimension. A ro-

bust algorithm should be able to detect anoma-

lies accurately in a high dimensional environment,

where anomalies could be high order, non-linear

or heterogeneous.

• Data-efﬁcient learning of normal-

ity/abnormality: It is highly expensive to

collect labeled data in real world scenarios.

Fully supervised anomaly detection requires

labeled data for training the machine learning

models. To tackle this issue, it is desirable to have

anomaly-detection methods which do not require

labeled data.

Machine learning algorithms, and in particular deep

learning technique often require complex and compu-

tationally expensive operations, as well as certain lev-

els of expertise. Later in this paper, we will show how

Tabular Generative Adversarial Networks (TGANs)

(Xu and Veeramachaneni, 2018) can be used as part

of a solution to address the above.

An extremely important design consideration for

many anomaly-detection schemes is that data sources

often contain sensitive and conﬁdential information,

and limited and controlled access to these types of

information can be required by legal, commercial or

ethical considerations. Synthetic data generation is an

emerging area of research where artiﬁcial or synthetic

data is being generated from the original data through

machine learning classiﬁers. Synthetic data is com-

puter generated artiﬁcial data based on user-speciﬁed

parameters to ensure that the data is as close to real-

world historical data as possible. Synthetic data is

used nowadays for many applications such as testing

and training for unprecedented scenarios, developing

prototypes, etc. We would like to highlight two of its

capabilities which are relevant to this paper:

• Many ML algorithms and data mining algorithms

need access to huge volumes data for their oper-

ations. However, real-world data can be very ex-

pensive to collect, and in some cases this collec-

tion is restricted by law. Synthetic data can ﬁll this

need. Synthetic data can also be tuned to capture

extreme and rare situational data in order to make

testing more robust than with the real-world data.

For example, researchers from Nvidia are team-

ing up with the Mayo Clinic in Minnesota and the

MGH and BWH Center for Clinical Data Science

in Boston to use generative adversarial networks

to generate synthetic data for training neural net-

works. The generated synthetic data contains

3400 MRIs from the Alzheimer Disease Neuro-

imaging Initiative data set and 200 4D brain MRIs

with tumors from the Multimodal Brain Tumor

Image Segmentation Benchmark dataset (Joshi,

2022). Likewise, simulated X-rays can also be

used with actual X-rays for training AI systems to

recognize several health conditions (Joshi, 2022).

It is important to note that the use of synthetic data

allows for the implementation of advanced AI ap-

plications in areas such as healthcare and ﬁnance

where the needs of the analysis must to be bal-

anced with the need to preserve privacy.

• Machine Learning-as-a-Service (MLaaS) is a

commonly used cloud service used for data pro-

cessing, internal and external data sharing and

big data analysis. Another capability of of syn-

thetic data is to ensure data privacy in such set-

tings. Synthetic data can be used to obtain de-

sired information from data set, but made avail-

able to third parties. When organization use syn-

thetic data as an anonymization method, a balance

must be met between efﬁcacy (Akcay et al., 2019)

and the level of privacy protection provided. In

this context, efﬁcacy refers to the validity and the

proper utilization of the data. This means that syn-

thetic data values should provide, from an analytic

point of view, the closest resemblance to real-

world data values. Communication overheads, as

well as computational ones listed above can pose

serious challenges to use of the synthetic data as a

privacy-preserving technology.

This paper will make contributions in tackling the

following important questions and observations:

• How do organizations with limited or constrained

computational and/or communication resources

implement complex (machine learning) algo-

rithms needed for anomaly detection?

• Anomalies typically represent a small portion of

overall observed/collected data, and they may be

highly variant. Complex and high-dimensional

data, with possible dependency between data fea-

tures can also pose additional challenges that need

to be addressed. Furthermore, in practice most

data collected is unlabeled, or at best partially la-

beled.

• Continuous monitoring and analysis required for

any anomaly detection may result in exposure

of conﬁdential system and users’ information to

unauthorized/non-trusted parties. In these situa-

tions, the need for effective and timely detection

has to be balanced with the need for privacy pro-

tection.

In the remainder of this paper, we will propose an

approach that offers a ﬂexible solution to users and

organizations with varying computational and com-

Privacy-Preserving Anomaly Detection Through Sampled, Synthetic Data Generation

739

munication capabilities. Our approach enables or-

ganizations to use MLaaS, while ensuring that these

organizations can achieve their privacy requirements

through the generation of synthetic data aligned with

their computational/communication capabilities. We

will demonstrate that not only does our scheme work

with commonly used balanced data sets, but also it

is also suitable and it provides accurate results when

applied to highly imbalanced data sets with extreme

ﬂuctuations in low to high percentages of anomalies.

The rest of the paper is organized as follows. In

Section II, the proposed scheme is described in detail.

In Section III, the experimental results are discussed

and analyzed. Related work is discussed in Section

IV. Section V provides the conclusions and sugges-

tions for avenues for future work.

2 PROPOSED SCHEME

The organization often need to make their data ac-

cessible to the third parties for analytic. This can be

due to the cost or the limitation on computational re-

sources. Communication overhead costs can also be

of concern to these organizations. Anomaly detection

through machine learning has been very effective in

detecting anomalies, and there has been a growing list

of anomaly-detection service providers in the market.

In all these settings, these providers require full ac-

cess to users’ data to produce accurate results which

could lead to system/user data privacy being compro-

mised. In our setting, we assume that these service

providers are semi-honest. That is these providers are

strictly following protocols as speciﬁed by the per-

spective SLAs, but that they are curious about the

data and as such we need privacy safeguards for data

against them. Furthermore, such safeguards provide

additional privacy guarantees, should the data pro-

cessed or stored at these providers ever become com-

promised. We propose that organizations can achieve

this by using sampled, synthetic data when sharing

their data with service providers. We will show that

our proposed scheme can accurately detect anomalies,

while preserving the privacy of the underlying data.

Another technical characteristic of machine learn-

ing processes is the use of multivariate or univariate

data. When the outliers are detected from the distribu-

tion of values in a single feature space, it is called uni-

variate anomaly detection. For multivariate anomaly

detection, the outliers are detected for two or more

features spaces. Depending upon the data, the deci-

sion is often made to use either univariate or multi-

variate analysis. For our experiments, we have used

both unsupervised and semi-supervised learning. The

data which we used is multivariate in nature, and thus

we perform multivariate analysis on this data. We

have used different classiﬁers from different families

in order to perform our experiments. We used individ-

ual detection algorithms on different datasets to ob-

tain outlier detection:

2.1 Synthetic Data

A key component of our scheme is based on syn-

thetic data generation. Synthetic data is generated

from the original data in such a fashion that it ex-

hibits the same underlying data distribution, charac-

teristics and trends shown in the original data. Syn-

thetic data has been extensively used in research pur-

poses, and it is typically generated through statistical

techniques or machine learning techniques. In this pa-

per, we have datasets from three different domains,

namely the PIMA Indians Diabetes dataset, the Seis-

mic dataset, and the Credit Card Fraud dataset. The

details of these datasets are presented in the Experi-

mental Results and Analysis section.

The synthetic data properties which we are in-

terested in are three folds, and will ensure that we

can make reliable detections while respecting privacy.

Firstly, the synthetic data should have the statistical

properties of the original data. Secondly, it should re-

tain the structure of the original data. The last and

the most important property is that it should protect

the conﬁdentiality of the data, i.e. it must be privacy-

preserving synthetic data.

Generative Adversarial Networks (GANs) and

their variants have been among the most active sub-

areas in deep-learning research. GANs are types of

Neural Networks that are used for unsupervised learn-

ing. GANs’ goal is to learn the distribution of a set

of data, through the use of two opposing neural net-

works (Park et al., 2018). One network, the generator

G(x) creates samples that are supposed to resemble

real data. The other network, the discriminator D(x)

tries to assess if a sample is real or fake based on its

knowledge of the real data. After a sufﬁcient number

of iterations, the generator will produce samples that

are hard to distinguish from the real ones, and hence it

will learn the distribution of the data. There has been

a tremendous increase in applications of GANs, in-

cluding synthetic data generation. Most work so far

has focused on how they have been used in image

data generation. But given GANs high accuracy, and

the fact that many data sets in medical, ﬁnancial, and

scientiﬁc ﬁelds, etc. are of a tabular nature, GANs

have recently been extended to tabular data genera-

tion. In TGAN (Xu and Veeramachaneni, 2018), Xu

and Veeramachaneni use a Gaussian Mixture model

SECRYPT 2024 - 21st International Conference on Security and Cryptography

740

and Adam optimizer in order to generate data column

by column. Their model covers both discrete and con-

tinuous variables with numerical and categorical fea-

tures. In this paper, we will use TGAN for our syn-

thetic data generation for the data sets listed above.

2.2 Data Sampling Techniques

Our proposal is not only to support organizations with

different computational and communication capabili-

ties, but also with varying types of data. We are in-

terested in scenarios such as varying ratios of abnor-

mal to normal data and varying types of anomalies.

In fact, we have selected our three datasets because

of the varying degree of anomalies in them. We will

achieve our goal, given these challenges through data

sampling techniques.

Oversampling and undersampling in data analysis

are the techniques used to adjust the class distribution

of a data set. The class distribution actually represents

the ratio between the different classes/categories rep-

resented. Oversampling and undersampling are oppo-

site to each other and have different impacts on data

sets when used. They should be carefully chosen de-

pending upon the characteristics of the data set.

The most popular solution to an imbalanced data

set classiﬁcation problem is to change the mix of the

training data sets. Techniques designed to change the

class distribution in the training data sets are generally

referred to as sampling methods or re-sampling meth-

ods. Oversampling techniques replicate the instances

in the minority class or generate new examples from

the minority class. Some of the more widely used

oversampling methods include: Random Oversam-

pling, Synthetic Minority Oversampling Technique

(SMOTE) (Chawla et al., 2002), Borderline-SMOTE

(Sun et al., 2022), Borderline Oversampling with

SVM (Nguyen et al., 2011) and Adaptive Synthetic

Sampling (ADASYN) (He et al., 2008).

We have used the SMOTE oversampling algo-

rithm for our experiments due to its performance.

SMOTE works by selecting examples that are close

in the feature space, drawing a line between the ex-

amples in the feature space and drawing a new sam-

ple as a point along that line (Mohammed et al.,

2020). SMOTE generates the virtual training records

by linear interpolation technique for the minority

class. These synthetic training records are generated

by randomly selecting one or more of the k-nearest

neighbors for each example in the minority class.

After the oversampling process, the data is recon-

structed and several classiﬁcation models can be ap-

plied to the processed data (Mohammed et al., 2020).

There are many variants of the SMOTE method such

as Borderline-SMOTE, Borderline Oversampling and

Adaptive Synthetic Sampling that can be used in other

situations.

Undersampling methods delete or select a subset

of examples from the majority class to be retained

in the ﬁnal data set. Some of the more widely used

undersampling methods are Random Undersampling,

Condensed Nearest Neighbor Rule (CNN) (Batista

et al., 2004), Near Miss Undersampling (Tanimoto

et al., 2022), Tomek Links Undersampling (Devi

et al., 2017) and the Neighborhood Cleaning Rule

(NCR) (Haixiang et al., 2017). We implemented and

ran our experiments on the Near Miss undersampling

algorithm. This balances the class distribution of the

imbalanced data sets by randomly eliminating major-

ity class examples. When instances of two different

classes are found to be very close to each other, the

algorithm removes the instances of the majority class

to increase the spaces between the two classes. Near

Miss selects examples from the majority class that

have the smallest average distance to the three closest

examples from the minority class. This helps in the

classiﬁcation process by keeping the instances from

both classes balanced and thus improves the perfor-

mance of anomaly detection on imbalanced data sets.

2.3 Setup of the Proposed Scheme

Having listed the major components of our scheme,

we will now discuss the setup of our proposed

scheme. The typical players in our setup are the end

users of an organization, the organization itself, and

the cloud-service provider offering anomaly detection

services to the organization. We assume that there is

an explicit or implicit degree of trust between the or-

ganization and its users, but not between them and the

cloud service provider which is only considered semi-

honest. An example of such a setup in the ﬁnancial

sector is banking.

Banks often utilize third-party fraud detection ser-

vices, which may require access to sensitive informa-

tion, such as banking activities and users’ personal in-

formation. Any compromise in conﬁdentiality of this

information could have serious consequence to both

the banks and their clients.

Under our proposed scheme, organizations have

different options to choose from depending on their

resource capabilities. An organization with ample

computation and communication capabilities can gen-

erate synthetic data using TGANs and upload the syn-

thetic data to the anomaly detection service provider.

In so doing, the detection service provider will not

have access to the systems/users’ sensitive informa-

tion, while still being capable of performing the ana-

Privacy-Preserving Anomaly Detection Through Sampled, Synthetic Data Generation

741

lytic needed to detect any abnormal data. As a base-

line, we can consider an organization with no com-

putational capability. This means that this type of or-

ganization will not be able to generate synthetic data

and therefore it will have to trust the anomaly detec-

tion service provider for the privacy of their data.

An organization with limited resource capabili-

ties does not have enough computational power to

either generate entire volumes of synthetic data, yet

it may not wish to upload the entire real data set

due to privacy concerns. Communication overhead

costs may also limit the amount of data exchanged

between these types of organization and the service

providers. We propose a secure and efﬁcient solution

for these types of organizations and we will evaluate

the effectiveness of this solution with different types

of data sets. After the initial setup and pre-training

of the classiﬁers, this client node will generate sam-

ples from the real data. These samples are generated

through oversampling and undersampling techniques.

The algorithms for sample generation can produce

such samples with the same characteristics and dis-

tribution as the real data. Sample generation is not

a computationally intensive task and it can be easily

performed with the limited capabilities of these types

of organizations. These samples are smaller in vol-

ume than real time data collected by the organization.

These samples are then sent to the third-party service

provider, which will be responsible for performing

anomaly detection and analysis. The most computa-

tionally intensive task is the synthetic data generation

since it involves robust training and needs to show

the classiﬁer huge volumes of data in order to gen-

erate synthetic data mimicking the characteristics of

the real data. Therefore, the limited-resource organi-

zations have successfully outsourced the most com-

putationally intensive tasks to the service provider,

while preserving the privacy throughout the process.

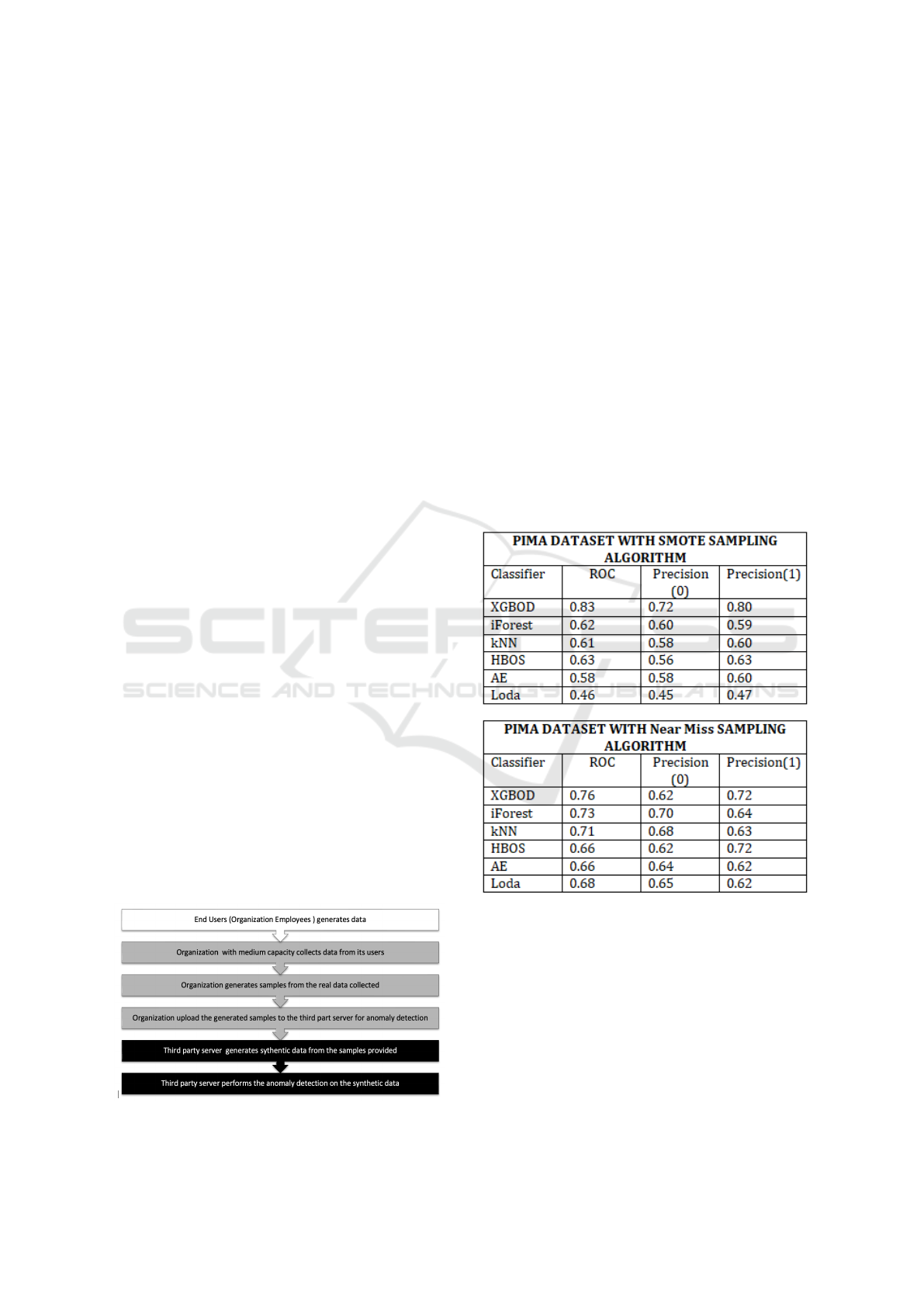

The process for the limited capability organizations is

graphically illustrated in Figure 1. All three players

and their associated roles are highlighted with differ-

ent colors in Figure 1. In the remainder of this paper,

Figure 1: Flow Graph of the Proposed Scheme.

we will discuss the effectiveness of our approach in

terms efﬁcacy of the cost of computation. Our ex-

perimental results support our claims that the sam-

ples generated from the real data and subsequently the

synthetic data generated directly from the synthetic

samples perform extremely accurately with the ma-

chine learning classiﬁers for anomaly detection.

3 EXPERIMENTAL RESULTS

AND ANALYSIS

In this section, we explain in detail, the datasets

and classiﬁers we used, as well as the analysis of

our experimental results. As mentioned earlier, we

have used three datasets: the PIMA Indians Diabetes

dataset, the Seismic Bump dataset, and the Credit

Card Fraud dataset. All these datasets use a binary

classiﬁcation where an instance of the data is either

normal or an anomaly.

Figure 2: PIMA Dataset Results.

The PIMA dataset has 9 attributes. It is com-

posed of 35% anomalous instances and 65% normal

instances. The Seismic dataset has 6.97% anomalous

data and 93.3% normal instances data. It has 19 at-

tributes in total, along with the last one indicating ei-

ther an earthquake or not. It is an unbalanced data set

where the positive (hazard) class is a minority class

and considered to be as the outlier class and the neg-

ative class (no hazard) is considered as the normal

class. The last dataset used is the Credit Card Fraud

SECRYPT 2024 - 21st International Conference on Security and Cryptography

742

dataset which has 0.17% anomalous data and 99.82%

normal data. It has 31 attributes in total with the last

one indicating either a fraud or not. The dataset con-

tains 30 input variables. For conﬁdentiality reasons,

most of the original features have been transformed

with Principal Component Analysis (PCA). This is

the biggest dataset in size among the three we used.

Our selected data sets include highly imbalanced data

sets with extreme ranges of anomalies varying from

0.17% to 35%. The results of the performances of

our proposed solutions over these three data sets are

shown in Figure 2, Figure 3 and Figure 4 respectively.

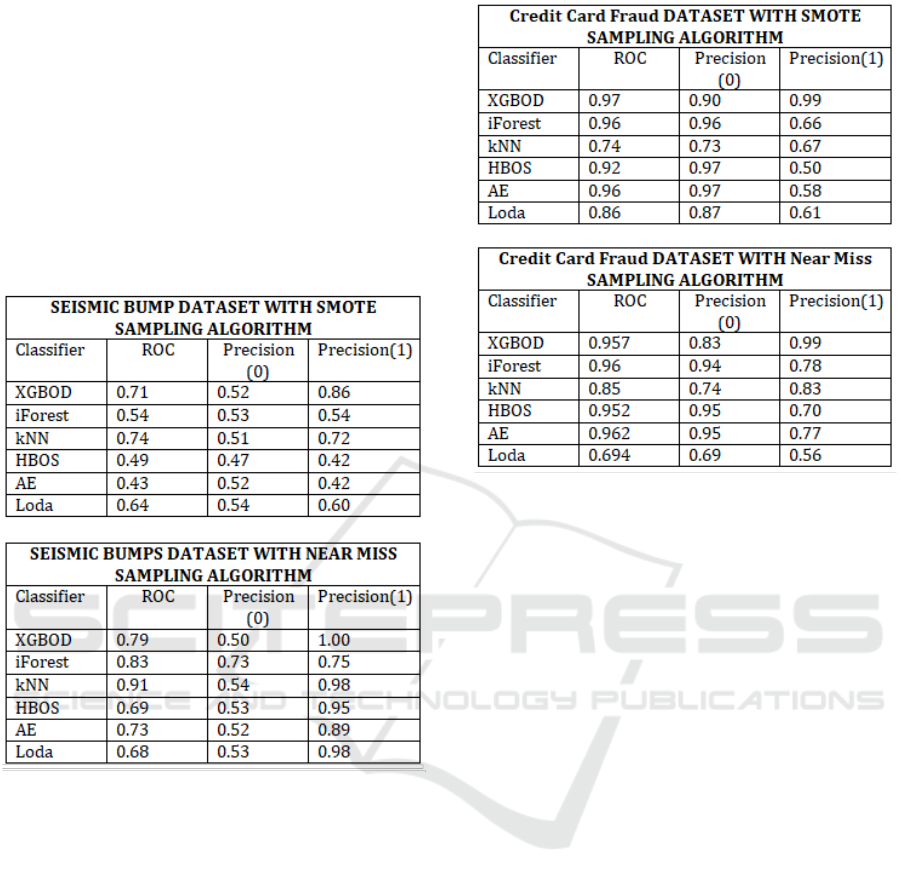

Figure 3: Seismic Bumps Dataset Results.

We ran our experiments on all three datasets in or-

der to verify the performance of our proposed scheme

on balanced, imbalanced and highly imbalanced data

sets. All three datasets are publicly available on Kag-

gle.

We conducted our experiments on an Intel(R)

Core(TM) i5-4300U CPU @ 1.90GHz, 2494 Mhz,

with 2 Cores, and 4 Logical Processors. We used

PyOD [27], a Python library for performing anomaly

detection. PyOD is a comprehensive and scalable

Python toolkit for detecting outlying objects in multi-

variate data (Zhao et al., 2019). Since 2017, PyOD

has been successfully used in various academic re-

search and commercial products. We used 6 machine

learning classiﬁers for performing the anomaly detec-

tion on our datasets through a synthetic data genera-

tion process. A detailed explanation of these classi-

ﬁers can be found in (Zhao et al., 2019).

The ﬁrst PyOD classiﬁer used was the XGBOD

Figure 4: Credit Card Dataset Results.

classiﬁer from PyOD. XGBOD is a semi-supervised

outlier detection algorithm. It improves detection ca-

pability by creating a hybrid mix of supervised and

unsupervised algorithms.

The second classiﬁer we used is the Auto Encoder

(AE) with Outlier Detection. AE is a type of neural

networks for learning useful data representations in

an unsupervised manner. AE can be used to detect

outlying objects in the data by calculating the recon-

struction errors.

The third classiﬁer used was Histograms.

Histogram-Based Outlier Score (HBOS) is an ef-

ﬁcient unsupervised training method. It assumes

feature independence and calculates the degree of

outlyingness by building histograms.

The fourth classiﬁer used was the Isolation For-

est. The Isolation Forest separates observations by

randomly selecting any speciﬁc feature and then ran-

domly selecting a split value between the maximum

and minimum values of the selected feature (Zhao

et al., 2019). A recursive partitioning is used to create

tree structures, with partitioning resulting in shortest

paths between the root node and a terminating node

indicating anomalies.

The ﬁfth classiﬁer we used for our implementation

was the k-Nearest Neighbors Detector (kNN). For an

observation, the distance to its kth nearest neighbor is

considered to be an outlying score. It also represents

a measure of density. Three kNN detectors are sup-

ported: (a) the largest which uses the distance to the

kth neighbor as the outlier, (b) the score mean which

uses the average of all k neighbors as the outlier, and

Privacy-Preserving Anomaly Detection Through Sampled, Synthetic Data Generation

743

distance to k neighbors as the outlier score. We used

the largest kNN detector for our data sets (Zhao et al.,

2019).

The sixth and the last classiﬁer used was

Lightweight On-line Detector of Anomalies (Loda).

Two versions of LODA are supported in PyOD: (a)

Static number of bins which uses a static number of

bins for all random cuts, and (b) Automatic number

of bins in which every random cut uses a number of

bins deemed to be optimal according to the Birge-

Rozenblac method. We used the automatic number

of bins method for our implementation.

As mentioned earlier in the paper, accuracy is not

always the best representative of an anomaly detec-

tion algorithm performance. We have used two ma-

jor performance metrics for the evaluation of the per-

formance of our classiﬁers. We used area under the

Receiving Operating Characteristic curve (ROC) and

Precision @ rank n (P @ N) for evaluating the perfor-

mance of the classiﬁers. The ROC curve is created by

plotting the true positive rate (TPR) against the false

positive rate (FPR) at various threshold settings.

Precision rank is the fraction of relevant instances

among the retrieved instances which, in our case, im-

plies the fraction of correct anomaly detection in-

stances among the given instances of the data.

We have presented the ROC values for when we

had trained our classiﬁer with real data (after the

initialization phase where the parameters are passed

from the organization to the server) and test those re-

sults against when the synthetic data generated from

the samples were used. We are including the perfor-

mance values of the testing phase of the models.

As we see in Figure 5 for the case of the PIMA di-

abetic data set, XGBOD classiﬁer is giving us the best

results when used together with the SMOTE oversam-

pling technique. The ROC curve data point value is

0.83 with a corresponding precision of 0.80 in pre-

dicting an anomaly. This classiﬁer gives the high-

est performance numbers for the PIMA dataset. We

want a high number (between 0 to 1) for the ROC

value. Also, the higher the precision for predicting

an anomaly, the better it is. The next classiﬁers are

HBOS, kNN and iForest respectively with succes-

sively increasing ROC values and precision to pre-

dict an anomaly. If we consider overall performance,

the SMOTE sampling technique performs better than

Near Miss sampling for this particular data set. As in-

dicated earlier, 35% of data in this data set is anoma-

lous. In short, XGBOD with SMOTE sampling is the

best performer for anomaly detection in synthetic data

generated from SMOTE samples for the PIMA dia-

betic data set.

For the Seismic Bumps dataset, the performance

of the XGBOD classiﬁer is again the best, as it was

with the PIMA data set. Its ability to predict an

anomaly correctly, when trained with real data and

tested with synthetic data is very high. Also, the ROC

values are in the range of 0.71 and 0.79 for both sam-

pling techniques. For the Seismic bumps data set,

the Near Miss undersampling technique gives slightly

better performance than the oversampling technique.

The next two classiﬁers in line are kNN and Loda for

this particular data set. We would like to note again

that this data set has 6.97% anomalous data. In short,

the XGBOD with Near Miss sampling technique is

the best performer for anomaly detection using syn-

thetic data generated from Near Miss samples for the

Seismic data set.

The next dataset is the Credit Card Fraud data set

which is also highly imbalanced and has very few

anomalies - as low as 0.172%. As seen in the pre-

vious data sets, XGBOD is performs best for both

the undersampling and oversampling techniques. It

actually has very good ability to predict an anomaly,

with a probability higher than 0.50 in all cases. The

ROC curve values are also above 0.80 in all cases as

can be seen in Figure 5. In short, XGBOD again

gives the best performance which is actually the same

for both sampling techniques. The next in terms of

performance are kNN and iForest classiﬁers, respec-

tively.

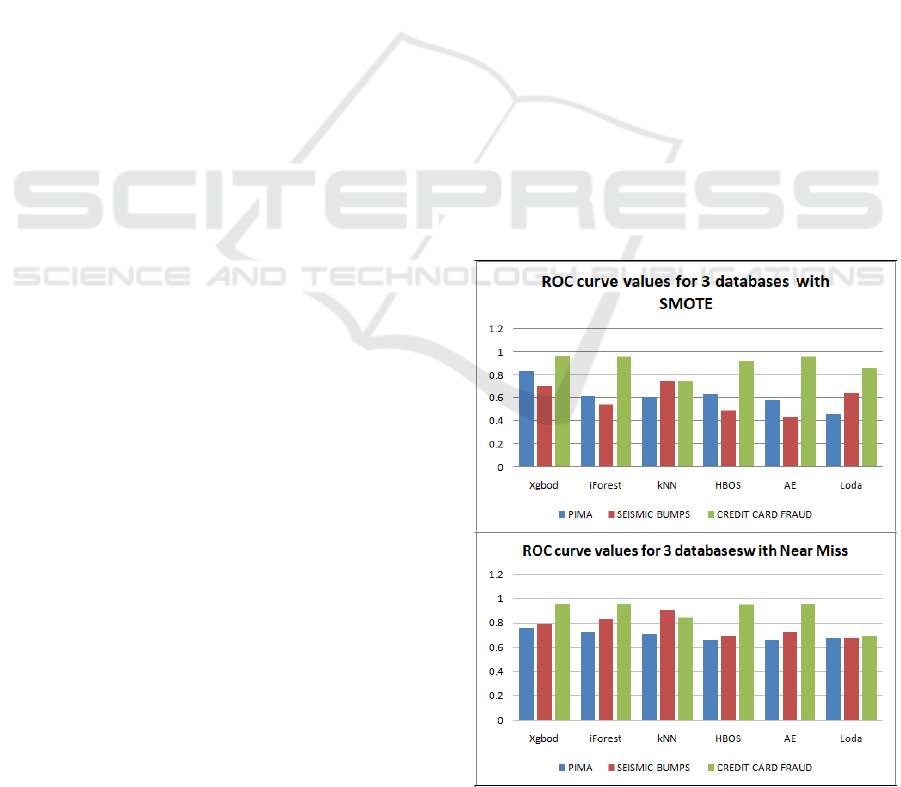

Figure 5: ROC curve values for all three data sets with Near

Miss and SMOTE.

SECRYPT 2024 - 21st International Conference on Security and Cryptography

744

In Figure 5, it is evident that with both sampling

techniques, XGBOD out performs all other classi-

ﬁers. We can also conclude that the Credit Card Fraud

data set exhibits the best values for the ROC curve

among the other two datasets. The Credit Card dataset

has the most abnormal anomaly distribution and is the

most challenging dataset when it comes to anomaly

detection.

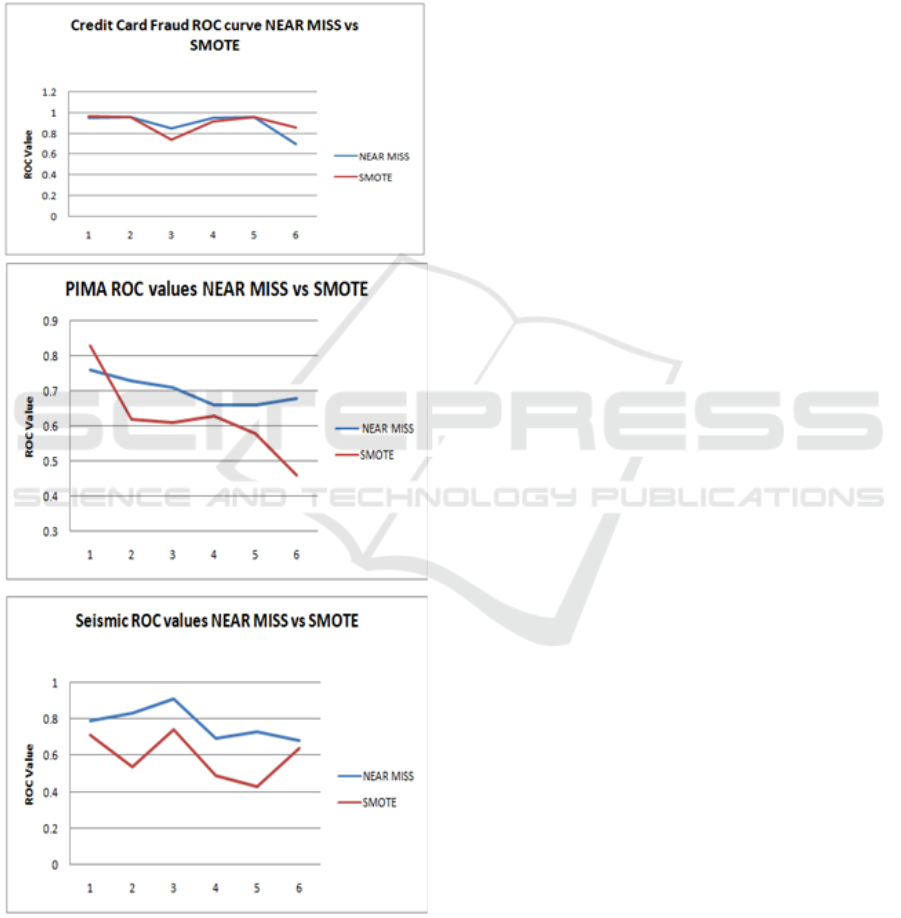

Figure 6: ROC curve values for Near Miss VS SMOTE.

In Figure 6, we plotted the performance of both

the sampling techniques for each of the three datasets.

SMOTE slightly outperforms Near Miss on the PIMA

dataset. The difference between the performances of

the sampling techniques is also small in case of the

Seismic Bumps dataset. In the case of Credit Card

Fraud dataset, the performance graph of both tech-

niques overlaps each other. Therefore, we can con-

clude that both the undersampling and oversampling

techniques perform well with all three datasets with a

slight gap between the performance of the two.

Based on the above results, we can conclude that

in the case of highly imbalanced and moderately im-

balanced data sets, the XGBOD classiﬁer performs

the best due to being semi-supervised. The rest of the

classiﬁers are unsupervised, and as a result they have

inferior performance as a result. Our results shows

that by integrating sample generation through ma-

chine learning, synthetic data generation and anomaly

detection using semi-supervised classiﬁers, we can

achieve a quite high level of accuracy and efﬁciency,

while preserving the privacy of user data for limited

resource organizations.

4 RELATED WORK

In this paper, we have proposed a novel scheme which

involves the generation of samples from original im-

balanced datasets and the generation of synthetic data

from those samples by the anomaly detection service

provider. To the best of our knowledge, there is no

prior work to provide privacy-preserving anomaly de-

tection through a combination of data sampling and

synthetic data generation. Below is a brief description

of some of the related work, which focus on aspects

of our proposed design steps, and we have provided a

comparison between their performance and function-

ality and that of our solution.

In (Luo et al., 2019), the authors presented the

Imbalanced Triangle Synthetic Data (ITSD) method

which attempted to provide a more general approach

to generating synthetic data. They used SMOTE and

its variants as their baselines, and they showed that

their approach can perform better than the baselines

in both precision and recall.

Using their approach, the newly formulated ma-

jority samples (SMOTE), or newly formulated minor-

ity samples (Near Miss) were added to the original

data. This is in contrast to our approach of using

GANs to produce a completely new synthetic data

set, which provides us with greater privacy protection.

Furthermore, their performance on the PIMA dataset

showed an inferior F1 score.

An ADAptive SYNthetic (ADASYN) sampling ap-

proach was suggested in (He et al., 2008). The au-

thors presented a comparison between their proposed

Privacy-Preserving Anomaly Detection Through Sampled, Synthetic Data Generation

745

method for data generation and SMOTE with the

PIMA Indian Diabetic dataset and presented a value

of 0.68 for the precision of their classiﬁer. Addi-

tional reporting on this method from PyOD library

(Zhao et al., 2019) also put the values for precision

and ROC in between 0.6 to 0.7 and 0.4 to 0.5, respec-

tively. Both of these sets of numbers are inferior to

what is achieved using our approach.

In (Charitou et al., 2021), a GAN-based approach

called Synthetic Data Generation GAN (SDG-GAN)

was proposed as a tool for tackling the imbalanced

class problem on structured data by generating new

high-quality instances. The authors tested and evalu-

ated the SDG-GAN and compared their synthetic data

generation technique with SMOTE and other meth-

ods like ADASYN(He et al., 2008). They used a

number of supervised classiﬁers, including XGBoost.

The performance of SDG-GAN when used with the

PIMA and Credit Card Fraud datasets as calculated in

their experiments were quite low when compared to

the performance of our scheme. Also, the absence

of GANs for synthetic data generation makes their

scheme less accurate and secure.

In (Meng et al., 2020), the authors used the Credit

Card Fraud dataset and presented the performance

of the XGBoost supervised classiﬁer for all three

datasets, namely: the original dataset, the undersam-

pled dataset, and the oversampled data using SMOTE.

The values of the ROC curves were calculated as 0.97,

0.98, and 0.987, respectively, which are very close to

what we have achieved in our experiments. We have

used in our scheme a number of unsupervised and

semi-supervised classiﬁers, as well as using a dou-

ble layer of security by using TGANS as compared to

their scheme.

In (Zaccarelli et al., 2021), a simple and efﬁcient

model based on the isolation forest algorithm for de-

tecting amplitude anomalies on any seismic wave-

form segment, with no restriction on the segment

record content (earthquake vs. noise) and no addi-

tional requirements than the segment metadata was

presented. By considering a simple feature space

composed of amplitudes of the power spectral density

(PSD) of each segment evaluated at selected periods,

they showed that their proposed scheme worked ac-

curately. The evaluation results reported average pre-

cision scores of around 0.97, and maximum F1 scores

above 0.9. This work did not involve any synthetic

data generation, but it can present a good comparison

base for the Seismic Bumps data set used for anomaly

detection. We combined iForest and TGAN in our

proposed scheme which achieves similar results. Our

scheme thus provides more security and efﬁciency

than their scheme in addition to its ability to provide

a platform for different organizations with different

capabilities to outsource their datasets to third parties

for anomaly detection.

5 FUTURE WORK AND

CONCLUSIONS

In this paper, we have proposed a robust privacy-

preserving anomaly detection scheme, which can ac-

commodate organizations with varying computational

and communication resources. In our scheme, the or-

ganization will only need to generate samples from

the real data on regular basis and send these samples

to a semi-trusted party for analysis. The anomaly de-

tection service provider will then generate the needed

volume of synthetic data using the information pro-

vided by the organization, and run analytic tasks

needed for detection using the generated data. Given

that our approach ensures that the synthetic data mim-

ics the same characteristics and distributions as of the

real data, it can provide detection with high precision.

We tested our scheme on three different data bases

with a wide range of anomalies present in them. We

presented a comprehensive comparison of the perfor-

mance of six different classiﬁers with two different

sampling techniques. Our experimental results using

different performance metrics produced a high detec-

tion rate.

Investigating the use of Outlier Ensembles and

Outlier Detector Combination Frameworks like Max-

imization, Average of Maximum, Maximum of Av-

erage and Median, or a combination of models to see

the impact of the highly imbalanced data as compared

to the individual linear models for outlier detection

presented in this paper are two venues for possible

future work. Further investigation is needed to en-

sure that TGAN or other variants of GANs are ca-

pable of distinguishing noisy data as non-anomalous.

Almost all the current work in the area, including

ours, has focused on (data) point anomalies. A bet-

ter picture of anomalies can be found if one intro-

duces and utilizes the concept of group or conditional

anomalies. Some interesting recent work in Graph

Neural Networks (GNNs) and their possible extension

to anomaly detection would provide an excellent ex-

tension to this work addressing group or conditional

anomalies. Most detection schemes simply classify a

data point as anomalous without providing the con-

text of how the classiﬁcation decision has been made.

This problem can be even more acute in the case of

high dimensional data.

SECRYPT 2024 - 21st International Conference on Security and Cryptography

746

REFERENCES

Akcay, S., Atapour-Abarghouei, A., and Breckon, T. P.

(2019). Ganomaly: Semi-supervised anomaly detec-

tion via adversarial training. In Jawahar, C. V., Li, H.,

Mori, G., and Schindler, K., editors, Computer Vision

– ACCV 2018, pages 622–637, Cham. Springer Inter-

national Publishing.

Batista, G. E. A. P. A., Prati, R. C., and Monard, M. C.

(2004). A study of the behavior of several methods for

balancing machine learning training data. SIGKDD

Explor. Newsl., 6(1):20–29.

Charitou, C., Dragicevic, S., and d’Avila Garcez, A. (2021).

Synthetic Data Generation for Fraud Detection using

GANs. arXiv e-prints, page arXiv:2109.12546.

Chawla, N. V., Bowyer, K. W., Hall, L. O., and Kegelmeyer,

W. P. (2002). Smote: Synthetic minority over-

sampling technique. SMOTE: Synthetic Minority

over-Sampling Technique, 16(1):321–357.

Devi, D., kr. Biswas, S., and Purkayastha, B. (2017).

Redundancy-driven modiﬁed tomek-link based under-

sampling: A solution to class imbalance. Pattern

Recognition Letters, 93:3–12. Pattern Recognition

Techniques in Data Mining.

Haixiang, G., Yijing, L., Shang, J., Mingyun, G., Yuanyue,

H., and Bing, G. (2017). Learning from class-

imbalanced data: Review of methods and applica-

tions. Expert Systems with Applications, 73:220–239.

He, H., Bai, Y., Garcia, E. A., and Li, S. (2008). Adasyn:

Adaptive synthetic sampling approach for imbalanced

learning. In 2008 IEEE International Joint Confer-

ence on Neural Networks (IEEE World Congress on

Computational Intelligence), pages 1322–1328.

Joshi, N. (2022). BBNTimes. https://www.bbntimes.com/

technology/can-synthetic-data-make-ai-better-

discover-the-beneﬁts-of-synthetic-data. Accessed on

January 2024.

Luo, M., Wang, K., Cai, Z., Liu, A., Li, Y., and Cheang,

C. F. (2019). Using imbalanced triangle synthetic data

for machine learning anomaly detection. Computers,

Materials & Continua, 58(1):15–26.

Meng, C., Zhou, L., and Liu, B. (2020). A case study in

credit fraud detection with smote and xgboost. Jour-

nal of Physics: Conference Series, 1601(5):052016.

Mohammed, R., Rawashdeh, J., and Abdullah, M. (2020).

Machine learning with oversampling and undersam-

pling techniques: Overview study and experimen-

tal results. In 2020 11th International Conference

on Information and Communication Systems (ICICS),

pages 243–248.

Munir, M., Chattha, M. A., Dengel, A., and Ahmed, S.

(2019). A comparative analysis of traditional and

deep learning-based anomaly detection methods for

streaming data. In 2019 18th IEEE International

Conference On Machine Learning And Applications

(ICMLA), pages 561–566.

Nguyen, H. M., Cooper, E. W., and Kamei, K. (2011). Bor-

derline over-sampling for imbalanced data classiﬁca-

tion. International Journal of Knowledge Engineering

and Soft Data Paradigms, 3(1):4–21.

Pang, G., Shen, C., Cao, L., and Hengel, V. D. (2022). Deep

learning for anomaly detection: A review. ACM Com-

puting Surveys, 54(2):1 – 38.

Park, N., Mohammadi, M., Gorde, K., Jajodia, S., Park, H.,

and Kim, Y. (2018). Data synthesis based on gener-

ative adversarial networks. Proceedings of the VLDB

Endowment, 11(10):1071–1083.

Sun, Y., Que, H., Cai, Q., Zhao, J., Li, J., Kong, Z., and

Wang, S. (2022). Borderline smote algorithm and

feature selection-based network anomalies detection

strategy. Energies 2022, 15(13).

Tanimoto, A., Yamada, S., Takenouchi, T., Sugiyama, M.,

and Kashima, H. (2022). Improving imbalanced clas-

siﬁcation using near-miss instances. Expert Systems

with Applications, 201:117130.

Xu, L. and Veeramachaneni, K. (2018). Synthesizing tabu-

lar data using generative adversarial networks. CoRR,

abs/1811.11264.

Zaccarelli, R., Bindi, D., and Strollo, A. (2021). Anomaly

detection in seismic data–metadata using simple

machine-learning models. Seismological Research

Letters, 92(4):2627–2639.

Zhao, Y., Nasrullah, Z., and Li, Z. (2019). PyOD: A python

toolbox for scalable outlier detection. Journal of Ma-

chine Learning Research, 20(96):1–7.

Privacy-Preserving Anomaly Detection Through Sampled, Synthetic Data Generation

747
