Simulating SASCA on Keccak: Security Implications for Post-Quantum

Cryptographic Schemes

Julien Maillard

1,2 a

, Thomas Hiscock

1 b

, Maxime Lecomte

1 c

and Christophe Clavier

2 d

Univ. Grenoble Alpes, CEA-LETI, Minatec Campus, f-38054 Grenoble, France

Univ. Limoges, XLIM-MATHIS, Limoges, France

Keywords:

Keccak, Side-Channel Attacks, SASCA, Kyber, Dilithium.

Abstract:

Keccak is a standard hashing algorithm that is used in cryptographic protocols as Pseudo Random Functions

(PRF), as Pseudo Random Number Generator (PRNG), to check data integrity or to create a Hash-based

Message Authentication Code (HMAC). In many cryptographic constructions, secret data is processed with

hashing functions. In these cases, recovering the input given to the hashing algorithm allows retrieving secret

data. In this paper, we investigate the application of Soft Analytical Side-Channel Attacks (SASCA), based

on a Belief Propagation (BP) framework, to recover the input of SHA-3 instances. Thanks to a simulation

framework, we extend existing work on the Keccak-f permutation function by developing a comprehensive

study of the attacker’s recovery capacity depending on the hash function variant. Then, we study the security

implications of SASCA on cryptosystems performing multiple calls to hashing functions with inputs derived

from the same secret data. We show that such constructions can be exploited efﬁciently by an attacker and

show typical use-cases by targeting Kyber’s encryption routine and Dilithium’s signing routine. We also show

that increasing Kyber’s security parameters implies weaker security against SASCA. Finally, our study gives

insights about the minimal bit-level classiﬁcation accuracy required for successful SASCA on Keccak.

1 INTRODUCTION

Hashing algorithms are deterministic one-way cryp-

tographic functions that take as input a message of

variable size and produce a ﬁx-sized output called a

hash or digest. Main use-cases of hashing functions

include password storage, integrity veriﬁcation and

Message Authentication Code (MAC) creation. Many

applications rely on hashing functions such as secu-

rity protocols (TLS, IPsec, SNMP, etc.), blockchain

technologies (Bitcoin, Ethereum, etc.) and even Post-

Quantum Cryptography (PQC) schemes , for example

Kyber (Avanzi et al., 2019), Dilithium (Lyubashevsky

et al., 2020) or SPHINCS

(Bernstein et al., 2019).

SHA-3 has been standardized by the National In-

stitute of Standards and Technologies (NIST) in 2015.

It is based on Keccak, a sponge structure built over

a permutation function called Keccak-f. When a

hashing function manipulates a secret input, an at-

https://orcid.org/0009-0002-2267-7621

https://orcid.org/0009-0001-5183-2291

https://orcid.org/0000-0002-9985-7586

https://orcid.org/0000-0002-0767-3684

tacker can try to recover the latter by observing side-

channel leakages during the hashing process, such

as power consumption or electromagnetic radiations.

Interestingly, Keccak is used to manipulate secrets

in several PQC schemes with different aims. In-

deed, it is used as a pseudo-random function (PRF) in

Key-Encapsulation Mechanisms (KEM) such as Ky-

ber and FrodoKEM, or as a Pseudo-Random Num-

ber Generator (PRNG) in the post-quantum Fiat-

Shamir-type signature Dilithium. Finally, instances

of post-quantum hash-based signature schemes like

SPHINCS

or XMSS rely on Keccak. These uses

of Keccak mainly process either ephemeral or ﬁxed

secrets, hence with few input variability. This pre-

vents the application of Differential Power Analy-

sis (DPA) approaches that were possible in MAC sce-

narios (Zohner et al., 2012; Bilgin et al., 2014). To

tackle this shortcoming, recent single-trace Soft Ana-

lytical Side-Channel Attacks (SASCA) targeting the

Keccak-f cryptographic permutation function have

been exposed in the literature and shown to be practi-

cal (Kannwischer et al., 2020; You and Kuhn, 2021),

enabling the recovery of these ﬁxed or ephemeral se-

crets. In (Kannwischer et al., 2020), a list of the algo-

518

Maillard, J., Hiscock, T., Lecomte, M. and Clavier, C.

Simulating SASCA on Keccak: Security Implications for Post-Quantum Cryptographic Schemes.

DOI: 10.5220/0012787200003767

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 21st International Conference on Security and Cryptography (SECRYPT 2024), pages 518-527

ISBN: 978-989-758-709-2; ISSN: 2184-7711

rithms that could be targeted by SASCA on Keccak-f

is provided, including several PQC targets. They also

exposed countermeasures against single-trace attacks.

They suggest, without proving it, that multiple calls

to Keccak, with an input composed of a ﬁxed value

concatenated to a counter, can be exploited in lattice-

based KEM and digital signatures. In this paper, we

revisit these intuitions by mounting a shared-key re-

covery attack on Kyber, as well as a private key recov-

ery on Dilithium. Later on, You and Kuhn (You and

Kuhn, 2021) templated fragments of secret variables,

and they exposed high classiﬁcation accuracies at a

bit-level scale on a Chipwhisperer-Lite board(O’ﬂynn

and Chen, 2014). They built a bit-level factor graph

on several SHA-3 instances and mount successful at-

tacks on this board. Nevertheless, their study did not

give insights on the resistance to noise of a bit-level

model. In this paper, we perform a simulated SASCA

approach at bit-level that aims at evaluating the re-

sistance of single or multiple calls to SHA-3 against

SASCA considering bit-level templating.

1.1 Contributions

In this paper, we implement several soft analytical

side-channel attacks based on belief propagation the-

ory to recover the input of Keccak-f by leveraging the

side-channel leakage of inter-round states. We extend

the work presented in the literature through a com-

prehensive study of the resistance of standard SHA-3

instances regarding SASCA in a simulated context.

Namely, we investigate the accuracy of SASCA with

an increasing noise level rather than on a particular

device. We then investigate how SASCA can merge

information when multiple hash functions are called

with inputs derived from a same secret through the

analysis of SHAKE-256 based error vector derivation

in Kyber post-quantum cryptography standard. Our

quantitative approach allows to better comprehend

that the use such “multiple calls” structures present

an additional security concern. Finally, we discuss

the implications of a similar attack scenario on a

Dilithium signature to recover the private key.

2 BACKGROUND

2.1 SASCA and Belief Propagation

A side-channel attacker that targets a cryptographic

application is able to gain probabilistic information

regarding the value of several intermediate variables.

We assume that the attacker knows the cryptographic

application they are attacking. Thus, they know the

mathematical relationships that link all intermediate

variables in the algorithm. The idea behind SASCA

is to combine likelihoods gathered from side-channel

analysis in order to derive a Maximum A Posteriori

(MAP) estimation of the marginal distribution of a se-

cret. This can be performed by modeling the link be-

tween intermediate variables within a bipartite graphi-

cal model called a factor graph. This model allows di-

viding the high dimensional problem of marginal esti-

mation into a set of smaller dimensional problems. A

factor graph contains two types of nodes. Firstly, vari-

able nodes are used to store the probability distribu-

tions of the target algorithm’s intermediate variables.

Secondly, factor nodes represent the arithmetical links

between two or more variables. Upon this graph, the

MAP estimation is carried out by a message pass-

ing algorithm, called belief propagation, where like-

lihoods are transmitted between variable nodes and

factor nodes. The message µ

x→g

sent from variable

node x to factor node g is deﬁned as follows:

x→g

(x) =

∏

h∈n(x)\{g}

h→x

(x) (1)

where n(x) corresponds to the set of neighboring

nodes of x (i.e., connected to x with an edge) in the

factor graph. Additionally, messages sent by a factor

g to a variable x is computed with the sum-product

formula depicted as follows:

g→x

(x) =

∑

∼{x}

f (X)

∏

y∈n(g)\{x}

y→f

(y)

(2)

where X represents the set of variable nodes con-

nected to g and ∼{x} expresses the summary notation

as deﬁned in (Kschischang et al., 2001). Note that f is

a boolean function representing the arithmetical link

between variables in n(g). Finally, the marginal dis-

tribution of a variable node is computed as follows:

P(x) =

∏

g∈n(x)

g→x

(x) (3)

with a normalization factor Z. Factor graphs rep-

resenting cryptographic functions are often cyclic.

Hence, an iterative message passing algorithm, called

loopy-BP, is applied until convergence.

2.2 Keccak Speciﬁcations

SHA-3 is a hashing algorithm based on the Keccak-

f permutation function (Dworkin, 2015). Keccak-f

takes as input a 5 ×5 matrix of elements of size 2

bits, l ∈ {3,4, 5,6}, that are processed through ﬁve

sub-routines θ, ρ, π, χ and ι, that are called sequen-

tially for 12 + 2l rounds. Within the SHA-3 frame-

work, Keccak-f calls are organized with a sponge

Simulating SASCA on Keccak: Security Implications for Post-Quantum Cryptographic Schemes

519

construction. The sponge construction consists in

two phases: “absorption”, where the data is injected

within the primitive, and “squeezing” where the hash

is provided to the user. Keccak-f input of size b bits is

divided into two parts of respective sizes: the “rate”

r and the “capacity” c = b −r. The security level

against collision and preimage attacks is

. The input

of SHA-3, denoted P is padded and then divided into

chunks of size r, denoted {P

,..., P

n−1

}, that are ab-

sorbed one by one by Keccak-f. Then, the squeezing

part delivers chunks {Z

,..., Z

t−1

} of size r that are

concatenated to build the ﬁnal hash. In this paper, we

only focus on SHA-3 versions with l = 6, with 64-

bit words and 24 rounds (this version is called Kec-

cak[1600]). Depending on the desired application,

one can use Keccak through one of the standard in-

stances depicted in Table 1.

Table 1: Parameters of standard SHA-3 instances.

Algorithms r c

SHAKE-128 1344 256

SHA3-224 1152 448

SHA3-256, SHAKE-256 1088 512

SHA3-384 832 768

SHA3-512 576 1024

3 RELATED WORK

Soft analytical side-channel attacks have been in-

troduced by Veyrat et al. on an AES Furious im-

plementation (Veyrat-Charvillon et al., 2014). In-

terestingly, SASCA was shown to outperform Alge-

braic Side-Channel Attacks (ASCA), even in noise-

free contexts (Grosso and Standaert, 2015). Grosso et

al. showed that SASCA required much less training

traces than proﬁled DPA attacks. Later on, SASCA

was adapted to key recovery on Kyber by targeting

the number theoretic transform (Primas et al., 2017;

Pessl and Primas, 2019; Hamburg et al., 2021; Her-

melink et al., 2023). Kannwischer et al. mounted

the ﬁrst single trace SASCA on Keccak (Kannwischer

et al., 2020). Their approach used clustered nodes

in order to shift the representation of variables from

chunk-level (i.e., 8-bit or 16-bit) to bit-level in order

to model the θ transform of Keccak-f. They also pro-

vide insights about the repercussions of SASCA on

Keccak upon post-quantum schemes that are based on

the latter. Later, You and Kuhn developed a fully bit-

level approach of SASCA on Keccak (You and Kuhn,

2021). Thanks to bit-level likelihoods gathered from

a fragment template attack, they targeted a Keccak-

f[1600] implementation on a Cortex-M4 device.

4 ATTACKER MODEL

In this paper, we consider a proﬁled attack scenario

where an adversary can train a model, or template, on

a clone of the target board that runs the exact same

algorithm, but with controlled data. The adversary is

also able to perform leakage assessment (e.g., to iden-

tify the leakage model or to select a set of points of

interest for templating) on any intermediate variables

of the target algorithm. We consider the attacker to

be able to craft templates for inter-round intermedi-

ate variables only (including the hashing function in-

put). This choice provides interesting insights regard-

ing the security of hardware implementations of hash-

ing functions. Indeed, several hardware implementa-

tions of SHA-3 instances use registers to store inputs

and outputs of permutation rounds for Keccak-f (Ar-

shad et al., 2014; Sundal and Chaves, 2017; Michail

et al., 2015). Note that, in practice, a classiﬁer that tar-

gets an inter-round variable may exploit intra-round

leakages, this is especially the case for complex mod-

els (e.g., deep neural networks). By default, we re-

strict the attack phase to the observation of a single

side-channel trace. This model can be relaxed when,

for example, hash computations are performed as part

of secure boot implementations. Since the hashing

can be replayed with data when rebooting the device,

better prediction accuracies could be obtained.

4.1 Prior Likelihoods Generation

As mentioned in section 2, Keccak[1600] handles 64-

bit variables. Although the templating of 32-bit vari-

ables has been shown possible (Cassiers et al., 2023),

manipulating probability distributions upon 2

possi-

ble values requires a high amount of storage, and this

becomes impractical for 64-bit variables. An alterna-

tive strategy called fragment template approach, con-

sists in dividing a n-bit variable into smaller chunks

(or fragments), and applying a template attack on each

chunk. Interestingly, You and Kuhn (You and Kuhn,

2021) showed that the fragment size has no signiﬁcant

impact on bit-level marginal distribution prediction.

This means that, in their particular case, a bit-level

fragment template attack is as relevant as for other

fragment sizes. As Keccak-f uses bitwise manipula-

tions, a factor graph at bit-level scale is appropriate.

Consequently, we consider an arbitrary bit-level clas-

siﬁer to conduct our experiments. In order to evaluate

the correction capacity brought by SASCA depend-

ing on the performance of such bit-level classiﬁer, we

introduce the notion of virtual leakage.

SECRYPT 2024 - 21st International Conference on Security and Cryptography

520

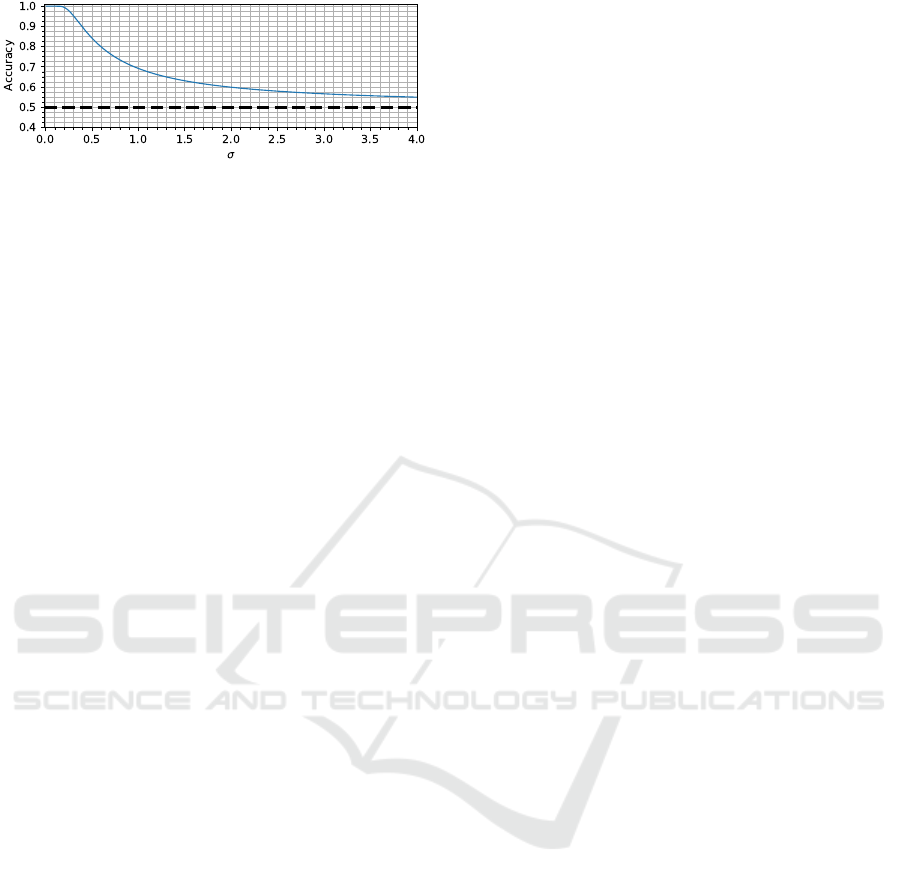

Figure 1: Accuracy of a bit-level classiﬁer for increasing σ,

the standard deviation of the noise within the latent space

after dimensionality reduction. The black dashed line cor-

responds to a random guess.

Virtual Leakage. The leakage of an intermediate

variable is supposed multivariate (i.e., spread over

multiple time samples). Then, we consider an ar-

bitrary bit-level classiﬁer that relies on the projec-

tion the side-channel measurements into a latent space

(which can be viewed as dimensionality reduction).

We propose an abstraction of such dimensionality re-

duction by directly parametrizing the data distribu-

tion, i.e., the virtual leakage, in this latent space.

While, in a real case scenario, the data distribution

in this latent space depends on multiple factors (e.g.,

leakage models, learning algorithm), we opt for a sim-

ulation with few parameters. Let X be the random

variable representing bit values, and L the random

variable representing the leakage. For each bit x, the

virtual leakage l is deﬁned as follows:

l = x +β, β ∼ N (0,σ

) (4)

Noise and Accuracy. Template matching is used on

drawn samples to generate conditional probabilities

P(X = x | L). As we consider two classes, each one

standardized, the accuracy of template matching can

be computed as follows:

Acc = 1 −P(L ≤ 0.5|X = 1) (5)

with P(L ≤ l) being the cumulative density function.

Accuracy depending on noise parameter of the virtual

leakage σ is depicted in Figure 1. As expected, when

σ increases, the accuracy converges towards a random

guess. This procedure allows to alter the accuracy of a

bit-level classiﬁer, emulating the impact of measure-

ment noise.

Key Ranking. We evaluate the accuracy of the

attacks in this paper thanks to key rank estima-

tion (Veyrat-Charvillon et al., 2013; Grosso, 2019;

Poussier et al., 2016). Such procedure provides an

estimation of the remaining complexity of a key enu-

meration strategy after an attack. Hence, the lower

the rank, the quicker an attacker would ﬁnd the cor-

rect key with an appropriate key enumeration algo-

rithm. We consider all individual bits of the secret

(i.e., contained in the “rate” part of Keccak-f’s in-

put) as subkeys. The likelihoods obtained on these

bits after SASCA can be provided to the key rank

estimation algorithm. We rely on the algorithm pre-

sented in (Poussier et al., 2016), which is based on

histogram convolutions to combine likelihoods of the

subkeys. The main parameter to setup in this method

is the number of bins deﬁning the histogram. The

fewer bins, the faster the execution algorithm but the

higher the estimation error. In this study, the size of

the secret is often superior to 512 bits, so we choose

a rather small number of bins (i.e., 50 bins) but we

average key rank estimations results over several at-

tack runs, so as to minimize the impact of estimation

error. Finally, the key rank metric is represented with

logarithmic scale within this work.

Baseline Attack. To provide a comparison basis,

we introduce the notion of “baseline attack” which

describes an attack that is only headed thanks to tem-

plating the input variables (without BP). For example,

the accuracy of a baseline attack on a hashing function

is obtained by only templating its input. The baseline

allows to evaluate the correction capacity brought by

SASCA. We deﬁne the correction capacity as the per-

centage of accuracy gained with SASCA. For exam-

ple, a successful SASCA with prior likelihoods orig-

inating from a bit-level classiﬁer with an accuracy of

0.9 corresponds to a 10% correction capacity.

Limitations. In this work, we consider the latent

space of the dimensionality reduction phase of an ar-

bitrary bit-level classiﬁer to follow a normal distribu-

tion. This assumption is based on the central limit

theorem. Indeed, we suppose that if the target in-

termediate variable leaks at several time instants and

with enough different leakage models in side channel-

measurements, a projection could result in normally

distributed data in a latent space. However, this is

highly dependent on the nature of the projection and

the parameters of the initial leakage. Still, this model

provides insights upon minimal accuracy levels re-

quired for a bit-level classiﬁer for a successful attack.

5 KECCAK-F FACTOR GRAPH

In this paper, we build a bit-level factor graph based

on the work of You and Kuhn (You and Kuhn, 2021).

Namely, each one of the 1600 bits of the state is rep-

resented thanks to a variable node, this for each round

of Keccak-f. The subgraph representing the θ rou-

tine incorporates intermediate variable nodes repre-

senting the parity bits. Note that π and ρ routines

Simulating SASCA on Keccak: Security Implications for Post-Quantum Cryptographic Schemes

521

are implemented with a simple wiring. The factor

graph contains three different factor types which re-

spectively represent the bitwise “exclusive-or”, “and”

and “not” operations (this latter one can easily be

implemented with a lookup table). The exclusive-or

operation is performed thanks to a Walsh-Hadamard

transform (Kannwischer et al., 2020). The per-class

likelihoods outputted from an arbitrary classiﬁer on

an intermediate variable can be incorporated within a

factor-graph thanks to an observational factor. This

factors’ only function is to transmit these likelihoods

to the variable node it is connected to. In our sim-

ulated context, we restrict observational factors to

inter-rounds intermediate variables only (i.e., exclud-

ing θ, and χ intermediate variables). This differs

from the approach taken in (You and Kuhn, 2021),

where θ intermediate variables corresponding to par-

ity were connected to observational nodes, allowing

explicit intra-round leakage exploitation. As men-

tioned in section 4, this allows to gain intuition upon

the resistance of hardware implementations against

SASCA. Nevertheless, one can insert observational

nodes inside the rounds, and we expect that this

would increase attack performances. Finally, when

not stated otherwise, we consider by default the whole

rate bits to constitute the secret (see Table 1).

6 SINGLE CALL ATTACKS

The aim of this section is to evaluate a general attack

scenario where a side-channel adversary has the pos-

sibility to apply previously crafted templates upon a

measurement of a single call to Keccak. Along this

section, we aim at addressing the following questions:

(i) What is the minimal bit-level template accuracy

achievable for a successful attack? (ii) What is the

minimum number of Keccak-f rounds to proﬁle to ob-

tain satisfactory recovery? (iii) What accuracies can

be expected for different instances of Keccak?

Fully Unknown Input. The case of a fully un-

known Keccak-f input state of 1600 bits represents a

late invocation of Keccak-f in the sponge construc-

tion, without prior knowledge of the output of the

previous invocation. In (You and Kuhn, 2021), au-

thors report a success rate close to 0 on the recovery

of a state with more than 1500 unknown bits. Conse-

quently, they need to know at least a part of the capac-

ity, which implies a successful attack on prior invoca-

tions. We believe that such dependency between the

attacks can be detrimental to an attacker, so we also

investigate SASCA on fully random Keccak-f inputs.

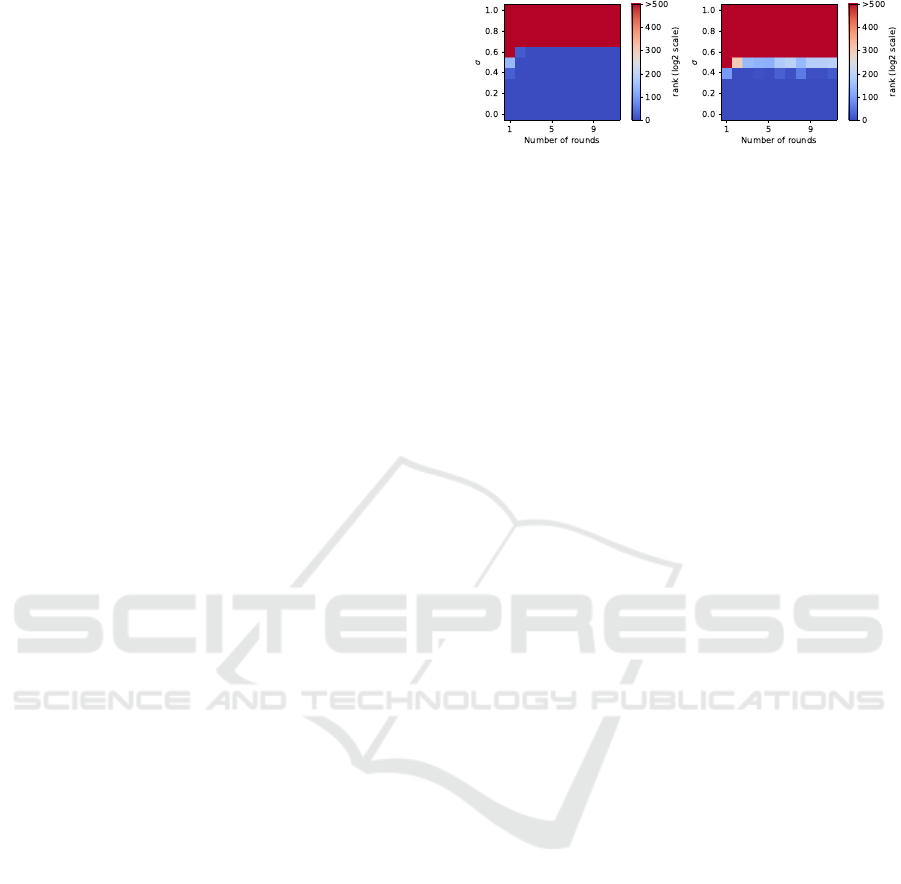

Figure 2: Average key rank estimation on the input after

50 runs of simulated BP attacks on Keccak-f[1600] with

full unknown inputs (right) and r = 1088 unknown bits, the

SHA3-256 FIPS standard (left).

6.1 Number of Target Rounds

Firstly, the purpose of our analysis is to assess the

minimal number of rounds that must be proﬁled by

an attacker in order to get satisfactory recovery of

the input considering noise. Indeed, this reduces the

number of variables to be templated by the attacker,

with hopefully similar recovery potential. We per-

form two simulations with varying noise parameter σ

and number of templated rounds. The ﬁrst experiment

evaluates the average key rank estimation for the in-

put of a SHA3-256 / SHAKE-256 instance (with rate

r = 1088). The second experiment measures the aver-

age key rank of a fully unknown Keccak-f input state

of 1600 bits. In Figure 2 we observe that attacking

SHA3-256 allows the good key to be ranked ﬁrst up

to σ = 0.6, which is better than for a full random in-

put. Still, with σ < 0.5, the rank of the good guess

stays under 2

, which is approximately the number

of blocks hashed by the bitcoin network in one second

in January 2024 (Coinwarz, ). We also notice that, re-

gardless the targeted version, no signiﬁcant improve-

ment is brought by proﬁling more than 5 Keccak-f

rounds (2 rounds for SHA3-256). We believe that

this is related to the non-injective nature of the bit-

wise logical-and operation performed in χ, which lim-

its the backwards propagation of information within

the graph. Further Keccak-f related analyses in this

paper will be conducted considering templates on 5

rounds. Note that this is slightly higher than (Kan-

nwischer et al., 2020) and (You and Kuhn, 2021), that

used respectively 2 and 3 (or 4, depending on the ver-

sion of SHA-3) rounds.

6.2 Evaluation of SHA-3 Attacks

We now investigate the resistance of standard SHA-

3 instances (see Table 1) against SASCA. For an in-

creasing noise level, we run the attack 50 times on

random inputs and computed key ranks are averaged.

In order to assess the beneﬁts of SASCA against a

baseline attack, the result of a baseline classiﬁer, as

deﬁned in section 4, is used as a reference. Results of

SECRYPT 2024 - 21st International Conference on Security and Cryptography

522

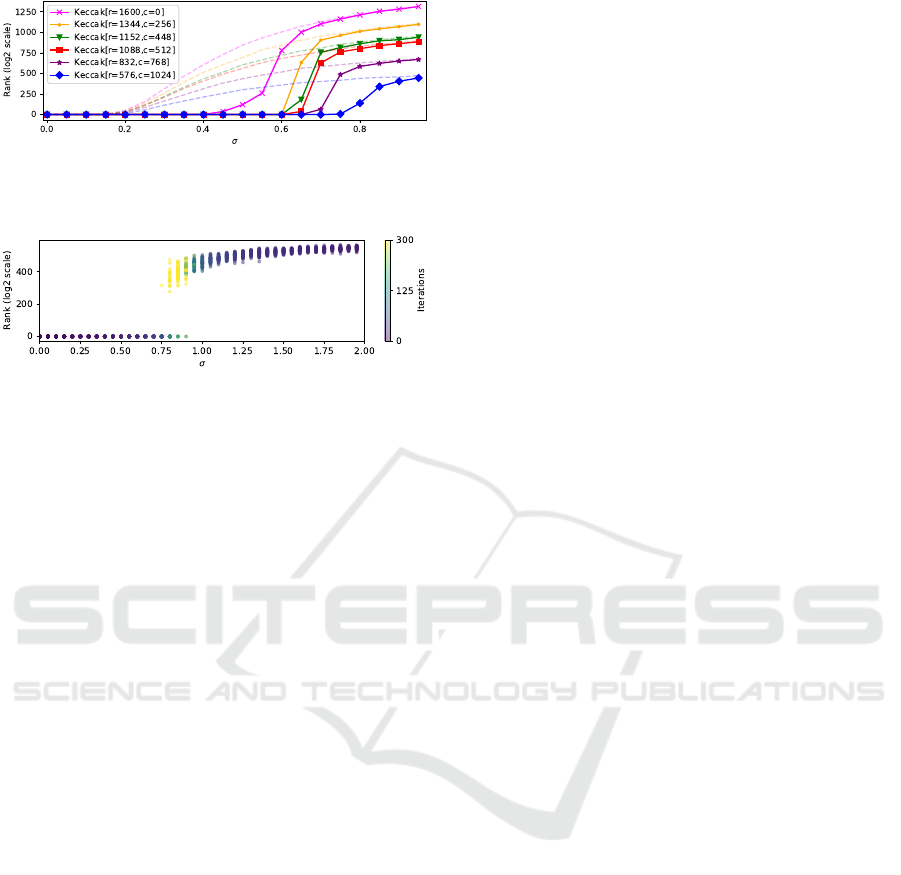

Figure 3: Comparison of the key ranks of a baseline classi-

ﬁer (without BP, light dashed lines) and SASCA attacks on

Keccak-f for several rate r and capacity c parameters.

Figure 4: Number of iterations of the loopy-BP algorithm

for the SHA3-512 attack. The maximum number of itera-

tions is set to 300.

such simulations are illustrated in Figure 3.

Results provided in Figure 3 show that the propor-

tion of known data plays an important role regarding

the resistance of the attack to noise. Indeed, for Kec-

cak instances, the average rank after the attack is ex-

pected to converge up to the size of the problem (i.e.,

). Also, the greater the capacity size, the greater

amount of noise can be supported by SASCA leading

to a rank of 0. This follows observations made in (You

and Kuhn, 2021) and (Kannwischer et al., 2020).

Beneﬁts of SASCA. In Figure 3, we observe that

the good guess rank after baseline attacks increases

rapidly after a bit-level noise value of σ = 0.15,

whereas the least efﬁcient SASCA (i.e., with full

unknown input state, depicted by Keccak[r = 1600,

c = 0]) exposes an average rank of 0 up to an ini-

tial bit-level classiﬁer accuracy of 0.9 (corresponding

to σ = 0.4 in Figure 1). With the increasing noise

level, we observe the average ranks after both base-

line and SASCA approaches converge towards an ran-

dom guess. Consequently, we can conclude that, in

the cases considered in this study, SASCA is always

beneﬁcial to an attacker within a noise domain de-

pending on the capacity of SHA-3. Average key rank

after SASCA converges more slowly towards random

guessing when the noise increase, being beneﬁcial to

the adversary when key enumeration is possible.

Noise and BP Convergence. In Figure 4, we illus-

trate the ranks and the number of loopy-BP iterations

obtained for several runs of a SHA3-512 attack for an

increasing noise level. A threshold on the maximal

statistical change of marginals from one iteration to

the next is setup as a stopping criterion for loopy-BP.

For low noise levels (i.e., inferior to σ = 0.70), the

number of iterations for all runs stays low (i.e., infe-

rior to 70) while the rank of the good guess is 0. This

means that the loopy-BP algorithm quickly converges

to the good hypothesis. From σ = 0.75 to σ = 0.9,

the intermediate zone, the majority of runs that do not

lead to low rank reach the maximum number of iter-

ations (300 in this experiment), indicating that loopy-

BP did not converge. Finally, after σ = 0.90, the

number of iterations for all the runs drops below 70,

while the rank of the good hypothesis remains high.

In this case, the loopy-BP algorithm converges, but on

a wrong hypothesis. If, in a black box context, an at-

tacker observes that loopy-BP algorithm reaches the

maximum number of iterations, this means that the

initial template accuracy probably corresponds to the

intermediate zone depicted in Figure 4. The attacker,

then, could adjust the classiﬁcation model, or retry the

attack with new measurements.

6.3 Discussion

We presented a methodology to assess the mini-

mal number of hashing function rounds necessary to

mount successful SASCA on SHA-3. We analyzed

the beneﬁts of SASCA compared to a baseline attack,

and conﬁrmed the statement provided in (You and

Kuhn, 2021) and (Kannwischer et al., 2020): the more

input is known, the higher is the resistance of SASCA

to noise. This implies that Keccak instances with

smaller rate r, while having higher security against

cryptanalysis, are more sensitive to SASCA.

Additionally, the intermediate key transition zone

in Figure 4, where most of the loopy-BP instances

saturate at the maximum number of iterations, can

be explained by the potential appearance of oscilla-

tions or error ﬂoors. This could reveal trapping or ab-

sorbing sets within the factor graph (Dolecek et al.,

2009). Moreover, no signiﬁcant improvement was

brought by increasing the maximal number of iter-

ations (i.e., loopy-BP still frequently hits the maxi-

mum in this intermediate domain), neither by apply-

ing message damping (this was used in (Kannwischer

et al., 2020) and shown inefﬁcient in a bit-level factor

graph in (You and Kuhn, 2021)).

Future work could aim at characterizing absorb-

ing sets in such noise domains, in order to opt

for an appropriate way to counter them. Speciﬁ-

cally, adding weights to the message passing process

with ﬁner granularity than classical message damp-

ing could be beneﬁcial. Hence, we believe that neu-

ral enhanced belief-propagation models (Satorras and

Welling, 2021) should be considered in further works.

Simulating SASCA on Keccak: Security Implications for Post-Quantum Cryptographic Schemes

523

7 MULTIPLE CALLS ATTACK

In (Kannwischer et al., 2020), authors brieﬂy mention

that several calls to Keccak-f with an input composed

of a ﬁxed part (a random coin here) and a varying part

(a counter value in this case) could be exploited by

merging the factor graphs in order to aggregate infor-

mation, following an approach depicted in (Veyrat-

Charvillon et al., 2014). In this section, we study

the vulnerability of such structures regarding SASCA.

For this sake, we take as use-cases a shared key recov-

ery on Kyber, and a private key recovery on Dilithum.

Note that both these attacks suppose that the attacker

is able to detect and label different calls to the hashing

function. In practice, this brings additional technical

difﬁculties that should be taken into account.

7.1 Kyber’s Shared Key Recovery

Kyber is a post-quantum Key Encapsulation Mecha-

nism (KEM) that has been standardized by the NIST

in 2022 (Avanzi et al., 2019). Kyber is a lattice-based

scheme that aims at encapsulating a shared key for

secure key exchange. It relies on an encryption pro-

cedure that consists in projecting the message (i.e.,

the shared key) in a lattice and adding an error, which

is derived from a secret coin. To reach IND-CCA2

security, the receiver needs to perform a Fujisaki-

Okamoto transform (Fujisaki and Okamoto, 1999),

that includes a re-encrypt operation. This means that a

side-channel attack targeting the encryption function

to recover the shared key can either target the sender

or the receiver device.

Encryption Function. Pseudocode of the encryp-

tion algorithm used in Kyber is depicted in Algorithm

1.This algorithm takes as input a secret message. As

one can see, a 32-byte secret random coin r is derived

thanks to a PRF in order to generate a secret vector

r and error vectors e

and e

. We stress that, with

the knowledge of the ciphertext c (which can be in-

tercepted by the adversary), the public key pk and the

secret random coin r, an attacker is able to recover the

message m.

Attacking the PRF. The derivation in Kyber

uses SHAKE-256 as a PRF. As seen in Table 1,

SHAKE-256 is based on Keccak[r=1088, c=512].

Namely, in Algorithm 1., r is manipulated with

PRF(r,N), for N ∈ {0,...,2k}, with PRF(r,N) =

SHAKE-256(r||N). As r is a 256-bit variable and N

is known at each step, it is possible to mount an attack

targeting the N

tot

= 2k + 1 calls to SHAKE-256.

Input: Public key pk ∈ B

12·k·n/8+32

Input: Message m ∈B

Input: Random coin r ∈ B

Result: Ciphertext c ∈ B

·k·n/8+d

·n/8

N ← 0

t ←decode

(pk)

A ←generate public matrix(pk)

for i from 0 to k −1 do

r[i] ←CBD

(PRF(r,N))

N ← N + 1

end

for i from 0 to k −1 do

[i] ←CBD

(PRF(r,N))

N ← N + 1

end

←CBD

(PRF(r,N))

r = NT T (r)

u = NT T

−1

(

◦

r) + e

v = NT T

−1

(

◦

r) + e

+ decompress

(decode

(m),1)

= encode

(compress

(u,d

))

= encode

(compress

(v, d

))

return c = (c

||c

)

Algorithm 1: Kyber encryption function (Avanzi et al.,

2019).

Note that the higher N

tot

, the higher is Kyber’s secu-

rity level. By looking backwards at Algorithm 1, we

see that c

can be recovered from c, which is a sim-

ple concatenation of c

and c

. Then, an attacker can

compute v

′

as follows:

′

= decompress

(decode

),d

) (6)

We know from Kyber’s speciﬁcation that the loss

of information induced by this computation is:

err

= |v −v

′

mod

q| ≤





(7)

with ⌈x⌋ being the rounding operation. The value of

err

corresponding to each security level of Kyber is

depicted in Table 2.

By setting m

dec

= decompress

(decode

(m),1),

from Algorithm 1we have:

v = NT T

−1

(

◦

r) + e

+ m

dec

(8)

By making the hypothesis that an attacker is able

to recover r, they can then obtain NT T

−1

(

◦

r)+e

Then, the attacker can compute the following:

′

dec

= v

′

−



NT T

−1

(

◦

r) + e



(9)

This operation guarantees that |m

dec

−

′

dec

mod

q| = δ

err

. Then we have:

compress

′

dec

,1) =



·m

dec



mod

2 (10)

For all Kyber security levels, the relation δ

err

is guaranteed. This allows the attacker to compute the

shared key m with:

m = encode

(compress

′

dec

,1)) (11)

SECRYPT 2024 - 21st International Conference on Security and Cryptography

524

Table 2: Kyber parameters values.

Version q k N

tot

δerr

Kyber512 3329 2 5 4 104

Kyber768 3329 3 7 4 104

Kyber1024 3329 4 9 5 52

Figure 5: Average rank 50 runs with increasing noise on Ky-

ber’s encryption attack considering multiple SHAKE-256

calls. Dotted lines represent the trace averaging version of

the attack with N

tot

= 1.

Simulation Results. We create a joint factor graph

that represents intermediate variables of all N

tot

SHAKE-256 calls, built around the bit-level variables

that represent the 256-bit secret coin r. Kannwischer

et al. expected that attacks in this setting would per-

form similarly than where the input is not changing

and where trace averaging is possible (Kannwischer

et al., 2020). Let X be a random variable of mean

and standard deviation σ

. When drawing random

samples from X of size n, the central limit theorem

for sample means states that, considering the random

variable

X consisting in sample means, we have:

X ∼ N



√



(12)

Our simulated model allows to easily estimate the

average rank of an attack considering ﬁxed input, with

trace averaging taken into account. In this case, we

simply need to apply a factor

√

tot

to the noise sup-

ported by the attack with N

tot

= 1 to simulate the

“trace averaging” scenario.

Attack results are illustrated in Figure 5. First, one

can observe that the noise level supported by the at-

tack of a single SHAKE-256 call is superior to what

is depicted in Figure 3. Indeed, even if SHAKE-256

is based on Keccak[r=1088, c=512], the secret coin r

is concatenated to a known value N and then padded

with the Keccak standard padding scheme. This leads

to 1344 known bits and 256 unknown bits within the

latter input. The size of the manipulated secret be-

ing smaller than all previously analyzed Keccak in-

stances, the observed accuracy for the SHAKE-256

tot

= 1) instance is higher than for instances in Ta-

ble 1. This follows the conclusions brought in sec-

tion 6. Most importantly, considering several calls to

SHAKE-256 sharing the same secret allows to drasti-

cally increase the level of noise supported by the at-

tack, following the evolution of N

tot

. Furthermore, we

bring a nuance to the statement of (Kannwischer et al.,

2020). Indeed, SASCA results on merged graphs is

less resistant to noise than SASCA on the averaged

ﬁxed input scenario. We believe this can be explained

by topological aspects of the merged factor graph that

could lead to the appearance of absorbing and trap-

ping sets. We can, however, consider the “trace aver-

aging version” as a loose upper bound that can be used

to quickly evaluate security. Finally, further work

could aim at tightening the gap between approxima-

tion by investigating methods to enhance the loopy-

BP procedure, as stated in subsection 6.2.

7.2 Dilithium Private Key Recovery

Dilithium (Lyubashevsky et al., 2020) is a lattice

based post-quantum Fiat-Shamir digital signature

scheme that has been standardized by the NIST. Dur-

ing the randomized signing routine, a secret random

token ρ

′

∈{0,1}

512

is drawn, and processed, concate-

nated to a counter variable κ through the ExpandMask

function, which is implemented thanks to SHAKE-

256. The recovery of ρ

′

, along with the knowledge of

public parameters and one (or few) messages and cor-

responding signatures, is enough to retrieve the full

secret key (Berzati et al., 2023). Due to the rejection

sampling process, the signing process makes, in av-

erage, 4.25 calls to the ExpandMask function. Then,

thanks to simple power analysis, an adversary could

spot the different calls to ExpandMask, and associate

the appropriate value of κ for each one of them. Then,

an attacker could create a merged graph, similarly to

the approach taken in subsection 7.1. Also, the more

the rejection sampling fails to output a valid signature,

the more calls to ExpandMask are performed, which

would lead to a wider graph, and a higher resistance of

SASCA to noise (see Figure 5). Consequently, con-

clusions about the vulnerability induced by multiple

calls of SHAKE-256 with a derivation of the same se-

cret also hold for Dilithium’s signing routine.

8 SUMMARY

We display the minimal bit-level template accuracy

required for successful SASCA attack on average in

Table 3. Firstly, we observe that, except for the case

of Kyber related graphs, the same bit-level classiﬁ-

cation accuracy is needed to reach either a 2

or 2

rank. This is due to a quick drop in SASCA correc-

tion capacity. Still, for SHA3-512, the correction ca-

pacity of SASCA reaches approximately 23.5%. This

goes higher when aggregating graphs in the case of

Kyber, where the correction capacity is of 37.5%. Fi-

Simulating SASCA on Keccak: Security Implications for Post-Quantum Cryptographic Schemes

525

Table 3: Minimal Required bit-level fragment template ac-

curacies for successful SASCA attack.

Algorithms rank 2

rank 2

Keccak-f[r = 1600, c = 0] 0.875 0.875

SHAKE-128 0.8 0.8

SHA3-224 0.8 0.8

SHA3-256, SHAKE-256 0.775 0.775

SHA3-384 0.765 0.765

SHA3-512 0.765 0.75

Kyber graph (N

tot

= 1) 0.69 0.675

Kyber graph (N

tot

= 5) 0.625 0.6

Kyber graph (N

tot

= 7) 0.625 0.58

Kyber graph (N

tot

= 9) 0.630 0.57

nally, with an enumeration effort roughly equivalent

to a second of bitcoin network workload in January

2024 (i.e., 2

) (Coinwarz, ), the correction brought

by SASCA and enumeration can reach more than

40% in the best case scenario (i.e., Kyber graph with

tot

= 9).

9 COUNTERMEASURES

All attacks presented in this paper rely on the abil-

ity of an attacker to craft a template attack on sev-

eral intermediate variables within the targeted hash-

ing functions. Hence, masking measures would mit-

igate these attacks (Groß et al., 2017; Arribas et al.,

2018). We showed that SASCA does not beneﬁt

from templating variables after the ﬁfth permutation

round. Hence, masking only the ﬁrst Keccak-f rounds

would allow reducing the amount of necessary ran-

domness while providing satisfactory security guar-

antees, this with reduced computational overhead. All

attacks presented in this paper are valid until a certain

bit-level prediction accuracy. Hence, classical mea-

sures that tend to limit the power consumption vari-

ations or that insert dummy cycles during the sensi-

tive code execution can be beneﬁcial. Furthermore,

as formulated in (Kannwischer et al., 2020), a shuf-

ﬂing countermeasure consisting in reordering opera-

tions within Keccak-f routines would complicate the

template construction phase of the attack, and thus

lower the SASCA accuracy. Indeed there are very few

data dependencies within Keccak-f routines, allowing

to easily sample random permutations.

Whereas aforementioned measures come with a

cost in terms of required randomness and execution

time, countermeasures can be taken at protocol level.

Indeed, in section 7, we show that multiple deriva-

tions of a same secret going through a hash func-

tion raise a vulnerability. Moreover, in the special

case of Kyber, we see that increasing the security

level directly enhances the potential for an attacker

to mount attacks that support a higher level of noise.

Consequently, possible countermeasure paths for fu-

ture schemes could be headed towards implementing

derivations from a secret that are harder to exploit

from an attacker’s perspective, typically by prevent-

ing an adversary to easily aggregate several factor

graphs. This could be done without any additional

necessary randomness by, for example, leveraging the

“squeeze” phase of Keccak. However, theoretical se-

curity of such methods remains to be evaluated.

10 CONCLUSION

In this paper, we investigated the security of SHA-3

hashing functions against soft analytical side-channel

attacks that aim at retrieving a secret input under a

bit-level leakage model. Thanks to a simulated ap-

proach, we assess the threat represented by SASCA

on most common SHA-3 version, thus extending pre-

vious works on that topic. Next, we mount an at-

tack that exploits multiple calls to a hashing function

that processes data derived from the same secret. We

evaluate this approach on Kyber’s encryption func-

tion and Dilithium signing routine, that are based on

SHAKE-256. This type of construction leads to ad-

ditional vulnerabilities when considering an attacker

with SASCA potential. Particularly, it shows that at-

tacks based on multiple hash function calls really push

forward the acceptable noise level from an attacker’s

perspective. In cases where proﬁled side-channel at-

tacks are possible, the attacks described in this paper

represent a threat. This must be taken into account

when designing new schemes that use hashing func-

tion to manipulate secret data, particularly when mul-

tiple deviations from the same secret are needed.

In this paper, we deliberately eluded the practical

difﬁculties of performing a template attack on hash-

ing functions, this to focus on an exhaustive study of

the noise resistance of SASCA. Hence, future works

could investigate such practical aspects, and the im-

pact of considering within SASCA likelihoods com-

ing from models that proﬁle variables with different

leakage models. This could lead to the application of

advanced proﬁling, for example based on deep neu-

ral networks, allowing to investigate the interface be-

tween machine learning and probabilistic graphical

models within a SASCA framework.

ACKNOWLEDGEMENT

This work has beneﬁted from a government grant

managed by the National Research Agency under

France 2030 with reference ANR-22-PECY-0009.

SECRYPT 2024 - 21st International Conference on Security and Cryptography

526

REFERENCES

Arribas, V., Bilgin, B., Petrides, G., Nikova, S., and Rijmen,

V. (2018). Rhythmic Keccak: SCA security and low

latency in HW. IACR Transactions on Cryptographic

Hardware and Embedded Systems.

Arshad, A., Aziz, A., et al. (2014). Compact implementa-

tion of SHA3-512 on FPGA. In Conference on Infor-

mation Assurance and Cyber Security (CIACS).

Avanzi, R., Bos, J., Ducas, L., Kiltz, E., Lepoint, T., Lyuba-

shevsky, V., Schanck, J. M., Schwabe, P., Seiler, G.,

and Stehl

e, D. (2019). Crystals-kyber algorithm spec-

iﬁcations and supporting documentation. NIST PQC

Round.

Bernstein, D. J., H

ulsing, A., K

olbl, S., Niederhagen, R.,

Rijneveld, J., and Schwabe, P. (2019). The sphincs+

signature framework. In Proceedings of the 2019

ACM SIGSAC.

Berzati, A., Viera, A. C., Chartouny, M., Madec, S.,

Vergnaud, D., and Vigilant, D. (2023). Exploiting

intermediate value leakage in dilithium: a template-

based approach. IACR Transactions on Cryptographic

Hardware and Embedded Systems.

Bilgin, B., Daemen, J., Nikov, V., Nikova, S., Rijmen, V.,

and Van Assche, G. (2014). Efﬁcient and ﬁrst-order

dpa resistant implementations of keccak. In Smart

Card Research and Advanced Applications, CARDIS

2013.

Cassiers, G., Devillez, H., Standaert, F. o.-X., and Udvarhe-

lyi, B. (2023). Efﬁcient Regression-Based Linear Dis-

criminant Analysis for Side-Channel Security Evalu-

ations: Towards Analytical Attacks against 32-bit Im-

plementations. IACR Transactions on Cryptographic

Hardware and Embedded Systems.

Coinwarz. Bitcoin hash rate. https://www.coinwarz.com.

Dolecek, L., Zhang, Z., Anantharam, V., Wainwright, M. J.,

and Nikolic, B. (2009). Analysis of absorbing sets and

fully absorbing sets of array-based ldpc codes. IEEE

Transactions on Information Theory.

Dworkin, M. J. (2015). SHA-3 standard: Permutation-

based hash and extendable-output functions.

Fujisaki, E. and Okamoto, T. (1999). Secure integration

of asymmetric and symmetric encryption schemes. In

Annual international cryptology conference.

Groß, H., Schaffenrath, D., and Mangard, S. (2017).

Higher-order side-channel protected implementations

of keccak. In 2017 Euromicro Conference on Digital

System Design (DSD).

Grosso, V. (2019). Scalable key rank estimation (and key

enumeration) algorithm for large keys. In Smart Card

Research and Advanced Applications, CARDIS 2018.

Grosso, V. and Standaert, F.-X. (2015). ASCA, SASCA and

DPA with enumeration: which one beats the other and

when? In Advances in Cryptology, ASIACRYPT 2015.

Hamburg, M., Hermelink, J., Primas, R., Samardjiska, S.,

Schamberger, T., Streit, S., Strieder, E., and van Vre-

dendaal, C. (2021). Chosen ciphertext k-trace attacks

on masked cca2 secure kyber. IACR Transactions on

Cryptographic Hardware and Embedded Systems.

Hermelink, J., Streit, S., Strieder, E., and Thieme, K.

(2023). Adapting belief propagation to counter shuf-

ﬂing of NTTs. IACR Transactions on Cryptographic

Hardware and Embedded Systems.

Kannwischer, M. J., Pessl, P., and Primas, R. (2020).

Single-trace attacks on keccak. Cryptology ePrint

Archive.

Kschischang, F. R., Frey, B. J., and Loeliger, H.-A. (2001).

Factor graphs and the sum-product algorithm. IEEE

Transactions on information theory.

Lyubashevsky, V., Ducas, L., Kiltz, E., Lepoint, T.,

Schwabe, P., Seiler, G., Stehl

e, D., and Bai, S. (2020).

Crystals-dilithium. Algorithm Speciﬁcations and Sup-

porting Documentation.

Michail, H. E., Ioannou, L., and Voyiatzis, A. G. (2015).

Pipelined SHA-3 implementations on FPGA: Archi-

tecture and performance analysis. In Proceedings of

the Second Workshop on Cryptography and Security

in Computing Systems.

O’ﬂynn, C. and Chen, Z. (2014). Chipwhisperer: An

open-source platform for hardware embedded secu-

rity research. In Constructive Side-Channel Analy-

sis and Secure Design: 5th International Workshop,

COSADE 2014.

Pessl, P. and Primas, R. (2019). More practical single-trace

attacks on the number theoretic transform. In Progress

in Cryptology–LATINCRYPT 2019.

Poussier, R., Standaert, F.-X., and Grosso, V. (2016). Sim-

ple key enumeration (and rank estimation) using his-

tograms: An integrated approach. In Cryptographic

Hardware and Embedded Systems, CHES.

Primas, R., Pessl, P., and Mangard, S. (2017). Single-

trace side-channel attacks on masked lattice-based en-

cryption. In Cryptographic Hardware and Embedded

Systems–CHES 2017: 19th International Conference,

Taipei, Taiwan, September 25-28, 2017, Proceedings.

Satorras, V. G. and Welling, M. (2021). Neural enhanced

belief propagation on factor graphs. In International

Conference on Artiﬁcial Intelligence and Statistics.

Sundal, M. and Chaves, R. (2017). Efﬁcient FPGA imple-

mentation of the SHA-3 hash function. In IEEE Com-

puter Society Annual Symposium on VLSI (ISVLSI).

Veyrat-Charvillon, N., G

erard, B., Renauld, M., and Stan-

daert, F.-X. (2013). An optimal key enumeration al-

gorithm and its application to side-channel attacks. In

Selected Areas in Cryptography, SAC 2012.

Veyrat-Charvillon, N., G

erard, B., and Standaert, F.-X.

(2014). Soft analytical side-channel attacks. In Ad-

vances in Cryptology–ASIACRYPT 2014: 20th Inter-

national Conference on the Theory and Application of

Cryptology and Information Security.

You, S.-C. and Kuhn, M. G. (2021). Single-trace fragment

template attack on a 32-bit implementation of keccak.

In International Conference on Smart Card Research

and Advanced Applications.

Zohner, M., Kasper, M., St

ottinger, M., and Huss, S. A.

(2012). Side channel analysis of the sha-3 ﬁnalists.

In 2012 Design, Automation & Test in Europe Confer-

ence & Exhibition (DATE).

Simulating SASCA on Keccak: Security Implications for Post-Quantum Cryptographic Schemes

527
