An Uncertain Reasoning-Based Intrusion Detection System for

DoS/DDoS Detection

Harpreet Singh

, Habib Louaﬁ

2 a

and Yiyu Yao

1 b

Department of Computer Science, University of Regina, Regina, SK, Canada

Department of Science and Technology, TELUQ University, Montreal, QC, Canada

ﬁ

Keywords:

IDS, DoS, DDoS, Bayesian Networks, Markov Networks, Machine Learning, Artiﬁcial Intelligence.

Abstract:

Network intrusion detection systems (NIDS) play an important role in cybersecurity, but they face obstacles

such as unpredictability and computational complexity. To solve these challenges, we propose a novel prob-

abilistic NIDS that detects DoS and DDoS attacks carried out on the TCP, UDP, and ICMP protocols. Our

method incorporates knowledge from the ﬁelds of these protocols using Bayesian networks (BN) and Markov

networks (MN). Inference is performed using Variable Elimination (VE) for BN and Shafer-Shenoy (SS)

Propagation, as well as Lazy Propagation (LP) for MN. Extensive tests on the CAIDA dataset have yielded

promising results, with higher Precision, Recall, and F1-Score metrics. Notably, both SS and LP are efﬁcient,

demonstrating the effectiveness of our proposed NIDS in improving network security.

1 INTRODUCTION

Computers and devices connected to the Internet use

the Open Systems Interconnect (OSI) model to com-

municate with each other, whether the connection is

wired (Zimmermann, 1980) or wireless (Korolkov

and Kutsak, 2021). Each layer of the OSI model can

be attacked differently by numerous types of attacks,

such as Denial of Service (DoS) and Distributed De-

nial of Service (DDoS) attacks, which are termed as

the most catastrophic ones (Jaafar et al., 2019).

This paper focuses on securing network assets and

safeguarding crucial data held on internet-connected

devices and servers. DoS/DDoS attacks, which ex-

ploit basic protocols such as TCP, UDP, and ICMP

with modiﬁcations, present signiﬁcant issues due

to their stealth and resource consumption. Intru-

sion Detection Systems (IDS) play an important

role in minimizing such attacks by scanning net-

work trafﬁc for malicious activity. IDS has two de-

tection methods: signature-based, which relies on

known attack patterns, and anomaly-based, which

uses models of typical behaviour to detect devia-

tions. While signature-based detection is conﬁned

to known threats, anomaly-based detection provides

greater coverage by identifying any aberrant net-

https://orcid.org/0000-0002-3247-3115

https://orcid.org/0000-0001-6502-6226

work behaviour for further investigation (Yassin et al.,

2014).

In this paper, a behaviour-based IDS model is pro-

posed for the detection of DoS/DDoS attacks, us-

ing uncertain reasoning in Artiﬁcial Intelligence (AI).

Precisely, the proposed model uses Bayesian net-

works (BN), which are based on Probability theory

and Uncertainty (Pearl, 1998). Without loss of gen-

erality, in this paper, we focus on the detection of

DoS/DDoS attacks that exploit three widely used and

targeted protocols, namely TCP, UDP, and ICMP.

Thus, the knowledge representation of the BN is

based on the ﬁelds that comprise these three proto-

cols.

To achieve that goal, we propose a robust

methodology for identifying malicious network trafﬁc

frames utilizing Bayesian network (BN) algorithms.

Through rigorous implementation, testing, and vali-

dation, the paper evaluates the performance of three

distinct algorithms: Variable Elimination (VE) for

exact inference, Shafer-Shenoy propagation (SS) for

message propagation, and Lazy Propagation (LP) for

hybrid inference. These contributions collectively ad-

vance the state-of-the-art in intrusion detection sys-

tems and bolster network security measures.

The paper is organized as follows, Section 2, re-

views the proposed solutions related to intrusion de-

tection using AI algorithms. Section 3, presents the

methodology of our proposed solution. Sections 4,

Singh, H., Louaﬁ, H. and Yao, Y.

An Uncertain Reasoning-Based Intrusion Detection System for DoS/DDoS Detection.

DOI: 10.5220/0012794400003767

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 21st International Conference on Security and Cryptography (SECRYPT 2024), pages 771-776

ISBN: 978-989-758-709-2; ISSN: 2184-7711

771

and 5 detail the experimental setup and results, re-

spectively. Lastly, Section6 concludes the paper.

2 RELATED WORK

In this section, we review the most important ap-

proaches, solutions, and frameworks proposed to de-

sign IDS using AI. We show, why probability-based

approaches are preferred over fuzzy logic and rule-

based methods in the design of IDS.

In various studies, different approaches have been

proposed for detecting network intrusions and miti-

gating cyber threats. Bringas et al. (Bringas et al.,

2008) introduced ESIDE-Depian, utilizing SNORT

to collect labelled packet frames and constructing a

Bayesian Network (BN) for anomaly and misuse de-

tection. They employed the Lauritzen and Spiegelhal-

ter (LS) propagation algorithm for inference, noting

its efﬁciency in terms of response time. Sudar et al.

(Sudar et al., 2021) proposed a method using Support

Vector Machine (SVM) and Decision Tree (DT) algo-

rithms for DDoS attack detection in software-deﬁned

networks (SDN), achieving 85% accuracy with SVM

and 78% with DT. Alhakami et al. (Alhakami et al.,

2019) presented a non-parametric Bayesian approach

integrating feature selection mechanisms to detect

both known and unknown attacks effectively. Alexan-

der et al. (Alexander, 2020) introduced a Likert

scale method combined with BN to reduce cyber

threat attacks, advocating for strategic integration of

BN models into organizational decision-making pro-

cesses. Koc et al. (Koc and Carswell, 2015) ex-

plored various Bayesian classiﬁers, ﬁnding that Pro-

portion K-Interval discretization combined with Hid-

den Naive Bayesian (HNB) yielded high accuracy in

identifying DDoS assaults. (Agostinello et al., 2023)

proposed a simulation of anomaly based IDS using

Deep Learning (DL) methods. They worked on three

different models (DNN, CNN, RNN). They showed

that in binary classiﬁcation, it is possible to yield high

performance when we have more feature variables in

the dataset. In there experiments the DNN model

achieved the best performance.

In the comparison of various intrusion detection

systems (IDS) based on their features, strengths, and

weaknesses. The study by Bringas et al. inte-

grates Snort and uses Bayesian Networks (BN) for

supervised learning but requires extensive computa-

tional resources. Sudar et al.’s approach employs

Mininet for simulation and Support Vector Machines

(SVM) for detection, though it struggles with non-

probabilistic classiﬁcation and unclear mathematical

explanations. Alhakami et al. focus on feature selec-

tion and parameter learning but lack clarity in their

algorithm and anomaly classiﬁcation. Alexander’s

model combines Likert scales with BN for decision-

making, yet its accuracy is not evaluated. Koc and

Carswell utilize NB and HNB classiﬁers for network

attack classiﬁcation, beneﬁting from conditional inde-

pendence assumptions. However, it faces challenges

with small datasets and feature dependencies. Lastly,

Agostinello developed an Anomaly-Based IDS with

DL techniques but these DL models are not explain-

able, as they are not based on probabilities.

3 METHODOLOGY

To implement our uncertain reasoning-based IDS, we

propose a methodology, which is comprised of several

modules, as shown in Figure 1. These modules are

described in the following sections.

Internet

Model

Training

Prediction

and Analysis

Knowledge

Representation

Bayesian Network

Markov Network

DAG for

ICMP, TCP, UDP

CPT for

ICMP, TCP, UDP

JT/ Acyclic

Hypergraph for

ICMP, TCP, UDP

Marginal

distributions for

ICMP, TCP, UDP

Converting pcap to Zeek

logs and Wireshark logs

Live captured

Stored pcap

Stored pcap dataset

Converting Zeek and

Wireshark logs to csv file

Mixing Zeek and

Wireshark logs

Data

Collection

Inference

Engine

Training AI models, using:

- BN with VE

- MN with SS

- MN with LP

Dataset is divided into

training(x) and testing(y) datasets

Prediction of attacks

Model Assessment using:

Precision, Recall, Accuracy, F1-score

Obtained Model

Data cleaning

Data Shuffling and Data

Normalization

Data labelling using

probabilistic inference

Data

Preprocessing

Live packet capture

Figure 1: Proposed methodology ﬂowchart.

3.1 Data Collection

In the ﬁrst stage of our methodology, data needs to be

collected ideally from real and live networks, using

network trafﬁc capture tools, such as Tshark or Wire-

shark (Orebaugh et al., 2006). Then, the captured

trafﬁc is usually stored in .pcap ﬁles. In this paper,

we use the Caida dataset (Shirsath, 2023), which con-

SECRYPT 2024 - 21st International Conference on Security and Cryptography

772

tains approximately one hour of trafﬁc traces related

to DDoS attacks on the TCP, UDP, and ICMP proto-

cols. The attack trace is split up into 5-minute pcap

ﬁles. The schema of the dataset is shown in Table 1.

Table 1: Dataset Schema (Shirsath, 2023).

Attribute Value

Data format pcap

Total Number of Protocols 3 (TCP, UDP, ICMP)

Total Number of Features 64

Total Number of Instances 2,75,169

Data Size 18.3 MB

Start Date Oct 24, 2022

End Date April 15, 2023

The .pcap ﬁles are processed using Zeek (Tiwari

et al., 2022), a network trafﬁc analyzer, generating es-

sential log ﬁles like conn.log and weird.log. While

Zeek provides ﬂow-level details, WireShark is si-

multaneously used to extract packet-level information

from the same .pcap ﬁles, ensuring comprehensive

trafﬁc data collection.

3.2 Data Preprocessing

The second phase is data preprocessing, in which data

mixing, data cleansing, normalization, labeling, and

shufﬂing are achieved to prepare the dataset to be used

by machine learning algorithms. The Zeek and Wire-

shark logs are converted into CSV ﬁles, using pandas

in Python. They are converted into data frames ﬁrst

for processing, then saved as CSV ﬁles.

3.2.1 Data Mixing

Since we have two CSV ﬁles, one from Zeek and the

other one from WireShark, we mixed them into a sin-

gle CSV ﬁle, which represents the dataset that we

want to work on. In the mixing process, the source

and destination IP addresses and their corresponding

ports are used to match the samples from the two

CSV ﬁles. The CSV ﬁles are iterated row by row and

column by column to ﬁll in the cells of the matched

cases.

3.2.2 Data Cleansing

Cleaning datasets is critical because of potential dis-

crepancies caused by network faults, device restric-

tions, and software problems. Several procedures

are used to reﬁne datasets, including expert-based

feature selection to exclude extraneous variables re-

quired for Bayesian inference. In addition, instances

representing victim host’s replies to attacker hosts are

eliminated, leaving just attacker source packets for

attack classiﬁcation. Furthermore, removing not-a-

number (NaN) ﬁelds provides compatibility with fea-

ture datatype criteria for machine learning algorithms.

3.2.3 Label Encoding, Data Shufﬂing, and

Normalization

In this paper, the open-source Scikit-Learn library is

used for processing the data. First, the Label En-

coder is used to convert categorical data into numeri-

cal format, which is often required for machine learn-

ing models, including BN. Then, for data shufﬂing,

the Train Test Split is used for splitting the dataset

into train and test datasets. For normalization, we use

the MinMaxscaler algorithm, which converts all the

values into values between 0 and 1.

3.3 Knowledge Transformation

To capture the complex dependencies more effec-

tively and potentially improving the computational

efﬁciency, particularly for large datasets or complex

structures, the BN representation is transformed into

MN. Then, both transformations are used. Techni-

cally speaking, from the BN, the Directed Acyclic

Graph (DAG) is converted into an Acyclic Hyper-

graph/Join Tree (JT) and the Conditional Probability

Tables (CPTs) are converted into marginal distribu-

tions of the Joint Probability Distribution (JPD) for

each join tree node.

3.4 Packet Classiﬁcation (Labeling)

The classiﬁcation of the packet frames as attack or le-

gitimate is achieved by performing inference on the

generated MN model. In this process, instances from

the dataset are fed one by one to the MN model. Once

the model is created, the feature values extracted from

a particular instance from the dataset are used as evi-

dence for computing the marginals on each node of

the MN. This is achieved using the Shafer Shenoy

Propagation algorithm (Lepar and Shenoy, 2013).

Each time a piece of evidence is obtained, its val-

ues are absorbed by the MN model, and hence the

current JPD tables are updated.

3.5 Model Training

This section explains how the preprocessed dataset is

used for training the prediction model, and which AI

methods are used.

3.5.1 Algorithms

In this paper, the following algorithms are considered:

An Uncertain Reasoning-Based Intrusion Detection System for DoS/DDoS Detection

773

• Variable Elimination (VE).

• Shafer-Shenoy Propagation (SS).

• Lazy Propagation (LP).

3.5.2 Training and Testing

In this phase, various AI algorithms are trained and

tested using ten-fold cross-validation. The prepro-

cessed dataset is divided into training and testing sub-

sets, with varying proportions (e.g., 10% training,

90% testing; 20% training, 80% testing). Results are

averaged across iterations for each algorithm under

consideration.

3.6 Prediction and Analysis

The trained models obtained from BN and MN are

used for the prediction of DoS and DDoS attacks car-

ried out on the TCP, UDP, and ICMP protocols.

Using the aforelisted AI algorithms (i.e., VE, SS,

and LP), the inferences are achieved as follows:

In Bayesian Networks (BN), inference is per-

formed using the Variable Elimination (VE) algo-

rithm, which sequentially eliminates one variable at

a time when new evidence is introduced. On the other

hand, in Markov Networks (MN), inference is con-

ducted using the Shafer-Shenoy (SS) and Lazy Prop-

agation (LP) algorithms. SS is faster to implement

but requires more storage space due to its use of two

registers for incoming and outgoing messages. LP,

however, is more efﬁcient in terms of time and stor-

age space utilization, making it suitable for scenarios

where belief update efﬁciency is crucial (Madsen and

Jensen, 2013).

4 EXPERIMENTAL SETUP

4.1 Setup

To validate our methodology, we ran a series of ex-

periments on a MacBook Pro computer with an M1

processor, 8 cores (4 performance and 4 efﬁciency),

and 8GB RAM. BN and MN were used to develop

various models for ICMP, TCP, and UDP based on

selected features. CPTs were generated from a raw

dataset, with label-encoded and normalized data used

as evidence to calculate probability of events. Pre-

dicted probability were used to classify packets as

either attack or legitimate. The performance of the

trained models was then evaluated. Wireshark and

Zeek were used to record and analyze network data,

while pyCharm and Jupyter notebook were used for

implementation and testing, together with a set of li-

braries that included Numpy, SKLearn, Pandas, Dask,

Matplotlib, Tensorﬂow, Pgmpy, Applescript, Pyshark,

Scapy, Zat.

5 EXPERIMENTAL RESULTS

To evaluate the performance of BN and MN models,

we use three widely metrics, namely Precision, Re-

call, Accuracy, and F1-Score.

5.1 Precision Results

The Precision results for the ICMP, TCP, and UDP

protocols, employing the VE, SS, and LP algorithms,

are depicted in Figure 2. Notably, the MN model uti-

lizing the SS algorithm achieves the highest Precision

scores across all three protocols, yielding 97%, 99%,

and 95% for ICMP, TCP, and UDP, respectively. The

second-best results, with Precision scores of 98%,

99%, and 88% for ICMP, TCP, and UDP, respectively,

are obtained using the MN model with the LP algo-

rithm. The notable Precision achieved with the MN

and SS algorithm underscores the algorithm’s efﬁ-

cacy in accurately estimating probabilities and mak-

ing precise predictions. Conversely, lower Precision

scores may indicate uncertainties or inaccuracies in

the inference process, warranting further investiga-

tion. Nonetheless, the results obtained with the MN

and LP algorithm closely align with those from the

SS algorithm, suggesting proﬁcient handling of up-

dates and queries, ensuring accurate results.

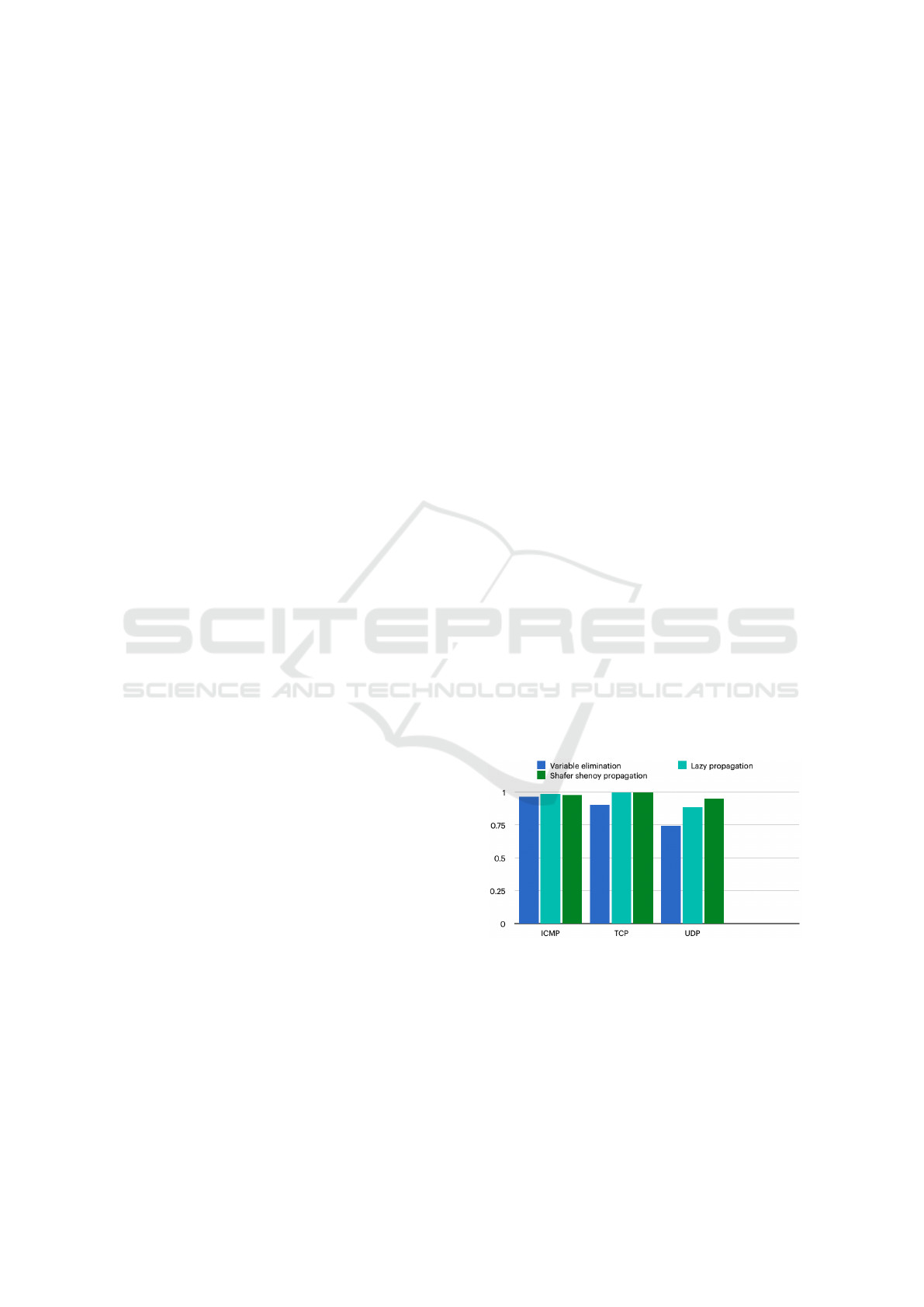

Figure 2: The Precision results, as obtained with the VE,

SS, and LP algorithms.

5.2 Recall Results

The Recall results for the ICMP, TCP, and UDP pro-

tocols using the VE, SS, and LP algorithms are pre-

sented in Figure 3. The BN with the VE algorithm

achieves 100% Recall for all three protocols, indi-

cating its effectiveness in accurately identifying posi-

SECRYPT 2024 - 21st International Conference on Security and Cryptography

774

tive instances of the target variable. However, despite

VE’s exact inference capabilities, it is less efﬁcient

for large and complex models due to reasons like ex-

ponential complexity, sensitivity to variable ordering,

space complexity, and lack of reusability. In contrast,

the SS and LP algorithms yield similarly high Recall

results, exceeding 96% for all protocols, demonstrat-

ing their effectiveness with minimal performance dif-

ferences based on the dataset used.

Figure 3: The Recall results, as obtained with the VE, SS,

and LP algorithms.

5.3 Accuracy Results

The accuracy results for the VE, SS, and LP algo-

rithms are provided in Figure 4. The MN utilizing the

SS method works best for ICMP, TCP, and UDP, with

accuracies of 97%, 96%, and 98%, respectively. The

MN using the LP algorithm follows shortly behind.

The SS and LP algorithms produced models with 18,

30, and 17 attributes for the three protocols, showing

the same performance. Whereas the VE method, with

a variable amount of attributes, affects its accuracy.

As a result, the SS algorithm outperforms the VE and

LP algorithms.

Figure 4: The Accuracy results, as obtained with the VE,

SS, and LP algorithms.

5.4 F1-Score Results

The F1-Score results, illustrated in Figure 5, demon-

strate that the MN with the LP algorithm produces

the greatest performance, achieving 99%, 98%, and

93% for the ICMP, TCP, and UDP protocols, respec-

tively. The VE algorithm performs slightly worse on

the UDP protocol than on ICMP and TCP, and its F1-

score results vary signiﬁcantly between the three pro-

tocols.

Figure 5: The F1-score results, as obtained with the VE, SS,

and LP algorithms.

5.5 Complexity

The inference times for the ICMP, TCP, and UDP

protocols using the VE, SS, and LP algorithms are

recorded and averaged in Table 2, showing that the

VE algorithm is the fastest, taking only 10.37 minutes

for all three protocols. However, while VE is quicker,

it is less efﬁcient than the MN-based SS and LP al-

gorithms, which, although slower, provide more sta-

ble, efﬁcient, and accurate results. Once the models

are generated, the MN-based algorithms have negligi-

ble prediction times, whereas the BN-based VE algo-

rithm requires the same amount of time for each pre-

diction as it does for initial model generation, making

it less practical for frequent queries.

Table 2: Training Time (in minutes) of the inference algo-

rithms for ICMP, TCP, and UDP.

Algorithm ICMP TCP UDP Total

VE 19.68 11.39 0.044 10.37

LP 128.77 170.07 0.064 99.63

SS 101.91 135.43 0.050 79.13

6 CONCLUSION

In this paper, we proposed a probabilistic-based NIDS

for detecting DoS and DDoS attacks on TCP, UDP,

and ICMP protocols, utilizing BN and MN models

with inference implemented via VE, SS, and LP algo-

rithms. VE was applied to BN, while SS and LP were

used with MN. Experiments on the CAIDA dataset

showed promising results across metrics like Preci-

sion, Recall, and F1-Score, revealing that both SS and

LP are efﬁcient, with LP slightly outperforming SS.

An Uncertain Reasoning-Based Intrusion Detection System for DoS/DDoS Detection

775

Despite LP’s longer training time, its superior perfor-

mance makes it the best algorithm based on our ex-

periments. However, further validation on additional

datasets is necessary to conﬁrm these ﬁndings. Since

the training is usually done ofﬂine (in the system’s

idle time), this does not represent an issue.

REFERENCES

Agostinello, D., Genovese, A., Piuri, V., et al. (2023).

Anomaly-based intrusion detection system for ddos

attack with deep learning techniques. In Proceedings

of the 20th International Conference on Security and

Cryptography. 1, pages 267–275. SCITEPRESS.

Alexander, R. (2020). Reducing Threats by Using Bayesian

Networks to Prioritize and Combine Defense in Depth

Security Measures. Journal of Information Security,

11(3):121–137.

Alhakami, W., ALharbi, A., Bourouis, S., Alroobaea, R.,

and Bouguila, N. (2019). Network anomaly intrusion

detection using a nonparametric Bayesian approach

and feature selection. IEEE Access, 7:52181–52190.

Bringas, P. G., Penya, Y. K., Paraboschi, S., and Sal-

vaneschi, P. (,2008). Bayesian-Networks-Based Mis-

use and Anomaly Prevention System. In ICEIS (2),

pages 62–69. Citeseer.

Jaafar, G. A., Abdullah, S. M., and Ismail, S. A. (2019). Re-

view of Recent Detection Methods for HTTP DDoS

Attack. Journal of Computer Networks and Commu-

nications, 2019:1283472:1–1283472:10.

Koc, L. and Carswell, A. D. (2015). Network intrusion de-

tection using a HNB binary classiﬁer. In 2015 17th

UKSim-AMSS International Conference on Modelling

and Simulation (UKSim), pages 81–85.

Korolkov, R. Y. and Kutsak, S. (2021). Analysis of at-

tacks in IEEE 802.11 networks at different levels

of OSI model. Natsional’nyi Hirnychyi Universytet.

Naukovyi Visnyk, (2):163–169.

Lepar, V. and Shenoy, P. P. (2013). A comparison of

Lauritzen-Spiegelhalter, Hugin, and Shenoy-Shafer

architectures for computing marginals of probability

distributions. arXiv preprint arXiv:1301.7394.

Madsen, A. L. and Jensen, F. V. (2013). Lazy propagation

in junction trees. arXiv preprint arXiv:1301.7398.

Orebaugh, A., Ramirez, G., and Beale, J. (2006). Wire-

shark & Ethereal network protocol analyzer toolkit.

Syngress.

Pearl, J. (1998). Bayesian Networks, page 149–153. MIT

Press, Cambridge, MA, USA.

Shirsath, V. (2023). CAIDA UCSD DDoS 2007 Attack

Dataset. https://dx.doi.org/10.21227/dvp9-s124. Ac-

cessed: 2024-03-05.

Sudar, K., Beulah, M., Deepalakshmi, P., Nagaraj, P., and

Chinnasamy, P. (2021). Detection of distributed de-

nial of service attacks in SDN using machine learn-

ing techniques. In 2021 International Conference on

Computer Communication and Informatics (ICCCI),

pages 1–5.

Tiwari, A., Saraswat, S., Dixit, U., and Pandey, S. (2022).

Reﬁnements In Zeek Intrusion Detection System. In

8th International Conference on Advanced Computing

and Communication Systems (ICACCS), volume 1,

pages 974–979.

Yassin, W., Udzir, N. I., Abdullah, A., Abdullah, M. T.,

Zulzalil, H., and Muda, Z. (2014). Signature-based

anomaly intrusion detection using integrated data

mining classiﬁers. In 2014 International Symposium

on Biometrics and Security Technologies (ISBAST),

pages 232–237.

Zimmermann, H. (1980). OSI reference model-the ISO

model of architecture for open systems intercon-

nection. IEEE Transactions on communications,

28(4):425–432.

SECRYPT 2024 - 21st International Conference on Security and Cryptography

776
