On the Adoption of Explainable Deep Learning for Image-Based

Network Trafﬁc Classiﬁcation

Amine Hattak

1,3

, Fabio Martinelli

, Francesco Mercaldo

2,1 a

and Antonella Santone

Institute for Informatics and Telematics, National Research Council of Italy (CNR), Pisa, Italy

University of Molise, Campobasso, Italy

La Sapienza, University of Rome, Rome, Italy

Keywords:

Internet of Things, Network Trafﬁc Classiﬁcation, Deep Learning, Network Intrusion Detection,

Explainable AI.

Abstract:

In an era marked by escalating cyber threats, ensuring the security of interconnected devices and networks

within the Internet of Things (IoT) landscape is imperative. This paper addresses this pressing concern by

delving into network security, focusing on the classiﬁcation of network trafﬁc through the lens of deep learning

techniques. Our study presents a deep learning-based approach customized for network trafﬁc classiﬁcation

in the IoT domain, based on image analysis. Crucially, to enhance the interpretability and the transparency

in our model’s decisions, we integrate GradCAM (Gradient-weighted Class Activation Mapping), a technique

that illuminates the salient regions of input images contributing to the model’s predictions. By leveraging

GradCAM, we provide deeper insights into the decision-making process, enabling better understanding and

trust in our approach. We evaluate the effectiveness of our methodology using the TON IoT dataset, consisting

of 10 network traces categorized into various vulnerability scenarios and trusted applications. Our ﬁndings

reveal a remarkable accuracy of 99.1%, demonstrating the potential of our approach in fortifying network se-

curity within IoT environments. Moreover, the utilization of GradCAM empowers stakeholders with valuable

insights into the inner workings of the model, further enhancing its applicability and trustworthiness.

1 INTRODUCTION

The Internet of Things (IoT) has emerged as a rev-

olutionary force, altering our interactions with tech-

nology and the world around us. With billions of in-

terconnected devices across multiple domains such as

smart homes, healthcare systems, industrial facilities,

and transportation networks, IoT has enabled new lev-

els of connectivity, efﬁciency, and convenience. How-

ever, this networked ecosystem provides a fertile ﬁeld

for cyber threats, which have the potential to disrupt

and undermine the core fabric of IoT infrastructure.

Cyber-attacks on IoT devices have become more

common and sophisticated. These assaults endan-

ger both individual privacy and larger social secu-

rity by exploiting weaknesses in IoT devices such as

weak authentication mechanisms, insecure communi-

cation protocols, insufﬁcient software updating, and

conﬁguration issues. Such ﬂaws jeopardize the secu-

rity, integrity, and availability of data transmitted by

https://orcid.org/0000-0002-9425-1657

IoT devices while also allowing hostile actors to plan

large-scale disruptions and attacks. The IoT domain

faces a diverse and evolving threat landscape, rang-

ing from distributed denial-of-service (DDoS) attacks

leveraging compromised IoT botnets (Kolias et al.,

2017) to ransomware campaigns targeting vulnerable

smart devices (Yaqoob et al., 2017). Cyber-attacks

such as MITM (Li et al., 2017) are also present. Fur-

thermore, successful cyber-attacks against IoT infras-

tructure can have far-reaching implications, including

bodily harm, ﬁnancial losses, and reputational dam-

age to individuals, businesses, and entire sectors. As

IoT expands and integrates into every part of mod-

ern life, protecting this networked ecosystem from cy-

ber threats has become critical. To limit the dangers

posed by hostile actors, effective cybersecurity strate-

gies must include comprehensive methods for device

authentication, data encryption, intrusion detection,

and incident response (Vishwakarma 2020 survey). In

a study work (Hattak et al., 2023), a unique approach

to network trafﬁc classiﬁcation uses Deep Learning

techniques (Zhou et al., 2023; Huang et al., 2023;

370

Hattak, A., Martinelli, F., Mercaldo, F. and Santone, A.

On the Adoption of Explainable Deep Learning for Image-Based Network Trafﬁc Classiﬁcation.

DOI: 10.5220/0012802800003758

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 14th International Conference on Simulation and Modeling Methodologies, Technologies and Applications (SIMULTECH 2024), pages 370-377

ISBN: 978-989-758-708-5; ISSN: 2184-2841

Huang et al., 2024; Mercaldo et al., 2022) is pro-

posed. This paper describes a novel approach that

blends Deep Learning and image-based representa-

tions to produce robust and explainable network traf-

ﬁc classiﬁcation. The authors of the following paper

(Moustafa, 2021) present a distributed architecture for

testing AI-based security solutions at the edge using

TON IoT datasets. It focuses on improving security

measures in IoT networks using unique architectural

techniques. A study (Booij et al., 2021) highlights the

necessity of standardizing attributes and attack types

in IoT network intrusion datasets such as ToN IoT.

It emphasizes the importance of heterogeneity in in-

creasing the efﬁciency of intrusion detection systems

in IoT contexts. (Martinelli et al., 2022) suggested an

intrusion detection approach for smart grids. Start-

ing with network trafﬁc packet ﬁles, they generated

a feature vector with 26 distinct features. They used

supervised machine learning to create seven different

models, with ﬁve of them achieving high precision

and recall ratings.

In order to detect breaches in the Internet of

Things environment, we describe in this work a deep-

learning-based approach to solve these security chal-

lenges. Through the application of visualization tech-

niques, we are able to transform PCAP format raw

collected network trafﬁc ﬁles into images, which al-

lows for improved analysis and detection capabili-

ties. Moreover we provide deeper insights into the

decision-making process, enabling better understand-

ing and trust in our approach by adopting GradCAM

techniques.

2 THE METHOD

In this paper, we provide a deep learning model-based

approach for classifying network trafﬁc based on im-

ages, with an emphasis on the Internet of Things. By

incorporating image analysis techniques for the In-

ternet of Things ecosystem, our suggested solution

seeks to validate the precision and robustness of in-

trusion detection systems in IoT through image anal-

ysis. We break down our suggested technique into

discrete steps, which are shown in Figure 1. This

graphical representation illustrates how we envisage

assessing deep learning models for network intrusion

detection and prediction. The ﬁrst phase involves

gathering samples or a dataset for IoT network trafﬁc.

This dataset should include both ”malware” and ”nor-

mal” traces. To guarantee the resilience of later model

training and assessment, every sample must be care-

fully labeled and grouped into unique families. The

basis for training and testing the deep learning mod-

els is this carefully chosen dataset.

The study aims to go deeper into network trafﬁc

analysis by deploying classiﬁcation in two different

strategies. The ﬁrst one is based on a binary classiﬁca-

tion in which we classify the samples as ”Normal” or

”Malware” disregarding the nature of the original net-

work trafﬁc. We deploy also deployed a more detailed

10-class classiﬁcation scheme where the samples will

be classiﬁed based on their corresponding classes, we

enlarged paradigm involves classifying network traf-

ﬁc into various families, each representing a different

type of activity or communication pattern. By using a

multi-class categorization approach, the study hopes

to improve the granularity of network trafﬁc analysis,

allowing for more precise insights into the heteroge-

neous nature of network activity. This comprehen-

sive classiﬁcation scheme not only helps to identify

malicious behavior, but it does also provide valuable

contextual information about the nature and origins

of various network activities, improving the overall

effectiveness of intrusion detection and network se-

curity measures in the IoT sector. Our strategy is con-

centrating on the packet headers or metadata and not

only the content of the trafﬁc or as it is known by

”Payload”. This approach is considered robust be-

cause of the fact that packet headers include critical

information that is useful for network communication

and analysis. Following that, we propose the transfor-

mation of network data supplied in PCAP format into

displayed images, which represents the second step of

our suggested approach. This transformation prepares

the data for use by deep learning models, allowing for

smooth incorporation into training and testing proce-

dures. Notably, image production can be performed

in either grayscale or color (RGB) mode to meet in-

dividual needs. The next step is to resize the input

images to maintain uniformity in dimensions, which

is required to reduce the potential loss of information

that could compromise the accuracy of deep learning

models. These models are then rigorously trained and

tested using the selected dataset, with performance

metrics compared to the classiﬁcation job.

The raw network trafﬁc data will be pre-processed

to remove any extraneous information or noise that

may interfere with the categorization operation. Fur-

thermore, in the image generation phase we will count

on both the packet headers and the packet payloads

to ensure the durability and ﬂexibility of our method

to network intrusion detection in IoT. This method is

useful in two scenarios: encrypted and non encrypted

network trafﬁc. If the trafﬁc is encrypted, the bytes in

the packet payload will be random and indistinguish-

able from noise. In this instance, it is not possible to

generate meaningful images directly from encrypted

On the Adoption of Explainable Deep Learning for Image-Based Network Trafﬁc Classiﬁcation

371

payload bytes. However, to generate images from en-

crypted trafﬁc for viewing reasons, we must adopt a

different approach. One such strategy is to concen-

trate also on the packet headers or metadata rather

than the content of the packet only. Packet headers

include critical information for network communica-

tion and analysis. This information can be described

as source and destination addresses, protocols, ports,

total length, fragment offset, time to live (TTL), and

choices. Following that, we advocate for the transfor-

mation of network data supplied in PCAP format into

displayed images, which represents the second step of

our proposed method. This transformation prepares

the data for use by deep learning models, allowing for

smooth incorporation into training and testing proce-

dures. Notably, image production can be carried out

in either grayscale or color (RGB) modes to accom-

modate speciﬁc requirements. The following action

to take is to resize the input photos to maintain unifor-

mity in dimensions, which is required to reduce the

potential loss of information that could compromise

the accuracy of deep learning models. These models

are then rigorously trained and tested using the se-

lected dataset, with performance metrics compared to

the classiﬁcation job.

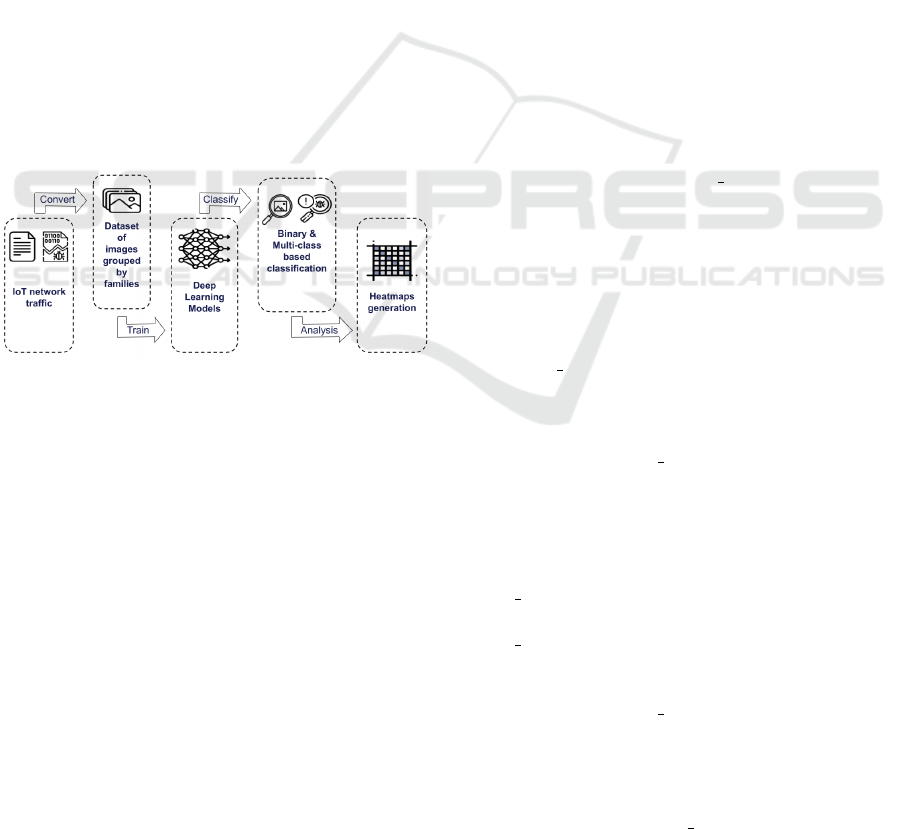

Figure 1: Overall schema of the method.

In this study, we leverage deep learning models to

present a novel approach for classifying network traf-

ﬁc based on images, with a particular emphasis on the

Internet of Things. By incorporating image analysis

techniques speciﬁcally designed for the IoT, the sug-

gested solution seeks to improve the precision and ro-

bustness of network intrusion detection systems. The

process consists of multiple crucial phases, starting

with gathering and classifying a dataset of ”malware”

and ”normal” network trafﬁc traces within IoT envi-

ronment. The methods are investigated is a simple

binary classiﬁcation to distinguishes between ”Nor-

mal” and ”Attack” classes and a complex 10-class

classiﬁcation scheme that provides in-depth insights

into a variety of network activities. To ensure ro-

bustness and ﬂexibility, pre-processing of raw net-

work trafﬁc data entails eliminating noise and deploy-

ing packet headers and payloads that may be applied

to both encrypted and non-encrypted trafﬁc. PCAP-

formatted network data is used to create visualized

images, which are then resized for uniformity. Ul-

timately, the efﬁcacy of the suggested methodology

is conﬁrmed by training and assessing deep learning

models on the carefully selected dataset in order to

measure performance against the classiﬁcation prob-

lem.

3 EXPERIMENTAL ANALYSIS

This section describes the experiment used to validate

the efﬁcacy of the suggested methodology. Initially,

we deﬁne the (real-world) datasets chosen for study,

followed by a presentation of the experimental out-

comes.

3.1 Experimental Setup

The experiments were conducted on a workstation

equipped with an Intel Core i7 11 the generation pro-

cessor (2.3 GHz), 16GB of RAM, and an NVIDIA

GeForce RTX 3070 GPU. The operating system used

was Ubuntu 22.04.2 LTS (GNU/Linux 5.15.133.1-

microsoft-standard-WSL2 x86 64). Python 3.8 along

with TensorFlow 2.4 and PyTorch 1.7 libraries were

utilized for model training and evaluation. All exper-

iments were run using a freely to use tool for analing

malware as images (Iadarola et al., 2021).

3.2 Dataset

The TON IoT dataset has been utilized in many

studies (Moustafa et al., 2020b) (Moustafa, 2019)

(Moustafa, 1906) (Ashraf et al., 2021) including stud-

ies on cybersecurity and intrusion detection. The ar-

ticle ”Analysis of ToN IoT, UNW-NB15, and Edge-

IIoT Datasets Using DL in Cybersecurity for IoT”

was published in the journal Applied Sciences in 2022

(Tareq et al., 2022). The study investigated the ToN-

IoT database thoroughly in order to develop cyberse-

curity models. According to (Alsaedi et al., 2020), the

TON IoT Telemetry Dataset represents a new gener-

ation of data-driven intrusion detection systems. The

TON IoT dataset is accessible for academic research

and has been used to create realistic botnet datasets

for network forensic analytics (Dr Nickolaos Koroni-

otis, 2021). The TON IoT dataset is a cutting-edge

collection of datasets intended for testing the useful-

ness and ﬁdelity of various cybersecurity solutions

based on Artiﬁcial Intelligence (AI) in the realms

of Industry 4.0/Internet of Things (IoT) and Indus-

trial IoT (IIoT). The ’ToN IoT’ datasets collect data

SIMULTECH 2024 - 14th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

372

from several sources, including IoT and IIoT sen-

sor telemetry, operating system datasets (Windows

7 and 10, Ubuntu 14 and 18 TLS) (Moustafa et al.,

2020a), and network trafﬁc datasets. The datasets

were carefully collected from a realistic large-scale

network environment built at the IoT Lab of UNSW

Canberra Cyber, School of Engineering and Infor-

mation Technology (SEIT), UNSW Canberra at the

Australian Defence Force Academy (ADFA) (UNSW,

2024). The dataset directories include raw datasets,

including IoT/IIoT data logged in log and CSV ﬁles

from various sensors, such as weather and Mod-

bus sensors, network datasets in PCAP formats from

ZEEK (Bro) tool (Author(s), 2020) (Author(s), 2023),

and Linux datasets captured through tracing tools on

Ubuntu systems. The TON IoT dataset is a signiﬁ-

cant resource for training Machine Learning and Deep

Learning algorithms to improve cybersecurity in IoT

ecosystems. The TON IoT dataset is a valuable re-

source for academics studying cybersecurity in IoT

contexts. It provides a diverse range of data to im-

prove intrusion detection systems and AI-based secu-

rity solutions. Tables 1 provide a detailed description

of Ton

IoT’s network statistics.

Table 1: Statistics of Network Records for Ton IoT network

dataset.

Type No of rows

Backdoor 508116

DDoS 6165008

DOS 375328

Injection 452659

MITM 1052

Password 1718568

Ransomware 72805

Scanning 7140161

XSS 2108944

Normal 796380

In this study, we employed networked datasets in

PCAP format, which were acquired using the Zeek

tool by the IoT Lab of UNSW Canberra. Following

pre-processing and picture transformation, we divide

the data into three sets: training, validation, and test,

with an 80:10:10 split ratio. The test set for both

datasets (the binary and multi-class) contains 2,764

samples, whilst the training set contains 24,806 sam-

ples, which are further divided into 22,053 for training

and the remaining 2,753 for validation. To maintain

a balanced distribution, samples from each family are

spread evenly among the sets.

3.3 Image Generation

Converting collected network data in PCAP format to

an image allows us to visualize network trafﬁc data

in a more intuitive and human-readable format, while

also giving valuable input for deep learning model

training. This method improves the efﬁciency and

effectiveness of network trafﬁc pattern analysis and

interpretation by discovering trends and abnormali-

ties in network trafﬁc that are not immediately vis-

ible in raw data. The method normally begins by

scanning the binary data of the PCAP ﬁle and ex-

tracting the packet header, which contains informa-

tion such as source and destination IP addresses, port

numbers, protocol types, packet sizes, and so on. Af-

ter that, calculating the image size, rearranging the

data to make a 2D array, and ﬁnally, we will end

up with visualised images that can be used for train-

ing deep learning models for pattern extraction and

classiﬁcation tasks. The generated images through

this process will be used as input for training vari-

ous deep-learning models. The ability of deep learn-

ing models to automatically extract features and pat-

terns from images makes them well-suited for analyz-

ing IoT network trafﬁc data. Furthermore, the abil-

ity to create a large dataset of network trafﬁc images

will be used to train and evaluate different deep learn-

ing architectures, such as models that are known in

the literature (MobileNet, VGG16, etc). The main

function ”process pcap(pcap path)” is deﬁned to han-

dle packet processing. It creates an empty list ”cur-

rent bytes” to collect bytes from packets, and then it-

erates through each packet in the PCAP ﬁle with ”rd-

pcap(pcap path)”. The raw bytes from each packet

are extracted and appended to current bytes if they

exceed the image’s maximum size. It generates an

image from the accumulated bytes using the cre-

ate image() function, and it constructs a ﬁlename de-

pending on the packet summary and the number of

bytes accumulated. After processing all packets, it

saves the image to the speciﬁed output location, re-

sets current bytes to an empty list, and begins accu-

mulating bytes for the next picture. If there are any

remaining bytes in current bytes, it generates an im-

age and saves it using the same method as before.

Finally, images are created from the accumulated

bytes of packets, ensuring that no data is lost in the

process. Each image ﬁlename includes the packet

summary and the size of the gathered bytes, providing

context for the data used to create the image. Figure

2 shows the ﬁnal output from PCAP to picture. It is

evident that diverse network trafﬁc produces different

images with distinct properties for each family.

On the Adoption of Explainable Deep Learning for Image-Based Network Trafﬁc Classiﬁcation

373

Data: PCAP

Result: Generating PNG images

initialization;

while Packets are not ﬁnished do

Extract raw bytes from the packet and

append them to current bytes;

if accumulated bytes exceed maximum

size allowed for an image then

Create an image from accumulated

bytes using create image()

function Construct a ﬁlename based

on packet summary and the number

of accumulated bytes;

Save the image to the speciﬁed output

directory;

Reset current bytes to an empty list

to start;

accumulating bytes for the next

image;

else

there are remaining bytes in

current bytes Create an image and

save it using the same procedure as

above;

end

Algorithm 1: From PCAP to PNG Image.

(a) DDoS. (b) DoS. (c) MITM. (d) XSS.

Figure 2: A visualization analysis of some network trafﬁc

samples that are belonging to different classes of Ton IoT

dataset.

3.4 Results and Discussion

3.4.1 Experiments

Table 2 presents the hyperparameters used for vari-

ous deep learning (DL) models in the context of the

research work. These parameters are critical as they

directly inﬂuence the performance and efﬁciency of

the models in processing and analyzing network traf-

ﬁc data.

The models encompassed in this study include

CNN (Convolutional Neural Network), MobileNet,

ResNet50, and VGG16, each distinguished by unique

architectures and capabilities suited for various tasks

within network trafﬁc analysis and intrusion detec-

tion. Standardized input dimensions of 224x224 pix-

els with three RGB color channels are maintained

across all models to ensure consistency and compa-

rability in the experimental setup. The pivotal param-

eters of epochs and batch size, crucial for the train-

ing process of DL models, involve a conﬁguration of

40 epochs and a batch size of 32 across all models,

striking a balance between computational efﬁciency

and model convergence. Additionally, the depth of

DL models, denoted by the number of layers, signiﬁ-

cantly impacts their ability to extract intricate patterns

and features from input data.

Table 3 compares machine learning models’ per-

formance on test sets for binary (2 classes) and multi-

class (10 classes) classiﬁcation tasks. The models

tested were Convolutional Neural Network (CNN),

MobileNet, ResNet50, and VGG16. The performance

metrics reported include accuracy (Acc), precision

(Prec), recall (Rec), F1-score (F1), and area under the

receiver operating characteristic curve (AUC) for the

binary classiﬁcation task (2 classes) and similarly, for

the multi-class classiﬁcation task (10 classes).

The results show that for all models, the binary

classiﬁcation task outperforms the multi-class clas-

siﬁcation job. This difference is expected because

binary classiﬁcation tasks are fundamentally simpler

than multi-class classiﬁcation problems. CNN rou-

tinely outperforms other models in both binary and

multi-class classiﬁcation tasks, with accuracy, preci-

sion, recall, F1-score, and AUC values more than 0.9.

This shows that CNN is good at identifying under-

lying patterns in data and making accurate predic-

tions. MobileNet, ResNet50, and VGG16 also per-

form well on both classiﬁcation tasks, with accuracy

values ranging from about 0.9 to 0.95 for binary clas-

siﬁcation and around 0.9 to 0.94 for multi-class clas-

siﬁcation. These results indicate that these models

are capable of achieving high levels of accuracy and

reliability in classifying images across different cate-

gories.

Overall, the results reported show that deep learn-

ing models, particularly CNN, are successful at classi-

fying network trafﬁc based on images. These ﬁndings

can help guide the selection of appropriate machine

learning models for comparable categorization prob-

lems in practical applications.

3.4.2 Explainability

Following the ﬂow of our work discussed in section

2 after the training and testing phases, we will gener-

ate heatmaps for the test set of our dataset. For this

reason 3 different heatmaps were convocated for pro-

viding explainability of decision macking for the best

performing model (according to section 3.4.1) Grad-

cam (Selvaraju et al., 2016), Gradcam++ (Jamil et al.,

2023) and scorecam (Wang et al., 2020). The three

separate CAM techniques were used to determine

SIMULTECH 2024 - 14th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

374

Table 2: The hyperparameters of different DL models.

Model CNN MobileNet ResNet50 VGG16

Input image/vector size 224x224x3

Epochs and Batch size 40 - 32

Number of layers 13 29 50 16

Table 3: Comparison between the results of different models on the test sets (binary and 10 classes classiﬁcation).

Mode 2 classes 10 classes

Model Acc Prec Rec F1 Auc Acc Prec Rec F1 Auc

CNN 0.991 0.991 0.991 0.991 0.993 0.899 0.904 0.896 0.9 0.981

MobileNet 0.916 0.917 0.913 0.915 0.975 0.916 0.919 0.915 0.917 0.977

ResNet50 0.952 0.954 0.951 0.952 0.99 0.948 0.949 0.947 0.948 0.989

VGG16 0.945 0.95 0.944 0.947 0.991 0.948 0.95 0.946 0.948 0.994

Figure 3: An example of a sample correctly classiﬁed as

Backdoor class plot after applying the Grad-CAM algo-

rithm.

Figure 4: An example of a sample correctly classiﬁed as

Backdoor class plot after applying the Grad-CAM++ algo-

rithm.

Figure 5: An example of a sample correctly classiﬁed as

Backdoor class plot after applying the Score-CAM algo-

rithm.

which portions of the photos were most distinctive

for classiﬁcation using the CNN architecture-trained

model. As a result of using CAMs, we acquired a

large number of.png images with the activation val-

idation stages map overlayed on the original image.

In particular, the heatmaps obtained were made up of

three separate colors: blue, yellow, and green. Ar-

eas overshadowed with blue show the model’s indif-

ference. Instead, the model is drawn to the yellow

areas of the image. Green spaces, on the other hand,

are utilized to identify central locations. In most in-

stances, all CAM methods have highlighted the same

areas, indicating that they are the most relevant parts

of the image for categorization. The results obtained

after the CAMs execution allow us to certify that all of

the algorithms can identify plots belonging to ”Back-

door” class with 100% accuracy.

4 CONCLUSIONS

In this paper, we suggested a graphical network anal-

ysis technique for the IoT ecosystem with the goal

of performing multi-class classiﬁcation to automat-

ically classify between benign and malicious net-

work traces in multi-class scenario. In detail, we

propose extracting packet headers that contain infor-

mation about the source and destination addresses,

protocols, ports, and other relevant metadata in the

case of encrypted trafﬁc, and representing these net-

work traces in the form of images that will be used

as input for several deep-learning models to detect

the application that generated the speciﬁc network

trace. The highest score achieved in our results was

99.1% by CNN model in binary classiﬁcation sce-

nario and 94.8% by ResNet50 and VGG16 in terms

of accuracy in the multi-class classiﬁcation task. as

well as we applied three different Class Activation

Mapping algorithms:Grad-CAM, Grad-CAM++ and

Score-CAM to provide a better understanding of

the decision making for classiﬁcation. As future

work, we want to consider more contemporary deep-

learning algorithms such as the Vision Transformers

(ViT), We intend to examine the robustness of the pro-

posed technique, as well as its resilience in real-world

On the Adoption of Explainable Deep Learning for Image-Based Network Trafﬁc Classiﬁcation

375

circumstances.

ACKNOWLEDGEMENTS

This work has been partially supported by EU DUCA,

EU CyberSecPro, SYNAPSE, PTR 22-24 P2.01 (Cy-

bersecurity) and SERICS (PE00000014) under the

MUR National Recovery and Resilience Plan funded

by the EU - NextGenerationEU projects, by MUR -

REASONING: foRmal mEthods for computAtional

analySis for diagnOsis and progNosis in imagING -

PRIN, e-DAI (Digital ecosystem for integrated anal-

ysis of heterogeneous health data related to high-

impact diseases: innovative model of care and re-

search), Health Operational Plan, FSC 2014-2020,

PRIN-MUR-Ministry of Health, the National Plan for

NRRP Complementary Investments D

∧

3 4 Health:

Digital Driven Diagnostics, prognostics and therapeu-

tics for sustainable Health care, Progetto MolisCTe,

Ministero delle Imprese e del Made in Italy, Italy,

CUP: D33B22000060001 and FORESEEN: FORmal

mEthodS for attack dEtEction in autonomous driviNg

systems CUP N.P2022WYAEW.

This work has been carried out within the Ital-

ian National Doctorate on Artiﬁcial Intelligence run

by the Sapienza University of Rome in collaboration

with the Institute of Informatics and Telematics (IIT),

the National Research Council of Italy (CNR).

REFERENCES

Alsaedi, A., Moustafa, N., Tari, Z., Mahmood, A., and An-

war, A. (2020). Ton iot telemetry dataset: A new gen-

eration dataset of iot and iiot for data-driven intrusion

detection systems. Ieee Access, 8:165130–165150.

Ashraf, J., Keshk, M., Moustafa, N., Abdel-Basset, M.,

Khurshid, H., Bakhshi, A. D., and Mostafa, R. R.

(2021). Iotbot-ids: A novel statistical learning-

enabled botnet detection framework for protecting

networks of smart cities. Sustainable Cities and So-

ciety, 72:103041.

Author(s) (2020). zeek-osquery: Host-network correlation

for ... arXiv preprint arXiv:2002.04547.

Author(s) (2023). Introducing uwf-zeekdata22: A compre-

hensive network trafﬁc ... Journal Name, 8(1):18.

Booij, T. M., Chiscop, I., Meeuwissen, E., Moustafa, N.,

and Den Hartog, F. T. (2021). Ton iot: The role of

heterogeneity and the need for standardization of fea-

tures and attack types in iot network intrusion data

sets. IEEE Internet of Things Journal, 9(1):485–496.

Dr Nickolaos Koroniotis, D. N. M. (2021). The bot-iot

dataset. https://research.unsw.edu.au/projects/bo

t-iot-dataset.

Hattak, A., Iadarola, G., Martinelli, F., Mercaldo, F., San-

tone, A., et al. (2023). A method for robust and

explainable image-based network trafﬁc classiﬁcation

with deep learning. In Proceedings of the 20th Inter-

national Conference on Security and Cryptography,

pages 385–393.

Huang, P., Xiao, H., He, P., Li, C., Guo, X., Tian, S.,

Feng, P., Chen, H., Sun, Y., Mercaldo, F., et al.

(2024). La-vit: A network with transformers con-

strained by learned-parameter-free attention for in-

terpretable grading in a new laryngeal histopathol-

ogy image dataset. IEEE Journal of Biomedical and

Health Informatics.

Huang, P., Zhou, X., He, P., Feng, P., Tian, S., Sun, Y., Mer-

caldo, F., Santone, A., Qin, J., and Xiao, H. (2023).

Interpretable laryngeal tumor grading of histopatho-

logical images via depth domain adaptive network

with integration gradient cam and priori experience-

guided attention. Computers in Biology and Medicine,

154:106447.

Iadarola, G., Casolare, R., Martinelli, F., Mercaldo, F.,

Peluso, C., and Santone, A. (2021). A semi-automated

explainability-driven approach for malware analysis

through deep learning. In 2021 International Joint

Conference on Neural Networks (IJCNN), pages 1–8.

IEEE.

Jamil, M. S., Banik, S. P., Rahaman, G. A., and Saha, S.

(2023). Advanced gradcam++: Improved visual ex-

planations of cnn decisions in diabetic retinopathy. In

Computer Vision and Image Analysis for Industry 4.0,

pages 64–75. Chapman and Hall/CRC.

Kolias, C., Kambourakis, G., Stavrou, A., and Voas, J.

(2017). Ddos in the iot: Mirai and other botnets. Com-

puter, 50(7):80–84.

Li, C., Qin, Z., Novak, E., and Li, Q. (2017). Securing sdn

infrastructure of iot–fog networks from mitm attacks.

IEEE Internet of Things Journal, 4(5):1156–1164.

Martinelli, F., Mercaldo, F., and Santone, A. (2022). A

method for intrusion detection in smart grid. Proce-

dia Computer Science, 207:327–334.

Mercaldo, F., Zhou, X., Huang, P., Martinelli, F., and San-

tone, A. (2022). Machine learning for uterine cervix

screening. In 2022 IEEE 22nd International Confer-

ence on Bioinformatics and Bioengineering (BIBE),

pages 71–74. IEEE.

Moustafa, N. (1906). A systemic iot-fog-cloud architecture

for big-data analytics and cyber security systems: A

review of fog computing. arxiv 2019. arXiv preprint

arXiv:1906.01055.

Moustafa, N. (2019). New generations of internet of things

datasets for cybersecurity applications based machine

learning: Ton iot datasets. In Proceedings of the eRe-

search Australasia Conference, Brisbane, Australia,

pages 21–25.

Moustafa, N. (2021). A new distributed architecture for

evaluating ai-based security systems at the edge: Net-

work ton iot datasets. Sustainable Cities and Society,

72:102994.

Moustafa, N., Ahmed, M., and Ahmed, S. (2020a). Data

analytics-enabled intrusion detection: Evaluations of

SIMULTECH 2024 - 14th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

376

ton iot linux datasets. In 2020 IEEE 19th Interna-

tional Conference on Trust, Security and Privacy in

Computing and Communications (TrustCom), pages

727–735. IEEE.

Moustafa, N., Keshky, M., Debiez, E., and Janicke, H.

(2020b). Federated ton iot windows datasets for eval-

uating ai-based security applications. In 2020 IEEE

19th international conference on trust, security and

privacy in computing and communications (Trust-

Com), pages 848–855. IEEE.

Selvaraju, R. R., Das, A., Vedantam, R., Cogswell, M.,

Parikh, D., and Batra, D. (2016). Grad-cam: Why

did you say that? arXiv preprint arXiv:1611.07450.

Tareq, I., Elbagoury, B. M., El-Regaily, S., and El-Horbaty,

E.-S. M. (2022). Analysis of ton-iot, unw-nb15, and

edge-iiot datasets using dl in cybersecurity for iot. Ap-

plied Sciences, 12(19).

UNSW (2024). School of engineering and technology. http

s://www.unsw.edu.au/canberra/about-us/our-schools

/engineering-technology.

Wang, H., Wang, Z., Du, M., Yang, F., Zhang, Z., Ding, S.,

Mardziel, P., and Hu, X. (2020). Score-cam: Score-

weighted visual explanations for convolutional neu-

ral networks. In Proceedings of the IEEE/CVF con-

ference on computer vision and pattern recognition

workshops, pages 24–25.

Yaqoob, I., Ahmed, E., ur Rehman, M. H., Ahmed, A. I. A.,

Al-garadi, M. A., Imran, M., and Guizani, M. (2017).

The rise of ransomware and emerging security chal-

lenges in the internet of things. Computer Networks,

129:444–458.

Zhou, X., Tang, C., Huang, P., Tian, S., Mercaldo, F., and

Santone, A. (2023). Asi-dbnet: an adaptive sparse

interactive resnet-vision transformer dual-branch net-

work for the grading of brain cancer histopathological

images. Interdisciplinary Sciences: Computational

Life Sciences, 15(1):15–31.

On the Adoption of Explainable Deep Learning for Image-Based Network Trafﬁc Classiﬁcation

377
