Analysis of Traffic Congestion Using LSTM and Graph Theory

Boyang Han

College of Transportation Engineering, Tongji University, Shanghai, 201804, China

Keywords: Traffic Prediction, LSTM, Graph Theory, Medium-Sized City.

Abstract: As the urbanization process continues to advance, the per capita vehicle ownership in cities keeps increasing.

However, with the growth in traffic volume on roads, the originally short commuting time is constantly

lengthened. Meanwhile, as a large number of vehicles converge at intersections, congestion rates also rise.

Despite the measures taken by traffic police and volunteers to guide traffic during peak hours, congestion

often occurs randomly and exhibits complexity. Moreover, if congested roads are not addressed, congestion

can spread. In this paper, the Long Short-Term Memory(LSTM) algorithm is employed to analyze and predict

traffic volume based on traffic flow information at intersections. Considering that detection devices at

intersections in some second and third-tier cities may experience aging or malfunctions, a gradient descent

algorithm is utilized to calculate the turning intentions of vehicles at each intersection at different times. This

information is then used to extrapolate the approximate traffic volume at neighboring intersections. This

approach not only aids the work of traffic police but also allows drivers to choose routes based on current

congestion conditions and future congestion predictions.

1 INTRODUCTION

With the continuous popularity of automobiles in

second and third-tier cities, traffic congestion has

gradually become a prominent issue. This is

manifested by the fact that the road occupancy rate

exceeds the originally designed values. At certain

intersections, during peak hours, the number of

vehicles allowed to pass within each green light cycle

may not meet the actual demand, potentially leading

to further congestion and traffic delays. A

straightforward approach to address this issue is to

dispatch traffic police to guide the dispersal of excess

traffic. However, due to the relative lag in

information, traffic police often cannot consider

congestion conditions at surrounding intersections

during enforcement, potentially resulting in inferior

decisions.

On the one hand, with the integration of traffic and

artificial intelligence technologies, the technology of

predicting intersection traffic flow based on artificial

intelligence algorithms and incorporating

surrounding road factors has become increasingly

mature. Many recent studies involve LSTM or other

algorithms optimized based on RNN for predicting

quantifiable indicators such as traffic flow (Luo et al

2019, Zhao et al 2020, He et al 2020 & Guo et al

2018).

Regarding the acquisition of traffic flow data,

discrepancies exist in the timing and types of data

obtained from various detectors. J. Guo et al. mainly

integrates real-time discrete data to achieve real-time

prediction of common indicators such as traffic flow

(Ryu et al 2018). U. Ryu et al. and other research

teams have more accurately predicted the values of

different indicators, achieving good RMSE values

(Zhang et al 2023, Fahs et al 2023 & Wang et al 2022).

In terms of practicality, F. Zhao et al. used basic graph

theory knowledge for the joint prediction of road

traffic flow (Chen et al 2020). Tong Wang et al.

further transformed traffic flow data into a direct

basis for judging urban road congestion, enhancing its

practical value (Cai et al 2020). However, in some

second and third-tier cities in China and even in

certain cities globally, issues such as deviations in

measurements may arise due to factors such as road

renovations and gravitational settling in circular loops,

making it challenging to fundamentally resolve the

source of data.

This paper addresses this often-overlooked problem.

Given that various detectors on main roads are more

complete than those on secondary roads, and their

maintenance cycles and conditions are generally

better, researchers can obtain accurate data from both

416

Han, B.

Analysis of Trafﬁc Congestion Using LSTM and Graph Theory.

DOI: 10.5220/0012805700004547

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 1st International Conference on Data Science and Engineering (ICDSE 2024), pages 416-421

ISBN: 978-989-758-690-3

main and secondary roads in the previous month. This

allows us to determine the probability of traffic

flowing from main roads to secondary roads and vice

versa at different time points. By obtaining the current

traffic flow on the main road (or secondary road),

researchers can predict the traffic flow on the current

and surrounding roads in the subsequent period. This

approach provides a certain direction for traffic police

in managing congested intersections, facilitating

timely or advanced prediction of congested

intersections and manpower allocation by law

enforcement agencies. Additionally, by comparing

the predicted traffic flow on secondary roads based

on main roads with the actual measured traffic flow

on secondary roads, if significant differences are

persisting for several days during peak hours and

external factors such as road maintenance are ruled

out, it may indicate that some detectors on secondary

roads require maintenance. This paper, based on the

LSTM algorithm for calculating traffic flow and

using the gradient descent algorithm to analyze the

correlation between adjacent roads in the road

network, provides a reference value for improving

road safety in small and medium-sized cities.

2 METHOD

2.1 Data Source

When picking data, the need is to avoid excessive

data in the minimal period, for example, big cities like

Shanghai possess too many roads and traffic flows,

which will be time-consuming. Bu too-limited data

sources should also be avoided, such as small towns

in rural areas of China. Thus, data in Xuancheng,

Anhui province serves as a good case for further

investigation. The open data in the paper collects the

road locations, average speed, and traffic flows in

Xuancheng during September 2022, with a minimum

observation period of 5 minutes. The Surveillance

camera and other sensors work from 0:00 to 23:55

and rest from 23:55 to 0:00 the next day. The

approximated road network is shown in Fig. 1 below.

Although there are many intersections in this graph,

the distribution is relatively scattered, the traffic flow

is restrictive, and there are many broken roads a

typical feature for non-large cities. Fig. 1 below

shows the main road network in Xuancheng.

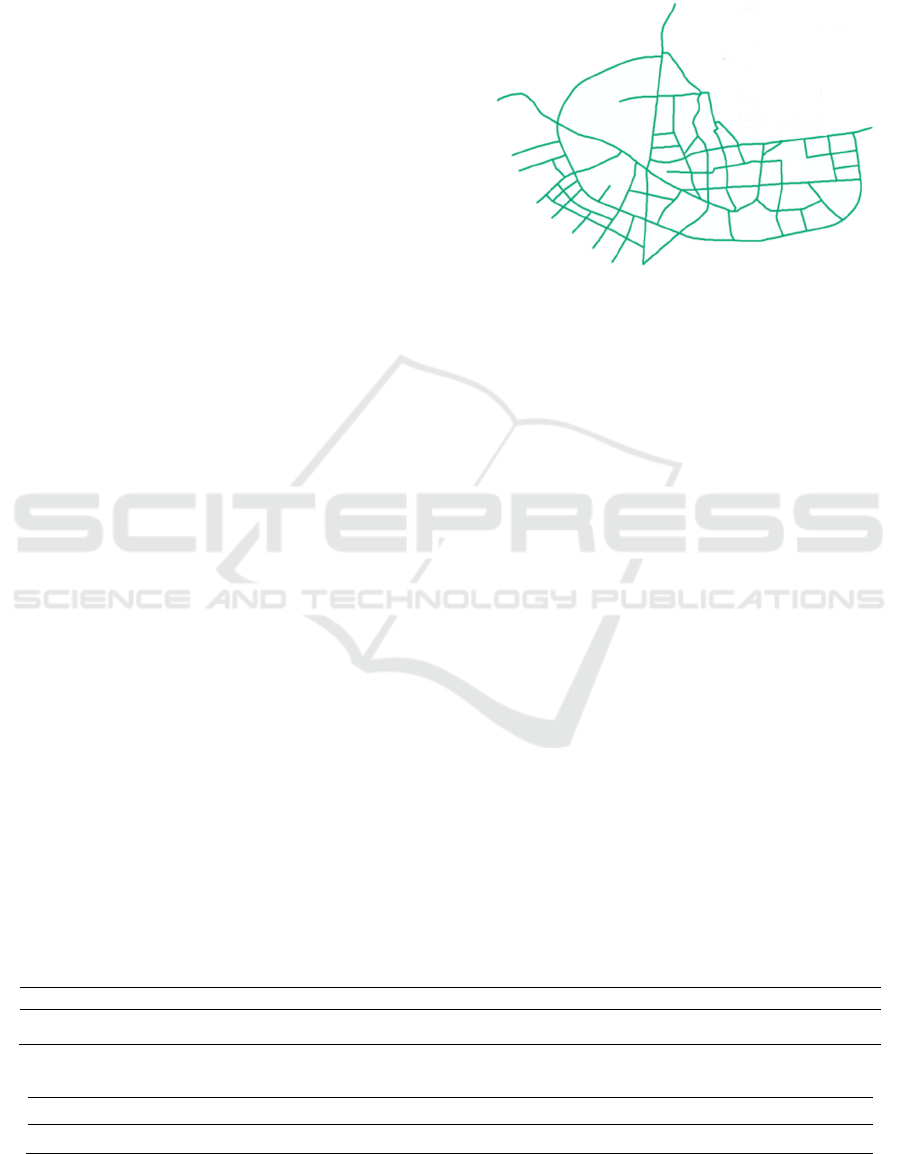

Figure 1: Road network of main roads in Xuancheng

(Picture credit: Original).

Meanwhile, loop data captured by monitors in each

intersection of Xuancheng is free and available online,

which consists of data with ‘ROAD_ID’ in a

combination of two intersections, for example, road

‘4589_4562’. The ‘TURN’ sections include four

options, including right, straight, left, and unknown,

corresponding to R|S|L|U (Table 1).

2.2 Data Preprocessing

Due to the primary focus of this study on predicting

traffic volume, the actual geographical latitude and

longitude information of the roads becomes less

crucial. Additionally, in the experimental dataset, the

"Unknown" category in the turning column includes

instances of making U-turns, misidentification, and

other problems like misclassifications, and as thus

excluded. "Furthermore, as the open-source nature of

the loop intersection data, the information on turns is

provided solely based on direction rather than a

specific mapping between roads. Consequently, it is

necessary to integrate a series of main road network

data, identify corresponding road segments, and

complete the replacement to enhance the accuracy

and completeness of turn-related information.

Table 1: Raw data of Traffic flow in Xuancheng.

ROAD_ID FTIME TIME COUNT SPD TURN

str H: M:S H: M:S int float R|S|L|U

Table 2: The modified road-network in Xuancheng, Anhui.

ROAD_ID FTIME COUNT HARM_SPD END

str H:M:S int float str

Analysis of Trafﬁc Congestion Using LSTM and Graph Theory

417

By further integrating the data, sorting the data in the

order of time, initial road, and end road is better, for

the modified table as shown in Table 2.

2.3 Relevant Research Methods

The urban road network can be approximated as a

graph, in which all roads can be equivalent to two

directed edges of opposite directions and the same

length, denoted by (U, V), where U is the set of all

points u and V is the set of all edges v, each of which

is connected by two different u.

In this paper, the smallest unit considered is the non-

U-turn turning of a single vehicle at an intersection.

Consequently, this behavior involves three nodes

connected by edges with an additional intersection as

the intermediate node. Based on the unidirectional

nature of vehicle movement, the paper designates

these three nodes as the predecessor (p), intermediate

(m), and successor (s) nodes. Simultaneously, the

paper uses the abbreviations p_m and m_s to denote

the edges connecting the predecessor to the

intermediate node and the intermediate to the

successor node, respectively. Meanwhile, the

Nomenclature and referred meanings used in this

paper are all described in Table 3 below.

By obtaining the traffic flow data of Xuancheng, the

paper constructs a comprehensive three-dimensional

gradient descent model, with the special point that X

and Y are exactly equal here, because in a minimum

period, the traffic flow is from almost the same time

to the outflow intersection, so the inflow traffic

determinant coefficient for each intersection

represented can be calculated.

The paper represents it in mathematical terms, which

is，signifies the whole Road network’s traffic flow

data, y is the current node calculated, with m means

the dimension of X, step means the learning rate

determined by artificial to be 0.01.

Error = X · W −y (1)

gd = X



∙ error/m (2)



=W− step ∗ gd (3)

Thus, the final has the predicted weight of surrounded

edges in different periods, with the sum equal to 1.

Simultaneously, the data are categorized based on the

road to which the turning is directed, i.e., by grouping

and swapping and then calculating the inverse matrix.

Utilizing the weight distribution of the predecessor

edge in the inverse matrix, this paper given the traffic

volume on a particular road, determines the

distribution of its traffic sources. By transposing the

weight distribution of the predecessor edge on this

road in the original matrix, and combining it with the

previously obtained traffic source distribution, traffic

flow data for adjacent edges will be able to calculate.

LSTM was originally designed to address the

prevalent issue of long-term dependencies in

traditional recurrent neural networks. The use of

LSTM enables effective transmission and

representation of information over long sequences

without the problem of neglecting (forgetting) useful

information from distant past time steps.

Simultaneously, LSTM can mitigate the problems of

gradient vanishing/exploding commonly encountered

in standard RNNs.

In the construction of a model, the train data is set to

be 14 days, while the test data is set to be 5 days.

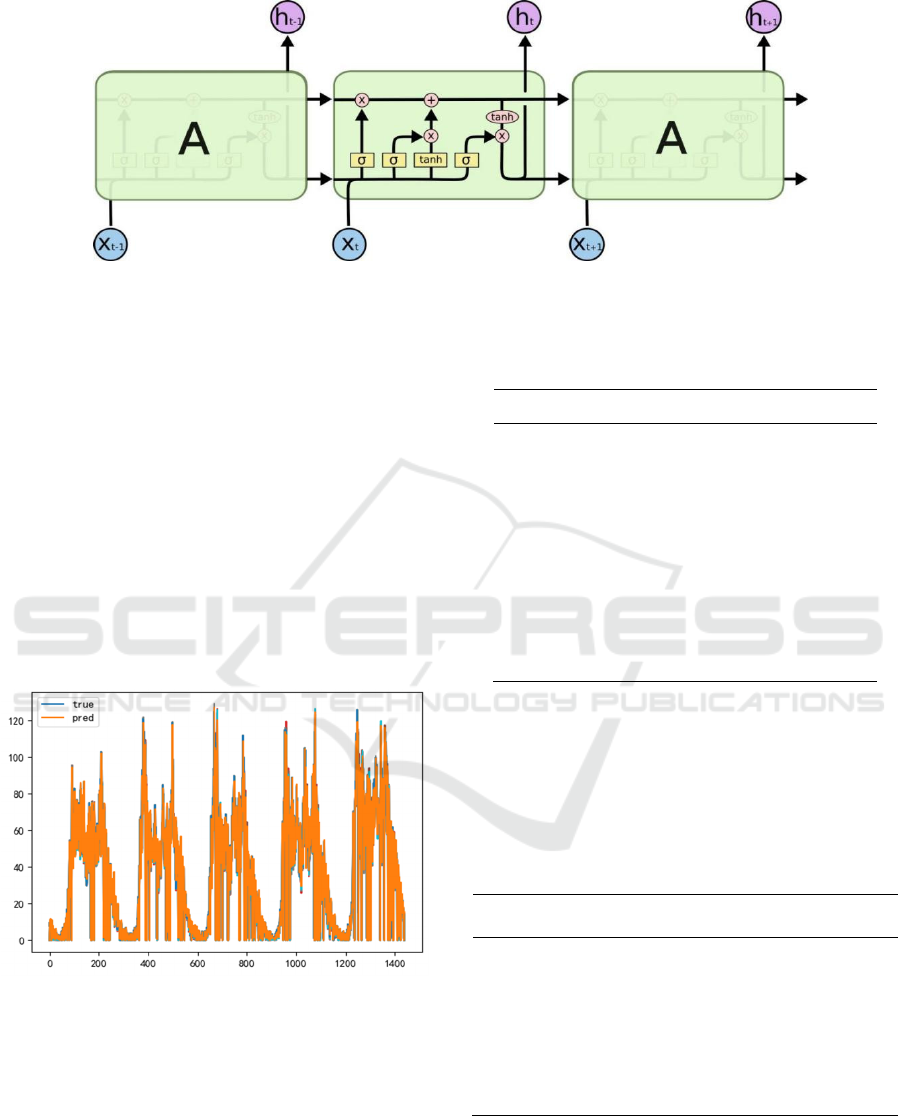

The LSTM model and the basic nomenclature can be

interpreted as the model following(as Fig. 2).

Table 3: The Nomenclature and referred meanings.

Nomenclature and referred meanings

head of the minimal unit, the first node calculated in each Trajectory;

Middle of the unit, or the node signifying the intersection;

Back of the unit, the last node calculated in each; Trajectory;

(𝑢, 𝑢



)

(

,,

)

The minimal unit in the research of this paper,

with (p, m) be the road before a turn, and (m, s) as 𝑢



, the road after a turn

𝑓



𝑓



,...

Forecast of the future 0,5,10 based on LSTM ... The trend of minute traffic flow converges

on the model at a macro level

(,)

The axis of congestion rate difference between different roads, calculated by the division

of avera

e s

eed and scheduled s

eed in each road b

Chinese national standar

𝑤

()

, 𝑤

()



Weight/Inverse weight matrix of how many cars turn from u to v in duration of T, which

can help predict the traffic flow of edge

(

u, v

)

after time T

ICDSE 2024 - International Conference on Data Science and Engineering

418

Figure 2: The model representing LSTM methods (Picture credit: Original).

3 RESULT AND DISCUSSION

3.1 Accuracy Prediction

By fitting the model with train data, the predicted data

is available by calculating the last data, and by

crisscrossing and, in time can be used to predict in

time T. The accuracy of LSTM in the predicted 5 days

and then the prediction of traffic flows in the

following time after the test data, which is

2020/9/27,0:00:00, is listed as shown in Fig. 3, with

the best RMSE reaching 1.76. This Fig.3 shows that

the fitting process is successful and the prediction will

be accurate at least in normal conditions.

Figure 3: The accuracy of LSTM in prediction (Picture

credit: Original).

3.2 Intersection Prediction

By using the original LSTM model, the data of the

last time step obtain the function to predict traffic

volume for 5 minutes ahead. Furthermore, by using

the predicted value for y as input for another round of

prediction, the data for 10 minutes ahead is then

available (Table 4).

Table 4: Traffic prediction of "4589_4562" after the test

data.

2022/9/27,16:00:00

0-5 minute delayed traffic forecast: 13.4028

5-10 minute delayed traffic forecast: 13.8148

10-15 minute delayed traffic forecast: 12.0810

15-20 minute delayed traffic forecast: 12.5041

20-25 minute delayed traffic forecast: 14.6358

25-30 minute delayed traffic forecast: 13.2260

Furthermore, by examining the weights and the

inverse matrix for the roads, for example, the data of

"4589_4562" road at 16:05 can calculate predictions

for the traffic volume on surrounding roads

“4562_4651”, “4605_4589” and “4660_4589”(Table 5).

Table 5: weight index and inverse weight index of test data

in 16:05.

In In_axis Out Out_axis

4589_4562

4562_4651

0.538

4605_4589

0.866

4589_4562

4562_4651

0.538

4660_4589

0.133

-1

4589_4562

4605_4589 1 4562_4651 1

-1

4589_4562

4660_4589 1 4562_4651 1

The traffic volume on the road "4589_4562" is

entirely provided by the road "4562_4651," with the

traffic flow entering this lane from "4562_4651"

accounting for 53.8% of the traffic on that road.

Therefore, the paper has:

Analysis of Trafﬁc Congestion Using LSTM and Graph Theory

419

𝑓

_()

𝑓

_()











(4)

𝑓

_/_()

𝑓

_()











(5)

As a result, it can be seen that the traffic volume

of "4562_4651" in 5 minutes is 13.4 * 1 / 0.538 = 24.9,

and the traffic volume of "4605_4589" in 5 minutes

is 13.4 / 1 * 0.866 = 11.6, with "4660_4589" be at 1.8.

Whereas steps (4) and (5) can be further extended to

address traffic congestion relief issues:

In a situation, someone has to go out in three hours,

but the baggage to bring is delayed in large transport

vehicles in rush hour, and calculate the average length

of the cars as follows.

q = N / T (6)

For q is the traffic flow, N is the number of cars

calculated in minimal time split T.

K = N / L (7)

K is the occupation rate, L is the harm length, and is

accessible given the location.

T ∗ v ∗ K/q = L



(8)

For average circumstances, Lcar =4.5m, which is not

useful in this question, and suppose Lsmall_car =3m,

Lbig_car =3m, it can predict how many trucks are

delivering the baggage by solving a coefficient-to-be-

determined-equation.

When directing traffic in the aftermath of a traffic

accident, traffic police should also take into account

the planned traffic flow in adjacent lanes, rather than

allowing all vehicles to proceed freely. Otherwise, it

may lead to congestion on the road ahead. In this

scenario, let's denote the additional traffic flow that

the traffic police can clear within a unit area and time

as X. Therefore, when there is a change in X, the

increase in traffic flow for the subsequent road

segment is given by:

Δy = wout ·Δx (9)

Here, Δy represents the increase in traffic flow for

the subsequent road segment, Δx represents the

change in the additional traffic flow cleared by the

traffic police within a unit area and time, and k is a

coefficient that signifies the impact of the traffic flow

cleared by the traffic police on the subsequent road

segment's traffic flow. The specific value of this

coefficient is influenced by various factors such as

traffic flow characteristics, road structure, and vehicle

speed.

By plotting the variation in average vehicle length

throughout the day, it is easy to identify the time

periods when the proportion of large vehicles is

highest. This information can serve as a basis for

further research and analysis focused on

understanding the dynamics and implications of

heavy traffic during specific times of the day.

3.3 Limitations and Future Outlook

Through the methods employed in this study, the

traffic volume of adjacent lanes with greater accuracy

based on the traffic flow of a specific road will be

available, especially main arteries such as

thoroughfares. This capability aids traffic police in

efficiently managing congestion and allows for

prompt assignment of the next duty location,

facilitating smoother transitions between tasks.

However, this paper acknowledges certain limitations.

In terms of data preprocessing, the outright removal

of lanes with 'Unknown' turning information is

inappropriate, as it may encompass instances of left

turns, right turns, or straight movements that were not

identified. Moreover, this action results in the

deletion of approximately one-third of the data,

introducing a certain level of bias into the results.

Addressing this issue requires more comprehensive

support from road infrastructure or conducting on-site

investigations to gather firsthand information for

comparison with the extensive dataset, thereby

optimizing the results. It's also important to note that

due to the reliance on predicted values, the accuracy

of verified predictions in LSTM may gradually

decrease over subsequent time steps.

While the emphasis of this paper lies in prediction,

the incorporation of direct vehicle speed data allows

for theoretical integration of road length, congestion

prediction, and congestion coefficient calculation (i.e.,

the ratio of a road's design speed to theoretical speed).

This, in conjunction with spatiotemporal mapping,

could yield a more sophisticated road planning

approach. Unlike most current navigation software

that guides based on historically optimal routes or

real-time congestion predictions, the theoretical

framework holds significant research potential for

offering more refined road guidance.

4 CONCLUSION

This paper aims to address the pressing issue of daily

commuting congestion in mid-sized cities by

considering the perspectives of both drivers and

traffic police. The primary objective was to leverage

real-time traffic flow data from specific road

segments for estimating traffic conditions near

congested intersections. By employing the LSTM

(Long Short-Term Memory) algorithm, accurate

ICDSE 2024 - International Conference on Data Science and Engineering

420

predictions of traffic flow data at individual

intersections were achieved.

The incorporation of graph theory, coupled with

the calculation of edge-weighted correlation matrices,

facilitated the determination of traffic flow

proportions between roads, encompassing both

forward and reverse matrices. This methodology

allowed for the computation of traffic flow on

adjacent edges and could be extended to the broader

road network after considering multiple layers of

correlation. However, the paper acknowledges the

potential compromise in accuracy as unaccounted

vehicles, especially those entering or exiting specific

locations, may influence the results.

A noteworthy contribution of this study lies in

addressing the application gap of LSTM algorithms

for predicting traffic flow and enhancing traffic safety

management in mid-sized cities with the lack of the

data accuracy. Despite the valuable insights provided,

challenges arose due to insufficient precision in data

collection, leading to the discarding of significant

data during initialization and potentially resulting in

an overall underestimation of predictive values.

Future research directions were proposed,

emphasizing the importance of obtaining more

precise information about vehicle speed and

incorporating it into a spatiotemporal map to overlay

temporal changes in traffic flow data. The paper also

suggested employing congestion calculations based

on national standards(China), to assess congestion

levels on different roads.

These proposed enhancements not only contribute

to improving the accuracy of real-time planning in

navigation systems but also offer valuable insights

into the challenges and opportunities within the

domains of civilian traffic forecasting and road traffic

safety management. In light of these findings, the

paper concludes by highlighting the significant

research value in extending the application of LSTM

algorithms in this context, prompting further

investigation and exploration in this crucial field.

REFERENCES

X. Luo, D. Li, Y. Yang, and S. Zhang, J. Adv. Transp., vol.

2019, pp. 1–10, Feb. (2019).

F. Zhao, G.Q. Zeng,and K.D. Lu, IEEE Trans. Veh.

Technol., 60(1), 101–113, Jan. (2020).

P. He, G. Jiang, S.-K. Lam, and Y. Sun, Inf. Sci., 512,

1394–1406, (2020).

J. Guo, Z. Liu, W. Huang, Y. Wei, and J. Cao, IET Intell.

Transp. Syst.,12(2), 143–150, Mar. (2018).

U. Ryu, J. Wang,T. Kim, S. Kwak, and U. Juhyok, Res. C,

Emerg. Technol., 96,.55–71, (2018).

T.Zhang, J. Xu, S. Cong, C. Qu, and W. Zhao, IEEE

Access, 11, 36471-36491, (2023).

W. Fahs, F. Chbib, A. Rammal, R. Khatoun, Procedia

Computer Science 220 , 202-209,(2023).

T. Wang, A.r Hussain, Q. Sun, IEEE Intellegent

Transportation Systems Magazine, 102-120,

July/August (2022).

C. Chen, Z. Liu, S. Wan. IEEE Transactions on Intelligent

Transportation Systems, (2020).

L. Cai, Y. Yu, S. Zhang, Y. Song, Z. Xiong and T. Zhou, in

IEEE Access, 8, 22686-22696, (2020).

Analysis of Trafﬁc Congestion Using LSTM and Graph Theory

421
