Towards a Cryptographic Model for Wireless Communication

Frederik Armknecht and Christian M

uller

University of Mannheim, Mannheim, Germany

Keywords:

Wireless Communication, Attacker Model, Physical Properties, Distance Bounding, Friendly Jamming.

Abstract:

The Man-in-the-Middle Model (MitMM) is commonly used in cryptography for modeling an attacker in multi-

party scenarios. It essentially assumes that the attacker fully controls the communication between all parties,

i. e., can stop and modify messages at her discretion. We argue that this model is too strong for realistically

capturing the case of wireless communication. In consequence, schemes that exploit properties of wireless

communication such as friendly jamming or distance bounding, cannot be analyzed in a common frame-

work. Moreover, the lack of an appropriate model hinders the development of new schemes. Given the

ever-increasing importance of wireless communication, e. g., in the context of the Internet of Things, we pro-

pose a new formal model for wireless communication. Starting from the formal MitMM, we identify three key

aspects — communication channels, signals, and locality — that are not represented, explain how to extend the

model accordingly, and propose a tailored WCM. Based thereon, we explain how these limit the capabilities

of an attacker in the form of a WAM. Moreover, we demonstrate for an existing security mechanism, namely

friendly jamming, which is not covered by the MitMM how the new model allows for analyzing/formalizing

the security.

1 INTRODUCTION

Security models are fundamental for unambiguously

analyzing or proving the security of cryptographic

schemes by formalizing security goals and attacker

models. While the security goals may vary between

different use cases, the attacker model is usually more

universal. For typical scenarios involving two or

more communicating parties, the so-called Man-in-

the-Middle Model (MitMM) introduced by (Dolev

and Yao, 1983) is commonly utilized in which the at-

tacker is assumed to have full control over the com-

munication, e. g., message eavesdropping, delaying,

or modiﬁcation.

This work at hand is motivated by the observa-

tion that the MitMM can be too strong in the case of

wireless communication. Without doubt, considering

a very strong attacker model is often necessary and

useful, i. e., if certain capabilities of an attacker can-

not be excluded, assume the worst case; if a mech-

anism provides security against a strong attacker, so

does it for weaker (and potentially more realistic) at-

tackers.

We claim, however, that the situation is differ-

ent for wireless communication. First, academic and

industrial research produced various security mecha-

nisms which, regarding the security, cannot be prop-

erly addressed in the MitMM. The probably best

known example are Distance Bounding (DB) proto-

cols (e. g., (Brands and Chaum, 1994; Hancke and

Kuhn, 2005)). But also other existing schemes can-

not be analyzed adequately in the model, e. g., the

shield for Implantable Medical Devices (IMDs) by

(Gollakota et al., 2011), or other friendly jamming

approaches (e. g., (Shen et al., 2013; Berger et al.,

2014)).

Second, the development of new schemes is hin-

dered: mechanisms may be rejected as they are in-

secure in the MitMM, while they may be secure in

practice. More precisely, some assumptions made

in the MitMM about the attacker’s capabilities typi-

cally do not hold in wireless networks due to physi-

cal laws. For instance, a transmitted message spreads

like a wave in every direction from the sender. Nor-

mally, an attacker cannot inﬂuence the wave which

is on the opposite side of the sender. Also, modify-

ing messages is not directly possible as all an attacker

can do is to send signals on her own which then in-

terfere with the other parties’ signals. For example,

opper et al., 2011) showed that, in wireless com-

munication networks, reliable and targeted manipula-

tion of messages is difﬁcult in practice. (Avoine et al.,

Armknecht, F. and Müller, C.

Towards a Cryptographic Model for Wireless Communication.

DOI: 10.5220/0012809300003767

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 21st International Conference on Security and Cryptography (SECRYPT 2024), pages 249-261

ISBN: 978-989-758-709-2; ISSN: 2184-7711

249

2021) likewise criticize that existing formal models

make impractical assumptions.

Given these shortcomings, we see the beneﬁts of a

model tailored to wireless communication as an alter-

native to the MitMM. This is particularly true given

the ever increasing relevance of wireless communi-

cation as, e. g., the Internet of Things (IoT), with a

forecast of 27.0 billion IoT devices by the end of

2025 (Mohammad Hasan, 2022), connects a plethora

of devices in wireless networks and over the Inter-

net. There is a strong demand for appropriate secu-

rity measures to protect IoT devices and users against

misuse and malicious behavior.

Our contributions and structure of the paper are:

• In Sec. 2, we identify several properties of wire-

less networks that are not (or not correctly) cov-

ered by the MitMM and categorize these as com-

munication channels, signals, or locality.

• Starting from the MitMM, we introduce a new

model for wireless communication, dubbed Wire-

less Communication Model (WCM), in Sec. 3.

• In Sec. 4, we discuss how the WCM may impact

an attacker’s capabilities, resulting in the Wireless

Attacker Model (WAM).

• We demonstrate how WCM and WAM can be

used for formalizing/analyzing several existing

security mechanisms that could not be properly

represented by the MitMM, namely DB protocols

and friendly jamming, in Sec. 5.

• Sec. 6 summarizes related work and concludes

this work.

We hope the new model allows for founded and

comparable security research in this important area

and helps to develop novel security mechanisms that

would be unthinkable in the traditional model.

2 MOTIVATION

This section motivates the need for a dedicated se-

curity model for wireless networks. First, we recall

the established MitMM and highlight shortcomings

regarding peculiarities of wireless communication.

We categorize these as: communication channels

(Sec. 2.2), signals (Sec. 2.3), and locality (Sec. 2.4).

For each of these, we describe the situation in wire-

less networks, discuss why it is not represented in the

MitMM and why it needs to be integrated, and sum-

marize these ﬁndings as “lessons learned”. The latter

form the basis for our WCM introduced in Sec. 3.

More shortcomings of the MitMM in the case of wire-

less communication are discussed in Sec. 2.

2.1 The Man-in-the-Middle Model

In the following, we recall the MitMM introduced

by (Dolev and Yao, 1983), using the formulation as

given by (Katz, 2002). Note that we are only inter-

ested in modeling the capabilities of an attacker to in-

tercept and modify messages that are exchanged be-

tween communicating parties.

The system in the MitMM comprises a ﬁnite set

of parties Π that are modeled as Interactive Turing

Machines (ITMs). In a nutshell, an ITM extends the

classic probabilistic Turing machine by including (be-

sides the work tape, random tape, and auxiliary tapes)

an additional read-only communication-in (comm-in)

tape and an additional write-only communication-out

(comm-out) tape that allow for receiving messages

from and sending messages to other ITMs, respec-

tively. We refer to (Katz, 2002, Deﬁnition 2.1) for

a full deﬁnition. The MitMM assumes that all com-

munication between the parties in Π is under control

of an attacker A. This is captured by the notion of be-

ing linked via A. As a consequence, in the MitMM,

all communication between any of the parties in Π is

“routed” through A and she may decide for any in-

coming message whether it will be forwarded and, if

so, whether it is modiﬁed beforehand. We refer to

(Katz, 2002, Deﬁnition 2.2) for a full deﬁnition.

2.2 Communication Channels

2.2.1 Description

Wireless communication utilizes a shared and open

medium composed of one or several physical chan-

nels, i. e., ultimately, any communication channel is

realized through at least one physical channel.

Examples for systems using a single physical

channel for communication are Wireless Personal

Area Networks, e. g., based on IEEE 802.15.4 (IEEE,

2011), and Wireless Local Area Networks (WLANs),

e. g., WLAN with Direct-Sequence Spread Spec-

trum (IEEE, 1997). In contrast, mobile telephony net-

works, such as those based on GSM or 5G, and the

satellite telephony services based on Inmarsat, utilize

separate channels for sending and receiving data (El-

bert, 2008).

2.2.2 Discussion

In the MitMM, each party has access to exactly one

comm-out tape and each of these is directly linked to a

comm-in tape of the adversary (cf. (Katz, 2002, Def-

inition 2.2)), thus forming the only available commu-

nication channel to any party.

SECRYPT 2024 - 21st International Conference on Security and Cryptography

250

A wireless communication channel is realized

through the use of at least one physical channel. Thus,

if more than one physical channel is available, sev-

eral communication channels may be established be-

tween two parties. In fact, techniques like Frequency-

Hopping Spread Spectrum (FHSS), as used for exam-

ple in Bluetooth (Bluetooth SIG, 2016) and WLAN

with FHSS (IEEE, 1997), cannot be expressed by us-

ing one communication channel only.

Moreover, these physical channels are open to

anyone. In principle, messages transmitted on these

channels can be received by any party that listens on

the same channel. As we detail further in Sec. 2.3.2,

this limits the possibilities of an attacker.

2.2.3 Lessons Learned

A wireless communication model should allow par-

ties to establish several communication channels

which are open to everyone.

2.3 Signals

2.3.1 Description

In wireless communication, messages are encoded

into sinusoidal waves, using different modulation

schemes. Moreover, these are sent with a certain

amount of power, which a receiver perceives as so-

called signal strength and which is often simply repre-

sented as Received Signal Strength Indicator (RSSI).

2.3.2 Discussion

Whenever two parties send messages at the same time

on the same physical channel, these messages can col-

lide. This can lead to cancellation, ampliﬁcation, or

other modiﬁcation of the resulting signal. In fact, this

is the only technical possibility for an attacker to mod-

ify messages.

In the MitMM, a user cannot detect whether mes-

sages sent to him have been blocked. This is no longer

true for wireless communication where jamming de-

tection is possible. A simple form of it relies on the

RSSI, e. g., if packet errors occur during reception but

the corresponding RSSI is high, then the transmission

was probably jammed. This form of jamming detec-

tion has been extensively studied, e. g., by (Xu et al.,

2005) or by (Grover et al., 2014) in the form of a sys-

tematic overview of jamming and detection methods.

Interestingly, jamming may also be employed for

providing message conﬁdentiality (so-called friendly

jamming), e. g., as shown by (Gollakota et al., 2011).

In their paper, they use the proximity between two de-

vices to mitigate eavesdropping and, furthermore, uti-

lize jamming for achieving their goal. That is, delib-

erately sending another signal whenever a transmis-

sion is going on renders the original message unde-

codable for other parties except for the, in this case,

benign jammer, who, using the advantage of know-

ing the jamming signal, reconstructs the original mes-

sage after all. In Sec. 5.1, we use the proposed model

to formalize the security of such a friendly jamming

scheme.

2.3.3 Lessons Learned

The fact that messages are modulated onto physi-

cal signals affects an attacker’s capabilities, possi-

ble countermeasures, and the development of new

schemes. Thus, a wireless communication model

needs to cover physical signals, including signal col-

lisions and jamming.

2.4 Locality

2.4.1 Description

When a party sends a signal at some point in time,

it arrives at another party with a time delay that de-

pends on the distance between sender and receiver.

Moreover, the distance affects the signal strength

of the perceived signal which eventually determines

whether the recipient gets the message or not.

2.4.2 Discussion

In the MitMM, the concepts of time and space are

non-existent. However, for wireless communication,

the situation is different. For instance, while travel-

ing, signals may suffer from path loss and fading, es-

pecially when running through barriers in-between. If

the signal strength falls below the noise level, trans-

mitted data may become irretrievable. This impacts

the connectivity of parties and an attacker’s capabili-

ties to jam messages, e. g., the attacker might not re-

ceive the message she wants to jam, or the attacker’s

signal might be too weak to be received by the tar-

geted party. In fact, the properties of time and space

have been discussed for novel security measures in

wireless systems.

In the time domain, a compelling example is the

area of DB protocols, e. g., (Brands and Chaum, 1994;

Hancke and Kuhn, 2005; Tippenhauer and

Capkun,

2009; Rasmussen and Capkun, 2010; Ranganathan

et al., 2012; Boureanu et al., 2015; Drimer and Mur-

doch, 2007). These build on ideas presented by

(Desmedt et al., 1988). DB protocols consider the

round trip delay of (two) communicating parties, thus,

providing an upper bound to their distance.

Towards a Cryptographic Model for Wireless Communication

251

The property of space can also be utilized as

a security measure. For example, ZigBee Light

Link (ZigBee Alliance, 2012) uses signal strength

measurements to determine proximity of two parties.

Besides the available power for sending and receiv-

ing, the RSSI is mainly inﬂuenced by physical quan-

tities, i. e., path loss and distance between sender and

receiver. In practice, the distance is easily measur-

able, while the path loss varies over time and is af-

fected by its environment and actual physical condi-

tions, even if the distance remains constant. That is,

when two parties establish a communication channel,

an eavesdropper’s view of that channel de-correlates

rapidly with distance (Zenger et al., 2016; Eberz et al.,

2012). (Hershey et al., 1995) proposed to use the

physical environment to establish common shared in-

formation between two parties, which is unique for

these two at that point in time and space.

2.4.3 Lessons Learned

In the MitMM, the attacker is omnipresent, i. e., she

controls all communication. This is not given in wire-

less networks where an attacker’s position in relation

to the other parties is relevant. Even if an attacker

comprises several parties at different locations, the

communication between these are likewise subject to

the restrictions discussed above. That is, a model

should integrate the concept of relative positions of

parties and the inﬂuence on the communication.

3 WIRELESS COMMUNICATION

MODEL

Next, we introduce a formal model for wireless

communication on the Physical Layer (PHY) of the

OSI model, dubbed Wireless Communication Model

(WCM). To this end, we explain how the model ad-

dresses each of the three identiﬁed aspects, i. e., chan-

nels (cf. Sec. 2.2), signals (cf. Sec. 2.3), and locality

(cf. Sec. 2.4).

We stress that the aim of the model is to repre-

sent wireless communication only, i. e., parties may

have further means to communicate, e. g., being di-

rectly wired. In some scenarios, it may be reason-

able to add further communication tapes to the model

to also cover non-wireless communication. However,

such communication channels can be modeled “clas-

sically” and are hence out of scope.

3.1 Communication Channels in the

WCM

We assume a set of parties Π and an attacker A.

Like in the MitMM, they are modeled as probabilis-

tic ITMs (see (Katz, 2002, Deﬁnition 2.1)). To model

the wireless communication between different parties

(including A), we likewise adopt the concept of com-

munication tapes. However, there are several differ-

ences:

• Cells contain physical signals σ (cf. Sec. 3.2).

• We assume (for unique referencing of parallel ac-

tivities and to capture the notion of time) a global

discrete timer that divides the ﬂow of time into

time slots t ∈ N with t + 1 following t and so on.

• We assume a system-wide parameter chs that de-

notes the total number of publicly available phys-

ical channels, and also an ordering on these chan-

nels.

Contrary to (Katz, 2002, Deﬁnition 2.2):

• We assume that any party P (including any at-

tacker A) has exactly chs comm-in and chs comm-

out tapes, denoted by (CT

)

,...,(CT

)

chs

and

(CT

out

)

,...,(CT

out

)

chs

, respectively.

• (CT

)

and (CT

out

)

are connected to the i-th

physical channel.

• The number of the attacker’s comm-out tapes only

depends on chs.

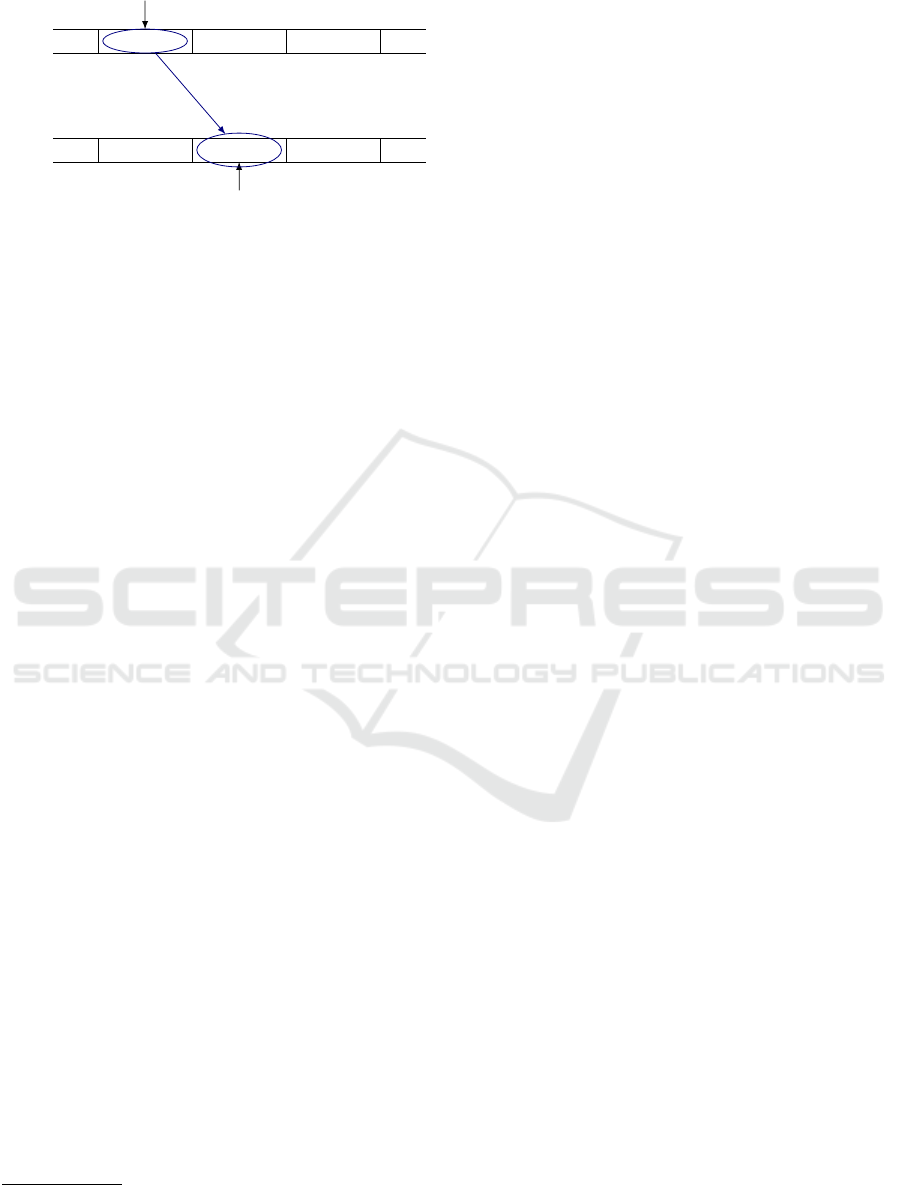

For any communication tape CT (either in or

out), CT[ j] denotes the j-th cell of this speciﬁc tape.

Comm-out tapes are write-only and comm-in tapes

are read-only tapes. That is, a party can write to a

cell of any of its comm-out tapes and read from a cell

of any of its comm-in tapes. However, reading from

and writing to any cell but the current one are not pos-

sible, i. e., any party P (including A) can only read or

write to the t-th cell where t denotes the current time

slot.

The reason for this design decision is that the tapes

model the physical channels used for communication.

Reading or writing correspond to eavesdropping on

and demodulating signals or sending modulated sig-

nals on these frequencies. Once a signal passed a

party, it cannot be eavesdropped on anymore. Once

a signal is sent, this action cannot be taken back.

Furthermore, any party can only access one cell at

the same time, i. e., it can either read from or write

to a single communication tape. The motivation for

this design decision is as follows. In cryptography,

There are no restrictions on storing data read from a

tape in the past or preparing data to be written in the future.

SECRYPT 2024 - 21st International Conference on Security and Cryptography

252

parties are commonly modeled as Turing machines

which in turn model single task algorithms. For tech-

nical reasons, sending and receiving at the same time

or accessing several physical channels require sepa-

rate devices. Thus, a party in our model represents

the smallest processing unit that may operate on its

own. Note that we do not exclude that, in practice,

an attacker may have access to several physical chan-

nels at the same time. However, formally this would

be expressed by several parties that interact with each

other, possibly using some non-wireless communica-

tion channels. Like in the MitMM, this is not particu-

larly expressed within the model but it is straightfor-

ward to include this.

We stress that, in our model, we assume each

physical channel to be loosely synchronized with the

global timer in the sense that a communication tape’s

cell corresponds exactly to the duration of one signal

period of the underlying carrier frequency. In other

words, each communication channel moves forward

with the same speed as the others.

3.2 Signals in the WCM

Communication parties are usually oblivious to the

fact that, on the PHY, signals are used to transport the

messages. However, as discussed in Secs. 2.3 and 2.4,

physical signals may interfere or be delayed which

eventually impacts the messages received by the par-

ties. Given that the main intention of the proposed

model is to express the capabilities of an attacker to

impact wireless communication, we discuss the con-

nection between physical signals on the one hand, and

the messages sent and received by parties on the other

hand in the following.

3.2.1 Physical Signals

Physical signals are commonly represented by sinu-

soidal waves, e. g., formalized as

A(t) · sin(2π f t +ϕ(t)) (1)

with the following parameters: the amplitude A ∈ R

≥0

(correlated to the signal strength), the frequency f ∈

(1/ f gives the signal’s period), and the phase

shift ϕ with 0 ≤ ϕ < 2π (the phase shift of the signal

compared to a non-shifted sine signal). Consequently,

we model a signal σ by this triple of parameters.

Deﬁnition 1 (Signals and Signal Space). A signal σ is

deﬁned as σ = (A, f ,ϕ) ∈ Σ where Σ = R

≥0

× R

[0;2π) denotes the signal space.

The term 0 refers to the signal with A = 0.

In our model, σ refers to the information about a

physical signal stored in one slot of a communication

tape. That is, it represents the state of a signal during

a particular time slot. We consider all components

of σ to be constant for the duration of one time slot,

which is why the amplitude A and the phase shift ϕ

are represented as scalars rather than time-dependent

functions. Practically, 0 refers to the case that no sig-

nal is present. In particular, an empty cell contains

this term.

As signals are considered to be periodic, one can

phase-shift any signal by shifting the signal along the

time axis. Formally, we introduce the Shift operation

for for this.

Deﬁnition 2. The Shift operation changes the phase

of a given signal by a given parameter. It is deﬁned

as Shift : [0;2π) × Σ → Σ. Let ϕ

∈ [0;2π) be a phase

shift value and σ = (A, f ,ϕ) ∈ Σ a signal, then,

Shift(ϕ

,σ) := Shift

(σ)



A, f ,ϕ + ϕ

−



ϕ + ϕ

2π



. (2)

3.2.2 Modulation and Demodulation

When two parties are communicating, they usually

exchange messages composed of message symbols

µ ∈ M where M denotes the message alphabet. Tech-

nically, this requires to transform message symbols

into physical signals (modulation) and vice versa (de-

modulation), being deﬁned as follows.

Deﬁnition 3 (Modulation and Demodulation). The

modulation function Mod converts a message µ into

a sequence of ρ signals to be sent over the air. It

takes as input a message symbol µ ∈ M and the signal

strength parameter s ∈ R

and encodes these into ρ

signals σ

,...,σ

. Note that this factor, ρ, is inherent

to and depending on the chosen modulation scheme.

That is, we have

Mod : M × R

→ Σ

,(µ,s) 7→



,...,σ



. (3)

Correspondingly, the demodulation function

Demod takes as input ρ signals σ

,...,σ

and

outputs a message symbol µ ∈ M (or, in case that

demodulation is not possible, it outputs ⊥):

Demod : Σ

→ M ∪

{

⊥

}



,...,σ



7→ µ. (4)

Demod is the inverse function of Mod if the signal

strength is sufﬁciently strong. That is, it holds for all

µ ∈ M that

Demod(Mod(µ, s)) = µ (5)

if s ≥ τ for some threshold τ.

Depending on the speciﬁc modulation scheme, not

all signal parameters may inﬂuence the demodulation

Towards a Cryptographic Model for Wireless Communication

253

with regard to the extracted message, e. g., when us-

ing phase shift keying, the amplitude and frequency

are only needed to identify the signal, but have no

inﬂuence on the actual encoded information as this

only depends on the observed phase shift compared

to the underlying carrier frequency. A low amplitude,

however, may prevent a receiver from successfully

demodulating signals into messages.

3.2.3 Sending and Receiving Message Symbols

Sending a message symbol µ means to modulate it

into a sequence σ

,...,σ

of signals with respect to

some signal strength s, using the Mod function, and to

send these over one of the communication channels,

by writing each signal σ

on a comm-out tape. This

procedure is formally captured by the Send operation.

Deﬁnition 4 (The Send Operation). The Send oper-

ation takes as input a triple (CT,µ, s) where CT is

a comm-out tape of P , µ ∈ M is a message symbol,

and s ∈ R

represents a signal strength. It involves

to execute ﬁrst Mod(µ,s) to get a sequence of ρ sig-

nals σ

,...,σ

. These are written step-by-step onto

the tape CT. Note that Send does not specify the in-

tended recipient of the message symbol µ but the com-

munication channel. Recall that during one time slot,

a party P can only write to the t-th cell. That is, the

writing procedure is formally equivalent to setting ρ

consecutive cells of CT as follows:

CT[t] := σ

,...,CT[t + ρ − 1] := σ

. (6)

Therefore, the Send operation inﬂuences the current

and the next ρ − 1 cells of the comm-out tape CT,

which, in total, takes ρ time slots to perform.

We extend the notation to the case of sending

messages: for a message m = (µ

,...,µ

ℓ

), we de-

ﬁne by Send(CT,m, s) the sequence of operations

Send(CT,µ

,s), i = 1, .. ., ℓ.

Likewise, parties can receive message symbols

from their comm-in tapes and only from these.

Deﬁnition 5 (The Receive Operation). The Receive

operation takes as input a comm-in tape CT. It reads

out the current ρ entries of CT, i. e., CT[t],...,CT[t +

ρ−1]. Given this, Demod(CT[t],. .. ,CT[t +ρ−1]) is

executed to get a message symbol µ ∈ M ∪ {⊥}. Then,

µ represents the output of Receive.

Since the Demod function requires ρ signals for

extracting a message, and as there is no possibility to

receive future signals in advance, this deﬁnition im-

plies that Receive needs to wait for ρ time slots for

returning a message µ, i. e., until the demodulation

function received enough signals to return a message

symbol µ ̸= ⊥.

3.2.4 Signal Collision

As the parties may share the same physical channel,

different signals might collide. Formally, this means

that parallel writing on communication tapes is possi-

ble, in contrast to the MitMM. This and the fact that

accessing communication cells “from the past” is not

possible, imply that the WCM is not message-driven.

For two signals σ,σ

′

∈ Σ, we denote by

σ + σ

′

(7)

the resulting signal. That is, if two different signals

σ and σ

′

are simultaneously received on the same

tape CT, then σ + σ

′

appears on the tape instead (see

Sec. 3.3 for more details).

The concrete working of the collision depends on

the underlying physical channel and the selected mod-

ulation/demodulation procedures.

Nonetheless, some properties hold in all cases.

For instance, it holds that

σ + 0 = 0 + σ = σ (8)

for all signals σ. Furthermore, collision is commuta-

tive and associative:

σ + σ

′

= σ

′

+ σ and σ + (σ

′

+ σ

′′

) = (σ + σ

′

) + σ

′′

(9)

Collision is also commutative with respect to Shift,

i. e.,

Shift

(σ + σ

′

) = Shift

(σ) + Shift

(σ

′

) .

In some special cases, the signals amplify or an-

nihilate each other, depending on their relative phase

shift. More precisely, it holds

(A, f ,ϕ) + (A

′

, f ,ϕ) = (A + A

′

, f ,ϕ) (10)

(A, f ,ϕ) + (A

′

, f ,ϕ + π)

(

(A − A

′

, f ,ϕ), if A ≥ A

′

− A, f , ϕ + π), else.

(11)

In particular, (A, f , ϕ) + (A, f , ϕ + π) = 0. Conse-

quently, we deﬁne for a given signal σ = (A, f ,ϕ) its

inverse as

−σ := (A, f ,ϕ + π) . (12)

Channels are characterized by signals that share

the same frequency f within a certain bandwidth.

These are usually chosen such that the interference

between different channels is as small as possible.

For these reasons, we focus on collisions of signals

that occur on the same channel. Moreover, for a given

frequency f , we use the term Σ

to refer to the set

For instance, in IEEE 802.15.4 the channels in the

2.4GHz band are non-overlapping as they are 5 MHz apart

with a bandwidth of 2MHz (IEEE, 2011).

SECRYPT 2024 - 21st International Conference on Security and Cryptography

254

of signals that have f as frequency (approximately).

That is, signals belong to the same channel if and only

if they are elements of the same space Σ

for a se-

lected frequency f . It holds for any frequency f that

σ,σ

′

∈ Σ

⇒ σ + σ

′

∈ Σ

. (13)

Formally, this means that Σ

is closed under +. To-

gether with the properties mentioned above, it follows

that (Σ

,+) forms a commutative group. This view

is for example helpful when describing the effects of

jamming, e. g., see Sec. 5.1.

3.3 Locality in the WCM

In wireless communication, signals are physical ob-

jects. This has a number of consequences that are

not covered by the MitMM, e. g., multiple signals

can collide, yielding different resulting signals (cf.

Sec. 3.2.4). Further relevant aspects are:

1. Once a party sends a signal, it takes time until it

reaches another party.

2. During transmission, the signal strength may de-

crease.

To represent these aspects, we adopt and extend the

notion of being linked (cf. (Katz, 2002, Deﬁnition

2.2)). Due to the fact that all parties rely on public

physical channels, any two parties are linked in the

sense that, potentially, messages can be exchanged.

Here, we also have to take into account their relative

locations. To this end, we propose the following for-

mal deﬁnition of linkage:

Deﬁnition 6 (Linkage between two parties). Con-

sider two parties P , P

′

∈ Π ∪ {A} with P ̸= P

′

. The

linkage from P to P

′

, denoted by Link(P ,P

′

), is de-

ﬁned by a tuple

Link(P ,P

′

) = (δ; λ

,...,λ

chs

) (14)

where

• δ ∈ N

≥0

is a non-negative integer, representing the

time delay, and

• λ

: Σ → Σ is a probabilistic procedure, dubbed

linkage procedure, that expresses how a signal

sent by P (using the i-th comm-out tape) arrives

at P

′

on the i-th comm-in tape.

The linkage between two parties expresses when

and what kind of signal arrives at P

′

if P sends some

signal. As an example, the expected path loss due

to the distance between sender and recipient could be

expressed by λ

(A, f ,ϕ) = (A

′

, f ,ϕ) with A

′

< A.

Another example is a channel-induced phase shift

on transmitted signals. Assume that P and P

′

have

a physical distance d to each other which has the

form d = δ ·

+ r = δ ·

+ ϕ

2π f

, with an inte-

ger δ ≥ 0, the speed of light constant c, the i-th com-

munication channel’s carrier frequency f

, and the re-

mainder r with 0 ≤ r <

. That is, d is not a mul-

tiple of the carrier frequency’s wavelength. Then,

(A, f ,ϕ) = (A

′

, f

′

,ϕ + 2π − ϕ

) = (A

′

, f

′

,ϕ

′

Recall that we have one linkage procedure λ

per

channel with a total of chs available channels and a

ﬁxed order (cf. Sec. 3.1). Now, assume that some

party P writes a signal σ on one of its comm-out tapes

(CT

out

)

, i. e., (CT

out

)

[t] := σ. Writing on CT auto-

matically affects all comm-in tapes of parties that are

linked to P . That is, let P

′

̸= P be some other party

and let Link(P , P

′

) = (δ;λ

,...,λ

chs

) be the linkage

between P and P

′

. The procedure of P writing σ into

the cell (CT

out

)

[t] impacts the content of the corre-

sponding comm-in tape (CT

)

′

for party P

′

̸= P as

follows:

(CT

)

′

[t +δ] := λ

(σ) + (CT

)

′

[t +δ] . (15)

That is, the signal which is already existing on

(CT

)

′

, expressed by (CT

)

′

[t + δ], is updated to

(σ) + (CT

)

′

[t + δ]. This deﬁnition allows to

cover the aspects mentioned above:

1. When party P sends a signal σ at some point in

time t, σ reaches P

′

only with some time delay

δ. That is, P writes on cell (CT

out

)

[t], i. e., with

index t, but this affects (CT

)

′

[t +δ], i. e., δ time

slots later.

2. σ physically traverses the space between P and P

′

and arrives as λ

(σ) at P

′

3. If there is already a signal present on the tape’s

targeted cell (CT

)

′

[t + δ], then it collides with

(σ) (cf. Eq. (15)).

A schematic overview is depicted in Fig. 1.

Finally, we introduce two notions with respect to

the time delay:

Deﬁnition 7 (Time Delay Symmetry and Triangle In-

equality). Consider a set of parties Π and their link-

ages Link(P , P

′

) for any P ̸= P

′

∈ Π. We denote by

P ,P

′

the time delay in Link(P ,P

′

We say that the time delay parameter is symmetric

with respect to these linkages if it holds for any P ̸=

′

∈ Π that

P ,P

′

= δ

′

. (16)

Moreover, we say that the time delay parameter ful-

ﬁlls the triangle inequality if it holds for any pairwise

distinct P ,P

′

′′

∈ Π that

P ,P

′′

≤ δ

P ,P

′

+ δ

′

′′

. (17)

Towards a Cryptographic Model for Wireless Communication

255

←−

(CT

out

)

t +δ

←−

(σ)

(CT

)

′

+δ

Figure 1: Linkage from (CT

out

)

to (CT

)

′

with delay δ.

If not stated otherwise, in the following, we as-

sume that the delays of the different linkages are sym-

metric and fulﬁll the triangle inequality.

4 WIRELESS ATTACKER MODEL

Recall that in the MitMM, an attacker is mainly char-

acterized by her ability to stop, forward, and mod-

ify messages at her wish. In the following, we dis-

cuss if and to what extent this is still given in the

WCM. To this end, we introduce the Wireless At-

tacker Model (WAM). In Sec. 4.1, we explain an at-

tacker’s alleged capabilities. Based on this, we inves-

tigate the possibilities for jamming (tampering with)

signals in Sec. 4.2.

4.1 Capabilities

Analogous to the MitMM, for the WAM, we con-

sider an attacker who is completely characterized by

her abilities to access her communication tapes. This

means she can send signals by writing to her comm-

out tapes and receive signals by reading from her

comm-in tapes. Furthermore, the attacker is non-

invasive in the sense that she does not tamper with the

parties or the environment, but only sends or receives

signals. However, an attacker is not restricted in her

choice of signals. That is, the signals do not need

to be related to the modulation of a message symbol.

Of course, she may still choose to use Mod and Send

functions for communicating.

Moreover, we assume that the attacker has full

knowledge about the communication channels be-

tween her and other parties. Formally, thus, the at-

tacker A knows Link(A ,P ) and Link(P , A) for all

P ∈ Π. On the other hand, linkages between any two

parties P , P

′

∈ Π not involving the attacker are only

In fact, we cannot think of any contradictory practical

scenario.

partially known to her. As motivated in Sec. 2.4.2,

A only knows the respective delay parameter δ of

Link(P ,P

′

), while the λ

remain secret.

4.2 Jamming (Modiﬁcation) of Signals

In the ﬁeld of wireless communication, jamming

refers to any intentional interference with signals and

possible modiﬁcations thereof. Hence, we use jam-

ming to express any change of the signal incurred by

an attacker. One important difference between tam-

pering in the MitMM and jamming in the WCM is

that, in the latter, messages are composed of message

symbols which are modulated into a sequence of ρ

signals. Thus, whether the alteration of signals results

in any changes in the message received by P

′

depends

at least on the demodulation procedure Demod and

how the semantic message is derived from the mes-

sage symbols. For example, a ﬂip of a single bit might

render a message unreadable if this change violates

some checksum or have no effect if some error cor-

rection codes are used. So, we focus only on if and

how an attacker may change signals and leave the dis-

cussion on the impact on messages to the individual

scenarios.

For the discussion on jamming signals, consider

two parties P , P

′

. At time t, P sends a signal σ to P

′

i. e., writes σ on one of its comm-out tapes (CT

out

)

Let the linkage between P and P

′

be denoted by

Link(P ,P

′

) =



P ,P

′

;λ

,...,λ

chs



. If no other signals

are present on the same channel, then,

(CT

)

′

[t +δ

P ,P

′

] = λ



(CT

out

)

[t]



(18)

represents the signal received by P

′

For A, the only option to inﬂuence σ is to send

her own signal such that it collides with the signal re-

ceived by P

′

. Let Link(A,P

′

) =



A,P

′

;λ

∗

,...,λ

∗

chs



be the linkage between A and P

′

. Then, jam-

ming means to achieve a collision (CT

)

′

[t +

P ,P

′

] = σ + σ

∗

with σ = λ



(CT

out

)

[t]



and σ

∗



(CT

out

)

[t +δ

P ,P

′

− δ

A,P

′

]



. Hence, A has to

write a signal on her comm-out tape no later than

t + δ

P ,P

′

− δ

A,P

′

. Obviously, if δ

P ,P

′

< δ

A,P

′

, i. e.,

the distance between P and P

′

is smaller than the dis-

tance between P

′

and A, an attacker would have to

send her signal even before P sent σ. In certain cases,

this may be possible — for instance, if σ is part of a

longer message and A can anticipate that σ (or some

signal) will be sent. Still, in such cases, A cannot re-

act to signals from P. The same holds if δ

P ,P

′

< δ

P ,A

Here, σ from P , i. e., the signal that A aims to jam,

would reach P ’ before it reaches A.

SECRYPT 2024 - 21st International Conference on Security and Cryptography

256

Besides sending the jamming signal in time, an-

other challenge is to pick and send a signal that ef-

fectively jams. Recall that, in some special cases,

two signals can amplify or annihilate each other (cf.

Sec. 3.2.4). An ampliﬁed signal, however, does not

necessarily affect a modulated message. That is, the

effectiveness of a jamming signal strongly depends on

the chosen modulation.

Summing up, to manipulate signals received by

other parties, a wireless attacker has to decide when

and what signals she sends. Depending on her jam-

ming strategy, e. g., constant or reactive jamming, this

can be less or more challenging.

5 APPLICATIONS

To demonstrate the applicability of the proposed

model, in this section, we revisit friendly jamming

which cannot be represented in the MitMM, and

we explain how the WCM and WAM can be used

for analysis. We also shortly discuss how Distance

Bounding protocols and Frequency-Hopping Spread

Spectrum can be modelled, but omit the details here

to conserve space. Note that each of the different

components listed in Sec. 2 are required at least once,

showing that at least these three are required for a

comprehensive wireless communication model.

5.1 Friendly Jamming for

Conﬁdentiality

Complementing the usually destructive jamming (cf.

Sec. 4.2), so-called friendly jamming (e. g., (Jin et al.,

2022; Jin et al., 2021; Jeon et al., 2022; Shen et al.,

2013; Berger et al., 2016; Berger et al., 2014; Li et al.,

2022; Li et al., 2020)) approaches turn the tables and

use deliberate jamming as a defensive measure. This

way, jamming is used to block unauthorized messages

(authorization) or to hide the content of communica-

tion from illegitimate parties (conﬁdentiality).

An example is the protection of communication

to and from an Implantable Medical Device (IMD)

which is only capable of plain (unencrypted) com-

munication as presented by (Gollakota et al., 2011).

They propose an external device, the shield, which is

worn on the body near an IMD acting as a gateway.

Using a two-radio design, the shield utilizes friendly

jamming to enforce authorization and conﬁdentiality

concerning the communication with the IMD. Due to

its design, the shield is capable of reconstructing the

For details on different jamming strategies, we refer to

(Xu et al., 2005; Grover et al., 2014).

original data signals, while any other party only re-

ceives jammed signals. However, (Gollakota et al.,

2011) do not provide any formal representation of the

security goals and analysis in their work.

5.1.1 Formalization of Friendly Jamming

The typical scenario of friendly jamming considers

two collaborating parties, the jamming party J and

the receiving party R. These two have an additional

private communication channel (cf. Sec. 3.1). The

overall goal of friendly jamming is to protect a sig-

nal σ. For example, in the use case of (Gollakota

et al., 2011), σ could either be a signal coming from

the IMD to hide its content or be a non-genuine sig-

nal going to the IMD to render it illegible. To this

end, J generates a jamming signal γ and sends it such

that it collides with σ. As a consequence, a potential

attacker only sees σ + γ. To reverse the jamming, J

shares with R all information necessary such that R

can create an appropriate antidote signal α. Colliding

α with σ + γ yields σ again.

Note that this approach requires J to send γ

in time, which can be challenging in practice (cf.

Sec. 4.2). As this depends on various aspects such as

the relative positions of parties, the reaction time of J,

etc., we consider this as a separate question and focus

on the generation of the jamming signal and its anti-

dote. Consequently, one can formalize such a scheme

as follows:

Deﬁnition 8 (Friendly Jamming Scheme).

friendly jamming scheme (Gen,Jam, Antijam,Σ

) is

composed of three algorithms and a signal space re-

stricted to some frequency f . Gen(χ) takes as input a

security parameter χ and outputs a seed κ. Jam(κ)

takes as input some seed κ and creates a jamming

signal γ ∈ Σ

. Antijam(κ) takes as input some seed

κ and creates an antidote signal α ∈ Σ

The scheme is correct if for all security parame-

ters χ and for all seeds κ ← Gen(χ), it holds that

Jam(κ) + Antijam(κ) = 0 . (19)

Correctness essentially means that Antijam(κ) =

−Jam(κ) for all seeds (cf. Sec. 3.2.4). Besides cor-

rectness, a friendly jamming scheme should also be

sound. Depending on the application, different se-

curity goals may be considered, e. g., authenticity, or

conﬁdentiality. In the following, we focus on conﬁ-

dentiality.

Intuitively, conﬁdentiality means that one cannot

reconstruct the original message from the jammed

For the sake of simplicity, here, we consider one sig-

nal only. The formalization can be extended easily to a se-

quence of signals.

Towards a Cryptographic Model for Wireless Communication

257

signals. To formalize this security goal, we adopt the

established security deﬁnition of IND-CPA (Indistin-

guishability under Chosen Plaintext Attack) and in-

troduce IND-CSA-n (Indistinguishability under Cho-

sen Signal Attack). The parameter n indicates the

main difference to IND-CPA: an attacker could be us-

ing n antennas, formally represented by n parties un-

der the attacker’s control.

Deﬁnition 9 (IND-CSA-n Game). The IND-CSA-n

game with respect to some friendly jamming scheme

(Gen,Jam,Antijam,Σ

) considers an oracle O =

} and an attacker A = {A

,...,A

}. Each

oracle has access to one comm-out tape and each at-

tacker to one comm-in tape. The tapes controlled by O

are linked to all tapes controlled by A. For i ∈ {1,2}

and j ∈ {1, .. ., n}, we denote by λ

i, j

the linkage pro-

cedure of the linkage between the comm-out tape of

and the comm-in tape of A

A chooses two signals σ

̸= σ

∈ Σ

and sends

these to O. Then, O generates a (secret) seed κ ←

Gen(χ) and jamming signal γ ← Jam(κ). It samples

uniformly b

← {0, 1} and, at time t, instructs O

write σ

on (CT

out

)

and O

to write γ on (CT

out

)

(simultaneously). Consequently, A

receives the col-

lided signal

col

= λ

1, j

(σ

) + λ

2, j

(γ) . (20)

A outputs b

∗

∈ {0,1} and wins if b

∗

b. A friendly jamming scheme is called IND-

CSA-n-secure with respect to the linkage proce-

dures {λ

i, j

}

i=1,2; j=1,...,n

if the attacker’s advantage

Adv(A) =



Pr[A wins] −



is negligible in χ.

5.1.2 IND-CSA-2 Attacker

Given the formalization, the logical next step is to ask

if IND-CSA-n security can be achieved for any realis-

tic choice of {λ

i, j

}. While this might be possible for

the IND-CSA-1 case, (Tippenhauer et al., 2013) de-

scribe an IND-CSA-2 attacker. In the following, we

use the notation from Def. 9 with n = 2 to describe

this attack. The attack assumes a set of linkage pro-

cedures {λ

1,1

,λ

1,2

,λ

2,1

,λ

2,2

} such that

1,1

= λ

2,2

= id and λ

1,2

= λ

2,1

= Shift

. (21)

(Tippenhauer et al., 2013) demonstrates that this can

be possible in practice if the locations for A

and A

are chosen such that the four parties O

form an isosceles trapezoid, while the following prop-

erties must be satisﬁed:

1. The distance d between O

and O

is smaller than

half of the carrier frequency’s wavelength, while

the distance between A

and A

is greater than

half this wavelength (and d).

2. The delays between O

and A

, and between O

and A

, respectively, are equal. Likewise, the de-

lays between O

and A

, and between O

and A

respectively, are also equal.

3. A

(or A

) perceives signals from O

(or O

) with

a channel-induced phase shift of

relative to A

(or A

Due to the differing phase offsets (cf. Eq. (21)),

the signals received by A

and A

, respectively, are

col

= λ

1,1

(σ) + λ

2,1

(γ) = σ + Shift

(γ)

col

= λ

1,2

(σ) + λ

2,2

(γ) = Shift

(σ) + γ .

The attacker shifts and collides these two signals as

follows:

Shift

3π

(σ

col

) + Shift

(σ

col

)

= Shift

3π

(σ) + Shift

2π

(γ) + Shift

3π

(σ) + Shift

(γ)

= Shift

3π

(σ) + Shift

3π

(σ) .

That is, the attacker reconstructed an ampliﬁed variant

of σ, which immediately allows to reconstruct σ.

5.2 Distance Bounding Protocols

Distance Bounding (DB) protocols were introduced

by Brands and Chaum (Brands and Chaum, 1994).

Their purpose is for a prover P to authenticate him-

self to a veriﬁer V and to demonstrate his proxim-

ity to V . To this end, the veriﬁer measures the round

trip time and, based on the propagation speed of elec-

tromagnetic waves, calculates an upper bound to the

distance, such that the veriﬁer is convinced that the

prover cannot be further away than this calculated

bound.

In our model, the timing aspect can be captured

by the delay parameter δ in the linkage between two

parties (cf. Def. 6). More concretely, consider the two

parties P , P

′

where P wants to determine the distance

to P

′

. Moreover, assume the linkages Link(P,P

′

) and

Link(P

′

,P ) with a symmetric delay δ (cf. Def. 7).

Then, the round trip time between P and P

′

is at least

2 · δ. Thus, measuring the round trip time gives a

lower bound on δ which in turn gives an upper bound

on the geographical distance between them.

5.3 Frequency-Hopping Spread

Spectrum

The basic idea of the Frequency-Hopping Spread

Spectrum (FHSS) technique is to not stick to one

physical channel during communication but to hop

across available channels (pseudo-)randomly. This

SECRYPT 2024 - 21st International Conference on Security and Cryptography

258

provides more robustness against interference on a

speciﬁc frequency and, at the same time, makes it

harder for an attacker to target the correct channel if

the hop sequence is secret. Our model naturally of-

fers to incorporate FHSS by switching between dif-

ferent communication tapes when sending messages,

whereas tapes essentially represent different channels

with different carrier frequencies.

We illustrate this for a variant of FHSS where the

messages sent by P are indexed, i. e., m

,..., and

where, for each message, the communication chan-

nel is separately chosen. To this end, sender P and

receiver P

′

agree on a secret key k to initialize a pseu-

dorandom function f

: N → {1,. .. ,chs}. For each

message m

, f

determines which communication tape

is to be chosen. More precisely, sending the i-th mes-

sage means that P executes

Send((CT

out

)

(i)

,s) . (22)

Likewise, P

′

uses f

to determine the channel to listen

to next.

6 RELATED WORK AND

CONCLUSION

While several works discuss possible extensions of

the Dolev-Yao model, e. g., see (Mao, 2004; Herzog,

2005), we focus on these that address the connection

of the MitMM and wireless attackers.

opper et al., 2011) question the applicability of

the MitMM in the context of wireless communication.

They show the difﬁculties of symbol ﬂipping and sig-

nal annihilation and that these succeed with a certain

probability only. In contrast to our work, the proposal

of an appropriate model is out of scope.

(Schaller et al., 2009) (see also (Basin et al.,

2009; Basin et al., 2011)) developed a formal model

for wireless networks concerning physical properties

in the form of inductive, trace-based, symbolic ap-

proaches for use with a theorem prover. In fact, some

of the aspects identiﬁed for the WCM are also re-

ﬂected there, e. g., the properties of communication

(transmission delays based on distance and propaga-

tion speed), location (of network nodes), and time (for

temporal dependencies). However, there are also nu-

merous differences. For example, messages are sent

in the form of events, transmission time is indepen-

dent of the message length. Modulation schemes,

the resulting signals, and different available commu-

nication channels are not considered. This means

that schemes like FHSS and (Gollakota et al., 2011)

(Sec. 5.1) cannot be fully represented by their model.

(Rocchetto and Tippenhauer, 2016) proposed

CPDY, an extended Dolev-Yao model for cyber-

physical systems, to allow for covering physical in-

teractions between components and the notion of dis-

tance. However, they propose and implement new

rules in a formal security speciﬁcation language while

focusing on physical interactions in the literal sense,

e. g., an attacker physically manipulates a device,

while our focus lies on the communication between

parties.

(Avoine et al., 2021) review relay attacks and the

threat model of DB protocols in general. They also

consider effects existing in practice, e. g., provers’

processing delays, and relate these with theoretical

approaches to proving security for DB protocols.

They conclude that formal models for DB protocols

are inaccurate as these make impractical assumptions,

e. g., processing delays during the fast phase are as-

sumed to be non-existent, or colluding attackers are

disallowed to communicate during the fast phase.

However, they do this without proposing any formal

model.

We share the view of (Avoine et al., 2021) that

more realistic models are necessary. Our model im-

poses no further restrictions on the communication

between colluding attackers or other parties, neither

during the fast phase nor any other. The only require-

ment is that any (wireless) communication has to fol-

low the physical rules laid out by our model, e. g., sig-

nal properties and delays are still in effect. As our

model is focused on the communication between par-

ties, processing delays are not present in our model

either.

urholz et al., 2011) provide a formal (simulator-

assisted) analysis of DB Radio-Frequency Identiﬁca-

tion (RFID) protocols. They propose formal models

for Maﬁa, terrorist, and distance fraud, which they ap-

ply on the RFID DB scheme by (Kim and Avoine,

2009) as an example. While D

urholz et al. also con-

sider a global clock, their concept of time is message-

driven, i. e., a unit of time represents a complete pro-

tocol message and is thus independent of the mes-

sage’s length. On the one hand, they consider noisy

communication based on the constraints for RFID and

wireless communication, on the other hand, modula-

tion schemes, signals, and channels seem irrelevant

for the RFID scenario.

(Boureanu et al., 2021) developed a parameter-

ized cryptographic model for DB. Finally, they point

out possible attacks on existing DB schemes and im-

plement their (parameterized) model in an interactive

cryptographic prover which they apply on a contact-

less payment scheme to prove Man-in-the-Middle se-

curity. In their model, Boureanu et al. deﬁne notions

Towards a Cryptographic Model for Wireless Communication

259

of time, location, and distances, additionally, they de-

ﬁne oracles to capture an attacker’s capabilities. Also,

the provided oracles bear some similarity to our de-

ﬁned operations. However, modulation schemes, sig-

nal properties, and available channels remain uncon-

sidered. Furthermore, the provided replace oracle

allows for targeted replacing of select message bits

for an arbitrary subset of parties independent of their

relative positions, thereby ignoring the fact that differ-

ent parties may receive message bits at different times

based on their positions. Note that, in our model, an

attacker needs to actively send signals that overlap

with the original signals (as this is the only possibil-

ity to inﬂuence a received signal) and that she cannot

inﬂuence the time at which the original signals reach

the receivers.

Our proposed cryptographic model allows to rep-

resent existing mechanisms that build on the peculiar-

ities of wireless communication. We presented exist-

ing schemes that can only be represented using the

three aspects identiﬁed in Sec. 2, i. e., communica-

tion channels, signals, and locality. We hope that our

model will be useful for further analysis and design

of cryptographic schemes in the wireless area.

ACKNOWLEDGEMENTS

This research was supported by the project Physical

Guards funded by the Federal Ministry for Education

and Research of Germany (BMBF).

REFERENCES

Avoine, G., Boureanu, I., G

erault, D., Hancke, G. P.,

Lafourcade, P., and Onete, C. (2021). From relay at-

tacks to distance-bounding protocols. In Avoine, G.

and Hernandez-Castro, J., editors, Security of Ubiqui-

tous Computing Systems: Selected Topics, pages 113–

130. Springer International Publishing, Cham.

Basin, D., Capkun, S., Schaller, P., and Schmidt, B. (2009).

Let’s get physical: Models and methods for real-world

security protocols. In Berghofer, S., Nipkow, T., Ur-

ban, C., and Wenzel, M., editors, Theorem Proving in

Higher Order Logics, pages 1–22, Berlin, Heidelberg.

Springer Berlin Heidelberg.

Basin, D., Capkun, S., Schaller, P., and Schmidt, B. (2011).

Formal reasoning about physical properties of security

protocols. ACM Trans. Inf. Syst. Secur., 14(2).

Berger, D. S., Gringoli, F., Facchi, N., Martinovic, I., and

Schmitt, J. (2014). Gaining Insight on Friendly Jam-

ming in a Real-World IEEE 802.11 Network. In Pro-

ceedings of the 2014 ACM Conference on Security and

Privacy in Wireless & Mobile Networks, WiSec ’14,

pages 105–116, New York, NY, USA. Association for

Computing Machinery.

Berger, D. S., Gringoli, F., Facchi, N., Martinovic, I.,

and Schmitt, J. B. (2016). Friendly jamming on

access points: Analysis and real-world measure-

ments. IEEE Transactions on Wireless Communica-

tions, 15(9):6189–6202.

Bluetooth SIG (2016). Bluetooth core speciﬁcation. Ver-

sion 5.0.

Boureanu, I., Dr

agan, C. C., Dupressoir, F., G

erault, D.,

and Lafourcade, P. (2021). Mechanised Models and

Proofs for Distance-Bounding. In 2021 IEEE 34th

Computer Security Foundations Symposium (CSF),

pages 1–16.

Boureanu, I., Mitrokotsa, A., and Vaudenay, S. (2015).

Practical and Provably Secure Distance-Bounding. In

Desmedt, Y., editor, Information Security, pages 248–

258, Cham. Springer International Publishing.

Brands, S. and Chaum, D. (1994). Distance-bounding pro-

tocols. In Helleseth, T., editor, Advances in Cryptol-

ogy — EUROCRYPT ’93: Workshop on the Theory

and Application of Cryptographic Techniques Lofthus,

Norway, May 23–27, 1993 Proceedings, pages 344–

359. Springer Berlin Heidelberg, Berlin, Heidelberg.

Desmedt, Y., Goutier, C., and Bengio, S. (1988). Special

uses and abuses of the Fiat-Shamir passport protocol

(extended abstract). In Pomerance, C., editor, Ad-

vances in Cryptology — CRYPTO ’87: Proceedings,

pages 21–39. Springer Berlin Heidelberg, Berlin, Hei-

delberg.

Dolev, D. and Yao, A. C. (1983). On the security of pub-

lic key protocols. IEEE Trans. Information Theory,

29(2):198–207.

Drimer, S. and Murdoch, S. J. (2007). Keep your enemies

close: Distance bounding against smartcard relay at-

tacks. In 16th USENIX Security Symposium (USENIX

Security 07), Boston, MA. USENIX Association.

urholz, U., Fischlin, M., Kasper, M., and Onete, C.

(2011). A Formal Approach to Distance-Bounding

RFID Protocols. In Lai, X., Zhou, J., and Li, H., ed-

itors, Information Security, pages 47–62, Berlin, Hei-

delberg. Springer Berlin Heidelberg.

Eberz, S., Strohmeier, M., Wilhelm, M., and Martinovic,

I. (2012). A Practical Man-In-The-Middle Attack on

Signal-Based Key Generation Protocols. In Foresti,

S., Yung, M., and Martinelli, F., editors, Computer

Security – ESORICS 2012: 17th European Sympo-

sium on Research in Computer Security, Pisa, Italy,

September 10-12, 2012. Proceedings, pages 235–252.

Springer Berlin Heidelberg, Berlin, Heidelberg.

Elbert, B. R. (2008). Introduction to Satellite Communica-

tion. The Artech House Telecommunications Library.

Artech House, Inc, Boston, 3rd edition.

Gollakota, S., Hassanieh, H., Ransford, B., Katabi, D., and

Fu, K. (2011). They can hear your heartbeats: Non-

invasive security for implantable medical devices. In

Proceedings of the ACM SIGCOMM 2011 Confer-

ence, SIGCOMM ’11, pages 2–13. ACM.

Grover, K., Lim, A., and Yang, Q. (2014). Jamming and

anti-jamming techniques in wireless networks: A sur-

SECRYPT 2024 - 21st International Conference on Security and Cryptography

260

vey. Int. J. Ad Hoc Ubiquitous Comput., 17(4):197–

215.

Hancke, G. P. and Kuhn, M. G. (2005). An RFID dis-

tance bounding protocol. In First International Con-

ference on Security and Privacy for Emerging Areas

in Communications Networks (SECURECOMM’05),

pages 67–73. IEEE.

Hershey, J., Hassan, A., and Yarlagadda, R. (1995). Uncon-

ventional cryptographic keying variable management.

IEEE Transactions on Communications, 43(1):3–6.

Herzog, J. (2005). A computational interpretation of

Dolev-Yao adversaries. Theoretical Computer Sci-

ence, 340(1):57–81. Theoretical Foundations of Se-

curity Analysis and Design II.

IEEE (1997). 802.11-1997 - IEEE Standard for Wireless

LAN Medium Access Control (MAC) and Physical

Layer (PHY) Speciﬁcations. IEEE Std 802.11-1997,

pages 1–445.

IEEE (2011). IEEE Standard for Local and metropoli-

tan area networks—Part 15.4: Low-Rate Wireless

Personal Area Networks (LR-WPANs). IEEE Std

802.15.4-2011 (Revision of IEEE Std 802.15.4-2006),

pages 1–314.

Jeon, G.-H., Lee, J.-H., Sung, Y.-S., Park, H.-J., Lee, Y.-

J., Yun, S.-W., and Lee, I.-G. (2022). Cooperative

friendly jamming techniques for drone-based mobile

secure zone. Sensors, 22(3).

Jin, R., Zeng, K., and Jiang, C. (2022). Friendly spectrum

jamming against mimo eavesdropping. Wireless Net-

works, 28(6):2437–2453.

Jin, R., Zeng, K., and Zhang, K. (2021). A reassessment on

friendly jamming efﬁciency. IEEE Transactions on

Mobile Computing, 20(1):32–47.

Katz, J. (2002). Efﬁcient Cryptographic Protocols Pre-

venting “Man-in-the-Middle” Attacks. PhD thesis,

Columbia University.

Kim, C. H. and Avoine, G. (2009). Rﬁd distance bound-

ing protocol with mixed challenges to prevent relay

attacks. In Garay, J. A., Miyaji, A., and Otsuka, A.,

editors, Cryptology and Network Security, pages 119–

133, Berlin, Heidelberg. Springer Berlin Heidelberg.

Li, J., Lei, X., Diamantoulakis, P. D., Fan, L., and

Karagiannidis, G. K. (2022). Security optimiza-

tion of cooperative noma networks with friendly jam-

ming. IEEE Transactions on Vehicular Technology,

71(12):13422–13428.

Li, X., Dai, H.-N., Wang, Q., Imran, M., Li, D., and Im-

ran, M. A. (2020). Securing internet of medical things

with friendly-jamming schemes. Computer Commu-

nications, 160:431–442.

Mao, W. (2004). A structured operational modelling of the

Dolev-Yao threat model. In Christianson, B., Crispo,

B., Malcolm, J. A., and Roe, M., editors, Security

Protocols, pages 34–46, Berlin, Heidelberg. Springer

Berlin Heidelberg.

Mohammad Hasan (2022). State of IoT 2022: Number of

connected IoT devices growing 18% to 14.4 billion

globally.

opper, C., Tippenhauer, N. O., Danev, B., and Capkun,

S. (2011). Investigation of Signal and Message Ma-

nipulations on the Wireless Channel. In Atluri, V.

and Diaz, C., editors, Computer Security – ESORICS

2011, volume 6879 of Lecture Notes in Computer

Science, pages 40–59. Springer-Verlag Berlin Heidel-

berg, Berlin, Heidelberg.

Ranganathan, A., Tippenhauer, N. O.,

Skori

c, B., Singel

ee,

D., and

Capkun, S. (2012). Design and implemen-

tation of a terrorist fraud resilient distance bounding

system. In Foresti, S., Yung, M., and Martinelli, F.,

editors, Computer Security – ESORICS 2012: 17th

European Symposium on Research in Computer Secu-

rity, Pisa, Italy, September 10-12, 2012. Proceedings,

pages 415–432. Springer Berlin Heidelberg, Berlin,

Heidelberg.

Rasmussen, K. B. and Capkun, S. (2010). Realization

of RF distance bounding. In 19th USENIX Security

Symposium (USENIX Security 10), Washington, DC.

USENIX Association.

Rocchetto, M. and Tippenhauer, N. O. (2016). CPDY: Ex-

tending the Dolev-Yao attacker with physical-layer in-

teractions. In Ogata, K., Lawford, M., and Liu, S.,

editors, Formal Methods and Software Engineering,

pages 175–192, Cham. Springer International Pub-

lishing.

Schaller, P., Schmidt, B., Basin, D., and Capkun, S. (2009).

Modeling and verifying physical properties of security

protocols for wireless networks. In 2009 22nd IEEE

Computer Security Foundations Symposium, pages

109–123.

Shen, W., Ning, P., He, X., and Dai, H. (2013). Ally friendly

jamming: How to jam your enemy and maintain your

own wireless connectivity at the same time. In 2013

IEEE Symposium on Security and Privacy, pages 174–

188.

Tippenhauer, N. O. and

Capkun, S. (2009). ID-based se-

cure distance bounding and localization. In Backes,

M. and Ning, P., editors, Computer Security – ES-

ORICS 2009: 14th European Symposium on Research

in Computer Security, Saint-Malo, France, September

21-23, 2009. Proceedings, pages 621–636. Springer

Berlin Heidelberg, Berlin, Heidelberg.

Tippenhauer, N. O., Malisa, L., Ranganathan, A., and Cap-

kun, S. (2013). On limitations of friendly jamming for

conﬁdentiality. In 2013 IEEE Symposium on Security

and Privacy, pages 160–173. IEEE Computer Society

Press.

Xu, W., Trappe, W., Zhang, Y., and Wood, T. (2005).

The feasibility of launching and detecting jamming

attacks in wireless networks. In Proceedings of the

6th ACM International Symposium on Mobile Ad Hoc

Networking and Computing, MobiHoc ’05, pages 46–

57. ACM, New York, NY, USA.

Zenger, C. T., Pietersz, M., and Paar, C. (2016). Preventing

relay attacks and providing perfect forward secrecy

using PHYSEC on 8-bit µC. In 2016 IEEE Inter-

national Conference on Communications Workshops

(ICC), pages 110–115.

ZigBee Alliance (2012). ZigBee Light Link Standard Ver-

sion 1.0 – Document 11-0037-10.

Towards a Cryptographic Model for Wireless Communication

261
