A Web-Based System for Learning Qualitative Constraint Networks with

Preferences

Pablo Echavarria and Malek Mouhoub

Department of Computer Science, University of Regina, Regina, Canada

Keywords:

Constraint Learning, Qualitative Constraint Network, Temporal Reasoning, Preference Reasoning.

Abstract:

We present a new web-based platform crafted to represent and learn Qualitative Constraint Networks (QCNs)

with preferences, focusing speciﬁcally on temporal data. The system uses a learning algorithm that extracts

qualitative temporal constraints through user-guided membership queries. The learning process is enhanced

with transitive closure (Path Consistency) to infer new relations and reduce the number of queries. Path

consistency relies on the Allen’s interval algebra composition table. During the learning phase, the user can

add their preferences. The latter will be represented by a conditional preference network (CP-net).

1 INTRODUCTION

Scheduling and planning tasks, under temporal and

spatial constraints, are crucial in many real-world

problems, including logistics, timetabling (Hmer and

Mouhoub, 2016), and urban planning (Al-Ageili and

Mouhoub, 2022; Al-Ageili and Mouhoub, 2015). In

this context, the aim is to order a set of activities

that will take place to achieve a set of deﬁned goals.

A Qualitative Constraint Network (QCN) is a known

model used to represent and reason about qualitative

spatial or temporal information. Learning QCNs and

speciﬁcally with the Allen interval algebra (Allen,

1983) to model temporal events helps create sched-

ules when the time information is incomplete. How-

ever, modeling problems under time constraints can

be a tedious task requiring strong expertise from the

user. This has motivated us to develop a new sys-

tem that automates the modeling process by learning

temporal constraints using membership queries as re-

ported in (Mouhoub et al., 2018)(Belaid et al., 2024).

In our web-based system, the user ﬁrst lists all the

temporal events related to the problem. Then, through

a temporal constraint acquisition process, temporal

relations between the events will be elicited from the

user through membership queries. The efﬁciency of

the learning process is enhanced through transitive

closure (Path consistency). New relations will then

be inferred which will reduce the number of queries

that the user has to respond to. Moreover, user con-

https://orcid.org/0000-0001-7381-1064

ditional preferences can also be elicited and mod-

eled using the known Conditional Preference network

(CP-net) model (Boutilier et al., 2004). Once tempo-

ral constraints and preferences are modeled through

the QCN and the CP-net, the user can interact with

the system to get preferred scenarios that meet con-

straints and optimizes preferences.

The remainder of the paper is structured as fol-

lows. The next section lists background information.

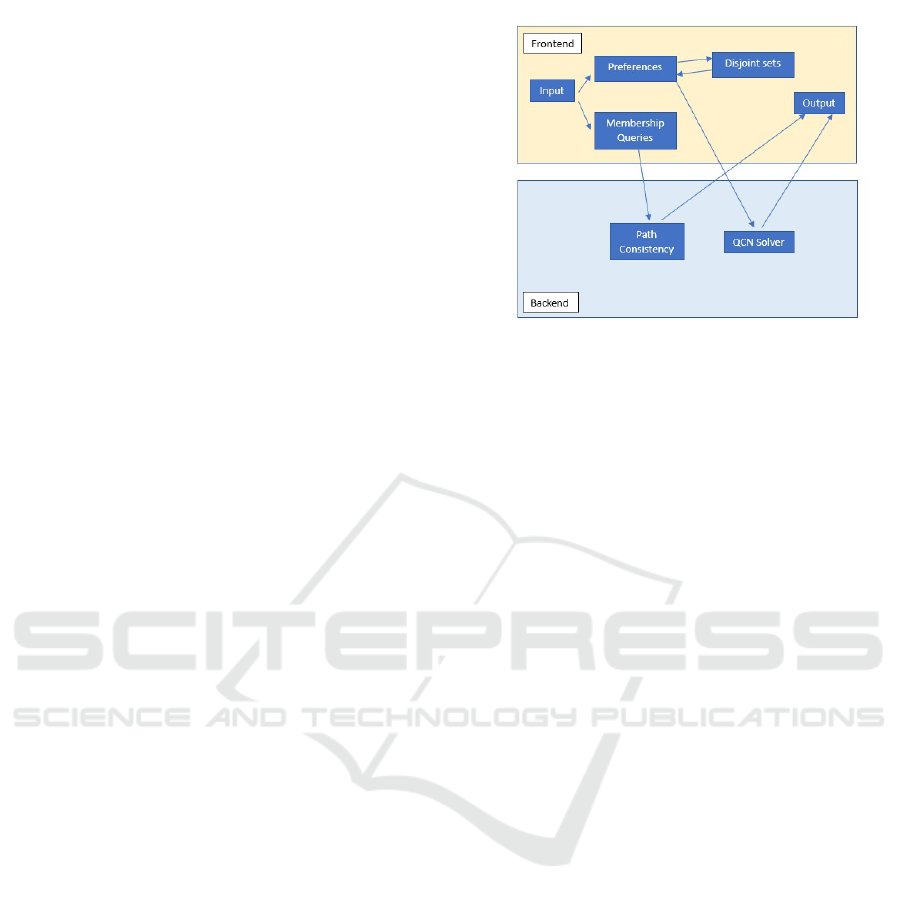

In Section 3, we present our proposed system with its

components. Then, in Section 4, we report on a set of

experiments conducted to evaluate the performance of

our system. Lastly, Section 5 lists concluding remarks

and ideas for future directions.

2 BACKGROUND

2.1 Qualitative Constraint Networks

(QCNs)

2.1.1 Deﬁnition

A QCN is a pair (V,C) in which V is a ﬁnite set of

variables representing temporal or spatial entities and

C is a ﬁnite set of constraints on these variables. Each

constraint C

is a disjunction of binary relations be-

tween the variables. Each of these relations is deﬁned

on a language set B = {b

,...,b

} where p > 0

(van Beek, 1992; Mouhoub et al., 2018; Condotta

et al., 2010; Mouhoub et al., 2021).

386

Echavarria, P. and Mouhoub, M.

A Web-Based System for Learning Qualitative Constraint Networks with Preferences.

DOI: 10.5220/0012811800003758

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 14th International Conference on Simulation and Modeling Methodologies, Technologies and Applications (SIMULTECH 2024), pages 386-391

ISBN: 978-989-758-708-5; ISSN: 2184-2841

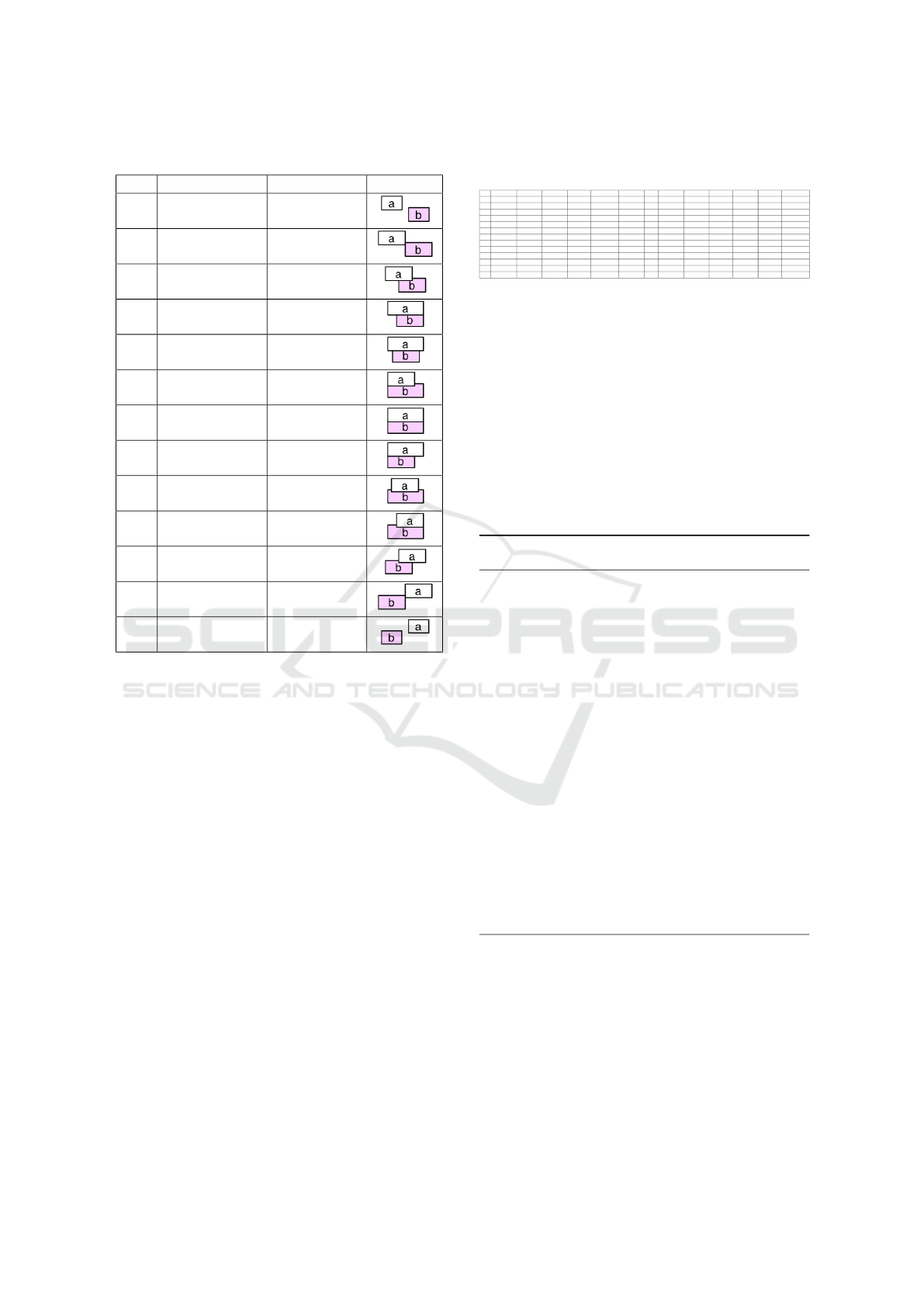

Table 1: Allen Algebra Primitives.

No. Relation Abbreviation Image

1 Precedes p

2 Meets m

3 Overlaps o

4 Finished by F

5 Contains D

6 Starts s

7 Equals e

8 Started by S

9 During d

10 Finishes f

11 Overlapped by O

12 Met by M

13 Preceded by P

2.1.2 Allen Interval Algebra

One type of QCN is the Allen Algebra constraint net-

work, where the events are temporal. The Allen alge-

bra contains thirteen relations or primitives, as shown

in Table 1 and as deﬁned in (Allen, 1983). When hav-

ing a qualitative constraint network with N events it

implies having N ∗ (N − 1)/2 pair of events. A QCN

can initially be unconstrained by holding all the thir-

teen possible relations between each pair of events.

Table 2 presents the composition table (transitive

table). f ull implies the 13 relations and concur corre-

sponds to the following relations: oFDseSd f O. The

Path consistency algorithm uses the composition ta-

ble to infer relations between the pair of events in the

network. For example, if a QCN has three events a,

b, and c, and it is known that a Precedes b and b Pre-

cedes c, we can infer that a Precedes c.

2.2 Constraint Propagation

When acquiring knowledge from the user to learn a

given QCN, Path Consistency (as shown in Algorithm

1 (Van Beek and Manchak, 1996)) is applied using

the composition table to infer new relations. A pair

Table 2: Composition Table for the Allen Interval Algebra

(Allen, 1983; Alspaugh, 2019).

p m o F D s e S d f O M P

p (p) (p) (p) (p) (p) (p) (p) (p) (pmosd) (pmosd) (pmosd) (pmosd) full

m (p) (p) (p) (p) (p) (m) (m) (m) (osd) (osd) (osd) (Fef) (DSOMP)

o (p) (p) (pmo) (pmo) (pmoFD) (o) (o) (oFD) (osd) (osd) concur (DSO) (DSOMP)

F (p) (m) (o) (F) (D) (o) (F) (D) (osd) (Fef) (DSO) (DSO) (DSOMP)

D (pmoFD) (oFD) (oFD) (D) (D) (oFD) (D) (D) concur (DSO) (DSO) (DSO) (DSOMP)

s (p) (p) (pmo) (pmo) (pmoFD) (s) (s) (seS) (d) (d) (dfO) (M) (P)

e (p) (m) (o) (F) (D) (s) (e) (S) (d) (f) (O) (M) (P)

S (pmoFD) (oFD) (oFD) (D) (D) (seS) (S) (S) (dfO) (O) (O) (M) (P)

d (p) (p) (pmosd) (pmosd) full (d) (d) (dfOMP) (d) (d) (dfOMP) (P) (P)

f (p) (m) (osd) (Fef) (DSOMP) (d) (f) (OMP) (d) (f) (OMP) (P) (P)

O (pmoFD) (oFD) concur (DSO) (DSOMP) (dfO) (O) (OMP) (dfO) (O) (OMP) (P) (P)

M (pmoFD) (seS) (dfO) (M) (P) (dfO) (M) (P) (dfO) (M) (P) (P) (P)

P full (dfOMP) (dfOMP) (P) (P) (dfOMP) (P) (P) (dfOMP) (P) (P) (P) (P)

of variables is path-consistent with a third variable if

each consistent valuation of the pair can be extended

to the other variable in such a way that all binary con-

straints are satisﬁed. Formally, x

and x

are path-

consistent with x

if, for every pair of values (a, b) that

satisﬁes the binary constraint between x

and x

, there

exists a value c in the domain of x

such that (a,c)

and (b,c) satisfy the constraint between x

and x

and

between x

and x

, respectively. All values (a, b and

c) for Allen algebra constraint networks are a set of

the possible 13 algebra primitives. Before acquiring

knowledge, all pairs of events in the network are set

to the 13 relations.

Algorithm 1: Path Consistency Algorithm for IA networks

(Van Beek and Manchak, 1996).

1: procedure PATHCONSISTENCY

2: PC ← f alse

3: L ← {(i, j)|1 ≤ i < j ≤ n}

4: while L ̸= φ do

5: choose and delete (i, j) from L

6: for k ← 1 to n, k ̸= i and k ̸= j do

7: t ← C

∩C

i j

⊗C

8: if t ̸= C

then

9: C

← t

10: C

← Inverse(t)

11: L ← L ∪ {(i,k)}

12: end if

13: t ← C

k j

∪C

⊗C

i j

14: if t ̸= C

k j

then

15: C

← Inverse(t)

16: L ← L ∪ {(k, j)}

17: end if

18: end for

19: end while

20: end procedure

Example

Consider a QCN with events: “a”, “b”, “c” and “d”.

The pairs from the given events are: “a-b”, “a-c”, “a-

d”, “b-c”, “b-d” and “c-d”. Initially, between all pairs

prior to gaining information from the user, all pairs

contain the thirteen Allen primitives. Then we get

from the user that “a” precedes “b” and path consis-

A Web-Based System for Learning Qualitative Constraint Networks with Preferences

387

tency is applied. Since we only have information of

one pair, no other relations are inferred from this ini-

tial information. Then we get from the user that “b”

contains “c”. After applying path consistency with

this newly acquired information, it is inferred that “a”

precedes “c” and therefore “c” is preceded by “a”.

Then we get from the user that “c” is equal to “d”

and after applying path consistency is inferred that

“b” contains “d” and “a” precedes “d”. Figure 1 de-

picts the timeline representation of the example.

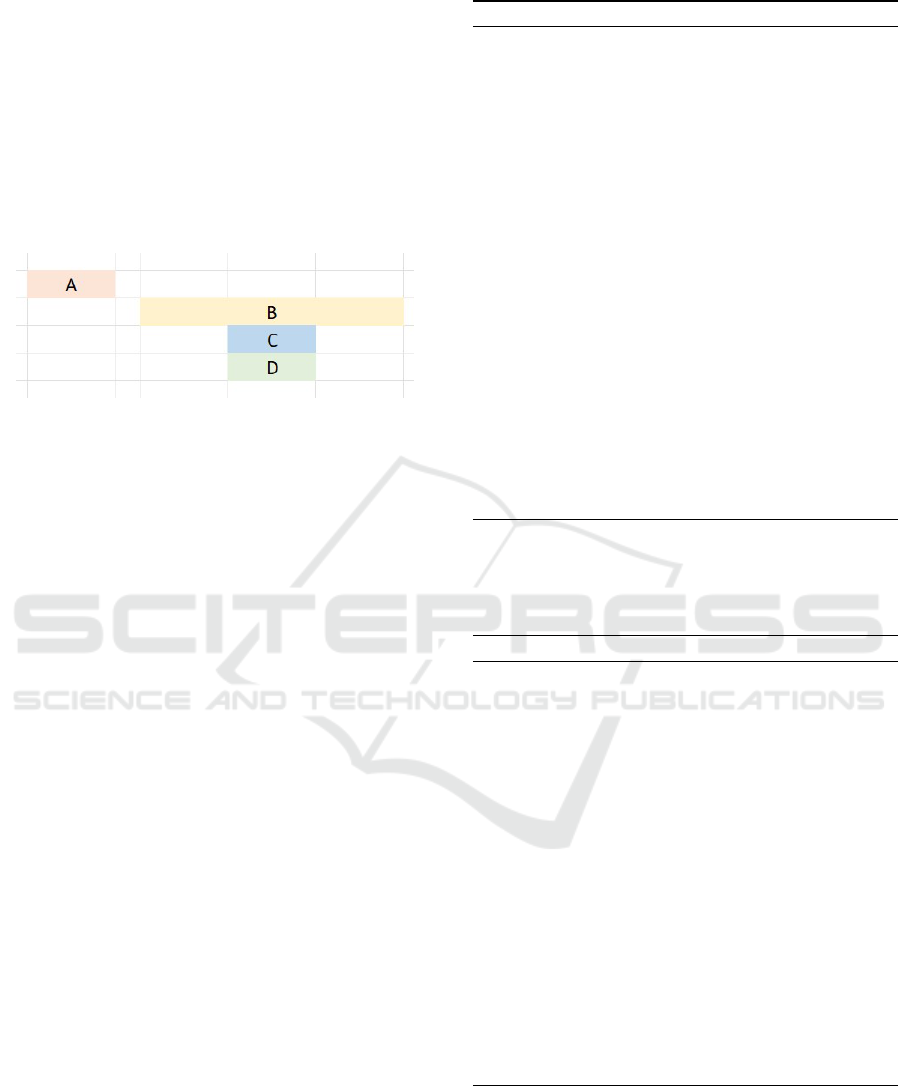

Figure 1: Example of a timeline.

2.3 CP-nets

As deﬁned in (Boutilier et al., 2004), a CP-net over

variables V = {X

,...,X

} is a directed graph G over

,...,X

whose nodes are annotated with conditional

preference tables CPT (X

) for each X

∈ V . In our

work, users can set preferences for relations between

events.

3 QCN LEARNING

Algorithm 2 from (Mouhoub et al., 2021) is being

used in the web-based system for learning QCNs. The

user is asked whether a relation between two events is

true or not. If the relation is true, then the relation is

conﬁrmed between the two variables in the QCN. If

the relation is not true, it is removed from the possi-

ble relations between the said events. In either case

Path consistency is applied and the number of queries

that the system needs to ask the user is reduced.

3.1 Disjoint Sets

Disjoint-set or union ﬁnd is a data structure that stores

a collection of disjoint sets and provides operations

for adding new sets, merging sets and ﬁnding a rep-

resentative member of a set meaning that for each set

there will be only one representative member. This

allows to ﬁnd in an efﬁcient manner if two given el-

ements are in the same set. For the purpose of this

work, the disjoint sets data structure is being used for

making sure that no pair of events are conditioned (in

terms of preferences) by more than one pair of events,

Algorithm 2: Learning QCN(Mouhoub et al., 2021).

1: procedure LEARNINGQCN

2: Input: : a language set B, a composition table

3: Output: a target QCN G

4: G

← complete graph with universal relations

5: q ← QueryGeneration(G

)

6: while q ̸= nil do

7: r ← Relation(q)

8: if Ask(q) = “yes

′′

then

9: Con f irmRelation(G

,r)

10: else

11: RemoveRelation(G

,r)

12: end if

13: status ← PC(G

,CT )

14: if status = “inconsistent

′′

then

15: return “collapse

′′

16: end if

17: q ← QueryGeneration(G

)

18: end while

19: return G

20: end procedure

and for making sure that there are no cycles between

preferences (which leads to inconsistency).

Algorithm 3 illustrates this procedure.

Algorithm 3: Disjoint set.

1: for pair i ← 1 to n do

2: pairDis jointSet[i] ← i

3: end for

4: procedure f ind(pair)

5: if pairDis jointSet[pair] = pair then

6: return pair

7: end if

8: tempPair ← f ind(pairDis jointSet[pair])

9: pairDis jointSet[pairDis jointSet[pair]] ←

tempPair

10: return tempPair

11: end procedure

12: procedure merge( f irstPair,secondPair)

13: f irstPairParent ← f ind( f irstPair)

14: secondPairParent ← f ind(secondPair)

15: pairDis jointSet[secondPairParent] ←

f irstPairParent

16: end procedure

The time complexity of initializing the disjoint set

takes O(N) where N is the number of pairs in the net-

work. The time for each ﬁnd operation is O(IA(N))

where IA is the inverse Ackermann function. for more

detailed information on time complexity of disjoint

sets see (Tarjan and van Leeuwen, 1984).

SIMULTECH 2024 - 14th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

388

3.2 Preference Handling

The preferences are separated in two sets. The ﬁrst

set is called “single preferences” (for unconditional

preferences) and the second set called “conditional

preferences”. Before the user inputs any “conditional

preference”, all pairs in the network are located in

the “single preferences” set. When a user adds a

new “conditional preference” The pair that is condi-

tioned is moved from the “single preferences” into the

“conditional preferences” set. By doing so the solver

does not require to perform any topological sorting

given that all the pairs in the “single preferences” set

are the head of the trees in the “conditional prefer-

ences”. Before having “conditional preferences” we

can think that all of the “single preferences” as trees

without any children. As “conditional preferences”

are added, “single preferences” start having children

nodes. In other words, preferences can be thought

as a forest where parent nodes (or roots) of the trees

of the “conditional preferences” are the “single pref-

erences”. The number of trees in the forest is the

amount of pairs left in the “single preferences” set.

The user has also the option to sort “single prefer-

ences” so that the solver uses this information to con-

strain the network based on that order.

The user can sort the order of the 13 Allen prim-

itives for every “single preferences” in the network.

The solver takes this information into account and

tries to choose the ﬁrst relation from the preference

of the user while the network is consistent. If the net-

work would not be consistent with the ﬁrst possible

relation, it will try the second one, and so on until it

selects the ﬁrst relation among the 13 relations in the

order that the user prefers but making sure that the

network is consistent.

When adding conditional preferences in the appli-

cation, we want to allow the user to give a certain or-

der for the Allen primitives for the second pair de-

pending on the Allen relation of the ﬁrst pair. When

applying conditional preferences it must be ensured

that no pair is conditioned by two pairs. tThe reason

is that we would have to ask the user for 13

combi-

nations where n is the number of pairs that a pair is

conditioned by and thus is not practical. It is required

that the conditional preferences do not make a cycle

and that is why the disjoint set is being used as shown

in algorithm 3. The algorithm not only makes sure

that there are no cycles formed but also makes sure

that no single pair is conditioned by more than one

pair.

Figure 2: System Architecture Diagram.

3.3 QCN Solver with Preferences

Algorithm 5 is being used as the solver with prefer-

ences. The Path consistency algorithm used in it is

the same as the one described in Algorithm 1. Al-

gorithm 5 contains two helper methods “ﬁrstMatch”

and “DFS” short for depth ﬁrst search (DFS). The al-

gorithm iterates ﬁrst over the “single preferences” and

for each single preference it selects the ﬁrst match be-

tween the preferred order that the user gave for that

single preference and the available options that are

left after applying Path consistency (note that on the

ﬁrst iteration path consistency has not been applied)

the list of available options can be limited if the user

answer membership queries about the pair of the sin-

gle preference. For each single preference, the algo-

rithm uses a DFS helper function that will iterate over

the conditional preferences based on the single pref-

erence. For each conditional preference, it will select

the ﬁrst match between the preferred order that the

user gave for the second pair (conditioned pair) based

on the relation of the ﬁrst pair (conditioning pair) and

the available relations based on the current state of the

network. The algorithm ﬁnishes once it goes trough

all the single preferences which in turn go trough all

the conditional preferences.

4 PROPOSED SYSTEM

As shown in Figure 2, our proposed system is di-

vided into two parts. The front end is a typescript

(JavaScript with types) application that uses React (a

JavaScript library for building user interfaces). The

back end is a .NET (developer platform for all soft-

ware applications) that contains web APIs for path

consistency and the QCN solver.

A Web-Based System for Learning Qualitative Constraint Networks with Preferences

389

Algorithm 4: QCN solver.

1: procedure f irstMatch(pre f Ord,

pairConstraints)

2: for each u ∈ pre f Ord do

3: if u ∈ pairConstraints then

4: return u ▷ one of the 13 primitives

will always be found

5: end if

6: end for

7: end procedure

8: procedure DFS(condPre f ,net, pair,rel)

9: for each cp ∈ condPre f do

10: if cp.FirstPair = pair then

11: pre f Rel ← f irstMatch(cp

12: Pre f Ord[rel].rels,net[pair].rels)

13: net[pair].rels ← pre f Rel

14: net ← PathConsistency(net)

15: net ← DFS(condPre f ,

16: net, cp.secondPair, pre f Rel)

17: end if

18: return net

19: end for

20: end procedure

21: procedure NetSolver(condPre f , singlePre f ,net)

22: for each sp ∈ singlePre f do

23: pre f Rel ← f irstMatch(sp.rels,

24: net[sp.pair].rels)

25: net[sp.pair].rels ← pre f Rel

26: net ← PathConsistency(net)

27: net ← DFS(condPre f ,net,

28: sp.pair, pre f Rel)

29: end for

30: return net

31: end procedure

4.1 Frontend

The front end React application uses Fluent UI (open-

source, cross-platform design system that gives de-

signers and developers the frameworks they need to

create engaging product experiences) for the design

system.

The front end contains the implementation of the

input where the user inputs the N events in their net-

work of events. It implements both unconditional and

conditional preferences. Figure 2 depicts the graph-

ical user interface of the system where the user in-

putted events “a”, “b”, “c”, “d”.

The frontend application also contains the dis-

joint set implementation with two functions “ﬁnd”

and “merge”. This implementation prevents cyclic

CP-nets. Moreover, we ensure that no given pair has

two parents who would condition said pair.

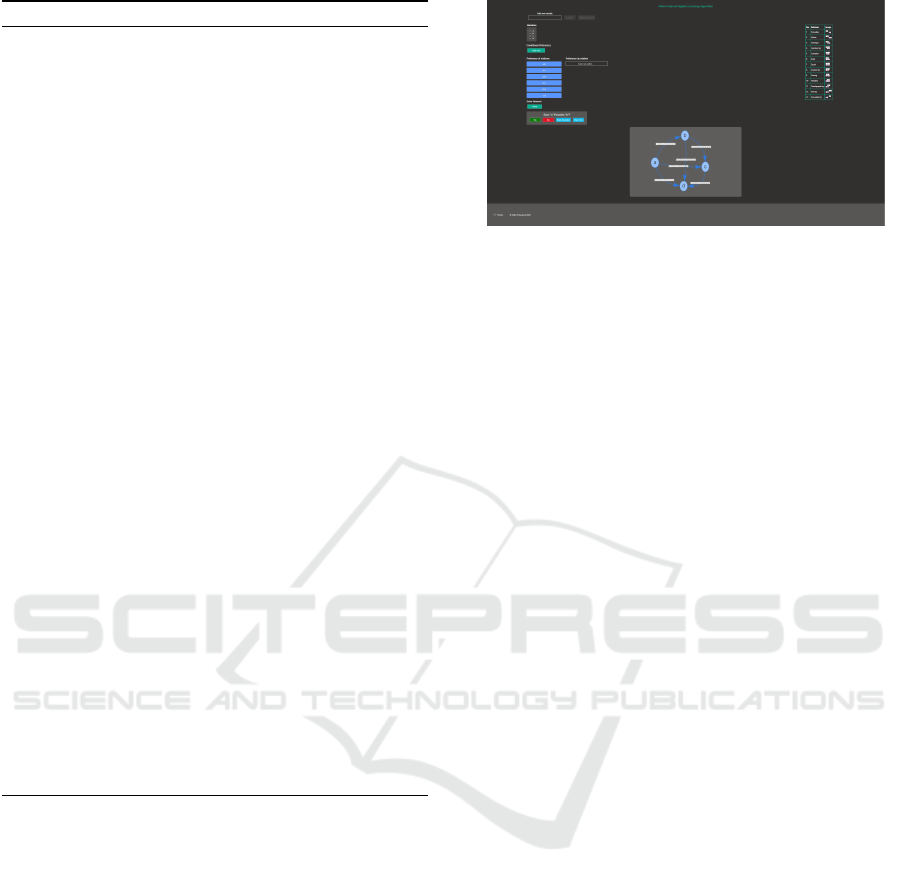

Figure 3: Front end Graphical User Interface.

5 BACKEND

The backend dotnet web APIs application contains

the algorithm for path consistency as shown in the

background section.

The backend also contains the QCN Solver that

takes into account the preferences of the user and

gives a totally constrained network as the output,

where for every pair of events in the network there is

only one relation. the QCN solver contains two helper

methods: “ﬁrst match” and “Depth First Search”.

6 CONCLUSION AND FUTURE

WORK

We propose a web-based system for automating the

representation and reasoning on QCNs, in the partic-

ular case of the Allen’s interval algebra. The sys-

tem elicits qualitative temporal constraints from the

user through membership queries. Path consistency

is applied to infer relations and reduce the number of

queries to be asked to the user. Finally, the user can

add conditional preferences between pairs of events.

Once temporal constraints and preferences are mod-

eled, the user can interact with the system to get pre-

ferred scenarios that meet constraints and optimize

preferences.

The proposed web-based application can be used

for real-world problems, including scheduling, plan-

ning, conﬁguration, and logistics. In this context,

we plan to handle the addition and retraction of con-

straints in an incremental manner. For instance, in a

dynamic environment, new constraints might need to

be added due to unpredictable events. In the other

hand, if the QCN is inconsistent, the user can retract

constraints to restore consistency.

SIMULTECH 2024 - 14th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

390

REFERENCES

Al-Ageili, M. and Mouhoub, M. (2015). Ontology-based

information extraction for residential land use suit-

ability: A case study of the city of regina, canada. In

Arik, S., Huang, T., Lai, W. K., and Liu, Q., editors,

Neural Information Processing - 22nd International

Conference, ICONIP 2015, Istanbul, Turkey, Novem-

ber 9-12, 2015, Proceedings, Part IV, volume 9492 of

Lecture Notes in Computer Science, pages 356–366.

Springer.

Al-Ageili, M. and Mouhoub, M. (2022). An ontology-based

information extraction system for residential land-use

suitability analysis. Int. J. Softw. Eng. Knowl. Eng.,

32(7):1019–1042.

Allen, J. F. (1983). Maintaining knowledge about temporal

intervals. Communications of the ACM, 26(11):832–

843.

Alspaugh, T. (2019). Allen’s Interval Algebra.

Belaid, M., Belmecheri, N., Gotlieb, A., Lazaar, N., and

Spieker, H. (2024). Query-driven qualitative con-

straint acquisition. J. Artif. Intell. Res., 79:241–271.

Boutilier, C., Brafman, R. I., Domshlak, C., Hoos, H. H.,

and Poole, D. (2004). CP-nets: A Tool for Represent-

ing and Reasoning withConditional Ceteris Paribus

Preference Statements. Journal of Artiﬁcial Intelli-

gence Research, 21:135–191. arXiv: 1107.0023.

Condotta, J.-F., Kaci, S., Marquis, P., and Schwind, N.

(2010). A syntactical approach to qualitative con-

straint networks merging. In Ferm

uller, C. G. and

Voronkov, A., editors, Logic for Programming, Ar-

tiﬁcial Intelligence, and Reasoning, pages 233–247,

Berlin, Heidelberg. Springer Berlin Heidelberg.

Hmer, A. and Mouhoub, M. (2016). A multi-phase hybrid

metaheuristics approach for the exam timetabling.

Int. J. Comput. Intell. Appl., 15(4):1650023:1–

1650023:22.

Mouhoub, M., Marri, H. A., and Alanazi, E. (2018). Learn-

ing qualitative constraint networks. In Alechina, N.,

Nørv

ag, K., and Penczek, W., editors, 25th Interna-

tional Symposium on Temporal Representation and

Reasoning, TIME 2018, Warsaw, Poland, October 15-

17, 2018, volume 120 of LIPIcs, pages 19:1–19:13.

Schloss Dagstuhl - Leibniz-Zentrum f

ur Informatik.

Mouhoub, M., Marri, H. A., and Alanazi, E. (2021). Ex-

act Learning of Qualitative Constraint Networks from

Membership Queries. arXiv:2109.11668 [cs]. arXiv:

2109.11668.

Tarjan, R. E. and van Leeuwen, J. (1984). Worst-case Anal-

ysis of Set Union Algorithms. Journal of the ACM,

31(2):245–281.

van Beek, P. (1992). Reasoning about qualitative temporal

information. Artiﬁcial Intelligence, 58(1):297–326.

Van Beek, P. and Manchak, D. W. (1996). The design and

experimental analysis of algorithms for temporal rea-

soning. Journal of Artiﬁcial Intelligence Research,

4(1):1–18.

A Web-Based System for Learning Qualitative Constraint Networks with Preferences

391
