Cache Side-Channel Attacks Through Electromagnetic Emanations of

DRAM Accesses

Julien Maillard

1,2 a

, Thomas Hiscock

1 b

, Maxime Lecomte

1 c

and Christophe Clavier

2 d

Univ. Grenoble Alpes, CEA-LETI, Minatec Campus, f-38054 Grenoble, France

Univ. Limoges, XLIM-MATHIS, Limoges, France

Keywords:

Side-Channel Attack, Micro-Architectural Attack, TrustZone, System-on-Chip.

Abstract:

Remote side-channel attacks on processors exploit hardware and micro-architectural effects observable from

software measurements. So far, the analysis of micro-architectural leakages over physical side-channels

(power consumption, electromagnetic ﬁeld) received little treatment. In this paper, we argue that those at-

tacks are a serious threat, especially against systems such as smartphones and Internet-of-Things (IoT) devices

which are physically exposed to the end-user. Namely, we show that the observation of Dynamic Random

Access Memory (DRAM) accesses with an electromagnetic (EM) probe constitutes a reliable alternative to

time measurements in cache side-channel attacks. We describe the EVICT+EM attack, that allows recover-

ing a full AES key on a T-Tables implementation with similar number of encryptions than state-of-the-art

EVICT+RELOAD attacks on the studied ARM platforms. This new attack paradigm removes the need for

shared memory and exploits EM radiations instead of high precision timers. Then, we introduce PRIME+EM,

which goal is to reverse-engineer cache usage patterns of applications. This attack allows to recover the layout

of lookup tables within the cache. Finally, we present COLLISION+EM, a collision-based attack on a System-

on-chip (SoC) that does not require malicious code execution, and show its practical efﬁciency in recovering

key material on an ARM TrustZone application. Those results show that physical observation of the micro-

architecture can lead to improved attacks.

1 INTRODUCTION

Modern Central Processing Units (CPUs) embed ad-

vanced prediction and optimization mechanisms to

improve their performances. Several of these fea-

tures, such as cache memories or speculative exe-

cution, have been shown to expose security vulner-

abilities exploitable by software attacks (Liu et al.,

2015; Yarom and Falkner, 2014; Osvik et al., 2006;

Bernstein, 2005; Gruss et al., 2015; Yarom et al.,

2017). For instance, cache-based Side-Channel At-

tacks (SCA) allow a malicious process to gain in-

formation about other processes, hence bypassing

memory isolation provided by the Operating Sys-

tem (OS). In practice, cache attacks have been suc-

cessfully employed for the recovery of cryptographic

keys or application ﬁngerprinting. These attacks have

been shown to be practical on smartphones (Lipp

https://orcid.org/0009-0002-2267-7621

https://orcid.org/0009-0001-5183-2291

https://orcid.org/0000-0002-9985-7586

https://orcid.org/0000-0002-0767-3684

et al., 2016) as well as desktop computers (G

otzfried

et al., 2017; Brasser et al., 2017). Embedded de-

vices’ CPUs or microcontrollers have been widely in-

vestigated through the lens of physical side-channels

such as power consumption or Electromagnetic (EM)

radiations. The behavior of these physical vectors

have been shown to be statistically depend on the

code and data manipulated by the CPU (Brier et al.,

2004; Goldack and Paar, 2008; Novak, 2003; Clavier,

2004; Kocher et al., 1999; Cristiani et al., 2019).

Interestingly, smartphones embark increasingly more

powerful and complex CPUs, which contain micro-

architectural optimizations similar to those found in

desktop computers. Smartphones are physically ex-

posed to the users, thus falling under the scope of

both micro-architectural software attacks and physi-

cal side-channel attacks. In this paper, we show that

the electromagnetic emanations of Dynamic Random

Access Memory (DRAM) accesses represent an ex-

ploitable side-channel on a Systems-on-chip (SoC).

The proﬁling of EM radiations has well known ad-

vantages over power consumption measurement. Par-

262

Maillard, J., Hiscock, T., Lecomte, M. and Clavier, C.

Cache Side-Channel Attacks Through Electromagnetic Emanations of DRAM Accesses.

DOI: 10.5220/0012813200003767

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 21st International Conference on Security and Cryptography (SECRYPT 2024), pages 262-273

ISBN: 978-989-758-709-2; ISSN: 2184-7711

ticularly, it allows exploiting local leakages (coping

with, for example, peripherals’ noise) while being less

invasive on the targeted device. We exploit this side-

channel in order to perform key recovery attacks on

a lookup table based cryptosystem. Moreover, the at-

tacks presented in this paper are non-proﬁled: an at-

tacker can recover secret material on a secure device

without the need of prior proﬁling on a “whitebox”

device. Because a Last-Level Cache (LLC) miss re-

sults in a DRAM access, this work explores hybrid

approaches of LLC cache attacks with physical in-

puts (Liu et al., 2015; Yarom and Falkner, 2014).

1.1 Contributions

In this paper, we make the following contributions:

(i) in section 4 we characterize DRAM accesses

through EM measurements and we show that they

constitute a reliable side-channel vector, (ii) we de-

rive EVICT+EM in section 5, a hybrid attack on a

T-Tables AES implementation and compare the re-

sults with EVICT+RELOAD (Gruss et al., 2015), (iii)

in section 6 we present the PRIME+EM attack, which

allows monitoring cache of a victim process, (iv) we

show the practical feasibility of cache collision-based

attacks with EM measurements on a SoC in sec-

tion 7 and (v) we apply the COLLISION+EM attack

paradigm on a TrustZone application in section 8 with

cache attack countermeasures and demonstrate a suc-

cessful partial key recovery.

2 BACKGROUND

2.1 Physical Side-Channel Analysis

Side-channel analysis is a speciﬁc category of physi-

cal attacks. It exploits a so called “side-channel leak-

age”, which can lead to a disclosure of private data

within the observation of auxiliary effects such as

heat propagation, power consumption or EM radia-

tion. The literature mainly studies attacks on interme-

diate values of cryptosystems in order to partially or

fully recover sensitive data (i.e., often cryptographic

keys). Depending on the attacker model, these attacks

can either be proﬁled (i.e., requiring a training phase

prior to the attack) or non-proﬁled.

2.2 Cache Memory

SoCs embed high-speed processors that need to ex-

change data with “slow” DRAM. Such memories

have a large storage capacity (several gigabytes), but

have a high access latency. To ﬁll the gap between

CPU requirements and DRAM capacities, processor

designers introduced cache memories. The smallest

storage component within a cache is called a cache

line. Cache lines are grouped within cache ways, that

are themselves gathered into cache sets. When data is

cached, its address (physical or virtual, depending on

the architecture) is used to determine the cache set and

the cache line. The cache replacement policy handles

the affectation of a cache way. Different caches in a

system are organized hierarchically. First level caches

(L1) are fast and small, they can directly provide data

to the CPU’s pipeline. Upper cache levels gradually

gain storage capacity at the cost of a higher response

latency, until the last level cache (LLC) which is di-

rectly linked to the DRAM main memory, and shared

by all the cores of the CPU. If the data required by

the CPU are not currently in the cache, we observe a

cache miss: the data needs to be retrieved from the

higher caches (or ultimately the main memory), and

the cache hierarchy is updated. On the contrary, the

recovery of data already fetched in cache memory is

called a cache hit.

2.3 Cache Attacks

The ability to distinguish between cache hits and

cache misses is the keystone of cache attacks. Cache

attacks can be (i) time-driven if they measure the

time of a complete encryption, (ii) access-driven

if they analyze if target cache lines have been ac-

cessed during an encryption, (iii) trace-driven, if ev-

ery memory access is proﬁled during an encryption.

EVICT+TIME (Osvik et al., 2006) and collision at-

tacks (Bernstein, 2005) are examples of time-driven

attacks. Different access-driven attacks exist, depend-

ing on the availability of cache ﬂushing instructions

(FLUSH+RELOAD, FLUSH+FLUSH) (Yarom and

Falkner, 2014) or not (EVICT+RELOAD) (Gruss et al.,

2015). Some attacks, such as PRIME+PROBE (Os-

vik et al., 2006), succeed without the possession of

shared memory with the victim’s process. Finally,

trace-driven attacks can reuse the concept of access-

driven attacks, but they also require a mechanism that

allows memory access timing measurements during

the encryption process (e.g., process preemption tech-

niques). There exist a myriad of variants of these at-

tacks (Ge et al., 2018), that we leave out of the scope

of this paper.

2.4 AES T-Tables Implementation

In this paper, we target an AES T-Tables implemen-

tation from openssl-1.0.0f: it is a common use-case

in the literature since the work of Osvik et al. (Osvik

Cache Side-Channel Attacks Through Electromagnetic Emanations of DRAM Accesses

263

et al., 2006). T-Tables are precomputed lookup tables

of 256 × 32 bits words that are designed to accelerate

the computations of AES rounds. Let δ be the num-

ber of 32-bit words that can ﬁt within a cache line. We

denote by x

(r)

the i-th byte of the AES state at round

r. Let K

(r)

, for 0 ≤ i < 4 be the i-th 32-bit word of

the key at round r (e.g., K

(r)

= (k

(r)

, k

(r)

, k

(r)

, k

(r)

)).

Similarly, W

(r)

, for 0 ≤ i < 4 represents the i-th 32-

bit words of the AES state at round r (e.g., W

(r)

, x

(r)

, x

(r)

, x

(r)

)). We denote ⟨x⟩ the most signif-

icant bits (MSBs) that can be recovered thanks to a

memory access observation. Namely, if δ = 8, the 3

lower-bits of the T-Table address cannot be recovered.

In that case, ⟨x⟩ represent the 8 − 3 = 5 upper bits

of x. T-Tables implementations consist in computing

the ﬁrst 9 AES rounds by consulting 4 precomputed

lookup tables T

, T

and T

, as shown on Equa-

tion 1. AES state bytes for round r

′

= r + 1 are com-

puted as follows:

′

)

= T

(r)

] ⊕ T

(r)

] ⊕ T

(r)

] ⊕ T

(r)

] ⊕ K

′

)

′

)

= T

(r)

] ⊕ T

(r)

] ⊕ T

(r)

] ⊕ T

(r)

] ⊕ K

′

)

′

)

= T

(r)

] ⊕ T

(r)

] ⊕ T

(r)

] ⊕ T

(r)

] ⊕ K

′

)

′

)

= T

(r)

] ⊕ T

(r)

] ⊕ T

(r)

] ⊕ T

(r)

] ⊕ K

′

)

(1)

With (x

(0)

)

0≤i<16

being the outputs of the ﬁrst Ad-

dRoundKey operation (i.e., x

(0)

= p

⊕ k

). The last

round is computed with classical sbox substitutions.

Each lookup table contains 256 elements of 32 bits

each. In our target software, we ensure in the remain-

der of this paper that all T-Tables are aligned on the

beginning of a cache line: such an alignment is the

worst case scenario for an attacker (misalignment ef-

fects are discussed in section 7).

3 ATTACKER MODELS

Put shortly, this work considers an attacker model

that has the same requirements as traditional EM

side-channel analysis. Namely, all the introduced

attacks (i.e., EVICT+EM, PRIME+EM and COLLI-

SION+EM) require physical access to the target de-

vice, as well as a trigger signal (EM pattern, GPIO,

network activity, etc.). Additional prerequisites of

proposed attacks are highlighted in Table 1. We

use a software controlled GPIO as a trigger signal

for synchronizing traces. Note that the literature ex-

poses several ways of synchronizing measurements

without GPIO triggers (Fanjas et al., 2022), but we

leave this out the scope of this paper. Also, we con-

sider that the target device is running an algorithm

that realizes secret-dependent memory accesses (in-

structions or data). Throughout this paper, we use

the AES T-Tables implementation as a meaningful

use-case, with a “known plaintext” scenario, but all

applications that perform memory accesses are po-

tentially vulnerable to the attacks listed in Table 1.

Finally, EVICT+EM and PRIME+EM, similarly to

EVICT+RELOAD and PRIME+PROBE, require mali-

cious code execution, while COLLISION+EM does

not.

4 OBSERVING DRAM ACCESSES

In this section, we describe our experimental method-

ology assessing that EM radiations of DRAM ac-

cesses can be exploited as a reliable side-channel.

4.1 Device Under Test

We use a Digilent Zybo XC7Z020-1CLG400C board

as our Device Under Test (DUT). This board incor-

porates a SoC with a dual-core Cortex-A9 CPU run-

ning up to 667 MHz which belongs to the ARMv7-A

family (32-bit) (LTD, 2012). We choose this DUT

because (i) it contains a two-level cache hierarchy,

(ii) the Cortex-A9 CPU implements several optimiza-

tions such as out-of-order execution, dynamic branch

prediction, dual-issuing of instructions and a deep

pipeline: the induced noise and jitter in EM measure-

ments make the attack scenario realistic compared to

a “smartphone context”, (iii) applicative CPUs are

known to have a very poor Signal-to-Noise Ratio

(SNR) compared to simpler microcontrollers (Mail-

lard et al., 2023; Longo et al., 2015) and Cortex-A9

on the Zybo-z7 board is no exception in this matter.

4.2 Software Experimental Setup

We aim at reliably provoking a DRAM access that is

as distinguishable as possible in side-channel obser-

vations. Target code for DRAM access discovery is

depicted in Figure 1. The goal of this code snippet

is to minimize execution time variations while real-

izing a memory access, whether it is a cache hit or a

cache miss (i.e., DRAM access). It is composed of

8 steps. Step 1 and 8 are the function’s prolog and

epilog which handle the context saving (i.e., push-

ing and popping register values into the stack). Step

2 consists in initializing the r9 register to 0: it will

be used as an offset in step 4. Step 3 and 7 operate

an inline repetition of NOP instructions to fully ﬂush

the pipeline state and generate a visual pattern on the

EM traces. Then, step 4 performs the target memory

SECRYPT 2024 - 21st International Conference on Security and Cryptography

264

Table 1: Comparison of attacker models prerequisites. Attacks that are presented in this paper are indicated with ∗.

Attack Malicious code Shared memory Timer Knowledge of addresses Physical access

EVICT+RELOAD yes yes yes yes no

PRIME+PROBE yes no yes no no

EVICT+EM

∗

yes no no yes yes

PRIME+EM

∗

yes no no no yes

COLLISION+EM

∗

no no no no yes

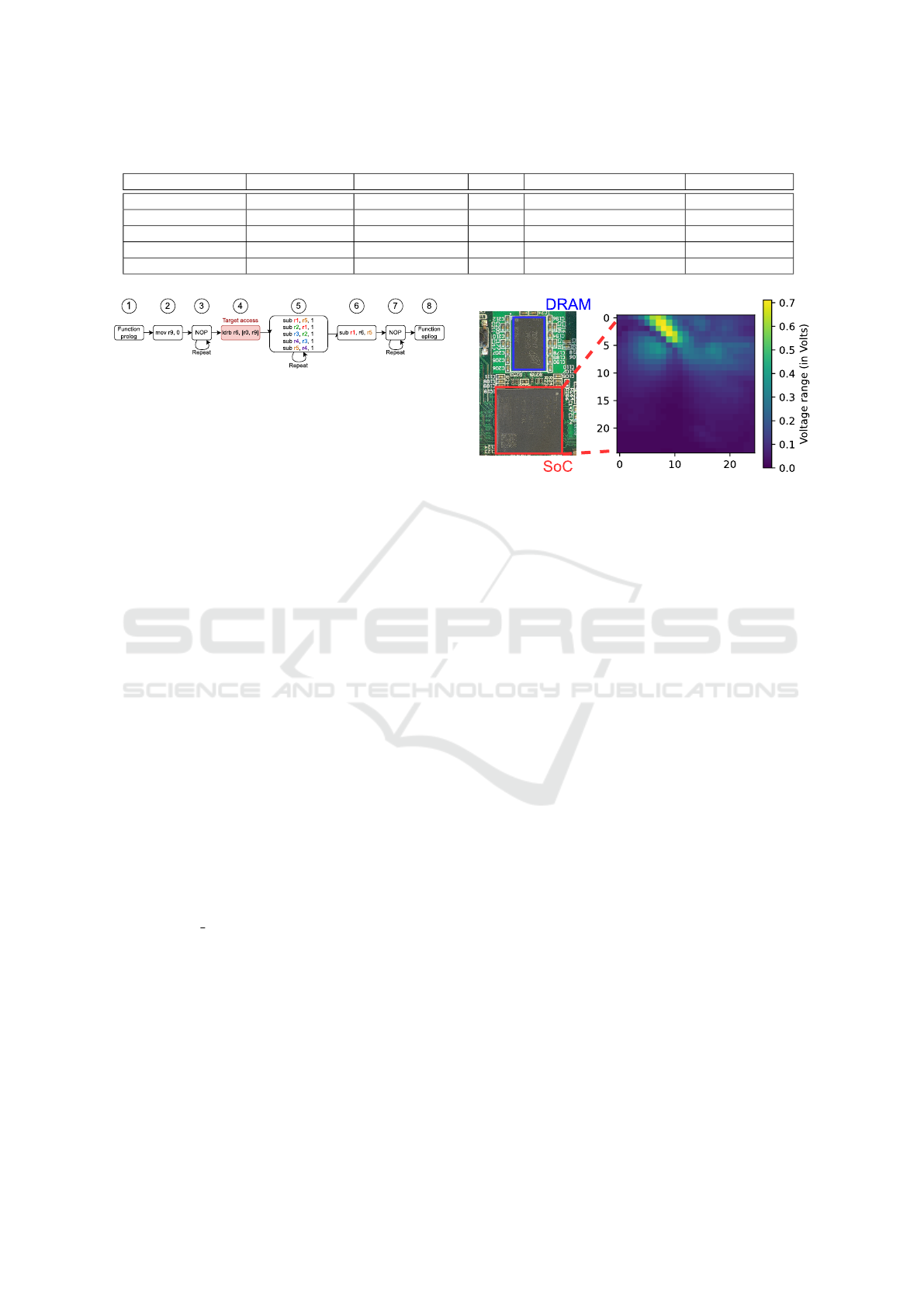

Figure 1: Target code for DRAM access discovery.

access. Step 5 consists in the execution of a Read-

after-Write (RAW) dependency code snippet crafted

with sub instructions: this forces in-order execution

and single issuing. It also provides a workload to the

CPU while the target memory load is processed. We

chain this snippet 50 times during our experiments:

this allows minimizing the divergences in the execu-

tion time of the full code snippet between cache hits

and misses induced in step 4. Step 6 behaves as a syn-

chronization barrier, as the sub instruction requires

the ldrb instruction to be completed in order to use

the r6 register.

4.2.1 Crafting Eviction Sets

The access to cache maintenance instructions (such

as the clflush instruction in x86) requires kernel

privileges on ARMv7-A Instruction Set Architecture

(ISA). Consequently, we need to craft an eviction set

for each address we plan to target. An eviction set

is a collection of addresses that ﬁlls the entire cache

set in which the target address would be mapped. It

is necessary for the attacker to ﬁll the whole cache

set because the cache way that would contain the

target data is determined by the cache replacement

policy, which is proprietary and hardly predictable.

To this aim, for each targeted cache set, we select a

group of congruent addresses from a large memory

pool, the latter allocated through C function mmap

with the MAP HUGETLB ﬂag activated. The congru-

ent addresses are organised into an eviction set in the

form of a double-linked list in order to tweak the hard-

ware prefetcher: this technique is known as “pointer

chasing” (Osvik et al., 2006). Once the eviction set

is obtained, the eviction of a target cache line is per-

formed by consulting each address of the eviction set.

4.2.2 Side-Channel Acquisition Setup

The near ﬁeld EM emanations of the DUT are ac-

quired through an EM Langer H-ﬁeld RF-U 2.5-2

Figure 2: Voltage amplitude cartography above the SoC.

probe connected to a Tektronix 6 series oscilloscope

with a 2.5 GHz bandwidth through a +45/50 dB low

noise ampliﬁer. The probe is attached to a 3-axis mo-

torized bench. We use a sampling rate of 3.125 GS/s,

and an Analogic to Digital Converter (ADC) preci-

sion of 12 bits.

4.3 Probe Location

As we observe local EM radiations, it is necessary

to ﬁnd an adequate probe position on the top of the

chip that allows to accurately observe DRAM ac-

cesses. We expect the latter event to produce high

amplitude EM radiation, because it involves the use

of several components (e.g., DRAM controller, data

buses, etc.). Additionally, the structure of our target

code and its wrapper prevents high amplitude events,

such as pipeline ﬂushes or context switches, to occur

between trigger up and trigger down events. The am-

plitude of the perceived EM signal is mapped upon

a 25 × 25 spatial grid over the main chip. Interest-

ingly, the cartography exposes a high signal amplitude

on several positions near the DRAM interconnection

buses (see Figure 2). For, this DUT, we assess the best

probe position as the one that captures the highest sig-

nal amplitude.

4.4 Identiﬁcation of Patterns

We acquire one million traces of target code execu-

tion at the best position identiﬁed previously. For each

execution, the target access is either a cache hit or a

cache miss with a 50 % probability. Several patterns

emerge within the traces (see Figure 3). One can ob-

Cache Side-Channel Attacks Through Electromagnetic Emanations of DRAM Accesses

265

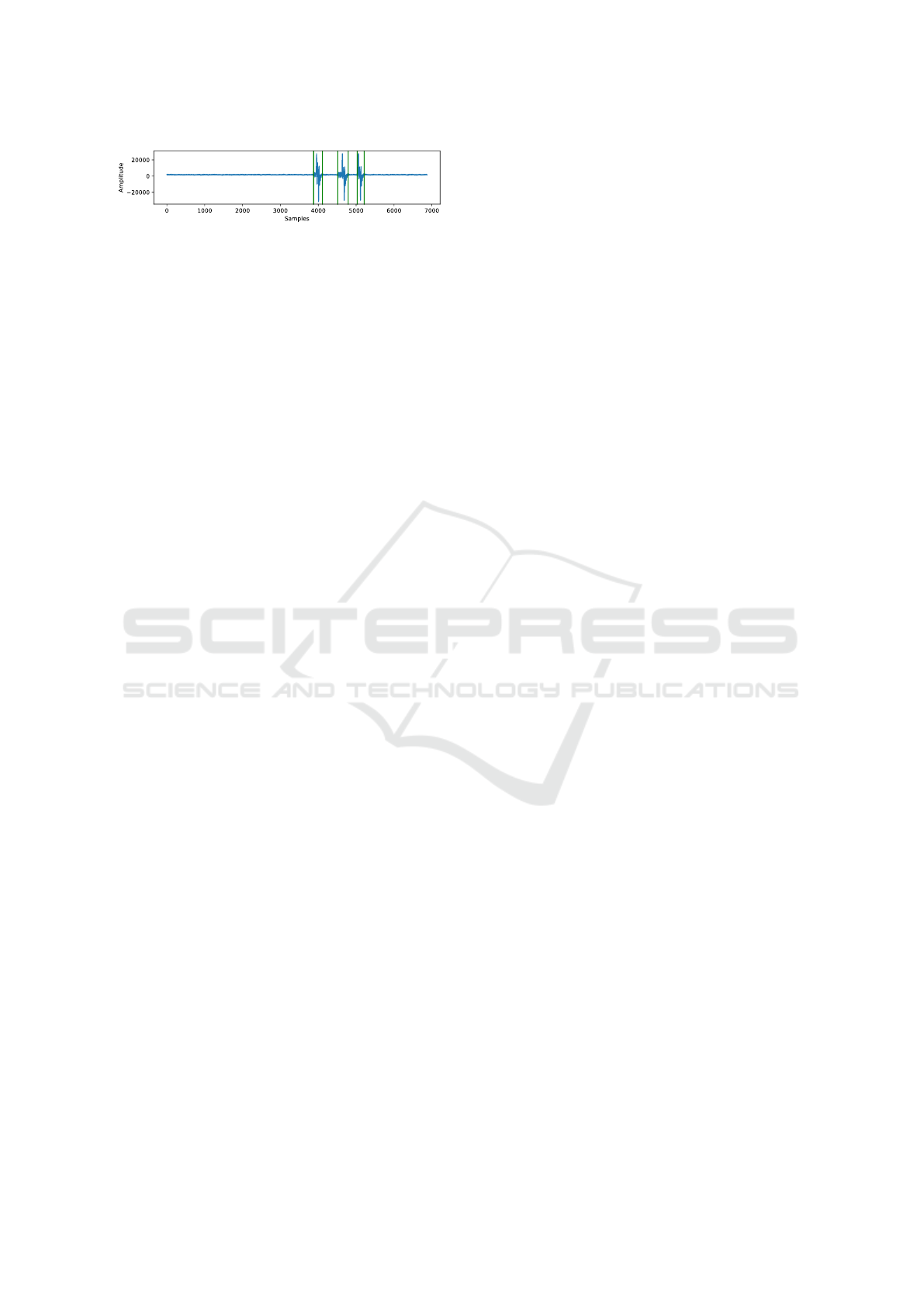

Figure 3: Identiﬁcation of 3 different patterns, green lines

indicate estimated pattern boundaries. Pattern at offset 4000

corresponds to the target DRAM access.

serve that some patterns stand out from the remaining

signal in terms of amplitude and shape. During our

experiments on this test case, we noticed that DRAM

accesses increased the probability to observe a pattern

in the region close to time sample 4000, oppositely to

measurements realized for cache hits. Note that other

patterns appear erratically (see Figure 3), but those

seem unrelated to our target memory access, poten-

tially caused by evictions from other processes. This

implies that pattern matching or statistical techniques

allow the detection DRAM accesses through EM ra-

diations: this can then be used in a side-channel attack

context.

5 EVICT+EM

We showed in section 4 that we are able to detect

DRAM accesses through EM emanations. This leads

to the question: can EM observation of DRAM ac-

cesses be exploited as an information leaking phe-

nomenon in a cache side-channel attack context?

This section introduces EVICT+EM, a novel hy-

brid software and physical side-channel attack against

memory accesses to recover secret keys. The at-

tack principle is the following: (i) the attacker ﬁlls

a target cache set, evicting the victim’s data from

the cache, (ii) the victim resumes its execution and

(iii) the attacker decides whether a DRAM access

has been performed or not by the victim by ob-

serving EM radiations. Note that this is an adapta-

tion of EVICT+RELOAD, with step (iii) replacing the

RELOAD phase. We stress that EVICT+EM does

not require the attacker to share memory with the vic-

tim, and hence falls into the same application contexts

than PRIME+PROBE (Osvik et al., 2006).

5.1 Software Experimental Setup

In this experiment, the DUT runs a TCP server that

is tied to one Cortex-A9 core. Warmup encryptions

can be executed in order to cope with several jitter

and noise sources. Then, one T-Table related cache

line, whose index is sent by the client, is evicted be-

fore the target encryption (see subsubsection 4.2.1 for

the eviction procedure). This target encryption is sur-

rounded by trigger operations. The monitor computer

samples random 16 bytes plaintexts and sends them

to the DUT among several parameters such as the tar-

get T-Table T , the target cache line to evict L, as well

as the number of warmup rounds w. This process is

repeated N times for each T-Table T .

5.2 Attack Procedure

5.2.1 Key Distinguisher

Making a hypothesis on a key byte consists in split-

ting the traces (t

)

0≤i≤N

into two groups g

and g

based on the fact that a DRAM access at a desired

encryption instant occurs or not under the hypothesis.

This attack follows the methodology of the Differen-

tial Power Analysis (DPA) (Kocher et al., 1999). Let

∗

∈ F

be the right key byte, K = F

be the set of

all possible key candidates and Z = F

be a set of

intermediate values. Then, we denote DRAM

(z)

z∈Z

a Boolean predicate that is True if the manipulation

of z under the hypothesis

k results in a DRAM ac-

cess, and False otherwise. Under each key hypoth-

esis

k, it is possible to separate the traces between

two sets g

and g

such that g

= {t

| DRAM

)}

and g

= {t

| ¬DRAM

)}. Considering an arbitrary

metric M, the best key hypothesis retained is then de-

ﬁned as:

best

= argmax

k∈K



M(g

, g

)



(2)

We use the Welch’s t-test as our distinguisher met-

ric (not as a statistical test). It is an adaptation of

Student’s t-test designed to test whether two normal

distributions (X

and X

) have the same mean (possi-

bly with distinct variances). In our case, this metric

seems relevant because (i) the data to be processed is

divided into two groups g

and g

and (ii) the popula-

tion of these two groups is very heterogeneous (g

has

few elements): we can beneﬁt from the in-class nor-

malization. For the good hypothesis, we expect the

t-statistic to be higher than for wrong hypotheses.

5.2.2 RoI Selection and Preprocessing

It is hard to speciﬁcally locate one AES round (e.g.,

the ﬁrst) within the traces for various reasons. Firstly,

the probe position does not allow us to observe EM

emanations from the CPU’s pipeline, making harder

the use of Simple Power Analysis (SPA) in order to

precisely locate the AES routines. However, guess-

ing can be performed when the underlying algorithm

is known. Indeed, the AES ﬁrst round is unlikely

SECRYPT 2024 - 21st International Conference on Security and Cryptography

266

to expose side-channel leakage in, say, the 10% last

samples of the trace, even with the presence of jit-

ter. In our experiments, we thus consider a RoI of

2000 time samples, that corresponds to 400 clock cy-

cles (approximately 640 ns). As we consider discrete

measurements, the integral of a trace t = (t[ j])

0≤ j≤n

is deﬁned as the sum of its samples’ values. This op-

eration performs a linear combination of the samples

over a RoI. This is useful when a jitter desynchro-

nizes the traces. However, the main limitation of this

method is that the per-sample precision is mostly lost.

For the sake of our experiments, we consider integral

computation upon a ﬁxed sized sliding window of 300

samples within the RoI. This processing step is sys-

tematically applied to g

and g

before computing the

metric.

5.3 First Round Attack

The ﬁrst step of the attack is to craft eviction sets for

at least one cache set per T-Table with the method de-

scribed in section 4. The attacker is supposed to be

able to evict at least one cache line per T-Table. The

information the attacker can learn is whether one of

the addresses that is mapped in this same cache line

has been consulted or not. In the case of our DUT,

this means that an attacker that only exploits the ﬁrst

AES round can only guess the ﬁve most signiﬁcant

bits (with δ = 8) of the state bytes indexing the T-

Tables. In order to attack the AES’s ﬁrst round, it

is needed to draw hypotheses on each (⟨x

(0)

⟩)

0≤i≤15

As our attacker model allows only one eviction per

encryption and as each table T

is consulted for each

(0)

)

0≤i≤15,i≡ j (mod 4)

, four sets of traces need to be

gathered (one for each table). Each set of traces allow

to draw hypotheses on 4 bytes. For simplicity, the tar-

geted cache line for each table T

corresponds to its

ﬁrst δ = 8 elements. The global guessing entropy is

obtained by performing the attack 100 times for each

byte on N randomly selected traces (see Figure 4), and

computing the average rank of all good hypotheses. A

guessing entropy down at 0 indicates that all guesses

are correct. In Figure 4a, one can observe that the

guessing entropy of EVICT+EM reaches 0 between

800 and 900 traces per table. This means that, on

average, an attacker that is allowed to observe 3600

encryptions is able to guess the 5 MSBs of each byte

of the secret key.

5.4 Second Round Attack

Following the attack of Osvik et al. (Osvik et al.,

2006), it is possible to rewrite all (x

(1)

)

0≤i≤15

ac-

cording to the bytes of the plaintext and the secret

key. Among those 16 state bytes equations, four of

them are particularly interesting. Indeed, the MSBs

of x

(1)

, x

(1)

, x

(1)

and x

(1)

only depend on four secret

key bytes LSBs (the others depend on ﬁve). Let us

denote S

= sbox(p

⊕ k

). For the second round we

can exploit the following equations:

(1)

= S

⊕ S

⊕ 2 · S

⊕ 3 · S

⊕ sbox(k

) ⊕ k

(1)

= S

⊕ 2 · S

⊕ 3 · S

⊕ S

⊕ sbox(k

) ⊕ k

⊕ k

(1)

= 2 · S

⊕ 3 · S

⊕ S

⊕ sbox(k

)

⊕ k

⊕ 1

(1)

= 3 · S

⊕ S

⊕ 2 · S

⊕ sbox(k

)

⊕ k

(3)

The second round attack relies on the informa-

tion gained from ﬁrst round attack (i.e., the MSBs of

each key bytes). In order to recover the full key, one

needs to draw hypotheses on key bytes LSBs and use

equations in Equation 3 to predict whether a DRAM

access occurs for each plaintext. As each equation

in Equation 3 involves only 4 key bytes, hypotheses

are drawn on each quadruplet (e.g., (k

, k

)

for the ﬁrst equation). For each quadruplet hypothe-

sis and target address, we select plaintexts and traces

so that the target address is not accessed during the

ﬁrst round. Note that this is a slight improvement

of the initial EVICT+TIME attack shown by Osvik et

al.(Osvik et al., 2006). Then, the key distinguisher

(see subsubsection 5.2.1) is applied to highlight the

best hypothesis for each quadruplet. Note that we are

able to reuse the traces gathered for the analysis of

the ﬁrst round. Globally, guessing entropies for the

quadruplets converge towards 0 with less than 1600

traces per T-Table on average (see Figure 4b). This

means that the whole secret key can be recovered with

less than 6400 traces on average.

5.5 Comparison with EVICT+RELOAD

We now compare EVICT+EM with the

EVICT+RELOAD (Gruss et al., 2015) attack.

Note that they are similar in terms of malicious code

execution, as EVICT+RELOAD does not suppose

any preemption of the victims process, nor multiple

evictions per encryption. For a fair comparison,

EVICT+RELOAD uses the same eviction set con-

struction and roaming strategies as EVICT+EM. We

use two different timer sources for the “Reload”

part of the attack: a monotonic timer based on the

gettime function from the libc denoted “User”, and

a high-resolution cycle counter available in ARM

Performance Monitoring Unit (PMU). We stress

that the latter requires to load a kernel module in

Cache Side-Channel Attacks Through Electromagnetic Emanations of DRAM Accesses

267

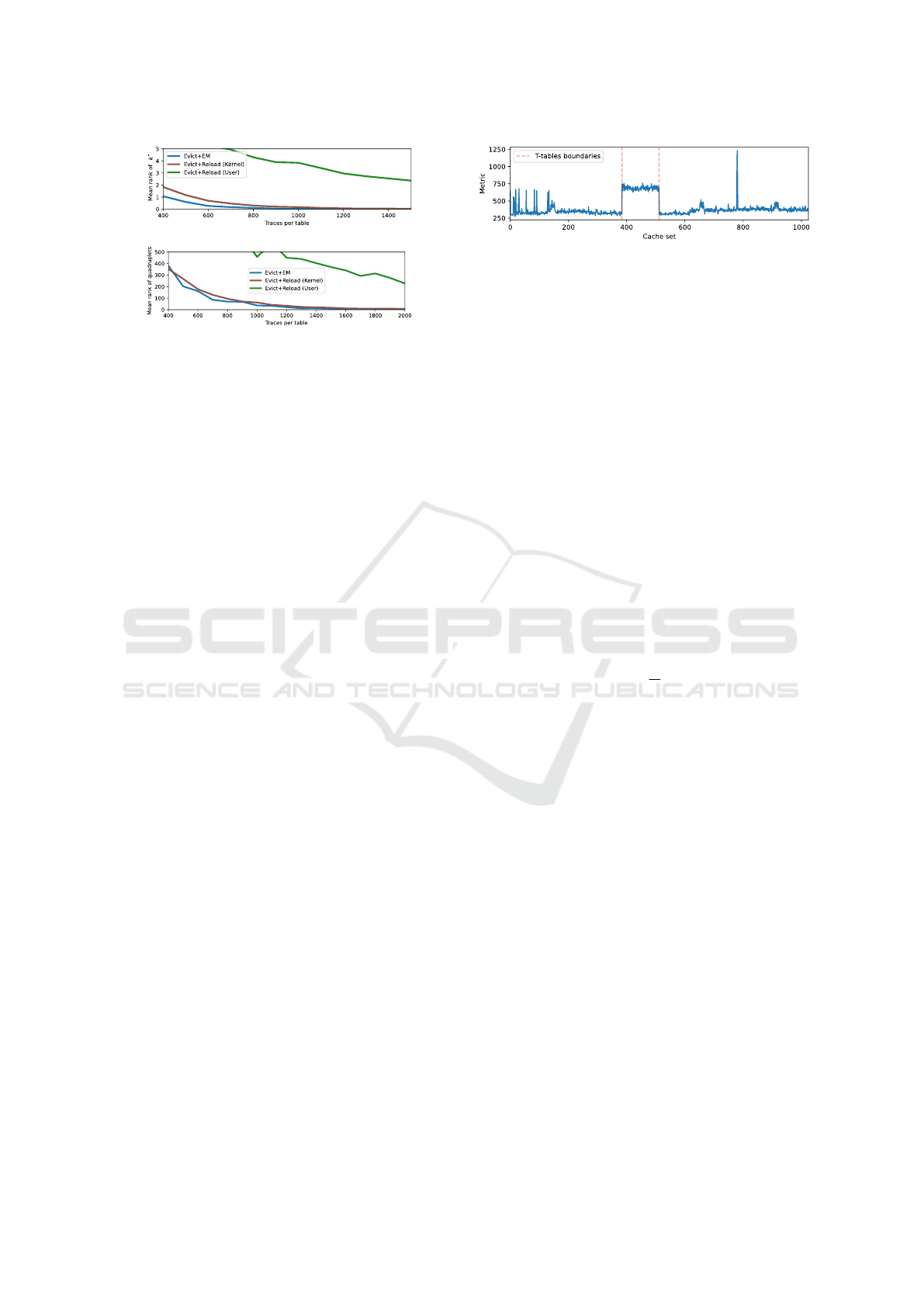

(a) First round

(b) Second round

Figure 4: Guessing entropy comparison, averaged per per

table, for EVICT+RELOAD and EVICT+EM ﬁrst round at-

tack (4a) where ⟨k

∗

⟩ is recovered, and second round attack

(4b) where the full key quadruplet is recovered, with no

warmup.

order to allow the access to the CPU’s internal

performance monitoring registers: this method is ran

at a kernel privilege level. Finally, we use the same

distinguisher (i.e., Welch’s t-test), except that our

EVICT+RELOAD attack version implements the t-test

upon the timing distributions. In Figure 4, we can

observe that (i) EVICT+EM has better performances

than EVICT+RELOAD with kernel privileges for the

ﬁrst round attack: this can be explained by a better

temporal resolution, (ii) EVICT+EM has better per-

formances on second round quadruplets candidates,

but it is less signiﬁcant. An argument to explain this

phenomenon is an increased amount of ﬁrst round in-

duced jitter for the EVICT+EM for the second round

attack. Consequently, we can assess that EVICT+EM

constitutes a userland alternative to cache attacks

with similar performances than an EVICT+RELOAD

attack with kernel privileges. Finally, when perform-

ing EVICT+EM, the attacker does not need to share

memory with the victim, hence it is an interesting

alternative to PRIME+PROBE family attacks when

EVICT+RELOAD is not practical.

6 PRIME+EM

EVICT+EM relies on the use of eviction sets to evict

target cache lines: the eviction set crafting phase

requires to locate the targets’ physical addresses in

main memory. The main goal of this section is

to overcome this restriction. The technique pre-

sented in this section, called PRIME+EM, is based on

PRIME+PROBE (Osvik et al., 2006). Here, we mon-

itor cache activity in order to identify the cache sets

hosting the T-Tables within cache memory. This at-

tack, which can be viewed as a reverse-engineering

step, can precede an EVICT+EM attack for full key

recovery.

Figure 5: Cache set activity metric of the Zybo-z7 during

AES encryption with 100 warmup rounds and N = 400.

6.1 Proﬁling Cache Set Activity

We assume that the T-Tables are stored contiguously

and 32 bytes aligned within the DRAM, and that T

is page aligned. For a memory page size of 4 KB,

this results in the T-Tables ﬁlling exactly one page so

that there is no risk that two distinct T-Tables share

the same cache set. Then, the attacker is able to craft

eviction sets for each cache set within the cache by

using the methodology described in section 4. We

denote ev

the eviction set for cache set i. The pro-

ﬁling of cache set activity is performed as follows: (i)

(Warmup) the attacker lets the victim’s process per-

form random encryptions so as to ﬁll the cache, (ii)

(Prime) the attacker accesses ev

to realize an eviction,

(iii) (Observation) the attacker triggers the encryption

of a random plaintext with the oscilloscope. This pro-

cedure is repeated several times for each cache set,

and for all cache sets. For each cache set, an activity

metric is computed for N EM traces as follows:

metric =

∑

k=0

(4)

With σ

being the standard deviation of the signal

amplitude of the EM observation on a 1000 samples

RoI for trace k. Then, an averaging of the standard

deviation over the N traces is made. This metric

is based on the automatic pattern identiﬁcation con-

ducted in subsection 4.4: the key idea is that DRAM

accesses highly stand out compared to other activities

for the assessed probe position on this DUT. Experi-

mental results of PRIME+EM for 100 warmup rounds

(i.e., 100 encryptions of the same plaintext before ris-

ing the GPIO) with N = 400 are depicted in Figure 5.

We clearly observe high metric values for the contigu-

ous cache sets where the T-Tables are mapped. Inter-

estingly, we also observe non contiguous high peaks

for other cache sets. These accesses can be related to

cached assembly code (as we are targeting the LLC

in which both instructions and data can be cached)

or other memory locations accessed during the en-

cryption (e.g., plaintext or secret key buffers). With

this experiment, we show that an attacker is able to

craft eviction sets targeting the T-Tables without pre-

cise timers, shared memory nor knowledge of the T-

Tables’ location in memory.

SECRYPT 2024 - 21st International Conference on Security and Cryptography

268

7 COLLISION+EM

EVICT+EM and PRIME+EM require the forgery of

eviction sets. In this section, we remove the constraint

of malicious code execution by designing a collision-

based attack. We deﬁne a collision as equivalent to

a cache hit with data that is belonging to the same

target algorithm during a single encryption. Our at-

tacker model is built under the assumption that all

non-colliding memory accesses made by the victim

would generate a DRAM access during the targeted

round. As a prerequisite, the attacker is supposed to

be able to erase T-Tables’ content from the cache hi-

erarchy before the encryption. This scenario can be

enabled by cache eviction from other processes or by

a systematic cache ﬂushing implemented as a cache

attack countermeasure. Finally, a collision can be in-

ferred from the absence of a DRAM access through

EM measurement during the encryption. Once again,

we opt for a differential approach on the EM traces.

7.1 First-Round Attack

Let i, j ∈ {0, ..., 16} with i ̸= j be such as x

(0)

= p

⊕ k

and x

(0)

′

= p

′

⊕ k

′

are indexing the same table T . A

collision is obtained when ⟨x

(0)

⟩ = ⟨x

(0)

′

⟩, which im-

plies that ⟨p

⊕ p

′

⟩ = ⟨k

⊕ k

′

⟩. Then, an attacker can

craft hypotheses on ⟨k

⊕ k

′

⟩ under a known plaintext

scenario. All the T-Tables’ contents are evicted from

the cache before each encryption. Under each hypoth-

esis, it is possible to separate the traces and plaintexts

into two groups g

and g

, based on the apparition

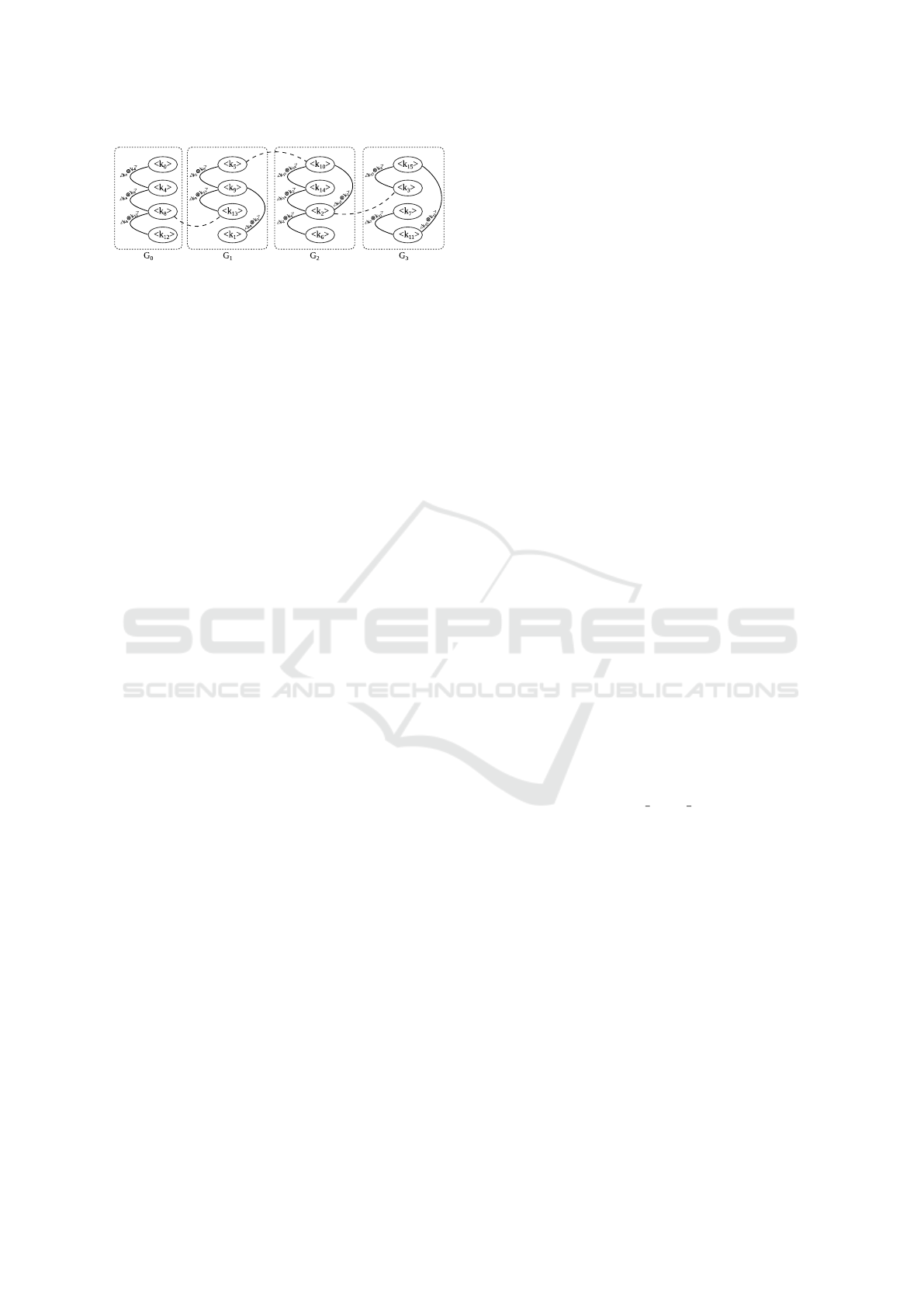

of a collision or not for each plaintext. Graph the-

ory provides an insightful representation for collision-

based attacks (Bogdanov, 2007). Let G = (V, E) be

an undirected graph such as its vertices V represent

key bytes MSBs (⟨k

⟩)

0≤i<15

. An edge is drawn be-

tween two vertices v

= ⟨k

⟩ and v

′

= ⟨k

′

⟩ when the

knowledge of the value of v

allows to uniquely de-

termine the value of v

′

. Knowing a relationship of

the form ⟨k

⊕ k

′

⟩ = r creates an edge in G between

and v

′

, because if ⟨k

⟩ is known, the value of ⟨k

′

⟩

is ⟨k

⟩ ⊕ r. Let G

= (V

, E

)

0≤ j<4

be subgraphs such

as V

= {⟨k

⟩ | i ≡ j (mod 4)} (see Figure 7). In other

words, G

covers key bytes that concern table T

dur-

ing the ﬁrst round computations. By observing col-

lisions within the same table, one can hope to re-

cover enough vertices between edges of G

to make

it a connected graph. Figure 6 illustrates the guess-

ing entropies for each vertex corresponding to each

subgraph G

. Concerning the G

and G

subgraphs

(see Figure 6a and Figure 6b), we observe that the

guessing entropies converge towards 0 with between

8k and 14k attack traces. We also remark that G

and

(a) G

subgraph. (b) G

subgraph.

subgraph. (d) G

subgraph.

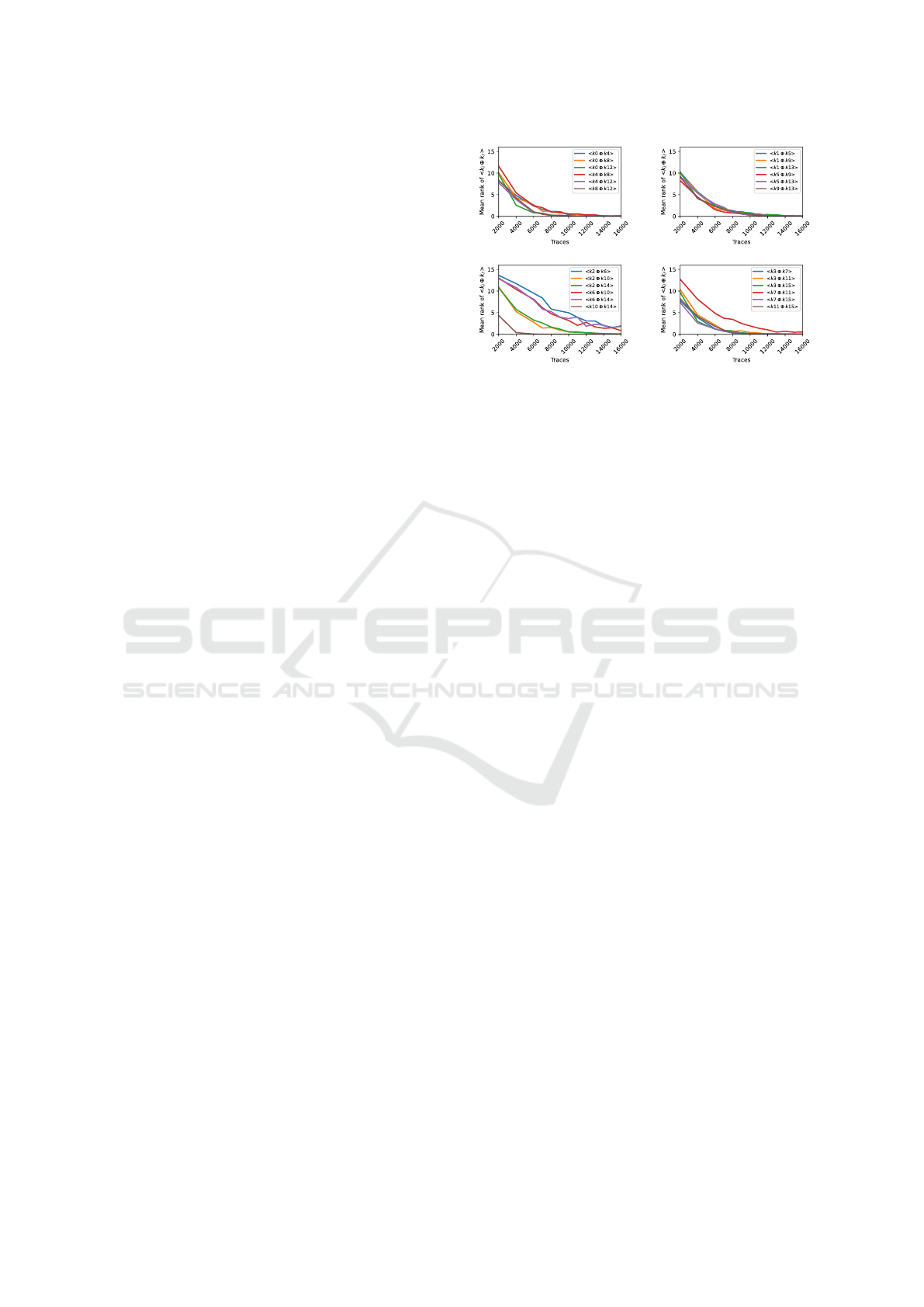

Figure 6: Guessing entropy for G

related collisions corre-

sponding to each table (T

to T

) on the Zybo-z7 platform,

each point shows the average good candidate rank averaged

over 100 attacks.

have a slower convergence towards 0. In our ex-

periments, guessing entropies for each ⟨k

⊕ k

′

⟩ reach

0 for 20k traces, making all the G

subgraphs fully

connected. This shows that our method allows discov-

ering ⟨k

(0)

⊕ k

(0)

′

⟩ relationships with a few thousands

of encryptions on average. Recall that, for δ = 8 (e.g.,

on the Zybo board), knowing if a cache line has been

accessed by an intermediate value grants information

upon the 5 MSBs of this value. If a subgraph G

connected, ﬁxing a value for any ⟨k

⟩ ∈ E

allows re-

covering the values of all other ⟨k

′

⟩ ∈ E

, i

′

̸= i. Thus

there are 2

hypotheses to be tested for each subgraph

. By combining the four subgraphs, we obtain a

search space of size 2

5×4

= 2

. Then, remember

that for δ = 8, the 3 LSBs of each key byte cannot be

guessed from the ﬁrst round attack. Hence, after the

ﬁrst round attack, the total key entropy drops from

128

to 2

× 2

3×16

= 2

. Now we consider Equa-

tion 3. For each of the four quadruplets, each key byte

involved is concerned by a different G

. Hence, in

our case, this means that the complexity of the second

round attack is in the order of 4 × 2

× 2

3×4

= 2

More precisely, an attacker would need to derive 2

hypotheses in total for the four quadruplets and per-

form a Welch’s t-test for each of them.

7.2 About Connecting G

Creating links between subgraphs to make G con-

nected implies that collisions must be exploitable be-

tween state bytes that are indexing different tables.

Several hardware or software features could enable

this, such as (i) misaligned T-Tables and (ii) known or

controlled data prefetching behavior. Firstly, as stated

in (Spreitzer and Plos, 2013), misaligned T-Tables

have the effect of not mapping their base address to

the beginning of a cache line. As T-Tables are often

Cache Side-Channel Attacks Through Electromagnetic Emanations of DRAM Accesses

269

Figure 7: Example of collision graph G composed of four

subgraphs G

to G

. Plain vertices indicate inter table col-

lisions, dashed vertices represent collisions observable with

misaligned tables or favorable prefetching behavior.

contiguous in memory, this would imply that cache

lines contain data from adjacent tables, allowing col-

lisions between state bytes indexing distinct tables.

Secondly, data prefetching, that brings data closer to

the CPU speculatively, could bring data from one ta-

ble when another is accessed, potentially leading an

attacker to observe a collision. The AES implementa-

tion we target here has no misaligned tables, and we

found no exploitable prefetching behavior.

8 ARM TRUSTZONE ATTACK

The ARM TrustZone is a mechanism that aims at

providing hardware-based security features on ARM

CPUs. ARM TrustZone ecosystems have widely been

deployed in embedded devices such as smartphones,

automotive and industrial systems (Pinto and Santos,

2019). This technology separates the so called se-

cure world from the normal world. TrustZone pro-

vides a Trusted Execution Environment (TEE) which

hosts the security critical features such as payment

or authentication operations within Trusted Applica-

tions (TAs). The secure monitor is a privileged en-

tity that handles context switches between secure and

normal worlds. The secure and normal world’s re-

sources are isolated at the hardware-level. Such iso-

lation prevents shared memory based attacks such

as EVICT+RELOAD. For the past several years, re-

searchers have identiﬁed several vulnerabilities in

TEEs. Notably, Lipp et al. (Lipp et al., 2016) ex-

posed a PRIME+PROBE attack on a trusted applica-

tion. Note that their attack only allow to classify

valid versus wrong keys. The authors emphasized that

some devices ensure that the cache is ﬂushed when

entering or leaving a trusted application. This coun-

termeasure make PRIME+PROBE attacks harder, as

eviction sets need to be browsed between the cache

ﬂushing procedure and the beginning of the encryp-

tion, imposing precise synchronization. As a conse-

quence, authors were unable to perform complete or

partial key recovery, but rather determined if a valid

or invalid key had been used by the trusted applica-

tion. The COLLISION+EM attacker model is partic-

ularly relevant for targeting a TA’s AES implemen-

tation with such countermeasures in a realistic sce-

nario because (i) the addresses of the T-Tables are

unknown, (ii) the target cache sets are ﬂushed be-

fore entering the secure world as a countermeasure

for PRIME+PROBE, PRIME+EM and EVICT+EM at-

tacks and (iii) no malicious code is executed (GPIO

toggles before and after the encryption used to trig-

ger the oscilloscope are not considered as malicious

code), only legitimate calls to the trusted application

are performed. Here, we use a STM32MP157F-EV1

dual-core Cortex-A7 based SoC with TrustZone sup-

port as our DUT. This platform encompasses several

peripherals (screen, keyboard, ethernet port, etc.) that

are active during the analysis, adding noise and jitter

to our measurements. Finally, the Cortex-A7 has two

levels of cache, with a cache line size of 64 bytes and

a 1Mb 8-way set-associative LLC.

8.1 Attack of a Trusted Application

The DUT is running a full-ﬂedged Linux distribu-

tion as a host operating system, and an OP-TEE OS

that handles the TrustZone environment. OP-TEE’s

cryptographic primitives are implemented within the

LibTomCrypt library, with T-Tables AES implemen-

tation by default. Note that no cache ﬂushing counter-

measure is implemented by default before or after en-

cryption, enabling PRIME+PROBE and PRIME+EM

threat models (see Table 1). This countermeasure is

hence the responsibility of the developer that writes

the TA. For the sake of this experiment, we design

a trusted application that realizes AES encryptions,

where cache lines that would hold T-Tables contents

are systematically evicted before and after every en-

cryption thanks to the TEE cache clean function pro-

vided by the OP-TEE API. To carry out this experi-

ment, we gathered one million encryption traces. Be-

cause of low amplitude noise and important jitter, the

preprocessing method presented in subsection 5.2 is

inefﬁcient on this DUT. A variant, that counts the

number of samples that exceed an amplitude thresh-

old on a sliding window fashion, is preferred for this

platform. With a cache line size of 64 bytes, each T-

Table ﬁlls exactly 16 cache lines. As a consequence,

a random guess on ⟨k

⊕ k

′

⟩ ranks in eighth position

in average. Also, an attacker that is able to build sub-

graphs G

reduces the total AES key entropy to 2

Guessing entropies for the ﬁrst round collision at-

tack on the four tables are depicted in Figure 8. The

and G

subgraphs become fully connected with

less than 10k traces. Some collisions are harder to

detect for the G

and G

subgraphs, which become

SECRYPT 2024 - 21st International Conference on Security and Cryptography

270

(a) G

subgraph. (b) G

subgraph.

subgraph. (d) G

subgraph.

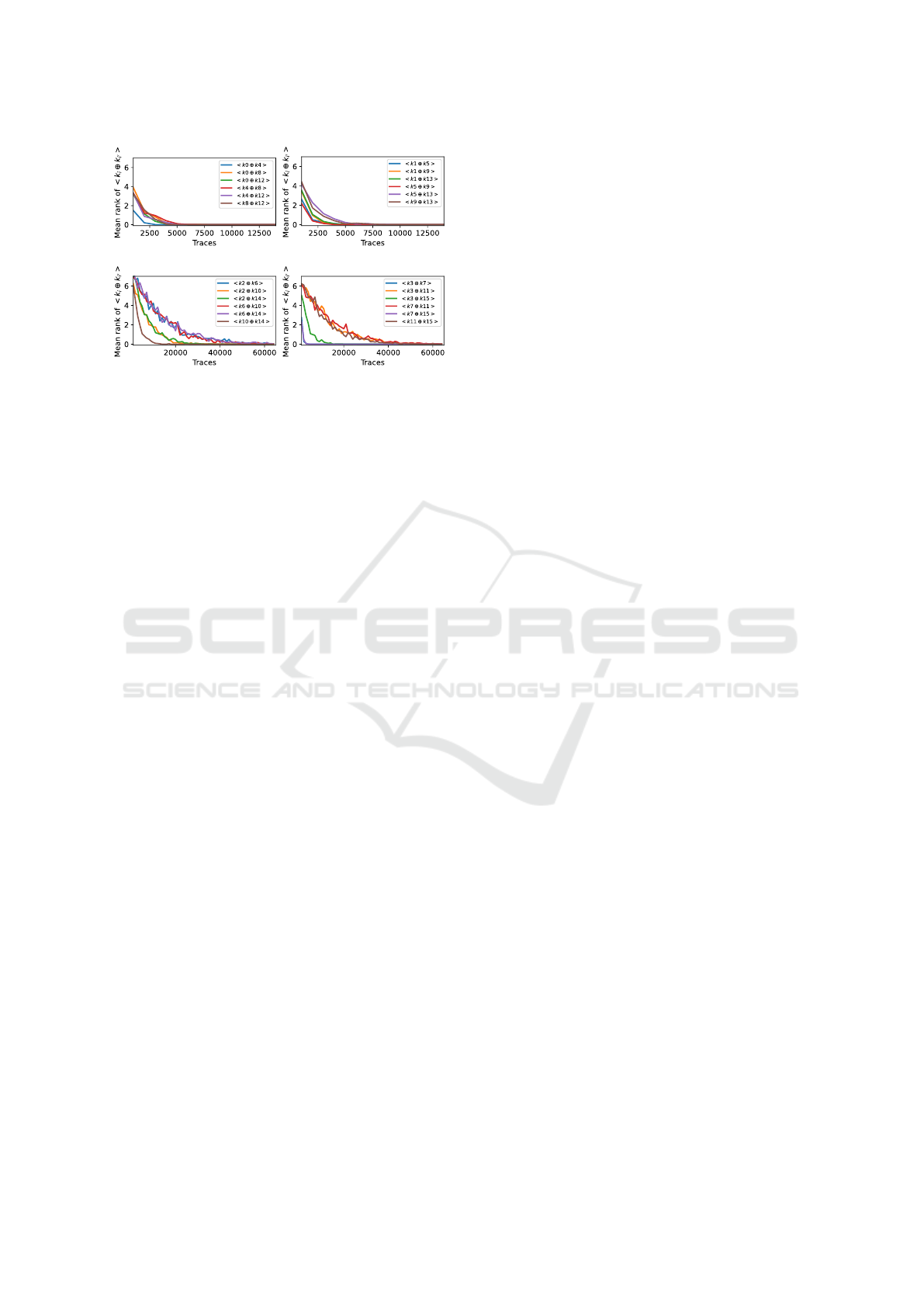

Figure 8: Guessing entropy for G

related collisions corre-

sponding to each table (T

to T

), each point shows the good

candidate rank averaged over 100 attacks.

fully connected with almost 60k traces. It is impor-

tant to notice that some collisions are accurately de-

tected from 2000 traces (e.g., ⟨k

⊕ k

⟩). Figure 8c and

Figure 8d expose that collisions with bytes belonging

to W

(1)

need more traces to be accurately recognized.

When focusing on the G

case, we see that collisions

related to k

have the worst guessing entropy conver-

gence towards zero. Interestingly, the analysis of the

binary ﬁle indicates that the compiler reordered mem-

ory accesses so that T

(0)

] is processed last. Despite

extra noise and jitter in the electromagnetic measure-

ments, COLLISION+EM succeeds in extracting secret

data in a TrustZone environment. Hence, TrustZones

with cache ﬂushing countermeasures are not resis-

tant against COLLISION+EM. Moreover, as COLLI-

SION+EM does not rely on eviction sets, cache parti-

tioning or randomization seem inefﬁcient.

9 DISCUSSION

9.1 Comparison with EM SCA

On a SoC, measurements of small-scale phenom-

ena through EM (e.g., register updates) often present

a high amount of noise and jitter due to micro-

architectural complexity and concurrent activity.

Even so, after EM traces are gathered, traditional

SCA often require preprocessing steps, such as ﬁlter-

ing or synchronization (Longo et al., 2015). Finally,

ﬁnding a good probe position on noisy SoCs is a time

consuming process (i.e., several days to a month).

Still, even at the best probe position, attacking a cryp-

tosystem on a high-end SoC with non-proﬁled meth-

ods often requires up to millions of traces (Lisovets

et al., 2021). By proﬁling DRAM accesses through

EM measurements, we tackle some of these issues.

The attacks we propose are more resilient to noise

and jitter than classical physical side-channel attacks.

We recall that DRAM accesses last for various clock

cycles and produce rather high amplitude signal: the

constrains upon the acquisition chain (e.g., ADC pre-

cision, sampling rate, etc.) are less restrictive in our

case. Moreover, chip packages with stacked DRAM

on are known to impose a lot of EM traces gather-

ing and preprocessing (Lisovets et al., 2021). These

stacked packages also limit the possibility for an at-

tacker to directly probe the buses to harvest DRAM

access information. Combining EM measurements

with the cache attack paradigm comes at the cost of

being more intrusive on the DUT. EVICT+EM and

PRIME+EM require eviction set construction, hence

malicious code execution, but COLLISION+EM re-

moves this limitation.

9.2 Comparison with Cache Attacks

Cache attacks often require a high amount of mali-

cious memory accesses. The extreme case is reached

with trace-driven attacks, which need to proﬁle almost

every memory accesses performed by the victim pro-

cess. Moreover, the vast majority of cache attacks re-

quire a way to measure time with enough precision.

Finally, software micro-architectural attacks are often

noisy. For example, access-driven and time-driven at-

tacks on AES ﬁrst round are noisy because of other

rounds accesses. The method we describe here (i) has

a small memory footprint, as abnormal memory inter-

actions are performed for initial data evictions only,

(ii) can be headed with better temporal precision, (iii)

does not require cycle accurate timer and (iv) can

target DRAM accesses through time during the en-

cryption. In terms of drawbacks, EVICT+EM and

PRIME+EM attacks hardly allow to proﬁle several

memory addresses at the same time. Moreover, the at-

tacker needs to have physical access on the target and

add several hardware components to its experimental

setup (i.e., oscilloscope, probe).

9.3 Mitigations

A natural countermeasure to the presented attacks is

a systematic prefetch of the victim’s data before en-

cryption. This would prevent DRAM accesses during

the encryption supposing that no self evictions occur

within the victim’s process. Note that this can repre-

sent a performance bottleneck. Also, such a prefetch

is not always possible, especially when the sensitive

lookup tables are wider than the available cache size.

A performance compromise can be reached by per-

forming random accesses to the sensitive data before

Cache Side-Channel Attacks Through Electromagnetic Emanations of DRAM Accesses

271

encyption: this would drastically increase the num-

ber of measurements required by an attacker. Note

that this mitigation “as-is” does not prevent the at-

tacks, and needs to be implemented jointly to other

security measures (e.g., frequent rekeying). The at-

tacks presented in this paper exploit side-channel in-

formation leaked by DRAM accesses that are statis-

tically dependent to a secret. Preventing secret de-

pendent table lookups and branches, which is a cor-

nerstone of constant time implementations (Almeida

et al., 2016), is also a viable mitigation strategy al-

ready widely deployed for asymmetric cryptography

(e.g., square-and-multiply always for RSA). Classi-

cal SCA countermeasures such as hiding (e.g., metal-

lic shields or artiﬁcial EM noise addition), and mask-

ing (Mangard et al., 2008) can thwart the attacks pro-

posed in this paper. Because of a high tolerance to

jitter, our attacks would be poorly affected by shuf-

ﬂing countermeasures.

9.4 Related Work

Bertoni et al. (Bertoni et al., 2005) designed a simu-

lated attack exploiting intentional cache misses. They

targeted the ﬁrst round of a sbox AES implementa-

tion on a simulated microcontroller architecture with

an 8 bytes cache line size. This provided inspirational

insights for the EVICT+EM approach. Osvik and

al. (Osvik et al., 2006) proposed cache attacks on an

AES T-Tables implementation AMD Athlon64 CPU.

They formalized the key recovery procedure to attack

the two ﬁrst rounds of the AES with EVICT+TIME

and PRIME+PROBE. Dey et al. proposed to moni-

tor CPU stalls induced by LLC misses through EM

emanations (Dey et al., 2018). They used micro-

benchmarks by executing controlled code with known

memory access behavior. They pinpoint the beneﬁt

of their work for benchmarking code segments when

performance counters are unavailable (e.g., bootload-

ers). While our study and Dey et al.’s both tar-

get similar memory events, our goal is to mount a

key recovery attack on CPUs that could be packaged

with a stacked DRAM and potentially support Out-of-

Order execution. Then, rather than relying on precise

(and potentially device dependent) pattern matching

results, we exploit statistical links between the EM

radiations and DRAM accesses to leverage a differ-

ential non-proﬁled attack. Schramm et al. identi-

ﬁed that collisions of intermediate variables in a cryp-

tographic primitive are an attack vector (Schramm

et al., 2003b; Schramm et al., 2003a). Fournier

and Tunstall designed a theoretical attack exploiting

cache collisions during AES encryptions (Fournier

and Tunstall, 2006) on a smartcard with a single

level of cache.They propose exploiting cache colli-

sions in the MixColumns pre-computed tables. This

work has been since extended (Gallais et al., 2010).

Bogdanov (Bogdanov, 2007) proposed an enhanced

collision-based attack targeting SubBytes and Mix-

Columns outputs. He formalized the collision attack

as a set of linear equations that can be represented as

a connected graph. This work was extended by com-

bining the key ranking features of DPA, Correlation

Power Analysis (CPA) or Mutual Information Analy-

sis (MIA) with collision-based attack (Bogdanov and

Kizhvatov, 2011). G

erard and Standaert formalized

collision attacks linear problems as a Low Density

Parity Codes (LDPC) decoding problem (G

erard and

Standaert, 2013). They pinpoint that collision attacks

are hardened by the diversity of possible implemen-

tations when considering software primitives. This

work may allow to optimize COLLISION+EM.

10 CONCLUSION

In this paper, we described a new methodology to ex-

ploit the electromagnetic emanations of DRAM ac-

cesses on SoCs as an attack vector. We develop

three attack scenarios, EVICT+EM, PRIME+EM and

COLLISION+EM, that require a physical access to

the attacked device, which is relevant when consid-

ering embedded devices such as smartphones. We

show that EVICT+EM enables full AES key recov-

ery with similar precision as EVICT+RELOAD attacks

with kernel level timer. Furthermore, the aforemen-

tioned attacks require no process interruption nor con-

currency constraints. Then, we demonstrate the efﬁ-

ciency of COLLISION+EM, that do not require any

malicious code execution, and allows partial key re-

covery against a T-Table AES implementation run-

ning in a trusted application on an ARM TrustZone,

even with cache ﬂushing countermeasure activated.

Besides, randomized and partitioned caches seem

inefﬁcient against COLLISION+EM. This threatens

trusted execution environments on embedded devices,

which remain physically accessible to an attacker. Fu-

ture work may consider recovering the addresses of

the DRAM accesses to mount more efﬁcient attacks.

Finally, it could be beneﬁcial to evaluate the efﬁ-

ciency of mitigations suggested in subsection 9.3.

ACKNOWLEDGEMENTS

This project has received funding from the Euro-

pean Union’s Horizon Europe Grant Agreement No.

101073795 (POLIIICE).

SECRYPT 2024 - 21st International Conference on Security and Cryptography

272

REFERENCES

Almeida, J. B., Barbosa, M., Barthe, G., Dupressoir, F., and

Emmi, M. (2016). Verifying {Constant-Time} im-

plementations. In 25th USENIX Security Symposium

(USENIX Security 16).

Bernstein, D. J. (2005). Cache-timing attacks on AES.

Bertoni, G., Zaccaria, V., Breveglieri, L., Monchiero, M.,

and Palermo, G. (2005). AES power attack based on

induced cache miss and countermeasure. volume 1.

Bogdanov, A. (2007). Improved side-channel collision at-

tacks on AES. In International Workshop on Selected

Areas in Cryptography.

Bogdanov, A. and Kizhvatov, I. (2011). Beyond the limits of

DPA: combined side-channel collision attacks. IEEE

Transactions on Computers, 61(8).

Brasser, F., M

uller, U., Dmitrienko, A., Kostiainen, K.,

Capkun, S., and Sadeghi, A.-R. (2017). Software

grand exposure: SGX cache attacks are practical. In

USENIX Workshop on Offensive Technologies.

Brier, E., Clavier, C., and Olivier, F. (2004). Correlation

power analysis with a leakage model. In International

workshop on cryptographic hardware and embedded

systems.

Clavier, C. (2004). Side channel analysis for reverse engi-

neering (SCARE), an improved attack against a secret

A3/A8 GSM algorithm.

Cristiani, V., Lecomte, M., and Hiscock, T. (2019). A bit-

level approach to side channel based disassembling.

In Conference on Smart Card Research and Advanced

Applications.

Dey, M., Nazari, A., Zajic, A., and Prvulovic, M. (2018).

Emprof: Memory proﬁling via em-emanation in

iot and hand-held devices. In 2018 51st Annual

IEEE/ACM International Symposium on Microarchi-

tecture (MICRO).

Fanjas, C., Gaine, C., Aboulkassimi, D., Ponti

e, S., and

Potin, O. (2022). Combined fault injection and real-

time side-channel analysis for android secure-boot by-

passing. In International Conference on Smart Card

Research and Advanced Applications.

Fournier, J. and Tunstall, M. (2006). Cache based power

analysis attacks on AES. In Australasian Conference

on Information Security and Privacy.

Gallais, J.-F., Kizhvatov, I., and Tunstall, M. (2010). Im-

proved trace-driven cache-collision attacks against

embedded aes implementations. In International

Workshop on Information Security Applications.

Ge, Q., Yarom, Y., Cock, D., and Heiser, G. (2018). A

survey of microarchitectural timing attacks and coun-

termeasures on contemporary hardware. Journal of

Cryptographic Engineering.

erard, B. and Standaert, F.-X. (2013). Uniﬁed and opti-

mized linear collision attacks and their application in

a non-proﬁled setting: extended version. Journal of

Cryptographic Engineering, 3(1).

Goldack, M. and Paar, I. C. (2008). Side-channel based re-

verse engineering for microcontrollers. Master’s the-

sis, Ruhr-Universit

at Bochum, Germany.

otzfried, J., Eckert, M., Schinzel, S., and M

uller, T.

(2017). Cache attacks on Intel SGX. In Proceedings

of the 10th European Workshop on Systems Security.

Gruss, D., Spreitzer, R., and Mangard, S. (2015). Cache

template attacks: Automating attacks on inclusive

last-level caches. In 24th USENIX Security Sympo-

sium.

Kocher, P., Jaffe, J., and Jun, B. (1999). Differential power

analysis. In Annual International Cryptology Confer-

ence.

Lipp, M., Gruss, D., Spreitzer, R., Maurice, C., and Man-

gard, S. (2016). ARMageddon: Cache attacks on mo-

bile devices. In 25th USENIX Security Symposium.

Lisovets, O., Knichel, D., Moos, T., and Moradi, A. (2021).

Let’s take it ofﬂine: Boosting brute-force attacks on

iphone’s user authentication through sca. IACR Trans-

actions on Cryptographic Hardware and Embedded

Systems.

Liu, F., Yarom, Y., Ge, Q., Heiser, G., and Lee, R. B. (2015).

Last-level cache side-channel attacks are practical. In

2015 IEEE symposium on security and privacy.

Longo, J., Mulder, E. D., Page, D., and Tunstall, M. (2015).

Soc it to em: electromagnetic side-channel attacks on

a complex system-on-chip. In International Workshop

on Cryptographic Hardware and Embedded Systems.

LTD, A. (2012). Cortex-a9 technical reference manual. Re-

vision: r4p1.

Maillard, J., Hiscock, T., Lecomte, M., and Clavier, C.

(2023). Side-channel disassembly on a system-on-

chip: A practical feasibility study. Microprocessors

and Microsystems, 101.

Mangard, S., Oswald, E., and Popp, T. (2008). Power anal-

ysis attacks: Revealing the secrets of smart cards.

Springer.

Novak, R. (2003). Side-channel based reverse engineer-

ing of secret algorithms. In Proceedings of the Elec-

trotechnical and Computer Science Conference.

Osvik, D. A., Shamir, A., and Tromer, E. (2006). Cache at-

tacks and countermeasures: the case of AES. In Cryp-

tographers’ track at the RSA conference.

Pinto, S. and Santos, N. (2019). Demystifying arm trust-

zone: A comprehensive survey. ACM computing sur-

veys (CSUR), 51(6).

Schramm, K., Leander, G., Felke, P., and Paar, C. (2003a).

A collision-attack on AES combining side channel

and differential-attack. Submitted for Publication.

Schramm, K., Wollinger, T., and Paar, C. (2003b). A new

class of collision attacks and its application to DES. In

International Workshop on Fast Software Encryption.

Spreitzer, R. and Plos, T. (2013). Cache-access pattern at-

tack on disaligned AES T-tables. In Workshop on

Constructive Side-Channel Analysis and Secure De-

sign.

Yarom, Y. and Falkner, K. (2014). FLUSH+RELOAD: A

high resolution, low noise, l3 cache side-channel at-

tack. In 23rd USENIX security symposium.

Yarom, Y., Genkin, D., and Heninger, N. (2017).

Cachebleed: a timing attack on openssl constant-time

rsa. Journal of Cryptographic Engineering.

Cache Side-Channel Attacks Through Electromagnetic Emanations of DRAM Accesses

273
