Large-Scale Analysis of GitHub and CVEs to Determine Prevalence of

SQL Concatenations

Kevin Dennis, Bianca Dehaan, Parisa Momeni, Gabriel Laverghetta and Jay Ligatti

Computer Science and Engineering, University of South Florida, Tampa, Florida, U.S.A.

Keywords:

Security Metrics, Web Applications, Structured Query Language, Code Injection Attacks.

Abstract:

SQL Injection Attacks (SQLIAs) remain one of the top security risks in modern web applications. Vulnerabil-

ities to SQLIAs arise when unsanitized input is concatenated into dynamically constructed SQL statements.

Because existing prepared statement implementations cannot insert identiﬁers into prepared statements, pro-

grammers have no choice but to concatenate dynamically determined identiﬁers directly into SQL statements.

If an identiﬁer is not sanitized before concatenation, a kind of SQLIA called a SQL Identiﬁer Injection Attack

(SQL-IDIA) is possible.

To investigate the prevalence of SQL concatenations in real code, we conducted, to our knowledge, the largest

analysis of open-source software to date. We crawled 4,762,175 ﬁles in 944,316 projects on GitHub to identify

SQL statements constructed using concatenation and potential SQL-IDIAs.

Our crawler classiﬁed 42% of Java, 91% of PHP, and 56% of C# ﬁles as constructing SQL statements via

concatenation. It further found that 27% of the Java, 6% of the PHP, and 22% of the C# ﬁles of these con-

catenations contain identiﬁers. Manual analysis indicates that the automated SQL-IDIA classiﬁer achieved

an overall accuracy of 93.4%. Further testing suggests approximately 22.7% of web applications may be ex-

ploitable via a SQL-IDIA. PHP applications were particularly exploitable at 38% of applications.

1 INTRODUCTION

Injection attacks remain one of the top security risks

in modern web applications. The 2021 Open World-

wide Application Security Project Top Ten list (Open

Web Application Security Project, 2021) ranked in-

jection attacks in the top three with the second most

recorded occurrences. Injection attacks occur when

untrusted and unsanitized input is used to generate

an output program (Ray and Ligatti, 2012). One

of the most common examples of injection attacks

are SQL injection attacks (SQLIAs), where untrusted

and unsanitized input gets inserted into SQL queries.

This input insertion is typically performed using con-

catenation but may be accomplished using equivalent

string-builder functions or string interpolation. For

the sake of brevity, as string interpolation is primarily

syntactic sugar for concatenation (i.e., interpolation

is a form of concatenation), the term concatenation in

this paper also refers to interpolation unless otherwise

noted.

SQLIAs can be mitigated using a variety of

techniques, with prepared statements, also known

as parameterized queries, being the standard de-

fense (Open Web Application Security Project, 2018;

Clarke-Salt, 2012). However, modern prepared-

statement implementations are incomplete. SQL

Identiﬁer Injection Attacks (SQL-IDIAs) (Cetin et al.,

2019) are a subset of SQLIAs where the user data is

inserted into a portion of the SQL statement reserved

for a SQL identiﬁer, such as a table or column name.

To our knowledge, no public implementation of pre-

pared statements supports identiﬁer insertions.

This paper investigates the prevalence of SQL

concatenations in real code, performing, to our

knowledge, the largest analysis of open-source soft-

ware to date, relying solely on GitHub’s code-

search application programming interface (API) to

identify program source ﬁles for security analysis.

Our crawler analyzed a total of 4,762,175 ﬁles in

944,316 GitHub projects to classify their usage of

SQL concatenation. These ﬁles contained Java, PHP,

or C# source code; these languages were chosen

for their prevalence and well-established database

libraries/frameworks. We also further classiﬁed

whether the concatenations are into portions of SQL

statements reserved for identiﬁers.

286

Dennis, K., Dehaan, B., Momeni, P., Laverghetta, G. and Ligatti, J.

Large-Scale Analysis of GitHub and CVEs to Determine Prevalence of SQL Concatenations.

DOI: 10.5220/0012835200003767

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 21st International Conference on Security and Cryptography (SECRYPT 2024), pages 286-297

ISBN: 978-989-758-709-2; ISSN: 2184-7711

Our automated GitHub crawler and analyzer clas-

siﬁed 42% of Java, 91% of PHP, and 56% of C# web-

application ﬁles as constructing SQL statements via

concatenation. It further found that 27% of the Java,

6% of the PHP, and 22% of the C# ﬁles that concate-

nate to construct SQL statements concatenate identi-

ﬁers. Manual analysis of a random sampling of these

ﬁles indicates that the automated SQL-IDIA classi-

ﬁer achieved an overall accuracy of 93.4%. After

conﬁrming the classiﬁer’s accuracy, we determined

approximately 22.7% of the web applications meet

the additional requirements to be exploitable via an

SQL-IDIA. PHP applications were particularly ex-

ploitable, with 38% of applications being exploitable.

The repository owners of these applications were in-

formed of the vulnerabilities.

We also manually analyzed all 1,775 CVE reports

of SQLIAs from 2022. We found that 153 (8.6%) of

these 1,775 reports are for SQL-IDIAs, providing fur-

ther evidence that SQL-IDIAs comprise a nontrivial

portion of SQLIAs. We therefore recommend that ex-

isting implementations of prepared statements expand

to cover insertions of identiﬁers. Previous work has

described and analyzed a non-public proof-of-concept

implementation of prepared statements with coverage

of identiﬁers (Cetin et al., 2019).

This paper also presents a modiﬁcation to the orig-

inal deﬁnition of SQL-IDIAs (Cetin et al., 2019).

The deﬁnition is improved to allow SQL identiﬁer

lists, enabling our classiﬁer to recognize locations re-

served for a comma-separated list of identiﬁers. This

new deﬁnition is a strict generalization of the origi-

nal. An additional 658 Java and 174 C# ﬁles were

correctly classiﬁed due to this updated deﬁnition.

This paper makes the following contributions:

• an analysis of concatenation in SQL statements,

and of SQL-IDIA vulnerabilities, in millions of

GitHub ﬁles across multiple languages;

• an improved deﬁnition of, and classiﬁer for, SQL-

IDIAs, capturing an additional 800 potentially

vulnerable ﬁles on GitHub;

• a manual classiﬁcation of all SQLIA CVE reports

published in 2022, to investigate the prevalence of

SQL-IDIAs.

The remainder of the paper is organized as fol-

lows: Section 2 presents the necessary background

material on SQLIAs and SQL-IDIAs, Section 3 pro-

vides a generalized deﬁnition of SQL-IDIAs, Sec-

tion 4 describes the GitHub crawler and SQL-IDIA

classiﬁer experiment, Section 5 describes the analysis

of CVE reports for SQL-IDIAs, and Section 6 makes

closing remarks.

2 BACKGROUND AND RELATED

WORK

This section describes previous efforts made to ex-

tract data from GitHub, and related work on SQLIAs.

Given their prevalence, several papers have focused

on SQLIAs, including attempts to classify SQLIAs

from GitHub.

2.1 Obtaining Data from GitHub

Several attempts have been made to archive GitHub

data, generally with the goal of making the data more

accessible. Projects like GHTorrent (Gousios and

Spinellis, 2012) and GH Archive (Grigorik, 2023) al-

low users to download the data set or access the data

online. Lean GHTorrent allows users to request data

dumps on demand (Gousios et al., 2014) and GH

Archive makes their data available as a public data

set on Google BigQuery. However, neither of these

services offers the data needed to complete the exper-

iment described in this paper; the data available are

primarily metadata about the users, projects, and var-

ious events. While some useful data can be extracted

from commit comments and diffs, the GitHub search-

code API provides a larger set of up-to-date ﬁles for

analysis.

In addition, the GHTorrent service appears to be

deprecated, the GHTorrent web page is no longer

available, and the once-active GHTorrent Twitter ac-

count has not posted since March 2021. The origi-

nal papers describing the GHTorrent service (Gousios

and Spinellis, 2012), however, served as inspiration

for automating the crawling process.

An illustration of the general workﬂow for the

GitHub crawler and the classiﬁer is shown in Figure 1.

This workﬂow follows the same high-level structure

of other tools such as GHTorrent but uses the GitHub

code-search API exclusively. The database tracks all

ﬁles individually and includes the commit that each

ﬁle was last updated on.

2.2 SQLIAs and SQL-IDIAs

Applications are vulnerable to SQL Injection Attacks

(SQLIAs) when untrusted user input is inserted into

SQL statements such that, when passed to the DBMS,

the user input is interpreted and executed as SQL

code, rather than noncode such as string or numeric

literals. In fact, previous work showed that any con-

catenation of unsanitized input into a SQL statement

constitutes a SQLIA vulnerability (Ray and Ligatti,

2012). Typically, such attacks occur when user in-

put is directly concatenated into the query string, but

Large-Scale Analysis of GitHub and CVEs to Determine Prevalence of SQL Concatenations

287

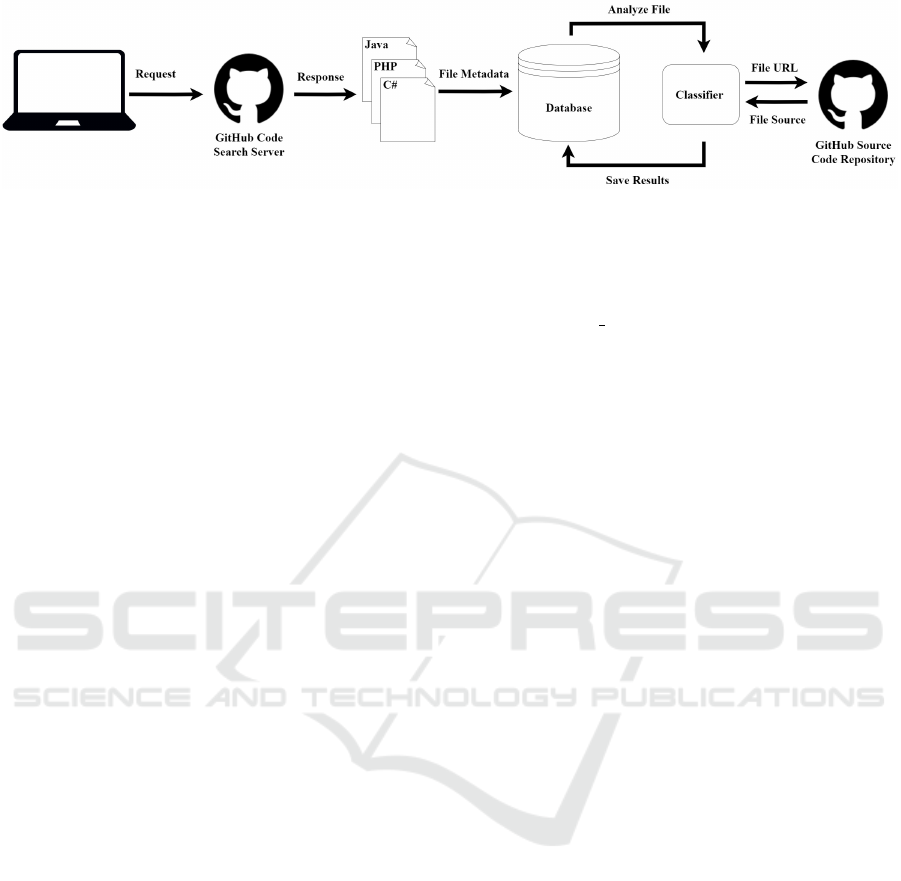

Figure 1: Workﬂow for the GitHub crawler and classiﬁer.

these attacks are also possible when the SQL state-

ments are built using alternative techniques for con-

catenating strings, such as with format strings or

string interpolation. The basic mechanics of SQLIAs

are well understood (Halfond et al., 2006; Ray and

Ligatti, 2014).

SQL-IDIAs are a subset of SQLIAs where the un-

trusted user input is inserted into a location where an

identiﬁer is expected (Cetin et al., 2019). Identiﬁers

in SQL include the names of tables, columns, indexes,

databases, views, functions, procedures, or triggers.

The present paper provides and uses an updated def-

inition of SQL-IDIAs that is based on the original

deﬁnition of (Cetin et al., 2019). The updated deﬁ-

nition, provided in Section 3.2, allows for identiﬁer

lists; for example, the query SELECT a, b FROM c, d,

which retrieves columns a and b from the Cartesian

product of tables c and d, contains a list of column

names and a list of table names. This broader deﬁ-

nition of SQL-IDIAs allows for the classiﬁcation of

attacks that would otherwise go unnoticed.

Several solutions have been developed to miti-

gate SQL injection and code injection attacks in gen-

eral. Dynamic methods (Ray and Ligatti, 2012) and

tools (Halfond and Orso, 2005; Bandhakavi et al.,

2007; Son et al., 2013) that attempt to catch injections

at runtime have been proposed but may incur large

performance overheads and have not seen widespread

adoption. Similarly, static methods (Nagy and Cleve,

2017) that perform information-ﬂow analyses to iden-

tify where untrusted user input is concatenated into

output SQL programs have not been adopted due to a

high false-positive rate (Johnson et al., 2013). The

two mitigation strategies that have seen the widest

acceptance are input sanitization and prepared state-

ments.

Input sanitization refers to any attempts to ﬁlter

out, escape, or otherwise remove special characters,

control symbols, and other non-data values in un-

trusted user input. The ﬁltered value is inserted di-

rectly into the output program. The security of the ap-

plication is now dependent on the ﬁltering process be-

ing implemented correctly. Such techniques are difﬁ-

cult to implement as there are a large number of sym-

bols and edge cases that must be accounted for. Using

existing well-tested implementations is more reliable,

but may introduce their own complexities. For ex-

ample, the esc like function for escaping a string

in a LIKE statement in WordPress (WordPress, 2023)

might reasonably be assumed to output an escaped

string that is safe to insert into SQL code, but the

documentation explains it is not and describes how

the data must be further sanitized or prepared state-

ments must be used. Other potential downsides in-

clude second-order injection attacks, where ﬁltered

data is stored in a database and later reused without

ﬁltering the data again (Anley, 2002).

Object-Relational Mapping (ORM) libraries ab-

stract the entire process of writing SQL queries

into the object-oriented paradigm. For exam-

ple, a developer using an ORM library might ob-

tain the names of all users by writing code like

Users()->select("name")->execute(). The ORM li-

brary then handles the entire process of constructing

the query, connecting to the database, and returning

the results. The ORM is then also responsible for

constructing the SQL statement securely using input

validation or prepared statements, which may not be

a reliable assumption (e.g., CVE-2022-4082).

Prepared statements are considered the standard

defense for preventing SQLIAs (Open Web Applica-

tion Security Project, 2018; Clarke-Salt, 2012), pre-

venting injection attacks by providing a clear distinc-

tion between code and noncode in the constructed

SQL statements. Instead of concatenating or other-

wise inserting noncode (e.g., a string or numeric lit-

eral) directly into the constructed statement, the pro-

grammer inserts a placeholder, typically a question

mark, where the noncode should appear. The non-

code value is then passed alongside the constructed

statement to the DBMS, which begins executing the

statement and referring to the noncode value when a

placeholder is encountered. Prepared statements can

be used to prevent other types of injection attacks but

require that the output programming language and the

corresponding interpreter provide support for them.

However, current implementations do not sup-

port placeholders in locations where SQL identiﬁers

SECRYPT 2024 - 21st International Conference on Security and Cryptography

288

are expected, making them insufﬁcient for prevent-

ing SQL-IDIAs (Cetin et al., 2019). If there is a

need for dynamic, user-deﬁned identiﬁers in con-

structed queries, another mitigation technique must

be deployed in addition to prepared statements. A

simple scenario where such a need may arise is us-

ing a user-provided column to order the returned data

by: "SELECT * FROM users ORDER BY " + orderCol.

The incompleteness of prepared statements is dis-

cussed further in Section 3.1.

3 SQL IDENTIFIER INJECTION

ATTACKS

This section reviews the theoretical incompleteness of

prepared statements and the deﬁnition of SQL-IDIAs.

Modern prepared-statement implementations, such

as the MySQL Java Database Connectivity (JDBC)

driver, provide support for only a subset of all poten-

tial symbols that may appear in a constructed SQL

statement. This section also generalizes the existing

deﬁnition of SQL-IDIAs (Cetin et al., 2019) to cap-

ture strictly more attacks.

3.1 Prepared Statement Incompleteness

In a constructed output program, all symbols fall into

exactly one of two categories; a symbol is either a

code symbol or a noncode symbol (Ray and Ligatti,

2012). Code symbols are those that deﬁne computa-

tion. In SQL, code symbols include keywords such

as SELECT, FROM, and JOIN, operators such as + and

-, and identiﬁers. Non-code symbols include closed

values (Ray and Ligatti, 2012; Ray and Ligatti, 2014),

such as string, integer, and date literals.

Prepared-statement implementations such as

MySQL JDBC appear to be complete with respect to

insertions of complete literals. The JDBC implemen-

tation includes support for replacing a placeholder

with any of the possible types of SQL literals.

However, as discussed in previous sections, only

allowing insertions of complete literals is insufﬁcient

and limits the expressiveness of programmers. Of

particular interest for the present paper is that the

JDBC implementation, and all other public DBMS

implementations of which we are aware, lack support

for deﬁning placeholders for identiﬁers and replacing

placeholders with identiﬁers. This incompleteness

enables SQL-IDIAs.

3.2 SQL-IDIAs with Identiﬁer Lists

The original deﬁnition of SQL-IDIAs presented

in (Cetin et al., 2019) was limited to applications

that concatenate a single identiﬁer into a SQL state-

ment. However, SQL does not have such a limit;

some identiﬁers may appear in a list, including the

two most popular identiﬁer types, column and table

names. Classiﬁers based on the original deﬁnition

would fail to classify such instances as SQL-IDIAs

and would instead incorrectly classify them as generic

SQLIAs.

Deﬁnition 1. An identiﬁer list consists of a sequence

of one or more identiﬁers separated by commas, with

initial and/or terminating commas also allowed.

The following items are examples of identiﬁer

lists, where ε represents the empty string.

id1

id1, id2, id3

ε, id2, id3, ε

The following items are examples of input that

would not be considered identiﬁer lists.

0, 1, id1

SELECT, ORDER BY, id1

id1, ε, id2, id3

Deﬁnition 2. An application is vulnerable to a SQL-

IDIA iff the application constructs a SQL statement S

by concatenating an untrusted input i into S and there

exists an identifer list l such that concatenating l into

S in place of i causes S to be a valid SQL statement.

Deﬁnition 2 has been generalized from (Cetin

et al., 2019) to allow for identiﬁer lists rather than

just single identiﬁers. Several vulnerable applications

enumerated in the CVE list are not instances of SQL-

IDIAs using the narrower, earlier deﬁnition but are

correctly classiﬁed as SQL-IDIAs using this paper’s

generalized deﬁnition.

A SQL-IDIA occurs when a SQL-IDIA-

vulnerable application—which would produce a valid

SQL statement by concatenating a user-input iden-

tiﬁer list into the statement—instead concatenates

an input identiﬁer list to produce an invalid SQL

statement or concatenates a non-identiﬁer list input.

Deﬁnition 3. A SQL-IDIA occurs in a SQL-IDIA-

vulnerable application iff the concatenated input i

provided dynamically either is not an identiﬁer list

or is an identiﬁer list that, when concatenated into

S, makes S an invalid SQL statement.

Large-Scale Analysis of GitHub and CVEs to Determine Prevalence of SQL Concatenations

289

$sql = " SE LE CT * FROM rec or ds ORDER BY

,→ id " . user In put ;

$stmt = $conn -> pr ep are ($sql ) ;

$stmt -> exec ut e () ;

Figure 2: A SQL-IDIA-vulnerable application expecting a

list of columns as input.

Deﬁnition 2 and Deﬁnition 3 assume for simplic-

ity that an application accepts a single input. How-

ever, both deﬁnitions can be straightforwardly gener-

alized to allow for an arbitrary number of inputs.

Figure 2 presents an application program that is

vulnerable to a column-name-based SQL-IDIA. The

intent is for users to set the sorting order by specifying

ASC or DESC. However, an identiﬁer list may be sub-

stituted instead, as described in Deﬁnition 2, resulting

in a query that orders by multiple columns. The fol-

lowing 3 examples demonstrate how this application

may be attacked.

1. An attacker may input , SLEEP(1000). This in-

put is not an identiﬁer list, but the resulting SQL

statement is valid and causes the database to sleep

for 1000 seconds, a denial of service. This exam-

ple input demonstrates that the attacker can ex-

ecute malicious code; more complex attacks are

also possible, for example, by using subqueries or

other known techniques.

2. An attacker may input , SELECT, which is also

not an identiﬁer list but in this case produces a

statically invalid SQL statement. Depending on

the environment, this attack might leak metadata

(e.g., through error messages) or deny service to

other users.

3. An attacker may input an identiﬁer list that like-

wise produces an invalid SQL statement. In this

case, the SQL statement may be invalid because

the identiﬁers are undeﬁned (e.g., specifying a

column name not present in the schema), or due to

an incorrect list size. Using the code in Figure 2,

if an attacker inputs , foo, assuming foo is not a

column deﬁned in the schema, this injection will

result in a runtime error, which again may leak

metadata or result in denial of service.

Deﬁnition 3 considers all of these examples to be

SQL-IDIAs.

Proposition (SQL-IDIA Deﬁnition Generaliza-

tion). Deﬁnition 3 strictly generalizes the deﬁnition

of SQL-IDIAs in (Cetin et al., 2019).

Proof. Consider an arbitrary application, A, that

is vulnerable to SQL-IDIAs using the deﬁnition

of (Cetin et al., 2019). By that previous deﬁnition,

A builds a SQL statement S where there exists some

user input, a single identiﬁer i, such that when A con-

catenates i into S, it makes S a valid SQL statement.

Because Deﬁnition 1 allows for an identiﬁer list to be

composed of a single identiﬁer, i must be a valid iden-

tiﬁer list as well. Therefore, A meets the requirements

of Deﬁnition 2, and any SQL-IDIA on A according

to (Cetin et al., 2019) also satisﬁes Deﬁnition 3. On

the other hand, the application in Figure 2 allows in-

jections of identiﬁer lists but not single identiﬁers, so

it exhibits SQL-IDIAs according to Deﬁnition 3 but

not according to (Cetin et al., 2019).

4 CONCATENATION ON GitHub

Over 4,762,175 ﬁles uploaded to GitHub were ana-

lyzed to investigate the prevalence of SQL concate-

nations in real code. The process starts by ﬁnding

source ﬁles to analyze by querying the GitHub API.

The identiﬁed source ﬁles are then passed to the clas-

siﬁer program, which classiﬁes instances in the source

ﬁles where concatenation is used to construct SQL

queries.

4.1 Crawling GitHub’s API

GitHub, as the largest public code hosting service

with 94 million users and 85.7 million reposito-

ries (State of the Octoverse, 2023), provides an enor-

mous set of data for analysis. GitHub grants all

authenticated users the ability to quickly search for

speciﬁc strings in source ﬁles across the uploaded

repositories, an impressive feat given the data size.

The GitHub API does limit code searches to the ﬁrst

1000 results, requiring a workaround; other limita-

tions with the API are described in Section 4.4.1.

For each target programming language (Java,

PHP, and C#), the most popular database library was

selected for analysis, and the GitHub API was used

to locate ﬁles with calls to the function in that library

that executes a SQL command. For example, the Java

Database Connectivity (JDBC) API was chosen for

Java, and the GitHub API was queried for Java ﬁles

containing the string executeQuery. The popular-

ity of each library was determined by checking the

total number of results reported by the GitHub API.

GitHub reported about 3.6 million entries for JDBC.

To overcome the API’s limit of 1000 results for a

query, the crawler program splits the data into subsets

based on ﬁle size. The API allows users to specify

the minimum and maximum ﬁle size and will only

return ﬁles that are between the speciﬁed range. By

decreasing the range width, the number of ﬁles in a

SECRYPT 2024 - 21st International Conference on Security and Cryptography

290

subset can be ﬁt into the result limit; we refer to these

subsets as “frames”.

4.2 SQL Classiﬁer

After identifying ﬁles for classiﬁcation using the

GitHub API, the classiﬁer program downloads and

analyzes the ﬁles to ﬁnd potential misuse of concate-

nation in the construction of SQL statements. The

classiﬁer sources relevant code ﬁles from GitHub and

determines the usage of prepared statements or con-

catenation in each ﬁle using a number of regular ex-

pressions. For example, the following PHP code con-

tains string interpolation in a SQL statement via the

$table variable.

$sql = " SE LE CT * FROM $table ";

As the classiﬁer is primarily focused on identify-

ing SQL statements inside a source ﬁle’s string liter-

als, the classiﬁer has been designed to support new

languages without changing the underlying classiﬁer

program. The classiﬁer has abstracted language-level

identiﬁers or symbols from the regular expressions,

allowing for these to be dynamically changed depend-

ing on the source ﬁle’s language. Some examples of

the abstracted features include identiﬁer naming re-

quirements (e.g., PHP requires variables to start with

a dollar sign) and the various concatenation symbols

used by different languages.

The classiﬁer program ﬁrst identiﬁes all instances

where the ﬁle constructs SQL code and then classiﬁes

the ﬁle into one of four categories: none, hardcoded,

string concatenation, or string interpolation. The

“none” classiﬁcation means that the ﬁle contained no

SQL statements, “hardcoded” means all SQL state-

ments were hard coded or used prepared statements,

“string concatenation” means one or more statements

were constructed using concatenation, and “string in-

terpolation” means one or more statements were con-

structed using string interpolation or concatenation.

Next, all locations in SQL statements that contain

or expect a SQL identiﬁer are classiﬁed into the same

categories, with the addition of a “string concatena-

tion list” category which represents misconstructions

based on Deﬁnition 3 (and not single identiﬁers). Any

identiﬁer types not found in the ﬁle are marked with

the “none” classiﬁcation (e.g., the ﬁle contains no

SQL that calls a stored procedure).

4.3 GitHub Results

The crawler successfully obtained a total of 4,762,175

ﬁles from GitHub. The number of ﬁles per program-

ming language is presented in Table 1. These ﬁles

Table 1: Files and projects reviewed per language.

Total Files

Unique ﬁles

containing SQL

Projects

Java 2,372,363 1,273,078 461,896

PHP 1,587,766 1,083,294 307,089

C# 802,046 526,921 175,331

Total 4,762,175 2,883,293 944,316

10 20 30 40

File Size (MB)

0.0

0.5

1.0

Percentage of Files

Java

PHP

Figure 3: Cumulative percentage of ﬁles by size.

were spread across a total of 944,316 projects on

GitHub. Not all of the ﬁles obtained were unique. By

comparing the hashes of the obtained ﬁles, duplicate

ﬁles were identiﬁed and ignored. To avoid skewing

the analysis, all of the results presented in this paper

are based on the data set of unique ﬁles containing

SQL.

No limits were placed on the maximum size of

the ﬁle that GitHub might return. The size frame was

increased until no results were returned. The cumu-

lative percentage of ﬁles by ﬁle size can be seen in

Figure 3. The largest ﬁle obtained was a one-gigabyte

Java ﬁle. However, the graph shows that the vast ma-

jority of ﬁles obtained were under 40 MB in size, with

about 95% of ﬁles appearing below 40 MB for each

language. The remaining 5% was scattered haphaz-

ardly between 40 MB and 1 GB. Thus, the graphs

presented in this paper are restricted to under 40 MB

to prevent them from being skewed by these outliers.

The classiﬁer identiﬁed that, of the unique ﬁles

that contain SQL, 144,461 (11.3%) Java ﬁles, 63,239

(5.8 %) PHP ﬁles, and 66,026 (12.5%) C# ﬁles con-

tained at least one incidence where an identiﬁer was

concatenated or interpolated during the construction

of a SQL statement. Column and table names were

the most common identiﬁers. Table 2 presents the

number of constructions for non-identiﬁer and iden-

tiﬁer locations. For each location, the constructions

are further grouped by their type, which can be hard-

coded, string concatenation, or string interpolation.

Ideally, this table would include the number of ﬁles

that use a prepared-statement implementation, how-

ever, we found that it was typical for such libraries to

be called, but not utilized (i.e., no placeholders were

Large-Scale Analysis of GitHub and CVEs to Determine Prevalence of SQL Concatenations

291

Table 2: Concatenation in SQL statements by location in unique ﬁles.

Any non-identiﬁer location Identiﬁers

Hardcoded Concatenated + Interpolated Hardcoded Concatenated + Interpolated

Java 732k 534k + 6k = 540k 1.1M 143k + 0.7k = 144k

PHP 96k 101k + 904k = 1M 1.0M 21k + 44k = 65k

C# 230k 180k + 117k = 297k 461k 47k + 19k = 66k

Total 1M 815k + 1.0M = 1.8M 2.6M 211k + 64k = 275k

Table 3: Statistics of the unique ﬁles analyzed.

% of ﬁles

with

concat.

% of ﬁles

with

identiﬁer

concat.

% of ﬁles with

concat. that

have identiﬁer

concat.

Java 42.5% 11.3% 26.7%

PHP 91.1% 5.8% 6.4%

C# 56.4% 12.5% 22.2%

Total 63.3% 9.5% 15.0%

0 10 20 30

File Size (in MB)

0.0

0.1

0.2

Files with ID concat (%)

Java

PHP

Figure 4: Percentage of unique ﬁles with SQL identiﬁer

concatenations by ﬁle size.

used and data was appended using concatenation).

Table 3 details the statistics of the unique ﬁles an-

alyzed. The classiﬁer classiﬁed 42% of Java, 91%

of PHP, and 56% of C# web-application ﬁles as con-

structing SQL statements via concatenation. It further

found that 27% of the Java, 6% of the PHP, and 22%

of the C# ﬁles that concatenate to construct SQL state-

ments concatenate identiﬁers.

Files classiﬁed as having concatenation were also

sorted by ﬁle size to determine whether there is a cor-

relation between ﬁle size and the likelihood of con-

catenation occurring. Figure 4 presents the results.

4.4 Discussion

The obtained results demonstrate that SQL identiﬁers

make up a small, but signiﬁcant, portion of all SQL

misconstructions using concatenation. While the ma-

jority of identiﬁers are hardcoded into the string, the

number of concatenated identiﬁers still presents a po-

tential risk for SQL-IDIAs. Table identiﬁers were the

most commonly concatenated, followed by column

identiﬁers.

String interpolation was almost nonexistent in

Java programs as it is not supported natively. C# and

PHP had a larger number of instances of string inter-

polation, as both languages support it natively. String

interpolation is common in PHP, with over 83% of

ﬁles utilizing it to construct their SQL statements.

PHP had the highest concatenation rate which is re-

ﬂected in the CVE analysis in Section 5, where the

majority of vulnerability reports were observed to be

WordPress applications.

There seems to be a strong correlation between the

size of ﬁles and the percentage of ﬁles that concate-

nate an identiﬁer. This is likely a result of larger code

bases serving a more complex purpose, with a larger

number of queries that must be dynamic in nature.

An additional 658 Java ﬁles and 174 C# ﬁles were

classiﬁed correctly due to the updated SQL deﬁnition

in Section 3.2 (Deﬁnition 3). All of these ﬁles con-

catenated values into a location reserved for a SQL

identiﬁer list. These ﬁles would not have been classi-

ﬁed correctly without the updated deﬁnition.

4.4.1 Limitations

The amount of ﬁles that can be obtained is limited

by the somewhat unpredictable results of the GitHub

code-search API. This behavior can be seen even us-

ing the code-search feature available on the GitHub

website. When searching for a string and viewing the

code results, GitHub will report the number of code

results at the top of the page. Refreshing the page

repeatedly will show various different numbers due

to the run time limits placed on the query. An accu-

rate estimate of the number can be obtained by taking

the maximum value seen over a long period of time,

particularly during non-peak hours. This issue is also

present when retrieving the results, but is offset by the

large amount of available data.

The use of regular expressions to identify con-

catenation may be insufﬁcient if developers construct

queries in particularly creative ways. However, given

the results of the manual analysis in Section 4.5, this

issue does not seem to be signiﬁcant in the context

of SQL-IDIAs, as developers appear to largely follow

predictable coding patterns and behaviors.

SECRYPT 2024 - 21st International Conference on Security and Cryptography

292

Table 4: Results of manual analysis of randomly sampled GitHub ﬁles.

Total

Files

True

Pos.

(T P)

False

Pos.

(FP)

True

Neg.

(T N)

False

Neg.

(FN)

FP Rate



FP+T N



FN Rate



FN+T P



Precision



T P

T P+FP



Accuracy



T P+T N

Total



Java 385 319 12 45 9 0.21 0.027 0.964 0.945

PHP 385 332 14 24 15 0.368 0.043 0.960 0.925

C# 385 290 18 69 8 0.207 0.027 0.942 0.932

Aggregate 1,155 941 44 138 32 0.242 0.033 0.955 0.934

4.5 Classiﬁer Veriﬁcation

As with all other static analyzers, the classiﬁer is nei-

ther sound nor complete, as programmers can be quite

creative in how they construct their SQL statements.

A random sampling of the data was manually veriﬁed

to determine the accuracy of the classiﬁer. Each lan-

guage was veriﬁed independently and the ideal sam-

ple size for each language subset was determined to

be 385 for a precision level of 95% using Cochran’s

formula (Woolson et al., 1986). MySQL’s RAND func-

tion was used to randomly select the ﬁles for analy-

sis. As no other classiﬁer for SQL-IDIAs exists that

would enable an automated comparison, the veriﬁca-

tion was instead performed by downloading the ﬁle,

reviewing the source code, and verifying that the con-

struction of SQL output programs in the ﬁle corre-

sponded with the ﬂagged results. For example, if the

classiﬁer reported that a ﬁle contained string interpo-

lation of a column identiﬁer, but no string interpola-

tion had occurred, this would be a false positive. The

classiﬁer exhibited a false negative when it failed to

detect concatenation in an output SQL program that

was located in the ﬁle.

While observing the accuracy of the classiﬁer, the

ﬁles were also reviewed to determine whether the ap-

plication was vulnerable to a SQL-IDIA. In order for

the application to be exploited, the concatenated value

must be sourced from user input. This was evalu-

ated separately from the classiﬁer accuracy. From this

single-ﬁle analysis, about half of the ﬁles can be de-

termined to use obfuscated, hardcoded values or em-

ploy input sanitization. The remaining ﬁles concate-

nate values that originate from other source ﬁles or

from user input in the analyzed ﬁle and thus may be

vulnerable.

Based on this analysis, the classiﬁer had an over-

all precision of 95.5% and an overall accuracy of

93.4%. False positives mostly arose due to SQL-like

statements in comments, logging, or error messages.

False negatives came from programmers constructing

or formatting their SQL output in an unusual or unpre-

dicted fashion. The results of the manual veriﬁcation

are shown in Table 4.

During analysis, we observed several programs

with comments about their inability to use identiﬁers

with prepared statements. They attempted to over-

come this limitation by escaping special characters

in the identiﬁers manually. This practice is often not

sufﬁcient for preventing injection attacks (Cetin et al.,

2019), and programmers who use prepared statements

may not be familiar with sanitization APIs.

4.6 Vulnerability Exploitation

With the classiﬁer having been veriﬁed to exhibit sat-

isfactory accuracy, we tested whether the potentially

unsafe code could really be exploited; the unsafe code

is only exploitable if the output SQL code can be ma-

nipulated by the attacker and is not dead code. That

is, the concatenated values must be derived from user

input without proper validation, and the code must be

reachable during normal execution. While both static

and dynamic tools exist to detect SQLIAs more re-

liably, these tools cannot reliably detect SQL-IDIAs;

an example of sqlmap (sqlmapproject, 2023) (an au-

tomated SQLIA detection and exploitation tool) fail-

ing to exploit a SQL-IDIA vulnerable application is

shown later in this section. To determine how many

of these identiﬁed applications may be exploitable, a

subset of the applications manually veriﬁed were in-

stalled and tested. For all repositories determined to

be exploitable, their owners were notiﬁed of the vul-

nerabilities.

The following assumptions were made: 1) all

databases/tables that are referenced in the code ex-

ist and contain at least one entry, 2) the application

code is unmodiﬁed, 3) the application runs with the

standard conﬁguration provided (if applicable), and

4) only the ﬁle chosen as part of the random analysis

is considered. Projects that did not compile or could

otherwise not be installed and exploited within two

hours were recorded as “Not Exploitable”, but these

applications may still be exploitable if these issues

were corrected or more time was allocated. Programs

were otherwise marked “Not Exploitable” if the vul-

nerable code was dead code or if the concatenated val-

ues were not derived from user input, statically com-

pared to an allow list, or dynamically veriﬁed. The

application was marked as “Exploitable” if SQL code

Large-Scale Analysis of GitHub and CVEs to Determine Prevalence of SQL Concatenations

293

Table 5: Types of applications analyzed.

Interface

Purpose

Total

Student Tutorial Other

Web 1 2 18 21

Standalone 5 2 14 21

Other 1 1 6 8

Java Total 7 5 38 50

Web 4 2 34 40

PHP Total 4 2 34 40

Web 1 0 26 27

Standalone 4 2 21 27

Other 0 1 7 8

C# Total 5 3 54 62

could be injected and malicious behavior observed.

Only web applications were considered; a vul-

nerable serverless GUI or text application has less

value because the exploited database is on the user’s

machine. The breakdown of applications by lan-

guage, interface type, and purpose is shown in Ta-

ble 5. The other interface category includes li-

braries/frameworks, client-server apps, or build sys-

tems. All PHP applications were web applications.

The purpose category differentiates applications that

were student projects or tutorials. Relevant mark-

ers for being classiﬁed as a student application in-

cluded referencing a course, grade, or rubric directly

or an assignment directory structure (e.g., a folder

named “Assignment1”). Tutorial/beginner code con-

sisted of hello-world type programs or other obvious

references (such as the repository owner being a tuto-

rial site).

A total of 152 applications were inspected for ex-

ploitation. Of the 152, 50 were Java applications,

40 were PHP applications, and 62 were C# applica-

tions. Only a small number of applications were stu-

dent projects or tutorials. All of the PHP applications

were web applications, while only 21 Java and 27 C#

projects were web applications. Of the web applica-

tions, there were a total of 20 SQL-IDIA-vulnerable

applications that were conﬁrmed to be exploitable: 4

out of 21 Java (19%), 15 out of 40 PHP (38%), and

1 out of 27 C# (4%). Only 2 of the exploitable ap-

plications were student programs (1 PHP and 1 C#);

the others all appeared to serve a more professional

purpose. A summary of the vulnerable applications

grouped by the vulnerable identiﬁer type is shown in

Table 6. Note that the total numbers will not sum

to the number of applications because an application

may include a combination of identiﬁers. Multiple in-

stances of a single type in an application were counted

once. These numbers are a lower bound, because only

the randomly-chosen ﬁle was considered; several ap-

plications were vulnerable in other ﬁles.

Table 6: SQL-IDIA-exploitable applications by Identiﬁer

Type.

Table Column

Column

(ORDER BY)

# / Total # / Total # / Total

Java 1 / 14 0 / 3 3 / 6

PHP 4 / 24 2 / 14 9 / 11

C# 0 / 14 0 / 21 1 / 5

Total 5 / 52 2 / 38 13 / 22

Column identiﬁers used in ORDER BY statements

were the most likely to be vulnerable, with 12 of

the 20 SQL-IDIA-vulnerable applications speciﬁcally

containing an ORDER BY concatenation vulnerability.

While the focus was on exploiting SQL-IDIA-

vulnerable applications, a number of other vulnerable

applications were observed during the process. A to-

tal of 25 other applications were exploitable but not

via identiﬁers (7 Java, 14 PHP, and 4 C#). This num-

ber is a very conservative minimum; since SQLIAs

were not a focus, these applications were only discov-

ered passively and because they were very obvious.

A total of 13 applications were not exploitable be-

cause the identiﬁed concatenation occurred in dead

code. The functions concatenated an argument into

a SQL output program but were not called. Most of

these functions were alternative queries sorting data

using the ORDER BY statement. For example, a fo-

rum application allowed ﬁner user sorting, but the

search interface was not yet implemented. If used

without a mitigation technique, the functions would

be exploitable. Furthermore, 2 applications exported

non-sanitizing string libraries that client applications

could use incorrectly (by assuming the libraries sani-

tize).

Combining these categories, 60 exploitable and

problematic applications were identiﬁed out of 152

(20 SQL-IDIAs, 25 other SQLIAs, 13 dead-code con-

catenations, and 2 non-sanitizing libraries).

Figure 5 demonstrates a SQL output program for

an exploitable PHP application that could not be de-

tected using sqlmap (sqlmapproject, 2023). The $c

variable is user input interpolated directly into the

output SQL program. The intended content of this

$c variable should be “users” or “crew”, querying ei-

ther the customers or employees table using the same

code. Any subquery injected into this location would

not be syntactically valid without a table alias, and

sqlmap does not include this technique in a scan. Two

other instances were not detectable using sqlmap and

were also exploited using a minor syntactic change:

the ﬁrst used a column alias, and the second modiﬁed

an INSERT statement by injecting a SELECT statement

to specify the data (instead of the VALUES keyword).

SECRYPT 2024 - 21st International Conference on Security and Cryptography

294

$sql =" SE LE CT * FROM $c WHERE .. ." ;

(a) Truncated PHP code from one of the exploited pro-

grams.

( S EL ECT SL EE P (1 00 00 ) ) as t --

(b) The malicious input; the table alias is necessary to be

syntactically valid.

Figure 5: One of the exploited applications that could not

be detected using sqlmap (sqlmapproject, 2023).

5 SQL-IDIAs IN CVEs

MITRE’s Common Vulnerabilities and Exposures

(CVE) List (MITRE Corporation, 2020) tracks pub-

licly known cybersecurity vulnerabilities. Of the

200,946 CVE entries added from 1999 to 2023,

11,766 (5.9%) were SQLIAs, making it the sixth most

prevalent vulnerability type as ranked on the CVE De-

tails site after code execution (23.1%), denial of ser-

vice (14.9%), overﬂow (11.8%), cross-site scripting

(12.9%), and information gain (6.8%) (CVE Details,

2019). In 2022, 1,789 SQLIA entries were added,

making up 7.1% of the 25,227 vulnerabilities reported

that year. This is the largest recorded number of

SQLIAs in one year, beating the previous record of

1,101 in 2008 by a large margin. It also more than

doubles the 741 reported in 2021.

To determine the prevalence of SQL-IDIAs, we

analyzed 1,775 SQLIA CVEs by hand. Note this

number slightly differs from the overall mentioned

previously, as we analyzed all CVEs published (not

reported) in 2022. Of the 1,775 SQLIAs published in

2022, 1,507 were also reported in 2022; the remain-

ing 268 were published in 2022 but reported earlier.

The publication date was chosen as it is a static set

of CVEs. More CVEs ﬁrst reported in 2022 may be

published much later, making that number unreliable.

For example, one of the vulnerabilities published in

2022 has a CVE label from 2013.

In our analysis, SQLIAs are considered SQL-

IDIAs when they satisfy Deﬁnition 3. Such a clas-

siﬁcation cannot always be made from the vulnerabil-

ity description alone as they rarely provide sufﬁcient

technical detail. To determine whether the CVE rep-

resents a SQL-IDIA, the CVE must reference source

code or a proof of concept (PoC) attack. We there-

fore excluded the 15% of 2022 SQLIA CVEs that

lacked reference source code or a PoC. If source code

is available, the classiﬁcation can be determined by

ﬁnding the injection point and reviewing the query.

5.1 SQL-IDIAs in CVEs

To demonstrate how real SQL-IDIAs have appeared

in applications and to demonstrate how they can

be classiﬁed, this subsection describes two example

SQL-IDIAs found in vulnerabilities reported to the

CVE List. To demonstrate the difference between

classifying with source code and with a PoC, the

ﬁrst example, CVE-2020-8520, contains a PoC and

the source code. The second example, CVE-2020-

9268, only references a PoC. These examples are

from 2020, and not part of the data set; the two were

part of our training set for the researcher performing

the manual analysis.

CVE-2020-8520 is for a jQuery Datatables tuto-

rial by PHPZag using PHP and MySQL. All of the

source code is available for download and described

in detail in a blog post (PHPZag Team, 2023). Three

SQLIAs against this program have been discovered

and included in the CVE list, one of which is a SQL-

IDIA. The application, uses MySQLi, a PHP exten-

sion for interfacing with MySQL databases with pre-

pared statements, but these features are not used.

The application creates a table named

live records. Line 29 of the ﬁle Records.php,

which retrieves the data stored in the live records

table based on the user’s request, contains the

following PHP code:

$sqlQue ry .=’ O RD ER BY ’ . $_POST [ ’ order

,→ ’][ ’0 ’][ ’ column ’] . ’ ’ . $_POST

,→ [ ’ order ’][ ’0 ’][ ’ dir ’] . ’ ’;

This PHP statement appends user input (via the

global variable $ POST) directly to an ORDER BY

statement. Clearly, untrusted input can be injected

into this query, and there exists an identiﬁer list

(speciﬁcally any combination of id, name, skills,

address, designation, or age) such that concate-

nating that list into the query creates a valid SQL

statement. The CVE can thus be classiﬁed as a SQL-

IDIA.

CVE-2020-9268 details a vulnerability found in

an online tool. This app, SoPlanning, provides ser-

vices for planning teamwork periods. For this exam-

ple, only the PoC attack linked directly in the CVE

is considered. An automated tool, sqlmap (sqlmap-

project, 2023), was used to discover and exploit the

vulnerability. Sqlmap is used to analyze the by GET

parameter in the following URL (which is partly in

French):

/ sop la nni ng / www / p roj et s . ph p ? or de r =

,→ n om_ cre ate ur & by = A SC

Based on the names of these parameters, it appears

that injection on the by GET parameter is a SQL-IDIA

Large-Scale Analysis of GitHub and CVEs to Determine Prevalence of SQL Concatenations

295

0 10 20 30 40

50 60

70 80 90 100

PoC Only

Source

Only

PoC and

Source

Advisory

Only

4.3

8.2

72.2

15.2

Percent of CVE entries

Figure 6: Resources available for classiﬁcation in 1775

SQLIA CVE entries from 2022.

0 10 20 30 40

50 60

70 80 90 100

Non-SQL-

IDIAs

SQL-IDIAs

ID misuse

91.4

8.6

19.0

Percent of CVE entries

Figure 7: Classiﬁed SQLIA CVE entries for 2022.

in an ORDER BY statement. In addition, the valid value

ASC appears in ORDER BY statements, and one of the

sqlmap suggestions is for an ORDER BY statement. As

ORDER BY statements must be followed by an identi-

ﬁer list, this CVE is vulnerable to a SQL-IDIA.

5.2 CVE Results

Of the 1,775 SQLIA CVEs published in 2022, 72.2%

had a PoC and source code available, 8.2% had only

the source code available, 4.3% had a PoC only, and

15.2% had only an advisory. Figure 6 shows the avail-

able references in SQLIA CVEs from 2022. Figure 7

presents the results of the 1505 classiﬁable CVEs,

classifying them as SQL-IDIAs or SQLIAs. SQL-

IDIAs make up 8.6% of classiﬁable SQLIAs and at

least 6.8% of all the SQLIA CVEs published. About

19% of those vulnerable projects constructed SQL

statements incorrectly using identiﬁers.

5.3 Discussion

Although SQL-IDIAs are not the majority of reports,

all of the other CVE SQLIAs analyzed could have

been prevented using prepared statements. In many

cases, the vulnerable application used a library pro-

viding prepared statements but did not employ them.

CVE-2020-8520, the training example described in

detail, does not take advantage of prepared state-

ments using MySQLi despite passing the query to

the prepare function that takes a parameterized SQL

statement. Thus, the reported SQLIAs that are not

SQL-IDIAs are preventable using existing technolo-

gies that are readily available.

Developers not employing readily available pre-

pared statements was a common issue across CVEs.

About 19.0% of the CVEs had source code that con-

catenated an identiﬁer elsewhere in the code (exclud-

ing the vulnerable location reported in the CVE), with

the majority using prepared statements correctly in

other locations. Vulnerabilities that were observed in

large code bases were often caused by a single miss-

ing use of prepared statements; making concatenation

poor practice by supporting SQL identiﬁers in pre-

pared statements may help reduce such occurrences.

The percentage of SQL-IDIA vulnerabilities

found in the universe of classiﬁable SQLIA vulnera-

bilities (8.6%) is less than the percentage of identiﬁer

concatenations found in the universe of GitHub SQL

concatenations (14%) as described in Section 4.3. Fu-

ture work might explore such gaps further, to try to

make statistical inferences and conclusions about how

accurately classiﬁable CVE reports represent the vul-

nerabilities present in large open-source data sets.

6 CONCLUSIONS

SQL concatenations, which form the basis for SQL

injection attacks, are prevalent in web applications.

In total, 63% of web applications analyzed contained

SQL concatenations.

SQL identiﬁer concatenations comprised approxi-

mately 15% of SQL concatenations. Given that our

automated GitHub crawler and code analyzer clas-

siﬁed approximately 275K ﬁles as containing SQL

identiﬁer concatenations, with a precision rate of

95.5%, we estimate our automated framework found

approximately 262K—over a quarter of a million—

web-application ﬁles vulnerable to SQL-IDIAs. Of

these 262K ﬁles, 62K are likely to meet all of the ad-

ditional requirements to be exploited in practice.

These results were not equally distributed across

the three analyzed languages. PHP applications were

particularly exploitable at 38% of applications but

also had the overall lowest percentage of identiﬁer

concatenations at 6%. While this is likely partially

due to the very high number of overall concatena-

tions in PHP, with 91% of ﬁles concatenating SQL

values, SQL-IDIAs are quite a concern for PHP due

to the relatively high opportunities for exploiting con-

catenations in practice. Compared to Java and C#,

we hypothesize PHP’s vulnerability is largely due to

the common use of string interpolation. However, all

SECRYPT 2024 - 21st International Conference on Security and Cryptography

296

three languages remain susceptible to SQL-IDIAs and

would beneﬁt from support for identiﬁers in prepared

statements.

Based on these analyses, we recommend that ex-

isting prepared-statement implementations expand to

cover insertions of identiﬁers. For example, previ-

ous work has described and analyzed a non-public

proof-of-concept implementation of prepared state-

ments with coverage of identiﬁers (Cetin et al., 2019).

Potential directions for future work include ex-

panding a large-scale open-source DBMS such as

MySQL to include support for identiﬁers in prepared

statements, and incorporating these additions into

front-end APIs for commonly used languages.

REFERENCES

Anley, C. (2002). Advanced SQL injection in SQL server

applications. Technical report. https://crypto.stanfor

d.edu/cs155old/cs155-spring11/papers/sql injection

.pdf.

Bandhakavi, S., Bisht, P., Madhusudan, P., and Venkatakr-

ishnan, V. N. (2007). CANDID: Preventing SQL in-

jection attacks using dynamic candidate evaluations.

In Proceedings of the ACM Conference on Computer

and Communications Security (CCS). https://doi.org/

10.1145/1315245.1315249.

Cetin, C., Goldgof, D., and Ligatti, J. (2019). SQL-

identiﬁer injection attacks. In IEEE Conference on

Communications and Network Security (CNS). https:

//doi.org/10.1109/CNS.2019.8802743.

Clarke-Salt, J. (2012). SQL Injection Attacks and Defense.

Elsevier, 2nd edition.

CVE Details (2019). Vulnerability distribution of CVE se-

curity vulnerabilities by types. https://www.cvedetails

.com/vulnerabilities-by-types.php. Retrieved October

15, 2023.

Gousios, G. and Spinellis, D. (2012). GHTorrent: GitHub’s

data from a ﬁrehose. In IEEE Working Conference on

Mining Software Repositories (MSR). https://doi.org/

10.1109/MSR.2012.6224294.

Gousios, G., Vasilescu, B., Serebrenik, A., and Zaidman,

A. (2014). Lean GHTorrent: GitHub data on demand.

In Proceedings of the Working Conference on Mining

Software Repositories (MSR). https://doi.org/10.114

5/2597073.2597126.

Grigorik, I. (2023). GH Archive. https://www.gharchive.or

g. Retrieved April 26, 2023.

Halfond, W. G. J. and Orso, A. (2005). AMNESIA: Anal-

ysis and Monitoring for NEutralizing SQL-Injection

Attacks. In Proceedings of the IEEE/ACM Interna-

tional Conference on Automated Software Engineer-

ing (ASE). https://doi.org/10.1145/1101908.1101935.

Halfond, W. G. J., Viegas, J., and Orso, A. (2006). A clas-

siﬁcation of SQL-injection attacks and countermea-

sures. In Proceedings of the IEEE international sym-

posium on secure software engineering, volume 1.

Johnson, B., Song, Y., Murphy-Hill, E., and Bowdidge, R.

(2013). Why don’t software developers use static anal-

ysis tools to ﬁnd bugs? In Proceedings of the Inter-

national Conference on Software Engineering (ICSE).

https://doi.org/10.1109/ICSE.2013.6606613.

MITRE Corporation (2020). CVE - common vulnerabili-

ties and exposures. https://cve.mitre.org/. Retrieved

October 15, 2023.

Nagy, C. and Cleve, A. (2017). A static code smell de-

tector for SQL queries embedded in Java code. In

IEEE International Working Conference on Source

Code Analysis and Manipulation (SCAM). https:

//doi.org/10.1109/SCAM.2017.19.

Open Web Application Security Project (2018). SQL injec-

tion prevention - OWASP cheat sheet series. https:

//www.owasp.org/index.php/SQL Injection Prevent

ion Cheat Sheet. Retrieved October 15, 2023.

Open Web Application Security Project (2021). OWASP

top ten – 2021. https://owasp.org/www-project-top-t

en/. Retrieved April 26, 2023.

PHPZag Team (2023). Live add edit delete datatables

records with Ajax, PHP and MySQL. https://www.

phpzag.com/live-add-edit-delete-datatables-records

-with-ajax-php-mysql/. Retrieved October 15, 2023.

Ray, D. and Ligatti, J. (2012). Deﬁning code-injection at-

tacks. In Proceedings of the ACM SIGPLAN-SIGACT

Symposium on Principles of Programming Languages

(POPL). https://doi.org/10.1145/2103656.2103678.

Ray, D. and Ligatti, J. (2014). Deﬁning injection attacks. In

Proceedings of the International Information Security

Conference. https://doi.org/10.1007/978-3-319-132

57-0 26.

Son, S., McKinley, K. S., and Shmatikov, V. (2013). Diglos-

sia: Detecting code injection attacks with precision

and efﬁciency. In Proceedings of the ACM SIGSAC

Conference on Computer & Communications Security

(CCS). https://doi.org/10.1145/2508859.2516696.

sqlmapproject (2023). sqlmap. https://github.com/sqlmapp

roject/sqlmap. Retrieved October 15, 2020.

State of the Octoverse (2023). The global developer com-

munity. https://octoverse.github.com/2022/develope

r-community. Retrieved April 26, 2023.

Woolson, R. F., Bean, J. A., and Rojas, P. B. (1986). Sample

size for case-control studies using Cochran’s statistic.

Biometrics, 42(4):927–932. https://doi.org/10.2307/

2530706.

WordPress (2023). wpdb::esc

like. https://developer.word

press.org/reference/classes/wpdb/esc like/. Retrieved

April 26, 2023.

Large-Scale Analysis of GitHub and CVEs to Determine Prevalence of SQL Concatenations

297
