Evolution of Object Detection Algorithms Utilizing Deep Learning

Haojun Chen

Faculty of Engineering, Southern University of Science and Technology, Shenzhen, China

Keywords: Object Detection, Deep Learning, Feature Extraction.

Abstract: As one of the key technologies of image processing, object detection has been widely used in autonomous

driving, urban planning and medical scenes. Since deep learning has advanced, deep learning-based object

detection technology has advanced significantly. Deep learning-based object detection has become the

mainstream algorithm in this field due to its high efficiency and accuracy. In this paper, according to the

sequence of technology development, from the data, algorithm and other aspects of summary analysis. This

paper provides an overview of datasets in the object detection domain and evaluation metrics for object

detection algorithms. The algorithms for different categories in object detection are reviewed, including an

exploration of traditional object detection algorithms, as well as the development and optimization of single

and two-stage object detection algorithms. Brief introductions are provided regarding the characteristics and

application scenarios of different algorithms. Finally, the standard performance of object detection algorithms

is compared using experimental data. Simultaneously, the core issues of object detection algorithms are

highlighted, along with a discussion on future development directions.

1 INTRODUCTION

Object detection is a core component of the visual

system in the computer field, utilized to identify and

detect objects in images, determine their categories

and locations. Object detection finds widespread

applications in fields like face recognition, pedestrian

detection, vehicle detection, etc. For example, in

specific scenarios like facial payment, identity

verification, and autonomous driving.

Object detection's primary function is how to

classify and locate variously sized and shaped objects.

Before the extensive application of deep learning,

traditional algorithms for object detection were

separated into three phases: region proposal, feature

extraction, and feature classification. Generally,

manually crafted features were employed. The

window sliding algorithm used in region proposal has

high complexity of computing, leading to the

generation of redundant data. Parameters of manually

designed extractors, like Scale Invariant Feature

Transform (SIFT) and Histogram of Oriented

Gradient (HOG) which have found extensive

applications in the fields of image processing and

computer vision used in feature extraction, are limited,

resulting in low robustness and suboptimal extraction

quality (Juan and Gwun 2013 & Wang et al 2009).

In the developmental history of object detection,

the year 2012 marked a significant turning point as

deep convolutional neural networks (DCNNs) made

groundbreaking progress when classifying images.

The effective usage of DCNNs in image classification

has been extended to object detection, leading to the

milestone Region-Based Convolutional Neural

Network (R-CNN) detector (Girshick et al 2014).

Since then, there has been a tremendous

transformation in the area of identifying objects.

Because large-scale datasets like MS COCO and GPU

processing resources are readily available, numerous

deep learning-oriented algorithms have been

developed (Lin et al 2014). Due to the capability of

neural networks to extract more robust and

semantically meaningful features with an abundance

of parameters, and the superior performance of

classifiers, object detection with deep learning has

developed into a crucial research emphasis on the

field of computer vision. It seeks to identify

interesting objects in pictures, precisely ascertain the

category of each object, and provide bounding boxes

for each target.

The second chapter of this paper will introduce

commonly used datasets and evaluation metrics in the

field of object detection. The third chapter will cover

object detection-related algorithms, encompassing

182

Chen, H.

Evolution of Object Detection Algorithms Utilizing Deep Learning.

DOI: 10.5220/0012837700004547

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 1st International Conference on Data Science and Engineering (ICDSE 2024), pages 182-188

ISBN: 978-989-758-690-3

one-stage, two-stage, and conventional object

detection algorithms. In the fourth chapter, a

comparison of data from different algorithms will be

conducted. Finally, the conclusion will summarize the

development and improvements in the field of object

detection, providing an outlook for future

developments.

2 DATASETS AND RELATED

EVALUATION INDICATORS

2.1 Datasets

Data serves as the foundation for research, and any

learning process is inseparable from the support of

data. The widespread development of deep learning is

also a result of the emergence of large-scale datasets.

Datasets play a crucial role in the training of object

detection algorithms. This paper introduces

commonly used datasets in object detection, including

PASCAL VOC and COCO datasets.

PASCAL stands for Pattern Analysis, Statistical

Modeling, and Computational Learning. Although in

recent years, object detection has predominantly used

the larger COCO dataset, PASCAL, as a pioneer,

carries substantial weight in the context of object

detection. Researchers commonly use the VOC2007

and VOC2012 datasets in their studies (He et al 2015).

VOC2007 comprises 20 categories, containing 9963

images. In contrast to the previous Caltech101 dataset,

each image in VOC often contains multiple objects,

establishing a standardized precedent. VOC2012 is an

extension of the 2007 dataset with an increased image

count of 11540.

The COCO dataset, with the full name Microsoft

Common Objects in Context, is a sizable dataset for

keypoint detection, segmentation, object detection,

and captioning. COCO comprises a total of 328,000

images, with 80 categories of target objects in object

detection. Keypoint detection involves 200,000

images with 250,000 keypoints annotated for human

figures. Image segmentation includes 91 categories.

Compared to PASCAL, COCO is suitable for more

complex scene-based object detection and performs

better in recognizing smaller targets.

2.2 Evaluation Indicators for Object

Detection

Traditional evaluation metrics for detection machines

include the miss rate and false positive rate of

windows. But for object detection algorithms that are

frequently employed in deep learning, performance

metrics include Average Precision (AP), Accuracy,

Precision, Recall Rate, Intersection Over Union (IoU),

and mean Average Precision (mAP). Accuracy

represents the proportion of correctly detected targets

in every sample. The percentage of accurately

identified positive samples among the positive

samples that were detected is known as precision.

Recall Rate describes the ratio of successfully

detected positive samples among all actual positive

samples. IoU, a statistic, quantifies overlapping

degree between the bounding box that really exists

and the bounding box that the model predicts.

3 INTRODUCTIONS TO

ALGORITHMS FOR DEEP

LEARNING BASED OBJECT

DETECTION

This paper aims to explore the development and

classification of object detection algorithms. It

discusses the change from conventional object

identification techniques to deep learning applications

in one-stage and two-stage algorithms. By conducting

a thorough analysis of the frameworks, advantages

and application scenarios of these algorithms, this

paper aims to provide insights into the evolution of

object detection technology.

3.1 Traditional Object Detection

Algorithms

Conventional object detection is divided into three

sections.: region selection, feature extraction, and

classifier. Initially, predefined regions are selected in

the given sample image. Subsequently, features are

extracted from these regions, and finally,

classification is performed using a des1ignated

classifier.

Region selection aims to find the target's location.

As the target's position and shape are uncertain,

traditional algorithms typically use a sliding window

approach to traverse the entire image (Papandreou et

al 2015). However, this generates a large number of

redundant windows, impacting the efficiency of

subsequent steps. The Selective Search algorithm

effectively generates candidate regions with high

recall, reducing the number of candidate boxes

(Uijlings et al 2013). Traditional algorithms struggle

to produce accurate candidate regions, especially in

the case of small targets and complex scenes.

Evolution of Object Detection Algorithms Utilizing Deep Learning

183

After obtaining the target's position, manually

designed extractors are utilized for the extraction of

features. Starting with SIFT, handcrafted local

invariant features have been used extensively in

various visual recognition tasks. These include Haar-

like features, SIFT, Shape Context, among others.

These local features are often aggregated through

simple cascades or feature pool encoders. However,

these methods have limitations in target feature

extraction. In general, feature extraction in traditional

object detection algorithms is time-consuming, less

robust, and the extracted quality is not consistently high.

After obtaining the features, classifiers such as

SVM and AdaBoost are commonly used to classify

the features obtained in the previous step.

3.2 One-Stage and Two-Stage

Algorithms

Based on the generation of candidate boxes, deep

learning-based object detection algorithms are

categorized into two groups: one-stage and two-stage.

Two-stage approaches utilize methods like Selective

Search and anchor-based techniques to generate

candidate boxes. The ultimate detection outcomes are

obtained based on the selected regions. This strategy

accomplishes high accuracy but has a slower

detection speed. One-stage methods directly detect

results based on the original image, resulting in faster

detection but lower accuracy.

3.2.1 One-Stage

One-stage algorithms directly process an image

through a single network to obtain detection

classification and predict bounding box boundaries,

omitting the generation of candidate boxes.

Compared to traditional algorithms and two-stage

algorithms, one-stage methods offer faster detection,

making them more suitable for practical applications

with rapid detection requirements.

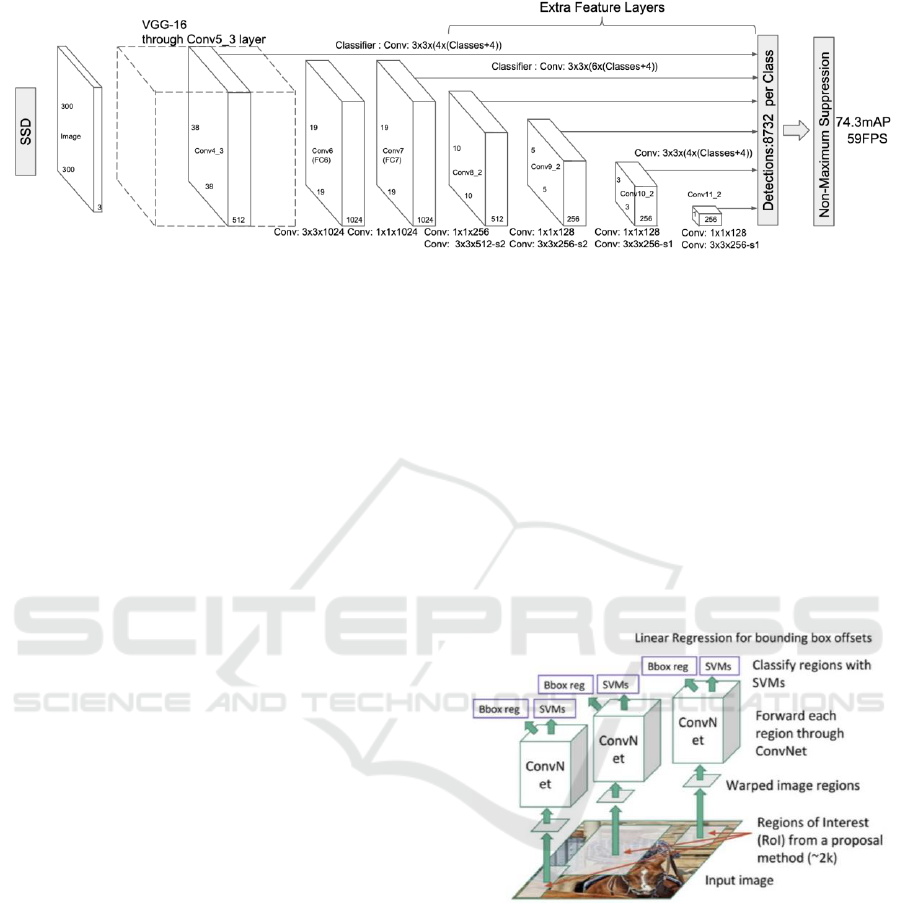

Typical one-stage algorithms comprise the SSD

series and You Only Look Once (YOLO) series

(Redmon et al 2016). The YOLO algorithm (YOLO

v1) was put out in 2016 by Redmon et al, pioneering

the approach of treating Identification of objects as a

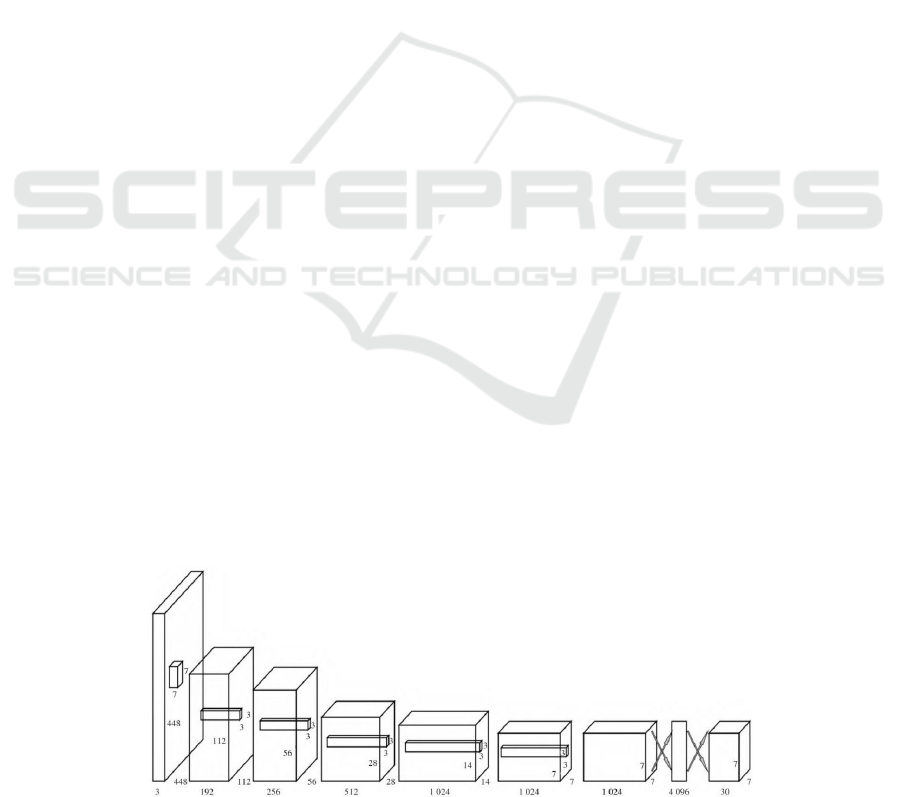

regression issue. Fig.1 depicts the algorithm's

network structure (Redmon et al 2016. It integrates

feature extraction, classification, and regression

within a single deep convolutional network, achieving

real-time detection (Redmon et al 2016). The YOLO

system generally consists of three parts:

preprocessing and resizing of the image, inputting the

processed image into a convolutional neural network,

and finally selecting detection results based on

confidence scores.

In response to this issue, Redmon and Farhadi and

others proposed subsequent improvements to the

YOLO series with YOLOv2 (Redmon and Farhadi

2017). Due to the simple network architecture of

YOLO, as of 2024, the YOLO series has iterated to

YOLOv8 through improvements in training strategies,

network structures, multi-scale detection, loss

functions, label assignment methods, and more.

The YOLO series, known for its fast and accurate

characteristics, is generally applicable to scenarios

requiring real-time detection, like video surveillance

and automatic driving.

The Single Shot Multibox Detector (SSD),

proposed by Liu, was initially designed to address the

low accuracy of YOLOv1 in detecting small targets

and its insensitivity to scale (Liu et al 2016). By

combining the idea of extracting multiple candidate

regions from Faster R-CNN as Regions of Interest

(ROI) with a regression approach, SSD effectively

seeks a compromise between one-stage object

detection algorithms’ speed and accuracy (Ren et al

2018). Moreover, In Fig. 2 (Liu et al 2016), the model

diagram of SSD reveals the incorporation of multiple

convolutional layers in its network structure to

acquire feature maps of distinct scales, addressing the

issue of scale insensitivity. Shallow maps with

features are used for tiny targets, while deep feature

maps are employed for large targets.

Figure 1. YOLOv1.

ICDSE 2024 - International Conference on Data Science and Engineering

184

Figure 2. Detection models for SSD.

However, in the detection process of SSD, the

detection boxes may repeatedly detect the same target,

increasing computational load. Additionally, the

representation capability of shallow feature maps is

not sufficiently strong. To address the mentioned

issues in the SSD algorithm, optimizations have been

proposed. Jeong et al. introduced the RSSD algorithm

(Jeong et al 2017), which replaces the backbone

network of VGGNet with ResNet, resulting in an

improvement in detection speed. Fu et al. proposed

the DSSD algorithm (Fu et al 2017), based on the

ResNet101 network architecture. DSSD incorporates

residual modules before classification and regression

and adds deconvolutional layers after the auxiliary

convolutional layers in SSD to enhance precision of

detection for tiny targets. Li et al. drew inspiration

from the Feature Pyramid Network (FPN) and

proposed the FSSD algorithm (Li and Zhou 2017).

FSSD concatenates feature maps from several layers

at various scales, creating a new feature pyramid that

is fed back to the multi-box detector for prediction.

FSSD demonstrates significant performance

improvement compared to SSD, even with a slight

decrease in speed.

3.2.2 Two-Stage

To address the issue of low accuracy in traditional

object detection algorithms when dealing with large

amounts of data or features, algorithms for object

detection based on deep learning have been

introduced into the field of object detection. First,

two-stage object detection techniques produce

category-agnostic candidate boxes on input images to

obtain initial proposed regions. Then, based on these

proposed regions, a second localization is performed

to determine the detection position. Detection

classification is subsequently carried out based on the

detected position. This approach enhances detection

accuracy and is appropriate for highly accurate

detection requirements.

Typical two-step algorithms for detection consist of

R-CNN series, Spatial Pyramid Pooling Network

(SPP-Net), R FCN, FPN, etc. R-CNN is the earliest

object detection algorithm that used selective search to

generate candidate boxes, introducing the concept of

Region of Interest (ROI). Fig. 3 illustrates the

fundamental structure of R-CNN (Girshick et al 2014).

It generates candidate boxes in the image using

selective search, scales all candidate boxes to a uniform

size. Then applies them to a deep convolutional neural

network in order to extract features. Finally employs a

support vector machine for classification based on the

extracted feature vectors.

Figure 3. R-CNN.

However, due to the two-stage training required

for each candidate box, the detection efficiency is

reduced, leading to slower operation speeds.

Therefore, The R-CNN-based SPP-Net was proposed

by He. With SPP-Net, not all candidate boxes need to

be fed into the neural network; instead, pooling

networks are used to extract features only once.

Similarly, Girshick et al. inherited R-CNN and

adopted the characteristics of SPP-Net (Girshick et al

2015). Based on the method of extracting candidate

regions, they modified the network to produce dual-

layer outputs, proposing Fast R-CNN (Girshick et al

Evolution of Object Detection Algorithms Utilizing Deep Learning

185

2015). Both methods involve feeding the image into

the network only once, effectively improving training

efficiency. It is worth noting that the previous

algorithms' testing time did not include the time taken

for selective search. In practice, a significant portion

of testing time is allocated to selective search. To

optimize the efficiency of this stage and address the

computational intensity issues with the use of

selective search in Fast R-CNN and SPP-Net, Ren

introduced the Faster R-CNN algorithm. Building

upon the architecture of Fast R-CNN, they added a

Region Proposal Network that uses anchors at

different scales in order to replace selective search,

further enhancing the training speed of the network.

The development of deep learning has exposed the

issue of repeated calculations for each Faster R-

CNN's ROI, leading to a continuous increase in

computational load. Dai discovered that after ROI

pooling, the network's layers lose their translational

invariance. This means addressing the issue that

changes in the image do not alter the image properties,

allowing for weight sharing. Furthermore, the

quantity of layers after ROI pooling directly impacts

detection efficiency. Therefore, they proposed the

Region-based Fully Convolutional Network (RFCN)

(Dai et al 2019). This approach addresses the issue by

utilizing position-sensitive score maps.

4 ALGORITHM PERFORMANCE

EVALUATION AND

COMPARISON

Performance metrics in object detection primarily

consist of mAP, AP, recall, accuracy, and precision.

mAP involves first calculating the AP for every single

class, and after that computing the average of these

AP values. mAP is the primary performance metric

used in object detection algorithms. Below is a

performance comparison of different algorithms on

various datasets (in this paper, algorithms using the

VOC dataset are assumed to be tested on VOC2007

unless otherwise specified).

Table 1. Comparison of algorithms for object detection (Zhao et al 2020 & Cai 2023).

Algorithm

Backbone Network

Databases

Detection

Speed/(frame/s)

mAP/%

R-CNN

AlexNet

ILSVRC 2012+VOC 2007

0.03

58.5%

R-CNN

VGG-16

ILSVRC 2012+VOC 2007

0.5

66.0%

SPP-Net

ZF-5

ImagNet2012

59.2%

Fast R-CNN

VGG-16

VOC2007+VOC2012

70.0%

Faster R-CNN

ResNet101

VOC2007+VOC2012

76.4%

Faster R-CNN

VGG-16

VOC2007+VOC2012

73.2%

MaskR-CNN

ResNet101

MSCOCO

4.8

33.1%

R-FCN

ResNet101

VOC2007+VOC2012

5.8

79.5%

YOLOv1

VGG-16

VOC2007+VOC2012

66.4%

YOLOv2

DarkNet-19

VOC2007+VOC2012

78.6%

YOLOv3

DarkNet-53

MSCOCO

33.0%

YOLOv4

CSP-DarkNet53

MSCOCO

43.5%

YOLOx

Focus+DarkNet-53

MSCOCO

57.8

51.2%

FPN

ResNet-50

MSCOCO

5.8

35.8%

SSD321

ResNet101

VOC2007+VOC2012

11.2

77.1%

SSD513

ResNet101

VOC2007+VOC2012

6.8

80.6%

RSSD300

VGG-16

VOC2007+VOC2012

78.5%

RSSD512

VGG-16

VOC2007+VOC2012

16.6

80.8%

DSSD321

ResNet101

VOC2007+VOC2012

9.5

78.6%

DSSD513

ResNet101

VOC2007+VOC2012

5.5

81.5%

FSSD300

VGG-16

VOC2007+VOC2012

65.8

78.8%

FSSD513

VGG-16

VOC2007+VOC2012

35.7

80.9%

5 CONCLUSION

One essential component of computer vision is object

detection. This paper provides a comprehensive

review of object detection algorithms, including

traditional detection methods, one-stage YOLO series

algorithms, SSD series algorithms, and two-stage R-

CNN series algorithms. Throughout the development

of object detection algorithms, researchers

ICDSE 2024 - International Conference on Data Science and Engineering

186

continuously optimize algorithms by improving

network architectures, enhancing original data, and

optimizing loss functions, leading to significant

improvements in both accuracy and speed. With deep

learning's ongoing advancement, the application

scope of object detection is becoming increasingly

widespread.

As algorithms for object detection grounded in

deep learning continue to develop and be applied, the

domain of object detection has made significant

progress. However, numerous challenges remain

unresolved, including the detection of tiny objects,

insufficient robustness, and model architecture

optimization.

Small object detection is a critical aspect of object

detection, as realistic scenes from the real world

involve detecting objects of different scales,

especially small objects. Due to the small size,

indistinct features, and low contrast of small objects,

accurately detecting small targets becomes

challenging. Therefore, one of the key future

approaches is to further optimize small object

detection by using attention processes, multi-scale

detection methods, and feature enhancement

techniques.

In real-world scenarios, real images are prone to

occlusion, blurring, changes in lighting, noise, and

other external variations that can hinder effective

object detection. Addressing how to make models

more adaptable to specific real-world scenarios is a

significant challenge. Therefore, continually

improving model performance through methods like

incorporating contextual information, selective

parameter sharing, and complementary feature fusion

is crucial to adapt to specific scene-based object

detection requirements.

The underlying network architecture is the

foundation of object detection algorithms, and

optimizing the network architecture has always been

an important area of study for object detection.

Currently, the selection of network architectures has

some randomness, displaying different performances

for different detection tasks. Therefore, enhancing the

processing efficiency of network architectures is an

important future direction.

There has been considerable research on 3D

object detection, but most algorithms are not yet

mature. Conducting precise 3D object detection using

high-precision LiDAR point clouds is expensive and

sensitive to weather conditions. Therefore, how to

elevate 2D images to 3D for detection has become a

research direction. One approach is to address this

problem by using methods such as inverse perspective

mapping (IPM) and orthogonal feature transformation

(OFT) to convert perspective images into bird's-eye

views (BEV). Another approach involves obtaining

relationships through overall size and inter-keypoint

size.

REFERENCES

L. Juan and O. Gwun, "A comparison of SIFT, PCA-SIFT,

and SURF," in International Journal of Image

Processing (IJIP), vol. 3, no. 4, 2013, pp. 143-152.

X. Y. Wang, T. X. Han, and S. C. Yan, "An HOG-LBP

human detector with partial occlusion handling," in

Proceedings of the 12th IEEE International

Conference on Computer Vision, Kyoto, Japan: IEEE,

2009）, pp. 32-39.

R. Girshick, J. Donahue, T. Darrell, J. Malik, "Rich Feature

Hierarchies for Accurate Object Detection and

Semantic Segmentation," in Proceedings of 2014

IEEE Conference on Computer Vision and Pattern

Recognition (CVPR), Columbus, OH, USA: IEEE,

2014, pp. 580-587.

T. Y. Lin, M. Maire, S. Belongie, J. Hays, P. Perona, D.

Ramanan, et al. "Microsoft COCO: Common Objects

in Context," in Computer Vision–ECCV 2014: 13th

European Conference, Zurich, Switzerland,

September 6-12, 2014, Proceedings, Part V 13, pp.

740-755.

K. M. He, X. Y. Zhang, S. Q. Ren, J. Sun, "Spatial Pyramid

Pooling in Deep Convolutional Networks for Visual

Recognition," in IEEE Transactions on Pattern

Analysis and Machine Intelligence (2015, 37(9)), pp.

1904-1916.

G. Papandreou, I. Kokkinos, P.-A. Savalle, "Modeling

Local and Global Deformations in Deep Learning:

Epitomic Convolution, Multiple Instance Learning,

and Sliding Window Detection," in Proceedings of

the IEEE conference on computer vision and pattern

recognition (2015), pp. 390-399.

J. R. R. Uijlings, K. E. A. van de Sande, Gevers T,

Smeulders A. W. M., "Selective Search for Object

Recognition," in International Journal of Computer

Vision (2013, 104(2)), pp. 154-171.

J. Redmon, S. Divvala, R. Girshick, A. Farhadi, "You Only

Look Once: Unified, Real-Time Object Detection," in

Proceedings of 2016 IEEE Conference on Computer

Vision and Pattern Recognition (CVPR), Las Vegas,

NV, USA: IEEE, 2016, pp. 779-788.

J. Redmon, A. Farhadi, "YOLO9000: Better, Faster,

Stronger," in Proceedings of 2017 IEEE Conference

on Computer Vision and Pattern Recognition

(CVPR), Honolulu, HI, USA: IEEE, 2017, pp. 6517-

6525.

W. Liu, D. Anguelov, D. Erhan, C. Szegedy, S. Reed, C. Y.

Fu, A. C. Berg, "SSD: Single Shot MultiBox

Detector," in Proceedings of the 14th European

Conference on Computer Vision (ECCV),

Amsterdam: Springer, 2016, pp. 21-37.

Evolution of Object Detection Algorithms Utilizing Deep Learning

187

Mengye Ren, et al., "Meta-learning for Semi-Supervised

Few-Shot Classification," arXiv preprint

arXiv:1803.00676 (2018).

J. Jeong, H. Park, N. Kwak, "Enhancement of SSD by

Concatenating Feature Maps for Object Detection,"

arXiv preprint arXiv:1705.09587 (2017).

C. Y. Fu, W. Liu, A. Ranga, A. Tyagi, A. C. Berg, "DSSD:

Deconvolutional Single Shot Detector," arXiv

preprint arXiv:1701.06659 (2017).

Z. Li, F. Zhou, "FSSD: Feature Fusion Single Shot

Multibox Detector," arXiv preprint

arXiv:1712.00960 (2017).

R. Girshick, F. Iandola, T. Darrell, J. Malik, "Deformable

Part Models are Convolutional Neural Networks," in

Proceedings of 2015 IEEE Conference on Computer

Vision and Pattern Recognition (CVPR), Boston,

MA, USA: IEEE, 2015, pp. 437-446.

J. Dai, Y. Li, K. M. He, J. Sun, "R-FCN: Object Detection

via Region-based Fully Convolutional Networks,"

[Online]. Available:

https://arxiv.org/pdf/1605.06409.pdf. Accessed on

June 20, 2019.

Y. Q. Zhao, Y. Rao, S. P. Dong, J. Y. Zhang, "Survey on

Deep Learning Object Detection," in Journal of

Image and Graphics (2020, 25(4)), pp. 629-654.

C. Jialei Cai, "A Review of Deep Learning-based Target

Detection Algorithms and Applications," in Network

Security Technology and Applications (2023, 11), pp.

41-45.

ICDSE 2024 - International Conference on Data Science and Engineering

188
