UNet and Transformers: Deep Learning Based Methods for Medical
Image Segmentation
Zhirui Ren
Department of Mechanical Engineering, Rensselaer Polytechnic Institute, Troy, NY, United States of America
Keywords: Image Segmentation, Deep Learning, Transformer, Convolutional Neural Network, Medical Image.
Abstract: As a vital sub-part of medical image analysis and processing, image segmentation is a time-consuming and
heavily experienced task when performed manually. With the revolutionary development of artificial
intelligence (AI), intended to utilize the high efficiency and reliability of computerized information processing
to address the problem of increasingly large quantities of medical images waiting to be processed, deep
learning-based methods for segmentation tasks have become popular. Convolutional Neural Networks
(CNNs) are an old leader in the computer vision community, but as transformer models have obtained
excellent results in the field of natural language processing (NLP), increasing researchers have begun to
explore whether they can also bring significant breakthroughs for image processing. In this review, some
evaluation metrics are first to be introduced. Subsequently, the introduction of the core ATTENTION
mechanism of transformers and three selected models with their performance follows. Through the survey,
using the mature UNet method alone, good accuracy can be achieved, and if combined with the superiority
of transformers’ global context capture ability, even better results can be obtained. Dedicated to promoting
the birth of a generalized image model with high accuracy, this article is provided for researchers’ reference.
1 INTRODUCTION
Coming from a variety of sources including magnetic
resonance imaging (MRI), computed tomography
(CT), ultrasound imaging (UI), positron emission
tomography (PET), and X-ray imaging, medical
images are crucial for medical care (Liu et al. 2021)
these images can assist health care and provide access
to disease diagnosis and surgical guidance, they are
mainly studied by experts with visual interpretation
and these procedures consume time and the outcomes
are subjectively generated depending on personal
experience (Patil & Deore 2013). As the first step of
image analysis, segmentation of the region of interest,
which could be abnormal tissues, tumors, and organs,
often leads the way for upcoming applications such
as the study of anatomical structure, localization of
pathology, and treatment planning (Patil & Deore
2013). The quality of the segmentation usually
influences the diagnosis, and sometimes trivial
differences matter. Segmenting images is a critical
step in medical analysis. With the progress achieved
in computer-aided techniques, automatic image
segmentation methods, including the ones of
thresholding, region growth, clustering, edge
detection, and model-based, have become a research
hotspot (Ramesh et al. 2018). Among them, deep
learning-based methods with their powerful end-to-
end functionality of processing complex as well as
multivarious data and providing the target results, are
the most studied and developed.
In the last era of the imaging process,
Convolutional Neural Networks (CNNs) has an
unshakeable status. The convolution operator, which
functions locally and offers translational
equivariance, is the mainstay of CNNs (Shamshad et
al. 2023). Even though these qualities aid in the
development of effective medical imaging solutions,
the local receptive field in convolution operation
restricts the ability to capture long-range pixel
associations, and the stationary weights of the
convolutional filters are not adjusted for variable
input images (Shamshad et al. 2023). Witnessing how
transformers have dominated the field of natural
language processing (NLP), researchers then started
to push the development and implementation of
transformers trying to introduce the strong point of
their ability to capture context relationships in the
medical image segmentation field.
Ren, Z.
UNet and Transformers: Deep Learning Based Methods for Medical Image Segmentation.
DOI: 10.5220/0012838300004547
Paper published under CC license (CC BY-NC-ND 4.0)
In Proceedings of the 1st International Conference on Data Science and Engineering (ICDSE 2024), pages 547-551
ISBN: 978-989-758-690-3
Proceedings Copyright © 2024 by SCITEPRESS – Science and Technology Publications, Lda.
547

In this paper, UNet and transformers variants are
focused on. In section 2, some well-used evaluation
metrics for image segmentation tasks are first to be
introduced. Then comes the reviews of several
popular deep-learning models and their performance
in experiments. Section 3 concludes the paper.
2 DEEP LEARNING-BASED
METHODS
2.1 Segmentation Evaluation Metrics
To determine how well an algorithm performs on the
task, certain evaluation metrics are to be introduced.
For medical image segmentation, the outcomes
produced by the algorithm are compared with the
doctors’ manually annotated masks (known as
Ground Truth, GT) by implementing mainly two
methods. Both methods concern the intersection of
the predicted and ground truth segmentations.
Dice coefficient (Dice similarity coefficient): DC
(or DSC) calculated the ratio of twice the intersection
of the two segmentations divided by the sum of their
areas. Given two sets A and B, the metric is defined
as: Dice (A, B) =
2∗|𝐴∩𝐵|
|
𝐴
|
+|𝐵|
(Dosovitskiy et al. 2020).
DSC is also calculated as: DSC =
2𝑇𝑃
𝐹𝑃+2𝑇𝑃+𝐹𝑁
,
where True Positive (TP), False Positive (FP), and
False Negative (FN) denote true positive, false
positive and false negative respectively.
Jaccard index (Intersection over Union-IOU): The
Jaccard index is similar to the Dice coefficient. It
calculates the ratio of the intersection to the union of
the two segmentations.
Given two sets A and B, the metric is defined as:
Jaccard (A, B) =
|𝐴⋂𝐵|
|𝐴⋃𝐵|
(Dosovitskiy et al. 2020)
Both metrics range from 0 to 1, with 1 indicates a
perfect match and 0 stands for poor segmentation.
Hausdorff Distance (HD): HD is a measure of
dissimilarity between two sets. It calculates the
maximum distance between corresponding points in
two sets considering both the precision (how well the
segmented outputs match the ground truth) and the
recall (how well the ground truth is covered by the
outputs). A smaller HD indicates a higher quality and
accuracy of the algorithm.
2.2 Deep Learning
As a branch of machine learning (ML) and artificial
intelligence (AI), deep learning, along with its learning
capabilities from data, has become a hot topic in
various areas (Sarker 2021). In a neural network, the
neuron is the smallest unit which can be viewed as a
small information processor. In certain ways, the
combination of several neurons forms a layer of neural
network. With the employment of transformations and
graph technologies, multi-layer learning models are
built, and hence deep learning emerges (Alzubaidi et
al. 2021). The emergence of neural networks opens the
door for end-to-end methods dealing with problems in
many fields, including medical image segmentation
(Liu et al. 2021).
2.3 UNet
UNet has walked into a relatively popular spot in
medical image segmentation ever since it was
introduced by Ronnenberger et al in 2015
(Ronneberger et al. 2015). It is an efficient Fully
Convolutional Network(FCN) based DL network.
Many variants of UNet have also come out showing
its unshakable position in the field. As shown in
Figure 1, this model comprises a symmetric encoder-
decoder architecture resembling a U-shape with skip-
connections in between. On the left side is a
contracting path consisting of several repeated
applications of 3x3 convolutions, a rectified linear
unit(ReLU), and a 2x2 max pooling operation
(Ronneberger et al. 2015). And for the right side, a
similar expansive path exists performing the
upsampling process.

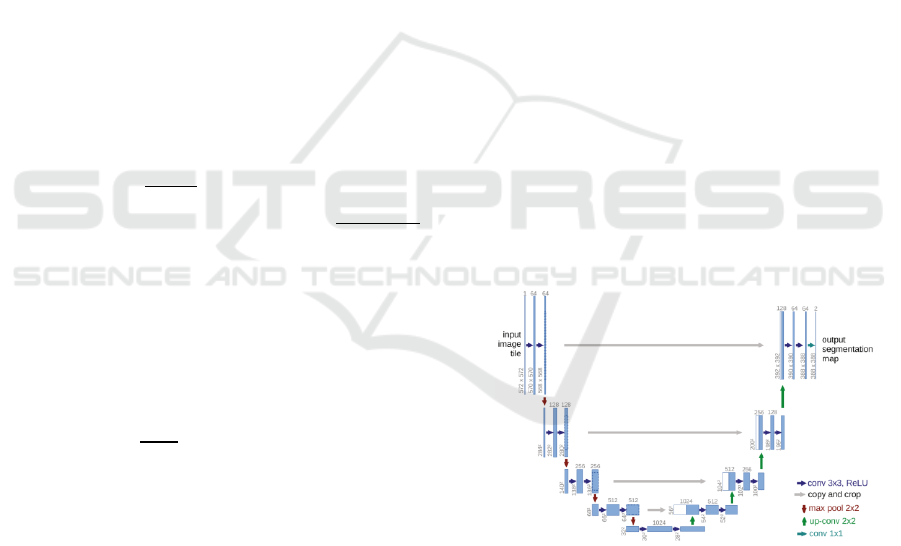

Figure 1. The architecture of UNet (Ronneberger et al.
2015).
Back in 2015, UNet achieved an average IOU of
92% on the segmentation task on the “PhC-U373”
dataset which was remarkably better than the
algorithm in the second place with 83% (Ronneberger
et al. 2015). Enlightened by UNet, many other
derivative models have also got outstanding results
with metrics over 80% on various medical image
segmentation data sets (Ghosh et al. 2021, Dong et al.
2017, Alali & Ali 2022).
ICDSE 2024 - International Conference on Data Science and Engineering
548

Considering the low resolution of the expected
outing images and the locality property of the FCN-
based methods, researchers lay their eyes on
transformers seeking the ability to manage long-range
dependencies of the feature maps (Thisanke et al.
2023).
2.4 Attention Mechanism
As the core of transformers, the attention mechanism
is to be introduced first. This idea was initially
brought out by Bahdanau et al. for language
translation (Bahdanau et al. 2015). Then comes the
breaking-through concept of Self-attention (Vaswani
et al. 2017). The basic idea of self-attention is to
compute the weighted sum of the values, where the
weight is related to the queries and keys. To better
capture hierarchical features, multi-head self-
attention is introduced, and it is realized by
concatenating the outputs calculated by attention
(Vaswani et al. 2017).
2.5 Vision Transformers
Besides the success of NLP, transformers have also
revolutionized the field of computer vision and
brought significant advancements in tasks such as
image classification, object detection, and of course,
image recognition (Dosovitskiy et al. 2020, Carion et
al. 2020, Liu et al. 2021).
2.6 Swin Transformer
Swin Transformer is a transformer-based architecture
designed to understand image sciences, including
semantic segmentation. It was proposed by Liu et al.
in 2021 (Liu et al. 2021). As seen in Figure 2, instead
of processing the entire image at once, Swin
Transformer divides the image into non-overlapping
patches and employs multi-head self-attention
mechanisms to capture the global context information
from these patches. This architecture also uses a
“shifted window” mechanism (see Figure 2(b), SW-
MAS stands for shifted windown-based multi-head
self-attention) which allows information to flow
across different stages and enhance modeling power
(Liu et al. 2021).
2.7 Swin-UNet
Proposed by Cao et al. in 2021, Swin-UNet is a
combination of Swin Transformer and UNet (Cao et
al. 2021). It is designed for semantic segmentation
tasks involving assigning pixel-level labels to
different regions or objects within an image. As
shown in Figure 3, this model employs a U-shape
architecture with skip connections, while compared to
a traditional UNet model, the convolutional layers are
replaced with Swin Transformer blocks (shown in
Figure 2 (b)). In this way, Swin-UNet combines the
strengths of the two architectures. By adopting the
patch-based processing strategy from Swin
Transformer, it is allowed to handle large-scale
images efficiently in global context. And leveraging
the skip connections helps to refine the predictions at
different resolutions.
In the experiments performed on the Synapse
multi-organ segmentation dataset (Synapse), Swin-
UNet achieved the highest average Dice-Similarity
coefficient (DSC) of 79.13 as well as the lowest
average Hausdorff Distance(HD) of 21.55,
outperforming other state-of-the-art models like
UNetreaching 76.85 for DSC and 39.7 for HD, Att-
UNet with DSC of 77.77 and HD of 36.02 and
TransUNET with DSC of 77.48 and HD of 31.69
(Ronneberger et al. 2015, (Cao et al. 2021, Oktay et
al. 2018, Chen et al. 2021).

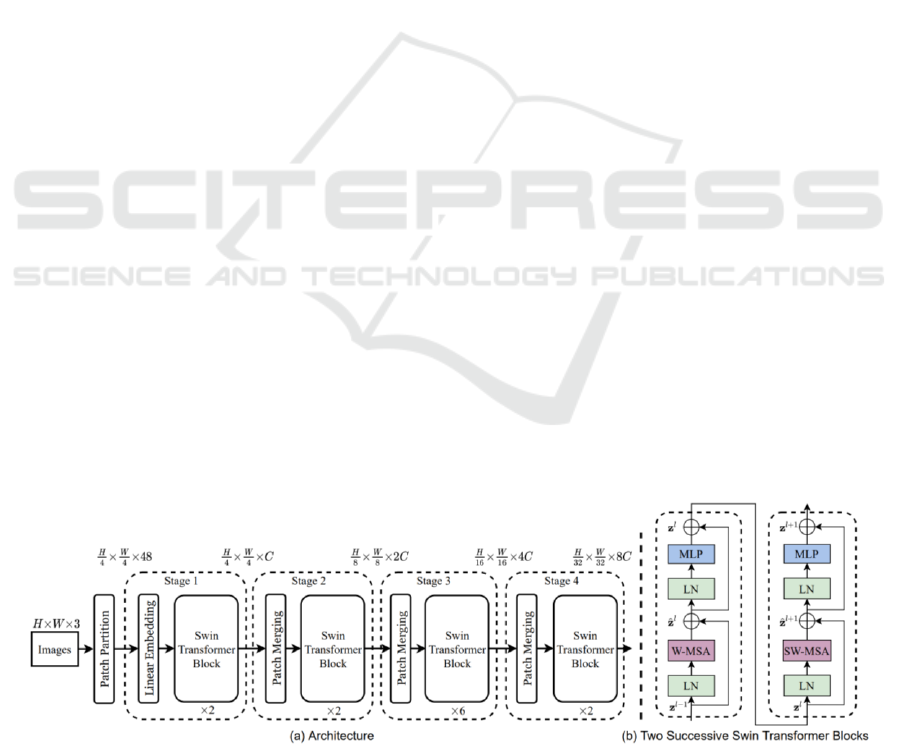

Figure 2: The framework of (a) a Swin Transformer and (b) its core blocks (Liu et al. 2021).
UNet and Transformers: Deep Learning Based Methods for Medical Image Segmentation
549

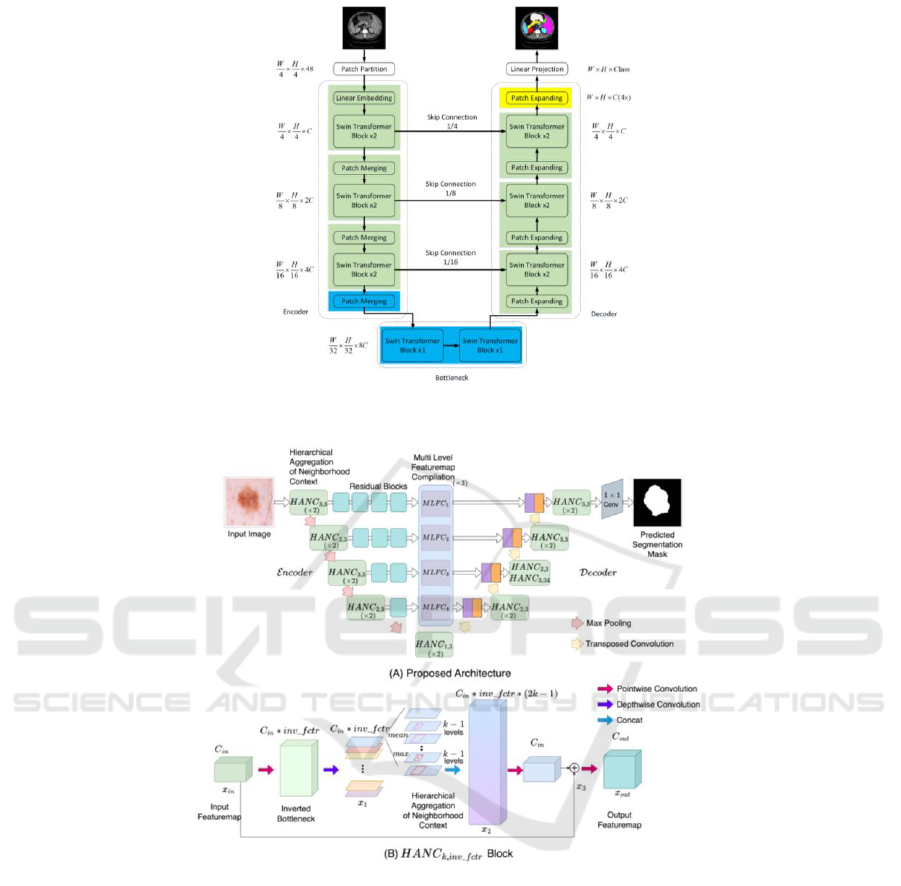

Figure 3: The Architecture of Swin-UNet (Cao et al. 2021).
Figure 4: The Framework of (A) Acc-UNet and (B) its Core Block (Ibtehaz & Kihara 2023).
2.8 ACC-UNet
ACC-UNet is a recent extension of the UNet
architecture and was proposed by Ibtehaz and Kihara
in 2023 (Ibtehaz & Kihara 2023). As shown in Figure
4, it is a UNET-like model and proposed with
designed convolutional blocks emulating self-
attention mechanism (HANC block) and performing
multi-level feature combination (MLFC block) by the
authors motivated and inspired by transformer-based
UNet models (Ibtehaz & Kihara 2023). Therefore,
without integrating transformers into the architecture,
ACC-UNet is still able to capture long-range
dependencies and refine the feature representations as
well as enhances the spatial resolution as completely
convolutional UNet.
Performing segmentation tasks on several medical
image datasets, ACC-UNet obtained all the best Dice
scores and outperformed the others including UNet
and Swin-UNet, though slightly. But notably, ACC-
UNet uses only 59.26% number of Swin-UNet’s
parameters (Ronneberger et al. 2015, Cao et al. 2021).
3 CONCLUSION
Whether it is the time-honored UNet, the Swin-UNet
that incorporates the popular transformer models, or
ICDSE 2024 - International Conference on Data Science and Engineering
550

the fully convolutional model that mimics the
transformers, all these state-of-the-art models have
obtained notable results in medical image
segmentation. UNet, as an established solution, along
with its variants, can obtain accurate and robust
results on several tasks after training. Transformer-
based models, which are good at capturing long-range
dependencies and processing large-scale images with
high efficiency, are more suitable for tasks requiring
considering contextual information over a large
spatial extent, such as organ segmentation, pathology
localization, vascular segmentation, and other tasks.
The more innovative models that utilize FCN to
realize the advantages of transformers can also reduce
the number of required parameters while considering
the advantages, which is also a promising point of
view. It is also a matter of choosing the right model
for different tasks, taking into account data and
hardware constraints. On the other hand, the
experimental data presented in the papers show that
the accuracy of the model is usually around 80% to
90%, which is not enough in the medical field that
requires strict matching. Some special cases are
difficult to overcome, such as pancreas image
segmentation, which achieves relatively poor results
compared to the others. Focusing on the models like
Chat-GPT that are now revolutionizing the field of
NLP, or even many parts of human life, it hope that
one day a generalized medical image segmentation
model that can be widely used in real applications will
also be available and revolutionize the medical field.
REFERENCES
A. Dosovitskiy, L. Beyer, A. Kolesnikov, et al, arXiv
(Cornell University), (2020).
A. Vaswani, N. Shazeer, N. Parmar, et al, arXiv (Cornell
University), 30, 5998–6008, (2017).
A. Z. Alali, K. H. Ali, Diyala Journal of Engineering
Science, 17–29, (2022).
D. Bahdanau, K. Cho, Y. Bengio, arXiv (Cornell
University), (2015).
D. Patil, S. G. Deore, IJCSMC, (2013).
F. Shamshad, S. Khan, S. W. Zamir, et al, Medical Image
Analysis, 88, 102802, (2023).
H. Cao, Y. Wang, J. Chen, et al, arXiv (Cornell University),
(2021).
H. Dong, G. Yang, F. Liu, et al, arXiv (Cornell University),
(2017).
H. Thisanke, C. Deshan, K. Chamith, et al, Engineering
Applications of Artificial Intelligence, 126, 106669,
(2023).
I. H. Sarker, SN Computer Science, 2(6), (2021).
J. Chen, Y. Lu, Q. Yu, et al, arXiv (Cornell University),
(2021).
K. Ramesh, G. Kumar, K. Swapna, et al, EAI Endorsed
Transactions on Pervasive Health and Technology,
(2018).
L. Alzubaidi, J. Zhang, A. J. Humaidi, et al, Journal of Big
Data, 8(1), (2021).
N. Carion, F. Massa, G. Synnaeve, et al, arXiv (Cornell
University), (2020).
N. Ibtehaz, D. Kihara, arXiv (Cornell University), (2023).
O. Oktay, J. Schlemper, L. L. Folgoc, et al, arXiv (Cornell
University), (2018).
O. Ronneberger, P. Fischer, T. Brox, In Lecture Notes in
Computer Science (pp. 234–241), (2015).
S. Ghosh, A. Chaki, K. C. Santosh, Physical and
Engineering Sciences in Medicine, 44(3), 703–712,
(2021).
X. Liu, L. Song, S. Liu, et al, Sustainability, 13(3), 1224,
(2021).
Z. Liu, Y. Lin, Y. Cao, et al, 2021 IEEE/CVF International
Conference on Computer Vision (ICCV), (2021).
UNet and Transformers: Deep Learning Based Methods for Medical Image Segmentation
551
