Open-Source Post-Quantum Encryptor: Design, Implementation and

Deployment

Petr Tuma

1 a

, Jan Hajny

1 b

, Petr Muzikant

2 c

, Jan Havlin

1 d

, Lukas Malina

1 e

Patrik Dobias

1 f

and Jan Willemson

2 g

Faculty of Electrical Engineering and Communication, Brno University of Technology, Brno, Czech Republic

Cybernetica, Tartu, Estonia

Keywords:

Cryptography, Key Establishment, Post-Quantum Cryptography, Security, Quantum Key Distribution (QKD),

Network Encryption.

Abstract:

This article describes an open-source quantum-resistant network trafﬁc encryptor for the Linux platform. Our

encryptor uses a combination of quantum and post-quantum key establishment methods to achieve quantum re-

sistance combined with a fast encryption speed of AES to make quantum-resistant encryption readily available

to the public. The packet-by-packet encryption architecture ensures that every bit of information is properly

authenticated and encrypted. The combination of multiple key sources further increases the encryptor’s secu-

rity – be it elliptic curve-based (Elliptic Curve Difﬁe Hellman, ECDH), quantum (Quantum Key Distribution,

QKD) or post-quantum (CRYSTALS-Kyber). Without knowing all the keys obtained from different types of

key sources, the ﬁnal hybrid encryption key can only be obtained by brute-force means. Our contribution is

very practical as the encryptor has reasonable performance, despite not being part of the Linux kernel.

1 INTRODUCTION

There are two ways to achieve quantum-safe key es-

tablishment to build a secure communication chan-

nel. The ﬁrst approach is using Quantum Key Dis-

tribution (QKD) that requires usually expensive end

devices and provides only key establishment between

two end points. The second approach is deploying

more ﬂexible post-quantum cryptography (PQC) that

enables a quantum-resistant key establishment, offers

algorithms for digital signatures, and is simple to de-

ploy on general computing platforms.

The aim of this work is to support the expansion

of the usage of quantum-resistant cryptography by a

wider public and small and medium-sized companies.

https://orcid.org/0009-0009-8458-9361

https://orcid.org/0000-0003-2831-1073

https://orcid.org/0009-0008-7439-9508

https://orcid.org/0009-0009-8025-9701

https://orcid.org/0000-0002-7208-2514

https://orcid.org/0000-0002-7321-7003

https://orcid.org/0000-0002-6290-2099

2 STATE OF THE ART

Commonly used security protocols for trafﬁc encryp-

tion nowadays use either integer factorization or dis-

crete logarithm problems to establish encryption keys

for fast symmetric ciphers. For example, a secure

connection to a web page uses the SSL/TLS protocol,

which usually utilizes RSA for authentication, Difﬁe-

Helmann key exchange, and AES for the actual pay-

load encryption. The mentioned algorithms have sev-

eral variants, and the resulting cipher suites are agreed

upon between the communicating end nodes in the

handshake stage of the protocol.

Similar methods are also used for other secure

channel establishment protocols, including Virtual

Private Networks (VPN), such as IPSec (Frankel and

Krishnan, 2011), OpenVPN

or WireGuard

2.1 Quantum-Resistant Encryption

Solutions

There have already been a few quantum-resistant

encryptors released on the market, including varia-

https://openvpn.net/

https://www.wireguard.com/

826

Tuma, P., Hajny, J., Muzikant, P., Havlin, J., Malina, L., Dobias, P. and Willemson, J.

Open-Source Post-Quantum Encryptor: Design, Implementation and Deployment.

DOI: 10.5220/0012839200003767

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 21st International Conference on Security and Cryptography (SECRYPT 2024), pages 826-831

ISBN: 978-989-758-709-2; ISSN: 2184-7711

tions of OpenVPN and WireGuard. The OpenVPN

variant uses Frodo or SIKE algorithms for key ex-

change. Both of these algorithms were submitted to

the NIST’s Post-Quantum Cryptography Standardiza-

tion project, but none of them were chosen for stan-

dardization, and SIKE was even found to be inse-

cure. PQ-WireGuard uses a combination of two Key

Encapsulation Mechanisms (KEM), namely Classic

McEliece and a passively secure variant of Saber.

Generally, post-quantum VPN software and hard-

ware solutions are also offered by security ven-

dors, e.g., QuantumNova’s QS-P Network

, or Ex-

pressVPN‘s Lightway

. The system called FSP3000

ConnectGuard

claims to be the ﬁrst in the world (as

of July 2021) to provide the Layer 1 encryption for

high-speed optical networks (up to 400 Gbit/s) with

post-quantum cryptography support. Further, the Rib-

bon’s Apollo solution

also provides the layer 1 op-

tical encryption with AES-256-GCM and the paral-

lel operation of a post-quantum cryptography key ex-

change mechanism similar to the Difﬁe-Hellman pro-

tocol. Nevertheless, closer speciﬁcations of those en-

cryptors are usually not public.

2.2 Related Work

Currently, several research works deal with PQC de-

ployment in VPN and security protocols. For exam-

ple, in 2019 van Heesch et al. (van Heesch et al.,

2019) described how OpenVPN and OpenSSL can

be conﬁgured to establish quantum-safe connections,

and provided the performance analysis of PQC KEMs

and signatures on OpenVPN in TLS 1.2 and TLS

1.3. In 2022, Bae et al. (Bae et al., 2022) deliv-

ered state-of-the-art performance evaluation results of

PQC algorithms in the IPsec protocol, namely, in the

strongswan library implementation. They showed the

trade-offs between the security level and performance

of PQC algorithms in the IPsec protocol. In 2022,

Marrok et al. (Marrok et al., 2022) presented a hybrid

cryptography approach to integrate post-quantum se-

curity into VPN protocols. Their approach utilizes the

Kyber KEM in combination with the WireGuard VPN

protocol.

Recently, Cano Aguilera et al. (Aguilera et al.,

2023) introduced a quantum resilient secure end-to-

end communication solution based on PQC algo-

rithms between two data-processing units (DPU) em-

ploying on-board ARM processors in 2023. They

used CRYSTALS-Kyber (Avanzi et al., 2019) for

https://quantumnova.xyz/itsolutions/offer/pqvpn

https://www.expressvpn.com/lightway

https://www.adva.com/

https://ribboncommunications.com/

KEM, CRYSTALS-Dilithium (Ducas et al., 2018) for

signing, and AES-256 for encryption. While they

used DPUs on servers for the acceleration of PQC

schemes, they did not investigate a hybrid approach.

Another relevant work published by Schatz et al.

(Schatz et al., 2023) in 2023 dealt with combin-

ing orthogonal methods for quantum-resistant key ex-

changes, i.e., PQC, quantum key distribution (QKD)

and multipath key reinforcement (MKR) in IKE pro-

tocols. They presented mainly the design of the

IKE proxy concept for virtual private networks in the

quantum era and concrete steps for key combining.

However practical implementation and performance

results were not provided.

2.3 Contribution

In this article, we describe our open-source imple-

mentation of a site-to-site quantum-resistant network

trafﬁc encryption system for Linux platforms. Our

system uses both quantum and post-quantum cryp-

tography algorithms, which are currently chosen for

standardization by NIST

, as a quantum-resistant key

establishment. Established keys are combined into

a hybrid key, which provides another layer of secu-

rity: Without the knowledge of each component, the

attacker is unable to calculate the hybrid key. The

payload itself is encrypted with the AES symmetric

algorithm for faster encryption speed. The main con-

tribution of the paper is the fast open-source imple-

mentation of the encryptor including the PQC and

QKD methods, and practical evaluation of the result-

ing software in real networks. Our implementation is

very simple to deploy and freely accessible at (Tuma

and Havlin, 2024). By sharing our implementation

and this paper, we follow the main objective, which

is the support of PQC deployment and integration in

practice.

3 PROPOSED ARCHITECTURE

In this section, we present the cryptographic architec-

ture of our site-to-site encryption system, that is de-

picted in Fig. 1 as Encryption Gateways. We also de-

scribe our design goals and selection of cryptographic

primitives.

3.1 Design Goals

During the creation of the cryptographic architecture,

we considered the following main design goals:

https://csrc.nist.gov/projects/post-quantum-cryptogr

aphy/post-quantum-cryptography-standardization

Open-Source Post-Quantum Encryptor: Design, Implementation and Deployment

827

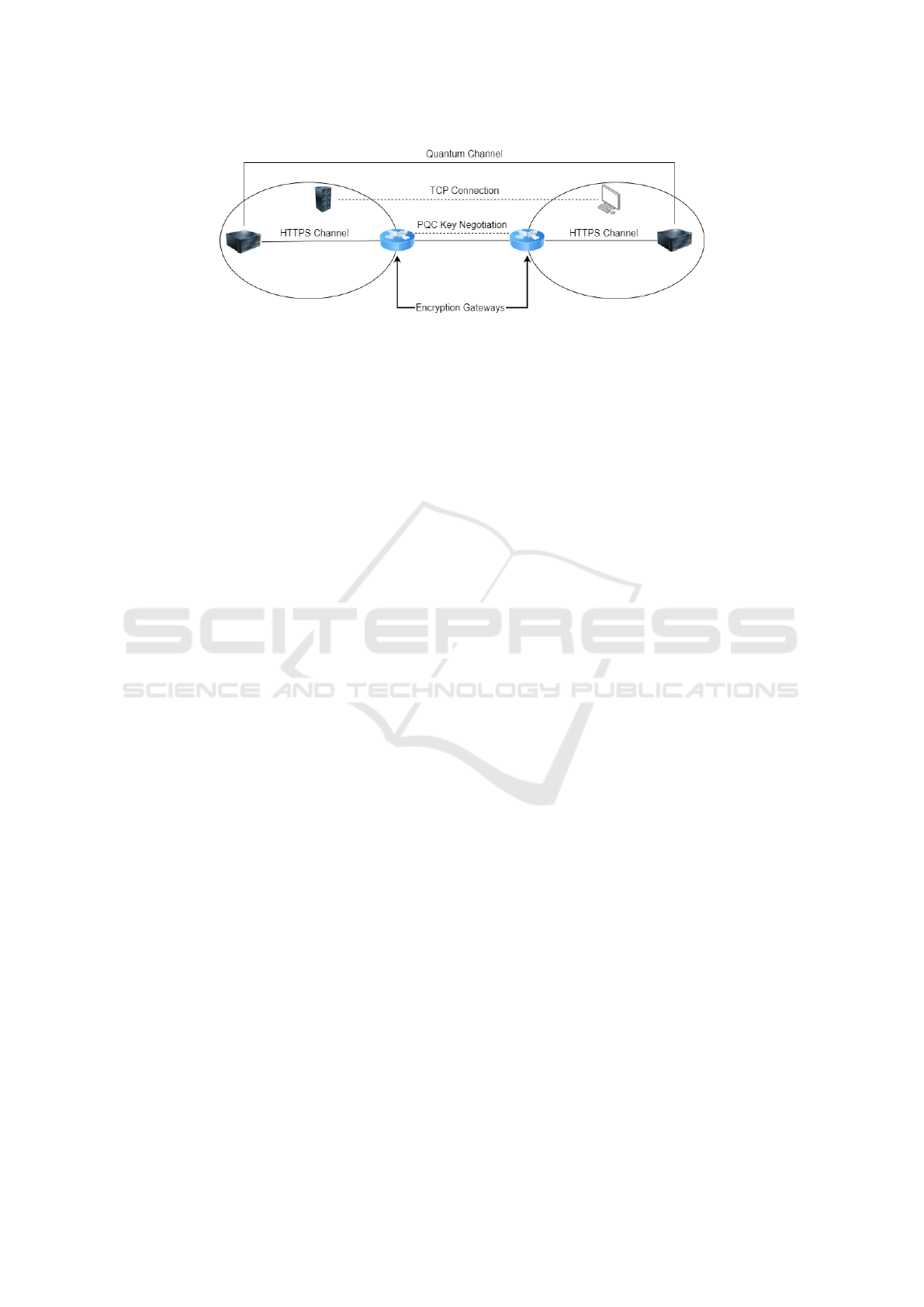

Figure 1: General Architecture.

• Post-Quantum Security: Our approach com-

bines quantum-resistant schemes mitigating the

risk of quantum attacks. Moreover, we deployed

only cryptographic primitives that have no known

vulnerabilities and are considered secure for the

medium-term future. Our encryptor achieves

IND-CCA security against quantum adversaries.

• Compliance: Only primitives that comply with

the recommendations of renowned authorities are

used in our implementation.

• Cryptographic Flexibility: Cryptographic ﬂexi-

bility means easy and fast replacement of crypto-

graphic components in case any weaknesses arise.

Should an algorithm become vulnerable, it must

be easy to replace without affecting the remaining

components in the resulting system.

3.2 Selected Primitives

We list all the necessary components of the hybrid key

establishment system. Our system is composed of:

• Quantum Key Distribution (QKD) Key

Source: Our system is compatible with any QKD

system that can provide keys in JSON format

through its API using the ETSI GS QKD 014

standard (ETSI, 2019).

• Classical Cryptography Key Source: Key

source can be used along with other key sources or

used instead of a QKD key source to remove the

dependency on expensive hardware – this makes

the encryptor a more viable solution from a mar-

ket point of view. Elliptic-Curve Difﬁe Hellman

was selected as it represents the current standard

for key establishment. Our encryptor uses a 512-

bit implementation of the sect571k1 curve.

• PQC Key Source: CRYSTALS-Kyber (Avanzi

et al., 2019) was selected as the post-quantum

source of keys. CRYSTALS-Kyber is currently

the only key establishment mechanism approved

for standardization by the NIST PQC competi-

tion. The system uses the Kyber-768 implemen-

tation, which aims to be as secure as AES-192.

Key sizes are 1184 bytes for the public key and

2400 bytes for the secret key. Our system estab-

lishes two shared secrets via CRYSTALS-Kyber,

which are then used in encryption and decryption

key derivation. Encryptor currently lacks a quan-

tum resistant authentication mechanism as public

keys are not backed by certiﬁcation authorities or

chain of trust. One way to mitigate the possibility

of man-in-the-middle attacks is to use long-term

pre-shared public keys.

• Symmetric Block Cipher: We use the Ad-

vanced Encryption Standard (AES) algorithm in

the Galois-Counter Mode (GCM) which provides

both conﬁdentiality and integrity of transferred

data. The 256-bit variant is considered quantum

safe (Bonnetain et al., 2019).

• Key Management System: the Key Management

System (KMS) provides the logic for the deriva-

tion and updating of encryption and decryption

keys. Data encrypted with AES-GCM-256 should

be encrypted using a unique combination of the

{nonce, key} pair. This property is achieved with

periodic key updates.

3.3 Practical Implementation

The implementation of our system is divided into

server and client sides of communication. The im-

plementation can be divided into four components.

• Key Establishment: The system establishes

three keys – one with QKD, one with ECDH,

and one with PQC. The QKD key is obtained

through REST APIs from QKD servers. Every

key from the QKD source comes with an ID to

ensure that both sides receive the same key. The

client sends GET request to QKD-Alice to ob-

tain the key and key ID, which is transferred to

the server. The server sends POST request with

the key ID to QKD-Bob, and receives the same

key as the client. The classical asymmetric key

SECRYPT 2024 - 21st International Conference on Security and Cryptography

828

is obtained by ECDH-512 key exchange on the

sect571k1 curve. The PQC key is obtained with

CRYSTALS Kyber-768 key encapsulation mech-

anism. The client generates public and private

keys. The public key is sent to the server. The

server generates a 256-bit secret, encrypts it with

the client’s public key, and sends the encrypted se-

cret to the client. The client decrypts the message

with the private key, resulting in both parties ob-

taining the same key. The library used for CRYS-

TALS Kyber can be found at (Roy, 2023).

• Key Combining: The established keys are com-

bined into one hybrid key. The key combina-

tion ensures that even with the compromised in-

put key, an attacker is still unable to decrypt the

communication between the endpoints. The com-

biner uses the 512-bit version of SHA3 as the

hash function (SHA3) and as the basic compo-

nent in the HMAC function. The combiner takes

the established keys from the partial key establish-

ment methods (K

from Kyber, K

from ECDH,

from QKD) and publicly known values trans-

ferred during these methods as inputs. The chosen

3-key combiner method is described in Ricci et

al. (Ricci et al., 2024) that compared the beneﬁts

and drawbacks of eleven combiner methods from

simple XOR and PRF approaches to more robust

nested PRF approaches. The brief comparison of

various key combiners and their security robust-

ness can be also found in (Rossi, 2023). The com-

biner is based on the extension of the dual-PRF

combiner to work with three keys as inputs. This

is the simplest known construction to work with

three keys as inputs that is secure in the quan-

tum standard model and is indistinguishable under

Chosen-Ciphertext Attack (IND-CCA). The full

description, comparison, and security analysis of

the 3-key combiner method can be found in (Ricci

et al., 2024).

• Packet Encryption: Our system utilizes virtual

interfaces to intercept packets for secure trans-

fer. Packets are encrypted with the AES-GCM-

256 algorithm utilizing the hybrid key described

above. AES-GCM-256 uses 16-byte long nonce

value and 16-byte long message authentication.

Every packet is encrypted individually and trans-

ferred through a public network in a tunneling

fashion. Encrypted packets are transferred using

the UDP protocol between the gateways. The en-

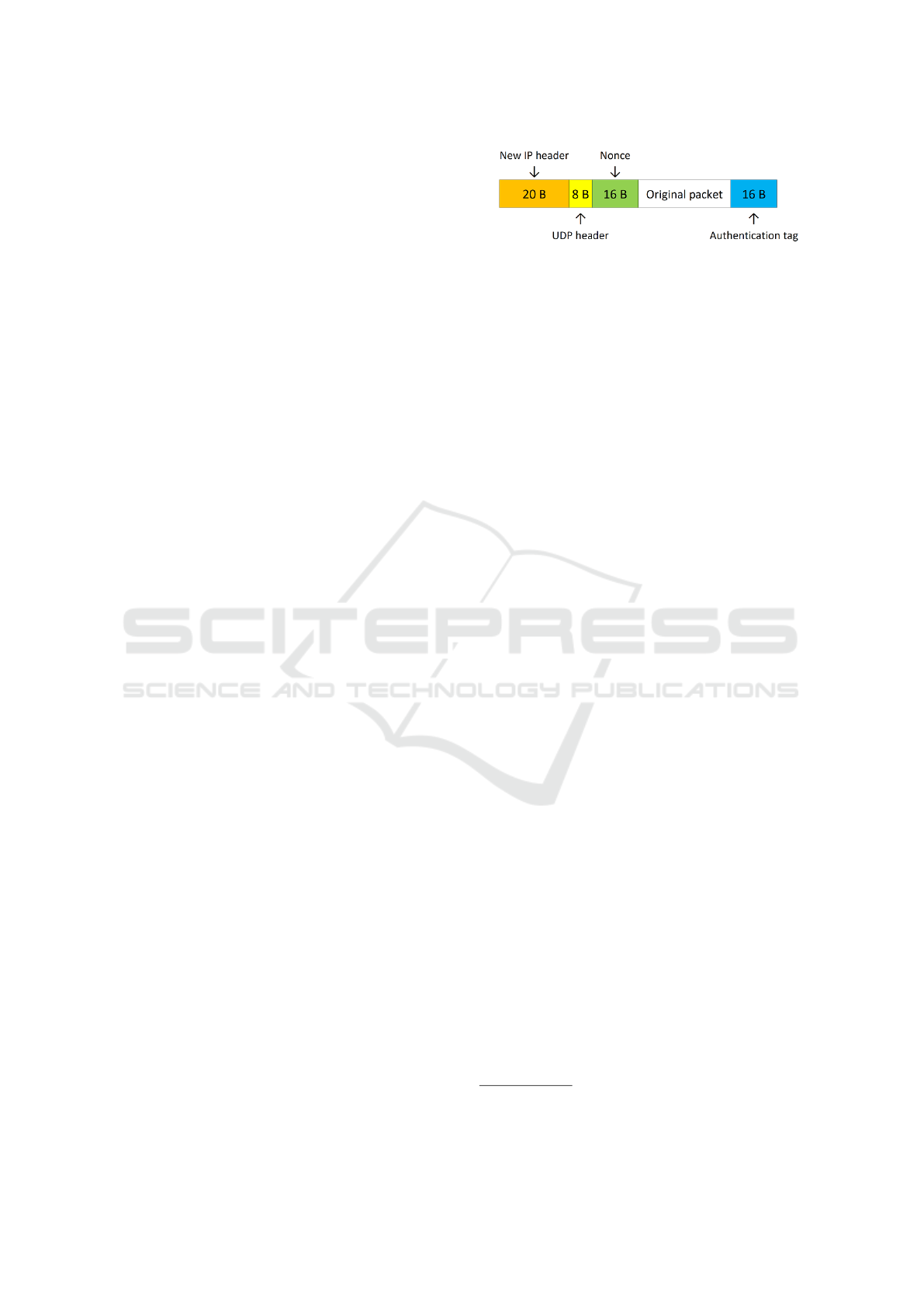

crypted packet structure is depicted in Figure 2.

AES-GCM was implemented with the Crypto++

library found at (Wei, 2023).

• KMS – Rekey: Due to the properties of AES-

GCM, the same combination of key and nonce

Figure 2: Encrypted packet structure.

cannot be used for encryption indeﬁnitely. Be-

cause of this, our system implements a rekeying

mechanism. Rekeying obtains a new key from the

QKD system and combines it with the PQC key,

which results in a new hybrid key to be used for

encryption. AES-GCM can encrypt a maximum

of 2

messages before rekeying. Considering the

packet size of 1500 bytes and encryption speed

of 1 Gbps, the encryptor needs to change the key

at least once approximately every 14 hours

. The

rekeying mechanism is by default triggered every

hour.

3.4 System Architecture

Our system architecture deploys software implemen-

tations of a client and a server (labeled as trust zones).

Encryptor implementation uses two network inter-

faces. The ﬁrst interface is used for communication

between encryptor parts and encrypted data trans-

fer. The second interface provides a connection to

the internal network and source of quantum-generated

keys. The connection between the QKD points uses

its own optical connection. Key-generation blocks

(Kyber and QKD) generate independent 256-bit keys,

which are then forwarded to the key combiner. The

key combiner combines the keys and outputs the 256-

bit hybrid encryption and decryption keys. Keys are

used by AES for data encryption.

4 PERFORMANCE

This section presents the measured performance re-

sults such as throughput, delay, and the inﬂuence of

rekeying.

• Throughput is one of the main properties of ev-

ery encryption system. Our system was tested in

a virtualized environment to eliminate transfer de-

lays between the communicating parties as much

as possible. The whole architecture was virtual-

ized using VirtualBox

and Intel Core i7 1065G7

Ice Lake processor. The testing scenario was site-

1500 · 8 · 2

/10

/3600 ≈ 14.31h

https://www.virtualbox.org/

Open-Source Post-Quantum Encryptor: Design, Implementation and Deployment

829

to-site with 2 gateways and 2 clients. The gate-

ways were given 2 threads each, and the clients

were given 1 thread each. Throughput was mea-

sured with iperf3

over the course of 30 minutes,

and compared with other popular encryption solu-

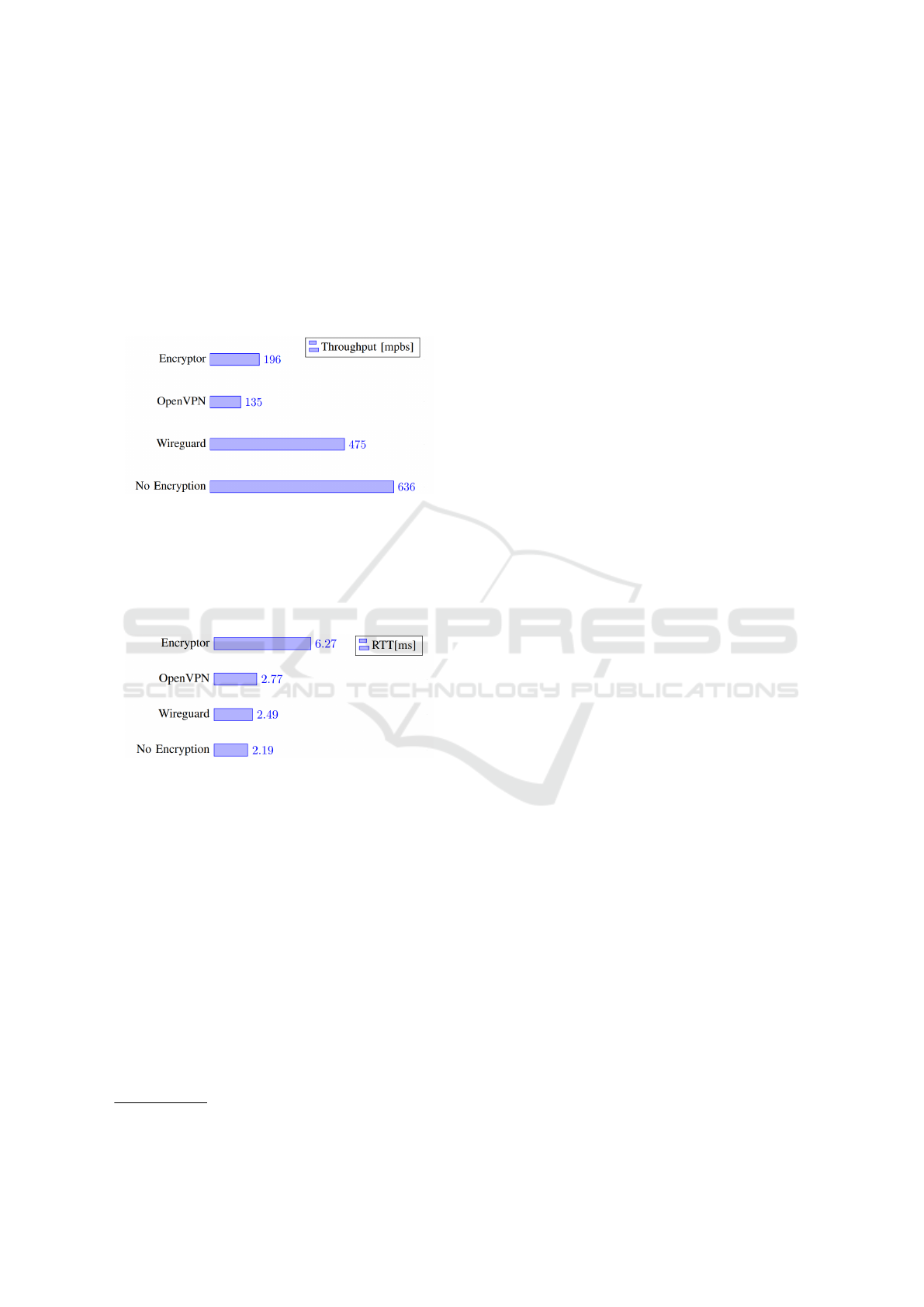

tions. The results can be seen in Figure 3. The en-

cryptor performed better than OpenVPN, which is

limited to running on one thread only, but still was

no match for Wireguard and its low-level compo-

nent implementation within the Linux kernel.

Figure 3: Throughput measurement.

• Round-Trip Time (RTT) is the time from signal

transmission until receiving the response. Figure

4 displays a comparison between the solutions;

the presented values are averages of 15 consec-

utive pings.

Figure 4: Round-trip time measurement.

Our encryptor has a signiﬁcantly greater RTT

compared to other solutions. This is caused by

the encryptor scalability logic – the main program

thread creates encryption threads upon data re-

ceipt, which is a source of increased RTT.

• Rekeying: The encryptor changes encryption

keys regularly, which causes packets sent during

this process to fail the integrity check due to a key

mismatch.

5 CZECH-ESTONIAN PILOT

To evaluate the software in a real deployment, we se-

lected geographically distant areas (Czech Republic

and Estonia) and established a quantum-safe commu-

https://iperf.fr/

nication channel between them. The challenges of

selecting distant locations are a higher delay and a

much higher probability of packet reordering, which

both may cause signiﬁcant problems in data transmis-

sion, in particular of voice and live video. We selected

Nextcloud Talk, an open-source live collaboration so-

lution, as the application to test a high-volume trans-

mission.

5.1 Architecture and Setup

We began with conﬁguring virtual machines (4 virtual

CPU, 4 GB of RAM and 40 GB of disk space) on both

sides with connectivity to target pilot participants. Af-

terwards, the Post-Quantum Encryptor repository was

cloned on both virtual machines and the software was

installed using available scripts setting the other net-

work’s address spaces as an argument. Then, we have

established an additional networking route rule at the

Nextcloud Server as well as the participants’ comput-

ers. Without it, the devices would try to send packets

(targeted to the other network) to the default gateways

which would not know what to do with them. Next,

we have lowered the Maximum Transmission Unit

(MTU) value on the Nextcloud Server, participant’s

computers, and the TUNTAP interfaces on both vir-

tual machines to ensure the transfer of the encrypted

packets (with additional header) over the internet.

5.2 Demonstration and Performance

In order to demonstrate the functionality of the en-

cryptor, we have conducted both a voice call and

a video call between two participants using the

NextCloud Talk feature. Both test instances were sta-

ble and without any voice or video stutters.

The key establishment described in section 3.3

(excluding QKD keys) took on average 213.1 ms with

a standard deviation of 5.4 ms on one machine, and

163.2 ms with a standard deviation of 2.1 ms on the

other machine. Differences between machines are

most probably caused by having access to different

CPU models.

Round Trip Time between two machines (using

an ICMP echo and reply) averaged at 48.3 ms with a

standard deviation of 0.6 ms.

6 FUTURE EXTENSIONS

In this section, we list potential future extensions:

• Kernel Module: The system could be imple-

mented as a kernel module to eliminate switching

SECRYPT 2024 - 21st International Conference on Security and Cryptography

830

between the user and kernel spaces, thus increas-

ing the throughput of the ﬁle transfer.

• Authentication Improvement: Authentication of

the encryptor sides is not currently quantum re-

sistant if pre-shared PQC keys are not used. This

extension would add a certiﬁcation authority and

certiﬁcates with PQC elements for authentication

to mitigate the potential man-in-the-middle at-

tacks by a quantum adversary.

• Hardware Acceleration: The software may

be adapted to be compatible with hardware-

accelerated solution described in (Ricci et al.,

2024).

7 CONCLUSION

In this article, we introduced an open-source

quantum-resistant encryption system for real-time

data transfer that can be used in site-to-site settings.

The system utilizes a combination of several differ-

ent quantum-resistant key-establishment methods to

add extra layers of security. The software can be used

as a low-cost demonstrator and experimental tool for

testing PQC. This could also be used for system

demonstration to companies seeking high throughput

before purchasing high-speed solutions like FPGA-

accelerated solutions. Therefore, it serves as a tool to

raise awareness and support of post-quantum cryptog-

raphy deployment and integration to existing systems.

The implementation of the proposed system is freely

accessible at (Tuma and Havlin, 2024).

ACKNOWLEDGEMENTS

Funded by the European Union under Grant Agree-

ment No. 101087529. Views and opinions expressed

are however those of the author(s) only and do not

necessarily reﬂect those of the European Union or Eu-

ropean Research Executive Agency. Neither the Eu-

ropean Union nor the granting authority can be held

responsible for them.

This work is supported by the Ministry of the Inte-

rior of the Czech Republic under Grant VJ01010008.

REFERENCES

Aguilera, A. C., Clemente, X. A. i., Lawo, D., Monroy, I. T.,

and Olmos, J. V. (2023). First end-to-end pqc pro-

tected dpu-to-dpu communications. Electronics Let-

ters, 59(17):e12901.

Avanzi, R., Bos, J., Ducas, L., Kiltz, E., Lepoint, T., Lyuba-

shevsky, V., Schanck, J. M., Schwabe, P., Seiler, G.,

and Stehl

e, D. (2019). Crystals-kyber algorithm spec-

iﬁcations and supporting documentation. NIST PQC

Round, 2(4):1–43.

Bae, S., Chang, Y., Park, H., Kim, M., and Shin, Y. (2022).

A performance evaluation of ipsec with post-quantum

cryptography. In International Conference on In-

formation Security and Cryptology, pages 249–266.

Springer.

Bonnetain, X., Naya-Plasencia, M., and Schrottenloher, A.

(2019). Quantum security analysis of aes. IACR

Transactions on Symmetric Cryptology, 2019(2):55–

93.

Ducas, L., Kiltz, E., Lepoint, T., Lyubashevsky, V.,

Schwabe, P., Seiler, G., and Stehl

e, D. (2018).

Crystals-dilithium: A lattice-based digital signature

scheme. IACR Transactions on Cryptographic Hard-

ware and Embedded Systems, pages 238–268.

ETSI (2019). Etsi gs qkd 014: Quantum key distribution

(qkd) protocol and data format of rest-based key de-

livery api. https://www.etsi.org/deliver/etsi gs/QKD/

001 099/014/01.01.01 60/gs qkd014v010101p.pdf.

Frankel, S. and Krishnan, S. (2011). Ip security (ipsec) and

internet key exchange (ike) document roadmap. Tech-

nical report.

Marrok, A., Boukhelef, S., and Chikouche, N. (2022). Pqh-

wireguard: Post-quantum hybrid cryptography-based

wireguard vpn protocol. In International Conference

on Information Technology and Applications, pages

283–292. Springer.

Ricci, S., Dobias, P., Malina, L., Hajny, J., and Jedlicka, P.

(2024). Hybrid keys in practice: Combining classi-

cal, quantum and post-quantum cryptography. IEEE

Access.

Rossi, M. (2023). Pqc transition in france anssi views. In

Real World Post-Quantum Crypto.

Roy, A. (2023). kyber. https://github.com/itzmeanjan/kyber.

Schatz, D., Altheide, F., Koerfgen, H., Rossberg, M., and

Schaefer, G. (2023). Virtual private networks in the

quantum era: A security in depth approach. pages

486–494.

Tuma, P. and Havlin, J. (2024). Linux network trafﬁc

encryptor. https://github.com/gabsssq/Linux-network-

trafﬁc-encryptor.

van Heesch, M., van Adrichem, N., Attema, T., and Veugen,

T. (2019). Towards quantum-safe vpns and internet.

Cryptology ePrint Archive.

Wei, D. (2023). Crypto++ library. http:// www.cryptopp.c

om/.

Open-Source Post-Quantum Encryptor: Design, Implementation and Deployment

831
