Detecting and Resolving Bad Organisational Smells for Microservices

Michele Agostini, Jacopo Soldani

and Antonio Brogi

Department of Computer Science, University of Pisa, Italy

Keywords:

Microservices, DevOps, Bad Smells, Organizational Smells, Refactoring.

Abstract:

The development and maintenance of microservices should be decentralised. The microservices in an appli-

cation should be partitioned among DevOps teams so to reduce cross-team interactions, which are costly and

slow the delivery of updates. To this end, this paper identiﬁes three bad organisational smells for microser-

vices, which may possibly denote decentralisation lapses in DevOps team assignments for microservice ap-

plications, together with the organisational refactorings allowing to resolve them. We then introduce a model-

driven method to automatically detect and resolve bad organisational smells in a microservice application.

The proposed method is based on extending µTOSCA, an existing metamodel for specifying microservice

applications, to also support modelling the DevOps team assignment of microservices. Finally, we illustrate

the feasibility and usefulness of the proposed model-driven method by providing its prototype implementation

and reporting on a controlled experiment, respectively.

1 INTRODUCTION

Microservice applications (MSAs) are pervading en-

terprise IT (Bisicchia et al., 2024). This is mainly be-

cause of their cloud-native nature (Kratzke and Quint,

2017). MSAs are indeed highly distributed, dynamic,

and fault-resilient, and such peculiar aspects make

MSAs capable of fully exploiting the capabilities of

cloud computing (Soldani et al., 2018).

MSAs are essentially service-oriented applica-

tions that adhere to an extended set of key design prin-

ciples (Zimmermann, 2017). These include decentral-

isation, which should occur also in the development

and maintenance of the microservices forming an

MSA (Newman, 2021). The microservices forming

an MSA should indeed be partitioned, with different

partitions assigned to different DevOps teams, so that

DevOps teams can independently decide when/how

to proceed when updating the microservices they own

(Carrasco et al., 2018). The rationale is the follow-

ing: if an update requires two or more DevOps teams

to interact, it will require such DevOps teams to agree

based on a cross-team interaction, hence slowing the

delivery of the update and requiring cross-team bud-

getary approval (Lewis and Fowler, 2014).

Therefore, a key question is the following, also

considering that MSAs are continuously updated and

https://orcid.org/0000-0002-2435-3543

https://orcid.org/0000-0003-2048-2468

evolving over their lifetime (Soldani et al., 2021):

How to identify decentralisation issues in the

DevOps team assignment for an MSA?

To answer the above question, we hereby introduce

three bad organisational smells, together with the or-

ganisational refactorings enabling to resolve them.

Inspired by bad architectural smells (Neri et al.,

2020), a bad organisational smell can be observed in

the DevOps team assignment for an MSA. A bad or-

ganisational smell is essentially a possible symptom

of a bad decision taken when assigning the microser-

vices forming an MSA to different DevOps teams,

which may possibly denote decentralisation lapses in

the DevOps team assignment.

We also introduce a model-driven method to de-

tect and resolve the occurrence of bad organisa-

tional smells in MSAs. More precisely, we extend

µTOSCA (Soldani et al., 2021), an existing meta-

model for specifying MSAs as typed topology graphs,

whose nodes and arcs represent the application com-

ponents forming MSAs and their interactions, re-

spectively. The proposed extension enables mod-

elling also the assignment of application components

to DevOps teams. We then illustrate how to auto-

matically detect the occurrence of bad organisational

smells in the DevOps team assignment modelled in an

Whilst antipatterns necessarily result in issues, smells

are just symptoms deserving further investigation to deter-

mine whether any issue is truly there (Neri et al., 2020).

Agostini, M., Soldani, J. and Brogi, A.

Detecting and Resolving Bad Organisational Smells for Microservices.

DOI: 10.5220/0012851200003753

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 19th International Conference on Software Technologies (ICSOFT 2024), pages 67-78

ISBN: 978-989-758-706-1; ISSN: 2184-2833

extended µTOSCA topology graph, as well as how to

refactor such a graph to implement the organisational

refactorings for resolving the detected smells.

Finally, to assess the feasibility of our method

for detecting/resolving bad organisational smells, we

introduce its open-source prototype implementation.

The latter is an extension of µFRESHENER, an exist-

ing tool for modelling and analysing µTOSCA topol-

ogy graphs (Soldani et al., 2021). We also report on a

controlled experiment assessing the usefulness of the

extended µFRESHENER, where 14 ICT experts were

asked to edit the µTOSCA topology graph modelling

an MSA, detect the smells therein, and refactor the

MSA to resolve the occurrence of detected smells.

The results of the experiment show that our model-

driven method successfully enabled all participants to

detect and resolve all bad organisational smells they

were submitted to, as well as that the proposed exten-

sion of µFRESHENER was easy to use and useful.

In summary, the main contributions of this paper

are the following:

• We identify three bad organisational smells for

microservices and the refactorings allowing to re-

solve their occurrence.

• We introduce a model-driven method to automat-

ically detect bad organisational smells in MSAs

modelled as extended µTOSCA topology graphs

and to resolve detected smells.

• We provide an open-source prototype implemen-

tation of our proposed method.

• We illustrate the usefulness of the proposed

method by reporting on the results of a controlled

experiment.

The rest of this paper is organised as follows. Sec-

tion 2 provides the necessary background. Section 3

introduces three organisational smells for MSAs,

whose detection/resolution method is proposed in

Section 4. Sections 5 and 6 present the new version

of µFRESHENER and report on its usage in controlled

experiments, respectively. Finally, Sections 7 and 8

discuss related work and draw some concluding re-

marks, respectively.

2 BACKGROUND

The µTOSCA type system (Figure 1) allows specify-

ing MSAs as typed topology graphs in TOSCA (OA-

SIS, 2020). A µTOSCA topology graph includes

nodes of type Service or Database, used to model

components implementing business logic or used to

store business data, respectively. It can also include

Service Database

MessageRouter

AsynchronousMessageBroker SynchronousMessageBroker

InteractsWith Edge

micro.nodes.Root

CommunicationPattern

MessageBroker

micro.relationship.Root micro.groups.Root

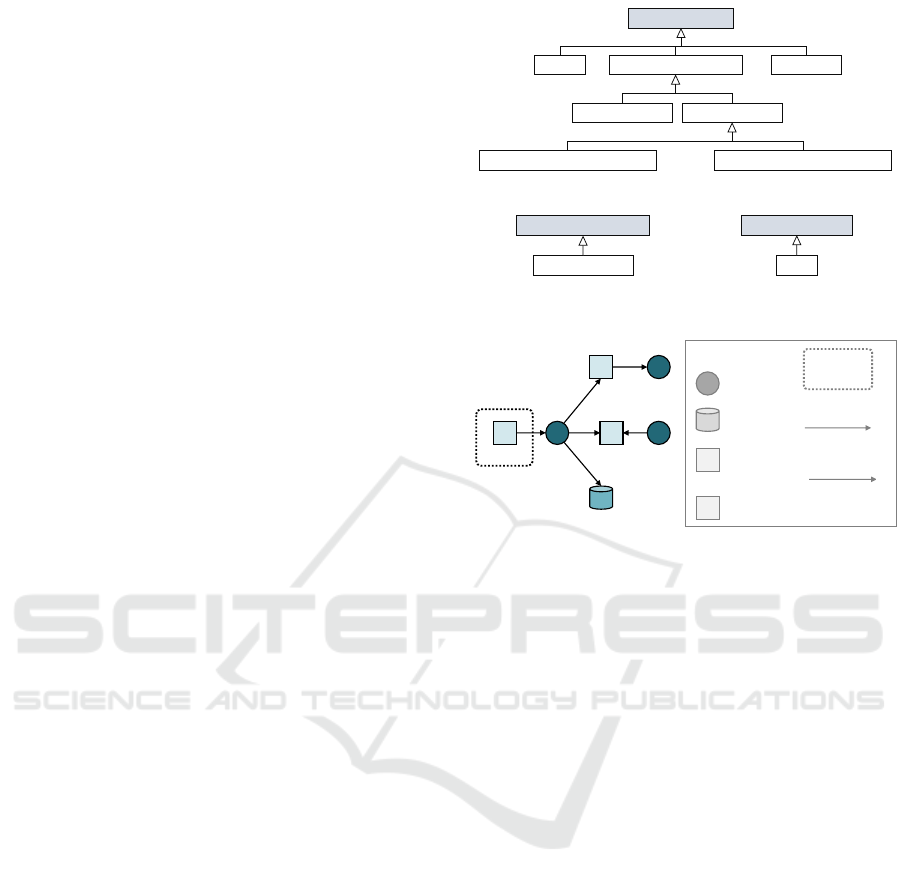

Figure 1: µTOSCA type system (Soldani et al., 2021).

edge

gateway

shop

catalogue

router

orders shipping

payment

Legend

Service

Message

Router

Message

Broker

Database

InteractsWith

(with circuit breaker)

Edge

Figure 2: Example of MSA modelled with µTOSCA.

nodes modelling integration components decoupling

the communication among two or more components

by implementing two communication patterns deﬁned

by (Hohpe and Woolf, 2003), viz., MessageRouters

or MessageBrokers. Examples of all the above com-

ponents are available in the MSA displayed in Fig-

ure 2, which models a toy e-commerce application

composed of a gateway routing external requests to

the main shop service. The MSA in Figure 2 is com-

pleted by a database storing the catalogue, by two

other services for the payment and shipping of orders,

by a message router, and by a message queue used to

asynchronously process to-be-shipped orders.

A µTOSCA topology graph can be completed by

typed oriented arcs. Arcs of type InteractsWith allow

to model that a source node invokes functionalities of-

fered by a target node, e.g., shipping invokes orders to

obtain to-be-shipped orders in our example (Figure 2).

Arcs can also be enriched by setting the boolean prop-

erties, e.g., to indicate an interaction exploits a circuit

breaker for the source component to tolerate the fail-

ure of the target component – as it happens between

shop and router in our example (Figure 2).

Finally, nodes can be placed in Edge groups, to

deﬁne which application components are publicly ac-

cessible from outside of the application. This allows

to specify which components of an MSA can be di-

rectly accessed by external clients, without requiring

to explicitly model the interaction with such external

ICSOFT 2024 - 19th International Conference on Software Technologies

clients. This is the case for the gateway in Figure 2,

which is the only entry point for external clients to the

toy e-commerce MSA in our example.

3 ORGANISATIONAL SMELLS

The development of MSAs should be decentralised

and distributed among multiple DevOps teams, each

reponsible for a separate portion of components (Neri

et al., 2020). We hereafter deﬁne three organi-

sational bad smells, i.e., Single-Layer Team (Sec-

tion 3.1), Tightly-Coupled Teams (Section 3.2), and

Shared Bounded Context (Section 3.3), by also dis-

cussing the organisational refactorings enabling to re-

solve them.

The decision on whether/how to apply

a refactoring depends on the contextual information

speciﬁc to a given MSA, which is accessible only to

the product owners. They are indeed the only who can

determine whether an organisational smell truly de-

notes a decentralisation issue and, if so, decide how to

effectively implement an organisational refactoring.

3.1 The Single-Layer Teams Smell

To fully leverage the potential autonomy enabled by

MSAs, the development, operation, and maintenance

of microservices should be decentralised by delegat-

ing them to different DevOps teams that manage dif-

ferent microservices (Zimmermann, 2017). Adopt-

ing the typical splitting of teams by technology layers

(e.g., frontend, backend, middleware, and database

teams) is, therefore, considered an organisational bad

smell. With one such organisation, any change to a

microservice may require the setup of a cross-team in-

teraction, which will take time and require budgetary

approval (Lewis and Fowler, 2014).

The approach to splitting DevOps teams work-

ing on MSAs is orthogonal to the typical splitting

approach. Each microservice should be indeed as-

signed to a DevOps team that is “cross-functional”,

namely composed of team members whose expertise

span across all technology layers (Neri et al., 2020).

This would indeed enable – in most cases – a Dev-

Ops team to independently decide when and how to

proceed when applying changes to a microservice, by

increasing the chances that the interactions needed for

applying a change to a microservice are restricted to

The Single-Layer Team smell is obtained by adapt-

ing to the organisational view the homonym architectural

smell presented in (Neri et al., 2020). Instead, the Tightly-

Coupled Teams and Shared Bounded Context smells are

brand new and ﬁrst presented in this paper.

only the members of DevOps team owning such mi-

croservice (Carrasco et al., 2018).

In short, assigning microservices so that a DevOps

team owns components pertaining to a single technol-

ogy layer is considered a bad organisational smell,

hereby called Single-Layer Teams. A Single-Layer

Teams smell can be resolved by refactoring the as-

signment by splitting teams by microservice, rather

than by technology layer (Neri et al., 2020).

3.2 The Tightly-Coupled Teams Smell

The microservices forming an MSA should be as-

signed to DevOps teams in a decentralised manner,

so to possibly maximise the autonomy of teams in

taking decisions on the microservices they own (Neri

et al., 2020). At the same time, the microservices

in an MSA are interdependent, which means that

the decisions and changes applied to a microservice

may impact on the microservices that depend on it

(Soldani et al., 2018). If such microservices are as-

signed to other teams, the change under consideration

will require the interested teams to agree based on

a cross-team interaction, hence slowing the delivery

of change/updates and possibly requiring cross-team

budgetary approval (Lewis and Fowler, 2014).

The above situation is very likely to happen be-

tween two DevOps teams if the microservices they

own are tightly coupled.

In particular, consider a

microservice that is more coupled to the microser-

vices owned by another DevOps team than to those

owned by the DevOps team responsible of the mi-

croservice under consideration. In this scenario, any

change or update to such microservice is likely to im-

pact on a microservice owned by the other DevOps

team, thus requiring the two DevOps teams to coordi-

nate and collaborate in a cross-team project (Carrasco

et al., 2018). Situations like that described above

are hereby proposed as occurrences of the Tightly-

Coupled Teams bad organisational smell for MSAs.

A Tightly-Coupled Teams smell can be resolved

by changing the assignment of the microservice that

is causing the smell. Such microservice should rather

be assigned to the DevOps team that it is most cou-

pled to, which is the one owning the highest num-

ber of microservices that would be impacted by a

change/update to the microservice under considera-

tion. This would actually result in enacting a sort of

inverse Conway maneuver, as we would be changing

the DevOps team organisation based on the coupling

of the microservices in an MSA (Fowler, 2022).

Tight coupling occurs when microservices strongly de-

pend on each other (Ntentos et al., 2020).

Detecting and Resolving Bad Organisational Smells for Microservices

3.3 The Shared Bounded Context Smell

One of the main tenets of MSAs is adopting domain-

driven design practices to identify and conceptualise

microservices (Zimmermann, 2017). Microservices

should be organised around bounded contexts,

typ-

ically based on the business capabilities realised by

an MSA, by assigning the responsibility for each

bounded context to a single DevOps team (Lewis and

Fowler, 2014). Instead, if multiple DevOps teams

were responsible for different microservices within

the same bounded context, this may lead to inter-team

frictions, which may slow the delivery of functionali-

ties and raise the overall costs (Vernon, 2016).

According to microservices and domain-driven

design practices, databases should not cover more

than a bounded context (Mitra and Nadareishvili,

2020). This – combined with the above considera-

tion that different DevOps teams should not be re-

sponsible for the same bounded context – means that

the microservices assigned to a DevOps team should

not directly interact with a database owned by another

DevOps team. If this instead happens, we may have

that different DevOps teams are operating on a Shared

Bounded Context, which we hereby propose as a bad

organisational smell for MSAs. The Shared Bounded

Context may indeed denote a domain-level violation

of the decentralisation principle in the DevOps team

assignment for an MSA.

An occurrence of the Shared Bounded Context

smell can be resolved in two ways, viz., reorganise

teams by bounded contexts or split bounded contexts

by teams. The choice of either of the two depends

on contextual information on the service and database

causing the smell itself. If they pertain to the same

bounded context, then the easiest solution is apply-

ing the reorganise teams by bounded contexts organ-

isational refactoring, namely assigning the applica-

tion components causing the smell to a single Dev-

Ops team, e.g., that owning the database. Instead,

if they actually pertain to different bounded contexts,

the bounded contexts should be kept separate and as-

signed to different DevOps teams (Buchanan, 2024).

This could be realised, e.g., by splitting the shared

database into two different databases storing the data

pertaining to the different bounded contexts. In this

case, if the services were relying on some form of

consistency on shared data, the consistency should

continue to be assured by relying on existing dis-

tributed consistency protocols.

In domain-driven design, large domain models are

partitioned into multiple different bounded contexts, each

deﬁning a speciﬁc business domain area (Vernon, 2016).

4 DETECTING AND RESOLVING

ORGANISATIONAL SMELLS

To enable resolving bad organisational smells in

MSAs, we hereafter ﬁrst extend µTOSCA to en-

able modelling the assignment of microservices to

DevOps teams (Section 4.1). Then, we introduce a

µTOSCA-based method for automatically detecting

bad organisational smells in MSAs and to reason on

whether/how to refactor detected smells (Section 4.2).

4.1 Modelling DevOps Team

Assignment in µTOSCA

According to (Soldani et al., 2021), an MSA can

be modelled by a µTOSCA topology graph, which

is formally represented by a triple containing (i) the

typed nodes representing application components,

(ii) the relationships forming the graph represent-

ing the architecture of an application, and (iii) the

edge group, which contains the nodes that are di-

rectly accessible to external clients. To model Dev-

Ops team assignment, we hereby add a fourth ele-

ment, namely (iv) a set of groups of nodes, each repre-

senting the assignment of the nodes therein to a Dev-

Ops team. The choice of using groups for modelling

DevOps team assignment is motivated by the notion

of TOSCA groups themselves, which are natively in-

tended to group application components to be man-

aged together (OASIS, 2020).

Deﬁnition 1 (MSA). Let L be the set of properties

that can hold onto an interaction

and let T denote

the universe of possible team names. An MSA is rep-

resented by a quadruple ⟨N, R, E, A⟩, where

(i) N is a ﬁnite set of typed nodes representing the

components forming an application,

(ii) R ⊆ N × N × 2

is a ﬁnite set of triples, each

denoting a typed interaction between two com-

ponents and the properties holding on such in-

teraction,

(iii) E ⊆ N is a set of nodes deﬁning the components

forming the edge of the architecture, and

(iv) A ⊆ T × 2

is a ﬁnite set of pairs, each denoting

the assignment of a set of components to a team.

The assignment deﬁned in an extended µTOSCA

topology graph is well-formed when different teams

own different components.

Properties can be set on interactions to indicate that,

e.g., circuit breakers are used therein (such as between shop

and router in Figure 2). Further information on interactions’

properties can be found in (Soldani et al., 2021).

ICSOFT 2024 - 19th International Conference on Software Technologies

Deﬁnition 2 (Well-Formed Team Assignment). Let

⟨N, R, E, A⟩ be an MSA. The team assignment A is

well-formed iff

∀⟨t,C⟩, ⟨t

′

⟩ ∈ A : t ̸= t

′

⇒ C ∩C

′

For simplicity, and without loss of generality,

we hereafter assume the DevOps team assignment

modelled in a µTOSCA topology graph to be well-

formed. We also assume each team assignment to be

complete, namely such that (i) each application com-

ponent is assigned to a DevOps team and that (ii) each

team manages at least one application component.

Deﬁnition 3 (Complete Team Assignment). Let

⟨N, R, E, A⟩ be an MSA. The team assignment A is

complete iff

(i) ∀n ∈ N∃⟨t,C⟩ ∈ A : n ∈ C, and

(ii) ∀⟨t,C⟩ ∈ A : C ̸=

An example of a well-formed and complete as-

signment of application components to DevOps teams

is displayed in Figure 3. The ﬁgure shows a toy MSA,

whose application components are partitioned among

the blue, green, orange, and yellow DevOps teams.

For instance, the yellow team owns the frontend of

the MSA, the catalog service, and the items database.

orange

blue

yellow

green

gateway

frontend

router

order orders

shipping

catalog

items

edge

Figure 3: Running example. DevOps team assignment is

represented by background colour boxes.

The DevOps team assignment in Figure 3 is de-

vised on purpose to exhibit all the bad organisational

smells proposed in Section 3. We shall, therefore,

use it as a running example to showcase the proposed

smell detection method, as well as the smell resolu-

tion via refactoring.

4.2 Model-Driven Detection and

Resolution of Organisational Smells

We hereby illustrate how to automatically detect the

bad organisational smells deﬁned in Section 3 in

µTOSCA topology graph modelling an MSA. We

also enable reasoning on whether/how to refactor the

MSA modelled by a µTOSCA topology graph to re-

solve the occurrence of detected smells.

4.2.1 Single-Layer Teams

A Single-Layer Teams smell occurs when a DevOps

team owns components pertaining to a single tech-

nology layer (Section 3.1). In a µTOSCA topology

graph, this situation is denoted by a DevOps team as-

signed with components all of the same type – or of

compatible types (e.g., a DevOps team owning only

MessageBrokers and MessageRouters, which are all

implementing CommunicationPatterns).

Notation 1 (Node Types). Let ⟨N, R, E, A⟩ be an

MSA. We denote by T = {Service, Database,

CommunicationPattern, MessageRouter, Message-

Broker, AsynchronousMessageBroker, Synchronous-

MessageBroker} the set of possible types for a node

n ∈ N, and we write n.type to denote the type of node

n. We also write x.type ≥ τ to denote that the type of

x extends or is equal to the type τ ∈ T .

Deﬁnition 4 (Single-Layer Team Smell). Let

⟨N, R, E, A⟩ be an MSA. A DevOps team assignment

⟨t,C⟩ ∈ A denotes a Single-Layer Team smell iff

∃τ ∈ T : ∀c ∈ C : c.type ≥ τ.

Our running example (Figure 3) provides an ex-

ample of Single-Layer Teams smell, with the green

team owning only MessageRouters. This may sug-

gest that the green team is not cross-functional, but

rather composed of middleware experts only – who

actually handle all the middleware components in the

MSA considered in our running example.

Our choice here is to refactor the DevOps team

assignment to resolve the occurrence of the detected

smell. We hence implement the splitting teams by

microservice refactoring described in Section 3.1. In

this case, the refactoring consists of changing the re-

sponsible teams for the frontend service, so that the

green team owns not only the gateway, but the whole

user-facing part of the MSA in our running example

(Figure 4). Correspondingly, the green DevOps team

must adapt to now hold the expertise to also handle

services, if this was not yet the case.

green

orange

blue

yellow

gateway

frontend

router

order orders

shipping

catalog

items

edge

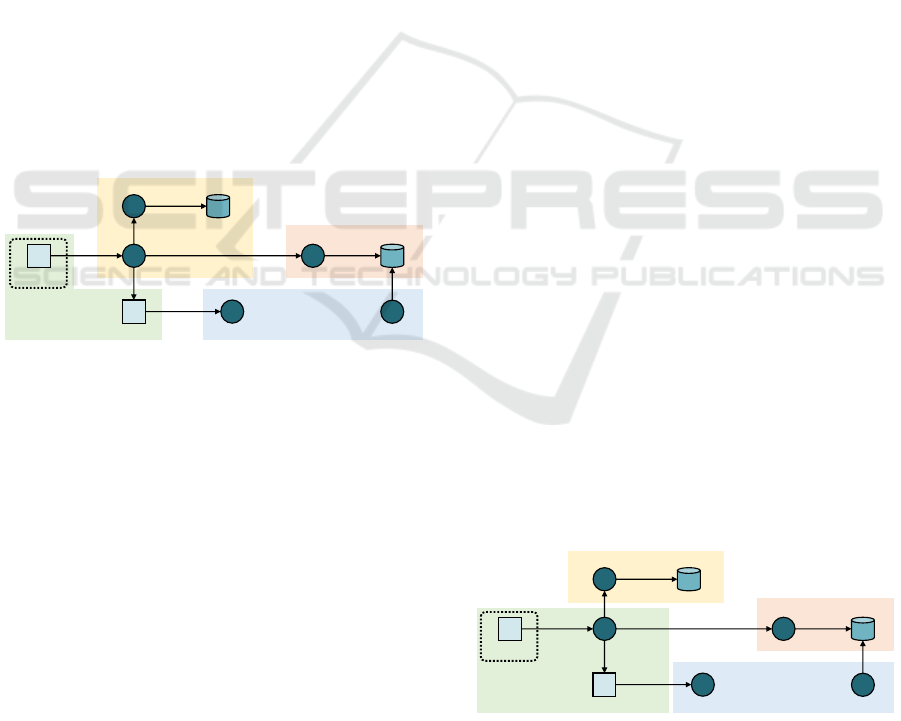

Figure 4: Running example refactored to resolve the Single-

Layer Team smell.

Detecting and Resolving Bad Organisational Smells for Microservices

4.2.2 Tightly-Coupled Teams

A Tightly-Coupled Teams smell occurs when an appli-

cation component is more coupled to the application

components owned by another DevOps team than to

those owned by the DevOps team responsible for the

component itself (Section 3.2).

In a µTOSCA topology graph, this situation is de-

noted by a DevOps team t owning a node c that is

coupled more to another DevOps team t

′

than to t. To

formalise this, we ﬁrst introduce some shorthand no-

tation to generalise the notion of coupling from node-

to-node to node-to-team. For simplicity, we shall use

the number of interactions to measure node coupling,

but other existing metrics – such as those in (Ntentos

et al., 2020) – can be used for the same purpose.

Notation 2. Let ⟨N, R, E, A⟩ be an MSA, let n ∈ N be

a node, and let ⟨t,C⟩ ∈ A be a team assignment. We

denote by γ(n,t) the coupling degree of a node n to a

team t, deﬁned as

γ(n,t) = #{⟨n, c, ⟩, ⟨c, n, ⟩ ∈ R | c ∈ C}

Deﬁnition 5 (Tightly-Coupled Teams Smell). Let

⟨N, R, E, A⟩ be an MSA. A DevOps team assignment

⟨t,C⟩ ∈ A denotes a Tightly-Coupled Teams smell iff

∃c ∈ C, ⟨t

′

⟩ ∈ A : γ(n,t

′

) > γ(n,t)

The login service in Figure 4 provides an example

of Tightly-Coupled Teams, as login is coupled more

to the components owned by the green DevOps team

than to those owned by the blue one, which is the re-

sponsible team for login. This increases the probabil-

ity of cross-team interactions between the green and

blue teams, as these might probably be required when

updating, e.g., the login service.

Considering what is above, we opt for resolving

the Tightly-Coupled Teams smell occurrence under

consideration. To this end, we apply an inverse Con-

way maneuver to login (Section 3.2). More precisely,

we change the responsible DevOps team for the login

service, by assigning it to the team it is more coupled

to, i.e., the green team (Figure 5).

orange

blue

yellow

green

gateway

frontend

router

order orders

shipping

catalog

items

edge

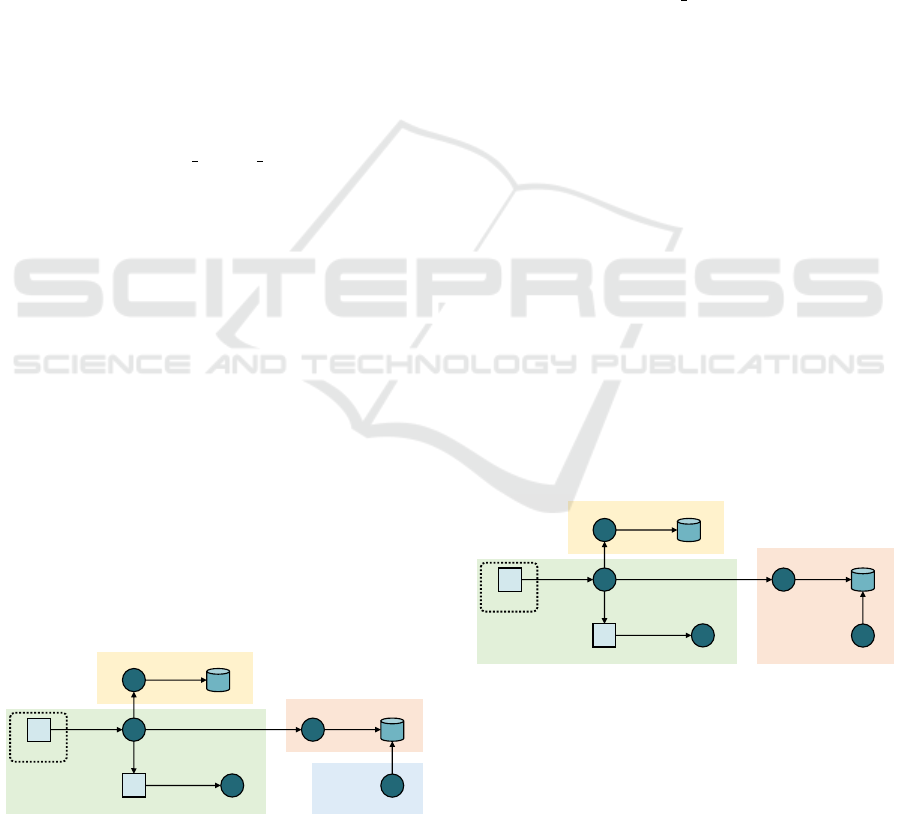

Figure 5: Running example refactored to resolve the

Tightly-Coupled Teams smell.

4.2.3 Shared Bounded Context

A Shared Bounded Context smell occurs when a

service assigned to a DevOps team interacts with

a database owned by another DevOps team (Sec-

tion 3.3). In µTOSCA, this situation is denoted by

a cross-team relationship, which models a direct in-

teraction from a Service node owned by a team t to a

Database node owned by another team t

′

Deﬁnition 6 (Shared Bounded Context Smell). Let

⟨N, R, E, A⟩ be an MSA. A couple of DevOps team

assignments ⟨t,C⟩, ⟨t

′

⟩ ∈ A (with t ̸= t

′

) denote a

Shared Bounded Context smell iff

∃c ∈ C,c

′

∈ C

′

: ⟨c, c

′

, ⟩ ∈ R ∧

c.type ≥ Service ∧ c

′

.type ≥ Database

The InteractsWith relationship from shipping to

orders in Figure 5 provides an example of Shared

Bounded Context smell. The shipping service is in-

deed owned by the blue DevOps team, and it di-

rectly interacts with the orders database owned by

the orange DevOps team. Any update to the orders

database may impact the shipping service, hence pos-

sibly requiring cross-team interactions between the

blue and orange DevOps teams.

Our choice is to resolve the occurrence of the

smell, but this time we have to decide which of

the two possible organisational refactorings to apply

(Section 3.3). In this case, given that the blue team

owns only the shipping service, and since the ship-

ping of orders pertains to the bounded context of or-

der management, we decide to reorganise teams by

bounded context. In particular, we change the respon-

sible team for the shipping service by assigning it to

the orange team (Figure 6).

orange

yellow

green

gateway

frontend

router

order orders

shipping

catalog

items

edge

Figure 6: Running example refactored to resolve the Shared

Bounded Context smell.

As a result, no more bad organisational smells af-

fect the obtained DevOps team assignment (Figure 6).

Additionally, the blue DevOps team has disappeared,

which means that we can redistribute its correspond-

ing resources to other DevOps teams working on the

considered MSA or on other projects.

ICSOFT 2024 - 19th International Conference on Software Technologies

5 PROTOTYPE

IMPLEMENTATION

To assess the feasibility of the proposed method for

detecting and resolving bad organisational smells,

we prototyped into a new version of µFRESHENER

(Soldani et al., 2021), hereby called µFRESHENER

v2.

Firstly, we enabled distinguishing between

the product owner and team members while edit-

ing the µTOSCA topology graph modelling an

MSA, as well as while detecting and resolving bad

smells for microservices. We hereafter illustrate

how µFRESHENER v2 enables visualising and editing

MSAs – and resolving bad smells therein – by dis-

tinguishing the two newly supported user roles, i.e.,

product owner and team member.

5.1 Product Owner Role

In µFRESHENER v2, the product owner has full power

over the whole µTOSCA topology graph modelling

an MSA. Therefore, beyond editing, analysing, and

refactoring the application components and interac-

tions forming an MSA, the product owner is the only

user who can edit the DevOps team assignment. To

this end, we implemented the automated detection of

the bad organisational smells presented in Section 4,

as well as the possibility of applying known refac-

torings to resolve their occurrence. For instance, if

a Tightly-Coupled Teams smell is detected, the prod-

uct owner can ask µFRESHENER v2 to apply the in-

verse Conway maneuver. As a result, the application

component denoting the considered Tightly-Coupled

Teams smell is automatically re-assigned to the Dev-

Ops team to which it is more coupled.

Additionally, to further support the product owner

in managing DevOps team assignment, we also im-

plemented multiple different views over the current

DevOps team assignment, e.g., showing details on the

types of services owned by DevOps teams or plotting

ﬁgures about inter-team dependencies (Figure 7).

5.2 Team Member Role

The view and editing capabilities of team members

are instead restricted to only the application compo-

nents owned by the corresponding DevOps team.

More precisely, when accessing as team mem-

bers, µFRESHENER v2 displays only the portion of

the MSA that is owned by the logged DevOps team.

This is to enable team members to focus their visual

thinking only on the components they actually own.

µFRESHENER v2 is publicly available online at https:

//github.com/di-unipi-socc/microFreshener.

(a)

(b)

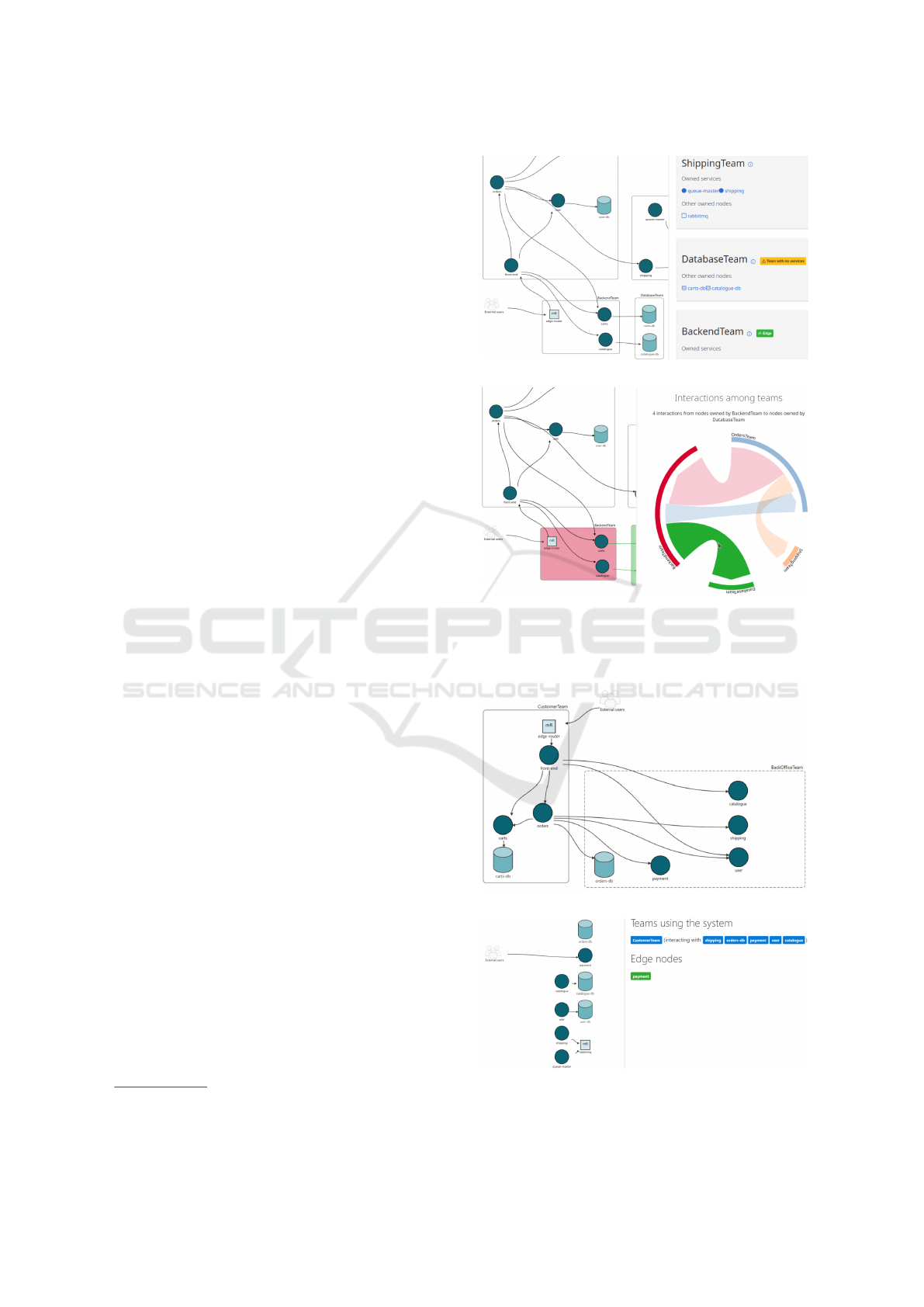

Figure 7: Informative views offered by µFRESHENER to

product owners on (a) nodes assigned to DevOps teams and

(b) cross-team interactions.

(a)

(b)

Figure 8: Teamwise visualisation of (a) outgoing and (b)

ingoing cross-team dependencies in µFRESHENER.

Detecting and Resolving Bad Organisational Smells for Microservices

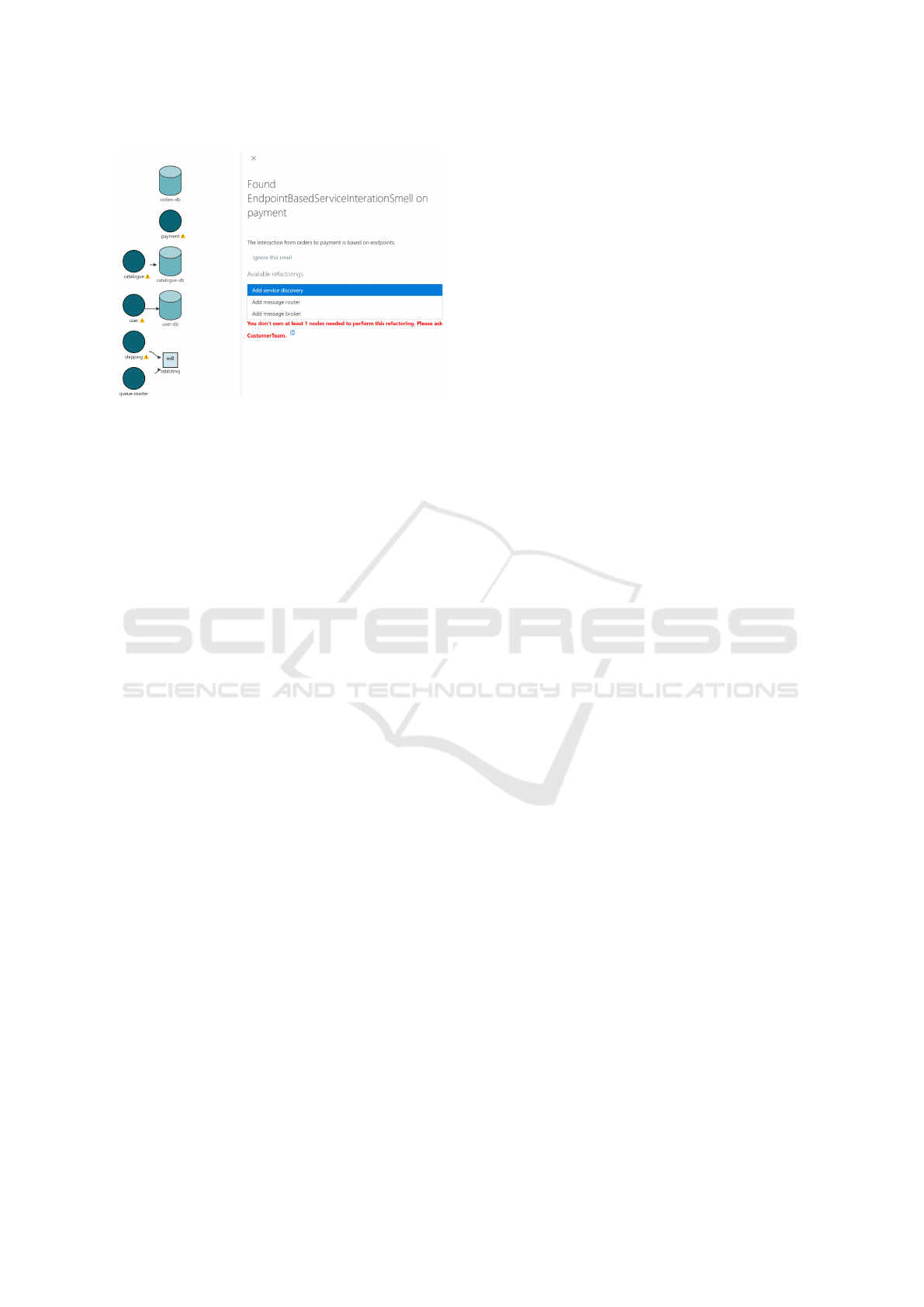

Figure 9: Prevention and alerting of changes requiring in-

teractions with other DevOps teams.

Outgoing and ingoing cross-team interactions are

also displayed differently to the members of a logged

team, given that they have different meanings. Outgo-

ing cross-team interactions indicate the dependencies

of the logged DevOps team on other DevOps teams,

and they are directly displayed on the editing pane

(by showing only the target DevOps teams’ compo-

nents on which the logged team depends – Figure 8a).

Instead, ingoing cross-team interactions indicate the

dependencies that other DevOps teams have on the

components owned by the logged DevOps team, be-

ing them the “users” of the business capabilities man-

aged by the logged team. This is similar to the case

of end-users invoking the functionalities offered by

the application components exposed externally. For

this reason, ingoing cross-team interactions and edge

nodes – if any – are displayed together in a “users”

sidebar (Figure 8b).

Team members can also edit the portion of the

MSA they own. For instance, they can add new

components and relationships to the MSA, with

newly added components automatically assigned to

the logged DevOps team. They can also remove or

refactor existing components and relationships, e.g.,

to resolve bad architectural smells. This is supported

by µFRESHENER v2 as long as the actions of a logged

DevOps team do not interfere with the operativity of

other DevOps teams. In particular, µFRESHENER pre-

vents actions that would result in changing interac-

tions starting from other teams’ components, rather

displaying an alert informing the logged team to inter-

act with the other involved DevOps teams to perform

the desired change. This holds also when exploiting

µFRESHENER’s refactoring capabilities for resolving

bad architectural smells, as shown in Figure 9.

6 EVALUATION

To assess the usefulness of our proposal, we run a

controlled experiment in which we asked participants

to use µFRESHENER v2 to edit the µTOSCA speciﬁ-

cation of a given MSA, detect the bad smells therein,

and refactor the MSA to resolve the occurrence of the

detected bad smells.

6.1 Experiment Design

The experiment was run in two steps, with partici-

pants asked to ﬁrst (1) take the role of product owners

and then (2) that of team members.

As the product owner is the only role capable of

managing DevOps team assignment, we exploited the

ﬁrst step to assess the proposed modelling of Dev-

Ops team assignment and the proposed method for

detecting and resolving bad organisational smells. To

this end, step 1 was designed as a sequence of ﬁve

tasks: (T

1.1

) model a service and an interaction, (T

1.2

)

change the ownership of an application component,

1.3

) add a new DevOps team owning and assign it

ﬁve application components, (T

1.4

) create a new Dev-

Ops team, assign it all components owned by another

DevOps team, and delete the latter team, and (T

1.5

)

run the automated smell detection and resolve a de-

tected Single-Layer Teams smell.

Step 2, instead, focused on exploiting the Dev-

Ops team assignment to assess the usefulness of

µFRESHENER v2 also from the perspective of team

members. For this reason, step 2 was designed as a

sequence of seven tasks: (T

2.1

) model interactions be-

tween nodes owned by the DevOps team and towards

nodes owned by other DevOps teams, (T

2.2

) replace a

component owned by the DevOps team with a new

component and model its interactions with compo-

nents owned by the same DevOps team, (T

2.3

) delete

a database that is used by a service owned by another

DevOps team, (T

2.4−5

) resolve two automatically de-

tected architectural smells, both impacting only on

components owned by the DevOps team, and (T

2.6

)

resolve an automatically detected architectural smell

by refactoring a cross-team interaction. Differently

from step 1, the tasks of step 2 were designed so that

all but two could be successfully completed. Indeed,

2.2

and T

2.6

could not be completed when acting as

team members, since they require to apply architec-

tural refactorings that impact on application compo-

nents owned by other DevOps teams.

ICSOFT 2024 - 19th International Conference on Software Technologies

6.2 Experiment Execution

The two steps described above were run by 14 ICT

experts: eight practitioners working in the ICT in-

dustry (four holding an MSc in Computer Science,

and three holding a BSc in Computer Science) and

six coming from academic institutions (one holding

a PhD in Computer Science, two holding an MSc in

Computer Science, and three holding a BSc in Com-

puter Science).

We remotely met all participants to collect infor-

mation on their background and experience in Com-

puter Science, and to provide them with a 5-minutes

introduction to the experiment and to µFRESHENER

v2. Participants were then proceeding autonomously

with the experiment, by connecting to a running in-

stance of µFRESHENER v2 deployed on AWS EC2.

They were guided in the experiment – which took

approximately 30 minutes on average – by an on-

line questionnaire with gamiﬁcation elements. The

questionnaire stated the tasks to run by also asking

the participants to mark them as completed or not

completed, with the latter being the expected answer

for T

2.2

and T

2.6

(as µFRESHENER v2 should prevent

team members to complete them, since their comple-

tion requires cross-team interactions). At the end of

each step, the questionnarie also asked participants to

evaluate whether/how µFRESHENER v2 truly helped

them, by indicating their agreement with a set of given

statements on a Likert scale from 1 (strongly dis-

agree) to 5 (strongly agree).

6.3 Results

The answers collected from all 14 participants are ac-

cessible online.

Despite limited to 14 participants,

the results of our experiment already provide insights

on the usefulness and ease of use of our proposal. All

tasks were indeed effectively run by 100% of partic-

ipants, but for the case of T

2.1

and T

2.5

, which were

successfully completed by 64% and 93% of partici-

pants, respectively. The average success rate for task

is, therefore, 100% when acting as product owner,

namely when experimenting our proposed method for

modelling DevOps team assignment and resolving

bad organisational smells.

Still on the product owner side, we achieved quite

good results also when assessing the user experi-

ence of running the given task with the proposed

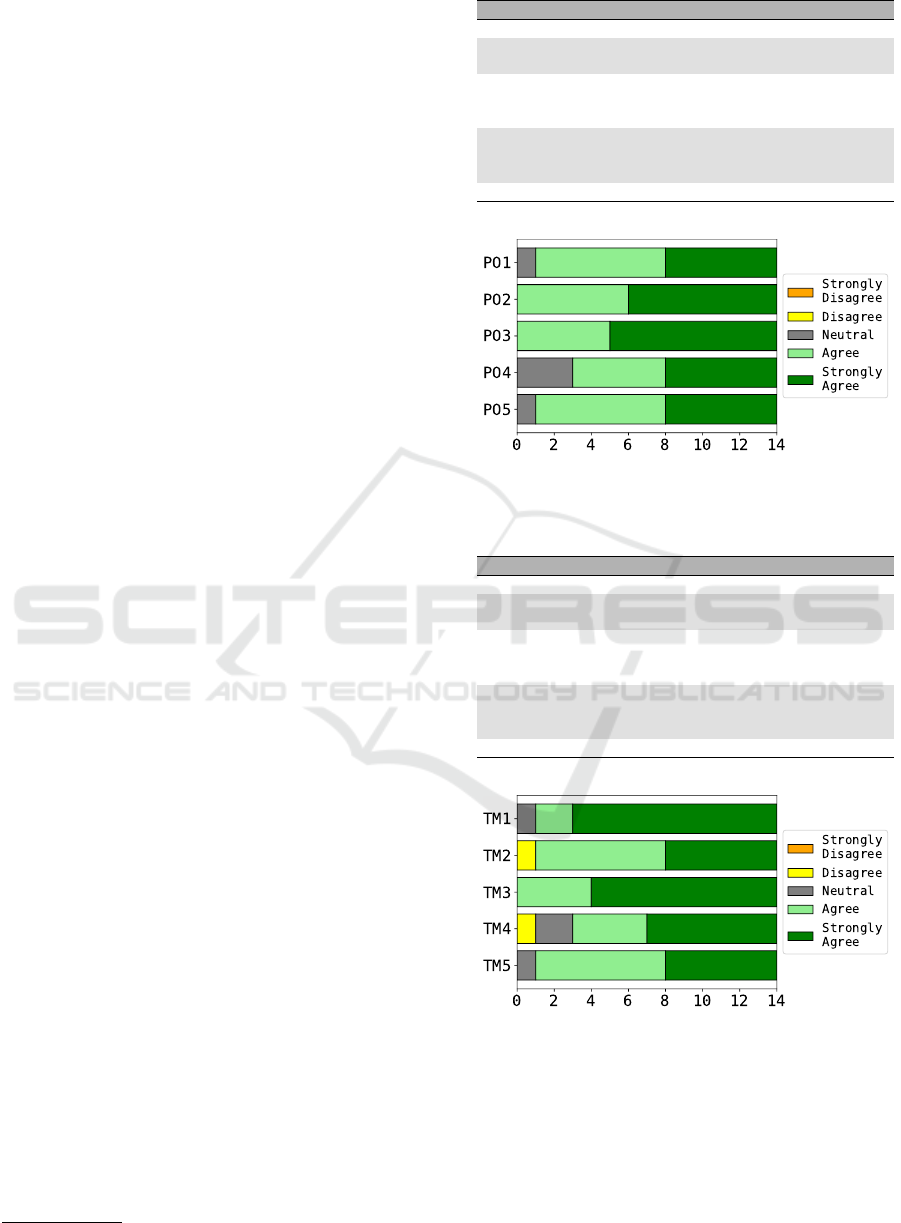

µFRESHENER v2. Figure 10a shows the state-

ments submitted to participants to assess whether

they agree on the fact that – as product owners –

µFRESHENER v2 was (PO1) easy to use and (PO2-5)

https://zenodo.org/records/10952834

ID Statement

PO1 I found µFRESHENER easy to use

PO2 I ﬁnd the MSA refactored by µFRESHENER better

than the one preceding the refactoring

PO3 µFRESHENER simpliﬁed the detection of the bad

smells affecting the considered MSA (with respect to

doing it manually)

PO4 µFRESHENER simpliﬁed the reasoning on the resolu-

tion of the bad smells affecting the considered MSA

(with respect to doing it manually)

PO5 I found µFRESHENER useful

(a)

(b)

Figure 10: Evaluation of the new version of µFRESHENER

as product owner: (a) statements and (b) agreement.

ID Statement

TM1 I found µFRESHENER easy to use

TM2 I ﬁnd the architecture refactored by µFRESHENER

better than the one preceding the refactoring

TM3 µFRESHENER simpliﬁed the detection of the bad

smells affecting the considered MSA (with respect to

doing it manually)

TM4 µFRESHENER simpliﬁed the reasoning on the resolu-

tion of the bad smells affecting the considered MSA

(with respect to doing it manually)

TM5 I found µFRESHENER useful

(a)

(b)

Figure 11: Evaluation of the new version of µFRESHENER

as team member: (a) statements and (b) agreement.

useful. In addition to the direct statement in PO5, the

usefulness of µFRESHENER was assessed also based

on PO2’s outcomes and by asking (PO3-4) whether

µFRESHENER simpliﬁed detecting bad organisational

smells and reasoning on their resolution. As shown in

Figure 10b, almost all the participants agreed that the

Detecting and Resolving Bad Organisational Smells for Microservices

modelling, detection, and resolution of bad organisa-

tional smells implemented in µFRESHENER v2 is easy

to use and useful.

Similar results were achieved in the assessment

of the user experience of participants while acting as

team members. We submitted them analogous state-

ments (Figure 11a), however asking them to indicate

their agreement by considering only the tasks they

run in the second step of the experiment. Again, it

turned out that participants agreed on the ease of use

of µFRESHENER v2 and its usefulness (Figure 11b).

7 RELATED WORK

Various existing studies classify bad smells for mi-

croservices, as well as the refactorings allowing to re-

solve the occurrence of such bad smells in MSAs. For

instance, (Carrasco et al., 2018) and (Taibi and Lenar-

duzzi, 2018) ﬁrst elicited bad architectural smells for

MSAs. (Neri et al., 2020) extends the set of known

bad architectural smells by also eliciting the architec-

tural refactorings known to resolve their occurrence.

(Ponce et al., 2022b) instead elicits the bad secu-

rity smells for microservices, along with the security

refactorings for resolving their occurrence.

Based on the existing taxonomies of bad smells

for MSAs, different methods and tools for their de-

tection and resolution have been proposed. As for ar-

chitectural smells, we already mentioned the possibil-

ity of detecting and resolving them in existing MSAs

with µFRESHENER (Soldani et al., 2021). Arcan (Ar-

celli Fontana et al., 2017) and Designite (Sharma

et al., 2016) are two other tools for detecting bad

smells in software systems, which have been adapted

to enable detecting bad architectural smells in MSAs

in (Pigazzini et al., 2020) and (Capilla et al., 2023).

(Dell’Immagine et al., 2023), (Howard-Grubb

et al., 2023), and (Wizenty et al., 2023) instead al-

low detecting bad security smells in MSAs. (Wizenty

et al., 2023) actually also allows to resolve a subset of

the detected smells by applying the security refactor-

ings known to resolve them. The resolution of de-

tected smells can also prioritised by relying on the

triage methodology proposed in (Ponce et al., 2022a),

which essentially combines the importance of secu-

rity and other quality attributes for an MSA with the

known impacts of security smells on such quality at-

tributes (Ponce et al., 2023).

However, to the best of our knowledge – and also

according to the tertiary study in (Cerny et al., 2023) –

no support for detecting and resolving bad organisa-

tional smells is currently available. This is, therefore,

the main novelty of our proposal: we introduce a ﬁrst

support to model DevOps team assignment, analyse

modelled MSAs to automatically detect bad organisa-

tional smells, and reason on whether/how to refactor

DevOps team assignment to resolve detected smells.

The organisational aspects are however crucial in

MSAs (Soldani et al., 2018; Zimmermann, 2017).

This is also witnessed by the recently proposed stud-

ies on the topic. For instance, (D’Aragona et al.,

2023) analysed the actual usage of the microservice-

per-developer pattern in open-source projects, ob-

serving that this is rarely the case, except for MSAs

developed by dedicated DevOps teams. (Li et al.,

2023) and (Zabardast et al., 2023) instead focus on

monitoring the DevOps team assignment for mea-

suring cross-team coupling and accumulated techni-

cal debt, respectively. Our proposal complements the

above studies by providing a ﬁrst support to detect

and resolve bad organisational smells in MSAs.

8 CONCLUSIONS

We identiﬁed three bad organisational smells, which

may denote decentralisation lapses in the organisation

of MSAs, together with the organisational refactor-

ings allowing to resolve their occurrence. We also

introduced a model-driven method to automatically

detect the identiﬁed bad organisational smells in the

DevOps team assignment of an MSAs, modelled as

an extended µTOSCA topology graph, and to resolve

detected smells by applying their corresponding or-

ganisational refactoring. Finally, we illustrated the

feasibility and usefulness of the proposed method by

implementing it as an extension of µFRESHENER and

by reporting on a controlled experiment, where 14

ICT experts were asked to use the extended version

of µFRESHENER to model the DevOps team assign-

ment of an MSA and to detect and resolve the bad

organisational smells therein.

The three bad organisational smells introduced in

this paper (and their refactorings) provide a ﬁrst refer-

ence set, elicited from existing literature, but further

investigation is needed to better cover the state-of-the-

art and state-of-practice on the topic. For this reason,

we plan to extend the set of bad organisational smells

and refactorings for microservices, e.g., by running a

multivocal literature review to elicit them, as done by

(Neri et al., 2020) and (Ponce et al., 2022b) for other

types of bad smells for microservices.

We also plan to accordingly extend our model-

driven method to detecting/resolving bad organisa-

tional smells and its implementation in µFRESHENER.

More broadly, we plan to further support product

owners and DevOps teams in taking more informed

ICSOFT 2024 - 19th International Conference on Software Technologies

decisions, by relating the DevOps team assignment

modelled in µTOSCA with other metadata gathered

from other sources, e.g., activities recorded by ver-

sion control systems, cognitive load estimated on a

project’s source code, or information on the DevOps

team members themselves.

ACKNOWLEDGEMENTS

This work was partly funded by the follow-

ing projects: FREEDA (CUP: I53D23003550006),

funded by the frameworks PRIN (MUR, Italy) and

Next Generation EU; OSMWARE (UNIPI

PRA 2022

64), funded by the University of Pisa, Italy.

REFERENCES

Arcelli Fontana, F., Pigazzini, I., Roveda, R., Tamburri,

D. A., Zanoni, M., and Di Nitto, E. (2017). Arcan:

A tool for architectural smells detection. In 2017

IEEE International Conference on Software Architec-

ture Workshops (ICSAW), pages 282–285.

Bisicchia, G., Forti, S., Pimentel, E., and Brogi, A. (2024).

Continuous QoS-compliant orchestration in the cloud-

edge continuum. Software: Practice and Experience.

In press.

Buchanan, I. (2024). Team topologies: How four fun-

damental topologies inﬂuence a devops transforma-

tion. Atlassian, https://www.atlassian.com/devops/

frameworks/team-topologies.

Capilla, R., Arcelli Fontana, F., Mikkonen, T., Bacchiega,

P., and Salamanca, V. (2023). Detecting architec-

ture debt in micro-service open-source projects. In

49th Euromicro Conference on Software Engineering

and Advanced Applications, (SEAA 2023), pages 394–

401. IEEE.

Carrasco, A., van Bladel, B., and Demeyer, S. (2018). Mi-

grating towards microservices: Migration and archi-

tecture smells. In Proceedings of the 2nd Interna-

tional Workshop on Refactoring, IWoR 2018, pages

1–6. ACM.

Cerny, T., Abdelfattah, A. S., Al Maruf, A., Janes, A., and

Taibi, D. (2023). Catalog and detection techniques of

microservice anti-patterns and bad smells: A tertiary

study. Journal of Systems and Software, 206:111829.

D’Aragona, D. A., Li, X., Cerny, T., Janes, A., Lenarduzzi,

V., and Taibi, D. (2023). One microservice per devel-

oper: Is this the trend in OSS? In Papadopoulos, G. A.

et al., editors, Service-Oriented and Cloud Computing

- 10th IFIP WG 6.12 European Conference (ESOCC

2023), volume 14183, pages 19–34. Springer.

Dell’Immagine, G., Soldani, J., and Brogi, A. (2023).

KubeHound: Detecting microservices’ security

smells in Kubernetes deployments. Future Internet,

15(7).

Fowler, M. (2022). Conway’s law. https://martinfowler.

com/bliki/ConwaysLaw.html.

Hohpe, G. and Woolf, B. (2003). Enterprise Integration

Patterns: Designing, Building, and Deploying Mes-

saging Solutions. Addison-Wesley, 1st edition.

Howard-Grubb, T., Soldani, J., Dell’Immagine, G., Ar-

celli Fontana, F., and Brogi, A. (2023). Smelling

homemade crypto code in microservices, with kube-

hound. In Monti, F. et al., editors, Service-Oriented

Computing - ICSOC 2023 Workshops, LNCS, pages

317–324. Springer.

Kratzke, N. and Quint, P.-C. (2017). Understanding cloud-

native applications after 10 years of cloud computing

- a systematic mapping study. Journal of Systems and

Software, 126:1–16.

Lewis, J. and Fowler, M. (2014). Microservices: A

deﬁnition of this new architectural term. https://

martinfowler.com/articles/microservices.html.

Li, X., D’Aragona, D. A., and Taibi, D. (2023). Evalu-

ating microservice organizational coupling based on

cross-service contribution. In Kadgien, R. et al., edi-

tors, Product-Focused Software Process Improvement

- 24th International Conference (PROFES 2023, vol-

ume 14483 of LNCS, pages 435–450. Springer.

Mitra, R. and Nadareishvili, I. (2020). Microservices: Up

and Running. O’Reilly Media, Inc.

Neri, D., Soldani, J., Zimmermann, O., and Brogi, A.

(2020). Design principles, architectural smells and

refactorings for microservices: A multivocal re-

view. SICS Software-Intensive Cyber-Physical Sys-

tems, 35:3–15.

Newman, S. (2021). Building Microservices: Designing

Fine-Grained Systems. O’Reilly Media, 2nd edition.

Ntentos, E., Zdun, U., Plakidas, K., Meixner, S., and

Geiger, S. (2020). Assessing architecture confor-

mance to coupling-related patterns and practices in

microservices. In Jansen, A. et al., editors, Soft-

ware Architecture, pages 3–20, Cham. Springer Inter-

national Publishing.

OASIS (2020). TOSCA Simple Proﬁle in YAML, version

1.3. OASIS Standard.

Pigazzini, I., Arcelli Fontana, F., Lenarduzzi, V., and Taibi,

D. (2020). Towards microservice smells detection. In

Proceedings of the 3rd International Conference on

Technical Debt (TechDebt 2020), page 92–97. ACM.

Ponce, F., Soldani, J., Astudillo, H., and Brogi, A. (2022a).

Should microservice security smells stay or be refac-

tored? towards a trade-off analysis. In Gerostathopou-

los, I. et al., editors, Software Architecture - 16th Eu-

ropean Conference, ECSA 2022, volume 13444 of

LNCS, pages 131–139. Springer.

Ponce, F., Soldani, J., Astudillo, H., and Brogi, A. (2022b).

Smells and refactorings for microservices security: A

multivocal literature review. Journal of Systems and

Software, 192:111393.

Ponce, F., Soldani, J., Taramasco, C., Astudillo, H., and

Brogi, A. (2023). To security and beyond: On the im-

pacts of microservice security smells and refactorings.

In XLIX Latin American Computer Conference (CLEI

2023), pages 1–10.

Detecting and Resolving Bad Organisational Smells for Microservices

Sharma, T., Darraji, R., and Ghannouchi, F. (2016). Design

methodology of high-efﬁciency contiguous mode har-

monically tuned power ampliﬁers. In 2016 IEEE Ra-

dio and Wireless Symposium (RWS), pages 148–150.

Soldani, J., Muntoni, G., Neri, D., and Brogi, A. (2021).

The µTOSCA toolchain: Mining, analyzing, and

refactoring microservice-based architectures. Soft-

ware: Practice and Experience, 51(7):1591–1621.

Soldani, J., Tamburri, D. A., and Van Den Heuvel, W. J.

(2018). The pains and gains of microservices: A sys-

tematic grey literature review. Journal of Systems and

Software, 146:215–232.

Taibi, D. and Lenarduzzi, V. (2018). On the deﬁnition of

microservice bad smells. IEEE Software, 35(3):56–

62.

Vernon, V. (2016). Domain-Driven Design Distilled.

Addison-Wesley.

Wizenty, P., Ponce, F., Rademacher, F., Soldani, J., As-

tudillo, H., Brogi, A., and Sachweh, S. (2023).

Towards resolving security smells in microservices,

model-driven. In Fill, H. G. et al., editors, Proceed-

ings of the 18th International Conference on Software

Technologies (ICSOFT 2023), pages 15–26.

Zabardast, E., Gonzalez-Huerta, J., Palma, F., and

Chatzipetrou, P. (2023). The impact of ownership and

contribution alignment on code technical debt accu-

mulation. CoRR, abs/2304.02140.

Zimmermann, O. (2017). Microservices tenets. Computere

Science: Research and Development, 32(3–4):301–

310.

ICSOFT 2024 - 19th International Conference on Software Technologies
