Efﬁciently Computing Maximum Clique of Sparse Graphs with

Many-Core Graphical Processing Units

Lorenzo Cardone

, Salvatore Di Martino

and Stefano Quer

Department of Control and Computer Engineering (DAUIN), Politecnico di Torino, Turin, Italy

Keywords:

High-Performace Computing, Graphs, Maximum Clique, GPU, Heuristics, Software, Algorithms.

Abstract:

The Maximum Clique is a fundamental problem in graph theory and has numerous applications in various

domains. The problem is known to be NP-hard, and even the most efﬁcient algorithm requires signiﬁcant

computational resources when applied to medium or large graphs. To obtain substantial acceleration and

improve scalability, we enable highly parallel computations by proposing a many-core graphical processing

unit implementation targeting large and sparse real-world graphs. We developed our algorithm from CPU-

based solvers, redesigned the graph preprocessing step, introduced an alternative parallelization scheme, and

implemented block-level and warp-level parallelism. We show that the latter performs better when the amount

of threads included in a block cannot be fully exploited. We analyze the advantages and disadvantages of the

proposed strategy and its behavior on different graph topologies. Our approach, applied to sparse real-world

graph instances, shows a geomean speed-up of 9x, an average speed-up of over 19x, and a peak speed-up of

over 70x, compared to a parallel implementation of the BBMCSP algorithm. It also obtains a geometric mean

speed-up of 1.21x and an average speed-up of over 2.0x on the same graph instances compared to the parallel

implementation of the LMC algorithm.

1 INTRODUCTION

A Maximum Clique (MC) of an undirected graph

G = (V, E) is a subset of the vertices V such that ev-

ery pair of vertices (v

, v

) in the subset is connected

by an edge e ∈ E and is impossible to add more ver-

tices to the subset maintaining this property. Intu-

itively, an MC is the most signiﬁcant fully connected

subgraph within the original graph. This problem

has been proved to be NP-Hard (Karp, 1972), and it

is often solved with approximated strategies (Zuck-

erman, 1996). Nonetheless, it has multiple appli-

cations in many ﬁelds where evaluating groups of

related elements is essential. Signiﬁcant examples

are the analysis of social network (Gschwind et al.,

2015), bioinformatics (Malod-Dognin et al., 2009),

coding theory (Etzion and Ostergard, 1998), and eco-

nomics (Boginski et al., 2006).

Many researchers have worked to ﬁnd computa-

tionally efﬁcient algorithms. Exact solutions are of-

ten based on branch and bound procedures derived by

https://orcid.org/0009-0008-7553-4839

https://orcid.org/0009-0007-6761-7143

https://orcid.org/0000-0001-6835-8277

subsequent optimizations of the Bron-Kerbosch algo-

rithm (Bron and Kerbosch, 1973). Several approaches

prune a signiﬁcant section of the search space by com-

puting an upper bound of the MC size. Many compute

the bound by solving the graph coloring problem on

the same graph. Indeed, node colors already include

information on neighboring as a graph colored with

n different colors cannot have a clique larger than n.

Unfortunately, the coloring problem is also NP-hard.

Consequently, a few approaches try to overcome this

limitation by adding further analysis steps on top of

the coloring procedure. For example, encoding the

puzzle into a SATisﬁability (SAT) (Ans

otegui and

Many

a, 2004) problem using an SAT-related problem

called MaxSAT (Tompkins and Hoos, 2005) is partic-

ularly effective.

Graphical Processing Units (GPUs) are designed

to perform parallel computations efﬁciently. They

have numerous cores that can execute computations

simultaneously, making them well-suited for tackling

computationally intensive tasks (Quer et al., 2020;

Cardone and Quer, 2023). Nonetheless, develop-

ing algorithms that efﬁciently exploit GPUs on graph

problems is not trivial because of hardware con-

straints.

Cardone, L., Di Martino, S. and Quer, S.

Efﬁciently Computing Maximum Clique of Sparse Graphs with Many-Core Graphical Processing Units.

DOI: 10.5220/0012852700003753

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 19th International Conference on Software Technologies (ICSOFT 2024), pages 539-546

ISBN: 978-989-758-706-1; ISSN: 2184-2833

539

This work focuses on an exact parallel branch and

bound maximum clique algorithm that explicitly tar-

gets the manipulation of large graphs on GPUs. It is

particularly efﬁcient on sparse graphs. To the best of

our knowledge, such a direction has never been thor-

oughly investigated in the literature in the past. We

started by noticing that very few attempts have been

made to bring MC algorithms to GPU; the Maximum

Clique Solver Using Bitsets on GPUs (VanComper-

nolle et al., 2016) is somehow one of the exceptions.

However, its source code is not publicly available.

Therefore, we start our work from a parallel GPU

implementation of the Maximal Clique Enumeration

(MCE) (Almasri et al., 2023). The MCE ﬁnds all

maximal cliques and can be adapted to report only the

desired result. Then, we modiﬁed it by reimplement-

ing many optimizations found in other algorithms,

such as the BitBoard Maximum Clique SParse (Pablo

et al., 2017) and the Large Maximum Clique (Jiang

et al., 2016), applicable only to the MC problem. In

particular, starting from the latter work, we redesign

the vertex sorting and the graph reduction techniques.

Our ﬁnal preprocessing phase is more efﬁcient and

scalable, and the core algorithm uses the high paral-

lelism of GPUs more efﬁciently, showing a reduced

divergence among threads.

We compare our approach with three efﬁcient al-

gorithms for computing the Maximum Clique: The

BitBoard Maximum Clique SParse (BBMCSP), the

Large Maximum Clique (LMC), and the Maximum

Clique Branch Reduce and Bound (MC-BRB). The

results show that our approach achieves, on sparse

real-world graphs, a geometric mean speed-up of 9x

and an average speed-up of 19x over the parallel

BBMCSP algorithm. It also obtained a geometric

mean speed-up of 1.21x and an average speedup of

over 2.0x compared to the parallel LMC algorithm.

Our software and all experimental results are

made available on GitHub

2 BACKGROUND

2.1 Graph Notation

A graph G = (V, E) is a set of vertices V and a set of

nodes (or links) E. Edges indicate relationships be-

tween vertices and can represent different interactions

between them. Given two nodes u, v ∈ V , we identify

an edge between them as E(u, v). We only consider

undirected graphs since the maximum clique problem

https://github.com/stefanoquer/Maximum-Clique-on-

GPU

is deﬁned only for them.

The neighborhood of a vertex u, Γ(u) is the ver-

tices adjacent to u. Given a set of vertices P ⊆ V , we

deﬁne G[P] as the subgraph of G induced by the P

vertices.

A clique is a complete graph, i.e., a graph in which

each node is adjacent to all nodes. A clique is said to

be maximal if it cannot grow by adding any other ad-

jacent vertices. The largest maximal clique in a graph

is the maximum clique ω(G).

A k-core of a graph G is a subgraph of G where

all vertices have a degree at least equal to k. Given

a graph G, we call degeneracy of G the size of its

maximum core. The core number of a vertex u is the

lowest k of all k-cores, including u. The core number

of a graph G, referred to as k(G), is the highest core

number among all its vertices. The k-core of the graph

represents an upper bound of the size of the maximum

clique, i.e., ω(G) ≤ k(G) + 1.

Furthermore, we deﬁne the ego network of a ver-

tex v, the vertex itself, and its neighborhood. The

ego-network G[N

)] is the subgraph of, given an

ordering, the highest-ranked neighbors of v

We compute the density of a given undirected

graph G as d(G) =

2|E|

|V|(|V |−1)

2.2 Graph Coloring

Graph coloring ﬁnds the minimum number of colors

to assign to the vertices of a given graph such that

every two adjacent vertices (u, v) ∈ E have a differ-

ent color, i.e., the color of u (C(u)) differs from the

color of v (C(v)). Coloring can be used to compute

an upper bound of the maximum clique since every

node in the clique must have a different color. This

property can be used to prune the search space during

MC computations. The minimum number of colors

needed to color a graph is called the chromatic num-

ber of the graph. We refer to it as χ(G). As every node

in a clique must have a different color, χ(G) is an up-

per bound of the maximum clique, i.e., ω(G) ≤ χ(G).

Since graph coloring is NP-Hard, many recent works

present algorithms to ﬁnd approximate solutions to

the problem (Chen et al., 2023; Borione et al., 2023).

Approximate methods ﬁnd a coloring χ

greedy

(G) that

is an upper bound of the chromatic number ω(G) ≤

χ(G) ≤ χ

greedy

(G).

2.3 State-of-the-Art MC Algorithms

The Bron-Kerbosh algorithm (Bron and Kerbosch,

1973) selects a vertex of the graph G and separates

the remaining ones into two groups: The adjacent

nodes and the non-adjacent ones. Since the maxi-

ICSOFT 2024 - 19th International Conference on Software Technologies

540

mum clique is a set of fully connected vertices, the

algorithm only needs to explore the adjacent nodes

fully. Then, the procedure recurs on the adjoining

set, which is considered a new instance of the MC

problem. During the recursion, it searches for the MC

between the neighboring nodes of the ones selected

in the previous steps. Over the years, several opti-

mizations have been proposed to speed up the pro-

cedure, such as reducing the vertices that need to be

visited and pruning unsatisfactory branches. Further-

more, MC solvers optimized for large sparse graphs

often perform a pre-processing of the input graph, or-

der the vertices, compute an initial clique, and prune

the search based on the size of the initial clique.

The BitBoard Maximum Clique SParse (Pablo

et al., 2017) (BBMCSP) adopts an internal data rep-

resentation based on bitsets. Bitsets encode sets to re-

duce the memory requirement. Moreover, they allow

bit parallel sets operations, enabling efﬁcient search

and coloring.

The Large Maximum Clique (Jiang et al., 2016)

(LMC) uses a k-core computation to compute an ini-

tial degeneracy-based clique. Moreover, it introduces

a new pruning strategy based on incremental MaxSAT

reasoning. Furthermore, it exploits the Re-NUMBER

procedure (Tomita et al., 2010) to reduce the number

of colors and branching vertices.

The Maximum Clique, Branch Reduce, and

Bound (Chang, 2020) (MC-BRB) solves the MC

problem differently. First, it adopts a greedy proce-

dure named the Maximum Clique Degeneracy De-

gree (MC-DD) to compute two initial cliques, i.e., a

degeneracy-based and a degree-based clique. After

that, it uses a procedure called MC-EGO (which ex-

ploits information from the ego networks) to improve

the maximum clique found by MC-DD and the up-

per bound. To compute the maximum clique, each

instance of the MC problem is transformed into an

equivalent task in which it is necessary to ﬁnd cliques

of size k on dense subgraphs. Thanks to the MC-ECO

algorithm’s efﬁciency in computing “almost” maxi-

mum cliques and the performance of the procedure to

reduce the graph, the overall execution time is signif-

icantly improved.

The most noteworthy efforts to implement the MC

algorithm on GPUs are the Maximum Clique Solver

Using Bitsets on GPUs (VanCompernolle et al., 2016)

(BBMCG) and the Parallel Maximal Clique Enumer-

ation on GPUs (Almasri et al., 2023). BBMCG is a

GPU implementation of BBMC that uses bitsets to

improve its efﬁciency. It is suitable only for small

and dense graph instances and runs out of memory

for large graphs. For that reason, we do not consider

it in our experimental section. The Parallel Maximal

Clique Enumeration on GPUs implements a branch

and bound Bron-Kerbosh approach and solves the

Maximal Clique Enumeration (MCE) problem. This

is a slightly different and more complex version of the

MC problem. Thus, we do not consider it in our ex-

perimental section as the comparison would weigh in

our favor.

3 OUR IMPLEMENTATION

3.1 Block-Wise Parallelism

To implement a fast and scalable algorithm able to

manipulate large graphs even with constrained mem-

ory resources, we leverage several well-known con-

cepts and propose a new GPU algorithm exploiting

the best aspects of BBMCSP and LMC described in

Section 2.3. Algorithm 1 shows our pseudo-code for

computing the MC. To parallelize the process, the

procedure iterates on the ﬁrst level of the recursion

tree (often called “the ﬁrst level independent subtree”)

in parallel as, thanks to vertex ordering, each iteration

is made independent from the following ones.

Algorithm 1: Pseudo-code for our parallel GPU-based MC

algorithm.

Input: Graph G = (V,E)

Output: Maximum clique C

max

1 begin

2 (G

′

= (V

′

, E

′

),C

′

) ← Pre process (G);

3 C

max

← C

′

;

4 for v

∈ |V

′

| in parallel per GPU block do

5 P = Γ(v

) ∩ {v

i+1

, v

i+2

, ..., v

′

};

6 Compute adjacency matrix of (G

′

[P]);

7 Compute greedy coloring χ

greedy

′

[P]);

8 core() ← k-core analysis of G

′

[P];

9 P

′

= {u ∈ P|core(u) + 1 ≥ |C

max

|};

10 Compute adjacency matrix of (G

′

]);

11 C

max

← SearchMaxClique(G

′

], P

′

}, C

max

);

The algorithm initially preprocesses the input

graph G (line 2), performing the following three steps.

First, it exploits the parallel implementation of the

MCE algorithm on GPUs to sort the vertices V of

G by descending core number. Then, following the

LMC algorithm (Section 2.3), it ﬁnds an initial clique

representing our lower bound. Finally, it simpliﬁes

the graph G, removing all vertices with a core number

smaller than the initial clique. Function Pre-process

returns the reduced graph G

′

(not including vertices

that cannot belong to the ﬁnal MC) and the initial

clique C

′

(representing our lower bound).

Efﬁciently Computing Maximum Clique of Sparse Graphs with Many-Core Graphical Processing Units

541

After that pre-processing step, we ﬁnd the desired

MC working on the reduced graph G

′

. Line 4 shows

the primary iteration construct of the algorithm. This

cycle takes care of the ﬁrst level of the recursion

tree, which is usually called a “ﬁrst-level indepen-

dent subtree”. The iteration runs over all vertices of

′

and can be easily parallelized by running an in-

dependent thread for each vertex. Unfortunately, in

this approach, the P sets and the adjacency matrix

must be stored for each thread. Consequently, the

method requires an amount of memory proportional

to the number of threads, making it unsuitable for

GPUs that usually have minimal memory to store data

efﬁciently. To solve this problem, we adopt the ap-

proach proposed by BBMCG, which is to assign each

task to blocks instead of assigning tasks to threads.

This strategy reduces the memory used and, simulta-

neously, the divergence among threads.

In line 5, the algorithm computes the intersection

between the neighborhood of the selected node (v

) of

the current block and the following vertices v

adopt-

ing the pre-computed order. Note that it is possible to

precompute all the sets P before the parallel for loop

and slightly optimize the process but, for clarity, we

moved the computation where each task computes its

own set.

In line 6, we create G

′

[P], and in line 7, we color

it using an greedy approach. This technique was ini-

tially proposed in BBMCSP. Since each GPU block

consists of multiple threads, we exploit these threads

to parallelize the inter-set operations typical of the

coloring procedure. To speed up this process, the

graph is represented as an array of bits on which

accessing the neighborhood information of a node

merely involves accessing the right row. The number

of colors the procedure ﬁnds is used to compute the

upper bound for the clique size. As a further optimiza-

tion, it is possible to stop coloring when the number of

colors exceeds the bound |C

max

|−|C| as no additional

useful information is gained by further coloring the

remaining vertices of P. The search should continue

as long as the current bound can improve the best so-

lution.

Line 8 repeats the ﬁrst step performed by function

Pre process but works on the graph G

′

and runs only

the threads in the block. After this step, it is possible

to recompute a clique as in the preprocessing phase,

but this procedure has been proven to be too time-

consuming to achieve any beneﬁt. Thus, in line 9, we

repeat the node reduction, i.e., we remove from P any

node u whose core number does not allow it to par-

ticipate in a clique larger than the maximum already

found.

In line 10, we create G

′

], and ﬁnally, in line 11,

we call the function SearchMaxClique to ﬁnd the

maximum clique on the subgraph including only the

vertices in P

′

Algorithm 2: Our parallel function SearchMaxClique

(called by Algorithm 1) to compute the ﬁnal MC.

Input: Graph G = (V,E), Set P, Set C, Set C

max

Output: Maximum clique C

max

1 begin

2 if P =

0 then

3 if |C| > |C

max

| then

4 C

max

← C;

5 return C

max

;

6 B ← GetBranchingNodes(P, |C

max

| − |C|);

7 if B =

0 then

8 return C

max

;

9 A ← P \ (B = {b

, b

, ..., b

|B|

});

10 for b

∈ B do

11 if ﬁrst level subtree explored then

12 Donate tasks to idle blocks;

13 break;

14 P

′

← A ∪ (Γ(b

) ∩ {b

i+1

, b

i+2

, ..., b

|B|

});

15 C

max

← SearchMaxClique(G, P

′

C ∪ {b

}, C

max

);

16 return C

max

;

Function SearchMaxClique is described by Algo-

rithm 2.

In lines 2-5, we try to expand the current clique if

the set P is empty.

Line 6 computes B, i.e., a subset of P, using the

greedy coloring procedure previously presented. The

nodes included in B are the ones that received a color

greater than |C

max

| − |C|. The presence of nodes with

a color greater than this bound implies the possibility

of expanding the current clique. If this set turns out to

be empty, we can terminate the execution (line 7-8).

In lines 11-13, we check whether the remaining

work can be shared between the idle blocks, and then

we donate to each block a (|C| + 1)-level task. A task

consists of selecting a vertex and recurring on the sub-

problem created by this choice. This operation dy-

namically rebalances the workload between threads.

In line 14, we compute a new vertex set P

′

(includ-

ing all nodes that can be used to expand the current

solution) . In line 15, we recur on the MC subprob-

lem . Since the algorithm is executed on a GPU, the

recursion is performed by adopting an explicit stack

recording the current state.

3.2 Warp-Wise Parallelism

As already shown in the previous section, at each

recursive call of line 15, the size of the MC sub-

ICSOFT 2024 - 19th International Conference on Software Technologies

542

problem is reduced, and, at a certain point, there are

not enough nodes to distribute the work between all

threads inside a block. Thus, block-wise parallelism

is effective only until the subgraph G

′′

= G

′

] has a

vertex set size |V (G

′′

)| larger or equal to 32 times the

number of threads in a block. To minimize this ef-

fect, we propose the following solution. Since we can

virtually guarantee enough nodes to make the block-

wise parallelization worthwhile at the ﬁrst recursion

level, we left this level untouched, as already shown

in Algorithm 1. On the contrary, Algorithm 2, from

the second level subtree, receives a subproblem to be

solved for each GPU warp (i.e., 32 GPU threads).

Since GPU warps are the lowest hierarchical level on

a GPU to possess an independent program counter,

we reduce the number of nodes we can process in

parallel and increase the number of instances we can

solve in parallel by the same amount. This feature

allows increased ﬂexibility since we waste less com-

putational resources when the subproblem decreases

in size. Unfortunately, each instantiated subproblem

requires a certain amount of memory to be allocated,

increasing the memory requirements. Moreover, each

warp shares the adjacency matrix of G

′

]. Dynamic

work balancing is performed at the warp instead of

the block level. It is performed internally inside the

block before the ﬁrst level subtree has been explored

and globally among warps of different blocks after the

ﬁrst level subtree has been explored.

4 EXPERIMENTAL RESULTS

4.1 Experimental Setup

We ran our tests on a workstation equipped with a

CPU Intel Core i9-10900KF, 64 GBytes of DDR4

RAM, and a GPU NVIDIA RTX 3070 with 8GB of

onboard memory. The CPU runs with 10 physical

cores and 20 threads (with hyperthreading).

All our algorithms are written in C++ and com-

piled with g++. The GPU implementation is written

in C++/CUDA, adopting the Toolkit version 12.2.

The dataset mainly includes online graphs avail-

able at the Network Repository (Rossi and Ahmed,

2015)

. However, we randomly generated graphs

with speciﬁc densities to compare the performances

of the different algorithms in particular conditions.

Since not all parallel versions of state-of-the-art

algorithms are available online, we proceed as fol-

lows to perform a signiﬁcant comparison. The BBM-

https://networkrepository.com/

CSP algorithm

has been implemented following the

guidelines of the authors (Pablo et al., 2017), and

we reproduced BBMCPara using the OpenMP library.

LMC is available from its repository

in its single-

threaded version. We did not modify the preprocess-

ing strategy but parallelized the ﬁrst level using the

POSIX threads library. MC-BRB is only available in

its single-thread version

. We parallelized it by fol-

lowing the guidelines of the original work (Chang,

2020). Both MC-EGO and MC-BRB have been par-

allelized using the OpenMP library. The other pre-

processing procedure (like MC-DD) remains single-

threaded.

4.2 Result on Random Graphs

In this section, we collect our algorithms’ results on

randomly generated graphs. We generated graphs

of medium-large size with low-medium density to

have meaningful results. This feature highlights that

the pruning strategy of LMC and MC-BRB becomes

more effective with higher densities. All tests have

been performed using the block version of our algo-

rithm (not the warp one). To obtain reliable data, we

generated ten different graph sets sharing each value

of size and density, and we presented the average run-

times for each group.

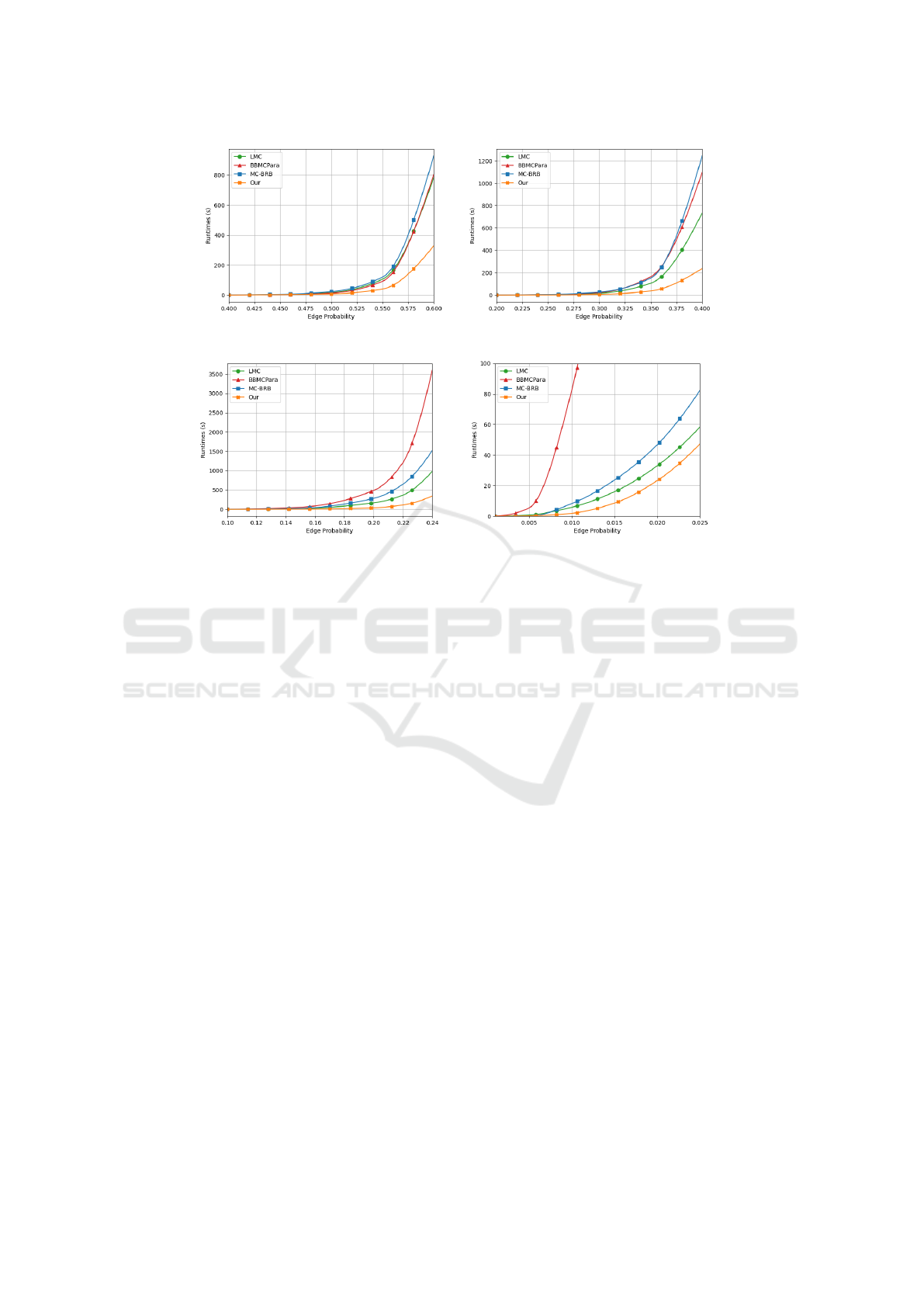

Figure 1 shows the running times of each algo-

rithm as a function of the density with graphs of dif-

ferent sizes. The plots show that our approach outper-

forms every other algorithm in practically all graph

instances. In particular, our data shows that on these

graph topologies, the most critical factor in reducing

the execution time is the level of parallelism achiev-

able, which signiﬁcantly beneﬁts the GPU implemen-

tation. Our data illustrates that we achieve increasing

speed-ups over BBMCPara as the density decreases,

going from 3x to over 10x. We also achieve a speed-

up of around 2x-3x on low-density instances com-

pared to MC-BRB. Finally, we obtained a speed-up of

over 2x over LMC, often the second fastest approach

for sparse graphs.

As a ﬁnal remark, notice that many experiments

reach the timeout while still showing a diverging be-

havior. This leads us to the conjecture that extend-

ing the timeout further will increase the speed-ups ob-

tained with our tool.

https://github.com/psanse/CliqueEnum

https://home.mis.u-picardie.fr/∼cli/EnglishPage.html

https://github.com/LijunChang/MC-BRB

Efﬁciently Computing Maximum Clique of Sparse Graphs with Many-Core Graphical Processing Units

543

(a) Graphs with 1,000 vertices. (b) Graphs with 3,000 vertices.

Figure 1: Runtimes of our algorithms (on the y-axis) on random graphs as a function of the graph density (reported on the

x-axis). All times are reported in seconds.

4.3 Results on Dataset Graphs

This section compares the execution time of the same

algorithms analyzed in the previous section on pub-

licly available graphs.

Table 1 collects the characteristics of our graph

set. The graphs are sorted according to their average

density after the reduction at the ﬁrst level. We se-

lected graphs with signiﬁcantly different features to

evaluate the efﬁciency of all algorithms with many

graph topologies.

Table 2 reports all algorithms’ initialization (I) and

search (S) runtimes. It also reports the total (T) run-

ning times for all algorithms. Furthermore, to indi-

cate the accuracy of the preprocessing step, it shows

the value |ω

|, which represents the size of the initial

clique found during the preprocessing step. OOM in-

dicates an out-of-memory error, and TO a time-out,

i.e., a running time larger than one hour. A symbol -

suggests that the problem has been solved during the

previous phase or has run out of memory.

As Table 2 shows, MC-BRB is the fastest algo-

rithm on average. Even if its preprocessing time is

often the highest among the approaches, its ability to

ﬁnd a larger initial clique and its more efﬁcient al-

gorithm to solve the most challenging instances pro-

duce a lower computation time. The MaxSAT ap-

proach implemented by LMC also shows excellent

results in a few cases where the speed-ups are signiﬁ-

cant. Our implementation shows promising results in

almost all cases when compared to BBMCSP. It also

produces competitive runtimes on the lower-density

graphs compared to all other approaches, making it

a valid alternative with graphs locally sparse. Notice

that these results are coherent with the ones presented

in the previous section on random graphs. However,

we can see that our algorithm pays a penalty on graphs

whose density increases on lower recursion levels due

to lower thread utilization and less effective pruning

strategies. If we compare our solution on all graphs

on which all algorithms performed a search (the ﬁrst

four graphs are solved during preprocessing), we are

two to four times faster than the other implementa-

tions. Compared to the most dense graphs, MC-BRB

manages to solve many of the graphs during the pre-

computation step, which results in tremendous speed-

up when the other algorithms must perform a time-

consuming search. Moreover, the warp-parallel ver-

sion has runtimes similar to the block version in those

instances where the optimization couldn’t be applied;

even in the worst case, the slowdown is usually mini-

mal. The effect of the optimization is more evident in

instances that take a longer execution time. In those

cases, we can signiﬁcantly speed up the previous ver-

sion. As discussed in the last section, the warp-base

ICSOFT 2024 - 19th International Conference on Software Technologies

544

Table 1: The table shows the statistics about our dataset, i.e., number of vertices, number of edges, density, maximum and

average degree of the nodes, and the size of the maximum clique.

Id Instance |V| |E| Density Max. degree Avg. degree |ω(G)|

co-papers-dblp 540,486 15,245,730 0.000104 3,299 56 337

web-uk-2002-all 18,520,486 298,113,763 2e-06 194,956 32 944

c-62ghs 41,731 300,538 0.000345 5,061 14 2

web-it-2004 509,338 7,178,414 5.5e-05 469 28 432

aff-orkut-user2groups 8,730,857 327,037,488 9e-06 318,268 75 6

rec-yahoo-songs 136,737 49,770,696 0.005324 31,431 728 19

soc-livejournal-user-groups 7,489,073 112,307,386 4e-06 1,053,749 30 9

socfb-konect 59,216,214 92,522,018 0 4,960 3 6

aff-digg 872,622 22,624,728 5.9e-05 75,715 52 32

soc-orkut 2,997,166 106,349,210 2.4e-05 27,466 71 47

soc-sinaweibo 58,655,849 261,321,072 0 278,491 9 44

wiki-talk 2,394,385 5,021,411 2e-06 100,032 4 26

bn-human-Jung2015 M87113878 1,772,034 76,500,873 4.9e-05 6,899 86 227

bn-human-BNU 1 0025864 session 2-bg 1,827,241 133,727,517 8e-05 8,444 146 271

soc-ﬂickr 513,969 3,190,453 2.4e-05 4,369 12 58

tech-p2p 5,792,297 147,830,699 9e-06 675,080 51 178

bn-human-BNU 1 0025864 session 1-bg 1,827,218 143,158,340 8.6e-05 15,114 157 294

soc-ﬂickr-und 1,715,255 15,555,043 1.1e-05 27,236 18 98

socfb-A-anon 3,097,165 23,667,395 5e-06 4,915 15 25

bn-human-Jung2015 M87126525 1,827,241 146,109,301 8.8e-05 8,009 160 220

bio-human-gene1 22,283 12,345,964 0.049731 7,940 1,108 1,335

bio-human-gene2 14,340 9,041,365 0.087942 7,230 1,261 1,300

soc-LiveJournal1 4,847,571 68,475,392 6e-06 22,887 28 321

web-wikipedia link it 2,936,413 104,673,034 2.4e-05 840,650 71 870

web-indochina-2004-all 7,414,866 194,109,312 7e-06 256,425 52 6,848

Table 2: Runtime statistics: The table reports all algorithms’ preprocessing solution size found (|ω

|), preprocessing (I),

search (S), and total time (T). The time-out (TO) is set to 3,600 seconds, i.e., one hour. The quantity of memory available is

8 GBytes of GPU RAM for our approach and 64 GBytes of system RAM for all the others. Beyond those limits, we have an

out-of-memory error (OOM). A symbol - indicates that the problem has been solved during the previous phase or has run out

of memory. For our algorithm, we report data for both the block-based and warp-based versions.

Our BBMCPara LMC MC-BRB

|ω

| I S T S T |ω

| I S T |ω

| I S T

(Block) (Block) (Warp) (Warp)

337 0.07 - 0.07 - 0.07 337 0.24 - 0.24 337 0.11 - 0.11 337 0.01 - 0.01

944 0.65 - 0.65 - 0.65 944 7.40 - 7.40 944 5.59 - 5.59 944 1.13 - 1.13

2 0.06 0.00 0.06 0.00 0.06 2 0.08 0.00 0.09 2 0.01 0.01 0.02 2 0.00 - 0.00

432 0.04 - 0.04 - 0.04 432 0.07 - 0.07 432 0.03 - 0.03 432 0.00 - 0.00

2 16.29 1.78 18.07 1.66 17.95 5 - OOM - 2 25.09 21.25 46.34 6 95.41 0.74 96.15

16 1.65 3.21 4.86 2.91 4.55 11 42.85 77.95 120.80 16 2.61 6.44 9.05 18 12.08 6.56 18.64

5 11.88 0.26 12.13 0.25 12.13 8 378.73 117.45 496.17 4 7.46 2.37 9.83 9 14.31 0.59 14.90

5 1.26 0.01 1.28 0.01 1.27 6 56.65 0.09 56.75 6 7.33 0.12 7.45 6 4.89 - 4.89

28 0.78 12.36 13.13 5.92 6.70 25 15.65 55.59 71.25 29 0.85 13.71 14.56 30 4.02 42.15 46.17

18 3.40 0.24 3.64 0.23 3.62 46 71.99 3.49 75.48 17 9.33 1.68 11.01 47 9.12 - 9.12

7 6.94 0.25 7.19 0.24 7.17 41 530.51 10.37 540.88 8 20.44 2.5 22.94 44 21.54 1.42 22.96

23 0.23 0.01 0.24 0.01 0.24 16 4.4 0.03 4.43 25 0.13 0.02 0.15 26 0.18 0.01 0.19

138 1.46 65.59 67.05 69.04 70.50 221 48.82 2.47 51.30 133 3.50 16.89 20.39 227 7.34 0.02 7.35

200 2.71 11.43 14.14 14.18 16.89 271 95.62 37.23 132.85 199 6.08 24.36 30.44 271 19.44 0.17 19.61

54 0.18 0.05 0.23 0.05 0.23 40 1.54 0.23 1.77 52 0.1 0.09 0.19 57 0.20 0.12 0.32

173 2.14 742.51 744.64 379.19 381.32 153 207.42 TO TO 172 12.46 12.8 25.26 175 17.24 9.53 26.77

223 2.49 65.91 68.41 34.70 37.19 276 103.41 TO TO 222 6.44 31.52 37.96 283 23.83 2.71 26.54

75 0.48 1.13 1.62 0.72 1.20 68 9.05 9.62 18.68 74 0.63 1.3 1.93 96 1.52 1.39 2.90

23 0.50 0.03 0.53 0.03 0.53 24 14.73 0.57 15.30 23 1.36 0.24 1.6 25 1.29 - 1.29

195 2.18 4.88 7.05 4.57 6.74 206 71.90 128.52 200.42 196 5.44 12.87 18.31 219 6.83 0.08 6.91

1,329 0.48 468.93 469.41 219.45 219.93 1,268 4.86 TO TO 1,328 0.27 169.23 169.50 1,335 4.33 1.46 5.78

1,293 0.44 43.27 43.71 58.62 59.06 1,229 2.71 288.54 291.24 1,290 0.19 27.21 27.40 1,300 2.82 0.79 3.61

320 0.33 0.10 0.43 0.1 0.44 316 20.79 0.01 20.80 320 2.35 0.01 2.36 321 1.08 - 1.08

869 1.25 0.98 2.23 0.97 2.20 869 29.51 0.02 29.53 869 2.52 0.02 2.54 870 3.22 - 3.22

6,848 1.10 2.02 3.12 OOM - 6,848 25.01 0.01 25.03 6,848 1.92 4.57 6.49 6,848 0.53 - 0.53

version achieves the best performances where the ex-

ecution slows down because of the wasted computa-

tional resources. Thanks to this, we have speed-ups

of over 2x over our block-based version.

5 CONCLUSIONS

In this paper, we focus on solving the Maximum

Clique problem. Although GPU-based implementa-

tions seem an excellent path to follow to improve

the scalability of the existing algorithms, very few

Efﬁciently Computing Maximum Clique of Sparse Graphs with Many-Core Graphical Processing Units

545

works can be found on the topic, and, as far as we

know, no implementation is available online. Conse-

quently, starting from works on parallelizing the max-

imal clique enumeration on GPUs and merging con-

tributions and ideas coming from other approaches

into this methodology, we propose a GPU implemen-

tation for the Maximum Clique problem.

Our experimental analysis compares our version

with the main state-of-the-art algorithms. We show

that we can reach speed-ups up to 70x on graph in-

stances that, once reduced, are dense or have a high

maximum degree vs an implementation of BBMC-

Para.

In future works, we still have to run our algo-

rithm with proper implementation of the incremental

MaxSAT reasoning and the incremental upped-bound

approach. These contributions can further improve

scalability and reduce our running times.

REFERENCES

Almasri, M., Chang, Y.-H., Hajj, I. E., Nagi, R., Xiong,

J., and mei Hwu, W. (2023). Parallelizing Maximal

Clique Enumeration on GPUs.

Ans

otegui, C. and Many

a, F. (2004). Mapping Prob-

lems with Finite-Domain Variables to Problems with

Boolean Variables. In SAT (Selected Papers), pages

1–15.

Boginski, V., Butenko, S., and Pardalos, P. M. (2006). Min-

ing market data: A network approach. Computers &

Operations Research, 33(11):3171–3184.

Borione, A., Cardone, L., Calabrese, A., and Quer, S.

(2023). An experimental evaluation of graph color-

ing heuristics on multi- and many-core architectures.

IEEE Access, 11:125226–125243.

Bron, C. and Kerbosch, J. (1973). Algorithm 457: ﬁnding

all cliques of an undirected graph. Commun. ACM,

16(9):575–577.

Cardone, L. and Quer, S. (2023). The Multi-Maximum and

Quasi-Maximum Common Subgraph Problem. Com-

putation, 11(4).

Chang, L. (2020). Efﬁcient maximum clique computation

and enumeration over large sparse graphs. The VLDB

Journal, pages 999–1022.

Chen, Y., Brock, B., Porumbescu, S., Buluc, A., Yelick,

K., and Owens, J. (2023). Atos: A task-parallel gpu

scheduler for graph analytics. In Proceedings of the

51st International Conference on Parallel Processing,

ICPP ’22, New York, NY, USA. Association for Com-

puting Machinery.

Etzion, T. and Ostergard, P. R. (1998). Greedy and heuristic

algorithms for codes and colorings. IEEE Transac-

tions on Information Theory, 44(1):382–388.

Gschwind, T., Irnich, S., Furini, F., Calvo, R. W., et al.

(2015). Social Network Analysis and Community

Detection by Decomposing a Graph into Relaxed

Cliques. Technical report, Gutenberg School of

Management and Economics, Johannes Gutenberg-

Universit

at Mainz.

Jiang, H., Li, C.-M., and Many

a, F. (2016). Combining Ef-

ﬁcient Preprocessing and Incremental MaxSAT Rea-

soning for MaxClique in Large Graphs. In Proceed-

ings of the Twenty-Second European Conference on

Artiﬁcial Intelligence, ECAI’16, page 939–947, NLD.

IOS Press.

Karp, R. M. (1972). Reducibility among combinatorial

problems. Complexity of Computer Computations:

Proceedings of a symposium on the Complexity of

Computer Computations, pages 85–103.

Malod-Dognin, N., Andonov, R., and Yanev, N. (2009).

Maximum cliques in protein structure comparison.

Pablo, S. S., Alvaro, L., Artieda, J., and Pardalos, P. M.

(2017). A Parallel Maximum Clique Algorithm for

Large and Massive Sparse Graphs. Optimization Let-

ters, 11:343–358.

Quer, S., Marcelli, A., and Squillero, G. (2020). The

maximum common subgraph problem: A parallel and

multi-engine approach. Computation, 8(2).

Rossi, R. A. and Ahmed, N. K. (2015). The network data

repository with interactive graph analytics and visual-

ization. In AAAI.

Tomita, E., Sutani, Y., Higashi, T., Takahashi, S., and

Wakatsuki, M. (2010). A simple and faster branch-

and-bound algorithm for ﬁnding a maximum clique.

In Rahman, M. S. and Fujita, S., editors, WALCOM:

Algorithms and Computation, pages 191–203, Berlin,

Heidelberg. Springer Berlin Heidelberg.

Tompkins, D. A. and Hoos, H. H. (2005). UBCSAT: An

implementation and experimentation environment for

SLS algorithms for SAT and MAX-SAT. In The-

ory and Applications of Satisﬁability Testing: 7th In-

ternational Conference, SAT 2004, Vancouver, BC,

Canada, May 10-13, 2004, Revised Selected Papers

7, pages 306–320. Springer.

VanCompernolle, M., Barford, L., and Harris, F. (2016).

Maximum Clique Solver Using Bitsets on GPUs. In

Latiﬁ, S., editor, Information Technology: New Gen-

erations, pages 327–337, Cham. Springer Interna-

tional Publishing.

Zuckerman, D. (1996). On unapproximable versions

of np-complete problems. SIAM J. Comput.,

25(6):1293–1304.

ICSOFT 2024 - 19th International Conference on Software Technologies

546
