Enhancing Privacy and Utility in Federated Learning: A Hybrid P2P

and Server-Based Approach with Differential Privacy Protection

Luca Corbucci

1 a

, Anna Monreale

1 b

and Roberto Pellungrini

2 c

University of Pisa, Italy

Scuola Normale Superiore, Italy

Keywords:

Privacy Preserving Machine Learning, Federated Learning.

Abstract:

Federated Learning has been recently adopted in several contexts as a solution to train a Machine Learning

model while preserving users’ privacy. Even though it avoids data sharing among the users involved in the

training, it is common to use it in conjunction with a privacy-preserving technique like DP due to potential

privacy issues. Unfortunately, often the application of privacy protection strategies leads to a degradation

of the model’s performance. Therefore, in this paper, we propose a framework that allows the training of a

collective model through Federated Learning using a hybrid architecture that enables clients to mix within the

same learning process collaborations with (semi-)trusted entities and collaboration with untrusted participants.

To reach this goal we design and develop a process that exploits both the classic Client-Server and the Peer-

to-Peer training mechanism. To evaluate how our methodology could impact the model utility we present an

experimental analysis using three popular datasets. Experimental results demonstrate the effectiveness of our

approach in reducing, in some cases, up to 32% the model accuracy degradation caused by the use of DP.

1 INTRODUCTION

Machine Learning (ML) methodologies require data

to train models. Getting data is not always easy: users

may not be prone to share their data with a third party.

Moreover, regulations like the GDPR

in Europe,

could set some limits on the use and sharing of the

data. A key idea in such regard is to train an ML

model cooperatively maintaining full control of their

data. The most famous cooperative learning tech-

nique is Federated Learning (FL) (McMahan et al.,

2017), which aims at training a global model by ex-

ploiting the cooperation of different participants who

do not have to share their data with the other parties.

In any FL architecture, each participant locally trains

a model that is then shared with the other participants

to achieve a global model consensus. The aggrega-

tion of the models could happen on a central server

(server-based) that acts as an orchestrator or on the

other clients of the network in the case of a peer-to-

https://orcid.org/0000-0001-5427-5518

https://orcid.org/0000-0001-8541-0284

https://orcid.org/0000-0003-3268-9271

EU General Data Protection Regulation (GDPR) can

be found at the following link: http://bit.ly/1TlgbjI.

peer (P2P) architecture.

Despite FL being designed to protect users’ pri-

vacy, several studies have shown that the model

trained with an FL architecture with a centralised ag-

gregation may have some privacy issues (Bouacida

and Mohapatra, 2021), (Melis et al., 2018), (Geip-

ing et al., 2020). Indeed, the central aggregator has

to be treated as a trusted entity, i.e., it has to aggre-

gate all model updates in a correct way without dis-

criminating against any of the clients. Moreover, it

does not have to conduct any malicious attack against

the participants such as membership inference attacks

(Shokri et al., 2016) using the received participants’

model weights. The gold standard to reduce the pri-

vacy risk of the clients involved in the FL process is

the use of Differential Privacy (DP) (Dwork, 2006)

during the model training.

In this paper, we propose and analyze a hybrid

and private FL framework by combining both P2P

and server-based architectures. In particular, we con-

sider a scenario where the clients, before starting the

model training with a server-based FL, can collabo-

rate with some other (semi-)trusted clients to agree

on a shared model. We assume that each client gains

access to both a low-privacy-risk dataset, for which

the client has no particular privacy constraints and, a

592

Corbucci, L., Monreale, A. and Pellungrini, R.

Enhancing Privacy and Utility in Federated Learning: A Hybrid P2P and Server-Based Approach with Differential Privacy Protection.

DOI: 10.5220/0012863600003767

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 21st International Conference on Security and Cryptography (SECRYPT 2024), pages 592-602

ISBN: 978-989-758-709-2; ISSN: 2184-7711

high-privacy-risk dataset, which may have been re-

cently collected, on which the client is obliged to

guarantee stricter privacy requirements. Given the po-

tential evolution of the data over time, we also con-

sider the possibility that the second dataset might have

a different distribution with respect to the ﬁrst one.

The approach proposed in this paper exploits the pres-

ence of these two datasets to reduce the impact of DP

on the utility of the model (measured by the model’s

accuracy). In particular, the scenario that we ana-

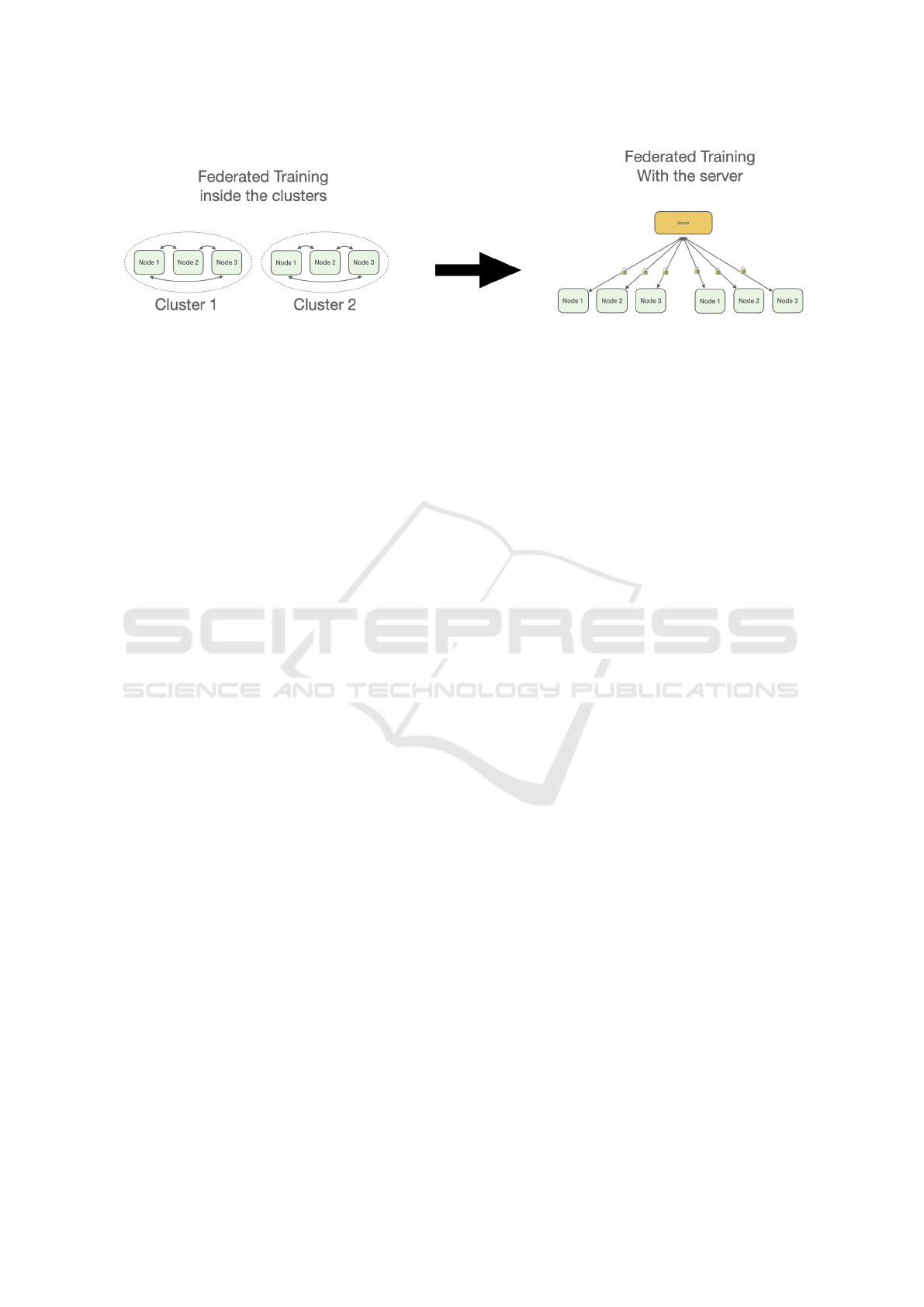

lyze is a mix of P2P and server-based FL where the

clients are ﬁrst grouped into different clusters. In each

cluster, the clients use their low-privacy-risk datasets

to train a federated model with or without using DP.

Subsequently, the clients exploit the high-privacy-risk

datasets at their disposal for starting a differentially

private server-based FL computation. Each client ex-

ploits the model already trained within the cluster to

start the server-based FL training with the goal of re-

ducing the impact of DP on the model’s utility. We

experimented our hybrid methodology on three well-

known datasets. Experimental results show the effec-

tiveness of our approach in reducing considerably the

accuracy of the learned model.

The paper is structured as follows. In Section 2

we brieﬂy present the related works and formalize the

deﬁnition of Federated Learning and DP that we used

in our methodology. Section 3 describes the details of

our methodology and Section 4 presents the experi-

ments used to validate it. Finally, Section 5 concludes

the paper and presents our ideas for future develop-

ments of the proposed approach.

We summarize here our main contributions:

• We propose a new hybrid framework for train-

ing FL models that allows clients to combine the

server-based and the P2P architecture;

• The framework allows the clients to adopt DP

when it is needed limiting as much as possible its

use to degrade as little as possible the accuracy.

• We tested our framework assuming no privacy

need in the P2P computation and a differentially

private server-based FL.

• We tested our approach using three different

tabular datasets with different non-iid distribu-

tions, three different requirements for privacy and

three different dataset conﬁgurations with respect

to low-privacy-risk and high-privacy-risk dataset

sizes.

2 BACKGROUND AND RELATED

WORKS

Federated Learning: FL is a technique introduced in

(McMahan et al., 2016) to train ML models collabo-

ratively while preserving users’ privacy. There exist

two main FL architectures: server-based (McMahan

et al., 2016) and peer-to-peer (P2P) (Tang et al., 2018)

(Vanhaesebrouck et al., 2016) (Kasturi et al., 2022)

(Sun et al., 2021). In the server-based architecture,

we have two main actors during federated training:

the K clients that own the training data and a cen-

tral server that orchestrates the training process. The

process is initiated by the central server. Each client

trains a model using its own data and transmits the

model updates to a central server. The server com-

bines all model updates received and sends back the

combined model updates to the clients. The process

iterates until the model reaches a point of convergence

in terms of model performance or until the maximum

number of iterations is achieved. Instead, in a P2P ar-

chitecture, communication with the server is replaced

with peer-to-peer communication between the clients.

All the clients in the network start training a model

using their own data. At the end of the local train-

ing step, all the clients broadcast their local model

update to the other clients in the network. All the

clients receive the updates and aggregate them into

a new model. Depending on the topology of the P2P

network, this process may differ.

In addition to server-based and P2P architectures,

other collaborative models have been proposed in the

past few years. (Augenstein et al., 2022) presents the

idea of Mixed FL. They want to exploit both the “de-

centralised” data owned by the clients and the “cen-

tralised” data stored on the server or in another data

centre. Based on the number of clients involved in

the training, we can have a cross-silo or a cross-device

Federated Learning. In the cross-silo approach, only a

few clients are involved in the training and all of them

are always available during the training. Instead, in

the cross-device approach, millions of clients are in-

volved in the training and they are available for the

training only if some conditions are met.

In terms of aggregation, there are two main algo-

rithms that can be used by the server: Federated-SGD

(FedSGD) and Federated Average (FedAvg) (McMa-

han et al., 2016). FedSGD is the baseline algorithm.

In this approach, the server initializes a model θ

and

shares it with the χ clients selected for the FL round.

Each of the k ∈ χ clients performs a single gradient

update step g

= ∇L(θ

) on the batch b

and then

shares the gradient g

with the server. Then the server

aggregates the χ gradients into a single one, updates

Enhancing Privacy and Utility in Federated Learning: A Hybrid P2P and Server-Based Approach with Differential Privacy Protection

593

the model and starts a new FL round. The constraint

on the single gradient update, which each client can

perform before sharing it with the server, is a huge

limit on the training performance. FedAvg is a more

advanced algorithm that aims to improve the perfor-

mance of FedSGD. In this case, the clients can per-

form more than a single local epoch before communi-

cating with the server. Instead of sending the gradient

to the server, with FedAvg, each client performs mul-

tiple steps of gradient descent on its own datasets and

then shares the model Θ

with the server. The server

performs the aggregation computing the mean of the

received models:

t+1

←

∑

k=1

t+1

(1)

In this paper, we assume the use of FedAvg as an ag-

gregation algorithm.

Differential Privacy: Differential Privacy is a

privacy-preserving model introduced by Cyntia

Dwork (Dwork et al., 2006b) (Dwork and Roth,

2014). More formally, given ε > 0 and δ ∈ [0,1] a

randomized mechanism M satisﬁes (ε, δ)-DP if for

any two “neighbouring” datasets D, D

′

which differ

in exactly one entry and for each S ⊂ O we have

P[M (D) ∈ S] ≤ e

P[M (D

′

) ∈ S] + δ. Intuitively, if

we run the same algorithm M on the two datasets,

DP ensures that the two outputs will be indistinguish-

able up to an upper limit ε known as privacy bud-

get. For the accounting of the privacy budget we

use the accountant available in Opacus (Yousefpour

et al., 2021), the most popular library to train Differ-

entially Private models using Pytorch (Paszke et al.,

2019). This accountant uses R

enyi Differential Pri-

vacy (RDP) (Mironov, 2017), a relaxation of the orig-

inal DP deﬁnition based on the R

enyi divergence.

Privacy Preserving ML: The deﬁnition of DP we

provided in the previous section can also be applied

during the training of a ML model. A modiﬁed ver-

sion of the Stochastic Gradient Descent algorithm

called DP-SGD has been proposed in the literature

(Abadi et al., 2016) to apply DP during the training of

an ML model. The DP-SGD algorithm performs two

steps. First of all, the gradient computed during the

model training is clipped so that all the samples will

have the same inﬂuence on the model update. Then,

some noise sampled from a Gaussian distribution is

added to the gradient to introduce privacy. The pseu-

docode of the algorithm is reported in Algorithm 1.

When applying DP to ML models, there exist two

possible alternatives: Example-level DP or User-level

DP. With example-level DP, we ensure that adding or

removing a single training example will only change

the output distribution in a minimal way. In the

user-level DP instead, the output distribution will not

change even if we add or remove all the samples

from one of the users. In this paper, we consider the

Example-level DP. The downside of the use of DP is

that it could harm the utility of the model. Therefore,

it is important to consider a trade-off between model

utility and privacy offered by privacy-preserving ML

methods. The trade-off between privacy and utility

in ML has been studied in several settings, explor-

ing various solutions both from the algorithmic stand-

point and the evaluation aspect (Zhao et al., 2020).

Algorithm 1: Differentially private SGD.

Input: Examples {x

, . . . , x

}, loss function

L(θ) =

∑

L(θ,x

). Parameters: learning rate η

noise scale σ, group size L, gradient norm bound

Initialize θ

randomly.

for t ∈ [T ] do

Take a random sample L

with sampling prob-

ability L/N

Compute gradient

For each i ∈ L

, compute g

) ← ∇

L(θ

)

Clip gradient

¯g

) ← g

)/max(1,

||g

)||

)

Add noise

˜g

←

(

∑

¯g

) + N (0,σ

I))

Descent

t+1

← θ

− η

˜g

end for

return θ

and compute the overall privacy

cost (ε,σ) using a privacy accounting method.

Privacy Mitigation Techniques in FL: Despite hav-

ing been introduced to solve privacy problems, FL

has some vulnerabilities that could be exploited by

an attacker. Bouacida and Mohapatra (Bouacida and

Mohapatra, 2021) present a comprehensive review of

all the vulnerabilities in FL. The attacks that pose a

threat to the FL framework are Membership Inference

attack(Shokri et al., 2016), Features leakage (Melis

et al., 2018) Backdoor Attacks, Inverting Gradient at-

tacks and Adversarial samples attacks. Some counter-

measures have been proposed to tackle some of these

vulnerabilities and preserve user privacy. In particu-

lar, DP (Dwork, 2006) and Homomorphic Encryption

have been proposed as a possible privacy-preserving

technique for FL (Pejic et al., 2022). To the best of

our knowledge, real-life applications of Homomor-

phic Encryption for Federated Learning are still in-

feasible because of the computational power needed

to execute this protocol.

The most used technique is DP. There are two

main approaches to using DP during the training of

a Federated Learning model. The ﬁrst one is Central

SECRYPT 2024 - 21st International Conference on Security and Cryptography

594

Differential Privacy (CDP) (Geyer et al., 2017). In

CDP the server is in charge of adding the necessary

noise to the aggregated model. This approach entails

the complete trust of the clients towards the aggrega-

tor server. The second methodology is Local Differ-

ential Privacy (LDP). In this case, the local clients in-

volved in the federated training are in charge of apply-

ing DP. There are a few approaches that can be used

to apply DP to local clients. (Wei et al., 2019) pro-

posed to apply LDP on the client side after the train-

ing of the local model. This approach could destroy

the model’s utility. Therefore, the most used approach

is based on DP-SGD (Differentially-Private Stochas-

tic Gradient Descent) (Abadi et al., 2016). With this

method, DP is applied directly to the gradients com-

puted during the training process. In addition to the

approaches that only employ DP during the training,

both (Bonawitz et al., 2017) and (Truex et al., 2019)

proposed a solution to train models using FL combin-

ing the use of DP with the use of secure multi-party

computation during the aggregation step.

FL Techniques Against Attacks: in (Chan-

drasekaran et al., 2022) Chandrasekaran et al. pro-

posed a hierarchical FL framework that exploits DP

to defend against privacy attacks like membership in-

ference attacks and model inversion. They divide the

nodes into zones and for each zone, there is a super

node. The super-node is chosen by the nodes of the

zone using some algorithms used in P2P networks.

The idea is that the nodes in a zone communicate with

a super node. Each node sends the weights and the su-

per node averages all of them adding noise. Later, the

super-nodes send the weights with noise to the central

server. The nodes can add noise when they train their

local model or they can trust the super-node.

FL with Clustering: Several modiﬁcations of the

classic FL protocol have been proposed in the past

few years. However, in the literature, the idea of clus-

tering is usually used with FL to deal with clients with

different distributions with the goal of increasing the

utility of the models making them tailored to the dif-

ferent distributions. In particular, (Briggs et al., 2020)

proposed the idea of exploiting the similarity of the

local gradients of the clients to cluster them. This al-

lows the training of independent and specialised mod-

els. This protocol was extended in (Luo et al., 2023)

to adapt to the privacy-preserving context. In partic-

ular, they designed a series of secure cryptographic

protocols to ensure parties’ privacy. However, our

modiﬁcation of the standard FL protocol is different

from the ones proposed in the past. First of all, we

cluster the clients based on the trust among the clients.

Moreover, we add a pre-training Peer-to-peer step in-

side the clusters before starting the classic FL proto-

col with the server. (Shenaj et al., 2023) clustered

the clients based on the styles of the images belong-

ing to each client to have models able to exploit both

global and cluster-speciﬁc parameters. The idea of

mixing both P2P and server-based training has been

presented in (Yeganeh et al., 2022). In particular, their

idea was to perform the training with the server ﬁrst

and then, after a few rounds, cluster the clients based

on their model and then continue the training inside

the clustering. Even though this idea seems similar to

ours, the goals are different. In this case, they exploit

the training inside the cluster to train models tailored

to each cluster. Moreover, they do not consider the

use of privacy mitigation techniques. This last part is

crucial in our proposal because of the goal of reduc-

ing the impact of privacy mitigation on accuracy by

exploiting the clusters.

The Effectiveness of Pre-Training on FL: When FL

models are trained and evaluate it is common to start

from a random initialization of the model. However,

several studies (Chen et al., 2023) (Nguyen et al.,

2023) empirically studied the impact of starting the

FL process from a pre-trained model. In general, this

approach has a positive effect both on the ﬁnal ac-

curacy of the trained model and on the convergence

time. Moreover, it can also be helpful in reducing

the effect of data heterogeneity, this is particularly

useful when we consider a non-iid scenario that is

typical when dealing with FL. Recently, the idea of

using a public dataset to pre-train a model has also

been proposed as a possible solution to reduce the

degradation of the model utility due to the use of DP

(Kurakin et al., 2022) (Nasr et al., 2023) (De et al.,

2022). In our paper, we leverage these results to guar-

antee both a modularity of the training architecture

and to achieve a smaller degradation of the model util-

ity while training an FL model.

3 METHODOLOGY

The main goal of this paper is the introduction of a

more customizable, modular and easy to update archi-

tecture for FL which empowers users to choose how

and when to use DP in a way that does not unduly

degrade the utility of the model. When DP-SGD is

applied during the training of a model, privacy comes

at the cost of reducing the utility of the model, our

methodology aims to balance these two requirements

by exploiting two different types of architecture: P2P

and client-server. As in any classic FL system, our

methodology considers two main actors:

• A set of K clients that take part in the FL training.

These clients can cooperate with each other and to

Enhancing Privacy and Utility in Federated Learning: A Hybrid P2P and Server-Based Approach with Differential Privacy Protection

595

do so they can use a P2P or server-based architec-

ture. If they decide to use a P2P architecture, they

can gather in different clusters. The belonging of

a client to a cluster may depend, for instance, on

a similar distribution of cluster clients on the level

of trust that clients may have with each other or on

the membership of the same organisation. In addi-

tion to the P2P architecture, the clients can decide

to use a classic server-based FL. We assume that

each client k gains access to two datasets: a low-

privacy-risk dataset lr

, for which the client has

no special requirements in terms of privacy, and a

high-privacy-risk data hr

. This high-privacy-risk

dataset is used to simulate new data collections

potentially with a different distribution than the

one of lr

and with higher privacy requirements.

• A central server that orchestrates the whole learn-

ing process for learning a collective ML model by

aggregating clients’ models.

The scenario that we consider ﬁts in a context in

which multiple entities, belonging to different orga-

nizations have to train a model. For instance, if

we consider a scenario with multiple hospitals, we

could have that the ones belonging to the same re-

gion can trust each other and thus, they can collab-

orate in a cluster with no privacy mitigation. Then,

after a cluster-based cooperation, they could start

to collaborate with the other hospitals by exploiting

the server coordination. The opportunity of merg-

ing both cluster-based collaboration and server-based

collaboration could also enable the clients to set up

different local strategies for learning. As a conse-

quence, with our ﬂexible architecture the clients in-

side a cluster could learn their local models, with-

out any privacy mitigation strategy, using the low-

privacy-risk dataset. Then, once learning an initial

common model on these data they can use the com-

plete and potentially up-to-date and risky dataset for

the ﬁnal learning, involving the server and the other

hospitals. Clearly, in this last part, they have to apply

the appropriate privacy mitigation strategies.

More formally, the different phases of the protocol

that we propose are the following:

1. Cluster Formation Phase: we consider a sce-

nario in which the clients are ﬁrst gathered into

clusters, and then they start the training with the

P2P FL architecture. The whole set of K clients

that want to participate in the training of a fed-

erated model is partitioned in C clusters. Each

client k ∈ K is assigned exclusively to a clus-

ter C

. Therefore, given the set of clusters C =

,... ,C

we have that

∑

i=1

| = |K|.

2. P2P Training Phase: During this phase the

clients of each cluster train a model using a P2P

protocol. We report the pseudocode of the P2P

Training Phase in Algorithm 2. At the beginning

of this phase, each client initializes a model θ

from whom to start the training (Line 1 of Al-

gorithm 2). Then, the client of each cluster per-

forms a number of local training epochs E

using

its own dataset lr

(Line 3 of the algorithm) and

broadcasts the model to all the other clients inside

the cluster (Line 5). Next, each client waits to re-

ceive the models broadcasted by the other clients

in the cluster (Lines 6 and 7). Once the client has

received all the models, it can apply FedAvg to

create the ﬁnal model θ. The procedure is then

started again from Line 2 of Algorithm 2 and re-

peated for a certain number of FL rounds. During

this phase, the clients can decide if they want to

use DP-SGD for training a differentially private

model. In our experiments, we do not use DP dur-

ing the P2P Phase because we assume trust among

the clients of each cluster.

3. Server Phase: During this phase, the standard FL

protocol is executed. The different clients in this

case use the high-privacy-risk dataset hr

and ex-

ecute a ﬁxed number of local training epochs E

before sharing their local model with a server. For

each FL Round t, the server S aggregates clients’

models into a single collective model θ

. If the

clients do not trust the central server they can mit-

igate the privacy risks of the model by applying

a protection mechanism. In our experiments, we

rely on DP and we apply the DP-SGD algorithm.

Algorithm 2: P2P-phase (Client Side.)

Require: E

local epochs for P2P Phase. lr

low-

privacy-risk data of client k. L list of the clients

located in the same cluster as the client k.

1: Initialize model θ

2: for e ∈ E

3: Train θ

using local data lr

4: end for

5: Broadcast(θ

, len(lr

, V)

6: for ( dol ∈ L)

7: Θ

← Receive model(l)

8: end for

9: θ ←

∑

|L|

l=1

# Aggregate with FedAvg

Figure 1 shows a representation of the protocol used

for our experiments. In this case, we are considering

two clusters with 3 clients each. The training is ﬁrst

computed inside the clusters and then, it is completed

using a server-based approach.

As mentioned above, the two phases of this proto-

SECRYPT 2024 - 21st International Conference on Security and Cryptography

596

Figure 1: A representation of our protocol. The model is ﬁrstly trained inside the different clusters using a P2P architecture.

Then server-based training is employed to complete the training. During this last phase, clients use DP-SGD to guarantee

privacy protection during the training.

col can be composed based on the client’s preferences

in order to ensure maximum ﬂexibility and create var-

ious learning processes to train the federated model.

Obviously, all the clients taking part in the training

must agree on the protocol.

Privacy Protection in Our Methodology: The pro-

posed methodology is agnostic w.r.t. the privacy mit-

igation mechanism. We chose DP as it gives us the

possibility to select different privacy budgets at dif-

ferent phases of the protocol. In this paper, we rely

on the DP-SGD (Abadi et al., 2016) and on the RDP

Accountant (Mironov, 2017) implemented in Opacus

(Yousefpour et al., 2021). The noise used to guar-

antee privacy is drawn from a Gaussian Distribution

(Dwork et al., 2006a). Because of the composabil-

ity of our framework, it is possible to apply DP-

SGD both during the P2P Phase and during the server

Phase. In both cases, we need to set a correspond-

ing privacy budget that we want to guarantee. It is

possible to set a privacy budget (ε

,δ

) for the P2P

Phase and then a different privacy budget (ε

,δ

) for

the server phase. Then, we apply the basic compo-

sition theorem (Dwork and Roth, 2014) to compute

the ﬁnal privacy budget guaranteed by the protocol.

To do so, we sum the different privacy budgets of the

two different phases into a single ﬁnal privacy budget:

(ε = ε

+ ε

,δ = δ

+ δ

). In our experiments we do

not apply DP-SGD during the P2P Training Phase but

only during the server phase. Therefore, we guarantee

a privacy budget (ε

,δ

3.1 How We Partition the Data

A large number of previous works made a strong

assumption about the i.i.d.-ness distribution of the

dataset used to train a federated learning model. This

is not true in a real-life scenario since each participant

could have a different data distribution. Moreover, the

distributions could also evolve because of new data

collections. In our experiments, the goal was to simu-

late this scenario. Since we did not have a dataset that

was naturally split into different parts in the way we

needed, we had to simulate this scenario by splitting

a dataset such that it could respect these constraints.

Given a dataset D, we partitioned it using the follow-

ing approach:

• Given a dataset D we ﬁrst split it into the C parts

corresponding to the C clusters. This partitioning

of the samples into clusters is based on the sam-

ple target. To generate imbalanced distributions,

we used a Dirichlet distribution for each of the

targets. Then, based on these distributions, we as-

signed the corresponding quantity of data to each

of the clients. The Dirichlet distribution has a pa-

rameter α that determines the level of non-i.i.d.-

ness. In our experiments, we used α = 0.5 to sim-

ulate a highly skewed dataset.

• The procedure used to partition the data into C

clusters is then recursively applied inside each of

the C clusters. In particular, given a cluster C

with

clients, the dataset D

assigned to cluster C

partitioned into K

parts using the same Dirichlet

distribution approach with the same α parameter.

• The last step is the creation of the high-privacy-

risk and low-privacy-risk datasets for each of the

clients of the different clusters. For each client

k of cluster C

, the dataset D

is partitioned into

2 parts using the Dirichlet Distribution with α =

0.5. This is done to simulate the presence of a

low-privacy-risk dataset and a high-privacy-risk

dataset with different data distributions. As we

already said, in our experiments, the low-privacy-

risk dataset will be used for the intra-cluster com-

putations while the high-privacy-risk dataset will

be used for completing the training of the ﬁnal

model. The idea is to simulate a situation in which

clients in a cluster can exploit an old and/or small

dataset with low privacy requirements for an ini-

tial training and then, can complete the collabora-

tive training by exploiting the up-to-date and com-

plete dataset.

Enhancing Privacy and Utility in Federated Learning: A Hybrid P2P and Server-Based Approach with Differential Privacy Protection

597

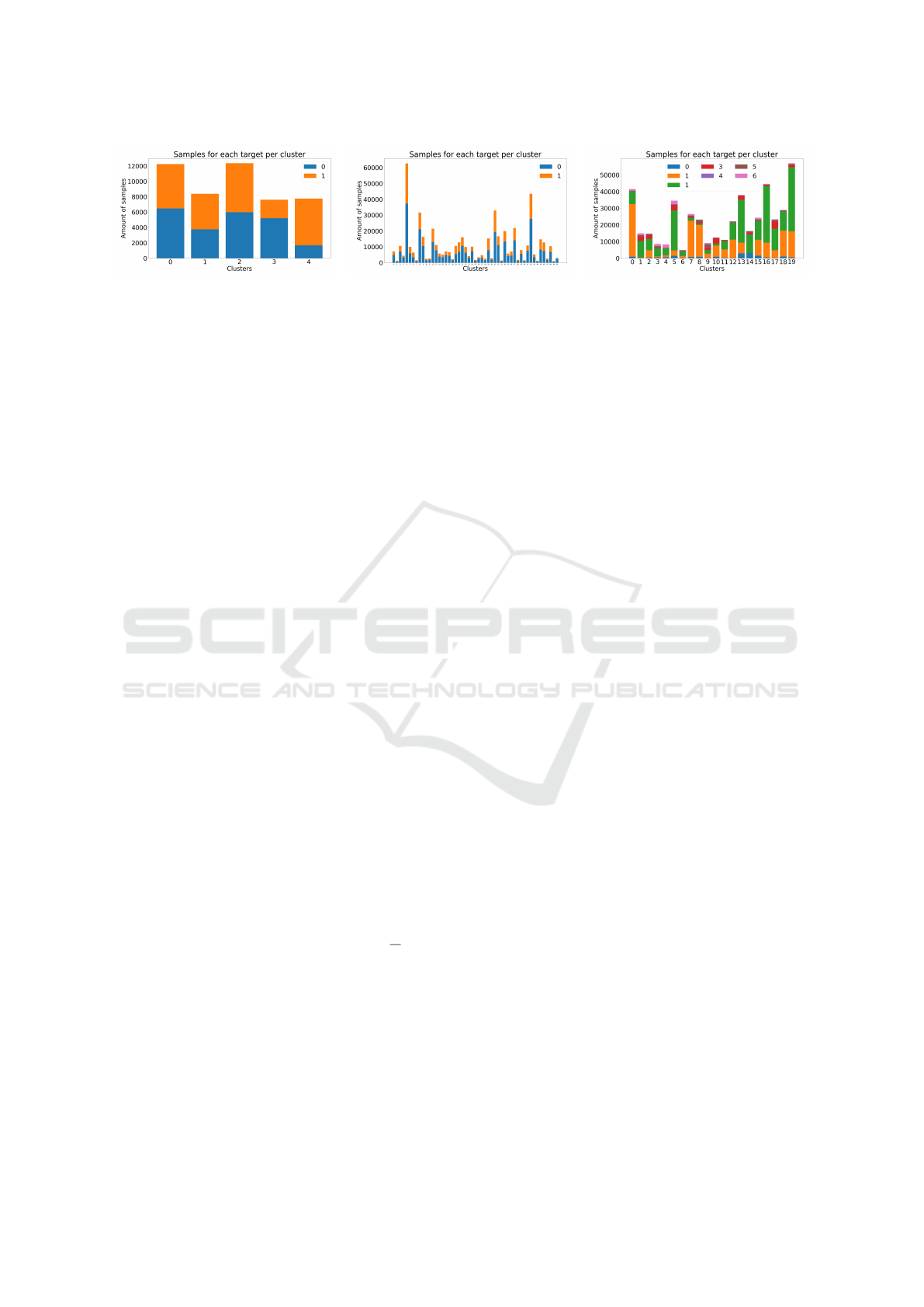

(a) Dutch. (b) Income. (c) Covertype.

Figure 2: Fig. 2a, 2b and 2c show the result of the dataset partition among the clusters. In the case of Covertype (Fig 2c) that

is a multiclass dataset with 7 possible targets, we observe a more “real-life” distribution in which some client only receives

data with some of the possible targets.

4 EXPERIMENTS

We evaluate our methodology using three different

tabular datasets: Dutch (Van der Laan, 2001), Cover-

type (Blackard, 1998) and Income (Ding et al., 2022).

Dutch is a dataset collected in the Netherlands that

contains 60.420 samples. The task is to predict

whether the individuals have a salary higher or lower

than 50K. Covertype is a multi-class dataset that con-

tains 581.012 samples. The task is to predict one of

the seven possible forest cover types. Income is a

bigger version of the popular Adult dataset (Becker

and Kohavi, 1996). It is composed of 1.664.500 sam-

ples and it contains census data about 50 states of the

United States of America and Puerto Rico. As with

Dutch, even in this case, the task is to predict if the

individuals earn more or less than 50K.

To guarantee a comprehensive evaluation of the

proposed methodology, we considered multiple set-

tings in terms of privacy requirements and size of the

low-privacy-risk and high-privacy-risk datasets. In

terms of privacy requirements, for each dataset, we

considered three different privacy budgets:

• With Dutch we used (ε = 0.2, δ = 9 × 10

−3

), (ε =

0.5, δ = 9 × 10

−3

) and (ε = 1, δ = 9 × 10

−3

)

• With Income we used (ε = 0.5, δ = 1 × 10

−2

(ε = 1.0, δ = 1×10

−2

) and (ε = 2.0, δ = 1×10

−2

)

• With Covertype we used (ε = 0.5, δ = 3 × 10

−3

(ε = 1.0, δ = 3×10

−3

) and (ε = 2.0, δ = 3×10

−3

)

The δ parameter is computed as δ = max

k=1

where

is the size of the dataset of client k. The selection of

both ε and δ was guided by recommendations found

in the literature (Ponomareva et al., 2023).

For each dataset, we set a speciﬁc conﬁguration in

terms of the number of clients and clusters exploiting

the different sizes of the datasets:

• with Dutch we created 5 clusters with 15 clients

each. In total, we have 75 clients;

• with Income we exploited the natural division of

the dataset into 51 states creating 51 clusters. For

each of these clusters, we used 5 clients. In total,

we have 255 clients.

• with Covertype we considered 20 clusters with 5

clients each. In total, we have 100 clients

After applying the partition strategy among clusters,

described in Section 3.1, we obtain a data distribution

for each dataset as depicted in Figure 2. We observe

that for Income (Figure 2b) and Covertype (Figure 2c)

data distributions are more interesting with respect to

their non-i.i.d.-ness. Differently from Dutch and In-

come, Covertype is a multiclass dataset with 7 pos-

sible targets. This feature of the dataset allows us

to have a more “real-life” distribution of the data in

which some cluster only sees a portion of the possi-

ble targets. Income distribution, instead, is interesting

because it is “naturally” split into 51 clusters corre-

sponding to the USA states and Puerto Rico.

Lastly, in our experiments, we also compared dif-

ferent sizes of the low-privacy-risk and high-privacy-

risk datasets:

• 20% low-privacy-risk and 80% high-privacy-risk;

• 30% low-privacy-risk and 70% high-privacy-risk;

• 40% low-privacy-risk and 60% high-privacy-risk.

To choose the hyperparameters for the experiments

we performed a hyperparameter tuning. To do this,

we split the low-privacy-risk and the high-privacy-

risk dataset of each client into two parts, one used

to train the model (80%) and one used to validate

it (20%). The model used for the experiments is a

Logistic Regressor implemented with Pytorch using a

simple neural network with a single linear layer.

4.1 Results

In this section, we present the result of the application

of our methodology. In particular, we want to high-

light the impact of using a low-privacy-risk dataset

SECRYPT 2024 - 21st International Conference on Security and Cryptography

598

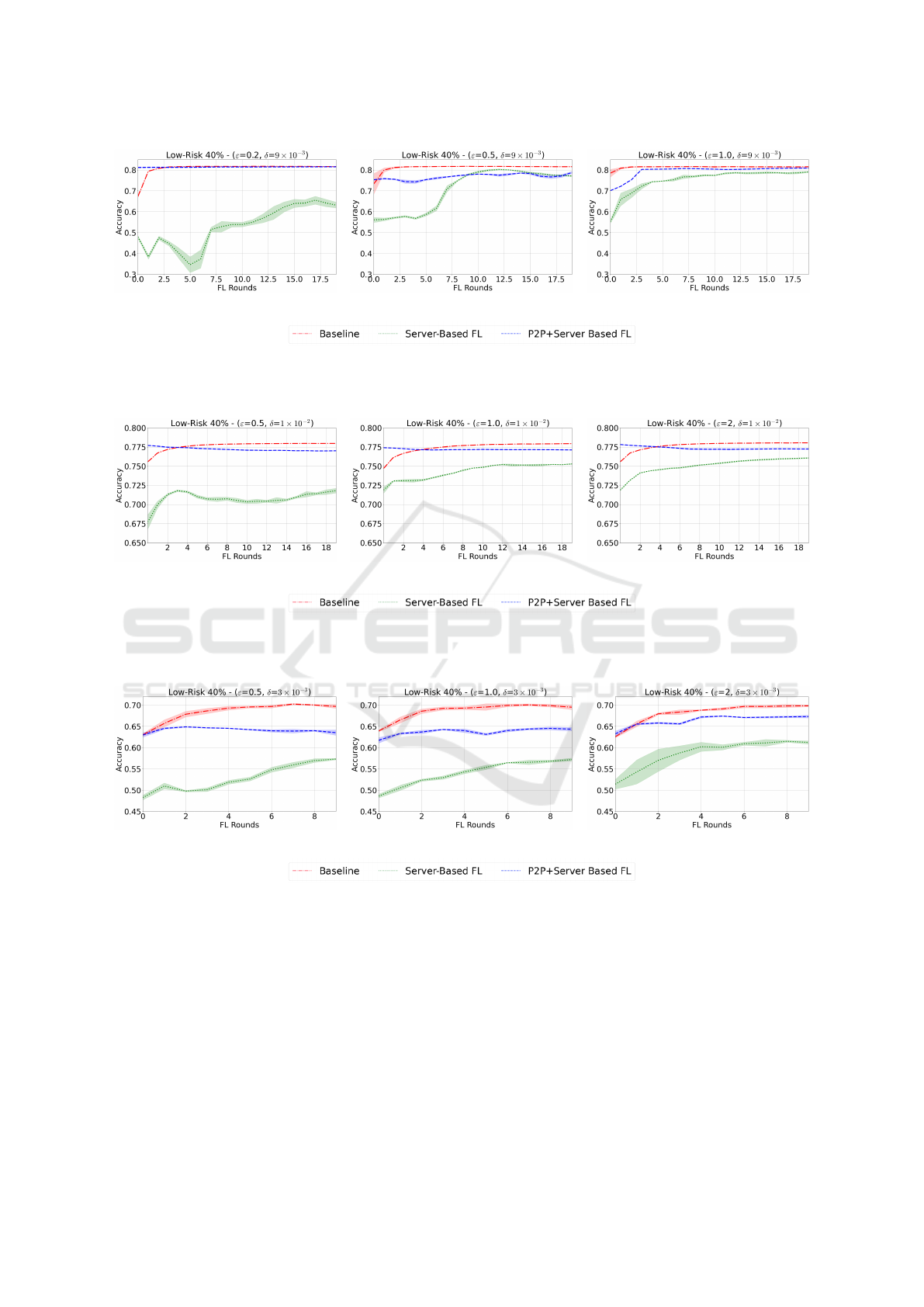

(a) (b) (c)

Figure 3: Figures 3a, 3b and 3c show a comparison between a Baseline (red line), the model trained with server-based

architecture on the high-privacy-risk dataset using DP-SGD (green line) and the model pre-trained in the clusters and then

trained with the server-based architecture (blue line) when using the Dutch Dataset.

(a) (b) (c)

Figure 4: Figures 4a, 4b and 4c show a comparison between a Baseline (red line), the model trained with server-based

architecture on the high-privacy-risk dataset using DP-SGD (green line) and the model pre-trained in the clusters and then

trained with the server-based architecture (blue line) when using the Income Dataset.

(a) (b) (c)

Figure 5: Figures 5a, 5b and 5c show a comparison between a Baseline (red line), the model trained with server-based

architecture on the high-privacy-risk dataset using DP-SGD (green line) and the model pre-trained in the clusters and then

trained with the server-based architecture (blue line) when using the Covertype Dataset.

during the P2P Training Phase on improving the ﬁ-

nal model accuracy while guaranteeing privacy pro-

tection. For each experiment, we report the average

performance and the standard deviation of 4 different

runs, each with a different seed. In our experiments,

we compare the following models:

• “Baseline”: A model trained using a classic

server-based FL where clients use the high-

privacy-risk dataset. In this case, clients do not

apply any DP protection (Red Line in the plots).

• “Server-Based FL”: A differentially private model

trained with server-based FL where clients use the

high-privacy-risk dataset (Green Line in the plots)

• “P2P + Server-Based FL”: The outcome of our

methodology. In this case, we pre-train mod-

els inside multiple clusters using the clients’ low-

privacy-risk datasets without DP. Then, we train

a global model with a classic server-based FL,

Enhancing Privacy and Utility in Federated Learning: A Hybrid P2P and Server-Based Approach with Differential Privacy Protection

599

where pre-trained models are reﬁned using the

client’s high-privacy-risk datasets using DP (Blue

Line in the plots).

Table 1: Dutch Dataset.

Low-Privacy-Risk (ε, δ) Accuracy FL Accuracy P2P+FL Improvement

20% - 0.817 +- 0.001 - -

30% - 0.815 +- 0.005 - -

40% - 0.810 +- 0.003 - -

20% (0.2, 9 × 10

−3

) 0.629 +- 0.06 0.81 +- 0.003 22.34%

20% (0.5, 9 × 10

−3

) 0.792 +- 0.001 0.747 +- 0.003 -%

20% (1, 9 × 10

−3

) 0.785 +- 0.003 0.808 +- 0.001 -%

30% (0.2, 9 × 10

−3

) 0.611 +- 0.018 0.808 +- 0.001 32.24%

30% (0.5, 9 × 10

−3

) 0.705 +- 0.017 0.682 +- 0.005 -%

30% (1, 9 × 10

−3

) 0.788 +- 0.002 0.803 +- 0.001 1.86%

40% (0.2, 9 × 10

−3

) 0.632 +- 0.014 0.815 +- 0.001 22.45%

40% (0.5, 9 × 10

−3

) 0.771 +- 0.002 0.788 +- 0.006 2.15%

40% (1, 9 × 10

−3

) 0.791 +- 0.002 0.809 +- 0.001 2.22%

Table 2: Income Dataset.

Low-Privacy-Risk (ε, δ) Accuracy FL Accuracy P2P+FL Improvement

20% - 0.781 +- 0.000 - .%

30% - 0.780 +- 0.000 - .%

40% - 0.779 +- 0.000 - .%

20% (0.5, 1 ×10

−2

) 0.732 +- 0.003 0.769 +- 0.000 4.81%

20% (1, 1 ×10

−2

) 0.745 +- 0.001 0.777 +- 0.000 4.11%

20% (2, 1 ×10

−2

) 0.756 +- 0.000 0.777 +- 0.000 2.77%

30% (0.5, 1 ×10

−2

) 0.741 +- 0.009 0.757 +- 0.001 2.15%

30% (1, 1 ×10

−2

) 0.757 +- 0.000 0.774 +- 0.001 2.19%

30% (2, 1 ×10

−2

) 0.765 +- 0.001 0.757 +- 0.000 -%

40% (0.5, 1 ×10

−2

) 0.718 +- 0.003 0.770 +- 0.000 6.75%

40% (1, 1 ×10

−2

) 0.753 +- 0.001 0.771 +- 0.000 2.20%

40% (2, 1 ×10

−2

) 0.761 +- 0.001 0.773 +- 0.001 1.55%

Table 3: Covertype Dataset.

Low-Privacy-Risk (ε, δ) Accuracy FL Accuracy P2P+FL Improvement

20% - 0.698 +- 0.002 - -

30% - 0.697 +- 0.005 - -

40% - 0.695 +- 0.006 - -

20% (0.5, 3 ×10

−3

) 0.554 +- 0.003 0.594 +- 0.005 7.22%

20% (1, 3 ×10

−3

) 0.614 +- 0.003 0.642 +- 0.002 4.56%

20% (2, 3 ×10

−3

) 0.64 +- 0.004 0.652 +- 0.002 1.87%

30% (0.5, 3 ×10

−3

) 0.533 +- 0.004 0.632 +- 0.002 18.57%

30% (1, 3 ×10

−3

) 0.615 +- 0.003 0.627 +- 0.006 1.95%

30% (2, 3 ×10

−3

) 0.612 +- 0.004 0.616 +- 0.004 0.65%

40% (0.5, 3 ×10

−3

) 0.573 +- 0.002 0.635 +- 0.006 10.82%

40% (1, 3 ×10

−3

) 0.572 +- 0.003 0.643 +- 0.004 12.41%

40% (2, 3 ×10

−3

) 0.612 +- 0.001 0.673 +- 0.003 9.96%

In Tables 1, 2 & 3 we report the results of the ex-

periments conducted on the three datasets with the

different combinations of DP parameters and low-

privacy-risk vs high-privacy-risk datasets. In the ta-

bles, we compare the accuracy achieved with “Server-

Based FL” with the one achieved with our method-

ology “P2P+Server Based FL” highlighting the im-

provement in percentage. We observe that, regardless

of the low-privacy-risk dataset size, we have a higher

improvement in performance in all the datasets when

using DP with the lowest privacy parameters. This

improvement is more evident for Dutch and Cover-

type. This means that our approach enables high

levels of privacy protection while guaranteeing very

good performance of the ﬁnal FL model. Moreover,

it is also important to note that the accuracy of the

models is very close to the one obtained by applying

the standard FL computation without any privacy re-

quirements (ﬁrst three lines of each table). Clearly,

the size of the low-privacy-risk and high-privacy-risk

datasets also impacts the improvement that we can

achieve with our methodology. In general, we observe

that the use of a low-privacy-risk dataset with 20%

or 30% of samples combined with looser privacy re-

quirements reduces our gain in performance with re-

spect to the classic Server-based FL. In some cases,

as for Dutch, it also makes it less effective. How-

ever, when we increase the size of the low-privacy-

risk dataset, our methodology can bring an improve-

ment to the ﬁnal model accuracy that, in the case of

Dutch, ranges from 22%, when using a privacy re-

quirement (ε = 0.2, δ = 9 × 10

−3

), to 2%, when using

(ε = 1, δ = 9 × 10

−3

Concerning these experiments, we also report in

Figures 3, 4 and 5 the evolution of model accuracy

over the different FL rounds. All the plots refer to the

results that we obtained using data partitioning into

40% low-privacy-risk and 60% high-privacy-risk on

each client. To show the impact of the privacy require-

ment, we report all three different privacy require-

ments per dataset. We observe that the pre-training

inside the clusters of our methodology helps both in

starting the “P2P+Server Based FL” training from a

more accurate model and, in reducing the ﬁnal ac-

curacy degradation with respect to the Server-Based

FL. Observing the different rounds we can notice that

our approach allows us to converge to the ﬁnal model

accuracy faster and the model accuracy becomes sta-

ble over the FL rounds faster regardless of the privacy

budget. Looking at the three datasets we observe that

in Dutch and Income (Figure 3 and 4) the decrease in

privacy protection leads to a decrease in the improve-

ment of our methodology. For example, in Dutch,

where we used a severe privacy budget this is more

evident. Indeed the improvement goes from a 22.45%

of the case with (ε = 0.2, δ = 9 × 10

−3

) to the 2.22%

in the case with (ε = 1, δ = 9 × 10

−3

In general, we can observe that the more is the im-

pact of DP on the model trained by a server-based FL

the higher the improvement offered by our method-

ology. This is because our methodology, thanks

to the pre-training is more resistant to the potential

model degradation caused by DP. In Covertype (Fig-

ure 5c the decrease of the improvement is less evi-

dent because the effect of DP on the “Server-Based

FL” experiments with the three privacy settings is not

markedly different. Indeed, the improvement ranges

from 10.82%, in the case of (ε = 0.5, δ = 3 × 10

−3

to 9.96, in the case of (ε = 2, δ = 3 × 10

−3

SECRYPT 2024 - 21st International Conference on Security and Cryptography

600

5 CONCLUSION

In this paper, we introduced a new hybrid Federated

Learning architecture that mixes both aspects of P2P

and Server-based FL training to reduce the impact

of DP on the ﬁnal model accuracy. Our idea is to

compose the classic FL architecture, in which the

model is trained using a server that acts as an orches-

trator, with a peer-to-peer architecture, in which the

model is trained without a third-party server. In our

scenario, each client possesses both a low-privacy-

risk and a high-privacy-risk dataset used during the

P2P and the Server-based Phase, respectively. We

tested our methodology using three different tabu-

lar datasets, three different privacy requirements and

three different sizes of low-privacy-risk and high-

privacy-risk datasets. Our experiments show how our

methodology can be effective in reducing the impact

of DP on the model’s accuracy. When comparing

the ﬁnal model accuracy of the standard Server-based

FL approach with our methodology, we were able to

achieve in some cases an improvement up to 32%. In

particular, we found that the impact of our methodol-

ogy is more evident when using high privacy require-

ments, i.e. low privacy budget, which typically nega-

tively impacts the standard Server-based FL. The size

of the low-privacy-risk datasets is another important

factor to consider, the more we increase it the more

our methodology is effective. As a future work, we

intend to test a wider range of architectures mixing

the two building blocks, P2P-based and server-based

training, in different ways. Moreover, we would like

to validate the methodology on more datasets of dif-

ferent modalities.

ACKNOWLEDGMENT

This work is partially supported by the PNRR - M4C2

- Investimento 1.3, Partenariato Esteso PE00000013

- ”FAIR - Future Artiﬁcial Intelligence Research” -

Spoke 1 ”Human-centered AI”, funded by the Euro-

pean Commission under the NextGeneration EU pro-

gramme, PNRR -“SoBigData.it - Strengthening the

Italian RI for Social Mining and Big Data Analyt-

ics” - Prot. IR0000013, TANGO - Grant Agreement

no. 101120763, H2020-INFRAIA-2019-1: Res. Infr.

G.A. 871042 SoBigData++

REFERENCES

Abadi, M., Chu, A., Goodfellow, I., McMahan, H. B.,

Mironov, I., Talwar, K., and Zhang, L. (2016). Deep

learning with differential privacy. In Proceedings of

the 2016 ACM SIGSAC Conference on Computer and

Communications Security. ACM.

Augenstein, S., Hard, A., Ning, L., Singhal, K., Kale, S.,

Partridge, K., and Mathews, R. (2022). Mixed fed-

erated learning: Joint decentralized and centralized

learning.

Becker, B. and Kohavi, R. (1996). Adult.

UCI Machine Learning Repository. DOI:

https://doi.org/10.24432/C5XW20.

Blackard, J. (1998). Covertype. UCI Machine Learning

Repository. DOI: https://doi.org/10.24432/C50K5N.

Bonawitz, K., Ivanov, V., Kreuter, B., Marcedone, A.,

McMahan, H. B., Patel, S., Ramage, D., Segal, A.,

and Seth, K. (2017). Practical secure aggregation

for privacy-preserving machine learning. In Proceed-

ings of the 2017 ACM SIGSAC Conference on Com-

puter and Communications Security, CCS ’17, page

1175–1191, New York, NY, USA. Association for

Computing Machinery.

Bouacida, N. and Mohapatra, P. (2021). Vulnerabilities in

federated learning. IEEE Access, 9:63229–63249.

Briggs, C., Fan, Z., and Andras, P. (2020). Federated learn-

ing with hierarchical clustering of local updates to im-

prove training on non-iid data.

Chandrasekaran, V., Banerjee, S., Perino, D., and Kourtel-

lis, N. (2022). Hierarchical federated learning with

privacy.

Chen, H.-Y., Tu, C.-H., Li, Z., Shen, H.-W., and Chao, W.-

L. (2023). On the importance and applicability of pre-

training for federated learning.

De, S., Berrada, L., Hayes, J., Smith, S. L., and Balle, B.

(2022). Unlocking high-accuracy differentially pri-

vate image classiﬁcation through scale.

Ding, F., Hardt, M., Miller, J., and Schmidt, L. (2022). Re-

tiring adult: New datasets for fair machine learning.

Dwork, C. (2006). Differential Privacy. In Automata,

Languages and Programming, pages 1–12. Springer,

Berlin, Germany.

Dwork, C., Kenthapadi, K., McSherry, F., Mironov, I.,

and Naor, M. (2006a). Our data, ourselves: Pri-

vacy via distributed noise generation. In Advances in

Cryptology-EUROCRYPT 2006: 24th Annual Inter-

national Conference on the Theory and Applications

of Cryptographic Techniques, St. Petersburg, Russia,

May 28-June 1, 2006. Proceedings 25, pages 486–

503. Springer.

Dwork, C., McSherry, F., Nissim, K., and Smith, A.

(2006b). Calibrating noise to sensitivity in private data

analysis. In Theory of Cryptography: Third Theory

of Cryptography Conference, TCC 2006, New York,

NY, USA, March 4-7, 2006. Proceedings 3, pages 265–

284. Springer.

Dwork, C. and Roth, A. (2014). The algorithmic foun-

dations of differential privacy. Found. Trends Theor.

Comput. Sci., 9(3–4):211–407.

Geiping, J., Bauermeister, H., Dr

oge, H., and Moeller, M.

(2020). Inverting gradients – how easy is it to break

privacy in federated learning?

Enhancing Privacy and Utility in Federated Learning: A Hybrid P2P and Server-Based Approach with Differential Privacy Protection

601

Geyer, R. C., Klein, T., and Nabi, M. (2017). Differentially

private federated learning: A client level perspective.

Kasturi, A., Sivaraju, R., and Hota, C. (2022). Fedpeer:

A peer-to-peer learning framework using federated

learning. In Patgiri, R., Bandyopadhyay, S., Borah,

M. D., and Emilia Balas, V., editors, Edge Analytics,

pages 517–525, Singapore. Springer Singapore.

Kurakin, A., Song, S., Chien, S., Geambasu, R., Terzis, A.,

and Thakurta, A. (2022). Toward training at imagenet

scale with differential privacy.

Luo, S., Fu, S., Luo, Y., Liu, L., Deng, Y., and Wang, S.

(2023). Privacy-preserving federated learning with

hierarchical clustering to improve training on non-iid

data. In Li, S., Manulis, M., and Miyaji, A., editors,

Network and System Security, pages 195–216, Cham.

Springer Nature Switzerland.

McMahan, B., Moore, E., Ramage, D., Hampson, S., and

y Arcas, B. A. (2017). Communication-efﬁcient learn-

ing of deep networks from decentralized data. In AIS-

TATS, volume 54 of Proceedings of Machine Learning

Research, pages 1273–1282. PMLR.

McMahan, H. B., Moore, E., Ramage, D., Hampson, S.,

and Arcas, B. A. y. (2016). Communication-efﬁcient

learning of deep networks from decentralized data.

Melis, L., Song, C., De Cristofaro, E., and Shmatikov, V.

(2018). Exploiting unintended feature leakage in col-

laborative learning.

Mironov, I. (2017). R

enyi differential privacy. In 2017

IEEE 30th Computer Security Foundations Sympo-

sium (CSF). IEEE.

Nasr, M., Mahloujifar, S., Tang, X., Mittal, P., and

Houmansadr, A. (2023). Effectively using public data

in privacy preserving machine learning. In Krause, A.,

Brunskill, E., Cho, K., Engelhardt, B., Sabato, S., and

Scarlett, J., editors, Proceedings of the 40th Interna-

tional Conference on Machine Learning, volume 202

of Proceedings of Machine Learning Research, pages

25718–25732. PMLR.

Nguyen, J., Wang, J., Malik, K., Sanjabi, M., and Rabbat,

M. (2023). Where to begin? on the impact of pre-

training and initialization in federated learning.

Paszke, A., Gross, S., Massa, F., Lerer, A., Bradbury, J.,

Chanan, G., Killeen, T., Lin, Z., Gimelshein, N.,

Antiga, L., Desmaison, A., K

opf, A., Yang, E., De-

Vito, Z., Raison, M., Tejani, A., Chilamkurthy, S.,

Steiner, B., Fang, L., Bai, J., and Chintala, S. (2019).

Pytorch: An imperative style, high-performance deep

learning library.

Pejic, I., Wang, R., and Liang, K. (2022). Effect of ho-

momorphic encryption on the performance of training

federated learning generative adversarial networks.

Ponomareva, N., Hazimeh, H., Kurakin, A., Xu, Z., Deni-

son, C., McMahan, H. B., Vassilvitskii, S., Chien, S.,

and Thakurta, A. G. (2023). How to dp-fy ml: A

practical guide to machine learning with differential

privacy. Journal of Artiﬁcial Intelligence Research,

77:1113–1201.

Shenaj, D., Fan

ı, E., Toldo, M., Caldarola, D., Tavera,

A., Michieli, U., Ciccone, M., Zanuttigh, P., and

Caputo, B. (2023). Learning across domains and

devices: Style-driven source-free domain adaptation

in clustered federated learning. In Proceedings of

the IEEE/CVF Winter Conference on Applications of

Computer Vision (WACV), pages 444–454.

Shokri, R., Stronati, M., Song, C., and Shmatikov, V.

(2016). Membership inference attacks against ma-

chine learning models.

Sun, T., Li, D., and Wang, B. (2021). Decentralized feder-

ated averaging.

Tang, H., Lian, X., Yan, M., Zhang, C., and Liu, J. (2018).

: Decentralized training over decentralized data.

Truex, S., Baracaldo, N., Anwar, A., Steinke, T., Ludwig,

H., Zhang, R., and Zhou, Y. (2019). A hybrid ap-

proach to privacy-preserving federated learning.

Van der Laan, P. (2001). The 2001 Census in the Nether-

lands: Integration of Registers and Surveys.

Vanhaesebrouck, P., Bellet, A., and Tommasi, M. (2016).

Decentralized collaborative learning of personalized

models over networks.

Wei, K., Li, J., Ding, M., Ma, C., Yang, H. H., Farhad, F.,

Jin, S., Quek, T. Q. S., and Poor, H. V. (2019). Fed-

erated learning with differential privacy: Algorithms

and performance analysis.

Yeganeh, Y., Farshad, A., Boschmann, J., Gaus, R.,

Frantzen, M., and Navab, N. (2022). Fedap: Adap-

tive personalization in federated learning for non-iid

data. In Albarqouni, S., Bakas, S., Bano, S., Car-

doso, M. J., Khanal, B., Landman, B., Li, X., Qin,

C., Rekik, I., Rieke, N., Roth, H., Sheet, D., and Xu,

D., editors, Distributed, Collaborative, and Federated

Learning, and Affordable AI and Healthcare for Re-

source Diverse Global Health, pages 17–27, Cham.

Springer Nature Switzerland.

Yousefpour, A., Shilov, I., Sablayrolles, A., Testuggine,

D., Prasad, K., Malek, M., Nguyen, J., Ghosh, S.,

Bharadwaj, A., Zhao, J., Cormode, G., and Mironov,

I. (2021). Opacus: User-friendly differential privacy

library in PyTorch. arXiv preprint arXiv:2109.12298.

Zhao, B. Z. H., Kaafar, M. A., and Kourtellis, N. (2020).

Not one but many tradeoffs. In Proceedings of the

2020 ACM SIGSAC Conference on Cloud Computing

Security Workshop. ACM.

SECRYPT 2024 - 21st International Conference on Security and Cryptography

602
