Research on Neural Network-Based Achievement Prediction of

Middle School Students

Zixuan Yi

Huangzhong University of Science and Technology, 1037 Luo Yu Road, Wuhan, China

Keywords: Neural Network, Grade Prediction, Linear Regression.

Abstract: With the development of information technology, so do the teaching methods. Predicting students' grades and

allowing teachers and students to take appropriate countermeasures based on the predicted grades can be a

great aid to teaching. This paper proposes a performance prediction method based on neural network with low

data demand. The model uses students’ scores in the last 3 exams. Based on a neural network with 4 nodes,

which uses S-type function as the activation function, the model was established and fitted. The prediction

accuracy of the model is demonstrated by a comparison chart of the predicted and real scores of 43 students.

In comparison with linear regression method, the predictive power of the model is not lagging behind. The

accuracy of the model is a little worse than the linear regression method’s, while the model’s average error is

better. This shows that the neural network method in this study can be applied to practical secondary school

teaching.

1 INTRODUCTION

With social progress, economic development, and the

continuous progress of human society, the importance

of education has also become increasingly prominent.

Education work is a major event related to social

development and the future of the country. Doing a

good job in education not only prepares a high-quality

generation for society, but also helps educated

individuals achieve self-development and realize their

life value. Specifically, education is beneficial for

individuals to acquire knowledge, enhance their

thinking and other abilities, thereby enhancing their

overall quality and preparing them for future career

life. In China, the content of nine-year compulsory

education can enable individuals to acquire a

complete, systematic, and multi-dimensional set of

knowledge, laying a solid foundation for them to cope

with future problems in various fields. Education can

also promote social progress. It helps to cultivate

talents with innovative and critical thinking in

scientific thinking, which are necessary for scientific

research, cultural innovation, and other fields.

Therefore, education plays a role in promoting

technological progress and social civilization

development.

https://orcid.org/0009-0001-9914-149X

At present, the evaluation indicators for education

are not complex, and grades (scores) are the most

widely referenced and directly meaningful indicators

for evaluating educational achievements. The higher

the score a student obtains in an exam, the better it can

basically represent his level of knowledge acquisition

and mastery. Therefore, the significance of predicting

fractions is self-evident.

Domestic and foreign scholars have conducted

relevant research in the field of performance

prediction. Zhang and Li used association rule

algorithms to mine student grades, found the

connections between courses, and then established a

model of student grades using linear regression. They

analyzed the impact of basic course learning on

related professional course learning, providing a

scientific theoretical basis for teaching management

(Zhang and Li, 2020). Lin et al. used linear regression

and deep neural network DNN to predict learners'

grades. Experiments have shown that DNN can better

fit the correlation between learning behavior and

grades, achieving more accurate predictions of grades

(Lin et al., 2019). Zhou et al. (2018) proposed a

student performance prediction method based on BP

neural network to predict the final grades of a certain

grade C language course at Nanjing University of

Yi, Z.

Research on Neural Network-Based Achievement Prediction of Middle School Students.

DOI: 10.5220/0012886800004508

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 1st International Conference on Engineering Management, Information Technology and Intelligence (EMITI 2024), pages 5-9

ISBN: 978-989-758-713-9

Posts and Telecommunications, as well as the college

entrance examination scores of high school seniors.

The effectiveness of this method was verified.

However, these methods did not consider the

impact of differences between samples of different

categories and the similarity of samples within

categories on the prediction performance. Therefore,

Wang et al. proposed a K-Means based student

performance prediction model, combining the K-

Means algorithm with multiple linear regression to

predict student performance more targeted, providing

more accurate reference information for teaching and

improving the quality of school teaching (Wang et al.,

2023). They also proposed a feature selection based

score prediction method, which first uses sequence

forward selection algorithm to perform feature

selection on sample data, thereby selecting the

optimal feature subset to construct a multiple linear

regression prediction model. Then, the model is used

to predict grades. The experimental results show that

this method can improve prediction accuracy (Liu et

al., 2023).

Deep learning methods have also been widely

used in grade prediction (Bakhshinategh et al., 2019).

Li et al. (2020) proposed a student grade prediction

method based on dual attention mechanism, which

achieves more comprehensive and accurate utilization

of student attributes, thereby ensuring accurate

prediction of student grades. However, machine

learning and deep learning based methods usually

require large-scale training data, Therefore, it is

difficult to achieve performance prediction in the

early stages of academic studies with insufficient

data, so it is particularly important to supplement

sparse data with information. Therefore, Liu et al.

(2023) proposed a score prediction model based on

multi-layer feature fusion to address the above issues.

They constructed a two-layer historical score

modeling module, which achieved synchronous

feature extraction of the temporal dependence of

grade information and course relevance; A similar

student network was constructed based on co-

occurrence frequency, integrating similar student

characteristics for information complementarity to

achieve timely prediction.

At present, the development of information

technology has improved the level and efficiency of

education, but at the same time, there are still

problems waiting to be solved. The situation between

students is different, and due to the differences in

personality and needs, not all technologies and

education methods are needed by everyone (Yan,

2009). Therefore, predicting students' grades can

better and earlier formulate special training plans for

each student, helping them unleash their subjective

initiative earlier.

2 METHODS

2.1 Data Sources and Descriptions

The data in this paper comes from the four test scores

of students in the first class of the second grade of

Huaihua No. 2 Middle School, and the data files are

.csv files. According to the time when the tests occur,

they have been named class1_March, class1_April,

class1_June, and class1_November. Then the data file

structure will be introduced. And the file is in tabular

form, using 10 rows, as shown in table 1. The indexes

in the table correspond to: A-name, B- total score of

the 1

exam, C- total score of the 2

exam, D- total

score of the 3

exam, E- total score of the 4

exam.

Table 1: Part of the data used.

A B C D E

Zhou Yuhang 495 631 615 609

Zhou Yixiang 646 689 685 693

Zhou Jiahui 578 590 607 566

    

Zeng Zixuan 239 182 267 237

Chen Wenbo 311 321 373 358

2.2 Indicator Selection and Description

Learning rate, which is used to regulate the speed of

the training process. Through the test, the learning

rate was finally identified as 0.1. MSE (Mean

Variance) Loss, which is a metric used to measure

whether the current neural network is “good” or

“bad”, the formula for MSE is as follows:

𝑀𝑆𝐸 =

∑

(







)









(1)

where 𝑛 is the number of samples, which in this case

refers to the number of classmates in the class. The

word 𝑦



is the 4th exam score, i.e., the correct data

used for validation, and 𝑦



is the prediction data,

i.e., the output of the model. The smaller the MSE, the

more accurate the prediction result of the model.

2.2.1 Data Pre-Processing

Due to the change in the full scores of Chinese,

mathematics and English in the first and second

grades of junior high school, the data is visualized

first, and the students' scores are divided by the full

EMITI 2024 - International Conference on Engineering Management, Information Technology and Intelligence

scores, that is, the normalized score rate is used as the

data for calculation.

2.3 Methodology Introduction

Neural network: neural network is a machine learning

technology that imitates the way of signal

transmission and interaction between biological

neurons, so as to achieve artificial intelligence and

achieve the purpose of learning experience, the basic

elements of the neural network are neurons, neurons

have input and output, the output of one layer of

neurons is used as the input of the next layer of

neurons, and the output of the penultimate layer

passes through the last layer of neurons to become the

output of the model, that is, the output of the entire

neural network, as shown in Figure 1 of the neural

network used in this training. As shown in Figure 1,

there are a total of 4 neurons, all of which function as

(2):

𝑦



∑

𝑥







∗𝑤



𝑏



(2)

where 𝑦



is the output result of node j, 𝑏𝑖𝑎𝑠 is the

offset, 𝑤



(i = 1,2,3) are the weights, and 𝑥



(j = 1,2,3)

are the inputs.

Activation Function: The hidden layer and the

output layer select the S-type function as the

activation function, as shown in (3):

𝑓

(

𝑥

)







(3)

Stochastic gradient descent method: used to optimize

parameters, parameter optimization formula such as

(4):

𝑤



= 𝑤



𝜂







(4)

where 𝑤



represents the parameter to be optimized, 𝜂

represents the learning rate, and 𝐿 represents the loss

function.

Backpropagation algorithms: used to calculate







. For example, the principle to calculate 𝑤



shown in (5):













∗









∗









(5)

3 RESULTS AND DISCUSSION

3.1 Parameter Selection

The model was used to predict the results of the total

scores of middle school students, and the results are

as follows:

According to figure 1 and function (2), there are

in total 12 weights and 4 offsets.

After iterating the results of 500 students for 100

times, the parameters take the values shown in table

2 in whose indexes correspond to: P- parameter, V-

value (Table 2).

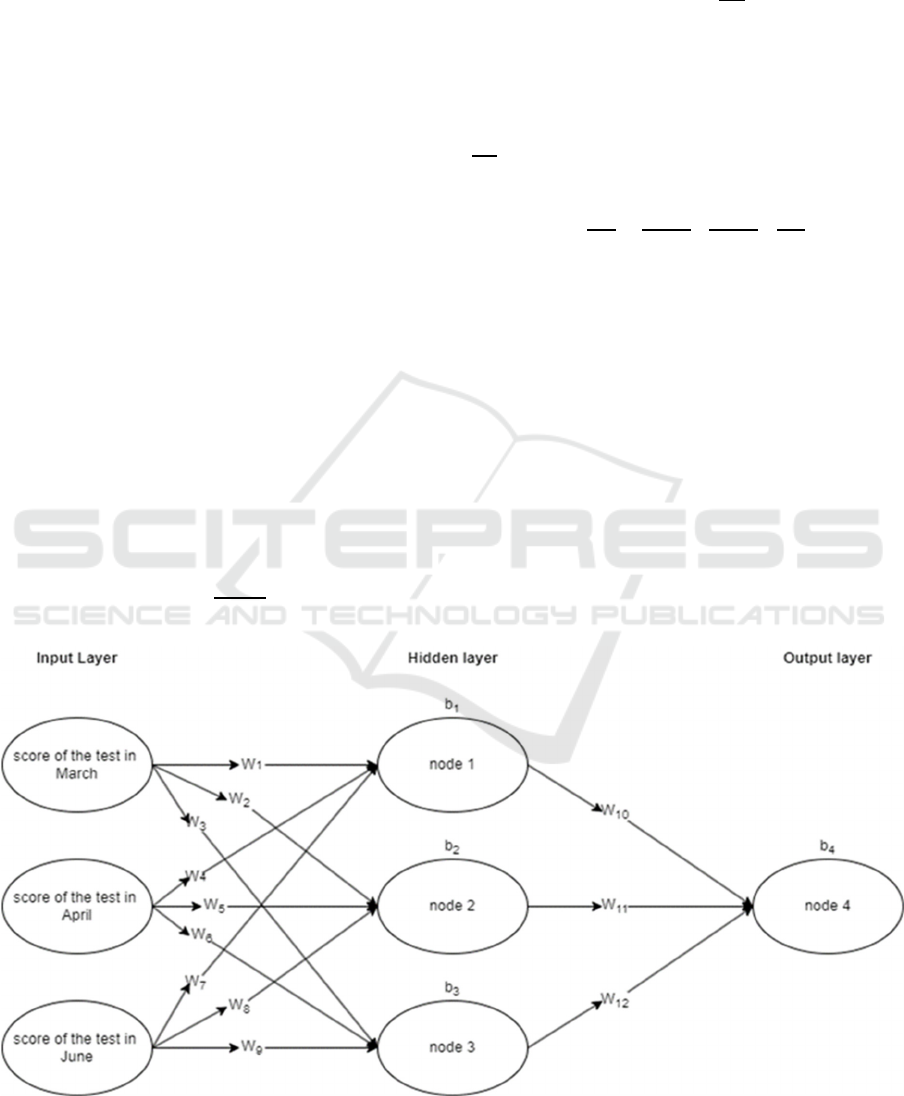

Figure 1: The structure of the neural network used.

Research on Neural Network-Based Achievement Prediction of Middle School Students

Table 2: Parameters’ values (leave three decimal places).

P V P V P V P V

𝑤



-0.049

𝑤



0.166

𝑤



-1.119

𝑏



1.088

𝑤



-0.936

𝑤



2.494

𝑤



-2.251

𝑏



-2.842

𝑤



-1.320

𝑤



-0.452

𝑤



4.315

𝑏



0.746

𝑤



0.377

𝑤



-0.784

𝑤



-1.734

𝑏



0.879

3.2 Testing Results

When the learning rate is 0.1, the change trend of the

loss function during the training process is shown in

figure 2. With the iteration rounds increasing, the

value of the loss function is declining, too. So, the

training process is effective to improve the model’s

accuracy.

Figure 2: Changes of the loss function.

Then test the model with scores of another 43

students. The figure 3 is obtained by comparing the

predicted Chinese results with the correct Chinese

results, in which the red dots represent the true grades

while the blue dots are the predicted one.

Figure 3: Comparing the predicted total scores with the

correct total scores using neural network.

The predicting scoring rate of the model is

basically consistent with the true ones, and the

predicting accuracy also varies with the change of the

score rate, and the accuracy reaches the highest in the

range of about 0.5 to 0.65 in the true score rate, and

there will be some deviation when the true score rate

is high or low, because most of the students' scoring

rates are between 0.5 and 0.65. When the score is

lower or higher, the number of students decreases,

and the training sample is less, which makes deviation

easier to occur.

Figure 4: Comparing the predicted total scores with the

correct total scores using linear regression.

In order to reflect the feasibility of the model, the

linear regression method was used to predict the

performance on the same sample, and the prediction

results shown in figure 4.

Table 3: Comparing with the linear regression.

Model Accuracy Average error

(scoring rate)

Neural network 76.744% 0.0290

Linear regression 81.395% 0.0311

Define the average error as the average difference

between the predicted and true values. Define the

proportion of samples with precision within 0.05 of

the difference between the predicted value and the

true value to the total number of samples. Compare

the neural network’s these two indexes with the linear

regression’s, the result is in the table 3. Though the

accuracy is worse, the neural network has better

average error. This means the way neural network is

effective in predicting scores.

3.3 Discussion

As can be seen from Figure 2, the accuracy of

performance prediction with neural networks is very

high, which can meet the needs of predicting scores

in actual teaching. Moreover, the neural network

model training in this paper only uses the scores of

EMITI 2024 - International Conference on Engineering Management, Information Technology and Intelligence

more than 500 students in the last three exams. This

shows that the prediction method using neural

networks does not need to obtain other characteristics

of students, such as records of consumption behavior,

and then calculate the similarity between students. It

does not rely on diverse and hard-to-obtain data, nor

does it require a large amount of data, making it ideal

for use in secondary school teaching. In practice,

teachers can take different actions on students based

on predicted scores. For example, for a student with a

low predicted score, the teacher can respond in

advance to make the student study more seriously,

and can also ask other students to help him answer

questions and help him learn. Similarly, teachers can

also pay more attention to the overall predicted

performance of the class, and if the overall predicted

performance is not satisfactory, the teacher needs to

discuss with other teachers to discuss their own

teaching shortcomings.

However, in this study, only changes in students'

total scores were concerned. In the course of

secondary education, there will be changes in the

subjects that students learn, e.g. Physics will be added

in Secondary 2, and Chemistry will be added but

Biology and Geography will be added in Secondary

3. This results in a change in the total score of the

exam. Since it is difficult to get a score in different

subjects, for example, it is difficult to get a high score

in a liberal arts subject but it is easy to get a certain

score, while a low score in a single digit is common

for a science subject, so if the proportion of liberal

arts subjects increases, then the overall score of most

students will increase. But in reality, the students'

learning situation has not changed, only the subjects

have changed. This cannot be found in a single study

of the total score, so the foothold of future research

can be refined from the total score and focus on the

results of each subject.

4 CONCLUSION

Student achievement prediction has always been a

very practical direction. With the development of

information technology, the methods of statistical

analysis of student performance are becoming more

and more advanced. The application of computer

technology to teaching is an unstoppable trend. In this

paper, a performance prediction method based on

neural network is proposed, and its operating

principle, composition structure and computational

function are introduced. The feasibility was tested by

a prediction test of the performance of 43 students.

However, the forecasting methods in this paper have

their drawbacks. The frequency of exams for junior

high school students is not high, and there are only

two mid-term and final exams in a semester on

average. The time span to obtain the results of the

three exams is long, and it may take more than half a

year. This may not allow teachers to take action

sooner.

So, the method is more suitable for high schools

where the test is more frequent. Alternatively, in

future research, with regard to the acquisition of

experimental data, the number of exams referred to

can be reduced, and the data of other dimensions can

be appropriately increased.

REFERENCES

Bakhshinategh, B., Zaiane, O., Elatia, S., 2018. Educational

data mining applications and tasks: A survey of the last

10 years. In Education & Information Technologies.

Hao, Z., 2019. Deep learning review and discussion of its

future development. In MATEC Web of Conferences.

Lin, P., He, X., Chen, T. et al., 2019. Prediction of loss and

teaching intervention for learners in MOOC from

perspective of deep learning. In Computer Engineering

and Applications.

Liu, X., et al., 2023. Research on student scores prediction

method based on feature selection. In Information

Technology.

Li, M., Wang, X., Ruan, S. et al., 2020. Student

performance prediction model based on two-way

attention mechanism. In Journal of Computer Research

and Development.

Liu, T., Qi, H.R., Ni, W., 2023. Multilayer feature fusion

based model for predicting student academic

performance. In Computer Engineering and Design.

Wang, G., Liu, H., Li, J. et al., 2023. Research on student

score prediction method based on K-Means. In

Information Technology.

Yan, S., 2009. The alienation and its alleviation of modern

informational technology. In Modern Educational

Technology.

Zhang, X., Li X., 2020. Analysis of students' achievements

based on multiple linear regression. In Computer and

Digital Engineering.

Zhou, J., Xue, J., Han, C. et al., 2018. Research on student

performance prediction method based on BP neural

network. In Computer Era.

Research on Neural Network-Based Achievement Prediction of Middle School Students
