Research on Traffic Flow Prediction Based on ARIMA Model

Jiamu He

School of Mathematical Sciences, Dalian University of Technology, Dalian, 116000, China

Keywords: Road Traffic, ARIMA, Traffic Flow Forecasting.

Abstract: Nowadays, road traffic has become the most mainstream mode of transportation, and its impact on people's

lives is significant in terms of transportation efficiency and safety. Therefore, the accurate prediction of traffic

flow is a research topic with high application value. This paper aims to establish a model for fitting and

predicting the collected traffic flow data. Firstly, the ADF test will be conducted along with ACF and PACF

plots to determine the approximate range of each input parameter of the model. Then, ARIMA models with

different parameters will be applied to fit the data, and their mean square errors will be compared to identify

the best-fitting model. The result indicates that the fitted values of this model closely align with the

distribution of actual values, this proves the feasibility of ARIMA model for traffic flow fitting. Finally, the

study will utilize this model to forecast data changes over a period of time in the future.

1 INTRODUCTION

The current process of urbanization is continuously

accelerating, leading to an increasing demand for

transportation and a continuous growth in traffic

volume. Among these modes of transportation, road

traffic stands out as the primary means of travel.

Understanding the changing trends in road traffic

flow is of significant importance for transportation

planning. Therefore, predicting traffic flow has

always been a focal point of research for

transportation authorities. Accurately forecasting

traffic flow aids relevant departments in

implementing real-time traffic control measures,

thereby alleviating traffic congestion and improving

transportation efficiency. Although transportation

authorities have introduced new technologies such as

intelligent transportation systems to enhance the

monitoring of traffic volume, accurately predicting

changes in traffic flow remains a formidable

challenge. This is due to the characteristics of road

traffic flow, such as high volume, rapid fluctuations,

and susceptibility to external influences.

There are various models and methods used for

traffic flow prediction. Time series analysis is a

typical method, whose common models include

Autoregressive Integrated Moving Average

(ARIMA) and its derivative models. These models

https://orcid.org/0009-0009-1377-3313

attempt to identify patterns by breaking down long-

term trends and extrapolating those patterns into the

future. Kumar et al. (2015) obtained a suitable

Seasonal ARIMA model by differentiating the data

and adjusting the model parameters. Chikkakrishna et

al. (2019) utilized actual data to establish the

PROPHET model and SARIMA model, obtaining the

optimal SARIMA model for the data. Regression

analysis, which relates traffic flows to other factors,

is also feasible for predicting future traffic flows.

Feng et al. constructed an Adaptive Multi-kernel

Support Vector Machine (AMSVM) to study the

nonlinearity and randomness of traffic flow. They

optimized AMSVM parameters and integrated

spatial-temporal information with AMSVM,

achieving accurate prediction (Feng et al., 2019).

Machine learning methods can handle large amounts

of data and complex features, adapting to nonlinear

relationships and high-dimensional data. Mohammed

et al. proposed using channel conditions for short-

term prediction. The results showed slightly better

predictions with the Distributed Random Forest

model compared to the other methods (Mohammed

and Kianfar, 2018). Deep learning models, capable of

handling large-scale data, are another popular method

for predicting traffic flow. Fu et al. used Long Short-

Term Memory (LSTM) and Gated Recurrent Unit

Neural Network methods (Fu et al., 2016). Zhang et

He, J.

Research on Trafﬁc Flow Prediction Based on ARIMA Model.

DOI: 10.5220/0012887800004508

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 1st International Conference on Engineering Management, Information Technology and Intelligence (EMITI 2024), pages 16-21

ISBN: 978-989-758-713-9

al. converted spatio-temporal traffic flow features

into two-dimensional matrix and constructed models

by using Convolutional Neural Networks (Zhang et

al., 2019). Lv et al. (2015) considered the

spatiotemporal correlation of traffic flow, trained the

hierarchical autoencoder model by greedy

stratification, and then took the trained model as a

building block. These different deep learning models

achieved good prediction results.

Some researchers have combined various

methods to predict traffic flow. Li et al. (2017)

combined the ARIMA model with the Radial basis

Function Artificial Neural Network model to capture

different aspects of traffic flow patterns. They used

two models to capture and model the linear and

nonlinear components of the data, respectively. Lin

(2020) et al. used Random Forest to calculate the

importance of data features, eliminate redundant

features, and apply the LSTM algorithm model. The

above results both show that the algorithm combining

the mixed models is superior to the algorithm using

one of the models alone.

Chen et al. (2011) combined linear ARIMA

models with non-linear Generalized Autoregressive

Conditional Heteroskedasticity models, which could

simultaneously capture more data at the same time.

Compared to the predictive accuracy of the standard

ARIMA model, the mixed model generally shows no

improvement in performance, and sometimes even a

decrease in performance. Therefore, in general, the

standard ARIMA model can be used to achieve better

results. Moreover, throughout the history of traffic

flow prediction research, there have been many

studies using ARIMA models, which indirectly

reflect its good predictive performance. Therefore,

this paper will also use ARIMA model to fit and

forecast existing traffic flow data.

2 METHODS

2.1 Data Source

This paper uses a road traffic flow dataset from

Huawei Munich Research, which contains recorded

data over 3 days at an intersection in an urban area,

and describes the traffic flow passing through the

intersection in the form of a time series.

2.2 Indicator Selection

The paper takes intervals of every 5 minutes from the

dataset as time periods and uses them as independent

variables, with traffic flow as the dependent variable.

This study is going to find a suitable model to fit the

collected data over time and to make predictions

about traffic volume for a future period. Figure 1

depicts the change of traffic flow over time.

2.3 Methodology Introduction

This paper employs ARIMA model, which is often

used for handling data with trend and seasonality

structures.

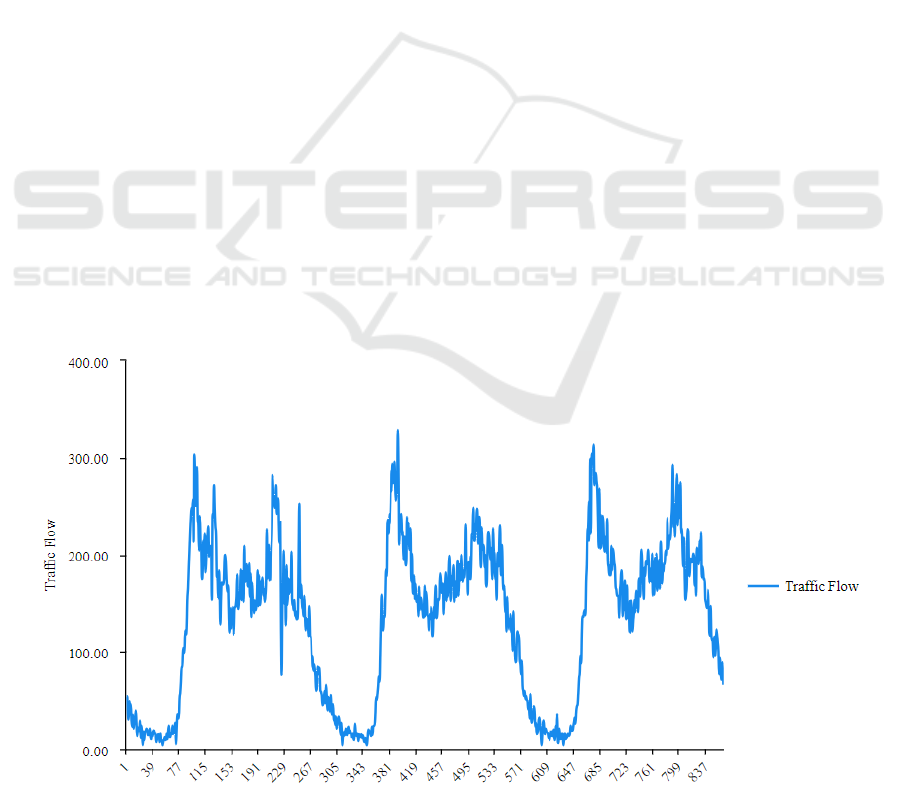

Figure 1: Time Series of Traffic Flow.

Research on Trafﬁc Flow Prediction Based on ARIMA Model

The standard representation of the ARIMA model

is (p, d, q), where p, d, q are the parameters. The basic

assumption of this model is that, through appropriate

differencing operations, the time series can be

transformed into a stationary sequence. Then, by the

combination of the Autocorrelation Function (ACF)

and Partial Autocorrelation Function (PACF) plots,

the structure of the sequence can be modelled.

The ARIMA model is commonly used for short-

term forecasting. For long-term predictions, more

complex models may need to be considered.

3 RESULTS AND DISCUSSION

3.1 ADF Test

The Augmented Dickey-Fuller (ADF) test can verify

the stationarity of time series. A P-value of less than

0.1 (sometimes 0.05) indicates that the sequence is

stable at the 0.1 significance level.

Table 1: Traffic Flow - ADF Test.

d t P

Critical Value

1% 5% 10%

0 -3.677 0.004 -3.438 -2.865 -2.569

As table 1 provided, concerning the traffic flow,

the P-value is 0.004 < 0.01. There is strong evidence

(with over 99% confidence) that the sequence is

stationary without differencing operations.

3.2 ACF and PACF Plots

The ACF and PACF plots are used to determine p and

q. If the plots do not show clear truncation, it is

necessary to choose the appropriate ARIMA orders.

In this case, one can select the lags from the ACF plot

as q and the lags from the PACF plot as p. If both the

plots exhibit truncation, indicating that the

randomness of the data is large, ARIMA modelling

may not be suitable in such situations.

For traffic flow, combined with Figure 2 and

Figure 3, it is recommended that d is 0, p is around 1

and q is around 1.

3.3 ARIMA Prediction

Given the value of d and the approximate range of p

and q, model construction can be performed. The

model parameter list shows the results of the model

construction, and even if the P-value exceeds 0.05, it

usually does not require much attention. Predictive

metrics like mean squared error (MSE), information

criteria such as AIC and BIC, are employed for

multiple analyses to compare models. Lower values

for MSE, AIC, and BIC are considered better, with

MSE having the most significant impact on model fit.

The best model can be obtained by repeatedly

comparing the changes in these three values.

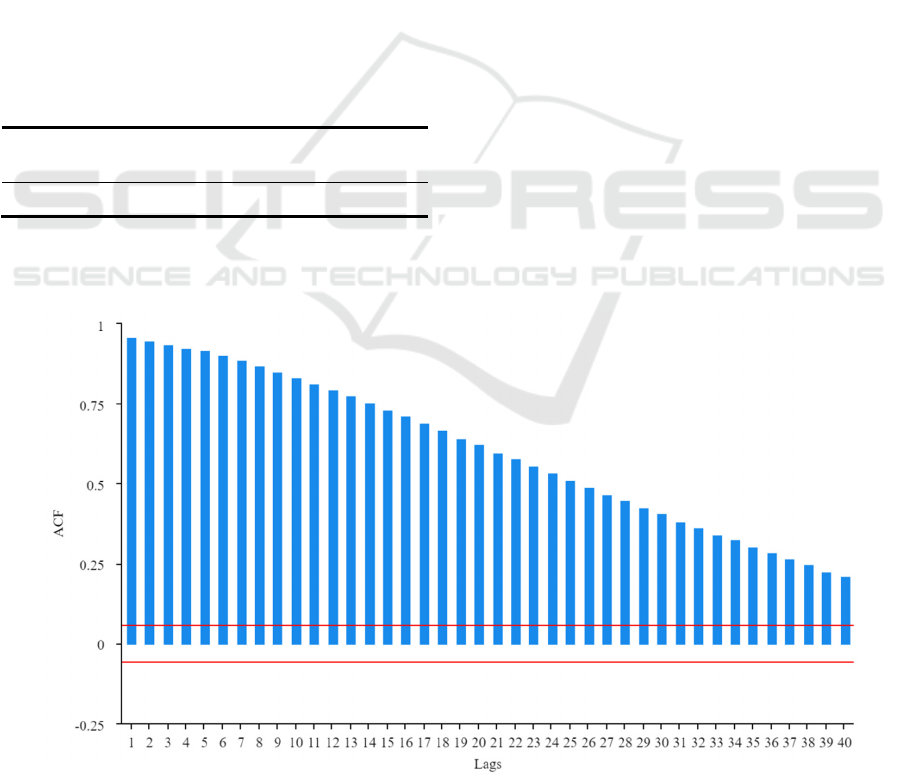

Figure 2: ACF Plot of the Traffic Flow.

EMITI 2024 - International Conference on Engineering Management, Information Technology and Intelligence

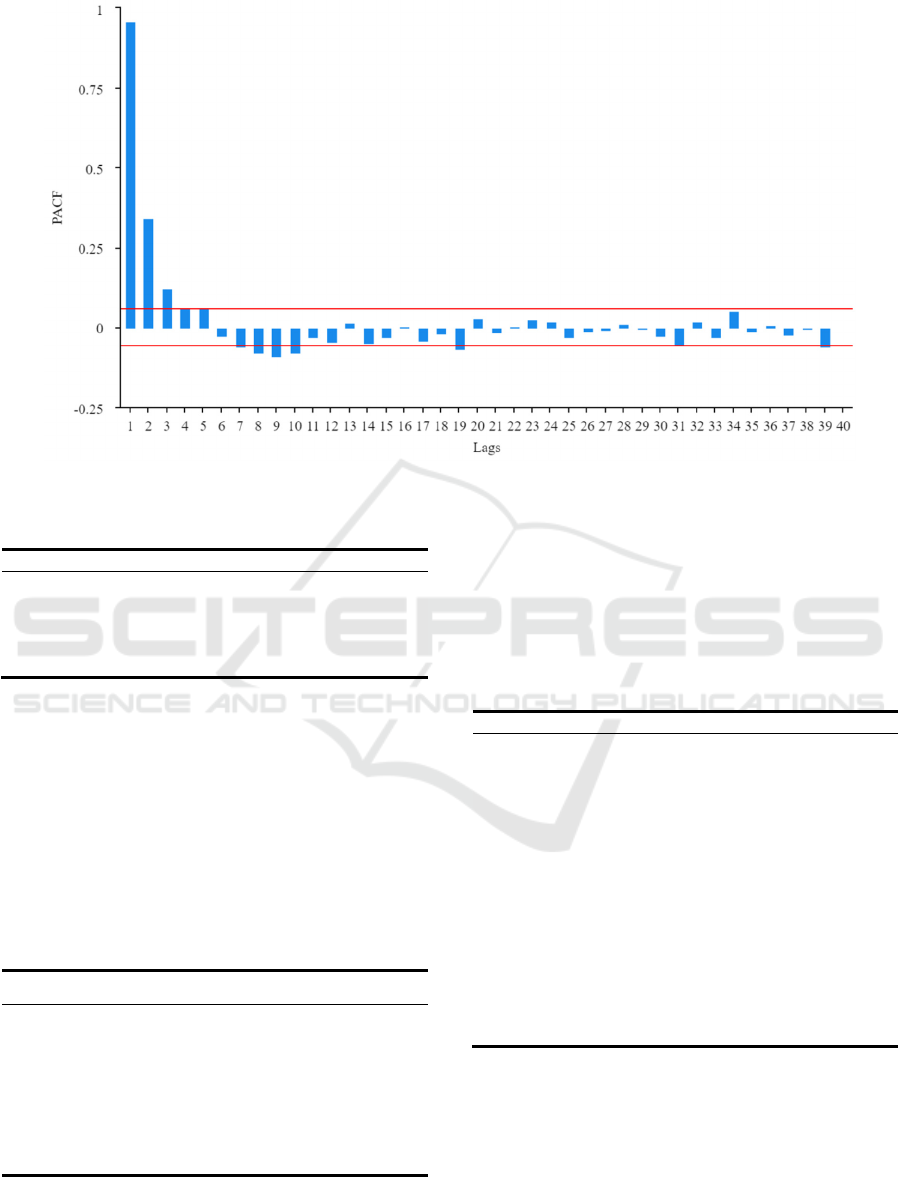

Figure 3: PACF Plot of the Traffic Flow.

Table 2

Model Evaluation.

Model MSE AIC BIC

(

1,0,1

)

390.660 7598.992 7618.034

A(2,0,1) 390.417 7600.323 7624.125

(

1,0,2

)

390.393 7600.245 7624.048

A(1,0,0) 452.195 7722.305 7736.586

(

0,0,1

)

2501.802 9207.272 9221.554

Compared with several models in Table 2, the

mean square error, AIC and BIC values of A(1,0,1),

A(2,0,1) and A(1,0,2) are all small with no significant

difference. The mean square error of A(1,0,2) is the

smallest, so it can be considered that the model has

the best fitting effect. At this point, the model formula

can be obtained as (Table 3):

𝑦



 1.452  0.988 ∗𝑦



 0.409 ∗𝜀





0.028 ∗𝜀



(1)

Table 3

A(1,0,2) Model Parameter List.

Item Sign Coe. S.E. Z P

5% C

Constant c 1.452 1.328 1.093 0.274

1.151

4.054

AR α1 0.988 0.007 137.375 0.000

.974

1.002

β1 -0.409 0.023 -18.048 0.000

0.453

-0.364

β2 0.028 0.027 1.041 0.298

0.025

0.080

According to Figure 4, the fitting degree of the

numerical model is high and close to the distribution

state of the true value. This model can meet the

requirement of data fitting and prediction. Therefore,

it is reliable to use A(1,0,2) to predict the traffic flow

in the future period based on the existing data.

Table 4

Predicted Value.

Prediction Value Prediction Value

5 75.190 80 82.481

10 75.188 85 82.957

15 75.750 90 83.427

20 76.306 95 83.892

25 76.855 100 84.351

30 77.397 105 84.805

35 77.933 110 85.253

40 78.463 115 85.696

45 78.986 120 86.134

50 79.504 125 86.567

55 80.015 130 86.994

60 80.520 135 87.417

65 81.019 140 87.834

70 81.512 145 88.247

75 81.999 150 88.654

According to Table 4, the prediction for traffic flow

within the next 150 minutes indicates a gradual

decline within the first 5 minutes, followed by an

upward trend. By the 150th minute, the traffic flow is

projected to reach approximately 88 vehicles every 5

minutes.

Research on Trafﬁc Flow Prediction Based on ARIMA Model

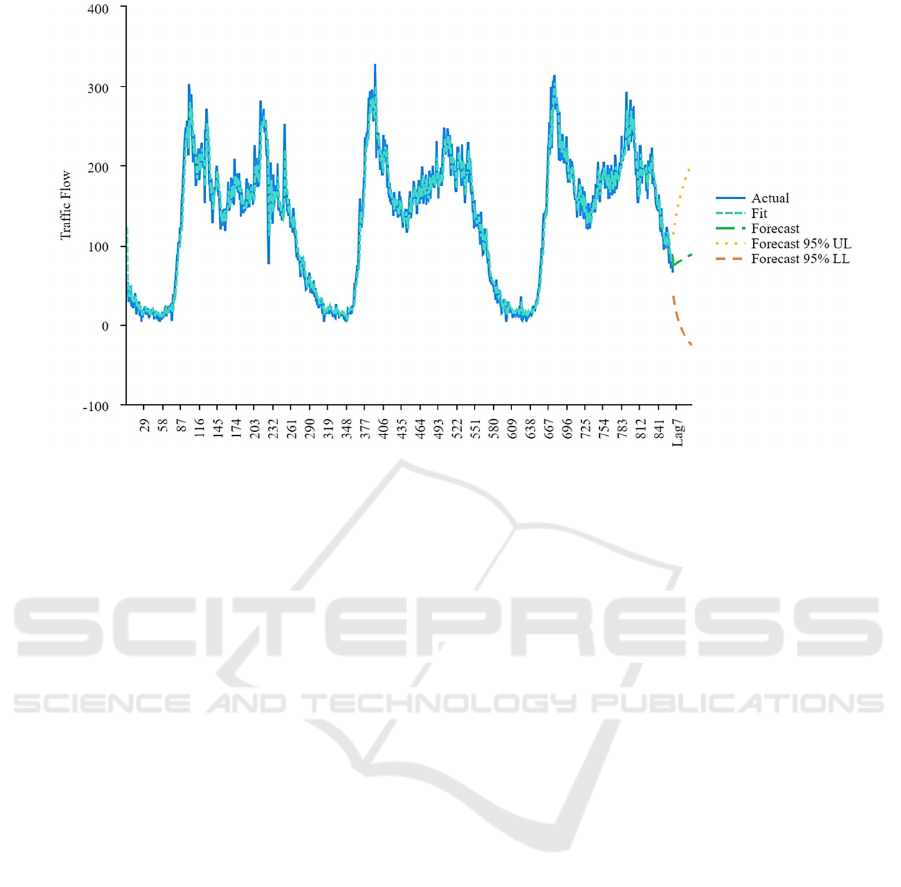

Figure 4: Fitting and Prediction of the Traffic Flow.

4 CONCLUSION

This article utilizes existing data to construct an

ARIMA model for fitting and forecasting the traffic

flow at a certain intersection. By selecting and

comparing various parameters, the fitting results

under different scenarios were examined to find the

most accurate model. This demonstrates that ARIMA

model is feasible in traffic flow prediction.

However, the ARIMA model also has some

limitations. First and foremost, the prerequisite for the

successful establishment of the model is that the data

is stationary. Therefore, it is necessary to perform

tests for stationarity and transform the collected data

before applying the model. What’s more, outliers in

the data can lead to deviations in the fitting results and

predicted values of the model. Therefore, it is

advisable to use other models for data preprocessing

to reduce the impact of outliers before employing the

ARIMA model for modelling.

In conclusion, the ARIMA model possesses

certain advantages and potential applications in road

traffic flow prediction whereas it also has some

limitations. The traffic flow predicted by this model

holds promise in assisting traffic dispatching or

accident early warning systems, thereby enhancing

traffic efficiency or reducing accident rates. Future

research could explore alternative models such as

regression models or deep reinforcement learning

models to enhance traffic flow prediction.

REFERENCES

Chen, C., Hu, J., Meng, Q. and Zhang, Y., 2011. Short-time

traffic flow prediction with ARIMA-GARCH model,

2011 IEEE Intelligent Vehicles Symposium (IV),

Baden-Baden, Germany, 607-612.

Chikkakrishna, N.K., Hardik, C., Deepika, K. and Sparsha,

N., 2019. Short-term traffic prediction using SARIMA

and FBPROPHET, 2019 IEEE 16th India Council

International Conference (INDICON), Rajkot, India, 1-

Feng, X., Ling, X., Zheng, H., Chen, Z. and Xu, Y., 2019.

Adaptive multi-kernel SVM with spatial–temporal

correlation for short-term traffic flow prediction, in

IEEE Transactions on Intelligent Transportation

Systems.

Fu, R., Zhang, Z. and Li, L., 2016. Using LSTM and GRU

neural network methods for traffic flow prediction,

2016 31st Youth Academic Annual Conference of

Chinese Association of Automation (YAC), Wuhan,

China, 324-328.

Kumar, S.V., Vanajakshi, L., 2015. Short-term traffic flow

prediction using seasonal ARIMA model with limited

input data, Eur. Transp. Res. Rev. 7, 21.

Li, K. L., Zhai, C. J. and Xu, J. M., 2017. Short-term traffic

flow prediction using a methodology based on ARIMA

and RBF-ANN, 2017 Chinese Automation Congress

(CAC), Jinan, China, 2804-2807.

Lin, S. and Tian, H., 2020. Short-term metro passenger flow

prediction based on random forest and LSTM, 2020

IEEE 4th Information Technology, Networking,

Electronic and Automation Control Conference

(ITNEC), Chongqing, China, 2520-2526.

EMITI 2024 - International Conference on Engineering Management, Information Technology and Intelligence

Lv, Y., Duan, Y., Kang, W., Li, N. and Wang, F.Y., 2015.

Traffic flow prediction with big data: a deep learning

approach, in IEEE Transactions on Intelligent

Transportation Systems, 865-873.

Mohammed, O. and Kianfar, J., 2018. A machine learning

approach to short-term traffic flow prediction: a case

study of interstate 64 in Missouri, 2018 IEEE

International Smart Cities Conference (ISC2), Kansas

City, MO, USA, 1-7.

Zhang, W., Yu, Y., Qi, Y., Shu, F. and Wang, Y., 2019.

Short-term traffic flow prediction based on spatio-

temporal analysis and CNN deep learning,

Transportmetrica A: Transport Science, 1688-1711.

Research on Trafﬁc Flow Prediction Based on ARIMA Model
