Learning to Rank for Query Auto-Complete with Language Modelling in

Enterprise Search

Colin Daly

1,2 a

and Lucy Hederman

1,2 b

The ADAPT SFI Research Centre, Ireland

School of Computer Science and Statistics, Trinity College Dublin, Ireland

{dalyc24, hederman}@tcd.ie

Keywords:

Enterprise Search, Learning to Rank, Query Auto-Complete, Language Modelling.

Abstract:

Query Auto-Completion (QAC) is of particular importance to the ﬁeld of Enterprise Search, where query

suggestions can steer searchers to use the appropriate organisational jargon/terminology and avoid submitting

queries that produce no results. The order in which QAC candidates are presented to users (for a given preﬁx)

can be inﬂuenced by signals, such as how often the preﬁx appears in the corpus, most popular completions,

most frequently queried, anchor text and other of a document, or what queries are currently trending in the

organisation. We measure the individual contribution of each of these heuristic signals and supplement them

with a feature based on Large Language Modelling (LLM) to detect jargon/terminology. We use Learning

To Rank (LTR) to combine the weighted features to create a QAC ranking model for a live Enterprise Search

service. In an online A/B test over a 12-week period processing 100,000 queries, our results show that the

addition of our jargon/terminology detection LLM feature to the heuristic LTR model results in a Mean Re-

ciprocal Rank score increase of 3.8%.

1 INTRODUCTION

Query Auto-Completion (QAC) presents users with a

ranked list of suggested queries in a drop-down box

as they start typing their query in a search box. QAC

facilitates the search process by making it easier for

users to ﬁnish entering their queries without typing

all the letters.

The user’s query preﬁx can be reformulated in-

line to use speciﬁc ‘wording’ that ensures relevance

or semantic matching. This reformulation is particu-

larly useful for Enterprise Search (ES), where organ-

isations have their own jargon and terminology. QAC

can also help avoid users submitting queries that pro-

duce no results (a potentially common occurrence, as

an ES corpus is small compared to WS) (Kruschwitz

and Hull, 2017).

A consequence of the ubiquity of commer-

cial/Internet Web Search (WS) is that users have high

expectations when it comes to interacting with search

engines (Davis et al., 2011). Cleverley and Burnett

refer to this as ‘Google Habitus’ (Cleverley and Bur-

nett, 2019). Ranked query suggestions are an ex-

https://orcid.org/0000-0001-7218-7765

https://orcid.org/0000-0001-6073-4063

pected characteristic of every interactive search ser-

vice (White, 2018).

The simple deﬁnition of ES is ﬁnding the informa-

tion needed within an organisation (Bentley, 2011).

Many employees or members of an organisation may

not be proﬁcient in using their organisation’s jargon

and terminology. QAC for ES can educate new staff

members about the range of selections available to

them and assist in narrowing that selection even be-

fore the user has ﬁnished typing a query. For com-

mercial WS services, the search box typically occu-

pies the centre of an otherwise blank page. Major

providers such as Google, Yahoo, Bing, and Baidu of-

fer ten auto-complete suggestions. For ES, the search

box is less prominent and has limited real estate to

present suggestions. For this reason, many ES ser-

vices present fewer suggestion candidates. Addition-

ally, more suggestions could cause users (especially

on mobile devices) to either begin to ignore sugges-

tions (at which point the additional suggestions be-

come mere noise) or spend an inordinate amount of

time reading suggestions (interrupting or even halting

the ﬂow of their search session) (Scott, 2022). Where

an ES service presents a restricted number of sugges-

tions, their ranking is more important.

Learning to Rank (LTR) is the application of su-

Daly, C. and Hederman, L.

Learning to Rank for Query Auto-Complete with Language Modelling in Enterprise Search.

DOI: 10.5220/0012888100003838

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 16th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2024) - Volume 1: KDIR, pages 15-26

ISBN: 978-989-758-716-0; ISSN: 2184-3228

pervised machine learning techniques to train a model

to list the best ranking order (Li, 2011; Xu et al.,

2020). In the context of QAC, this involves com-

bining signals to present the best order of query can-

didates for a given query preﬁx. LTR computes the

optimum ‘weight’ (importance) of signals, which are

extracted from the ES corpus, and query log ﬁles.

The challenge of deciphering enterprise jar-

gon/terminology within a corpus lends itself to the

ﬁelds of natural language processing (NLP) and

large language models (LLM). LLMs, such as Ope-

nAI’s GPT (Generative Pre-trained Transformer), are

trained on large datasets containing vast amounts of

text from diverse sources. Word embeddings can

capture semantic relationships between words in text

data. While LLMs and embeddings are regularly used

in e-commerce (Singh et al., 2023a) and commercial

search engines (Li et al., 2017), their application for

ES has not been sufﬁciently explored.

In this paper, we introduce a ranking feature

explicitly designed for ES. We call this ‘QACES’

(Query Auto-Complete for Enterprise Search). This

feature is centred on the relative unusualness of

words, such as those used in organisational jar-

gon/terminology. QACES is scalable and can be

applied to any ES service. Our hypothesis is that

adding the QACES feature to a heuristic LTR rank-

ing model will signiﬁcantly increase the QAC ranking

performance, as measured by Mean Reciprocal Rank

(MRR). The major contribution of this research is the

introduction of our new feature designed to detect, un-

derstand and suggest jargon/terminology speciﬁc to

organisations. For performance context, we undertake

an ofﬂine ablation study to measure the individual im-

provement of each ranking feature. Subsequently, we

perform an A/B test on a live ES service of a large

third-level academic institution to conﬁrm that the ad-

dition of the QACES feature to our heuristic model

can signiﬁcantly improve QAC ranking performance.

2 RELATED WORK

2.1 QAC Components

Depending on a researcher’s ﬁeld of study, the ter-

minology used to describe QAC varies widely. A

user’s incomplete input is often referred to as a ‘query

preﬁx’. The generated query sufﬁxes or suggestions

are ‘query candidates’ or ‘query completions’. Lesser

used terminologies used to describe the same or sim-

ilar functionality include typeahead, query transfor-

mation (Croft, 2010), ‘search as you type’ (Turn-

bull and Berryman, 2016), predictive search, auto-

suggest, real-time query expansion (RTQE) (White

and Marchionini, 2007), query modiﬁcation sugges-

tions (Kruschwitz and Hull, 2017) and subword com-

pletion (Kim, 2019). A closely related and overlap-

ping concept to QAC is ‘auto-complete suggestion’,

which is a more general term that often encompasses

a broader range of features aimed at assisting users

in formulating queries that do not necessarily contain

the same starting string of characters. Google differ-

entiates these two concepts by using the word ‘predic-

tions’ rather than ‘suggestions’. For predictions, the

priority is to faithfully ‘help people complete a search

they were intending to do, not to suggest new types of

searches to be performed.’

. In practice, since QAC

may also include the related tasks of suggestion, cor-

rection (e.g. spelling reformulation) and expansion,

the terms QAC and query suggestion are usually used

interchangeably (Yadav et al., 2021; Li et al., 2017),

as is the case in this study.

2.2 Approaches to QAC Ranking

There are two principal approaches to ranking QAC

candidates (Cai and De Rijke, 2016). The ﬁrst,

more traditional approach is heuristic and combines

domain-speciﬁc signals from a corpus and query

logs. This approach, where ranking signals are hand-

crafted based on relevance or popularity, typically

uses experimental or trial-and-error methods to ap-

ply weightings to features. The heuristic approach

produces ranking models that are relatively transpar-

ent. The second approach employs NLP or Lan-

guage Modelling to produce context-aware sugges-

tions (Singh et al., 2023a; Kim, 2019). Learning to

Rank can combine or ’fuse’ the two approaches with

any number of features (Rahangdale and Raut, 2019;

Guo et al., 2016) as outlined in §3.

2.3 Historical QAC Data

Relevance judgements in the form of annotated query-

document pairs are typically required to train a rank-

ing model for documents on the Search Engine Re-

sults Page (SERP) (Joachims, 2002; Daly, 2023).

QAC researchers rarely rely on the same editorial

effort to manually annotate preﬁx-candidate pairs.

More often, QAC relies on the collection of large-

scale historical data for QAC tasks (Chang and Demg,

2020). Previously recorded behaviour and queries

provide useful information for any user’s intent and

can be leveraged to suggest completions that are more

https://blog.google/products/search/how-google-

autocomplete-works-search/, accessed 29th June 2023

KDIR 2024 - 16th International Conference on Knowledge Discovery and Information Retrieval

relevant while adhering to the user’s preﬁx (Yadav

et al., 2021).

Most Popular Completions (MPC) is a ranking

feature that proposes completion candidates based on

user preferences recorded in historical search data.

For this reason, and because of a reluctance of users

to provide explicit feedback (Kruschwitz and Hull,

2017), MPC is typically considered the main indica-

tor of historical relevance (Li et al., 2017) and thus

considered to be a credible proxy for ground truth in

many datasets.

A similar ranking feature extracted from historical

logs is Most Frequent Queries (MFQ) (Yadav et al.,

2021). These queries represent the topics or key-

words searched for most frequently by the user com-

munity. MFQ simply ranks the most frequent sug-

gestions matching the input preﬁx and is particularly

useful when MPC data is sparse.

Much research for QAC focuses on improving the

relevance of suggested queries using a ranking model

trained and evaluated with data generated by com-

mercial search engines, such as the 2006 AOL WS

dataset (Pass et al., 2006), which includes over 10

million queries. ES differs from WS insofar as the

content may be indexed from multiple databases (e.g.

corporate directories) and intranet document reposi-

tories. ES may also include searches for explicitly

indexed usernames, course codes, tracking numbers,

purchasing codes or any datum speciﬁc to the organ-

isation (Craswell et al., 2005). In §3.3, we demon-

strate that the AOL query history is sweeping, cen-

tred around popular culture and often archaic. While

the AOL QAC dataset is not ideal, we could not ﬁnd

a more relevant ES benchmark. A test collection or

dataset based on Enterprise Search is hard to come

by, as organisations are not inclined to open their in-

tranet to public distribution, even for research pur-

poses (Craswell et al., 2005; Cleverley and Burnett,

2019).

Personalisation of an individual user’s session

or recent history enables ‘contextual suggestions‘,

which has proved very effective for completing a

user’s query preﬁx in Web Search (Fiorini and Lu,

2018). For example, if a particular user submits a

Google search for ”Past American Presidents”, then

if his/her next query preﬁx starts with an ‘N’, the sug-

gestion will be ‘Richard Nixon’. The use of person-

alisation for QAC in the domain of Enterprise Search

seems to be rare, possibly because members of the or-

ganisation may not wish to be ‘proﬁled’.

2.4 Trending Queries

Queries that have been popular in a recent time pe-

riod merit a ranking feature to capture temporal be-

havioural trends. In 1999, the operators of the Lycos

commercial Web Search engine began publishing a

weekly list of the 50 most popular queries submit-

ted. The query term ‘Britney Spears’ was number

two on the weekly list. The popularity of that term

endured, and ‘Britney Spears’ never fell off the list

over the next eight years. This meant that the list was

quite static, and emergent topics were volumetrically

drowned out. This has sometimes been referred to as

‘The Britney Spears Problem’ (Hayes, 2008). A more

dynamic list tells us what topic or query is up and

coming or generating a buzz as measured by a sud-

den abnormal burst of interest. This concept is known

as trending and is based on the relative spike in the

volume of clustered topic searches in relation to the

absolute volume of searches. Unlike the popularity

list, the trend list would exclude the constantly popu-

lar ‘Britney Spears’.

2.5 Terms Extracted from the Corpus

The preceding sections describe how historical log

data can be harnessed to create candidates. Sepa-

rately, candidates can also be retrieved from the cor-

pus. Enterprise Search engines like Apache Solr (The

Apache Software Foundation., 2004) are designed for

the explicit retrieval of Term Frequency (TF) within

a particular ﬁeld of a schema, such as title, content

body, anchors, footers, etc. A candidate indexed from

anchor text within a corpus is likely to be more im-

portant than a candidate from the content ﬁeld.

2.6 Jargon/Terminology

Jargon is enterprise-speciﬁc vocabulary that employ-

ees/members can understand. It encompasses words,

phrases, expressions, and idioms that are not univer-

sally familiar or properly understood. The same term

can have a different meaning outside of the organi-

sation. A search for ‘timetable’ in WS will proba-

bly return bus or train times. Krushwitz gives the ex-

ample that the same search in a third-level education

institution might be aimed at lecture timetables (in

Autumn) or exam timetables (in Spring) (Kruschwitz

et al., 2013).

Although excessive use of jargon and terminology

in organisations is often perceived as exclusionary, we

use the terms here in a positive context for conveying

complex ideas, processes, or services among employ-

ees/members who share common knowledge of the

Learning to Rank for Query Auto-Complete with Language Modelling in Enterprise Search

enterprise. In this context, jargon and terminology fa-

cilitate efﬁcient communication.

As we will see in §3, the task of detecting enter-

prise jargon/terminology terms within a corpus lends

itself to the ﬁelds of NLP and LLM. Once the terms

have been detected and scored, they can be used as

another feature in our model.

2.7 Learning to Rank for QAC

Users’ search history is generally the most likely in-

dicator of current search intent (Chang and Demg,

2020). The use of MPC and MFQ to extract sug-

gestions from historical log data assumes that cur-

rent and future query popularity distribution will re-

main the same as previously observed. A generalised

ranking model is therefore required to handle as-yet-

unseen queries. LTR can be used to combine multi-

ple features with the optimum weighting contribution

to a ranking model. When a user types a query pre-

ﬁx, Apache Solr can retrieve and dynamically score

suggestions from multiple sources using a ‘weightEx-

pression’ in real-time.

2.8 Metrics for QAC

The evaluation of QAC performance has two general

approaches (Chang and Demg, 2020), each of which

has its own metric:

1. The MRR metric focuses on the quality of rank-

ing.

2. The Minimum Keystroke Length (MKS) metric

that focuses on savings of a user’s keystroke

effort (Duan and Hsu, 2011).

Since this study focuses on ranking rather than

keystroke effort, we compute MRR, which is widely

accepted as the principal metric for evaluating QAC

ranking performance (Li et al., 2017; Cai and De Ri-

jke, 2016). The MRR metric is appropriate when-

ever evaluating a list of possible responses to a sample

of queries, ordered by the probability of correctness.

The Reciprocal Rank (RR) of a query response is the

multiplicative inverse of the rank of the ﬁrst correct

answer: 1 for ﬁrst place, 1⁄3 for third place, or zero

if the submitted query is not present in the ranked

list (Singh et al., 2023a). The mean reciprocal rank is

the average of the RR results for a sample of queries

MRR =

|Q|

∑

i=1

rank

where rank

refers to the rank position of the ﬁrst rele-

vant document for the i

query. MRR only considers

the rank of the ﬁrst relevant candidate (if there are fur-

ther relevant candidates, they are ignored).

3 METHODS

This section describes how logging is conﬁgured to

capture users’ autocomplete session behaviour. This

historical behaviour is converted into a QAC dataset,

which is used to train a baseline ranking model us-

ing LTR-weighted features. We describe each feature

and analyse its contribution. We describe how our

QACES concept can supplement the baseline heuris-

tic features. The subsequent ranking models are then

evaluated using the MRR metric.

3.1 Log Collection for QAC

To enable detailed capture of users’ session be-

haviour, the log4j module

of the Apache Solr Enter-

prise Search platform (The Apache Software Founda-

tion., 2004) is modiﬁed to record the suggestion can-

didates for a given query preﬁx, the selected candidate

(if any), and ﬁnally, the submitted query. This session

data enables the calculation of an RR score (§2.8).

Table 1 lists the recorded parameters for each query

session.

Table 1: QAC session logging parameters to capture sug-

gestion candidates, record the user’s selection, and the sub-

mitted query.

Parameter ES QAC Dataset example

user id (anon) qtp1209411469-21

session id 33418(rid)

time stamp 2024-01-14 16:25:37.697

preﬁx “aca”

top

suggestion

candidates

academic registry, academic

calendar, academic year

structure, academic registry

fees, academic year, aca-

demic practice, academic

resources

submitted

query

“academic registry”

The QAC session id commences as soon as the

ﬁrst letter is typed into the search box and ends when

the user selects a suggestion candidate or hits submit

with the fully typed query (Li et al., 2017).

This enhanced logging has no discernible impact on

the responsiveness or latency of our live ES service.

https://cwiki.apache.org/conﬂuence/display/solr/

SolrLogging, accessed 16th Jan 2024

KDIR 2024 - 16th International Conference on Knowledge Discovery and Information Retrieval

Storage was added to the backend linux servers to host

both the enhanced logging ﬁle size and ﬁle retention

for 180 days.

3.2 QAC Dataset Construction

3.2.1 Ground Truth

Yossef et al. claim that MPC carries ‘the wisdom of

the crowds’ (Bar-Yossef and Kraus, 2011). It can be

regarded as an approximate maximum likelihood es-

timator (Li et al., 2017; Yadav et al., 2021). In our

study, we use MPC as a surrogate for judgements of

preﬁx-candidate pairs. For a given preﬁx, enumerated

judgements {2-5} are allocated to the candidates, rep-

resenting {irrelevant, moderately relevant, relevant,

highly relevant}. The judgement scores are computed

as a percentile of the MPC score. Figure 1 shows an

extract of our dataset, which has been formatted for

use with an LTR framework (§3.5).

3.2.2 Sensical Suggestions

An important pre-processing step applied to any QAC

dataset for ES is the removal of suggestions that

would produce no search results if selected. An in-

correct suggestion may be considered more damag-

ing than no suggestion, as it would undermine users’

conﬁdence in the ES service. This step is sometimes

referred to as producing ‘plausible completions‘ or ﬁl-

tering out of ‘nonsensical’ suggestions (Yadav et al.,

2021). For example, many suggestions extracted from

the 2006 AOL WS dataset (Table 2) cannot be used.

Even the top AOL queries, such as ‘mapquest’ and

‘myspace’ do not produce search results within our

ES corpus.

3.2.3 Pre-Processing

Further pre-processing steps involved converting all

queries, preﬁxes, and completions to lowercase. Full

stops, other punctuation, and diacritics were removed.

Queries and suggestions with less than three char-

acters, more than eight words, or 50 characters

(whichever was the bigger) were removed or trun-

cated. All non-English queries were removed.

3.3 Heuristic Ranking Features

We describe the list of ranking functions below as

‘heuristic’ because they are carefully hand-crafted

based on domain knowledge and information retrieval

principles.

• MFQ. The ‘Most Frequent Queries’ feature con-

sists of a table of queries with their frequency of

occurrence extracted from the query logs. An ex-

ample is ”data science 410”, which tells us that

the query ‘data science’ has been submitted to

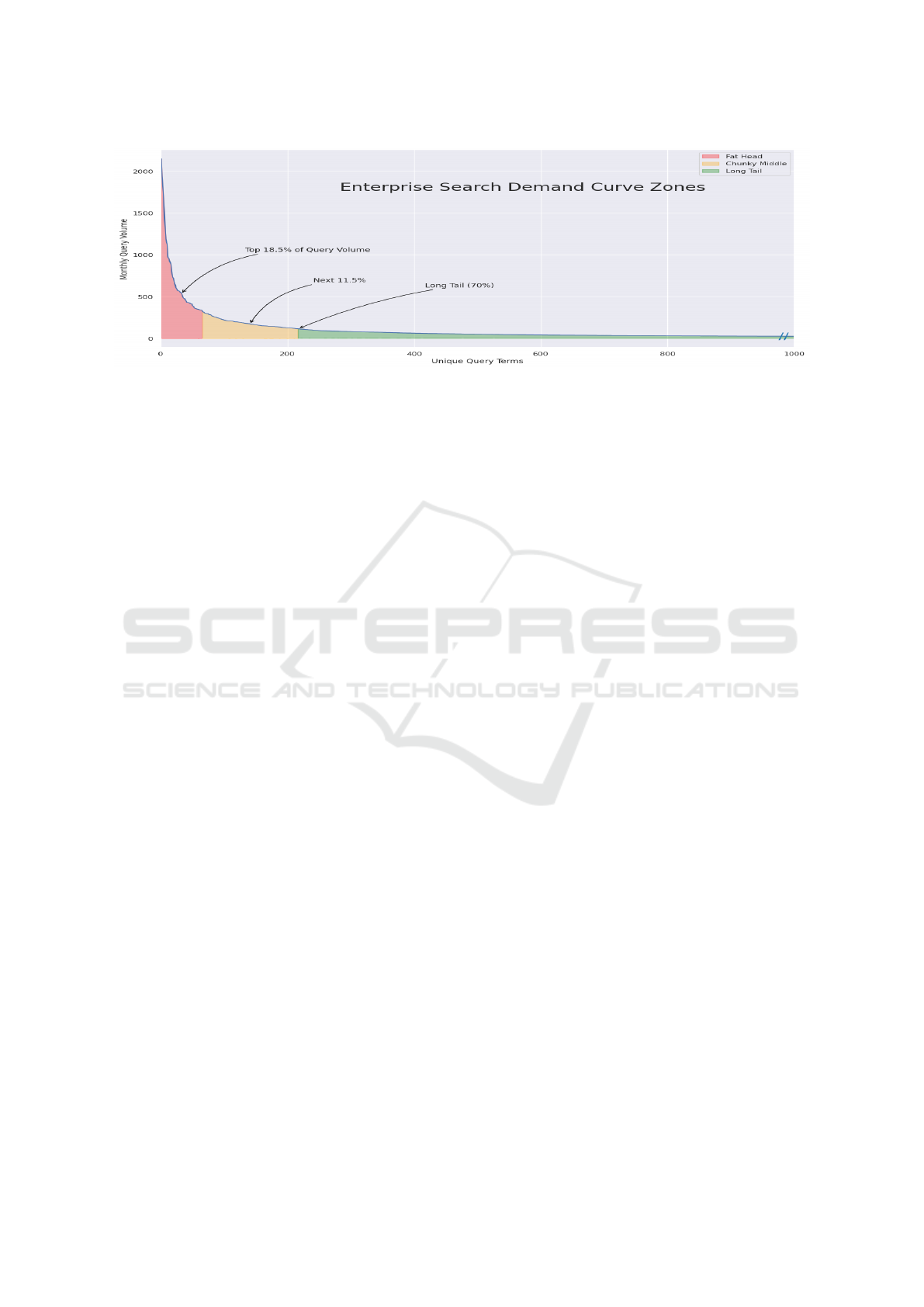

the search engine 410 times. The Search De-

mand Curve (Figure 2) shows the outsize impact

that a small number of popular queries has on

the overall volume of search activity. Accord-

ing to Kritzinger et al, popular search terms make

up 30% of the overall searches performed on

commercial Web Search engines. Using zoning

norms devised by the SEO community in 2011,

the 18.5% of searchers with the highest occur-

rence is known as the Fat Head. The next 11.5% is

termed the Chunky Middle (Kritzinger and Wei-

deman, 2013). The Long Tail (x-axis) in Figure

2 has been limited for presentation purposes but

actually represents 70% of the search volume. In

our ES query logs, we see that 65 queries account

for 18.5% of all search volume

• aolFeature This feature extracts pertinent queries

from the AOL WS dataset (20 million search

queries from about 650,000 users collected be-

tween May and July 2006). Since our ES ser-

vice must only offer ‘sensical’ candidates, our ex-

tracted list contains just 1740 candidates, which

is 0.009% of the total. The feature consists of

a table of queries with their frequency of occur-

rence extracted from the AOL dataset. An exam-

ple is ”music downloads 517”, which tells us that

the query ‘music downloads’ has been submitted

to the AOL search engine 517 times. The AOL

queries differ markedly from the types of query

we expect for ES, which has a much narrower fo-

cus, as shown in Table 2.

Table 2: The top 10 most popular query terms for the 2006

AOL WS compared with our ES query history.

Top 10 AOL WS query terms ES query terms

1 google scholarship

2 ebay fees

3 yahoo library

4 mapquest phd

5 yahoo.com medicine

6 google.com pshychology

7 myspace.com erasmus

8 internet courses esc

9 myspace vacancies

10 www.google.com law

• trendingFeature. The new or nearly new terms

that have been queried in the past 24 hours. To

measure an abnormal spike, we must ﬁrst deter-

https://github.com/colindaly75/QAC LTR for ES

Learning to Rank for Query Auto-Complete with Language Modelling in Enterprise Search

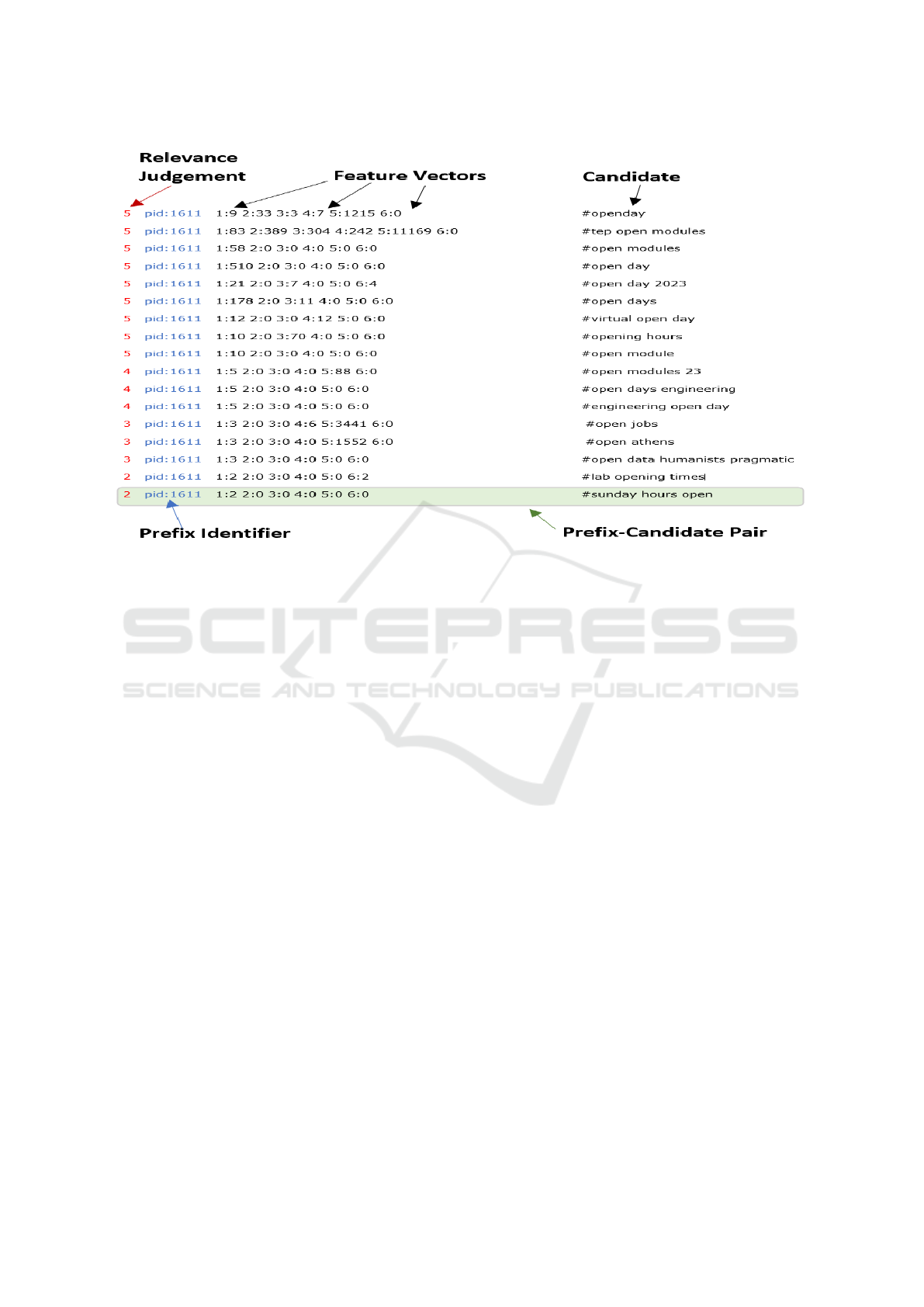

Figure 1: An extract of our LTR formatted dataset including a sample of the preﬁx-candidate pairs for the “open” preﬁx.

Each candidate has an associated judgement for a particular preﬁx (generated using MPC). The candidates also have an preﬁx

identiﬁer (pid) and a series of feature vectors.

mine what would be a normal baseline score. This

type of calculation lends itself to z-scores, which

consider the burst of popularity against the back-

drop of the historical average (including its stan-

dard deviation). This feature consists of a table of

queries with their computed z-score (e.g. ”grad-

uate studies 22.81”).

A higher z-score indicates

that the query is more ‘trending’.

• anchorTextFeature. The ‘anchorText’ is the link

label that content providers use to describe a doc-

ument. This feature was generated using the

LinkRank algorithm (similar to Google’s PageR-

ank). In the ﬁeld of Web Search, this feature can

be expected to have a high weighting co-efﬁcient

as it both tags meaningful descriptive text and also

adds context to a document. In ES, LinkRank may

be less effective, as many documents are created

without publishing intent (e.g. MS Word docu-

ments placed on an intranet drive). This feature

consists of a table of terms with their frequency

of occurrence. An example is ”research support

system 24”, which tells us that the phrase ‘re-

search support system‘ is encoded into anchors 24

times in our corpus. Considerable ﬁltering was re-

quired to remove non-descriptive terms and repet-

itive labels such as ’Next page’, ’Previous Page’,

’Home’, etc.

• titleFeature. This TF feature is a list of candidates

with their corresponding frequency retrieved from

the ﬁeld of our enterprise corpus. An example is

”communication 333”, which tells us that the term

‘communication’ occurs 333 times in the title ﬁeld

of our corpus.

• contentFeature. This TF feature is a list of candi-

dates with their corresponding frequency retrieved

from the content ﬁeld of our enterprise corpus.

Although MPC is typically considered the main

indicator of historical relevance (Li et al., 2017), it

cannot be included as a feature here (since we already

use it as a proxy for ground truth (i.e. the target vari-

able) in our LTR dataset). Similarly, while Person-

alisation has proved very effective for completing a

user’s query preﬁx in WS, we exclude it as part of

this ES research as our organisation does not permit

the proﬁling of individual user data.

3.4 QACES LLM Feature for ES

The task of detecting enterprise jargon/terminology

terms within a corpus lends itself to the ﬁelds of

NLP and LLM. We call this feature ‘QACES’ (Query

Auto-Complete for Enterprise Search). It is computed

using the synonyms of terms in the real world and the

closest terms in an enterprise corpus. Where these dif-

fer signiﬁcantly, the term is considered jargon. Once

KDIR 2024 - 16th International Conference on Knowledge Discovery and Information Retrieval

Figure 2: Search Demand Curve for our Enterprise Search query history, showing the so-called ’Fat Head’, ’Chunky Middle’

and ’Long Tail’ zones. For our ES service, the most popular 65 queries represent 18.5% of all search volume.

the jargon terms have been detected, they can be used

as a feature in our ranking model.

3.4.1 LLM Synonyms

LLMs are trained on enormous datasets containing

vast amounts of text from diverse sources. We use the

‘client.chat.completions.create’ API response of Ope-

nAI’s GPT-4 model (OpenAI 2023, 2023) to produce

a list of ten English language ‘LLM nearest’ terms for

each query in the ‘fat head’ zone of our Search Curve

(this is the second column of Table 3). An alterna-

tive tool to GPT-4 would have been WordNet (Prince-

ton University, 2010). We opted not to use Word-

Net, however, as frequency data are not independently

available, making it impossible to determine the near-

est terms.

Use of the GPT-4 API prevents data leaking (Bal-

loccu et al., 2024). We tested the temperature pa-

rameter at both 0.5 and 1.0 and observed no obvious

changes in the retrieved nearest terms. The prompt

was “create a ﬂat, json-formatted, sorted, unnum-

bered list of the top 10 nearest (semantically) words

or phrases for each of the words in the following ar-

ray”. We struggled to achieve repeatable lists of near-

synonyms on each run. The detailed wording of the

prompt was necessary to achieve repeatable results.

The array included all of the query terms in the ‘fat

head’ of our Search Demand Curve.

3.4.2 ES Corpus Vectorisation

Word embeddings represent terms as dense vectors

where similar words are closer together in vector

space. We use Word2Vec (Mikolov et al., 2013) to

learn representations based on their contextual usage

in our ES corpus. This produces word and phrase vec-

tors where vectors close together in vector space have

similar meanings based on context. We produce a list

of ‘Corpus Nearest’ terms for each query in the ‘fat

head’ zone of our Search Curve (this is the third col-

umn of Table 3).

3.4.3 Detecting Jargon/Terminology

Jargon/terminology consists of enterprise-speciﬁc

words, phrases, expressions, and idioms that diverge

from those universally familiar or understood outside

of the organisation. In Set Theory, these divergent

terms can represented by the set of elements both in

Y and not in X:

Divergent Terms =

X ∩ Y

where X is the set of LLM generalised terms and

Y is the nearest neighbour terms with the ES corpus.

The fourth column in Table 3 lists the divergent terms.

3.4.4 Jargony

Jaccard Distance (JD), also known as the Jaccard sim-

ilarity coefﬁcient, is a measure commonly used to cal-

culate the similarity or dissimilarity between two sets

of words such as those in columns 2 and 3 in Table

3. JD is particularly useful in scenarios where the

presence or absence of elements is more important

than their actual values. In this case, the Jaccard dis-

tance represents a measure of divergence. A higher

distance suggests the divergent terms are more ‘jar-

gony’ (i.e. more unlikely to be understood outside the

enterprise). The calculated JD score is presented in

the ﬁnal column of Table 3). Note that the jargony

score is applied to the query rather than to the diver-

gent terms.

3.5 Learning to Rank Methodology

The Apache Solr ’weightExpression’ parameter of

the ‘DocumentExpressionDictionaryFactory’ dictio-

nary implementation is used to score the suggestions.

Learning to Rank for Query Auto-Complete with Language Modelling in Enterprise Search

Table 3: A comparison of the top synonyms for two examples of ‘fat head’ queries. The ‘Divergent Terms’ are those that

commonly feature in the Enterprise Corpus but are not part of LLM’s common vocabulary.

’Fat Head’

Query

LLM Nearest (X) Corpus Nearest (Y) Divergent Terms

(

X ∩ Y)

Jaccard

Distance

scholarship grant, bursary, fel-

lowship, ﬁnancial

aid, award, stipend,

tuitions assistance,

academic fund, edu-

cational grant, study

grant

foundation schol-

arship, scholarship

examinations, en-

trance scholarships,

scholarship exams,

schols, visiting

scholar

schols

0.65

id card Identiﬁcation Card,

Identity Card, Per-

sonal Identiﬁcation,

Photo ID Card,

Driver’s License,

Passport, Employee

Badge, Student Card,

Membership Card,

Ofﬁcial Documenta-

tion

id card, student card,

student id, tcard

tcard

0.9

The ‘AnalyzingInﬁxLookupFactory’ Lookup Imple-

mentation allows for suggestions where the starting

string does not necessarily match the query preﬁx.

These numeric weights were calculated ofﬂine using

the RankEval framework (Lucchese et al., 2020). Fig-

ure 3 depicts how each feature weighting contributes

to ranked suggestions in our ES search box. The sol-

rconﬁg.xml ﬁle is published on github

. The RankE-

val Python open-source tool (Lucchese et al., 2017;

Lucchese et al., 2020), based on ensembles of deci-

sion trees, is then employed to determine the optimal

relative feature weighting and calculate each feature’s

contribution to the overall ranking efﬁciency.

3.5.1 Model

The ranking model is generated using the XGBoost

implementation of the LambdaMART list-wise rank-

ing algorithm

. Table 4 lists the hyper-parameters

used.

3.6 MRR Metric Calculation

In our ofﬂine study, we break down the MRR scores

for the three zones of our ES Search Demand Curve

(Figure 2). We compute the MRR scores after three

keystrokes. This breakdown helps us distinguish

the QAC ranking performance for the most popular

queries versus more obscure queries in the long tail

zone.

https://github.com/colindaly75/QAC LTR for ES

Table 4: Hyper-parameter settings used to evaluate ranking

performance for the Learning to Rank ranking method.

Parameter Value

Algorithm LambdaMark

Framework XGBoost

max depth 10

rank MAP

num round 10

eta 0.5

For the online study, MRR is computed for

the users’ last keystroke (sometimes referred to as

MRR@last (Chang and Demg, 2020)) since this is

where the user selects a suggested candidate for sub-

mission to the search engine. A score of zero is used

where no candidates are offered or in the case where

users fail to select any of the offered candidates. We

calculate MRR@k, where k is the number of offered

completion candidates. We present results for k=10

(as is the norm) and k =7 because our live ES service

presents a maximum of seven candidates.

The calculated MRR scores are initially computed

for heuristic features, which serve as our baseline sys-

tem (i.e., the ’A’ in our online A/B test). The online

test will also give us an overall MRR score based on

‘real‘ data (i.e. the combined score across all of the

Search Demand Curve zones).

KDIR 2024 - 16th International Conference on Knowledge Discovery and Information Retrieval

Figure 3: The typed ”aca” preﬁx presents a list of completion choices via a ranked list of preﬁx-candidate pairs. Candidates

are generated from various sources/features, each of which is ‘weighted’ using LTR.

3.7 Ablation Study Methodology

Not all of the described ranking features are equally

important. We perform an ablation study to better un-

derstand the contribution of each of the different fea-

tures toward our QAC ranking model learning capa-

bility. We remove one feature from each iteration and

perform again the LTR training and testing steps as

before. If we observe a large decrease in QAC MRR

scores, this indicates that the ablated feature is very

important for the model. Our ablation study is carried

out for MRR@{1,3,7 and 10}.

3.8 Online A/B Test Methodology

An online test will give us the overall MRR score

(across all of the Search Demand Curve zones). Be-

fore commencing the A/B test, we perform an A/A

test. Also known as a null test, the A/A test is used

to establish trust in our experimental platform. This

involves splitting the search requests into two pools,

as in a regular A/B test, but where B is identical to

A. If the scripts to record search requests and com-

pute metrics from the logﬁles are functioning consis-

tently, we expect a t-test to prove that any difference

in MRR results is not statistically signiﬁcant (Kohavi

et al., 2020).

Having established the integrity of our experimen-

tal platform, we subsequently undertake the A/B test

to compare the ranking performance of QAC candi-

dates using two pools: -

• A: This is the Control pool and encompasses all

of the heuristic features.

• B: This Treatment pool includes A’s heuristic fea-

tures and the additional QACES feature.

We use a load balancer with two servers in an ac-

tive/active conﬁguration, with a 50% trafﬁc allocation

to both the Control and Treatment groups. The load

balancer has a session persistence (stickiness) param-

eter enabled so that the suggestion candidates are pre-

sented by the same back-end server that executes the

submitted query. This ensures that each log ﬁle has a

complete record.

Since the data collected from group A is indepen-

dent of the data collected from group B, we use an

unpaired two-sample t-test to validate statistical sig-

niﬁcance with α set to 0.05.

4 EVALUATION

In this section, we present the computed LTR weights

for each feature, the results of the ablation study and

the MRR scores for our ofﬂine study. Finally, we

compare the MRR scores for our online evaluation

(A/B test) of our ranking models, with and without

the QACES feature.

4.1 LTR Weights

Table 5 shows the RankEval computed weighting as-

sociated with each of our ranking features.

Table 5: LTR weightings for features calculated using the

RankEval framework.

Feature Weight

MFQ 69

titleFeature 22

anchortextFeature 25

contentFeature 20

trendingFeature 9

aolFeature 6

QACES 4

Learning to Rank for Query Auto-Complete with Language Modelling in Enterprise Search

Figure 4: Ablation/leave-one-out analysis showing the contribution of individual features to the MRR performance across the

QAC ranking model.

4.2 Ofﬂine Evaluation

The MRR scores for selected k-value cutoffs for the

three Search Demand Curve zones are listed in Ta-

ble 6. For comparison, we include the scores for the

AOL WS dataset as well as our ES dataset. Across

all zones, the AOL scores are consistently higher; we

speculate this may be due to the use of a Personaliza-

tion feature in the AOL WS dataset.

Singh et al. have achieved QAC MRR scores in

the region of 0.485 for e-Commerce site search (Singh

et al., 2023b), but any comparison is complicated as

they omitted to break down scores into Search De-

mand Curve zones.

Table 6: Ofﬂine MRR scores for WS and ES data, with a

breakdown for the sections of the Search Demand Curve.

Dataset /

Zone

MRR

@10

AOL WS Data

Fat Head 0.72 0.75 0.78

Chunky Mid 0.29 0.36 0.36

Long Tail 0.23 0.25 0.29

All Zones 0.33 0.36 0.36

ES Data

Fat Head 0.60 0.68 0.68

Chunky Mid 0.32 0.34 0.36

Long Tail 0.19 0.24 0.24

All Zones 0.29 0.33 0.34

4.3 Ablation Study Results

We performed an ablation analysis to better under-

stand the contribution of each of the different fea-

tures of our QAC ranking model (for MRR@{1,3,7

and 10}). Figure 4 shows their relative contribution

totals.

We see that MFQ is the most important ranking

feature, as its removal from the model results in a

sharp decrease in MRR scores. This suggests that

the collective query history is the best indicator of

user intent. The AOL feature makes the smallest con-

tribution to our model; this may be because many

of the suggestions in the feature are deprecated or

simply because the feature was not generated from

our ES index. The contribution of our QACES jar-

gon/terminology feature is comparable to that of the

‘trend’ feature.

4.4 Online Evaluation (A/B Test)

We evaluated two ranking models. The ﬁrst (A) in-

cluded heuristic features only. The second (B) also

included our QACES feature. The ranking score for

each ranking model is presented in Table 7. The A/B

test was undertaken on the live Enterprise Search ser-

vice of a large third-level education institution. The

model was tested for 16 weeks on 140,000 queries,

which resulted in a statistically signiﬁcant increase in

MRR score of +3.8% with a p-value < 0.05.

Table 7: A/B test results for ranking models with the per-

centage change in MRR score after implementation of the

QACES feature.

Feature MRR@10

Heuristic only 0.219 ± 0.01

With QACES 0.227 ± 0.02

Percentage change +3.8%

The observed MRR@10 score in our online eval-

uation (0.227) is substantially lower than that calcu-

lated in our ofﬂine study (0.34). A possible cause is

that search users type with speed and urgency and opt

not to take the time to engage with the QAC interac-

tive search offering, even where a candidate was an

exact match to the query. We call this phenomenon

KDIR 2024 - 16th International Conference on Knowledge Discovery and Information Retrieval

’QAC abandon’ and speculate that it frequently oc-

curs in the case of ‘navigational searches’ (i.e. re-

turning users who already have a good idea of what

document they are looking for).

5 CONCLUSIONS AND FUTURE

WORK

In this paper, we discuss the unique requirements for

QAC in Enterprise Search and demonstrate the im-

plementation of a QAC ranking model using features

whose weightings are computed using Learning to

Rank.

We hypothesise and prove that adding our QACES

LLM-based jargon/terminology ranking feature to our

baseline heuristic LTR model results in a statisti-

cally signiﬁcant improvement to QAC ranking perfor-

mance (MRR score) on a live Enterprise Search ser-

vice.

A limitation of the GPT-4 language processing

model is that, unlike WordNet, it does not always

produce repeatable results. For example, we may

get a slightly different list of synonyms for the same

query each time it is run. While this does not in-

ﬂuence the general reproducibility of results, it may

affect the consistency of the generated list of jar-

gon/terminology terms. Our initial investigation of

the GPT-4o LM also seems to produce more consis-

tent results and this will be detailed in future work.

Another idea for future work is to explore how

our QACES innovation could be adapted for use with

query expansion. Finally, an investigation of the

causes and factors that affect ‘QAC abandon’ would

be an interesting new direction for the ﬁeld of auto-

completion.

ACKNOWLEDGEMENTS

This research was conducted with the ﬁnancial sup-

port of Science Foundation Ireland under Grant

Agreement No. 13/RC/2106 P2 at the ADAPT SFI

Research Centre at Trinity College Dublin. ADAPT,

the SFI Research Centre for AI-Driven Digital Con-

tent Technology, is funded by Science Foundation Ire-

land through the SFI Research Centres Programme.

For the purpose of Open Access, the author has ap-

plied a CC BY public copyright licence to any Author

Accepted Manuscript version arising from this sub-

mission.

REFERENCES

Balloccu, S., Schmidtov

a, P., Lango, M., and Du

sek, O.

(2024). Leak, Cheat, Repeat: Data Contamination

and Evaluation Malpractices in Closed-Source LLMs.

EACL 2024 - 18th Conference of the European Chap-

ter of the Association for Computational Linguistics,

Proceedings of the Conference, 1:67–93.

Bar-Yossef, Z. and Kraus, N. (2011). Context-sensitive

query auto-completion. Proceedings of the 20th Inter-

national Conference on World Wide Web, WWW 2011,

pages 107–116.

Bentley, J. (2011). Mind the Enterprise Search Gap: Smart-

logic Sponsor MindMetre Research Report.

Cai, F. and De Rijke, M. (2016). A survey of query auto

completion in information retrieval. Foundations and

Trends in Information Retrieval, 10(4):273–363.

Chang, Y. and Demg, H. (2020). Query Understanding for

Search Engines, volume 46 of The Information Re-

trieval Series. Springer International Publishing, Jilin.

Cleverley, P. H. and Burnett, S. (2019). Enterprise search

and discovery capability: The factors and generative

mechanisms for user satisfaction:. Journal of Infor-

mation Science, 45(1):29–52.

Craswell, N., Cambridge, M., and Soboroff, I. (2005).

Overview of the TREC-2005 Enterprise Track. In

TREC 2005 conference notebook, pages 199–205.

Croft, W. B. (2010). Search engines : information retrieval

in practice / by Bruce Croft, Donald Metzler, Trevor

Strohman.

Daly, C. (2023). Learning to Rank: Performance and

Practical Barriers to Deployment in Enterprise Search.

In 3rd Asia Conference on Information Engineering

(ACIE), pages 21–26. IEEE.

Davis, M., Eager, A., Edwards, R., Ganesh, B., Holt, M.,

and Mukherjee, S. (2011). Enterprise Search and

Retrieval 2011/2012. In James, M., editor, Technol-

ogy Evaluation and Comparison Report, page 277.

OVUM.

Duan, H. and Hsu, B. J. (2011). Online spelling correction

for query completion. Proceedings of the 20th Inter-

national Conference on World Wide Web, WWW 2011,

pages 117–126.

Fiorini, N. and Lu, Z. (2018). Personalized neural language

models for real-world query auto completion. NAACL

HLT 2018 - 2018 Conference of the North American

Chapter of the Association for Computational Lin-

guistics: Human Language Technologies - Proceed-

ings of the Conference, 3:208–215.

Guo, J., Fan, Y., Ai, Q., and Croft, W. B. (2016). A deep

relevance matching model for Ad-hoc retrieval. In

International Conference on Information and Knowl-

edge Management, Proceedings, volume 24-28-Octo,

pages 55–64. Association for Computing Machinery.

Hayes, B. (2008). The Britney Spears Problem. American

Scientist, 96(4):274.

Joachims, T. (2002). Optimizing search engines using click-

through data. In Proceedings of the ACM SIGKDD In-

ternational Conference on Knowledge Discovery and

Data Mining.

Learning to Rank for Query Auto-Complete with Language Modelling in Enterprise Search

Kim, G. (2019). Subword Language Model for Query Auto-

Completion. In Proceedings of the 2019 Conference

on Empirical Methods in Natural Language Process-

ing and the 9th International Joint Conference on Nat-

ural Language Processing (EMNLP-IJCNLP), pages

5022–5032, Hong Kong, China. Association for Com-

putational Linguistics.

Kohavi, R., Tankg, D., and Xu, Y. (2020). Trustworthy

Online Controlled Experiments: A Practical Guide to

A/B Testing - Ron Kohavi, Diane Tang, Ya Xu - Google

Books. Cambridge University Press, Cambridge.

Kritzinger, W. T. and Weideman, M. (2013). Search Engine

Optimization and Pay-per-Click Marketing Strategies.

Journal of Organizational Computing and Electronic

Commerce, 23(3):273–286.

Kruschwitz, U. and Hull, C. (2017). Searching the Enter-

prise. Foundations and Trends® in Information Re-

trieval, 11(1):1–142.

Kruschwitz, U., Lungley, D., Albakour, M. D., and Song,

D. (2013). Deriving query suggestions for site search.

Journal of the American Society for Information Sci-

ence and Technology, 64(10):1975–1994.

Li, H. (2011). A Short Introduction to Learning to Rank.

IEICE Transactions, 94-D:1854–1862.

Li, L., Deng, H., Dong, A., Chang, Y., Baeza-Yates, R.,

and Zha, H. (2017). Exploring query auto-completion

and click logs for contextual-aware web search and

query suggestion. 26th International World Wide Web

Conference, WWW 2017, pages 539–548.

Lucchese, C., Muntean, C., Nardini, F., Perego, R., and

Trani, S. (2020). RankEval: Evaluation and investi-

gation of ranking models. SoftwareX, 12:100614.

Lucchese, C., Muntean, C. I., Nardini, F. M., Perego, R.,

and Trani, S. (2017). RankEval: An evaluation and

analysis framework for learning-To-rank solutions.

SIGIR 2017 - Proceedings of the 40th International

ACM SIGIR Conference on Research and Develop-

ment in Information Retrieval, pages 1281–1284.

Mikolov, T., Sutskever, I., Chen, K., Corrado, G. S., and

Dean, J. (2013). Distributed Representations of Words

and Phrases and their Compositionality. Advances in

Neural Information Processing Systems, 26.

OpenAI 2023 (2023). OpenAI GPT-4.

Pass, G., Chowdhury, A., and Torgeson, C. (2006). A pic-

ture of search. ACM International Conference Pro-

ceeding Series, 152.

Princeton University (2010). About WordNet.

Rahangdale, A. and Raut, S. (2019). Deep Neural Network

Regularization for Feature Selection in Learning-to-

Rank. IEEE Access, 7:53988–54006.

Scott, E. (2022). 9 UX Best Practice Design Patterns for

Autocomplete Suggestions (Only 19% Get Everything

Right) – Articles – Baymard Institute.

Singh, S., Farfade, S., and Comar, P. M. (2023a). Multi-

Objective Ranking to Boost Navigational Suggestions

in eCommerce AutoComplete. ACM Web Conference

2023 - Companion of the World Wide Web Conference,

WWW 2023, pages 469–474.

Singh, S., Farfade, S., and Comar, P. M. (2023b). Multi-

Objective Ranking to Boost Navigational Suggestions

in eCommerce AutoComplete. ACM Web Conference

2023 - Companion of the World Wide Web Conference,

WWW 2023, pages 469–474.

The Apache Software Foundation. (2004). Apache Solr.

Turnbull, D. and Berryman, J. (2016). Relevant Search.

Manning Publications Co., New York.

White, M. (2018). Enterprise search. O’Reilly Media, Se-

bastopol, CA.

White, R. W. and Marchionini, G. (2007). Examining the

effectiveness of real-time query expansion. Informa-

tion Processing & Management, 43(3):685–704.

Xu, J., Wei, Z., Xia, L., Lan, Y., Yin, D., Cheng, X.,

and Wen, J.-R. (2020). Reinforcement Learning to

Rank with Pairwise Policy Gradient. In Proceedings

of the 43rd International ACM SIGIR Conference on

Research and Development in Information Retrieval,

volume 10, page 10, New York, NY, USA. ACM.

Yadav, N., Sen, R., Hill, D. N., Mazumdar, A., and Dhillon,

I. S. (2021). Session-Aware Query Auto-completion

using Extreme Multi-Label Ranking. Proceedings

of the ACM SIGKDD International Conference on

Knowledge Discovery and Data Mining, pages 3835–

3844.

KDIR 2024 - 16th International Conference on Knowledge Discovery and Information Retrieval
