Prediction of Heart Failure Occurrence Based on the Categorical

Boosting Model

Yinan Gao

International School, Beijing University of Posts and Telecommunications, No.10 Xitucheng Road, Beijing, China

Keywords: Medical Prediction, Machine Learning, Deep Learning, Heart Failure.

Abstract: Cardiovascular disease (CVD) is the world's greatest cause of mortality, taking an estimated 17.9 million lives

annually and contributing 31% of all fatalities worldwide. Heart failure is a prevalent CVD-related occurrence

and has a five-year survival rate similar to malignant tumors, at around 50%. Therefore, the prevention and

advanced Interfere treatment are the key to current research. This study aims to predict heart failure occurrence

based on various indicators of patients' physical health by constructing a Categorical Boosting machine

learning model. The final trained model achieved a prediction accuracy of 88.13%, which fully validates the

feasibility of using this model for practical heart failure prediction. Therefore, the primary focus of this

research is to continue optimizing this model in the future, promote clinical validation, and facilitate its

practical application. By identifying more potential patients, conducting early diagnosis and treatment, and

effectively reducing the incidence of heart failure disease, we aim to realize the actual application of machine

learning technology in the medical field.

1 INTRODUCTION

Heart failure (HF) is a frequent occurrence brought on

by a number of cardiovascular conditions. If

cardiovascular patients develop HF, their five-year

survival rate is similar to that of malignant tumors

(Zhong, 2007). Even if successfully treated, HF can

lead to high rates of readmission and mortality,

imposing a heavy burden on patients, their families,

and society.

Therefore, preventing and early prediction of HF

occurrence are crucial for patients and their families.

Early intervention and treatment can greatly increase

the five-year survival rate and treatment success rate

for patients. By utilizing physiological data and

advanced predictive models, it is possible to predict

who is more likely to develop HF, enabling early

intervention, treatment, and the formulation of better

clinical management strategies, thereby reducing the

risks borne by patients.

Currently, the prediction and diagnosis of HF

mainly rely on medical history, physical

examinations, laboratory tests, cardiac imaging

examinations, and functional tests (Zhong, 2007).

However, these conventional medical diagnoses are

https://orcid.org/0009-0002-3073-3400

not the optimal approach to addressing such a

significant disease as HF. This is because patients

often seek medical attention when their bodies have

already shown unusual conditions, or even reached an

intolerable level. For severe diseases, such

manifestations may indicate rapid disease

progression, ultimately leading to the development of

untreatable conditions due to delayed treatment-

seeking. Furthermore, HF is also a potentially acute

and sudden-onset disease that often endangers the

patient's life and requires immediate rescue. At this

time, routine diagnostic testing clearly does not serve

the purpose of prediction and prevention.

Therefore, the purpose of this study is to use deep

learning and machine learning methods based on the

Categorical Boosting model to predict the occurrence

of HF based on many routine physiological signs

(Vickers J, 2018). With the precise prediction of HF

occurrence, potential patients can receive early

treatment and care.

Gao, Y.

Prediction of Heart Failure Occurrence Based on the Categorical Boosting Model.

DOI: 10.5220/0012888900004508

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 1st International Conference on Engineering Management, Information Technology and Intelligence (EMITI 2024), pages 22-29

ISBN: 978-989-758-713-9

2 RELATED WORK

Research on the prediction of HF in the past has

mainly focused on analyzing and modeling clinical

indicators, biomarkers, imaging features, etc.

Additionally, some researchers have investigated the

application of statistical and machine learning

models, like random forests, logistic regression, and

support vector machines, to predict the occurrence

and progression of HF (Song, 2023).

Early research on clinical indicators, biomarkers,

and imaging features related to HF has been quite

mature. Through professional detection indicators,

relevant medical history analysis, and imaging

examinations, accurate assessment of the patient's

current condition can be achieved, leading to a

diagnosis of HF. Plasma brain natriuretic peptide

(BNP) measurement, radionuclide ventriculography,

radionuclide myocardial perfusion imaging, two-

dimensional echocardiography, and Doppler

ultrasound can all help diagnose HF (Zhong, 2007).

However, these detection indicators generally have a

strong timeliness and are usually only used for

clinical diagnosis. They cannot be directly applied to

prediction, and inevitably, doctors' diagnoses may be

subjective to some extent, leading to errors in

judgment or misdiagnosis. This study aims to achieve

objective and accurate judgments through machine

models by analyzing relevant features of patients and

predicting the occurrence of HF more accurately.

In recent years, research on HF based on machine

learning models has been increasing gradually. This

trend can be attributed to the rise of machine learning

technologies and the unique advantages of machine

learning in model building and data analysis (Song,

2023; Bzdok, 2018). Some studies have applied

machine learning in predicting HF, using models such

as decision trees, support vector machines for

training. By analyzing echocardiograms and related

data, the HF incidence in asymptomatic individuals

can be obtained (Strom, 2021;Kobayashi, 2021).

Although most of these studies can achieve ideal

prediction results from the trained models, the

features studied are often highly specialized and not

easily accessible in normal life, leading to high

detection costs. This study aims to predict HF using

more universally and easily obtainable physical data,

reducing costs and making professional medical

diagnosis more generalized and closer to people's

daily lives.

3 METHOD

3.1 DataSetup

3.1.1 Data Set

"Heart Failure Prediction Dataset," which was chosen

from the Kaggle website, is the dataset used in this

study. Each record in this dataset represents

observations of patients in a hospital setting. The

dataset is a combination of five heart datasets from

different hospitals, comprising a total of 918 samples

across 11 common features (refer to Table 1).

Table 1: Sample Features.

Feature Names Measurement Content Type Value

1 Age Age Discrete type 1, 2, 3

2 Sex Sex Cate

e M: Male, F: Female

3 ChestPainType Chest Pain Type Category type

TA:Typical Angina,

ATA:Atypical Angina,

NAP:Non-Anginal Pain,

ASY:Asymptomatic

4 Restin

BP Restin

Blood Pressure Discrete t

1, 2, 3

5 Cholesterol Serum Cholesterol Discrete type

1, 2, 3

6 Fastin

BS Fastin

Blood Su

ar > 120 m

/dl

inar

ste

0, 1

7 RestingECG Resting Electrocardiographic Results Category type

Normal: Normal,

ST: ST-T wave abnormality

present,

LVH: Possible or definite left

ventricular hypertrophy

Prediction of Heart Failure Occurrence Based on the Categorical Boosting Model

8 MaxHR Maximum Heart Rate Discrete t

e 1, 2, 3

9 ExerciseAngina Exercise-Induced Angina Category type Y: Yes, N: No

10 Oldpeak

ST Segment Depression measured during

Resting Electrocardiogram

Discrete type 1, 2, 3

11 ST_Slope

Trend of ST Segment Changes during

Peak Exercise

Category type

Up: Upward, Flat: Flat,

Down: Downwar

12 HeartDisease Heart Failure

inary system 0, 1

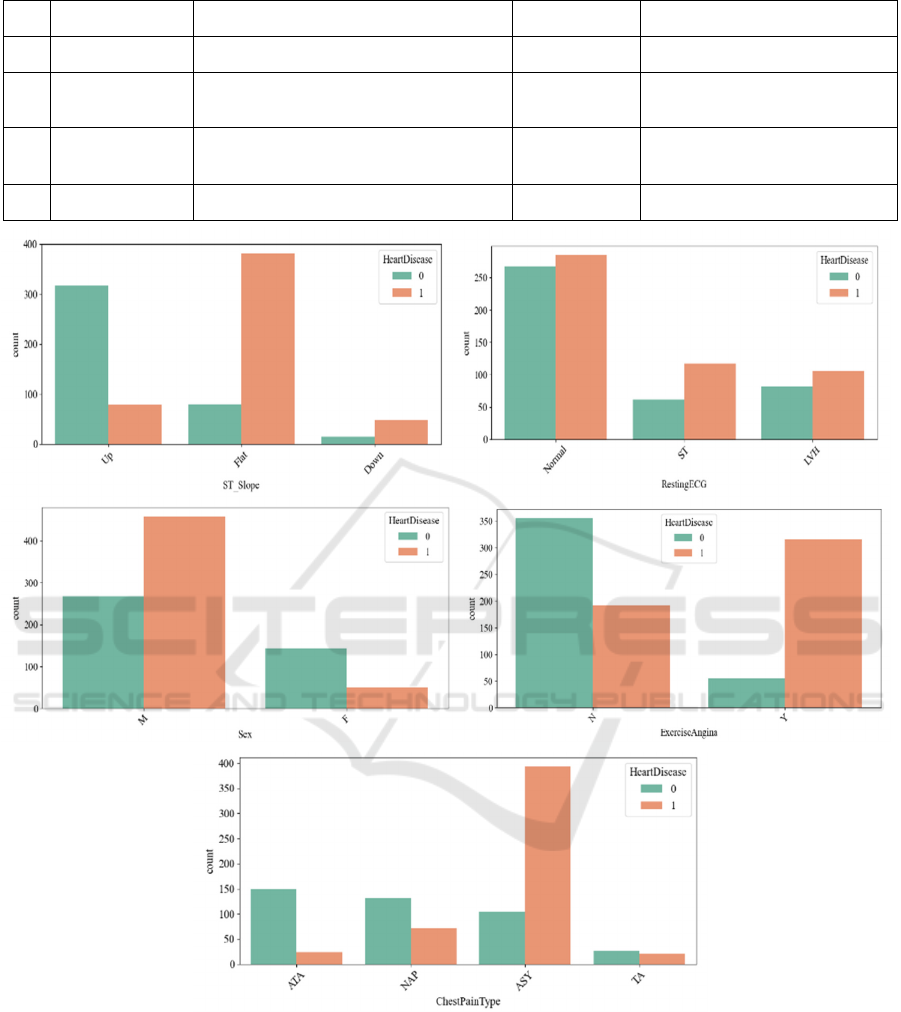

Figure 1: Distribution plots of non-continuous columns (Photo/Picture credit: Original).

3.1.2 Data Processing and Analysis

The dataset is clean and complete, with no invalid

data or missing values, so there is no need for deletion

or filling. The categorical data in the label-encoded

dataset will be transformed into discrete data.

Subsequently, the dataset will be split into 70%

training set and 30% test set.

Next, distribution plots will be drawn for each

feature to analyze the distribution of the data and its

correlation with the target feature (whether the patient

has HF) (refer to Figure 1) (refer to Figure 2).

From the distribution plots, it can be observed that

the data in this dataset is fairly evenly distributed

without any significant imbalance. Additionally, there

is no clear linear relationship between the features and

EMITI 2024 - International Conference on Engineering Management, Information Technology and Intelligence

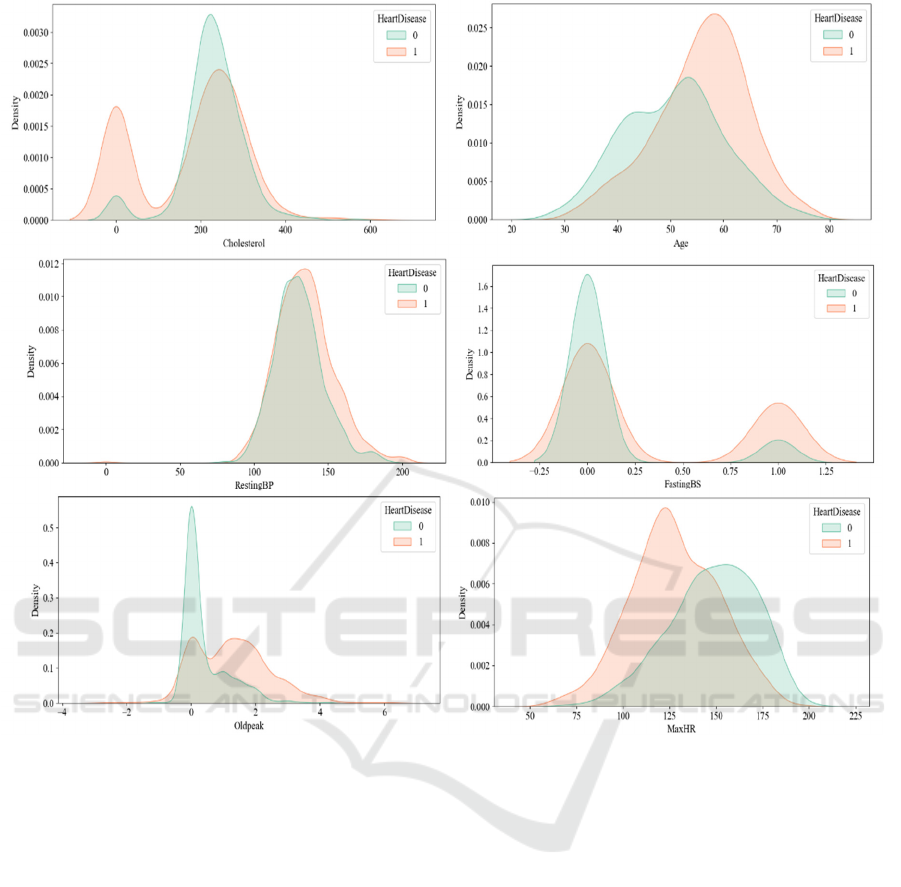

Figure 2: Distribution plots of continuous columns (Photo/Picture credit:Original).

the target feature. However, each feature shows a

strong correlation with the target feature. Notably,

features such as MaxHR, Oldpeak, and ST_Slope

exhibit significant correlations with the likelihood of

HF. This suggests that electrocardiogram readings

can effectively reflect the condition of the heart and

aid in predicting the occurrence of HF (Lyon, 2018).

Furthermore, a heatmap displaying the correlation

between features (refer to Figure 3) will be generated

to visually represent the relationships among the

different features.

From the figure 3, it is observed that, in terms of

the correlation with the presence of HeartDisease, all

features except Resting ECG show relatively ideal

values, with Age, Sex, and 10 other features

exhibiting strong correlations. This indicates that

most features in the dataset have good correlations,

either positive or negative, with the target feature.

The strong correlations between the features and the

target feature, along with the even distribution of the

data, demonstrate the usefulness of this dataset.

Consequently, the following step would be to train the

model with the training set and then evaluate its

performance by testing it on the test set.

3.2 Model

3.2.1 Model Introduction

Categorical Boosting (CatBoost) is a specialized

gradient boosting framework tailored for machine

learning models that deal with categorical features in

supervised learning (Kuan, 2019). This GBDT

(Gradient Boosting Decision Tree) framework is

founded on oblivious trees as base learners,

recognized for its minimal complexity, provision for

categorical variables, and exceptional accuracy. It

effectively tackles the challenge of efficiently

managing categorical features (Duan, 2019).

Prediction of Heart Failure Occurrence Based on the Categorical Boosting Model

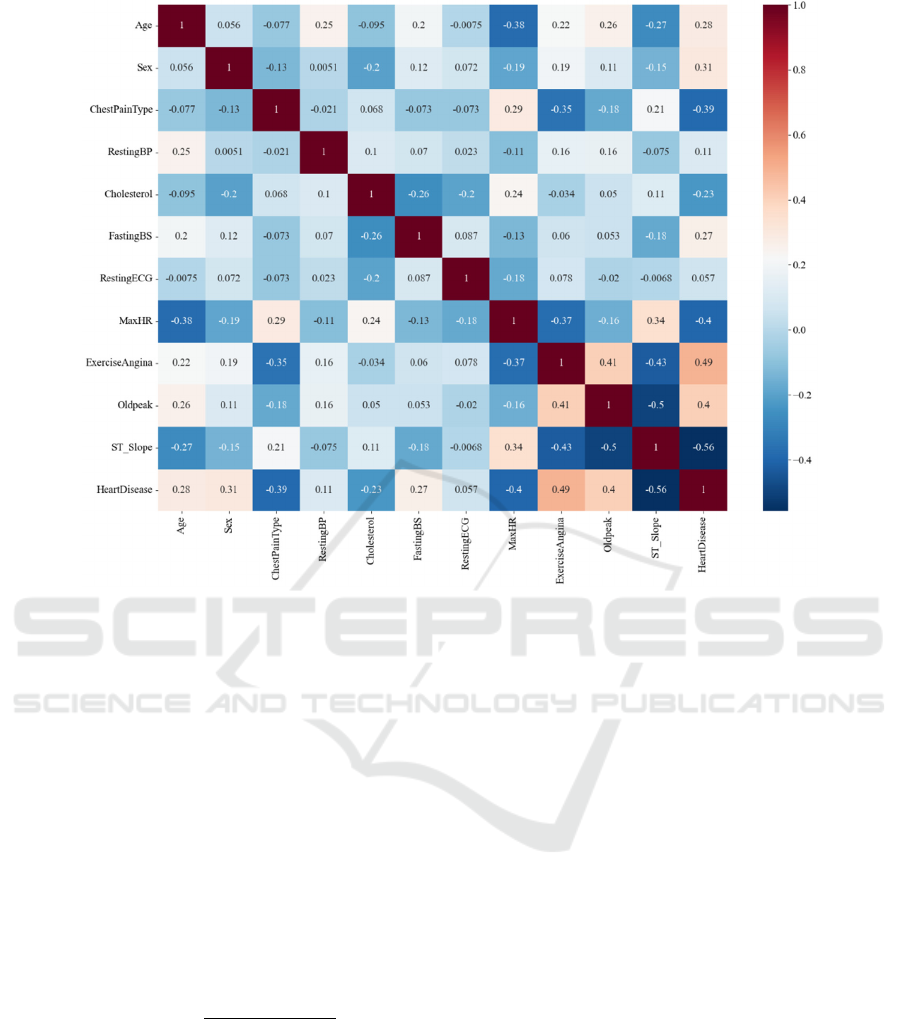

Figure 3: Heatmap (Photo/Picture credit: Original).

The methodology involves initially randomizing the

order of all samples. For a specific value within a

categorical feature, the conversion of this feature to a

numerical representation for each sample is based on

the average of the category labels preceding the

current sample. Additionally, CatBoost incorporates

priorities and weight coefficients for these priorities.

The parameter "countInClass" denotes the count of

samples with a label value of 1 corresponding to the

current categorical feature value. The parameter

"prior" signifies the initial value of the numerator,

calculated using initial parameters. The parameter

"totalCount" indicates the total count of samples,

including the current sample, sharing the same

categorical feature value across the entire dataset.

avg_target ൌ

ୡ୭୳୬୲୍୬େ୪ୟୱୱା୮୰୧୭୰

୲୭୲ୟ୪େ୭୳୬୲ାଵ

(1)

CatBoost has the capability to handle categorical

features and missing values. Therefore, within its

internal logic, it first processes categorical features,

including ordered feature splitting algorithms and

feature importance evaluation. CatBoost employs a

gradient boosting tree-based ensemble learning

method, where it initially trains a base learner (i.e., a

decision tree) and then trains the next tree based on

the residuals. These base learners are combined to

reduce errors.

Furthermore, the CatBoost model utilizes a

method of dynamically growing trees and employs an

approach to finding the optimal solution for tree depth

and leaf structure selection. CatBoost also balances

tree depth using symmetric trees to mitigate the risk

of overfitting. During the training process, CatBoost

evaluates the model through techniques such as cross-

validation and optimizes the model based on the

evaluation results, including parameter tuning, feature

engineering, and other optimizations (Figure 4).

EMITI 2024 - International Conference on Engineering Management, Information Technology and Intelligence

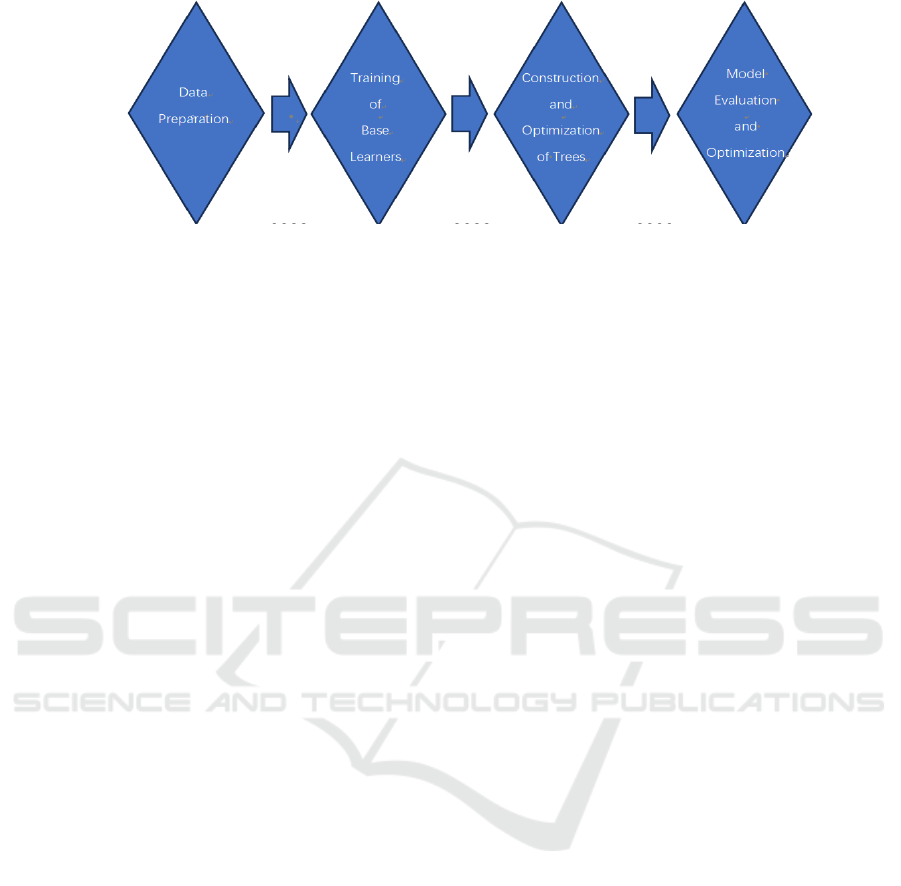

Figure 4: The training process of the CatBoost mode (Photo/Picture credit :Original).

3.2.2 Model Advantages

CatBoost processes categorical features during the

training process, rather than handling them in the

feature preprocessing stage. This is particularly

beneficial when dealing with datasets containing a

large number of categorical features, as it eliminates

the need to encode these features using techniques

such as label encoding or one-hot encoding, which

can lead to loss of correlation information.

When constructing the tree structure, CatBoost

employs an algorithm known as Symmetric Tree

Growth to calculate leaf nodes. This method improves

the model's robustness against overfitting,

particularly in scenarios where the dataset is not large,

and overfitting is a potential issue.

Furthermore, CatBoost has the capability to

automatically adjust the learning rate during the

training process. This adaptive learning rate

adjustment ensures that the learning rate dynamically

adapts based on the model's performance, facilitating

faster convergence to the optimal state.

4 ANALYSIS OF EXPERIMENTAL

RESULTS

4.1 Experimental Details

This study primarily adopts the approach of

implementing model invocation and training using

Python language on the PyCharm platform for

experimentation. Following model training, the

trained model is evaluated using a 30% test set

partitioned during the data preprocessing stage. The

experiment leverages the PyCaret library to

automatically tune hyperparameters, aiming to obtain

the optimal model.

For the final evaluation metrics, this experiment

selects Accuracy, AUC (Area Under the Curve)

curve, Recall, Precision, and F1 score as the five key

evaluation metrics (refer to Figure 5) (Khaled , 2022).

Based solely on these metrics, with values around

0.90 and not falling below 0.88, it can be concluded

that the CatBoost model performs well regarding

accuracy, AUC, recall, precision, and F1 score.

Therefore, the trained model demonstrates precise

predictions and exhibits strong performance.

4.2 Performance Comparison

In subsequent experiments, to validate the superiority

of the CatBoost model in this study, we utilized the

PyCaret library to invoke and train multiple models,

obtaining relevant evaluation metrics (refer to Table 2).

It is evident from the table that the model ranks

first in all five selected evaluation metrics. For

medical disease prediction, it is imperative to focus

on the five key metrics chosen for this experiment:

Accuracy, Recall, Precision, and F1 score. A higher

F1 score indicates precise model predictions and

overall lower error rates, while a high AUC value

signifies the reliability and practical value of the

detection method in this experiment. Notably, the

CatBoost model achieved rare results with scores

surpassing those of other machine learning models

across multiple evaluation metrics in this experiment.

The following analysis can be performed to determine

the causes behind the generally poor performance of

popular models like RT and LR in this study.

Regarding the LR model, it is important to note

that LR is a linear model with limited capability to

model complex nonlinear relationships. Given that

the features in this study do not exhibit clear linear

relationships with the target feature, and that

cardiovascular disease diagnosis in real-life scenarios

cannot be solely based on simple linear relationships,

CatBoost, as a gradient boosting tree model,

possesses strong nonlinear modeling capabilities to

construct accurate and robust predictive models based

on complex features.

Prediction of Heart Failure Occurrence Based on the Categorical Boosting Model

Figure 5: The commonly used evaluation metrics for the CatBoost model (Photo/Picture credit :Original).

Table 2: Comparison of Evaluation Metrics.

Model Accuracy AUC Recall Prec. F1

CatBoost 0.8813 0.9368 0.908 0.8824 0.8946

Gradient Boosting 0.8643 0.9298 0.8795 0.8762 0.8771

Light Gradient Boosting Machine 0.8606 0.9233 0.8903 0.8639 0.8763

Random Forest 0.8583 0.9276 0.8861 0.8641 0.8739

Extra Trees 0.8582 0.9232 0.8884 0.864 0.8741

Linear Discriminant Analysis 0.857 0.9255 0.884 0.8635 0.8728

Logistic Regression 0.8521 0.9249 0.8816 0.8579 0.8689

Extreme Gradient Boosting 0.851 0.922 0.8772 0.8582 0.8671

Naive Bayes 0.8473 0.914 0.86 0.8659 0.8618

Ada Boost 0.8473 0.9109 0.8707 0.8574 0.8633

K Neighbors 0.8316 0.89 0.8644 0.8415 0.8512

Decision Tree 0.7832 0.7804 0.8072 0.8028 0.8041

Quadratic Discriminant Analysis 0.7698 0.8237 0.7837 0.8103 0.785

As for the RT model, firstly, RT models have

several hyperparameters that can be adjusted, such as

the number of trees, maximum depth, and learning

rate. It is possible that the hyperparameters used in

this study may not have been the most suitable for this

dataset, leading to suboptimal performance.

Secondly, RT models have strong fitting capabilities,

which can sometimes result in overfitting issues. In

contrast, the CatBoost model effectively mitigates the

risk of overfitting through techniques such as

regularization and adaptive learning rates.

In conclusion, the application of the CatBoost

model for HF prediction not only demonstrated

excellent performance in this experiment but also

holds promising research value and prospects for

practical applications.

0,85

0,86

0,87

0,88

0,89

0,9

0,91

0,92

0,93

0,94

0,95

Accuracy AUC Recall Prec. F1

CatBoost

EMITI 2024 - International Conference on Engineering Management, Information Technology and Intelligence

5 CONCLUSION

This study selected a suitable heart dataset and

conducted machine learning model training on the

PyCharm platform. The PyCaret library was

introduced to facilitate the calling and training of

multiple models. Ultimately, through comparative

analysis with numerous models, the CatBoost model

demonstrated the best performance. The study also

analyzed the characteristics and training principles of

this model, as well as briefly explained the reasons for

its superior performance. Further comparisons

revealed that its evaluation metrics (Accuracy, AUC,

F1, Precision, Recall, etc.) surpassed those of other

models, indicating a significant advantage of the

CatBoost model in predicting HF.

The sample size of the dataset chosen for this

study was relatively small, which may limit the

generalizability of the resulting models. Future work

could involve collecting additional relevant datasets,

combining them to increase the sample size, and then

conducting further model training and comparisons.

Future endeavors could focus on collaborating

with clinical practitioners to validate and implement

the model in clinical settings, in order to assess its

reliability and practical utility. Simultaneously,

exploring the application of the model in mobile

healthcare devices and remote monitoring systems

could assist healthcare professionals and enable

personalized health management for patients. These

efforts have the potential to enhance the efficiency

and quality of the healthcare industry, offering new

possibilities for disease prevention and management.

REFERENCES

Bzdok, D., Altman, N., Krzywinski, M. 2018. Statistics

versus machine learning. Nature Methods, 15(4): 233-

Duan B., S, J. 2021. Analysis and classification of heart rate

using CatBoost feature ranking model. Biomedical

Signal Processing and Control, 68.

Kobayashi, M., Huttin, O., Magnusson, M., et al. 2021.

Machine Learning-Derived Echocardiographic

Phenotypes Predict Heart Failure Incidence in

Asymptomatic Individuals. JACC. Cardiovascular

Imaging.

Kuan, H. K., C, V. R., et al. 2019. Peering Into the Black

Box of Artificial Intelligence: Evaluation Metrics of

Machine Learning Methods. AJR. American journal of

roentgenology, 212(1): 38-43.

Khaled, R., Raymond, B., Dewar, F., et al. 2022. Machine

learning and the electrocardiogram over two decades:

Time series and meta-analysis of the algorithms,

evaluation metrics and applications. Artificial

Intelligence in Medicine, 132: 102381-102381.

Lyon, A., Mincholé, A., Martínez, J. P., et al. 2018.

Computational techniques for ECG analysis and

interpretation in light of their contribution to medical

advances. Journal of the Royal Society Interface.

Song, Y. X., Ma, X. Y., Wang, S. C., et al. 2023. Research

progress on the application of machine learning in

predicting heart failure. Chinese Journal of Evidence-

Based Cardiovascular Medicine, 15(01): 118-119+126.

Strom, J. B., Sengupta, P. P. 2021. Predicting Preclinical

Heart Failure Progression: The Rise of Machine-

Learning for Population Health. JACC. Cardiovascular

Imaging.

Vickers, J. 2018. What’s the difference between machine

learning and deep learning? Vision Systems Design,

23(9).

Zhong H. 2007 Guidelines for the Diagnosis and Treatment

of Chronic Heart Failure. Chinese Journal of

Cardiovascular Disease, 35(12): 1076-1095.

Prediction of Heart Failure Occurrence Based on the Categorical Boosting Model
